Bosch Security Systems M520 BELTPACK TRANSCEIVER User Manual Telex Model TR 1 Beltpack
Bosch Security Systems, Inc. BELTPACK TRANSCEIVER Telex Model TR 1 Beltpack
USERS MANUAL
Telex Model TR-1 Beltpack From the LCD display and buttons the following
menus may be obtained:
• Group and Channel
• Transmit Frequency
• Receive Frequency
• Battery Life
• Microphone Gain

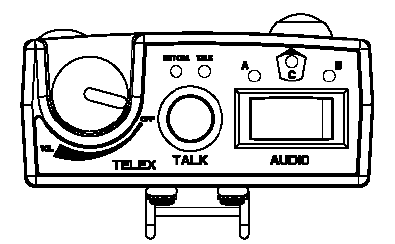

The on/off/volume control, talk button, talk light, low
battery indicator, microphone level indicator, A/B
audio rocker switch and lights, are located on the top
panel.
Owners / Users Manual
(Preliminary Information)
The C audio button is located on the front panel.
General Description: Transmit and receive antennas are attached to the TR-
1. Either or both unscrew for field replacement but are
not coaxial connectors.
The Telex model TR-1 beltpack transceiver is a
component of the BTR-1 wireless intercom system.
The TR-1 is intended for use as a belt worn wireless
full duplex mobile intercom radio for use in a
professional installation such as television or cinema
production.
The TR-1 beltpack can be powered by AA Alkaline or
a Nickel-Metal Hydride Battery pack.
Each BTR-1 base station can be used with one TR-1.
The TR-1 transmits within the 614 to 746 MHz range
(TV Channels 38-59). It receives in the 482 to 608
MHz range (TV Channels 16-36). The TR-1
transmitter operates on a single frequency within an 18
MHz wide section of the transmit frequency range.
The receiver also operates on a single frequency within
an 18 MHz wide section of the receiver frequency
range.
Typical transmitter conducted output Power is 50 mW.
The TR-1 transmit power can be set to automatically
reduced when the unit is close-in to the base station to
aid in intermodulation reduction and unnecessary
transmit power.
Operating frequencies can be selected from pre-set
groups or the user can select special operating
frequencies within the 18 MHz wide allotments.
The LCD display and buttons plus the talk function
switch, is located on the back panel.
Page 1 of 1

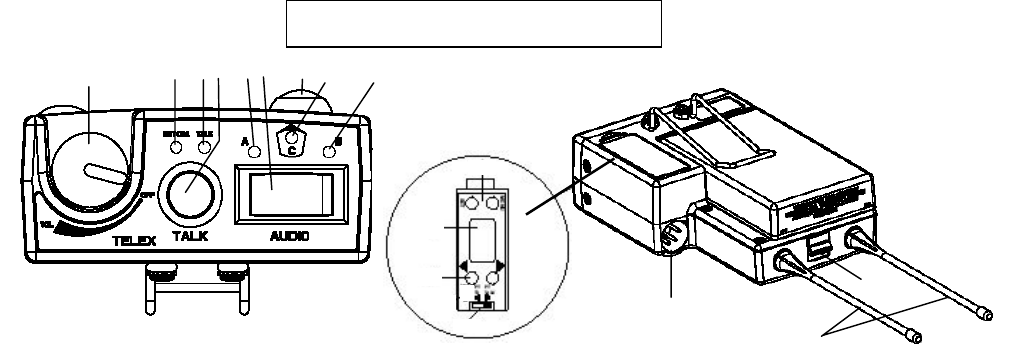

Controls and Connections
1. On/Off & Volume Control – Turns the beltpack power on and controls
headset volume.
11
10
9
5 6 8
7
4 5
3
2
1
15
14
13
12
9. [MENU] and [SET] buttons – Used to select menus and set options
on the LCD.
2. BAT/O.M. Light –
Battery - Light flashes once on power up = Battery OK 10. LCD display.
Light on continuously = Battery Low
Light does not flash or come on = Battery Dead 11. [UP] and [DOWN] buttons - Used to select menus and set options on
the LCD.
Microphone Lvl: Light flashes on loudest speech = Gain OK
Light flashes on all speech = Gain too High 12. Push-to-Talk/Push-to-Transmit Switch –
Light never flashes on loudest speech = Gain too Low PT TALK (Push-to-Talk) – The transmitter is always on.
No audio is sent unless the talk button is active.
Recommended position.
3. Talk Light – Light on if talk button active.
4. Talk Button – Press to enable the audio path from the headset. PT TX (Push-to-Transmit) – The transmitter and audio
path are off except when the talk button is active.
Software Selectable modes: Push-to-Talk
Push-to-Latch
13. Headset Connector – XLR Plug for Telex units, XLR Receptacle for
RTS units.
5. A and B Lights – “A” light is on if Selection Switch in A position.
“B” light is on if Selection switch in B position.
14. Battery Latch – Press down to enable the battery pack to be released.
While the latch is held down, slide the battery pack about 1/8 inch
back, toward the latch, until it stops, then lift out.
6. Selection Switch – Switches between base station presets A or B.
7. “C” Pushbutton – Press to enable the base station “C” presets.
Software Selectable modes: Push-to-Talk 15. Receive and Transmit Antennas – The antennas are screw type, ¼
wave, replaceable antennas. The color dot on the screw end of the
antenna must match color dot on antenna receptacle.
Push-to-Latch
Off
8. “C” Button Light – “C” light is on if “C” pushbutton active.
Page 2 of 2
Page 3 of 3
Specifications:
General:
Input Power…………..9.0 VDC Alkaline or NiMH.
Antennas…………………………………Attached
TX / RX………………..One TX, one RX
Frequency agile, 25 KHz steps,
within 18MHz wide allotments.
Frequency Range
TX…………….614 – 746 MHz
RX…………….482 – 608 MHz
(within 18MHz wide allotments)
TX / RX Data Rate………………..….150 kbps
Transmitter:
RF Power Output…………………50 mW typical
(terminated)
Modulation type………………….GMSK
Audio Frequency Response………100 Hz to 7 kHz
Microphone Sensitivity ……..……7.75 mV
Receiver:
Sensitivity…………<0.8uV for 12 dB SINAD Typical
Audio Frequency Response….100 Hz to 7 KHz
Audio Output (headset)…….40 mW, 600 Ohms
(1% Distortion)
