Bosch Termotecnologia S.A. Remote Control 6720607072 0401 GWH635ES 16 January
Users Manual
Water heaters for use with Natural and L.P.G.
GWH-635-ES
Temperature Modulated with Electronic Ignition
Suitable for heating potable water only - Not approved for space heating purposes
(Intended for variable flow applications with multiple tapping points)
GWH-635-ES-N
GWH-635-ES-L
6 720 607 072 (16 January) JS
PRO TANKLESS
Warning: If the information in this manual is not
followed exactly. A fire or explosion may result
causing property damage, personal injury or death.
Do not store or use gasoline or other flammable
vapor and liquids in the vicinity of this or any other
appliance.
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information consult a
qualified installer, service agency or the gas
supplier.
In the Commonwealth of Massachusetts this
product must be installed by a licensed plumber or
gas fitter.
Upon completion of the installation, these
instructions should be handed to the user of the
appliance for future reference.
What to do if you smell gas
• Close gas valve. Open windows.
• Do not try to light any appliance
• Do not touch any electrical switch; do not use any
phone in your building
• If you cannot reach your gas supplier, call the fire
department.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions
• Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
6 720 607 072 (16 January)
2
Index
Index
1 Warning 2
2 Appliance details 4
2.1 Features 4
2.2 GWH-635-ES Specifications (Technical data) 4
2.3 Dimensions and Minimum installation clearances 6
2.4 General rules to follow for safe operation 7
2.5 Proper location for installing your heater 7
2.6 Clearances 8
2.7 Mounting installation 8
2.8 Combustion air requirements 8

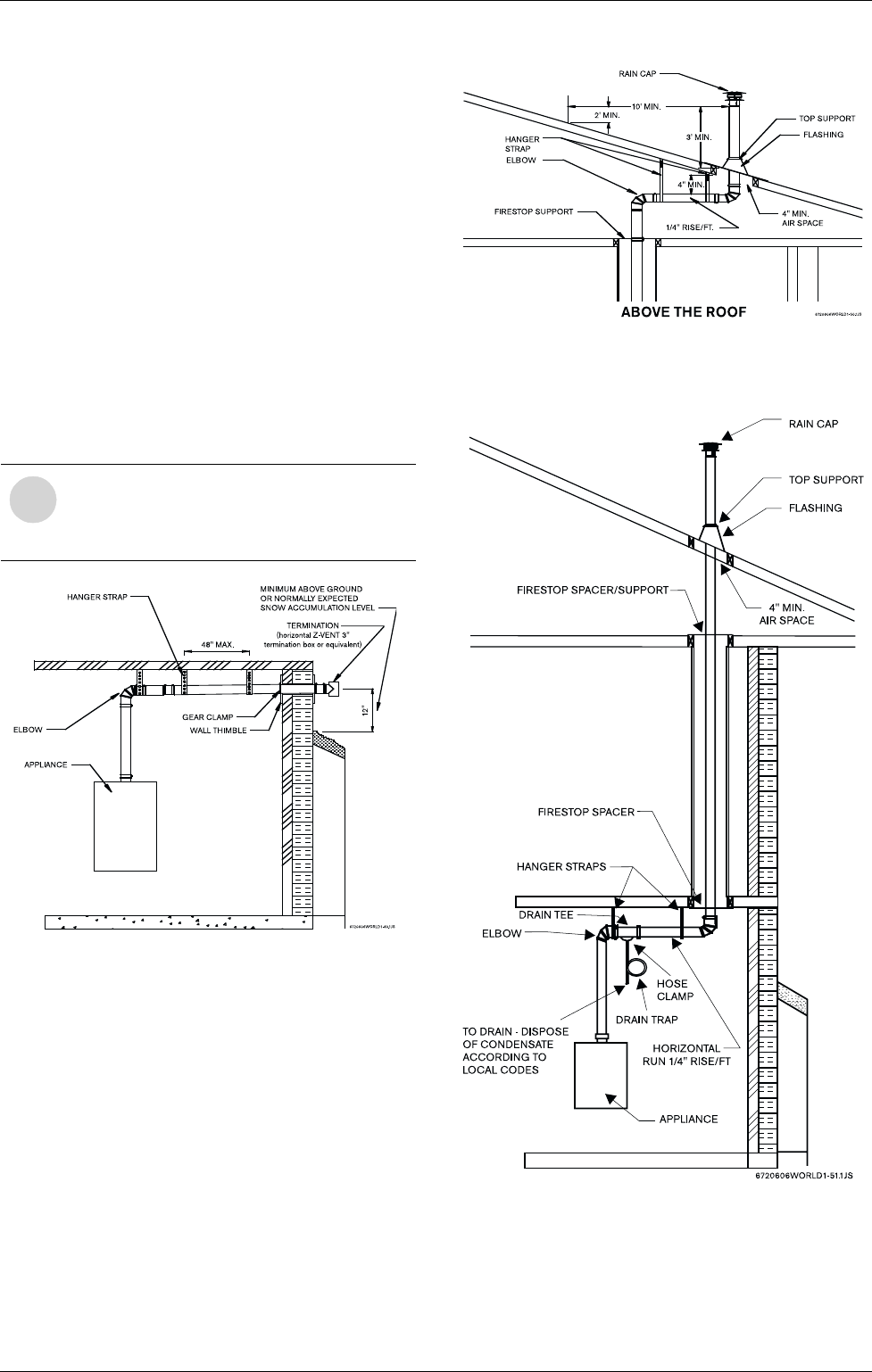

2.9 Venting 9

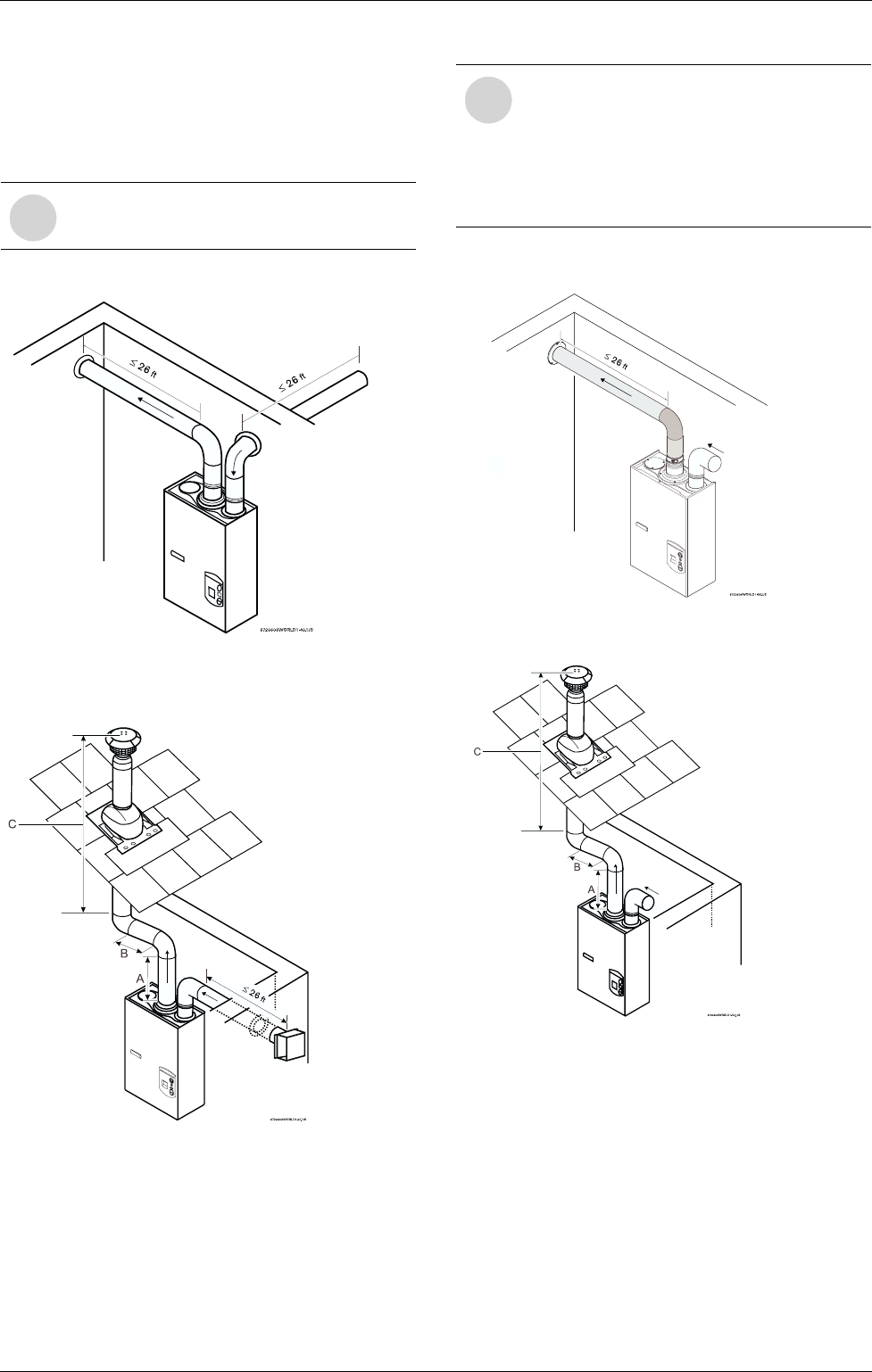

2.9.1 Venting options 12
2.10 Gas piping & connections 15
2.11 Gas line sizing 17
2.12 Measuring gas pressure 17
2.13 Water connections 18
2.14 Electrical connections 20
2.15 Operating instructions 20
2.16 For your safety read before operating your water heater 20
2.17 Lighting and operating instructions 20
3 Operation instructions 22
3.1 Power 22

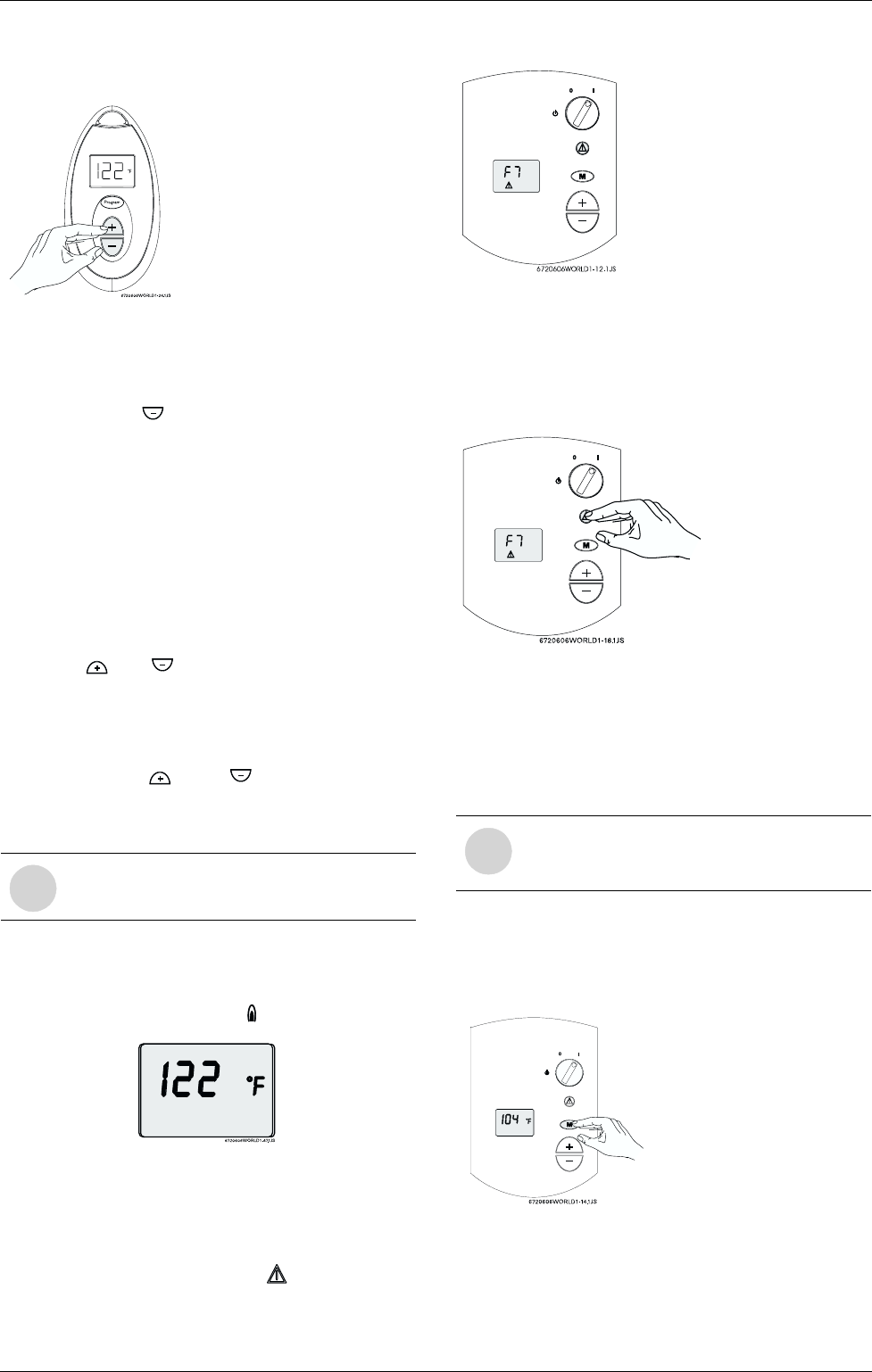

3.2 Temperature selection 22
3.3 New remote control registration 24
3.4 Operation 24
3.5 Reset button 24
3.6 Program button 24
3.7 Locked condition 25
4 Maintenance and service 25
5 Troubleshooting 25

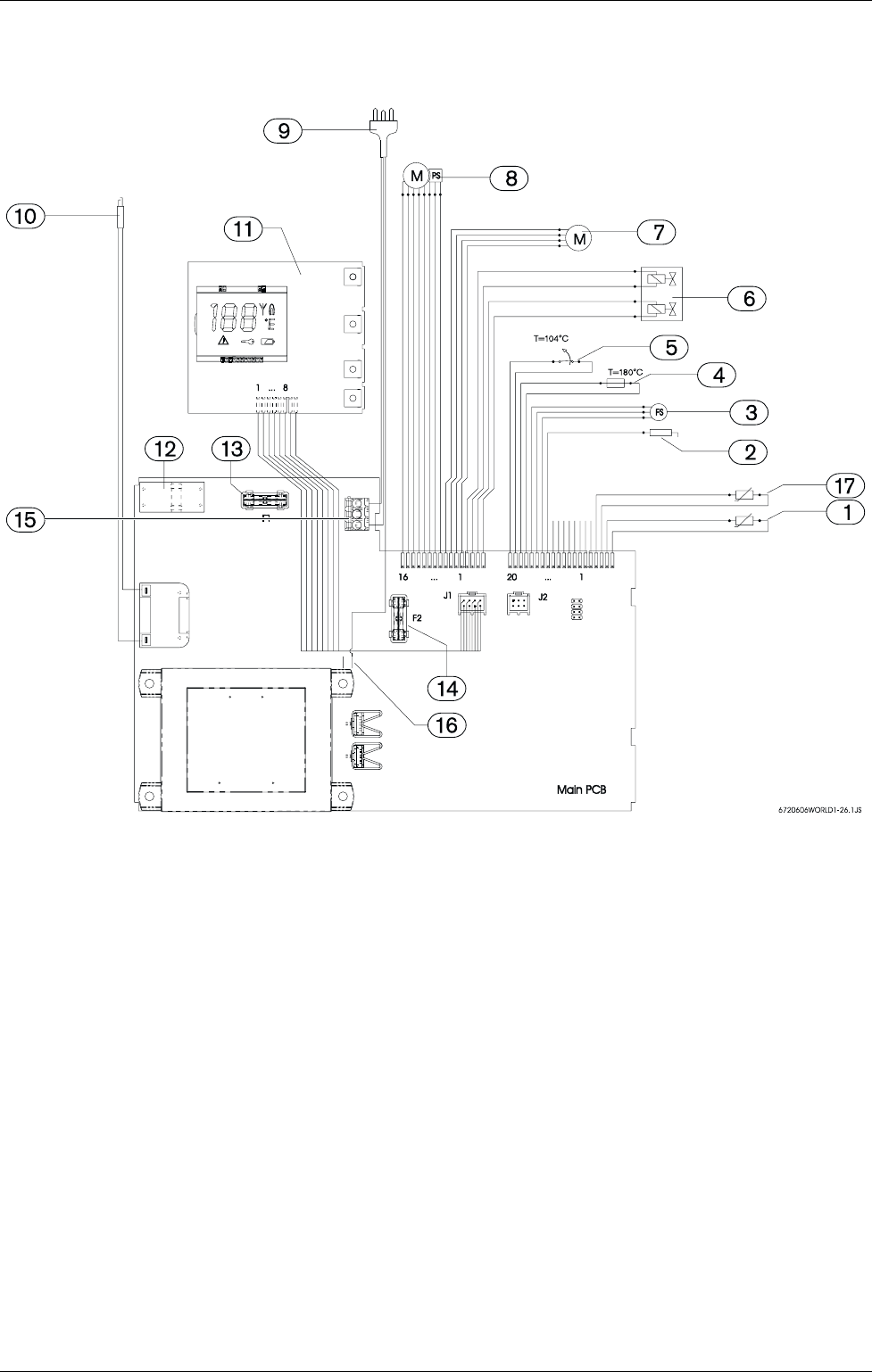

6 Electrical diagram 28

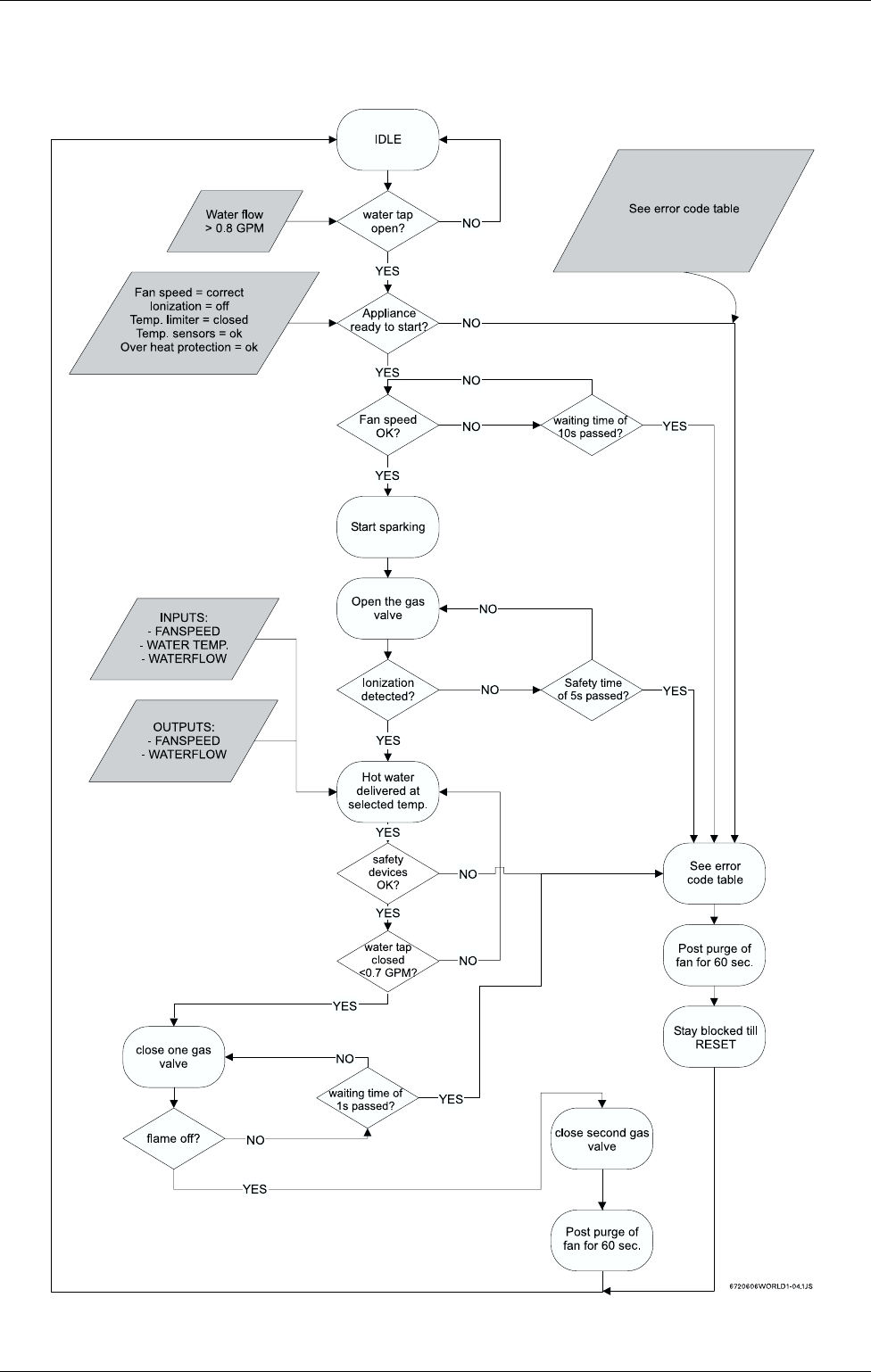

7 GWH-635-ES Functional scheme 29
8 Interior components diagram and parts list 30

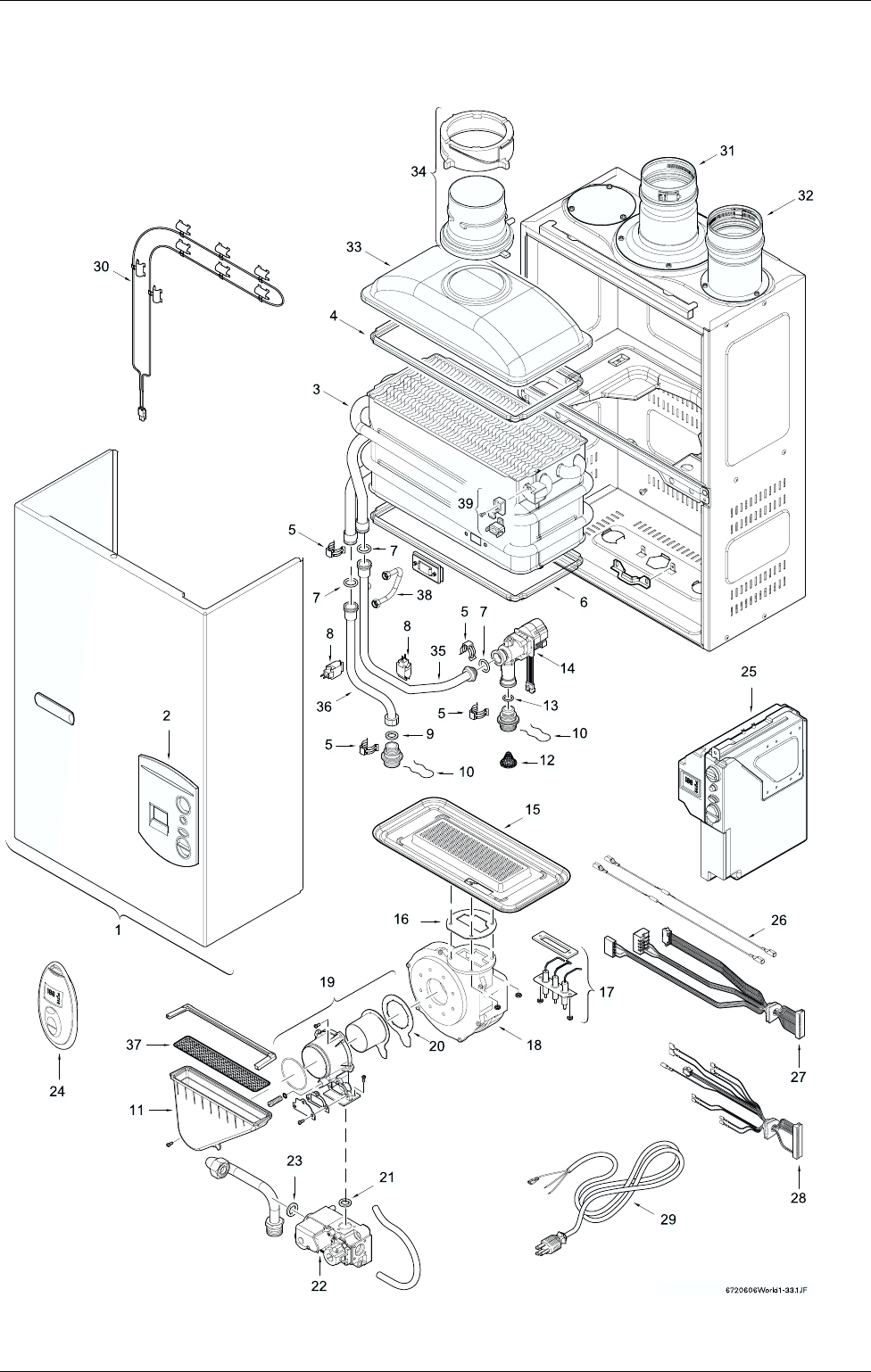

8.1 Interior components 30
8.2 Components diagram 31
8.3 Parts list 32
9 Special adjustment for measuring and adjusting CO
2
levels 33
9.1 Adjusting the unit 33
9.1.1 CO
2
measuring port 33
9.1.2 Selecting adjustment mode 33
10 Protecting the environment 35
11 Fifteen Year Limited Warranty 36
1Warning
Featuring
Electronic Ignition and Power Venting
For your safety
Do not store or use gasoline or other flammable,
combustible or corrosive vapors and liquids in the
vicinity of this or any other appliance.
Warning: If the information in this
manual is not followed exactly. A fire or
explosion may result causing property
damage, personal injury or death.
Warning: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Refer to this manual.
For assistance or additional information
consult a qualified installer, service
agency or the gas supplier.
Upon completion of the installation,
these instructions should be handed to
the user of the appliance for future
reference.
Warning: Carefully plan where you
install the heater. Correct combustion
air supply and flue pipe installation are
very important. If a gas appliance is not
installed correctly, fatal accidents can
result from lack of air, carbon monoxide
poisoning or fire.
Warning: Exhaust gas must be vented
to outside using proper vent material
suitable for category III vent systems
and temperatures up to 480°F. Vent
and combustion air connector piping
must be sealed gas-tight to prevent
possibility of flue gas spillage, carbon
monoxide emissions and risk of fire,
resulting in severe personal injury or
death.
Warning: Place the heater in a location
where water leaks will do NO DAMAGE
to adjacent areas or lower floors.
6 720 607 072 (16 January)
Warning
3
What to do if you smell gas
• Close gas valve. Open windows.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
• Installation and service must be performed by a
qualified installer, service agency or the gas supplier.

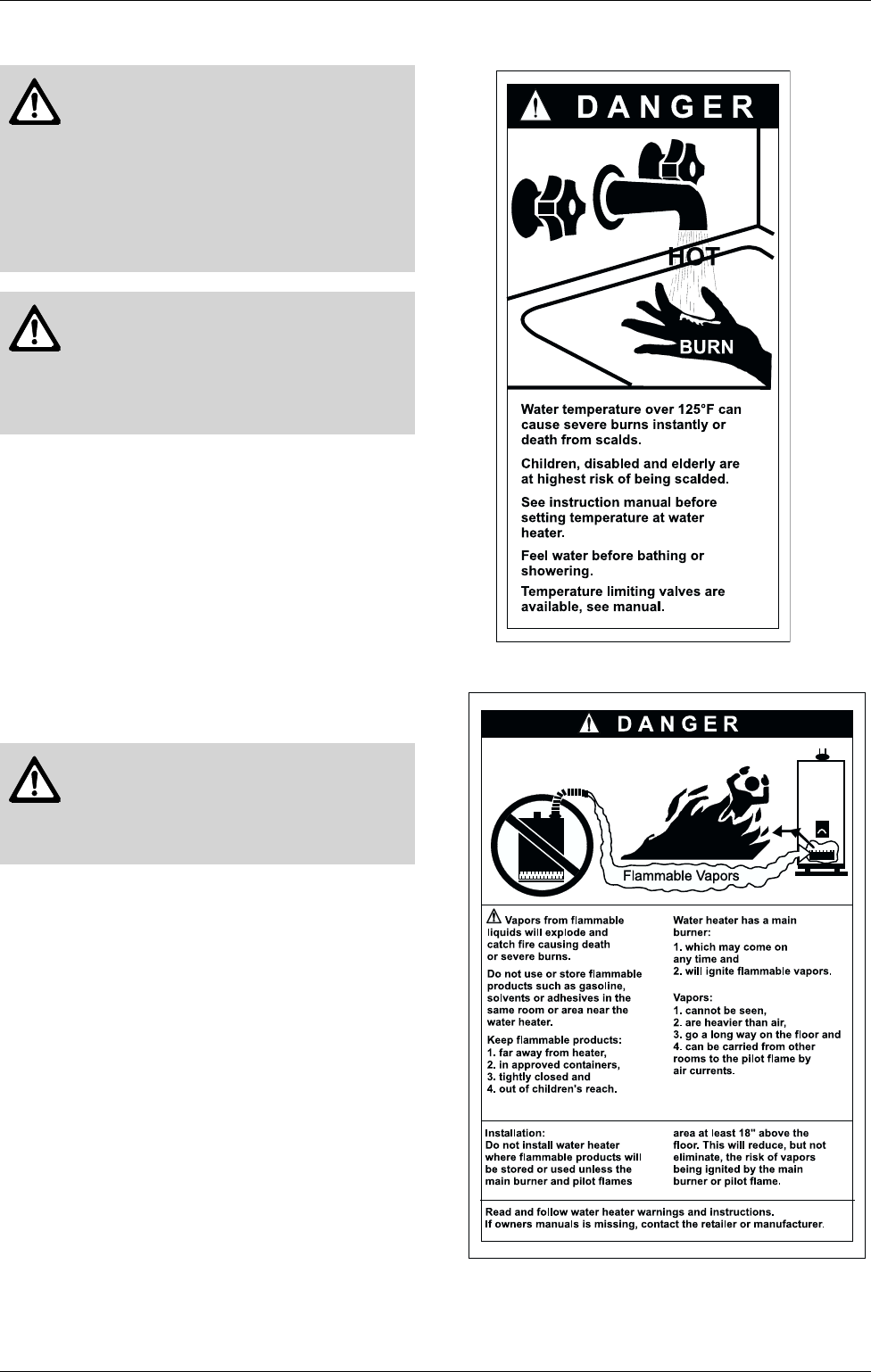

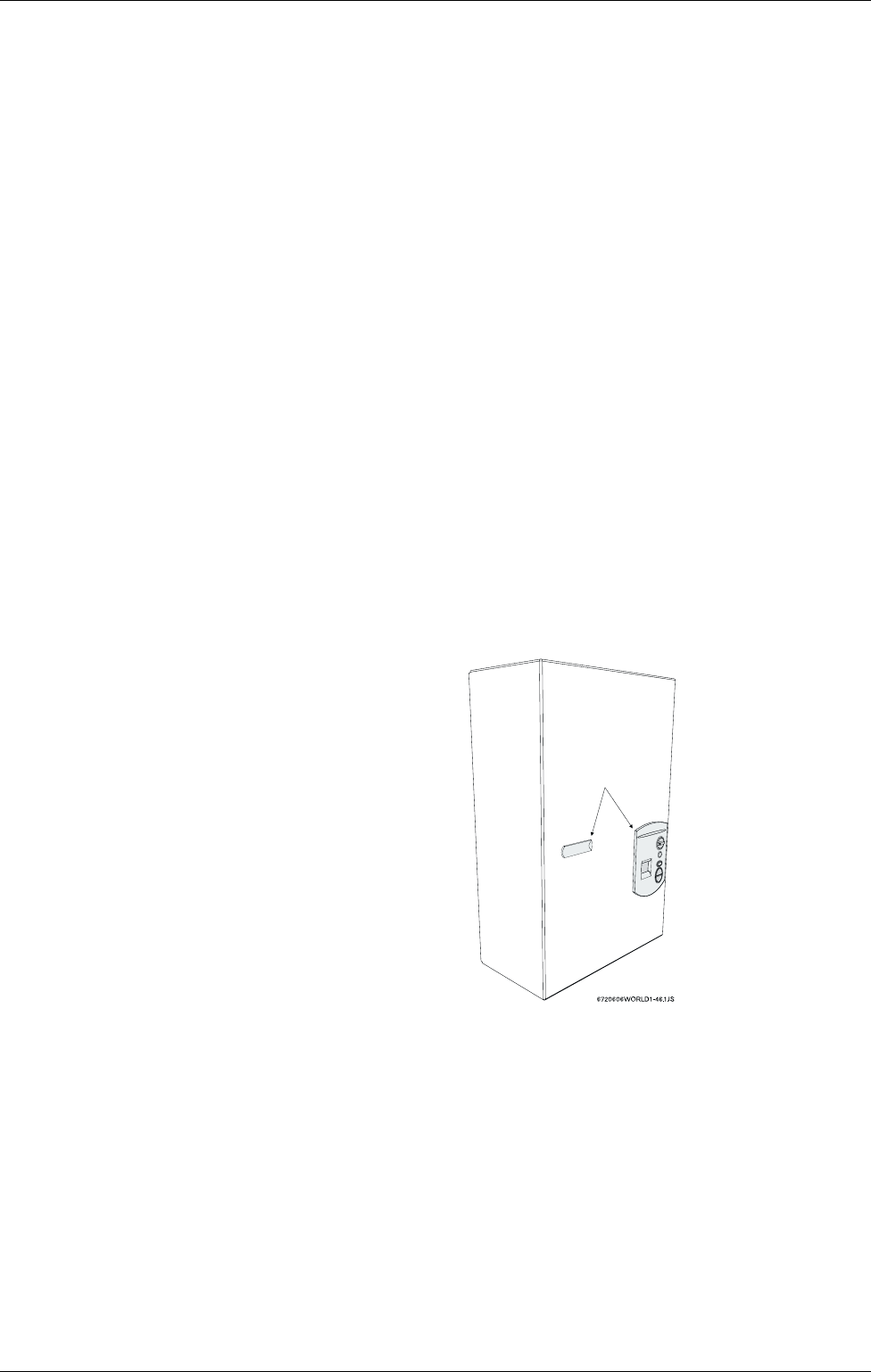

Fig. 1
Fig. 2
Warning: Field wiring connections and
electrical grounding must comply with
local codes, or in the absence of local
codes, with the latest edition of the
National Electric Code, ANSI/NFPA 70,
or in Canada, all electrical wiring must
comply with the local codes and the
Canadian Electrical Code, CSA C22.1
Part 1.
Warning: Shock hazard line voltage is
present. Before servicing the water
heater, turn off the electrical power to
the water heater at the main disconnect
or circuit breaker. Failure to do so could
result in severe personal injury or death.
Warning: The heater must be
disconnected from the gas supply
piping system during any pressure
testing of that system at test pressures
equal to or more than 0.5 psig.
FCC:
This device complies with Part 15 of the FCC
rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Caution:
Any changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
6 720 607 072 (16 January)
4
Appliance details
2 Appliance details
2.1 Features
Parts
• Touch Pad interface control
• High power pre-mix compact burner with low Nox
emissions
• Modulating Gas Valve with constant gas:air ratio
control
• Modulating water valve for improved comfort and
temperature control.
Safety
• Flame sensor (ionization) rod
• Overheat sensor
• Temperature limiter
• Fan speed monitoring.
High Quality Materials for Long Working Life
• Copper heat exchanger
• Ceramic Burner output
• Automatic overheating protection shut-off sensor
• Compact space saver: mounts on a wall with a
supplied bracket.
• Easily removable one-piece cover.
Features
• LCD Display
• On/Off and Temperature control switches
• Reset button
• Program Key (Selectable temperature default)
• Failure codes for easy diagnostic and repair.
Accessories
• Optional wireless remote control accessory to
operate with the appliance
• Vent termination kit.
2.2 GWH-635-ES Specifications
(Technical data)
Approved in US/Canada
Capacity
Maximum flow rate: 6.35 GPM (24 l/min) at a 45°F
(25°C) rise.
Maximum output
142,968 Btu/h (41.8 kW)
Maximum input
175,000 Btu/h (51.2 kW)
Efficiency in %
Recovery efficiency 86.5%
Min. Output
31,131 Btu/h (9.1 kW)
Temperature Control
Selection range: 100°F (38°C) - 140°F (60°C)
Default temperature: 122°F (50°C)
Stability: +/- 2°F (+/- 1°C)
Gas Requirement
Gas connection (inches) - ¾”
Inlet gas pressure under operation (with a high hot
water flow rate)*
• Propane: 11” - 14” water column
• Natural Gas: 5” - 14” water column
• Gas pressure measuring point inside the appliance
at the gas valve inlet.
* Testing with a manometer, operate other gas
equipment on the same gas supply. Gas pressures
lower than 5" W.C. for Natural Gas or 11" W.C. for
LPG will result in insufficient degree rise to the hot
water being used. See Measuring Gas Pressure,
chapter 2.12.

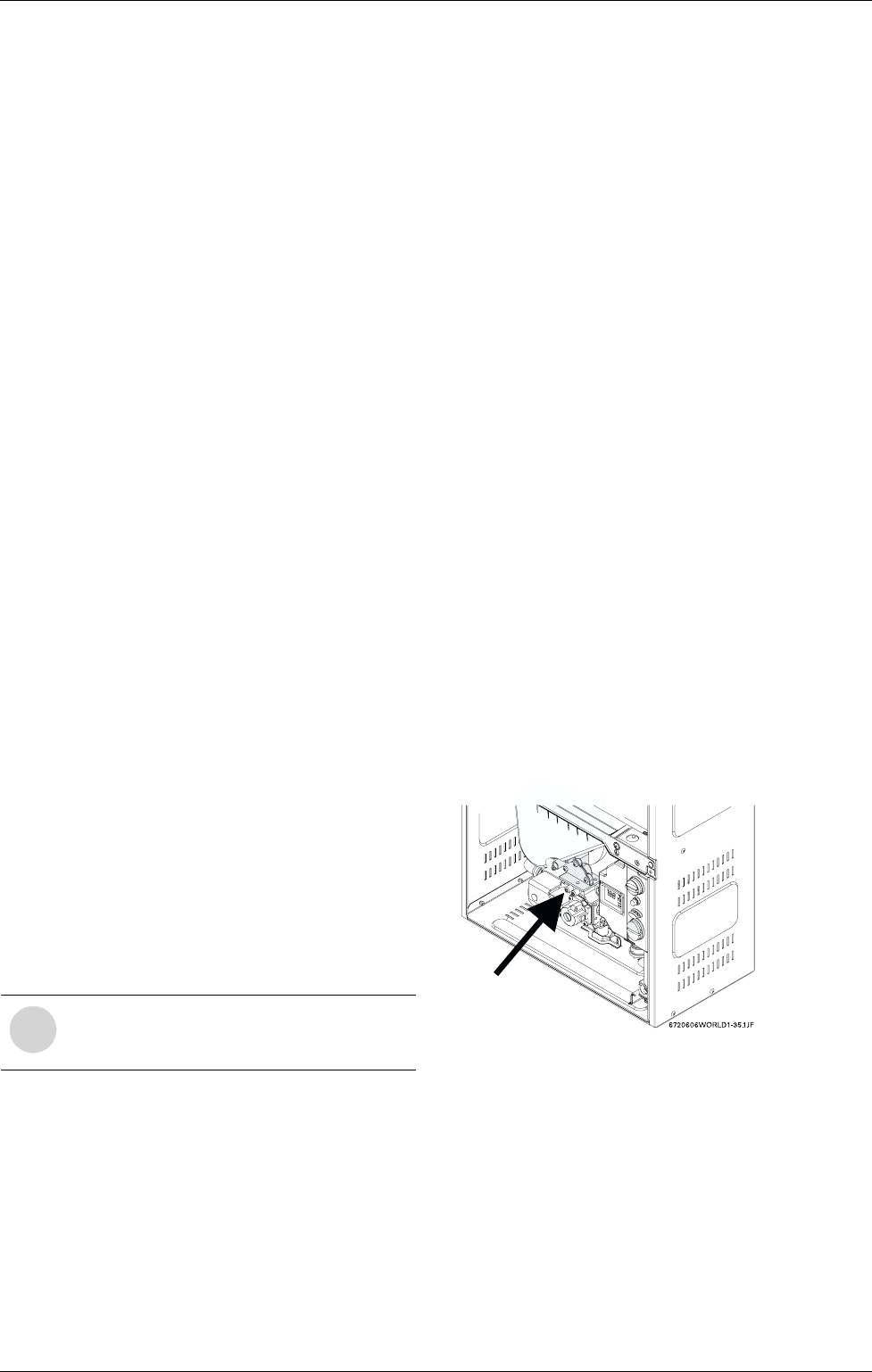

Fig. 3 Gas pressure measuring point
Venting
See chapter 2.9 for Venting on page 9.
Water
• Hot water connection (inches) - ¾”
• Cold water connection (inches) - ¾”
• Water valve material: Polymer (PPS) (Polypropylene
Sulfid)
• Minimum water flow: 0.8 gallon/minute (3 l/m)
i
BOSCH is constantly improving its
products, therefore specifications are
subject to change without prior notice.
6 720 607 072 (16 January)
Appliance details
5
• Minimum recommended water pressure range: 30
PSI (2.07 bar)
• Connections:
– Bottom of heater
Combustion
•NOx ≤ 55 ppm
•CO ≤ 200 ppm
•CO
2
level set from factory, see chapter 9.1.
Dimensions
• Depth (in): 8 ½” (220 mm)
• Width (in): 15 ¾” (400 mm)
• Height (in): 23 ½” (600 mm)
• Weight: 47 pounds (21 kg).
Gas types
Natural Gas.
LP Gas.
Converting the gas type can only be done by a certified
gas technician with a calibrated CO
2
analyzer. Call
CEC for conversion instructions.
Voltage
120 V AC (60 Hz)
Amperage
IDLE - 40 mA
Operation - ≤ 2,5 A
Noise
≤ 50 db (A)
Safety devices
• Flame failure device (ionization flame rod sensor)
• Pressure relief valve (supplied with heater)
• Over heat prevention (temperature limiter).
Water resistant
IP X4 (protection against water drops)
UNPACKING THE GWH-635-ES HEATER
This heater is packed securely.
The box includes:
• Pressure relief valve
• Bracket for wall hanging the heater
• Exhaust vent adaptor (with 4 screws and gasket
provided)
• Combustion air inlet adaptor (with 3 screws and
gasket provided)
• Installation manual
• Product registration card.
Do not lose this manual. Please complete and return
the enclosed product registration card.
Before installing the unit, be certain you have the
correct heater for your type of Gas - Propane or
Natural Gas. Identification labels are found on the
shipping box, and on the rating plate which is located on
the right side panel of the cover.
To remove front cover
• Remove plastic decals on front panel
• Undo two Philips head screws located behind decals
• Lift front cover panel upward and remove.

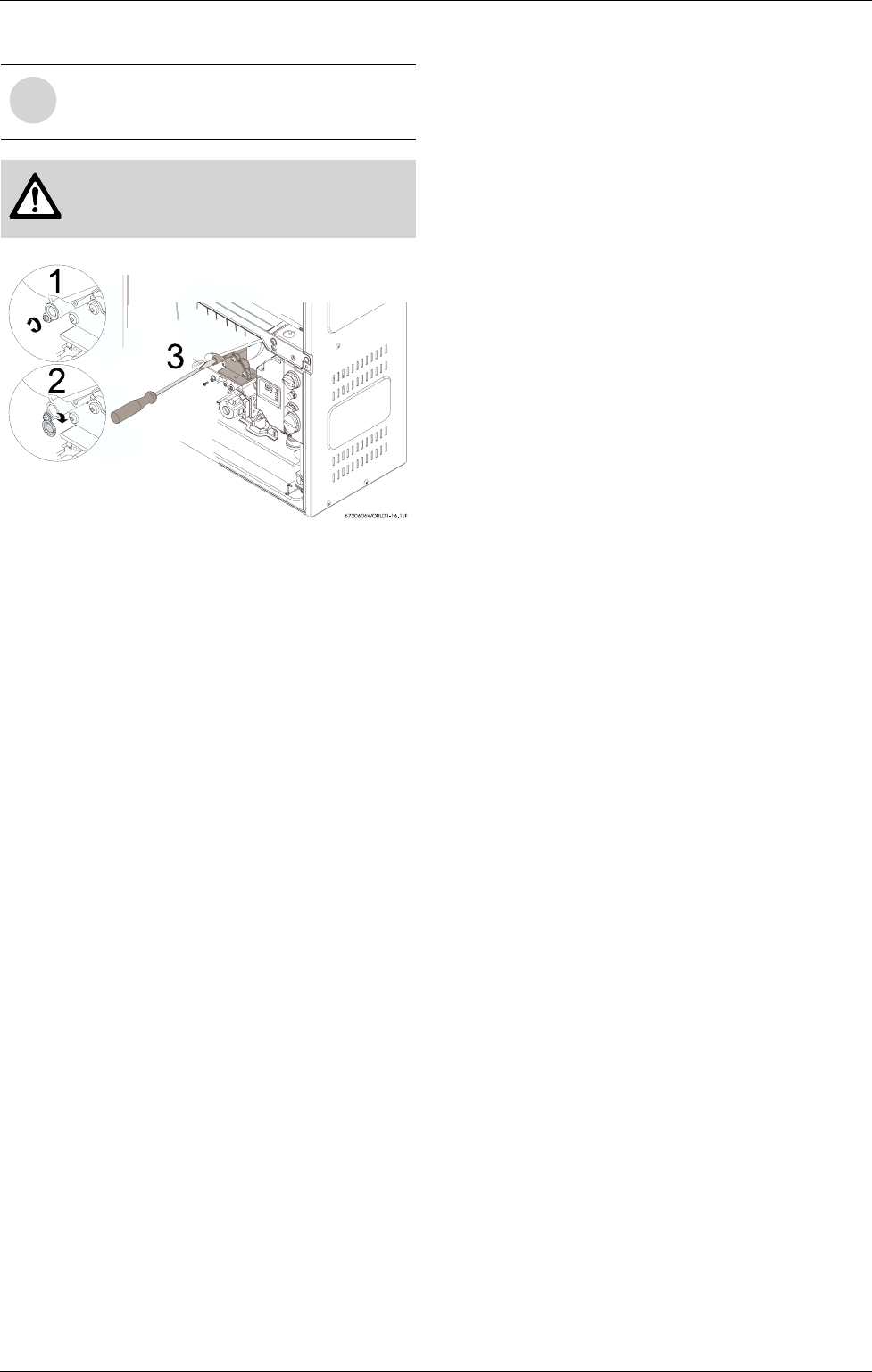

Fig. 4 Remove front cover
Plastic decals
6 720 607 072 (16 January)
6
Appliance details
2.3 Dimensions and Minimum installation clearances

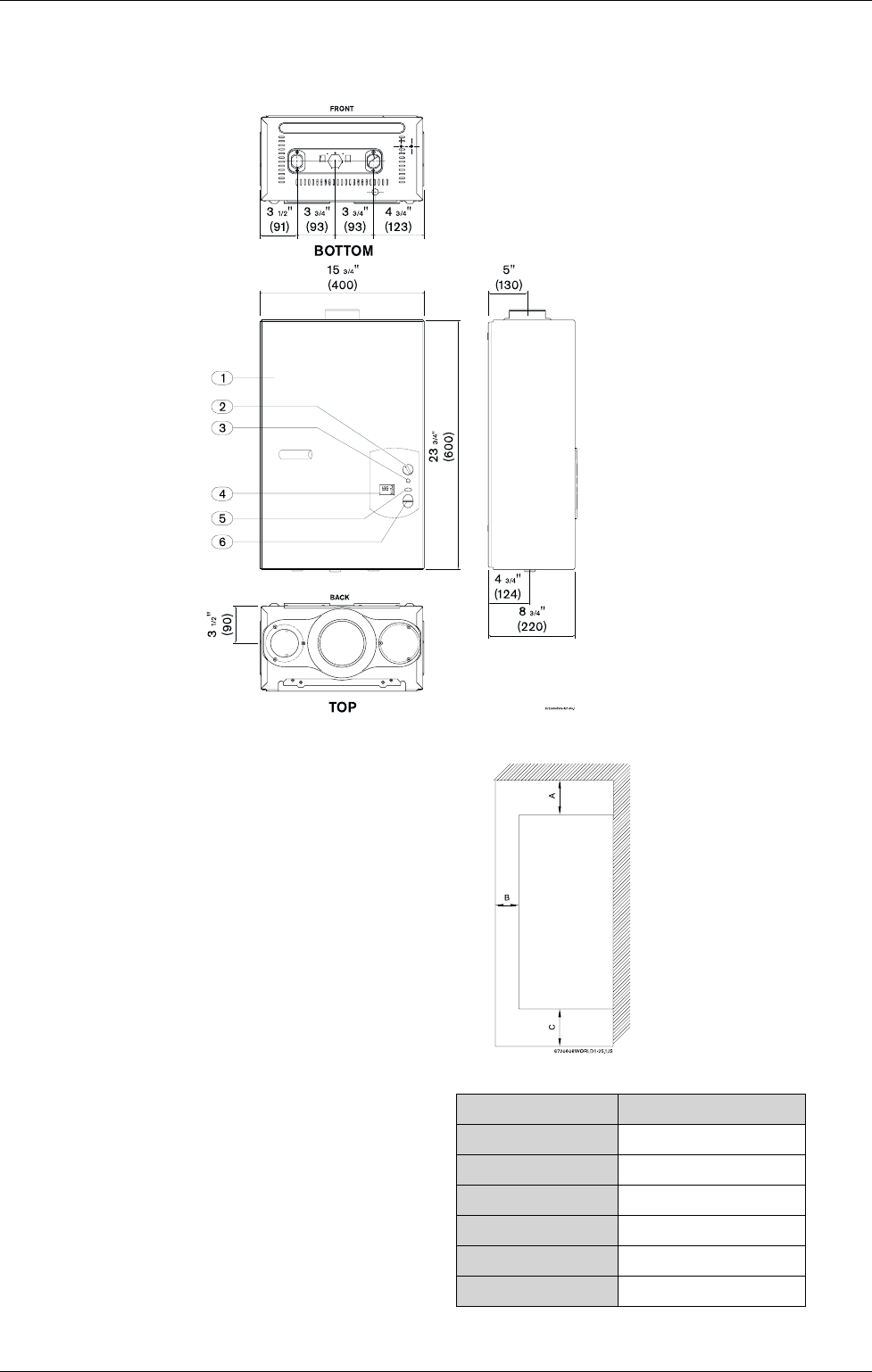

Fig. 5 Dimensions
1Cover
2On/Off switch
3Reset button
4LCD display
5Program button
6Temperature buttons
Fig. 6 Minimum clearances
Model GWH-635-ES
TOP (A) 12”
FRONT (B) 4”
BACK 0”
SIDES 4”
FLOOR (C) 12”
VENT DIAMETER 3”
Table 1 Minimum clearances
6 720 607 072 (16 January)
Appliance details
7
2.4 General rules to follow for safe
operation
B1. You should follow these instructions when you
install your heater. In the United States: The
installation must conform with local codes or, in the
absence of local codes, the National Fuel Gas Code
ANSI Z223.1/NFPA 54.
In Canada: The Installation should conform with
CGA B149.(1,2) INSTALLATION CODES and /or
local installation codes.
B2. Carefully plan where you install the heater. Correct
combustion air supply and vent pipe installation are
very important. If not installed correctly, fatal
accidents can be caused by lack of air, carbon
monoxide poisoning or fire.
B3. When the unit is installed indoors and ROOM
SEALED (twin pipe) it is permitted to be located in
bathrooms, bedrooms and occupied rooms that are
normally kept closed. See chapter 2.9. If the unit will
be installed indoors and use indoor combustion air,
the place where you install the heater must have
enough ventilation. The National Fire Codes do
not allow UNSEALED gas fired water heater
installations in bathrooms, bedrooms or any
occupied rooms normally kept closed. See
chapter 2.5 and 2.8.
B4. You must vent your heater. See section on
VENTING.
B5. The appliance must be isolated from the gas
supply piping system by closing its individual manual
gas shutoff valve (not supplied with heater) during
any pressure testing at pressures in excess of ½ Psig
(3.5 kPa).
The appliance and its gas connection must be leak
tested before placing the appliance in operation.
B6. Keep water heater area clear and free from
combustibles and flammable liquids. Do not locate
the heater over any material which might burn.
B7. Correct gas pressure is critical for the optimum
operation of this heater. Gas piping must be sized to
provide the required pressure at the maximum output
of the heater, while all the other gas appliances are in
operation. Check with your local gas supplier, and
see the section on connecting the gas supply.
B8. Should overheating occur or the gas supply fail to
shut off, turn off the gas supply at the manual gas
shut off valve, on the gas line. Note: manual gas
shutoff valve is not supplied with the heater.
B9. Do not use this appliance if any part has been
underwater. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas control
which has been underwater
2.5 Proper location for installing your
heater
Carefully select the location of the water heater. For
your safety and for proper heater operation, you must
provide combustion air to the heater and a proper
exhaust vent system.
Follow the guidelines below:
B1. Locate the heater where venting, gas and
plumbing connections are feasible and convenient.
B2. It is strongly recommended that the heater be
installed as a ROOM SEALED heater (twin pipe). If
the heater will be installed as an UNSEALED heater
(single pipe) than National building codes require
that you do not install this appliance in bathrooms,
bedrooms or any occupied rooms normally kept
closed. Heaters that are UNSEALED require a
considerable amount of combustion air, see
chapter 2.8. If installing the heater UNSEALED
within a laundry room, be certain that the dryer is
properly vented. Failure to properly vent a dryer could
result in a gradual accumulation of lint build up inside
the combustion chamber of the heater.
B3. The hot water lines should be kept short to save
energy. Centrally locating the water heater is best. It
is always best to have hot water lines insulated.
Warning: The water in this water
heater is cold and always remains cold
except for the times that hot water is
being used DO NOT INSTALL IN AN
AREA WHERE IT COULD FREEZE.
Drain the heater entirely if freezing
temperatures are anticipated in area
where heater is installed by
disconnecting both the inlet and outlet
connections at the bottom of heater.
To prevent any freeze damage,
introduce short bursts of compressed
air (20-40psi) through these
connections to remove the residual
water in the horizontal pipes and water
valve.
Warning: Flammable materials,
gasoline, pressurized containers, or any
other items or articles that are potential
fire hazards must NOT be placed on or
adjacent to the heater. The appliance
area must be kept free of all
combustible materials, gasoline and
other flammable vapors and liquids.
6 720 607 072 (16 January)
8
Appliance details
2.6 Clearances
The GWH-635-ES is design certified for installation on
a combustible wall (see 2.7 Mounting installation)
provided the floor covering below the heater is
noncombustible. For installations in an alcove or closet,
maintain the minimum clearances to combustible and
non-combustible materials listed below. See also Fig. 6.
A. Top 12 inches (306 mm)
B. Front 4 inches (102 mm)
C. 0 inches
D. Sides 4 inches (102 mm)
E. Bottom 12 inches (306 mm)
Clearances from any exhaust vent pipe are dependent
upon the clearance requirements of the stainless steel
vent pipe manufacturer. Single wall stainless steel
(AL29-4C) vent pipe (vent type rated for Category III
appliances) must be used when exhaust venting this
appliance. See 2.9 Venting.
2.7 Mounting installation
The GWH-635-ES is design certified for mounting on a
wall. Secure the wall mounting bracket provided with
the heater to a wall surface. See Fig. 7.
Do not install this appliance on a carpeted wall or over
floor covering which is combustible, such as carpet.
The heater must be mounted on a wall using
appropriate anchoring materials.
If the mounting bracket is unable to line up on two wall
studs it is recommended that support board(s), either
1x4's or ½" (minimum) plywood first be attached across
a pair of studs and then the heater should be attached
to the support boards. The heater should be kept level
on the wall surface. See Fig. 7.
Expansion and contraction of piping due to changing
water temperature in the pipes imparts movement to the
heater which, if mounted directly to a brittle, friable
board, such as plasterboard, can cause failure of
mounting.
Before installing the unit, be certain you have the
correct heater for your type of Gas - Propane or
Natural Gas. Identification labels are found on the
shipping box, and on the rating plate which is located on
the right side panel of the cover.

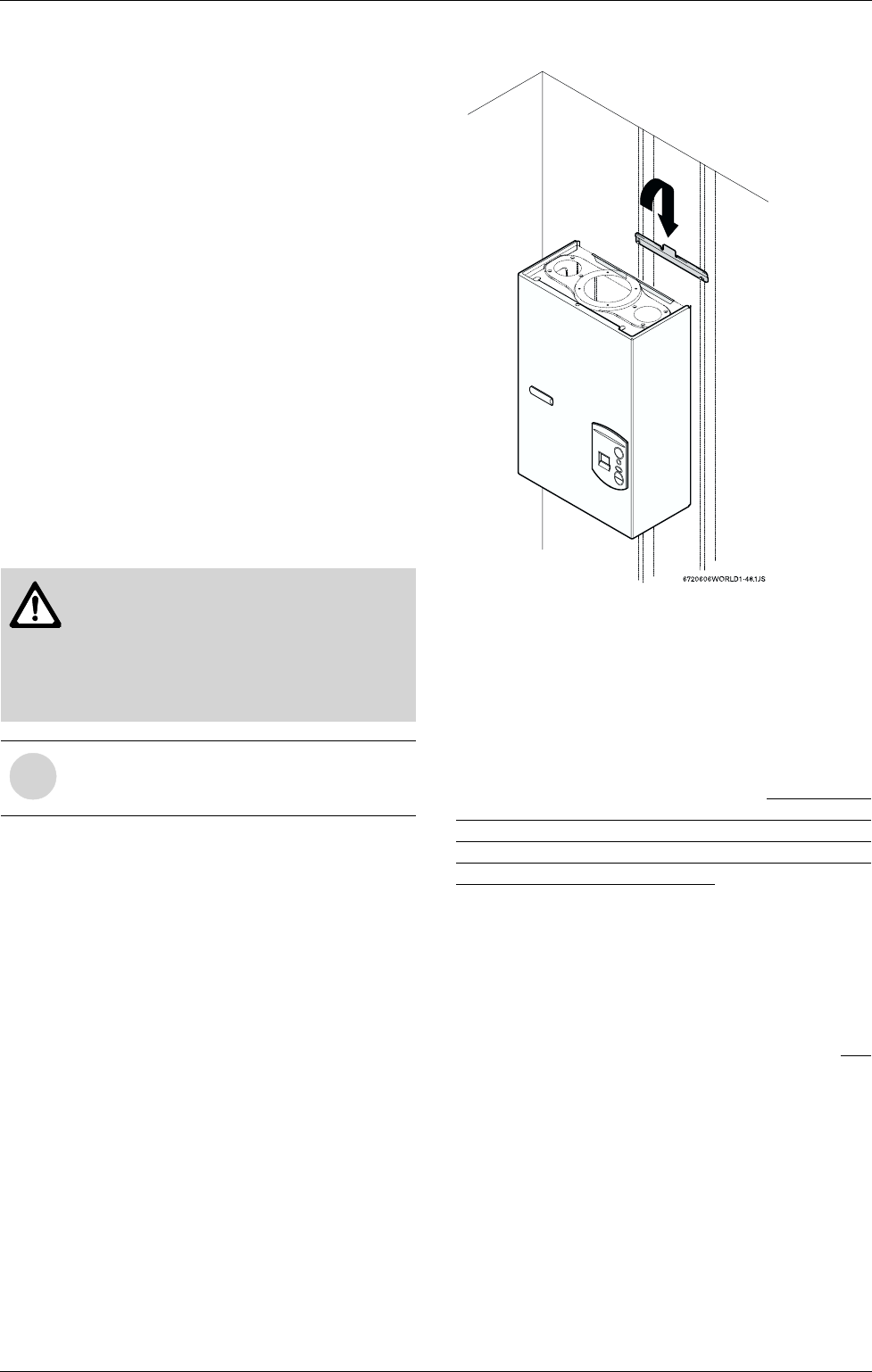

Fig. 7 Mounting the heater
2.8 Combustion air requirements
The GWH-635-ES is a sealed water heater and it is
recommended that outdoor combustion air be piped to
the unit. When combustion air is piped to the unit
(TWIN PIPE SYSTEM) the combustion air pipe system
may be constructed of either 3" PVC, aluminum or
galvanized pipe. See Fig. 11, 12 and 13. Select a point
for building penetration being sure that the necessary
clearance on the outside of the building, between the
combustion air pipe and the exhaust vent terminator of

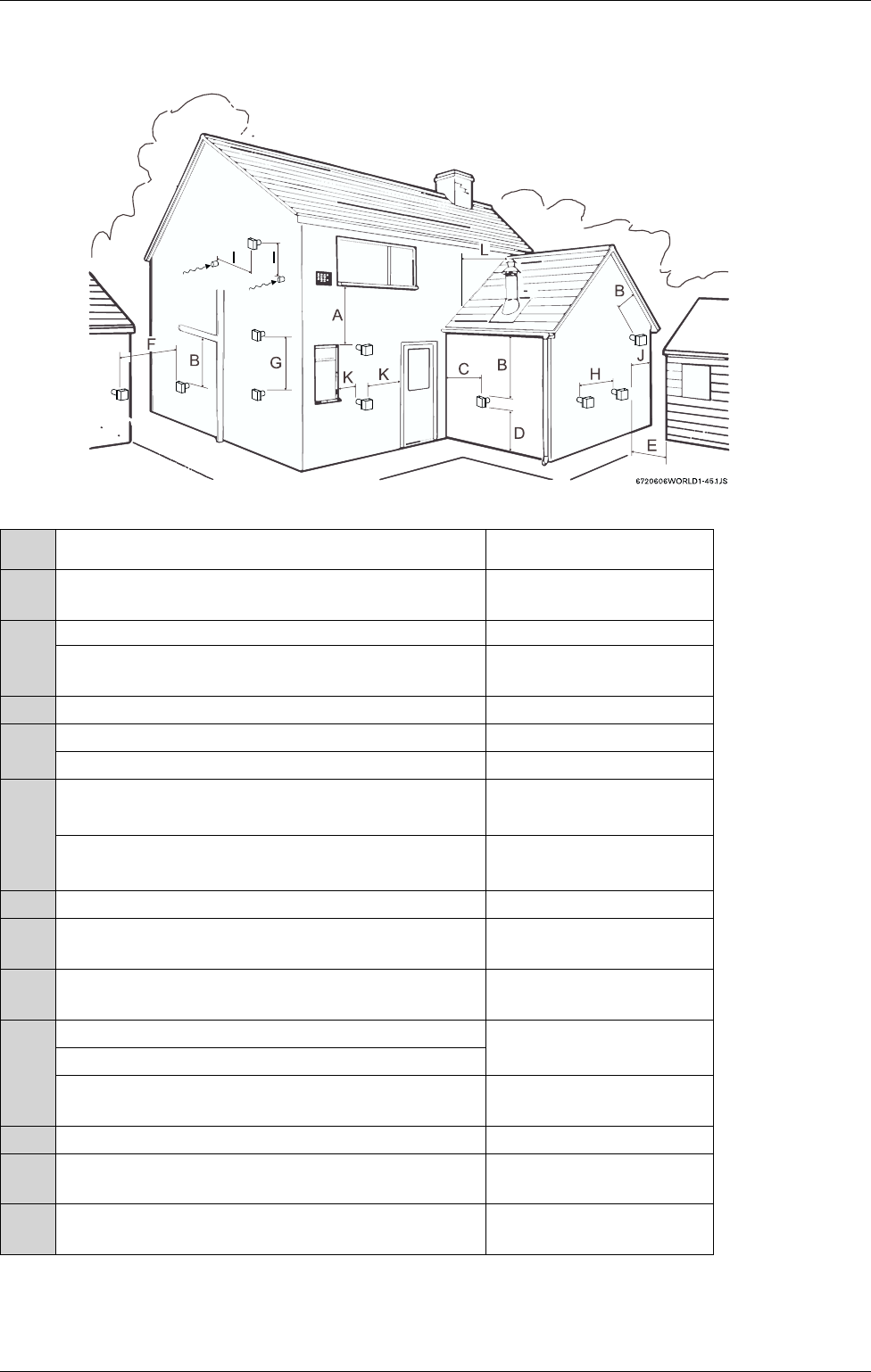

the appliance, can be maintained, see Fig. 16. NOTE:
Observe all local building codes when penetrating a
building wall.
The heater has the ability to operate without
combustion air being piped to it from the outside,
provided there is an adequate amount of combustion air
available in the room area. Observe the following
instructions concerning combustion air when following
the SINGLE PIPE (exhaust venting only) SYSTEM only
and follow Fig. 14 and 15 for proper setup.
• Appliances located in unconfined spaces:
–a) An unconfined space is one whose volume is
greater than 50 cubic feet (1.42 cubic meter) per
1000 Btu per hour (292.81 Watts) of the
combined rating of all appliances installed in the
space. That would be 8250 cubic feet (233.6
cubic meter) for the GWH-635-ES alone.
–b) In unconfined spaces in buildings of
conventional frame, masonry, or metal
construction, infiltration air is normally adequate to
provide air for combustion.
Warning: before starting installation:
Bcheck that there are no loose parts
inside the appliance
Bensure that gas pipe, gas valve, mixer,
fan and burner have no damage and are
properly fitted.
i
Front cover should be removed (see
instructions on page 4) in order to inspect
components visually.
6 720 607 072 (16 January)
Appliance details
9
• Appliances located in confined spaces:
The confined space must be provided with two
permanent openings, one commencing within 12
inches (304.8mm) of the top and one commencing
within 12 inches (304.8mm) of the bottom of the
enclosure. Each opening must have a minimum free
area of one square inch per:
– 1000 Btu/hr (292.81 Watts) if all air is taken from
inside the building
– 2000 Btu/hr (585.62 Watts) if all air is taken from
the outside by horizontal ducts
– 4000 Btu/hr (1171.24 Watts)if all air is taken from
the outside by direct openings or vertical ducts
Or the confined space must be provided with one
permanent opening or duct that is within 12 inches
(304.8mm) of the ceiling of the enclosure. This opening
must have a minimum free area of one square inch per:
– 3000 Btu/hr (878.43 Watts) if all air is taken from
the outside by a direct opening or vertical duct.
Louvers, grills and screens have a blocking effect. If the
effective free area is not known, increase the sizes of
your openings by 75% if your louvers are wood and by
30% if your louvers are metal. Refer to the National Fuel
Gas Code for complete information. In buildings of tight
construction all air should be taken from outside.

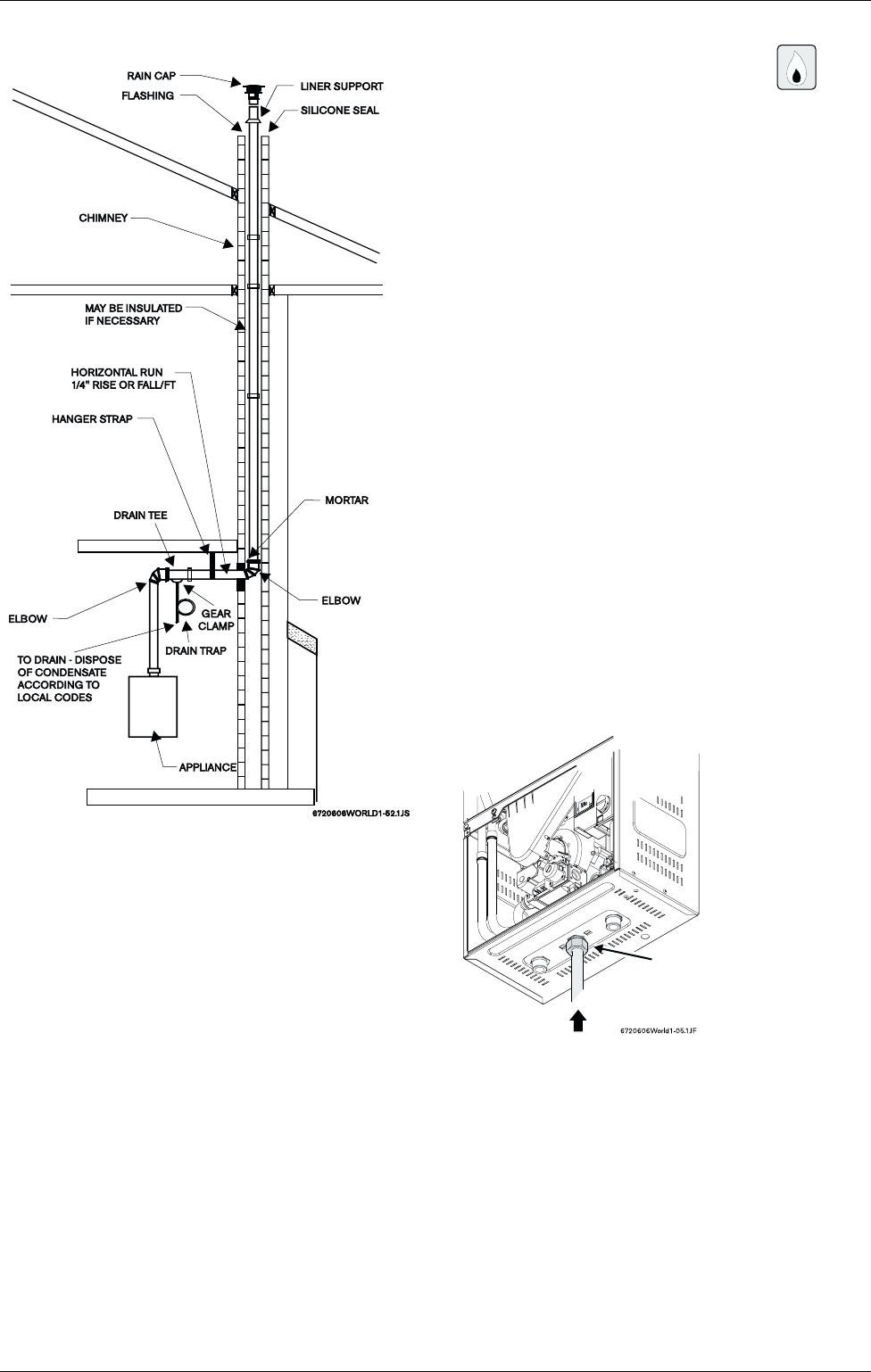

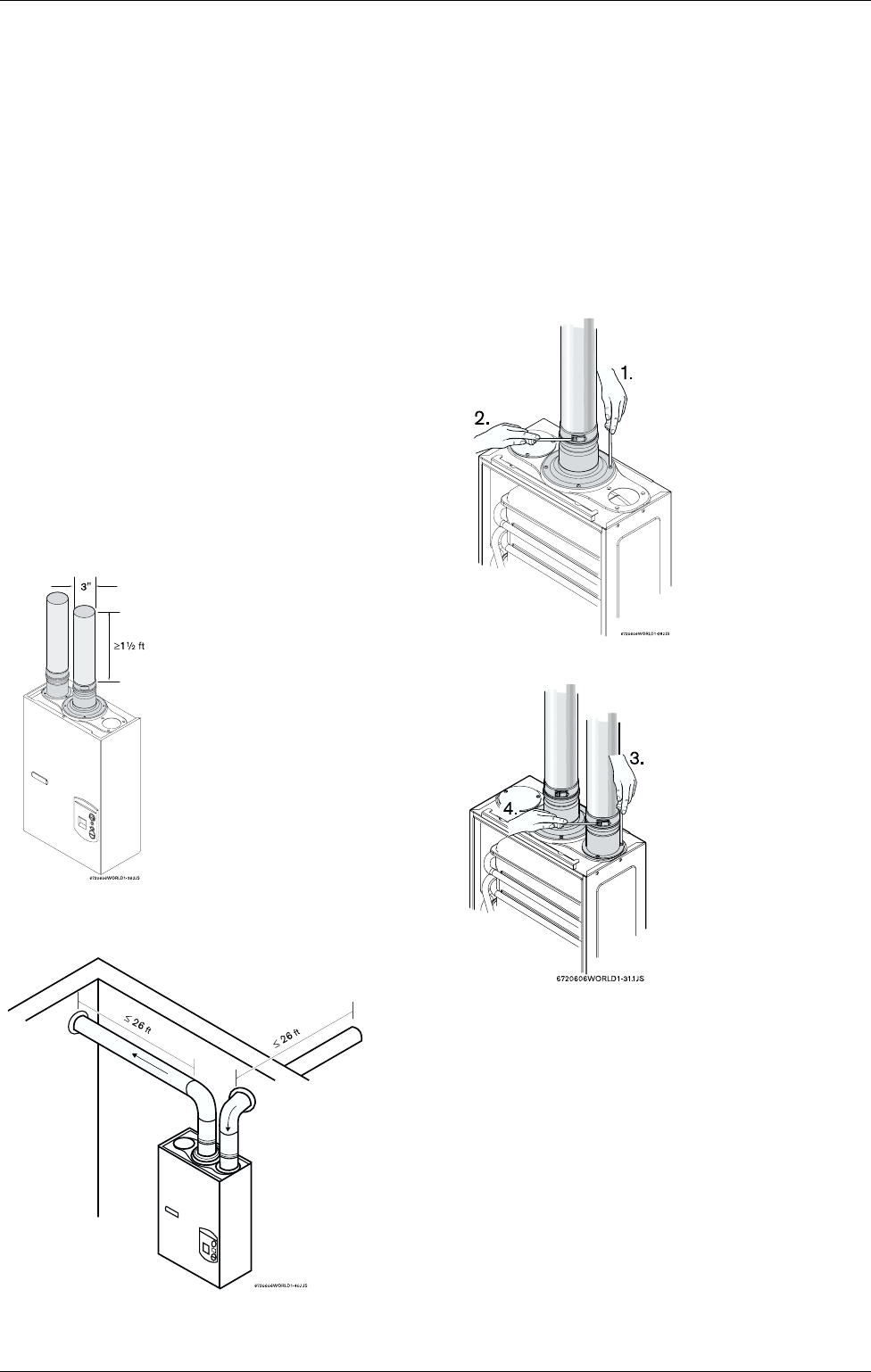

2.9 Venting
NOTE: This appliance's exhaust must be vented
to the outside with a sealed 3" stainless steel
vent pipe (AL29-4C). The appliance's flue gasses
are under positive pressure and must travel
through a stainless steel 3" pipe that is sealed
gas tight. Stainless steel vent pipe is equipped
with sealing gaskets for ease of installation,
proper safety and durability. The heater shall not
be vented in combination with any other
appliance; the appliance must only be vented
with a dedicated sealed vent system.
Establish vent clearances that comply with the vent
manufacturer's specifications. In all cases follow local
codes. See table 2.
Warning: Do not reduce the vent
(exhaust and combustion) pipe sizes
and do not common vent with any other
vented appliance or stove.
Caution: The vent system must be
installed by a qualified agency in
accordance with these instructions. If
improperly installed a hazardous
condition such as explosion or Carbon
Monoxide poisoning could result. CEC
will not be responsible for improperly
installed appliances.
6 720 607 072 (16 January)
10
Appliance details
The maximum flue gas exhaust temperature on the GWH-635-ES is 437°F (225°C)
Venting
Options
Exhaust
vent
diameter
and
material
* Exhaust
vent
maximum
length
* Exhaust
vent
minimum
length
Combustion
air pipe
diameter
and material
Combustion
air pipe
maximum
length
Vent pipe
clearances
within an
unenclosed
space
Vent pipe
clearances
within an
enclosed
space
Room
se a l ed
(twin pipe)
3 inch
stainless
steel
(AL29-4C)
sealed vent
pipe
26 feet (8
m) with one
elbow. Less
2½ feet for
each
additional
elbow
1½ feet 3 inch PVC,
aluminum or
galvanized
pipe
26 feet (8
m) with one
elbow. Less
2½ feet for
each
additional
elbow
** See vent
manufacturer's
specifications
** See vent
manufacturer's
specifications
Open
combustion
(single
pipe)
3 inch
stainless
steel
(AL29-4C)
sealed vent
pipe
26 feet (8
m) with one
elbow. Less
2½ feet for
each
additional
elbow
1½ feet See
chapter 2.8
See
chapter 2.8
** See vent
manufacturer's
specifications
** See vent
manufacturer's
specifications
Exhaust vent is always fan assisted. Installation of exhaust vent and combustion air piping may be run vertically or horizontally
and in separate directions if required.
* A maximum of three 90 degree elbows are permitted in the total vent length.
** Stainless steel (AL29-4C) vent pipe is manufacturerd by Z-Flex, Protech and Heat Fab. NOTE: clearance distances are
variable depending if the vent pipe is installed in an enclosed or unenclosed space, the exhaust flue gas temperature and the
orientation of the vent pipe.
Never reduce pipe diameter.
Table 2
6 720 607 072 (16 January)
Appliance details
11
The appliance should be located as close to the point
of termination as possible. The maximum vent length is
26 feet (8 m) with one 90 degree elbow. Subtract 2½
feet from the total vent length for each additional 90-
degree elbow used (a maximum of three 90-degree
elbows are permitted in the total vent length). Horizontal
sections of vent must pitch ¼" for every foot of
horizontal length and be supported at 4 foot intervals
with overhead hangers. Any vent section greater than
45 degrees is considered an elbow.
Note: The stainless steel exhaust vent pipe should not
be used in concealed or unheated locations. Listed
thimbles or collars are necessary to pass through wall
and ceiling partitions. If the vent system passes through
combustible areas where the vent clearance
requirements cannot be maintained, it is permissible to
chase straight sections of sealed 3 inch single wall vent
through 4 inch (or greater) Type-B vent. The distance to
combustibles using this chase technique is 1 inch.
Note: Type-B vent should never be used as the
actual exhaust vent system for the appliance, as
it is not gas tight.
Minimum exhaust vent size and length
Fig. 8
Maximum vent lengths
Fig. 9
Note: reduce 2½ ft for each elbow used after the first
one
Vent Safety System
The GWH-635-ES will shut down if inadequate exhaust
venting is detected or a lack of combustion air is
provided to the unit; see troubleshooting section on
page 25. See error code to confirm error, correct the
problem and then reset the heater before operating.
Attaching the exhaust and air inlet connection
adaptors to the top of the heater
Fig. 10
Fig. 11
BAttach the flue gas exhaust accessory (8 705 504
114) to the top of the unit (position 1) using the 4
screws and gasket provided, and fully insert 3"
stainless steel vent pipe into the accessory and
tighten the clamp (position 2).
BAttach the combustion air inlet accessory (8 705
504 115) to the top of the unit (position 3) using the
3 screws and gasket provided, and fully insert 3"
combustion air pipe into the accessory and tighten
the clamp (position 4). NOTE: The appliance has the
possibility to mount the combustion air inlet
accessory on the top right or on the top left side of
the heater. The combustion air inlet that is not used
must be kept sealed.
6 720 607 072 (16 January)
12
Appliance details
2.9.1 Venting options
Installing this water heater as a room sealed (TWIN
PIPE SYSTEM) is the recommended method. Contact
CEC or dealer for available vent termination kits and
vent materials for this water heater.
Room sealed installation (TWIN PIPE SYSTEM)
Fig. 12
Combustion air pipe: ≤ 26 ft (8 m)
Exhaust vent pipe: ≤ 26 ft (8 m)
Fig. 13
Combustion air pipe: ≤ 26 ft (8 m)
Exhaust vent pipe: A+B+C ≤ 23½ ft (7.2 m)
Note: reduce 2½ ft for each elbow used after the first
one.
Open combustion installation (SINGLE PIPE
SYSTEM)
Fig. 14
Exhaust vent pipe: ≤ 26 ft (8 m)
Fig. 15
Exhaust vent pipe: A+B+C ≤ 23½ ft (7.2 m)
The exhaust vent system must vent directly to the
outside of the building and an adequate amount of
indoor combustion air must be provided for this
installation. See chapter 2.8.
Connecting a one piece 90 degree elbow pipe to the
combustion air inlet adaptor is recommended, this will
prevent debris or objects from ever falling into the inlet
opening.
Note: reduce 2½ ft for each elbow used after the first
one.
i
Exhaust venting shall be done with 3”
stainless steel (AL29-4C) vent pipe.
i
The exhaust vent pipe and combustion air
pipe can be run vertically or horizontally.
Maximum length for each individual pipe is
26 feet (8 m) with one elbow, for each
additional elbow after the first elbow you
must reduce 2½ feet from the total vent
length.
6 720 607 072 (16 January)
Appliance details
13
Recommended exhaust vent terminator position
Fig. 16
* Subject to local codes and anticipated snow level
** Other equipment that operates with a mechanical air inlet may require greater distances, reference manufacturer's instructions
Ref. Description Minimum distance
ADirectly below an opening; operable windows, doors and any non-
mechanical fresh air openings 36 in
B
Below a gutter, sanitary pipework or eaves 24 in
Below a gutter, sanitary pipework or eaves, protected by metal
shielding 12 in
CFrom any internal corner 12 in
D* Above ground 12 in
Above a paved sidewalk or driveway 7 ft
E
From an opposing wall or structure facing the termination 24 in
From any other building opening, gas utility meter, service regulator
or the like 7 ft
FFrom a terminator facing a terminator 48 in
GVertically between two exhaust vent terminators on the same wall 60 in
HHorizontally between two exhaust vent terminators on the same wall 12 in
I**
Horizontally from combustion air inlet of 635-ES 36 in
Vertically above combustion air inlet of 635-ES
From the combustion air inlet of any appliance or below the
combustion air inlet of 635-ES 3 ft
JFrom any external corner 12 in
KHorizontally from an opening; operable windows, doors and any
non-mechanical fresh air openings 12 in
LVertically from a wall, roof slope, or obstruction (venting through a
flat or pitched roof)
see ABOVE THE ROOF
requirements on following page
Table 3
6 720 607 072 (16 January)
14
Appliance details
Supporting the exhaust vent system and the use
of an external condensate trap
External condensate traps
BA condensate trap must be used in any sidewall
exhaust vent installations when the total vent length
is ≥ 8 ft (2.5 m) OR the vent pipe passes through an
unheated space (below 60F).
BA condensate trap must be used for any vertical
exhaust vent installations ≥ 2 ft.
BWhen installing the condensate tube at the bottom of
the drain tee, be sure to form a trap by means of a 3"
(76.2 mm) loop filled with water. This tube must be
3/8" ID high temperature silicone for at least the first
6 inches (152 mm) and attached with a gear clamp
or hose clamp. The condensate must be disposed of
according to local regulations.
Fig. 17 Horizontal side wall venting installation
(combustion air piping not being shown)
Fig. 18 Above the roof clearance requirements from
rain cap (combustion air piping not being
shown)
Fig. 19 Vertical venting installation (combustion air
piping not being shown)
i
The venting materials and accessories
required to properly install the water
heater are available from CEC and their
distributors.
6 720 607 072 (16 January)
Appliance details
15
Fig. 20 Vertical venting installation - Masonry
Chimney (combustion air piping not being
shown)
2.10
Gas piping & connections
Before connecting the gas supply, check the rating
plate on the right side of the heater to be sure that the
heater is rated for the same gas to which it will be
connected.
In the United States: The installation must conform with
local codes or, in the absence of local codes, the
National Fuel Gas Code ANSI Z223.1/NFPA 54.
In Canada: The Installation should conform with CGA
B149 INSTALLATION CODES and/or local installation
codes.
GAS LINE SIZING
The gas supply piping should be sized according to the
Applicable Plumbing Code for a maximum draw of
175,000 BTUH. First determine the effective length of
the gas supply line by measuring the actual length of
piping, and then adding 5 ft. (1.52m) for every elbow or
“T” to the actual length. Use the charts in Fig. 22 to
determine the pipe diameter necessary to
accommodate the BTU (Wh) demand of the unit. If
there are more gas drawing appliances on the line, size
according to the maximum amount of BTU (Wh)
demand.
Note: It is important that if any flexible gas line is used,
above or below ground between the gas supply meter/
regulator and the water heater, that it be sized properly;
we recommend the use of non-corrugated flexible gas
line when used. Consult the gas sizing specification
tables provided by the flexible gas line manufacturer.
Fig. 21
BInstall a manual gas shut off valve, on the gas supply
line.
BThe use of a union when connecting gas pipe to the
gas inlet connection is critical, this will facilitate any
necessary servicing and cleaning of the inlet gas
particle screen.
BFlexible gas line connectors are not recommended
because they are commonly undersized and restrict
gas flow. Oversize the diameter of any flexible gas
line connector if one must be used.
Gas piping
Inlet gas particle screen
6 720 607 072 (16 January)
16
Appliance details
FOR NATURAL GAS
Maximum Capacity of pipe in Cubic Feet of Gas per
Hour for Gas Pressure of 0.5 Psig or less and a
Pressure drop of 0.3 in Water Column
(0.75mbar).(Based on a 0.60 Specific Gravity Gas) Btu
numbers given in thousands.
Fig. 22
Follow boxed numbers for piping just one GWH-
635-ES (example: ¾” B.I. Natural Gas pipe for 20 ft
(6.1m). will handle 190,000 btu’s (55.7 kWh). For
multiple appliances combine the total btu input load
and then refer to applicable chart below.
Maximum Capacity of Semi-Rigid (flexible, non
corrugated) Tubing in Thousands of BTU per Hour
of Undiluted Liquefied Petroleum Gases (at 11
inches Water Column Inlet Pressure).
(Based on a Pressure Drop of 0.5 Inch Water
Column)
* Source National Fuel Gas Code NFPA 54, ANSI
Z223.1 - No Additional Allowance is necessary for an
ordinary number of fittings
FOR LP GAS
Maximum Capacity of Pipe in Thousands of BTU per
Hour of Undiluted Petroleum Gases (at 11 inches
Water Column Inlet Pressure) (Based on a Pressure
Drop of 0.5 Inch Water Column).
Copper
Outside Length of Tubing, Feet
Diameter,
Inch 10 20 30 40 50 60 70 80 90 100
3/8 39 26 21 19 _ _____
1/2 9262 50 41 37 3531292726
5/819913110790 79 7267625955
3/4 329 216 181 145 131 121 112 104 95 90
7/8 501 346 277 233 198 187 164 155 146 138
Nominal
Iron Pipe
Black Iron Pipe
Size,
Length of Pipe, Feet
Inches
10 20 30 40 50 60 70 80 90 100 125 150
1/2 275 189 152 129 114 103 96 89 83 78 69 63
3/4 567 693 315 267 237 217 196 185 173 162 146 132
1 107 732 590 504 448 409 378 346 322 307 275 252
1 1/4 220 149 121 103 913 834 771 724 677 630 567 511
1 1/2 330 229 185 155 141 127 118 108 102 976 866 787
2 622 433 346 299 264 239 220 204 192 1811 1606 1496
Nominal
Iron Length of Black Iron Pipe, Feet
Pipe Internal
Size, Diameter
inches inches 10 20 30 40 50 60 70 80 90 100 125 150 175 200
1/4 0.364 32 22 18 15 14 12 11 11 10 9 8 8 7 6
3/8 0.493 72 49 40 34 30 27 25 23 22 21 18 17 15 14
1/2 0.622 132 92 73 63 56 50 46 43 40 38 34 31 28 26
3/4 0.824 278 190 152 130 115 105 96 90 84 79 72 64 59 55
1 1.049 520 350 285 245 215 195 180 170 160 150 130 120 110 100
1 1/4 1.380 1050 730 590 500 440 400 370 350 320 305 275 250 225 210
1 1/2 1.610 1600 1100 890 760 670 610 560 530 490 460 410 380 350 320
2 2.067 3050 2100 1650 1450 1270 1150 1050 990 930 870 780 710 650 610
2 1/2 2.469 4800 3300 2700 2300 2000 1850 1700 1600 1500 1400 1250 1130 1050 980
3 3.068 8500 5900 4700 4100 3600 3250 3000 2800 2600 2500 2200 2000 1850 1700
4 4.026 17,500 12,000 9,700 8,300 7,400 6,80 6,200 5,800 5,400 5,100 4,500 4,100 3,800 3500
6 720 607 072 (16 January)
Appliance details
17
2.11 Gas line sizing
BIt is strongly recommended that the Natural Gas pipe
be Black Iron pipe the entire distance from the
outside meter to the inlet of the gas connection. ¾”
Black Iron pipe up to 20 feet (6.1m) and 1” Black Iron
pipe up to 70 feet (21.34m) distances. Flex line is
NOT recommended, but if used, then oversize the
diameter of the flex pipe, keep the length to a
minimum and try to keep the flex line as straight as
possible.
BIt is strongly recommended that the LP Gas pipe be
semi-rigid copper or Black Iron pipe from the outside
regulator to the inlet of the gas connection. For semi-
rigid copper piping: 5/8” up to 10 feet (3.05m) and
¾” up to 30 feet (9.14m) distances. For Black Iron
piping: ½” up to 20 feet (6.1m) and ¾” up to 80 feet
(24.38m) distances. Flex line is NOT recommended,
but if used, then oversize the diameter of the flex
pipe, keep the length to a minimum and try to keep
the flex line as straight as possible.
National Fuel Gas Code requires that a sediment trap
(drip leg) be installed on gas appliances not so
equipped. Also, a manual gas shut off valve must be
installed on the gas supply line within close proximity of
the water heater and be visible from the water heater.
The water heater must not be piped with gas supply
pressures in excess of 0.5 psig. If overpressure has
occurred, such as through improper testing of the gas
lines or malfunction of the supply system, the gas valve
must be checked for safe operation.
When connections are made, check for gas leaks at all
joints. Apply some soapy water to all gas fittings. Soap
bubbles are a sign of a leak.
2.12 Measuring gas pressure
To measure and verify if adequate gas pressure is being
delivered to the water heater, first run a high hot water
flow rate and operate other gas equipment on the same
load. Using a manometer, then measure the inlet gas
pressure at the inlet gas pressure test port. See Fig. 23.
Gas pressures lower than 5" W.C. for Natural Gas or
11" W.C. for LPG will result in insufficient degree rise
to the hot water being used. See Gas Connections,
chapter 2.10.

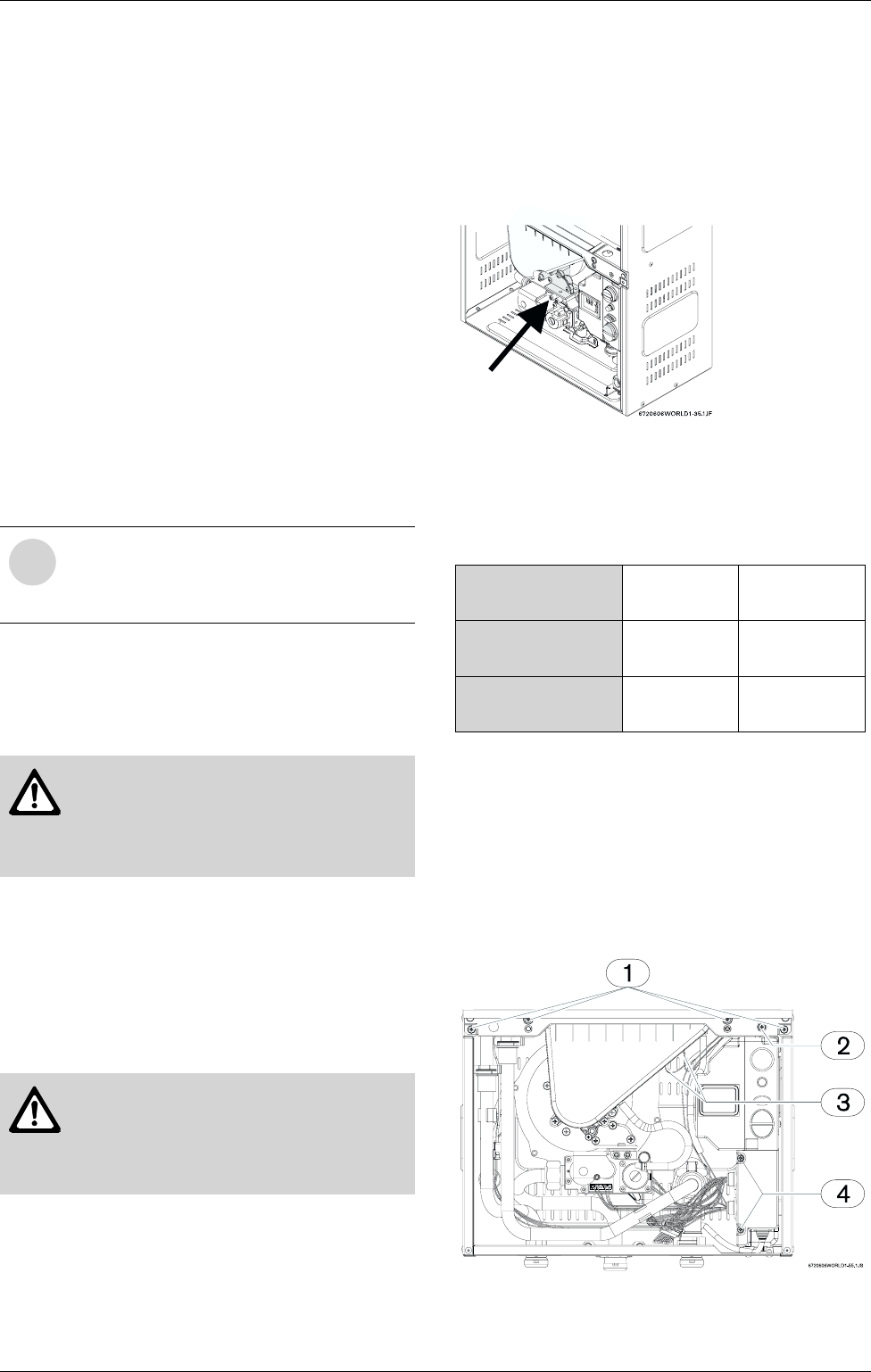

Fig. 23 Gas pressure measuring (left tapping)
HIGH ALTITUDE OPERATION
Due to the lower density of air at high altitudes, output
must be reduced in installations above 4000 ft (1219
m).
Burner output at altitudes greater than 4000 ft (1219
m) will be electronically reduced once the control board
has been properly adjusted. Follow instruction below.
High altitude adjustment
BDisconnect power supply to heater.
BRemove front cover of heater.
BRemove control box auxiliary cover (Fig. 24, pos. 4).
Fig. 24
i
THESE FIGURES ARE FOR GWH-635-
ES SUPPLY ONLY, ALL OTHER
APPLIANCES IN THE BUILDING MUST
BE INCLUDED IN THE PIPE SIZING.
Warning: The heater must be
disconnected from the gas supply
piping system during any pressure
testing of that system at test pressures
equal to or more than 0.5 psig.
Danger: If you have a leak, shut off the
gas. Tighten appropriate fittings to stop
leak. Turn the gas on and check again
with a soapy solution. Never test for gas
leaks using a match or flame.
Altitude Natural Gas: Liquid
Propane:
0 - 4,000 ft
(0 - 1,219 m)
no
modification
no modification
4,000 ft - 8,000 ft
(1,219 m - 2,438 m)
insert jumper
JP3
insert jumper
JP3
Table 4
6 720 607 072 (16 January)
18
Appliance details
BRemove the 5 screws on the front retaining bar (see
Fig. 24, pos. 1 and 2) being careful not to damage
the foam sealant material on it.
BRemove the two electrical strip connectors inside the
board (Fig. 25) and then loosen the 120V power
supply cord retaining nut located underneath the
heater. Once loosened, the power cord can be
pulled up through the heater to provide sufficient
slack.

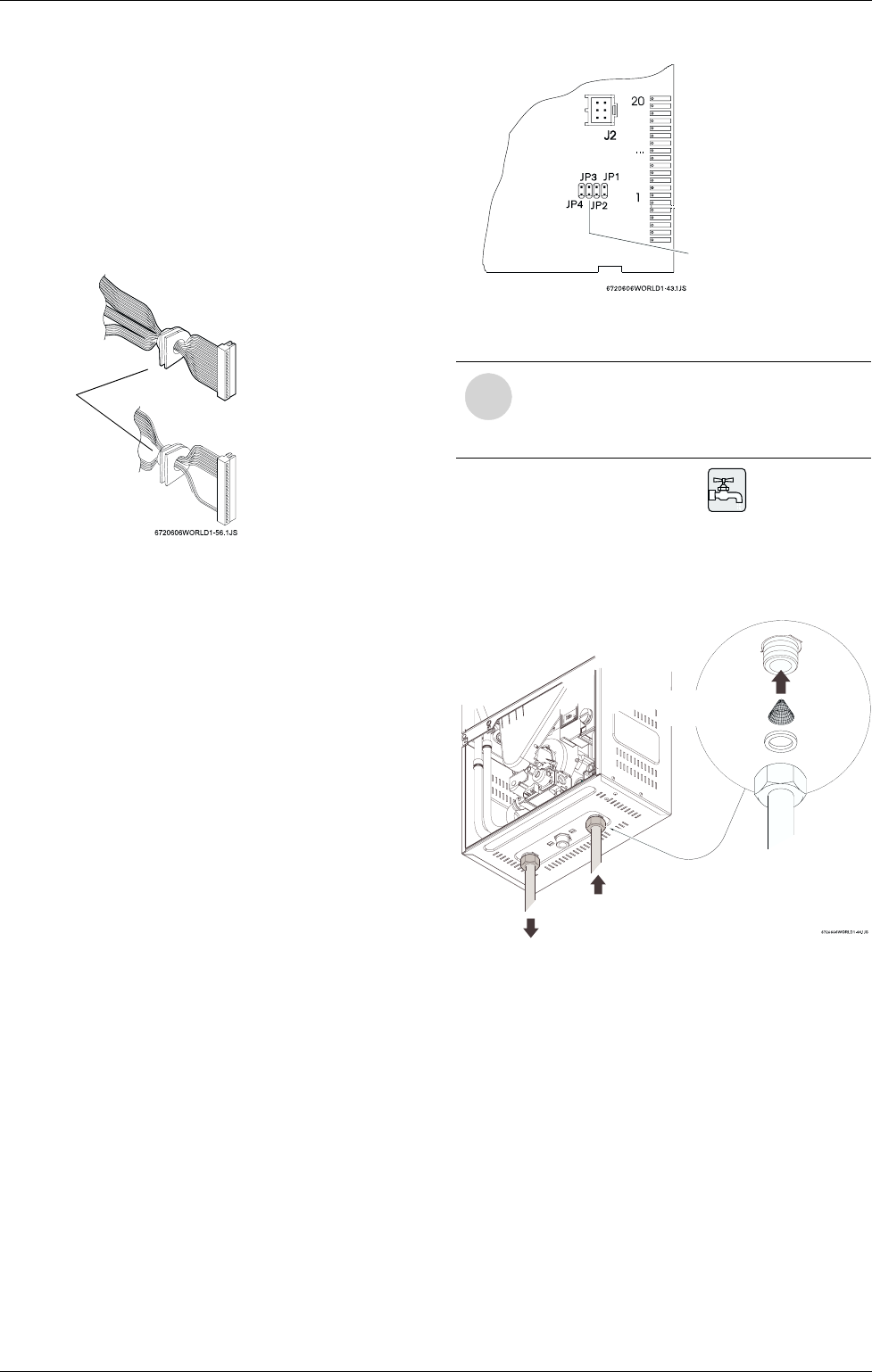

Fig. 25 Electrical strip connectors
BAt the ignition electrodes, pull off the 2 yellow igniter
wires that come from the top of the control board
(Fig. 24, pos. 3). Then pull the complete control
board forward and out of the heater, pull up the
power supply cord further if more slack is needed.
BWhile holding the board in one hand or resting it on
a flat surface, remove the front cover of the control
board by removing its 4 screws.
BOnce open, locate JP3 on the printed circuit board
(see Fig. 26). The board is supplied with a jumper
placed on one JP3 pin, this means that one of the
jumper sockets is connected to a JP3 pin and the
other socket of the jumper is in the air. To make the
high altitude adjustment complete, the jumper must
be connected to both pins.
BRemove the jumper from the JP3 pin (see Fig. 26).
BLine up the two jumper sockets with the two JP3
pins.
BInsert the jumper.
BReplace the front cover to the control board and re-
insert into heater and then proceed with previous
steps in reverse order. Be sure that the rubber
grommets of the electrical strip connectors are in
place and the 2 yellow igniter wires get re-
connected.
Fig. 26 Control board adjustment for high altitudes
(above 4000 ft)
2.13 Water connections
When facing the heater, the ¾” cold water inlet is on the
bottom right and the hot water outlet is on the bottom
left. Install the heater centrally in the building if possible
and make hot water piping runs as short as possible.
Fig. 27
BThe use of a union when connecting both water
pipes to the inlet and outlet connections is
recommended, this will facilitate any necessary
servicing and required cleaning of the inlet water
particle screen.
Although water piping throughout the building may be
other than copper, we recommend that copper,
galvanized or suitably rated stainless steel flex line
piping be used for the water heater connections (follow
local codes if more stringent). Plastics or other PEX
type plumbing line materials are not suitable for
connecting directly to the water heater. Keep water inlet
and outlet pipes to no less than ¾” (19.05mm) diameter
to allow the full flow capacity.
If the cold and hot connections to the heater are
Once auxiliary cover is
off, pull off the two
electrical strip connec-
tors inside the board.
Once off, the wiring
strands can be removed
from the area of the
board by pulling their
rubber grommets
outward.
Rubber
grommets i
For
altitudes
greater
than
8000
ft
(2438
m),
a special adjustment and CO
2
measurement needs to be done. Please
contact CEC for detailed instructions.
High altitude adjustment
(above 4 000 ft)
HOT COLD
INLET FILTER
SCREEN
6 720 607 072 (16 January)
Appliance details
19
reversed, the heater will not function. Be certain there
are no loose particles or dirt in the piping. Blow out or
flush the lines before connecting to the water heater.
Full port valves should be installed on both the cold
water supply and hot water outlet lines to facilitate
servicing the heater (see Fig. 28). For installation on a
private well system with the use of a pressure tank, the
lowest pressure range setting recommended is 30-50
psi (2.07 and 3.45bar).
Connecting the pressure relief valve (PRV)
A listed pressure relief valve supplied with the heater
must be installed at the time of installation. No valve is
to be placed between the PRV and the heater. No
reducing coupling or other restriction may be installed
in the discharge line. The discharge line must be a
minimum of 4” above a drain and installed such that it
allows complete drainage of both the PRV and the line.
The location of the PRV must be readily accessible for
servicing or replacement, and be mounted as close to
the water heater as possible. See Fig. 28. To install the
PRV, a suitable fitting connected to an extension on a
“T” fitting can be sweated to the hot water line.
Support all piping.
Fig. 28 Plumbing Connections and Pressure Relief
Valve
6 720 607 072 (16 January)
20
Appliance details
2.14 Electrical connections
The GWH-635-ES requires an electrical power supply
from a 120VAC 60Hz circuit and must be properly
grounded.
A means for switching off the 120VAC power supply
must be provided.
The heater is wired as shown in the wiring diagram
(chapter 6, Fig. 39).
2.15 Operating instructions
BBefore proceeding with the operation of the heater
make sure that the system is filled with water.
BTurn off power supply to heater.
BOpen the cold water inlet supply to the heater fully.
BOpen a hot water faucet to permit the water to fill the
heater and the piping and to eliminate the air trapped
in the system.
BClose the hot water faucet after the water flows freely
and all the air has escaped from the system. Turn on
power supply to heater. The water heater is now
ready to operate.
2.16 For your safety read before
operating your water heater
A. This appliance is equipped with electronic ignition for
lighting the main burners. When turning the heater on,
follow these instructions exactly.
B. Before operating the unit, set the On/Off switch to
the On ( I ) position.
WHAT TO DO IF YOU SMELL GAS
BDo not try to light any appliance.
BDo not touch any electric switch; do not use any
phone in your building.
BImmediately call your gas supplier from a neighbors
phone. Follow the gas supplier’s instructions.
BIf you cannot reach your gas supplier, call the fire
department.
C. Use only your hand to turn the on/off control switch.
Never use tools. Follow these instructions exactly. If
control switch is jammed, close the gas supply and call
a qualified service technician. Attempted forceful repair
may result in a fire or explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
2.17 Lighting and operating instructions
B1. STOP! Read the previous safety information.
B2. The gas valve must be shut off by putting the ON/
OFF switch to position (0). Wait five (5) minutes to
clear out any gas. If you smell gas, STOP! Follow “B”
in the safety information above. If you do not smell
gas, go to the next step.
B3. This appliance is equipped with electronic ignition
for lighting the main burners. When turning the
heater on, follow these instructions exactly.
B4. Set the ON/OFF switch to the (I) position. In this
position, the water heater is ready to use.
B5. Open a hot water tap.
B6. The burners will remain on until the hot water tap
is turned off.
Warning: For safety reasons,
disconnect the power supply to the
heater before any service or testing is
performed.
Warning: This heater must be
electrically grounded in accordance
with the most recent edition of the
National Electrical Code. NFPA 70. In
Canada, all electrical wiring to the
heater should be in accordance with
local codes and the Canadian Electrical
Code, CSA C22.1 Part 1. Do not rely
on the gas or water piping to ground the
metal parts of the heater.
i
NOTE: when the heater is turned on its
motorized water valve will check its
position at minimum and maximum
settings and rest, this process lasts about
10 seconds and the noise of it will stop
afterwards. Additionally a default
temperature setting of 122 F will appear
on the display screen.
Warning: If you do not follow these
instructions exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
6 720 607 072 (16 January)
Appliance details
21
When the heater is in operation you will hear its power
vent fan and burner operating. Upon turning off the hot
water flow the power vent fan will continue to operate
for up to 60 seconds to exhaust all flue gases. The
power vents fan speed is variable depending on the rate
of hot water used and the burner output.
TO TURN OFF GAS TO APPLIANCE
BTurn off the manual gas shut off on the supply line to
the heater and set the ON/OFF switch to the OFF (0)
position. Note: a manual gas shut off valve is not
supplied with the heater.
i
NOTE: on a first time initial
installation, existence of air in the
gas supply line will cause some
ignition delay when the hot water
is turned on and result in an error
(EA) on the display screen. This is
normal. You must turn off the
flow of hot water, reset the unit
(Fig. 28, pos. 2), wait for (EA) to
disappear, and then re-open the
hot water tap again. Repeat these
steps if the error (EA) repeats
itself until all air has been bled
from the gas line.
6 720 607 072 (16 January)
22
Operation instructions
3 Operation instructions
Fig. 29
1On/Off switch
2Reset button
3Program Key
4Increasing temperature selector
5Decreasing temperature selector
6LCD display
3.1 Power
On
BTo start the appliance switch the button to position
(I).
LCD display the default temperature - temperature
factory setting 122°F (50°C).
Fig. 30
Off
BTo shut down the appliance switch the button to
position (0).
3.2 Temperature selection
To select water temperature outlet:
BPress buttons and in order to reach
requested temperature.
Fig. 31
If the outlet water temperature is set too high, the heater
can produce temperatures that are too hot. A
temperature balance shower valve can automatically
mix in cold water to reduce such hot water temperature.
In the event of any temperature instability with the use
of a temperature balance shower valve, refer to shower
valve manufacturer's instructions for internal adjustment
setting. Adjustments should be made to the hottest
setting in the shower valve. Additionally the temperature
control of the heater can be lowered to produce a more
comfortable hot water temperature.
6 720 607 072 (16 January)
Operation instructions
23
Setting the water temperature
The desired temperature of the hot water can be
adjusted on the front control panel of the heater.
The GWH-635-ES has an electronically controlled gas
valve that modulates the burner input in response to
both varying hot water flow rates and/or changes in any
incoming and outgoing water temperatures.

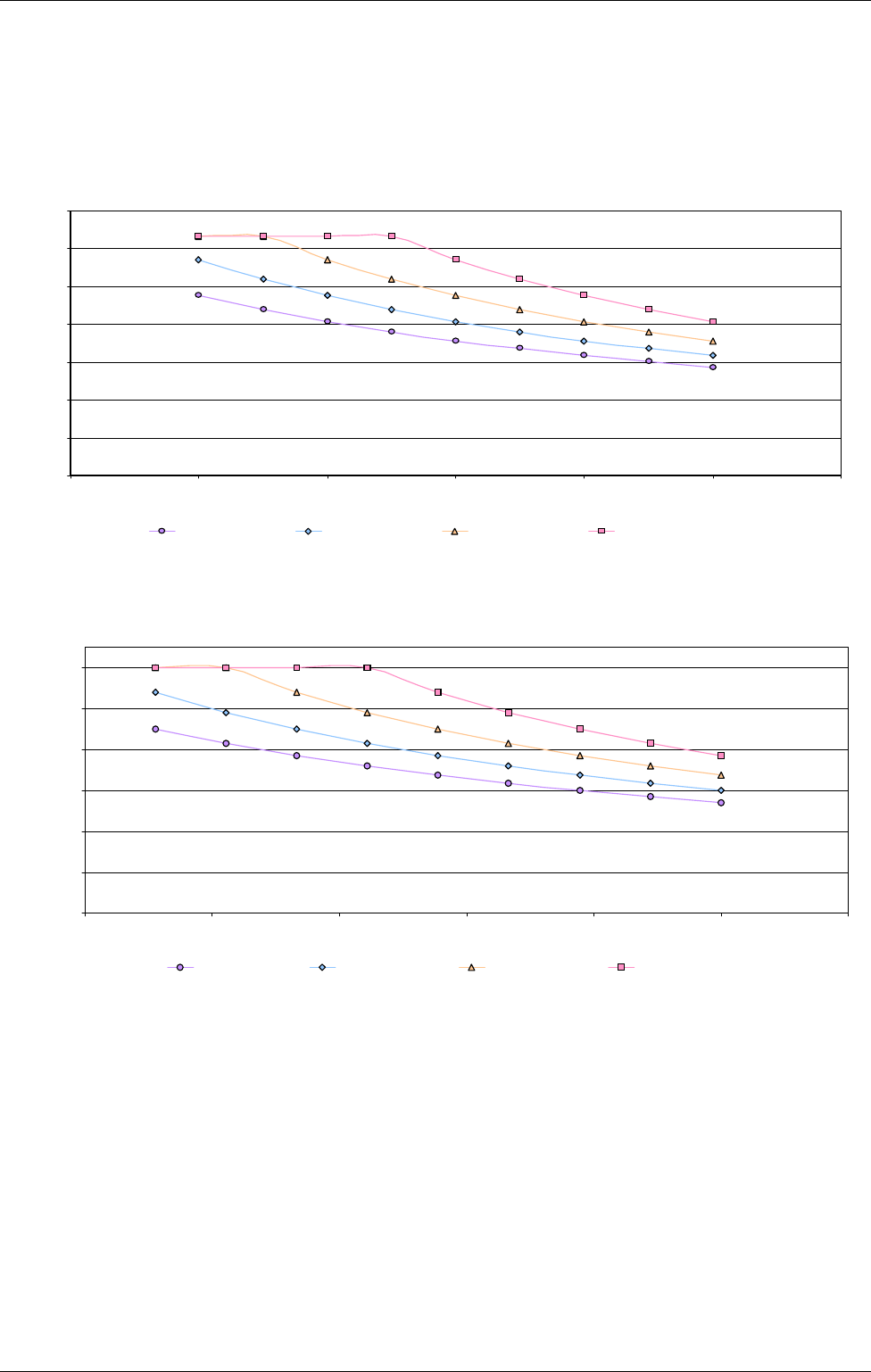

Fig. 32 Flow/temperature charts
Hot Water Flow and Temperature with Various Inlet Temperature (lpm/Celsius)
0.00
4.00
8.00
12.00
16.00
20.00
24.00
35 40 45 50 55 60 65
Hot water temperature (ºC)
Hot Water Flow (l/min
)
Inlet (ºC) 4 Inlet (ºC) 10 Inlet (ºC) 16 Inlet (ºC) 21
Hot Water Flow and Temperature with Various Inlet Temperature (gpm/Fahrenheit)
0.00
1.00
2.00
3.00
4.00
5.00
6.00
7.00
90 100 110 120 130 140 150
Hot water temperature (ºF)
Hot Water Flow (GPM
)
Inlet (ºF) 40 Inlet (ºF) 50 Inlet (ºF) 60 Inlet (ºF) 70
6 720 607 072 (16 January)
24
Operation instructions
3.3 New remote control registration
Fig. 33 Remote control
Remote control registration
ON/OFF switch in OFF position (Fig. 29, pos. 1).
BPress and hold key (Fig. 29, pos. 5) while at the
same time turn the main switch (Fig. 29, pos. 1) to
“ON” position (I).
LCD shows one number and one rotating digit.
The number represents the remote control which is to
be registered, the first remote control will be registered
with number “0”, the second with number “1” and so on.
The rotating digit shows that the electronics is
expecting a registration.
BHold remote control in front of the control panel on
the heater and press simultaneously remote control
buttons and until the temperature indication
is shown on the remote control LCD.
BSwitch ON/OFF switch (Fig. 29, pos. 1) to “OFF”
position (0) and then back on (I).
BPress buttons and in order to reach
requested temperature.
New remote control is programmed.
3.4 Operation
BWhen a hot water tap is opened, main burner ignites
and LCD displays indication .
Fig. 34
BLCD blinks until selected temperature is reached.
3.5 Reset button
If the LCD shows the error symbol .
See the error code on LCD and consult
“Troubleshooting” section.
Fig. 35
After following instructions indicated in
“Troubleshooting” section
Bpress reset button in order to make the appliance
ready-to-work.
Fig. 36 Reset button
If the problem persists, contact your installer.
3.6 Program button
Program button can be used/programmed in the
appliance and in the remote control.
Programming “Program” function
Programming actions are similar for both controls
(appliance control pad and wireless remote control).
BPress “Program” key (Fig. 29, pos. 3) for 3 seconds.
Fig. 37 “Program” key
Temperature on LCD starts blinking, showing current
memorized temperature.
i
NOTE: up to 8 remote controls can be
programmed for one single appliance.
i
Each remote control program button can
be programmed with different
temperature set points.
6 720 607 072 (16 January)
Maintenance and service
25
BPress buttons and to select temperature to
be memorized.
BHold “Program” button for 3 seconds to save
temperature.
When LCD stops blinking. Temperature is saved on
“Program”.
Using “Program” function
In order to select memorized temperature
BPress “Program” key.
LCD shows pre-memorized temperature, which is now
the hot water selected temperature.
3.7 Locked condition
This condition is only valid for appliances with more
then 1 controller (appliances with remote control).

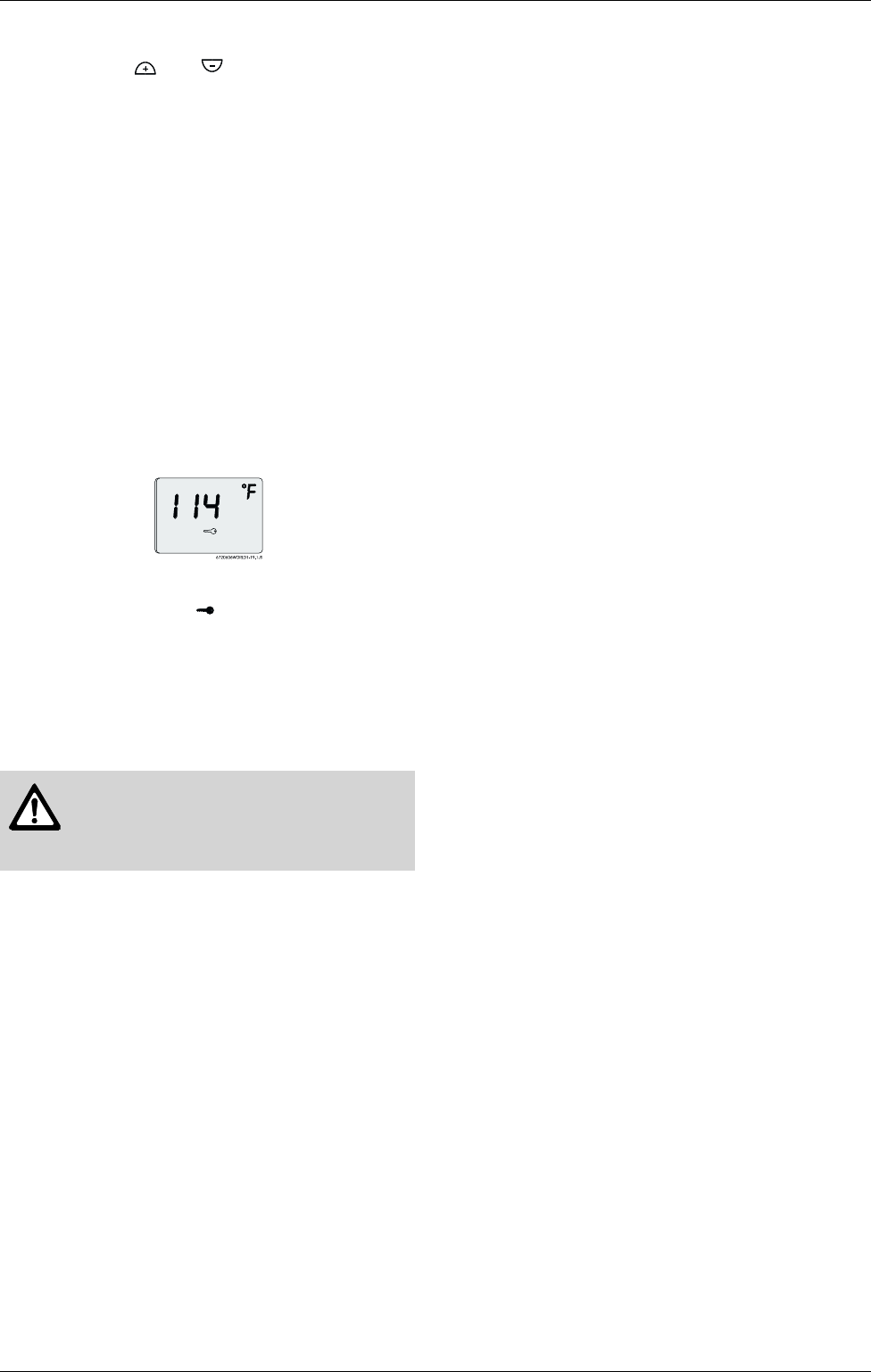

Fig. 38 Locked condition
Whenever LCD shows the temperature setting
cannot be adjusted because the appliance is in use by
a user which already selected a different temperature.
Appliance will be automatically unlocked after closing
hot water tap.
4 Maintenance and service
The unit should be checked once a year by a gas
technician. If repairs are needed, the repairs should be
done by a gas technician
To remove front cover
BRemove plastic decals on front panel.
BUndo two Philips head screws located behind
decals.
BLift front cover panel upward and remove.
Systems and parts that should be checked at
least once a year
Reference diagrams on pages 30 and 31.
• Venting system
• Burners -see page 30 for observation window
• Manual operation of the pressure relief valve to insure
correct operation
• Periodic cleaning of the water filter screen, see Fig.
27, chapter 2.13.
• Flushing the heat exchanger with a descaling
solution if mineral build up is evident. Scale build up
will shorten the life of the water heater, descale heat
exchanger thoroughly and repeat annually depending
on mineral content of ground water.
5 Troubleshooting
Introduction
The GWH-635-ES burner is activated by a water flow
valve. Numerous water related problems can cause this
water valve to malfunction such as: Insufficient water
flow volume to activate the burners at its minimum flow
requirement; Dirt in the water flow valve causing it to
malfunction; Sediment build-up in faucet aerators, or
shower heads; Uneven pressures between cold and hot
(with single lever mix valves); and Plumbing crossovers.
These water flow related problems can cause the
heater to deliver less than its full output, or to fail to
ignite or to shut down completely.
Problems stated below in upper case and in bold face
should be investigated when there is a problem with the
performance of the water heater but there is NO error
code on the heater's LCD display or wireless remote
control.
Any failures that result in a displayed error code are
referenced on page 27. A Functional Scheme of the
GWH-635-ES is detailed on page29. If there is a
problem with the installation, venting or operation of the
unit, the heater will communicate the source by these
error codes.
BURNERS DO NOT IGNITE WHEN HOT WATER IS
TURNED ON
•Cold incoming water connection made to
wrong side of heater
Make sure cold water inlet connection is plumbed to
the right side of heater when facing unit
•Water flow rate at hot water tap is too low
A minimum of 0.8 gallon/minute (3 l/m) is required to
activate the heater
•Cold water inlet filter screen is dirty
Remove water inlet filter screen and clean. The
screen is located at the inlet connection to the water
heater, disconnecting the main cold supply line at the
heater is required. Check and clean faucet aerator
screens too.
•Crossover in plumbing
The heater activates when there is sufficient water
flow through its water valve, a minimum of 0.8 gallon/
minute (3 l/m) is required. If there is a crossover in the
plumbing, the necessary hot water flow rate through
the unit may not be reached, even though the flow at
the hot water tap is sufficient. A plumbing crossover
can be caused by a failed washer at a single lever
faucet, incorrect plumbing or a faulty mixing valve in
the piping. The crossover will create a back pressure
Warning: Always turn off the electrical
power supply, turn off the manual gas
valve and turn off the manual water
control valves whenever servicing.
6 720 607 072 (16 January)
26
Troubleshooting
on the water heater and prevent an adequate flow of
water through it. To confirm there is no crossover in
the plumbing, shut off the cold water supply feed to
the water heater. Individually open each of the hot
water taps. There should be no water flowing under
a constant pressure. If there is a constant flow of
water then the plumbing crossover must be
corrected before the heater can operate properly.
WATER IS TOO HOT
•Temperature selection too high
Lower temperature adjustment on heater or wireless
remote control accessory, see chapter 3.2.
WATER IS NOT HOT ENOUGH
•Temperature selection too low
Increase temperature adjustment on heater or
wireless remote control accessory, see chapter 3.2
•Btu input is too low due to inadequate gas line
sizing
See specifications in chapter 2.10 - 2.12. The
GWH-635-ES requires adequate gas pressure to
reach desired temperatures, to compensate for
inadequate gas supply or lack of gas pressure the
GWH-635-ES will effectively reach the selected
output temperature by reducing the hot water flow
rate. Its motorized water valve makes this adjustment
•Cold water is mixing with the hot water outlet
(crossover)
Test by following 4th bullet under BURNERS DO
NOT IGNITE WHEN HOT WATER IS TURNED ON.
LOW WATER FLOW/PRESSURE
•Too many hot water applications are being
used simultaneously or too much flow is being
demanded
The GWH-635-ES will effectively support two 2.0-
2.5 gpm shower heads simultaneously or multiple
sink applications. Greater draws will result in
increased pressure drop and reduced flow at taps.
See flow/temperature chart on page 23.
•Btu input is too low due to inadequate gas line
sizing
See specifications in chapter 2.10 - 2.12. The
GWH-635-ES requires adequate gas pressure to
reach expected temperatures and flow rates, to
compensate for inadequate gas supply or lack of gas
pressure the GWH-635-ES will effectively reach the
selected output temperature, but only by reducing
the hot water flow rate. Its motorized water valve
makes this adjustment. Proper gas pressure will
need to be delivered before the motorized water
valve will allow greater flow rates through it. Lowering
the set temperature will also allow increased water
flow rate through the motorized water valve. See
flow/temperature chart on page 23.
•Cold water inlet filter screen is dirty
Remove water inlet filter screen and clean. The
screen is located at the inlet connection to the water
heater, disconnecting the main cold supply line at the
heater is required. Check and clean faucet aerator
screens too.
HOT WATER TEMPERATURE FLUCTUATES /
UNIT DEACTIVATED
•Unbalanced pressure in water lines
Any restriction caused by the water heater in the hot
water system can result in uneven pressures
between the cold and the hot. In such cases when
mixing cold water at the tap (manually or
automatically through a mix-type shower valve) the
lower hot water pressure may be overpowered by the
higher cold water pressure in the building and cause
the hot water flow rate to fall below the minimum rate
required. A pressure balance valve will help to
resolve this symptom.
•Temperature balance valves
If the outlet water temperature is set too high, the
heater can produce temperatures that are too hot. A
temperature balance shower valve can automatically
mix in cold water to reduce such hot water
temperature. In the event of any temperature
instability with the use of a temperature balance
shower valve, refer to shower valve manufacturer's
instructions for internal adjustment setting.
Adjustments should be made to the hottest setting in
the shower valve. Additionally the temperature
control of the heater can be lowered to produce a
more comfortable hot water temperature.
•Inlet water pressure is erratic due to
fluctuating supply water pressure
For installation on a private well system with the use
of a pressure tank, the lowest pressure range setting
recommended is 30-50 psi (2.07-3.45 bar). The use
of a pressure reducing valve after the pressure tank
is also an effective way to maintain a constant water
pressure to the water heater. Watts brand 25AUB-
¾” or N35B-¾” pressure relief valves or equivalent
are suggested.
6 720 607 072 (16 January)
Troubleshooting
27
Display Cause Solution
E9 Temperature limiter opened circuit
(overheat).
Check connections.*
EA No ionization during safety time (safety
time out).
Check gas pressure.
Check that gas is not diluted with air, as a
result from recent gas pipeline rework.*.
Check if vent terminal is blocked (specially
when the appliance starts up for some
seconds and then looses ionization signal).
Check ionization electrode.*
Check for a proper ground.*
FA Leakage error (gas valves do not close
gas circuit)
Check gas valve and electronic controller.*
F7 Ionization error (flame sensing at stand-
by)
Check electronic controller.*
E0 Internal software/hardware failure. Check electronic controller.*
A7 Hot water temperature sensor/receiver
defect (from main controller)
Check water temperature sensor/receiver and
connections.*
A9 Hot water temperature sensor/receiver
mis-assembled (from main controller)
Check that the water temperature sensor/
receiver is properly assembled in the water
pipe.*
E1 Over-temperature detected (from main
controller)
Check heat exchanger sealings.*
Check heat exchanger and flue gas collector.*
Check over temperature fuse.*
C1 FAN rotation too low at start-up (from
main controller)
Check supply voltage.*
Check fan and connections.*
Check electronic controller.*
C6 FAN rotation too low at operation (from
main controller)
Check supply voltage.*
Check fan and connections.*
Check electronic controller.*
C7 No rotational speed sensor signal from
FAN
Check fan and connections.*
Check electronic controller.*
CA Water flow signal over specified
maximum value
Check water valve and flow sensor.
E2 Inlet temperature sensor fault Check water temperature sensor/receiver and
connections.*
Table 5
* By installer or service technician only.
6 720 607 072 (16 January)
28
Electrical diagram
6 Electrical diagram
Fig. 39 Electrical scheme
1Intlet water temperature sensor
2Ionization sensor
3Water flow sensor
4Over heat protection
5Temperature limiter
6Gas valve
7Fan
8Water valve
9AC Plug
10 Ignition electrode
11 Display PCB
12 ON/OFF switch
13 Fuse T 1,25A
14 Fuse T 3,15A
15 Terminal block
16 Ground post
17 Outlet water temperature sensor
6 720 607 072 (16 January)
GWH-635-ES Functional scheme
29
7 GWH-635-ES Functional scheme
Fig. 40 Functional scheme
6 720 607 072 (16 January)
30
Interior components diagram and parts list
8 Interior components diagram and parts list
8.1 Interior components

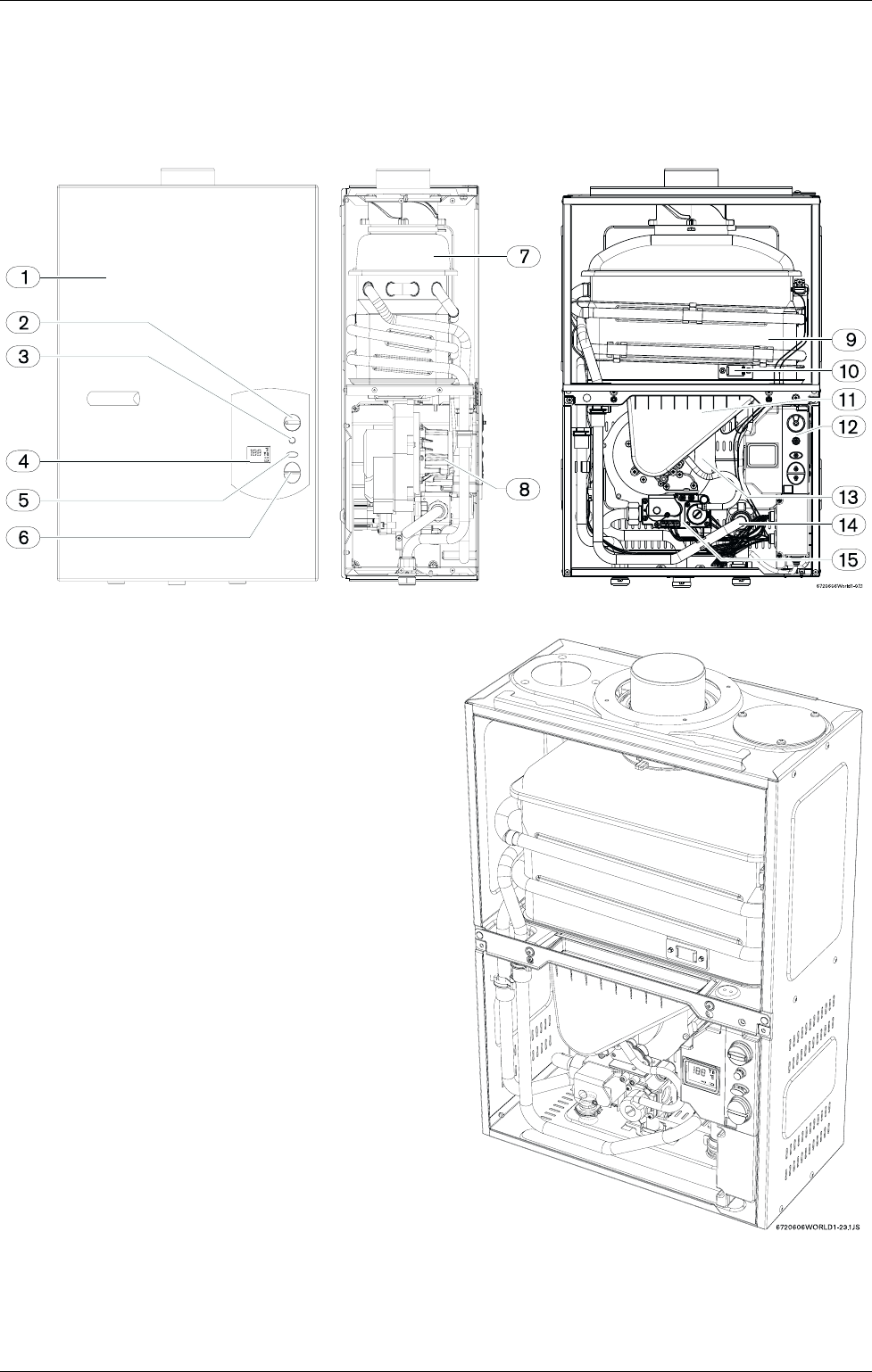

Fig. 41 Components
1Cover
2On/Off switch
3Reset button
4LCD display
5Program button
6Temperature switches
7Flue gas collector
8Mixer
9Heat exchanger
10 Observation window
11 Inlet air duct
12 Control box
13 Exhaust fan
14 Water valve
15 Gas valve
Fig. 42 Appliance overview
6 720 607 072 (16 January)
Interior components diagram and parts list
31
8.2 Components diagram
Fig. 43 Components Diagram
6 720 607 072 (16 January)
32
Interior components diagram and parts list
8.3 Parts list
Item Description Reference
1 Front cover 8 705 421 837
2 Shield 8 705 506 661
3 Heat exchanger 8 705 406 285
4 Heat exchanger top gasket 8 704 701 052
5 Clip 8 716 102 607
6 Heat exchanger bottom gasket 8 704 701 054
7 O-ring 8 700 205 147
8 Temperature sensor 8 700 400 015
9 Washer 1/2" 8 710 103 045
10 Wireform spring 8 714 606 002
11 Air inlet duct 8 705 700 097
12 Water filter 8 700 507 001
13 O-ring 8 700 205 134
14 Water valve with engine 8 708 505 016
15 Main burner 8 708 120 515
16 Fan / Burner gasket 8 704 701 050
17 Set of electrodes 8 708 107 020
18 Exhaust Fan 8 707 204 039
19 Gas / Air Mixer 8 705 700 115
20 Mixer / Fan gasket 8 704 701 059
21 Gas valve washer 8 704 701 062
22 Gas valve 8 707 021 019
23 Gas valve washer 8 700 103 014
24 Remote control 8 707 207 153
25 Control unit 8 707 207 133
26 Ignition cable 8 704 401 220
27 Cables / 24V 8 704 401 214
28 Cables 8 704 401 239
29 Power supply cord 8 704 401 221
30 Overheat cutoff fuse 8 700 400 019
31 Flue gas exhaust accessory 8 705 504 114
32 Combustion air inlet accessory 8 705 504 115
33 Flue gas collector 8 705 700 100
34 Flue gas collector collar 8 705 700 114
35 Cold water pipe 8 700 715 156
36 Hot water pipe 8 700 715 155
37 Air inlet screen 8 700 507 069
38 Crossover tube 8 700 715 247
39 Overheat sensor (ECO) 8 707 206 204
Table 6
6 720 607 072 (16 January)
Special adjustment for measuring and adjusting CO2 levels
33
9 Special adjustment for measuring and adjusting CO
2
levels
The CO
2
can only be adjusted by a certified gas
technician with a calibrated CO
2
analyzer.
9.1 Adjusting the unit
Factory settings of this appliance are listed in table 7.
Further adjustment is only needed if optimal CO
2
level
is required in order to assure the minimum possible
CO
2
emissions. In this case a CO
2
analyzer is required.
9.1.1 CO
2
measuring port
BLoosen screw 1 (Fig. 44).
BInsert CO
2
analyzer into measuring port (Fig. 44,
pos. 1).

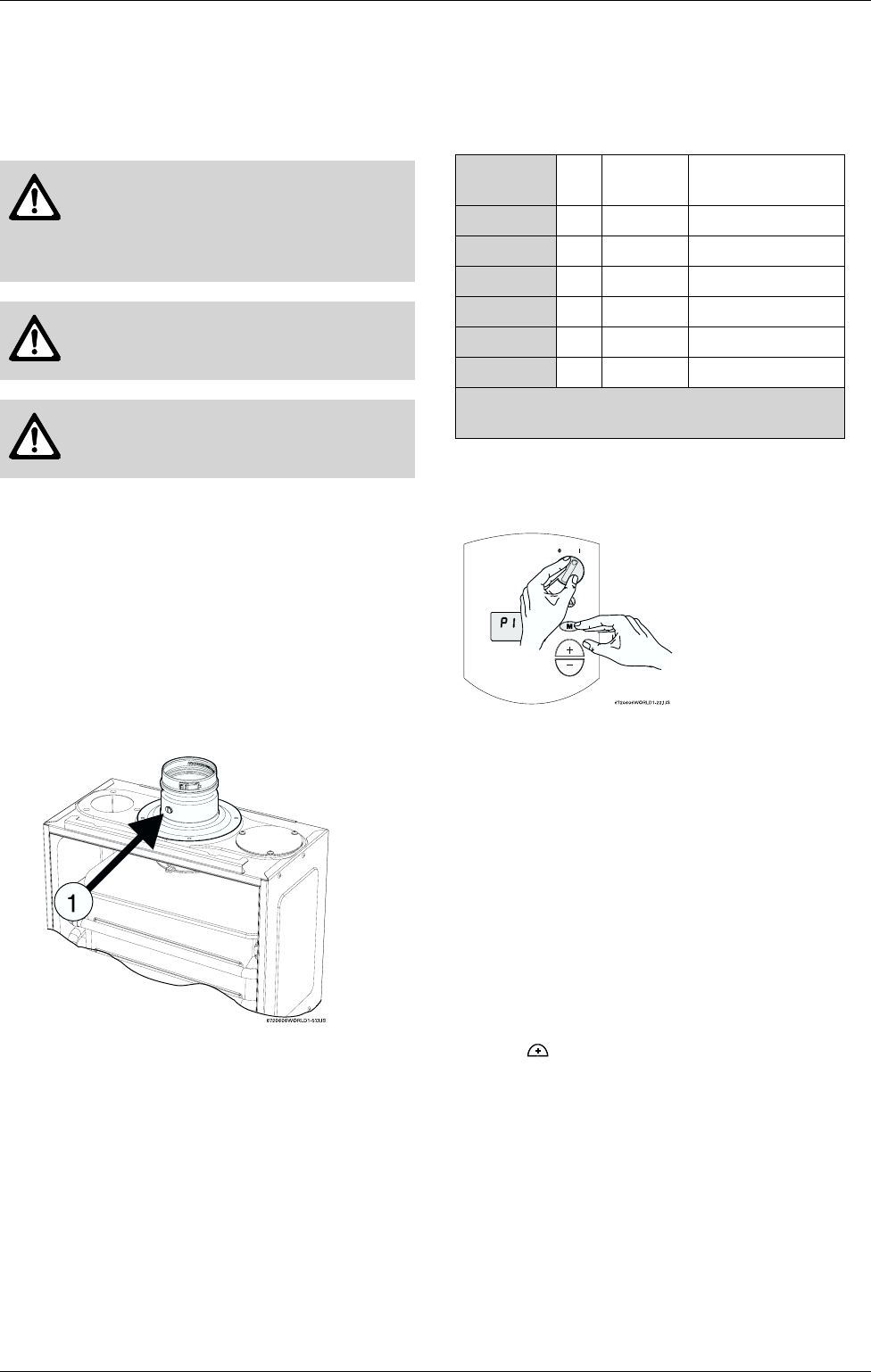

Fig. 44
1Measuring point
9.1.2 Selecting adjustment mode
BON/OFF switch in position OFF (0).
CO
2
adjustment at minimum gas flow (P1) - See
table 7.
BPress “Program” key and turn ON/OFF switch to
position ON.
Fig. 45
LCD shows “P1” and the appliance is ready to be
adjusted.
BOpen hot water tap.
The appliance will run constantly at minimum power
output and minimum water flow. This program step can
also be used to measure minimum output and minimum
water flow.
BTurn the screw in order to regulate the air-gas mixture
inside the ventilator until the CO
2
level required is
reached (Fig. 46, pos. 3).
CO
2
adjustment at maximum gas flow (P2) - See
table 7.
BPress , until “P2” appears.
BOpen water tap.
The appliance will run constantly at maximum power
output and maximum water flow. This program step can
also be used to measure maximum output and maximum
water flow.
BTurn the screw in order to regulate the air-gas mixture
inside the ventilator until the CO
2
level required is
reached (Fig. 46, pos. 3).
Caution: Converting the gas type can
only be done by a certified gas
technician with a calibrated CO
2
analyzer. Call CEC for conversion
instructions.
Caution: Adjustments must only be
carried out by authorized service
personnel only.
Caution: The appliance should always
be disconnected from the power supply
before any maintenance is carried out.
Factory
setting
Field settings
acceptable range
Nat. Gas Nat. Gas
min. input P1 9.00 % 7.65 % to 10.35 %
min. input P2 9.00 % 8.1 % to 9.9 %
LP Gas LP Gas
min. input P1 10.80 % 9.18 % to 12.42 %
min. input P2 10.80 % 9.72 % to 11.88 %
* Final reading must be confirmed with the front cover
on, CO
2
levels increase when the cover is installed.
Table 7
6 720 607 072 (16 January)
34
Special adjustment for measuring and adjusting CO2 levels
Fig. 46 Adjusting
Leave “Program” mode
BTurn ON/OFF switch in position OFF and then ON
again.
i
NOTE: turning screw clockwise
decreases CO
2
level, turning
counterclockwise increases it.
Caution: Faulty ignition or noisy
operation may occur if CO
2
levels are
adjusted outside the indicated range.
6 720 607 072 (16 January)
Protecting the environment
35
10 Protecting the environment
Packing
The packing box may be fully recycled as confirmed by
the recycling symbol .
Components
Many parts in the heater can be fully recycled in the end
of the product life. Contact your city authorities for
information about the disposal of recyclable products.
Saving water resources:
BMake sure you close all the taps after any use. Avoid
leaving the taps dripping. Repair any leaking tap.
BWhenever possible use taps with built-in water flow
limiters. They will give you the same comfort level
while saving water.
BDefine the temperature you want, in the appliance or
with the remote control. This way you have the
precise water flow needed (mixing cold water to
regulate temperature will increase the water flow with
consequent waste of water).
For increased safety shut off the appliance from
the main water supply if your are staying away
from home for a considerable time.
At below freezing temperatures, disconnect the
plumbing connections to the heater and allow
the heater to drain.
To prevent any freeze damage, introduce short
bursts of compressed air (20-40 psi) through
these connections to remove the residual water
in the horizontal pipes and water valve.
6 720 607 072 (16 January)
36
Fifteen Year Limited Warranty
11 Fifteen Year Limited Warranty
General
BOSCH PRO water heaters are warranted by the
Manufacturer (BOSCH) through Controlled Energy
Corp. Controlled Energy Corp. (CEC) will furnish a
replacement heat exchanger and will furnish a
replacement of any other part which fails in normal use
and service within the applicable periods specified
below, in accordance with the terms of this warranty.
The CEC replacement will be warranted for the
unexpired portion of the original warranty. This warranty
will be valid only for water heaters in possession of the
original purchaser as recorded on the warranty card.
The Heat Exchanger
If the heat exchanger fails within fifteen (15) years after
the original installation and operation, CEC will furnish
a replacement heat exchanger. However, if the water
heater is installed in other than a single family dwelling,
this heat exchanger warranty is limited to two (2) years
from date of original installation and operation.
Exceptions
This warranty will not apply:
•1. to defects or malfunctions resulting from failure to
properly install, operate or maintain the unit in
accordance with the printed instructions provided;
•2. to damage or abuse, accident, neglect or freezing
and other acts of nature;
•3. to damage resulting from operation with either the
flame sensor rod or overheat sensor removed;
•4. to failure of the heat exchanger resulting from the
operation of the water heater in a corrosive
atmosphere or at water temperatures exceeding the
maximum rating, or if the water heater is not supplied
with potable water;
•5. to defects or damage cause by any attachment
or modification, including any energy-saving device.
All Other Parts
If any other part fails within two (2) years after original
installation and operation, CEC will furnish a
replacement part free of charge.
Extended warranty is available to PHCC member
contractors; however, all replacements are made
subject to validation by CEC of in-warranty coverage.
Shipping costs
In addition to supplying the replacement part(s), CEC
will provide ground service delivery for these parts.
Expedited or upgraded shipping will be charged to the
customer.
Service Labor Costs
This warranty does not cover any labor costs
associated with service, removal or re-installation of
part(s). All such costs must be borne by the Purchaser.
Additionally, this warranty does not cover any labor
costs associated with service, removal or re-installation
of the original water heater or a replaced water heater.
Certain service labor allowances are available to PHCC
member contractors, dependent on prior authorization
by CEC.
How to Make a Claim
Any claim for warranty parts should be made to your
local dealer, distributor or to CEC. If CEC, please
contact the Technical Support Department:
Controlled Energy Corp.
340 Mad River Park
Waitsfield, VT 05673
Phone: 866-330-2730
www.protankless.com
In most cases, the dealer or distributor will be able to
promptly honor your claim and subsequently notify
CEC. However, all replacements are made subject to
validation by CEC of in-warranty coverage. The
damaged or defective item must be made available in
exchange for the replacement.
Miscellaneous
No one is authorized to make any other warranties on
behalf of CEC. It is expressly understood that the
replacement warranty of CEC shall be in lieu of any and
all other warranties, express or implied, including
warranties of merchantability or fitness for a particular
use or purpose, and further that CEC shall not be liable
for any loss or damage directly or indirectly arising from
the use of the hot water heater, or for any consequential
damages arising from such use (including damages
from water leakage). CEC’s sole liability with respect to
any defect shall be for the replacement of the defective
part(s). Some states do not allow such limitations and
exclusions, so the above may not apply to you.
This warranty gives specific legal rights. You may also
have other rights which vary from state to state.
i
NOTE: the water heater must be free of
damaging scale deposits and not subject
to gas pressures greater than those
shown on the rating plate, which must not
be altered, defaced or removed.
6 720 607 072 (16 January)
Fifteen Year Limited Warranty
37
Replacement Parts available from North American Distributor
CONTROLLED ENERGY CORP.
340 Mad River Park
Waitsfield, Vermont 05673
Phone 866-330-2730
Fax (802) 496-6924
www.protankless.com
techsupport@protankless.com
VULCANO Termodomésticos S.A.
Estrada de Cacia
3801 - 856 Aveiro - PORTUGAL
Recycled paper © 2004 Controlled Energy Corporation,
Waitsfield, VT all rights reserved
