Bosch Termotecnologia 8708300281 Base Unit Transceiver User Manual 6720680209 0902 New Remote control

Bosch Termotecnologia S.A. Base Unit Transceiver 6720680209 0902 New Remote control

User Manual

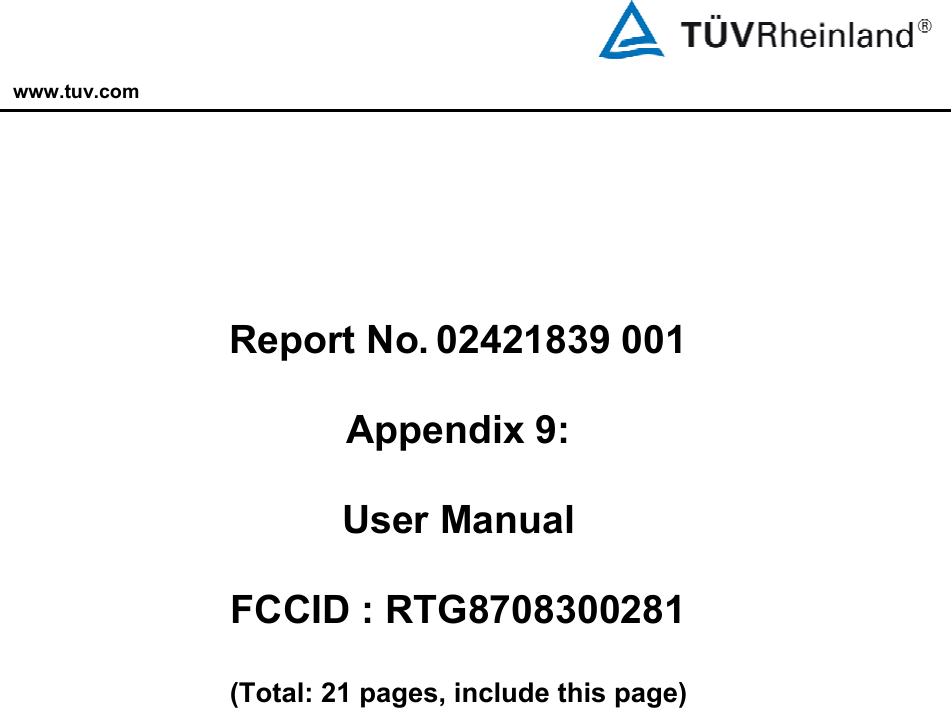

www.tuv.com Report No. 02421839 001 Appendix 9: User Manual FCCID : RTG8708300281 (Total: 21 pages, include this page)

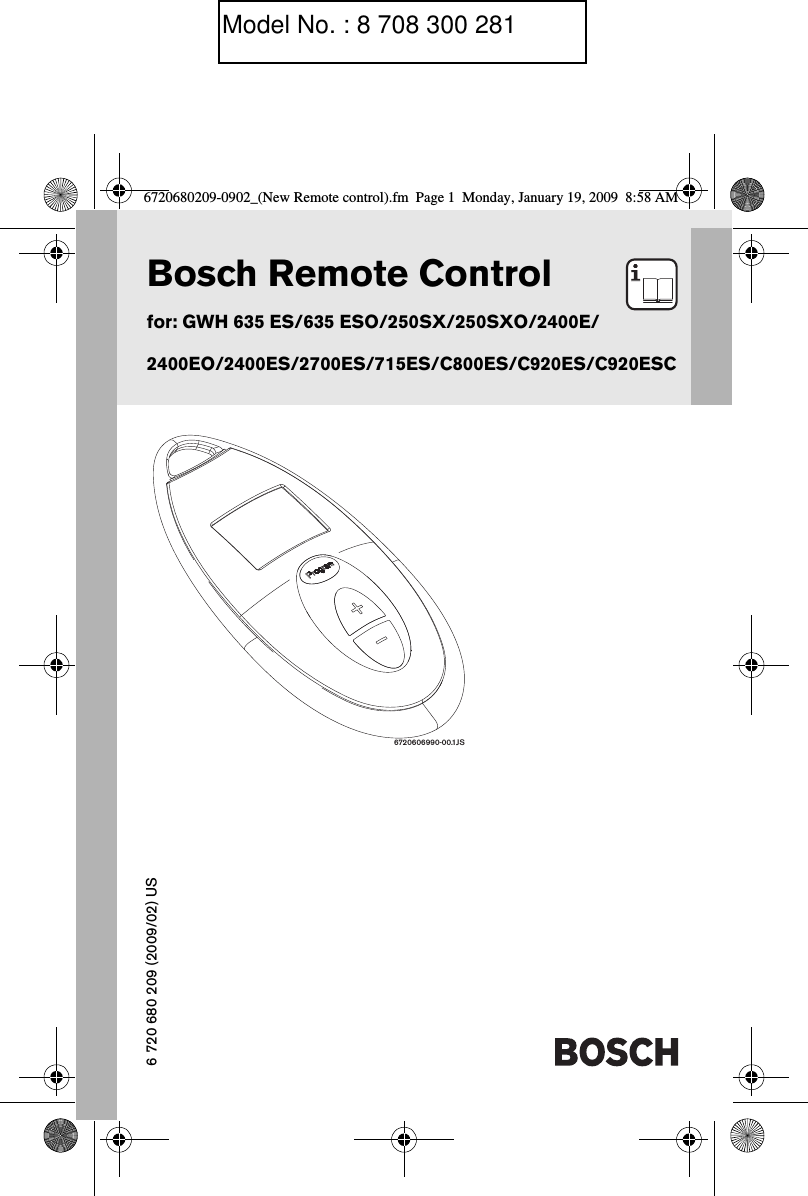

Bosch Remote Controlfor: GWH 635 ES/635 ESO/250SX/250SXO/2400E/2400EO/2400ES/2700ES/715ES/C800ES/C920ES/C920ESC6720606990-00.1JS6 720 680 209 (2009/02) US6720680209-0902_(New Remote control).fm Page 1 Monday, January 19, 2009 8:58 AMModel No. : 8 708 300 281

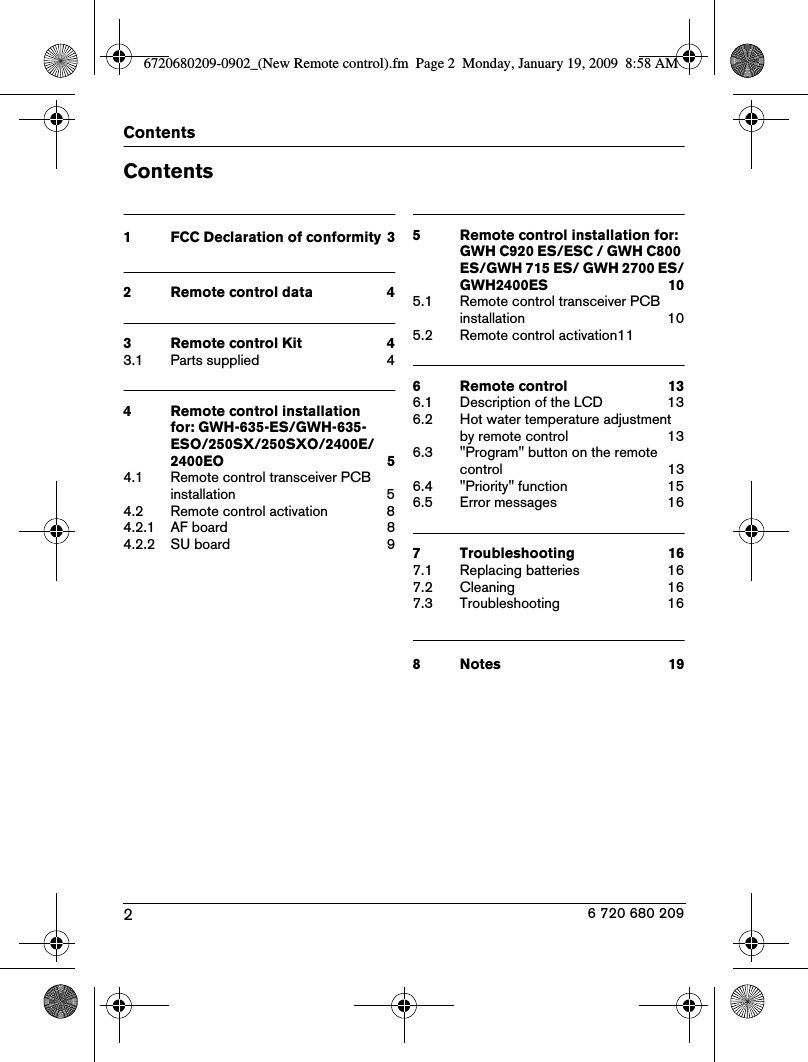

2Contents6 720 680 209Contents1 FCC Declaration of conformity 32 Remote control data 43 Remote control Kit 43.1 Parts supplied 44 Remote control installation for: GWH-635-ES/GWH-635-ESO/250SX/250SXO/2400E/2400EO 54.1 Remote control transceiver PCB installation 54.2 Remote control activation 84.2.1 AF board 84.2.2 SU board 95 Remote control installation for: GWH C920 ES/ESC / GWH C800 ES/GWH 715 ES/ GWH 2700 ES/GWH2400ES 105.1 Remote control transceiver PCB installation 105.2 Remote control activation116 Remote control 136.1 Description of the LCD 136.2 Hot water temperature adjustment by remote control 136.3 "Program" button on the remote control 136.4 "Priority" function 156.5 Error messages 167 Troubleshooting 167.1 Replacing batteries 167.2 Cleaning 167.3 Troubleshooting 168 Notes 196720680209-0902_(New Remote control).fm Page 2 Monday, January 19, 2009 8:58 AM

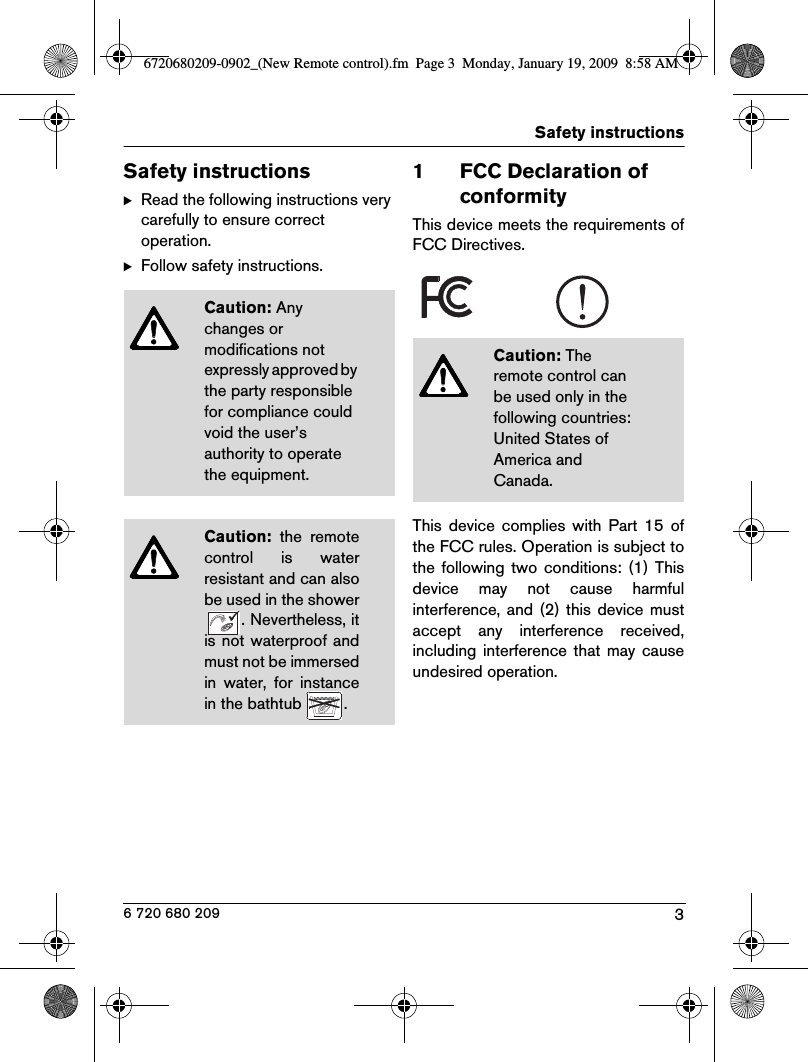

3Safety instructions6 720 680 209Safety instructionsBRead the following instructions very carefully to ensure correct operation.BFollow safety instructions.1 FCC Declaration of conformityThis device meets the requirements ofFCC Directives.This device complies with Part 15 ofthe FCC rules. Operation is subject tothe following two conditions: (1) Thisdevice may not cause harmfulinterference, and (2) this device mustaccept any interference received,including interference that may causeundesired operation.Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Caution: the remotecontrol is waterresistant and can alsobe used in the shower. Nevertheless, itis not waterproof andmust not be immersedin water, for instancein the bathtub .Caution: The remote control can be used only in the following countries: United States of America and Canada.6720680209-0902_(New Remote control).fm Page 3 Monday, January 19, 2009 8:58 AM
4Remote control data6 720 680 2092 Remote control dataRemote control for temperatureadjustment of Bosch water heaters.Technical Data:Further Information:3 Remote control Kit3.1 Parts suppliedFig. 1 Parts1Remote control2Remote control transceiver PCB3Support block (used only for GWH635 ES/GWH 635 ESO/250SX/250SXO)4PCB connection cableBattery power supplyAlkaline AA LR 62 x 1.5VFrequency 903 MHzType of protection IP X6User range98 ft (30 m)Remote controlUp to 6 remote controlscan be programmed forone single appliance.6720680209-0902_(New Remote control).fm Page 4 Monday, January 19, 2009 8:58 AM

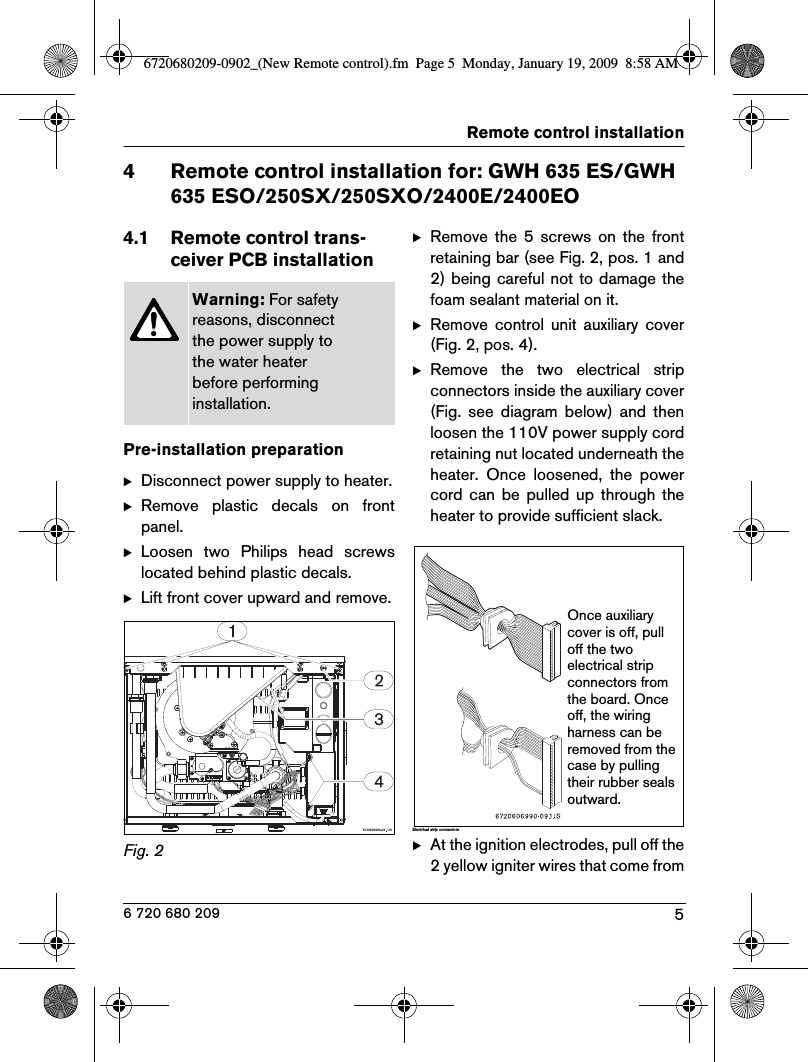

5Remote control installation6 720 680 2094 Remote control installation for: GWH 635 ES/GWH 635 ESO/250SX/250SXO/2400E/2400EO4.1 Remote control trans-ceiver PCB installationPre-installation preparationBDisconnect power supply to heater.BRemove plastic decals on frontpanel.BLoosen two Philips head screwslocated behind plastic decals.BLift front cover upward and remove.Fig. 2 BRemove the 5 screws on the frontretaining bar (see Fig. 2, pos. 1 and2) being careful not to damage thefoam sealant material on it.BRemove control unit auxiliary cover(Fig. 2, pos. 4).BRemove the two electrical stripconnectors inside the auxiliary cover(Fig. see diagram below) and thenloosen the 110V power supply cordretaining nut located underneath theheater. Once loosened, the powercord can be pulled up through theheater to provide sufficient slack.Electri cal strip con necto rsBAt the ignition electrodes, pull off the2 yellow igniter wires that come fromWarning: For safety reasons, disconnect the power supply to the water heater before performing installation.Once auxiliary cover is off, pull off the two electrical strip connectors from the board. Once off, the wiring harness can be removed from the case by pulling their rubber seals outward.6720680209-0902_(New Remote control).fm Page 5 Monday, January 19, 2009 8:58 AM

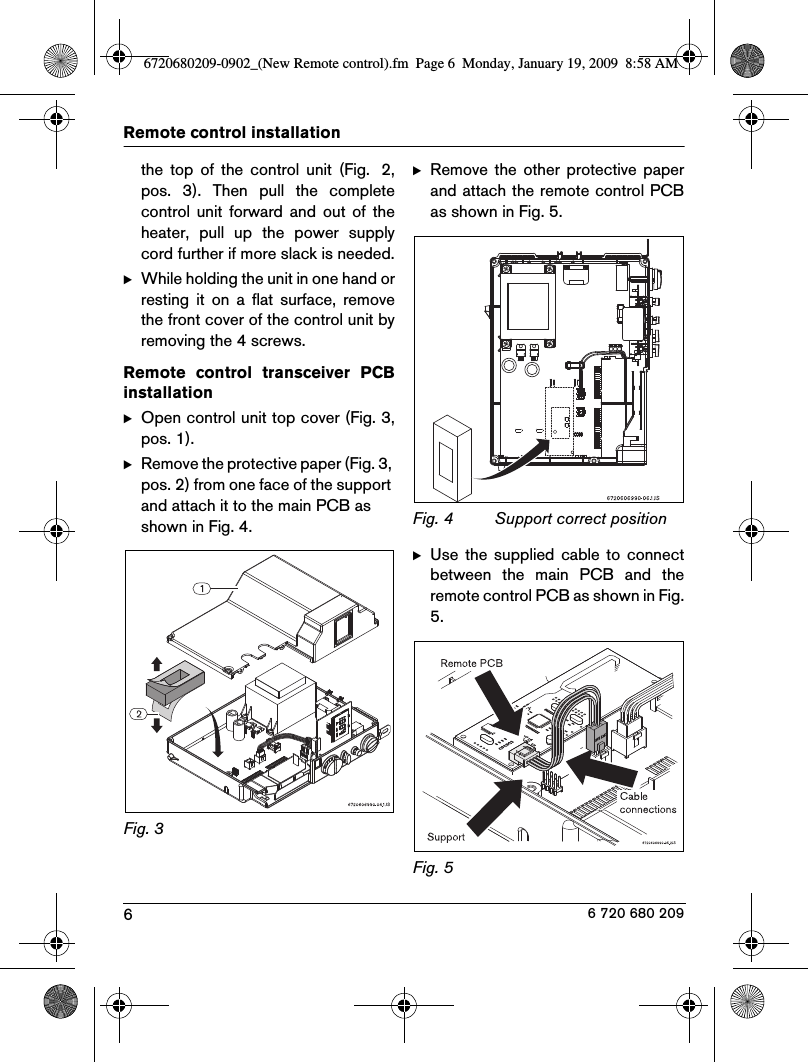

6Remote control installation 6 720 680 209the top of the control unit (Fig. 2,pos. 3). Then pull the completecontrol unit forward and out of theheater, pull up the power supplycord further if more slack is needed.BWhile holding the unit in one hand orresting it on a flat surface, removethe front cover of the control unit byremoving the 4 screws.Remote control transceiver PCBinstallationBOpen control unit top cover (Fig. 3,pos. 1).BRemove the protective paper (Fig. 3, pos. 2) from one face of the support and attach it to the main PCB as shown in Fig. 4.Fig. 3 BRemove the other protective paperand attach the remote control PCBas shown in Fig. 5.Fig. 4 Support correct positionBUse the supplied cable to connectbetween the main PCB and theremote control PCB as shown in Fig.5.Fig. 5 6720680209-0902_(New Remote control).fm Page 6 Monday, January 19, 2009 8:58 AM

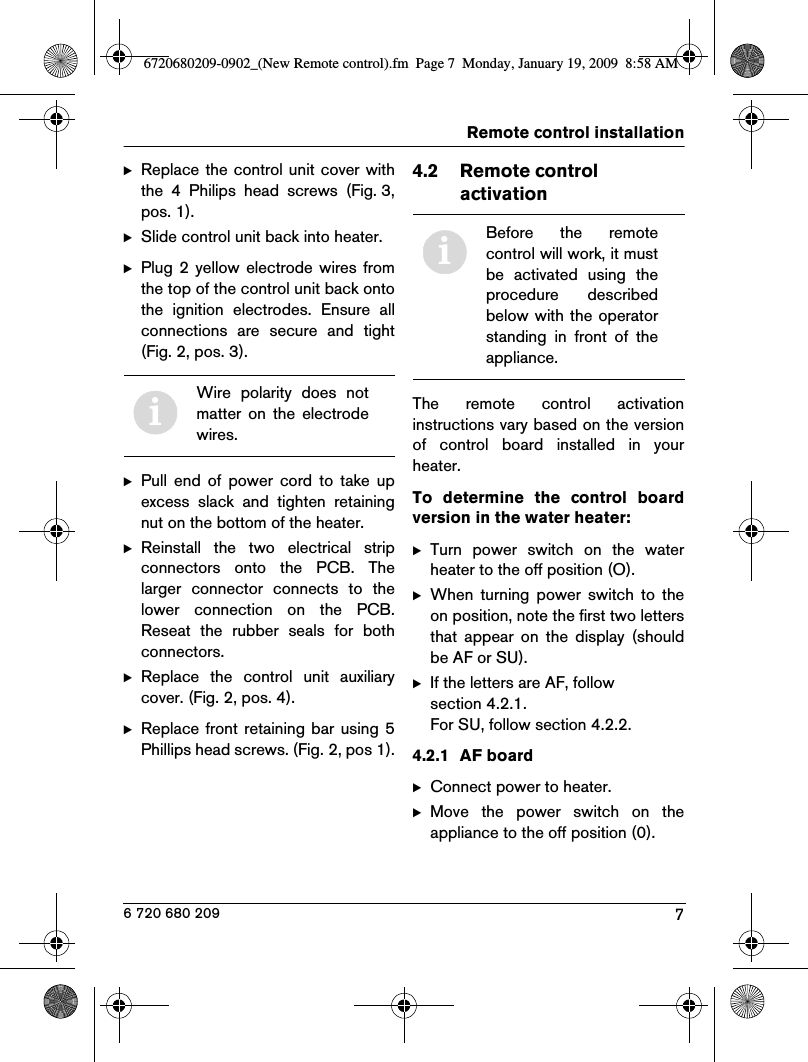

7Remote control installation6 720 680 209BReplace the control unit cover withthe 4 Philips head screws (Fig. 3,pos. 1).BSlide control unit back into heater.BPlug 2 yellow electrode wires fromthe top of the control unit back ontothe ignition electrodes. Ensure allconnections are secure and tight(Fig. 2, pos. 3).BPull end of power cord to take upexcess slack and tighten retainingnut on the bottom of the heater.BReinstall the two electrical stripconnectors onto the PCB. Thelarger connector connects to thelower connection on the PCB.Reseat the rubber seals for bothconnectors.BReplace the control unit auxiliarycover. (Fig. 2, pos. 4).BReplace front retaining bar using 5Phillips head screws. (Fig. 2, pos 1).4.2 Remote control activationThe remote control activationinstructions vary based on the versionof control board installed in yourheater.To determine the control boardversion in the water heater:BTurn power switch on the waterheater to the off position (O).BWhen turning power switch to theon position, note the first two lettersthat appear on the display (shouldbe AF or SU).BIf the letters are AF, follow section 4.2.1.For SU, follow section 4.2.2.4.2.1 AF boardBConnect power to heater.BMove the power switch on theappliance to the off position (0).iWire polarity does notmatter on the electrodewires.iBefore the remotecontrol will work, it mustbe activated using theprocedure describedbelow with the operatorstanding in front of theappliance.6720680209-0902_(New Remote control).fm Page 7 Monday, January 19, 2009 8:58 AM

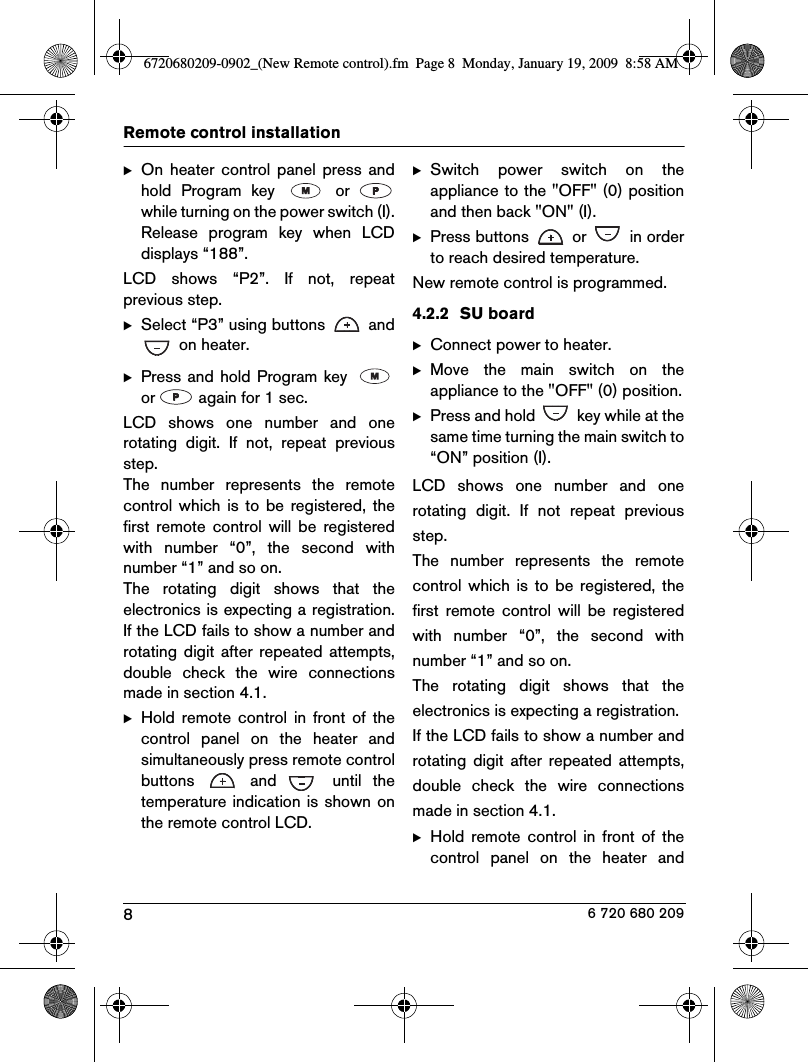

8Remote control installation 6 720 680 209BOn heater control panel press andhold Program key or while turning on the power switch (I).Release program key when LCDdisplays “188”.LCD shows “P2”. If not, repeatprevious step.BSelect “P3” using buttons and on heater.BPress and hold Program key or again for 1 sec.LCD shows one number and onerotating digit. If not, repeat previousstep.The number represents the remotecontrol which is to be registered, thefirst remote control will be registeredwith number “0”, the second withnumber “1” and so on.The rotating digit shows that theelectronics is expecting a registration.If the LCD fails to show a number androtating digit after repeated attempts,double check the wire connectionsmade in section 4.1.BHold remote control in front of thecontrol panel on the heater andsimultaneously press remote controlbuttons and until thetemperature indication is shown onthe remote control LCD.BSwitch power switch on theappliance to the "OFF" (0) positionand then back "ON" (I).BPress buttons or in orderto reach desired temperature.New remote control is programmed.4.2.2 SU boardBConnect power to heater.BMove the main switch on theappliance to the "OFF" (0) position.BPress and hold key while at thesame time turning the main switch to“ON” position (I).LCD shows one number and onerotating digit. If not repeat previousstep.The number represents the remotecontrol which is to be registered, thefirst remote control will be registeredwith number “0”, the second withnumber “1” and so on.The rotating digit shows that theelectronics is expecting a registration.If the LCD fails to show a number androtating digit after repeated attempts,double check the wire connectionsmade in section 4.1.BHold remote control in front of thecontrol panel on the heater and6720680209-0902_(New Remote control).fm Page 8 Monday, January 19, 2009 8:58 AM

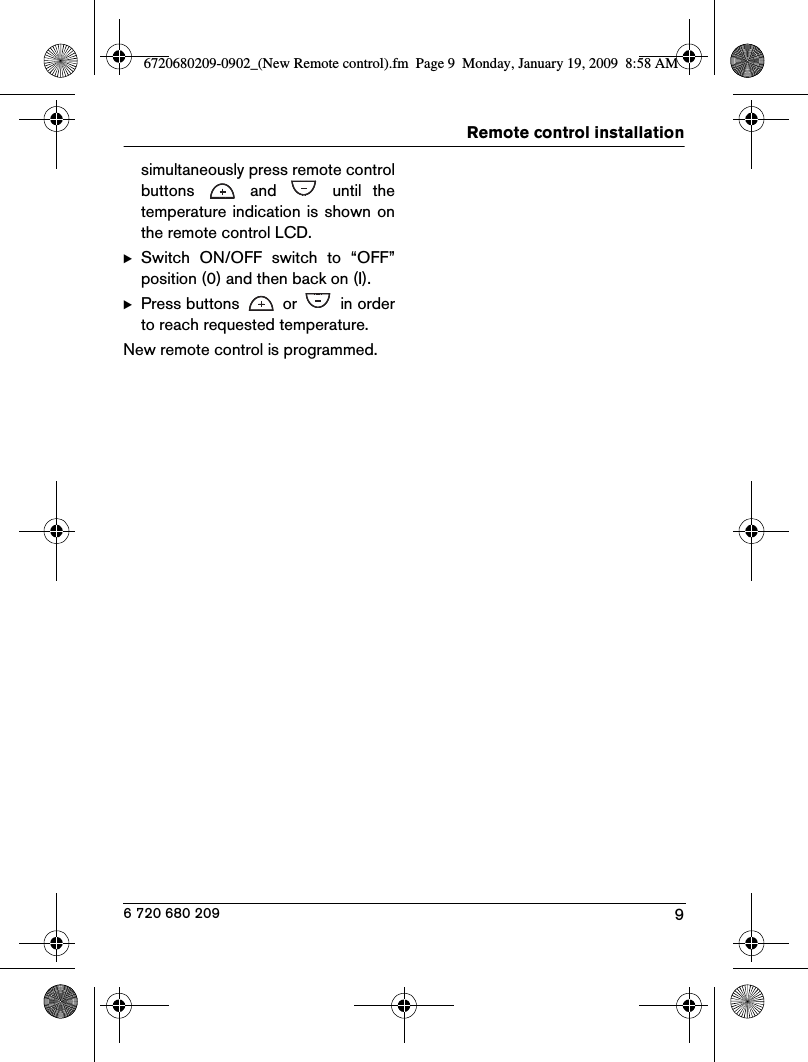

9Remote control installation6 720 680 209simultaneously press remote controlbuttons and until thetemperature indication is shown onthe remote control LCD.BSwitch ON/OFF switch to “OFF”position (0) and then back on (I).BPress buttons or in orderto reach requested temperature.New remote control is programmed.6720680209-0902_(New Remote control).fm Page 9 Monday, January 19, 2009 8:58 AM

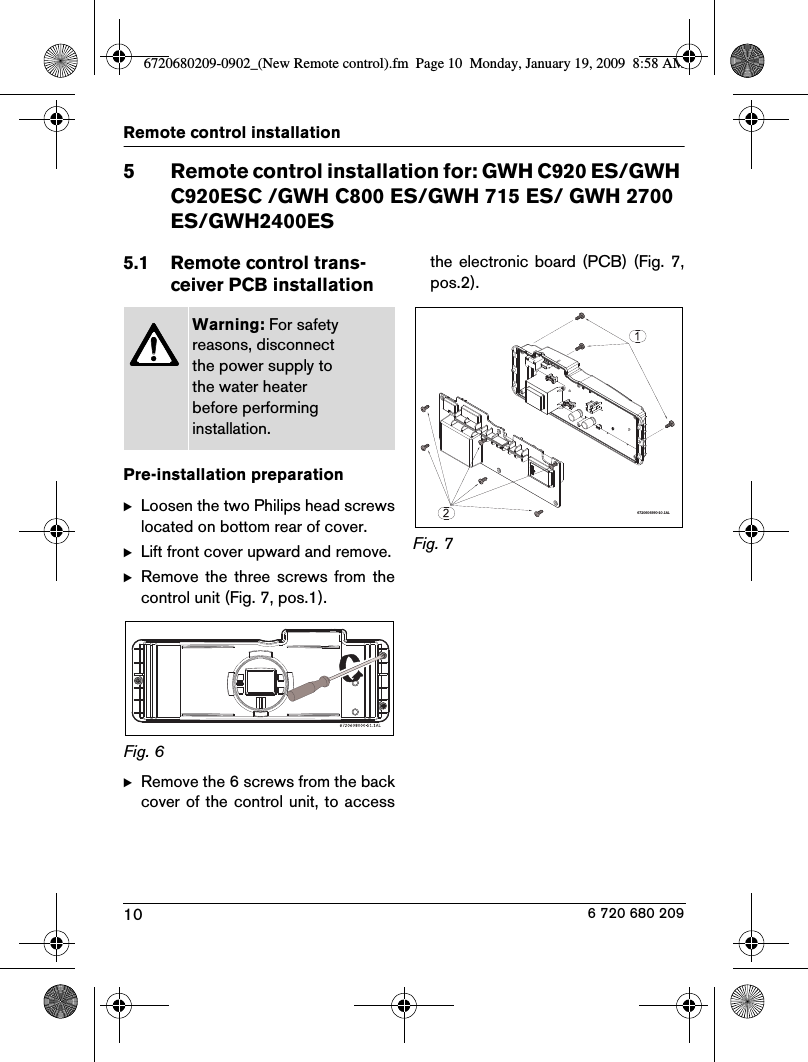

10Remote control installation 6 720 680 2095 Remote control installation for: GWH C920 ES/GWH C920ESC /GWH C800 ES/GWH 715 ES/ GWH 2700 ES/GWH2400ES5.1 Remote control trans-ceiver PCB installationPre-installation preparationBLoosen the two Philips head screwslocated on bottom rear of cover.BLift front cover upward and remove.BRemove the three screws from thecontrol unit (Fig. 7, pos.1).Fig. 6BRemove the 6 screws from the backcover of the control unit, to accessthe electronic board (PCB) (Fig. 7,pos.2).Fig. 7Warning: For safety reasons, disconnect the power supply to the water heater before performing installation.6720606990-10.1AL6720680209-0902_(New Remote control).fm Page 10 Monday, January 19, 2009 8:58 AM

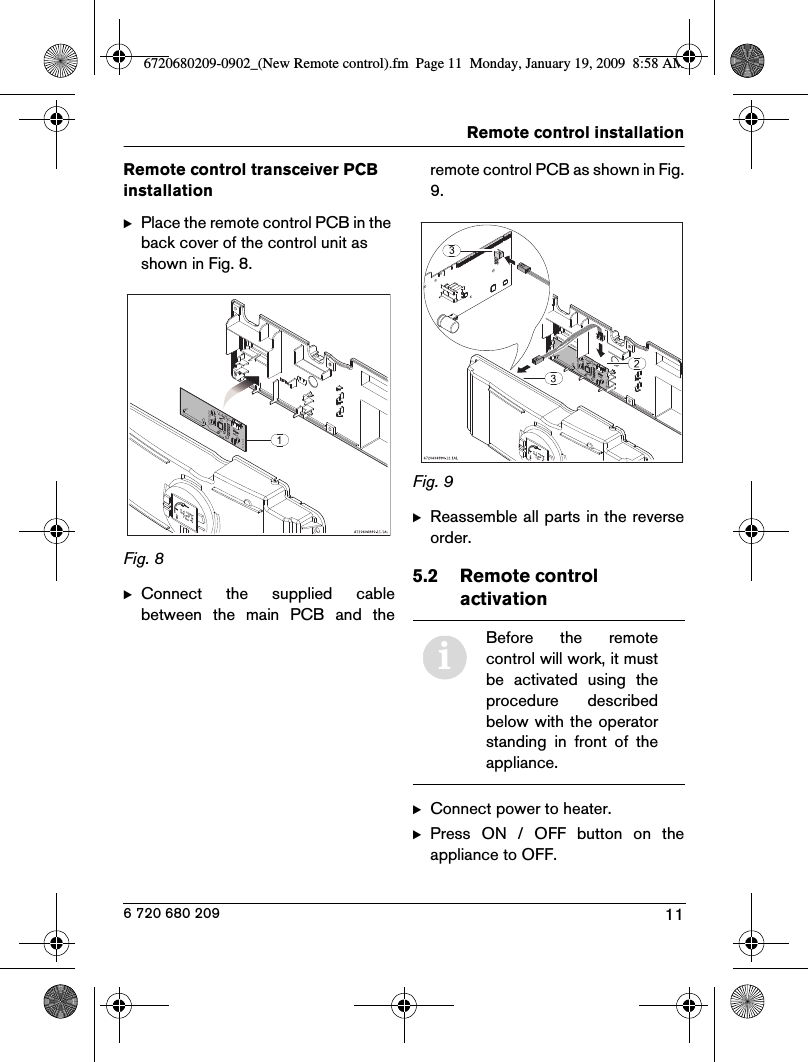

11Remote control installation6 720 680 209Remote control transceiver PCB installationBPlace the remote control PCB in the back cover of the control unit as shown in Fig. 8.Fig. 8 BConnect the supplied cablebetween the main PCB and theremote control PCB as shown in Fig.9.Fig. 9 BReassemble all parts in the reverseorder.5.2 Remote control activationBConnect power to heater.BPress ON / OFF button on theappliance to OFF.iBefore the remotecontrol will work, it mustbe activated using theprocedure describedbelow with the operatorstanding in front of theappliance.6720680209-0902_(New Remote control).fm Page 11 Monday, January 19, 2009 8:58 AM

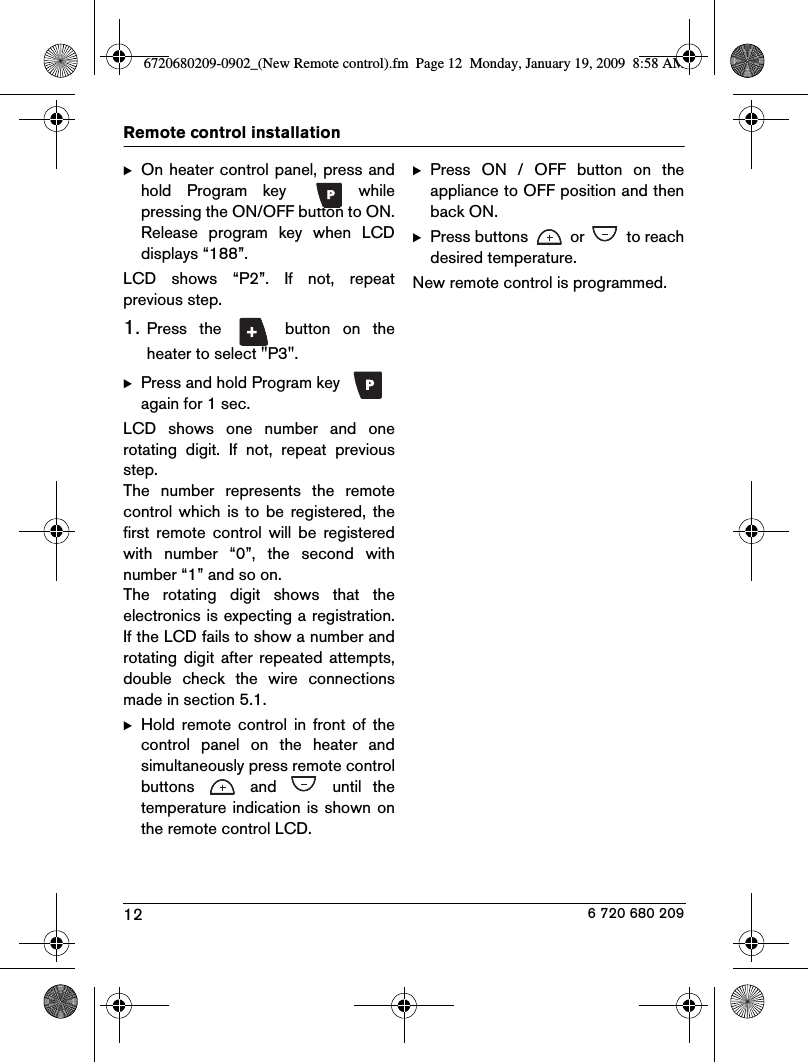

12Remote control installation 6 720 680 209BOn heater control panel, press andhold Program key whilepressing the ON/OFF button to ON.Release program key when LCDdisplays “188”.LCD shows “P2”. If not, repeatprevious step.1.Press the button on theheater to select "P3".BPress and hold Program key again for 1 sec.LCD shows one number and onerotating digit. If not, repeat previousstep.The number represents the remotecontrol which is to be registered, thefirst remote control will be registeredwith number “0”, the second withnumber “1” and so on.The rotating digit shows that theelectronics is expecting a registration.If the LCD fails to show a number androtating digit after repeated attempts,double check the wire connectionsmade in section 5.1.BHold remote control in front of thecontrol panel on the heater andsimultaneously press remote controlbuttons and until thetemperature indication is shown onthe remote control LCD.BPress ON / OFF button on theappliance to OFF position and thenback ON.BPress buttons or to reachdesired temperature.New remote control is programmed.6720680209-0902_(New Remote control).fm Page 12 Monday, January 19, 2009 8:58 AM

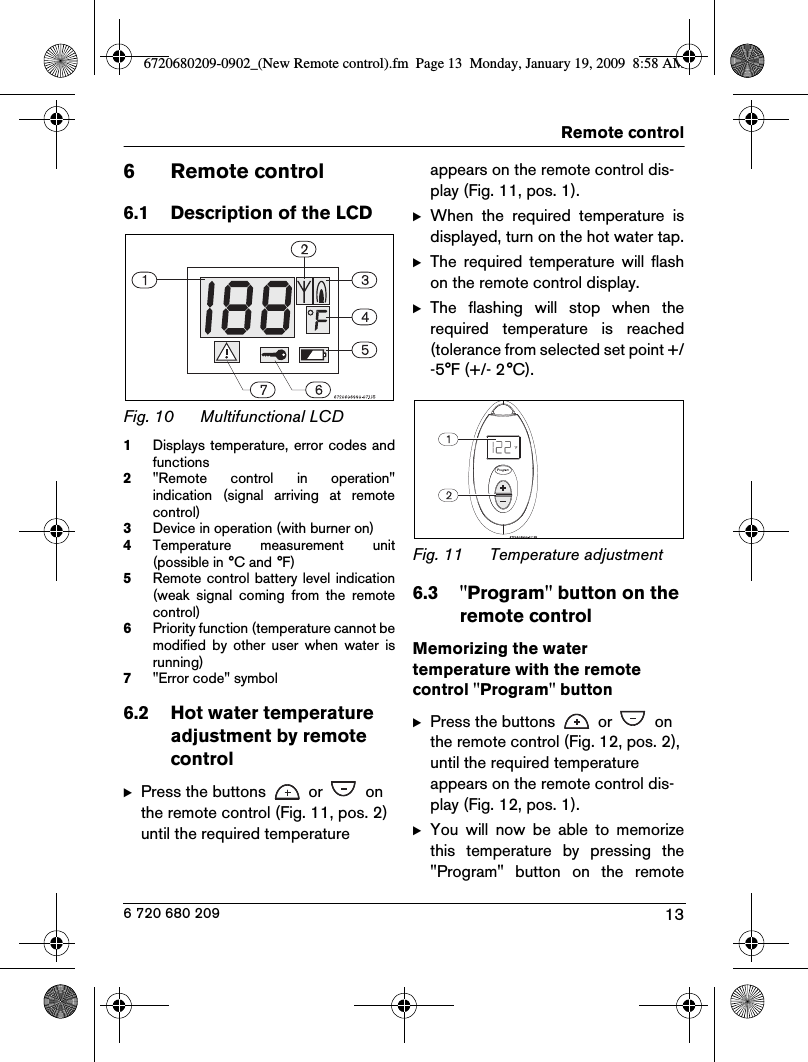

13Remote control6 720 680 2096 Remote control6.1 Description of the LCDFig. 10 Multifunctional LCD1Displays temperature, error codes andfunctions2"Remote control in operation"indication (signal arriving at remotecontrol)3Device in operation (with burner on)4Temperature measurement unit(possible in °C and °F)5Remote control battery level indication(weak signal coming from the remotecontrol)6Priority function (temperature cannot bemodified by other user when water isrunning)7"Error code" symbol6.2 Hot water temperature adjustment by remote controlBPress the buttons or on the remote control (Fig. 11, pos. 2) until the required temperature appears on the remote control dis-play (Fig. 11, pos. 1).BWhen the required temperature isdisplayed, turn on the hot water tap.BThe required temperature will flashon the remote control display.BThe flashing will stop when therequired temperature is reached(tolerance from selected set point +/-5°F (+/- 2°C).Fig. 11 Temperature adjustment 6.3 "Program" button on the remote control Memorizing the water temperature with the remote control "Program" buttonBPress the buttons or on the remote control (Fig. 12, pos. 2), until the required temperature appears on the remote control dis-play (Fig. 12, pos. 1).BYou will now be able to memorizethis temperature by pressing the"Program" button on the remote6720680209-0902_(New Remote control).fm Page 13 Monday, January 19, 2009 8:58 AM

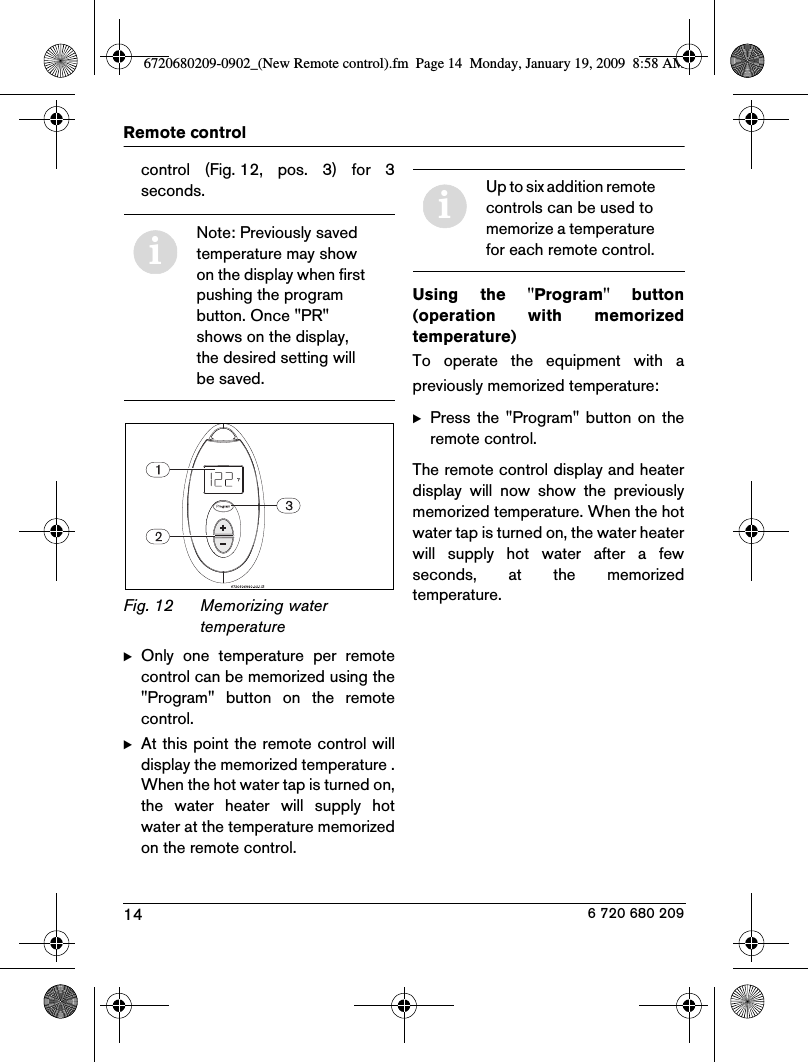

14Remote control6 720 680 209control (Fig. 12, pos. 3) for 3seconds.Fig. 12 Memorizing water temperatureBOnly one temperature per remotecontrol can be memorized using the"Program" button on the remotecontrol.BAt this point the remote control willdisplay the memorized temperature .When the hot water tap is turned on,the water heater will supply hotwater at the temperature memorizedon the remote control.Using the "Program" button(operation with memorizedtemperature)To operate the equipment with apreviously memorized temperature:BPress the "Program" button on theremote control.The remote control display and heaterdisplay will now show the previouslymemorized temperature. When the hotwater tap is turned on, the water heaterwill supply hot water after a fewseconds, at the memorizedtemperature.iNote: Previously saved temperature may show on the display when first pushing the program button. Once "PR" shows on the display, the desired setting will be saved.iUp to six addition remote controls can be used to memorize a temperature for each remote control.6720680209-0902_(New Remote control).fm Page 14 Monday, January 19, 2009 8:58 AM

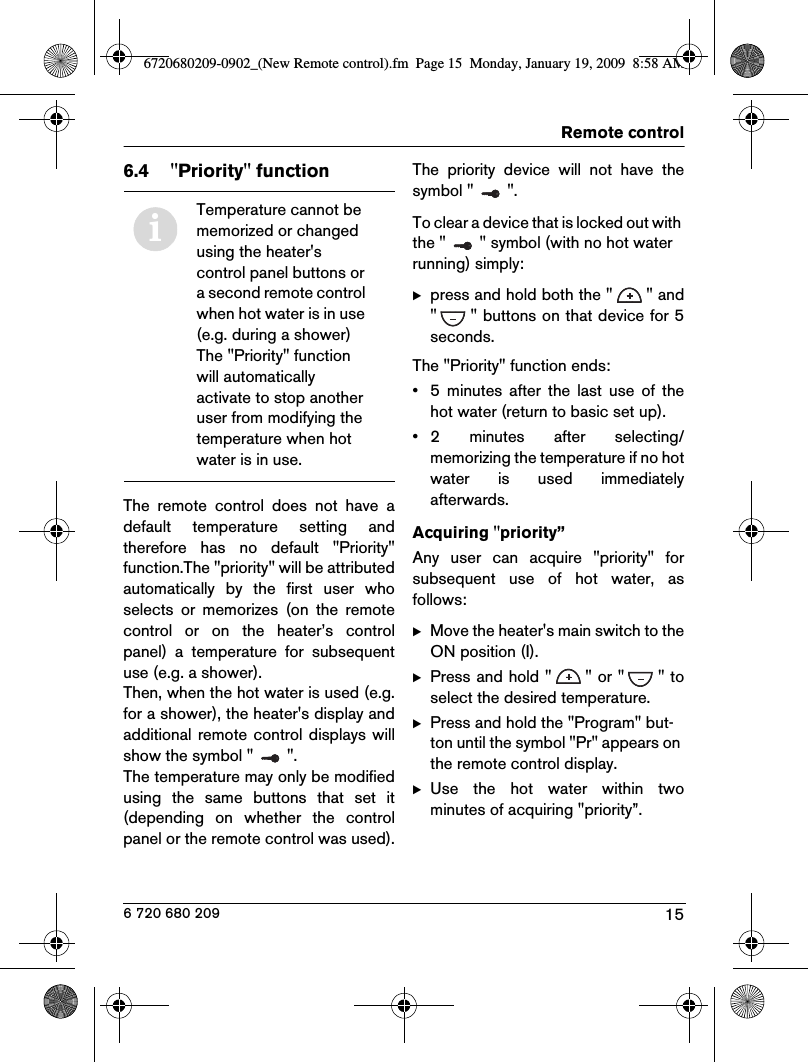

15Remote control6 720 680 2096.4 "Priority" functionThe remote control does not have adefault temperature setting andtherefore has no default "Priority"function.The "priority" will be attributedautomatically by the first user whoselects or memorizes (on the remotecontrol or on the heater’s controlpanel) a temperature for subsequentuse (e.g. a shower).Then, when the hot water is used (e.g.for a shower), the heater's display andadditional remote control displays willshow the symbol " ".The temperature may only be modifiedusing the same buttons that set it(depending on whether the controlpanel or the remote control was used).The priority device will not have thesymbol " ".To clear a device that is locked out with the " " symbol (with no hot water running) simply:Bpress and hold both the " " and" " buttons on that device for 5seconds.The "Priority" function ends:• 5 minutes after the last use of thehot water (return to basic set up).• 2 minutes after selecting/memorizing the temperature if no hotwater is used immediatelyafterwards.Acquiring "priority”Any user can acquire "priority" forsubsequent use of hot water, asfollows:BMove the heater's main switch to theON position (I).BPress and hold " " or " " toselect the desired temperature.BPress and hold the "Program" but-ton until the symbol "Pr" appears on the remote control display.BUse the hot water within twominutes of acquiring "priority”.iTemperature cannot be memorized or changed using the heater's control panel buttons or a second remote control when hot water is in use (e.g. during a shower) The "Priority" function will automatically activate to stop another user from modifying the temperature when hot water is in use.6720680209-0902_(New Remote control).fm Page 15 Monday, January 19, 2009 8:58 AM

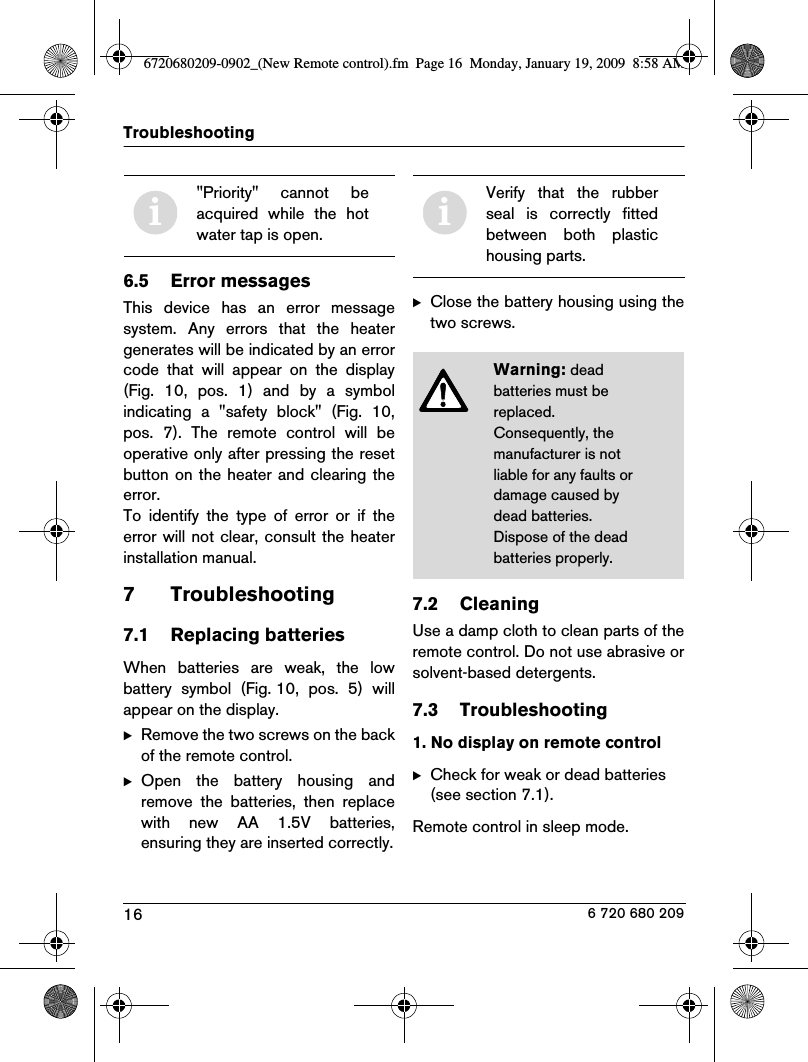

16Troubleshooting6 720 680 2096.5 Error messagesThis device has an error messagesystem. Any errors that the heatergenerates will be indicated by an errorcode that will appear on the display(Fig. 10, pos. 1) and by a symbolindicating a "safety block" (Fig. 10,pos. 7). The remote control will beoperative only after pressing the resetbutton on the heater and clearing theerror.To identify the type of error or if theerror will not clear, consult the heaterinstallation manual.7 Troubleshooting7.1 Replacing batteriesWhen batteries are weak, the lowbattery symbol (Fig. 10, pos. 5) willappear on the display.BRemove the two screws on the backof the remote control.BOpen the battery housing andremove the batteries, then replacewith new AA 1.5V batteries,ensuring they are inserted correctly.BClose the battery housing using thetwo screws.7.2 CleaningUse a damp cloth to clean parts of theremote control. Do not use abrasive orsolvent-based detergents.7.3 Troubleshooting1. No display on remote controlBCheck for weak or dead batteries (see section 7.1).Remote control in sleep mode.i"Priority" cannot beacquired while the hotwater tap is open.iVerify that the rubberseal is correctly fittedbetween both plastichousing parts.Warning: dead batteries must be replaced. Consequently, the manufacturer is not liable for any faults or damage caused by dead batteries.Dispose of the dead batteries properly.6720680209-0902_(New Remote control).fm Page 16 Monday, January 19, 2009 8:58 AM

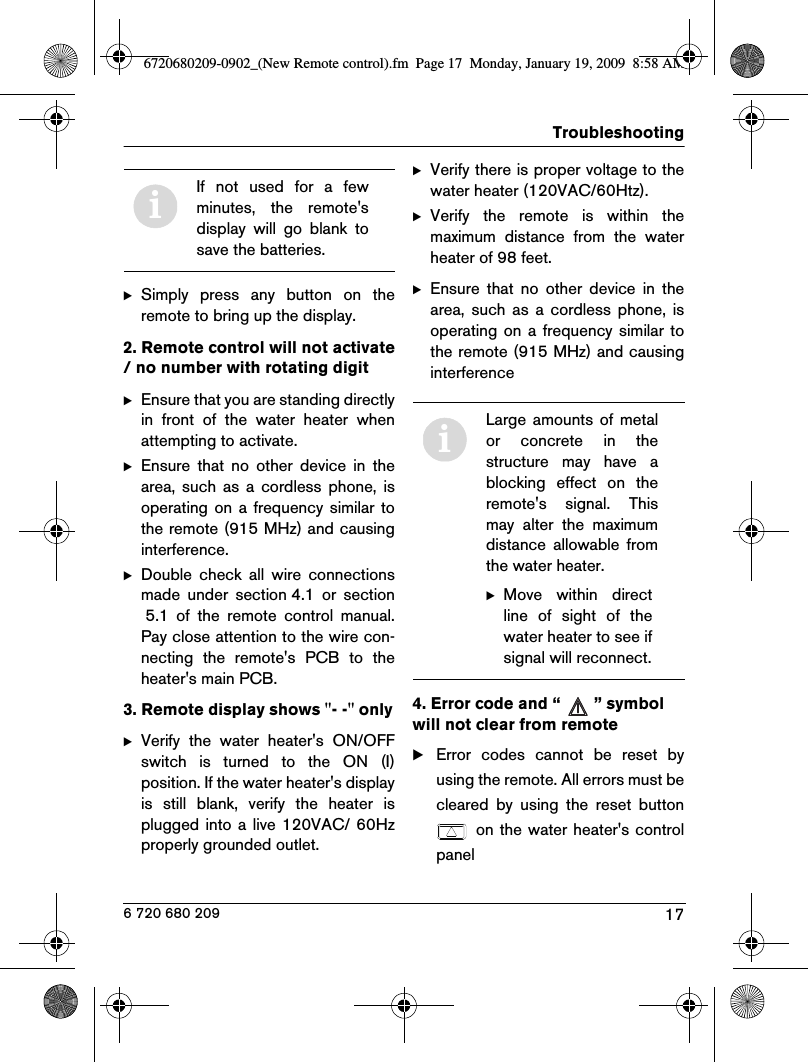

17Troubleshooting6 720 680 209BSimply press any button on theremote to bring up the display.2. Remote control will not activate/ no number with rotating digitBEnsure that you are standing directlyin front of the water heater whenattempting to activate.BEnsure that no other device in thearea, such as a cordless phone, isoperating on a frequency similar tothe remote (915 MHz) and causinginterference.BDouble check all wire connectionsmade under section 4.1 or section5.1 of the remote control manual.Pay close attention to the wire con-necting the remote's PCB to theheater's main PCB.3. Remote display shows "- -" onlyBVerify the water heater's ON/OFFswitch is turned to the ON (I)position. If the water heater's displayis still blank, verify the heater isplugged into a live 120VAC/ 60Hzproperly grounded outlet.BVerify there is proper voltage to thewater heater (120VAC/60Htz).BVerify the remote is within themaximum distance from the waterheater of 98 feet.BEnsure that no other device in thearea, such as a cordless phone, isoperating on a frequency similar tothe remote (915 MHz) and causinginterference4. Error code and “ ” symbol will not clear from remoteBError codes cannot be reset byusing the remote. All errors must becleared by using the reset button on the water heater's controlpaneliIf not used for a fewminutes, the remote'sdisplay will go blank tosave the batteries.iLarge amounts of metalor concrete in thestructure may have ablocking effect on theremote's signal. Thismay alter the maximumdistance allowable fromthe water heater.BMove within directline of sight of thewater heater to see ifsignal will reconnect.6720680209-0902_(New Remote control).fm Page 17 Monday, January 19, 2009 8:58 AM

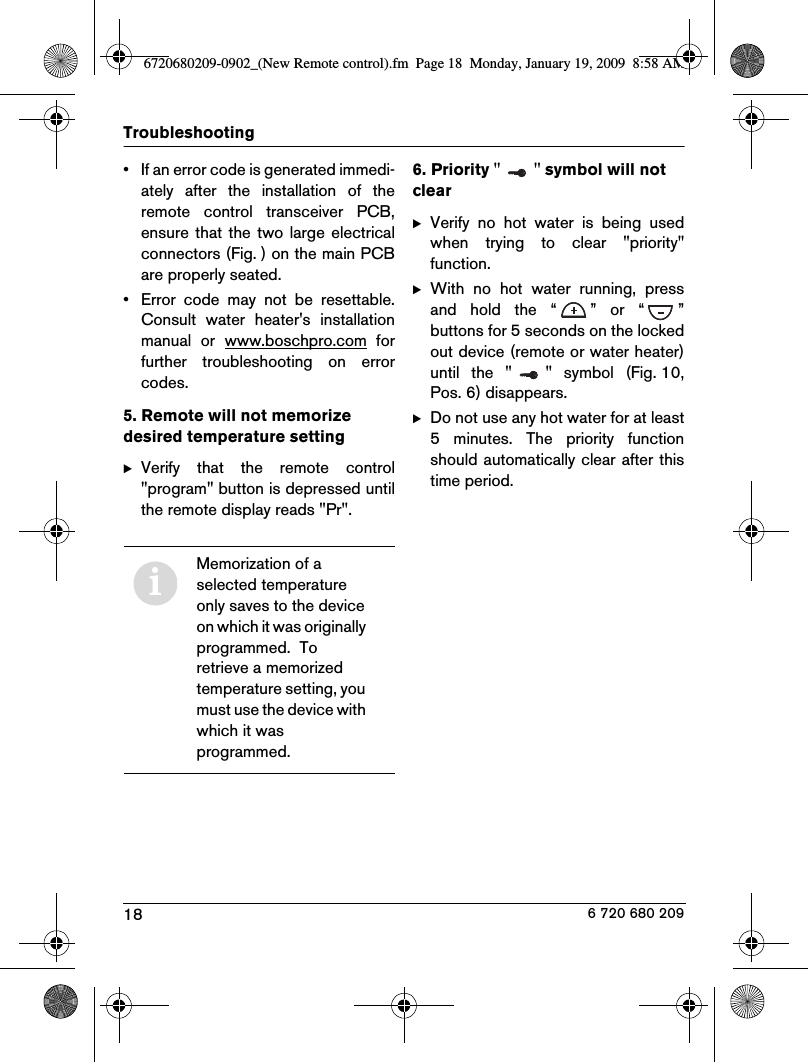

18Troubleshooting6 720 680 209• If an error code is generated immedi-ately after the installation of theremote control transceiver PCB,ensure that the two large electricalconnectors (Fig. ) on the main PCBare properly seated.• Error code may not be resettable.Consult water heater's installationmanual or www.boschpro.com forfurther troubleshooting on errorcodes.5. Remote will not memorize desired temperature settingBVerify that the remote control"program" button is depressed untilthe remote display reads "Pr".6. Priority " " symbol will not clearBVerify no hot water is being usedwhen trying to clear "priority"function.BWith no hot water running, pressand hold the “ ” or “ ”buttons for 5 seconds on the lockedout device (remote or water heater)until the " " symbol (Fig. 10,Pos. 6) disappears.BDo not use any hot water for at least5 minutes. The priority functionshould automatically clear after thistime period.iMemorization of a selected temperature only saves to the device on which it was originally programmed. To retrieve a memorized temperature setting, you must use the device with which it was programmed.6720680209-0902_(New Remote control).fm Page 18 Monday, January 19, 2009 8:58 AM

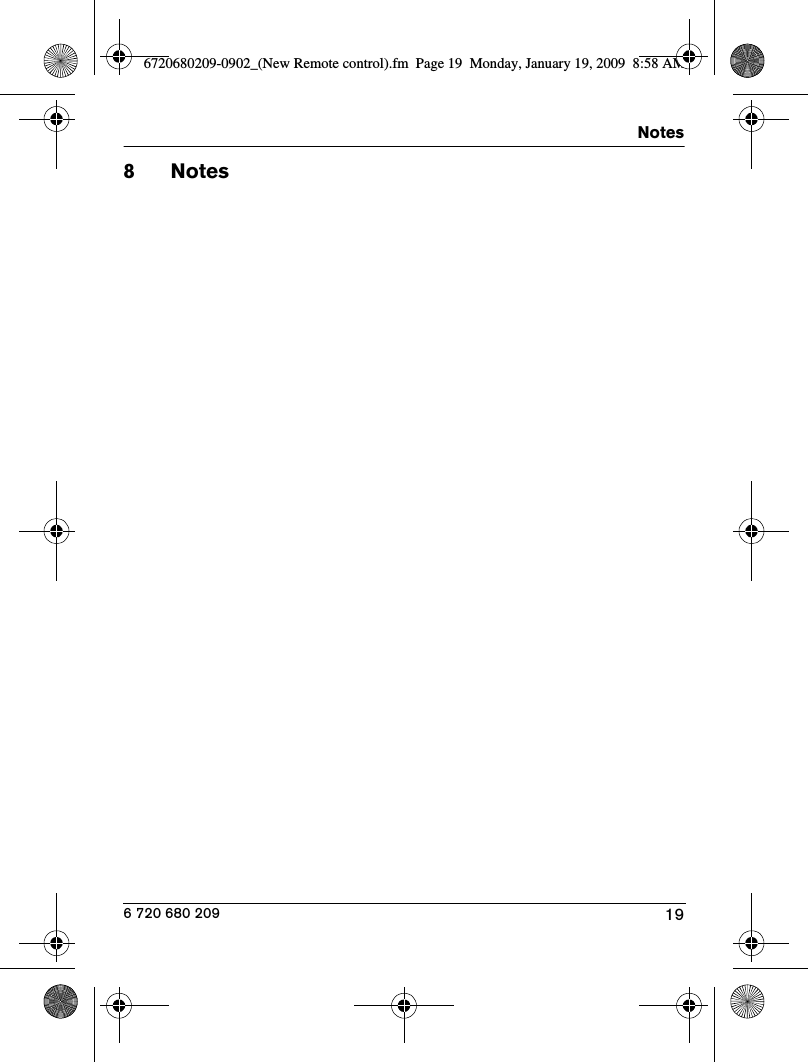

19Notes6 720 680 2098 Notes6720680209-0902_(New Remote control).fm Page 19 Monday, January 19, 2009 8:58 AM

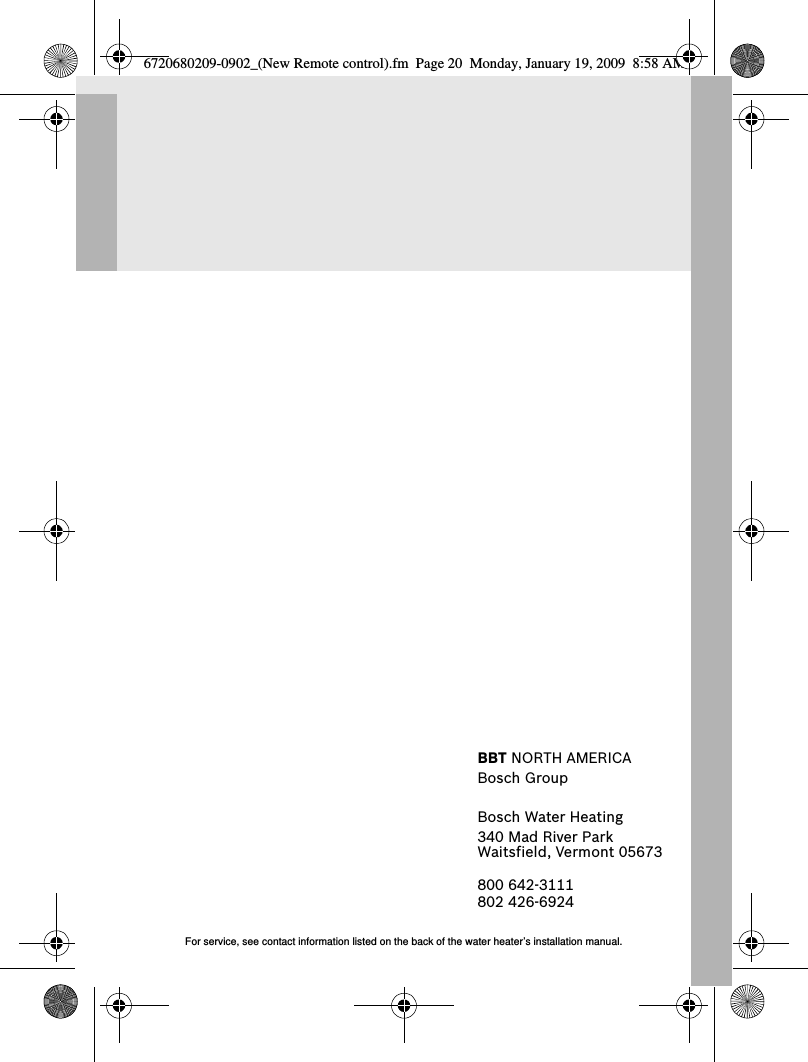

BBT NORTH AMERICABosch GroupBosch Water Heating340 Mad River ParkWaitsfield, Vermont 05673800 642-3111802 426-6924For service, see contact information listed on the back of the water heater’s installation manual.6720680209-0902_(New Remote control).fm Page 20 Monday, January 19, 2009 8:58 AM
