Bosch Remote Control
for: GWH 635 ES/635 ESO/250SX/250SXO/2400E/
2400EO/2400ES/2700ES/715ES/C800ES/C920ES/C920ESC
6720606990-00.1JS
6 720 680 209 (2009/02) US
6720680209-0902_(New Remote control).fm Page 1 Monday, January 19, 2009 8:58 AM
Model No. : 8 708 300 281
2
Contents
6 720 680 209
Contents
1 FCC Declaration of conformity 3
2 Remote control data 4
3 Remote control Kit 4
3.1 Parts supplied 4
4 Remote control installation
for: GWH-635-ES/GWH-635-
ESO/250SX/250SXO/2400E/
2400EO 5
4.1 Remote control transceiver PCB
installation 5
4.2 Remote control activation 8
4.2.1 AF board 8
4.2.2 SU board 9
5 Remote control installation for:
GWH C920 ES/ESC / GWH C800
ES/GWH 715 ES/ GWH 2700 ES/
GWH2400ES 10
5.1 Remote control transceiver PCB
installation 10
5.2 Remote control activation11
6 Remote control 13
6.1 Description of the LCD 13
6.2 Hot water temperature adjustment
by remote control 13
6.3 "Program" button on the remote
control 13
6.4 "Priority" function 15
6.5 Error messages 16
7 Troubleshooting 16
7.1 Replacing batteries 16
7.2 Cleaning 16
7.3 Troubleshooting 16
8 Notes 19
6720680209-0902_(New Remote control).fm Page 2 Monday, January 19, 2009 8:58 AM
3
Safety instructions
6 720 680 209
Safety instructions
BRead the following instructions very
carefully to ensure correct
operation.
BFollow safety instructions.
1 FCC Declaration of
conformity
This device meets the requirements of
FCC Directives.
This device complies with Part 15 of
the FCC rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Caution: Any
changes or
modifications not
expressly approved by
the party responsible
for compliance could
void the user’s
authority to operate
the equipment.
Caution: the remote
control is water
resistant and can also
be used in the shower
. Nevertheless, it
is not waterproof and
must not be immersed
in water, for instance
in the bathtub .
Caution: The
remote control can
be used only in the
following countries:
United States of
America and
Canada.
6720680209-0902_(New Remote control).fm Page 3 Monday, January 19, 2009 8:58 AM
4
Remote control data
6 720 680 209
2 Remote control data
Remote control for temperature
adjustment of Bosch water heaters.
Technical Data:
Further Information:

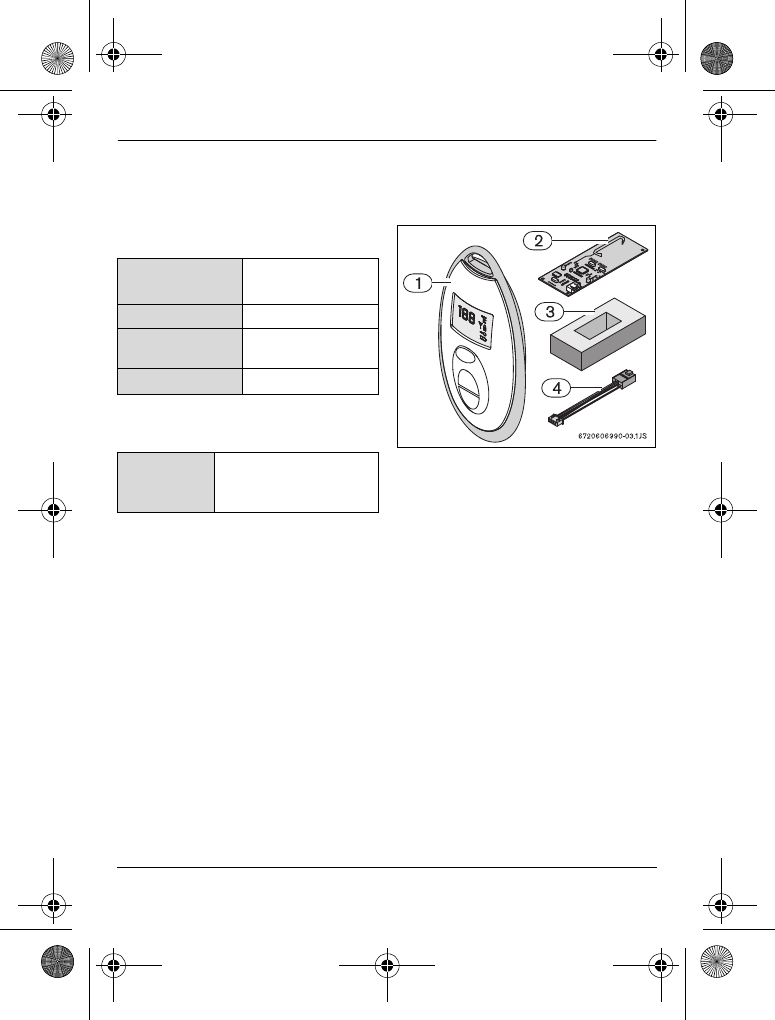

3 Remote control Kit
3.1 Parts supplied
Fig. 1 Parts
1Remote control
2Remote control transceiver PCB
3Support block (used only for GWH
635 ES/GWH 635 ESO/250SX/
250SXO)
4PCB connection cable
Battery power
supply
Alkaline AA LR 6
2 x 1.5V
Frequency 903 MHz
Type of
protection IP X6
User range
98 ft (30 m)
Remote
control
Up to 6 remote controls
can be programmed for
one single appliance.
6720680209-0902_(New Remote control).fm Page 4 Monday, January 19, 2009 8:58 AM
5
Remote control installation
6 720 680 209
4 Remote control installation for: GWH 635 ES/GWH
635 ESO/250SX/250SXO/2400E/2400EO
4.1 Remote control trans-
ceiver PCB installation
Pre-installation preparation
BDisconnect power supply to heater.
BRemove plastic decals on front
panel.
BLoosen two Philips head screws
located behind plastic decals.
BLift front cover upward and remove.

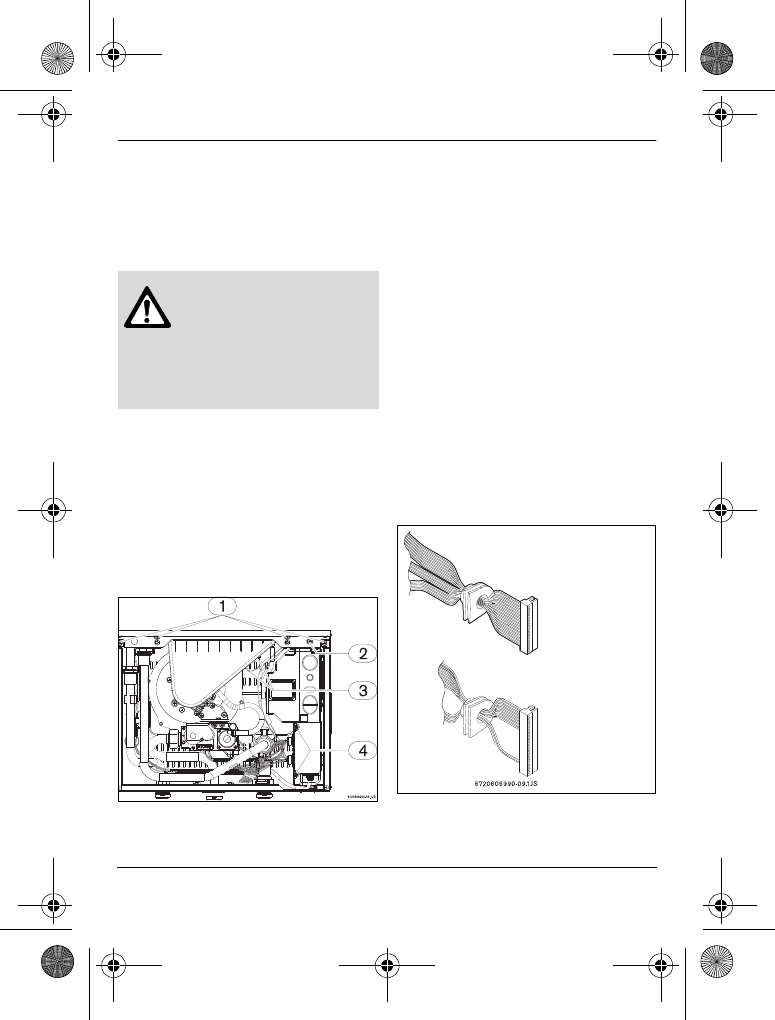

Fig. 2
BRemove the 5 screws on the front
retaining bar (see Fig. 2, pos. 1 and
2) being careful not to damage the
foam sealant material on it.
BRemove control unit auxiliary cover
(Fig. 2, pos. 4).
BRemove the two electrical strip
connectors inside the auxiliary cover
(Fig. see diagram below) and then
loosen the 110V power supply cord
retaining nut located underneath the
heater. Once loosened, the power
cord can be pulled up through the
heater to provide sufficient slack.
Electri cal strip con necto rs
BAt the ignition electrodes, pull off the
2 yellow igniter wires that come from
Warning: For safety
reasons, disconnect
the power supply to
the water heater
before performing
installation.
Once auxiliary
cover is off, pull
off the two
electrical strip
connectors from
the board. Once
off, the wiring
harness can be
removed from the
case by pulling
their rubber seals
outward.
6720680209-0902_(New Remote control).fm Page 5 Monday, January 19, 2009 8:58 AM
6
Remote control installation
6 720 680 209
the top of the control unit (Fig. 2,
pos. 3). Then pull the complete
control unit forward and out of the
heater, pull up the power supply
cord further if more slack is needed.
BWhile holding the unit in one hand or
resting it on a flat surface, remove
the front cover of the control unit by
removing the 4 screws.

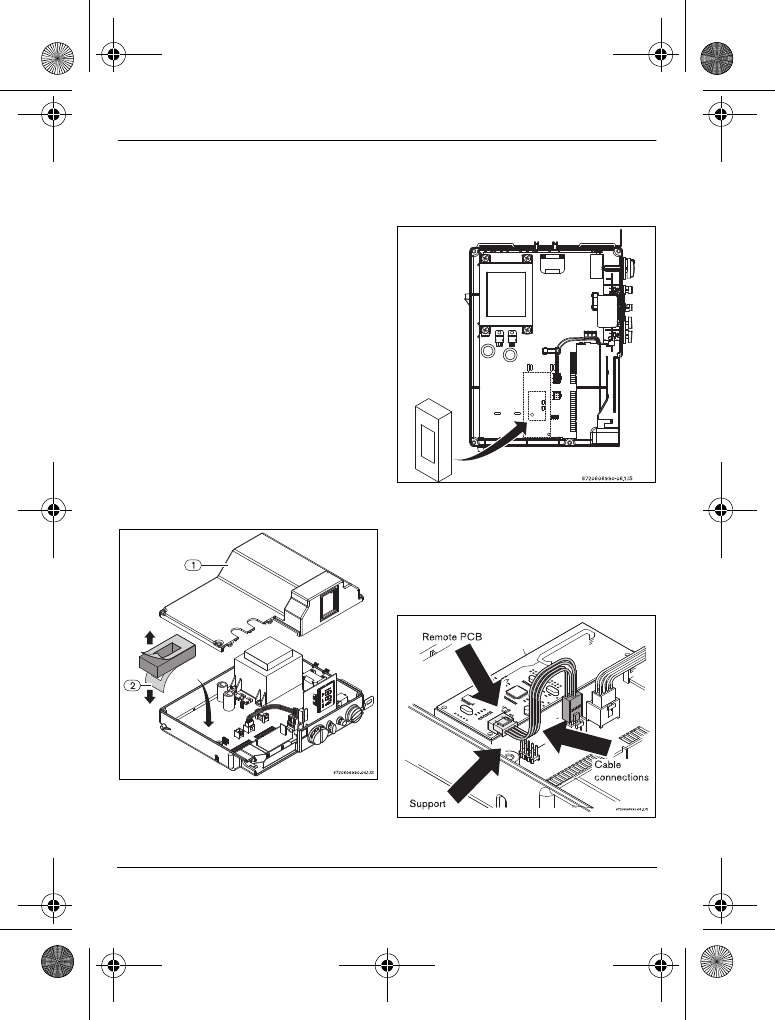

Remote control transceiver PCB
installation
BOpen control unit top cover (Fig. 3,
pos. 1).
BRemove the protective paper (Fig. 3,
pos. 2) from one face of the support
and attach it to the main PCB as
shown in Fig. 4.
Fig. 3
BRemove the other protective paper
and attach the remote control PCB
as shown in Fig. 5.
Fig. 4 Support correct position
BUse the supplied cable to connect
between the main PCB and the
remote control PCB as shown in Fig.
5.
Fig. 5
6720680209-0902_(New Remote control).fm Page 6 Monday, January 19, 2009 8:58 AM
7
Remote control installation
6 720 680 209
BReplace the control unit cover with
the 4 Philips head screws (Fig. 3,
pos. 1).
BSlide control unit back into heater.
BPlug 2 yellow electrode wires from
the top of the control unit back onto
the ignition electrodes. Ensure all
connections are secure and tight
(Fig. 2, pos. 3).
BPull end of power cord to take up
excess slack and tighten retaining
nut on the bottom of the heater.
BReinstall the two electrical strip
connectors onto the PCB. The
larger connector connects to the
lower connection on the PCB.
Reseat the rubber seals for both
connectors.
BReplace the control unit auxiliary
cover. (Fig. 2, pos. 4).
BReplace front retaining bar using 5
Phillips head screws. (Fig. 2, pos 1).
4.2 Remote control
activation
The remote control activation
instructions vary based on the version
of control board installed in your
heater.
To determine the control board
version in the water heater:
BTurn power switch on the water
heater to the off position (O).
BWhen turning power switch to the
on position, note the first two letters
that appear on the display (should
be AF or SU).
BIf the letters are AF, follow
section 4.2.1.
For SU, follow section 4.2.2.
4.2.1 AF board
BConnect power to heater.
BMove the power switch on the
appliance to the off position (0).
i
Wire polarity does not
matter on the electrode
wires.
i
Before the remote
control will work, it must
be activated using the
procedure described
below with the operator
standing in front of the
appliance.
6720680209-0902_(New Remote control).fm Page 7 Monday, January 19, 2009 8:58 AM
8
Remote control installation
6 720 680 209
BOn heater control panel press and
hold Program key or
while turning on the power switch (I).
Release program key when LCD
displays “188”.
LCD shows “P2”. If not, repeat
previous step.
BSelect “P3” using buttons and
on heater.
BPress and hold Program key
or again for 1 sec.
LCD shows one number and one
rotating digit. If not, repeat previous
step.
The number represents the remote
control which is to be registered, the
first remote control will be registered
with number “0”, the second with
number “1” and so on.
The rotating digit shows that the
electronics is expecting a registration.
If the LCD fails to show a number and
rotating digit after repeated attempts,
double check the wire connections
made in section 4.1.
BHold remote control in front of the
control panel on the heater and
simultaneously press remote control
buttons and until the
temperature indication is shown on
the remote control LCD.
BSwitch power switch on the
appliance to the "OFF" (0) position
and then back "ON" (I).
BPress buttons or in order
to reach desired temperature.
New remote control is programmed.
4.2.2 SU board
BConnect power to heater.
BMove the main switch on the
appliance to the "OFF" (0) position.
BPress and hold key while at the
same time turning the main switch to
“ON” position (I).
LCD shows one number and one
rotating digit. If not repeat previous
step.
The number represents the remote
control which is to be registered, the
first remote control will be registered
with number “0”, the second with
number “1” and so on.
The rotating digit shows that the
electronics is expecting a registration.
If the LCD fails to show a number and
rotating digit after repeated attempts,
double check the wire connections
made in section 4.1.
BHold remote control in front of the
control panel on the heater and
6720680209-0902_(New Remote control).fm Page 8 Monday, January 19, 2009 8:58 AM
9
Remote control installation
6 720 680 209
simultaneously press remote control
buttons and until the
temperature indication is shown on
the remote control LCD.
BSwitch ON/OFF switch to “OFF”
position (0) and then back on (I).
BPress buttons or in order
to reach requested temperature.
New remote control is programmed.
6720680209-0902_(New Remote control).fm Page 9 Monday, January 19, 2009 8:58 AM
10
Remote control installation
6 720 680 209
5 Remote control installation for: GWH C920 ES/GWH
C920ESC /GWH C800 ES/GWH 715 ES/ GWH 2700
ES/GWH2400ES
5.1 Remote control trans-
ceiver PCB installation
Pre-installation preparation
BLoosen the two Philips head screws
located on bottom rear of cover.
BLift front cover upward and remove.
BRemove the three screws from the
control unit (Fig. 7, pos.1).

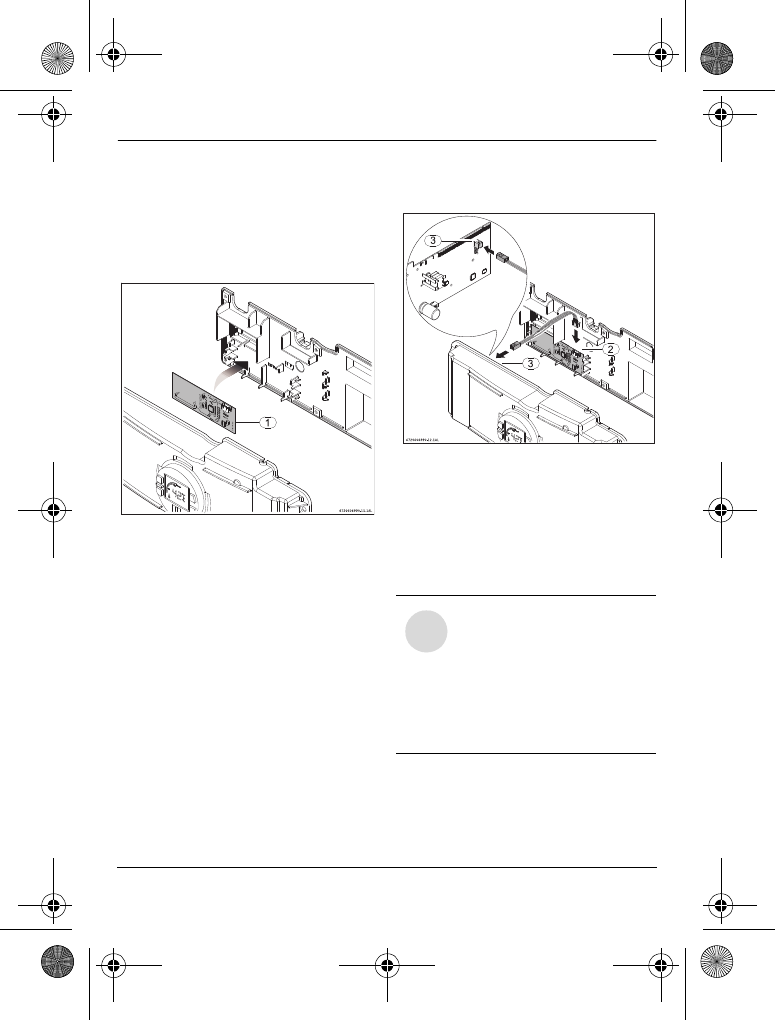

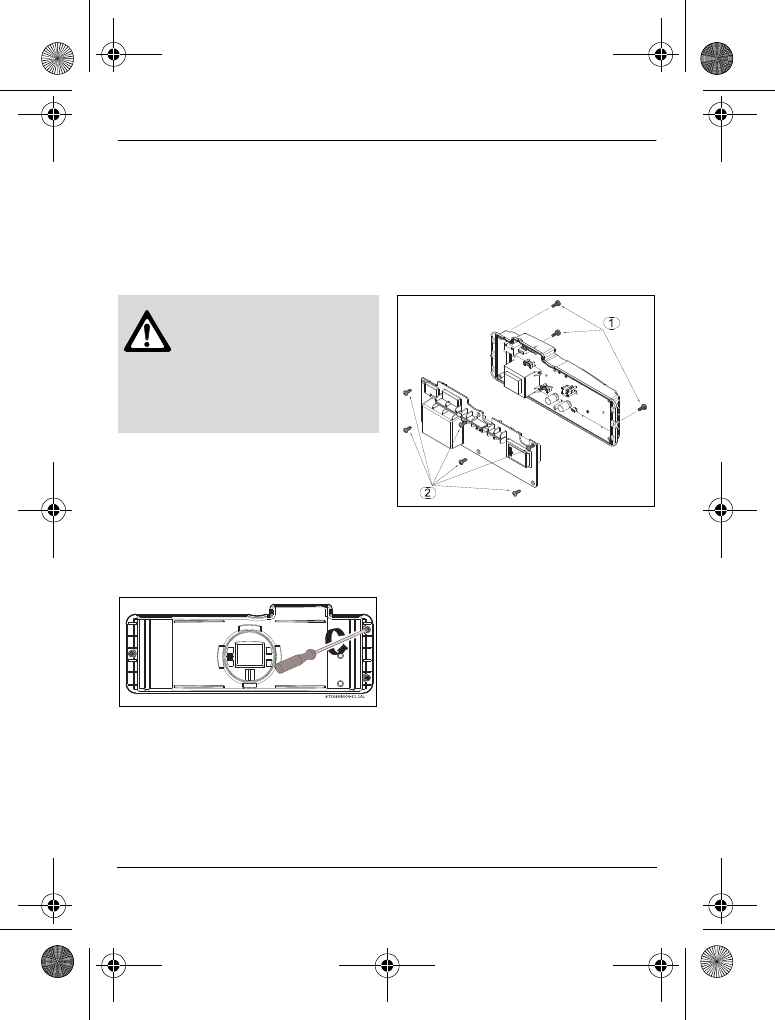

Fig. 6
BRemove the 6 screws from the back
cover of the control unit, to access
the electronic board (PCB) (Fig. 7,
pos.2).
Fig. 7
Warning: For safety
reasons, disconnect
the power supply to
the water heater
before performing
installation.
6720606990-10.1AL
6720680209-0902_(New Remote control).fm Page 10 Monday, January 19, 2009 8:58 AM
11
Remote control installation
6 720 680 209
Remote control transceiver PCB
installation
BPlace the remote control PCB in the
back cover of the control unit as
shown in Fig. 8.
Fig. 8
BConnect the supplied cable
between the main PCB and the
remote control PCB as shown in Fig.
9.
Fig. 9
BReassemble all parts in the reverse
order.
5.2 Remote control
activation
BConnect power to heater.
BPress ON / OFF button on the
appliance to OFF.
i
Before the remote
control will work, it must
be activated using the
procedure described
below with the operator
standing in front of the
appliance.
6720680209-0902_(New Remote control).fm Page 11 Monday, January 19, 2009 8:58 AM
12
Remote control installation
6 720 680 209
BOn heater control panel, press and
hold Program key while
pressing the ON/OFF button to ON.
Release program key when LCD
displays “188”.
LCD shows “P2”. If not, repeat
previous step.
1.
Press the button on the
heater to select "P3".
BPress and hold Program key
again for 1 sec.
LCD shows one number and one
rotating digit. If not, repeat previous
step.
The number represents the remote
control which is to be registered, the
first remote control will be registered
with number “0”, the second with
number “1” and so on.
The rotating digit shows that the
electronics is expecting a registration.
If the LCD fails to show a number and
rotating digit after repeated attempts,
double check the wire connections
made in section 5.1.
BHold remote control in front of the
control panel on the heater and
simultaneously press remote control
buttons and until the
temperature indication is shown on
the remote control LCD.
BPress ON / OFF button on the
appliance to OFF position and then
back ON.
BPress buttons or to reach
desired temperature.
New remote control is programmed.
6720680209-0902_(New Remote control).fm Page 12 Monday, January 19, 2009 8:58 AM
13
Remote control
6 720 680 209
6 Remote control
6.1 Description of the LCD

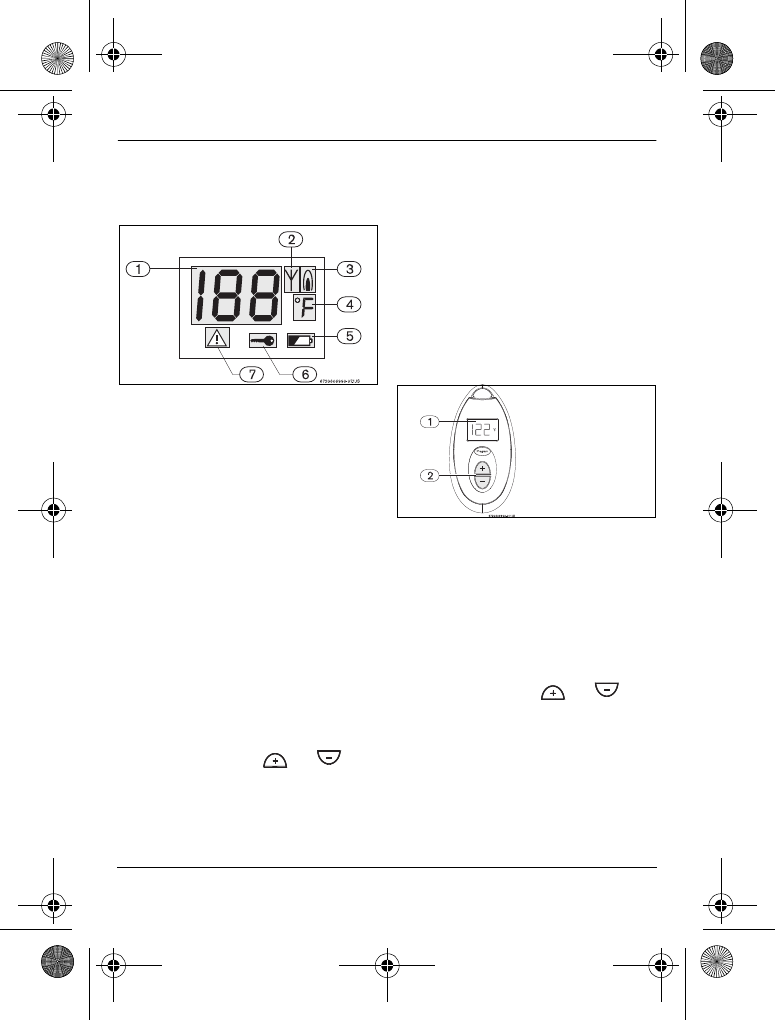

Fig. 10 Multifunctional LCD
1Displays temperature, error codes and
functions
2"Remote control in operation"
indication (signal arriving at remote
control)
3Device in operation (with burner on)
4Temperature measurement unit
(possible in °C and °F)
5Remote control battery level indication
(weak signal coming from the remote
control)
6Priority function (temperature cannot be
modified by other user when water is
running)
7"Error code" symbol
6.2 Hot water temperature
adjustment by remote
control
BPress the buttons or on
the remote control (Fig. 11, pos. 2)
until the required temperature
appears on the remote control dis-
play (Fig. 11, pos. 1).
BWhen the required temperature is
displayed, turn on the hot water tap.
BThe required temperature will flash
on the remote control display.
BThe flashing will stop when the
required temperature is reached
(tolerance from selected set point +/
-5°F (+/- 2°C).
Fig. 11 Temperature adjustment
6.3 "Program" button on the
remote control
Memorizing the water
temperature with the remote
control "Program" button
BPress the buttons or on
the remote control (Fig. 12, pos. 2),
until the required temperature
appears on the remote control dis-
play (Fig. 12, pos. 1).
BYou will now be able to memorize
this temperature by pressing the
"Program" button on the remote
6720680209-0902_(New Remote control).fm Page 13 Monday, January 19, 2009 8:58 AM
14
Remote control
6 720 680 209
control (Fig. 12, pos. 3) for 3
seconds.

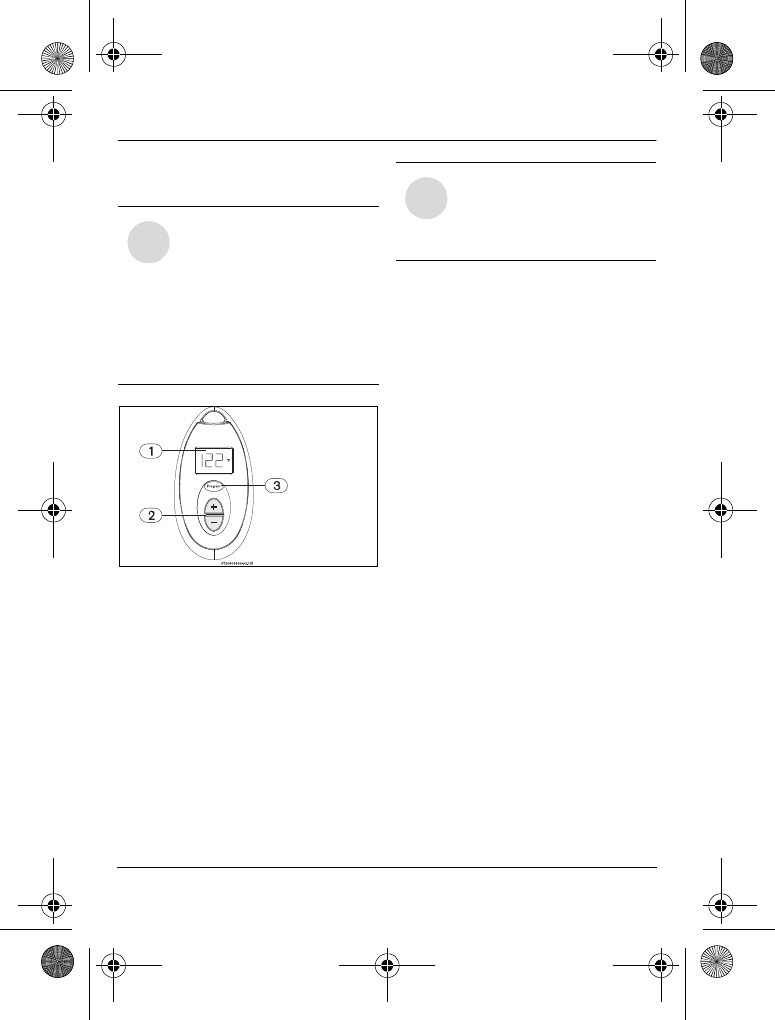

Fig. 12 Memorizing water
temperature
BOnly one temperature per remote
control can be memorized using the
"Program" button on the remote
control.
BAt this point the remote control will
display the memorized temperature .
When the hot water tap is turned on,
the water heater will supply hot
water at the temperature memorized
on the remote control.
Using the "Program" button
(operation with memorized
temperature)
To operate the equipment with a
previously memorized temperature:
BPress the "Program" button on the
remote control.
The remote control display and heater
display will now show the previously
memorized temperature. When the hot
water tap is turned on, the water heater
will supply hot water after a few
seconds, at the memorized
temperature.
i
Note: Previously saved
temperature may show
on the display when first
pushing the program
button. Once "PR"
shows on the display,
the desired setting will
be saved.
i
Up to six addition remote
controls can be used to
memorize a temperature
for each remote control.
6720680209-0902_(New Remote control).fm Page 14 Monday, January 19, 2009 8:58 AM
15
Remote control
6 720 680 209
6.4 "Priority" function
The remote control does not have a
default temperature setting and
therefore has no default "Priority"
function.The "priority" will be attributed
automatically by the first user who
selects or memorizes (on the remote
control or on the heater’s control
panel) a temperature for subsequent
use (e.g. a shower).
Then, when the hot water is used (e.g.
for a shower), the heater's display and
additional remote control displays will
show the symbol " ".
The temperature may only be modified
using the same buttons that set it
(depending on whether the control
panel or the remote control was used).
The priority device will not have the
symbol " ".
To clear a device that is locked out with
the " " symbol (with no hot water
running) simply:
Bpress and hold both the " " and
" " buttons on that device for 5
seconds.
The "Priority" function ends:
• 5 minutes after the last use of the
hot water (return to basic set up).
• 2 minutes after selecting/
memorizing the temperature if no hot
water is used immediately
afterwards.
Acquiring "priority”
Any user can acquire "priority" for
subsequent use of hot water, as
follows:
BMove the heater's main switch to the
ON position (I).
BPress and hold " " or " " to
select the desired temperature.
BPress and hold the "Program" but-
ton until the symbol "Pr" appears on
the remote control display.
BUse the hot water within two
minutes of acquiring "priority”.
i
Temperature cannot be
memorized or changed
using the heater's
control panel buttons or
a second remote control
when hot water is in use
(e.g. during a shower)
The "Priority" function
will automatically
activate to stop another
user from modifying the
temperature when hot
water is in use.
6720680209-0902_(New Remote control).fm Page 15 Monday, January 19, 2009 8:58 AM
16
Troubleshooting
6 720 680 209
6.5 Error messages
This device has an error message
system. Any errors that the heater
generates will be indicated by an error
code that will appear on the display
(Fig. 10, pos. 1) and by a symbol
indicating a "safety block" (Fig. 10,
pos. 7). The remote control will be
operative only after pressing the reset
button on the heater and clearing the
error.
To identify the type of error or if the
error will not clear, consult the heater
installation manual.
7 Troubleshooting
7.1 Replacing batteries
When batteries are weak, the low
battery symbol (Fig. 10, pos. 5) will
appear on the display.
BRemove the two screws on the back
of the remote control.
BOpen the battery housing and
remove the batteries, then replace
with new AA 1.5V batteries,
ensuring they are inserted correctly.
BClose the battery housing using the
two screws.
7.2 Cleaning
Use a damp cloth to clean parts of the
remote control. Do not use abrasive or
solvent-based detergents.
7.3 Troubleshooting
1. No display on remote control
BCheck for weak or dead batteries
(see section 7.1).
Remote control in sleep mode.
i
"Priority" cannot be
acquired while the hot
water tap is open.
i
Verify that the rubber
seal is correctly fitted
between both plastic
housing parts.
Warning:
dead
batteries must be
replaced.
Consequently, the
manufacturer is not
liable for any faults or
damage caused by
dead batteries.
Dispose of the dead
batteries properly.
6720680209-0902_(New Remote control).fm Page 16 Monday, January 19, 2009 8:58 AM
17
Troubleshooting
6 720 680 209
BSimply press any button on the
remote to bring up the display.
2. Remote control will not activate
/ no number with rotating digit
BEnsure that you are standing directly
in front of the water heater when
attempting to activate.
BEnsure that no other device in the
area, such as a cordless phone, is
operating on a frequency similar to
the remote (915 MHz) and causing
interference.
BDouble check all wire connections
made under section 4.1 or section
5.1 of the remote control manual.
Pay close attention to the wire con-
necting the remote's PCB to the
heater's main PCB.
3. Remote display shows "- -" only
BVerify the water heater's ON/OFF
switch is turned to the ON (I)
position. If the water heater's display
is still blank, verify the heater is
plugged into a live 120VAC/ 60Hz
properly grounded outlet.
BVerify there is proper voltage to the
water heater (120VAC/60Htz).
BVerify the remote is within the
maximum distance from the water
heater of 98 feet.
BEnsure that no other device in the
area, such as a cordless phone, is
operating on a frequency similar to
the remote (915 MHz) and causing
interference
4. Error code and “ ” symbol
will not clear from remote
B
Error codes cannot be reset by
using the remote. All errors must be
cleared by using the reset button
on the water heater's control
panel
i
If not used for a few
minutes, the remote's
display will go blank to
save the batteries.
i
Large amounts of metal
or concrete in the
structure may have a
blocking effect on the
remote's signal. This
may alter the maximum
distance allowable from
the water heater.
BMove within direct
line of sight of the
water heater to see if
signal will reconnect.
6720680209-0902_(New Remote control).fm Page 17 Monday, January 19, 2009 8:58 AM
18
Troubleshooting
6 720 680 209
• If an error code is generated immedi-
ately after the installation of the
remote control transceiver PCB,
ensure that the two large electrical
connectors (Fig. ) on the main PCB
are properly seated.
• Error code may not be resettable.
Consult water heater's installation
manual or www.boschpro.com for
further troubleshooting on error
codes.
5. Remote will not memorize
desired temperature setting
BVerify that the remote control
"program" button is depressed until
the remote display reads "Pr".
6. Priority " " symbol will not
clear
BVerify no hot water is being used
when trying to clear "priority"
function.
BWith no hot water running, press
and hold the “ ” or “ ”
buttons for 5 seconds on the locked
out device (remote or water heater)
until the " " symbol (Fig. 10,
Pos. 6) disappears.
BDo not use any hot water for at least
5 minutes. The priority function
should automatically clear after this
time period.
i
Memorization of a
selected temperature
only saves to the device
on which it was originally
programmed. To
retrieve a memorized
temperature setting, you
must use the device with
which it was
programmed.
6720680209-0902_(New Remote control).fm Page 18 Monday, January 19, 2009 8:58 AM
19
Notes
6 720 680 209
8 Notes
6720680209-0902_(New Remote control).fm Page 19 Monday, January 19, 2009 8:58 AM
BBT NORTH AMERICA
Bosch Group
Bosch Water Heating
340 Mad River Park
Waitsfield, Vermont 05673
800 642-3111
802 426-6924
For service, see contact information listed on the back of the water heater’s installation manual.
6720680209-0902_(New Remote control).fm Page 20 Monday, January 19, 2009 8:58 AM
