Computer Interface Manual
Receiver/Gateway
Conettix D6600/D6100IPv6/D6100i
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual |
2
Contents
1.0 System Connection ........................................................................................................... 4
1.1 Conettix D6686/D6682/D6680 Ethernet Network Adapter Connection ..................................... 4
1.2 Direct Connection – RS-232 ........................................................................................................ 5
2.0 Making the Right Connection ............................................................................................ 6
2.1 COM3 DB9 Connector ................................................................................................................. 6
2.2 Selecting Program Options in the D6600/D6100IPv6/D6100i .................................................... 7
3.0 Computer Communication Protocols ................................................................................ 8
3.1 D6500 Mode Messages ................................................................................................................ 8
3.1.1 Acron Super Fast (Message Type 9) ............................................................................................ 8
3.1.2 Ademco 4-1 Express (Message Type b) ....................................................................................... 9
3.1.3 Ademco 4-2 Express (Message Type c) ..................................................................................... 10
3.1.4 Ademco Contact-ID (Message Type a) ...................................................................................... 11
3.1.5 Ademco 10-Digit Contact-ID (Message Type a) ......................................................................... 12
3.1.6 Ademco High Speed, 4-8-1 (Message Type f) ............................................................................ 13
3.1.7 ADT SIA (Message Type S) ........................................................................................................ 14
3.1.8 Caller ID (Message Type e) ........................................................................................................ 15
3.1.9 CFSK (Message Type i) .............................................................................................................. 15
3.1.10 Common Formats (Message Type 1) ......................................................................................... 16
3.1.11 DNIS/ANI (Message Type N) ...................................................................................................... 17
3.1.12 DSC 4-3 (Message Type d) ........................................................................................................ 18
3.1.13 FBI Super Fast (Message Type F) .............................................................................................. 19
3.1.14 ITI (Message Type I) .................................................................................................................. 20
3.1.15 Link Test (Message Type 1) ....................................................................................................... 21
3.1.16 Robofon (Message Type j) ......................................................................................................... 22
3.1.17 Sescoa Super Speed (Message Type 7) .................................................................................... 23
3.1.18 Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g) ........................... 24
3.1.19 Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h) ........................... 25
3.1.20 Seriee FSK (Message Type k) .................................................................................................... 26
3.1.21 Seriee DTMF (Message Type l) .................................................................................................. 27
3.1.22 SIA (Message Type S) ................................................................................................................ 28
3.1.23 Silent Knight FSK0 (Message Type 1)........................................................................................ 29
3.1.24 Silent Knight FSK1 (Message Type m) ....................................................................................... 32
3.1.25 Silent Knight FSK2 (Message Type m) ....................................................................................... 35
3.1.26 Silent Knight FSK80 D6500 mode (Message Type 1) ................................................................ 36
3.1.27 Telim (Message Type n) ............................................................................................................. 37
3.1.28 Text Message (Message Type 3) ................................................................................................ 38
3.1.29 Varitech FSK 4-1 (Message Type 1) ........................................................................................... 39
3.1.30 Varitech FSK 4-2 (Message Type 1) ........................................................................................... 40
3.1.31 VONK (Message Type V) ............................................................................................................ 41
3.1.32 X-SIA Text (Message Type S) ..................................................................................................... 42
3.1.33 SafeCom (Message Type p) ....................................................................................................... 43
3.2 SIA Mode Messages ................................................................................................................... 44
3.2.1 Acron Super Fast (Message Type 9) .......................................................................................... 44
3.2.2 Ademco Contact-ID (Message Type a) ...................................................................................... 45
3.2.3 Ademco 10-Digit (Message Type b) ........................................................................................... 46
3.2.4 Ademco 4-1 Express (Message Type b) ..................................................................................... 47
3.2.5 Ademco 4-2 Express (Message Type c) ..................................................................................... 48
3.2.6 Ademco High Speed 4-8-1, SCANCOM 4-8-1 (Message Type f) ................................................. 49
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual |
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
3
3.2.7 ADT SIA (Message Type S) ........................................................................................................ 50
3.2.8 Caller ID (Message Type <TAB>) ............................................................................................... 51
3.2.9 CFSK (Message Type i) .............................................................................................................. 52
3.2.10 Common Formats (Message Type <TAB>) ................................................................................. 53
3.2.11 DNIS/ANI (Message Type N) ...................................................................................................... 55
3.2.12 DSC 4-3 (Message Type d) ........................................................................................................ 56
3.2.13 FBI Super Fast (Message Type F) .............................................................................................. 58
3.2.14 ITI (Message Type I) .................................................................................................................. 60
3.2.15 Link Test (Message Type <TAB>) ............................................................................................... 60
3.2.16 RB2000 (Message Type R) Description ..................................................................................... 61
3.2.17 Robofon (Message Type j) ......................................................................................................... 62
3.2.18 Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g) ........................... 63
3.2.19 Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h) ........................... 64
3.2.20 Seriee DTMF (Message Type l) .................................................................................................. 65
3.2.21 Seriee FSK (Message Type k) .................................................................................................... 66
3.2.22 Sescoa Super Speed (Message Type 7) .................................................................................... 67
3.2.23 Silent Knight FSK() (Message Type <TAB>) ............................................................................... 68
3.2.24 Silent Knight FSK1 (Message Type m) ....................................................................................... 69
3.2.25 Silent Knight FSK2 (Message Type m) ....................................................................................... 71
3.2.26 Silent Knight FSK80 (Message Type <TAB>) ............................................................................. 71
3.2.27 Telim (Message Type n) ............................................................................................................. 72
3.2.28 Varitech FSK 4-1 (Message Type <TAB>) .................................................................................. 73
3.2.29 Varitech FSK 4-2 (Message Type <TAB>) ................................................................................... 73
3.2.30 VONK (Message Type V) ............................................................................................................ 74
3.2.31 X-SIA text (Message Type <TAB>) .............................................................................................. 75
3.2.32 SafeCom (Message Type p) ....................................................................................................... 76
3.3 Input Command Processing ...................................................................................................... 77
Appendix A: Contact ID Event Code Classifications ................................................................... 78
Appendix B: Internal Messages .................................................................................................. 88
Appendix C: Modem4/ModemIIIa² Messages .............................................................................. 92
Appendix D: Network Messages ............................................................................................... 140
Appendix E: Pulse Output ........................................................................................................ 143
Appendix F: Format ID (by Message Type) – D6600 Only ......................................................... 152
Appendix G: ADT SIA Report Codes ......................................................................................... 156
Appendix H: RB2000 Messages (D6600 Only) .......................................................................... 161
Appendix I: SafeCom Messages (D6600 Only) ......................................................................... 169
Appendix J: Acknowledgement from Automation Software to D6600/D6100IPv6 Receiver ...... 180
Appendix K: Cyclic Redundancy Check (CRC) Calculation ....................................................... 181
Appendix L: Network Automation ............................................................................................. 184
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 1.0 System Connection
4
Trademarks
Microsoft®, Windows®, Windows 2000®, Windows XP®, and Windows Vista are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
1.0 System Connection
1.1 Conettix D6686/D6682/D6680 Ethernet Network Adapter Connection
Use the Conettix D6686/D6682/D6680 Ethernet Network Adapter to connect a manufacturer’s
automation software package to the D6600/D6100IPv6/D6100i when the software cannot receive
network data (Figure 1). Refer to the Special Conettix D6600 Applications in the Conettix
D6600/D6100IPv6/D6100i Network System Guide (P/N: 4998122712).

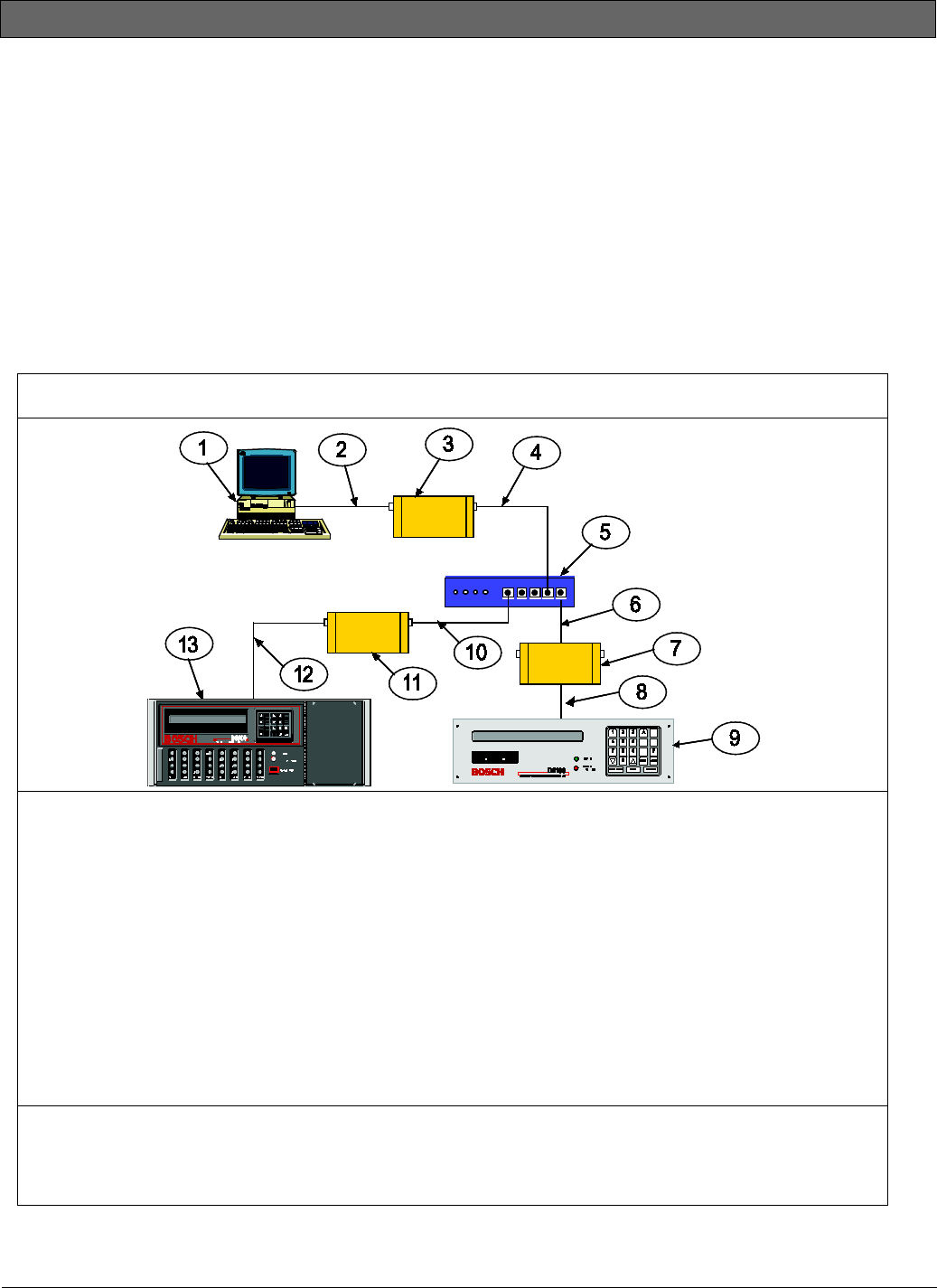

Figure 1: D6600/D6100IPv6/D6100i System – Standard/Network Automation
1 - Automation PC
2 - Connection - PC COM Port to D6686/D6682/D6680 RS-232
3 - D6686/D6682/D6680
4 - Connection - D6686/D6682/D6680 to Hub/Switch
5 - Hub/Switch
6 - Connection – D6686/D6682/D6680
to Hub/Switch
7 - D6686/D6682/D6680
8 - Connection – D6686/D6682/D6680 RS-232 to D6100IPv6/D6100i COM3
9 - D6100IPv6/D6100i
10 - Connection - D6686/D6682/D6680 to Hub/Switch
11 - D6686/D6682/D6680
12 - Connection – D6686/D6682/D6680 RS-232 to D6600 COM3
13 – D6600
* For automation packages with network capabilities: The packet format received from the D6600/D6100IPv6/D6100i is
the same as for RS-232 reporting, except an internet protocol (IP) and user datagram protocol (UDP) header is
stamped on the packet as the data transmitted by either standard IP or UDP structure over the network. Automation
software can support the network communication easily by calling Socket functions, both provided in Windows and
Unix by using the built-in IP connections (or sockets) available in Windows and Unix.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 1.0 System Connection
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
5
1.2 Direct Connection – RS-232
Figure 2 and Figure 3 show a D6600 System using any manufacturer’s automation software package
directly connected to a D6600/D6100IPv6/D6100i.

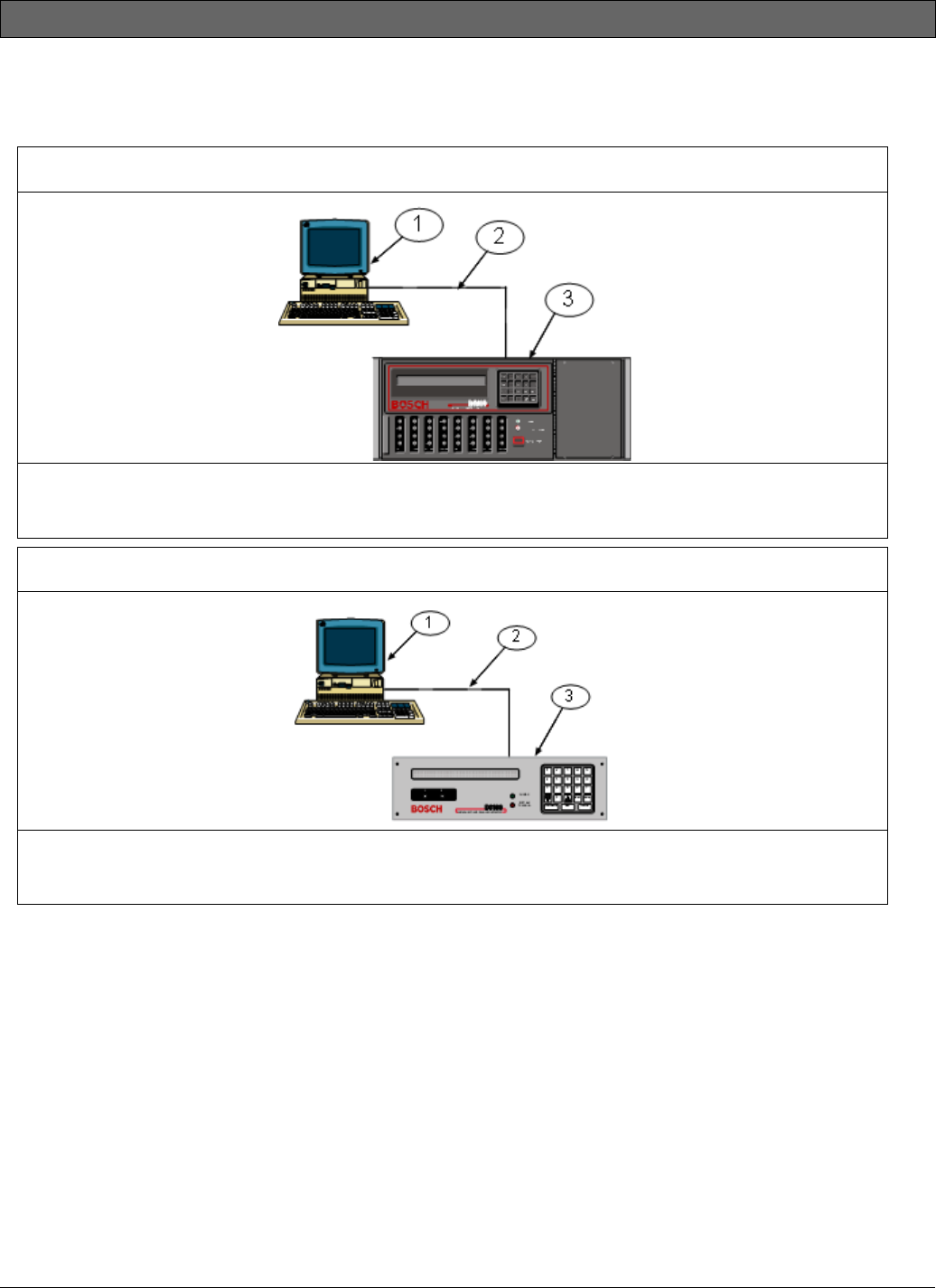

Figure 2: D6600 System – Direct Connect
1 - Automation PC
2 - Connection - Automation PC COM port to D6600 COM3
3 - D6600
Figure 3: D6100i System – Direct Connect
1 - Automation PC
2 - Connection - Automation PC COM port to D6100IPv6/D6100i COM3
3 - D6100IPv6/D6100i
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 2.0 Making the Right Connection
6
2.0 Making the Right Connection
2.1 COM3 DB9 Connector
The COM3 Port uses a standard DB9 female connector. The suggested connections to the computer
are shown in Figure 4 to Figure 6.
When connecting data terminal equipment (DTE) together (such as a COM1 port to PC serial port), a
null-modem cable must be used. One possible configuration for a null-modem cable is shown in
Figure 4.

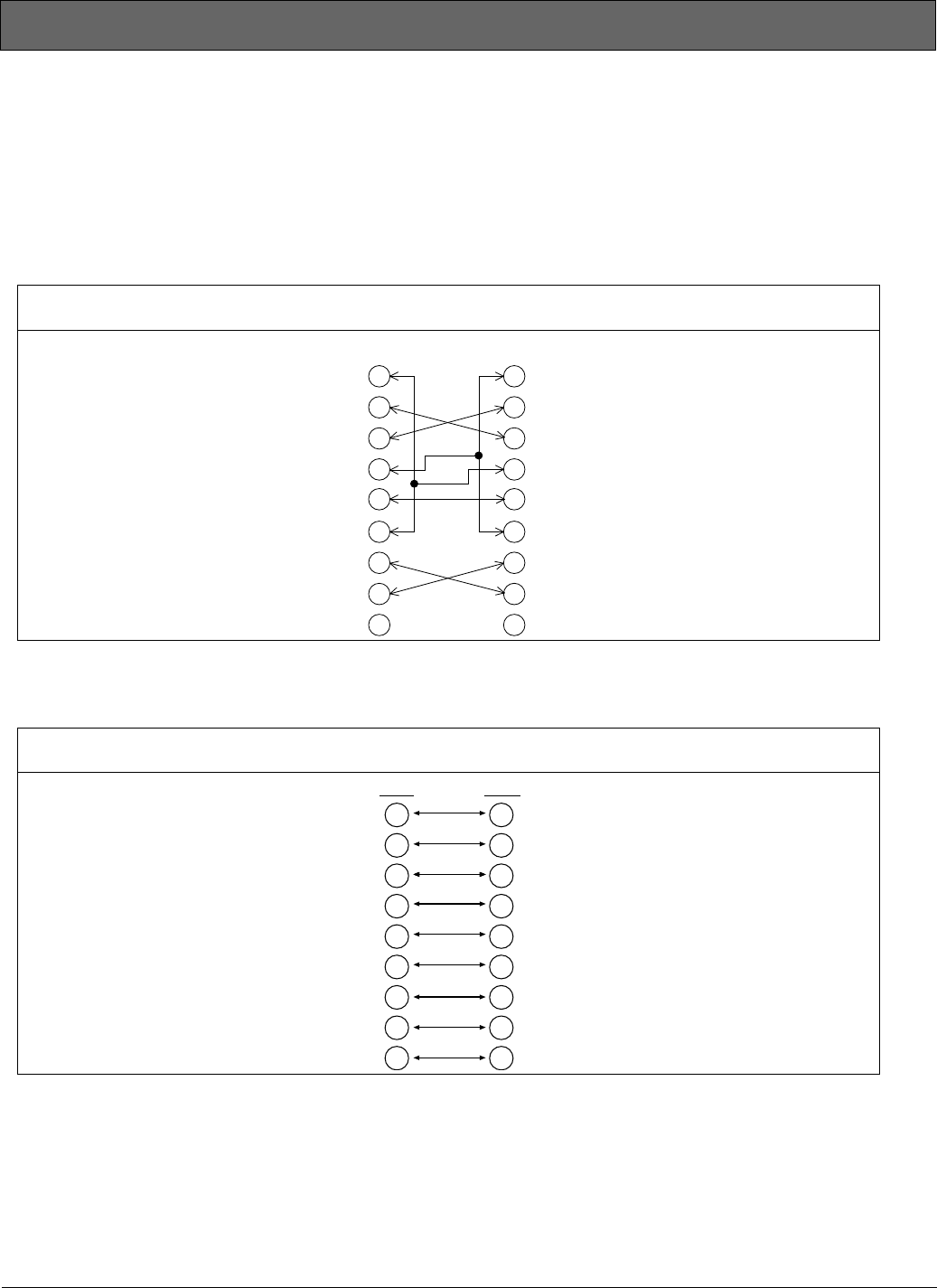

Figure 4: Null Modem Cable Configuration
1
2
3
4
6
7
8
9
1
2
3
4
6
7
8
9
DTE
DB-9 Pin
DTE
DB-9 Pin
5
5
When connecting data terminal equipment to data communication equipment (DCE) (such as the
D6600/D6100IPv6/D6100i COM port to a modem), a modem cable should be used (such as a straight-
through cable shown in Figure 5).
Figure 5: Straight-through Modem Cable Configuration
Each pin of the modem cable is defined in Figure 6.
DTE
1
2
3
4
5
6
7
8
9
DCE
8
3
2
20
7
6
4
5
22
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 2.0 Making the Right Connection
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
7

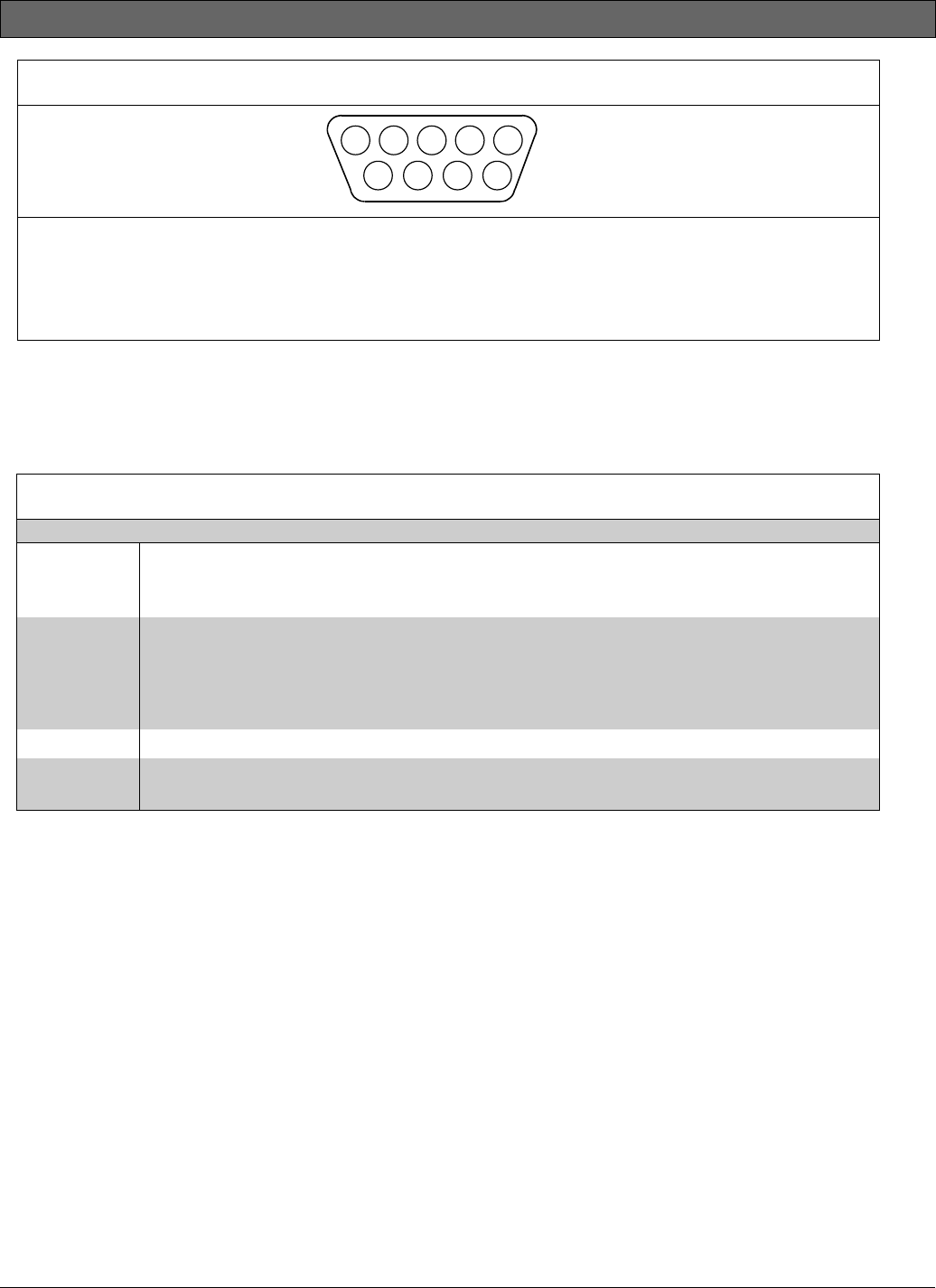

Figure 6: Modem Cable Pin Definitions
(Male DB9 on receiver)
1 - Data carrier detect (DCD)
2 - Receive (RX)
3 - Transmit (TX)
4 - Data terminal ready (DTR)
5 - Signal-ground (SIG-GND)
6 - Data set ready (DSR)
7 - Ready to send (RTS)
8 - Clear to send (CTS)
9 - Ring indicator (RI)
2.2 Selecting Program Options in the D6600/D6100IPv6/D6100i
Use the D6600/D6100IPv6/D6100i keypad or the D6200 Programming Software to program the
receivers. Below are the recommended selections for programming when connecting the receivers to
an automation system. Additional selections can be found in the D6600/D6100IPv6/D6100i Program
Entry Guide (P/N: 4998122702).
Table 1: Recommended Programming Selections
Receiver
Gateway
Number
Selects a number (01 to 99) that is included in every message to the computer in
both D6500 and SIA modes
Output
Format
Enable computer output messages in the selected format:
SIA computer interface standard format, recommended (expanded
reporting capabilities)
D6500 21-character format output
Baud Rate Use maximum speed supported by PC
Link Test Tests if a supervision signal can be sent and received from the central station by
the receiver
12345
6789
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
8
3.0 Computer Communication Protocols
3.1 D6500 Mode Messages
In D6500 Mode, the line number/group number sent to the computer is only one digit. Refer to
Table 2.
Table 2: D6600 Line Number/Group Number Conversion Table
Line#
/Group #
Converted
to
Line#
/Group #
Converted
to
Line #
/Group #
Converted
to
Line #
/Group #
Converted
to
L01/G01 1 L09/G09 9 L17/G17 H L25/G25 P
L02/G02 2 L10/G10 A L18/G18 I L26/G26 Q
L03/G03 3 L11/G11 B L19/G19 J L27/G27 R
L04/G04 4 L12/G12 C L20/G20 K L28/G28 S
L05/G05 5 L13/G13 D L21/G21 L L29/G29 T
L06/G06 6 L14/G14 E L22/G22 M L30/G30 U
L07/G07 7 L15/G15 F L23/G23 N L31/G31 V
L08/G08 8 L16/G16 G L24/G24 O L32/G32 W
In D6500 mode, any group that equals 33 is converted to an “X.” Any group greater than or equal
to 34 is converted to a “Y.” For lines that are grouped, Gxx appears instead of Lxx. For
networked accounts, Nxx appears instead of Lxx and the line number is identified.
3.1.1 Acron Super Fast (Message Type 9)
Acron Super
Fast Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 9 r r l s s s s a a a a C C C C C C C C t
Table 3: Message Type 9 (Acron Super Fast) Byte Description
# Title Description
1 Header Character (h) Optional. Check with the computer automation software for
compatibility.
2 Message Type 9
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group Number Line number in the receiver gateway that sent the message.
6-9 Spaces Six spaces.
10-13 Account Number Account number, four digits.
14-21 Channels Channels 1 to 8
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
9
3.1.2 Ademco 4-1 Express (Message Type b)
4-1 Express
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h b r r l s s s s s s a a a a s E s s s X t
Table 4: Message Type b (Ademco 4-1 Express) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type b
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 Space One space.
17 E Event Code, “A” as the default.
18-20 Spaces Three spaces.
21 X Zone number.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
10
3.1.3 Ademco 4-2 Express (Message Type c)
4-2 Express
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h c r r l s s s s s s a a a a s E s s X Y t
Table 5: Message Type c (Ademco 4-2 Express) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type c
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 Space One space.
17 E Event Code, “A” as the default.
18-19 Spaces Two spaces.
20-21 XY Event code and zone number.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
11
3.1.4 Ademco Contact-ID (Message Type a)
Contact ID
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h a r r l s a a a a 1 8 Q X Y Z G G C C C t
Table 6: Message Type a (Ademco Contact ID) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type a
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Space One space.
7-10 Account Number Account number, four digits.
11-12 18 Ademco Contact-ID format number
13 Qualifier Qualifier, 1=New event or opening, 3=New restore or closing,
6=Previous event.
14-16 XYZ Class code and event code (see Appendix A: Contact ID Event Code
Classifications).
17-18 GG Group number.
19-21 CCC Zone codes or user ID.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
12
3.1.5 Ademco 10-Digit Contact-ID (Message Type a)
Contact
ID
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14
h a r r l s a a a a a a a a
15 16 17 18 19 20 21 22 23 24 25 26 27 28
a a 5 8 Q X Y Z G G C C C t
Table 7: Message Type a (Ademco 10-Digit) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type ASCII a. Message Type a for Ademco Contact-ID format.
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line Card Number Line number in the receiver gateway that sent the message.
6 Space One space.
7-16 Account Number Account number, 10 digits.
17-18 58 Ademco Contact-ID format number for 10 digits account.
19 Qualifier Qualifier, 1=New event or opening, 3=New restore or closing,
6=Previous event.
20-22 XYZ Class code and event code (see Appendix A: Contact ID Event Code
Classifications).
23-24 GG Group number.
25-27 CCC Zone codes or user ID.
28 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
13
3.1.6 Ademco High Speed, 4-8-1 (Message Type f)
SCANCOM 4
-8-1, 5-8-1, 6-8-1 - Available Upon Request
High
Speed
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
h f r r l a a a a a a s C C C C s C C C C s C t
Table 8: Message Type f (Ademco High Speed, 4-8-1) Byte Description
# Title Description
1 Header Character
(h)
Optional. Check with the computer automation software for
compatibility.
2 Message Type f
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Account Number Account number, up to six digits.
Account number less than six characters is right aligned with leading
ASCII spaces.
12 Space One space.
13-16 CCCC Channels 1 to 4.
17 Space One space.
18-21 CCCC Channels 5 to 8.
22 Space One space.
23 C Supervisory channel.
24 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
14
3.1.7 ADT SIA (Message Type S)
ADT SIA
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
h S r r l [ # a a a a | d a m m - d d - y
22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
y t I h h : m m : s s E M M Z Z Z Z / *** t
Table 9: ADT SIA (Message Type S) Byte Description
# Title Description
1 Header Character
(h)
Optional. Check with the computer automation software for
compatibility.
2 Message Type S
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 space One space.
7 # #
8-11 Account Number Up to sixteen digits in the account number.
12 | Separator. Indicates more data positions after account number.
13-32 Date and Time Date and time.
33 E SIA block code.
34-35 Event Code SIA event code (refer to Appendix G: ADT SIA Report Codes).
36-39 Zone Zone number.
40 / Separator.
41 *** Next block of data.
42 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
15
3.1.8 Caller ID (Message Type e)
Caller ID
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h e r r 1 T T T T T T T T T T T T T T T T t
Table 10: Caller ID (Message Type e) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type e
3-4 Receiver Number Receiver gateway Number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-21 Caller ID Up to sixteen digits, Caller ID with less than sixteen characters is
right aligned with leading ASCII spaces.
22 Trailer Character Typically, this is HEX 14.
3.1.9 CFSK (Message Type i)
CFSK
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h i r r l s s s s a a a a a a T T E E s s t
Table 11: CFSK (Message Type i) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type i
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-9 Spaces Four spaces.
10-15 Account Number Six digit account number.
16-17 TT Event Code.
18-19 EE Zone/User ID.
20-21 Spaces Two spaces.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
16
3.1.10 Common Formats (Message Type 1)
Type 1
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h l r r l a a a a a a a a a a E E y y y y t
Table 12: Common Formats (Message Type 1) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 1
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line Number Line number in the receiver gateway that sent the message.
6-15 Account Number Account number, up to ten digits. Account numbers less than ten
characters are right aligned with leading ASCII spaces.
16-17 Event Code Event codes define the type of signal received and interpreted by the
D6500 receiver gateway.
18-21 Zone Number Zone or ID number sent by the communicator. Zone numbers less
than four digits are right aligned with leading ASCII spaces.
22 Trailer Character Typically, this is HEX 14.
The receiver gateway sends the 3-1, 4-1, 4-2, single round, double round, extended pulse formats,
BFSK, Modem II or Modem IId messages in either D6500 Mode or SIA Mode, depending on the
programmable option selected. The receiver gateway also sends internal and ModemIIIa² messages in
either D6500 mode or SIA mode, depending on the option selected. Refer to Appendix B: Internal
Messages and Appendix C:
Modem4/ModemIIIa²
for a list of the messages and their descriptions.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
17
3.1.11 DNIS/ANI (Message Type N)
DNIS/ANI
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
H N r r l s D d d d d d d d d d
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
d d & a a a a a a a a a a a t
Table 13: DNIS/ANI (Message Type N) Byte Description
# Title Description
1 Header Character
(
H
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type N (Capital n).
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Space One space.
7 DNIS Identifier DNIS identifier.
8-18 DNIS Number DNIS number, up to 11 digits.
19 ANI Identifier (&) ANI identifier.
20-30 ANI Number ANI number, up to 11 digits.
31 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
18
3.1.12 DSC 4-3 (Message Type d)
DSC 4-3
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h d r r l s s s s s s a a a a s E s X Y Y t
Table 14: DSC-4-3 (Message Type d) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type d
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 Space One space.
17 E Event Code, “A” as the default.
18 Space One space.
19 X Event code number.
20-21 YY Zone number.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
19
3.1.13 FBI Super Fast (Message Type F)
FBI Super
Fast Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h F r r l s s s s s s a a a a T Z Z E s s t
Table 15: FBI Super Fast (Message Type F) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type F (Capital f).
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 T Zone type.
17-18 ZZ Zone number.
19 E Event type.
20-21 Spaces Two spaces.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
20
3.1.14 ITI (Message Type I)
ITI Example D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h I r r l s s s a T a a a a G I Z Z E W N t
Table 16: ITI (Message Type I) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type I (Capital i).
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-8 Spaces Three spaces.
9 Account Number First digit account number.
10 Panel Type Control panel Type.
11-14 Account Number Next four digit account number.
15 G Group number.
16 I Open/close (O/C) User ID.
17-18 ZZ Zone number.
19 E Condition code.
20 W Protection level was.
21 N Protection level is.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
21
3.1.15 Link Test (Message Type 1)
Link Test
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 1 r r 0 s s s s s s s s s s s @ s s s s t
The D6600/D6100IPv6/D6100i can automatically generate this message at the programmed intervals.
Table 17: Link Test (Message Type 1) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 1
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line Number Line number as zero for link test.
6-15 Spaces Eleven spaces.
16-17 Event Code Event code is @ for link test.
18-21 Spaces Four spaces.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
22
3.1.16 Robofon (Message Type j)
Robofon
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h j r r l s s s s a a a a a a E E s s s s t
Table 18: Robofon (Message Type j) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type j
3-4 Receiver Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-9 Spaces Four spaces.
10-15 Account Number Six digit account number.
16-17 EE Event code.
18-21 Spaces Four spaces.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
23
3.1.17 Sescoa Super Speed (Message Type 7)
Sescoa Super
Speed
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 7 r r l s s s s s s a a a a s I A A C s t
Table 19: Sescoa Super Speed (Message Type 7) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 7
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account Number Account number, four digits.
16 Space One space.
17 I Event code.
18-19 AA Two digit zone code or the first two digits user code.
20 C Space if zone report, or the last digit user code.
21 s One space.
22 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
24
3.1.18 Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g)
Scancom 4-
16-1, 5-16-1,
6-16-1
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
h g r r l a a a a a a s C C C C s
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34
C C C C s C C C C s C C C C s C t
Table 20: Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g) Byte
Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type g
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Account Number Account number up to six digits. Account numbers less than six
characters are right aligned with leading ASCII spaces.
12 Space One space.
13-16 CCCC Channels 1 to 4.
17 Space One space.
18-21 CCCC Channels 5 to 8.
22 Space One space.
23-26 CCCC Channels 9 to 12.
27 Space One space.
28-31 CCCC Channels 13 to 16.
32 Space One space.
33 C Supervisory channel.
34 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
25
3.1.19 Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h)
Scancom
4-24-1
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h h r r l a a a a a a s C C C C s C C C C s
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44
C C C C s C C C C s C C C C s C C C C s C t
Table 21: Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h) Byte
Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type h
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Account Number Account number up to six digits. Account numbers less than six
characters are right aligned with leading ASCII spaces.
12 Space One space.
13-16 CCCC Channels 1 to 4.
17 Space One space.
18-21 CCCC Channels 5 to 8.
22 Space One space.
23-26 CCCC Channels 9 to 12.
27 Space One space.
28-31 CCCC Channels 13 to 16.
32 Space One space.
33-36 CCCC Channels 17 to 20.
37 Space One space.
38-41 CCCC Channels 21 to 24.
42 Space One space.
43 C Supervisory channel.
44 Trailer Character Typically, this is HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
26
3.1.20 Seriee FSK (Message Type k)
Seriee FSK
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h k r r l s s s s s s a a a a a s E s Z Z t
Table 22: Seriee FSK (Message Type k) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type k
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-16 Account Number Five digit account number.
17 Space One space.
18 E Event code.
19 Space One space.
20 -21 ZZ Zone number.
22 Trailer Character Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
27
3.1.21 Seriee DTMF (Message Type l)
Seriee DTMF
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h l r r l L L * a a a a a a * . . . t
Table 23: Seriee DTMF (Message Type l) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 1 (lowercase L).
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-7 LL Data length.
8 * Data separator.
9-14 Account number Four, five or six account numbers.
15 * Data separator.
16-21 *** DTMF Seriee Data.
22 Trailer Character Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
28
3.1.22 SIA (Message Type S)
Table 24: SIA (Message Type S) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type S
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 [ Open bracket.
7 # #
8-11 Account
Number
Up to sixteen digits may be used in the account number.
12 | Separator, indicates more data positions after account number.
13 E SIA block code.
14-15 Event Code SIA Event code.
16-19 Zone Zone number.
20 / Separator.
21 ***] Next block of data.
22 Trailer
Character
Typically, HEX 14.
Undefined Messages
When an SIA message contains unprintable characters (unprintable characters are out of ASCII range
0x32-0x7E) or without an account block:
SIA Example D6500 Byte Description
1 2 3 4 5 6 7 . . . N-1 N
h S r r L [ data ] t
SIA Example
Defined
Messages
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h S r r l [ # a a a a | E M M Z Z Z Z / ***] t
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
29
Table 25: SIA (Message Type S) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type S
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 [ Open bracket.
7-(N-2) data The received SIA message contains hex characters either with or
without account portion.
N Trailer
Character
Typically, HEX 14.
3.1.23 Silent Knight FSK0 (Message Type 1)
Silent Knight
FSK0 Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 1 r r l s s s s s s a a a a s E s s s Z t
Table 26: Silent Knight FSK1 (Message Type m) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 1
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account
Number
Four digit account number.
16 Spaces One space.
17 E Event code.
18-20 Space Three spaces.
21 Zone number Zone number.
22 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
30
Optional Silent Knight SK1 (Message Type m):
If
Menu Item 2.5.16 in the D6600/D6100IPv6/D6100i Receiver is equal to 1, the following output
is used.
Silent Knight
FSK1 Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h m r r l s a a a a a a a a “ Z Z “ . . . t
Table 27: Optional Silent Knight SK1 (Message Type m) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type m
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Spaces One space.
7-14 Account
Number
Maximum eight-digit account code. If the account code is less than
eight digits, enter the actual number of digits without a leading space.
15 “ Separator.
16-17 ZZ First zone number, up to eight reports, one report has two digits.
18 “ Separator.
19 *** More data.
21 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
31
Table 28: Silent Knight Automation Format
Report Code Description To Automation Note
2 5 16=0(EEZZ) 2 5 16=1(ZZ)
00: Alarm Panic PAss 00
01 to 08: Alarm 01 to 08 sA0x 01 to 08 x=1 to 8
09: Holdup Hass 09
10 to 19: Alarm 10 to 19 sA1x 10 to 19 x=0 to 9
20 to 29: Alarm Restore 10 to
19
sH1x 20 to 29 x=0 to 9
30: Test Code sXss 30
31: Trouble Line 1 LT01 31
32: Trouble Line 2 LT02 32
33: Expand Trouble ETss 33
34: Forced Access DFss 34
35: Restore Line 1 LR01 35
36: Restore Line 2 LR02 36
37: Expand Restore ERss 37
38: Cancel Code OCss 38
39: Data Lost RTss 39
40: Closing CL00 40
41 to 49: Closing 01 to 09 CL0x 41 to 49 x=1 to 9
50 to 59: Bypass 10 to 19 sB1x 50 to 59 x=0 to 9
60: Trouble AC ATss 60
61 to 68: Trouble 01 to 08 sT0x 61 to 68 x=1 to 8
69: Trouble BAT YTss 69
70: Restore AC ARss 70
71 to 78: Restore 01 to 08 sRss 71 to 78
79: Restore BAT YRss 79
80: Access DS00 80
81 to 89: Access 01 to 09 DG0x 80 to 89 x=1 to 9
90: Opening OP00 90
91 to 99: Opening 01 to 09 OP0x 91 to 99
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
32
3.1.24 Silent Knight FSK1 (Message Type m)
Silent Knight
FSK1 Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21-
28 29
h m r r l s a a a a a a a a “ E E Z Z … t
Table 29: Silent Knight FSK1 (Message Type m) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type m
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Spaces One space.
7-14 Account
Number
Maximum 8-digit account code. If the account code is less than 8
digits, enter the actual number of digits without a leading space.
15 “ Separator.
16-19 EEZZ First event and zone number. If this is the only event, it will be ended
with the terminator. Up to 8 reports. One report has 4 digits: 1-digit
event code, 1-digit condition code, 2-digit zone code.
20 “ Separator.
21 - 28 *** Next data.
28 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
33
Optional Silent Knight SK1 (Message Type m):
If Menu Item 2.5.16 in the
D6600/D6100IPv6/D6100i Receiver is equal
to 1, the following output
is used.
Silent Knight
FSK1 Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21
h m r r l s a a a a a a a a “ Z Z “ . . . t
Table 30: Optional Silent Knight SK1 (Message Type m) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type m
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Spaces One space.
7-14 Account
Number
Maximum eight-digit account code. If the account code is less than
eight digits, enter the actual number of digits without a leading space.
15 “ Separator.
16-17 ZZ First zone number, up to eight reports, one report has two digits.
18 “ Separator.
19 *** More data.
21 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
34
Table 31: Silent Knight Automation Format
Report Code Description To Automation Note
2 5 16=0(EEZZ) 2 5 16=1(ZZ)
00: Alarm Panic PAss 00
01 to 08: Alarm 01 to 08 sA0x 01 to 08 x=1 to 8
09: Holdup Hass 09
10 to 19: Alarm 10 to 19 sA1x 10 to 19 x=0 to 9
20 to 29: Alarm Restore 10 to
19
sH1x 20 to 29 x=0 to 9
30: Test Code sXss 30
31: Trouble Line 1 LT01 31
32: Trouble Line 2 LT02 32
33: Expand Trouble ETss 33
34: Forced Access DFss 34
35: Restore Line 1 LR01 35
36: Restore Line 2 LR02 36
37: Expand Restore ERss 37
38: Cancel Code OCss 38
39: Data Lost RTss 39
40: Closing CL00 40
41 to 49: Closing 01 to 09 CL0x 41 to 49 x=1 to 9
50 to 59: Bypass 10 to 19 sB1x 50 to 59 x=0 to 9
60: Trouble AC ATss 60
61 to 68: Trouble 01 to 08 sT0x 61 to 68 x=1 to 8
69: Trouble BAT YTss 69
70: Restore AC ARss 70
71 to 78: Restore 01 to 08 sRss 71 to 78
79: Restore BAT YRss 79
80: Access DS00 80
81 to 89: Access 01 to 09 DG0x 80 to 89 x=1 to 9
90: Opening OP00 90
91 to 99: Opening 01 to 09 OP0x 91 to 99
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
35
3.1.25 Silent Knight FSK2 (Message Type m)
Silent Knight
FSK2 Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h m r r l s a a a a a a a a “ E E Z Z “ *** t
Table 32: Silent Knight FSK2 (Message Type m) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type m
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Spaces One space.
7-14 Account
Number
Maximum eight-digit account code. If the account code is less than
eight digits, enter the actual number of digits without a leading space.
15 “ Separator.
16-19 EEZZ First event and zone number. If this is the only event, it will be ended
with the terminator. Up to eight reports. One report has four digits:
one-digit event code, one-digit condition code, two-digit zone code.
20 “ Separator.
21 *** Next data.
22 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
36
3.1.26 Silent Knight FSK80 D6500 mode (Message Type 1)
Silent Knight
FSK80
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 1 r r l s s s s s s A A A A s A s s X Y t
Table 33: Silent Knight FSK80 (Message Type 1) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 1
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces
12-15 Account
Number
Four-digit account number.
16 Space
17 Filler character
A
Always char “A”.
18-19 Spaces
20-21 XY Two-digit alarm zone code.
24 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
37
3.1.27 Telim (Message Type n)
Telim
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
h n R R L s A A A A A A s E T T Z
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z t Z
Table 34: Telim (Message Type n) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type n
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 Space One space.
7-12 Account
Number
Six digit account number.
13 Space One space.
14 E Event code.
15-32 TTZZZZZZZZZZ
ZZ
Input line number.
33 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
38
3.1.28 Text Message (Message Type 3)
Type 3
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 3 r r l P R I N T E R v v . v v t
Table 35: Text Message (Message Type 3) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 3
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line Number Line number fixed at 1.
6-21 Message Text Sixteen characters in length.
22 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
39
3.1.29 Varitech FSK 4-1 (Message Type 1)
Varitech FSK
4-1 Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 1 r r l s s s s s s a a a a s E s s s X t
Table 36: Varitech FSK 4-1 (Message Type 1) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type
1
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account
Number
Four digit account number.
16 Space One space.
17 E Event code.
18-20 Spaces Three spaces.
21 X Zone number.
22 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
40
3.1.30 Varitech FSK 4-2 (Message Type 1)
Varitech FSK
4-2 Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 1 r r l s s s s s s a a a a s E s s X Y t
Table 37: Varitech FSK 4-2 (Message Type 1) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type 1
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-11 Spaces Six spaces.
12-15 Account
Number
Four digit account number.
16 Space One space.
17 E Event code.
18-19 Spaces Two spaces.
20-21 XY Zone number.
22 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
41
3.1.31 VONK (Message Type V)
VONK D6500 Byte Description
Example 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
h V r r l A A 1 2 3 4 5 6 7 8 9 A B C D E F G t
Table 38: VONK (Message Type V) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type V
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6-7 Account
Number
Two digit account number.
8-23 Zone status Status of zones 1 to 16. If the zone is Closed, a “.”(period) is in this
position. If the zone is Open, 1 to G appears in this position.
24 Trailer
Character
Typically, HEX 14
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
42
3.1.32 X-SIA Text (Message Type S)
X-SIA Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h S r r l [ # a a a a | E M M Z Z Z Z * ` T
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
T T T T T T T T T T T T ‘ N M / * * * t
Table 39: X-SIA Text (Message Type S) Byte Description
# Title Description
1 Header
Character (
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type
S
3-4 Receiver
Number
Receiver gateway number from 01 to 99.
5 Line/Group
Number
Line number in the receiver gateway that sent the message.
6 [ Open bracket.
7 # #
8-11 Account
Number
Use up to sixteen digits in the account number.
12 | Separator. Indicates more data positions after account number.
13 E SIA block code.
14-15 MM SIA event code.
16-19 ZZZZ Zone number.
20 * Text identifier.
21 ‘ Quotation mark (single).
22-34 TT…T 13 character text string.
35 ‘ Qutotation mark (single).
36-37 NM Unit field characters.
38 / Separator.
39-41 *** Next block of data.
42 Trailer
Character
Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
43
3.1.33 SafeCom (Message Type p)
SafeCom
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 ... N-1 N
h p r r l A A A A E E E E . . . data . . . t
Table 40: SafeCom (Message Type p) Byte Description
# Title Description
1 Header Character
(
h
)
Optional. Check with the computer automation software for
compatibility.
2 Message Type p
3-4 Receiver Number Receiver gateway number from 01 to 99.
5 Line Card Number Line number in the receiver gateway that sent the message.
6-9 Account Number Four digits.
10-13 Event Code Four digits.
14-(N-
1)
Data Parameter data for event code.
N Trailer Character Typically, HEX 14.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
44
3.2 SIA Mode Messages
Use the SIA mode for central station monitoring.
3.2.1 Acron Super Fast (Message Type 9)
Acron Super
Fast Example
SIA Mode Description
<LF><CRC><9><sequence#><receiver#><line#>[#aaaa|CCCCCCCC]<CR>
Table 41: Acron Super Fast (Message Type 9) Byte Description
Title Description
L Standard line feed character.
CRC Cyclical redundancy check number.
Message Type 9
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number has four digits.
Figure 7: Message sent to printer
mm/ddshh:mmsLxxsACNsACCTsaaaa
+++sACCTsaaaasCCCCsCCCC
For lines that are grouped, Gxx appears instead of Lxx.
Table 42: Acron Super Fast (Message Type 9) Printer Output
Characters Description
ACN Acron Super Fast format.
Lxx Line number.
Gxx Grouped line numbers.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
45
3.2.2 Ademco Contact-ID (Message Type a)
Contact-ID
Example
SIA Mode Description
<LF><CRC><a><sequence#><receiver#><line#>[#aaaa|18QXYZGGCCC]<CR>
Table 43: Ademco Contact-ID (Message Type a) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type a
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number has four digits.
18 Ademco Contact-ID format number.
Q Qualifier, 1 = New event or opening, 3 = New restore or closing, 6 =
Previous event.
XYZ Class code and event code (refer to Appendix A: Contact ID Event Code
Classifications).
GG Group number.
CCC Zone codes or User ID.
Figure 8: Message sent to printer
mm/ddshh:mmsLxxsCIDsACCTsaaaa
+++sACCTsaaaasNNNsEVENT=XYZsG=GGsC=CCC
For lines that are
grouped, Gxx appears instead of Lxx.
Table 44: Ademco Contact-ID (Message Type a) Printer Output
Characters Description
CID
Contact-ID format.
Gxx Grouped Line numbers.
Lxx
Line number.
NNN
If Q = 1, print E/O for new event or opening If Q = 3, print R/C for restore or c
losing
If Q = 6, print “OLD” for old messages and events.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
46
3.2.3 Ademco 10-Digit (Message Type b)
10-Digit
Example
SIA Mode Description
<LF><CRC><a><sequence#><receiver#><line#>[#aaaaaaaaaa|58QXYZGGCCC]<CR>
Table 45: Ademco 10-Digit (Message Type b) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
a Message Type
a
Ademco Contact-ID.
sequence# The message sequence number. The valid sequence number range is 0001 to
9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for the
D6600/D6100/D6100IPv6.
line# The line number of the line in the Receiver/Gateway that sent the message.
Valid digits are: 00- 99. The D6600 uses line#0 for Receiver/Gateway
messages.
account# The communicator's account number.
58 Ademco Contact-ID format number for 10 digits account.
Q Qualifier, 1=New event or opening, 3=New restore or closing, 6=Previous event
XYZ Class code and event code (refer to Appendix A: Contact ID Event Code
Classifications)
GG Group number
CCC Zone codes or user ID
Figure 9: Message sent to printer
mm/ddshh:mmsLxxsCIDsACCTsaaaaaaaaaa
+++sNNNsEVENT=XYZsG=GGsC=CCC
For lines that are grouped, Gxx appears instead of Lxx.
Table 46: Ademco Contact-ID (Message Type a) Printer Output
Characters Description
CID
Contact-ID format.
Gxx Grouped Line numbers.
Lxx
Line number.
NNN
If Q = 1, print E/O for new event or opening If Q = 3, print R/C for restore or closing
If Q = 6, print “OLD” for old messages and events.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
47
3.2.4 Ademco 4-1 Express (Message Type b)
4-1 Express
Example
SIA Mode Description
<LF><CRC><b><sequence#><receiver#><line#>[#aaaa|X]<CR>
Table 47: Ademco 4-1 Express (Message Type b) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type b
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number has four digits.
X Zone number
Figure 10: Message sent to printer
mm/ddshh:mmsLxxsE41sACCTsaaaasEVENT=X
For lines that are grouped, Gxx appears instead
of Lxx.
Table 48: Ademco 4-1 Express (Message Type b) Printer Output
Characters Description
E41
Ademco 4-1 Express format.
Lxx:
Line number.
Gxx Grouped line numbers.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
48
3.2.5 Ademco 4-2 Express (Message Type c)
4-2 Express
Example
SIA Mode Description
<LF><CRC><c><sequence#><receiver#><line#>[#aaaa|XY]<CR>
Table 49: Ademco 4-2 Express (Message Type c) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type c
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number has four digits.
XY Event code and Zone number.
Figure 11: Message sent to printer
mm/ddshh:mmsLxxsE42sACCTsaaaasEVENT=XY
For lines that are grouped, Gxx appears instead of Lxx.
Table 50: Ademco 4-2 Express (Message Type c) Printer Output
Characters Description
E42
Ademco 4-2 Express format.
Lxx:
Line number.
Gxx Grouped line numbers.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
49
3.2.6 Ademco High Speed 4-8-1, SCANCOM 4-8-1 (Message Type f)
SCANCOM 5
-8-1, 6-8-1 - available upon request
High Speed
Example
SIA Mode Description
<LF><CRC><f><sequence#><receiver#><line#>[#aaaaaa|CCCCsCCCCsC]<CR>
Table 51: Ademco High Speed 4-8-1, SCANCOM 4-8-1 (Message Type F) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type f
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number has up to six digits.
CCCC Channels 1 to 4.
s One space.
CCCC Channels 5 to 8.
s One space.
C Supervisory channel.
Figure 12: Message sent to printer
mm/ddshh:mmsLxxsHGHsACCTsaaaaaa
+++sACCTsaaaaaasCCCCsCCCCsC
For lines that are grouped, Gxx appears instead of Lxx.
Table 52: Ademco High Speed, 4-8-1 (Message Type f) Printer Output
Characters Description
HGH
Ademco High Speed format.
Lxx:
Line number.
Gxx Grouped line numbers.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
50
3.2.7 ADT SIA (Message Type S)
ADT SIA
Example
SIA Mode Description
<LF><CRC><S><sequence#><receiver#><line#>[#aaaa|<E><damm-dd-
yytihh:mm:ss>data]<CR>
Table 53: ADT SIA (Message Type S) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type S (capital S)
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number up to sixteen digits.
E Event Code (refer to Appendix G: ADT SIA Report Codes).
damm-dd-yytihh:mm:ss Date and time.
Data This field contains message data codes such as event type, area number,
point number, identification number.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
51
3.2.8 Caller ID (Message Type <TAB>)
SIA Example SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#><line#>[#0000|&TTTTTTTTTTTTTTTT]<CR>
Table 54: Caller ID (Message Type <TAB>) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical Redundancy Check number.
Message Type <TAB>
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6..
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
& Origin ID Block.
T Up to 16-digit Caller ID.
Figure 13: Message sent to Printer
30/04 17:00 L01 CLI 9563832510
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
52
3.2.9 CFSK (Message Type i)
CFSK Example SIA Mode Description
<LF><CRC><I><sequence#><Receiver#><line#>[#aaaaaa|TTEE]<CR>
Table 55: CFSK (Message Type i) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type i.
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account # The communicator's account number, up to six digits.
TT Event code.
EE Zone/User ID.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
53
3.2.10 Common Formats (Message Type <TAB>)
Defined
Messages SIA
Example
SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#><line#>[#aaaaaaaaaaaaaaaa|data]<CR>
Table 56: Common Formats (Message Type <TAB>) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical Redundancy Check number.
Message Type 09 hex <TAB>
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number up to sixteen digits.
Data This field contains message data codes such as event type, area number,
point number, identification number, and so on.
The receiver gateway sends the 3-1, 4-1, 4-2, single round, double round, extended pulse formats,
BFSK, Modem II or Modem IId messages in either D6500 Mode or SIA Mode, depending on the
program option selected. The receiver gateway also sends internal and ModemIIIa² messages in either
D6500 mode or SIA mode, depending on the programmable option selected. Refer to Appendix B:
Internal Messages and Appendix C: Modem4/ModemIIIa² for a list of the messages and their
descriptions.
Figure 14: Message sent to printer
MM/DDsHH:MMsLxxSIA ACCT aaaa
+++ TEXT 1
+++ TEXT 2
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
54
Undefined Messages
When a common format message contains unprintable hexadecimal characters (unprintable
characters are out of ASCII range 0x32-0x7E) or without an account block:
SIA Example SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#><line#>[data]<CR>
Table 57: Common Formats (Message Type <TAB>) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical Redundancy Check number.
Message Type 09 hex.
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The D6600/D6100/D6100IPv6 uses
Line 0 (zero) for receiver gateway messages.
Data The receiver message contains hex characters either with or without
account portion.
Figure 15: Message sent to printer
MM/DDsHH:MMsLxx[SIA]
+++ TEXT 1
+++ TEXT 2
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
55
3.2.11 DNIS/ANI (Message Type N)
SIA Example SIA Mode Description
<LF><CRC><N><sequence#><receiver#><line#>[#0000|Dddddddddddd&aaaaaaaaaa]
<CR>
Table 58: DNIS/ANI (Message Type N) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type N
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account# Fixed at 0000.
D DNIS identified.
DNIS number (d) DNIS number, up to 11 digits.
ANI identifier (&) ANI identifier.
ANI number (a) ANI number, up to 11 digit.s
Figure 16: Message sent to printer
MM/DDsHH:MMsLxxsDNISsddddddddddd
+++sANIsaaaaaaaaaaa
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
56
3.2.12 DSC 4-3 (Message Type d)
DSC4-3
Example
SIA Mode Description
<LF><CRC><d><sequence#><receiver#><line#>[#aaaa|XYY]<CR>
Table 59: DSC 4-3 (Message Type d) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type d
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number has four digits.
X Event code number.
YY Zone number.
Figure 17: Message sent to printer
mm/ddshh:mmsLxxsDSGsACCTsaaaasEVENT=XYY
+++sACCsaaaaseeeeeeeesiisnnn
For lines that are grouped, Gxx appears instead of Lxx.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
57
Table 60: DSC 4-3 (Message Type d) Printer Output
Characters Description
DSG DSC/Sur-Gard 4-3 format.
Lxx: Line number.
Gxx Grouped line numbers.
Table 61: Printer Output Codes
Character
s
Description
ii ZN=Zone number - ID=User ID
nnn Zone/User number.
eeeeeeee Up to eight-character event type, right justified – ALARM, RESTORE, TROUBLE, OPEN,
OPENGRP, CLOSE, CLOSEGRP, BYPASS, UN BYPASS, CANCEL.

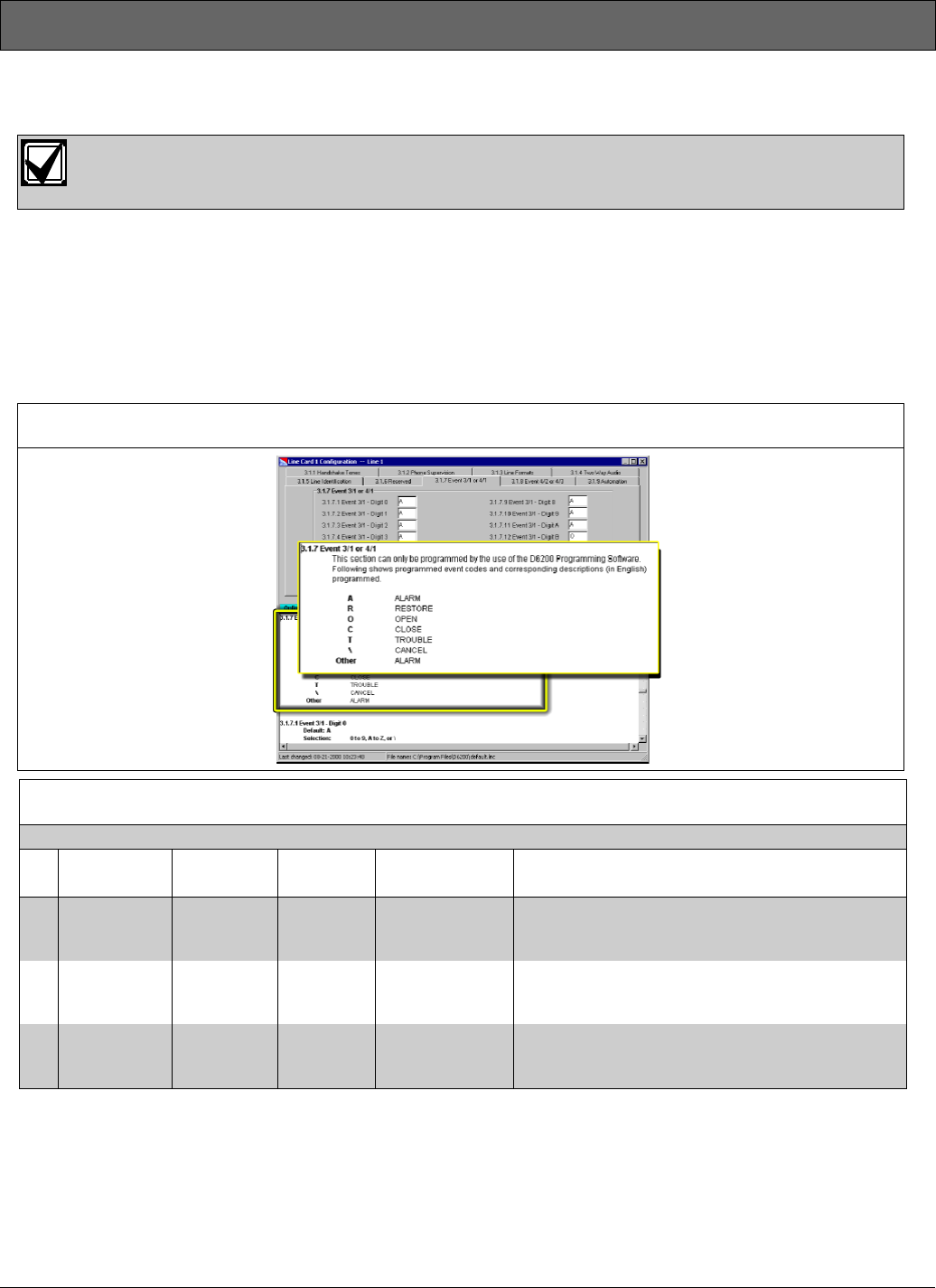

Table 62: Event Code Table
Code Number Message Event Characters
1 Alarm A
2 A
3 A
4 Close C
5 Open O
6 Alarm A
7 A
8 A
9 Restore R
0 Trouble T
B CloseGrp C
C OpenGrp O
D Bypass B
E UnBypass H
F Cancel O
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual | 3.0 Computer Communication
Protocols
58
3.2.13 FBI Super Fast (Message Type F)
FBI Super Fast
Example
SIA Mode Description
<LF><CRC><F><sequence#><receiver#><line#>[#aaaa|TZZE]<CR>
Table 63: FBI Super Fast (Message Type F) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type F
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account# The communicator's account number has four digits.
T Zone type.
ZZ Zone number.
E Event type.
Figure 18: Message sent to printer
mm/ddshh:mmsLxxsFBIsACCTsaaaasETsnnn
+++sACCTsaaaastttttttttseeeeeeeesZNsnnn
For lines that are grouped, Gxx appears instead of Lxx.
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
59
Table 64: FBI Super Fast (Message Type F) Printer Output
Characters Description
FBI FBI Super Fast format.
Lxx: Line number.
Gxx Grouped line numbers.
Table 65: Event Code Table
Code Zone/Event Type
1 Fire
2 Panic
3 Burglary
4 Medical
5 Auxiliary
6 Bypass
7 Inactive
8 Eight
9 Nine
0 Zero
B Opening
C Closing
D Abort
E Restore
F Trouble
Table 66: Printer Output Codes
Characters Description
ZN ZN=Zone number - ID=User ID
nnn Zone/User number.
ttttttttt Up to nine-character zone type, right justified FIRE, PANIC, BURGLARY, MEDICAL,
AUXILIARY.
eeeeeeee Up to eight-character event type, left justified ALARM, RESTORE, TROUBLE, OPEN,
OPENGRP, CLOSE, CLOSEGRP, BYPASS, UN BYPASS, CANCEL.
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual | 3.0 Computer Communication
Protocols
60
3.2.14 ITI (Message Type I)
ITI Example SIA Mode Description
<LF><CRC><I><sequence#><receiver#><line#>[#aaaaa|GIZZEWN]<CR>
Table 67: ITI (Message Type I) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type I (Captial I).
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account# The communicator's account number has up to six digits.
G Group number.
I O/C User ID.
ZZ Zone number.
E Condition code.
W Protection level was.
N Protection level now.
3.2.15 Link Test (Message Type <TAB>)
Link Test
Example
SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#> []<CR>
The D6600/D6100IPv6/D6100i can automatically generate this message at the preprogrammed
intervals.
Table 68: Link Test (Message Type <TAB>) Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type <TAB>
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
the D6600/D6100/D6100IPv6.
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
61
3.2.16 RB2000 (Message Type R) Description
RB2000
Example
SIA Mode Description
<LF><CRC><R><sequence#><receiver#><line#>[<VDS message>]<CR>
Table 69: RB2000 (Message Type R) Byte Description
Title Description
LF Standard line feed character, hex 0A.
CRC Cyclical redundancy check number.
R ASCII R, Message Type R for RB2000 format.
sequence# The message sequence number. The valid sequence number range: 0001
to 9999.
Receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for the
D6600.
line# The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
<VDS message> VDS message sent as a hex string, the receiver extracts the alarm type.
CR Hex 0D
Figure 19: Single message sent to Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ RB2000_EVENT_RAW_DATA
Figure 20: Multiple messages sent to printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ RB2000_EVENT_RAW_DATA 1
+++ RB2000_EVENT_RAW_DATA 2
...
+++ RB2000_EVENT_RAW_DATA n
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual | 3.0 Computer Communication
Protocols
62
Table 70: RB2000 (Message Type R) Printer Output
Characters Description
MM/DDsHH:MM Date and time.
RB2 RB2000 format.
Lxx Line number.
ACCT
xxxxxxxxxxxx
Subscriber number, up to 12 characters(hex).
RB2000_EVENT_R
AW_DATA
The raw data of RB2000 event.
RB2000_EVENT_R
AW_DATA1
The raw data of RB2000 event 1.
RB2000_EVENT_R
AW_DATA 2
The raw data of RB2000 event 2.
RB2000_EVENT_R
AW_DATA n
The raw data of RB2000 event n.
3.2.17 Robofon (Message Type j)
Robofon
Example
SIA Mode Description
<LF><CRC><j><sequence#><receiver#><line#>[#aaaaaa|EE]<CR>
Table 71: Robofon (Message Type j) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type j
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account # The communicator's account number has up to six digits.
EE Event code.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
63
3.2.18 Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g)
4-16-1
Example
SIA Mode Description
<LF><CRC><g><sequence#><receiver#><line#>
[#aaaaaa|CCCCsCCCCsCCCCsCCCCsC]<CR>
Table 72: Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g) Byte
Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type g
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
D6600.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
Account# The communicator's account number has up to six digits.
CCCC Channels 1 to 4.
s One space.
CCCC Channels 5 to 8.
s One space.
CCCC Channels 9 to 12.
s One space.
CCCC Channels 13 to 16.
s One space.
C Supervisory channel.
Figure 21: Message sent to printer
mm/ddshh:mmsLxxsSCNsACCTsaaaaaa
+++sACCTsaaaaaasCCCCsCCCCsCCCCsCCCCsC
For lines that are grouped, Gxx appears instead of Lxx.
Table 73: Scancom 4-16-1, 5-16-1, 6-16-1 - Available Upon Request (Message Type g) Printer
Output
Characters Description
SCN Scancom.
Lxx: Line number.
Gxx Grouped line numbers.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
64
3.2.19 Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h)
4-24-1
Example
SIA Mode Description
<LF><CRC><h><sequence#><receiver#><line#>[#aaaaaa|CCCCsCCCCs
CCCCs CCCCsCCCCsCCCCsC]<CR>
Table 74: Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h) Byte
Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type h
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account# The communicator's account number, up to six digits.
CCCC Channels 1 to 4.
s One space.
CCCC Channels 5 to 8.
s One space.
CCCC Channels 9 to 12.
s One space.
CCCC Channels 13 to 16.
s One space.
CCCC Channels 17 to 20.
s One space.
CCCC Channels 21 to 24.
s One space.
C Supervisory channel.
Figure 22: Message sent to printer
mm/ddshh:mmsLxxsSCNsACCTsaaaaaa
+++sACCTsaaaasCCCCsCCCCsCCCCsCCCC
++++++++++++++CCCCsCCCCsC
For lines that are grouped, Gxx appears instead of Lxx.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
65
Table 75: Scancom 4-24-1, 5-24-1, 6-24-1 - Available Upon Request (Message Type h) Printer
Output
Characters Description
SCN Scancom.
Lxx: Line number.
Gxx Grouped line numbers.
3.2.20 Seriee DTMF (Message Type l)
Seriee DTMF
Example
SIA Mode Description
<LF><CRC><l><sequence#><receiver#><line#>[#aaaa|*data]<CR>
Table 76: Seriee DTMF (Message Type l) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type l (lowercase L).
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account # The communicator's account number has four digits.
* Data separator.
Data DTMF Seriee Data.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
66
3.2.21 Seriee FSK (Message Type k)
Seriee FSK
Example
SIA Mode Description
<LF><CRC><k><sequence#><receiver#><line#>[#aaaaa|EZZ]<CR>
Table 77: Seriee FSK (Message Type k) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type k
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
Account # The communicator's account number has up to six digits.
E Event code.
ZZ Zone number.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
67
3.2.22 Sescoa Super Speed (Message Type 7)
Sescoa Super
Speed
Example
SIA Mode Description
<LF><CRC><7><sequence#><receiver#><line#>[#aaaa| IAAC]<CR>
Table 78: Sescoa Super Speed (Message Type 7) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type 7
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits are 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits are 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account# The communicator's account number has four digits.
I Event code.
AA Two- digit zone code or the first two digits user code.
C Space if zone report, or the last digit user code.
Figure 23: Message sent to printer
mm/ddshh:mmsLxxSESsACCTsaaaa +++sACCTsaaaasEEEseeeeeeeeeeeeee
For lines that are grouped, Gxx appears instead of Lxx.
Table 79: Sescoa Super Speed (Message Type 7) Printer Output
Characters Description
SES SESCOA Super Speed format.
Lxx Line number.
Gxx Grouped line numbers.
aaaa Account code.
EEE SESCOA Super Speed format event.
eeeeeeeeeeee
ee
Up to 14-characters of event description.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
68
3.2.23 Silent Knight FSK() (Message Type <TAB>)
Silent Knight
FSK0 Example
SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#><line#>[#aaaa|data]<CR>
Table 80: Silent Knight FSK0 (Message Type <TAB>) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type <TAB>
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal messages.
account # The communicator's account number has four digits.
Data Data.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
69
3.2.24 Silent Knight FSK1 (Message Type m)
Silent Knight
FSK1 Example
SIA Mode Description
<LF><CRC><m><sequence#><receiver#><line#>[#aaaa|
EEZZ”ECZZ”EEZZ”EEZZ”EEZZ”EEZZ”EEZZ”EEZZ]<CR>
Table 81: Silent Knight FSK1 (Message Type m) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type m
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal messages.
account # The communicator's account number has four digits.
EEZZ”EEZZ”EEZZ”EEZ
Z”EEZZ”EEZZ”EEZZ”E
EZZ
Up to eight reports. One report has four digits: one-digit event code, one-
digit condition code, and two-digit zone code. The quote (“) is the
separation character.
Optional Silent Knight FSK1 (Message Type m)
If
Menu Item 2.5.16 in the D6600/D6100/D6100IPv6 Receiver is equal to 1, the following output
is used.
Silent Knight
FSK1 Example
SIA Mode Description
<LF><CRC><m><sequence#><receiver#><line#>[#aaaa|ZZ”ZZ”ZZ”ZZ”ZZ”ZZ”ZZ”ZZ]<CR>
Table 82: Optional Silent Knight FSK1 (Message Type m) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type m
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal messages.
account # The communicator's account number has four digits.
ZZ”ZZ”ZZ”ZZ”ZZ”ZZ”Z
Z”ZZ
Up to eight reports. One report has two digits. The quote (“) is the
separate character.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
70
Table 83: Silent Knight FSK1 Optional Outputs
Report Code Description To Automation Note
2 5 16 = 0(EEZZ) 2 5 16 = 1(ZZ)
00 Alarm Panic PAss 00
01 to 08 Alarm 01 to 08 sA0x 01 to 08 x = 1 to 8
09 Holdup Hass 09
10 to 19 Alarm 10 to 19 sA1x 10 to 19 x = 0 to 9
20 to 29 Alarm Restore 10 to
19
sH1x 20 to 29 x = 0 to 9
30 Test Code sXss 30
31 Trouble Line 1 LT01 31
32 Trouble Line 2 LT02 32
33 Expand Trouble ETss 33
34 Forced Access DFss 34
35 Restore Line 1 LR01 35
36 Restore Line 2 LR02 36
37 Expand Restore ERss 37
38 Cancel Code OCss 38
39 Data Lost RTss 39
40 Closing CL00 40
41 to 49 Closing 01 to 09 CL0x 41 to 49 x = 1 to 9
50 to 59 Bypass 10 to 19 sB1x 50 to 59 x = 0 to 9
60 Trouble AC ATss 60
61 to 68 Trouble 01 to 08 sT0x 61 to 68 x = 1 to 8
69 Trouble BAT YTss 69
70 Restore AC ARss 70
71 to 78 Restore 01 to 08 sRss 71 to 78
79 Restore BAT YRss 79
80 Access DS00 80
81 to 89 Access 01 to 09 DG0x 80 to 89 x = 1 to 9
90 Opening OP00 90
91 to 99 Opening 01 to 09 OP0x 91 to 99
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
71
3.2.25 Silent Knight FSK2 (Message Type m)
Silent Knight
FSK2 Example
SIA Mode Description
<LF><CRC><m><sequence#><receiver#><line#>[#aaaaaa|
EEZZ”ECZZ”EEZZ”EEZZ”EEZZ”EEZZ”EEZZ”EEZZ]<CR>
Table 84: Silent Knight FSK2 (Message Type m) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type m
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal messages.
account # The communicator's account number has up to six digits.
EEZZ”EEZZ”EEZZ”EEZ
Z”EEZZ”EEZZ”EEZZ”E
EZZ
Up to eight reports. One report has four digits: one-digit event code, one-
digit condition code, and two-digit zone code. The quote (“) is the
separation character.
3.2.26 Silent Knight FSK80 (Message Type <TAB>)
Silent Knight
FSK80
Example
SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#><line#>[#AAAA|NBAXY]<CR>
Table 85: Silent Knight FSK80 (Message Type <TAB>) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type <TAB>
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal messages.
account # The communicator's account number has four digits.
NBA Alarm event
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
72
Figure 24: Message sent to printer
MM/DDsHH:MMsLxxsSFKsACCTsAAAA
+++ACCTsAAAAsALARM_ZNs1
+++ACCTsAAAAsALARM_ZNs2
+++ACCTsAAAAsALARM_ZNs3
+++ACCTsAAAAsALARM_ZNs4
+++ACCTsAAAAsALARM_ZNs5
+++ACCTsAAAAsALARM_ZNs7
+++ACCTsAAAAsALARM_ZNs8
+++ACCTsAAAAsALARM_ZNs9
Table 86: Silent Knight FSK80 Printer/LCD output
Characters Description
MM/DDsHH:M
M
Date and time.
SFK SFSK80 format.
Lxx Line number.
AAAA The communicator's account number has four digits.
s Space.
3.2.27 Telim (Message Type n)
Telim Example SIA Mode Description
<LF><CRC><n><sequence#><receiver#><line#>[#aaaaaa|EETTZZZZZZZZZZZZZZZZZZ]<CR>
Table 87: Telim (Message Type n) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type n
sequence# The message sequence number. The valid sequence number range is
0001 to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits: 00 to 99. The receiver uses Line 0 (zero) for
internal messages.
account # The communicator's account number has up to six digits.
EETTZZZZZZZZZZZZZZZZ
ZZ
The event type and input line number.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
73
3.2.28 Varitech FSK 4-1 (Message Type <TAB>)
Varitech FSK
4-1 Example
SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#><line#>[#aaaa|data]<CR>
Table 88: Varitech FSK 4-1 (Message Type <TAB>) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type <TAB>
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99 The receiver uses Line 0 (zero) for internal messages.
account# The communicator's account number has four digits.
data The event type and 1-digit zone number.
3.2.29 Varitech FSK 4-2 (Message Type <TAB>)
Varitech FSK
4-2 Example
SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#><line#>[#aaaa|data]<CR>
Table 89: Varitech FSK 4-2 (Message Type <TAB>) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message <TAB>
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account # The communicator's account number has four digits.
data The event type and two-digit zone number.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
74
3.2.30 VONK (Message Type V)
VONK Example SIA Mode Description
<LF><CRC><V><sequence#><receiver#><line#>[#aa|123456789ABCDEFG]<CR>
Table 90: VONK (Message Type V) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type V
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account # The communicator's account number has two digits.
Data Status of zones 1 to 16. If the zone is closed, a “.” (Period) appears in this
position. If the zone is open, any digit from 1 to G appears in this position.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
75
3.2.31 X-SIA text (Message Type <TAB>)
X-SIA Example SIA Mode Description
<LF><CRC><TAB><sequence#><receiver#><line#>[#aaaa|EMMZZZZ*'TTTTTTTTTTTTT'NM/***
]<CR>
Table 91: X-SIA text (Message Type <TAB>) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message Type <TAB>
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600/D6100/D6100IPv6.
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account # The communicator's account number has up to 16 digits.
E SIA block code.
MM SIA event code.
ZZZZ Zone number.
* Text identifier.
` Single quote.
TT…TTT 13 character text string.
‘ Single quote.
NM Unit field characters.
/ Separator.
*** Next data.
Figure 25: Message sent to printer
MM/DDsHH:MMsLxxsSIAsACCTsAAAA
+++sEMMZZZZ*'TTTTTTTTTTTTT'NM
+++sEMMZZZZ*'TTTTTTTTTTTTT'NM
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
76
Table 92: X-SIA Printer/LCD output
Characters Description
MM/DDsHH:MM Date and time.
Lxx Line number.
SIA SIA format.
AAAA Account code.
E SIA block code.
MM SIA event code.
ZZZZ Zone number.
* Text identifier.
‘ Single quote.
TTT…T 13 character text string.
‘ Single quote.
NM Unit field characters.
3.2.32 SafeCom (Message Type p)
SafeCom
Example
SIA Mode Description
<LF><CRC><p><sequence#><receiver#><line#>[#aaaa|EEEEdata]<CR>
Table 93: SafeCom (Message Type p) Byte Description
Title Description
LF Standard line feed character.
CRC Cyclical redundancy check number.
Message p
sequence# The message sequence number. The valid sequence number range is 0001
to 9999.
receiver# The receiver gateway that sent the message. Valid digits: 01 to 99 for
D6600.
line# The line number of the line in the receiver gateway that sent the message.
Valid digits: 00 to 99. The receiver uses Line 0 (zero) for internal
messages.
account # The communicator's account number has four digits.
EEEE Event code, four digits.
data Event code parameter data.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | 3.0 Computer Communication
Protocols
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
77
3.3 Input Command Processing
Input devices, such as automation systems, send the commands described in Table 94 to the receiver.
If the receiver does not recognize a command, it generates a REJECT COMMAND message, prints at
connected printers, and sends an ASCII text message to the automation port.
The CPU programming in
Menu Item 2.2.4 of the D6600/D6100/D6100IPv6
Receiver must be set
to 1 to use input commands.
Table 94: ASCII Text Message to Automation Port
Set
Time
The automation system, or other device, sends the command shown below to set the
time at the D6600/D6100/D6100IPv6 if the D6600/D6100/D6100IPv6 is programmed to
synchronize the time and date with the automation system.
D6650
Mode:
!Thhmm<CR>
SIA
Mode:
<seq><rec><line>[CSThhmm]<CR>
hh - hours (24 hour format)
mm – minutes.
Set Date The automation system, or other device, sends the command shown below to set the
date at the D6600/D6100/D6100IPv6 if the D6600/D6100/D6100IPv6 is programmed to
synchronize the time and date with the automation system.
D6650
Mode:
!Dmmddyy<CR>
SIA
Mode:
<seq><rec><line>[CSDmmddyy]<CR>
mm - month, dd - day, yy – year
Stop
Two
Way
Audio
The automation system, or other device, sends the command shown below to stop a
two way audio session on the line specified.
D6650
Mode:
!Kn<CR>
SIA
Mode:
<seq><rec><line>[CLKnn]<CR>
nn - line card number, 01-32.
Reject
Comma
nd
D6650
Mode:
h3rrlsREJECTsCOMMANDsst
SIA
Mode:
<LF><CRC><TAB><sequence#><receiver#><line#>[REJECT COMMAND]<CR>
Table 95: Input Command Output Messages
D6500 Mode SIA
Mode
Printer Output
Set Time h1rrssssssssssssXss2t [NJT] TIME SET
Set Date h1rrssssssssssssXss51t [NJD] DATE SET
Stop
Two Way
Audio
h1rrssssssssssssXss52t [CLK] TWO WAY AUDIO STOP STOP
Table 95 shows the D6500 and SIA automation output formats for these input commands.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
78
Appendix A: Contact ID Event Code Classifications
Figure 26: Contact ID format
1234 E 123 01 123
1
2
3
4
5
1 - Customer (Subscriber Account Number)
2 - Event Qualifier - E = New Event, R = Restore
3 - Event Code - refer to Section A1 Event Codes
4 - Group or Partition Number, 00 to FF (2 Hex digits 0-9, B-F, always 00 for non-partitioned
panels)
5 - Zone ID number* - reporting the alarm (001 to 999) or user number for open or close reports.
* System status messages, such as AC Loss and Low Battery, are Zone ID 000.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
79
Table 96: Contact ID Event Code Classifications
# Event Type Zone
Medical:
100 Medical Emerg-Personal Emergency-#
101 Pendant
Transmitter
Emerg-Personal Emergency-#
102 Fail to report in Emerg-Fail to check in-#
Fire Alarms:
110 Fire Fire-Fire Alarm-#
111 Smoke
w/Verification
Fire-Fire Alarm-#
112 Combustion Fire-Combustion-#
113 Waterflow Fire-Water Flow-#
114 Heat Fire-Heat Sensor-#
115 Pull Station Fire-Pull Station-#
116 Duct Fire-Duct Sensor-#
117 Flame Fire-Flame Sensor-#
118 Near Alarm Fire-Near Alarm-#
Panic Alarms:
120 Panic Alarm Panic-Panic-#
121 Duress Panic-Duress-User #
122 Silent Panic-Silent Panic-#
123 Audible Panic-Audible Panic-#
124 Duress-Access
Granted
Panic-Duress Access Grant-#
125 Duress-Egress
Granted
Panic-Duress Egress Grant-#
Burglar Alarms:
130 Burglary Burg-Burglary-#
131 Perimeter Burg-Perimeter-#
132 Interior Burg-Interior-#
133 24 HR Burg (Aux) Burg-24 Hour-#
134 Entry/Exit Burg-Entry/Exit-#
135 Day/Night Burg-Day/Night-#
136 Outdoor Burg-Outdoor-#
137 Tamper Burg-Tamper-#
138 Near Alarm Burg-Near Alarm-#
139 Intrusion Verifier Burg-Intrusion Verifier-#
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
80
Table 96: Contact ID Event Code Classifications (continued)
# Event Type Zone
General Alarms:
140 General Alarm Alarm-General Alarm-#
141 Polling Loop Open Alarm-Polling Loop Open
142 Polling Loop Short
(AL)
Alarm-Polling Loop Short
143 Expansion Mod
Failure
Alarm-Exp. Module Tamper-#
144 Sensor Tamper Alarm-Sensor Tamper-#
145 Expansion Module
Tamper
Alarm-Exp. Module Tamper-#
146 Silent Burg Alarm-Silent Burglary-#
24 Hour Non-Burglary:
150 24 Hour (Auxiliary Alarm-24 Hr. Non-Burg-#
151 Gas Detected Alarm-Gas Detected-#
152 Refrigeration Alarm-Refrigeration-#
153 Loss of Heat Alarm-Heating System-#
154 Water Leakage Alarm-Water Leakage-#
155 Foil Break Trouble-Foil Break-#
156 Day Trouble Trouble-Day Zone-#
157 Low Bottled Gas
Level
Alarm-Low Gas Level-#
158 High Temp Alarm-High Temperature-#
159 Low Temp Alarm-Low Temperature-#
161 Loss of Air Flow Alarm-Air Flow-#
162 Carbon Monoxide
Detected
Alarm-Carbon Monoxide-#
163 Tank Level Trouble-Tank Level-#
Fire Supervisory:
200 Fire Supervisory Super.-Fire Supervisory-#
201 Low Water Pressure Super.-Low Water Pressure-#
202 Low CO2 Super.-Low CO2-#
203 Gate Valve Sensor Super.-Gate Valve-#
204 Low Water Level Super.-Low Water Level-#
205 Pump Activated Super.-Pump Activation-#
206 Pump Failure Super.-Pump Failure-#
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
81
Table 96: Contact ID Event Code Classifications (continued)
# Event Type Zone
System Troubles:
300 System Trouble Trouble-System Trouble
301 AC Loss Trouble-AC Power
302 Low System Batt Trouble-Low Battery
303 RAM Checksum Bad Trouble-Bad RAM Checksum (Restore not applicable)
304 ROM Checksum
Bad
Trouble-Bad ROM Checksum (Restore not applicable)
305 System Reset Trouble-System Reset (Restore not applicable)
306 Panel Prog Change Trouble-Programming Changed (Restore not applicable)
307 Self-Test Failure Trouble-Self Test Failure
308 System Shutdown Trouble-System Shutdown
309 Battery Test Fail Trouble-Battery Test Failure
310 Ground Fault Trouble-Ground Fault-#
311 Battery Missing Trouble-Battery Missing
312 Power Supply
Overcurrent
Trouble-Pwr. Supp. Overcur.-#
313 Engineer Reset Status-Engineer Reset-User # (Restore not applicable)
Sounder/Relay Troubles:
320 Sounder/Relay Trouble-Sounder/Relay-#
321 BELL 1 Trouble-Bell/Siren #1
322 BELL 2 Trouble-Bell/Siren #2
323 Alarm Relay Trouble-Alarm Relay
324 Trouble Relay Trouble-Trouble Relay
325 Reversing Relay Trouble-Reversing Relay
326 Notification
Appliance CKT. #3
Trouble-Notification Appl. Ckt#3
327 Notification
Appliance CKT. #4
Trouble-Notification Appl. Ckt#4
System Peripheral Troubles:
330 System Peripheral Trouble-Sys. Peripheral-#
331 Polling Loop Open Trouble-Polling Loop Open
332 Polling Loop Short Trouble-Polling Loop Short
333 Exp. Module Failure Trouble-Exp. Module Fail-#
334 Repeater Failure Trouble-Repeater Failure-#
335 Local Printer Paper
Out
Trouble-Printer Paper Out
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
82
Table 96: Contact ID Event Code Classifications (continued)
# Event Type Zone
336 Local Printer
Failure
Trouble-Local Printer
337 Exp. Mod. DC Loss Trouble-Exp. Mod. DC Loss-#
338 Exp. Mod. Low bat Trouble-Exp. Mod. Low Batt-#
339 Exp. Mod. Reset Trouble-Exp. Mod. Reset-#
341 Exp. Mod. Tamper Trouble-Exp. Mod. Tamper-#
342 Exp. Module AC
Loss
Trouble-Exp. Module AC Loss-#
343 Exp. Module Self
Test Fail
Trouble-Exp. Self-Test Fail-#
344 RF Rcvr Jam Detect
#
Trouble-RF Rcvr Jam Detect-#
Communication Troubles:
350 Communication Trouble-Communication Failure
351 Telco 1 Fault Trouble-Phone line #1
352 Telco 2 Fault Trouble-Phone line #2
353 LR Radio Xmitter
Fault
Trouble-Radio Transmitter
354 Failure To
Communicate
Trouble-Fail to Communicate
355 Loss of Radion
Super.
Trouble-Radio Supervision
356 Loss of Central
Polling
Trouble-Central Radion Polling
357 LRR XMTR. VSWR Trouble-Radio Xmitter. VSWR-#
Protection Loop:
370 Protection Loop Trouble-Protection Loop-#
371 Protection Loop
Open
Trouble-Prot. Loop Open-#
372 Protection Loop
Short
Trouble-Prot. Loop Short-#
373 Fire Trouble Trouble-Fire Loop-#
374 Exit Error (By User) Alarm-Exit Error-#
375 Panic Zone Trouble Trouble-PA Trouble-#
376 Hold-Up Zone
Trouble
Trouble-Hold-Up Trouble-#
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
83
Table 96: Contact ID Event Code Classifications (continued)
# Event Type Zone
Sensor:
380 Sensor TRBL-Global Trouble-Sensor Trouble-#
381 Loss Of Supervision Trouble-RF Sensor Super.-#
382 Loss Of Supervisn Trouble-RPM Sensor Super.-#
383 Sensor Tamper Trouble-Sensor Tamper-#
384 RF Low Battery Trouble-RF Sensor Battery-#
385 Smoke Hi Sens. Trouble-Smoke Hi Sens.-#
386 Smoke lo sens. Trouble-Smoke Lo Sens.-#
387 Intrusion hi sens. Trouble-Intrusion Hi Sens.-#
388 Intrusion lo sens. Trouble-Intrusion Lo Sens.-#
389 Det. Self test fail Trouble-Sensor Test Fail-#
391 Sensor Watch
Failure
Trouble-Sensor Watch Fail-#
392 Drift Comp. Error Trouble-Drift Comp. Error-#
393 Maintenance Alert Trouble-Maintenance Alert-#
Open/Close:
400 Open/Close Opening/Closing
401 Open/Close By User Opening-User #/Closing-User #
402 Group O/C Closing-Group User #
403 Automatic
Open/Close
Opening-Automatic/Closing-Automatic
404 Late to O/C Opening-Late/Closing-Late
405 Deferred O/C Event & Restore Not Applicable
406 Cancel (By User) Opening-Cancel
407 Remote
Arm/Disarm
Opening-Remote/Closing-Remote
408 Quick Arm Event not applicable for opening/closing-Quick Arm
409 Keyswitch
Open/Close
Opening-Keyswitch/Closing-Keyswitch
441 Armed Stay Opening-Armed Stay/Closing-Armed Stay
442 Keyswitch Armed
Stay
Opening-Keysw. Arm Stay/Opening-Keysw. Arm Stay
450 Exception O/C Opening-Exception/Closing-Exception
451 Early O/C Opening-Early/Closing-Early-Use r#
452 Late O/C Opening-Late/Closing-Late-User #
453 Failed to Open Trouble-Fail to open (Restore not applicable)
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
84
Table 96: Contact ID Event Code Classifications (continued)
# Event Type Zone
454 Failed to Close Trouble-Fail to Close (Restore not applicable)
455 Auto-Arm Failed Trouble-Auto Arm Failed (Restore not applicable)
456 Partial Arm Closing-Partial arm-User #
457 Exit Error (User) Closing-Exit Error-User #
458 User on Premises Opening-User on Prem. –User #
459 Recent Close Trouble-Recent Close-User # (Restore not applicable)
461 Wrong Code Entry Access-Wrong Code entry (Restore not applicable)
462 Legal Code Entry Access-Legal Code entry-user # (Restore not applicable)
463 Re-arm after Alarm Status-Re Arm After Alarm-User # (restore not applicable)
464 Auto Arm Time
Extended
Status-Auto Arm Time Ext.-User # (Restore not applicable)
465 Panic Alarm Reset Status-PA Reset (Restore not applicable)
Remote Access:
411 Callback Requested Remote-Callback Requested (Restore not applicable)
412 Success-
Download/access
Remote-Successful Access (Restore not applicable)
413 Unsuccessful
Access
Remote-Unsuccessful Access (Restore not applicable)
414 System Shutdown Remote-System Shutdown
415 Dialer Shutdown Remote-Dialer Shutdown
416 Successful Upload Remote-Successful Upload (Restore not applicable)
Access Control:
421 Access Denied Access-Access Denied-User # (Restore not applicable)
422 Access Report by
User
Access-Access Gained-User # (Restore not applicable)
423 Forced Access Panic-Forced Access-#
424 Egress Denied Access-Egress Denied (Restore not applicable)
425 Egress Granted Access-Egress Granted (Restore not applicable)
426 Access Door
Propped Open
Access-Door Propped Open-#
427 Access Point DSM
Trouble
Access-ACS Point DSM Trbl.-#
428 Access Point RTE
Trouble
Access-ACS Point RTE Trbl.-#
429 Access Program
Mode Entry
Access-ACS Prog. Entry-User # (Restore not applicable)
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
85
Table 96: Contact ID Event Code Classifications (continued)
# Event Type Zone
430 Access Program
Mode Exit
Access-ACS Prog. Exit-User # (Restore not applicable)
431 Access Threat Level
Change
Access-ACS Threat Level Chg.
432 Access
Relay/Trigger Fail
Access-ACS Relay/Trig. Fail-#
433 Access RTE Shunt Access-ACS RTE Shunt-#
434 Access DSM Shunt Access-ACS DSM Shunt-#
System Disables:
501 Access Reader
Disable
Disable-Access Rdr. Disable-#
Sounder/Relay Disables:
520 Sounder/Relay
Disable
Disable-Sounder/Relay-#
521 Bell 1 Disable Disable-Bell/Siren #1
522 Bell 2 Disable Disable-Bell/Siren #2
523 Alarm Relay Disable Disable-Alarm Relay
524 Trouble Relay
Disable
Disable-Trouble Relay
525 Reversing Relay
Disable
Disable-Reversing Relay
526 Notification
Appliance Ckt #3
Disable-Notification Appl. Ckt #3
527 Notification
Appliance Ckt #4
Disable-Notification Appl. Ckt #4
System Peripheral Disables:
531 Module Added Super.-Module Added (Restore not applicable)
532 Module Removed Super.-Module Removed (Restore not applicable)
Communication Disables:
551 Dialer Disabled Disable-Dialer Disable
552 Radio Xmitter
Disabled
Disable-Radio Disable
553 Remote
Upload/Download
Disable-Rem. Up/Download Disable
Bypasses:
570 Zone/Sensor
Bypass
Bypass-Zone Bypass-#
571 Fire Bypass Bypass-Fire Bypass-#
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
86
Table 96: Contact ID Event Code Classifications (continued)
# Event Type Zone
572 24 Hour Zone
Bypass
Bypass-24 Hour Bypass-#
573 Burg. Bypass Bypass-Burg. Bypass-#
574 Group Bypass Bypass-Group Bypass-User #
575 Swinger Bypass Bypass-Swinger Bypass-#
576 Access Zone Shunt Access-ACS Zone Shunt-#
577 Access Point
Bypass
Access-ACS Point Bypass-#
Test/Misc.:
601 Manual Test Test-Manually Triggered (Restore not applicable)
602 Periodic Test Test-Periodic (Restore not applicable)
603 Periodic RF
Xmission
Test-Periodic Radio (Restore not applicable)
604 Fire Test Test-Fire Walk Test-User #
605 Status Report To
Follow
Test-Fire Walk-User #
606 Listen-In To Follow Listen-Listen-In Active (Restore not applicable)
607 Walk-Test Mode Test-Walk Test Mode-User #
608 System Trouble
Present
Test-System Trouble Present (Restore not applicable)
609 Video XMTR Active Listen-Video Xmitter Active (Restore not applicable)
611 Point Tested OK Test-Point Tested OK-# (Restore not applicable)
612 Point Not Tested Test-Point Not Tested-# (Restore not applicable)
613 Intrusion Zone Walk
Tested
Test-Intrn Zone Walk Test-# (Restore not applicable)
614 Fire Zone Walk
Tested
Test-Fire Zone Walk Test-# (Restore not applicable)
615 Panic Zone Walk
Tested
Test-PA Zone Walk Test (Restore not applicable)
616 Service Request Trouble-Service Request
Event Log:
621 Event Log Reset Trouble-Event Log Reset (Restore not applicable)
622 Event Log 50% Full Trouble-Event Log 50% Full (Restore not applicable)
623 Event Log 90% Full Trouble-Event Log 90% Full (Restore not applicable)
624 Event Log Overflow Trouble-Event Log Overflow (Restore not applicable)
625 Time/Date Reset Trouble-Time/Date Reset-User # (Restore not applicable)
626 Time/Date
Inaccurate
Trouble-Time/Date Invalid
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix A: Contact ID Event
Code Classifications
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
87
Table 96: Contact ID Event Code Classifications (continued)
# Event Type Zone
627 Program Mode
Entry
Trouble-Program Mode Entry (Restore not applicable)
628 Program Mode Exit Trouble-Program Mode Exit (Restore not applicable)
Scheduling:
630 Schedule Change Trouble-Schedule Changed (Restore not applicable)
631 Exception Sched.
Change
Trouble-Esc. Sched. Changed (Restore not applicable)
632 Access Schedule
Changes
Trouble-Access Sched. Changed (Restore not applicable)
Personnel Monitoring:
641 Senior Watch
Trouble
Trouble-Senior Watch Trouble
642 Latch-key
Supervision
Status-Latch-key Super-User # (Restore not applicable)
Special Codes:
750-
789
These codes are used
only
by Protection and can be assigned any unique non-standard
Event code that Pro 1 tracks.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix B: Internal Messages
88
Appendix B: Internal Messages
Table 97: Internal Messages
# Internal Messages D6500
Output2
SIA Output2 Printer Output
1. Acknowledge Acknowledge
2. Keypad Operation1 X 0 [NYZ] OPERATOR KEYPAD OPERATION
3. Service Required1 X 1 [NYX] SERVICE REQUIRED
4. Set Time X 2 [NJT] TIME SET
5. Battery Missing X 9 [NYM] BATTERY MISSING
6. Battery Present1 X 10 [NYR] BATTERY PRESENT
7. Battery Bad X 11 [NYT] BATTERY LOW
8. Battery Restore X 12 [NYR] BATTERY RESTORE
9. AC Fail X 13 [NAT] AC FAIL
10. AC Restore X 14 [NAR] AC RESTORE
11. Paper In1 X 15 [NVI] PAPER IN
12. Paper Out1 X 16 [NVO] PAPER OUT
13. Local Parameter
Program In1
X 17 [NLB] LOCAL PARM PROGRAM IN
14. Local Parameter
Program Successful1
X 18 [NLS] LOCAL PARM PROGRAM OK
15. Local Software
Program In1
X 41 [NLB] LOCAL SOFTWARE PROG IN
16. Local Software
Program Successful1
X 42 [NLS] LOCAL SOFTWARE PROG OK
17. Local Program
Failure1
X 43 [NLU] LOCAL PROGRAM FAILURE
18. Local Program
Denied1
X 44 [NLD] LOCAL PROGRAM DENIED
19. Remote Parameter
Program In
X 45 [NRB] REMOTE PARM PROGRAM IN
20. Remote Parameter
Program Successful
X 46 [NRS] REMOTE PARM PROGRAM OK
21. Remote Software
Program In
X 47 [NRB] REMOTE SOFTWARE PROG IN
22. Remote Software
Program Successful
X 48 [NRS] REMOTE PROGRAM SUCCESS
23. Remote Program
Failure
X 49 [NRU] REMOTE PROGRAM FAILURE
24. Remote Program
Denied1
X 50 [NRD] REMOTE PROGRAM DENIED
25. Printer On Line1 X 19 [NVY] PRINTER ON LINE
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix B: Internal Messages
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
89
Table 97: Internal Messages (continued)
# Internal Messages D6500
Output2
SIA Output2 Printer Output
26. Printer Off Line1 X 20 [NVZ] PRINTER OFF LINE
27. External PRT Error X 21 [NVT] EXTERNAL PRINTER ERROR
28. External PRT Restore X 22 [NVR] EXTERNAL PRINTER RESTORE
29. Internal PRT Error1 X 21 [NVT] INTERNAL PRINTER ERROR
30. Internal PRT Restore1 X 22 [NVR] INTERNAL PRINTER RESTORE
31. Busy Seconds bbb B [NYBbbb] BUSY SECONDS bbb%
32. COM3 Error X 30 [NYC] COMPUTER ERROR
33. COM3 Trouble X 31 [NYS] COMPUTER TROUBLE
34. COM3 Restore X 32 [NYK] COMPUTER RESTORE
35. UPS AC Fail X 33 [NUA01] UPS AC FAIL
36. UPS AC Restore X 34 [NUR01] UPS AC RESTORE
37. UPS Battery Low X 35 [NUA02] UPS BATTERY LOW
38. UPS Battery Restore X 36 [NUR02] UPS BATTERY RESTORE
39. System Reset X 37 [NYW01] SYSTEM RESET
40. System Default1 X 38 [NYG] SYSTEM DEFAULT
41. System Temperature
High
X 39 [NKA] SYSTEM TEMPERATURE HIGH
42. System Temperature
Restore
X 40 [NKR] SYSTEM TEMPERATURE RESTORE
43. Slotx/Linex (Lxx) Line
Fault
X 5 [NLT] PHONE LINE FAULT
44. Slotx/Linex (Lxx) Line
Restore
X 6 [NLR] PHONE LINE RESTORE
45. Slotx/Linex (Lxx) Line
Card Trouble
X 7 [NYD] LINE CARD TROUBLE
46. Slotx/Linex (Lxx) Line
Card Restore
X 8 [NYE] LINE CARD RESTORE
47. Slotx/Linex (Lxx)
Audio In
* [NLF] AUDIO IN
48. Slotx/Linex (Lxx)
Audio Done
L [NLE] AUDIO DONE
49. Slotx/Linex (Lxx)
Communication Error1
X 60 [NUA03] COMMUNICATION ERROR
50. Slotx/Linex (Lxx)
Communication Restr1
X 61 [NUR03] COMMUNICATION RESTORE
51. Slotx/Linex (Lxx) Data
Error
X 62 [NYN] DATA ERROR
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix B: Internal Messages
90
Table 97: Internal Messages (continued)
# Internal Messages D6500
Output2
SIA Output2 Printer Output
52. Slotx/Linex (Lxx) No
Data Received
X 63 [NUT04] NO DATA RECEIVED
53. Slotx/Linex (Lxx)
Reset
X 64 [NYW02] LINE RESET
54. Slotx/Linex (Lxx)
Codec Error1
X 65 [NUT05] CODEC ERROR
55. Slotx/Linex (Lxx)
Private Call
P [NUT06] PRIVATE CALL
56. Slotx/Linex (Lxx) No
Call Number
N [NUT07] NO CALL NUMBER
57. Slotx/Linex (Lxx)
Caller Unknown
U [NUT08] CALLER UNKNOWN
58. Set Date X 51 [NJD] DATE SET
59. Stop Two Way Audio X 52 [CLK] TWO WAY AUDIO STOP
60. CPU Data Error1 X 53 [NYN01] CPU DATA ERROR
61. Network Error1 X 54 [NNT] NETWORK ERROR
62. Network Restore1 X 55 [NNR] NETWORK RESTORE
63. Account Status
Failure
T B02 [NYC] COMM FAIL
64. Account Status
Restore
N B02 [NYK] COMM FAIL RESTR
65. Supervision Rate
Changed
X 66 [NCO0001] SUPERVISION RATE CHANGED
66. Switch To Intercept
Mode
X 88 [NCO0002] SWITCH TO INTERCEPT MODE
67. Switch to Fallback
Mode
X 81 [NCO0003] SWITCH TO FALLBACK MODE
68. Diable Intercept Mode X 83 [NCO0004] DISABLE INTERCEPT MODE
69. Activate Output X 84 [NCO0005] ACTIVATE OUTPUT
70. Deactivate Output X 86 [NCO0006] DEACTIVATE OUTPUT
71. C900 Reboot X 59 [NSC0001] C900 REBOOT
72. C900 Battery Low X 58 [NSC0002] C900 VOLTAGE LOW
73. C900 Battery Restore X 68 [NSC0003] C900 VOLTAGE RESTORE
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix B: Internal Messages
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
91
Table 97: Internal Messages (continued)
# Internal Messages D6500
Output2
SIA Output2 Printer Output
74. C900 Switched to
Intercept
X 87 [NSC0004] C900 SWITCHED TO INTERCEPT
75. C900 Switched to
Fallback
X 82 [NSC0005] C900 SWITCHED TO FALLBACK
76. C900 Output
Activated
X 85 [NSC0006] C900 OUTPUT ACTIVATED
77. C900 Output
Deactivated
X 94 [NSC0007] C900 OUTPUT DEACTIVATED
78. C900 Input Shorted X 89 [NSC0008] C900 INPUT SHORTED
79. C900 Input Open X 90 [NSC0009] C900 INPUT OPEN
80. C900 Input Restored X 91 [NSC0010] C900 INPUT RESTORED
81. C900 Intercept
Enabled
X 92 [NSC0011] C900 INTERCEPT ENABLED
82. C900 Intercept
Disabled
X 93 [NSC0012] C900 INTERCEPT DISABLED
83. No Acknowledgement
Received
X 71 [NYU0001] NO ACKNOWLEDGEMENT RECEIVED
84. Not Dialing X 72 [NYU0002] NOT DIALING
85. Dialing Error X 73 [NYU0003] DIALING ERROR
86. No Response to
Handshake
X 74 [NYU0004] NO RESPONSE TO HANDSHAKE
87. No Response to
Acknowledgement
X 75 [NYU0005] NO RESPONSE TO ACK
88. Message Unknown X 76 [NYU0006] MESSAGE UNKNOWN
89.
Invalid Message X 77 [NYU0007] INVALID MESSAGE
90. 30 Minutes Since
Fallback Command
X 95 [NMI0001] 30 MIN SINCE FALLBACK CMD
91. Alarm for Panel
Substitution
A D53 [Npt003AA
007]
ALARM-PNL SUBST
92. Account Disable by
Attack
TB03 [Npt003YC
008]
ACCOUNT DISABLED BY ATTACK
93. Incompatible X 99 [NIVn] INCOMPATIBLE FIRMWARE
94. Incompatible X 100 [NIUn] INCOMPATIBLE HARDWARE
1 Internal message is not implemented.
2 Output messages are abbreviated.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C:Modem4/Modem
IIIa2 Messages
92
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Appendix C: Modem4/ModemIIIa² Messages
For lines that are grouped,
Gxx appears instead of Lxx.
The GV4 (v2.x.x and higher)/B5512/B4512 send
4-digit user and point numbers. Panels using
Modem4
send 4-digit Point and User data.
New events added since the last revision of this document are identified as a New Message in the
Comments coloumn.
Comment numbers are identified in the
ZONEX and Comex Translation
section following this table.
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
1
Abort
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ABORT BY USER
+++ACC aaaa AREA=a
h1rrlssssssaaaasIsD41t
<header>[#aaaa|NriaAB]
2
Abort
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ABORT BY USER
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasIsiiit
<header>[#aaaa|Nria/idiiiAB]
3
Abort
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ABORT BY USER
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasIiiiit
<header>[#aaaa|Nriaa/idiiiiAB]
4
Access Granted
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ACCESS GRANTED
+++ACC aaaa AREA=a CRD=iii-x POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|Nria/idiiiDGppp]
5
Access Granted
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ACCESS GRANTED
+++ACC aaaa AREA=aa CRD=iiii POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|Nriaa/idiiiiDGppp]
6
Access Granted
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ACCESS GRANTED
+++ACC aaaa AREA=aa CRD=iii-x POINT=pppp
h1rrlssssssaaaaAGppppt
<header>[#aaaa|Nriaa/idiiiDGpppp]
7
Access Granted
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ACCESS GRANTED
+++ACC aaaa AREA=aa CRD=iiii POINT=pppp
h1rrlssssssaaaaAGppppt
<header>[#aaaa|Nriaa/idiiiiDGpppp]
8
AC Fail
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa AC FAILURE
+++ACC aaaa AREA=aa
h1rrlssssssaaaasPsssst
<header>[#aaaa|NriaaAT]
9
AC Fail
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa AC FAILURE
h1rrlssssssaaaasPsssst
<header>[#aaaa|NAT]
10
AC Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa AC RESTORAL
+++ACC aaaa AREA=aa
h1rrlssssssaaaasRsss0t
<header>[#aaaa|NriaaAR]
11
AC Restoral
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa AC RESTORAL
h1rrlssssssaaaasRsss0t
<header>[#aaaa|NAR]
12
Alarm from Recent Closing
(2 min of close)
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NriaCRppp]
13
Alarm from Recent Closing
(2 min of close)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|Nria/idiiiCRppp]
14
Alarm from Recent Closing
(2 min of close)
(No User / 4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaCRpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
93
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
15
Alarm from Recent Closing
(2 min of close)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/idiiiCRpppp]
16
Alarm from Recent Closing
(2 min of close)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/idiiiiCRpppp]
17
Alarm from Recent Closing /
Ground Fault
(2 min of close)
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NriaCRppp]
18
Alarm from Recent Closing /
Ground Fault
(2 min of close)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|Nria/idiiiCRppp]
19
Alarm from Recent Closing /
Ground Fault
(2 min of close)
(No User / 4-digit point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaCRpppp]
20
Alarm from Recent Closing /
Ground Fault
(2 min of close)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/idiiiCRpppp]
21
Alarm from Recent Closing /
Ground Fault
(2 min of close)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa RECENT CLOSING
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/idiiiiCRpppp]
22
Alarm Cross Point
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa CROSS POINT
+++ACC aaaa AREA=a CG=gg POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NriaBMppp]
23
Alarm Cross Point
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa CROSS POINT
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NBMppp]
24
Alarm Cross Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa CROSS POINT
+++ACC aaaa AREA=aa CG=gg POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaBMpppp]
25
Alarm Cross Point / Ground Fault
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa CROSS POINT, GROUND FAULT
+++ACC aaaa AREA=a CG=gg POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NriaBMppp]
26
Alarm Cross Point / Ground Fault
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa CROSS POINT, GROUND FAULT
+++ACC aaaa AREA=aa CG=gg POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaBMpppp]
27
Alarm Door Forced
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa DOOR FORCED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NriaDFppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
94
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
28
Alarm Door Forced
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa DOOR FORCED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaDFpppp]
29
Alarm Exit Error
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NriaEAppp]
30
Alarm Exit Error
(No user / 4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaEApppp]
31
Alarm Exit Error
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR
+++ACC aaaa ID=iii POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NidiiiEAppp]
32
Alarm Exit Error
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|Nria/idiiiEAppp]
33
Alarm Exit Error
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/idiiiEApppp]
34
Alarm Exit Error
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/idiiiiEApppp]
35
Alarm Exit Error / Ground Fault
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR, GROUND FAULT
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|Nria/idiiiEAppp]
36
Alarm Exit Error / Ground Fault
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR, GROUND FAULT
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/idiiiEApppp]
37
Alarm Exit Error / Ground Fault
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR, GROUND FAULT
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/idiiiiEApppp]
38
Alarm Exit Error / Ground Fault
(No user)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR, GROUND FAULT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NriaEAppp]
39
Alarm Exit Error / Ground Fault
(No user / 4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM REPORT
+++ACC aaaa EXIT ERROR, GROUND FAULT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaEApppp]
40
Alarm Silenced
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALARM SILENCED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaFSppppt
<header>[#aaaa|NriaaFLpppp]
41
Analog Restoral / Sensor Dirty
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ALL PTS TESTED
h1rrlssssssaaaasRsssFt
<header>[#aaaa|NTC]
42
Analog Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG RESTORE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NriaANppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
95
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
43
Analog Restoral / Sensor Dirty
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG RESTORE
+++ACC aaaa SENSOR DIRTY
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NriaANppp]
44
Analog Restoral
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG RESTORE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaANpppp]
45
Analog Restoral / Sensor Dirty
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG RESTORE
+++ACC aaaa SENSOR DIRTY
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaANpppp]
46
Analog Service
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG SERVICE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaASppp]
47
Analog Service / Dirty Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG SERVICE
+++ACC aaaa SENSOR DIRTY
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaASppp]
48
Analog Service
(Level & Value)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG SERVICE
+++ACC aaaa AREA=a POINT=ppp
+++ACC aaaa LEVEL=lll VALUE=vvv
h1rrlssssssaaaasTspppt
<header>[#aaaa|Nria/lvlll/vavvvASppp]
49
Analog Service
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG SERVICE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaASpppp]
50
Analog Service / Dirty Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG SERVICE
+++ACC aaaa SENSOR DIRTY
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaASpppp]
51
Analog Service
(4-digit Point)
(Level & Value)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa ANALOG SERVICE
+++ACC aaaa AREA=aa POINT=pppp
+++ACC aaaa LEVEL=lll VALUE=vvv
h1rrlssssssaaaasTppppt
<header>[#aaaa|Nriaa/lvlll/vavvvASpppp]
52
Area Watch Ended
(No user)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCH MODE END
+++ACC aaaa AREA=a
h1rrlssssssaaaasNsD52t
<header>[#aaaa|NriaTZ]
53
Area Watch Ended
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCH MODE END
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasNsD52t
<header>[#aaaa|Nria/idiiiTZ]
54
Area Watch Ended
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCH MODE END
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasNsD52t
<header>[#aaaa|Nriaa/idiiiiTZ]
55
Area Watch Started
(No user)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCH START
+++ACC aaaa AREA=a
h1rrlssssssaaaasNsD51t
<header>[#aaaa|NriaTW]
56
Area Watch Started
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCH START
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasNsD51t
<header>[#aaaa|Nria/idiiiTW]
57
Area Watch Started
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCH START
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasNsD51t
<header>[#aaaa|Nriaa/idiiiiTW]
58
Battery Low
(System)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATTERY LOW
h1rrlssssssaaaasTsss9t
<header>[#aaaa|NYT]
59
Battery Low
(Area Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATTERY LOW
+++ACC aaaa AREA=aa
h1rrlssssssaaaasTsss9t
<header>[#aaaa|NriaaYT]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
96
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
60
Battery Missing
(System)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATTERY MISSING
h1rrlssssssaaaasTsss9t
<header>[#aaaa|NYM]
61
Battery Restoral
(System)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATTERY RESTORE
h1rrlssssssaaaasRsss9t
<header>[#aaaa|NYR]
62
Battery Restoral
(Area Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATTERY RESTORE
+++ACC aaaa AREA=aa
h1rrlssssssaaaasRsss9t
<header>[#aaaa|NriaaYR]
63
Battery Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATTERY TROUBLE
h1rrlssssssaaaasTsss9t
<header>[#aaaa|NYT]
New
Message
64
Battery Trouble
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATTERY TROUBLE
+++ACC aaaa SDI=dddd
h1rrlssssssaaaasTsss9t
<header>[#aaaa|NpiddddYT]
New
Message
65
Battery Trouble Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATT TRBL REST
h1rrlssssssaaaasRsss9t
<header>[#aaaa|NYR]
New
Message
66
Battery Trouble Restoral
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BATT TRBL REST
+++ACC aaaa SDI=dddd
h1rrlssssssaaaasRsss9t
<header>[#aaaa|NpiddddYR]
New
Message
67
Bypass Restore
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BYPASS RESTORE
+++ACC aaaa POINT=ppp
h1rrlssssssaaaaRBspppt
<header>[#aaaa|NUUppp]
68
Bypass Restore
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BYPASS RESTORE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaRBspppt
<header>[#aaaa|NriaUUppp]
69
Bypass Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BYPASS RESTORE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaRBppppt
<header>[#aaaa|NriaaUUpppp]
70
Bypass Restore / Fire Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BYPASS RESTORE
+++ACC aaaa FIRE POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaRBppppt
<header>[#aaaa|NriaaFUpppp]
71
Bypass Restore / Supervisory
Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BYPASS RESTORE
+++ACC aaaa SUPERVISORY POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaRBppppt
<header>[#aaaa|NriaaSUpppp]
72
Bypass Restore / Waterflow Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BYPASS RESTORE
+++ACC aaaa WATERFLOW POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaRBppppt
<header>[#aaaa|NriaaWUpppp]
73
Cancel Alarm
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CANCEL ALARM
+++ACC aaaa ID=iii
h1rrlssssssaaaas\siiit
<header>[#aaaa|NidiiiBC]
74
Cancel Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CANCEL ALARM
+++ACC
aaaa AREA=a ID=iii
h1rrlssssssaaaas\siiit
<header>[#aaaa|Nria/idiiiBC]
75
Cancel Alarm
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CANCEL ALARM
+++ACC aaaa AREA=a
h1rrlssssssaaaas\sssst
<header>[#aaaa|NriaBC]
76
Cancel Alarm
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CANCEL ALARM
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaas\iiiit
<header>[#aaaa|Nriaa/idiiiiBC]
77
Card Assigned by Programmer
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD ASSIGNED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa CRD=iii-x SDI=ddd
h1rrlssssssaaaasNsD30t
<header>[#aaaa|NpidddDAiii]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
97
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
78
Card Assigned by Programmer
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD ASSIGNED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa CRD=iiii SDI=ddd
h1rrlssssssaaaasNsD30t
<header>[#aaaa|NpidddDAiiii]
79
Card Assigned by Remote
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD ASSIGNED
+++ACC aaaa BY REMOTE
+++ACC aaaa CRD=iii-x
h1rrlssssssaaaasNsD30t
<header>[#aaaa|NDAiii]
80
Card Assigned by Remote
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD ASSIGNED
+++ACC aaaa BY REMOTE
+++ACC aaaa CRD=iiii
h1rrlssssssaaaasNsD30t
<header>[#aaaa|NDAiiii]
81
Card Assigned by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD ASSIGNED
+++ACC aaaa BY USER
+++ACC aaaa CRD=iii-x ID=iii
h1rrlssssssaaaasNsD30t
<header>[#aaaa|NidiiiDAiii]
82
Card Assigned by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD ASSIGNED
+++ACC aaaa BY USER
+++ACC aaaa CRD=iiii ID=iiii
h1rrlssssssaaaasNsD30t
<header>[#aaaa|NidiiiiDAiiii]
83
Card Assigned by User
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD ASSIGNED
+++ACC aaaa BY USER
h1rrlssssssaaaasNsD30t
<header>[#aaaa|NDA]
84
Card Deleted by User
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD DELETED
+++ACC aaaa BY USER
h1rrlssssssaaaasNsD31t
<header>[#aaaa|NDB]
85
Card Deleted by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD DELETED
+++ACC aaaa BY USER
+++ACC aaaa CRD=iii-x ID=iii
h1rrlssssssaaaasNsD31t
<header>[#aaaa|NidiiiDBiii]
86
Card Deleted by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD DELETED
+++ACC aaaa BY USER
+++ACC aaaa CRD=iiii ID=iiii
h1rrlssssssaaaasNsD31t
<header>[#aaaa|NidiiiiDBiiii]
87
Card Deleted by Programmer
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD DELETED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa CRD=iii-x SDI=ddd
h1rrlssssssaaaasNsD31t
<header>[#aaaa|NpidddDBiii]
88
Card Deleted by Programmer
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD DELETED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa CRD=iiii SDI=ddd
h1rrlssssssaaaasNsD31t
<header>[#aaaa|NpidddDBiiii]
89
Card Deleted by Remote
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD DELETED
+++ACC aaaa BY REMOTE
+++ACC aaaa CRD=iii-x
h1rrlssssssaaaasNsD31t
<header>[#aaaa|NDBiii]
90
Card Deleted by Remote
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CARD DELETED
+++ACC aaaa BY REMOTE
+++ACC aaaa CRD=iiii
h1rrlssssssaaaasNsD31t
<header>[#aaaa|NDBiiii]
91
Checksum Fail
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CHECKSUM FAIL
h1rrlssssssaaaasAsD12t
<header>[#aaaa|NYX]
92
Checksum Fail
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CHECKSUM FAIL
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasAsD12t
<header>[#aaaa|NpidddYX]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
98
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
93
Closing by Account
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING REPORT
+++ACC aaaa ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|NidiiiCL]
94
Closing by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING REPORT
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiCL]
95
Closing by Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING REPORT
+++ACC aaaa AREA=a
h1rrlssssssaaaasCsssst
<header>[#aaaa|NriaCL]
96
Closing by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING REPORT
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiCL]
97
Closing Early by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING EARLY
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiCK]
98
Closing Early by Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING EARLY
+++ACC aaaa AREA=a
h1rrlssssssaaaasCsssst
<header>[#aaaa|NriaCK]
99
Closing Early by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING EARLY
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiCK]
100
Closing Late by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING LATE
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiCJ]
101
Closing Late by Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING LATE
+++ACC aaaa AREA=a
h1rrlssssssaaaasCsssst
<header>[#aaaa|NriaCJ]
102
Closing Late by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING LATE
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiCJ]
103
Command Bypass
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMMAND BYPASS
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|Nria/idiiiUBppp]
104
Command Bypas
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMMAND BYPASS
+++ACC aaaa AREA=a ID=iiii POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|Nria/idiiiiUBppp]
105
Command Bypas
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMMAND BYPASS
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|Nriaa/idiiiUBpppp]
106
Command Bypas
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMMAND BYPASS
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|Nriaa/idiiiiUBpppp]
107
Comm Fail / Phone Line
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM FAIL
+++ACC aaaa PH#=hh
h1rrlssssssaaaasTsB01t
<header>[#aaaa|NphhhYC]
108
Comm Fail / Route Group
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM FAIL
+++ACC aaaa RG=g
h1rrlssssssaaaasTsB01t
<header>[#aaaa|NrggYC]
109
Comm Fail / Route Group
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM FAIL
+++ACC aaaa RG=g SDI=ddd
h1rrlssssssaaaasTsB01t
<header>[#aaaa|Nrgg/pidddYC]
110
Comm Fail Restoral / Phone Line
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM FAIL RESTR
+++ACC aaaa PH#=hh
h1rrlssssssaaaasNsB01t
<header>[#aaaa|NphhhYK]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
99
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
111
Comm Fail Restoral / Route Group
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM FAIL RESTR
+++ACC aaaa RG=g
h1rrlssssssaaaasNsB01t
<header>[#aaaa|NrggYK]
112
Comm Fail Restoral / Route Group
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM FAIL RESTR
+++ACC aaaa RG=g SDI=ddd
h1rrlssssssaaaasNsB01t
<header>[#aaaa|Nrgg/pidddYK]
113
Comm Trouble / Phone Line
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM TROUBLE
+++ACC aaaa PH#=hh
h1rrlssssssaaaasTsB01t
<header>[#aaaa|NphhhYS]
114
Comm Trouble / Route Group
(Device Specific)
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM TROUBLE
+++ACC aaaa RG=g SDI=ddd
h1rrlssssssaaaasTsB01t
<header>[#aaaa|Nrgg/pidddYS]
115
Comm Trouble Restoral / Phone
Line
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM TRBL RESTR
+++ACC aaaa PH#=hh
h1rrlssssssaaaasNsB01t
<header>[#aaaa|NphhhYK]
116
Comm Trouble Restoral / Route
Group
(Device Specific)
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa COMM TRBL RESTR
+++ACC aaaa RG=g SDI=ddd
h1rrlssssssaaaasNsB01t
<header>[#aaaa|Nrgg/pidddYK]
117
Create Status Report
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa STATUS REPORT
h1rrlssssssaaaasSsssst
<header>[#aaaa|NYY]
118
Custom Function by Custom
Fuction
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CUSTOM FUNCTION
+++ACC aaaa BY CUSTOM FUNCTION
+++ACC aaaa CUST.FX=fff AREA=aa ICF=fff
h1rrlssssssaaaasNsD39t
<header>[#aaaa|Nriaa/cffffCXfff]
119
Custom Function by SKED
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CUSTOM FUNCTION
+++ACC aaaa BY SKED
+++ACC aaaa CUST.FX=fff AREA=aa SKED=kkk
h1rrlssssssaaaasNsD39t
<header>[#aaaa|Nriaa/aikkkCXfff]
120
Custom Function by User
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CUSTOM FUNCTION
+++ACC aaaa BY USER
+++ACC aaaa CUST.FX=fff AREA=aa ID=iii
h1rrlssssssaaaasNsD39t
<header>[#aaaa|Nriaa/idiiiCXfff]
121
Custom Function by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CUSTOM FUNCTION
+++ACC aaaa BY USER
+++ACC aaaa CUST.FX=fff AREA=aa ID=iiii
h1rrlssssssaaaasNsD39t
<header>[#aaaa|Nriaa/idiiiiCXfff]
122
Custom Function by User
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CUSTOM FUNCTION
+++ACC aaaa BY USER
+++ACC aaaa CUST.FX=fff AREA=aa
h1rrlssssssaaaasNsD39t
<header>[#aaaa|NriaaCXfff]
123
Date Changed by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DATE CHANGED
+++ACC aaaa ID=iii
h1rrlssssssaaaasNsD07t
<header>[#aaaa|NidiiiJD]
124
Date Changed
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DATE CHANGED
h1rrlssssssaaaasNsD07t
<header>[#aaaa|NJD]
125
Date Changed by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DATE CHANGED
+++ACC aaaa ID=iiii
h1rrlssssssaaaasNsD07t
<header>[#aaaa|NidiiiiJD]
126
Door Closed / Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REST-DR CLOSED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NriaDHppp]
127
Door Closed / Restoral
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REST-DR CLOSED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaDHpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
100
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
128
Door Cycled
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|NriaDGppp]
129
Door Cycled by Programmer
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa AREA=a POINT=ppp SDI=ddd
h1rrlssssssaaaaAGspppt
<header>[#aaaa|Nria/pidddDGppp]
130
Door Cycled by Programmer
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa AREA=aa POINT=pppp SDI=ddd
h1rrlssssssaaaaAGppppt
<header>[#aaaa|Nriaa/pidddDGpppp]
131
Door Cycled by Remote
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY REMOTE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|NriaDGppp]
132
Door Cycled by Remote
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY REMOTE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaAGppppt
<header>[#aaaa|NriaaDGpppp]
133
Door Cycled by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|Nria/idiiiDGppp]
134
Door Cycled by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a ID=iiii POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|Nria/idiiiiDGppp]
135
Door Cycled by User
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaaAGppppt
<header>[#aaaa|Nriaa/idiiiDGpppp]
136
Door Cycled by User
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaaAGppppt
<header>[#aaaa|Nriaa/idiiiiDGpppp]
137
Door Cycled by User
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR CYCLED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|NriaDGppp]
138
Door Locked / Automatic
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa AUTOMATIC
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaALspppt
<header>[#aaaa|NriaDYppp]
139
Door Locked / Automatic
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa AUTOMATIC
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaALppppt
<header>[#aaaa|NriaaDYpppp]
140
Door Locked by Programmer
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa AREA=a POINT=ppp SDI=ddd
h1rrlssssssaaaaALspppt
<header>[#aaaa|Nria/pidddDYppp]
141
Door Locked by Programmer
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa AREA=aa POINT=pppp SDI=ddd
h1rrlssssssaaaaALppppt
<header>[#aaaa|Nriaa/pidddDYpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
101
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
142
Door Locked by Remote
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BYREMOTE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaALspppt
<header>[#aaaa|NriaDYppp]
143
Door Locked by Remote
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY REMOTE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaALppppt
<header>[#aaaa|NriaaDYpppp]
144
Door Locked by SKED
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY SKED
+++ACC aaaa AREA=a POINT=ppp SKED=kkk
h1rrlssssssaaaaALspppt
<header>[#aaaa|Nria/aikkkDYppp]
145
Door Locked by SKED
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY SKED
+++ACC aaaa AREA=aa POINT=pppp SKED=kkk
h1rrlssssssaaaaALppppt
<header>[#aaaa|Nriaa/aikkkDYpppp]
146
Door Locked by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaaALspppt
<header>[#aaaa|Nria/idiiiDYppp]
147
Door Locked by User
(4-digit Point)
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaaALppppt
<header>[#aaaa|Nriaa/idiiiDYpppp]
148
Door Locked by User
(4-digit User / Point)
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaaALppppt
<header>[#aaaa|Nriaa/idiiiiDYpppp]
149
Door Locked by User
(No User)
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaALspppt
<header>[#aaaa|NriaDYppp]
150
Door Locked by User
(No User / 4-digit Point)
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaALppppt
<header>[#aaaa|NriaaDYpppp]
151
Door Locked
(4-digit Point)
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR LOCKED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaALppppt
<header>[#aaaa|NriaaDYpppp]
152
Door Request To Enter
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO ENTR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|NriaDEppp]
153
Door Request To Enter
(4-digit Point)
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO ENTR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaAGppppt
<header>[#aaaa|NriaaDEpppp]
154
Door Request To Exit
Printer :
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO EXIT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAGspppt
<header>[#aaaa|NriaDXppp]
155
Door Request To Exit
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO EXIT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaAGppppt
<header>[#aaaa|NriaaDXpppp]
156
Door Request To Enter Denied
(Door Secured)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO ENTR
+++ACC aaaa DENIED-DOOR SECURED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|NriaDKppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
102
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
157
Door Request To Enter Denied
(Door Secured)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO ENTR
+++ACC aaaa DENIED-DOOR SECURED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|NriaaDKpppp]
158
Door Request To Enter Denied
(Interlock)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO ENTR
+++ACC aaaa DENIED-INTERLOCK
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|NriaDKppp]
159
Door Request To Enter Denied
(Interlock)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO ENTR
+++ACC aaaa DENIED-INTERLOCK
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|NriaaDKpppp]
160
Door Request To Exit Denied
(Door Secured)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO EXIT
+++ACC aaaa DENIED-DOOR SECURED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|NriaDKppp]
161
Door Request To Exit Denied
(Door Secured)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO EXIT
+++ACC aaaa DENIED-DOOR SECURED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|NriaaDKpppp]
162
Door Request To Exit Denied
(Interlock)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO EXIT
+++ACC aaaa DENIED-INTERLOCK
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|NriaDKppp]
163
Door Request To Exit Denied
(Interlock)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REQUEST TO EXIT
+++ACC aaaa DENIED-INTERLOCK
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|NriaaDKpppp]
164
Door Secured
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaASspppt
<header>[#aaaa|NriaDCppp]
165
Door Secured
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaASppppt
<header>[#aaaa|NriaaDCpppp]
166
Door Secured / Automatic
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa AUTOMATIC
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaASspppt
<header>[#aaaa|NriaDCppp]
167
Door Secured / Automatic
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa AUTOMATIC
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaASppppt
<header>[#aaaa|NriaaDCpppp]
168
Door Secured by Programmer
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa AREA=a POINT=ppp SDI=ddd
h1rrlssssssaaaaASspppt
<header>[#aaaa|Nria/pidddDCppp]
169
Door Secured by Programmer
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa AREA=aa POINT=pppp SDI=ddd
h1rrlssssssaaaaASppppt
<header>[#aaaa|Nriaa/pidddDCpppp]
170
Door Secured by Remote
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY REMOTE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaASspppt
<header>[#aaaa|NriaDCppp]
171
Door Secured by Remote
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY REMOTE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaASppppt
<header>[#aaaa|NriaaDCpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
103
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
172
Door Secured by SKED
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY SKED
+++ACC aaaa AREA=a POINT=ppp SKED=kkk
h1rrlssssssaaaaASspppt
<header>[#aaaa|Nria/aikkkDCppp]
173
Door Secured by SKED
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY SKED
+++ACC aaaa AREA=aa POINT=pppp SKED=kkk
h1rrlssssssaaaaASppppt
<header>[#aaaa|Nriaa/aikkkDCpppp]
174
Door Secured by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaaASspppt
<header>[#aaaa|Nria/idiiiDCppp]
175
Door Secured by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a ID=iiii POINT=ppp
h1rrlssssssaaaaASspppt
<header>[#aaaa|Nria/idiiiiDCppp]
176
Door Secured by User
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaaASppppt
<header>[#aaaa|Nriaa/idiiiDCpppp]
177
Door Secured by User
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaaASppppt
<header>[#aaaa|Nriaa/idiiiiDCpppp]
178
Door Secured by User
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaASspppt
<header>[#aaaa|NriaDCppp]
179
Door Secured by User
(No User / 4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR SECURED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaASppppt
<header>[#aaaa|NriaaDCpppp]
180
Door Unlocked
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAUspppt
<header>[#aaaa|NriaDOppp]
181
Door Unlocked
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaAUppppt
<header>[#aaaa|NriaaDOpppp]
182
Door Unlocked / Automatic
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa AUTOMATIC
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAUspppt
<header>[#aaaa|NriaDOppp]
183
Door Unlocked / Automatic
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa AUTOMATIC
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaAUppppt
<header>[#aaaa|NriaaDOpppp]
184
Door Unlocked by Programmer
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa AREA=a POINT=ppp SDI=ddd
h1rrlssssssaaaaAUspppt
<header>[#aaaa|Nria/pidddDOppp]
185
Door Unlocked by Programmer
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa AREA=aa POINT=pppp SDI=ddd
h1rrlssssssaaaaAUppppt
<header>[#aaaa|Nriaa/pidddDOpppp]
186
Door Unlocked by Remote
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY REMOTE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAUspppt
<header>[#aaaa|NriaDOppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
104
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
187
Door Unlocked by Remote
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY REMOTE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaAUppppt
<header>[#aaaa|NriaaDOpppp]
188
Door Unlocked by SKED
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY SKED
+++ACC aaaa AREA=a POINT=ppp SKED=kkk
h1rrlssssssaaaaAUspppt
<header>[#aaaa|Nria/aikkkDOppp]
189
Door Unlocked by SKED
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY SKED
+++ACC aaaa AREA=aa POINT=pppp SKED=kkk
h1rrlssssssaaaaAUppppt
<header>[#aaaa|Nriaa/aikkkDOpppp]
190
Door Unlocked by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaaAUspppt
<header>[#aaaa|Nria/idiiiDOppp]
191
Door Unlocked by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a ID=iiii POINT=ppp
h1rrlssssssaaaaAUspppt
<header>[#aaaa|Nria/idiiiiDOppp]
192
Door Unlocked by User
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaaAUppppt
<header>[#aaaa|Nriaa/idiiiDOpppp]
193
Door Unlocked by User
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaaAUppppt
<header>[#aaaa|Nriaa/idiiiiDOpppp]
194
Door Unlocked by User
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaAUspppt
<header>[#aaaa|NriaDOppp]
195
Door Unlocked by User
(No User / 4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DOOR UNLOCKED
+++ACC aaaa BY USER
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaAUppppt
<header>[#aaaa|NriaaDOpppp]
196
Duress
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DURESS
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasDsiiit
<header>[#aaaa|Nria/idiiiHA]
197
Duress
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DURESS
+++ACC aaaa ID=iii
h1rrlssssssaaaasDsiiit
<header>[#aaaa|NidiiiHA]
198
Duress
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DURESS
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasDiiiit
<header>[#aaaa|Nriaa/idiiiiHA]
199
Early to Close
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa CLOSING EARLY
h1rrlssssssaaaasCsssst
<header>[#aaaa|NCK]
200
Early To Open
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EARLY TO OPEN
h1rrlssssssaaaasOsssst
<header>[#aaaa|NOK]
201
Equipment
Fail
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EQUIPMENT FAIL
+++ACC aaaa SDI=ddd COND=nnn
h1rrlssssssaaaasTsD29t
<header>[#aaaa|NpidddIAnnn]
202
Equipment Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EQUIP RESTORAL
+++ACC aaaa SDI=ddd COND=nnn
h1rrlssssssaaaasRsD29t
<header>[#aaaa|NpidddIRnnn]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
105
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
203
Extend Close Time by Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTN CLOSE TIME
+++ACC aaaa AREA=a TIME=hh:mm
h1rrlssssssaaaasTsD26t
<header>[#aaaa|Nria/tihhmmCE]
204
Extend Close Time by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTN CLOSE TIME
+++ACC aaaa AREA=a ID=iii TIME=hh:mm
h1rrlssssssaaaasTsD26t
<header>[#aaaa|Nria/idiii/tihhmmCE]
205
Extend Close Time by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTN CLOSE TIME
+++ACC aaaa AREA=aa ID=iiii TIME=hh:mm
h1rrlssssssaaaasTsD26t
<header>[#aaaa|Nriaa/idiiii/tihhmmCE]
206
External Device
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTERNAL DEVICE
+++ACC aaaa EXT.DEV=ddd COND=nnn
h1rrlssssssaaaasNsD50t
<header>[#aaaa|NpidddEXnnn]
207
Extra Account
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTRA ACCOUNT
+++ACC aaaa PATH=ppp COND=nnn
h1rrlssssssaaaasNsD46t
<header>[#aaaa|NpapppXAnnn]
208
Extra Point
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTRA POINT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaXEppp]
209
Extra Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTRA POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaXEpppp]
210
Extra RF Point
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTRA RF POINT
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsD16t
<header>[#aaaa|NpidddXF]
211
Extra RF Point
(7112 Only)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EXTRA RF POINT
h1rrlssssssaaaasTsD16t
<header>[#aaaa|NXF]
212
Fail To Call RPS
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BAD CALL TO RAM
h1rrlssssssaaaasTsF02t
<header>[#aaaa|NRA]
213
Fail To Close by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO CLOSE
+++ACC aaaa AREA=a
h1rrlssssssaaaasTsssEt
<header>[#aaaa|NriaCI]
214
Fail To Close / Delinquent
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DELNQNT CLOSING
+++ACC aaaa AREA=a
h1rrlssssssaaaasTsssEt
<header>[#aaaa|NriaCD]
215
Fail to Execute / Door Unlocked
(Interlock)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa DOOR UNLOCKED-INTERLOCK
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasNsD35t
<header>[#aaaa|NriaDKppp]
216
Fail to Execute / Door Unlocked
(Interlock)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa DOOR UNLOCKED-INTERLOCK
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNsD35t
<header>[#aaaa|NriaaDKpppp]
217
Fail to Execute / Door Unlocked
(Door Secured)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa DOOR UNLOCKED-DOOR SECURE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasNsD35t
<header>[#aaaa|NriaDKppp]
218
Fail to Execute / Door Unlocked
(Door Secured)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa DOOR UNLOCKED-DOOR SECURE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNsD35t
<header>[#aaaa|NriaaDKpppp]
219
Fail to Execute / Door Cycled
(Door Secured)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa DOOR CYCLED-DOOR SECURED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|NriaDKppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
106
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
220
Fail to Execute / Door Cycled
(Door Secured)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa DOOR CYCLED-DOOR SECURED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|NriaaDKpppp]
221
Fail to Execute / Door Cycled
(Interlock)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa DOOR CYCLED-INTERLOCK
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|NriaDKppp]
222
Fail to Execute / Door Cycled
(Interlock)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa DOOR CYCLED-INTERLOCK
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|NriaaDKpppp]
223
Fail to Execute
(Incorrect Response)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa INCORRECT RESPONSE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasNsD34t
<header>[#aaaa|NpidddYX]
224
Fail to Execute
(No Response)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO EXECUTE
+++ACC aaaa NO RESPONSE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasNsD34t
<header>[#aaaa|NpidddYX]
225
Fail To Open by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FAIL TO OPEN
+++ACC aaaa AREA=a
h1rrlssssssaaaasTsssEt
<header>[#aaaa|NriaOI]
226
Fire Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasFspppt
<header>[#aaaa|NriaFAppp]
7
227
Fire Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasFppppt
<header>[#aaaa|NriaaFApppp]
228
Fire Alarm
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasFspppt
<header>[#aaaa|NFAppp]
229
Fire Alarm / Cross Point
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa CROSS POINT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasFspppt
<header>[#aaaa|NriaFMppp]
230
Fire Alarm / Cross Point
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa CROSS POINT
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasFspppt
<header>[#aaaa|NFMppp]
231
Fire Alarm / Cross point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa CROSS POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasFppppt
<header>[#aaaa|NriaaFMpppp]
232
Fire Alarm / Smoke Detector
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa SMOKE DETECTOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasFspppt
<header>[#aaaa|NriaFAppp]
233
Fire Alarm / Smoke Detector
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa SMOKE DETECTOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasFppppt
<header>[#aaaa|NriaaFApppp]
234
Fire Alarm / High Temp Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa HIGH TEMPERATURE SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasFspppt
<header>[#aaaa|NriaKAppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
107
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
235
Fire Alarm / High Temp Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa HIGH TEMPERATURE SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasFppppt
<header>[#aaaa|NriaaKApppp]
236
Fire Alarm / Waterflow Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasFspppt
<header>[#aaaa|NriaSAppp]
237
Fire Alarm / Waterflow Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALARM
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasFppppt
<header>[#aaaa|NriaaSApppp]
238
Fire Cancel
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE CANCEL
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaas\siiit
<header>[#aaaa|Nria/idiiiFC]
239
Fire Cancel
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE CANCEL
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaas\iiiit
<header>[#aaaa|Nriaa/idiiiiFC]
240
Fire Missing
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING FIRE
+++ACC aaaa AREA=aPOINT=ppp
h1rrlssssssaaaasMspppt
<header>[#aaaa|NriaFYppp]
7
241
Fire Missing
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING FIRE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|NriaaFYpppp]
242
Fire Alarm Restoral
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALM RESTOR
+++ACC aaaa POINT=ppp
h1rrlssssssaaaaHsspppt
<header>[#aaaa|NFHppp]
243
Fire Alarm Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALM RESTOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaHsspppt
<header>[#aaaa|NriaFHppp]
244
Fire Alarm Restoral(4-digit
Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE ALM RESTOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaHsppppt
<header>[#aaaa|NriaaFHpppp]
245
Fire Restoral
(Trouble/Missing/Supervision)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TBL RESTOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaHsspppt
<header>[#aaaa|NriaFJppp]
246
Fire Restoral
(Trouble/Missing/Supervision)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TBL RESTOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaHsppppt
<header>[#aaaa|NriaaFJpppp]
247
Fire Supervision
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRVISION
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasEspppt
<header>[#aaaa|NriaFSppp]
248
Fire Supervision
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRVISION
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasEppppt
<header>[#aaaa|NriaaFSpppp]
249
Fire Supervision / Waterflow
Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRVISION
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasEspppt
<header>[#aaaa|NriaFSppp]
250
Fire Supervision / Waterflow
Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRVISION
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasEppppt
<header>[#aaaa|NriaaFSpppp]
251
Fire Supervision Restore
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRV REST
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasEspppt
<header>[#aaaa|NriaFVppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
108
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
252
Fire Supervision Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRV REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasEppppt
<header>[#aaaa|NriaaFVpppp]
253
Fire Supervision Restore /
Waterflow Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRV REST
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasEspppt
<header>[#aaaa|NriaFVppp]
254
Fire Supervision Restore /
Waterflow Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRV REST
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasEppppt
<header>[#aaaa|NriaaFVpppp]
255
Fire Supervision Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRV TRBL
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGsspppt
<header>[#aaaa|NriaFWppp]
256
Fire Supervision Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRV TRBL
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaGsppppt
<header>[#aaaa|NriaaFWpppp]
257
Fire Supervision Trouble /
Waterflow Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRV TRBL
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGsspppt
<header>[#aaaa|NriaFWppp]
258
Fire Supervision Trouble /
Waterflow Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE SUPRV TRBL
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaGsppppt
<header>[#aaaa|NriaaFWpppp]
259
Fire Supervision Trouble Restore
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIR SUPR TR RES
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaHsspppt
<header>[#aaaa|NriaFQppp]
260
Fire Supervision Trouble Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIR SUPR TR RES
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaHsppppt
<header>[#aaaa|NriaaFQpppp]
261
Fire Supervision Trouble Restore
/ Waterflow Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIR SUPR TR RES
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaHsspppt
<header>[#aaaa|NriaFQppp]
262
Fire Supervision Trouble Restore
/ Waterflow Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIR SUPR TR RES
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaHsppppt
<header>[#aaaa|NriaaFQpppp]
263
Fire Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGsspppt
<header>[#aaaa|NriaFTppp]
7
264
Fire Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaGsppppt
<header>[#aaaa|NriaaFTpppp]
265
Fire Trouble / Smoke Detector
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa SMOKE DETECTOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGsspppt
<header>[#aaaa|NriaFTppp]
266
Fire Trouble / Smoke Detector
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa SMOKE DETECTOR
+++ACC aaaa AREA=aa POINT=pppp
<header>[#aaaa|NriaaFTpppp]
267
Fire Trouble / High Temp Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa HIGH TEMPERATURE SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGsspppt
<header>[#aaaa|NriaKTppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
109
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
268
Fire Trouble / High Temp Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa HIGH TEMPERATURE SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaGsppppt
<header>[#aaaa|NriaaKTpppp]
269
Fire Trouble / Waterflow Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGsspppt
<header>[#aaaa|NriaSTppp]
270
Fire Trouble / Waterflow Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaGsppppt
<header>[#aaaa|NriaaSTpppp]
271
Fire Trouble / Ground Fault
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGsspppt
<header>[#aaaa|NriaFTppp]
272
Fire Trouble / Ground Fault
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE TROUBLE
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaGsppppt
<header>[#aaaa|NriaaFTpppp]
273
Fire Walk End
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE WALK END
+++ACC aaaa AREA=a
h1rrlssssssaaaasRsssFt
<header>[#aaaa|NriaFK]
274
Fire Walk End
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE WALK END
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasRsssFt
<header>[#aaaa|Nria/idiiiFK]
275
Fire Walk End
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE WALK END
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasRsssFt
<header>[#aaaa|Nriaa/idiiiiFK]
276
Fire Walk Start
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE WALK START
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|Nria/idiiiFI]
277
Fire Walk Start
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE WALK START
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|Nriaa/idiiiiFI]
278
Fire Walk Start
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FIRE WALK START
+++ACC aaaa AREA=a
h1rrlssssssaaaasTsssFt
<header>[#aaaa|NriaFI]
279
Force Close Early by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FRC CLOSE EARLY
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiCF]
280
Force Close Early by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FRC CLOSE EARLY
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiCF]
281
Force Close Early
(7112 Only)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FRC CLOSE EARLY
h1rrlssssssaaaasCsssst
<header>[#aaaa|NCF]
282
Force Close Late
(7112 Only)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FORC CLOSE LATE
h1rrlssssssaaaasCsssst
<header>[#aaaa|NCF]
283
Force Close Late by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FORC CLOSE LATE
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiCF]
284
Force Close Late by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FORC CLOSE LATE
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiCF]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
110
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
285
Force Close Perimeter Delay by
Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa F CLOSE PR DLAY
+++ACC aaaa AREA=a
h1rrlssssssaaaasCsssst
<header>[#aaaa|NriaNF]
286
Force Close Perimeter Delay by
Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa F CLOSE PR DLAY
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiNF]
287
Force Close Perimeter Delay by
Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa F CLOSE PR DLAY
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiNF]
288
Force Close Perimeter Instant by
Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa F CLOSE PR INST
+++ACC aaaa AREA=a
h1rrlssssssaaaasCsssst
<header>[#aaaa|NriaNF]
289
Force Close Perimeter Instant by
Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa F CLOSE PR INST
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiNF]
290
Force Close Perimeter Instant by
Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa F CLOSE PR INST
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiNF]
291
Force Close by Area
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FORCED CLOSE
+++ACC aaaa ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|NidiiiCF]
292
Force Close by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FORCED CLOSE
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiCF]
293
Force Close by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FORCED CLOSE
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiCF]
294
Force Point
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FORCED POINT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaXWppp]
295
Force Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa FORCED POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaXWpppp]
296
Gas Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa GAS ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaGApppp]
New
Message
297
Gas Alarm Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa GAS ALARM REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaGHpppp]
New
Message
298
Gas Cancel
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa GAS CANCEL
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaas\iiiit
<header>[#aaaa|Nriaa/idiiiiGC]
New
Message
299
Gas Missing
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa GAS MISSING
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasVppppt
<header>[#aaaa|NriaaUZpppp]
New
Message
300
Gas Supervisory
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa GAS SUPERVISORY
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasJppppt
<header>[#aaaa|NriaaGSpppp]
New
Message
301
Gas Supervisory Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa GAS SUPV REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaGJpppp]
New
Message
302
Gas Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa GAS TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaGTpppp]
New
Message
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
111
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
303
Gas Trouble Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa GAS TRBL REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaGJpppp]
New
Message
304
High Temp Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HIGH TEMP ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasJppppt
<header>[#aaaa|NriaaKApppp]
New
Message
305
High Temp Alarm Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HIGH TEMP REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaKHpppp]
New
Message
306
Hold-Up Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HOLD-UP ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasDppppt
<header>[#aaaa|NriaaHApppp]
New
Message
307
Hold-Up Missing
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HOLD-UP MISSING
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasVppppt
<header>[#aaaa|NriaaUZpppp]
New
Message
308
Hold-Up Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HOLD-UP RESTORE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaHRpppp]
New
Message
309
Hold-Up Supervisory
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HOLD-UP SUPV
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasJppppt
<header>[#aaaa|NriaaHSpppp]
New
Message
310
Hold-Up Supervisory Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HOLD-UP SU REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaHRpppp]
New
Message
311
Hold-Up Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HOLD-UP TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaHTpppp]
New
Message
312
Hold-Up Trouble Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa HOLD-UP TR REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaHJpppp]
New
Message
313
Late To Open
(7112 Only)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LATE TO OPEN
h1rrlssssssaaaasOsssst
<header>[#aaaa|NOJ]
314
Listen In
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LISTEN IN
+++ACC aaaa TIME=hh:mm
h1rrlssssssaaaas*sssst
<header>[#aaaa|NtihhmmLF]
315
Log Overflow
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LOG OVERFLOW
h1rrlssssssaaaasAsD01t
<header>[#aaaa|NJO]
316
Log Threshold
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LOG THRESHOLD
h1rrlssssssaaaasTsD01t
<header>[#aaaa|NJL]
317
Low Signal Strength
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LOW SIGNAL LEVL
+++ACC aaaa LEVEL=lll PATH=ppp
h1rrlssssssaaaasNsD48t
<header>[#aaaa|Nlvlll/papppXL]
318
Low Temperature Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LOW TEMPERATURE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasLspppt
<header>[#aaaa|NriaZAppp]
319
Low Temperature Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LOW TEMPERATURE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasLppppt
<header>[#aaaa|NriaaZApppp]
320
Low Temperature Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LOW TEMP RESTOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaRLspppt
<header>[#aaaa|NriaZRppp]
321
Low Temperature Restoral
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LOW TEMP RESTOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaRLppppt
<header>[#aaaa|NriaaZRpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
112
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
322
Medical Alarm by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MEDICAL ALARM
+++ACC aaaa ID=iiii
h1rrlssssssaaaasUiiiit
<header>[#aaaa|NidiiiiMA]
New
Message
323
Medical Alarm by Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MEDICAL ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/MApppp]
New
Message
324
Medical Alarm Restore
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MED ALARM REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|Nriaa/MHpppp]
New
Message
325
Memory Fail
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MEMORY FAIL
h1rrlssssssaaaasAsD13t
<header>[#aaaa|NYX]
326
Missing Alarm
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasMspppt
<header>[#aaaa|NUZppp]
327
Missing Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasMspppt
<header>[#aaaa|NriaUZppp]
328
Missing Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|NriaaUZpppp]
329
Missing Alarm / Cross Point
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa CROSS POINT
+++ACC aaaa AREA=a CG=gg POINT=ppp
h1rrlssssssaaaasMspppt
<header>[#aaaa|NriaXMppp]
330
Missing Alarm / Cross Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa CROSS POINT
+++ACC aaaa AREA=aa CG=gg POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|NriaaXMpppp]
331
Missing Alarm from Recent
Closing
(2 min of close)
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasMspppt
<header>[#aaaa|NriaCMppp]
332
Missing Alarm from Recent
Closing
(2 min of close)
(No User / 4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|NriaaCMpppp]
333
Missing Alarm from Recent
Closing
(2 min of close)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaasMspppt
<header>[#aaaa|Nria/idiiiCMppp]
334
Missing Alarm from Recent
Closing
(2 min of close)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|Nriaa/idiiiCMpppp]
335
Missing Alarm from Recent
Closing
(2 min of close)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa RECENT CLOSING
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|Nriaa/idiiiiCMpppp]
336
Missing Alarm Exit Error
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasMspppt
<header>[#aaaa|NriaEZppp]
337
Missing Alarm Exit Error
(No User / 4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|NriaaEZpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
113
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
338
Missing Alarm Exit Error
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=a ID=iii POINT=ppp
h1rrlssssssaaaasMspppt
<header>[#aaaa|Nria/idiiiEZppp]
339
Missing Alarm Exit Error
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=aa ID=iii POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|Nriaa/idiiiEZpppp]
340
Missing Alarm Exit Error
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING ALARM
+++ACC aaaa EXIT ERROR
+++ACC aaaa AREA=aa ID=iiii POINT=pppp
h1rrlssssssaaaasMppppt
<header>[#aaaa|Nriaa/idiiiiEZpppp]
341
Missing Fire Supervision
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISS FIR SUPRVN
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGMspppt
<header>[#aaaa|NriaFZppp]
342
Missing Fire Supervision
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISS FIR SUPRVN
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaGMppppt
<header>[#aaaa|NriaaFZpppp]
343
Missing Fire Supervision /
Waterflow Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISS FIR SUPRVN
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaGMspppt
<header>[#aaaa|NriaFZppp]
344
Missing Fire Supervision /
Waterflow Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISS FIR SUPRVN
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaGMppppt
<header>[#aaaa|NriaaFZpppp]
345
Missing Gas Supervison
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISS GAS SUPV
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasVppppt
<header>[#aaaa|NriaaGSpppp]
New
Message
346
Missing Supervision
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING SUPRVSN
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaMTspppt
<header>[#aaaa|NriaBZppp]
347
Missing Supervision
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING SUPRVSN
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaMTppppt
<header>[#aaaa|NriaaBZpppp]
348
Missing Trouble
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING TROUBLE
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasVspppt
<header>[#aaaa|NUYppp]
349
Missing Trouble from Keyfob
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING TROUBLE
+++ACC aaaa KEYFOB
+++ACC aaaa ID=iii
h1rrlssssssaaaasVsD10t
<header>[#aaaa|NidiiiUY]
350
Missing Trouble from Keyfob
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING TROUBLE
+++ACC aaaa KEYFOB
+++ACC aaaa ID=iiii
h1rrlssssssaaaasVsD10t
<header>[#aaaa|NidiiiiUY]
351
Missing Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING TROUBLE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasVspppt
<header>[#aaaa|NriaUYppp]
7
352
Missing Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISSING TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasVppppt
<header>[#aaaa|NriaaUYpppp]
353
Network Condition
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NETWORK COND
+++ACC aaaa PATH=ppp COND=nnn
h1rrlssssssaaaasNsD44t
<header>[#aaaa|NpapppNCnnn]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
114
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
354
Network Failure
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NETWORK FAIL
+++ACC aaaa PATH=ppp COND=nnn
h1rrlssssssaaaasNsD42t
<header>[#aaaa|NpapppNTnnn]
355
Network Failure
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NETWORK FAIL
+++ACC aaaa SDI=dddd COND=nnn
h1rrlssssssaaaasNsD42t
<header>[#aaaa|NpiddddNTnnn]
New
Message
356
Network Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NETWORK RESTORE
+++ACC aaaa PATH=ppp COND=nnn
h1rrlssssssaaaasNsD43t
<header>[#aaaa|NpapppNRnnn]
357
Network Restoral
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NETWORK RESTORE
+++ACC aaaa SDI=dddd COND=nnn
h1rrlssssssaaaasNsD43t
<header>[#aaaa|NpiddddNRnnn]
New
Message
358
No Entry
(Anti-Passback)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-PASSBK
+++ACC aaaa AREA=a CRD=iii-x POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|Nria/idiiiDIppp]
359
No Entry
(Door Secured)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-SECURE
+++ACC aaaa AREA=a CRD=iii-x POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|Nria/idiiiDZppp]
360
No Entry
(Interlock Deny)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-INTRLK
+++ACC aaaa AREA=a CRD=iii-x POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|Nria/idiiiDWppp]
361
No Entry
(No Rights in Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-LEVEL
+++ACC aaaa AREA=a CRD=iii-x POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|Nria/idiiiDVppp]
362
No Entry
(Outside Time Window)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-TIME
+++ACC aaaa AREA=a CRD=iii-x POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|Nria/idiiiDPppp]
363
No Entry
(Unknown ID)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-UNK ID
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|NriaDDppp]
364
No Entry
(Wrong Arming State)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-ARMED
+++ACC aaaa AREA=a CRD=iii-x POINT=ppp
h1rrlssssssaaaaADspppt
<header>[#aaaa|Nria/idiiiDQppp]
365
No Entry
(Unknown ID)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-UNK ID
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|NriaaDDpppp]
366
No Entry
(Wrong Arming State)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-ARMED
+++ACC aaaa AREA=aa CRD=iii-x POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiDQpppp]
367
No Entry
(Anti-Passback)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-PASSBK
+++ACC aaaa AREA=aa CRD=iii-x POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiDIpppp]
368
No Entry
(Door Secured)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-SECURE
+++ACC aaaa AREA=aa CRD=iii-x POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiDZpppp]
369
No Entry
(Interlock Deny)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-INTRLK
+++ACC aaaa AREA=aa CRD=iii-x POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiDWpppp]
370
No Entry
(No Rights in Area)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-LEVEL
+++ACC aaaa AREA=aa CRD=iii-x POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiDVpppp]
371
No Entry
(Outside Time Window)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-TIME
+++ACC aaaa AREA=aa CRD=iii-x POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiDPpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
115
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
372
No Entry
(Anti-Passback)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-PASSBK
+++ACC aaaa AREA=aa CRD=iiii POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiiDIpppp]
373
No Entry
(Door Secured)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-SECURE
+++ACC aaaa AREA=aa CRD=iiii POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiiDZpppp]
374
No Entry
(Interlock Deny)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-INTRLK
+++ACC aaaa AREA=aa CRD=iiii POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiiDWpppp]
375
No Entry
(No Rights in Area)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-LEVEL
+++ACC aaaa AREA=aa CRD=iiii POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiiDVpppp]
376
No Entry
(Outside Time Window)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-TIME
+++ACC aaaa AREA=aa CRD=iiii POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiiDPpppp]
377
No Entry
(Wrong Arming State)
(4-digit User / Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa NO ENTRY-ARMED
+++ACC aaaa AREA=aa CRD=iiii POINT=pppp
h1rrlssssssaaaaADppppt
<header>[#aaaa|Nriaa/idiiiiDQpppp]
378
Opening by Account
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPENING REPORT
+++ACC aaaa ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|NidiiiOP]
379
Opening by Account
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPENING REPORT
+++ACC aaaa ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|NidiiiOP]
380
Opening by Account from Alarm
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPEN FROM ALARM
+++ACC aaaa ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|NidiiiOR]
381
Opening by Account from Alarm
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPEN FROM ALARM
+++ACC aaaa ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|NidiiiOR]
382
Opening by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPENING REPORT
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|Nria/idiiiOP]
383
Opening by Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPENING REPORT
+++ACC aaaa AREA=a
h1rrlssssssaaaasOsssst
<header>[#aaaa|NriaOP]
384
Opening by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPENING REPORT
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasOiiiit
<header>[#aaaa|Nriaa/idiiiiOP]
385
Opening by Area from Alarm
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPEN FROM ALARM
+++ACC aaaa AREA=a
h1rrlssssssaaaasOsssst
<header>[#aaaa|NriaOR]
386
Opening by Area from Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPEN FROM ALARM
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|Nria/idiiiOR]
387
Opening by Area from Alarm
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OPEN FROM ALARM
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasOiiiit
<header>[#aaaa|Nriaa/idiiiiOR]
388
Opening Early by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EARLY TO OPEN
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|Nria/idiiiOK]
389
Opening Early by Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EARLY TO OPEN
+++ACC aaaa AREA=a
h1rrlssssssaaaasOsssst
<header>[#aaaa|NriaOK]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
116
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
390
Opening Early by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa EARLY TO OPEN
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasOiiiit
<header>[#aaaa|Nriaa/idiiiiOK]
391
Opening Early by Area from Alarm
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OP ERLY FRM-ALM
+++ACC aaaa AREA=a
h1rrlssssssaaaasOsssst
<header>[#aaaa|NriaOH]
392
Opening Early by Area from Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OP ERLY FRM-ALM
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|Nria/idiiiOH]
393
Opening Early by Area from Alarm
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OP ERLY FRM-ALM
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasOiiiit
<header>[#aaaa|Nriaa/idiiiiOH]
394
Opening Late by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LATE TO OPEN
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|Nria/idiiiOJ]
395
Opening Late by Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LATE TO OPEN
+++ACC aaaa AREA=a
h1rrlssssssaaaasOsssst
<header>[#aaaa|NriaOJ]
396
Opening Late by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LATE TO OPEN
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasOiiiit
<header>[#aaaa|Nriaa/idiiiiOJ]
397
Opening Late by Area from Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OP LATE FRM-ALM
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasOsiiit
<header>[#aaaa|Nria/idiiiOL]
398
Opening Late by Area from Alarm
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OP LATE FRM-ALM
+++ACC aaaa AREA=a
h1rrlssssssaaaasOsssst
<header>[#aaaa|NriaOL]
399
Opening Late by Area from Alarm
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OP LATE FRM-ALM
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasOiiiit
<header>[#aaaa|Nriaa/idiiiiOL]
400
Output State
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OUTPUT-TROUBLE
+++ACC aaaa OUTPUT=uuu
h1rrlssssssaaaasTsD47t
<header>[#aaaa|NOUuuu]
401
Output State
(4-digit Output)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OUTPUT-TROUBLE
+++ACC aaaa OUTPUT=uuuu
h1rrlssssssaaaasTsD47t
<header>[#aaaa|NOUuuuu]
402
Output State Restore
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OUTPUT-TRBL RST
+++ACC aaaa OUTPUT=uuu
h1rrlssssssaaaasRsD47t
<header>[#aaaa|NOVuuu]
403
Output State Restore
(4-digit Output)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa OUTPUT-TRBL RST
+++ACC aaaa OUTPUT=uuuu
h1rrlssssssaaaasRsD47t
<header>[#aaaa|NOVuuuu]
404
Panic Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PANIC ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|Nriaa/PApppp]
New
Message
405
Panic Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PANIC RESTORE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|Nriaa/PHpppp]
New
Message
406
Parameters Changed
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PARAMS CHANGED
h1rrlssssssaaaasNsD02t
<header>[#aaaa|NYG]
407
Parameter Checksum Fail
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PARMS BAD CKSUM
h1rrlssssssaaaasTsD15t
<header>[#aaaa|NYF]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
117
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
408
Parameter Checksum Fail
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PARMS BAD CKSUM
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsD15t
<header>[#aaaa|NpidddYF]
409
Perimeter Delay by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PERM DLAY ARMED
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiNL]
410
Perimeter Delay by Area
(User Defined)
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PERM DLAY ARMED
+++ACC aaaa USER DEFINED
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiNM]
411
Perimeter Instant
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PERM INST ARMED
+++ACC aaaa ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|NidiiiNL]
412
Perimeter Instant by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PERM INST ARMED
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasCsiiit
<header>[#aaaa|Nria/idiiiNL]
413
Perimeter Instant by Area
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PERM INST ARMED
+++ACC aaaa AREA=a
h1rrlssssssaaaasCsssst
<header>[#aaaa|NriaNL]
414
Perimeter Instant by Area
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PERM INST ARMED
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiNL]
415
Perimeter Instant by Area
(User Defined)
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PERM INST ARMED
+++ACC aaaa USER DEFINED
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasCiiiit
<header>[#aaaa|Nriaa/idiiiiNM]
416
Phone Line Fail
(Line 1)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PHONE LINE FAIL
+++ACC aaaa PHONE LINE=1
h1rrlssssssaaaasTsssBt
<header>[#aaaa|NLT1]
417
Phone Line Fail
(Line2)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PHONE LINE FAIL
+++ACC aaaa PHONE LINE=2
h1rrlssssssaaaasTsssCt
<header>[#aaaa|NLT2]
418
Phone Line Fail / Ground Fault
(Line 1)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PHONE LINE FAIL
+++ACC aaaa GROUND FAULT
+++ACC aaaa PHONE LINE=1
h1rrlssssssaaaasTsssBt
<header>[#aaaa|NLT1]
419
Phone Line Fail / Ground Fault
(Line 2)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PHONE LINE FAIL
+++ACC aaaa GROUND FAULT
+++ACC aaaa PHONE LINE=2
h1rrlssssssaaaasTsssCt
<header>[#aaaa|NLT2]
420
Phone Line Restoral
(Line 1)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PHONE RESTORAL
+++ACC aaaa PHONE LINE=1
h1rrlssssssaaaasRsssBt
<header>[#aaaa|NLR1]
421
Phone Line Restoral
(Line 2)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PHONE RESTORAL
+++ACC aaaa PHONE LINE=2
h1rrlssssssaaaasRsssCt
<header>[#aaaa|NLR2]
422
Point Bus Fail
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PT BUS TROUBLE
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NET]
423
Point Bus Fail
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PT BUS TROUBLE
+++ACC aaaa AREA=aa
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NriaaET]
424
Point Bus Fail / Ground Fault
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PT BUS TROUBLE
+++ACC aaaa GROUND FAULT
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NET]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
118
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
425
Point Bus Restoral
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PT BUS RESTORAL
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NER]
426
Point Bus Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PT BUS RESTORAL
+++ACC aaaa AREA=aa
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NriaaER]
427
Point Bypass
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|NUBppp]
428
Point Bypass
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|NriaUBppp]
429
Point Bypass
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|NriaaUBpppp]
430
Point Bypass / Fire
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa FIRE POINT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|NriaFBppp]
431
Point Bypass / Fire
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa FIRE POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|NriaaFBpppp]
432
Point Bypass / Supervisory
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa SUPERVISORY POINT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|NriaSBppp]
433
Point Bypass / Supervisory
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa SUPERVISORY POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|NriaaSBpppp]
434
Point Bypass / Waterflow
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa WATERFLOW POINT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|NriaWBppp]
435
Point Bypass / Waterflow
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT BYPASS
+++ACC aaaa WATERFLOW POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|NriaaWBpppp]
436
Point Closing
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT CLOSING
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasCspppt
<header>[#aaaa|NriaCZppp]
7
437
Point Closing
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT CLOSING
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasCppppt
<header>[#aaaa|NriaaCZpppp]
438
Point Opening
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT OPENING
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasOspppt
<header>[#aaaa|NriaOZppp]
7
439
Point Opening
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa POINT OPENING
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasOppppt
<header>[#aaaa|NriaaOZpppp]
440
Point Status Report
(7112 only)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa BAD 9112 PACKET
h1rrlssssssaaaasXsssst
<header>[#aaaa|N00]
441
Printer Status / Off Line
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PRINTR-OFF LINE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaaSTsssst
<header>[#aaaa|NpidddVZ]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
119
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
442
Printer Status / On Line
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PRINTER-ON LINE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaaSTsssst
<header>[#aaaa|NpidddVY]
443
Printer Status / Paper In
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PRINTR-PAPER IN
+++ACC aaaa SDI=ddd
h1rrlssssssaaaaSTsssst
<header>[#aaaa|NpidddVI]
444
Printer Status / Paper Out
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PRNTR-PAPER OUT
+++ACC aaaa SDI=ddd
h1rrlssssssaaaaSTsssst
<header>[#aaaa|NpidddVO]
445
Programmer Bypass
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PROGRAMR BYPASS
+++ACC aaaa AREA=a POINT=ppp SDI=ddd
h1rrlssssssaaaasNspppt
<header>[#aaaa|Nria/pidddUBppp]
446
Programmer Bypass
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PROGRAMR BYPASS
+++ACC aaaa AREA=aa POINT=pppp SDI=ddd
h1rrlssssssaaaasNppppt
<header>[#aaaa|Nriaa/pidddUBpppp]
447
Re-Boot
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RE-BOOT
h1rrlssssssaaaasNsD14t
<header>[#aaaa|NRR]
448
Re-Boot / Power Up
(4-digit Device)
(Version text)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RE-BOOT
+++ACC aaaa SDI=dddd COND=012
+++ACC aaaa xxxxxxxx Vx.xx
h1rrlssssssaaaasNsD14t
<header>[#aaaa|NpiddddRR012]
New
Message
449
Re-Boot / Firmware Update
(4-digit Device)
(Version text / New Version)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RE-BOOT
+++ACC aaaa SDI=dddd COND=013
+++ACC aaaa xxxxxxxx Vx.xx
h1rrlssssssaaaasNsD14t
<header>[#aaaa|NpidddRR013]
New
Message
450
Re-Boot
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RE-BOOT
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasNsD14t
<header>[#aaaa|NpidddRR]
451
Relay Reset by Programmer
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa RELAY#=rrr SDI=ddd
h1rrlssssssaaaasNsD22t
<header>[#aaaa|NpidddROrrr]
452
Relay Reset by Remote
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY REMOTE
+++ACC aaaa RELAY#=rrr
h1rrlssssssaaaasNsD24t
<header>[#aaaa|NROrrr]
453
Relay Reset by SKED
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY SKED
+++ACC aaaa RELAY#=rrr SKED=kkk
h1rrlssssssaaaasNsD20t
<header>[#aaaa|NaikkkROrrr]
454
Relay Reset by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY USER
+++ACC aaaa ID=iii RELAY#=rrr
h1rrlssssssaaaasNsD18t
<header>[#aaaa|NidiiiROrrr]
455
Relay Reset by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY USER
+++ACC aaaa ID=iiii RELAY#=rrr
h1rrlssssssaaaasNsD18t
<header>[#aaaa|NidiiiiROrrr]
456
Relay Reset by Programmer
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa RELAY#=rrrr SDI=ddd
h1rrlssssssaaaasNsD22t
<header>[#aaaa|NpidddROrrrr]
457
Relay Reset by Remote
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY REMOTE
+++ACC aaaa RELAY#=rrrr
h1rrlssssssaaaasNsD24t
<header>[#aaaa|NROrrrr]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
120
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
458
Relay Reset by SKED
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY SKED
+++ACC aaaa RELAY#=rrrr SKED=kkk
h1rrlssssssaaaasNsD20t
<header>[#aaaa|NaikkkROrrrr]
459
Relay Reset by User
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY USER
+++ACC aaaa ID=iii RELAY#=rrrr
h1rrlssssssaaaasNsD18t
<header>[#aaaa|NidiiiROrrrr]
460
Relay Reset by User
(4-digit User / Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY RESET
+++ACC aaaa BY USER
+++ACC aaaa ID=iiii RELAY#=rrrr
h1rrlssssssaaaasNsD18t
<header>[#aaaa|NidiiiiROrrrr]
461
Relay Set by Programmer
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa RELAY#=rrr SDI=ddd
h1rrlssssssaaaasNsD21t
<header>[#aaaa|NpidddRCrrr]
462
Relay Set by Remote
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY REMOTE
+++ACC aaaa RELAY#=rrr
h1rrlssssssaaaasNsD23t
<header>[#aaaa|NRCrrr]
463
Relay Set by SKED
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY SKED
+++ACC aaaa RELAY#=rrr SKED=kkk
h1rrlssssssaaaasNsD19t
<header>[#aaaa|NaikkkRCrrr]
464
Relay Set by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY USER
+++ACC aaaa ID=iii RELAY#=rrr
h1rrlssssssaaaasNsD28t
<header>[#aaaa|NidiiiRCrrr]
465
Relay Set by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY USER
+++ACC aaaa ID=iiii RELAY#=rrr
h1rrlssssssaaaasNsD28t
<header>[#aaaa|NidiiiiRCrrr]
466
Relay Set by Programmer
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY PROGRAMMER
+++ACC aaaa RELAY#=rrrr SDI=ddd
h1rrlssssssaaaasNsD21t
<header>[#aaaa|NpidddRCrrrr]
467
Relay Set by Remote
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY REMOTE
+++ACC aaaa RELAY#=rrrr
h1rrlssssssaaaasNsD23t
<header>[#aaaa|NRCrrrr]
468
Relay Set by SKED
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY SKED
+++ACC aaaa RELAY#=rrrr SKED=kkk
h1rrlssssssaaaasNsD19t
<header>[#aaaa|NaikkkRCrrrr]
469
Relay Set by User
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY USER
+++ACC aaaa ID=iii RELAY#=rrrr
h1rrlssssssaaaasNsD28t
<header>[#aaaa|NidiiiRCrrrr]
470
Relay Set by User
(4-digit User / Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RELAY SET
+++ACC aaaa BY USER
+++ACC aaaa ID=iiii RELAY#=rrrr
h1rrlssssssaaaasNsD28t
<header>[#aaaa|NidiiiiRCrrrr]
471
Remote Bypass / Callback
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RAM BYPASS
+++ACC aaaa AREA=a POINT=ppp PH#=hh
h1rrlssssssaaaasNspppt
<header>[#aaaa|Nria/phhhUBppp]
472
Remote Bypass / Callback
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RAM BYPASS
+++ACC aaaa AREA=aa POINT=pppp PH#=hh
h1rrlssssssaaaasNppppt
<header>[#aaaa|Nriaa/phhhUBpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
121
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
473
Remote Bypass
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RAM BYPASS
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|NriaUBppp]
474
Remote Bypass
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RAM BYPASS
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|NriaaUBpppp]
475
Remote Reset
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa REMOTE RESET
h1rrlssssssaaaasNsD11t
<header>[#aaaa|NRN]
476
Restoral
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RESTORAL REPORT
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NBRppp]
477
Restoral
(Trouble / Missing / Non-Fire
Supervision)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RESTORAL REPORT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NriaBRppp]
478
Restoral from Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RESTORE FRM ALM
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NriaBHppp]
479
Restoral from Alarm
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RESTORE FRM ALM
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NBHppp]
480
Restoral from Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RESTORE FRM ALM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaBHpppp]
481
Restoral from Keyfob
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RESTORAL REPORT
+++ACC aaaa KEYFOB
+++ACC aaaa ID=iii
h1rrlssssssaaaasRsD10t
<header>[#aaaa|NidiiiUR]
482
Restoral from Keyfob
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RESTORAL REPORT
+++ACC aaaa KEYFOB
+++ACC aaaa ID=iiii
h1rrlssssssaaaasRsD10t
<header>[#aaaa|NidiiiiUR]
483
Restoral
(Trouble / Missing / Non-Fire
Supervision)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RESTORAL REPORT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaBRpppp]
484
RF Interference
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF INTERFERENCE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsD08t
<header>[#aaaa|NpidddXQ]
485
RF Interference Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF INTRFER-REST
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsD08t
<header>[#aaaa|NpidddXH]
486
RF Receiver Tamper
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RCVR TAMPER
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasXss35t
<header>[#aaaa|NpidddXS]
487
RF Receiver Tamper Restoral
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RCVR TAMPR REST
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasXss36t
<header>[#aaaa|NpidddXJ]
488
RF Receiver Trouble
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RCVR TROUBLE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsD17t
<header>[#aaaa|NpidddET]
489
RF Receiver Trouble Restoral
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RCVR TBL RESTOR
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsD17t
<header>[#aaaa|NpidddER]
490
RF Transmitter Battery Restoral
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATT RESTORE
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NXRppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
122
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
491
RF Transmitter Battery Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATT RESTORE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsD10t
<header>[#aaaa|NpidddXR]
492
RF Transmitter Battery Restoral
from Keyfob
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATT RESTORE
+++ACC aaaa KEYFOB
+++ACC aaaa ID=iii
h1rrlssssssaaaasRsD10t
<header>[#aaaa|NidiiiXR]
493
RF Transmitter Battery Restoral
from Keyfob
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATT RESTORE
+++ACC aaaa KEYFOB
+++ACC aaaa ID=iiii
h1rrlssssssaaaasRsD10t
<header>[#aaaa|NidiiiiXR]
494
RF Transmitter Battery Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATT RESTORE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NriaXRppp]
495
RF Transmitter Battery Restoral
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATT RESTORE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaXRpppp]
496
RF Transmitter Low Battery
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATTERY LOW
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NXTppp]
497
RF Transmitter Low Battery
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATTERY LOW
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsD10t
<header>[#aaaa|NpidddXT]
498
RF Transmitter Low
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATTERY LOW
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaXTppp]
499
RF Transmitter Low Battery
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATTERY LOW
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaXTpppp]
500
RF Transmitter Low Battery from
Keyfob
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATTERY LOW
+++ACC aaaa KEYFOB
+++ACC aaaa ID=iii
h1rrlssssssaaaasTsD10t
<header>[#aaaa|NidiiiXT]
501
RF Transmitter Low Battery from
Keyfob
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF BATTERY LOW
+++ACC aaaa KEYFOB
+++ACC aaaa ID=iiii
h1rrlssssssaaaasTsD10t
<header>[#aaaa|NidiiiiXT]
502
RF Transmitter Tamper Alarm
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TAMPER ALARM
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NTAppp]
503
RF Transmitter Tamper Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TAMPER ALARM
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasAspppt
<header>[#aaaa|NriaTAppp]
504
RF Transmitter Tamper Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TAMPER ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaTApppp]
505
RF Transmitter Tamper Restoral
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TMPR RSTORAL
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NTRppp]
506
RF Transmitter Tamper Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TMPR RSTORAL
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasRspppt
<header>[#aaaa|NriaTRppp]
507
RF Transmitter Tamper Restoral
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TMPR RSTORAL
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaTRpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
123
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
508
RF Transmitter Tamper Trouble
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TMPR TROUBLE
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NTTppp]
509
RF Transmitter Tamper Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TMPR TROUBLE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaTTppp]
510
RF Transmitter Tamper Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RF TMPR TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaTTpppp]
511
SDI Bus Fail / Ground Fault
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SDI FAILURE
+++ACC aaaa GROUND FAULT
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpidddET]
512
SDI Bus Fail
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SDI FAILURE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpidddET]
513
SDI Bus Restoral / Ground Fault
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SDI RESTORAL
+++ACC aaaa GROUND FAULT
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpidddER]
514
SDI Bus Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SDI RESTORAL
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpidddER]
515
SDI Device AC Failure
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEVICE AC FAIL
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpidddEP]
516
SDI Device AC Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEV AC RESTORE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpidddEQ]
517
SDI Device Battery Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEVICE BAT TRBL
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpidddEB]
518
SDI Device Low Battery
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEVICE LOW BATT
+++ACC aaaa BATT=bb SDI=dddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpiddddEBbb]
New
Message
519
SDI Device Low Battery Restore
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa LOW BAT RESTORE
+++ACC aaaa BATT=bb SDI=dddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpiddddEVbb]
New
Message
520
SDI Device Missing
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEVICE MISSING
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpidddEM]
521
SDI Device Missing
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEVICE MISSING
+++ACC aaaa SDI=dddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpiddddEM]
New
Message
522
SDI Device Missing Restore
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEV MISSING RST
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpidddEN]
523
SDI Device Missing Restore
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEV MISSING RST
+++ACC aaaa SDI=dddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpiddddEN]
New
Message
524
SDI Device Missing Battery
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEVICE MIS BATT
+++ACC aaaa BATT=bb SDI=dddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpiddddEBbb]
New
Message
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
124
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
525
SDI Device Missing Battery Reset
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa MISS BATT REST
+++ACC aaaa BATT=bb SDI=dddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpiddddEVbb]
New
Message
526
SDI Device Low Battery Restoral
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEV BAT RESTORE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpidddEV]
527
SDI Device Missing
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEVICE MISSING
+++ACC aaaa SDI=dddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpiddddEM]
New
Message
528
SDI Device Missing Restore
(4-digit Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEV MISSING RST
+++ACC aaaa SDI=dddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpiddddEN]
New
Message
529
SDI Device Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEVICE TROUBLE
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasTsssDt
<header>[#aaaa|NpidddET]
530
SDI Device Trouble Restore
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa DEV TROUBLE RST
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsssDt
<header>[#aaaa|NpidddER]
531
Sensor Reset
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR RESET
+++ACC aaaa AREA=a ID=iii RELAY#=rrr
h1rrlssssssaaaasNsD27t
<header>[#aaaa|Nria/idiiiXIrrr]
4
532
Sensor Reset
(4-digit Relay)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR RESET
+++ACC aaaa AREA=aa ID=iii RELAY#=rrrr
h1rrlssssssaaaasNsD27t
<header>[#aaaa|Nriaa/idiiiXIrrrr]
533
Sensor Reset
(4-digit User / Device)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR RESET
+++ACC aaaa AREA=a ID=iiii RELAY#=rrrr
h1rrlssssssaaaasNsD27t
<header>[#aaaa|Nria/idiiiiXIrrrr]
534
Sensor Reset
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR RESET
+++ACC aaaa AREA=aa ID=iii RELAY#=rrr
h1rrlssssssaaaasNsD27t
<header>[#aaaa|Nriaa/idiiiXIrrr]
535
Sensor Reset
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR RESET
+++ACC aaaa AREA=aa ID=iiii RELAY#=rrr
h1rrlssssssaaaasNsD27t
<header>[#aaaa|Nriaa/idiiiiXIrrr]
536
Sensor Restore
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR RESTORE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaRQspppt
<header>[#aaaa|NriaXNppp]
537
Sensor Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR RESTORE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaRQppppt
<header>[#aaaa|NriaaXNpppp]
538
Sensor Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR TROUBLE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasQspppt
<header>[#aaaa|NriaXKppp]
539
Sensor Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SENSOR TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasQppppt
<header>[#aaaa|NriaaXKpppp]
540
Service Bypass
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE BYPASS
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|NriaaUBpppp]
New
Message
541
Service Bypass Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE RESTORE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaRBppppt
<header>[#aaaa|NriaaUUpppp]
New
Message
542
Service End
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE END
h1rrlssssssaaaasRsssFt
<header>[#aaaa|NTE]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
125
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
543
Service End
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE END
+++ACC aaaa AREA=a
h1rrlssssssaaaasRsssFt
<header>[#aaaa|NriaTE]
544
Service End
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE END
+++ACC aaaa ID=iii
h1rrlssssssaaaasRsssFt
<header>[#aaaa|NidiiiTE]
545
Service Request
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE REQUEST
h1rrlssssssaaaasNsD45t
<header>[#aaaa|NYX]
546
Service Start
(2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE START
h1rrlssssssaaaasTsssFt
<header>[#aaaa|NTS]
547
Service Start by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE START
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|Nria/idiiiTS]
548
Service Start
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE START
+++ACC aaaa AREA=a
h1rrlssssssaaaasTsssFt
<header>[#aaaa|NriaTS]
549
Service Start
(No Area)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE START
+++ACC aaaa ID=iii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|NidiiiTS]
550
Service Start by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SERVICE START
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|Nriaa/idiiiiTS]
551
SKED Bypass
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SKED BYPASS
+++ACC aaaa AREA=a POINT=ppp SKED=kkk
h1rrlssssssaaaasNspppt
<header>[#aaaa|Nria/aikkkUBppp]
552
SKED Bypass
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SKED BYPASS
+++ACC aaaa AREA=aa POINT=pppp SKED=kkk
h1rrlssssssaaaasNppppt
<header>[#aaaa|Nriaa/aikkkUBpppp]
553
SKED Changed
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SKED CHANGED
+++ACC aaaa SKED=kkk
h1rrlssssssaaaasNsD06t
<header>[#aaaa|NaikkkJS]
554
SKED Changed by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SKED CHANGED
+++ACC aaaa ID=iii SKED=kkk
h1rrlssssssaaaasNsD06t
<header>[#aaaa|Nidiii/aikkkJS]
555
SKED Changed by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SKED CHANGED
+++ACC aaaa ID=iiii SKED=kkk
h1rrlssssssaaaasNsD06t
<header>[#aaaa|Nidiiii/aikkkJS]
556
SKED Executed
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SKED EXECUTED
+++ACC aaaa SKED=kkk
h1rrlssssssaaaasNsD25t
<header>[#aaaa|NaikkkJR]
557
Status: Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:ALARM
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSAspppt
<header>[#aaaa|OriaBAppp]
558
Status: Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSAppppt
<header>[#aaaa|OriaaBApppp]
559
Status: Analog Service
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:ANALOG SERVCE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSTspppt
<header>[#aaaa|OriaASppp]
560
Status: Analog Service
(Level & Value)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:ANALOG SERVCE
+++ACC aaaa AREA=a POINT=ppp
+++ACC aaaa LEVEL=lll VALUE=vvv
h1rrlssssssaaaaSTspppt
<header>[#aaaa|Oria/lvlll/vavvvASppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
126
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
561
Status: Analog Service
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:ANALOG SERVCE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSTppppt
<header>[#aaaa|OriaaASpppp]
562
Status: Analog Service
(Level & Value)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:ANALOG SERVCE
+++ACC aaaa AREA=aa POINT=pppp
+++ACC aaaa LEVEL=lll VALUE=vvv
h1rrlssssssaaaaSTppppt
<header>[#aaaa|Oriaa/lvlll/vavvvASpppp]
563
Status: Close by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:CLOSING
+++ACC aaaa AREA=a
h1rrlssssssaaaaSCsssst
<header>[#aaaa|OriaCL]
564
Status: Door Forced
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:DOOR FORCED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSAspppt
<header>[#aaaa|OriaDFppp]
565
Status: Door Forced
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:DOOR FORCED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSAppppt
<header>[#aaaa|OriaaDFpppp]
566
Status: Door Left Open
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:DR LEFT OPEN
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSIspppt
<header>[#aaaa|OriaDNppp]
567
Status: Door Left Open
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:DR LEFT OPEN
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSIppppt
<header>[#aaaa|OriaaDNpppp]
568
Status: Fire Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSFspppt
<header>[#aaaa|OriaFAppp]
569
Status: Fire Alarm / Cross Point
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa CROSS POINT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSFspppt
<header>[#aaaa|OriaFAppp]
570
Status: Fire Alarm / Smoke
Detector
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa SMOKE DETECTOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSFspppt
<header>[#aaaa|OriaFAppp]
571
Status: Fire Alarm / High Temp
Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa HIGH TEMPERATURE SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSFspppt
<header>[#aaaa|OriaFAppp]
572
Status: Fire Alarm / Waterflow
Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSFspppt
<header>[#aaaa|OriaFAppp]
573
Status: Fire Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSFppppt
<header>[#aaaa|OriaaFApppp]
574
Status: Fire Alarm / Cross Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa CROSS POINT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSFppppt
<header>[#aaaa|OriaaFApppp]
575
Status: Fire Alarm / Smoke
Detector
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa SMOKE DETECTOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSFppppt
<header>[#aaaa|OriaaFApppp]
576
Status: Fire Alarm / High Temp
Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa HIGH TEMPERATURE SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSFppppt
<header>[#aaaa|OriaaFApppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
127
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
577
Status: Fire Alarm / Waterflow
Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE ALARM
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSFppppt
<header>[#aaaa|OriaaFApppp]
578
Status: Fire Missing
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE MISSING
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSZspppt
<header>[#aaaa|OriaFYppp]
579
Status: Fire Missing
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE MISSING
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSZppppt
<header>[#aaaa|OriaaFYpppp]
580
Status: Fire Supervision
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE SUPRVISN
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSEspppt
<header>[#aaaa|OriaFSppp]
581
Status: Fire Supervision
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE SUPRVISN
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSEppppt
<header>[#aaaa|OriaaFSpppp]
582
Status: Fire Supervision /
Waterflow Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE SUPRVISN
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSEspppt
<header>[#aaaa|OriaFSppp]
583
Status: Fire Supervision /
Waterflow Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE SUPRVISN
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSEppppt
<header>[#aaaa|OriaaFSpppp]
584
Status: Fire Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE TROUBLE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSGspppt
<header>[#aaaa|OriaFTppp]
585
Status: Fire Trouble / Smoke
Detector
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE TROUBLE
+++ACC aaaa SMOKE DETECTOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSGspppt
<header>[#aaaa|OriaFTppp]
586
Status: Fire Trouble / High Temp
Sensror
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE TROUBLE
+++ACC aaaa HIGH TEMPERATURE SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSGspppt
<header>[#aaaa|OriaFTppp]
587
Status: Fire Trouble / Waterflow
Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE TROUBLE
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSGspppt
<header>[#aaaa|OriaFTppp]
588
Status: Fire Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSGppppt
<header>[#aaaa|OriaaFTpppp]
589
Status: Fire Trouble / Smoke
Detector
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE TROUBLE
+++ACC aaaa SMOKE DETECTOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSGppppt
<header>[#aaaa|OriaaFTpppp]
590
Status: Fire Trouble / High Temp
Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE TROUBLE
+++ACC aaaa HIGH TEMPERATURE SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSGppppt
<header>[#aaaa|OriaaFTpppp]
591
Status: Fire Trouble / Waterflow
Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:FIRE TROUBLE
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSGppppt
<header>[#aaaa|OriaaFTpppp]
592
Status: Gas Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:GAS ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSAppppt
<header>[#aaaa|NriaaGApppp]
New
Message
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
128
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
593
Status: Gas Missing
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:GAS MISSING
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSVspppt
<header>[#aaaa|NriaaUZppp]
New
Message
594
Status: Gas Supervisory
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:GAS SUPV
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSJspppt
<header>[#aaaa|NriaaGSppp]
New
Message
595
Status: Gas Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:GAS TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSTppppt
<header>[#aaaa|NriaaGTpppp]
New
Message
596
Status: High Temp Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S: HIGH-TEMP ALM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSJppppt
<header>[#aaaa|NriaaKApppp]
New
Message
597
Status: Hold-Up Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:HOLD-UP ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSDppppt
<header>[#aaaa|NriaaHApppp]
New
Message
598
Status: Hold-Up Missing
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:HOLD-UP MISS
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSVppppt
<header>[#aaaa|NriaaUZpppp]
New
Message
599
Status: Hold-Up Supervisory
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:HOLD-UP TRL
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSTppppt
<header>[#aaaa|NriaaHTpppp]
New
Message
600
Status: Hold-Up Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:HOLD-UP TRL
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSTppppt
<header>[#aaaa|NriaaHTpppp]
New
Message
601
Status: Missing Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MISSING ALARM
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSZspppt
<header>[#aaaa|OriaUZppp]
602
Status: Missing Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MISSING ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSZppppt
<header>[#aaaa|OriaaUZpppp]
603
Status: Missing Fire Supervision
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MIS FIR SUPRV
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSYspppt
<header>[#aaaa|OriaFZppp]
604
Status: Missing Fire Supervision
/ Waterflow Sensor
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MIS FIR SUPRV
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSYspppt
<header>[#aaaa|OriaFZppp]
605
Status: Missing Fire Supervision
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MIS FIR SUPRV
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSYppppt
<header>[#aaaa|OriaaFZpppp]
606
Status: Missing Fire Supervision
/ Waterflow Sensor
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MIS FIR SUPRV
+++ACC aaaa WATER FLOW SENSOR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSYppppt
<header>[#aaaa|OriaaFZpppp]
607
Status: Missing Supervision
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MISS SUPRVISN
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSYspppt
<header>[#aaaa|OriaBZppp]
608
Status: Missing Supervision
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MISS SUPRVISN
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSYppppt
<header>[#aaaa|OriaaBZpppp]
609
Status: Missing Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MISSING TRBL
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSVspppt
<header>[#aaaa|OriaUYppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
129
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
610
Status: Missing Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:MISSING TRBL
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSVppppt
<header>[#aaaa|OriaaUYpppp]
611
Status: Open by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:OPENING
+++ACC aaaa AREA=a
h1rrlssssssaaaaSOsssst
<header>[#aaaa|OriaOP]
612
Status: Perimeter Delay by Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:PERIM DELAY
+++ACC aaaa AREA=a
h1rrlssssssaaaaSCsssst
<header>[#aaaa|OriaNL]
613
Status: Perimeter Instant by
Area
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:PERIM INSTANT
+++ACC aaaa AREA=a
h1rrlssssssaaaaSCsssst
<header>[#aaaa|OriaNL]
614
Status: RF Transmitter Low
Battery
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:RF BATTRY LOW
+++ACC aaaa SDI=ddd
h1rrlssssssaaaaSTsD10t
<header>[#aaaa|OpidddXT]
615
Status: RF Transmitter Low
Battery
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:RF BATTRY LOW
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSTspppt
<header>[#aaaa|OriaXTppp]
616
Status: RF Transmitter Low
Battery
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:RF BATTRY LOW
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSTppppt
<header>[#aaaa|OriaaXTpppp]
617
Status: RF Transmitter Tamper
Alarm
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:RF TMPR-ALARM
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSAspppt
<header>[#aaaa|OriaTAppp]
618
Status: RF Transmitter Tamper
Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:RF TMPR-ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSAppppt
<header>[#aaaa|OriaaTApppp]
619
Status: RF Transmitter Tamper
Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:RF TMPR-TRBL
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSTspppt
<header>[#aaaa|OriaTAppp]
620
Status: RF Transmitter Tamper
Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:RF TMPR-TRBL
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSTppppt
<header>[#aaaa|OriaaTApppp]
621
Status: Supervision
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:SUPERVISION
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSTspppt
<header>[#aaaa|OriaBSppp]
622
Status: Supervision
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:SUPERVISION
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSTppppt
<header>[#aaaa|OriaaBSpppp]
623
Status: Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:TROUBLE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaaSTspppt
<header>[#aaaa|OriaBTppp]
624
Status: Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S:TROUBLE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSTppppt
<header>[#aaaa|OriaaBTpppp]
625
Status: Water Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa S: Water Alarm
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaaSJppppt
<header>[#aaaa|OriaaWApppp]
New
Message
626
Supervision(Non-Fire)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SUPERVISION
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasJspppt
<header>[#aaaa|NriaBSppp]
627
Supervision / Ground Fault
(Non-Fire)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SUPERVISION
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasJspppt
<header>[#aaaa|NriaBSppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
130
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
628
Supervision
(Non Fire)
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SUPERVISION
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasJppppt
<header>[#aaaa|NriaaBSpppp]
629
Supervision / Ground Fault
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SUPERVISION
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasJppppt
<header>[#aaaa|NriaaBSpppp]
630
Swinger Bypass
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SWINGER BYPASS
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|NriaUBppp]
631
Swinger Bypass
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SWINGER BYPASS
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasNspppt
<header>[#aaaa|NUBppp]
632
Swinger Bypass
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SWINGER BYPASS
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasNppppt
<header>[#aaaa|NriaaUBpppp]
633
Swinger Bypass
(7112)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa SWINGER BYPASS
h1rrlssssssaaaasNsssst
<header>[#aaaa|NUB]
634
Tamper Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TAMPER ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasAppppt
<header>[#aaaa|NriaaTApppp]
New
Message
635
Tamper Alarm Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TAMPER RESTORE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|NriaaTHpppp]
New
Message
636
Test Failed
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TEST FAILED
+++ACC aaaa PATH=ppp COND=nnn
h1rrlssssssaaaasTsD49t
<header>[#aaaa|NpapppXXnnn]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
131
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
637
Test-Off Normal Expanded
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TEST-OFF NORMAL
+++ACC aaaa LOG THRESHOLD
+++ACC aaaa LOG OVERFLOW
+++ACC aaaa PT BUS TROUBLE
+++ACC aaaa PROG ACCESS OK
+++ACC aaaa RF RCVR TROUBLE
+++ACC aaaa BAD CALL TO RAM
+++ACC aaaa USER TAMPER
+++ACC aaaa SDI FAILURE
+++ACC aaaa COMM FAILURE
+++ACC aaaa EQUIPMENT FAIL
+++ACC aaaa AC FAILURE
+++ACC aaaa BATTERY MISSING
+++ACC aaaa BATTERY LOW
+++ACC aaaa PARMS BAD CKSUM
+++ACC aaaa PHONE FAIL
+++ACC aaaa EXTRA RF POINT
+++ACC aaaa RF INTERFERENCE
+++ACC aaaa FIRE SUPERVISION
+++ACC aaaa ANALOG SERVICE
+++ACC aaaa FIRE FAULT
+++ACC aaaa CTRL POINT FAULT
+++ACC aaaa CHK DEVICE FAULT
+++ACC aaaa NETWORK FAILURE
+++ACC aaaa RF RCVR TAMPER
h1rrlssssssaaaasRsssEt
h1rrlssssssaaaaSBsssst
h1rrlssssssaaaaSLsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSRsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSUsssst
h1rrlssssssaaaaSDsssst
h1rrlssssssaaaaSPsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSPsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSMsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSEsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSGsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSXss35t
<header>[#aaaa|NRY]
<header>[#aaaa|OJL]
<header>[#aaaa|OJO]
<header>[#aaaa|OET]
<header>[#aaaa|OLS]
<header>[#aaaa|OET]
<header>[#aaaa|ORA]
<header>[#aaaa|OJA]
<header>[#aaaa|OET]
<header>[#aaaa|OYC]
<header>[#aaaa|OIA]
<header>[#aaaa|OAT]
<header>[#aaaa|OYM]
<header>[#aaaa|OYT]
<header>[#aaaa|OYF]
<header>[#aaaa|OLT]
<header>[#aaaa|OXF]
<header>[#aaaa|OXQ]
<header>[#aaaa|OFS]
<header>[#aaaa|OAS]
<header>[#aaaa|OFT]
<header>[#aaaa|OBT]
<header>[#aaaa|OBT]
<header>[#aaaa|ONT]
<header>[#aaaa|OXS]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
132
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
638
Test Report Expanded
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TEST REPORT
+++ACC aaaa LOG THRESHOLD
+++ACC aaaa LOG OVERFLOW
+++ACC aaaa PT BUS TROUBLE
+++ACC aaaa PROG ACCESS OK
+++ACC aaaa RF RCVR TROUBLE
+++ACC aaaa BAD CALL TO RAM
+++ACC aaaa USER TAMPER
+++ACC aaaa SDI FAILURE
+++ACC aaaa COMM FAILURE
+++ACC aaaa EQUIPMENT FAIL
+++ACC aaaa AC FAILURE
+++ACC aaaa BATTERY MISSING
+++ACC aaaa BATTERY LOW
+++ACC aaaa PARMS BAD CKSUM
+++ACC aaaa PHONE FAIL
+++ACC aaaa EXTRA RF POINT
+++ACC aaaa RF INTERFERENCE
+++ACC aaaa FIRE SUPERVISION
+++ACC aaaa ANALOG SERVICE
+++ACC aaaa FIRE FAULT
+++ACC aaaa CTRL POINT FAULT
+++ACC aaaa CHK DEVICE FAULT
+++ACC aaaa NETWORK FAILURE
+++ACC aaaa RF RCVR TAMPER
h1rrlssssssaaaasRsssEt
h1rrlssssssaaaaSBsssst
h1rrlssssssaaaaSLsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSRsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSUsssst
h1rrlssssssaaaaSDsssst
h1rrlssssssaaaaSPsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSPsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSMsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSEsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSGsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSTsssst
h1rrlssssssaaaaSXss35t
<header>[#aaaa|NRP]
<header>[#aaaa|OJL]
<header>[#aaaa|OJO]
<header>[#aaaa|OET]
<header>[#aaaa|OLS]
<header>[#aaaa|OET]
<header>[#aaaa|ORA]
<header>[#aaaa|OJA]
<header>[#aaaa|OET]
<header>[#aaaa|OYC]
<header>[#aaaa|OIA]
<header>[#aaaa|OAT]
<header>[#aaaa|OYM]
<header>[#aaaa|OYT]
<header>[#aaaa|OYF]
<header>[#aaaa|OLT]
<header>[#aaaa|OXF]
<header>[#aaaa|OXQ]
<header>[#aaaa|OFS]
<header>[#aaaa|OAS]
<header>[#aaaa|OFT]
<header>[#aaaa|OBT]
<header>[#aaaa|OBT]
<header>[#aaaa|ONT]
<header>[#aaaa|OXS]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
133
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
639
Test Report
(Non-Expanded)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TEST REPORT
h1rrlssssssaaaasRsssEt
<header>[#aaaa|NRP]
640
Test Report / Off Normal
(Non-Expanded)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TEST-OFF NORMAL
h1rrlssssssaaaasRsssEt
<header>[#aaaa|NRY]
641
Time Changed by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TIME CHANGED
+++ACC aaaa ID=iii
h1rrlssssssaaaasNsD07t
<header>[#aaaa|NidiiiJT]
642
Time Changed
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TIME CHANGED
h1rrlssssssaaaasNsD07t
<header>[#aaaa|NJT]
643
Time Changed by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TIME CHANGED
+++ACC aaaa ID=iiii
h1rrlssssssaaaasNsD07t
<header>[#aaaa|NidiiiiJT]
644
Trouble
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TROUBLE REPORT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaBTppp]
645
Trouble
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TROUBLE REPORT
+++ACC aaaa POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NBTppp]
646
Trouble / Ground Fault
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TROUBLE REPORT
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaBTppp]
647
Trouble / Ground Fault
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TROUBLE REPORT
+++ACC aaaa GROUND FAULT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaBTpppp]
648
Trouble / Door Forced
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TROUBLE REPORT
+++ACC aaaa DOOR FORCED
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasTspppt
<header>[#aaaa|NriaDJppp]
649
Trouble / Door Forced
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TROUBLE REPORT
+++ACC aaaa DOOR FORCED
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaDJpppp]
650
Trouble
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa TROUBLE REPORT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasTppppt
<header>[#aaaa|NriaaBTpppp]
651
Unverified Event / Burg
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVRFD EVT-BURG
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasKspppt
<header>[#aaaa|NriaBGppp]
652
Unverified Event / Fire
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVRFD EVT-FIRE
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasKspppt
<header>[#aaaa|NriaFGppp]
653
Unverified Event / Burg
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVRFD EVT-BURG
+++ACC aaaa AREA=a CG=gg POINT=ppp
h1rrlssssssaaaasKspppt
<header>[#aaaa|NriaBGppp]
654
Unverified Event / Fire
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVRFD EVT-FIRE
+++ACC aaaa AREA=a CG=gg POINT=ppp
h1rrlssssssaaaasKspppt
<header>[#aaaa|NriaFGppp]
655
Unverified Event
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVERFIED EVENT
+++ACC aaaa AREA=a CG=gg POINT=ppp
h1rrlssssssaaaasKspppt
<header>[#aaaa|NriaUGppp]
656
Unverified Event / Burg
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVRFD EVT-BURG
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasKppppt
<header>[#aaaa|NriaaBGpppp]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
134
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
657
Unverified Event / Fire
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVRFD EVT-FIRE
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasKppppt
<header>[#aaaa|NriaaFGpppp]
658
Unverified Event / Burg
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVRFD EVT-BURG
+++ACC aaaa AREA=aa CG=gg POINT=pppp
h1rrlssssssaaaasKppppt
<header>[#aaaa|NriaaBGpppp]
659
Unverified Event / Fire
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa UNVRFD EVT-FIRE
+++ACC aaaa AREA=aa CG=gg POINT=pppp
h1rrlssssssaaaasKppppt
<header>[#aaaa|NriaaFGpppp]
660
User Alarm 7 by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER ALARM CMD7
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasUsss7t
<header>[#aaaa|Nria/idiiiUA]
661
User Alarm 7
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER ALARM CMD7
+++ACC aaaa AREA=a
h1rrlssssssaaaasUsss7t
<header>[#aaaa|NriaUA]
662
User Alarm 7 by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER ALARM CMD7
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasUsss7t
<header>[#aaaa|Nriaa/idiiiiUA]
663
User Alarm 9 by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER ALARM CMD9
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasUsss9t
<header>[#aaaa|Nria/idiiiPA]
664
User Alarm 9
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER ALARM CMD9
+++ACC aaaa AREA=a
h1rrlssssssaaaasUsss9t
<header>[#aaaa|NriaPA]
665
User Alarm 9 by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER ALARM CMD9
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasUsss9t
<header>[#aaaa|Nriaa/idiiiiPA]
666
User Code Added by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER CODE ADDED
+++ACC aaaa CODE ID=ccc ID=iii
h1rrlssssssaaaasNsD38t
<header>[#aaaa|NidiiiJYccc]
667
User Code Added by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER CODE ADDED
+++ACC aaaa CODE ID=cccc ID=iiii
h1rrlssssssaaaasNsD38t
<header>[#aaaa|NidiiiiJYcccc]
668
User Code Changed by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USR CODE CHANGE
+++ACC aaaa CODE ID=ccc ID=iii
h1rrlssssssaaaasNsD04t
<header>[#aaaa|NidiiiJVccc]
669
User Code Changed by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USR CODE CHANGE
+++ACC aaaa CODE ID=cccc ID=iiii
h1rrlssssssaaaasNsD04t
<header>[#aaaa|NidiiiiJVcccc]
670
User Code Deleted by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USR CODE DELETE
+++ACC aaaa CODE ID=ccc ID=iii
h1rrlssssssaaaasNsD05t
<header>[#aaaa|NidiiiJXccc]
671
User Code Deleted
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USR CODE DELETE
+++ACC aaaa CODE ID=cccc
h1rrlssssssaaaasNsD05t
<header>[#aaaa|NJXcccc]
672
User Code Deleted by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USR CODE DELETE
+++ACC aaaa CODE ID=cccc ID=iiii
h1rrlssssssaaaasNsD05t
<header>[#aaaa|NidiiiiJXcccc]
673
User Code Tamper
(5 attmpts in 5min)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USR CODE TAMPER
+++ACC aaaa AREA=a
h1rrlssssssaaaasNsD03t
<header>[#aaaa|NriaJA]
674
User Code Tamper
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USR CODE TAMPER
h1rrlssssssaaaasNsD03t
<header>[#aaaa|NJA]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
135
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
675
User Level Set by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER LEVEL SET
+++ACC aaaa CODE ID=ccc ID=iii
h1rrlssssssaaaasNsD40t
<header>[#aaaa|NidiiiJZccc]
676
User Level Set
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER LEVEL SET
+++ACC aaaa CODE ID=cccc
h1rrlssssssaaaasNsD40t
<header>[#aaaa|NJZcccc]
677
User Level Set by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa USER LEVEL SET
+++ACC aaaa CODE ID=cccc ID=iiii
h1rrlssssssaaaasNsD40t
<header>[#aaaa|NidiiiiJZcccc]
678
Valid Access
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PROG ACCESS OK
h1rrlssssssaaaasRsF01t
<header>[#aaaa|NLS]
679
Valid Access
(SDI Device / D5360)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa PROG ACCESS OK
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasRsF01t
<header>[#aaaa|NpidddLS]
680
Valid Remote Access
(2112/2212)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RAM ACCESS
OK
h1rrlssssssaaaasRsssFt
<header>[#aaaa|NRS]
681
Valid Remote Access / Callback
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa RAM ACCESS
OK
+++ACC aaaa PH#=hh
h1rrlssssssaaaasRsssFt
<header>[#aaaa|NphhhRS]
682
Walk Test End by User
(Invisible Points)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST END
+++ACC aaaa INVISIBLE POINTS
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasRsssFt
<header>[#aaaa|Nria/idiiiTE]
683
Walk Test End by User
(Invisible Points)
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST END
+++ACC aaaa INVISIBLE POINTS
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasRsssFt
<header>[#aaaa|Nriaa/idiiiiTE]
684
Walk Test End
(No User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST END
+++ACC aaaa AREA=a
h1rrlssssssaaaasRsssFt
<header>[#aaaa|NriaTE]
685
Walk Test End by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST END
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasRsssFt
<header>[#aaaa|Nria/idiiiTE]
686
Walk Test End by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST END
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasRsssFt
<header>[#aaaa|Nriaa/idiiiiTE]
687
Walk Test Point
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST PT
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasZspppt
<header>[#aaaa|NriaBXppp]
688
Walk Test Point
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST PT
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasZppppt
<header>[#aaaa|NriaaBXpppp]
689
Walk Test Point / Fire
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TST PT-FIR
+++ACC aaaa AREA=a POINT=ppp
h1rrlssssssaaaasZspppt
<header>[#aaaa|NriaFXppp]
690
Walk Test Point / Fire
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TST PT-FIR
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasZppppt
<header>[#aaaa|NriaaFXpppp]
691
Walk Test Start by User
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST START
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|Nria/idiiiTS]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
136
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
Table 98:
Modem4/ModemIIIa² Messages
Event
Device/Mode
Display/Explanation
Comments
692
Walk Test Start by User
(Invisible Points)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST START
+++ACC aaaa INVISIBLE POINTS
+++ACC aaaa AREA=a ID=iii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|Nria/idiiiTS]
693
Walk Test Start by User
(Invisible Points)
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST START
+++ACC aaaa INVISIBLE POINTS
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|Nriaa/idiiiiTS]
694
Walk Test Start
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST START
+++ACC aaaa AREA=a
h1rrlssssssaaaasTsssFt
<header>[#aaaa|NriaTS]
695
Walk Test Start by User
(4-digit User)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WALK TEST START
+++ACC aaaa AREA=aa ID=iiii
h1rrlssssssaaaasTsssFt
<header>[#aaaa|Nriaa/idiiiiTS]
696
Was Force Armed
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WAS FORCE ARMED
h1rrlssssssaaaasWsssst
<header>[#aaaa|NCW]
697
Watchdog Reset
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCHDOG RESET
h1rrlssssssaaaasNsD09t
<header>[#aaaa|NYW]
698
Watchdog Reset
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCHDOG RESET
+++ACC aaaa SDI=dddd
+++ACC aaaa D9412GV4 V2.01
h1rrlssssssaaaasNsD09t
<header>[#aaaa|NpiddddYW]
New
Message
699
Watchdog Reset
(Device Specific)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCHDOG RESET
+++ACC aaaa SDI=ddd
h1rrlssssssaaaasNsD09t
<header>[#aaaa|NpidddYW]
700
Watchdog Reset
(4-digit Device)
(Version text)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATCHDOG RESET
+++ACC aaaa SDI=dddd
+++ACC aaaa xxxxxxxx Vx.xx
h1rrlssssssaaaasNsD09t
<header>[#aaaa|NpidddYW]
New
Message
701
Water Alarm
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATER ALARM
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasJppppt
<header>[#aaaa|Nriaa/WApppp]
New
Message
702
Water Alarm Restore
(4-digit Point)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Lxx ACC aaaa WATER ALM REST
+++ACC aaaa AREA=aa POINT=pppp
h1rrlssssssaaaasRppppt
<header>[#aaaa|Nriaa/WHpppp]
New
Message
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
137
ZONEX and Comex Translation
These items supply additional information related to Appendix C: Modem4/ModemIIIa2 Messages. Some
of these numbered items are also referenced in the Comments section of Appendix C.
1. When Point User Flag is programmed to Yes in panel programming of panels that support this
function, the zone and point information will be translated. The D6600/D6100 converts point data to
ZONEX format and user IDs to Comex format. Table 99 shows the translation of point data and Table
100 shows the translation of User IDs. If Point User Flag is programmed to a No in the panel, then
the zone and point information are sent as received.
Table 99: Point to ZONEX Translation
Point ZONEX
001-008 100-800
009-024 101-116
025-040 201-216
041-056 301-316
057-072 401-416
073-088 501-516
089-104 601-616
105-120 701-716
121-136 801-816
137-152 117-132
153-168 217-232
169-184 317-332
185-200 417-432
201-216 517-532
217-232 617-632
233-247 717-731
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
138
Table 100: User ID to Comex Translation
ID COMEX
0 0
1-5 001-005
0-13 601-608
14-21 701-708
22-29 801-808
30-37 B01-B08
38-45 C01-C08
46-53 D01-D08
54-61 E01-E08
62-69 F01-F08
70-249 000
2. When the D7112 is transmitting a test report in Modem II format, the area number is sent to the
automation system if the output format is in SIA communications mode.
3. When transmitted by a D7112, the identification number, if any, also prints. Refer to Forced Point in
the D9112B Program Entry Guide (P/N: 74-06145-000-D).
4. For these events, the area denotes the location of the keypad used to initiate the event (see Sensor
Reset).
5. BFSK Format: For the D9112, unless otherwise specified, the zone digit “z” uses the “BFSK Zone
Code” as a base for a given point. This code is programmed in the control panel by point. The zone
digit “i” indicates the most significant digit of the user ID.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix C: Modem4/Modem
IIIa
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
139
6. For the D7112, unless otherwise specified, Table 101 is the basis for the zone digit “z” and ID
translation; however, actual IDs only go up to 25.
7. This message reports from a D7112 RF point. The internal or external printer prints the label “RF
POINT=” instead of “POINT=” in the second line (Example 2).
Table 101: Reported Zone/ID to Actual Point/ID
Reported Zone/ID
1 2 3 4 5 6 7 8
Actual Point/ID 1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
Example 1: Label RF Point
dd/dd tt:tt ql ACC aaaa FIRE ALARM
+++ ACC aaaa AREA=a RF POINT=ppp
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix D: Network Messages
140
Appendix D: Network Messages
For networked accounts, Nxx appears instead of Lxx
in the line number.
Table 102:
Network Messages
Event Device/Mode Display
1
Alarm Panel Substitution Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa ALARM-PNL SUBST
+++ ACC aaaa PATH=003 COND=007
h1rrlssssssaaaaAsD53t
<header>[#aaaa|Npt003AA007]
2
Change of Status
(C900 Voltage Low)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 VOLTAGE LOW
h1rrlssssssaaaasXss58t
<header>[#aaaa|NSC0002]
3
Change of Status
(C900 Voltage Restore)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 VOLTAGE RESTORE
h1rrlssssssaaaasXss68t
<header>[#aaaa|NSC0003]
4
Change of Status
(C900 Input Restored)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 INPUT RESTORED
h1rrlssssssaaaasXss91t
<header>[#aaaa|NSC0010]
5
Change of Status
(C900 Input Shorted)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 INPUT SHORTED
h1rrlssssssaaaasXss89t
<header>[#aaaa|NSC0008]
6
Change of Status
(C900 Intercept Disabled)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 INTERCEPT DISABLED
h1rrlssssssaaaasXss93t
<header>[#aaaa|NSC0012]
7
Change of Status
(C900 Intercept Enabled)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 INTERCEPT ENABLED
h1rrlssssssaaaasXss92t
<header>[#aaaa|NSC0011]
8
Change of Status
(C900 Output Activated)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 OUTPUT ACTIVATED
h1rrlssssssaaaasXss85t
<header>[#aaaa|NSC0006]
9
Change of Status
(C900 Output Deactivated)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 OUTPUT DEACTIVATED
h1rrlssssssaaaasXss94t
<header>[#aaaa|NSC0007]
10
Change of Status
(C900 Input Open)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaaC900 INPUT OPEN H1rrlssssssaaaasXss90t
<header>[#aaaa|NSC0009]
11
Change of Status
(C900 Reboot)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 REBOOT
h1rrlssssssaaaasXss59t
<header>[#aaaa|NSC0001]
12
Change of Status
(C900 Switched to Fallback)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 SWITCHED TO FALLBACK
h1rrlssssssaaaasXss82t
<header>[#aaaa|NSC0005]
13
Change of Status
(C900 Switched to Intercept)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa STATUS CHANGED
+++ aaaa C900 SWITCHED TO INTERCPT
h1rrlssssssaaaasXss87t
<header>[#aaaa|NSC0004]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix D: Network Messages
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
141
Table 102:
Network Messages
Event
Device/Mode
Display
14
C900 Command Sent
(Activate Output)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMMAND SENT
+++ aaaa ACTIVATE OUTPUT
h1rrlssssssaaaasXss84t
<header>[#aaaa|NCO0005]
15
C900 Command Sent
(Deactivate Output)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMMAND SENT
+++ aaaa DEACTIVATE OUTPUT
h1rrlssssssaaaasXss86t
<header>[#aaaa|NCO0006]
16
C900 Command Sent
(Disable Intercept Mode)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMMAND SENT
+++ aaaa DISABLE INTERCEPT MODE
h1rrlssssssaaaasXss83t
<header>[#aaaa|NCO0004]
17
C900 Command Sent
(Switch to Fallback Mode)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMMAND SENT
+++ aaaa SWITCH TO FALLBACK MODE
h1rrlssssssaaaasXss81t
<header>[#aaaa|NCO0003]
18
C900 Command Sent
(Switch to Intercept Mode)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMMAND SENT
+++ aaaa SWITCH TO INTERCEPT MODE
h1rrlssssssaaaasXss88t
<header>[#aaaa|NCO0002]
19
C900 Command Sent
(Supervision Rate Changed)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMMAND SENT
+++ aaaa SUPERVISION RATE CHANGED
h1rrlssssssaaaasXss66t
<header>[#aaaa|NCO0001]
20
Communications Fail
(Account Disabled by Attack)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMM FAIL
+++ ACC aaaa ACCOUNT DISABLED BY ATTACK
+++ ACC aaaa PATH=003 COND=008
h1rrlssssssaaaasTsB03t
<header>[#aaaa|Npt003YC008]
21
Communications Fail
(Polling Lost)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMM FAIL
+++ ACC aaaa PATH=003 COND=009
h1rrlssssssaaaasTsB02t
<header>[#aaaa|Npt003YC009]
22
Communications Fail Restore
(Polling Restore)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa COMM FAIL RESTR
+++ ACC aaaa PATH=003 COND=009
h1rrlssssssaaaasNsB02t
<header>[#aaaa|Npt003YK009]
23
Dialer Error
(Dialing Error)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa DIALER ERROR
+++ aaaa DIALING ERROR
h1rrlssssssaaaasXss73t
<header>[#aaaa|NYU0003]
24
Dialer Error
(Invalid Message)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa DIALER ERROR
+++ aaaa INVALID MESSAGE
h1rrlssssssaaaasXss77t
<header>[#aaaa|NYU0007]
25
Dialer Error
(Message Unknown)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa DIALER ERROR
+++ aaaa MESSAGE UNKNOWN
h1rrlssssssaaaasXss76t
<header>[#aaaa|NYU0006]
26
Dialer Error
(No Acknowledgement Received)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa DIALER ERROR
+++ aaaa NO ACKNOWLEDGMNT RECEIVED
h1rrlssssssaaaasXss71t
<header>[#aaaa|NYU0001]
27
Dialer Error
(Not Dialing)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa DIALER ERROR
+++ aaaa NOT DIALING
h1rrlssssssaaaasXss72t
<header>[#aaaa|NYU0002]
28
Dialer Error
(No Response to Acknowledgement)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa DIALER ERROR
+++ aaaa NO RESPONSE TO ACK
h1rrlssssssaaaasXss75t
<header>[#aaaa|NYU0005]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix D: Network Messages
142
Table 102:
Network Messages
Event
Device/Mode
Display
29
Dialer Error
(No Response to Handshake)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa DIALER ERROR
+++ aaaa NO RESPONSE TO HANDSHAKE
h1rrlssssssaaaasXss74t
<header>[#aaaa|NYU0004]
30
Miscellaneous Message
(30 Min Since Fallback Command)
Printer:
D6500 Mode:
SIA Mode:
dd/dd tt:tt Nxx ACC aaaa MESSAGE
+++ aaaa 30 MIN SINCE FALLBACK CMD
h1rrlssssssaaaasXss95t
<header>[#aaaa|NMI0001]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
143
Appendix E: Pulse Output
Table 103 to Table 111 vary depending on the account number specified and the digit
parameter programmed using the drop
-down menus in Menu Item 3.1.7 Event 3/1 or 4/1
(
Figure 27).
The output of the receiver depends on the reporting digit. Use the settings in Figure 27 that can be
changed by the user:
Reporting digits 0 to 9 and A are alarms
Reporting digit B is an opening
Reporting digit C is a closing
Reporting digit D is a cancel
Reporting digit E is a restore
Figure 27: D6200 Receiver Software Line Card Configuration
Table 103: Pulse 3/1 Format
# Event Account
Number
Reporting
Digit
Device/Mode Displays
1.
ALARM
123
4
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 ALARM_ZN 4
[10]1011sssssss123sAsss4[13]
[10]602415[9]00030101[#s123|NBA4][13]
2.
OPENING
123
B
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 OPENING
[10]1011sssssss123sOssss[13]
[10]AA4214[9]00040101[#s123|NOP][13]
3.
CLOSING 123 C Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 CLOSING
[10]1011sssssss123sCssss[13]
[10]F94B14[9]00050101[#s123|NCL][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
144
Table 103: Pulse 3/1 Format (Continued)
# Event Account
Number
Reporting
Digit
Device/Mode Displays
4.
CANCEL
123
D
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 CANCEL
[10]1011sssssss123s\ssss[13]
[10]FBCE14[9]00060101[#s123|NOC][13]
5.
RESTORE
123
E
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 RESTORE
[10]1011sssssss123sRssss[13]
[10]FC2214[9]00070101[#s123|NUR][13]
6.
TROUBLE
123
F
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 TROUBLE
[10]1011sssssss123sTssss[13]
[10]ACD414[9]00080101[#s123|NBT][13]
Table 104
:
Pulse 3/1E Menu 3.1.3.12 3-1 Extended Format = 1
# Event Account
Number
Reporting
Digit
Device/Mode Displays
7.
ALARM 123 45 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 ALARM_ZN 45
[10]1011sssssss123sAss45[13]
[10]720816[9]00090101[#s123|NBA45][13]
8.
OPENING 123 B5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 OPENING ZN 5
[10]1011sssssss123sOsss5[13]
[10]B0B115[9]00100101[#s123|NOP5][13]
9.
CLOSING 123 C5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 CLOSING ZN 5
[10]1011sssssss123sCsss5[13]
[10]B62215[9]00110101[#s123|NCL5][13]
10.
CANCEL 123 D5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 CANCEL ZN 5
[10]1011sssssss123s\sss5[13]
[10]15E115[9]00120101[#s123|NOC5][13]
11.
RESTORE
123
E5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 RESTORE ZN 5
[10]1011sssssss123sRsss5[13]
[10]98E715[9]00130101[#s123|NUR5][13]
12.
TROUBLE
123
F5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 TROUBLE ZN 5
[10]1011sssssss123sTsss5[13]
[10]1CB015[9]00140101[#s123|NBT5][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
145
Table 105
:
Pulse 3/1E Menu 3.1.3.12 3-1 Extended Format = 2
# Event Account
Number
Reporting
Digit
Device/Mode Displays
13.
ALARM
123
45
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 ALARM_ZN 45
[10]1011sssssss123sAss45[13]
[10]210D16[9]00450102[#s123|NBA45][13]
14.
OPENING 123 B5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 OPENING ZN B5
[10]1011sssssss123sOssB5[13]
[10]829516[9]00460102[#s123|NOPB5][13]
15.
CLOSING 123 C5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 CLOSING ZN C5
[10]1011sssssss123sCssC5[13]
[10]2F8216[9]00470102[#s123|NCLC5][13]
16.
CANCEL 123 D5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 CANCEL ZN D5
[10]1011sssssss123s\ssD5[13]
[10]EC1316[9]00480102[#s123|NOCD5][13]
17.
RESTORE
123
E5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 RESTORE ZN E5
[10]1011sssssss123sRssE5[13]
[10]2E4F16[9]00490102[#s123|NURE5][13]
18.
TROUBLE
123
F5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 TROUBLE ZN F5
[10]1011sssssss123sTssF5[13]
[10]C72516[9]00500102[#s123|NBTF5][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
146
Table 106
:
Pulse 3/2
# Event Account
Number
Reporting
Digit
Device/Mode Displays
19.
ALARM
123
45
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 ALARM_ZN 45
[10]1011sssssss123sAss45[13]
[10]446B16[9]00150101[#s123|NBA45][13]
20.
OPENING 123 B5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 OPENING B5
[10]1011sssssss123sOssB5[13]
[10]17F616[9]00160101[#s123|NOPB5][13]
21.
CLOSING 123 C5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 CLOSING B5
[10]1011sssssss123sCssC5[13]
[10]BAE116[9]00170101[#s123|NCLC5][13]
22.
CANCEL 123 D5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 CANCEL B5
[10]1011sssssss123s\ssD5[13]
[10]797016[9]00180101[#s123|NOCD5][13]
23.
RESTORE
123
E5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 RESTORE B5
[10]1011sssssss123sRssE5[13]
[10]BB2C16[9]00190101[#s123|NURE5][13]
24.
TROUBLE
123
F5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 123 TROUBLE B5
[10]1011sssssss123sTssF5[13]
[10]EA3F16[9]00200101[#s123|NBTF5][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
147
Table 107
:
Pulse 4/1
# Event Account
Number
Reporting
Digit
Device/Mode Displays
25.
ALARM
1234
5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 ALARM_ZN 5
[10]1011ssssss1234sAsss5[13]
[10]97CE15[9]00210101[#1234|NBA5][13]
26.
OPENING 1234 B Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 OPENING
[10]1011ssssss1234sOssss[13]
[10]020A14[9]00220101[#1234|NOP][13]
27.
CLOSING 1234 C Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CLOSING
[10]1011ssssss1234sCssss[13]
[10]510314[9]00230101[#1234|NCL][13]
28.
CANCEL 1234 D Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CANCEL
[10]1011ssssss1234s\ssss[13]
[10]908414[9]00240101[#1234|NOC][13]
29.
RESTORE
1234
E
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 RESTORE
[10]1011ssssss1234sRssss[13]
[10]976814[9]00250101[#1234|NUR][13]
30.
TROUBLE
1234
F
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 TROUBLE
[10]1011ssssss1234sTssss[13]
[10]C29B14[9]00260101[#1234|NBT][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
148
Table 108
:
Pulse 4/1E Menu 3.1.3.3 4/1 Extended = 1
# Event Account
Number
Reporting
Digit
Device/Mode Displays
31.
ALARM 1234 45 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 ALARM_ZN 45
[10]1011ssssss1234sAss45[13]
[10]418416[9]00270101[#1234|NBA45][13]
32.
OPENING
1234
B5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 OPENING ZN 5
[10]1011ssssss1234sOsss5[13]
[10]C5C215[9]00280101[#1234|NOP5][13]
33.
CLOSING
1234
C5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CLOSING ZN 5
[10]1011ssssss1234sCsss5[13]
[10]C35115[9]00290101[#1234|NCL5][13]
34.
CANCEL
1234
D5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CANCEL ZN 5
[10]1011ssssss1234s\sss5[13]
[10]3EE515[9]00300101[#1234|NOC5][13]
35.
RESTORE 1234 E5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 RESTORE ZN 5
[10]1011ssssss1234sRsss5[13]
[10]B3E315[9]00310101[#1234|NUR5][13]
36.
TROUBLE 1234 F5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 TROUBLE ZN 5
[10]1011ssssss1234sTsss5[13]
[10]F6F615[9]00320101[#1234|NBT5][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
149
Table 109
:
Pulse 4/1E Menu 3.1.3.3 4/1 Extended = 2
# Event Account
Number
Reporting
Digit
Device/Mode Displays
37.
ALARM
1234
45
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 ALARM_ZN 45
[10]1011ssssss1234sAss45[13]
[10]599816[9]00510102[#1234|NBA45][13]
38.
OPENING 1234 B5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 OPENING ZN B5
[10]1011ssssss1234sOssB5[13]
[10]FA0016[9]00520102[#1234|NOPB5][13]
39.
CLOSING 1234 C5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CLOSING ZN C5
[10]1011ssssss1234sCssC5[13]
[10]571716[9]00530102[#1234|NCLC5][13]
40.
CANCEL 1234 D5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CANCEL ZN D5
[10]1011ssssss1234s\ssD5[13]
[10]F60416[9]00540102[#1234|NOCD5][13]
41.
RESTORE
1234
E5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 RESTORE ZN E5
[10]1011ssssss1234sRssE5[13]
[10]345816[9]00550102[#1234|NURE5][13]
42.
TROUBLE
1234
F5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 TROUBLE ZN F5
[10]1011ssssss1234sTssF5[13]
[10]FB2C16[9]00560102[#1234|NBTF5][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
150
Table 110
:
Pulse 4/2
# Event Account
Number
Reporting
Digit
Device/Mode Displays
43.
ALARM
1234
45
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 ALARM_ZN 45
[10]1011ssssss1234sAss45[13]
[10]220516[9]00330101[#1234|NBA45][13]
44.
OPENING 1234 B5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 OPENING B5
[10]1011ssssss1234sOssB5[13]
[10]708D16[9]00340101[#1234|NOPB5][13]
45.
CLOSING 1234 C5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CLOSING C5
[10]1011ssssss1234sCssC5[13]
[10]DD9A16[9]00350101[#1234|NCLC5][13]
46.
CANCEL 1234 D5 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CANCEL D5
[10]1011ssssss1234s\ssD5[13]
[10]4DC816[9]00360101[#1234|NOCD5][13]
47.
RESTORE
1234
E5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 RESTORE E5
[10]1011ssssss1234sRssE5[13]
[10]8F9416[9]00370101[#1234|NURE5][13]
48.
TROUBLE
1234
F5
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 TROUBLE F5
[10]1011ssssss1234sTssF5[13]
[10]132316[9]00380101[#1234|NBTF5][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix E: Pulse Output
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
151
Table 111
:
Pulse 4/3
# Event Account
Number
Reporting
Digit
Device/Mode Displays
49.
ALARM
1234
456
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 ALARM_ZN 456
[10]1011ssssss1234sAs456[13]
[10]D5C017[9]00390101[#1234|NBA456][13]
50.
OPENING 1234 B45 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 OPENING B45
[10]1011ssssss1234sOsB45[13]
[10]114C17[9]00400101[#1234|NOPB45][13]
51.
CLOSING
1234
C45
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CLOSING C45
[10]1011ssssss1234sCsC45[13]
[10]1FA117[9]00410101[#1234|NCLC45][13]
52.
CANCEL
1234
D45
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 CANCEL D45
[10]1011ssssss1234s\sD45[13]
[10]E2B017[9]00420101[#1234|NOCD45][13]
53.
RESTORE 1234 E45 Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 RESTORE E45
[10]1011ssssss1234sRsE45[13]
[10]DB7217[9]00430101[#1234|NURE45][13]
54.
TROUBLE
1234
F45
Printer:
D6500 Mode:
SIA Mode:
DD/DD TT:TT L01 ACCT 1234 TROUBLE F45
[10]1011ssssss1234sTsF45[13]
[10]CC4C17[9]00440101[#1234|NBTF45][13]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix F: Format ID(by
Message Type)–D6600 only
152
Appendix F: Format ID (by Message Type) – D6600 Only
If
D6600 Menu Item 2.5.17 equals 1, the following outputs apply.
Generic
Example
D6500 Byte Description
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
h 9 r r l s s s s a a a a C C C C C C C C t
Table 112
:
Generic Byte Description
# Title Description
1 Header Character (h) Optional, check with the computer automation software for
compatibility
2 Message Type 9
3-4 Receiver Number Receiver gateway number from 01 to 99
5 Line/Group Number Line number in the receiver gateway that sent the message
6-9 Spaces Six spaces
10-13 Account Number Account number, four digits
14-21 Channels Channels 1 to 8
22 Trailer Character Typically, this is HEX 14
Generic
Example
SIA Mode Description
<LF><CRC><
9
><sequence#><receiver#><line#>[#aaaa|CCCCCCCC]<CR>
Table 113
:
Generic SIA Byte Description
Title Description
L Standard line feed character
CRC Cyclical redundancy check number
Message Type 9
sequence# The message sequence number, the valid sequence number
range is 0001 to 9999
receiver# The receiver gateway that sent the message, valid digits are 01 to
99
line#
(Line/Group #)
The line number of the line in the receiver gateway that sent the
message. Valid digits are 00 to 99. The receiver uses Line 0
(zero) for internal messages.
account# The communicator's account number, four digits.
CCCCCCCC Channel 1 to 8
The heavier
outlined row in Table 112 and Table 113 indicates the meaning of the shaded digi
t in
the D6500 Byte Description,
SIA Mode Description Generic Examples, and Table 114.
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual | Appendix F: Format ID(by
Message Type)–D6600 only
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
153
Table 114 shows examples for each format that the receiver supports. If Menu Item 2.5.17 = 1, the
following message type follows a specific format ID. If Menu Item 2.5.17 = 0, the output to automation
follows the standard message type ID.
Table 114: Message Examples
# Communication
Format
Mode Message
Acron Super Fast SIA:
D6500:
[10]146D18
9
00120101[#123|45678912][13]
[10]
9
011sssss12345678912[14]
Ademco Contact-ID SIA:
D6500:
[10]6A721C
a
00140101[#7401|18113003003][13]
[10]
a
011s740118113003003[14]
Ademco 4-1 Express SIA:
D6500:
[10]1FDC12
b
00150101[#1234|7][13]
[10]
b
011ssssss1234sAsss7[14]
Ademco 4-2 Express SIA:
D6500:
[10]9D2F13
c
00160101[#1234|55][13]
[10]
c
011ssssss1234sAss55[14]
Ademco
High
Speed/
Scancom
4-8-1 SIA:
D6500:
[10]C3651C
f
00180101[#1234|5678s9123s4][13]
[10]
f
011ss1234s5678s9123s4[14]
5-8-1 SIA:
D6500:
[10]69311D
f
00190101[#12345|6789s1234s5][13]
[10]
f
011s12345s6789s1234s5[14]
6-8-1 SIA:
D6500:
[10]42CD1E
f
00200101[#123456|7891s2345s6][13]
[10]
f
011123456s7891s2345s6[14]
ADT SIA SIA:
D6500:
[10]0BB619
G
00480101[#0308|Nid39OP2][13]
[10]
G
011[#0308|Nid39OP2][14]
Caller ID SIA:
D6500:
[10]257B1C
e
00570101[#0000|&9569688558][13]
[10]
e
011ssssss9569688558[14]
CFSK SIA:
D6500:
[10]BDAE17
i
00270101[#123ABC|0108][13]
[10]
i
011ssss123ABC0108ss[14]
DSC/Sur-Gard 4-3 SIA:
D6500:
[10]99EA17
d
00170101[#1234|NBA567][13]
[10]
d
011ssssss1234sAs567[14]
DTMF 4-1 SIA:
D6500:
[10]02A215
t
00400101[#1234|NBA5][13]
[10]
t
011ssssss1234sAsss5[14]
DTMF 4-2 SIA:
D6500:
[10]40EC16
u
00410101[#1234|NBA56][13]
[10]
u
011ssssss1234sAss56[14]
FBI Super Fast SIA:
D6500:
[10]921C15
F
00470101[#1234|5678][13]
[10]
F
011ssssss12345678ss[14]
Internal Message SIA:
D500:
[10]5FB90E
Z
00090124[NLT][13]
[10]
Z
010sssssssssssXss51[14]
ITI SIA:
D6500:
[10]ABFB19
I
00490101[#MMTST|g090A31][13]
[10]
I
011sssMvMTSTg090A31[14]
Link Test SIA:
D6500:
[10]2D270B
[9]
00920100[][13]
[10]
1
010sssssssssss@ssss[14]
Pulse 3-1 SIA:
D6500:
[10]827316
p
00340101[#s123|NBA12][13]
[10]
p
011sssssss123sAss12[14]
3-1E SIA:
D6500:
[10]16A815
p
00330101[#s706|NBA1][13]
[10]
p
011sssssss706sAsss1[14]
Pulse 3-2 SIA:
D6500:
[10]C37A16
q
00350101[#s706|NBA61][13]
[10]
q
011sssssss706sAss61[14]
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix F: Format ID(by
Message Type)–D6600 only
154
Table 115
:
Message Examples (continued)
Pulse 4-1 SIA:
D6500:
[10]608F15
r
00360101[#7066|NBA0][13]
[10]
r
011ssssss7066sAsss0[14]
4-1E SIA:
D6500:
[10]5ACC16
r
00370101[#1234|NBA12][13]
[10]
r
011ssssss1234sAss12[14]
Pulse 4-2 SIA:
D6500:
[10]8A7F16
s
00380101[#7066|NBA02][13]
[10]
s
011ssssss7066sAss02[14]
4-2E SIA:
D6500:
[10]185317
s
00390101[#1234|NBA566][13]
[10]
s
011ssssss1234sAs566[14]
Modem4/ModemIIIa²
/ModemIId
SIA:
D6500:
[10]8B9C1A
A
00440101[#1234|Nti1158LF][13]
[10]
A
011ssssss1234s*ssss[14]
Modem II SIA:
D6500:
[10]942B15
B
00450101[#1481|NUR2][13]
[10]
B
011ssssss1481sRsss2[14]
BFSK SIA:
D6500:
[10]FFF115
C
00460101[#s2B2|NBA3][13]
[10]
C
011sssssss2B2sAsss3[14]
Robofon SIA:
D6500:
[10]2D3B15
j
00280101[#123ABC|12][13]
[10]
j
011ssss123ABC12ssss[14]
Scancom 4-16-1 SIA:
D6500:
[10]D47C26
g
00210101[#1234|2222s2222s2222s2222s2][13]
[10]
g
011ss1234s2222s2222s2222s2222s2[14]
5-16-1 SIA:
D6500:
[10]91FC27
g
00220101[#12345|2222s2222s2222s2222s2][13
]
[10]
g
011s12345s2222s2222s2222s2222s2[14]
6-16-1 SIA:
D6500:
[10]13EA28
g
00230101[#123456|2222s2222s2222s2222s2][1
3]
[10]
g
011123456s2222s2222s2222s2222s2[14]
Scancom 4-24-1 SIA:
D6500:
[10]091930
h
00240101[#1234|2222s2222s2222s2222s2222s
2222s2][13]
[10]
h
011ss1234s2222s2222s2222s2222s2222s2222s2[14]
5-24-1 SIA:
D6500:
[10]D4ED31
h
00250101[#12345|2222s2222s2222s2222s2222
s2222s2][13]
[10]
h
011s12345s2222s2222s2222s2222s2222s2222s2[14]
6-24-1 SIA:
D6500:
[10]B51132
h
00260101[#123452|2222s2222s2222s2222s222
2s2222s2][13]
[10]
h
011123452s2222s2222s2222s2222s2222s2222s2[14]
Seriee DTMF SIA:
D6500:
[10]61F619
K
00900101[#7080|*#000***][13]
[10]
K
01113*7080*#000***[14]
Seriee FSK SIA:
D6500:
[10]352815
k
00290101[#123AB|101][13]
[10]
k
011ssssss123ABs1s01[14]
Sescoa Super
Speed
SIA:
D6500:
[10]787215
7
00110101[#0258|A56s][13]
[10]
7
011ssssss0258sA56ss[14]
SIA SIA:
D6500:
[10]86E416
[9]
00500101[#7080|NBA01][13]
[10]
S
011[#7080|NBA01][14]
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual | Appendix F: Format ID(by
Message Type)–D6600 only
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
155
Table 116
:
Message Examples (continued)
Silent
Knight
FSK 0 SIA:
D6500:
[10]3E6714
E
01040101[#4444|NOP][13]
[10]
E
011ssssss4444sOssss[13]
FSK80 SIA:
D6500:
[10]3E6714
E
01040101[#4444|NBA13][13]
[10]
E
011ssssss4444sAss08[14]
Silent
Knight
FSK1 SIA:
D6500:
[10]DC7115
m
00300101[#7654|sA01][13]
[10]
m
011s7654"sA01[14]
FSK2 SIA:
D6500:
[10]8AAC17
m
00310101[#123456|HA00][13]
[10]
m
011s123456"HA00[14]
Telim SIA:
D6500:
[10]C2EB26
n
00320101[#000257|1090000000110000000][13
]
[10]
n
011s000257s1s090000000110000000[14]
Varitech
FSK 4-
1,Varitec
h FSK 4-
2
VFSK 4-
2
SIA:
D6500:
[10]8EFA16
v
00430101[#1234|NBA98][13]
[10]
v
011ssssss1234sAss98[14]
VFSK 4-
1
SIA:
D6500:
[10]802515
v
00420101[#1234|NBA9][13]
[10]
v
011ssssss1234sAsss9[14]
VONK SIA:
D6500:
[10]802515
V
00450101[#55|123456789ABCDEFG][13]
[10]
V
01155123456789ABCDEFG [14]
X-SIA SIA:
D6500:
[10]86E416
[9]
01430101[#1234|6011100*’THISISATEST’12][
13]
[10]
S
011[#1234|6011100*’THISISATEST’12][14]
Conettix D6600/D6100IPv6/D6100i
|
Computer Interface Manual | Appendix G: SIA Report Codes
156
Appendix G: ADT SIA Report Codes
Table 117
:
ADT SIA Report Codes
Description ADT SIA
System Event
System Reset
Reset Memory
AC Fail AA
AC Restore AH
AC Fail 4 hour AT
AC Fail 4 hour Restore AJ
TELCO Line Trouble (Line 1 or Line 2) LT
TELCO Line Trouble Restore (Line 1 or Line 2) LR
Low Battery System YT
Low Battery Restore YR
Change Date
Description ADT SIA
Expansion Module
Interactive Keypad Tamper IA
Interactive Keypad Trouble – Supervision IT
Interactive Keypad Restore IR
Cardreader Alarm DA
Cardreader Trouble DT
Cardreader Restore DR
Point Gateway Tamper Alarm EA
Point Gateway Tamper – Supervision ET
Point Gateway Restore ER
Printer Tamper Alarm PA
Printer Trouble – Supervision PT
Printer Restore PR
Description ADT SIA
Downloading
DLL Aborted RA
Start DLL RB
DLL Interrupted RI
End DLL Altered RS
DLL Comm Fail RT
End DLL Not Altered RG
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix G: SIA Report Codes
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
157
Description ADT SIA
Burglary
BA Burg Alarm BA
BA PT Bypass BB
BA Restore BR
BA Trouble BT
BA PT Unbypass BU
Description ADT SIA
Open/Close
BA Auto Close CA
BA Auto Close with Bypass – within Group CB
BA Trouble Closing (closed with burg during
exit)
CF
BA Bypass Closing – within Group CG
BA Closing
CL
BA Auto Open OA
BA Irregular Opening OI
BA Opening OP
BA No Close – Sched close time expire OT
BA Exit Fail, exit error (user) EF
Description ADT SIA
Fire
Fire Alarm FA
Fire Trouble FT
Fire Restore FR
Fire Alarm Silence
Fire Point Bypass FB
Fire Alarm Point Unbypass FU
Supervisory Alarm SS
Supervisory Trouble ST
Supervisory Restore SR
Supervisory Point Bypass SB
Supervisory Unbypass SU
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix G: SIA Report Codes
158
Description ADT SIA
Panic
Hold-Up Alarm HA
Hold-Up Point Trouble (sensor trouble) HT
Hold-Up Restore HR
Hold-Up Point Bypass HB
Hold-Up Point Unbypass HU
Hostage Alarm (Duress) HH
Hostage Restore HR
Medical Alarm MA
Medical Restore MR
Description ADT SIA
Scheduling
BA Change Close Time
Change Auto On Level
Change Close Time Print Only
Description ADT SIA
Other
Supervised Bell Alarm UA
Supervised Bell Trouble UT
Supervised Bell Restore UR
Remote Power Supply Alarm UA
Remote Power Supply Trouble UT
Remote Power Supply Restore UR
Keyswitch Alarm UA
Keyswitch Trouble UT
Keyswitch Restore UR
Janitor Keyswitch Alarm UA
Janitor Keyswitch Trouble UT
Janitor Keyswitch Restore UR
Janitor On Premises (user on premises) JI
Janitor Off Premises (user on premises restore) JO
ADT On Premises SI
ADT Off Premises SO
Tamper Alarm TA
Tamper Restore TR
VVS Bypass VB
VVS Unbypass VU
Keypad Active AC
Audible Walk Test AT
Change Code
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix G: SIA Report Codes
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
159
Description ADT SIA
Change Early Open
Change Holiday
Change Latest Close (sent to CMC only if
Closing sched is altered)
CL
Change Open Time, schedule change
Change Time, time/date reset
Description ADT SIA
System Test
Walk Test, walk test mode WT
Bell Test BT
Hold-Up Test Alarm (sent to printer)
Hold-Up Test Restore (sent to printer)
Start FA Test, fire test FM
End FA Test, fire test restore FK
Start BA Test BN
End BA Test BK
Start Supervision Test SM
End Supervision Test SK
Start Hold-Up Test HM
End Hold-Up Test HK
Long Print
Short Print
Supervisory Test Print, manual trigger test
report
ST
Supervisory Test Restore ST
Fire Test Alarm Print, fire test FA
Fire Test Restore Print, fire test restore FR
BA Point Test Print BT
BA Point Test Restore Print BT
Hold-Up Suspicion Print HS
Keypad No Access NA
Untyped Bypass UB
Untyped Unbypass UU
Tamper Bypass TB
Tamper Unbypass TU
BA Diagnostics BW
FA Diagnostics FW
Output Trouble UT
Output Restore UR
Point Trouble UT
Point Alarm, general alarm UA
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix G: SIA Report Codes
160
Description ADT SIA
Point Restore, general alarm restore UR
Untyped Diagnostics UW
BA Weak Battery BL
FA Weak Battery FL
HA Weak Battery HL
SA Weak Battery SL
UA Weak Battery UL
Description ADT SIA
Access
2 Man 2nd Person
Keypad Lockout
Cardreader Irregular Access DI
Manual PB Access, remote arm/disarm opening MP
Access Denied Code Known, access denied DK
Access Denied Code Unknown, access denied DD
Description ADT SIA
Dialer Test Report
Dialer Test Report RP1
Dialer Test Report with System Trouble RP5
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix H: RB2000 (D6600
Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
161
Appendix H: RB2000 Messages (D6600 Only)
For lines that are grouped, Gxx appears instead of Lxx.
Table 118
:
RB2000 Messages
# Event Device/
Mode
Display
1.
Mains Power
Failure
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 32
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 34
2.
Mains Power
Return
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 B2
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 B4
3.
Battery
Broken
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 33
4.
RF Y Battery
Empty
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 33
5.
RF Y Battery
Full
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 B7
6.
HTS Battery
Empty
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 37
7.
HTS Battery
Full
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 B7
8.
Sensor
Battery
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 38
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 B8
9.
Technical
Alarm
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 41
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix H: RB2000 (D6600
Only)
162
Table 118
:
RB2000 Messages (continued)
# Event Device/
Mode
Display
10.
Technical Alarm
Confirmed
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 C1
11.
PRO 100
Transmitter
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 42
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 C2
12.
PRO 100 Pull
Cord
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 43
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 C3
13.
PRO 100
Situation Alarm
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 44
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 C4
14.
Pull Switch
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 46
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 C6
15.
Confirmation at
Local Unit
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 47
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 C7
16.
Hand
Transmitter/
Button
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 48
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 C8
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix H: RB2000 (D6600
Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
163
Table 118: RB2000 Messages (continued)
# Event Device/
Mode
Display
17.
Emergency
Button
SIA
<header>[<VDS message>]<CR>
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 C9
18.
External Input
X
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 01 XX 49
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 01 XX C9
19. RF Y - Alarm
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 49
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY C9
20.
Activity
Monitor
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 4A
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 CA
21.
Fire Alarm
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 4B
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 CB
22.
Fire Alarm
from Ext Input
X
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 01 XX 4B
23.
Intrusion
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 4C
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 CC
24.
Intrusion from
Ext Input X
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 01 XX 4C
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix H: RB2000 (D6600
Only)
164
Table 118: RB2000 Messages (continued)
# Event Device/
Mode
Display
25.
Intrusion from
RF X
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 01 XX 4C
26. External Alarm
Button
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 4D
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 CD
27. Protocol Error
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 4E
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 CE
28.
RF Y Error
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 51
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY D1
29.
RF Y
Maintenance
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 52
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY D2
30.
RF Y Start
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 53
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY D3
31.
RF Y
Disassembly
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 54
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY D4
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix H: RB2000 (D6600
Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
165
Table 118: RB2000 Messages (continued)
# Event Device/
Mode
Display
32.
RF Y Test OK
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 55
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY D5
33. RF Y Test NOK
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 56
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY D6
34. RF Y Plug
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 57
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY D7
35. RF Y Test
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 58
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY D8
36.
Outgoing Call
HNZ
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 60
37.
Resetting
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 61
38. Personal Sign
In
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx+++ 0E 00 00 00 62
39.
Personal Sign
Out
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 63
40. Door Alarm
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 64
41.
Bed Alarm
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 65
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix H: RB2000 (D6600
Only)
166
Table 118: RB2000 Messages (continued)
# Event Device/
Mode
Display
42.
Medical Remind
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 66
43. Message 1
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 67
44.
Message 2
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 68
45. Message 3
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 69
46.
Sign Out
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 71
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 78
47.
Sign In
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 F1
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 F8
48. Service Call
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 72
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 F2
49. Repeated Call
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 73
50.
Confirmation
Call
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 F3
51.
Pager Call
Activated
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 74
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix H: RB2000 (D6600
Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
167
Table 118: RB2000 Messages (continued)
# Event Device/
Mode
Display
52.
Full Duplex
Communication
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 75
53. Test Call
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 79
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 F9
54.
RF Jamming
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 7A
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 FA
55. RF Y No Alive
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY 7B
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 02 XY FB
56.
Call for
Assistance
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 7C
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 FC
57.
Registration
Call
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 7D
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 FD
58.
Manual Test
Call
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 7E
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 00 00 FE
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix H: RB2000 (D6600
Only)
168
Table 118: RB2000 Messages (continued)
# Event Device/
Mode
Display
59.
Release Code XX
XX
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 00 XX XX FF
60.
Error Message
HNZ2001
SIA
<header>[<VDS message>]<CR>
Printer MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 01 YY XX 42
61.
Error Ended
HNZ2001
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 0E 01 YY XX C2
62.
Status: Mains
Power Failure
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ A2 00 00 00 32
63.
Status: Battery
Broken
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ A2 00 00 00 33
Status:
Battery Empty
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ A2 00 00 00 37
64.
Status:
Signed Out
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ A2 00 00 00 71
65.
Remote
Programming
Request
SIA
<header>[<VDS message>]<CR>
Printer
MM/DD HH:MM Lxx RB2 ACCT xxxxxxxxxxxx
+++ 10 00 xx yy 70
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
169
Appendix I: SafeCom Messages (D6600 Only)
In D6500 Mode, the line number sent to the computer is only one digit. Refer to Table 119.
If Virtual Line is 00, it is disabled. The D6600 reports the actual D6600 line card number.
Table 119: Virtual Line Conversion Table
Line# Converted to Line# Converted to
D6500 SIA D6500 SIA
01 1 01 13 J 13
02 2 02 14 K 14
03 3 03 15 L 15
04 4 04 16 M 16
05 5 05 17 N 17
06 6 06 18 O 18
07 7 07 19 P 19
08 8 08 1A Q 1a
09 9 09 1B R 1b
0A A 0a 1C S 1c
0B B 0b 1D T 1d
0C C 0c 1E U 1e
0D D 0d 1F V 1f
0E E 0e 20 W 20
0F F 0f 21 X 21
10 G 10 22 Y 22
11 H 11 23 Y 22
12 I 12 FF Y 22
For D6500 Mode, any Virtual Line greater than or equal to 22 is reported as Y.
For SIA Mode, any Virtual Line greater than or equal to 22 is reported as 22.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
170
Table 120: SafeCom Messages - Line Card or Account Signals
# Event Device/
Mode
Display Notes on Auto
Output
1. System Startup 6500
SIA1
hprrl00000100t
<header>[#0000|0100]
Printer2
dd/dd tt:tt Sxx SYSTEM STARTUP
2. Radio Restart 6500
SIA
1
hprrl0aaa0100t
<header>[#0aaa|0100]
Printer2
dd/dd tt:tt Sxx aaa>restart
3. Battery Trouble 6500
SIA1
hprrl0aaa0103t
<header>[#0aaa|0103]
Printer2
dd/dd tt:tt Sxx aaa>BATTERY TROUBLE
4.
Battery Restoral
6500
SIA1
hprrl0aaa0104t
<header>[#0aaa|0104]
Printer2
dd/dd tt:tt Sxx aaa battery restore
5.
Aux. Fault
6500
SIA1
hprrl0aaa0103t
<header>[#0aaa|0103]
Valid only for
DP1000, PID-FE10
Printer2
dd/dd tt:tt Sxx aaa>AUX FAULT
6.
Aux. Restoral
6500
SIA1
hprrl0aaa0104t
<header>[#0aaa|0104]
Valid only for
DP1000, PID-FE10
Printer2
dd/dd tt:tt Sxx aaa aux restore
7. AC Trouble 6500
SIA
1
hprrl0aaa0105t
<header>[#0aaa|0105]
Printer2
dd/dd tt:tt Sxx aaa>AC TROUBLE
8. AC Restoral 6500
SIA
1
hprrl0aaa0106t
<header>[#0aaa|0106]
Printer2
dd/dd tt:tt Sxx aaa ac restore
9.
External Power Fail
6500
SIA1
hprrl0aaa0105t
<header>[#0aaa|0105]
SC3100 PID-0330
or 0340, SC2104
PID-0430 or 0440
Printer2
dd/dd tt:tt Sxx aaa>POWER TROUBLE
10.
External Power
Restoral
6500
SIA1
hprrl0aaa0106t
<header>[#0aaa|0106]
SC3100 PID-0330
or 0340, SC2104
PID-0430 or 0440
Printer2
dd/dd tt:tt Sxx aaa power restore
11.
Remote Com Restore
6500
SIA1
hprrl0aaa0110t
<header>[#0aaa|0110]
This indicates
that the radio
could not report
a previous
message (until
just now).
Printer
2
dd/dd tt:tt Sxx aaa>REMOTE COM RESTORE
12. RF Trouble 6500
SIA
1
hprrl0aaa0111t
<header>[#0aaa|0111]
Printer2
dd/dd tt:tt Sxx aaa>RF TROUBLE
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
171
Table 120: SafeCom Messages - Line Card or Account Signals
# Event Device/
Mode
Display Notes on Auto
Output
13.
RF Restore
6500
SIA1
hprrl0aaa0112t
<header>[#0aaa|0112]
Printer2
dd/dd tt:tt Sxx aaa rf restore
14. System RF Channel
Busy
6500
SIA1
hprrl00000111t
<header>[#0000|0111]
Printer2
dd/dd tt:tt Sxx CHn>CHANNEL BUSY
15. System RF Channel
Clear
6500
SIA
1
hprrl00000112t
<header>[#0000|0112]
Printer
2
dd/dd tt:tt Sxx CHn channel clear
16. Channel Busy 6500
SIA1
hprrl0aaa0121t
<header>[#0aaa|0121]
Printer2
dd/dd tt:tt Sxx aaa>CHANNEL BUSY
17.
Channel Clear
6500
SIA1
hprrl0aaa0122t
<header>[#0aaa|0122]
Printer2
dd/dd tt:tt Sxx aaa channel clear
18.
Dialer Error
6500
SIA1
hprrl0aaa022000t
<header>[#0aaa|022000]
Dialer error is
reported to
automation in a
format similar
to 3-1 event.
Printer2
dd/dd tt:tt Sxx aaa>DIALER ERROR e
“e” is error code. See below for
details:
0 -unknown error
1 -dialing error
2 -handshake error
3 -noise error
4 -unexpected
disconnect
5 -validation
error
6 -priority error
19. Tamper Fault 6500
SIA1
hprrl0aaa03200301t
<header>[#0aaa|03200301]
Printer2
dd/dd tt:tt Sxx aaa>TAMPER FAULT
20.
Tamper Restore
6500
SIA1
hprrl0aaa03200101t
<header>[#0aaa|03200101]
Printer2
dd/dd tt:tt Sxx aaa tamper restore
21.
Phone Line Fail
6500
SIA1
hprrl0aaa03200301t
<header>[#0aaa|03200301]
Valid only for
SC2104
Printer2
dd/dd tt:tt Sxx aaa>TELCO TROUBLE
22.
Phone Line Restore
6500
SIA1
hprrl0aaa03200101t
<header>[#0aaa|03200101]
Valid only for
SC2104
Printer2
dd/dd tt:tt Sxx aaa telco restore
23. Aux. Power Fail 6500
SIA
1
hprrl0aaa03200301t
<header>[#0aaa|03200301]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa>AUX POWER TROUBLE
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
172
Table 120: SafeCom Messages - Line Card or Account Signals
# Event Device/
Mode
Display Notes on Auto
Output
24.
Aux. Power Restore
6500
SIA1
hprrl0aaa03200101t
<header>[#0aaa|03200101]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa aux power restore
25.
Fire Panic
6500
SIA1
hprrl0aaa03200302t
<header>[#0aaa|03200302]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa>FIRE PANIC
26. Burglary Panic 6500
SIA1
hprrl0aaa03200303t
<header>[#0aaa|03200303]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa>BURGLARY PANIC
27. Silent/Medical
Panic
6500
SIA1
hprrl0aaa03200304t
<header>[#0aaa|03200304]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa>SILENT/MEDICAL PANIC
28. Operator Evacuation
Bell
6500
SIA
1
hprrl0aaa03200305t
<header>[#0aaa|03200305]
Valid only for
SC5000
Printer
2
dd/dd tt:tt Sxx aaa>OPERATOR EVACUATION
29. Input Normal 6500
SIA1
hprrl0aaa0320011it
<header>[#0aaa|0320011i]
Printer2
dd/dd tt:tt Sxx aaa normal: input i
30.
Input Open
6500
SIA1
hprrl0aaa0320021it
<header>[#0aaa|0320021i]
Printer2
dd/dd tt:tt Sxx aaa>OPENED: input i
31.
Input Short
6500
SIA1
hprrl0aaa0320031it
<header>[#0aaa|0320031i]
Printer2
dd/dd tt:tt Sxx aaa>SHORTED: input i
32. Input Bypass 6500
SIA1
hprrl0aaa0320041it
<header>[#0aaa|0320041i]
Printer2
dd/dd tt:tt Sxx aaa bypass: input i
33. Input Unbypass 6500
SIA
1
hprrl0aaa0320051it
<header>[#0aaa|0320051i]
Printer
2
dd/dd tt:tt Sxx aaa unbypass: input i
34. Zone Restore 6500
SIA1
hprrl0aaa0320011zt
<header>[#0aaa|0320011z]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa restore: zone z
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
173
Table 120: SafeCom Messages - Line Card or Account Signals
# Event Device/
Mode
Display Notes on Auto
Output
35.
Zone Trouble
6500
SIA1
hprrl0aaa0320021zt
<header>[#0aaa|0320021z]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa>TROUBLE: zone z
36. Fire Alarm 6500
SIA1
hprrl0aaa0320031zt
<header>[#0aaa|0320031z]
Valid only for
SC5000,
depending on the
zone type
Printer
2
dd/dd tt:tt Sxx aaa>FIRE: zone z
37. Silent Alarm 6500
SIA
1
hprrl0aaa0320031zt
<header>[#0aaa|0320031z]
Valid only for
SC5000,
depending on the
zone type
Printer2 dd/dd tt:tt Sxx aaa>SILENT: zone z
38.
Burglary Alarm
6500
SIA1
hprrl0aaa0320031zt
<header>[#0aaa|0320031z]
Valid only for
SC5000,
depending on the
zone type
Printer2
dd/dd tt:tt Sxx aaa>BURGLARY: zone z
39.
Zone Bypass
6500
SIA1
hprrl0aaa0320041zt
<header>[#0aaa|0320041z]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa BYPASS: zone z
40.
Zone Unbypass
6500
SIA1
hprrl0aaa0320051zt
<header>[#0aaa|0320051z]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa unbypass: zone z
41. Operator Armed 6500
SIA
1
hprrl0aaa03200600t
<header>[#0aaa|03200600]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa OPERATOR ARMED
42. User Armed 6500
SIA1
hprrl0aaa0320060ut
<header>[#0aaa|0320060u]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa ARMED: user u
43.
Operator Disarmed
6500
SIA1
hprrl0aaa03200700t
<header>[#0aaa|03200700]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa>OPERATOR DISARMED
44.
User Disarmed
6500
SIA1
hprrl0aaa0320070ut
<header>[#0aaa|0320070u]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa>DISARMED: user u
45.
User Duress
6500
SIA1
hprrl0aaa0320080ut
<header>[#0aaa|0320080u]
Valid only for
SC5000
Printer2
dd/dd tt:tt Sxx aaa>DURESS: user u
6500
SIA1
hprrl0aaa03200900t
<header>[#0aaa|03200900]
Printer2
dd/dd tt:tt Sxx aaa OPERATOR CANCEL
6500
SIA1
hprrl0aaa0320090ut
<header>[#0aaa|0320090u]
Printer2
dd/dd tt:tt Sxx aaa CANCEL: user u
1 - Refer to Table Explanation of Automation Output Items (within Message Body only).
2 - Refer to
Table
Explanation of Printer Output
Items
.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
174
Table 121: SafeCom Messages - Intercepted Control Panel Signals
# Event Device/
Mode
Display
1.
3-1 Unexpanded
6500
SIA1
hprrlaaaa0220e0t
<header>[#aaaa|0220e0]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) e XXXXXXXX
2.
3-1 Expanded, 4-
2, BFSK, or
Ademco 4-2
Express
6500
SIA1
hprrlaaaa0220ezt
<header>[#aaaa|0220ez]
Printer
2
dd/dd tt:tt Sxx aaa>(aaaa) ez XXXXXXXX
3.
FBI SuperFast 6500
SIA
1
hprrlaaaa0321ezzet
<header>[#aaaa|0321ezze]
Printer2 dd/dd tt:tt Sxx aaa>(aaaa) ee zzz
>>>>>>>>>>>>>>> aaa>XXXXXXXX
4.
Ademco 4-9 High
Speed
6500
SIA1
hprrlaaaa0620eeeeeeeet0t
<header>[#aaaa|0620eeeeeeeet0]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) eeee eeee t
5.
Ademco Contact ID 6500
SIA
1
hprrlaaaa072018qeeeggccc0t
<header>[#aaaa|072018qeeeggccc0]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) qeee gg czzz
>>>>>>>>>>>>>>> aaa>qeeeTTTTTTTTXXXXXXXX
6.
SIA DCS 6500
SIA1
hprrlaaaa0f20ffeeeezzzzzz0000000000000000t
<header>[#aaaa|0f20ffeeeezzzzzz0000000000000000]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) feezzz
7.
Modem II - PID
0x50
6500
SIA1
hprrlaaaa03231ezzt
<header>[#aaaa|03231ezz]
Printer
2
dd/dd tt:tt Sxx aaa>(aaaa) ezz
>>>>>>>>>>>>>>> aaa>XXXXXXXX
8.
Modem II - PID
0x72, Unexpanded,
without Status
Report
6500
SIA1
hprrlaaaa0322ez00t
<header>[#aaaa|0322ez00]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) e z00
>>>>>>>>>>>>>>> aaa>XXXXXXXX
9.
Modem II - PID
0x72, Unexpanded,
with Status
Report
6500
SIA1
hprrlaaaa0322ez00t
<header>[#aaaa|0322ez00]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) e z00
>>>>>>>>>>>>>>> aaa>STATUS:XXXXXXXX
10.
Modem II - PID
0x72, Expanded,
without Status
Report
6500
SIA1
hprrlaaaa0322ezzzt
<header>[#aaaa|0322ezxx]
Printer
2
dd/dd tt:tt Sxx aaa>(aaaa) e zzz
>>>>>>>>>>>>>>> aaa>XXXXXXXX
11.
Modem II - PID
0x72, Unexpanded,
without Status
Report
6500
SIA1
hprrlaaaa0322ez00t
<header>[#aaaa|0322ez00]
Printer
2
dd/dd tt:tt Sxx aaa>(aaaa) e z00
>>>>>>>>>>>>>>> aaa>XXXXXXXX
12.
Modem II - PID
0x72, Unexpanded,
with Status
Report
6500
SIA1
hprrlaaaa0322ez00t
<header>[#aaaa|0322ez00]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) e z00
>>>>>>>>>>>>>>> aaa>STATUS:XXXXXXXX
Table 121: SafeCom Messages - Intercepted Control Panel Signals
# Event Device/
Mode
Display
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
175
13.
Modem II - PID
0x72, Expanded,
without Status
Report
6500
SIA
1
hprrlaaaa0322ezzzt
<header>[#aaaa|0322ezxx]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) e zzz
>>>>>>>>>>>>>>> aaa>XXXXXXXX
14.
Modem II - PID
0x72, Expanded,
with Status
Report
6500
SIA1
hprrlaaaa0322ezzzt
<header>[#aaaa|0322ezzz]
Printer
2
dd/dd tt:tt Sxx aaa>(aaaa) e zxx
>>>>>>>>>>>>>>> aaa>STATUS:XXXXXXXX
15.
Modem II - PID
0xBB
6500
SIA1, 3
hprrlaaaa0621aaeezzz000t
<header>[#aaaa|0621aaeezzz000]
Printer2 dd/dd tt:tt Sxx aaa>(aaaa) aa ee zzz
>>>>>>>>>>>>>>> aaa>XXXXXXXX
16.
Modem IIe/IIIa2 6500
SIA1, 3
hprrlaaaa0621aaeezzz000t
<header>[#aaaa|0621aaeezzz000]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) aa ee zzz
>>>>>>>>>>>>>>> aaa>XXXXXXXX
17.
Modem IIe/IIIa2
with 4-Digit Zone
6500
SIA
1, 3
hprrlaaaa0622aaeezzzz00t
<header>[#aaaa|0622aaeezzzz00]
Printer2
dd/dd tt:tt Sxx aaa>(aaaa) aa ee zzzz
>>>>>>>>>>>>>>> aaa>XXXXXXXX
1 - Refer to Table Explanation of Automation Output Items (within Message Body only).
2 - Refer to Table Explanation of Printer Output Items.
3 - Refer to
Table
Supported Event Codes.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
176
Table 122: Explanation of Automation Output Items (within Message Body only)
Character Meaning
aaa
Radio account number (in hex), range: 001 to 9C4.
i
Input number, range: 1 to 8.
z
Zone number, range: 1 to 8.
u
User number, range: 1 to 8.
aaaa
Control panel account number.
e
ee
eee
eeee
Event code.
eeeeeeee
Event codes for Zone 1 thru 8 (Ademco 4-9 High Speed only).
t
Type code.
z
zz
zzz
zzzz
zzzzzz
Zone (or contact) code.
gg
Group number.
ff
Function code.
aa
Area code.
q Event qualifier (1: new event or opening, 3: restoral or closing, 6: previous message)
(Ademco Contact ID only).
ccc
Hex contact or user code.
Table 123: Explanation of Printer Output Items
Character Meaning
dd/dd
Month and day (MM/DD).
tt:tt
Time of message receipt (HH:MM).
S
SafeCom
xx
Line card number, range: 01 to 08.
n
Radio channel number, range: 1 to 8.
aaa
Radio account number (in hex), range: 001 to 9C4.
>
If exists, the signal is in high priority.
e
Error code (for dialer error signals only), range: 0 to 6.
i
Input number, range: 1 to 8.
z
Zone number, range: 1 to 8.
u
User number, range: 1 to 8.
(aaaa)
Control panel account number.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
177
Table 124: Explanation of Printer Output Items (continued)
Character Meaning
e
ee
eee
Event code.
eeee eeee
Event codes for Zone 1 thru 8 (Ademco 4-9 High Speed only).
t
Type code.
z
zz
zzz
Zone (or contact) code.
gg
Group number.
f
Function code.
aa
Area code.
XXXXXXXX Translation text embedded (only when valid digital XLAT is selected for the radio
account).
TTTTTTTT
Event type can be NEW, RESTORE, or PRIOR (Ademco Contact ID only).
q Event qualifier (1: new event or opening, 3: restoral or closing, 6: previous message)
(Ademco Contact ID only).
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
178
Modem IIe Format
DD/MM HH:MM:SS NNN > (DDDD) AA EE ZZZ
Modem IIe messages are reported as AA EE ZZZ where AA is the area code, EE is the event code from
Table , and ZZZ is the zone or user code. For example: 01 EF 009 = area 1, alarm zone 9.
Table 125: Supported Event Codes
Code Meaning Code Meaning
FE
Listen in.
D4
Walk test point.
FD
Fail to call RAM.
D3
Extend close time by user ZZZ.
FC
Access granted.
D2
Cancel by user ZZZ.
FB
Duress user ZZZ.
D1
Status = open.
FA
User ZZZ alarm 7.
D0
Open by user ZZZ.
F9
User ZZZ alarm 9.
CF
Force close by user ZZZ.
F8
Point ZZZ bypass.
CE
Status = closed.
F7
Point ZZZ forced bypass.
CD
Close by user ZZZ.
F6
Status = alarm ZZZ.
CC
Test report.
F5
Status = trouble ZZZ.
CB
Log at threshold.
F4
Fire alarm ZZZ.
CA
Log overflow.
F3
Fire trouble ZZZ.
C9
Parameter change.
F2
Missing fire ZZZ.
C8
User code tamper by user ZZZ.
F1
Fire restore ZZZ.
C7
User code for user ZZZ added or changed.
F0
Fire trouble restore ZZZ.
C6
Sked ZZZ execute.
EF
Alarm ZZZ.
C5
Sked ZZZ changed.
EE
Trouble ZZZ.
C4
Date changed by user ZZZ.
ED
Restore ZZZ.
C3
Time changed by user ZZZ.
EC
Missing alarm ZZZ.
C2
User level set by user ZZZ.
EB
Missing trouble ZZZ.
C1
Valid programmer access by SDI device ZZZ.
EA Point ZZZ open. C0
Invalid programmer access by SDI device
ZZZ.
E9
Point ZZZ close.
BF
Valid RAM access on phone ZZZ.
E8
Extra point ZZZ.
BE
Invalid RAM access on phone ZZZ.
E7
Point bus trouble.
BD
Comm fail phone ZZZ.
E6
All points tested.
BC
Comm restore phone ZZZ.
E5
Restoral from alarm.
BB
Phone line ZZZ fail.
E4
Fire cancel.
BA
Phone line ZZZ restore.
E3
User code added.
B9
SDI device ZZZ trouble.
E2
Service start.
B8
SDI device ZZZ restore.
E1
Service end.
B7
Panel AC fail.
E0
Sensor ZZZ reset.
B6
Panel AC restore.
DF
Relay ZZZ set.
B5
Panel battery missing.
DE
Relay ZZZ reset.
B4
Panel battery low.
DD
Panel was forced armed.
B3
Panel battery restore.
DC
Create status report.
B2
Panel watchdog activated.
DB
Fire walk start by user ZZZ.
B1
Supervision (non-fire) ZZZ.
DA
Fire walk end.
B0
Remote reset.
D9
Walk test start by user ZZZ.
AF
ROM checksum failure.
D8
Walk test end.
AE
Memory failure.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix I: SafeCom Messages
(D6600 Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
179
Table 125: Supported Event Codes (continued)
Code Meaning Code Meaning
D7
Fail to open.
AD
Reboot
D6
Fail to close.
AC
Parameter checksum failure.
D5
Area watch by user ZZZ.
AB
Force perimeter instant by user ZZZ.
A6
Perimeter delayed by user ZZZ.
77
Status RF trans low battery point ZZZ.
A5
Passcode for user ZZZ deleted.
76
Status RF trans tamper alarm point ZZZ.
A4
Point bus restore.
75
Status RF trans tamper trouble point ZZZ.
A2
Transmitter point ZZZ battery low.
74
Sensor Trouble point ZZZ.
A1
Transmitter point ZZZ battery restore.
73
Sensor Trouble Restoral point ZZZ.
A0
Transmitter point ZZZ tamper restore.
72
Status fire missing point ZZZ.
9F
RF receiver trouble by SDI device ZZZ.
71
Status missing alarm point ZZZ.
9A
Extra RF point ZZZ.
70
Status missing trouble point ZZZ.
99
RF receiver restore by SDI device ZZZ.
6F
Status door forced point ZZZ.
98
RF interference by SDI device ZZZ.
6E
Door locked point ZZZ.
95
Transmitter point ZZZ tamper alarm.
6D
Missing fire supervision point ZZZ.
94
Transmitter point ZZZ tamper trouble.
6C
Missing supervision point ZZZ.
92
Equipment restoral by SDI device ZZZ.
6B
Status missing fire supervision point ZZZ.
91
Card assigned by user ZZZ.
6A
Status missing supervision point ZZZ.
90
Card deleted by user ZZZ.
69
Status door left open point ZZZ.
8F
Door cycled point ZZZ.
68
Failed to execute point ZZZ.
8E
Door unlocked point ZZZ.
5F
Analog service point ZZZ.
8D
Door locked point ZZZ.
5E
Analog restoral point ZZZ.
8C
No entry point ZZZ.
5D
Status analog service point ZZZ.
8B
Door left open point ZZZ.
5C
Test Failed path ZZZ.
8A
Door request point ZZZ.
5B
External device ZZZ.
89
Network failure path ZZZ.
5A
Custom Function ZZZ Executed.
88
Network restoral path ZZZ.
59
Low Temperature point ZZZ.
87
Network condition path ZZZ.
58
Low Temperature Restoral point ZZZ.
86
Equipment fail by SDI device ZZZ.
56
Unverified Event point ZZZ.
85
Status supervision point ZZZ.
55
Printer Status by SDI device ZZZ.
84
Fire Supervision Restoral point ZZZ.
54
Abort by user ZZZ.
83
Fire supervision point ZZZ.
53
Service Request.
82
Fire Supervision Trouble point ZZZ.
52
Output ZZZ State.
81 Fire Supervision Trouble Restoral point
ZZZ.
51 Output ZZZ State Restoral.
7F
Status fire supervision point ZZZ.
50
Bypass Restoral point ZZZ.
7E
Extra account path ZZZ.
4F
Alarm Silenced point ZZZ.
7D
Low signal strength path ZZZ.
4E
Alarm-Panel Substitution path ZZZ.
7C
RF receiver tamper by SDI device ZZZ.
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | J: Acknowledgement from
Automation Software to D6600/D6100i Receiver
180
Appendix J: Acknowledgement from Automation Software
to D6600/D6100IPv6 Receiver
If
a response other than a valid ACK or NAK is received, the receiver will transmit the last message
again.
It will continue to send the same message until a valid NAK or ACK is received.
1. Automation software to receiver, ACK.
The ACK from automation to receiver structure:
D6500 mode:
<0x06>
1 byte length and value is 0x06
SIA mode:
<LF><CRC><TAB><sequence#><receiver#><line>[]<CR>
LF Standard line feed character.
CRC Cyclical Redundancy Check number. (Calculated the same as in SIA DC-07)
TAB 09 hex
Sequence# The message sequence number of the message which to be acknowledged.
Receiver# The Receiver/Gateway number of the message to be acknowledged.
Line#(Line/Group #) The line/group number of the message to be acknowledged.
CR SIA trailer char, hex 0D
2. Automation software to receiver, NAK.
A NAK response from automation software will force the receiver to transmit the last message
again.
If 3 sequential NAKs are received for the same message, then the receiver will skip that
message and move to the next one.
The NAK from automation to receiver structure:
D6500 mode:
<0x15>
1 byte length and value is 0x15
SIA mode:
<LF><CRC><TAB><0000><receiver#><00>[]<CR>
LF Standard line feed character.
CRC Cyclical Redundancy Check number. (Calculated the same as in SIA DC-07)
TAB 09 hex
0000 The message sequence number, fixed 0000 for NAK.
Receiver# The Receiver/Gateway that receives the NAK message, valid digits are: 01-99 for D6600.
00 The line number, fixed 00 for NAK.
CR SIA trailer char, hex 0D
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix K SafeCom Messages
(D6600 Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
181
Appendix K: Cyclic Redundancy Check (CRC) Calculation
This CRC calculation section is referenced from the SIA DC-07 Computer Interface Standard. The
calculations for CRCs to the Bosch receivers are performed in the same manner.
CRCs are based on treating bit strings as representations of polynomials with coefficients of 0 and 1
only. An n-bit message is regarded as the coefficient list for a polynomial with n terms, ranging from
x ^ n-1 (high order bit) to x ^ 0 (low order bit).
For example, 110001 has 6 bits and thus represents a six term polynomial with coefficients
1, 1, 0, 0, 0, and 1: x ^ 5 + x ^ 4 + x ^ 0.
When the polynomial code method is employed, the sender and receiver must agree upon a generator
polynomial in advance. Both the high order and low order bits of the generator must be 1. The basic
idea is that the polynomial represented by the check summed message is divided by the generator. If
there is a remainder, then there has been a transmission error.
A 16 bit generator polynomial which has been widely implemented in data transfer protocols (such as
XMODEM CRC) is:
X ^ 16 + X ^ 15 + X ^ 2 + 1
This polynomial is called CRC-16. It catches all single and double errors, all errors with an odd
number of bits, all burst errors of 16 bits or less, 99.997% (1/32768 chance of failure) of 17 bit burst
errors, and 99.998% of 18 bit and longer burst errors (1/65536 chance of failure).
Polynomial arithmetic is done modulo 2, according to the rules of algebraic field theory, and therefore
should be performed with simple exclusive-ORs. Floating point is not required.
Calculation Routines
Two calculation routines are shown below, which each yield the same results. The second method of
CRC calculation greatly speeds CRC processing, but does require a 512 byte table.
Calculation Method 1
The following C Language program illustrates CRC calculation. It can be compiled as shown with many
compilers to demonstrate the CRC process.
/* THESE INCLUDES FOR MICROSOFT C 5.1 */
#include "stdio.h"
#include "stdlib.h"
/* FORWARDS */
unsigned int calcCRC(unsigned CRC, int ch);
void main(void)
{
unsigned int CRC; /* 16 BIT CRC RESULT */
int count, ch;
char *ptr, str[1024];
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix K: Cyclic Redundancy
Check (CRC) Calculation
182
CRC = 0;
count = 0;
printf("Input string for CRC calculation (<CR> to end): ");
ptr = gets(str);
while (ch = *ptr++)
{
CRC = calcCRC(CRC, ch); /* CALL CRC FUNCTION BELOW */
printf("\nChar %c [%2.2x] CRC is %4.4x, %2.2x count",
(ch > 32) ? ch : '.', ch, CRC, ++count);
}
}
unsigned int calcCRC(unsigned CRC, int ch)
{
int i;
unsigned char temp;
temp = (unsigned char)ch; /* TREAT LOCALLY AS UNSIGNED */
for (i = 0; i < 8; i++) /* DO 8 BITS */
{
temp ^= CRC & 1; /* PROCESS LSB */
CRC >>= 1; /* SHIFT RIGHT */
if (temp & 1)
CRC ^= 0xA001; /* IF LSB SET,ADD FEEDBACK */
temp >>= 1; /* GO TO NEXT BIT */
}
return CRC;
}
Calculation Method 2
Alternatively, the routine calcCRC could be replaced by the following, faster routine:
void calcCRC2(unsigned int CRC, int ch)
{
static unsigned int crcTable[]= {
/* DEFINE THE FIRST ORDER POLINOMIAL TABLE */
0x0000,0xc0c1,0xc181,0x0140,0xc301,0x03c0,0x0280,0xc241,
0xc601,0x06c0,0x0780,0xc741,0x0500,0xc5c1,0xc481,0x0440,
0xcc01,0x0cc0,0x0d80,0xcd41,0x0f00,0xcfc1,0xce81,0x0e40,
0x0a00,0xcac1,0xcb81,0x0b40,0xc901,0x09c0,0x0880,0xc841,
0xd801,0x18c0,0x1980,0xd941,0x1b00,0xdbc1,0xda81,0x1a40,
0x1e00,0xdec1,0xdf81,0x1f40,0xdd01,0x1dc0,0x1c80,0xdc41,
0x1400,0xd4c1,0xd581,0x1540,0xd701,0x17c0,0x1680,0xd641,
0xd201,0x12c0,0x1380,0xd341,0x1100,0xd1c1,0xd081,0x1040,
0xf001,0x30c0,0x3180,0xf141,0x3300,0xf3c1,0xf281,0x3240,
0x3600,0xf6c1,0xf781,0x3740,0xf501,0x35c0,0x3480,0xf441,
0x3c00,0xfcc1,0xfd81,0x3d40,0xff01,0x3fc0,0x3e80,0xfe41,
0xfa01,0x3ac0,0x3b80,0xfb41,0x3900,0xf9c1,0xf881,0x3840,
0x2800,0xe8c1,0xe981,0x2940,0xbe01,0x2bc0,0x2a80,0xea41,
0xee01,0x2ec0,0x2f80,0xef41,0x2d00,0xedc1,0xec81,0x2c40,
0xe401,0x24c0,0x2580,0xe541,0x2700,0xe7c1,0xe681,0x2640,
0x2200,0xe2c1,0xe381,0x2340,0xe101,0x21c0,0x2080,0xe041,
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix K SafeCom Messages
(D6600 Only)
.
Bosch Security Systems, Inc. | 2012.09 | 4998122703-05
183
0xa001,0x60c0,0x6180,0xa141,0x6300,0xa3c1,0xa281,0x6240,
0x6600,0xa6c1,0xa781,0x6740,0xa501,0x65c0,0x6480,0xa441,
0x6c00,0xacc1,0xad81,0x6d40,0xaf01,0x6fc0,0x6e80,0xae41,
0xaa01,0x6ac0,0x6b80,0xab41,0x6900,0xa9c1,0xa881,0x6840,
0x7800,0xb8c1,0xb981,0x7940,0xbb01,0x7bc0,0x7a80,0xba41,
0xbe01,0x7ec0,0x7f80,0xbf41,0x7d00,0xbdc1,0xbc81,0x7c40,
0xb401,0x74c0,0x7580,0xb541,0x7700,0xb7c1,0xb681,0x7640,
0x7200,0xb2c1,0xb381,0x7340,0xb101,0x71c0,0x7080,0xb041,
0x5000,0x90c1,0x9181,0x5140,0x9301,0x53c0,0x5280,0x9241,
0x9601,0x56c0,0x5780,0x9741,0x5500,0x95c1,0x9481,0x5440,
0x9c01,0x5cc0,0x5d80,0x9d41,0x5f00,0x9fc1,0x9e81,0x5e40,
0x5a00,0x9ac1,0x9b81,0x5b40,0x9901,0x59c0,0x5880,0x9841,
0x8801,0x48c0,0x4980,0x8941,0x4b00,0x8bc1,0x8a81,0x4a40,
0x4e00,0x8ec1,0x8f81,0x4f40,0x8d01,0x4dc0,0x4c80,0x8c41,
0x4400,0x84c1,0x8581,0x4540,0x8701,0x47c0,0x4680,0x8641,
0x8201,0x42c0,0x4380,0x8341,0x4100,0x81c1,0x8081,0x4040,
};
unsigned char temp;
temp = (unsigned char)ch;
return (CRC >> 8) ^ (crcTable[temp ^ (CRC & 0xff)]);
Conettix D6600/D6100IPv6/D6100i | Computer Interface Manual | Appendix K: Cyclic Redundancy
Check (CRC) Calculation
184
Appendix L: Network Automation
Overview
Network automation is a function of the receiver that allows the receiver to send the information from
the receiver to the automation software using a network connection instead of a RS-232 serial
connection to COM3 on the receivers. The receivers only support one method of automation
connection, either RS-232 serial on COM3 or network automation using Conettix IP connection on a
D6600 or D6100IPv6. One method is not a fail over for the other.
Network automation works by programming the receiver to send the events using the
D6686/D6682/D6680 on COM4 of a D6600 or the on-board IP of the D6100IPv6/D6100i. Automation
must be able to receive these events using UDP/IP over the network and able to send the ACK or NAK
back to the receiver. Verify if the automation vendor is compatible with the Bosch network automation
configuration.
Automation Information
The Bosch receivers send events over the network using UDP/IP to the IP Address of the PC that the
automation software is running on and the port # that the automation is listening for the receiver on.
Each receiver should be sending to a unique port # on the automation PC. The automation will
receive each packet and must cache the source IP address and source port # to be used for the ACK
or NAK packet creation. The automation will extract the data portion of the UDP packet and process
the data to create an ACK or NAK as it normally would.
The data portion of the IP packets is identical to the data that is sent over RS
-232 serial to
automation. Automation should process the data in the exact same manner as it would when
received over serial.
The automation shall reply to the receiver with the proper ACK or NAK in the data portion of a UDP
packet using the cached source IP Address and port # as the destination IP Address and port #. Here
is an example of this process:
• Link Test from receiver to automation example
o Link Test packet is sent from receiver IP Address 192.168.1.10 Port # 7700 to
automation on IP Address 192.168.1.200 Port #10000.
Source IP Address 192.168.1.10
Source Port # 7700
Destination IP Address 192.168.1.200
Destination Port # 10000
o Automation accepts the packet, caches the source IP Address and Port #
o Processes the data portion of the packet and generates the ACK/NAK for the
data portion of the reply packet.
o ACK/NAK reply packet is sent from automation IP Address 192.168.1.200 Port
#10000 to receiver IP Address 192.168.1.10 Port #7700.
Source IP Address 192.168.1.200
Source Port 10000
Destination IP Address 192.168.1.10
Destination Port # 7700
See the Conettix D6600/D6100IPv6 Program Entry Guide – 4998122702 for detailed information on
configuring the receiver to send using network automation in parameters 6.3 Network Automation
Connection.
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, NY, 14450
USA
www.boschsecurity.com
© Bosch Security Systems, Inc., 2012

Navigation menu
