Reference Guide

for the DS7400Xi (Ver. 4+)

Control/Communicator

Turning On (arming) your System using the DS7445/DS7445i

or DS7447/DS7447E Keypad

Normal Arming [PIN] + [On]

Perimeter Arming, no entry delay [PIN] + [No Entry] +

[Perimeter Only]

Perimeter Arming, with entry delay [PIN] + [Perimeter Only]

Maximum Security Arming [PIN] + [No Entry] + [On]

Custom Arming [PIN] + [#] [4]

Set Delayed Arming [PIN] + [#] [9] [9] and enter

number of hours from

current time to the desired

arming time.

Extend Automatic Arming [PIN] + [OFF] during pre-

arm time

Force Arming Enter an arming

command followed by

[Bypass]

Zone Bypass [PIN] + [Bypass] followed

by the Zone number.

[PIN] +[Bypass] [*] to clear

ALL Bypasses.

Turning Off (disarming) your System

Enter your [PIN] followed by [Off]

Commands for other System Features

Chime Mode [PIN] + [#] [7]

System Walk Test [PIN] + [#] [8] [1]

Read Event History [PIN] + [#] [8] [9]

Battery Test [PIN] + [System Reset]

Communicator Test [PIN] + [#] [8] [2]

Fire Reset [PIN] + [System Reset]

Remote Program Dial-out [PIN] + [#][8] [3]

Remote Program Answer [PIN] + [#] [8] [6]

Battery/Sounder Test [PIN] + [#] [8] [5]

Error Display [PIN] + [#] [8] [7]

Error Display Reset [PIN] + [System Reset]

Fire Walk Test [PIN] + [#] [9] [1]

To Silence a Fire Trouble/Alarm [PIN] + [Off]

To Clear a Fire Trouble Display [PIN] + [System Reset]

Access Control

Enter your [Access Control PIN] followed by [Off]

Keypad Quick Reference Guide

NOTE: For additional information on operating this system, consult the DS7400Xi (Ver. 4+) User’s Guide (P/N: 43851) and section 7

of this Reference Guide.

DS7447/DS7447E

123

456

789

Entry

System

Reset

Bypass

Only

Perimeter

Off

TEST WEEKLY

12345678

9101112 13 14 15 16

Armed

Status

Power

Fire

Perimeter

Supervisory

Bell Silenced

Trouble

123

456

789

Entry

System

Reset

Bypass

Only

Perimeter

Off

TEST WEEKLY

Armed

Status

Power

Fire

DS7445/DS7445i

Table of Contents

Keypad Quick Reference Guide........................................ 1

1.0 Specifications ............................................................. 4

1.1 Enclosure Housing ........................................................ 4

1.2 Temperature ................................................................... 4

1.3 Power.............................................................................. 4

1.4 Outputs ........................................................................... 4

1.5 Zones.............................................................................. 4

1.6 Keypads.......................................................................... 4

1.7 Communicator ............................................................... 4

1.8 Partitions ........................................................................ 4

1.9 Users .............................................................................. 4

1.10 Lightning Protection ....................................................... 4

1.11 Burglar/Fire Zone Inputs ................................................ 4

1.12 Fire Signal Initiating Circuit (2-wire mode) ................... 4

1.13 Multiplex Bus Wiring Requirements.............................. 4

1.13.1 Multiplex Zone Loop Wiring ................................ 4

1.14 Option Bus Wiring Requirements ................................. 4

1.15 Max. Load Currents ........................................................ 5

1.16 Backup Battery Calculation ............................................ 5

1.17 Standby Current Load .................................................... 5

1.18 Options ........................................................................... 6

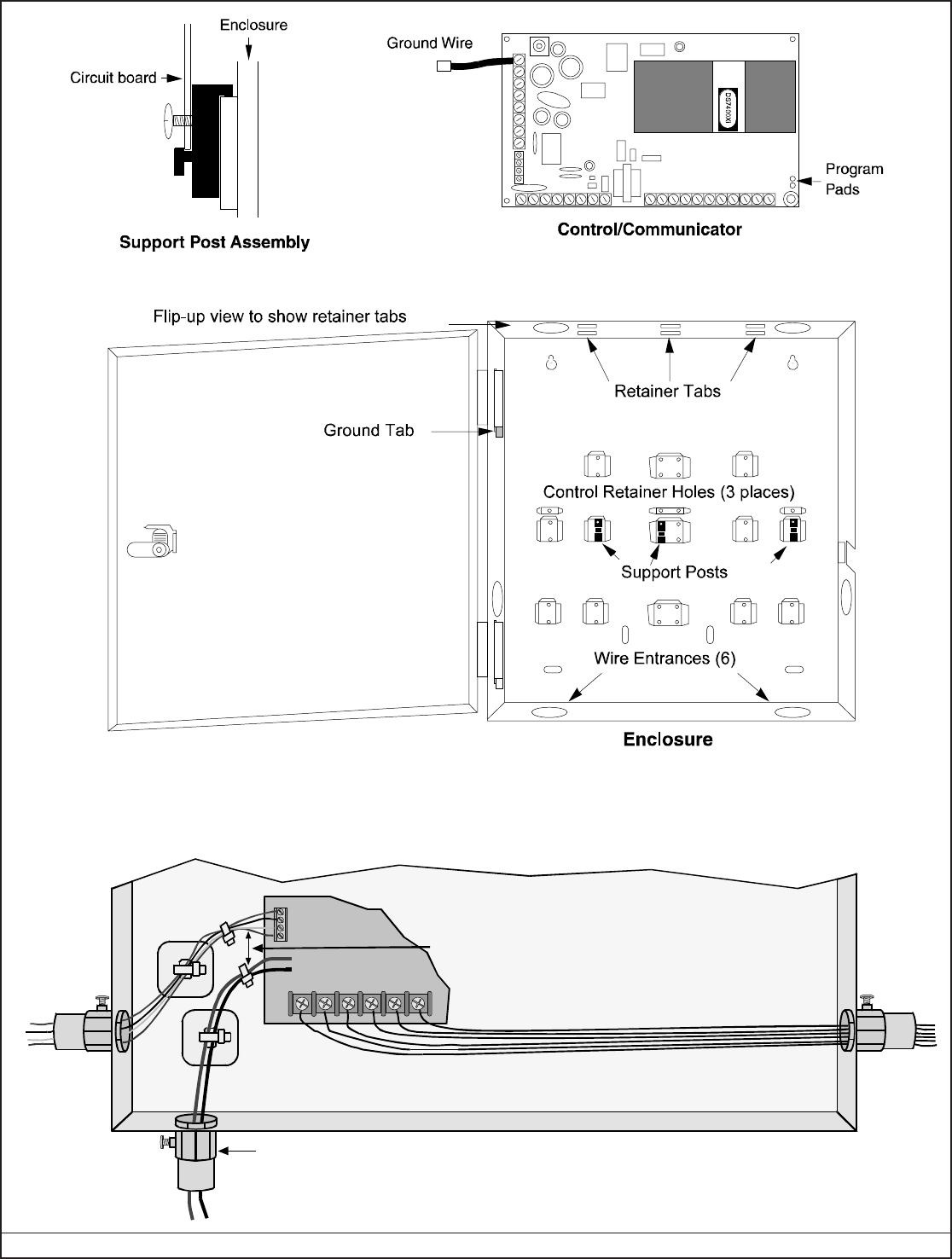

2.0 Enclosure Installation ............................................... 8

2.1 Install the Enclosure ...................................................... 8

2.2 Install the Control/Communicator ................................. 8

3.0 Control Terminal Wiring ......................................... 10

4.0 Hardware Layout Example .....................................11

5.0 System Worksheet ................................................... 12

6.0 Glossary ..................................................................... 19

6.1 General Control Programming.................................... 19

6.2 Zone Function Programming ...................................... 19

6.3 Zone Programming ...................................................... 20

6.4 Output Programming ................................................... 21

6.5 Partition Control Programming ................................... 21

6.6 Keypad Assignment Programming............................. 22

6.7 Emergency Key Programming .................................... 22

6.8 Custom Arming Programming .................................... 22

6.9 Force Arming ................................................................ 22

6.10 Ground Fault Detect Programming ............................. 22

6.11 Commercial Fire Mode Programming ........................ 22

6.12 Open/Close Report Control Programming ................ 23

6.13 Report Programming ................................................... 23

6.14 Phone Number General Control Programming ......... 24

6.15 Phone Answering Programming................................. 24

6.16 FCC Compliance Notice.............................................. 25

6.17 FCC Phone Connection Notice To Users ................... 25

6.18 Canadian Dept. of Communications .......................... 25

6.19 For Installations in New Zealand ................................ 25

7.0 Operating Guide ...................................................... 26

7.1 Emergency Procedures ............................................... 26

7.1.1 Identifying Alarm Sounds ................................. 26

7.1.2 Silencing Alarms .............................................. 26

7.1.3 A Cautionary Note............................................ 26

7.1.4 Use Common Sense ......................................... 26

7.1.5 Caution When Entering a Building ..................... 26

7.1.6 Fire Alarms ...................................................... 26

7.2 Fire Reset/Fire Trouble ................................................ 26

7.2.1 Fire Reset ........................................................ 26

7.2.2 Fire Trouble ..................................................... 26

7.2.3 Dirty Smoke ..................................................... 26

7.3 Emergency Keypad Alarms ......................................... 26

7.4 Fire Safety ..................................................................... 27

7.4.1 If Installed in Family Residences ....................... 27

7.4.2 Having and Practicing an Escape Plan .............. 27

7.4.3 Installation Considerations ................................ 27

7.5 Personal Identification Numbers ................................ 28

7.5.1 General Information.......................................... 28

7.5.2 Programming PINs ............................................ 28

7.6 The Master Keypad ...................................................... 29

7.6.1 General Information.......................................... 29

7.6.2 Master Keypad Displays .................................. 29

7.6.3 Single Partition Mode ........................................ 29

7.6.4 Arming from the Master Keypad ....................... 29

7.6.5 Disarming from the Master Keypad ................... 29

To disarm all the Partitions to which you have access: ...... 29

7.7 Keypad Error Displays ................................................. 30

7.7.1 General Information.......................................... 30

7.7.2 System Faults .................................................. 30

7.7.3 Event History ................................................... 30

7.8 Testing Your System .................................................... 31

7.8.1 Zone (System Walk) Test ................................. 31

7.8.2 Battery Tests ................................................... 31

7.8.3 Communicator Test ........................................... 31

7.8.4 Fire Walk Test .................................................. 31

8.0 How to Program the Control Panel ...................... 32

8.1 Entering the Programmer’s Mode ............................... 32

8.2 Reading Back a Program Address ............................. 32

8.3 Entering a Value in a Program Address ..................... 32

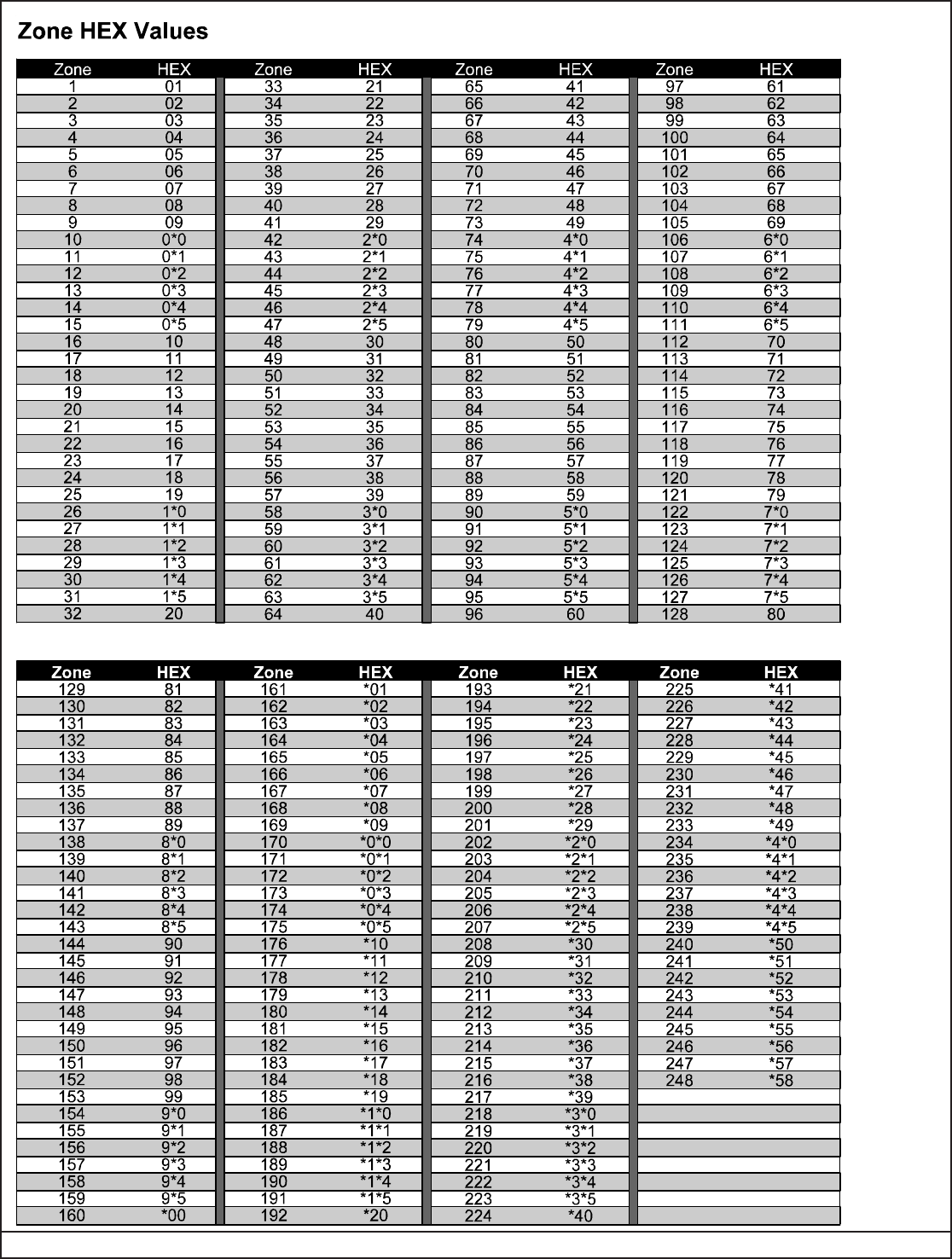

8.4 HEX values ................................................................... 32

8.5 Defaults ........................................................................ 32

8.6 Setting the Control to the Factory Default .................... 32

8.7 Exiting the Programmer’s Mode .................................. 32

9.0 Understanding the Programming Charts ............ 33

10.0 Programming............................................................ 34

10.1 General Control Programing:

Program Address (0000) ............................................. 34

10.2 Zone Function Programming: ..........................................

Program Addresses (0001-0030)............................... 35

10.3 Zone Programming:

Program Addresses (0031-0278)............................... 36

10.4 Zone Programming:

Zone Type Program Addresses (0415-0538)............. 37

10.5 Zone Partition Assignment:

Program Addresses (0287-0410)............................... 38

10.6 Zone Bypass Programming:

Program Addresses (2721-2724)............................... 39

10.7 Output Programming:

Program Addresses (2734, 2735, 2736) .................... 41

10.8 Output Partition Assignment:

Program Addresses (2737-2738)............................... 42

10.9 Partition Control Programming:

Program Address (3420) ............................................. 42

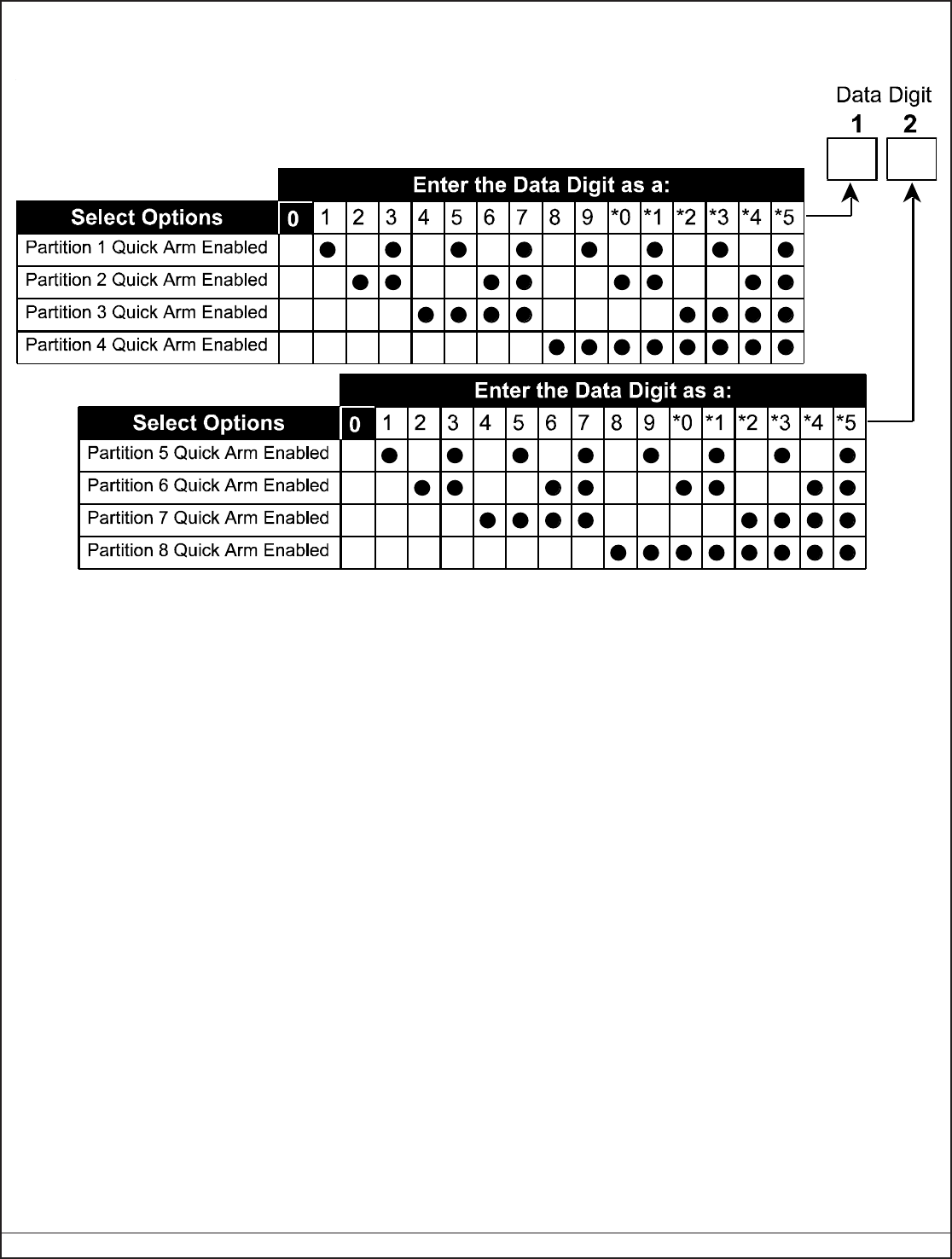

10.10 Quick Arm Control Programming:

Program Address (3477) ............................................. 43

10.11 Keypad Assignment Programming:

Program Addresses (3131-3138)............................... 44

10.12 Keypad Partition Assignment:

Program Addresses (3139-3146)............................... 44

10.13 Emergency Key Programming:

Program Addresses (3147-3148)............................... 45

10.14 Custom Arming Programming:

Program Addresses (2725-2728)............................... 45

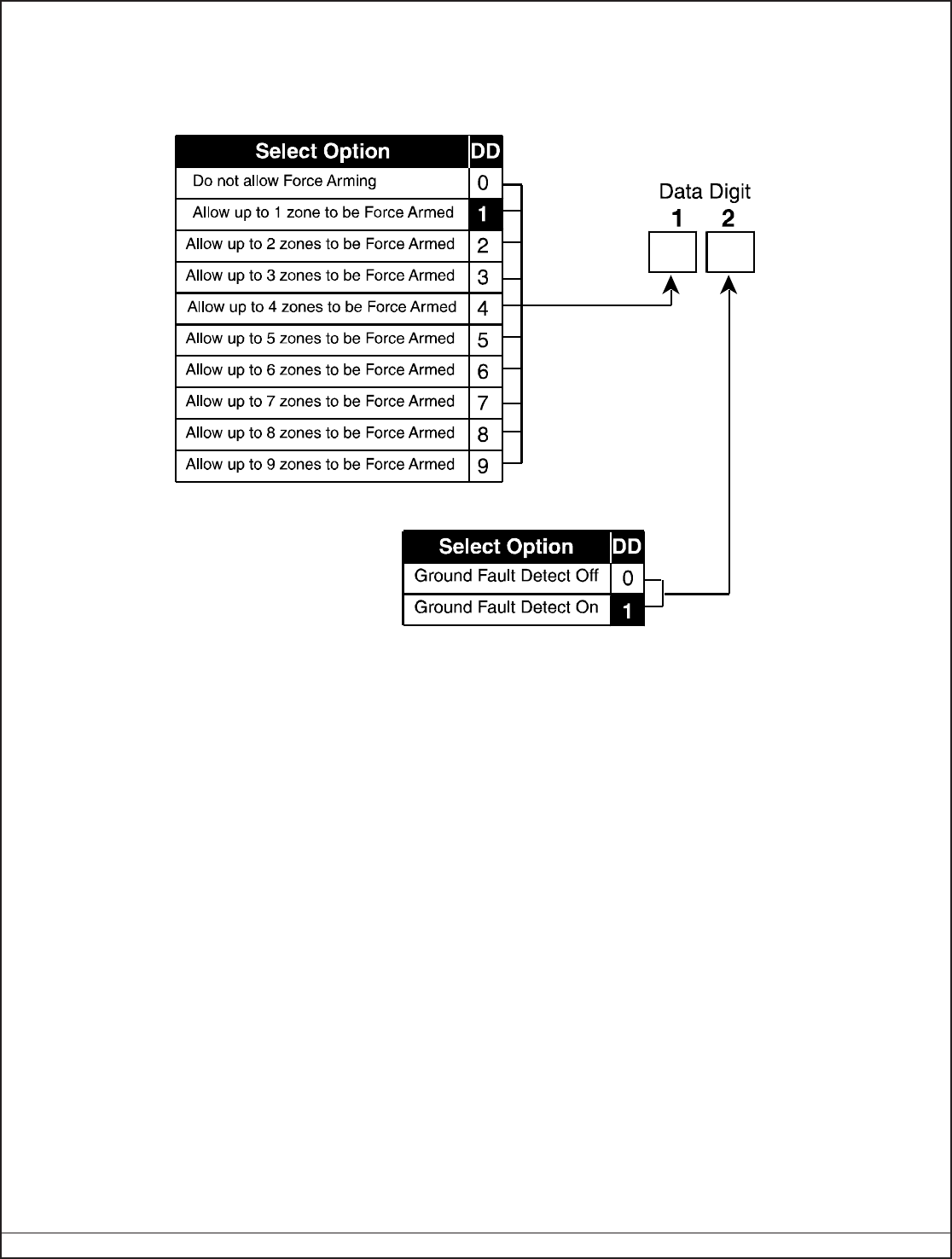

10.15 Force Arming and Ground Fault Detect Programming:

Program Address (2732) ............................................. 47

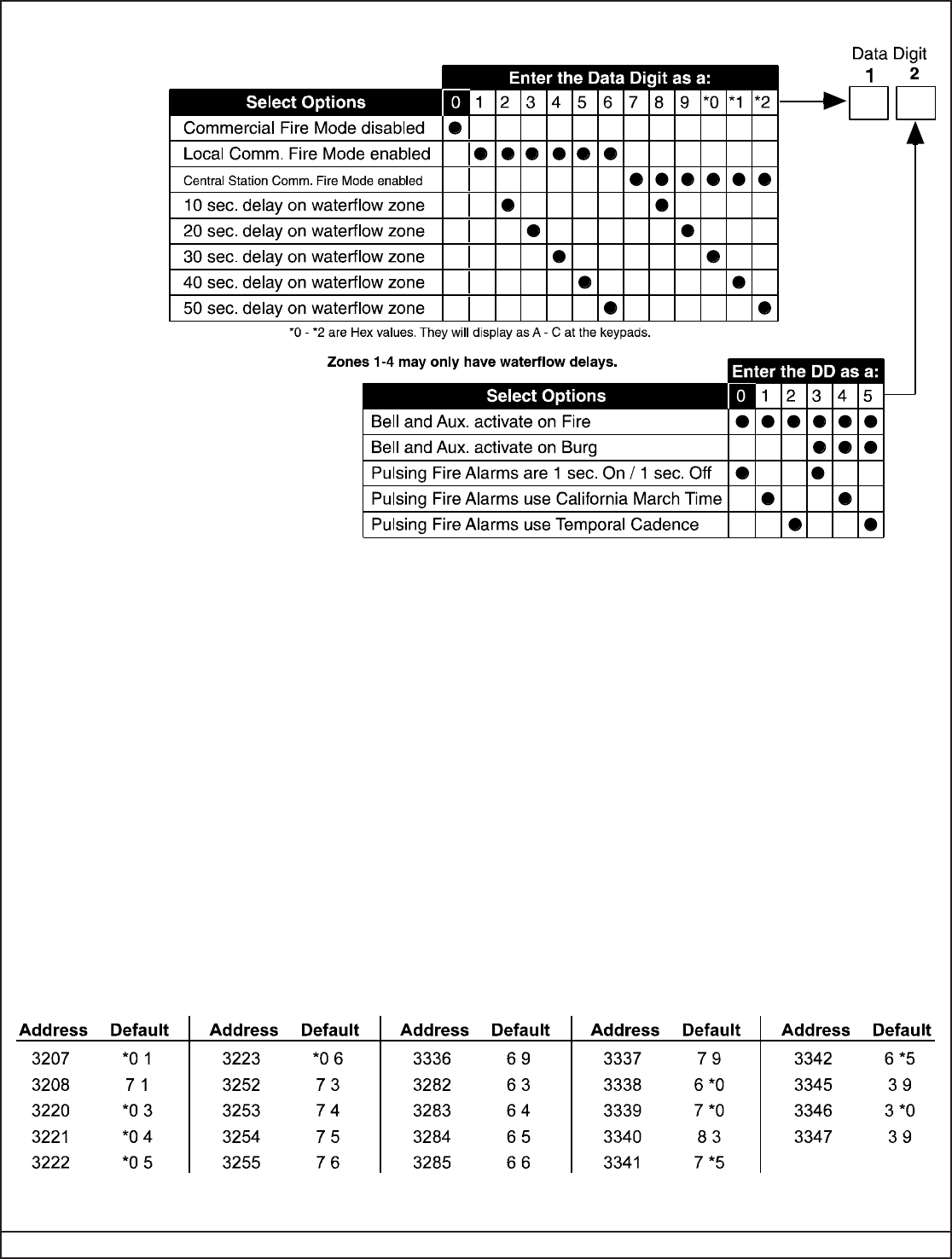

10.16 Commercial Fire Mode Programming:

Program Address (2733) ............................................. 48

10.17 Open/Close Report Control Programming:

Program Address (3149) ............................................. 49

10.18 Open/Close & Zone Report Control Programming:

Program Address (3151) ............................................. 49

10.19 Report Control Programming:

Program Address (3152) ............................................. 49

10.20 Timer Programming:

Program Addresses (4028-4030, 4032-4033) .......... 50

10.21 AC Fail Report Delay Programming:

Program Address (4034) ............................................. 50

10.22 General Authority Programming:

Program Address (3421-3424) ................................... 51

10.23 Arming Warning Programming:

Program Addresses (3425-3428)............................... 51

10.24 DS7412 RS232 Interface Control Programming:

Program Address (4019) ............................................. 52

10.25 DS7412 RS232 Interface Configuration Programming:

Program Address (4020) ............................................. 52

10.26 RS232 Carriage Return/Line Feed Control:

Program Address (4027) ............................................. 52

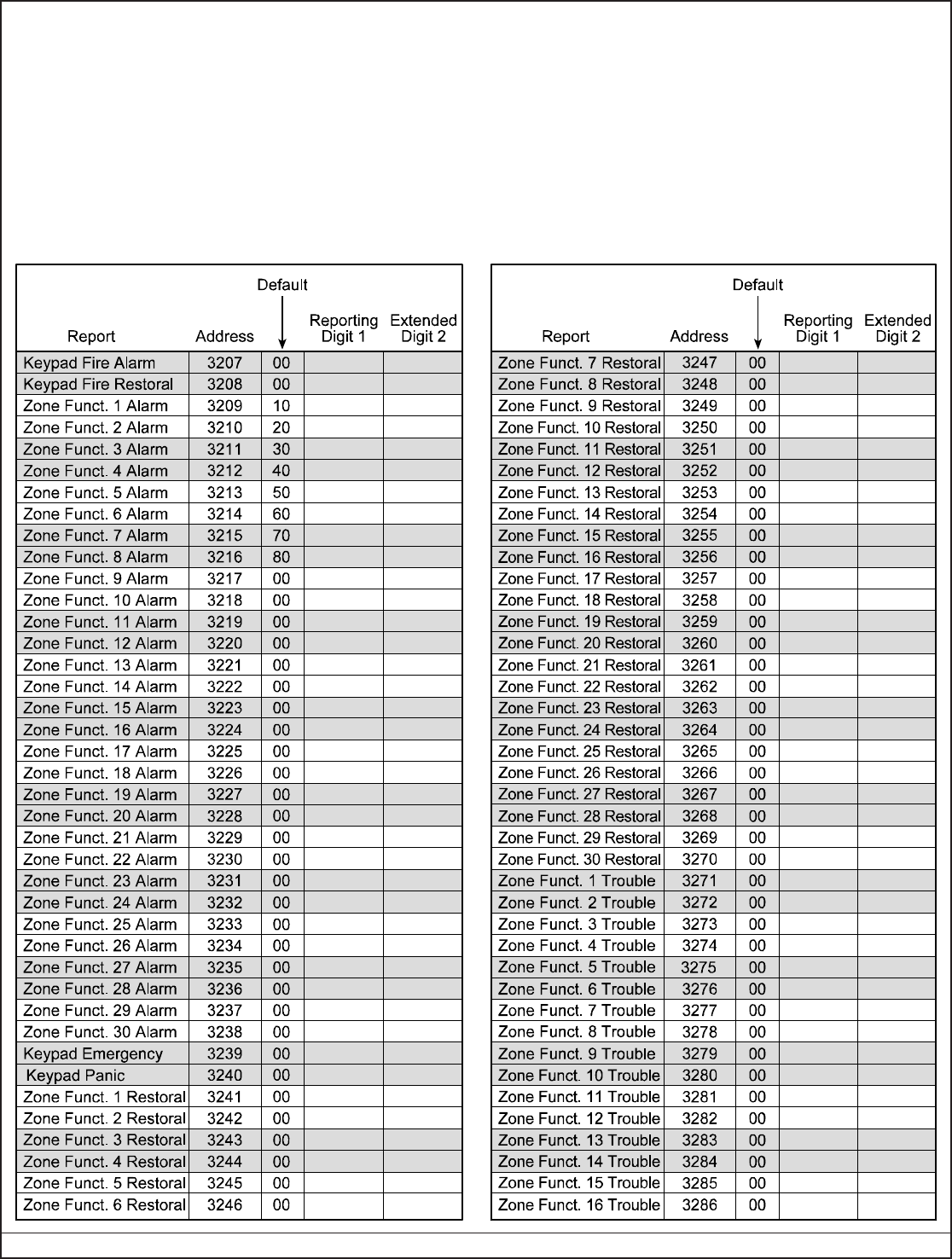

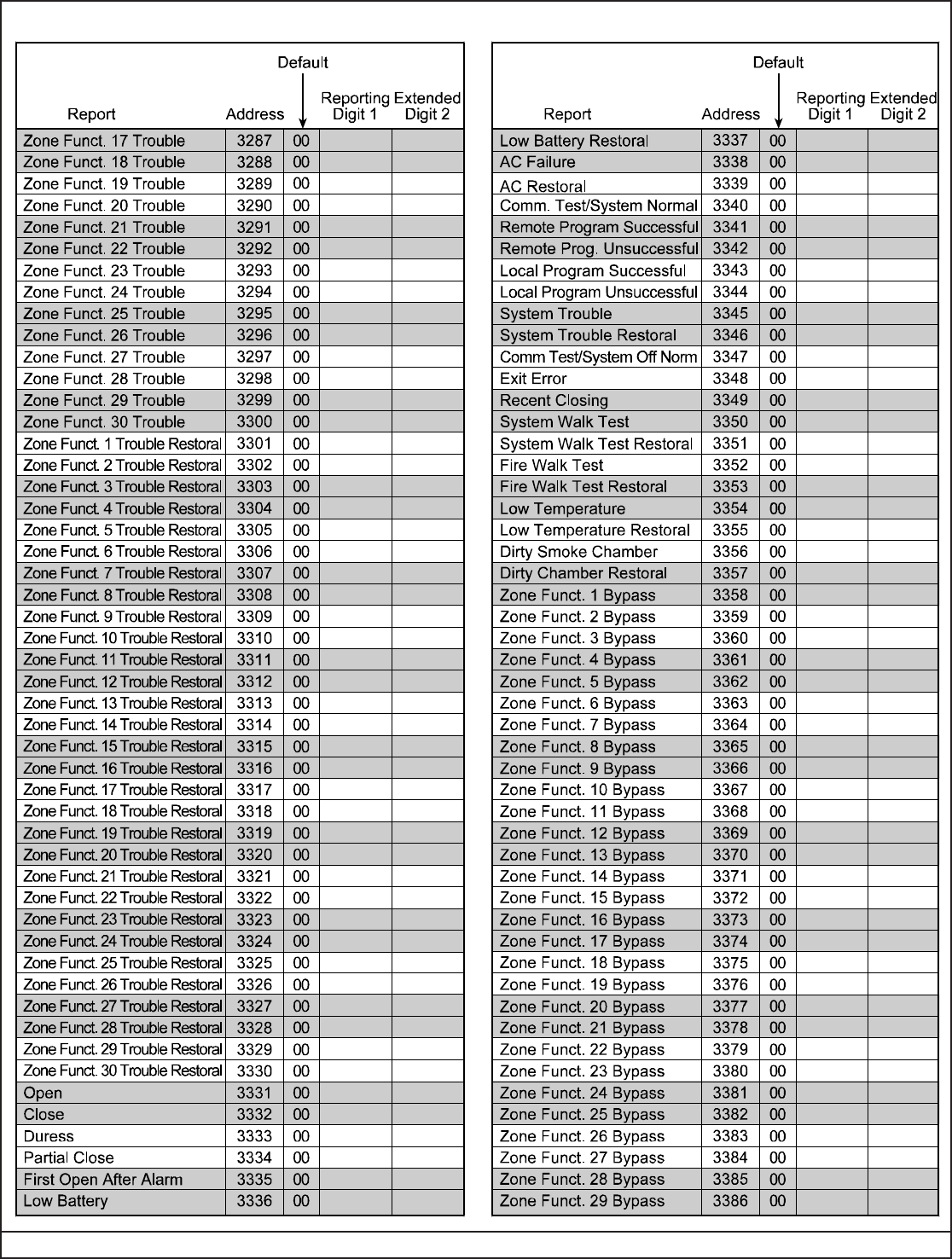

10.27 Report Programming:

Program Addresses (3207-3419)............................... 53

10.28 Phone/DS7416i Routing Control:

Program Addresses (3153-3154)............................... 55

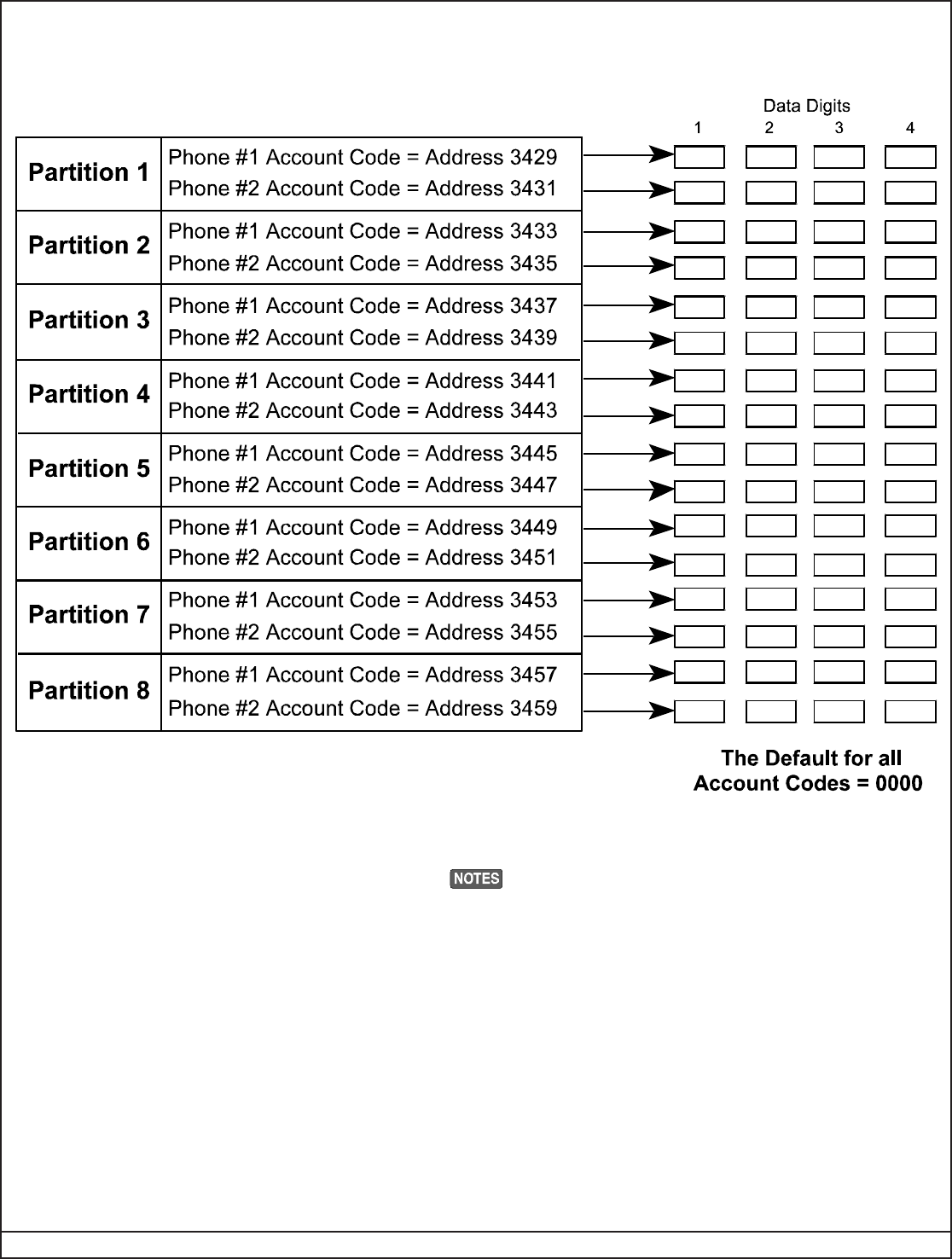

10.29 Account Code Programming:

Program Addresses (3429-3459)............................... 56

10.30 Phone Number General Control Programming:

Program Address (3155) ............................................. 57

10.31 Phone Number Format Programming:

Program Addresses (3156-3157)............................... 57

10.31.1 Compatible Receivers ...................................... 58

10.32 Phone Answering Programming:

Program Address (3158) ............................................. 58

10.33 Pager Delay Time:

Program Address (4038) ............................................. 59

10.34 Programmer’s and Master Code Programming:

Program Addresses (7589-7592)............................... 59

10.35 PIN Length Programming:

Program Address (3478) ............................................. 59

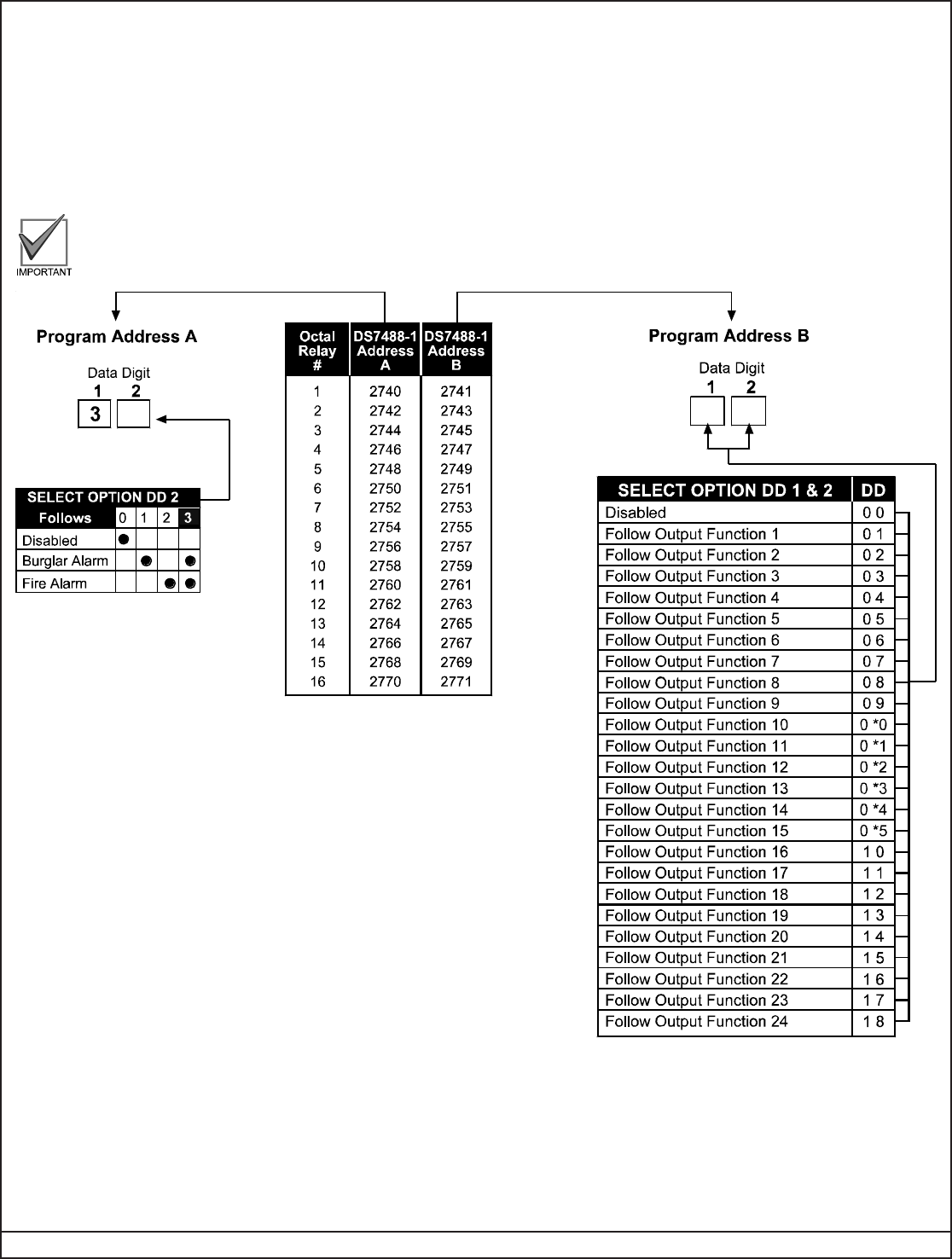

10.36 Octal Relay Module Output Programming .................. 60

10.36.1 Follow Action:

Program Addresses (2740-2771)..................... 60

10.36.2 Follow System Wide Event:

Program Addresses (2740-2771)..................... 61

10.36.3 Follow Function:

Program Addresses (2740-2771)..................... 62

10.36.4 Follow Zone:

Program Addresses (2740-2771)..................... 63

10.36.5 Octal Relay Module Output Partition Assignment:

Program Addresses (2844-2851)..................... 65

10.37 Output Function Programming:

Program Addresses (2772-2843)............................... 66

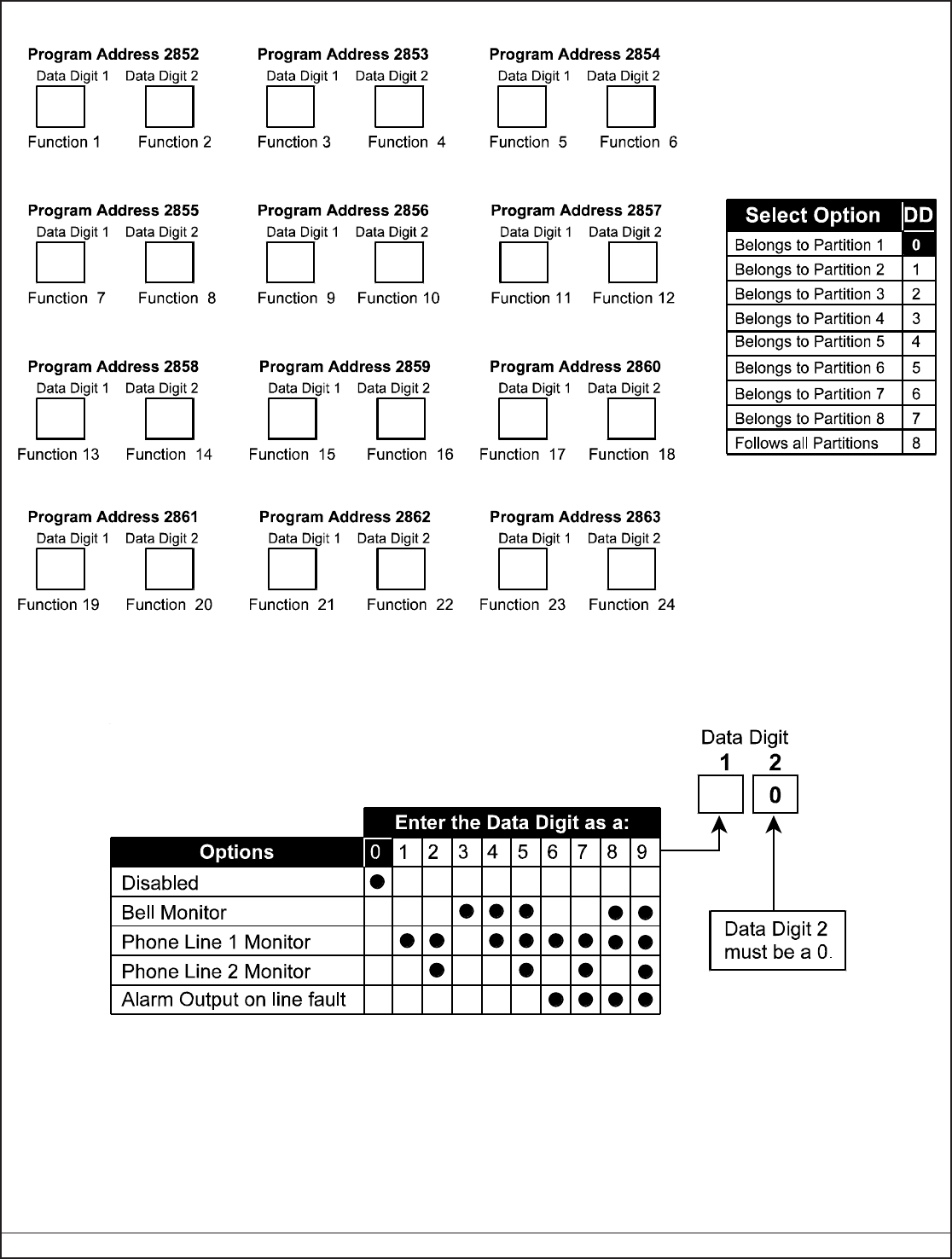

10.37.1 Output Function Partition Assignment:

Program Addresses (2852-2863)..................... 67

10.38 Dual Phone Line/Bell Supervision Module Output

Programming:

Program Address (4021) ............................................. 67

10.39 Call-Out Timer Programming:

Program Addresses (4022-4025)............................... 68

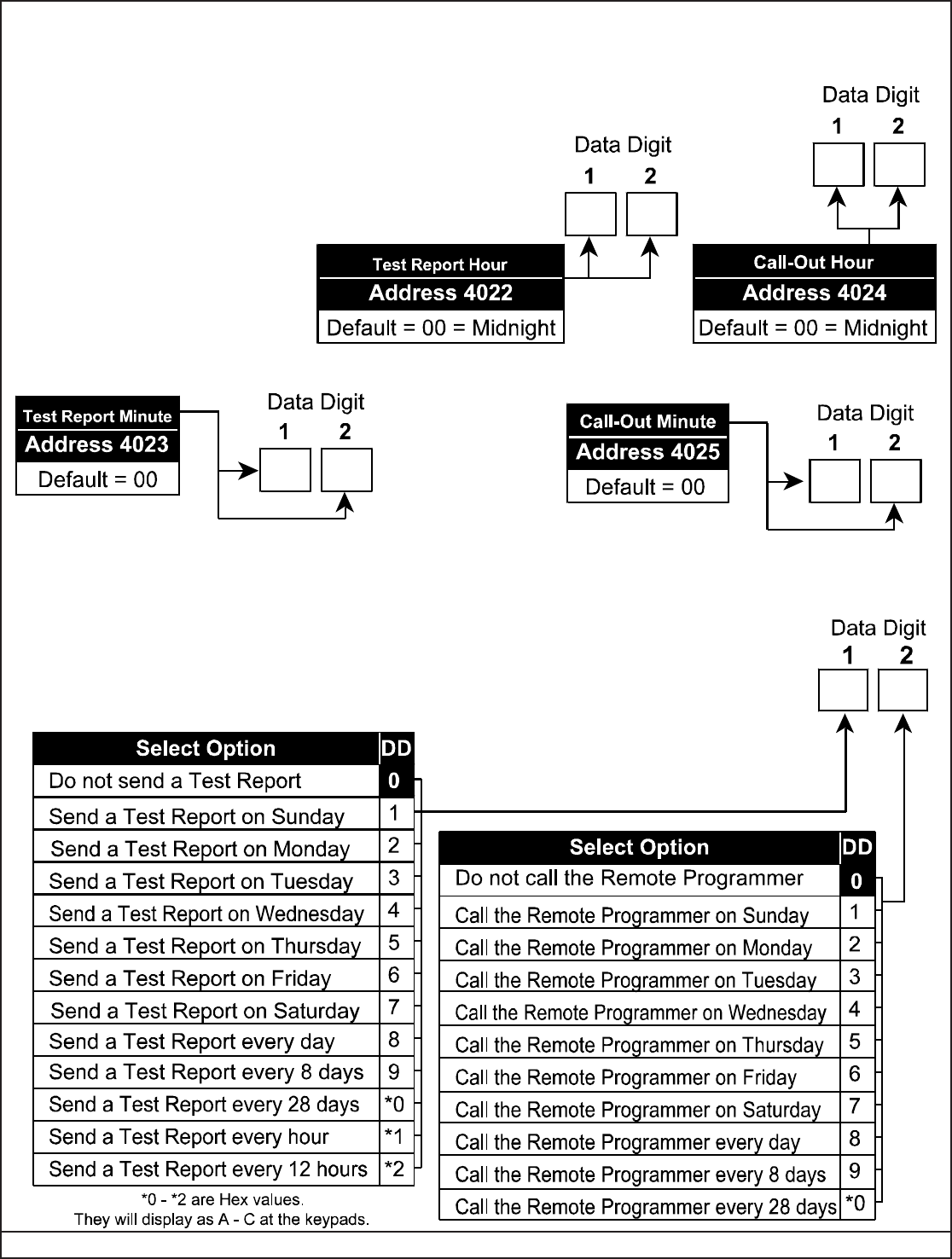

10.40 Test Report and Remote Programmer Call-Out

Programming:

Program Address (4026) ............................................. 68

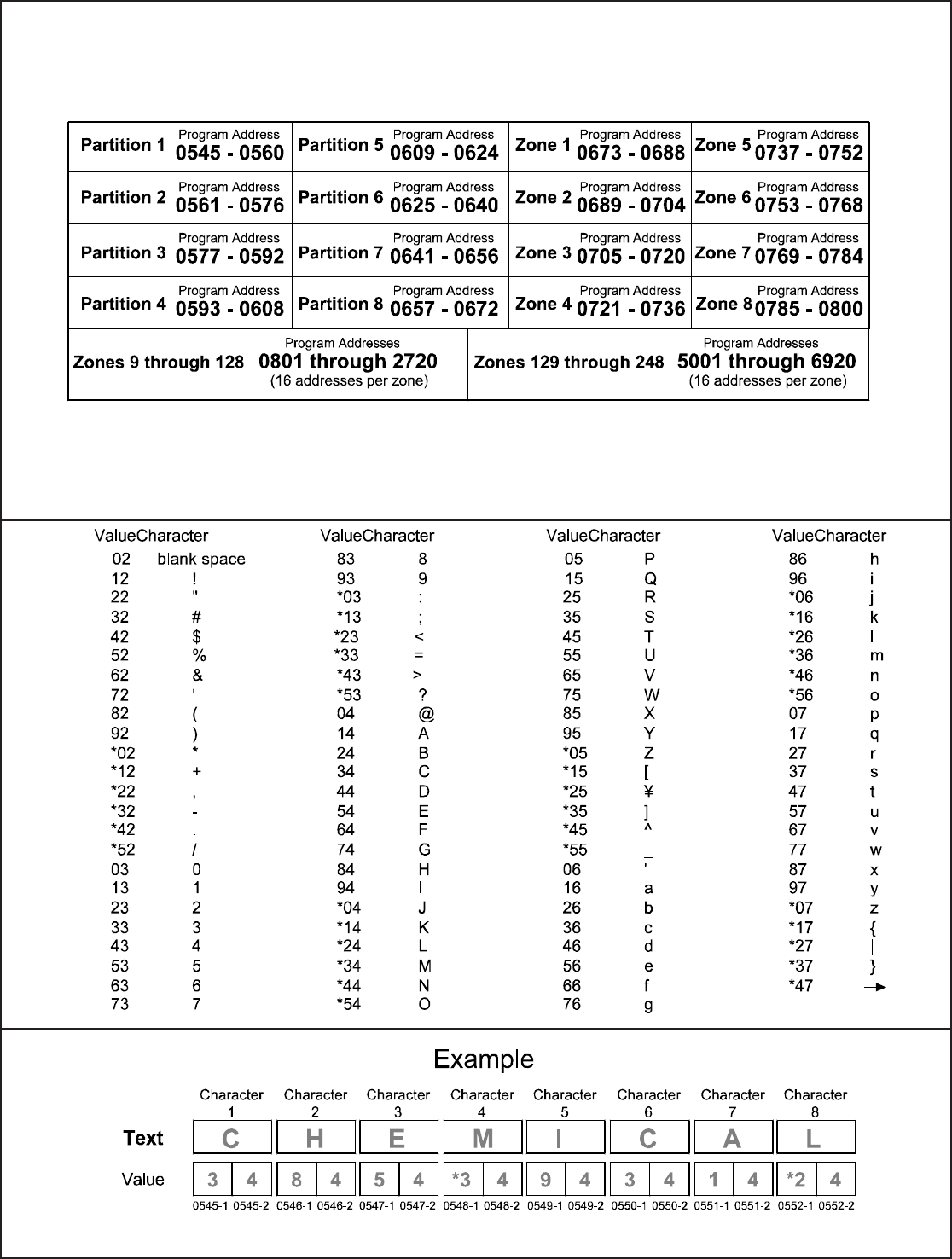

10.41 Alpha Description Programming:

Program Addresses (0545-2720, 5001-6920) .......... 69

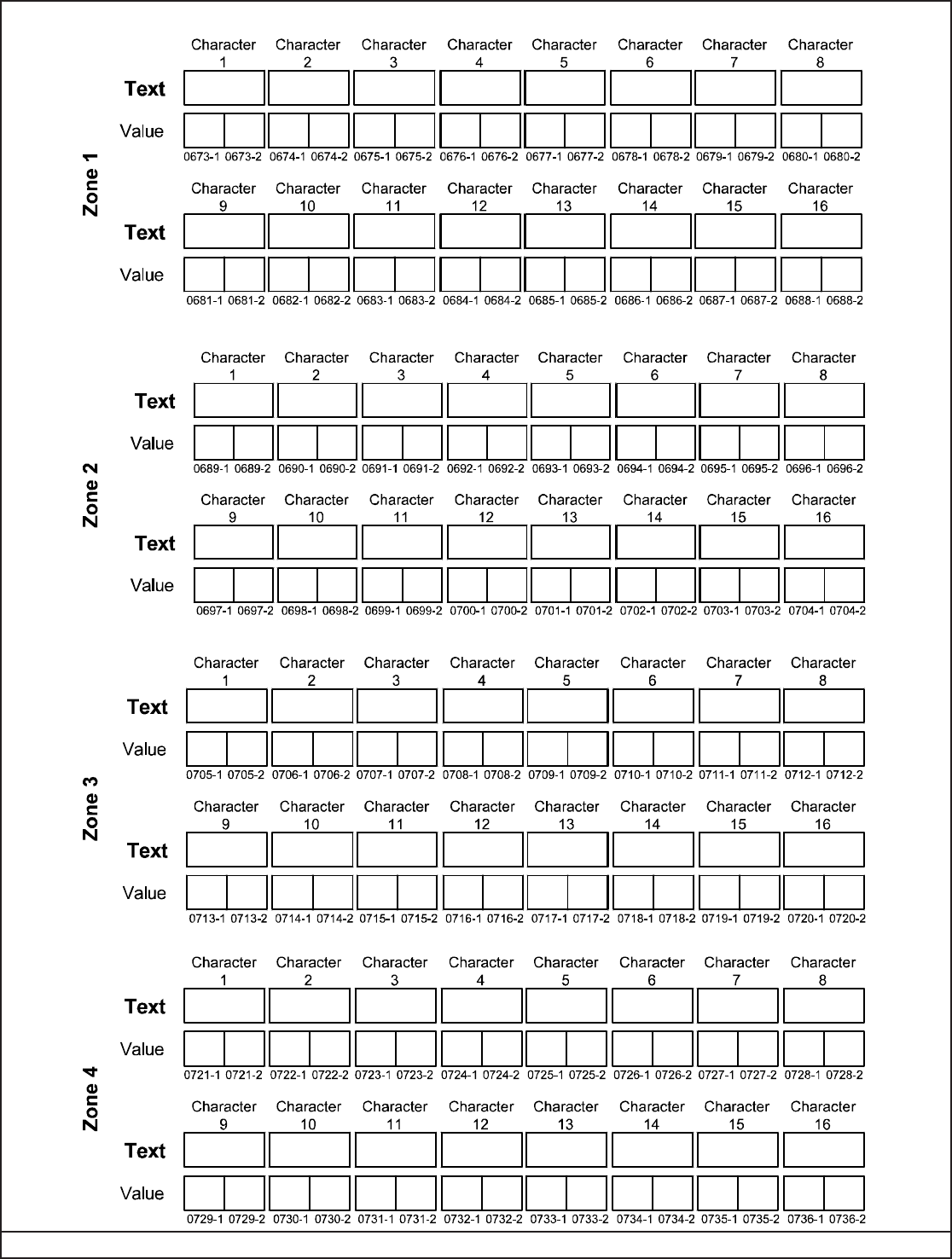

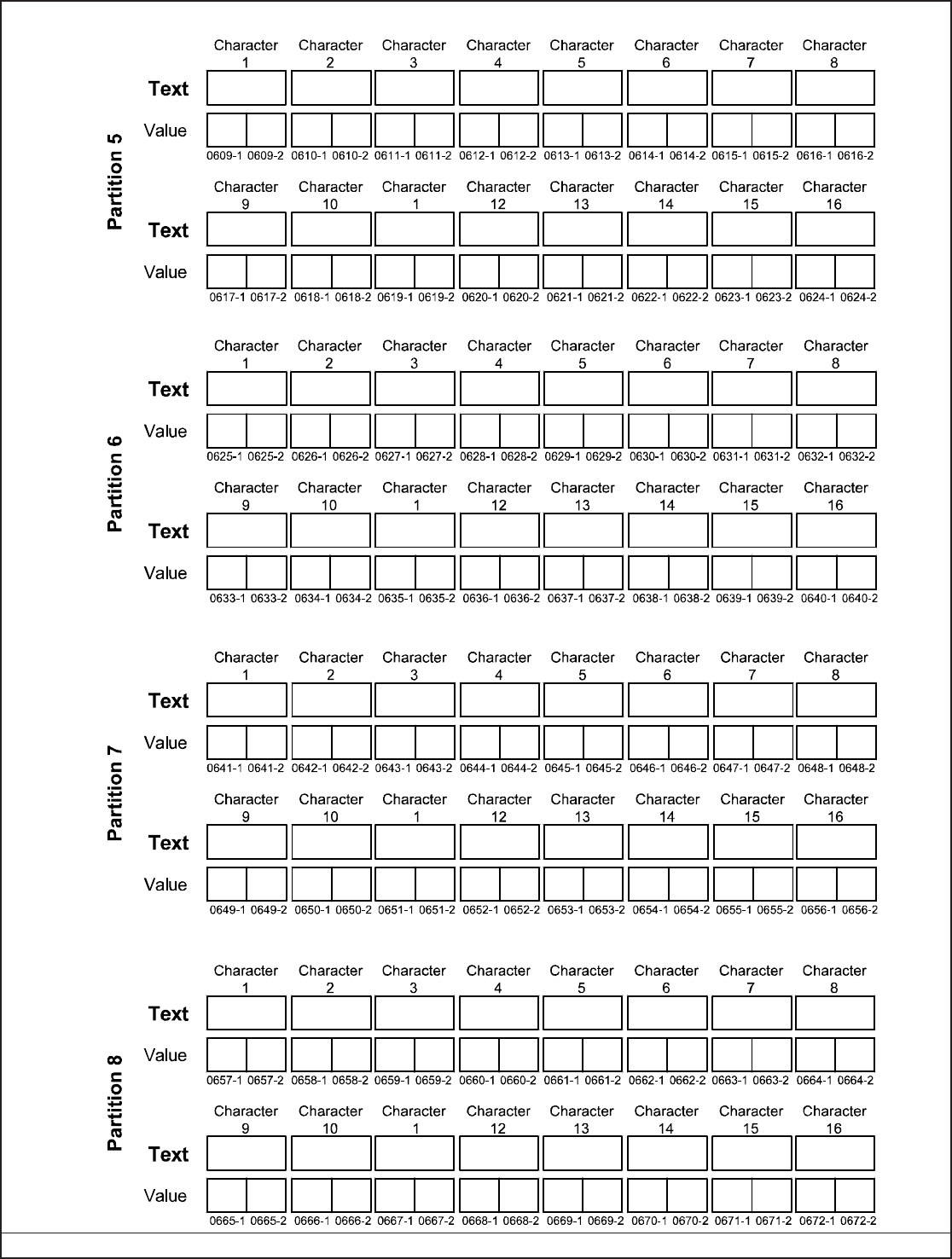

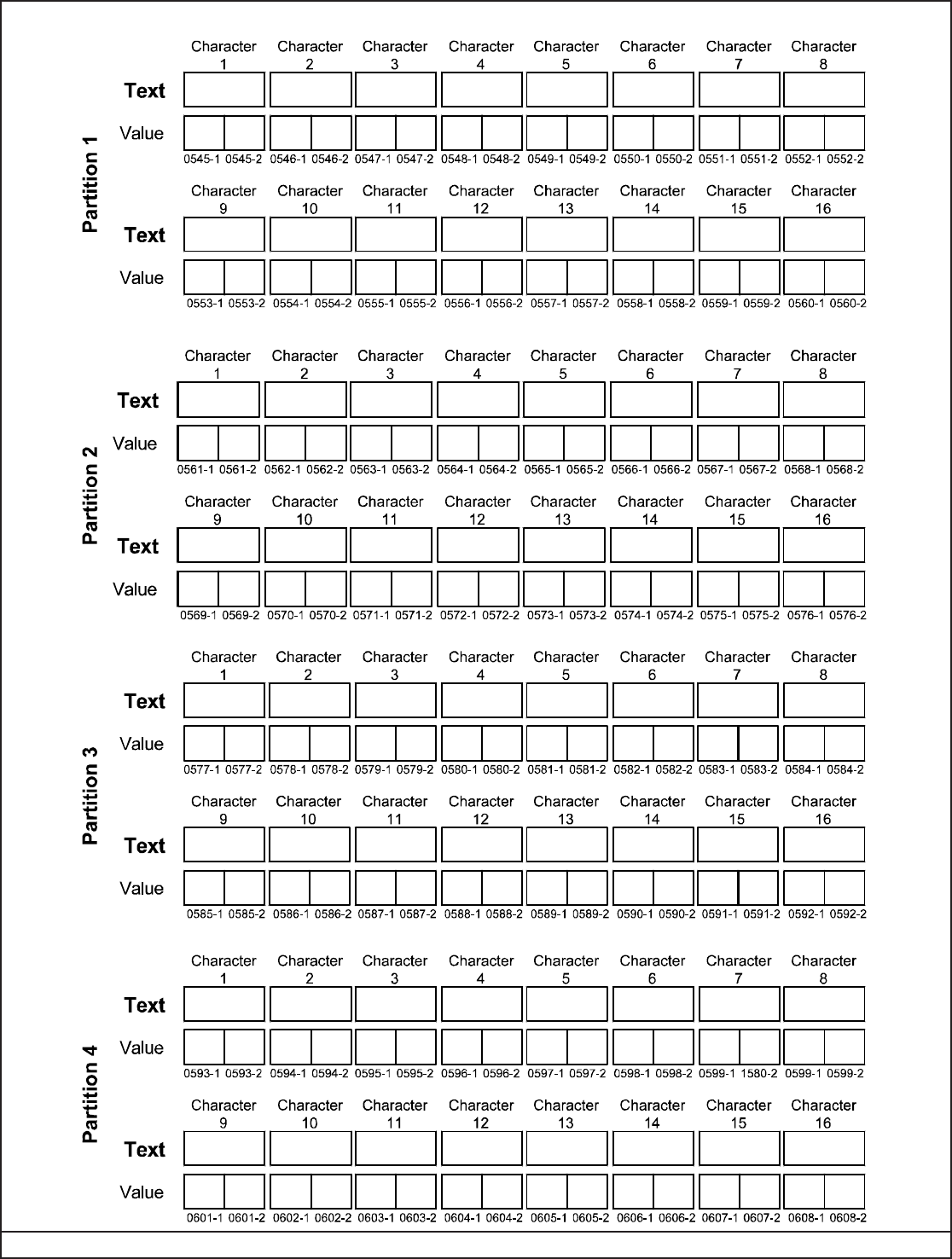

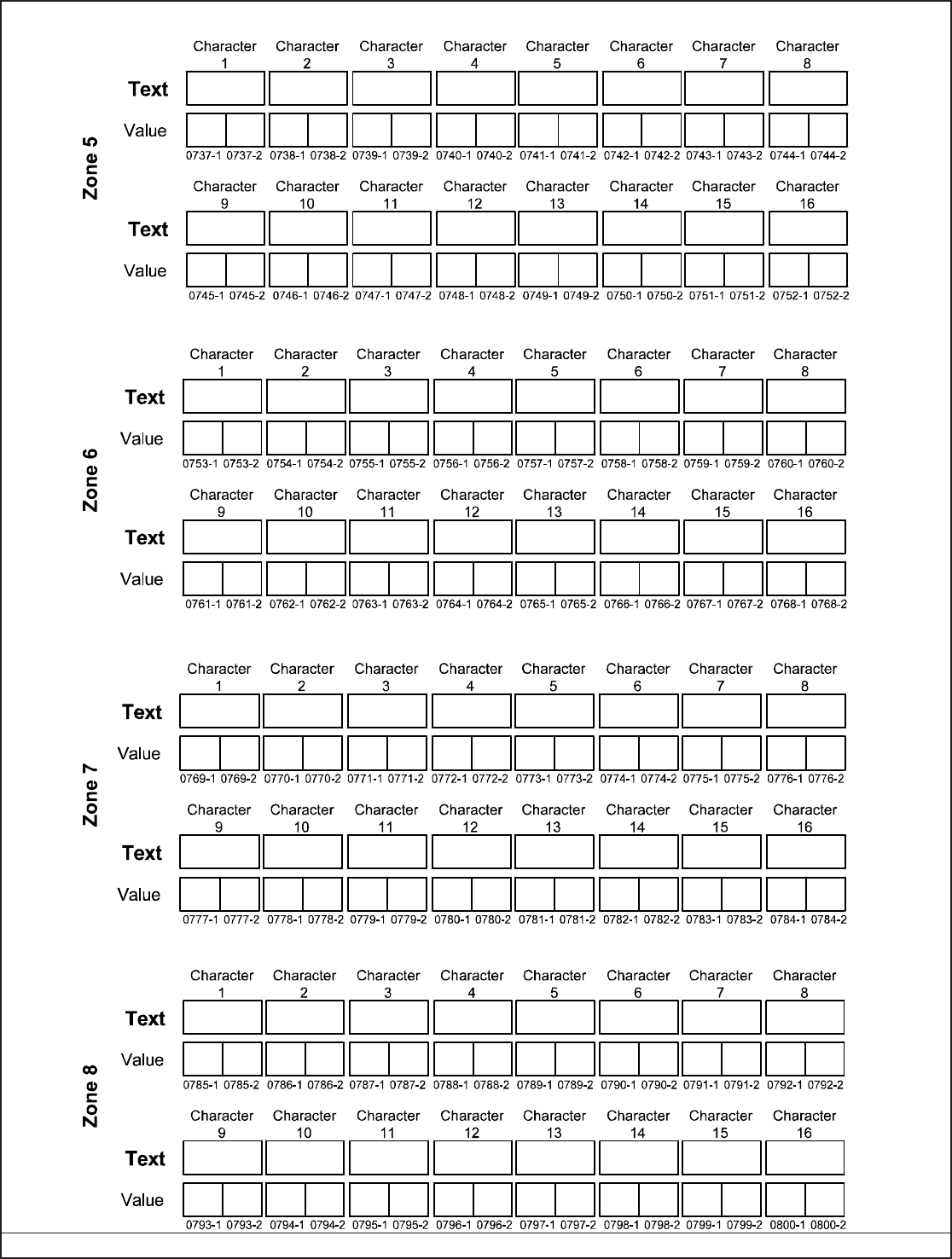

10.41.1 Alpha Description Programming:

A Worksheet ................................................... 70

10.42 Phone Number Programming:

Program Addresses (3159, 3175, 3191) .................... 74

10.42.1 Phone Number 1 Programming:

Program Address (3159) ................................. 74

10.42.2 Phone Number 2 Programming:

Program Address (3175) ................................. 74

10.42.3 Phone Number 3 Programming:

Program Address (3191) ................................. 74

11.0 Installation Guide for UL Listed Systems ............ 75

11.1 DS7400Xi UL Listings:................................................ 75

11.1.1 UL System Configurations ................................ 75

11.2 Installation Considerations ......................................... 76

11.3 Programming the DS7400Xi ....................................... 76

11.3.1 Household Fire Alarm Using Digital Alarm

Communicator Transmitter With Local Bell ........ 76

11.3.2 Grade A Household Burglary Alarm Using Digital

Alarm Communicator Transmitter With Local Bell 76

11.4 General System Requirements .................................. 76

11.4.1 Local Burglary Alarm ....................................... 77

11.4.2 Police Station Connection ................................. 77

11.4.3 Central Station Burglary Alarm and

Proprietary ....................................................... 77

11.5 Commercial Fire Alarm................................................ 77

11.6 Wiring and Programming Information for Installations

Using the Ademco AB-12 Bell/Housing ...................... 78

12.0 Report Programming .............................................. 79

12.1 4/2 Format .................................................................... 79

12.2 BFSK Format ................................................................ 80

12.3 Personal Dialing Format ............................................. 81

12.4 Pager Format ............................................................... 81

13.0 Report Programming - Values Sent ..................... 83

13.1 SIA Formats .................................................................. 83

13.2 CID Formats ................................................................. 85

14.0 Multiplex Zone Addressing Guide ........................ 86

15.0 Troubleshooting Guide ........................................... 87

15.1 Keypad Problems ........................................................ 87

15.2 Reporting Problems .................................................... 88

15.3 Zone Problems ............................................................ 88

15.4 General System Problems .......................................... 89

16.0 Program Addresses ................................................. 93

Index ................................................................................ 99

1.0 Specifications

1.1 Enclosure Housing

The standard enclosure is manufactured from 20 Guage (1.0 mm),

cold-rolled steel, and measures 12.5 by 14.5 by 3 inch (31.8 by

36.8 by 7.6 cm) (HxWxD). A keyed lock is included, and this enclosure

has provision for an optional tamper switch (required for

commercial burglary applications) for monitoring the door.

1.2 Storage and Operating Temperature

• Temperature: +32°F to +120°F (0°C to +49°C)

1.3 Power

NOTE: The total current output capacity for all auxiliary devices,

including keypads and smoke detectors = 1.5 A standby,

2.5 A alarm. The following ratings are maximum values.

The total combined output cannot exceed the maximum

load current.

• Input power: 18 VAC, 50 VA, 50 Hz./60 Hz.

• Auxiliary power: 12 VDC, 1.0 A max.

• UL Listed Alarm Power Output: 12 VDC, 1.75 A max.

• Auxiliary power voltage range: 12 V special application

• Optional Standby battery (P334): 12 V, 7.0 Ah - 35 Ah max.

• Control panel current draw: 175 mA, Standby

250 mA, Alarm

1.4 Outputs

• Alarm Output: 12 VDC, 1.75 A output. Can be programmed

for steady or pulsed output.

• Programmable Solid state current sink (1.0 A max.). Shorts to

Aux. negative when activated. Connect device

to Aux. power positive. Can be used for alarm,

arming state, or access control.** This output

is generally programmable.

• Programmable Solid state voltage source (500 mA max.). Can

be used for alarm, arming state, or access

control.** This output is generally

programmable. For use with such compatible

devices as the Listed DS250 with a 4-wire

base.

* = Current draw should be subtracted from either maximum

auxiliary or maximum alarm current draw.

** = Not investigated to the requirements of UL294.

1.5 Zones

• 8 on-board zones. Up to 248 total zones with expansion modules.

• Zone Response Time: 300 ms.

1.6 Keypads

• Maximum # of keypads: 15 Keypads

• Maximum wire length each: 1000 feet (305 m)

• Maximum wire length total: 6000 feet (1830 m) in system

• Wire type: 4 conductor, unshielded, #22 AWG

(0.8 mm) “Telephone quad” or #18

AWG (1.0 mm) quad wiring can be

home-run or daisy- chained.

NOTE: No more than 2 keypads (#22 AWG) or 3 keypads (#18

AWG) are recommended on any 1000 foot (305 m) run.

NOTE: Shared cable is not recommended for keypad, multiplex,

options bus, telephone, or siren wiring.

1.7 Communicator

Will report to two phone numbers with full single, double and back-

up reporting. Communicates in SIA (110 or 300 baud), 3/1, 3/1 Ext.,

3/1 with Parity, 3/1 Ext. with Parity, 4/1, 4/2, BFSK, Contact ID, and

Pager formats.

FCC Registration Number is ESVUSA-75333-AL-E

The ringer equivalence is 0.1B

Commercial Fire CSFM Listing Number is 7165-1062:113

Residential Fire CSFM Listing Number is 7167-1062:114

1.8 Partitions

The system has the capacity for 8 independent partitions. One

partition may be a common area.

1.9 Users

The DS7400Xi Ver 4+ system allows up to 200 individual users.

Each user will have his own PIN number (the 4- or 6-digit code

entered at the keypads) and his own authority level (to determine

which functions he may perform).

1.10 Lightning Protection

MOVs and spark gaps provide protection from lightning surges

and static discharges.

1.11 Burglar/Fire Zone Inputs

• Number of circuits: 8 Circuits on-board

• End-of-line resistor: 2.2 kΩ (P/N 25899, provided)

• Loop resistance tolerance: 60 ohms

1.12 Fire Signal Initiating Circuit (2-wire mode)

Fire circuit will work with 2- or 4-wire detectors and has optional

alarm verification.

• Number of circuits: 8 Circuits on-board

• Type of circuit: Class B, latching

• End-of-line resistor: 2.2 kΩ (P/N 25899, provided)

• Supervisory current: 5.5 mA

• Maximum short circuit current: 22 mA

• Maximum line resistance: 60 ohms

• Circuit voltage range: 8.5 to 14.1 VDC

• Total detector standby current: 2.5 mA

1.13 Multiplex Bus Wiring Requirements

NOTE: Do not use twisted-pair or shielded cable. Do not share

cable with the keypad lines.

• #22 AWG (0.8 mm). Up to 2000 feet (610 m) per system.

• #18 AWG (1.0 mm). Up to 5000 feet (1525 m) per system.

1.13.1 Multiplex Zone Loop Wiring

• Maximum wire length not to exceed 500 feet (150m) regardless

of the wire gauge.

1.14 Option Bus Wiring Requirements

• Maximum wire length 1000 feet (305 m) per home-run.

Output 1*

Output 2*

NOTE: Fire Systems installed under NFPA-72 or UL Listed Fire

Systems require the use of 18 AWG or larger wire.

1.16 Backup Battery Calculation

• The following table is used to calculate the standby battery

capacity required by NFPA when using the DS7400Xi:

1.17 Standby Current Load

• Battery Ah - (20% Storage + 0.375 Ah Alarm)

• The following table is the derated battery divided by hours minus the control standby (175 mA):

1.15 Max. Load Currents

* = Add 15 mA for each additional zone in alarm.

** = When calculating Standby and Alarm Current for the Octal Relay Module, use 10 mA plus 40 mA for each activated relay.

*** = Maximum current draw if using the DS7400Xi Panel power supply. Total of all outputs cannot exceed 750 mA.

Rechargeable

Battery Size Max. Standby

for 4 hours Max. Standby

for 8 hours Max. Standby

for 24 hours Max. Standby

for 48 hours Max. Standby

for 60 hours Max. Standby

for 72 hours Max. Standby

for 80 hours

7 Ah 1.0 A 470 mA X X X X X

8 Ah 1.2 A 580 mA X X X X X

14 Ah 1.5 A 1.1 A 270 mA X X X X

15 Ah 1.5 A 1.2 A 300 mA X X X X

17.2 Ah 1.5 A 1.5 A 380 mA 100 mA X X X

21 Ah 1.5 A 1.5 A 500 mA 160 mA 100 mA X X

28 Ah 1.5 A 1.5 A 740 mA 280 mA 190 mA 130 mA 100 mA

30 Ah 1.5 A 1.5 A 800 mA 310 mA 210 mA 150 mA 120 mA

35 Ah 1.5 A 1.5 A 970 mA 400 mA 280 mA 200 mA 170 mA

Device Quantity Standby Current

per Device Total Standby

Current

(Quantity x Standby

Current per Device)

Alarm Current

per Device Total Alarm

Current

(Quantity x Alarm

Current per Device)

DS7400Xi (4+) Control Panel 1 175 mA 175 mA 250 mA 250 mA

DS7416i Advanced Radio Communications Module 127 mA 127 mA

DS7412 - RS232 Serial Interface Module 35 mA max. 35 mA max.

DS7420i -Dual Phone Line/Bell Supervision Module 20 mA 140 mA

DS7430 – Multiplex Expansion Module 65 mA 65 mA

DS7432 – 8-Input Remote Module 10 mA 10 mA

DS7433 – 8-Input Direct Module 65 mA 80 mA*

DS7436 – Dual Multiplex Expansion Module 130 mA 130 mA

DS7445/DS7445i Keypad 75 mA 75 mA

DS7447/ DS7447E Keypad 100 mA 100 mA

DS7448 Keypad 80 mA 100 mA

DS7450, DS7452, DS7455 Contact Points 350 μA 350 μA

DS7457 – Single Zone Multiplex Input Module 350 μA 350 μA

DS7460 – Dual Zone Module 1 mA 1 mA

DS7465 – Input/Output Module 1 mA 1 mA

DS7480 – Bell Supervision Module 7 mA 50 mA

DS7481 – Single Phone Line Monitor 20 mA 20 mA

DS7488 – Octal Relay Module** 10 mA + 40 mA** 10 mA + 40 mA**

DS7489 – Solid State Output Module 10 mA 750 mA max.***

MX280 Series Multiplex Smoke Detectors 500 μA 560 μA

MX540 (DS7473) PIR Detector 800 μA 800 μA

MX835 TriTech® PIR/Microwave Detector 6 mA 35 mA

MX775 (DS7470) PIR Detector 200 μA 200 μA

MX794 (DS7474) PIR Detector 800 μA 800 μA

MX934 (DS7471) PIR Detector 200 μA 200 μA

MX938 (DS7472) PIR Detector 200 μA 200 μA

MX950 (DS7476) TriTech® PIR/Microwave Detector 6 mA 35 mA

RF3222 Wireless Receivers 30 mA 30 mA

2-Wire Smoke Detectors

4-Wire Smoke Detectors

Bells, Horns, etc.

Other Sensors

Other

Grand Total

Max. Load Currents Standby Alarm

UL Installations 1.5 A 2.5 A

Maximum Current By Output:

Not to exceed the maximum load currents listed above in Standby or Alarm

Aux. Power & Keypad (Combined) 1.0 A 1.0 A

Option Power 1.0 A 1.0 A

Bell Output X 1.75 A

Programmable Output 2 500 mA 500 mA

Loop Power + 500 mA 500 mA

1.18 Options

•DS7412: RS232 Serial Interface module.

The DS7412 module allows the panel to send event

information, in an ASCII format, directly to a serial

printer or computer. In addition, the interface allows

the direct connection of a computer to the panel for

programming via the WDSRP programming software.

• Current Draw= 25 mA; 35 mA with LEDs on.

• DS7416i: Advanced Radio Communications Module provides

a means of communicating alarm and supervision

signals using the Motient radio network. This can

be a replacement for, or a complement to, the

standard digital communicator.

• Current draw = 127 mA Standby and Alarm.

• DS7420i: Dual Phone Line/Bell Supervision Module (1 per

system).

The DS7420i allows the control to be used in NFPA

72 installations. It provides two supervised 12.0 VDC

signaling outputs, one Class A (Style D) input zone,

and dual phone line transmission and supervision.

• Current Draw = 20 mA Standby; 140 mA Alarm.

• DS7430: Multiplex Expansion Module (1 per system).

The DS7430 provides a two-wire multiplex bus for

the connection of additional remote zones. It also

supplies up to 200 mA for 4-wire multiplex devices

such as the DS7432.

• Current Draw = 65 mA, Standby; 65 mA, Alarm.

• DS7432: 8-Input Remote Module (up to 30 per system.

Requires a DS7430 or DS7436 Multiplex Expansion

Module).

The DS7432 provides a means of monitoring

conventional Normally Open or Normally Closed

contacts. It reports their status to the control panel

as multiplex addresses. It occupies eight multiplex

zones on the system and can monitor up to eight

separate loops. It will support 4-wire smoke

detectors.

• Current Draw = 10 mA; Standby. 10 mA, Alarm.

• DS7433: 8-Input Direct Module (1 per system. Can not be used

with the DS7430 or DS7436 Multiplex Expansion

Modules).

The DS7433 provides a means of expanding the

system to include eight additional hard-wired zones.

Each zone can support up to twenty 2-wire smoke

detectors (can also support 4-wire smoke detectors).

• Current Draw = 65 mA, Standby; 80 mA, Alarm.

Add 15 mA for each additional zone in alarm.

•DS7436: Multiplex Expansion Module. (1 per system.)

The DS7436 provides two two-wire multiplex buses

for the connection of up to 120 remote points. It

also supplies 200 mA per bus.

• Current Draw = 130 mA, Standby or Alarm.

• DS7445/DS7445i: Control Station. (15 Keypads max. per

system). The DS7445/DS7445i is an LED keypad

which has LEDs representing the first 8 zones of

the system. It displays information on various

control panel functions. A built in sounder is used

as an interior warning device and to annunciate

keystroke entries.

• Current Draw = 75 mA, Standby; 75 mA, Alarm.

• DS7447/DS7447E: Control Station. (15 Keypads max. per

system)

The DS7447/DS7447E is an Alpha-Numeric LCD

keypad. It displays information on various control

panel functions. A built-in sounder is used as an

interior warning device and to annunciate keystroke

entries.

• Current Draw = 100 mA, Standby; 100 mA, Alarm.

• Keypad Access Output: The DS7447/DS7447E

Alpha Keypad will provide a ten (10) second access

relay output if equipped with the optional K800 Relay.

The relay will energize at the keypad if the user has a

master, unlimited, general, or access PIN. The output

will change only if the user has access to the partition

assigned to the keypad. See the DS7445/DS7447

Keypad Installation Instructions (P/N: 22235) or the

DS7445/DS7445i/DS7447E Installation Instructions

(P/N: 4998138630) for wiring information.

• DS7448: Control Station. (15 Keypads max. per system)

The DS7448 is a four-wire LCD annunciator

keypad. It has a Silence key and a Reset key used

for controlling annunciator and control panel

operation, a Keylock Switch that can be used to

lock out the annunciator to prevent unwanted

silencing or resetting of the control panel, and a

two-line, 16-character Display capable of showing

all messages normally displayed on a DS7447/

DS7447E keypad.

• Current Draw = 80 mA, Standby; 100 mA, Alarm

• DS7450: Flush Mount Single Multiplex Contact Point (requires

a DS7430 Multiplex Expansion Module).

The DS7450 is intended as a replacement for

conventional dry contacts, and to report an actual

multiplex address to the control panel. Occupies 1

zone.

• Current Draw = 350 μA, Standby; 350 μA, Alarm.

• DS7452: Surface Mount Single Multiplex Contact Point (requires

a DS7430 Multiplex Expansion Module).

The DS7452 is intended as a replacement for

conventional dry contacts, and to report an actual

multiplex address to the control panel. Occupies 1

zone.

• Current Draw = 350 μA, Standby; 350 μA, Alarm.

• DS7455: Surface Mount Single Multiplex Contact Point

(requires a DS7430 Multiplex Expansion Module).

The DS7455 is intended as a replacement for

conventional dry contacts, and to report an actual

multiplex address to the control panel. Occupies 1

zone.

• Current Draw = 350 µA, Standby; 350 µA, Alarm.

• DS7457: Single Zone Multiplex Input Module (requires a

DS7430 Multiplex Expansion Module).

The DS7457 provides a means of monitoring

conventionally Normally Open or Normally Closed

contacts. It reports their status to the control panel as

multiplex addresses. It occupies one multiplex zone

on the system and can monitor one loop. It also

includes a tamper loop.

• Current Draw = 350 μA, Standby; 350 μA, Alarm.

• DS7460: Dual Zone Module (up to 60 per system. Requires a

DS7430 Multiplex Expansion Module).

The DS7460 provides a means of monitoring

conventional Normally Open or Normally Closed

contacts. It reports their status to the control panel as

multiplex addresses. It occupies two multiplex zones

on the system and can monitor up to two separate

loops.

• Current Draw = 1 mA, Standby; 1 mA, Alarm.

• DS7465: Input/Output Module (up to 60 per system. Requires

a DS7430 Multiplex Expansion Module).

The DS7465 provides a Form “C” relay that may be

programmed to activate on system events, and an

input loop to monitor conventional Normally Open or

Normally Closed contacts. It reports their status to

the control panel as multiplex addresses.

• Current Draw = 1 mA Standby; 1 mA with relay

energized.

• Occupies 2 zones.

• DS7480: Bell Supervision Module (1 per system).

The DS7480 provides a means of monitoring bells. It

provides a supervised (polarity reversing) output relay

to activate the bell. It also provides a Form “C” Bell

Fault Output to be connected to the control panel.

• Current Draw = 7 mA @ 12 VDC, Standby; 50 mA

@ 12 VDC, Alarm.

• DS7481: Single Phone Line Monitor (1 per system).

The DS7481 provides a means of monitoring a single

phone line for fault conditions. When a fault is

detected, the DS7481 automatically closes its

Normally Open relay contacts to provide a means of

signaling the fault.

• Current Draw = 20 mA, Standby; 20 mA, Alarm.

• DS7488: Octal Relay Module (2 per system).

The DS7488 provides 8 Form “C” relay outputs for

addition to the system. The outputs are fully

programmable and can be activated by system

events. Each output operates individually of the other

7 outputs for complete flexibility.

• Current Draw = 10 mA + 40 mA for each relay

when energized.

• DS7489: Solid State Output Module (2 per system).

The DS7489 is a Solid State Octal Driver Module that

provides 8 open collector transistor outputs. The

outputs are fully programmable and can be activated

by system events. Each output operates individually

of the other 7 outputs for complete flexibility. The

DS7489 Module has not been investigated by

Underwriters Laboratories, Inc.

• Current Draw = 10mA.

• Outputs: Provides a current sink (the output shorts

to common (-) when activated). The maximum

current draw for all 8 outputs combined cannot

exceed 750 mA.

•DS9484: The DS9484 is a Remote Notification Appliance

Circuit (NAC) Power Supply designed to add four

additional NACs (NFPA 72 Class B, Style Y) to a

Fire Alarm Control Panel (FACP). When connected

to the Options Bus of the DS7400Xi, it can provide

intelligent control of its individual outputs. It

supplies 6 A of NAC power through four circuits to

drive horn strobe loads. It is UL Listed as a fire

accessory for use in Commercial fire applications

and as a continuous-load power supply for auxiliary

devices.

• Current Draw = 150 mA, Standby; 6 A maximum,

Alarm

•MX280: Multiplexed Photoelectric Smoke Detector (up to 120

detectors may be used per system. Requires a

DS7430 and occupies one multiplex zone). Detects

smoke and automatically determines the detector’s

sensitivity using the Detection Systems “Chamber

Check” feature.

• Current Draw = 500 μA, Standby; 560 μA, Alarm.

•MX280TH: Multiplexed Photoelectric Smoke Detector with a

135°F heat sensor (up to 120 detectors may be used

per system. Requires a DS7430 and occupies one

multiplex zone). Detects smoke and is equiped with

a 135°F heat sensor for high temperature alarms.

The Detection Systems “Chamber Check” feature

automatically determines the detector’s sensitivity.

• Current Draw = 500 μA, Standby; 560 μA, Alarm.

•MX280THL: Multiplexed Photoelectric Smoke Detector with a

135°F heat sensor and a 45°F freeze alarm (up to 60

detectors may be used per system. Requires a

DS7430 and occupies two multiplex zones). Detects

smoke and is equiped with a 135°F heat sensor for

high temperature alarms and a 45°F sensor for freeze

alarms. Freeze alarms are reported separately from

smoke and high temperature alarms. The Detection

Systems “Chamber Check” feature automatically

determines the detector’s sensitivity.

• Current Draw = 500 μA, Standby; 560 μA, Alarm.

• MX540: Multiplexed Passive Infrared (PIR) Intrusion Detector

(DS7473) with a standard range of 40 by 50 feet (12

by 15 meters). Requires a DS7430 and occupies

one multiplex zone.

• Current Draw = 200 μA, Standby; 2 mA, Alarm.

• MX835 TriTech Microwave/PIR Intrusion Detector with “Pet

Avoidance” technology and a standard range of 35 by

35 feet (10.7m by 10.7 m). Requires a DS7430 and

occupies one multiplex zone.

• Current Draw = 6 mA, Standby; 35 mA in “Trouble”

and Walk Test mode.

• MX775 Multiplex Passive Infrared (PIR) Intrusion Detector with

(DS7470) a standard range of 50 by 50 feet (15 m by

15 m). Requires a DS7430 and occupies one multiplex

zone.

• Current Draw = 200 μA, Standby; 2 mA in Walk

Test mode.

2.0 Enclosure Installation

The DS7400Xi control/communicator and the enclosure are

shipped together. The control, however, still needs to be installed

into the enclosure. Hardware for mounting the enclosure to a wall,

and the control to the enclosure is located in its own hardware

pack.

2.1 Install the Enclosure

• Use the enclosure as a template and mark the top mounting

holes on the mounting surface.

• Pre-start the mounting screws for these two holes. Slide the

enclosure onto these mounting screws so that the screws move

up into the thinner section of the holes. Tighten the screws.

• Screw in the remaining two screws in either set of bottom

mounting holes.

• Knock out the desired wire entrances on the enclosure.

2.2 Install the Control/Communicator

The control is static sensitive. Make sure you touch

earth ground before handling the control. This will

discharge any static electricity in your body. Example:

Run the ground wire to the enclosure before handling

the control. Then keep holding the ground wire while

installing the control.

• Insert the three support posts into the control retainer holes as

shown in the diagram.

• Slide the top of the control into the retainer tabs (the slots under

the top frame).

• Once in the retainer tabs, the control will rest on the three support

posts.

• Secure the bottom of the enclosure by screwing the bottom three

holes through the support posts and through to the control

retainer holes.

Once the control is installed, be sure to connect its

ground wire to the top hinge of the enclosure (the

unpainted tab).

•MX794 The MX794 is a Long Range Multiplex PIR intrusion

(DS7474) Detector with Self-test. The standard ranges

are 80 ft. by 50 ft. (24.0 m by 15.0 m) and 200 ft. by 10 ft.

(61.0 m by 3.1 m). Requires a DS7430 and occupies

one multiplex zone.

• Current Draw = 800 μA, Standby; 2 mA, Alarm.

•MX934 Multiplex Passive Infrared (PIR) intrusion detector with

(DS7471) a standard range of 35 by 35 feet (10.7 m by

10.7 m). Requires a DS7430 and occupies one multiplex

zone.

• Current Draw = 200 μA, Standby; 2 mA in Walk

Test mode.

•MX938 360° Ceiling Mount Multiplex PIR Intrusion Detector

(DS7472) with a 60 foot (18.3 m) diameter range.

Requires a DS7430 and occupies one multiplex zone.

• Current Draw = 200 μA, Standby; 2.5 mA in Walk

Test mode.

• MX950 Multiplex TriTech Microwave/PIR Intrusion Detector

(DS7476) with motion monitor and antimask features

and with a standard range of 50 by 50 feet (15 m by

15 m). Requires a DS7430 and occupies one multi-

plex zone.

• Current Draw = 6 mA, Standby; 35 mA in “Trouble”

and Walk Test mode.

•RF3222: 120-zone Wireless Receiver. (up to two receivers

per system. Requires use of a DS7430 or DS7436

Multiplex Expansion Module.)

See the DS7400Xi (4+) Wireless Reference Guide

(P/N: 44575) for more information.

• Current Draw = 30 mA

The control/communicator is also available in three package for-

mats. The packages include the following:

• DS7400XiF: DS7400Xi in large red enclosure manufactured

from 18 Guage (1.2 mm), cold-rolled steel,

measuring 15.0 by 20.75 by 4.25 inch (38.1 by 52.7

by 10.8 cm) (HxWxD).

• DS7400XiFCP: DS7400XiF package with: DS7420i, DS7447/

DS7447E and a AE-TR16

• DS7400XiCC: DS7400Xi in an Attack Enclosure.

When installing a UL Listed system, refer to Section 11.0, Installation

Guide for UL Listed Systems.

he Battery Terminals and Wires are NOT Power Limited. A ¼ in. (6.4 mm) spacing must be maintained between

he battery terminals, battery wiring and all other wiring. Battery wiring may not share the same conduit, conduit

ittings or conduit knock-outs with other wiring.

¼ in. (6.4 mm) Minimum

Option or

Keypad Wires

Output or

Zone Wires

Battery Wires

Only required if

external batteries

are used

To ensure proper spacing

secure wires using

Tie-Wraps or similar devices

Wiring

3.0 Control Terminal Wiring

Typical burglar

alarm loop wiring

Z– L+

Typical 2-wire

smoke detector

wiring

Z– L+

Alarm

Power

–

Loop +

or PO2

Zone

Input Aux. Power (—)

(terminal 5 or 7)

–

Alarm

Power

–

Typical 4-wire smoke

detector wiring.

For example:

Detection Systems’

DS250 in an MB4W base.

End-of-Line

Supervision Relay

(e.g. Detection Systems’

EOL200)

Z– L+

Loop +Zone

Input

Loop +Zone

Input

in out

TYPICAL BURGLAR AND FIRE WIRING

(for a list of

compatible 2-wire

smoke detectors,

see Technical Service

Note P/N 27685)

EARTH GROUND: Must be connected to

a good earth ground such as a cold water

pipe and also connected to the cabinet cover,

using the supplied wire jumper.

ALARM OUTPUT:

Provides 12 VDC, special application, up to

1.75 A for powering bells, siren drivers, etc.

Function programmed in address 2734.

A/C INPUT: Use U. L. listed, 18 VAC 50

VA, class 2 transformer. Model TR-1850

requires 50/60 Hz. unswitched dedicated

outlet - do not share.

–

AUXILIARY POWER:

Provides 12 VDC, special application, up to

1.0 A for powering detectors.

A/C Power Indication LED

OPTION BUS:

Used for options such as the DS7416i

Communications Module, the DS7420i Dual

Phone Line Module, etc.

Also for keypads #11 - #15.

For Commercial Fire Mode: Option Bus wiring

should be in conduit if run ouside the

enclosure.

Shared cable is not recommended for keypad,

multiplex, options bus, telephone, or siren wiring.

ZONES 1-8: Zones 1-8 are intended for connection of Normally

Open or Normally Closed alarm contacts. They may also be used

for compatible 2-wire smoke detectors. These zones require a

2.21kΩ resistor (P/N 25899) at the end of the loop. Power is

momentarily removed from L+ after a [PIN] + [System Reset] or

during a fire verification.

Zone 1-8 assignments are programmed in address 0031-0038.

17 18 19 20 21 22 23 24 25 26 27 28 29 30

PO1 PO2 1– L+ 2– 3– 5– 6– 7– 8–4–

L+ L+ L+

PROGRAMMABLE OUTPUTS:

PO1 shorts to aux. power negative when activated, PO1 can sink up to 1.0 A.

PO1 function programmed in address 2735.

PO2 supplies 12 V and up to 500 mA when activated.

PO2 function programmed in address 2736.

KEYPAD BUS*:

Up to 15 keypads**

may be used. Can be

“home-run” or

“daisy-chained.”

910 112 13 14 15 16

RBGYGBSR

Keypad

(#1 - #10)

PHONE LINE:

* = Maximum wire length each: 1000 ft. (305 m).

Maximum wire length total in system: 6000 ft. (1830 m) when using

#22 AWG (0.8 mm) or #18 AWG (1.0 mm) cable.

** = Keypads #1 - #10 connect to the Keypad Bus and keypads #11 - #15

connect to the Option Bus.

TTHRHR

Keypad

(#1 - #10)

An appropriate two pole disconnect device must be installed

by qualified service personnel, as part of the building installation.

Before servicing, remove all power

including the transformer, battery and

phone line. A complete functional test

is required after any programming.

WARNING

System is Power Limited except for

battery terminals. All wiring entering

this enclosure must be power limited.

Incorrect connections may

result in damage to the unit.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace with the same or equivalent type

recommended by the manufacturer.

Dispose of used batteries according to the

manufacturer's instructions.

CAUTION

NOTE

4.0 Hardware Layout Example

Armed

St at u s

Power

Fir e

123

456

789

Ent ry

System

Re s e t

Bypass

Only

Peri m eter

Off

Per i m et e r

Supe rvi s or y

Bell Silenced

Troubl e

123 456 7 8 ®

DS7488 Octal

Relay Board

DS7400Xi

+–+–

Power Bus

DS7420i Dual Phone

Line/Bell Supervision

Module

DS7447/DS7447E and DS7445/DS7445i

Keypads

DS7450/52 Series Contacts, DS7460 Input Module

DS7465 Input/Output Modules, MX540, MX775,

MX794, MX835, MX934, MX938, and MX950 motio

detectors and MX280 Series Smoke Detectors

DS7430

Keypads #11 - #15 must be connected to

the Options Bus. Keypads #1 - #10 must

be connected to the Keypad Bus.

Note: Ensure at least 1/4" separation

between battery wires and all

other cabling.

Armed

St at u s

Po wer

Fir e

123

456

789

Entry

System

Reset

Bypass

Only

Perimeter

Off

Armed

Stat us

Powe r

Fire

123

456

789

Entry

Sys te m

Reset

Byp ass

Only

Per i m et e r

Off

Armed

St at u s

Po wer

Fir e

123

456

789

Entry

System

Reset

Bypass

Only

Perimeter

Off

Armed

St at u s

Po wer

Fir e

123

456

789

Entry

System

Reset

Bypass

Only

Perimeter

Off

Armed

St at u s

Po wer

Fir e

123

456

789

Entry

System

Reset

Bypass

Only

Perimeter

Off

Armed

St at u s

Power

Fir e

123

456

789

Ent ry

System

Re s e t

Bypass

Only

Peri m eter

Off

Per i m et e r

Supe rvi s or y

Bell Silenced

Troubl e

123 456 7 8 ®

Armed

St at u s

Power

Fir e

123

456

789

Ent ry

System

Re s e t

Bypass

Only

Peri m eter

Off

Per i m et e r

Supe rvi s or y

Bell Silenced

Troubl e

123 456 7 8 ®

–+––

–

Option

Bus

Battery

Bell Output

Auxiliary

Out put

–

112 13 14 15 16 17 18 19 20 21 22 23 24 252 627 28

Battery Battery

RF3222 120-Zone

Wireless Receivers

Wireless Sensors

RTRT TTRR TRTR

DS7432 8-Input

Remote Modules

47kΩ

Dry contact inputs

+–+–12345678

POWER BUS

+–+–123 4567 8

POWER BUS

+–+–12345678

POWER BUS

+–+ –

1234567 8

POWER BUS

12345

2G1-+

BUS NO

123

CNC

DS7416i

Communications

Module

EOL

• Up to 15 keypads may be used. Keypads #1 - #10 connect to the Keypad Bus and keypads #11 - #15

connect to the Option Bus. One keypad must be designated as keypad #1 and connected to the Keypad

Bus. See the DS7447/DS7447E, DS7445/DS7445i, and DS7448 Installation Instructions for further details.

• A DS7420i (Dual Phone Line/Bell Supervision Module) may be connected to the Control Panel, and

placed within the enclosure. Connect to the Options Bus of the control panel. See the DS7420i Installation

Instructions for further details.

• A DS7430 or a DS7436 (Multiplex Expansion Module) may be connected to the control panel via the

expansion port. This will allow for the connection of additional zones via the Options Bus. See the DS7430

or DS7436 Installation Instructions for further details.

• Up to 2 DS7488s (Octal Relay Modules) may be connected to the Control Panel, and placed within the

enclosure. Connect to the Options Bus of the Control Panel. This provides an additional 8 Form “C”

relay outputs for the Control Panel. See the DS7488 Installation Instructions for further details.

• A DS7416i Advanced Radio Communications Module may be connected to the Control Panel via the Options

Bus. This allows for connection to a radio network.

• Up to 248 zones are available for the connection of Single, Multiple, Input/Output, and Multiplex devices.

Up to 112 wireless zones (137-248) are also available.

• Up to 2 RF3222 (120-Zone Wireless Receivers) may be connected to the DS7430 or DS7436. Connect to

the Power and Bus terminals of the Multiplex Expansion Module. This allows for the monitoring of wireless

detectors.

• Up to 30 DS7432s (8-Input Remote Modules) may be connected to the DS7430 or DS7436. Connect to the

Power and Bus Terminals of the Multiplex Expansion Module. This allows for a means of addressing up to

240 input loops of conventional contacts to the Control Panel. See the DS7432 Installation Instructions for

further details.

123

456

789

Entry

Sys t em

Reset

Byp ass

Only

Per i m et e r

Off

TEST WEEKLY

12345 67 8

910111213 14 15 16

Armed

Status

Power

Fire

Pe ri met e r

Supervisory

Bell Silenced

Trou bl e

123

456

789

Entry

Sys t em

Reset

Byp ass

Only

Per i m et e r

Off

TEST WEEKLY

12345 67 8

910111213 141516

Armed

Status

Power

Fire

Pe ri met e r

Supervisory

Bell Silenced

Trou bl e

123

456

789

Entry

Sys t em

Reset

Byp ass

Only

Per i m et e r

Off

TEST WEEKLY

12345 67 8

91011

12 13 14 15 16

Armed

Status

Power

Fire

Pe ri met e r

Supervisory

Bell Silenced

Trou bl e

5.0 System Worksheet

Name Contact Person

Address Voice Phone Number

Panel Phone Number

City, State, Zip Panel Answers Phone Armed Disarmed

Equipment Location and Notes

AC Voltage VAC Battery Voltage VDC AUX Current A

Battery Standby Ah Bell Current A

Control Panel

Transformer

Telephone Jack

Telephone On Same Line as Panel

Earth Ground Connection

Alarm Sounder (s)

Misc. Notes

____________________________________________________________________________________

Keypad Location and Notes

Example

Location Belongs Master/

to Partition Standard

Keypad # 1 Kitchen 2 Master

Location Belongs Master/ Location Belongs Master/

to Partition Standard to Partition Standard

Keypad # 1 Keypad # 9

Keypad # 2 Keypad # 10

Keypad # 3 Keypad # 11

Keypad # 4 Keypad # 12

Keypad # 5 Keypad # 13

Keypad # 6 Keypad # 14

Keypad # 7 Keypad # 15

Keypad # 8

5.0 System Worksheet (continued)

PIN Information

User Pin # Auth. Parti- Name

Level tions

Example

002 1001 6 1, 2, 4 James L.

001

002

003

004

005

006

007

008

009

010

011

012

013

014

015

016

017

018

019

020

021

022

023

024

025

026

027

028

029

030

PIN Information

User Pin # Auth. Parti- Name

# Level tions

PIN Information

User Pin # Auth. Parti- Name

# Level tions

PIN Information

User Pin # Auth. Parti- Name

# Level tions

031

032

033

071

072

073

074

075

076

077

078

079

080

081

082

083

084

085

086

087

088

089

090

091

092

093

094

095

096

097

098

099

067

068

069

070

036

037

038

039

040

041

042

043

044

045

046

047

048

049

050

051

052

053

054

055

056

057

058

059

060

061

062

063

064

065

066

034

035

PIN Worksheet

5.0 System Worksheet (continued)

100

101

102

103

104

105

106

107

108

109

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

PIN Information

User Pin # Auth. Parti- Name

# Level tions

PIN Information

User Pin # Auth. Parti- Nam

# Level tions

PIN Information

User Pin # Auth. Parti- Name

# Level tions

130

131

132

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

168

169

170

171

136

137

138

139

140

156

157

158

159

160

161

162

163

164

165

166

134

135

133 167

110

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

PIN Worksheet

5.0 System Worksheet (continued)

Example

Type * Zone/Output Partition & Location

Function #

Zone # 1

Zone Location and Notes

Zn Funct. 1

Type * Zone/Output Partition & Location

Function #

Zone # 1

Zone # 2

Zone # 3

Zone # 4

Zone # 5

Zone # 6

Zone # 7

Zone # 8

Zone # 9

Zone # 10

Type * Zone/Output Partition & Locatio

Function #

Zone # 31

Zone # 32

Zone # 33

Zone # 34

Zone # 35

Zone # 36

Zone # 37

Zone # 38

Zone # 39

Zone # 40

2, KitchenSZ

* = SZ: Single Zone Input

MZ: Multiple Zone Input

IO: DS7465

(see section 10.3)

Zone # 41

Zone # 42

Zone # 43

Zone # 44

Zone # 45

Zone # 46

Zone # 47

Zone # 48

Zone # 49

Zone # 50

Zone # 51

Zone # 52

Zone # 53

Zone # 54

Zone # 55

Zone # 56

Zone # 57

Zone # 58

Zone # 59

Zone # 60

Zone # 11

Zone # 12

Zone # 13

Zone # 14

Zone # 15

Zone # 16

Zone # 17

Zone # 18

Zone # 19

Zone # 20

Zone # 21

Zone # 22

Zone # 23

Zone # 24

Zone # 25

Zone # 26

Zone # 27

Zone # 28

Zone # 29

Zone # 30

Zone Location and Notes Worksheet

5.0 System Worksheet (continued)

Zone Location and Notes Worksheet

6.0 Glossary

6.1 General Control Programming

• Normal Arming - [PIN] + [On]: If programmed, arms the entire

system while allowing entry delays for entry/exit zones.

• Perimeter Instant Arming - [PIN] + [No Entry] [Perimeter Only]: If

programmed, arms only the perimeter of the system and does

not allow entry delays for entry/exit zones.

• Perimeter Arming - [PIN] + [Perimeter Only]: If programmed,

arms only the perimeter of the system while allowing entry delays

for entry/exit zones.

•Custom Arming - [PIN] + [#] [4]: If programmed, allows custom

arming of the system and bypasses the zone functions specified

in data addresses 2725-2728.

•Maximum Security Arming - [PIN] + [No Entry] [On]: If

programmed, arms the entire system and does not allow an

entry delay for entry/exit zones.

• General Authority by Partition

A general (level 2) authority can be programmed to have arm-

only authority; arm and bypass authority; arm and disarm

authority; or arm, disarm, and bypass authority by partition. This

is done at addresses 3421-3424.

- Arm-only access by partition allows someone with a General

Authority to arm zones in a partition he can not disarm.

- This level can still be used to arm, disarm, and bypass zones

in the other partitions that it has access to.

•Closing Ring-Back: If programmed, the keypad sounders and

Bell will activate for 2 seconds after the system is armed and the

closing report is successfully sent. This requires Closing Ring-

Back and Closing Report to be programmed.

- If a closing report is not programmed, the control will test for a

dial tone when the system is armed. If the test passes, the

system will arm normally. If the test fails, the system will arm,

but will indicate a trouble condition.

- The DS7447/DS7447E keypad will display “Communication

Err” after [#] [8] [7] is entered.

•Siren on Comm. Fail for Silent Zone: If programmed, a silent

zone will sound the alarm outputs if the zone is in an alarm

condition and the system fails to communicate with the central

station.

•Restore when Sounders Silence: If programmed, a zone sends

a restoral report and is ready to activate again only after the

burglary bell cut-off time expires or the bells are silenced.

- The zone can alarm multiple times per armed period.

•Restore when Zone Restores: If programmed, a zone sends a

restoral report and is ready to activate again as soon as it

physically restores.

- This zone can alarm multiple times per armed period.

•Restore when System Disarms: If programmed, a zone sends

a restoral report when the system is disarmed.

- It can only alarm once per armed period.

•Allow Swinger Shunts: If programmed, a zone can only alarm

or trouble up to three times per armed period. After the third

alarm or trouble, the zone will be bypassed and a bypass report

will be sent.

NOTE: Swinger Shunts are not allowed on UL Certificated

Installations.

6.2 Zone Function Programming

• Zone Function

A Zone Function is the description of how a particular zone will

behave (e.g. steady alarm output, bypassing allowed, alarm on

short, trouble on open, perimeter instant).

- There are many possible zone functions. Up to 30 different

zone functions are allowed per control.

- Zone functions may be custom made as needed.

- Each zone must be programmed as a specific zone function.

Any number and combination of zones may be programmed

as particular zone functions.

- Program zone functions at addresses 0001-0030.

•Invisible Alarms: This is a zone programmed not to have an

alarm output or an alarm display at any keypad when activated.

An alarm signal will be sent, but the DS7447/DS7447E keypad

display will read “Not Ready” while this zone is violated.

- Invisible Alarm zones are recommended for holdup alarms.

•Silent Alarms: This is a zone programmed to activate the visual

display at the keypad, but not audible signals.

- If this zone is also an entry zone, an entry tone will sound when

this zone is activated.

• Bypassing Allowed: This is a zone programmed to allow

bypassing (shunting). This is done using the bypass command

or the force-arming sequence.

•Alarm on Short: This is a zone programmed to activate an

alarm when its loop is shorted.

•Alarm on Open: This is a zone programmed to activate an

alarm when its loop is opened.

•Trouble on Open: This is a zone programmed to activate a

trouble when its loop is opened and the system is disarmed.

- If the system is armed, this zone will activate an alarm if shorted

or opened.

- For 24-hour zones, regardless of the arming state of the panel,

this always remains as a Trouble on Open.

•Trouble on Short: This is a zone programmed to activate a

trouble when its loop is shorted and the system is disarmed.

- If the system is armed, this zone will activate an alarm if shorted

or opened.

- For 24-hour zones, regardless of the arming state of the panel,

this always remains as a Trouble on Short.

•Interior Delayed: This is a zone programmed to be ignored

during the entry/exit delay period. If it is violated when the system

is armed, it will activate a delay for the programmed entry delay

time. The keypad pre-alert sounders will activate and the system

may be disarmed during this delay period. If the system is not

disarmed during this delay period, this zone will activate an alarm.

This zone is bypassed by Perimeter Instant or Perimeter Armed.

•Perimeter Instant: This is a zone programmed to activate an

alarm even during the entry/exit delay period.

•24-Hour: This is a zone programmed to activate when its loop is

faulted, even if the system is disarmed.

• Entry/Exit Delay #1: This is a zone programmed to be ignored

during the entry/exit delay period.

- If it is violated while the system is armed, it will activate a delay

for the amount of time programmed for entry delay time #1

(address 4028). The keypad pre-alert sounders will activate

and the system may be disarmed during this delay period.

- If the system is not disarmed during the entry period, this zone

will activate an alarm.

• Entry/Exit Delay #2: This is a zone programmed to behave

identical to the Entry/Exit Delay #1 zone function except that it

uses entry delay time #2 (address 4029).

NOTE: If both entry delays have been activated, the control will

use the shorter entry delay.

• Entry/Exit Delay Cancel Zone Functions

Entry/Exit Delay Cancel 1 and Entry/Exit Delay Cancel 2 Zone

Functions cause the exit delay to expire as soon as the premises

is vacated.

- If a zone is programmed as an Entry/Exit Delay Cancel zone,

and it is activated during the exit delay, the exit delay will expire

as soon as the zone has been restored.

- Entry/Exit Delay Cancel 1 follows entry delay 1.

- Entry/Exit Delay Cancel 2 follows entry delay 2.

•Interior Entry/Exit Follower: This is a zone programmed to be

ignored during an entry/exit delay and then become an interior

instant zone.

- If this zone is violated while the system is armed and no entry/

exit zones have been violated, it will activate an alarm.

- If this zone is violated after an entry/exit delay zone is violated,

it will follow that entry/exit delay time.

- This zone is bypassed by Perimeter Instant or Perimeter

arming.

•Interior Home/Away: This is a zone programmed to become an

interior instant zone if the system is armed and an entry/exit

delay zone is violated during the exit delay time.

- If the system is armed and an entry/exit delay zone is not

violated, this zone will be bypassed.

- This zone is bypassed by Perimeter Instant or Perimeter

arming.

•Interior Instant: This is a zone programmed to activate an alarm

even during the entry/exit delay periods.

- It is bypassed by Perimeter Instant or Perimeter arming.

•Day Monitor: This is a zone programmed to be a perimeter

instant zone when the system is armed.

- When the system is disarmed, any violation of this zone will

activate the keypad sounders which will sound continuously

until a disarm command sequence is entered.

- The alarm outputs for this zone will not activate and there will

be no report for this zone when the system is disarmed.

•Keyswitch Input: This is a zone programmed to allow the system

to be armed or disarmed using a Normally Open momentary

keyswitch.

- Outputs for keyswitch LEDs and sounders are available using

the programmable outputs or the Octal relay outputs.

- An output is needed for each LED and sounder.

- A keyswitch will only control the partition that these zones are

assigned to unless programmed as a master, then it will

control all at once. See Program Address 0001, Data Digit 1.

- Keyswitches and keypads may be used in the same partition,

if desired.

•Fire Zone: This is a zone programmed to activate if the system

is armed or disarmed.

- It can be silenced (not reset) by entering a valid [PIN] + [Off].

- The display will indicate a Fire Alarm for this zone on all

keypads in every partition.

- A fire reset command must be entered after silencing the

alarm to re-enable this zone.

- If this zone is programmed for trouble and the loop opens, the

DS7447/DS7447E keypad will display “Fire Trouble” for this

zone and the keypad sounders will beep once every ten

seconds.

- If the system is a combination fire and burglar alarm, the fire

alarm has priority over the burglar alarm.

• Fire Zone with Verification: This zone is identical to a Fire Zone

except that after the first alarm, it will perform a fire reset and

then wait up to two minutes for a second alarm.

- If a second alarm occurs within this two minute period, the

system will indicate a fire alarm.

- If there is no second alarm within this two minute period, the

control panel will reset back to its normal condition.

NOTE: Use of this control’s alarm verification feature is not per-

mitted for applications in the state of California.

•Water Flow Zone: This is a zone programmed to operate like a

Fire Zone, but is specifically intended for water flow switches.

- An optional retard timer can be programmed to compensate

for changes in water pressure. If the timer is used, the water

flow zone must be activated for the complete time period; an

alarm will be initiated at the end of the timer period.

- The maximum combined water flow delay of the control panel

and the device must not exceed two minutes.

NOTE: Any zone can be a water flow zone, but only zones 1

through 4 may be programmed as delayed water flow

zones.

•Supervisory Zone: This is a zone programmed to accommodate

shut-off valves.

- It will indicate a supervisory condition at the keypads when

activated.

6.3 Zone Programming

• Zone

A Zone is an input to the DS7400Xi Control/Communicator.

- There are 8 hardwired zones on the main circuit board.

- Additional zones may be added by using the DS7433 (8 zone

expansion module), the DS7430 (multiplex loop module), and/

or other modules.

•Single Zone Input: This is an individual zone such as the on-

board zones and multiplex contact zones.

•Multiple Zone Input: This is a zone connected to one of the 8-

Input Modules (DS7432 or DS7433) or to a Dual Zone Module

(DS7460).

- The inputs are programmed separately (see the separate

Programming Addresses Worksheet, P/N: 29802).

- When using the Dual Zone Module (DS7460), loop A is always

programmed as an odd numbered program address (ending

in 1, 3, 5, 7, or 9). Loop B is the even numbered program

address that follows loop A.

• DS7465: This is the input zone or the output relay on a DS7465.

The odd numbered zone is programmed for the input zone

function and the even numbered zone is programmed for the

output function.

•Multiplex Smoke: This is a multiplexed input zone (zones 9-

248) that is used with a MX280 series smoke detector. This zone

must have a Zone Function of Fire Zone and Trouble on Open

applied to the multiplex smoke zone.

•Multiplex Smoke with Low Temperature: This zone is used

with the MX280 series smoke detectors with a low temperature

alarm. Making this selection requires the programming of two

zones as follows:

-Smoke alarm. This must be the odd numbered zone of the

zone pair required for these devices. The zone must be

programmed with a zone function that is set for Fire Zone and

Trouble onOpen.

-Low Temperature Alarm. This must be the even numbered

zone of the zone pair required for these devices. This zone

must be programmed with a zone function that is set as

Supervisory and Trouble on Open.

6.4 Output Programming

•Latch on Any Zone Alarm: This is an output programmed to

activate upon any zone alarm (including invisible zones) and will

latch until the system has been disarmed.

- If this output is programmed to respond only to a fire zone, it

will remain latched until the fire reset command is performed.

•ON during Entry Pre-Alert: This is an output programmed to

activate when an entry/exit zone is violated while the system is

armed.

- It will remain activated until the system is disarmed, or until

the entry delay time has expired.

• ON for 10 seconds after [PIN] + [System Reset] is entered: This

is an output programmed to activate for 10 seconds after the fire

reset command is entered at the keypad or if a Fire Zone with

Verification activates.

- This output is intended to be used to power 4-wire smoke

detectors or any other device that requires a power interruption

to reset an alarm condition.

NOTE: When Programmable Output 2 is programmed this way,

it will normally supply auxiliary power and will turn OFF for

10 seconds when the fire reset command is entered.

•ON when System is Armed: This is an output programmed to

activate when the system is armed.

- It will remain activated until the system is disarmed.

•Ground Start: This is an output programmed to activate for 3

seconds when the phone line is seized. It is intended for use

with ground start phone systems that require a momentary short

to ground to obtain a dial tone.

- Connect a separate 12 VDC, DPDT relay.

- Connect both relay contact commons to ground, and connect

the Normally Open of each contact to terminal positions 13

and 16 (one to terminal 13, the other to 16) of the DS7400Xi.

- This output follows all partitions regardless of how data digit 2

of the output programming address is programmed.

- Not intended for UL Listed systems. Not for use with phone

line monitors.

•System Status (ready to arm): This is an output programmed

to follow the Status LED of the keypad.

- It will activate when the system is ready to arm with no zones

violated.

•Zone Alarm: This is an output programmed to activate when a

zone is in an alarm condition.

- It will remain activated until the system is disarmed or the bell

cut-off time expires.

- This output is intended to activate alarm bells and sirens.

- This will not activate from Silent or Invisible Zones.

•Zone Alarm Delayed by 20 sec.: This is an output programmed

to wait 20 seconds after a zone enters an alarm condition to

activate.

- It will remain activated until the system is disarmed or the bell

cut-off time expires.

- This output is intended to activate alarm bells and sirens, but

provides a delay to allow the user to silence the system before

it activates.

• Output Functions

Output Functions can be programmed to follow system events

or to follow one or two specific zones in a “cross-matrix” fashion

(see Input/Output Cross-Matrixing).

- These Output Functions can be programmed to control Octal

Relay outputs or Multiplex Bus outputs.

- Output Functions are programmed in addresses 2772-2843.

• Input/Output Cross Matrixing

Input/Output Cross Matrixing allows Output Functions to follow

the status of specific input zones (zones 1 through 248 only).

- Outputs can be programmed to follow any combination of one

or two zones, open or closed, with the system armed or dis-

armed.

- If programmed to latch, the output will latch until a valid PIN is

entered at the keypad.

•Keypad Sounder Output: This is an output programmed to follow

the keypad sounder.

- It activates during the entry pre-alert and during any day monitor

alarm. It does not follow momentary keypad beeps such as

keystrokes, chimes, etc.

•Access Output: This is an output programmed to activate for

10 seconds when an access control PIN is entered at the keypad.

- Not UL Listed for Access Control (UL294).

•Panic/Duress Output: All outputs, including the three on-board

outputs, the Octal Relays, and the Output Functions, support a

Panic/Duress function. This output will follow Duress activations,

Keypad Emergency Keys B and C, and Invisible and Silent Zone

alarms. It will only be reset by a user acknowledgement and will

not reset after the burglary bell time-out occurs. Duress activa-

tions will latch until acknowledged by a user.

• Multiplex Bus Outputs

The DS7400Xi supports up to 60 DS7465 Input/Output Modules.

- These modules are connected to the multiplex bus and provide

one input loop and one Form “C” output relay.

- The input loop operates the same as all other multiplex inputs.

- The output loop can be programmed to follow Output

Functions.

- Multiplex Bus outputs can be bypassed using the bypass

function. If an output zone is bypassed while it is ON, it will turn

OFF. The bypass will not be removed when the system is

armed and then disarmed; it must be cancelled by entering

the bypass command again or by cancelling all bypasses.

NOTE: DS7465 Module outputs will not pulse, even if programmed

to do so.

• Octal Relay Modules (DS7488)

The DS7400Xi can support two Octal Relay Modules.

- Each relay can be programmed to follow system-wide events

or Output Functions as described above.

• Solid State Output Modules (DS7489)

The DS7400Xi can support two Solid State Output Modules.

- Each output can be programmed to follow system-wide events

or Output Functions as described above.

6.5 Partition Control Programming

•Partition Control Programming: Up to eight partitions may be

used. They are assigned (program address 3420) in order.

- For example: When using only one partition, it is partition one.

When using three partitions, they are partitions one, two, and

three.

- Partitioning allows the system to act as up to 8 different

systems.

- Zones, keypads, outputs, and other items may be assigned to

particular partitions.

- Access to partitions may be through each partition’s keypad

or through a Master keypad (see the User’s Guide P/N: 43851

for more details).

•Common Area: Partition 1 can be programmed as a common

area, that is, common to other partitions. This allows it to be

used in an installation with one common entry area such as a

foyer or vestibule.

- When Partition 1 is programmed as a common area, it will

only arm when all the partitions it is common to are armed.

- The common area will disarm when any of the partitions it is

common to are disarmed - only if the user has access to the

common area.

- When using a common area, a Master keypad should be used

and assigned to the common area (see keypad assignment

programming).

6.6 Keypad Assignment Programming

•Keypad Assignment: The keypad type and the partition it is

assigned to must be programmed.

- Each program address (3131-3138) programs the keypad

type for two keypads. For example: for address 3131, data

digit 1 is for keypad 1, data digit 2 is for keypad 2.

- Each program address (3139-3146) programs the partition

assignment for two keypads. For example: for address 3139,

data digit 1is for the partition assignment of keypad 1, data

digit 2 is for the partition assignment of keypad 2.

- Users must have access to the partition the keypad is assigned

to in order to use the keypad.

•Master Keypad Programming : A Master keypad can be used

to access all the partitions.

- It will display the arm/disarm status of all the partitions and

can be used to individually control each partition (see section

7.6).

- A Master keypad can be assigned to any of the partitions.

- Any number of the 15 allowable keypads can be a Master

keypad.

- When using the common area, it is suggested that a Master

keypad be used and that it is assigned to the common area.

6.7 Emergency Key Programming

NOTE: Do not label these keys if they are unprogrammed. Only

the “A” key may be programmed and labeled as the Fire

key. These keys are not intended to substitute for Listed

manual pull boxes.

•Fire Key: The emergency key (key A) at the bottom left of the

keypad entry area is the Fire Key. If programmed, the key will

activate a fire alarm when pressed for 2 seconds.

- It may be programmed for a steady or pulsed alarm.

NOTE: The Fire Key will generate the fire alarm sounders in the

partition that activated the Fire Key. Any other partitions in

use will only have their keypad sounders activated. All

keypad displays will be the same.

•Special Emergency Key: The emergency key (key B) at the

bottom center of the keypad entry area is the Special Emergency

Key.

- If programmed, the key will activate a supplementary or an auxiliary

type alarm when pressed for 2 seconds.

- It may be programmed for a silent, steady, or pulsed alarm.

•Panic Key: The emergency key (key C) at the bottom right of the

keypad entry area is the Panic Key.

- If programmed, the key will activate a panic alarm when

pressed for 2 seconds; nothing will display at the keypad to

indicate an alarm.

- It may be programmed for a silent, steady, or pulsed alarm.

NOTE: The Special Emergency Key and the Panic Key will gen-

erate the alarm sounders only in the partition of the key-

pad that activated that Key.

6.8 Custom Arming Programming

•Custom Arming - [PIN ] + [#] [4]: If programmed, the [PIN] + [#]

+ [4] command sequence may be used to custom arm the system

by arming only certain zone functions.

- For example: All interior zones plus some perimeter zones

may be bypassed while leaving some of the perimeter armed.

6.9 Force Arming

•Force Arming: If programmed, allows violated zones to be force

armed. When force arming, the user must enter the usual arming

command followed by the [Bypass] key. This automatically

bypasses zones that are violated and programmed as

bypassable.

- Fire zones, supervisory zones, keyswitch zones, waterflow

zones, and non-bypassable zones can not be force armed.

- Not available in UL Listed systems.

- See Program Address 2732.

6.10 Ground Fault Detect Programming

•Ground Fault: If programmed, this function will allow the system

to detect ground faults. This function is required for fire panels

and will be forced on when the panel is in the commercial fire

mode.

- See Program Address 2732.

6.11 Commercial Fire Mode Programming

NOTE: In a system that includes both fire alarm and burglar alarm

devices, the system must produce distinct sounds for fire

and burglar alarm conditions either by using different in-

dicating appliances or by using distinct cadences for the

same appliance.

•Commercial Fire Mode: When in Commercial Fire Mode, the

control panel will perform some functions (e.g. communications)

differently to conform with commercial fire regulations.

- See Commercial Fire Mode Programming, program address

2733.

•Water Flow Zone Delay: This is the amount of time a water flow

zone must be violated before the control panel will initiate an

alarm.

- The delay is necessary to accommodate normal changes in

water pressure.

- If the water flow initiating device incorporates its own time

delay, do not program the control panel unit to exceed 120

seconds combined time delay.

•Pulsing Fire Zone: This is a zone programmed to output a pulse

for a fire alarm in the normal manner (one second ON, one second

OFF).

•California March Time: This is a zone programmed to output a

pulse for a fire alarm in the California Time cadence (ten 1/2

second pulses, followed by one second of quiet time).

•Temporal: This is a zone programmed to output a pulse for a

fire alarm in the Temporal cadence (three 1/2 second pulses,

followed by one second of quiet time).

•Single Keypad Use: The keypad should be used on the keypad

bus and be mounted to the front of the control enclosure OR if

within the same room as the control equipment with the wire run

in conduit (or equivalently protected against mechanical injury)

within 20 ft. (6.1 m) of the control equipment.

- This keypad should be assigned as address 1.

•Multiple Keypad Use: One keypad only must be used on the

option bus, at any address from 11 - 14, and must meet the

following requirements:

- The keypad must be mounted to the front of the control

enclosure OR mounted within the same room as the control

equipment and the wire is run in conduit (or equivalently

protected against mechanical injury) within 20 ft. (6.1 m) of the

control equipment.

- All other keypads should be connected to the keypad bus and

may be placed as needed (within the noted wiring limitations

in the installation manual).

- One keypad must be assigned as address 1.

6.12 Open/Close Report Control Programming

•Open and Close Reports: If programmed, these reports are

sent when the system is armed or disarmed. They may be sent

independently for the opening and closing of each partition, or

the first partition to open and the last partition to close may send

the reports.

•Send Trouble at Close for Bypassed Zones: If programmed, a

trouble report will be sent for each zone bypassed when the

system is armed.

•Alternate between both Phone Numbers: If programmed, open

and close reports will be sent to phone number one first. If phone

number one does not pick-up, the control panel will alternate to

phone number two. If phone number two does not pick-up, the

control panel will alternate back to phone number one. It will

alternate between both phone numbers until successful.

6.13 Report Programming

•Reports: For pulse formats, reports are programmed by enter-

ing data in the reporting and extended digits. The report will

send the data programmed for each event. For SIA and Contact

ID, the report formats are fixed and may be activated by placing a

1 in the reporting digit.

- To disable a report, enter a 0 in the reporting digit.

- To send the Man No. along with Open and Close reports,

program an "F" (enter [*] [5] at the keypad) in the extended

digit.

•Keypad Fire Alarm: This report is sent when a fire alarm has

been activated by the “A” emergency key.

•Keypad Fire Restoral: This report is sent when a keypad fire

alarm has been restored using the [System Reset] command.

•Keypad Emergency Alarm: This report is sent when an

emergency alarm has been activated using the “B” emergency key.

•Keypad Panic: This report is sent when an emergency alarm has

been activated using the “C” emergency key.

•Keypad Tamper: For keypads fitted with a wall tamper switch, this

report is sent when the keypad is removed from the wall.

•Keypad Tamper Restoral: For keypads fitted with a wall tamper

switch, this report is sent when the keypad is properly replaced

on the wall after experiencing a tamper condition.

•Zone Function Alarm: An alarm report is sent when a zone

alarm occurs. Alarm reports are enabled by zone function. Pro-

gram this report for any zone functions you wish to send an

alarm report about. For local zones (no reports), do not program

an alarm report. The zone number will automatically be sent for

this report in SIA or Contact ID format.

•Zone Function Restoral: This report is sent when the zone alarm

and trouble conditions are cleared. The zone number will auto-

matically be sent for this report in SIA or Contact ID format.

•Zone Function Trouble: This report is sent when a zone trouble

condition occurs. This can be an open circuit, if the zone is pro-

grammed for “trouble on open”, a multiplex tamper switch being

activated, or a multiplex zone not communicating with the control

panel. The zone number will automatically be sent for this report

in SIA or Contact ID format.

•Zone Function Bypass: This report is sent when a zone is by-

passed. (Note: Fire zones can never be bypassed.) Zone by-

pass reports for non-24 hour zones are sent with the closing

report. Bypass reports for 24 hour zones are sent when the zone

is bypassed. If a zone is force armed, the bypass report is sent

with the partial close report. If a 24 hour or non-24 hour zone is

custom armed, the bypass report is sent with the partial close

report.

•Zone Function Bypass Restoral: This report is sent when the

zone bypass is cleared. For non-24 hour zones the bypass resto-

ral is sent with the open report. Bypass restoral reports for 24

hour zones are sent when the zone is manually restored. The

bypass restoral report for a zone that was force armed is sent

when the zone is restored. If a 24 hour or non-24 hour zone was

custom armed, the bypass restoral is sent with the open report.

•Open: This report is sent when the system has been disarmed.

In SIA or Contact ID formats, the user number for the person who

disarmed the system will be sent with this report. To send the

user number along with an Open report in other formats, program

the extended digit of the report as *5. In Contact ID format, the

partition number will also be sent along with this report. The

Open report will only be sent if a Close report was sent previously.

•Close: This report is sent when the system has been armed. In

SIA or Contact ID formats, the user number for the person who

armed the system will be sent with this report. To send the user

number along with a Close report in other formats, program the

extended digit of the report as *5. In Contact ID format, the partition

number will also be sent along with this report.

•Duress: This report is sent when the system is disarmed using

a duress code. The user number is not sent with this report.

•Partial Close: This report is sent when the system is armed

partially, or force armed.

•First Open After Alarm: This report is sent when the system is

disarmed after an alarm has occurred.

•Low Battery: This report is sent when a low battery condition

occurs.

•Battery Restoral: This report is sent when a low battery condition

restores.

•AC Fail: This report is sent when an AC failure condition occurs.

This report may be delayed in address 4034.

• A/C Failure Report Delay

The A/C power loss report can be programmed to delay for up to

254 minutes (see address 4034). (The same delay would also

apply to the A/C restoral report.)

- If another report is sent during this delay period, the A/C fail

report will be sent along with this report.

- If the A/C power restores during this delay period, the A/C loss

report will not be sent.

- Programming address 4034 as FF causes the report to be

sent at a random interval of at least 15 minutes, but no more

than 2 hours after the A/C failure occurs.

•AC Restoral: This report is sent when an AC failure condition

restores.

•Communicator Test/System Normal: This report is sent at the

24-hour check-in time if there is not a control trouble, an active

fire alarm that has not been acknowledged, a fire trouble, or a

supervisory condition. Note: To send a Communicator Test

even if one of these conditions exists, program the Communicator

Test/System Off Normal.

•Remote Program Successful: This report is sent after a Remote

Program session, if the session was terminated properly.

•Remote Program Unsuccessful: This report is sent after a

Remote Program session, if some error has occurred or the

session did not terminate properly.

•Local Program Successful: This report is sent when local

programmer’s mode is exited and there is no error associated

with the programming.

•Local Program Unsuccessful: This report is sent when local

programmer’s mode is exited and there has been some error

associated with the programming.

•System Trouble: This report is sent when a control trouble

condition occurs.

•System Trouble Restoral: This report is sent when all system

trouble conditions restore.

•Communicator Test/System Off Normal: This report is sent at

the 24-hour check-in time if there is a control trouble, an active

fire alarm that has not been acknowledged, a fire trouble, or a

supervisory condition.

•Exit Error: This report is sent if an exit error occurs. An exit error

occurs when an entry/exit zone is still violated at the end of the

exit delay. If this happens, the entry delay will begin and any

output programmed to activate an alarm will energize. If the

system is not disarmed before the entry delay expires, an alarm

report for the effected zone will be sent and the Exit Error report

will be sent. If this report is not programmed, the control will not

sound the exit error warning.

•Recent Closing: This report is sent, along with any alarm reports,

when there is an alarm within the first five minutes after the

system has been armed.

•System Walk Test: This report is sent when a system test has

been started ([#] [8] [1] key sequence). Zone reports are sent

during a system test.

•System Walk Test Restoral: This report is sent when the system

test has been completed or has timed-out.

•Fire Walk Test: This report is sent when a Fire Walk Test has

been started ([#] [9] [1] key sequence). Zone reports are not sent

during a Fire Walk Test.

•Fire Walk Test Restoral: This report is sent when the Fire Walk

Test has been completed or has timed-out.

•Mux. Smoke Low Temperature Report: This supervisory report

is sent when a MX280 Series smoke detector with a low

temperature feature detects a temperature of 45°F (7.5°C) or

less for a period of 30 minutes or more.

•Mux. Smoke Low Temperature Restoral: This report is sent

when a MX280 Series smoke detector with a low temperature

alarm determines that the temperature has risen above 45°F

(7.5°C).

•Dirty Chamber Report: This report is sent when a MX280 Series

smoke detector fails to pass the “Chamber Check®” sensitivity

test.

•Dirty Chamber Restoral: This report is sent when a MX280

Series smoke detector has been returned to normal operation

after service.

6.14 Phone Number General Control

Programming

•Enable Remote Programmer Callback: If programmed, when

the remote programmer tries to initiate a session with the panel,

the panel will hang up and call the remote programmer phone

number.

- Ensures the correct remote programmer is initiating the call.

•Dial Pulse on all Phone Numbers: If programmed, the panel will

dial phone number 1, 2, and the remote programmer phone

number 3 using the pulse format.

•Dial Tone on all Phone Numbers: If programmed, the panel will

dial phone number 1, 2, and the remote programmer phone

number 3 using the tone format.

6.15 Phone Answering Programming

•Answering Machine Bypass: This feature allows the panel to

answer incoming calls when answering machines are used. If

the line rings, stops ringing, then rings again within one minute,

the panel will seize the phone line on the first ring.

•Phone Answering Programming: The panel can be

programmed to answer the phone after a selected number of

rings for remote programming access. It can also be

programmed to answer the phone after a different number of

rings when in armed or disarmed states.

- This can be used to call the panel location and determine its

arming state.

6.16 FCC Compliance Notice

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy

and if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

6.17 FCC Phone Connection Notice To Users

This control complies with Part 68 of the FCC rules.

On the inside of the enclosure is a label that contains, among

other information, the FCC Registration Number and the Ringer

Equivalence Number (REN) for this equipment. You must, upon

request, provide this information to your local telephone company.

The REN is useful to determine the quantity of devices that may be

connected to your telephone line and still have all of those devices

ring when your telephone number is called. In most, but not all

areas, the sum of the REN's of all devices connected to one line

should not exceed five (5.0). To be certain of the number of devices

that you may connect to your line, you may want to contact your

local telephone company to determine the maximum REN for your

local calling area.

This equipment may not be used on coin service provided by the

telephone company. This control should not be connected to party

lines.

Should this equipment cause harm to the telephone network, the

telephone company may discontinue your service temporarily. If

possible, they will notify you in advance. But if advanced notice isn’t

practical, you will be notified as soon as possible. You will be

informed of your right to file a complaint with the FCC. The telephone

company may make changes in its facilities, equipment,

operations, or procedures that could affect the proper functioning

of your equipment.

If they do, you will be notified in advance to give you an opportunity

to maintain uninterrupted telephone service.

If you experience trouble with this equipment, please contact the

manufacturer for information on obtaining service or repairs.

The telephone company may ask that you disconnect this

equipment from the network until the problem has been corrected

or until you are sure that the equipment is not malfunctioning. The

repairs to this equipment must be made by the manufacturer and

not the user.

To guard against accidental disconnection, there is ample room to

mount the Telco jack to the inside of the Control cabinet.

The operation of this Control may also be affected if events such

as accidents or acts of God cause an interruption in telephone

service.

6.18 Canadian Dept. of Communications

General Installation Requirements: Notice: The Canadian

Department of Communications label identifies certified

equipment. This certification means that the equipment meets

certain telecommunications network, protective, operational, and

safety requirements. The Department does not guarantee the

equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is

permissible to be connected to the facilities of the local

telecommunications company. The equipment must also be

installed using an acceptable method of connection. In some

cases, the company’s inside wiring associated with a single line

individual service may be extended by means of a certified connector

assembly (telephone extension cord). The customer should be

aware that compliance with the above conditions may not prevent

degradation of service in some situations.

Repairs to certified equipment should be made by an authorized

Canadian maintenance facility designated by the supplier. Any

repairs or alterations made by the user to this equipment, or

equipment malfunctions, may give the telecommunications

company cause to request the user to disconnect the equipment.

Users should ensure, for their own protection, that the electrical

ground connections of the power utility, telephone lines, and internal

metallic water pipe system, if present, are connected together.

This precaution may be particularly important in rural areas.

Users should not attempt to make such connections

themselves, but should contact the appropriate

electric inspection authority, or electrician, as

appropriate.

Terminal Requirements: The Load Number (LN) assigned to

each terminal device denotes the percentage of the total load to be

connected to a telephone loop which is used by the device, to

prevent overloading. The termination on a loop may consist of any

combination of devices subject only to the requirement that the

total of the Load Numbers of all the devices does not exceed 100.

The Load Number of the DS7400Xi is 2.

RFI Requirements: This Class A digital apparatus meets all

requirements of the Canadian Interference-Causing Equipment

Regulations. [Cet appareil numerique de la classe A respecte

toutes les exigences du Reglement sur le material broilleur du

Canada.]

6.19 For Installations in New Zealand

Two-wire Connection:

The operation of this equipment on the same line as telephones

or other equipment with audible warning devices or automatic ring

detectors will give rise to bell tinkle or noise and may cause false

tripping of the ring detector. Should such problems occur, the user

is not to contact Telecom Faults Service.

7.0 Operating Guide

For additional information on operating this system, consult the DS7400Xi (Ver. 4+) User’s Guide (P/N: 43851) and the front cover of this

Reference Guide.

7.1 Emergency Procedures

7.1.1 Identifying Alarm Sounds

Your alarm system may be programmed for a steady alarm sound

or a pulsed alarm sound. It is important to learn the difference

between a fire alarm sound and an intrusion alarm sound before

you are confronted with an actual emergency.

7.1.2 Silencing Alarms

All alarms can be silenced with any PIN that has disarm privileges.

Entering your [PIN]+ [Off] will silence the alarm and turn off (disarm)

the control.

7.1.3 A Cautionary Note

How you respond to an alarm will depend, mostly, on the type and

time of the alarm. You should seek the advice of your installing

company as they install your system, not later (e.g. after an alarm)

to develop a response plan.

7.1.4 Use Common Sense

Above all else, common sense should prevail. If there is any threat

or hint of danger to yourself or others on the premises, such as in

the event of a fire alarm, everyone should be instructed to leave the

premises immediately. Do not enter the premises unless

accompanied by the appropriate Emergency Services’ personnel,

or after they have given the OK to enter.

7.1.5 Caution When Entering a Building

If the bells and sirens are on and/or the red Armed Light is flashing

with the DS7447/DS7447E display reading “Zone Alarm” or the

DS7445/DS7445i having its zone LEDs flashing, then the keypad

is signaling that an alarm has occurred. The keypad will also issue

a pulsed tone during the entry delay instead of the usual steady

tone.

If the alarm has not been previously investigated, do not enter the

building unless accompanied by the appropriate Emergency

Services’ personnel.

7.1.6 Fire Alarms

Fire Alarms are silenced using the same procedure as intrusion

alarms: a [PIN] (with disarm privileges) plus the [Off] key.

The Fire Alarm system is not reset until alarms at smoke detectors

are cleared by using the [System Reset] command. The Fire Alarm

system will not be functional until this procedure has been followed.

See the “Fire Reset” section, 7.2.

7.2 Fire Reset/Fire Trouble

7.2.1 Fire Reset

During a fire alarm, exit the premises immediately. When you have

determined there is no fire, you may silence the bells/sirens before

you initiate the [System Reset] command: [PIN] + [System Reset].

Before the [System Reset] command is used, determine which

smoke detector has alarmed so the monitoring company may

verify its operation.

NOTE: To use the System Reset command sequence, your PIN

must have disarm privileges. The System Reset com-

mand will perform a fire reset, a battery test, and will clear

all system troubles.

NOTE: If the System Reset command has not been performed

after 24 hours of the Fire Alarm, the keypad will sound

and it will display “Fire Alarm Not Reset.” If the sounders

have been silenced and the system has been reset prop-

erly, this warning will not occur.

7.2.2 Fire Trouble

A Fire Trouble message with a zone number signifies a problem

with the fire system, such as a break in the wiring that monitors

smoke detectors. A Fire Trouble message with no zone number

indicates a ground fault if the unit is in the commercial fire mode.

A Fire Trouble will be indicated by a short beep from the keypad

sounders every 10 seconds. The DS7447/DS7447E will display

“Fire Trouble” followed by the zones in a trouble condition. The

DS7445/DS7445i will turn the Fire and Trouble Lights on steady

and will light the corresponding zone LEDs.

Notify your installing company immediately if the Fire Trouble

message is displayed.

The Fire Trouble beep can be silenced with any [PIN] plus the [Off]

key. After problems have been remedied, a [PIN] plus the [Off] key

should again be entered to clear the “Fire Trouble” display.

7.2.3 Dirty Smoke

A Dirty Smoke display, followed by a zone number and accompanied

by a beep every ten seconds indicates that the smoke detector for

that zone requires cleaning or replacement. The smoke detector

will also give a Dirty indication by flashing its LED once per second.

The Dirty Smoke beep can be silenced by any [PIN] plus the [Off]

key.

Notify your installing company immediately if the Dirty Smoke

message is displayed.

When using the Emergency Keys, they must be pressed for two seconds to generate an alarm.

NOTE: If the Emergency Alarm Keys are to be used, they should be labeled to signify their functions.

The A key should be labeled as the Fire key. This is the only key that may be designated as the Fire key.

The B key should be labeled as the Special Emergency key.

The C key should be labeled as the Panic key.

Use the Disarming Command Sequence to cancel or silence these alarms.

7.3 Emergency Keypad Alarms

The Emergency Alarm Keys [A], [B], and [C] may generate Fire,

Special Emergency, and Panic Alarms if programmed by the

installer.

Ask your installing company to explain the function of these

keys.

Armed

St at us

Power

Fire

123

456

789

Entry

System

Reset

Bypass

Onl y

Per im e te r

Off

ABC ABC

123

456

789

En tr y

System

Reset

Bypass

Only

Perimeter

Off

TEST WEEKLY

1234567 8

91011121314

15 16

Armed

St at us

Power

Fire

Perimeter

Supervisory

Bell Silenced

Tro uble

7.4 Fire

Safety No fire detection device or system should be considered 100% foolproof.

This fire alarm system can provide early warning of a developing

fire. Such a system, however, does not ensure protection against

property damage or loss of life resulting from a fire. Any fire alarm

system may fail to warn for any number of reasons (e.g. smoke not

reaching a detector that is behind a closed door).

When considering detectors for residential applications, refer to

NFPA Standard 72, “The National Fire Alarm Code.” This standard

is available at a nominal cost from: The National Fire Protection

Association, Batterymarch Park, Quincy, MA 02269.

7.4.1 If Installed in Family Residences

Adherence to the NFPA Standard 72 can lead to reasonable fire

safety when the following items are practiced:

• Minimize hazards: Avoid the three traditional fire killers: smoking

in bed, leaving children home alone, and cleaning with

flammable liquids.

• Providing a fire warning system: Most fire deaths occur in the

home, the majority, during sleeping hours. The minimum level

of protection requires smoke detectors to be installed outside of

each separate sleeping area and on each additional story of the

dwelling.

For added early warning protection, it is recommended that

detectors be installed in all separated areas including the

basement, bedrooms, dining room, utility room, furnace room,

and hallways.

7.4.2 Having and Practicing an Escape Plan

A fire warning may be wasted unless the family has planned in

advance for a rapid and safe exit from the building.

• Draw a floor plan of the entire house showing two exits from

each bedroom and two from the house. Since stairwells and

hallways may be blocked during a fire, the plan should provide

exits from bedroom windows.

Make copies of the plan and practice it with all family members.

• Pre-arrange a meeting place outside and away from the

residence. Once out of the building, all occupants should

immediately go to the pre-selected location to be accounted for.

• Provide a barricade between family members and fire, smoke,

and toxic gases (e.g. close all bedroom doors before retiring).

• Children should be instructed on opening their bedroom

windows and exiting safely from the building. If exiting is not

possible, they should be taught to stay at the open window and

shout for help until it arrives.

• In the event of a fire alarm after retiring, wake the children by

shouting to them from behind your closed door. Tell them to

keep their bedroom doors closed.

• If the top of your bedroom door is uncomfortably hot, do not open

it. There is most likely fire, intolerable heat, or smoke on the

other side. Shout to all family members to keep their bedroom

doors closed and to exit the building via alternate routes.

• If the top of the door is not uncomfortably hot, brace the bottom of

the door with your foot, and the top with one hand, then open the

door about one inch. Be prepared to slam the door shut if there

is any pressure against the door or if any hot air rushes in.

• If there is no evidence of excessive heat or pressure, leave the

room and close the door behind you. Shout appropriate

instructions to all family members and immediately leave the

building via the pre-planned routes. If heavy smoke is present,

drop to your hands and knees, or crawl to remain below the

smoke level.

7.4.3 Installation Considerations

Proper location of detection devices is one of the most critical

factors in a fire alarm system.

The following are some general considerations:

• Smoke detectors should not be installed in “dead air” spaces or

close to ventilating or air conditioning outlets because smoke

may be circulated away from the detector. Locations near air

inlets should be favored.

• Avoid areas subject to normal smoke concentrations such as

kitchens, garages, or near fireplaces.

• Do not install smoke detectors where normal area tempera-

tures are above 100° F (38° C) or below 32° F (0° C).

• Areas of high humidity and dust concentrations should be avoid-

ed.

• The edge of ceiling mounted detectors should be no closer than

4 inches (10 cm) from any wall.

• Place the top edge of wall mounted detectors between 4 and 12

inches (10 to 30 cm) from the ceiling.

7.5 Personal Identification Numbers

7.5.1 General Information

A PIN (Personal Identification Number) is the 4- or 6-digit code

users must enter at the keypad to gain access to the system. Your

system has the capability to assign up to 200 PINs, each four or six

digits long. A PIN may be assigned to each User Number.

PINs should never be programmed with common sequences

such as 1 2 3 4, 1 1 1 1, or 2 4 6 8 because they are easily

violated.

A User Number is the number that identifies each person using

the system. There are 200 possible User Numbers available for

use (001 through 200).

Each User Number can have only one PIN assigned to it.

Attempting to assign the same PIN to multiple User Numbers will

result in the three-beep error tone, and the entry will not be made.

User Number 001 is designated as a Master code. It can be used

to add, delete, or change other PINs. It will always have access to

all partitions regardless of how it is programmed.

User Number 001 is shipped from the factory with the PIN of 1 2 3

4. If your system has been reprogrammed for 6-digit PINs, the PIN

for User Number 001 will be 123456. This PIN should be changed

to one of your personal preference and must be programmed

as a Master code.

A Master code is one of the available authority levels which can be

assigned to a user to determine which functions that user will be

able to perform. The available authority levels are:

0 = Master: Can enter all commands, add or change PINs

in assigned partitions, change the time and

date, bypass, arm, disarm, perform system

tests, system reset and view history. User

Number 001 must have the Master authority

level. Any or all PINs can behave as a Master

code.

1 = Unlimited: Can enter all commands, bypass, arm,

disarm, system reset and perform system

tests. It can not change PINs.

2 = General: Can bypass, arm and disarm. It can not change

PINs, system reset, enter [#] [7] or any of the

[#] [8] functions.

3 = Arm Only: Can arm the system with [PIN] + [ON] arming

sequence only. It can not perform any other

functions, including disarming.

4 = Temporary: Valid only for a specified time (the PIN will

disappear upon expiration date). It can arm

and disarm the system, but can not perform

any other functions. If this is done from a

Master keypad, you must be in Single Partition

Mode. If access is assigned to more than one

partition, you must enter a Temporary PIN

expiration date for all assigned partitions (see

Changing the Expiration Date for Temporary

PINs).

5 = Duress: When the system is disarmed using the duress

code, a silent report is sent to your monitoring

service. The Duress code is intended to be

used when the user is forced to disarm the

system.

6 = Access Code: When a PIN with an Access Code is entered,

any output programmed for Access Output (i.e.

door strikes) will pulse on for 10 seconds

(works when the system is armed or

disarmed).

7.5.2 Programming PINs

PINs can only be added, changed, or removed in Master

Programming Mode, so they are not programmable from an RF

(wireless) keypad.

You should write down your entries before you enter the Master

Code Programming Mode and have them with you as you begin

programming. Make your entries promptly. If a long delay occurs in

your entries, the 3-beep error tone occurs and exits you from the

programming mode.

It is recommended that all PIN programming procedures be

performed at a DS7447/DS7447E keypad since this keypad will

provided visual prompts throughout the programming sequence.

No visual clues will be given from a D7445/DS7445i keypad. When

the programming sequence is successfully completed, both the

DS7447/DS7447E and DS7445/DS7445i keypads will signal the

seccessful completion with a long beep.

To add or change a PIN:

• Enter Master Programming Mode (press [Master PIN] + [#] [0]).

• Enter a 0 for PIN Setup programming (press [0]).

• Enter the User Number (enter a 3-digit number from 001 to 200).

• Enter the Authority Level (enter a number from 0 to 6).

• Enter the Area(s) (Partitions) to which this user will have access

(press [1], [2], [3], [4], [5], [6], [7], and/or [8] followed by [#]).

• Enter the PIN (enter any 4- or 6-digit number; do not press [#]).

• Enter the PIN again followed by [#].

To set the expiration date for an existing Temporary PIN:

• Enter Master Programming Mode (press [Master PIN] + [#] [0]).

• Enter a 3 for Date of Code Expiration Setup programming (press

[3]).

• Enter the Expiration Month (press [0] [1] for January through [1]

[2] for December).

• Enter the Expiration Day (press [0] [1] through [3] [1]). The Tem-

porary PIN will expire at Midnight on the day selected.

•Enter the Year (enter the last two digits of the year followed by

[#]).

NOTE: Entering the command sequence [Master Code] [#] [0] [3]

[#] will cause the DS7447/DS7447E keypad to read back

the temporary code expiration date.

To remove a PIN:

• Enter Master Programming Mode (press [Master PIN] + [#] [0]).

• Enter a 0 for PIN Setup programming (press [0]).

• Enter the User number of the PIN to be cancelled, followed by [#]

(enter a 3-digit number from 001 to 200, then press [#]).

NOTE: User Number 001 can not be disabled in this manner.

7.6 The Master Keypad

7.6.1 General Information

Your system may include a Master keypad. A Master keypad is a

DS7447/DS7447E keypad programmed to give a user access to

all the partitions the user has access to, not just the partition in

which the Master keypad is located. This is different from a

Standard keypad in that Standard keypads only give access to the

single partition in which they are located. Commands entered at

the Master keypad will affect all the partitions to which the user has

access. If this is not desirable, the Master keypad can also be

used to control each partition individually; this is called Single

Partition Mode. Single Partition Mode allows a user to control any

or all of the partitions the user has access to on an individual (one-

by-one) basis (see section 7.6.3 for more information on Single

Partition Mode).

NOTE: In order to use the Master keypad, your PIN must be

assigned to the partition in which the Master keypad is

located.

7.6.2 Master Keypad Displays

Master keypad displays will differ slightly from Standard keypads.

The Master keypad display will scroll the Status of each partition,

followed by the partition number. For example, if all partitions are

armed, the Master keypad will scroll through the following displays:

rmed

rea 1 Armed

area 7

Armed

area 2 Armed

area 6

Armed

area 3 Armed

area 4 Armed

area 5 Arme

area

If only partitions 1, 2, 3, 4, 6, and 8 are armed, the Master keypad

will scroll through the following displays:

rmed

rea 1 Ready to Arm

area 7

Armed

area 2 Armed

area 6

Armed

area 3 Armed

area 4 Ready to Arm

area 5 Arme

area

Displays for partitions that are Not Ready will display in the same

manner.

The chart at the bottom of this page will help you understand what

each LED function of the Master keypad represents.

7.6.3 Single Partition Mode

Single Partition Mode is used to control partitions on a “one at a

time/one by one” basis from the Master keypad.

To enter the Single Partition Mode, enter your [PIN], then press the

[#] key twice. This will call up the first partition you have access to.

Enter the command sequence you wish for this partition. You do

not need to use your PIN again. To move on to the next partition you

have access to, press the [#] key twice.

To exit the Single Partition Mode, hold the [*] key down for 2 seconds.

The system will also automatically drop out of Single Partition

Mode after 40 seconds without a keypad entry.

Example of accessing Single Partition Mode

• Enter your [PIN], followed by the [#] key twice: [1] [2] [3] [4] [#] [#].

• The first partition you have access to will be displayed: “Ready

to Arm. Cafeteria.”

• Complete the command sequence (in this case arming) you

wish for this partition: [#] [On].

• Move to the next partition you have access to by pressing the [#]

key twice: [#] [#].

• The next partition you have access to will be displayed: “Ready

to Arm. Office.”

• Complete the command sequence you wish for this partition.

• After you have completed all the command sequences for the

partitions you have access to, exit Single Partition Mode by

pressing the [*] key for two seconds.

7.6.4 Arming from the Master Keypad

To arm all the Partitions to which you have access:

•[PIN] + any Arming Command Sequence. This will arm all the

partitions to which you have access even if they are already

armed.

To arm only some of the Partitions to which you have access:

• [PIN] + [#] + [#]. This puts you into Single Partition Mode.

• The first partition to which you have access is displayed: “Ready

to Arm. Cafeteria.”

• Enter the Arming Command Sequence you want for this parti-

tion.

• [#] + [#] opens the next partition to which you have access.

• The next partition to which you have access is displayed: “Ready

to Arm. Office.”

• Enter the Arming Command Sequence you want for this parti-

tion.

• After arming any or all partitions to which you have access, you

may exit Single Partition Mode by holding the [*] key for at least

two seconds. The system will also drop out of Single Partition

Mode after 40 seconds without a keypad entry.

7.6.5 Disarming from the Master Keypad

To disarm all the Partitions to which you have access:

• [PIN] + [Off]. This will disarm all the partitions to which you have

access even if they are already disarmed.

To disarm only some of the Partitions to which you have access:

• [PIN] + [#] + [#]. This puts you into Single Partition Mode.

• The first partition to which you have access is displayed: “Armed.

Cafeteria.”

• If you wish to disarm this partition, enter [Off]. If not, go to the next

step.

• [#] + [#] opens the next partition to which you have access.

• The next partition to which you have access is displayed: “Armed.

Office.”

• If you wish to disarm this partition, enter [Off]. If not, go to the next

step.

• After disarming any or all partitions to which you have access,

you may exit Single Partition Mode by holding the [*] key for at

LED Off Flashing On

Armed

(red) All partitions are disarmed. One or more partitions are armed, or

an alarm has occurred. All Partitions are armed, and no

alarms have occurred.

Status

(green) Not ready to arm (if the Armed LED is

On, all partitions are armed). One or more zones are bypassed. All partitions are ready to arm.

Power

(green) The Control Panel has lost all power;

no AC or battery. Control Panel problems exist.

See Error Displays. Normal Operation.

The Control Panel is running on AC

power with no problems,

Fire

(red) There are no fire alarms. A fire zone is in alarm. A fire trouble condition exists.

least two seconds. The system will also drop out of Single Par-

tition Mode after 40 seconds without a keypad entry.

7.7 Keypad Error Displays

7.7.1 General Information

Display Meaning

DS7445/DS7445i: Power LED flashing

DS7447/DS7447E: Control Trouble Enter #87 There is an Error Message. To

display the message, enter [PIN] + [#

]

[8] [7].

DS7445/DS7445i: LED 1 On

DS7447/DS7447E: AC Power Failure There is a power failure, and the

panel is operating on backup battery

power.

DS7445/DS7445i: LED 2 On

DS7447/DS7447E: Battery Trouble* If the system has just been through a

power failure, wait at least two hours

for the battery to recharge, the enter

[PIN] + [System Reset] to perform a

battery test,

DS7445/DS7445i: LED 3 On

DS7447/DS7447E: Communicator Err** The communicator failed to

communicate with the Central

Station.

DS7445/DS7445i: LED 4 On

DS7447/DS7447E: System Fault Internal error in the control circuitry or

optional circuitry. See System Faults.

DS7445/DS7445i: LED 5 On

DS7447/DS7447E: Keypad Fault One of the keypads is not responding

to the Control Panel.

DS7445/DS7445i: LED 6 On

DS7447/DS7447E: Keypad Tamper One of the keypad housings has

been opened.

DS7445/DS7445i: LED 7 On

DS7447/DS7447E: Multiplex Bus The multiplex bus is defective or has

been shorted.

DS7445/DS7445i: LED 8 On

DS7447/DS7447E: Aux. Power Fault The auxiliary power has been

shorted.

DS7445/DS7445i: not applicable

DS7447/DS7447E: Zone Trouble One of the zones is not responding to

the Control Panel. This may also be

displayed during power-up; if so,

ignore it.

DS7445/DS7445i: not applicable

DS7447/DS7447E: RF Indicates a problem with an RF

(wireless) zone.

DS7445/DS7445i: not applicable

DS7447/DS7447E: Dirty Chamber One of the multiplex smoke detectors

has failed the sensitivity test and may

require cleaning or replacement. The

keypad beep may be cleared by

entering [PIN] + [Off].

Error Displays can only be read when the control is disarmed.

Some Control Panel Errors, such as battery trouble and any RF

troubles, will cause the keypad sounders to beep every 10 seconds.

The keypad sounders may be silenced for 4 hours by entering:

[PIN] + [Off].

The sounders will continue to resound until the problem is fixed.

To Clear a display, enter: [PIN] + [System Reset].

Clear the Error Display only on the advice of your

installing company or if you are certain the problem

has been remedied.

NOTE: System faults may be read from any keypad because they

are system-wide. All other Error Displays are limited to

the partition the standard keypad is in. If you are on a

Master keypad, you may read Error Displays one partition

at a time.

7.7.2 System Faults

System faults are designated as follows:

[#] [8] [7] will display [#] [8] [9] will

display

RAM Fault System Fault 01

ROM Fault System Fault 02

EEPROM Fault System Fault 03

Ground Fault System Fault 04

2Ph/Bell Fault = loss of communication to

DS7420i System Fault 10

Line 1 Fault = DS7420I phone line 1 fault System Fault 11

Line 2 Fault = DS7420I phone line 2 fault System Fault 12

Bell Fault = DS7420i bell circuit fault System Fault 13

Aux. Relay Fault = DS7420I auxiliary relay

fault System Fault 14

Oct. Relay Fault = loss of communication to

DS7488 System Fault 20

Reserved for older panels System Fault 50

AR IB Queue Full = modem buffer full System Fault 51

AR Host Down = network data switch down System Fault 52

AR Unreg. Modem = modem not registered System Fault 53

AR Power Fail = power source below

defined threshold System Fault 54

AR Network Lost = loss of network System Fault 55

AR Modem HW Err = modem hardware

error System Fault 56

AR Modem SW Err = modem software

error System Fault 57

AR Opt. Bus Err = loss of communications

to ARDIS module System Fault 58

AR Corrupt MSG = message error System Fault 59

7.7.3 Event History

The History Buffer stores the last 400 events in memory. The

DS7447/DS7447E can display all of these events. If this test is

performed from a Master keypad, it must be in Single Partition

Mode. The DS7445/DS7445i will only display those zones (1-8)

that have alarmed since the last Event History Readback. The

RF3341 cannot display history events.

To readback the Event History Buffer:

• Press [PIN] + [#] [8] [9]. On a DS7447/DS7447E keypad, the last

event to take place will be displayed. On a DS7445/DS7445i

keypad, the zone LEDs for any zones that have alarmed since

the last Event History Readback in that partition will flash.

• Scroll through the events using the [9], [6], and [#] keys as follows:

To begin scrolling back through the events, press the [#] key. The

[#] key will scroll you back through the history line by line. The [9]

key will scroll you back in reverse chronological order by event. A

[6] will scroll you back up through the events (toward the most

recent) by event.

Each event consists of two or three lines or display screens. The

first line/screen will be the event title and user. The second line/

screen will be the date of the event or the change being made. If

there is a third line/screen, it will be the date of the change.

NOTE: When performing this from a Master keypad, each partition

will display its own history.

• To exit the Event History Mode, press the [*] key or wait 20 seconds

and the keypad will exit automatically.

7.8 Testing Your System

7.8.1 Zone (System Walk) Test

The Zone Test is used to confirm that detectors will report alarms

to the keypad. A Zone Test works on all zones, except 24-hour

zones and fire zones. While the keypad is in a Zone Test, no control

panel alarms will activate an alarm, except 24-hour zone alarms

and fire alarms; these will override the Zone Test function.

To perform a Zone Test:

• Press [PIN] + [#] [8] [1].

- The DS7445/DS7445i zone LEDs of any untested zones will

flash.

- The DS7447/DS7447E displays “Test Zone” followed by the

zone number of any zones that have not been tested.

• Pick any untested zone and manually cause a detector to alarm

using a method specified in the detector’s Installation

Instructions.

- The DS7445/DS7445i zone LED for the zone currently being

tested will turn on steady.

- The DS7447/DS7447E displays “Now Testing” followed by

the zone number of the zone that is currently being tested.

• Clear the alarm condition from the detector using a method

specified in the detector’s Installation Instructions, and trigger

an alarm on the next detector in that zone. Continue until all

detector’s in that zone have been tested.

- As each zone is tested, its DS7445/DS7445i zone LED turns

off.

- As each zone is tested, the DS7447/DS7447E display returns

to “Test Zone” and indicates the remaining untested zones.

• Test each zone.

• Exit the Zone Test using [PIN] + [#].

7.8.2 Battery Tests

You may perform a test of the battery and the local sounder or just

test the battery. If these tests are performed from a Master keypad,

it must be in Single Partition Mode. System Tests are not available

from RF (wireless) keypads.

To initiate a Local Battery / Sounder Test:

• Press [PIN] + [#] [8] [5]. All keypad LEDs will turn on. The keypad

sounder and all alarm sounding devices will operate for two

seconds. If the test fails, the control panel will indicate a control

problem. See Error Displays on page 30.

NOTE: If power in your building has been off recently, wait two

hours for the battery to recharge and then try again.

To initiate a Battery Test:

• Press [PIN] + [System Reset]. The control panel will perform a

battery test. The control panel will report a Low Battery or a Low

Battery Restoral if necessary.

7.8.3 Communicator Test

This test is available only if the system transmits alarms and system

information to a monitoring service, and has been programmed by

the security installing company to permit communicator tests. This

test can be performed from a Master Keypad. The account code for

partition #1 will be used. System Tests are not available from RF

(wireless) keypads.

To initiate a Communicator Test:

• Press [PIN] + [#] [8] [2]. A long beep will sound. A “Test” report is

sent to the monitoring service. If the test fails, the keypad sounder

will sound continuously. To silence the sounder, press [System

Reset].

NOTE: This test may take several minutes to complete because

the control panel will try ten attempts.

7.8.4 Fire Walk Test

This test is used to confirm that Smoke detectors will report alarms

to the keypads. The Fire Walk Test tests all fire zones, including

verified fire and waterflow.

At the start of the Fire Walk Test a Fire Walk Test report, if

programmed, is sent to the central station. Fire alarm reports are

not sent to the central station during the Fire Walk Test. A Fire Walk

Test restoral is sent upon completion of the Fire Walk Test.

The Fire Walk Test is enabled for 20 minutes once it is started. The

test time is extended to 20 minutes every time another zone is

tested.

When a fire zone is tested, any output programmed to follow that

zone will activate for 5 seconds.

To perform a Fire Walk Test:

• Press [PIN] + [#] [9] [1].

- The DS7445/DS7445i zone LEDs of any untested zones will

flash.

- The DS7447/DS7447E displays “Fire Test” followed by the

zone number of any zones that have not been tested.

• Pick any untested zone and manually cause a detector to alarm

using a method specified in the detector’s Installation

Instructions.

- The DS7445/DS7445i zone LED for the zone currently being

tested will turn on steady.

- The DS7447/DS7447E displays “Fire Testing” followed by

the zone number of the zone that is currently being tested.

• Clear the alarm condition from the detector using a method

specified in the detector’s Installation Instructions, and trigger

an alarm on the next detector in that zone. Continue until all

detector’s in that zone have been tested.

- As each zone is tested, its DS7445/DS7445i zone LED turns

off.

- As each zone is tested, the DS7447/DS7447E display returns

to “Fire Test” and indicates the remaining untested zones. *

• Test each zone as instructed by your installing company.

• Exit the Zone Test using [PIN] + [#].

NOTE: A Fire Walk Test will prevent the system from sending any

Fire Reports during the test.

8.0 How to Program the Control Panel

8.1 Entering the Programmer’s Mode

To enter the Programmer’s Mode, enter the Programmer’s Code followed by [#] [0]. Shorting the program pads (see section 2.0 for

location) on the control panel will also activate Programmer’s Mode.

NOTE: The factory set default Programmer’s Code is [9] [8] [7] [6]. If the system has been reprogrammed for 6-digit PINs, the default

Programmer’s Code will be [9] [8] [7] [6] [5] [4].

8.2 Reading Back a Program Address

Once you are in the programmer’s mode, to read back the value of a Program Address, enter that Program Address followed by [#]. Each

data digit is displayed one data digit at a time. To view the second data digit, enter the # button again.

The display will look like this:

8.3 Entering a Value in a Program Address

To enter a value in the Program Address, enter the Program Address, then enter the value for each Data Digit, then enter [#] to save it and

move on to the next Program Address. Entering data digit 1 will increment you to the next data digit.

The display will show the Program Address and will display the value of each Data Digit after you enter it. The data will be programmed

(saved) when you press the [#] key. The control panel will automatically increment to the next program address.

• If you wish to program that next address, enter the necessary information.

• If you wish to read back the value of that address, press the [#] key.

• If you wish to program a different address, press the [*] key two times and enter the program address you wish to program.

If you make a mistake at any time, press the [*] key two times (before pressing the [#] key). This will clear the display, allowing you to enter

the program address you wish to work with.

8.4 HEX values

Some Data Digit values will be higher than 9. These values must be programmed by pressing the [*] key followed by some other

number. These values will display as HEX characters (A - F) when entered. Example: entering *0 at the keypad will display an A.

The HEX character values are as follows:

*0 = A *1 = B *2 = C *3 = D *4 = E *5 = F

8.5 Defaults

The DS7400Xi is shipped from the factory as a working, pre-programmed control. Many of the programming addresses may already be

set to the values you need. The default values are shown in

Reverse Print

If the value you would like is in

Reverse Print

, you don’t need to re-program this address.

In the example, a “0” is the default value:

If the default value is not shown in

Reverse Print

, it will be shown in a separate table.

8.6 Setting the Control to the Factory Default

Only enter [0] [1] [#] in Program Address 4058 when you are completely sure you want to erase all installer program-

ming. Entering [0] [1] [#] in Program Address 4058 will immediately reset the control to the factory default. Any

programming already done by the installer will be erased. This action cannot be reversed.

To set the control’s programming values back to the default, enter the programming mode, then enter [4][0][5][8][0] [1] [#].

8.7 Exiting the Programmer’s Mode

To exit the Programmer’s Mode, press the [*] key for a minimum of 2 seconds. If no keypad entries are made for 4 minutes, the control

will automatically exit you from the Programmer’s Mode.

9.0 Understanding the Programming Charts

The Programming Reference Guide makes use of three types of charts. Each is described below.

If the chart looks like this, a combination of features is available to be programmed for that particular address.

Select Options 1234567

Feature 1

Feature 2

Feature 3

Feature 4

Enter the Data Digit as a:

Identifies the options/features

available for this address

Enter one of these numbers

for the appropriate data digit

The dots represent which

options/features are included

with each selection

Example:

To select Feature 2 only,

enter the data digit as a 1.

To select Feature 2 and

Feature 4,

enter the data digit as a 5.

If the chart looks like this, only a single feature is available to be programmed for that particular address.

Disabled

Perimeter Instant

24-Hour

Entry/Exit Delay #1

Entry/Exit Delay #2

Enter one of these numbers

for the appropriate data digit

Represents the option/feature

available for this address.

Example:

To select Disabled,

enter the data digit as a 0.

To select Entry/Exit Delay #2,

enter the data digit as a 4.

Select Option DD

Some pages may also include a Default chart that looks like this:

Zone Function

0001

0002

0003

Address Default

10.0 Programming

10.1 General Control Programing: Program Address (0000)

General Control programming defines the system-wide general operating parameters. See Glossary (section 6.1) for further details.

0Select Options 1234567

Allow Normal and Custom Arming**

Allow Perimeter Instant Arming**

Allow Perimeter Arming**

Allow Maximum Security Arming**

Closing Ring-Back

Data Digi

Siren on Comm. Fail for Silent Zone

8 9 *0 *1 *2 *3 *4 *5

Enter the Data Digit as a:

50 Hz. operationΔ

60 Hz. operation

Δ = For installations in North America, select 60 Hz. operation.

*0 - *5 are Hex values. They will display as A - F at the keypads.

012

Restore zone when Sounders Silence

Restore zone when Zone Restores

Restore zone when System is Disarmed

Allow Swinger Shunts. Send Bypass Reports

Select Options 5

Enter DD as a:

678

Allow Swinger Shunts. No Bypass Reports

** = • Normal Arming = [PIN] + [On]: If programmed, Normal Arming arms the entire system while allowing entry delays for entry/

exit zones.

• Perimeter Instant Arming = [PIN] + [No Entry] + [Perimeter Only]: If programmed, Perimeter Instant Arming arms only the

perimeter of the system and does not allow entry delays for entry/exit zones.

• Perimeter Arming = [PIN] + [Perimeter Only]: If programmed, Perimeter Arming arms only the perimeter of the system

while allowing entry delays for entry/exit zones.

• Custom Arming = [PIN] + [#] [4]: If programmed, Custom Arming allows custom arming of the system and bypasses the

zone functions specified in data addresses 2725-2728.

• Maximum Security Arming = [PIN] + [No Entry] + [On]: If programmed, Maximum Security Arming arms the entire system

and does not allow entry delays for entry/exit zones.

Normal Arming Custom Arming Perimeter Instant Arming Perimeter Arming Maximum Security Arming Closing Ring Back Siren on Communication Fail Restore Swinger Shunts

Programming a Zone

Programming a Zone is a four step process. These steps must be performed, in order, to program a zone.

• Step 1 is programming Zone Functions (what the zone will do in alarm),

• Step 2 is assigning a Zone Function to the zone.

• Step 3 is assigning a Zone Type to the zone.

• Step 4 is assigning the zone to a partition.

Step 1: Programming the Zone Functions

10.2 Zone Function Programming: Program Addresses (0001-0030)

All Partitions-No Force Arm

3All Partitions-Can Force Arm

Single Partition-No Force Arm

Single Partition-Can Force Arm

DDSelect Option

Note: If digit 2 = 9 (keyswitch), use

this chart for digit 1.

Data Digit

24-Hour

Interior Delayed

Perimeter Instant

Entry/Exit Delay #1

Entry/Exit Delay #2

Interior Entry/Exit Follower

Interior Home/Away

Interior Instant

Day Monitor

Keyswitch (See note below)

Fire Zone with verification

Fire Zone w/out verification

Waterflow

Supervisory

DDSelect Option

Entry/Exit Delay Cancel 1

Entry/Exit Delay Cancel 2

Default Values

(Will be forced to different values when in

Commercial Fire Mode. See section 10.18.3)

Address

Zone

Funct.

2 = Steady alarm output, alarm on short and open.

3 = Entry/exit delay 1.

2 = Steady alarm output, alarm on short and open.

4 = Entry/exit delay 2.

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

2 = Steady alarm output, alarm on short and open.

5 = Interior entry/exit follower.

2 = Steady alarm output, alarm on short and open.

6 = Interior home/away.

2 = Steady alarm output, alarm on short and open.

7 = Interior Instant.

2 = Steady alarm output, alarm on short and open.

2 = 24-hour.

7 = Pulsing alarm output, alarm on short, trouble on open.

*0 = Fire zone with verification.

0001

0002

0003

0004

0005

0006

0007

0008

0009

0010

0011

0012

0013

0014

0015

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

Value

(fill in)

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

0016

0030

2 = Steady alarm output, alarm on short and open.

1 = Perimeter Instant.

** = Only when disarmed. When armed, this becomes Alarm on Open or Short for

non-24-hour zones. Note: Multiplex contacts (DS7450 and DS7452) should

not be programmed for Trouble on Open.

1 2 3 4 5 6 7 *2 *3 *4 *50

Select Options

Invisible Alarm

Silent Alarm

Steady Alarm Output

Pulsing Alarm Output

Alarm on Short

Alarm on Open

Enter the Data Digit as a:

Trouble on Open**

Trouble on Short

*2 - *5 are Hex values. They will display as C - F at the keypads.

A Zone Function is the description of how a zone will behave. Up to 30 different Zone Functions may

be programmed. You may use the default values (which are already programmed into the panel) and

skip this step, or change the defaults, or add new Zone Functions. See section 6.2 for further

details.

An open loop will always produce

a steady alarm response.

Step 2: Assigning a Zone Function to the Zone

In this step, a Zone function is assigned to the Zone.

10.3 Zone Programming: Program Addresses (0031-0278)

In Zone Programming, each zone is defined according to its input (single or multiple zone input, or a DS7465) and its Zone Function

(1-30) or Output Function (1-24). The DS7465’s relay is the only device that will follow the output functions; its input loop will follow a zone

function. All single and multiple zone inputs will follow a zone function. See section 6.3 for further details.

Data Digit

0031

0032

0033

0034

0035

0036

0037

0038

0039-0278

Zone Number Address

Zone

Function

Default

Hint:

Address = Zone Number + 30

Options

Disable a zone

Enter a Zone Function Value

Zone

Functio

Value

01-30

he DS7465 occupies two zones. The odd numbered

one of the zone pair is the input zone. The even

umbered zone of the zone pair is the output relay.

he output follows an output function.

9-248

10.4 Zone Programming: Zone Type Program Addresses (0415-0538)

In Zone Programming, each zone is defined according to its Input (single or multiple zone input, or a DS7465) and its Zone Function

or Output function (1-24). The DS7465’s relay is the only device that will follow the output functions; its input loop will follow a zone

function. All single and multiple zone inputs will follow a zone function. See section 6.3 for further details.

Data Digit

Single Zone Input

(zones 1-8 on the control, multiplex contacts,

sensors, or a DS7457)

Multiple Zone Input

(any zone that is on a DS7432, DS7433, or DS7460)

Select Option DD

DS7465 Connections

(the input zone or the output relay on a DS7465) 2

The D7465 occupies two zones. The odd

numbered zone of the zone pair is the input

zone. The even numbered zone of the zone

pair is the output relay.

MX280THL Multiplex Smoke Detectors

with Low Temperature Alarm 4

The MX280THL occupies two zones. The odd

numbered zone of the zone pair is the smoke

detector. The even numbered zone of the zone

pair is the Low Temperature Alarm.

IMPORTANT

MPORTANT

IMPORTANT

IMPORTAN

DD Select Option

Single Zone Input

(zones 1-8 on the control, multiplex contacts,

sensors, or a DS7457)

Multiple Zone Input

(any zone that is on a DS7432, DS7433, or DS7460)

DS7465 Connections

(the input zone or the output relay on a DS7465)

The D7465 occupies two zones. The odd

numbered zone of the zone pair is the input

zone. The even numbered zone of the zone

pair is the output relay.

MX280, MX280TH Multiplex Smoke Detectors

MX280THL Multiplex Smoke Detectors

with Low Temperature Alarm

The MX280THL occupies two zones. The odd

numbered zone of the zone pair is the smoke

detector. The even numbered zone of the zone

pair is the Low Temperature Alarm.

If Data Digit 1 is 2

Data Digit 2 MUST be 2

If Data Digit 1 is 4

Data Digit 2 MUST be 4

Zones 1 & 2

Zones 3 & 4

Zones 5 & 6

Zones 7 & 8

Zones 9 & 10

Zones 11 & 12

Zones 13 & 14

Zones 15 & 16

Zones 17 & 18

Zones 19 & 20

Zones 21 & 22

Zones 23 & 24

Zones 25 & 26

Zones 27 & 28

Zones 29 & 30

Zones 31 & 32

Zones 33 & 34

Zones 35 & 36

Zones 37 & 38

Zones 39 & 40

Zones 41 & 42

Zones 43 & 44

Zones 45 & 46

Zones 47 & 48

Zones 49 & 50

Zones 51 & 52

Zones 53 & 54

Zones 55 & 56

Zones 57 & 58

Zones 59 & 60

Zones 61 & 62

Zones 63 & 64

0415

0416

0417

0418

0419

0420

0421

0422

0423

0424

0425

0426

0427

0428

0429

0430

0431

0432

0433

0434

0435

0436

0437

0438

0439

0440

0441

0442

0443

0444

0445

0446

Zones 65 & 66

Zones 67 & 68

Zones 69 & 70

Zones 71 & 72

Zones 73 & 74

Zones 75 & 76

Zones 77 & 78

Zones 79 & 80

Zones 81 & 82

Zones 83 & 84

Zones 85 & 86

Zones 87 & 88

Zones 89 & 90

Zones 91 & 92

Zones 93 & 94

Zones 95 & 96

Zones 97 & 98

Zones 99 & 100

Zones 101 & 102

Zones 103 & 104

Zones 105 & 106

Zones 107 & 108

Zones 109 & 110

Zones 111 & 112

Zones 113 & 114

Zones 115 & 116

Zones 117 & 118

Zones 119 & 120

Zones 121 & 122

Zones 123 & 124

Zones 125 & 126

Zones 127 & 128

0447

0448

0449

0450

0451

0452

0453

0454

0455

0456

0457

0458

0459

0460

0461

0462

0463

0464

0465

0466

0467

0468

0469

0470

0471

0472

0473

0474

0475

0476

0477

0478

Zones 129 & 130

Zones 131 & 132

Zones 133 & 134

Zones 135 & 136

Zones 137 & 138

Zones 139 & 140

Zones 141 & 142

Zones 143 & 144

Zones 145 & 146

Zones 147& 148

Zones 149 & 150

Zones 151 & 152

Zones 153 & 154

Zones 155 & 156

Zones 157 & 158

Zones 159 & 160

Zones 161 & 162

Zones 163 & 164

Zones 165 & 166

Zones 167 & 168

Zones 169 & 170

Zones 171 & 172

Zones 173 & 174

Zones 175 & 176

Zones 177 & 178

Zones 179 & 180

Zones 181 & 182

Zones 183 & 184

Zones 185 & 186

Zones 187 & 188

Zones 189 & 190

Zones 191 & 192

0479

0480

0481

0482

0483

0484

0485

0486

0487

0488

0489

0490

0491

0492

0493

0494

0495

0496

0497

0498

0499

0500

0501

0502

0503

0504

0505

0506

0507

0508

0509

0510

Zones 193 & 194

Zones 195 & 196

Zones 197 & 198

Zones 199 & 200

Zones 201 & 202

Zones 203 & 204

Zones 205 & 206

Zones 207 & 208

Zones 209 & 210

Zones 211 & 212

Zones 213 & 214

Zones 215 & 216

Zones 217 & 218

Zones 219 & 220

Zones 221 & 222

Zones 223 & 224

Zones 225 & 226

Zones 227 & 228

Zones 229 & 230

Zones 231 & 232

Zones 233 & 234

Zones 235 & 236

Zones 237 & 238

Zones 239 & 240

Zones 241 & 242

Zones 243 & 244

Zones 245 & 246

Zones 247 & 248

0511

0512

0513

0514

0515

0516

0517

0518

0519

0520

0521

0522

0523

0524

0525

0526

0527

0528

0529

0530

0531

0532

0533

0534

0535

0536

0537

0538

Zones Address Zones Address Address AddressZones Zones

MX280, MX280TH Multiplex Smoke Detectors 3

Keyfob 5Keyfob 5

Step 3: Assigning a Zone Type to the Zone

When using premises RF,

• zones 129-136 are reserved.

• zones 137-248 are available as RF zones

only! Wired zones can not reside in zones

137-248 when using RF.

Step 4: Assigning a Partition to the Zone

10.5 Zone Partition Assignment: Program Addresses (0287-0410)

In Zone Partition Assignment, each zone is assigned to a partition. By default, all zones are assigned to partition 1.

The partition assignment for odd numbered zones is programmed in the first data digit of these addresses. The partition assignment

for even numbered zones is programmed in the second data digit of these addresses.

For example, to assign zone 1 to partition 1 and zone 2 to partition 2, program address 0287 as 01.

Zones 1 & 2

Zones 3 & 4

Zones 5 & 6

Zones 7 & 8

Zones 9 & 10

Zones 11 & 12

Zones 13 & 14

Zones 15 & 16

Zones 17 & 18

Zones 19 & 20

Zones 21 & 22

Zones 23 & 24

Zones 25 & 26

Zones 27 & 28

Zones 29 & 30

Zones 31 & 32

Zones 33 & 34

Zones 35 & 36

Zones 37 & 38

Zones 39 & 40

Zones 41 & 42

Zones 43 & 44

Zones 45 & 46

Zones 47 & 48

Zones 49 & 50

Zones 51 & 52

Zones 53 & 54

Zones 55 & 56

Zones 57 & 58

Zones 59 & 60

Zones 61 & 62

Zones 63 & 64

0287

0288

0289

0290

0291

0292

0293

0294

0295

0296

0297

0298

0299

0300

0301

0302

0303

0304

0305

0306

0307

0308

0309

0310

0311

0312

0313

0314

0315

0316

0317

0318

Zones 65 & 66

Zones 67 & 68

Zones 69 & 70

Zones 71 & 72

Zones 73 & 74

Zones 75 & 76

Zones 77 & 78

Zones 79 & 80

Zones 81 & 82

Zones 83 & 84

Zones 85 & 86

Zones 87 & 88

Zones 89 & 90

Zones 91 & 92

Zones 93 & 94

Zones 95 & 96

Zones 97 & 98

Zones 99 & 100

Zones 101 & 102

Zones 103 & 104

Zones 105 & 106

Zones 107 & 108

Zones 109 & 110

Zones 111 & 112

Zones 113 & 114

Zones 115 & 116

Zones 117 & 118

Zones 119 & 120

Zones 121 & 122

Zones 123 & 124

Zones 125 & 126

Zones 127 & 128

0319

0320

0321

0322

0323

0324

0325

0326

0327

0328

0329

0330

0331

0332

0333

0334

0335

0336

0337

0338

0339

0340

0341

0342

0343

0344

0345

0346

0347

0348

0349

0350

Zones 129 & 130

Zones 131 & 132

Zones 133 & 134

Zones 135 & 136

Zones 137 & 138

Zones 139 & 140

Zones 141 & 142

Zones 143 & 144

Zones 145 & 146

Zones 147& 148

Zones 149 & 150

Zones 151 & 152

Zones 153 & 154

Zones 155 & 156

Zones 157 & 158

Zones 159 & 160

Zones 161 & 162

Zones 163 & 164

Zones 165 & 166

Zones 167 & 168

Zones 169 & 170

Zones 171 & 172

Zones 173 & 174

Zones 175 & 176

Zones 177 & 178

Zones 179 & 180

Zones 181 & 182

Zones 183 & 184

Zones 185 & 186

Zones 187 & 188

Zones 189 & 190

Zones 191 & 192

0351

0352

0353

0354

0355

0356

0357

0358

0359

0360

0361

0362

0363

0364

0365

0366

0367

0368

0369

0370

0371

0372

0373

0374

0375

0376

0377

0378

0379

0380

0381

0382

Zones 193 & 194

Zones 195 & 196

Zones 197 & 198

Zones 199 & 200

Zones 201 & 202

Zones 203 & 204

Zones 205 & 206

Zones 207 & 208

Zones 209 & 210

Zones 211 & 212

Zones 213 & 214

Zones 215 & 216

Zones 217 & 218

Zones 219 & 220

Zones 221 & 222

Zones 223 & 224

Zones 225 & 226

Zones 227 & 228

Zones 229 & 230

Zones 231 & 232

Zones 233 & 234

Zones 235 & 236

Zones 237 & 238

Zones 239 & 240

Zones 241 & 242

Zones 243 & 244

Zones 245 & 246

Zones 247 & 248

0383

0384

0385

0386

0387

0388

0389

0390

0391

0392

0393

0394

0395

0396

0397

0398

0399

0400

0401

0402

0403

0404

0405

0406

0407

0408

0409

0410

Zones Address Zones Address Address AddressZones Zones

Data Digit

Belongs to Partition 1

Belongs to Partition 2

Belongs to Partition 3

Belongs to Partition 4

Belongs to Partition 5

Belongs to Partition 6

Belongs to Partition 7

Belongs to Partition 8

Select Option DD

= odd numbered zones

= even numbered zone

10.6 Zone Bypass Programming: Program Addresses (2721-2724)

Zone Bypass programming determines which zone functions can be bypassed. Zone functions that can not be bypassed can not be

force armed either. Fire zones can never be manually bypassed, but can be force armed. The Default of [0] or [8] means those zones can

be bypassed.

Data Dig

PA 2721

123456789*0 *1 *2 *3 *4 *5

Zone Function 1 Can Be Bypassed

Select Options

Enter the Data Digit as a:

*0 - *5 are Hex values. They will display as A - F at the keypads.

Zone Function 4 Can Be Bypassed

Zone Function 3 Can Be Bypassed

Zone Function 2 Can Be Bypassed

12345670 9*0 *1 *2 *3 *4 *5

Zone Function 5 Can Be Bypassed

Select Options

Enter the Data Digit as a:

*0 - *5 are Hex values. They will display as A - F at the keypads.

Zone Function 8 Can Be Bypassed

Zone Function 7 Can Be Bypassed

Zone Function 6 Can Be Bypassed

*0 - *5 are Hex values. They will display as A - F at the keypads.

Data Dig

PA 2722

123456789*0 *1 *2 *3 *4 *5

Zone Function 9 Can Be Bypassed

Select Options

Enter the Data Digit as a:

*0 - *5 are Hex values. They will display as A - F at the keypads.

Zone Function 12 Can Be Bypassed

Zone Function 11 Can Be Bypassed

Zone Function 10 Can Be Bypassed

123456789*0 *1 *2 *3 *4 *5

Zone Function 13 Can Be Bypassed

Select Options

Enter the Data Digit as a:

Zone Function 15 Can Be Bypassed

Zone Function 14 Can Be Bypassed

Zone Function 16 Can Be Bypassed

Note: This programming item does not affect Custom Arming Programming (PA 2725-2778) or

Swinger Shunt Bypasses (see programming for Program Address 0000).

*0 - *5 are Hex values. They will display as A - F at the keypads.

Data Dig

PA 2724

123456789*0 *1 *2 *3 *4 *5

Zone Function 25 Can Be Bypassed

Select Options

Enter the Data Digit as a:

*0 - *5 are Hex values. They will display as A - F at the keypads.

Zone Function 28 Can Be Bypassed

Zone Function 27 Can Be Bypassed

Zone Function 26 Can Be Bypassed

123456789*0 *1 *2 *3 *4 *5

Zone Function 29 Can Be Bypassed

Select Options

Enter the Data Digit as a:

Zone Function 30 Can Be Bypassed

Data Dig

PA 2723

123456789*0 *1 *2 *3 *4 *5

Zone Function 17 Can Be Bypassed

Select Options

Enter the Data Digit as a:

*0 - *5 are Hex values. They will display as A - F at the keypads.

Zone Function 20 Can Be Bypassed

Zone Function 19 Can Be Bypassed

Zone Function 18 Can Be Bypassed

1234567 9*0 *1 *2 *3 *4 *5

Zone Function 21 Can Be Bypassed

Select Options

Enter the Data Digit as a:

*0 - *5 are Hex values. They will display as A - F at the keypads.

Zone Function 24 Can Be Bypassed

Zone Function 23 Can Be Bypassed

Zone Function 22 Can Be Bypassed

10.7 Output Programming: Program Addresses (2734, 2735, 2736)

Output programming defines the event, partition, and type of alarm (burglary or fire) that will trigger each of the three physical outputs on

the control panel.

See section 3.0 for the location of the physical outputs on the control panel.

See Glossary (section 6.4) for further details.

Latch on ANY Zone Alarm**

ON during Entry Pre-Alert/Exit Warning

ON for 10 sec. after pressing [System Reset]

ON when system is Armed

Ground Start

System Status (ready to arm)

Zone Alarm

Zone Alarm delayed by 20 sec.

Keypad Sounder Output

Access Output (10 sec. pulse)

Data Digit

** = This includes invisible zones. See glossary for further details.

*** = See section 6.4 for description of this option.

Select Option

Keyfob

Alarm

Programmable Output 1

Programmable Output 2

2734

2736

6 3

2 3

Output Address Default

3 32735

On during battery test *3

Panic Duress Output***

Programmable Output 1 will

be ON for 10 seconds after

pressing [System Reset].

Programmable Output 2 will

be OFF for 10 seconds after

pressing [System Reset].

Armed Full

Armed Partial

Disabled

Options

Armed Any

Burglar Alarm

Fire Alarm

Disabled

Burg and Fire Alarm

Options

Data Digi

RF3334

Disabled

Momentary

Toggle

Momentary

Toggle

Auxillary Key

Option Key

Options DD

10.8 Output Partition Assignment: Program Addresses (2737-2738)

In Output Partition Assignment, each On-board output is assigned to a partition. By default, outputs are assigned to all partitions.

10.9 Partition Control Programming: Program Address (3420)

Partition Control programming defines the number of partitions in use and the common area (common area can only be partition 1).

See Glossary (section 6.5) for further details.

Data Digit

0Belongs to Partition 1

Belongs to Partition 2

Belongs to Partition 3

Belongs to Partition 4

Belongs to Partition 5

Belongs to Partition 6

Belongs to Partition 7

Belongs to Partition 8

Select Option DD

Follows all Partitions

Data Dig

Alarm

Programmable Output 1

Programmable Output 2

2737-DD1

2737-DD2

2738-DD1

Output Address Default

PA 2737 PA 2738

Options

Keyfob Chirp

Chirp Disabled

Bell Output

P01

P02

10.10 Quick Arm Control Programming: Program Address (3477)

Quick Arm Control programming defines which partitions can be quick armed (armed without requiring a PIN to be entered).

10.11 Keypad Assignment Programming: Program Addresses (3131-3138)

Keypad Assignment Programming is where you assign the keypad type and the partition to which it belongs.

See Glossary (section 6.6) for further details.

Each keypad must have its own Bus address. This must also be selected on the keypad via its address pins. See DS7445/

DS7447 Installation Guide (P/N: 22235). One keypad must be selected as keypad 1.

Defaults: The default, if using only one keypad, is an Alpha keypad belonging to partition one.

* = When in Commercial Fire Mode, certain keypads must have specific assignments (see section

6.11).

** = Keypads 11-15 are connected to the Option Bus. If the DS7412 is connected to the Option Bus (at

keypad address 13 or 14), keypad 13 or 14 is unavailable. Similarly, if the DS7420i is connected to the

Option Bus at keypad address 15, keypad 15 is unavailable; and if the DS7488 is connected to the

Option Bus at keypad address 11-15, the corresponding keypad(s) is (are) unavailable.

*** = If only using one partition, do not program keypads as Master Keypads.

Only program for a Master Keypad if you need to view multiple partitions from a

single keypad.

10.12 Keypad Partition Assignment: Program Addresses (3139-3146)

Data Digit 1 Data Digit 2

eypad 1*

default = 1

Program Address 3131

Data Digit 1 Data Digit 2

Program Address 3132

Data Digit 1 Data Digit 2

Program Address 3135

Data Digit 1 Data Digit 2

Program Address 3136

Data Digit 1 Data Digit 2

Program Address 3133

Data Digit 1 Data Digit 2

Program Address 3134

Data Digit 1 Data Digit 2

Program Address 3137

Data Digit 1 Data Digit 2

Program Address 3138

Keypad 2

default = 0 Keypad 3

default = 0 Keypad 4

default = 0 Keypad 5

default = 0 Keypad 6

default = 0 Keypad 7

default = 0 Keypad 8

default = 0

Keypad 10

default = 0

Keypad 9

default = 0 Keypad 11**

default = 0 Keypad 12**

default = 0 Keypad 15**

default = 0

Keypad 14**

default = 0

Keypad 13**

default = 0

** ** *

LCD Backlight Off Until Keypress

Select Options

LCD Backlight Always On

0 1

Alpha (LCD) Keypad

LED Keypad

Select Options 0123

Disabled

Master Keypad***

Data Digit

Backlight selection affects all LCD keypads

10.13 Emergency Key Programming: Program Addresses (3147-3148)

Emergency Key and Panic Key programming disables or activates these keys (the A, B, and C keys) located on the keypads and/or

keyfobs.

It also determines a silent, pulsed, or steady alarm.

See Glossary (section 6.7) for further details.

10.14 Custom Arming Programming: Program Addresses (2725-2728)

See Glossary (section 6.8) for further details.

Data Dig

Fire Key Disabled

Fire Key = Disabled

Fire Key = Steady Alarm

Fire Key = Pulsed Alarm 3

Select Option DD

Fire Key

May be forced to a different value when in

Commercial Fire Mode. See section 10.16.3.

Special Emergency Key Disabled

Special Emergency Key = Silent Alarm

Special Emergency Key = Steady Alarm

Special Emergency Key = Pulsed Alarm 3

Select Option DD

Emergency Key

Panic Key Disabled

Panic Key = Silent Alarm

Panic Key = Steady Alarm

Panic Key = Pulsed Alarm 3

Data Digit

Data Digit 2

must be 0

Select Option DD

Panic Key

ay be forced to a different value when in Commercial Fire Mode. See section 10.16.3.

PA 3147

PA 3148

123

456

789

Entry

System

Reset

Bypass

Only

Perim e ter

Off

TEST WEEKLY

12345678

910

11 12 13 14 15 16

Armed

Status

Power

Fire

Perimeter

Supervisory

Bell Silenced

Trouble

ABC

10.14 Custom Arming Programming: Program Addresses (2725-2728) (Continued)

0123456789*0 *1 *2 *3 *4 *5

Bypass Zone Function 25

Bypass Zone Function 26

Bypass Zone Function 27

Bypass Zone Function 28

Select Options

Enter the Data Digit as a:

*0 - *5 are Hex values. They will display as A - F at the keypads.

Data Dig

PA 2728

Enter the

Data Digit

as a:

0123

Bypass Zone Function 29

Bypass Zone Function 30

Select Options

10.15 Force Arming and Ground Fault Detect Programming: Program Address (2732)

Force Arming programming defines how many zones may be Force Armed using an Arming sequence followed by the [Bypass] key.

With this entry, all violated zones (up the programmed limit) will automatically be Force Armed (bypassed). Ground Fault Detect

programming determines whether or not the control will detect a ground fault condition.

See Glossary (sections 6.9 and 6.10) for further details.

Note: This limit does not apply when arming with

a keyswitch programmed with force arm-

ing enabled.

10.16 Commercial Fire Mode Programming: Program Address (2733)

This section describes how to define the parameters for the Commercial Fire Mode.

See Glossary (section 6.11) for further details.

When programming Fire zones, it is recommended that they be zone functions 12 and 13 (see sections 10.2, 10.4 and 10.16.3).

10.16.1 When Central Station Commercial Fire Mode is chosen, address 4021 (DS7420i: Dual Phone Line/Bell Supervision Mod-

ule Output Programming), will be forced to a value of 5.

10.16.2 When Local Commercial Fire Mode is chosen, address 4021 (DS7420i: Dual Phone Line/Bell Supervision Module Output

Programming),will be forced to a value of 3, 4, or 5. (Turns the Bell Monitor feature ON and the Alarm Output on Line Fault feature

OFF)

10.16.3 Regardless of which Commercial Fire Mode is chosen, the following parameters will be forced when exiting local

programmer’s mode:

• Zone Function 12, address 0012, will be a 7 *0. (Alarm on Short, Trouble on Open, Pulsing Fire with verification)

• Zone Function 13, address 0013, will be a 7 *1. (Alarm on Short, Trouble on Open, Pulsing Fire without verification)

• Zone Function 14, address 0014, will be a 7 *2. (Alarm on Short, Trouble on Open, Pulsing Water Flow)

• Zone Function 15, address 0015, will be a 7 *3. (Alarm on Short, Trouble on Open, Pulsing Supervisory)

• Zone Bypass address 2722 will not allow zone functions 12 - 15 to be bypassed.

• Emergency Key, address 3147, data digit 1, will become a 3 if programmed previously as a 2. Data digit 2 will become a 2 if

programmed previously as a 3.

• Panic Key, address 3148, data digit 1, will become a 2 if programmed previously as a 3.

• Fire Bell Cutoff, address 4032: If less than 5, set to 5, otherwise untouched.

• The AC Fail Report delay will be random between 6-12 hours regardless of the delay time programmed in 4034. Also, the AC Fail

Report will not be sent as a “tag-along.”

10.16.4 In Central Station Commercial Fire Mode, the following communication parameters will be forced:

Report Codes: If 0, the following defaults will be set, otherwise they will be unchanged.

• Phone Control (address 3156): If 0, set to 6 1, 4/2 @ 18/23, 10pps, otherwise untouched.

• Test Report (address 4026): Set to 8, call out every day.

10.17 Open/Close Report Control Programming: Program Address (3149)

See Glossary (section 6.12) for further details.

4Select Options 0123 56789

Do not report opens or closes

Report opens and closes in Partition 1

Report opens and closes in Partition 2

Report opens and closes in Partition 3

Report first Partition to open and last Partition to close**

Report opens and closes in Partition 4

Enter the Data Digit as a:

Send Closing and

Bypass reports after

Send Closing and

Bypass reports at close

Report opens and closes in Partition 5

Report opens and closes in Partition 6

Report opens and closes in Partition 7

Report opens and closes in Partition 8

exit delay

Data Dig

** = When using this option, all partitions should have the same account code.

Data Dig

10.18 Open/Close & Zone Report Control Programming: Program Address (3151)

This section allows you to decide which phone number will send open and close reports, zone alarm, zone restoral, and zone trouble

reports.

10.19 Report Control Programming: Program Address (3152)

This section allows you to decide which phone number will send reports other than open/close reports and zone reports.

NOTE: Data Digit 1 does

not include Open

and Close

Reports or Zone

Reports (see

sections 10.17

and 10.18).

Select Option DD

Alternate between both Phone Numbers

Report to Phone Number 1

Report to Phone Number 2

Report to Phone Number 1 and 2 Data Digit 2

must be 0

Data Digit

10.20 Timer Programming: Program Addresses (4028-4030, 4032-4033)

10.21 AC Fail Report Delay Programming: Program Address (4034)

The AC Fail Delay Times are programmed as Hexadecimal values.

For example:

00 = Send only with next report

1 *4 = 30 minute delay

3 *2 = 60 minute delay

78 = 120 minute delay

*5 0 = 240 minute delay

*5 *5 = Random delay (at least 15 minutes, but less than 120 minutes)

(*0 - *5 are Hex values. They will display as A through F at the keypads.)

See Glossary (section 6.13) for further details.

0 to 99 minutes* Default = 04 minute

*1 minute intervals; 99 = 30 second cutoff

0 to 51 (0 to 255 sec.*) Default = 09 (45 sec.)

Data Digit

Address 4028

Entry Delay Time 1

Data Digit

Address 4029

Entry Delay Time 2

Data Digit

Address 4030

Exit Delay Time

Data Digit

Address 4032

Fire Bell Cutoff

Data Digit

Address 4033

Burglary Bell Cutoff

May be forced to a different value when in

Commercial Fire Mode. See section 10.18.3.

0 to 51 (0 to 255 sec.*) Default = 09 (45 sec.)

*5 second intervals

0 to 51 (0 to 255 sec.*) Default = 12 (60 sec

*5 second intervals

0 to 99 minutes* Default = 04 minute

*1 minute intervals; 99 = 30 second cutoff

Entry and Exit Delay Timers are in

5 second intervals (the maximum

delay time is 255 seconds).

For example:

5 sec. = 01

15 sec. = 03

20 sec. = 04

30 sec. = 06

45 sec. = 09

60 sec. = 12

255 sec. = 51

10.22 General Authority Programming: Program Address (3421-3424)

This allows for a user with a General Authority level to Arm, Disarm and Bypass specified zones.

See Glossary (section 6.1) for further details.

10.23 Arming Warning Programming: Program Addresses (3425-3428)

Arming Warning programming defines whether the keypad will be audible during the exit delay and auto arm period. If programmed, the

keypad sounder will activate once every 5 seconds during the exit delay. At 10 seconds and 5 seconds remaining, the keypad sounder

will activate 3 times. During auto arming, a pre-arming period will begin 15 minutes before the system arms automatically. The keypad

sounders will pulse five times every minute. During the last five minutes before arming, these sounders will be on steady.

General Code can Arm, Disarm, and Bypass

Select Option DD

General Code can Arm and Bypass

General Code can Arm

General Code can Arm and Disarm

Program Address 3423

Program Address 3424

Data Digit 1 Data Digit 2

Partition 5 Partition 6

Data Digit 1 Data Digit 2

Partition 7 Partition 8

Program Address 3421

Program Address 3422

Data Digit 1 Data Digit 2

Partition 1 Partition 2

Data Digit 1 Data Digit 2

Partition 3 Partition 4

10.24 DS7412 RS232 Interface Control Programming: Program Address (4019)

10.26 RS232 Carriage Return/Line Feed Control: Program Address (4027)

The RS232 Carriage Return/Line Feed (CR/LF) Control allows you to choose between sending carriage returns/line feeds or spac-

es to the DS7412 module. This is only used when Program Address 4019 Data Digit #2 is programmed with the numbers 1 through

7. Data Dig

Send CR/LF 0

Send Spaces 1

Select Option

10.25 DS7412 RS232 Interface Configuration Programming: Program Address (4020)

DS7412 RS232 Interface Configuration Programming allows you to configure the DS7412 for your printer. Most printers will operate

using the default values for the DS7412. Some printers may operate more efficiently using optional program values.

DS7412 RS232 Interface Control

Programming allows you to enable or disable

the DS7412 and to select which history events

are sent to the printer as they occur. Selecting

“No Events” will cause the history to be printed

only on command.

To print the History Buffer starting from the most

recent event, enter the Master Code followed

by [#] [0] [8]. To stop printing, enter Master Code

[#] [0] [8] again.

Consult the operating guide provided with your printer to be sure that its configuration matches

the one programmed here.

NOTE: If using the WDSRP Direct Connection

option for programming, Address 4019

must be set for 1 0. Address 4020 must

be set for 2 5.

10.27 Report Programming: Program Addresses (3207-3419)

• To send the User number along with open, close, or partial close reports: place an ‘F’ (*5) in the extended digit.

• To disable a report (meaning that nothing will be sent), place a ‘0’ in the reporting digit.

• When using SIA or Contact ID format, place a ‘1’ in the reporting digit of each report you wish to enable. It is not necessary to program

the extended digit.

• For suggested values for 4/2, BFSK and Pager format, see section 12.1-12.3. For SIA and Contact ID, the values sent are listed in

sections 13.1 and 13.2. For other formats, consult your central station.

• HEX values: Some Data Digit values are higher than 9. These values are programmed by pressing the [*] key followed by another

number. These values will display as HEX characters when entered. The HEX character values are as follows:

*0 = A *1 = B *2 = C *3 = D *4 = E *5 = F

See Glossary (section 6.13) for further details.

Report Programming (Continued)

10.28 Phone/DS7416i Routing Control: Program Addresses (3153-3154)

If address 3155 is programmed to “Try DS7416i first”, the following addresses can be used to control report routing. If address 3155

is set to “Send alarms via both DS7416i and digital”, this will force alarms to go to the phone even if the Phone/DS7416i report

routing for alarms does not specify phone usage.

Phone/DS7416i report routing (3153).

First digit: Open and Close Reports.

Second digit: Phone First count. Number of attempts before trying the DS7416i:

This value is used to control the number of attempts made on the phone line before switching to the DS7416i. This value is only

referenced if the “Use Phone”, “Use DS7416i”, and “Try Phone First” options are all selected. If the value is less than or equal

to 2, or more than 5, two attempts will be made on the phone before trying the DS7416i if the Phone First option is selected.

Use Phone

Use Either

Try Phone First

Use Both

1 2 7 *1 *5

Select Options

Enter the DD as a:

Data Digit

0 Attempts

1 Attempt

2 Attempts

3 Attempts

4 Attempts

5 Attempts

6 Attempts

7 Attempts

8 Attempts

9 Attempts

10 Attempts

11 Attempts

12 Attempts

13 Attempts

14 Attempts

15 Attempts

Select Option DD DD DDSelect OptionSelect Option Select Option

Use Phone

Use Either

Try Phone First

Use Both

1 2 7 *1 *5

Select Options

Enter the DD as a:

Use Phone

Use Either

Try Phone First

Use Both

1 2 7 *1 *5

Select Options

Enter the DD as a:

Data Digit

Second digit: Zone Alarm, Zone Restoral,

and Zone Trouble Reports.

Phone/DS7416i report routing and Phone First count (3154)

First Digit: System Reports.

Use DS7416i

10.29 Account Code Programming: Program Addresses (3429-3459)

Account Code programming defines the number transmitted to the central station that identifies this panel. It also identifies which

partition is reporting from this panel.

1. Account Codes are programmed from left to right. If programming a 3 digit Account Code, the fourth digit of the address must be “0.”

For example: If the Account Code is 121, program 1210 in the programming address.

2. If you wish to send a zero “0,” enter it as *0 (this does not apply to the added zero in a three digit Account Code).

For example: If the Account Code is 101, program 1*010 in the programming address. If the Account Code is 3050, program 3*05*0

in the programming address.

10.30 Phone Number General Control Programming: Program Address (3155)

See Glossary (section 6.14) for further details.

10.31 Phone Number Format Programming: Program Addresses (3156-3157)

Enter the DD as a:

Select Options

DDSelect Option

0 1 2 3 4 5

1900 Hz. Data/1400 Hz. Acknowledge

1800 Hz. Data/2300 Hz. Acknowledge

BFSK, SIA, Contact ID

10 Pulses per Second (PPS)

20 Pulses per Second (PPS)

40 Pulses per Second (PPS)

0Phone Number Disabled

3/1 (no Extended Reporting)

3/1E (Extended Reporting)

3/1 with Parity 3

3/1E with Parity 4

4/1 5

4/2 6

BFSK 7

SIA 110 Baud 8

Contact ID 9

SIA 300 Baud *0 *0, *2, and *5 are Hex values. They will display as A, C, and F

Pager *5

Personal Dialing *2 at the keypads.

NOTE: Phone Number 1 Format = Address

3156

Phone Number 2 Format = Address

3157

When using the DS7416i Advanced

Radio Communications Module:

Program address 3156 as:

data digit 1 = 9, data digit 2 = 1.

Program address 3157 as:

data digit 1 = 9, data digit 2 = 1.

Dial tone on all phone numbers**

Enter the Data Digit as a:

Select Options 210 3 5 6 7 8

Enable remote programmer call-back

Dial pulse on all phone numbers

Dial tone, switch to pulse if required

Try DS7416i first

9*0 *1

*0 - *1 are Hex values. They will display as A - B at the keypads.

ΔΔ = If this option is selected, see address 3153-3154.

** = Required on PBX systems

Data Dig

Send alarms via either DS7416i or digital

Enter the Data Digit as a:

Select Options 012345678

Dialer delay of 15 sec. on non-24H burglar alarms only**

Dialer delay of 15 sec. on 24H burglar & fire alarms only**

Send alarms via both DS7416i and digital ***

Use 110 Baud comm. for WDSRP

9*0 *1

*0 - *5 are Hex values. They will display as A - F at the keypads.

Δ = Only applicable when using the DS7416i option.

ΔΔ = If this option is selected, see address 3153-3154.

** = These selections can only be used with systems that have only one partition.

*** = This selection must be chosen for UL Listed Requirements when using the DS7416i module.

Use 300 Baud comm. for WDSRP

*2 *3 *4 *5

ΔΔ Δ

ΔΔ

10.31.1 Compatible Receivers

The following table lists those Digital Alarm Communicator Receivers and Formats that

are compatible with the DS7400Xi.

NOTE: Contact your central station regarding which format to use and if a special line card

is required.

l = The Format type the DS7400Xi

supports and the Digital Alarm

Communicator Receiver accepts.

10.32 Phone Answering Programming: Program Address (3158)

See Glossary (section 6.15) for further details.

10.33 Pager Delay Time: Program Address (4038)

When using the Pager Dialing Format (selected in Addresses 3156 and 3157), you may insert a delay time after the phone number is

dialed and before the reports are sent to the pager system. This delay can be used to allow for greeting and instruction messages in the

pager system. This delay will not affect any other report formats.

10.34 Programmer’s and Master Code Programming: Program Addresses (7589-7592)

Programmer’s Code programming defines what the Programmer’s Code will be. This code is used to enter the programming mode

from the keypads.

Master Code programming defines what the Master Code will be. This code is the highest authority level for a PIN.

If the Master Code is lost, this address may be used to program a new one.

Otherwise, the Master Code Programming Mode should be used to create PINs

that have a Master Code authority level.

Master Code for User Number 001 has its

authority fixed at level 0. It will always have

access to all partitions.

10.35 PIN Length Programming: Program Address (3478)

PIN Length Programming defines the length of the PINs that are assigned to each user.

PINS can be programmed to be 4 or 6 digits in length.

Programmer’s Code

Enter as 6 digits.

It can not be the same

as any PIN number.

123 4

The Default for the Programmer’s Code = 987654

Program Address 7589

Data Digit

98 765

Master Code PIN Number

123 4 56

Program Address 7592

Data Digit

(Default for this User 001

is 123456)

123456

Data Digit

Select Option

6-digit PINs

4-digit PINs

Although the DS7400Xi (Ver. 4+) Control/Communicator is shipped with 6-digit codes preprogrammed, it is also shipped

with a 4-digit PIN length default. The default codes for the Programmer’s Code and the Master Code will be 4-digits (9876

and 1234 respectively) unless you have reprogrammed for a 6-digit PIN length.

NOTE: User Numbers 002 through 200

must be programmed from the

Master Code Programming

Mode.

0 to 99 seconds Default = 10 seconds

Data Digit

Pager Delay Time

Address 4038

10.36 Octal Relay Module Output Programming

10.36.1 Follow Action: Program Addresses (2740-2771)

To program an Octal Relay Module for Follow Action, follow the steps below.

1. Select Octal Relay to program.

2. Program Data Digit 1 of Program Address A as 1 for Follow Action.

3. Program Data Digit 2 of Program Address A for the desired function.

4. Program Data Digit 1 and 2 of Program Address B for the desired function.

Once both Address A and Address B have been programmed, proceed to program the next Octal Relay.

The Octal Relay Module is the DS7488. See section 1.18 and 6.4 for further details.

NOTE: If a DS9484 is used, it replaces the DS7488 and takes up outputs 1-4 of the Octal Relay Module. Outputs 5-8 of the Octal Relay

Module are unavailable. If two DS9484 power supplies are used, one replaces Octal Relay Module 1 and the other replaces

Octal Relay Module 2.

For Octal Relay Partition Assignment, see section 10.36.5.

0 1 2

SELECT OPTION DD 2

3Follows

Disabled

Burglar Alarm

Fire Alarm

Octal

Relay

DS7488-1

Address

DS7488-1

Address

2740 2741

2742 2743

2744 2745

2746 2747

2748 2749

2750 2751

2752 2753

2754 2755

2756 27579

2758 2759

2760 2761

2762 2763

2764 2765

2766 2767

2768 2769

2770 2771

0 0Latch ON after Zone Alarm**

ON during Entry Pre-Alert

ON for 10 sec. after pressing [System Reset]

ON for Any Armed state

Ground Start

System Status (Ready to Arm)

Zone Alarm

Zone Alarm delayed by 20 seconds

Keypad Sounder Output

Access Output (10 sec. pulse)

0 1

0 2

0 3

0 4

0 5

0 6

0 7

0 8

0 9

SELECT OPTION DD 1 & 2

Panic/Duress Output*** 0*1

ON when System is Partial 0*2

0*0

0*3ON when System is Fully Armed

Data Digit

Program Address B

Data Digit

Program Address A

Future Selection

** = This includes invisible zones. See glossary for further details

*** = See section 6.4 for description of this option.

10.36 Octal Relay Module Output Programming (continued)

10.36.2 Follow System Wide Event: Program Addresses (2740-2771)

To program an Octal Relay Module for Follow System Wide Event, follow the steps below.

1. Select Octal Relay to program.

2. Program Data Digit 1 of Program Address A as 2 for Follow System Wide Event.

3. Program Data Digit 2 of Program Address A for the desired function.

4. Program Data Digit 1 and 2 of Program Address B for the desired function.

Once both Address A and Address B have been programmed, proceed to program the next Octal Relay.

For Octal Relay Partition Assignment, see section 10.36.5.

0 1 2

SELECT OPTION DD 2

3Follows

Disabled

Burglar Alarm

Fire Alarm

Octal

Relay

DS7488-1

Address

DS7488-1

Address

2740 2741

2742 2743

2744 2745

2746 2747

2748 2749

2750 2751

2752 2753

2754 2755

2756 27579

2758 2759

2760 2761

2762 2763

2764 2765

2766 2767

2768 2769

2770 2771

Data Digit

Program Address B

Data Digit

Program Address A

0 0Disabled

AC Power Fail

Low Battery

Communicator Failure

System Fault*

Keypad Supervision Fault

Multiplex Bus Fault

0 1

0 2

0 3

0 4

0 5

0 6

SELECT OPTION DD 1 & 2

Aux Power Fault

Fire Zone Trouble

Supervisory

0 8

0 9

0*0

Duress 0*2

Battery Test 0*3

Zone Trouble 0*1

0*4Future Selection

0*5

Future Selection

RF Receiver Fault 0 7

*System Faults include:

• RAM fault

• ROM fault

• Bell/Line Monitor fault (DS7420i)

• Line 1 fault

• Line 2 fault

• Bell fault

• Aux. Power fault

• Octal Relay fault

• Serial Module fault (DS7412)

• Serial Transmit fault

• Serial Receive fault

• Aux. Relay fault

• DS7416i Communication fault

• RF Receiver Tamper

• RF Receiver Jammed

• RF Receiver Trouble

• Printer Off-line

10.36 Octal Relay Module Output Programming (continued)

10.36.3 Follow Function: Program Addresses (2740-2771)

To program an Octal Relay Module for Follow Output Function, follow the steps below.

1. Select Octal Relay to program.

2. Program Data Digit 1 of Program Address A as 3 for Follow Function.

3. Program Data Digit 2 of Program Address A for the desired function.

4. Program Data Digit 1 and 2 of Program Address B for the desired function.

Once both Address A and Address B have been programmed, proceed to program the next Octal Relay.

For Octal Relay Partition Assignment, see section 10.36.5.

10.36 Octal Relay Module Output Programming (continued)

10.36.4 Follow Zone: Program Addresses (2740-2771)

To program an Octal Relay Module for Follow Zone, follow the steps below.

1. Select Octal Relay to program.

2. Program Data Digit 1 of Program Address A as 4 for Follow Zone.

3. Program Data Digit 2 of Program Address A for the desired function.

4. Program Data Digit 1 and 2 of Program Address B for the desired zone.

Once both Address A and Address B have been programmed, proceed to program the next Octal Relay.

Octal

Relay

DS7488-1

Address

DS7488-1

Address

2740 2741

2742 2743

2744 2745

2746 2747

2748 2749

2750 2751

2752 2753

2754 2755

2756 27579

2758 2759

2760 2761

2762 2763

2764 2765

2766 2767

2768 2769

2770 2771

Data Digit

Program Address B

Data Digit

Program Address A

10 2 3 4 5

When panel is not Armed

When panel is Armed

When Zone is opened

When zone is shorted

Activate:

Disabled

SELECT OPTION DD 2

7 9 *0 *1 *2

Program the HEX value

of the Zone

from the chart

on the next page

Latch when activated**

** = This applies only to the DS7465 outputs.

DS7488 outputs will not latch when this is selected.

10.36 Octal Relay Module Output Programming (continued)

10.36.5 Octal Relay Module Output Partition Assignment: Program Addresses (2844-2851)

Data Digit 1 Data Digit 2

rogram Address 2844

Data Digit 1 Data Digit 2

Program Address 2845

Data Digit 1 Data Digit 2

Program Address 2848

Data Digit 1 Data Digit 2

Program Address 2849

Data Digit 1 Data Digit 2

Program Address 2846

Data Digit 1 Data Digit 2

rogram Address 2847

Data Digit 1 Data Digit 2

Program Address 2850

Data Digit 1 Data Digit 2

Program Address 2851

0Belongs to Partition 1

Belongs to Partition 2

Belongs to Partition 3

Belongs to Partition 4

Belongs to Partition 5

Belongs to Partition 6

Belongs to Partition 7

Belongs to Partition 8

Select Option D

Follows all Partitions

Relay 1

default = 8 Relay 2

default = 8 Relay 6

default = 8

Relay 3

default = 8 Relay 4

default = 8 Relay 5

default = 8

Relay 7

default = 8 Relay 8

default = 8 Relay 9

default = 0 Relay 10

default = 0 Relay 11

default = 0 Relay 12

default = 0

Relay 15

default = 0 Relay 16

default = 0

Relay 13

default = 0 Relay 14

default = 0

10.37 Output Function Programming: Program Addresses (2772-2843)

Output programming allows you to have the Outputs follow status events by partition or system-wide, or follow zone outputs in an Input/

Output Cross Matrix. See the Programming Addresses Worksheet (P/N: 43850) for a description of each address. See Glossary

(section 6.4) for further details.

Data Digit 1 Option *2 is used to program an Output

Function to follow status events system-wide.

Data Digit 1 Options *3-*5 are used to program an Output

Function to follow a zone or two zones in an Input/Output

Cross Matrix. Data Digit

Program

Address

** = This is only for DS7465 Outputs. DS7488 Outputs will not latch when this is selected.

0 2 3 4 5

When panel is not Armed

When panel is Armed

When Zone is opened

When zone is shorted

Activate:

Disabled

Enter Data Digit as a:

7 9 *0 *1 *2

Latch when activated**

Access output (10 sec. pulse)

Latch ON after Zone Alarm

ON during Entry Pre-Alert

ON when system is armed

Zone alarm

Zone Alarm delayed by 20 sec.

Keypad Sounder output

Panic/Duress output** *1

DDSelect Option

Follow a single zone

Follow System Status Event

Follow two zones-When EITHER zone changes state

Follow two zones-When BOTH zones change state

Keyfob output

Data Digit 1 Options 1-9 and *1 are used to program an Output

Function to follow status events for individual partitions.

Data Digit 1 Option *0 is used to program an Output

Function to follow the Wireless Keyfob Output Buttons.

Data Digit

Program

Address

Enter the

Zone Number

of Second

Zone to

(see Zone

HEX Values

chart)

Program

Address

Program

Address

Program

Address

Data Digit

Not Required

if following a

single zone

Enter the

Zone Number

of First Zone

to Follow

(see Zone

HEX Values

chart)

Zone Trouble

Supervisory

Select Option

DDDD

Select Option

Communication Failure

Keypad Supervision Fault

Multiplex Bus Fault

Radio Receiver Fault

Duress PIN

Low Battery

AC Power Failure

2Aux Power Fault

Fire Trouble

*0 - *2 are Hex values. They will display as A - C at the keypads.

*0-*5 are Hex values. They will

display as A-F at the keypads.

System Fault**

Disabled

Moment

Option RF3334

Option Key

Toggle

DD Follows

Disabled

1 2 3

Burglar Alarm

Fire Alarm

Data Digit

2817

2820

2823

2826

2829

2832

2835

2838

2841

2811

2814 2818

2821

2824

2827

2830

2833

2836

2839

2842

2812

2815 2819

2822

2825

2828

2831

2834

2837

2840

2843

2813

2816

Output

Function

Number

Program

Address Program

Address

2772

2775

2778

2781

2784

2787

2790

2793

2796

2799

2802

2805

2808

2773

2776

2779

2782

2785

2788

2791

2794

2797

2800

2803

2806

2809

2774

2777

2780

2783

2876

2789

2792

2795

2798

2801

2804

2807

2810

Data Digit

Follows

Disabled

012

Armed Any

Armed Partial

Data Digit

Armed Full

Data Digit

• Serial Transmit fault

• Serial Receive fault

• Aux. Relay fault

• DS7416i Communications fault

•RF Receiver Tamper

•RF Receiver Jammed

• RF Receiver Trouble

• Printer Off-line

**System Faults include:

• RAM fault

• ROM fault

• Bell/Line Monitor fault (DS7420i)

• Line 1 fault

• Line 2 fault

• Bell fault

• Aux. Power fault

• Octal Relay fault

• Serial Module fault (DS7412)

10.37.1 Output Function Partition Assignment: Program Addresses (2852-2863)

10.38 Dual Phone Line/Bell Supervision Module Output Programming: Program Address (4021)

The Dual Phone Line/Bell Supervision Module is the DS7420i. See section 1.18 for further details.

When in Central Station or Local Commercial Fire Mode, this address will be forced to specific values (see sections 10.16.1 and

10.16.2).

10.39 Call-Out Timer Programming: Program Addresses (4022-4025)

This section allows you to define the Hour and Minute for the Communicator Test Report and Remote Programmer Call-Out.

The default time for the Communicator Test Report to be sent and for the control to call the Remote Programmer is Midnight.

10.40 Test Report and Remote Programmer Call-Out Programming: Program Address (4026)

This section allows you to define the Day and Frequency for the Communicator Test Report and the Remote Programmer Call-Out.

If this address is not programmed, the Communicator Test Report will not be sent and the control will not call the Remote Program-

mer.

10.41 Alpha Description Programming: Program Addresses (0545-2720, 5001-6920)

Alpha Description Programming allows up to 16 characters to be programmed for the description of each partition or zone (e.g. “J. Hill’s

Office”). If a description is less than 16 characters, leave the remaining address(es) blank. Once programmed, the descriptions will be

displayed on the alpha keypads.

The following chart lists the Program Addresses used to program Alpha-Numeric characters for each partition or zone:

See Section 10.41.1 for an Alpha Description Programming worksheet for Partitions 1 through 8 and Zones 1 through 8.

See the Programming Addresses Worksheet (P/N: 43850) for a complete Alpha Programming Worksheet

(covering addresses 0545 through 6920).

Words are created one character at a time. Each character uses two data digits.

The data digit values for these characters are shown below:

10.41.1 Alpha Description Programming: A Worksheet

10.41.1 Alpha Description Programming: A Worksheet (Continued)

10.42 Phone Number Programming: Program Addresses (3159, 3175, 3191)

10.42.1 Phone Number 1 Programming: Program Address (3159)

10.42.2 Phone Number 2 Programming: Program Address (3175)

10.42.3 Phone Number 3 Programming: Program Address (3191)

Notes:

To dial the “*” character, enter *1 (The “*” character is sent as “1” “1” when pulse dialing).

To dial the “#” character, enter *2 (The “#” character is only valid when tone dialing).

To input a three second delay, enter *3.

To wait for the dial tone, enter *4 in the first digit.

To disable a Phone Number, enter *5 in the first digit.

(*1 - *5 are Hex values. They will display as B - F at the keypads.)

Recommendation: The phone line that the control panel is connected to should not have a Call Waiting feature. If it must have call

waiting, program the code to disable call waiting and add a three second delay before the phone number. This will prevent incoming

calls from interrupting a communication. For example: call waiting can be disabled in many areas by dialing *70 before the phone

number for tone dial and 1170 for pulse dial.

123456789101112131415161718192

21 22 23 24 25 26 27 28 29 30 31 32

123456789101112131415161718192

21 22 23 24 25 26 27 28 29 30 31 32

123456789101112131415161718192

21 22 23 24 25 26 27 28 29 30 31 32

11.0 Installation Guide for UL Listed Systems

11.1 DS7400Xi UL Listings:

• Household Fire Alarm, UL Standard UL985

• Commercial Fire Alarm (Type Service: Local, Central Station, Remote Station; Type Initiating: Automatic, Manual, Sprinkler

Supervisory, and Waterflow), UL Standard UL864

• Household Burglary Alarm, UL Standard UL1023

• Police Station Connection Grades AA and A, UL Standard UL365

• Central Station Burglary Alarm Grades AA, A, B, and C; UL Standard UL1610

• Proprietary Alarm Units Grades A and AA, UL Standard UL1076

The control panel should be installed in accordance with UL Standard UL681, Installation and Classification of Mercantile and Bank

Burglar Alarm Systems, or UL Standard UL1641, Installation and Classification of Residential Burglar Alarm Systems. It should also be

installed in accordance with NFPA 72 for Household and Commercial Fire installations.

11.1.1UL System Configurations

The following table shows the DS7400Xi system configuration for the various types of fire and burglar alarm service for which the

product is UL Listed.

Product UL Application

CSF-D CSF-D/RF LF CSB-A PP-AA CSB-B/C PP-A LB-A PSCB-D-A PSCB-RF-A HF/B

3007-9001 DS7400Xi

Standard Enclosure

Attack Enclosure

AE-TR16 Enclosure

DS7416i

AB12 Bell w/Housing

n/a

Configuration Codes

R = Required

0 = Optional

n/a = Not Applicable

1 = Standard or attack enclosure may be

used.

2 = Either enclosure may be used. Device

must be mounted to the enclosure cover,

or within 20 ft. w/wiring in conduit.

3 = Either enclosure may be used.

4 = Either the DS7420i or the DS7481

must be used to monitor the phone line

input to the control unit.

DS7420i

DS7430

DS7432

DS7433

DS7447/DS7447E

DS7460

DS7481

DS7488

DS7480

Key to Application Codes

CSF-D = Central Station Fire w/ DACT (Digital Alarm Communications Transmitter/dialer)

CSF-D/RF = Central Station Fire w/ DACT and Radio (DS7416i)

LF = Local Fire

CSB-A = Central Station Burglary, grades AA and A

CSB-B/C = Central Station Burglary, grades B and C

LB-A = Local Burglary, grade A

PSCB-D-A = Police Station Connected Burglary w/DACT, grade A

HF/B = Household (residential) Fire and Burglary

PP-A = Proprietary grade A

PP-AA = Proprietary grade AA

PSCB-RF-A = Police Station Connected Burglary w/Radio (DS7416i), grades AA and A

11.2 Installation Considerations

• Failure to install and program the control in accordance with the

requirements in this section voids the listing mark of Underwriters

Laboratories, Inc.

• The maximum standby battery capacity is 35 Ah @ 12 VDC.

• The total nominal standby current must not exceed 1.5 A nor 2.5

A when in alarm.

• The control must be mounted indoors and within the protected

area.

• Enclosure tamper switches (if used) must be connected to a 24-

hour zone.

• Grounding must be in accordance with article 250 of the NEC

(NFPA 70).

• At least one UL Listed keypad with zone display must be

connected.

• Zones must be connected to UL Listed, compatible devices.

• 50 Hz. AC input cannot be used in UL Listed Requirements.

• The ground wire provided with the enclosure must be connected

to the “Earth GND” connection on the control and the enclosure

tab.

• The keypad panic alarm output must follow the corresponding

zone function’s programming (e.g. fire = pulsing [or steady if not

a combination], burglary = steady). In all cases, the special

emergency keys must be silent.

• The ground start feature shall not be programmed.

11.3 Programming the DS7400Xi

When used in UL Listed Requirements, the control must conform

to certain programming requirements. The following is a list of the

required program entries and required accessories for specific

UL Listed Requirements.

11.3.1Household Fire Alarm Using Digital Alarm

Communicator Transmitter With Local Bell

The control must be installed in accordance with NFPA 72.

Required Accessories:

• At least one Detection Systems, Inc. Model DS250 Series smoke

detector with an MB Series base, DS280 Series, MX280 Series,

or another Listed compatible smoke detector.

• At least one DS7480 Bell Supervision Module.

• One Wheelock 46T-G10-12 bell or 34T-12 horn (will provide

85db for UL985 and NFPA 72 requirements; other Listed

compatible devices with a voltage range of 10.2 to 14.0 V may be

used) is required and must be installed inside the protected

area.

• The standard control enclosure can be used.

• At least one DS7447/DS7447E or DS7445/DS7445i Keypad must

be used.

• Four-wire detectors must be used with Listed power supervision

devices. A compatible Listed 4-wire detector is the Detection

Systems, Inc. DS250 in an MB4W base. A compatible Listed

EOL relay is the Detection Systems, Inc. EOL200.

• All zones must be used with the EOL resistor (P/N 25899),

provided.

1. Report Programming:

• Fire Zone Report must be programmed.

• Low Battery Report (Program Address 3336) must be

programmed.

• AC Failure Report (Program Address 3338) must be

programmed.

2. Timer Programming:

• Bell Cutoff Times (Program Addresses 4032 and 4033) must

be programmed for not less than 4 minutes.

3. Zone Function Programming:

• For household fire installations only, the output signal may be

pulsed or steady. For a combination system, see the selection

below on alarm output programming.

4. Alarm Output Programming:

• Program Address 2734 must be programmed as: Data Digit 1=

6, Data Digit 2= 3.

5. General Control Programming:

• Program Address 2732 must be programmed as: Data Digit 1=

0, Data Digit 2= 0.

11.3.2Grade A Household Burglary Alarm Using Digital

Alarm Communicator Transmitter With Local

Bell

The control must be installed in accordance with UL Standard

UL1641.

Required Accessories:

• At least one Wheelock 46T-G10-12 bell or 34T-12 horn (other

Listed compatible devices with a voltage range of 10.2 to 14.0 V

may be used) is required for this application.

• The standard DS7400 enclosure can be used.

1. Report Programming:

• Burglar Zone Reports must be programmed for those zones

used.

• Low Battery Report (Program Address 3336) must be

programmed.

• AC Failure Report (Program Address 3338) must be

programmed.

2. Timer Programming:

• Bell Cutoff Times (Program Addresses 4032 and 4033) must

be programmed for not less than 4 minutes.

• Entry Delay Timer (Program Addresses 4028 and 4029) must

be programmed for not longer than 60 seconds.

• Exit Delay Timer (Program Address 4030) must be programmed

for not longer than 45 seconds.

3. General Control Programming:

• Program Address 0000, Data Digit 2 must be programmed for

NO Swinger Shunts (enter 0, 1, or 2).

• Program Address 2732 must be programmed as: Data Digit 1=

0, Data Digit 2= 0.

4. Alarm Output Programming:

• Program Address 2734 must be programmed as: Data Digit 1=

6, Data Digit 2= 3.

• Program Address 2737 must be programmed as: Data Digit 1=

In a system that includes both fire alarm and burglar alarm

devices, the system must produce distinct sounds for fire

and burglar alarm conditions either by using different

indicating appliances or by using distinct cadences for

the same appliance.

The controls must be installed in accordance with UL Standards

UL681 and UL609 for all grades of service.

1. Report Programming:

• Burglar Zone Reports must be programmed for those zones

used.

• Low Battery Report (Program Address 3336) must be

programmed.

• AC Failure Report (Program Address 3338) must be

programmed.

• Open Report (Program Address 3331) must be programmed.

• Close Report (Program Address 3332) must be programmed.

• 24-Hour Check-In Reports (Program Addresses 3340 and 3347)

must be programmed.

2. General Control Programming:

• The control must not be programmed for auto disarm.

• Must be programmed for no swinger shunts and closing ringback.

(Program Address 0000 data digit 2, enter 0, 1, or 2).

• Program Address 2732 must be programmed as: Data Digit 1=

0, Data Digit 2= 0.

3. Zone Function Programming:

• The Burglar alarm signal (whether pulsed or steady) must be

different from the Fire alarm signal.

4. Alarm Output Programming:

• Program Address 2734 must be programmed as: Data Digit 1=

6, Data Digit 2 = 3.

• Program Address 2737 must be programmed as: Data Digit 1=

11.4.1Local Burglary Alarm

A.Grade A Installations using Digital Alarm Communicator

Transmitter with local bell

Follow General System Requirements as listed in 11.4.

Required Accessories:

• The control must be in the Detection System’s model AE3CC

enclosure with a cover actuated tamper switch installed.

• An Ademco Model AB-12 bell/housing (see section 11.6).

1. Timer Programming:

• Bell Cutoff Times (Program Addresses 4032 and 4033) must

be programmed for not less than 15 minutes.

• Entry, Exit Delay Times (Program Addresses 4028-4029) must

be programmed for not longer than 60 seconds.

11.4.2Police Station Connection

Follow General System Requirements as listed in 11.4.

Required Accessories:

• The control must be in the Detection Systems’ model AE3CC

enclosure with a cover actuated tamper switch installed.

• An DS7416i (or DataTAC) interface module.

• The DS7416i module and antenna should be mounted within

the protected area.

• The Detection Systems’ model DS7481 Phone Line Monitor.

1. Timer Programming:

• Entry, Exit Delay Times (Program Addresses 4028-4030) must

be programmed for not longer than 60 seconds.

B.Grade A Installations Using Digital Alarm Communicator

Transmitter With Local Bell

Follow General System Requirements as listed in 11.4.

Required Accessories:

• The control must be in the Detection System’s model AE3CC

enclosure with a cover actuated tamper switch installed.

• The Ademco Model AB-12 bell/housing (see section 11.6).

1. Timer Programming:

• Bell Cutoff Times (Program Addresses 4032 and 4033) must

be programmed for not less than 15 minutes.

• Entry, Exit Delay Times (Program Addresses 4028-4030) must

be programmed for not longer than 60 seconds.

11.4.3Central Station Burglary Alarm and Proprietary

A.Central Station Burglary Grades AA and A and Proprietary

Grade AA Installations Using an DS7416i Interface Module

Follow General System Requirements as listed in 11.4.

Required Accessories:

• The control must be in the Detection Systems’ model AE3CC

enclosure with a cover actuated tamper switch installed.

• An DS7416i (or DataTAC) interface module.

• The DS7416i module and antenna should be mounted within

the protected area.

• The Detection Systems’ model DS7481 Phone Line Monitor.

• The Ademco Model AB-12 bell/housing (see section 11.6).

1. Timer Programming:

• Entry, Exit Delay Times (Program Addresses 4028-4030) must

be programmed for not longer than 60 seconds.

B.Grade B Installations Using Digital Alarm Communicator

Transmitter With Local Bell

Follow General System Requirements as listed in 11.4.

Required Accessories:

• The control must be in the Detection Systems’ model AE3CC

enclosure with a cover actuated tamper switch installed.

• The Ademco Model AB-12 bell/housing (see section 11.6).

1. Timer Programming:

• Bell Cutoff Times (Program Addresses 4032 and 4033) must

be programmed for not less than 15 minutes.

• Entry, Exit Delay Times (Program Addresses 4028-4030) must

be programmed for not longer than 60 seconds.

C.Central Station Burglary Grade C and Proprietary Grade A

Installations Using Digital Alarm Communicator Transmitter only

Follow General System Requirements as listed in 11.4.

Required Accessories:

• The control must be in the Detection System’s model AE3CC

enclosure with a cover actuated tamper switch installed.

1. Timer Programming:

• Entry, Exit Delay Times (Program Addresses 4028-4030) must

be programmed for not longer than 60 seconds.

Burglary Alarm -

11.4 General System Requirements

Applies to the following grades only:

Local Burglary Grade A using Digital Alarm Communicator

Transmitter (DACT)

Police Station Grades AA and A using DACT and DS7416i

Communications module.

Grade A using DACT and local Bell.

Central Station Grades AA and A using DACT and DS7416i

Communications module.

Grade B using DACT and local bell.

Grade C using Digital Alarm Communicator

Transmitter only.

Alarm -

Connection -

1. Report Programming:

• Burglar Zone Reports must be programmed for those zones

used.

• Fire Zone Reports must be programmed for those zones used.

• Low Battery Report (Program Address 3336) must be

programmed.

• AC Failure Report (Program Address 3338) must be

programmed.

3. General Control Programming:

• Must be programmed for no swinger shunts (Program Address

0000 data digit 2, enter 0, 1, or 2).

• Program Address 2732 must be programmed as: Data Digit

1=0, Data Digit 2= 0.

4. Commercial Fire Mode Programming:

• Local (Program Address 2733, data digit 1, enter as a 1 through

6).

• Central Station (Program Address 2733, data digit 1, enter as a

7 through *2).

• The keypad panic functions are not intended to be a substitute

for Listed manual pull boxes.

11.6 Wiring and Programming Information for Installations Using the Ademco AB-12 Bell/Housing

1) Disconnect the wire jumper from terminal 4 to the inner housing of the Bell Box (prevents a ground fault condition).

2) Connect wiring between the control and Bell Box as shown above. To use the AB-12 Bell/Housing, cut the jumper wire “JP1” on the

control. The EOL used in the AB-12 Bell/Housing must be 27 kΩ.

3) Program Zone 8 as a 24-hour zone by programming it to follow zone function 7. (Program address 0038 = 07).

4) Do not change the default programming of zone function 7. (Program address 0007 should be 22).

11.5 Commercial Fire Alarm

A.Central Station (DACT) and Local

The control must be installed in accordance with NFPA 72.

Required Accessories:

• DS7420i Dual Phone Line/Bell Supervision Module.

• For Local Commercial Fire Alarm: A Listed notification appliance

such as a Wheelock 46T-G10-12 bell or 34T-12 horn.

• If not using the phone line supervision, it must be disabled.

• AE-TR16 Transformer Housing.

• At least one DS7447/DS7447E must be used and assigned as

keypad 1. If only one is used, it may be connected to the keypad

bus if the keypad is mounted to the front of the box or within the

same room as the control equipment and the wire is run in

conduit (or equivalently protected against mechanical injury)

within 20 ft. (6.1 m) of the control equipment. If multiple

keypads are used, one keypad only must be used on the options

bus and assigned as keypad 11-14 and meet the same

requirements as in single keypad use.

• 50 Hz. operation and ground start are automatically forced to the

disabled state when central station fire mode is selected.

Control/Communicator

Cut this jumper

JP1

o control Alarm Output +

o control Alarm Output –

To control Zone 8 Input

To control Loop Positive

To control Earth Ground

EOL

27 kΩ

BELL

Bell Tampers

Outer Bell Box

Inner Bell Box Lining

Ademco AB-12 Bell/Housing

Terminal 1

Terminal 29 (+)

Terminal 30 (8-)

Terminal 5 (-)

Terminal 6 (A)

Alternate EOL (if not

using a Fire card)

Detection Systems’

P/N 28300

• Open Report (Program Address 3331) must be programmed.

• Close Report (Program Address 3332) must be programmed.

• 24-Hour Check-In Reports (Program Addresses 3340 and 3347)

must be programmed.

2. Timer Programming:

• Bell Cutoff Times (Program Addresses 4032 and 4033) must

be programmed for not less than 5 minutes.

• Entry, Exit Delay Times (Program Addresses 4028-4030) must

be programmed for not longer than 60 seconds.

12.0 Report Programming

12.1 4/2 Format

Suggested Values

Local Program

Remote Program

Address Value

Report Successful Report Unsuccessful

Address Value

3341

3343

3342

3344

EF FF

Reports with Restorals

one Function 1

one Function 2

one Function 3

one Function 4

one Function 5

one Function 6

one Function 7

one Function 8

one Function 9

one Function 10

one Function 11

one Function 12

one Function 13

one Function 14

one Function 15

one Function 16

one Function 17

one Function 18

one Function 19

one Function 20

one Function 21

one Function 22

one Function 23

one Function 24

one Function 25

one Function 26

one Function 27

one Function 28

one Function 29

one Function 30

3209

3210

3211

3212

3213

3214

3215

3216

3217

3218

3219

3220

3221

3222

3223

3224

3225

3226

3227

3228

3229

3230

3231

3232

3233

3234

3235

3236

3237

3238

3241

3242

3243

3244

3245

3246

3247

3248

3249

3250

3251

3252

3253

3254

3255

3256

3257

3258

3259

3260

3261

3262

3263

3264

3265

3266

3267

3268

3269

3270

Address Value

Trouble

3271

3272

3273

3274

3275

3276

3277

3278

3279

3280

3281

3282

3283

3284

3285

3286

3287

3288

3289

3290

3291

3292

3293

3294

3295

3296

3297

3298

3299

3300

3301

3302

3303

3304

3305

3306

3307

3308

3309

3310

3311

3312

3313

3314

3315

3316

3317

3318

3319

3320

3321

3322

3323

3324

3325

3326

3327

3328

3329

3330

3358

3359

Address Value

Bypass

3360

3361

3362

3363

3364

3365

3366

3367

3368

3369

3370

3371

3372

3373

3374

3375

3376

3377

3378

3379

3380

3381

3382

3383

3384

3385

3386

3387

Address Value

Bypass Restora

3388

3389

3390

3391

3392

3393

3394

3395

3396

3397

3398

3399

3400

3401

3402

3403

3404

3405

3406

3407

3408

3409

3410

3411

3412

3413

3414

3415

3416

3417

Address Value

Report

Address Value

Restoral

Reports with Restorals

ow Battery

C Fail

ystem Trouble

eypad Fire

ystem Walk Test

ire Walk Test

ow Temperature

irty Smoke Chamber

3336

3338

3345

3207

3350

3352

3354

3356

Address Value

Report

Address Value

Restoral

3337

3339

3346

3208

3351

3353

3355

3357

Address Value

Trouble Restoral

Reports without Restorals Address Value

Report

3331

3332

3334

3335

3348

3349

3239

3240

Open

Partial Close

First Open after Alarm

Exit Error

Recent Closing

Keypad Emergency

Keypad Panic

Duress 3333 5 9

12.2 BFSK Format

Suggested Values

Local Program

Remote Program

Address Value

Report Successful Report Unsuccessful

Address Value

3341

3343

3342

3344

00 00

Reports with Restorals

one Function 1

one Function 2

one Function 3

one Function 4

one Function 5

one Function 6

one Function 7

one Function 8

one Function 9

one Function 10

one Function 11

one Function 12

one Function 13

one Function 14

one Function 15

one Function 16

one Function 17

one Function 18

one Function 19

one Function 20

one Function 21

one Function 22

one Function 23

one Function 24

one Function 25

one Function 26

one Function 27

one Function 28

one Function 29

one Function 30

3209

3210

3211

3212

3213

3214

3215

3216

3217

3218

3219

3220

3221

3222

3223

3224

3225

3226

3227

3228

3229

3230

3231

3232

3233

3234

3235

3236

3237

3238

3241

3242

3243

3244

3245

3246

3247

3248

3249

3250

3251

3252

3253

3254

3255

3256

3257

3258

3259

3260

3261

3262

3263

3264

3265

3266

3267

3268

3269

3270

Address Value

Trouble

3271

3272

3273

3274

3275

3276

3277

3278

3279

3280

3281

3282

3283

3284

3285

3286

3287

3288

3289

3290

3291

3292

3293

3294

3295

3296

3297

3298

3299

3300

3301

3302

3303

3304

3305

3306

3307

3308

3309

3310

3311

3312

3313

3314

3315

3316

3317

3318

3319

3320

3321

3322

3323

3324

3325

3326

3327

3328

3329

3330

3358

3359

Address Value

Bypass

3360

3361

3362

3363

3364

3365

3366

3367

3368

3369

3370

3371

3372

3373

3374

3375

3376

3377

3378

3379

3380

3381

3382

3383

3384

3385

3386

3387

Address Value

Bypass Restora

3388

3389

3390

3391

3392

3393

3394

3395

3396

3397

3398

3399

3400

3401

3402

3403

3404

3405

3406

3407

3408

3409

3410

3411

3412

3413

3414

3415

3416

3417

Address Value

Report

Address Value

Restoral

Reports with Restorals

ow Battery

C Fail

ystem Trouble

eypad Fire

ystem Walk Test

ire Walk Test

ow Temperature

irty Smoke Chamber

3336

3338

3345

3207

3350

3352

3354

3356

Address Value

Report

Address Value

Restoral

3337

3339

3346

3208

3351

3353

3355

3357

Address Value

Trouble Restoral

Reports without Restorals Address Value

Report

3331

3332

3334

3335

3348

3349

3239

3240

Open

Partial Close

First Open after Alarm

Exit Error

Recent Closing

Keypad Emergency

Keypad Panic

Duress 3333 A 0

12.3 Personal Dialing Format

This is a 2 pulse per second (PPS) 0/2 (no account code/2 report event digits) format intended for manual reception, i.e. the panel will

call a phone number where a person is expected to answer. After a call is made, the panel will start sending the first report. If the report

was a “Communication Test” and Program Address 3340 had a value of 12 the person answering the phone would hear 1 pulse

followed by a 1 second delay, then 2 pulses followed by a 3 second delay. This sequence will repeat for 60 seconds per call. After the

60 seconds the panel will hang up and call again if any reports still remain to be sent.

A way to expedite this report process would be to provide an acknowledge to the panel that the report was heard and understood by the

receiving party. When an acknowledge is provided, the panel will start sending the next report or hang up if no reports remain. To provide

an acknowledge, press the 1 key of the telephone keypad during the 3 second delay of the report transmission. This “Acknowledge

Feature” is an enhancement that will allow the panel to send all reports in one call. If the call is not acknowledged a communication

failure is sent after all dial attempts are made.

Programming the first data digit as zero will disable the report. Values 1-9 and A-F are acceptable. A zero in the second data digit will

send ten pulses.

12.4 Pager Format

The Pager format allows the control panel to dial a digital pager and leave a numeric message which includes an account ID and report

type. The telephone number is dialed when a report is available. At the completion of the telephone dialing, a time delay equal to 10

seconds occurs. This delay allows time to connect with the pager service, while skipping over any voice announcement. When the delay

has ended, the numeric message is sent. This message includes the account number followed by up to 5 reports. If a delay time greater

than 10 seconds is required, see Programming Address 4038 to adjust the delay time. In addition, increments of 3 seconds can be

added by programming the “*3” character (3 second delay) at the end of the phone number in address 3159 or 3175.

For example, if you call pager number 123-4567 and it takes 20 seconds after you finished dialing before you are allowed to enter the

message, the following digits should be programmed in address 3159: 1 2 3 4 5 6 7 *3 *3 *3 *3. This will give you an overall delay of

22 seconds.

NOTE: For Pager Format, it is not advisable to use the HEX character values (*0 = A, *1 = B, *2 = C, *3 = D, *4 = E, *5 = F) in the report

programming addresses 3207 through 3419. These characters could cause unpredictable results when sent to a pager

system that only expects numeric characters between 0-9. This is the reason that this format will not allow an associated user

number with an open and close report.

The following are recommended programming values for addresses 3207 through 3419 when using the Pager format.

NOTE: The Pager format is an open-loop format which has no acknowledge tone. There is no indication at the control panel that the

signal has been sent. Therefore, the Pager format is not recommended as the primary communication method.

Refer to the worksheet on the next page for Reports with Restorals. The values for each report can be determined by the

user in conjunction with the installer. Again, the digit “0” (zero) should not be used as the reporting (first) digit as it will affect

other reports in the system. Examples have been provided for possible reporting values, but the values can be set to the

user’s preferences.

Pager Format (Continued)

Suggested Values

Local Program

Remote Program

Address Value

Report Successful Report Unsuccessful

Address Value

3341

3343

3342

3344

89 79

Reports with Restorals

one Function 1

one Function 2

one Function 3

one Function 4

one Function 5

one Function 6

one Function 7

one Function 8

one Function 9

one Function 10

one Function 11

one Function 12

one Function 13

one Function 14

one Function 15

one Function 16

one Function 17

one Function 18

one Function 19

one Function 20

one Function 21

one Function 22

one Function 23

one Function 24

one Function 25

one Function 26

one Function 27

one Function 28

one Function 29

one Function 30

3209

3210

3211

3212

3213

3214

3215

3216

3217

3218

3219

3220

3221

3222

3223

3224

3225

3226

3227

3228

3229

3230

3231

3232

3233

3234

3235

3236

3237

3238

3241

3242

3243

3244

3245

3246

3247

3248

3249

3250

3251

3252

3253

3254

3255

3256

3257

3258

3259

3260

3261

3262

3263

3264

3265

3266

3267

3268

3269

3270

Address Value

Trouble

3271

3272

3273

3274

3275

3276

3277

3278

3279

3280

3281

3282

3283

3284

3285

3286

3287

3288

3289

3290

3291

3292

3293

3294

3295

3296

3297

3298

3299

3300

3301

3302

3303

3304

3305

3306

3307

3308

3309

3310

3311

3312

3313

3314

3315

3316

3317

3318

3319

3320

3321

3322

3323

3324

3325

3326

3327

3328

3329

3330

3358

3359

Address Value

Bypass

3360

3361

3362

3363

3364

3365

3366

3367

3368

3369

3370

3371

3372

3373

3374

3375

3376

3377

3378

3379

3380

3381

3382

3383

3384

3385

3386

3387

Address Value

Bypass Restora

3388

3389

3390

3391

3392

3393

3394

3395

3396

3397

3398

3399

3400

3401

3402

3403

3404

3405

3406

3407

3408

3409

3410

3411

3412

3413

3414

3415

3416

3417

Address Value

Report

Address Value

Restoral

Reports with Restorals

ow Battery

C Fail

ystem Trouble

eypad Fire

ystem Walk Test

ire Walk Test

ow Temperature

irty Smoke Chamber

3336

3338

3345

3207

3350

3352

3354

3356

Address Value

Report

Address Value

Restoral

3337

3339

3346

3208

3351

3353

3355

3357

Address Value

Trouble Restoral

Reports without Restorals Address Value

Report

3331

3332

3334

3335

3348

3349

3239

3240

Open

Partial Close

First Open after Alarm

Exit Error

Recent Closing

Keypad Emergency

Keypad Panic

Duress 3333 9 7

13.0 Report Programming - Values Sent

13.1 SIA Formats

Data Digit 2 value SIA Report Explanation

1 PA Panic Alarm

2PRPanic Restore

3 QA Emergency Alarm

4 QR Emergency Restore

5 TA Tamper Alarm

6 TR Tamper Restore

7 UA Untyped Zone Alarm

8 UR Untyped Zone Restore

9 UT Untyped Zone Trouble

*0 UJ Untyped Trouble Restore

*1 YP Power Supply Trouble

*2 YQ Power Supply Restore

*3 YX Service Required

Zone

Number

Zone

Number

Burglary alarm for a zone

Fire alarm for a zone

Waterflow alarm for a zone

Supervisory for a zone

Keypad fire (A)

Keypad fire restoral (A)

Keypad emergency (B)

Keypad panic (C)

Burglary restoral for a zone

Fire restoral for a zone

Waterflow restoral for a zone

Supervisory restoral for a zone

Burglary trouble for a zone

Reports

SIA

event

code

SIA

data

field

Zone

Number

Zone

Number

000

Zone

Number

Zone

Number

Zone

Number

Zone

Number

000

None

BT Zone

Number

BJ Zone

Number

Burglary trouble restoral

Zone

Fire trouble for a zone FT Number

Zone

Fire trouble restoral FJ Number

Supervisory trouble for a zone

Waterflow trouble for a zone FT

Zone

Number

Zone

Number

First open after alarm (cancel) report

Tamper RF zone TT Zone

Number

Open report

Close report

Duress report

Partial close report

Low battery

Low battery restoral

AC failure

AC failure restoral

000

None

User

Number

User

Number

User

Number

Octal relay fault report

Octal relay restoral

Exit error report

Recent closing report

System walk test start report

System walk test end report

None

Tamper, Alarm RF zone BA Zone

Number

Tamper restoral RF zone BR Zone

Number

Low Battery RF zone XT Zone

Number

Low Battery restoral RF zone BR Zone

Number

Keypad Tamper restoral

Keypad Tamper EX

None

Burglary Zone Bypass restoral

Burglary Zone Bypass BB

Zone

Number

Zone

Number

24 Hour Zone Bypass restoral

24 Hour Zone Bypass BB

Zone

Number

Zone

Number

13.1 SIA Formats (Continued)

Fire walk test report

Fire walk test restoral

Reports

SIA

event

code

SIA

data

field

Zone

Number

Zone

Number

None

Zone

Number

Zone

Number

None

Dirty Smoke Chamber report

Dirty Smoke Chamber restoral

Mux. Smoke low temperature report

Mux. Smoke low temperature restoral

Automatic system normal test report

Manual communicator test report

Remote programming successful report None

None

Remote programming failure report

Local programming successful report

Local programming failure report

Communication failure report

Communication restoral

None

Number

Receiver

Number

Receiver

Number

Receiver

Number

Receiver

Number

Receiver

EEPROM checksum failure or keypad supervision failure report

EEPROM checksum restoral or keypad supervision restoral

Multiplex bus fault

Multiplex bus restoral

Number

Receiver

Number

Receiver

None

Radio receiver tamper

Radio receiver tamper restoral

Radio receiver jammed

Radio receiver jammed restoral

Radio receiver trouble report

Radio receiver trouble restoral

RF Zone Missing

Aux. power fault report

Aux. power restoral

Ground fault report

Ground fault restoral

Automatic system off normal test report

Phone line 1 fault report

Phone line 1 restoral

Phone line 2 fault report

Phone line 2 restoral

See 8.13.6

Error Displays

See 8.13.6

Error Displays

DS7416i fault report

DS7416i fault restoral

Bell fault report

Bell fault restoral

RAM fault report

RAM fault restoral

ROM fault report

ROM fault restoral

Serial interface fault report

Serial interface restoral

Aux. relay fault report

Aux. relay restoral

None

13.2 CID Formats

Reports

CID

event

code

CID

data

field

None

607

Restoral

System walk test end report

607 NoneSystem walk test start report

None

Restoral

604

Fire walk test restoral

604

None

Fire walk test report

602

None

Automatic system normal test report

602

None

Automatic system off normal test report

None

601

Manual communicator test report

Zone

Number

24 Hour Zone Bypass restoral 573

Restoral

573 Zone

Number

24 Hour Zone Bypass

Zone

Number

Burglary Zone Bypass restoral 573

Restoral

Zone

Number

Burglary Zone Bypass 573

457 None

Exit error report

456

Restoral User

Number

Partial close report

None

413

Remote programming failure report

412

None

Remote programming successful report

406 None

First open after alarm (cancel) report

None

405Recent closing report

401

Restoral User

Number

Close report

401 User

Number

Open report

385

Restoral Zone

Number

Dirty Smoke Chamber restoral

385

Zone

Number

Dirty Smoke Chamber report

Zone

Number

384Low Battery RF zone

383 Zone

Number

Tamper RF zone

381 Zone

Number

RF Zone Missing

Zone

Number

373

Supervisory trouble for a zone

373 Zone

Number

Waterflow trouble for a zone

Zone

Number

Fire trouble restoral 373

Restoral

373 Zone

Number

Fire trouble for a zone

Zone

Number

Burglary trouble restoral 370

Restoral

370 Zone

Number

Burglary trouble for a zone

370

Restoral Zone

Number

Tamper restoral RF zone

None

354

Restoral

Communication restoral

None

354

Communication failure report

353

Restoral

See 15.4

Gen Sys Prob

353

See 15.4

Gen Sys Prob

352

Restoral None

Phone line 2 restoral

352

None

Phone line 2 fault report

351

Restoral None

Phone line 1 restoral

351

None

Phone line 1 fault report

344

Restoral Receiver

Number

Radio receiver jammed restoral

344

Receiver

Number

Radio receiver jammed

341

Restoral Receiver

Number

Radio receiver tamper restoral

341

Receiver

Number

Radio receiver tamper

Keypad Tamper restoral 341

Restoral None

341Keypad Tamper None

*The 2-digit #89 display System

Fault numbers will be sent in the

CID data field for DS7416i fault

reports.

159

Zone

Number

Mux. Smoke low temperature report

159

Restoral

Zone

Number

Mux Smoke low temperature restoral

306

None

Local programming successful report

306

Restoral None

Local programming failure report

None

330

Keypad supervision failure report

None

330

Restoral

Keypad supervision restoral

Reports

CID

data

field

CID

event

code

Low Battery restoral RF zone

110 Zone

Number

Fire alarm for a zone

110

Restoral Zone

Number

Fire restoral for a zone

110 000

Keypad fire (A)

110

Restoral 000

Keypad fire restoral (A)

113 Zone

Number

Waterflow alarm for a zone

113

Restoral Zone

Number

Waterflow restoral for a zone

121 000

Duress report

130 Zone

Number

Burglary alarm for a zone

130

Restoral Zone

Number

Burglary restoral for a zone

Zone

Number

130

Tamper, Alarm RF zone

130

Restoral Zone

Number

200 Zone

Number

Supervisory for a zone

200

Restoral Zone

Number

Supervisory restoral for a zone

300

None

Aux. power fault report

None

300

Restoral

Aux. power restoral

301 None

AC failure

301

Restoral None

AC failure restoral

302 NoneLow battery

302

Restoral None

Low battery restoral

303

None

RAM fault report

None

303

Restoral

RAM restoral

304

None

ROM fault report

None

304

Restoral

ROM restoral

310

None

Ground fault report

310

Restoral None

Ground fault restoral

004

320Aux. relay fault report

320

Restoral

Aux. relay restoral

321

003

Bell fault report

321

Restoral

Bell restoral

330 005

Octal relay fault report

005

330

Restoral

Octal relay restoral

333

None

Multiplex bus fault

None

333

Restoral

Multiplex bus restoral

333

Receiver

Number

Radio receiver trouble report

333

Restoral Receiver

Number

Radio receiver trouble restoral

336

None

Serial interface fault report

None

336

Restoral

Serial interface restoral

004

003

122 None

Keypad emergency (B)

123 NoneKeypad panic (C)

DS7416i fault report*

DS7416i fault restoral*

14.0 Multiplex Zone Addressing Guide

Before installing a multiplex device, its address and other

information must be programmed into the control panel. (To disable

or remove a multiplex point, set the program address for 00 [see

Section 10.4]).

If using a DS7436 Multiplex Expansion Module,

programming must be done using bus “A.”

Perform the following:

• Program the control panel.

- Refer to sections 10.2-10.5, Zone Programming.

These sections allow you to define the Multiplex Zone’s

address (zone number), its type (single or multiple zone input

device, a DS7465, a Multiplex Smoke or a Multiplex Smoke

with a Low Temperature Alarm), which zone or output function

it will follow (1-24) and its partition (1-8).

For example:Program zone 9 to be a single zone input device

(MX950 ) that follows zone function 1 and is in

partition 1.

Procedure: Enter the programmer’s mode.

Enter address 0039.

Enter the data digits as [0] and [1] followed by the

[#] button.

Enter address 0291.

Enter the data digits as [0] and [0] followed by the

[#] button.

Exit the programmer’s mode.

• Program the BusLoc® feature.

At this point, you must decide whether or not to use the BusLoc®

feature.

BusLoc® is a proprietary method of tying the multiplex zones to

the control panel to prevent the system from being taken over.

Using BusLoc® will program an invisible identification code into

the multiplex zones.

NOTE: If using the DS7432 8-Input Remote Module or the DS7433

8-Input Direct Module, the BusLoc® feature can not be

used.

- If you choose to use the BusLoc® feature, program a 5-digit

code at programming address 9999.

It is very important to save this code under lock and key. If

you need to replace the control panel, you will have to program

it with the same BusLoc® code as the previous panel or the

multiplex devices will not match codes with the new control

panel.

For example:Program the BusLoc® code to be 54321.

Procedure: Enter the programmer’s mode.

Enter address 9999.

Enter the data digits as [5], [4], [3], [2], and [1]

followed by the [#] button.

Exit the programmer’s mode.

Once the pre-programming is done, you are ready to program the

multiplex devices. Perform the following:

• Disconnect all multiplex devices from the DS7430.

• Program the multiplex devices through the control panel. Per-

form the following:

- Enter the programmer’s mode.

- Enter the multiplex programming mode.

Do this by entering [9] [9] [9] [5] followed by the [#] button.

- The display will then call-up the first zone you have pre-

programmed to be a multiplex zone. To access a different

zone, press the [Reset/*] key, then enter the three digit value of

the zone you want. The display will show the following:

Before you do anything else, reconnect the multiplex device (that

coincides with the displayed zone) to the multiplex bus of the

DS7430.

For DS7465s and Multiple Input devices, pressing the [#] button

now will program these devices to the control panel. Remember,

these devices take up two addresses. When address 009 (for

example) is a DS7465, pressing the [#] button now will program

both addresses 009 and 010.

For Single Input devices, press the [#] button to continue

programming. The display asks whether you are programming a

sensor or a contact; it will show the following:

If you are programming a sensor, press the [4] button to program

these devices to the control panel. If you are programming a contact,

press the [6] button to program these devices to the control panel.

- If the device is successfully programmed, the keypad will

sound a single beep and increment to the next zone (if there is

one) pre-programmed as a multiplex zone.

Disconnect the device you just programmed and

connect the next device (that belongs to the displayed

zone) to the multiplex bus of the DS7430 and press

the [#] button. Continue programming.

24-hour zones will alarm when you exit the

programmer’s mode. Alarm reports for these zones

will be sent if they have been programmed. If you do

not want these reports sent, disconnect power from

the system now by unplugging the transformer and

removing the red battery lead. Do not reconnect power

until all zones have been installed and connected to

the multiplex bus.

- If no other zones have been pre-programmed, the display will

show the following:

- You may now exit the Zone Programmer’s mode by pressing

the [*/Reset] button for 2 seconds. This brings you back to the

Programmer’s Mode. To exit the Programmer’s Mode, press

the [*/Reset] button for 2 seconds.

- If the zone is unsuccessfully programmed, the keypad will

sound a three-beep error tone.

- The control will then take a few seconds to check the multiplex

connection to confirm nothing is connected to it. The display

will show the following:

15.0 Troubleshooting Guide

15.1 Keypad Problems

Entry Error: Please Re-enter will

display on keypad. A three beep error

tone will sound continuously.

a) Two or more keypads share the same

address.

b) The DS7430 or DS7433 is installed in

the wrong pins.

a) Install keypad jumper properly in back of

keypads.

b) Be sure the DS7430 or DS7433 is installed

properly.

Symptom Probable Cause Possible Solution

Keypad displays Not Programmed,

See Instal Guide, sounder is on and

the keypad does not operate.

Keypad displays Ready to arm,

partition 1 when using only one

partition.

Keypad displays System Fault,

sounder is on, and the keypad does

not operate.

Keypad alpha display is locked up,

but the keys still function.

Can’t read back history with # 89

input.

In history, the Read-back for the A, B,

and C keys shows:

A = Fire

B = Emergency

C = Panic

But, the Central Station

transmissions display B as Silent

Panic and C as Audible Panic.

Can not perform a zone test (#81).

a) The keypad not addressed properly.

b) The keypad is not programmed

properly.

c) Keypads 11-15 are not properly

configured.

The keypad is programmed as a Master

keypad.

a) Keypad wiring error.

b) Keypad(s) assigned to wrong or non-

existent partition.

c) The microprocessor isn’t running.

The keypad is enabled, but as an LED

keypad.

a) Entering from Master keypad.

b) Not using a PIN with test authority.

Formats display information regarding the

B and C keys differently.

In Contact ID: A = Fire

B = Silent Panic

C = Audible Panic

In SIA: A = Fire

B = Emergency

C = Panic

a) Entering from a Master keypad.

b) Not using a PIN with test authority.

a) Install the keypad jumper properly in the back of

the keypad.

b) Check keypad programming addresses 3131-

3138.

c) Check keypad addresses 11-15. System will

only see keypads on the options bus.

Enter the program mode at the keypad and input

the correct sequence to re-enable it as an alpha

keypad. Care must be taken, since there will be no

visual feedback to verify programming until the

keypad is properly enabled.

a) First enter Single Partition Mode.

b) Use a PIN with test authority.

Discrepancy exists in the definition of these keys in

the two formats. Whatever the keys are

programmed for in the panel, that is what will be

sent.

a) Zone test is not available from a Master keypad.

b) Use a PIN with test authority.

Master keypads can only be used on multi-partition

systems. Program the keypad as a standard

keypad.

a) Check wiring.

b) Assign the keypad(s) to correct partition. If none

of the keypads are correctly assigned, re-enable

keypad 1 by shorting the program contacts in

the lower right corner of the main panel board.

This will force program mode and assign

keypad 1 as alpha, non-master to partition 1.

c) Disconnect battery and any aux. power load. If

the microprocessor has shut down, aux. power

will read approx. 11.5 VDC. If the EEProm chip

has been field-replaced, power down AC and

battery, and check for bent or mis-inserted pins;

Otherwise, replace the panel.

Keypad Problems (Continued)

Chime Mode (#7) does not work

when a zone is faulted. a) Not activating for interior zones.

b) The keypad is not assigned to the same

partition as the zone being activated.

a) Chime mode only activates for perimeter zones

- Chime mode must be programmed. Also, if

the perimeter zone has trouble enabled (trouble

on open), the chime won’t work if that zone is

opening.

b) Chime mode will only activate the sounder on

keypads that are assigned to the same partition

as the zone.

Symptom Probable Cause Possible Solution

Some functions won’t work on a

Master keypad. Some functions require you to enter single

partition mode when using a Master

keypad.

The following commands require that you are in

Single Partition Mode when entering from a Master

keypad:

• History read-back

• Chime mode

• Checking zone status

• Checking zone trouble status (after #87 - Master

keypad will show only partition name)

• Bypassing zones

15.2 Reporting Problems

Won’t send open or close reports. Not programmed correctly. Check addresses: 3331, 3332, 3334, and 3333.

Symptom Probable Cause Possible Solution

Reports for partitions 2-8 are being

sent with partition 1’s reporting ID.

Not getting AC power fail reports.

Panel never transmits history to

WDSRP.

The communicator test report is not

being sent.

The account codes for 2-8 are not pro-

grammed or are not programmed correctly.

a) AC power fail messages are sent only

with other reports, such as low battery.

b) Check AC report offset (3338). If 00, AC

report will work like above, if another

number, AC report will be delayed.

a) Not programmed to send history.

b) Time and date not set.

a) Report not programmed properly.

b) There was a control problem at the time

the report should have been sent. If this

is the case, the communicator test

report will not be sent. Instead, the

control will send the “System Off

Normal” report.

Check addresses: 3429-3459.

a) Try forcing another report to send when AC is

not present.

b) Wait until the delay times out or set to a lower

number if desired.

a) Check programming.

b) Verify that the time in the panel is set.

a) Check programming addresses 4022, 4023,

4026, and 3340.

b) Program “System Off Normal” report in address

3347.

15.3 Zone Problems

Fire Alarm displays on keypad but

no zone numbers are displayed. In Commercial Fire Mode, fire alarms must

be silenced before the zone number will

display.

Enter a valid disarm PIN and press #, then enter a

valid disarm PIN and press # again to display the

zones.

Symptom Probable Cause Possible Solution

Every other zone displays Not Ready. Zone Programming is incorrect. Program as a multiple zone input for DS7432 or

DS7460, a single zone input for contacts and

sensors, or program as a DS7465.

Zone Problems (Continued)

Symptom Probable Cause Possible Solution

a) The multiplex expansion module is not

installed properly.

b) Multiplex wiring is missing or is not

installed properly.

c) 8-Input remote module DIP switches

are not set properly.

d) 8-Input remote module covers are

removed.

e) The BusLoc® code is set incorrectly or

has not been programmed into

modules.

f) Zone Programming is incorrect.

g) Multiplex module not programmed.

h) Multiplex Bus voltage is 12VDC or

greater. (Normal is approximately 8 to

10VDC.)

i) Multiplex Bus voltage is 5VDC or less.

a) Make sure the multiplex expansion module is

seated properly in the upper pins on the

DS7400Xi circuit board.

b) Check wiring and perform a system reset.

c) Correctly set the DIP switches for the 8-Input

remote modules.

d) Replace covers or install the tamper bypass

jumper.

e) BusLoc® can not be used with 8-Input remote

modules. If using 8-Input modules, remove the

BusLoc® code. OR

If using two-input remote modules or the

DS7465, be sure to use BusLoc® when

programming. If not using BusLoc®, be sure to

remove the BusLoc® code from address 9999.

f) Program as a multiple zone input for DS7432 or

DS7460, a single zone input for contacts and

sensors, or program as a DS7465.

g) Program the module.

h) Two modules are programmed with the same

address. The problem will only occur when both

modulees are off normal. Isolate the duplicate

module by disconnecting sections of the bus

and performing a [PIN] + [System Reset].

Reprogram modules.

The system is in the programming mode. Exit

the programming mode.

Zones have been added to a system protected

by Busloc®. Clear Busloc®.

i) There is a short on the multiplex bus.

There is a bad module on the bus.

One or more modules on the bus are connected

backwards - reverse polarity.

Zones 9 and above show Not Ready,

Zone Trouble.

Never disconnect the

power when in the

programming mode.

Always disconnect the

Multiplex Bus or have the

DS7430 or DS7436 in

the disable

programming mode

when powering up or

down.

Invisible or silent zone activates

alarm output.

Keypad displays Fire Trouble, but

does not indicate any zones.

Keypad displays Not Ready, but no

zone number is displayed.

Program the output to follow zone alarms (6).

See system trouble: Ground fault.

Press [PIN] + [OFF] to display the zone number of

the invisible zone that is not ready.

(Normal is approximately 8 to 10VDC.)

The output is programmed as “latch on

alarm” (0).

A ground fault condition exists.

An invisible zone is not ready.

15.4 General System Problems

Symptom Probable Cause Possible Solution

How to set the programming values

to the factory default. Enter a value of 01 in address 4058. Caution: Only enter a value of 01 in address

4058 when you are sure you want to

default the programming. Doing so will

immediately erase all programming.

General System Problems (Continued)

Symptom Probable Cause Possible Solution

Power LED is flashing, keypad

displays Control Trouble Press #87.

#87 display = Oct. Relay Fault

#89 display = System Fault 20

#87 display = Multiplex Bus Fault

Can’t reset to factory default.

A control trouble exists.

a) The octal relay module (DS7488) is

defective or the wiring to the module is

defective.

b) There is no DS7488 or a DS7488 has

been removed from the system.

The Multiplex Bus is defective or shorted.

Keypad programming access is set to

PARTIAL from Remote programmer.

Press #87 to determine the trouble condition.

a) Check the wiring to the module.

b) Enter, then exit programming mode. This will re-

scan the options bus and clear the problem.

Check wiring for shorts.

Change setting to FULL from the Remote

programmer.

#87 display = RAM Fault

#89 display = System Fault 01

#87 display = ROM Fault

#89 display = System Fault 02

#87 display = EEProm Fault

#89 display = System Fault 03

The control has failed to communicate.

a) An EEProm fault can be caused by

disconnecting power from the control while it is

in program mode. In this case, enter then exit

program mode to clear.

b) Try to clear the error at the keypad by entering a

PIN then Reset.

c) Remove AC and battery power, then re-apply.

Remember that event history will be lost and

time/date will have to be re-set.

d) If error persists, return the panel to factory default

programming by setting program address 4058

to “01”. If the error clears, re-program the panel.

e) If error still persists, replace the panel.

#87 display = Communicator Err

#89 display = Report Failure X

#87 display = 2Ph/Bell Fault

#89 display = System Fault 10

#87 display = Line 1 Fault

#89 display = System Fault 11

#87 display = Line 2 Fault

#89 display = System Fault 12

#87 display = Bell Fault

#89 display = System Fault 13

#87 display = Aux. Output Fault

#89 display = System Fault 14

a) The dual phone line/bell supervision

module (DS7420i) is defective or the

wiring to the module is defective.

b) There is no DS7420i or a DS7420i has

been removed from the system.

There is a phone line fault on line 1.

There is a phone line fault on line 2.

The bell circuit on the DS7420i is open or

shorted.

The auxiliary circuit on the DS7420i is open

or shorted.

Check history #89 to determine the source:

Report Failure 1 = Phone number 1

Report Failure 2 = Phone number 2

Report Failure 3 = Phone number 3

(remote programmer)

Report Failure 4 = DS7416i Communications fault

a)Check the wiring to the module.

b) Enter, then exit programming mode. This will re-

scan the options bus and clear the problem.

Check phone line 1 for proper operation.

Check phone line 2 for proper operation. If you wish

to monitor only one phone line, reprogram address

4021.

Check the bell circuit wiring. Be sure that the end-

of-line resistor is in place. If you don’t wish to use

the bell circuit, place an end-of-line resistor across

the bell terminals.

Check the auxiliary circuit wiring. Be sure that the

end-of-line resistor is in place. If you don’t wish to

use the auxiliary circuit, place an end-of-line resistor

across the auxiliary terminals. If you wish to use the

auxiliary circuit but do not wish to supervise it, cut

the auxiliary supervision jumper on the DS7420i.

General System Problems (Continued)

Symptom Probable Cause Possible Solution

#87 display = Aux Power Fault

#87 display = Keypad Fault

The auxiliary power output has been

shorted.

a) The keypad wiring is defective.

b) A keypad is missing.

c) A keypad has been programmed, but is

not intended in this system.

Remove wiring from auxiliary power and check for

shorts.

a) Check keypad operation and wiring.

b) Install a keypad.

c) Remove from programming (3131-3138).

#87 display = Ground Fault

#89 display = System Fault 04 There is a short to ground somewhere in

the system.

Disconnect field wiring from each terminal while

watching the keypad display. When the keypad power

LED stops flashing, you have found the wire that is

causing the ground fault.

Note: The LED will not stop flashing if there is

another system fault present.

If there is no keypad nearby, or another control

problem exists, you can use a volt-meter to find the

ground fault:

1) Connect the negative lead of a volt-meter to the

panel ground terminal.

2) Connect the positive terminal to the Aux Power –

terminal.

You should read -4.5 to -7.5 Volts DC. A reading

considerably higher or lower indicates a ground

fault.

Disconnect field wiring from each terminal while

watching the meter. When the voltage reading

returns to between -4.5 and -7.5 VDC, you have

found the wire that is causing the ground fault.

#87 display = AR IB Queue Full

#89 display = System Fault 51

#87 display = AR Host Down

#89 display = System Fault 52

#87 display = AR Unreg. Modem

#89 display = System Fault 53

#87 display = AR Power Fail

#89 display = System Fault 54

#87 display = AR Network Lost

#89 display = System Fault 55

#87 display = AR Modem HW Err

#89 display = System Fault 56

#87 display = AR Modem SW Err

#89 display = System Fault 57

#87 display = AR Opt. Bus Err

#89 display = System Fault 58

#87 display = AR Corrupt MSG

#89 display = System Fault 59

The message queue in the RF modem is

full and no messages can get out to the

radio network.

The central station receiver has ceased to

be available to the network.

The modem is not registered through all

parts of the network.

There is a possible problem with the

DS7416i Module.

The DS7416i Module has lost contact with

the radio network.

There is a possible problem with the radio

modem.

The DS7416i Module is having trouble

communicating with the radio modem.

The panel can no longer communicate

with the DS7416i Module.

The communication between the panel

and the DS7416i Module is getting

corrupted.

Check RF coverage of the unit and check for RF

noisy environment.

Contract the central station and notify of status.

Contact the network administrators or technical

service.

Return for service.

Check the location and coverage of the unit.

Replace the unit.

Check for noisy environment and replace the unit if

the problem continues.

Check the wiring between the DS7400Xi and the

DS7416i Module.

Check for noisy environment, and check the wiring

between the DS7400Xi and the DS7416i Module.

Unable to arm the system. a) Zone(s) faulted.

b) If an AC failure exists, you must force

arm.

a) Determine the cause of the problem and clear

the indicated zone(s).

b) Enter an arming sequence, then press the

Bypass key during a 5 second beep.

General System Problems (Continued)

Symptom Probable Cause Possible Solution

#87 display = Battery Trouble a) The battery failed a battery test.

b) The battery is defective.

c) The wiring to the battery is

disconnected.

a) If there has just been a power failure, wait at

least two hours for the battery to recharge then

perform a System Reset to re-test the battery

and clear the error.

b) Replace the battery.

c) Check wiring.

#87 display = Zone Trouble

#87 display = AC Power Failure

Fire Alarm displays “000”.

Fire Trouble, no zone number.

Fire Trouble ____________

zone number. Dirty

Chamber ____________

zone number.

a) A zone is not responding to the control

panel.

b) The zone is programmed for “Trouble

on Open” and the loop is open.

There is a power failure and the panel is

operating on battery backup. If there is a

general power failure, wait for the power to

return. If there is not a general power failure

in the building.

a) The transformer is unplugged.

b) The wiring from the transformer is

defective.

c) The circuit to the transformer is off or

defective.

d) The transformer is defective.

e) In some cases, the transformer may

be connected to a circuit controlled by

a switch or a circuit breaker that is

periodically turned off.

The Fire Alarm was caused by the “A” key.

When in Commercial Fire Mode, a ground

fault causes this display.

Fire zone wiring problems.

A multiplex smoke detector has failed its

internal sensitivity test.

a) Check wiring to the zone.

If the zone is not to be used, remove from

programming.

b) If using Normally Closed contacts, re-program

zone for alarm on open.

If using Normally Open contacts and trouble on

open is desired, check for opens in the loop.

Remove wiring and place an EOL resistor across

the zone to eliminate a problem with the control.

If the trouble goes away, the problem is in the

wiring or in a contact connected to the zone.

a) Plug the transformer in.

b) Check the wiring.

c) Check the circuit and circuit breakers.

d) Replace the transformer.

e) Connect to a circuit that is not controlled this

way.

Use the System Reset command to clear the

display.

See #87 Ground Fault display for solution.

If you try to disable the zone by reprogramming it,

you need to reset the control by either entering then

exiting programmer’s mode, or removing then

restoring power to the control panel.

Clean or replace the dirty smoke detector or

chamber. DO NOT USE WATER TO CLEAN THE

CHAMBER.

Address Description

0000 General Control

0001 Zone Function 1

0002 Zone Function 2

0003 Zone Function 3

0004 Zone Function 4

0005 Zone Function 5

0006 Zone Function 6

0007 Zone Function 7

0008 Zone Function 8

0009 Zone Function 9

0010 Zone Function 10

0011 Zone Function 11

0012 Zone Function 12

0013 Zone Function 13

0014 Zone Function 14

0015 Zone Function 15

0016 Zone Function 16

0017 Zone Function 17

0018 Zone Function 18

0019 Zone Function 19

0020 Zone Function 20

0021 Zone Function 21

0022 Zone Function 22

0023 Zone Function 23

0024 Zone Function 24

0025 Zone Function 25

0026 Zone Function 26

0027 Zone Function 27

0028 Zone Function 28

0029 Zone Function 29

0030 Zone Function 30

0031 Zone Number 1

0032 Zone Number 2

0033 Zone Number 3

0034 Zone Number 4

0035 Zone Number 5

0036 Zone Number 6

0037 Zone Number 7

0038 Zone Number 8

0039 Zone Number 9

0040 Zone Number 10

0041 Zone Number 11

0042 Zone Number 12

0043 Zone Number 13

0044 Zone Number 14

0045 Zone Number 15

0046 Zone Number 16

0047 Zone Number 17

0048 Zone Number 18

0049 Zone Number 19

0050 Zone Number 20

0051 Zone Number 21

0052 Zone Number 22

0053 Zone Number 23

0054 Zone Number 24

0055 Zone Number 25

0056 Zone Number 26

0057 Zone Number 27

0058 Zone Number 28

0059 Zone Number 29

0060 Zone Number 30

0061 Zone Number 31

0062 Zone Number 32

Address Description

0063 Zone Number 33

0064 Zone Number 34

0065 Zone Number 35

0066 Zone Number 36

0067 Zone Number 37

0068 Zone Number 38

0069 Zone Number 39

0070 Zone Number 40

0071 Zone Number 41

0072 Zone Number 42

0073 Zone Number 43

0074 Zone Number 44

0075 Zone Number 45

0076 Zone Number 46

0077 Zone Number 47

0078 Zone Number 48

0079 Zone Number 49

0080 Zone Number 50

0081 Zone Number 51

0082 Zone Number 52

0083 Zone Number 53

0084 Zone Number 54

0085 Zone Number 55

0086 Zone Number 56

0087 Zone Number 57

0088 Zone Number 58

0089 Zone Number 59

0090 Zone Number 60

0091 Zone Number 61

0092 Zone Number 62

0093 Zone Number 63

0094 Zone Number 64

0095 Zone Number 65

0096 Zone Number 66

0097 Zone Number 67

0098 Zone Number 68

0099 Zone Number 69

0100 Zone Number 70

0101 Zone Number 71

0102 Zone Number 72

0103 Zone Number 73

0104 Zone Number 74

0105 Zone Number 75

0106 Zone Number 76

0107 Zone Number 77

0108 Zone Number 78

0109 Zone Number 79

0110 Zone Number 80

0111 Zone Number 81

0112 Zone Number 82

0113 Zone Number 83

0114 Zone Number 84

0115 Zone Number 85

0116 Zone Number 86

0117 Zone Number 87

0118 Zone Number 88

0119 Zone Number 89

0120 Zone Number 90

0121 Zone Number 91

0122 Zone Number 92

0123 Zone Number 93

0124 Zone Number 94

0125 Zone Number 95

Address Description

0126 Zone Number 96

0127 Zone Number 97

0128 Zone Number 98

0129 Zone Number 99

0130 Zone Number 100

0131 Zone Number 101

0132 Zone Number 102

0133 Zone Number 103

0134 Zone Number 104

0135 Zone Number 105

0136 Zone Number 106

0137 Zone Number 107

0138 Zone Number 108

0139 Zone Number 109

0140 Zone Number 110

0141 Zone Number 111

0142 Zone Number 112

0143 Zone Number 113

0144 Zone Number 114

0145 Zone Number 115

0146 Zone Number 116

0147 Zone Number 117

0148 Zone Number 118

0149 Zone Number 119

0150 Zone Number 120

0151 Zone Number 121

0152 Zone Number 122

0153 Zone Number 123

0154 Zone Number 124

0155 Zone Number 125

0156 Zone Number 126

0157 Zone Number 127

0158 Zone Number 128

0159 Zone Number 129

0160 Zone Number 130

0161 Zone Number 131

0162 Zone Number 132

0163 Zone Number 133

0164 Zone Number 134

0165 Zone Number 135

0166 Zone Number 136

0167 Zone Number 137

0168 Zone Number 138

0169 Zone Number 139

0170 Zone Number 140

0171 Zone Number 141

0172 Zone Number 142

0173 Zone Number 143

0174 Zone Number 144

0175 Zone Number 145

0176 Zone Number 146

0177 Zone Number 147

0178 Zone Number 148

0179 Zone Number 149

0180 Zone Number 150

0181 Zone Number 151

0182 Zone Number 152

0183 Zone Number 153

0184 Zone Number 154

0185 Zone Number 155

0186 Zone Number 156

0187 Zone Number 157

0188 Zone Number 158

16.0 Program Addresses

Address Description

0189 Zone Number 159

0190 Zone Number 160

0191 Zone Number 161

0192 Zone Number 162

0193 Zone Number 163

0194 Zone Number 164

0195 Zone Number 165

0196 Zone Number 166

0197 Zone Number 167

0198 Zone Number 168

0199 Zone Number 169

0200 Zone Number 170

0201 Zone Number 171

0202 Zone Number 172

0203 Zone Number 173

0204 Zone Number 174

0205 Zone Number 175

0206 Zone Number 176

0207 Zone Number 177

0208 Zone Number 178

0209 Zone Number 179

0210 Zone Number 180

0211 Zone Number 181

0212 Zone Number 182

0213 Zone Number 183

0214 Zone Number 184

0215 Zone Number 185

0216 Zone Number 186

0217 Zone Number 187

0218 Zone Number 188

0219 Zone Number 189

0220 Zone Number 190

0221 Zone Number 191

0222 Zone Number 192

0223 Zone Number 193

0224 Zone Number 194

0225 Zone Number 195

0226 Zone Number 196

0227 Zone Number 197

0228 Zone Number 198

0229 Zone Number 199

0230 Zone Number 200

0231 Zone Number 201

0232 Zone Number 202

0233 Zone Number 203

0234 Zone Number 204

0235 Zone Number 205

0236 Zone Number 206

0237 Zone Number 207

0238 Zone Number 208

0239 Zone Number 209

0240 Zone Number 210

0241 Zone Number 211

0242 Zone Number 212

0243 Zone Number 213

0244 Zone Number 214

0245 Zone Number 215

0246 Zone Number 216

0247 Zone Number 217

0248 Zone Number 218

0249 Zone Number 219

0250 Zone Number 220

0251 Zone Number 221

0252 Zone Number 222

0253 Zone Number 223

Address Description

0254 Zone Number 224

0255 Zone Number 225

0256 Zone Number 226

0257 Zone Number 227

0258 Zone Number 228

0259 Zone Number 229

0260 Zone Number 230

0261 Zone Number 231

0262 Zone Number 232

0263 Zone Number 233

0264 Zone Number 234

0265 Zone Number 235

0266 Zone Number 236

0267 Zone Number 237

0268 Zone Number 238

0269 Zone Number 239

0270 Zone Number 240

0271 Zone Number 241

0272 Zone Number 242

0273 Zone Number 243

0274 Zone Number 244

0275 Zone Number 245

0276 Zone Number 246

0277 Zone Number 247

0278 Zone Number 248

0287 Zone 1 & 2 Partitin Assign.

0288 Zone 3 & 4 Partition Assign.

0289 Zone 5 & 6 Partition Assign.

0290 Zone 7 & 8 Partition Assign.

0291 Zone 9 & 10 Partition Assign.

0292 Zone 11 & 12 Partition Assign.

0293 Zone 13 & 14 Partition Assign.

0294 Zone 15 & 16 Partition Assign.

0295 Zone 17 & 18 Partition Assign.

0296 Zone 19 & 20 Partition Assign.

0297 Zone 21 & 22 Partition Assign.

0298 Zone 23 & 24 Partition Assign.

0299 Zone 25 & 26 Partition Assign.

0300 Zone 27 & 28 Partition Assign.

0301 Zone 29 & 30 Partition Assign.

0302 Zone 31 & 32 Partition Assign.

0303 Zone 33 & 34 Partition Assign.

0304 Zone 35 & 36 Partition Assign.

0305 Zone 37 & 38 Partition Assign.

0306 Zone 39 & 40 Partition Assign.

0307 Zone 41 & 42 Partition Assign.

0308 Zone 43 & 44 Partition Assign.

0309 Zone 45 & 46 Partition Assign.

0310 Zone 47 & 48 Partition Assign.

0311 Zone 49 & 50 Partition Assign.

0312 Zone 51 & 52 Partition Assign.

0313 Zone 53 & 54 Partition Assign.

0314 Zone 55 & 56 Partition Assign.

0315 Zone 57 & 58 PartitionAssign.

0316 Zone 59 & 60 Partition Assign.

0317 Zone 61 & 62 Partition Assign.

0318 Zone 63 & 64 Partition Assign.

0319 Zone 65 & 66 Partition Assign.

0320 Zone 67 & 68 Partition Assign.

0321 Zone 69 & 70 Partition Assign.

0322 Zone 71 & 72 Partition Assign.

0323 Zone 73 & 74 Partition Assign.

0324 Zone 75 & 76 Partition Assign.

0325 Zone 77 & 78 Partition Assign.

0326 Zone 79 & 80 Partition Assign.

Address Description

0327 Zone 81 & 82 Partition Assign.

0328 Zone 83 & 84 Partition Assign.

0329 Zone 85 & 86 Partition Assign.

0330 Zone 87 & 88 Partition Assign.

0331 Zone 89 & 90 Partition Assign.

0332 Zone 91 & 92 Partition Assign.

0333 Zone 93 & 94 Partition Assign.

0334 Zone 95 & 96 Partition Assign.

0335 Zone 97 & 98 Partition Assign.

0336 Zone 99 & 100 Partition Assign.

0337 Zone 101 & 102 Partition Assign.

0338 Zone 103 & 104 Partition Assign.

0339 Zone 105 & 106 Partition Assign.

0340 Zone 107 & 108 Partition Assign.

0341 Zone 109 & 110 Partition Assign.

0342 Zone 111 & 112 Partition Assign.

0343 Zone 113 & 114 Partition Assign.

0344 Zone 115 & 116 Partition Assign.

0345 Zone 117 & 118 Partition Assign.

0346 Zone 119 & 120 Partition Assign.

0347 Zone 121 & 122 Partition Assign.

0348 Zone 123 & 124 Partition Assign.

0349 Zone 125 & 126 Partition Assign.

0350 Zone 127 & 128 Partition Assign.

0351 Zone 129 & 130 Partition Assign.

0352 Zone 131 & 132 Partition Assign.

0353 Zone 133 & 134 Partition Assign.

0354 Zone 135 & 136 Partition Assign.

0355 Zone 137 & 138 Partition Assign.

0356 Zone 139 & 140 Partition Assign.

0357 Zone 141 & 142 Partition Assign.

0358 Zone 143 & 144 Partition Assign.

0359 Zone 145 & 146 Partition Assign.

0360 Zone 147 & 148 Partition Assign.

0361 Zone 149 & 150 Partition Assign.

0362 Zone 151 & 152 Partition Assign.

0363 Zone 153 & 154 Partition Assign.

0364 Zone 155 & 156 Partition Assign.

0365 Zone 157 & 158 Partition Assign.

0366 Zone 159 & 160 Partition Assign.

0367 Zone 161 & 162 Partition Assign.

0368 Zone 163 & 164 Partition Assign.

0369 Zone 165 & 166 Partition Assign.

0370 Zone 167 & 168 Partition Assign.

0371 Zone 169 & 170 Partition Assign.

0372 Zone 171 & 172 Partition Assign.

0373 Zone 173 & 174 Partition Assign.

0374 Zone 175 & 176 Partition Assign.

0375 Zone 177 & 178 Partition Assign.

0376 Zone 179 & 180 Partition Assign.

0377 Zone 181 & 182 Partition Assign.

0378 Zone 183 & 184 Partition Assign.

0379 Zone 185 & 186 Partition Assign.

0380 Zone 187 & 188 Partition Assign.

0381 Zone 189 & 190 Partition Assign.

0382 Zone 191 & 192 Partition Assign.

0383 Zone 193 & 194 Partition Assign.

0384 Zone 195 & 196 Partition Assign.

0385 Zone 197 & 198 Partition Assign.

0386 Zone 199 & 200 Partition Assign.

0387 Zone 201 & 202 Partition Assign.

0388 Zone 203 & 204 Partition Assign.

0389 Zone 205 & 206 Partition Assign.

0390 Zone 207 & 208 Partition Assign.

0391 Zone 209 & 210 Partition Assign.

Address Description

0392 Zone 211 & 212 Partition Assign.

0393 Zone 213 & 214 Partition Assign.

0394 Zone 215 & 216 Partition Assign.

0395 Zone 217 & 218 Partition Assign.

0396 Zone 219 & 220 Partition Assign.

0397 Zone 221 & 222 Partition Assign.

0398 Zone 223 & 224 Partition Assign.

0399 Zone 225 & 226 Partition Assign.

0400 Zone 227 & 228 Partition Assign.

0401 Zone 229 & 230 Partition Assign.

0402 Zone 231 & 232 Partition Assign.

0403 Zone 233 & 234 Partition Assign.

0404 Zone 235 & 236 Partition Assign.

0405 Zone 237 & 238 Partition Assign.

0406 Zone 239 & 240 Partition Assign.

0407 Zone 241 & 242 Partition Assign.

0408 Zone 243 & 244 Partition Assign.

0409 Zone 245 & 246 Partition Assign.

0410 Zone 247 & 248 Partition Assign.

0415 Zone 1 & 2 Zone Type

0416 Zone 3 & 4 Zone Type

0417 Zone 5 & 6 Zone Type

0418 Zone 7 & 8 Zone Type

0419 Zone 9 & 10 Zone Type

0420 Zone 11 & 12 Zone Type

0421 Zone 13 & 14 Zone Type

0422 Zone 15 & 16 Zone Type

0423 Zone 17 & 18 Zone Type

0424 Zone 19 & 20 Zone Type

0425 Zone 21 & 22 Zone Type

0426 Zone 23 & 24 Zone Type

0427 Zone 25 & 26 Zone Type

0428 Zone 27 & 28 Zone Type

0429 Zone 29 & 30 Zone Type

0430 Zone 31 & 32 Zone Type

0431 Zone 33 & 34 Zone Type

0432 Zone 35 & 36 Zone Type

0433 Zone 37 & 38 Zone Type

0434 Zone 39 & 40 Zone Type

0435 Zone 41 & 42 Zone Type

0436 Zone 43 & 44 Zone Type

0437 Zone 45 & 46 Zone Type

0438 Zone 47 & 48 Zone Type

0439 Zone 49 & 50 Zone Type

0440 Zone 51 & 52 Zone Type

0441 Zone 53 & 54 Zone Type

0442 Zone 55 & 56 Zone Type

0443 Zone 57 & 58 Zone Type

0444 Zone 59 & 60 Zone Type

0445 Zone 61 & 62 Zone Type

0446 Zone 63 & 64 Zone Type

0447 Zone 65 & 66 Zone Type

0448 Zone 67 & 68 Zone Type

0449 Zone 69 & 70 Zone Type

0450 Zone 71 & 72 Zone Type

0451 Zone 73 & 74 Zone Type

0452 Zone 75 & 76 Zone Type

0453 Zone 77 & 78 Zone Type

0454 Zone 79 & 80 Zone Type

0455 Zone 81 & 82 Zone Type

0456 Zone 83 & 84 Zone Type

0457 Zone 85 & 86 Zone Type

0458 Zone 87 & 88 Zone Type

0459 Zone 89 & 90 Zone Type

0460 Zone 91 & 92 Zone Type

Address Description

0461 Zone 93 & 94 Zone Type

0462 Zone 95 & 96 Zone Type

0463 Zone 97 & 98 Zone Type

0464 Zone 99 & 100 Zone Type

0465 Zone 101 & 102 Zone Type

0466 Zone 103 & 104 Zone Type

0467 Zone 105 & 106 Zone Type

0468 Zone 107 & 108 Zone Type

0469 Zone 109 & 110 Zone Type

0470 Zone 111 & 112 Zone Type

0471 Zone 113 & 114 Zone Type

0472 Zone 116 & 115 Zone Type

0473 Zone 117 & 118 Zone Type

0474 Zone 119 & 120 Zone Type

0475 Zone 121 & 122 Zone Type

0476 Zone 123 & 124 Zone Type

0477 Zone 125 & 126 Zone Type

0478 Zone 127 & 128 Zone Type

0479 Zone 129 & 130 Zone Type

0480 Zone 131 & 132 Zone Type

0481 Zone 133 & 134 Zone Type

0482 Zone 135 & 136 Zone Type

0483 Zone 137 & 138 Zone Type

0484 Zone 139 & 140 Zone Type

0485 Zone 141 & 142 Zone Type

0486 Zone 143 & 144 Zone Type

0487 Zone 145 & 146 Zone Type

0488 Zone 147 & 148 Zone Type

0489 Zone 149 & 150 Zone Type

0490 Zone 151 & 152 Zone Type

0491 Zone 153 & 154 Zone Type

0492 Zone 155 & 156 Zone Type

0493 Zone 157 & 158 Zone Type

0494 Zone 159 & 160 Zone Type

0495 Zone 161 & 162 Zone Type

0496 Zone 163 & 164 Zone Type

0497 Zone 165 & 166 Zone Type

0498 Zone 167 & 168 Zone Type

0499 Zone 169 & 170 Zone Type

0500 Zone 171 & 172 Zone Type

0501 Zone 173 & 174 Zone Type

0502 Zone 175 & 176 Zone Type

0503 Zone 177 & 178 Zone Type

0504 Zone 179 & 180 Zone Type

0505 Zone 181 & 182 Zone Type

0506 Zone 183 & 184 Zone Type

0507 Zone 185 & 186 Zone Type

0508 Zone 187 & 188 Zone Type

0509 Zone 189 & 190 Zone Type

0510 Zone 191 & 192 Zone Type

0511 Zone 193 & 194 Zone Type

0512 Zone 195 & 196 Zone Type

0513 Zone 197 & 198 Zone Type

0514 Zone 199 & 200 Zone Type

0515 Zone 201 & 202 Zone Type

0516 Zone 203 & 204 Zone Type

0517 Zone 205 & 206 Zone Type

0518 Zone 207 & 208 Zone Type

0519 Zone 209 & 210 Zone Type

0520 Zone 211 & 212 Zone Type

0521 Zone 213 & 214 Zone Type

0522 Zone 215 & 216 Zone Type

0523 Zone 217 & 218 Zone Type

0524 Zone 219 & 220 Zone Type

0525 Zone 221 & 222 Zone Type

Address Description

0526 Zone 223 & 224 Zone Type

0527 Zone 225 & 226 Zone Type

0528 Zone 227 & 228 Zone Type

0529 Zone 229 & 230 Zone Type

0530 Zone 231 & 232 Zone Type

0531 Zone 233 & 234 Zone Type

0532 Zone 235 & 236 Zone Type

0533 Zone 237 & 238 Zone Type

0534 Zone 239 & 240 Zone Type

0535 Zone 241 & 242 Zone Type

0536 Zone 243 & 244 Zone Type

0537 Zone 245 & 246 Zone Type

0538 Zone 247 & 248 Zone Type

0545 Alpha for Partition 1

0561 Alpha for Partition 2

0577 Alpha for Partition 3

0593 Alpha for Partition 4

0609 Alpha for Partition 5

0625 Alpha for Partition 6

0641 Alpha for Partition 7

0657 Alpha for Partition 8

0673 Alpha for Zone Number 1

0689 Alpha for Zone Number 2

0705 Alpha for Zone Number 3

0721 Alpha for Zone Number 4

0737 Alpha for Zone Number 5

0753 Alpha for Zone Number 6

0769 Alpha for Zone Number 7

0785 Alpha for Zone Number 8

0801 Alpha for Zone Number 9

0817 Alpha for Zone Number 10

0833 Alpha for Zone Number 11

0849 Alpha for Zone Number 12

0865 Alpha for Zone Number 13

0881 Alpha for Zone Number 14

0897 Alpha for Zone Number 15

0913 Alpha for Zone Number 16

0929 Alpha for Zone Number 17

0945 Alpha for Zone Number 18

0961 Alpha for Zone Number 19

0977 Alpha for Zone Number 20

0993 Alpha for Zone Number 21

1009 Alpha for Zone Number 22

1025 Alpha for Zone Number 23

1041 Alpha for Zone Number 24

1057 Alpha for Zone Number 25

1073 Alpha for Zone Number 26

1089 Alpha for Zone Number 27

1105 Alpha for Zone Number 28

1121 Alpha for Zone Number 29

1137 Alpha for Zone Number 30

1153 Alpha for Zone Number 31

1169 Alpha for Zone Number 32

1185 Alpha for Zone Number 33

1201 Alpha for Zone Number 34

1217 Alpha for Zone Number 35

1233 Alpha for Zone Number 36

1249 Alpha for Zone Number 37

1265 Alpha for Zone Number 38

1281 Alpha for Zone Number 39

1297 Alpha for Zone Number 40

1313 Alpha for Zone Number 41

1329 Alpha for Zone Number 42

1345 Alpha for Zone Number 43

1361 Alpha for Zone Number 44

Address Description

2417 Alpha for Zone Number 110

2433 Alpha for Zone Number 111

2449 Alpha for Zone Number 112

2465 Alpha for Zone Number 113

2481 Alpha for Zone Number 114

2497 Alpha for Zone Number 115

2513 Alpha for Zone Number 116

2529 Alpha for Zone Number 117

2545 Alpha for Zone Number 118

2561 Alpha for Zone Number 119

2577 Alpha for Zone Number 120

2593 Alpha for Zone Number 121

2609 Alpha for Zone Number 122

2625 Alpha for Zone Number 123

2641 Alpha for Zone Number 124

2657 Alpha for Zone Number 125

2673 Alpha for Zone Number 126

2689 Alpha for Zone Number 127

2705 Alpha for Zone Number 128

2721 Zone Function Bypass 1-8

2722 Zone Function Bypass 9-16

2723 Zone Function Bypass 17-24

2724 Zone Function Bypass 25-30

2725 Command 4 (Cust.) Arming 1-8

2726 Command 4 (Cust.) Arming 9-16

2727 Command 4 (Cust.) Arming 17-24

2728 Command 4 (Cust.) Arming 25-30

2729 RF Zone Group Program. 129-248

2731 Receiver Configuration

2732 Force Arming & Ground Fault

2733 Commerical Fire Mode

2734 Alarm Output

2735 Programmable Output Type 1

2736 Programmable Output Type 2

2737 Output Part. Assign. & Bell Output

2738 Output Part. Assign. & Keyfob Chirp

2740 Octal Module #1, Relay #1

2742 Octal Module #1, Relay #2

2744 Octal Module #1, Relay #3

2746 Octal Module #1, Relay #4

2748 Octal Module #1, Relay #5

2750 Octal Module #1, Relay #6

2752 Octal Module #1, Relay #7

2754 Octal Module #1, Relay #8

2756 Octal Module #2, Relay #1

2758 Octal Module #2, Relay #2

2760 Octal Module #2, Relay #3

2762 Octal Module #2, Relay #4

2764 Octal Module #2, Relay #5

2766 Octal Module #2, Relay #6

2768 Octal Module #2, Relay #7

2770 Octal Module #2, Relay #8

2772 Output Function 1

2775 Output Function 2

2778 Output Function 3

2781 Output Function 4

2784 Output Function 5

2787 Output Function 6

2790 Output Function 7

2793 Output Function 8

2796 Output Function 9

2799 Output Function 10

2802 Output Function 11

2805 Output Function 12

2808 Output Function 13

Address Description

2811 Output Function 14

2814 Output Function 15

2817 Output Function 16

2820 Output Function 17

2823 Output Function 18

2826 Output Function 19

2829 Output Function 20

2832 Output Function 21

2835 Output Function 22

2838 Output Function 23

2841 Output Function 24

2844 Octal Relay Partition Assignment

2845 Octal Relay Partition Assignment

2846 Octal Relay Partition Assignment

2847 Octal Relay Partition Assignment

2848 Octal Relay Partition Assignment

2849 Octal Relay Partition Assignment

2850 Octal Relay Partition Assignment

2851 Octal Relay Partition Assignment

2852 Output Function Partition Assign.

2853 Output Function Partition Assign.

2854 Output Function Partition Assign.

2855 Output Function Partition Assign.

2856 Output Function Partition Assign.

2857 Output Function Partition Assign.

2858 Output Function Partition Assign.

2859 Output Function Partition Assign.

2860 Output Function Partition Assign.

2861 Output Function Partition Assign.

2862 Output Function Partition Assign.

2863 Output Function Partition Assign.

3131 Keypad Assignment

3132 Keypad Assignment

3133 Keypad Assignment

3134 Keypad Assignment

3135 Keypad Assignment

3136 Keypad Assignment

3137 Keypad Assignment

3138 Keypad Assignment & Backlight

Control

3139 Keypad Partition Assignment

3140 Keypad Partition Assignment

3141 Keypad Partition Assignment

3142 Keypad Partition Assignment

3143 Keypad Partition Assignment

3144 Keypad Partition Assignment

3145 Keypad Partition Assignment

3146 Keypad Partition Assignment

3147 Function Key Programming

3148 Function Key Programming

3149 Open/Close Report Control

3151 Open/Close Rprt. & Zone Alarm

Routing

3152 System Routing

3153 Phone/DS7416i Routing

3154 Phone/DS7416i Routing

3155 Phone Number General Control

3156 Phone Number 1 Control

3157 Phone Number 2 Control

3158 Answer Ring Count (Arm/Disarm)

3159 Phone Number 1

3175 Phone Number 2

3191 Phone Number 3

3207 Keypad Fire Alarm Report

3208 Keypad Fire Restoral Report

Address Description

1377 Alpha for Zone Number 45

1393 Alpha for Zone Number 46

1409 Alpha for Zone Number 47

1425 Alpha for Zone Number 48

1441 Alpha for Zone Number 49

1457 Alpha for Zone Number 50

1473 Alpha for Zone Number 51

1489 Alpha for Zone Number 52

1505 Alpha for Zone Number 53

1521 Alpha for Zone Number 54

1537 Alpha for Zone Number 55

1553 Alpha for Zone Number 56

1569 Alpha for Zone Number 57

1585 Alpha for Zone Number 58

1601 Alpha for Zone Number 59

1617 Alpha for Zone Number 60

1633 Alpha for Zone Number 61

1649 Alpha for Zone Number 62

1665 Alpha for Zone Number 63

1681 Alpha for Zone Number 64

1697 Alpha for Zone Number 65

1713 Alpha for Zone Number 66

1729 Alpha for Zone Number 67

1745 Alpha for Zone Number 68

1761 Alpha for Zone Number 69

1777 Alpha for Zone Number 70

1793 Alpha for Zone Number 71

1809 Alpha for Zone Number 72

1825 Alpha for Zone Number 73

1841 Alpha for Zone Number 74

1857 Alpha for Zone Number 75

1873 Alpha for Zone Number 76

1889 Alpha for Zone Number 77

1905 Alpha for Zone Number 78

1921 Alpha for Zone Number 79

1937 Alpha for Zone Number 80

1953 Alpha for Zone Number 81

1969 Alpha for Zone Number 82

1985 Alpha for Zone Number 83

2001 Alpha for Zone Number 84

2017 Alpha for Zone Number 85

2033 Alpha for Zone Number 86

2049 Alpha for Zone Number 87

2065 Alpha for Zone Number 88

2081 Alpha for Zone Number 89

2097 Alpha for Zone Number 90

2113 Alpha for Zone Number 91

2129 Alpha for Zone Number 92

2145 Alpha for Zone Number 93

2161 Alpha for Zone Number 94

2177 Alpha for Zone Number 95

2193 Alpha for Zone Number 96

2209 Alpha for Zone Number 97

2225 Alpha for Zone Number 98

2241 Alpha for Zone Number 99

2257 Alpha for Zone Number 100

2273 Alpha for Zone Number 101

2289 Alpha for Zone Number 102

2305 Alpha for Zone Number 103

2321 Alpha for Zone Number 104

2337 Alpha for Zone Number 105

2353 Alpha for Zone Number 106

2369 Alpha for Zone Number 107

2385 Alpha for Zone Number 108

2401 Alpha for Zone Number 109

Address Description

3209 Zone Function 1 Alarm Report

3210 Zone Function 2 Alarm Report

3211 Zone Function 3 Alarm Report

3212 Zone Function 4 Alarm Report

3213 Zone Function 5 Alarm Report

3214 Zone Function 6 Alarm Report

3215 Zone Function 7 Alarm Report

3216 Zone Function 8 Alarm Report

3217 Zone Function 9 Alarm Report

3218 Zone Function 10 Alarm Report

3219 Zone Function 11 Alarm Report

3220 Zone Function 12 Alarm Report

3221 Zone Function 13 Alarm Report

3222 Zone Function 14 Alarm Report

3223 Zone Function 15 Alarm Report

3224 Zone Function 16 Alarm Report

3225 Zone Function 17 Alarm Report

3226 Zone Function 18 Alarm Report

3227 Zone Function 19 Alarm Report

3228 Zone Function 20 Alarm Report

3229 Zone Function 21 Alarm Report

3230 Zone Function 22 Alarm Report

3231 Zone Function 23 Alarm Report

3232 Zone Function 24 Alarm Report

3233 Zone Function 25 Alarm Report

3234 Zone Function 26 Alarm Report

3235 Zone Function 27 Alarm Report

3236 Zone Function 28 Alarm Report

3237 Zone Function 29 Alarm Report

3238 Zone Function 30 Alarm Report

3239 Keypad Emergency Report

3240 Keypad Panic Report

3241 Zone Function 1 Restoral Report

3242 Zone Function 2 Restoral Report

3243 Zone Function 3 Restoral Report

3244 Zone Function 4 Restoral Report

3245 Zone Function 5 Restoral Report

3246 Zone Function 6 Restoral Report

3247 Zone Function 7 Restoral Report

3248 Zone Function 8 Restoral Report

3249 Zone Function 9 Restoral Report

3250 Zone Function 10 Restoral Report

3251 Zone Function 11 Restoral Report

3252 Zone Function 12 Restoral Report

3253 Zone Function 13 Restoral Report

3254 Zone Function 14 Restoral Report

3255 Zone Function 15 Restoral Report

3256 Zone Function 16 Restoral Report

3257 Zone Function 17 Restoral Report

3258 Zone Function 18 Restoral Report

3259 Zone Function 19 Restoral Report

3260 Zone Function 20 Restoral Report

3261 Zone Function 21 Restoral Report

3262 Zone Function 22 Restoral Report

3263 Zone Function 23 Restoral Report

3264 Zone Function 24 Restoral Report

3265 Zone Function 25 Restoral Report

3266 Zone Function 26 Restoral Report

3267 Zone Function 27 Restoral Report

3268 Zone Function 28 Restoral Report

3269 Zone Function 29 Restoral Report

3270 Zone Function 30 Restoral Report

3271 Zone Function 1 Trouble Report

3272 Zone Function 2 Trouble Report

3273 Zone Function 3 Trouble Report

Address Description

3274 Zone Function 4 Trouble Report

3275 Zone Function 5 Trouble Report

3276 Zone Function 6 Trouble Report

3277 Zone Function 7 Trouble Report

3278 Zone Function 8 Trouble Report

3279 Zone Function 9 Trouble Report

3280 Zone Function 10 Trouble Report

3281 Zone Function 11 Trouble Report

3282 Zone Function 12 Trouble Report

3283 Zone Function 13 Trouble Report

3284 Zone Function 14 Trouble Report

3285 Zone Function 15 Trouble Report

3286 Zone Function 16 Trouble Report

3287 Zone Function 17 Trouble Report

3288 Zone Function 18 Trouble Report

3289 Zone Function 19 Trouble Report

3290 Zone Function 20 Trouble Report

3291 Zone Function 21 Trouble Report

3292 Zone Function 22 Trouble Report

3293 Zone Function 23 Trouble Report

3294 Zone Function 24 Trouble Report

3295 Zone Function 25 Trouble Report

3296 Zone Function 26 Trouble Report

3297 Zone Function 27 Trouble Report

3298 Zone Function 28 Trouble Report

3299 Zone Function 29 Trouble Report

3300 Zone Function 30 Trouble Report

3301 Zone Function 1 Trouble Restoral

3302 Zone Function 2 Trouble Restoral

3303 Zone Function 3 Trouble Restoral

3304 Zone Function 4 Trouble Restoral

3305 Zone Function 5 Trouble Restoral

3306 Zone Function 6 Trouble Restoral

3307 Zone Function 7 Trouble Restoral

3308 Zone Function 8 Trouble Restoral

3309 Zone Function 9 Trouble Restoral

3310 Zone Function 10 Trouble Restoral

3311 Zone Function 11 Trouble Restoral

3312 Zone Function 12 Trouble Restoral

3313 Zone Function 13 Trouble Restoral

3314 Zone Function 14 Trouble Restoral

3315 Zone Function 15 Trouble Restoral

3316 Zone Function 16 Trouble Restoral

3317 Zone Function 17 Trouble Restoral

3318 Zone Function 18 Trouble Restoral

3319 Zone Function 19 Trouble Restoral

3320 Zone Function 20 Trouble Restoral

3321 Zone Function 21 Trouble Restoral

3322 Zone Function 22 Trouble Restoral

3323 Zone Function 23 Trouble Restoral

3324 Zone Function 24 Trouble Restoral

3325 Zone Function 25 Trouble Restoral

3326 Zone Function 26 Trouble Restoral

3327 Zone Function 27 Trouble Restoral

3328 Zone Function 28 Trouble Restoral

3329 Zone Function 29 Trouble Restoral

3330 Zone Function 30 Trouble Restoral

3331 Open Report

3332 Close Report

3333 Duress Report

3334 Partial Close Report

3335 First Open After Alarm Report.

3336 Low Battery Report

3337 Low Battery Restoral Report

3338 AC Fail Report

Address Description

3339 AC Restoral Report

3340 Communicator Test/System

Normal Report

3341 Remote Prog. Successful Report

3342 Remote Prog. Unsuccessful Report

3343 Local Prog. Successful Rprt.

3344 Local Prog. Unsuccessful Report

3345 System Trouble Report

3346 Sysem Trouble Restoral Report

3347 Communicator Test/System Off

Normal Report

3348 Exit Error Report

3349 Recent Closing Report

3350 System Walk Test Report

3351 System Walk Test Restoral

3352 Fire Walk Test Report

3353 Fire Walk Test Restoral

3354 Mux Low Temperature Report

3355 Mux Low Temperature Restoral

3356 Dirty Smoke Chamber Report

3357 Dirty Smoke Chamber Restoral

3358 Zone Function 1 Bypass

3359 Zone Function 2 Bypass

3360 Zone Function 3 Bypass

3361 Zone Function 4 Bypass

3362 Zone Function 5 Bypass

3363 Zone Function 6 Bypass

3364 Zone Function 7 Bypass

3365 Zone Function 8 Bypass

3366 Zone Function 9 Bypass

3367 Zone Function 10 Bypass

3368 Zone Function 11 Bypass

3369 Zone Function 12 Bypass

3370 Zone Function 13 Bypass

3371 Zone Function 14 Bypass

3372 Zone Function 15 Bypass

3373 Zone Function 16 Bypass

3374 Zone Function 17 Bypass

3375 Zone Function 18 Bypass

3376 Zone Function 19 Bypass

3377 Zone Function 20 Bypass

3378 Zone Function 21 Bypass

3379 Zone Function 22 Bypass

3380 Zone Function 23 Bypass

3381 Zone Function 24 Bypass

3382 Zone Function 25 Bypass

3383 Zone Function 26 Bypass

3384 Zone Function 27 Bypass

3385 Zone Function 28 Bypass

3386 Zone Function 29 Bypass

3387 Zone Function 30 Bypass

3388 Zone Func. 1 Bypass Restoral

3389 Zone Func. 2 Bypass Restoral

3390 Zone Func. 3 Bypass Restoral

3391 Zone Func. 4 Bypass Restoral

3392 Zone Func. 5 Bypass Restoral

3393 Zone Func. 6 Bypass Restoral

3394 Zone Func. 7 Bypass Restoral

3395 Zone Func. 8 Bypass Restoral

3396 Zone Func. 9 Bypass Restoral

3397 Zone Func. 10 Bypass Restoral

3398 Zone Func. 11 Bypass Restoral

3399 Zone Func. 12 Bypass Restoral

3400 Zone Func. 13 Bypass Restoral

3401 Zone Func. 14 Bypass Restoral

Address Description

3402 Zone Func. 15 Bypass Restoral

3403 Zone Func. 16 Bypass Restoral

3404 Zone Func. 17 Bypass Restoral

3405 Zone Func. 18 Bypass Restoral

3406 Zone Func. 19 Bypass Restoral

3407 Zone Func. 20 Bypass Restoral

3408 Zone Func. 21 Bypass Restoral

3409 Zone Func. 22 Bypass Restoral

3410 Zone Func. 23 Bypass Restoral

3411 Zone Func. 24 Bypass Restoral

3412 Zone Func. 25 Bypass Restoral

3413 Zone Func. 26 Bypass Restoral

3414 Zone Func. 27 Bypass Restoral

3415 Zone Func. 28 Bypass Restoral

3416 Zone Func. 29 Bypass Restoral

3417 Zone Func. 30 Bypass Restoral

3418 Keypad Tamper

3419 Keypad Tamper Restoral

3420 Partition Control

3421 Part. 1 & 2 General Code Control

3422 Part. 3 & 4 General Code Control

3423 Part. 5 & 6 General Code Control

3424 Part. 7 & 8 General Code Control

3425 Part. 1 & 2 Arming Warning Cntrl.

3426 Part. 3 & 4 Arming Warning Cntrl.

3427 Part. 5 & 6 Arming Warning Cntrl.

3428 Part. 7 & 8 Arming Warning Cntrl.

3429 Partition 1 Account Code 1

3431 Partition 1 Account Code 2

3433 Partition 2 Account Code 1

3435 Partition 2 Account Code 2

3437 Partition 3 Account Code 1

3439 Partition 3 Account Code 2

3441 Partition 4 Account Code 1

3443 Partition 4 Account Code 2

3445 Partition 5 Account Code 1

3447 Partition 5 Account Code 2

3449 Partition 6 Account Code 1

3451 Partition 6 Account Code 2

3453 Partition 7 Account Code 1

3455 Partition 7 Account Code 2

3457 Partition 8 Account Code 1

3459 Partition 8 Account Code 2

3477 Quick Arm Allowed

3478 PIN Length

4019 DS7412 Interface Control

4020 DS7412 Interface Configuration

4021 Dual Phone Line / Bell

Supervision Module Output

4022 Comm. Test Report Timer

4024 Remote Programmer Timer

4026 Test Report & Remote

Programmer Call-Out

4027 CR/LF Control

4028 Entry Delay Time 1

4029 Entry Delay Time 2

4030 Exit Delay Time

4032 Fire Bell Cutoff

4033 Burglary Bell Cutoff

4034 AC Fail Report Delay

4038 Pager Delay Timer

4039 RF Receiver Jam Detection Level

5001 Alpha for Zone Number 129

5017 Alpha for Zone Number 130

5033 Alpha for Zone Number 131

Address Description

5049 Alpha for Zone Number 132

5065 Alpha for Zone Number 133

5081 Alpha for Zone Number 134

5097 Alpha for Zone Number 135

5113 Alpha for Zone Number 136

5129 Alpha for Zone Number 137

5145 Alpha for Zone Number 138

5161 Alpha for Zone Number 139

5177 Alpha for Zone Number 140

5193 Alpha for Zone Number 141

5209 Alpha for Zone Number 142

5225 Alpha for Zone Number 143

5241 Alpha for Zone Number 144

5257 Alpha for Zone Number 145

5273 Alpha for Zone Number 146

5289 Alpha for Zone Number 147

5305 Alpha for Zone Number 148

5321 Alpha for Zone Number 149

5337 Alpha for Zone Number 150

5353 Alpha for Zone Number 151

5369 Alpha for Zone Number 152

5385 Alpha for Zone Number 153

5401 Alpha for Zone Number 154

5417 Alpha for Zone Number 155

5433 Alpha for Zone Number 156

5449 Alpha for Zone Number 157

5465 Alpha for Zone Number 158

5481 Alpha for Zone Number 159

5497 Alpha for Zone Number 160

5513 Alpha for Zone Number 161

5529 Alpha for Zone Number 162

5545 Alpha for Zone Number 163

5561 Alpha for Zone Number 164

5577 Alpha for Zone Number 165

5593 Alpha for Zone Number 166

5609 Alpha for Zone Number 167

5625 Alpha for Zone Number 168

5641 Alpha for Zone Number 169

5657 Alpha for Zone Number 170

5673 Alpha for Zone Number 171

5689 Alpha for Zone Number 172

5705 Alpha for Zone Number 173

5721 Alpha for Zone Number 174

5737 Alpha for Zone Number 175

5753 Alpha for Zone Number 176

5769 Alpha for Zone Number 177

5785 Alpha for Zone Number 178

5801 Alpha for Zone Number 179

5817 Alpha for Zone Number 180

5833 Alpha for Zone Number 181

5849 Alpha for Zone Number 182

5865 Alpha for Zone Number 183

5881 Alpha for Zone Number 184

5897 Alpha for Zone Number 185

5913 Alpha for Zone Number 186

5929 Alpha for Zone Number 187

5945 Alpha for Zone Number 188

5961 Alpha for Zone Number 189

5977 Alpha for Zone Number 190

5993 Alpha for Zone Number 191

6009 Alpha for Zone Number 192

6025 Alpha for Zone Number 193

6041 Alpha for Zone Number 194

6057 Alpha for Zone Number 195

6073 Alpha for Zone Number 196

Address Description

6089 Alpha for Zone Number 197

6105 Alpha for Zone Number 198

6121 Alpha for Zone Number 199

6137 Alpha for Zone Number 200

6153 Alpha for Zone Number 201

6169 Alpha for Zone Number 202

6185 Alpha for Zone Number 203

6201 Alpha for Zone Number 204

6217 Alpha for Zone Number 205

6233 Alpha for Zone Number 206

6249 Alpha for Zone Number 207

6265 Alpha for Zone Number 208

6281 Alpha for Zone Number 209

6297 Alpha for Zone Number 210

6313 Alpha for Zone Number 211

6329 Alpha for Zone Number 212

5345 Alpha for Zone Number 213

6361 Alpha for Zone Number 214

6377 Alpha for Zone Number 215

6393 Alpha for Zone Number 216

6409 Alpha for Zone Number 217

6425 Alpha for Zone Number 218

6441 Alpha for Zone Number 219

6457 Alpha for Zone Number 220

6473 Alpha for Zone Number 221

6489 Alpha for Zone Number 222

6505 Alpha for Zone Number 223

6521 Alpha for Zone Number 224

6537 Alpha for Zone Number 225

6553 Alpha for Zone Number 226

6569 Alpha for Zone Number 227

6585 Alpha for Zone Number 228

6601 Alpha for Zone Number 229

6617 Alpha for Zone Number 230

6633 Alpha for Zone Number 231

6649 Alpha for Zone Number 232

6665 Alpha for Zone Number 233

6681 Alpha for Zone Number 234

6697 Alpha for Zone Number 235

6713 Alpha for Zone Number 236

6729 Alpha for Zone Number 237

6745 Alpha for Zone Number 238

6761 Alpha for Zone Number 239

6777 Alpha for Zone Number 240

6793 Alpha for Zone Number 241

6809 Alpha for Zone Number 242

6825 Alpha for Zone Number 243

6841 Alpha for Zone Number 244

6857 Alpha for Zone Number 245

6873 Alpha for Zone Number 246

6889 Alpha for Zone Number 247

6905 Alpha for Zone Number 248

Index

Symbols

24-Hour Zone ............................................... 19

4/2 Format ..................................................... 79

AC Failure Report Delay ....................... 23, 50

AC Reports ........................................... 23, 24

Access Control .............................................. 1

PIN ............................................................ 28

Access Output ............................................. 21

Account Code Programming ......................... 56

Ademco AB-12 Bell ...................................... 78

Alarm

Fire - how to silence ........................... 1, 26

Invisible............................................. 19, 35

Low Temperature ............................. 20, 21

on Open.................................................... 19

on Short.................................................... 19

Silent ......................................................... 19

Smoke ....................................................... 20

Zone ......................................................... 21

Zone Function .......................................... 23

Alpha Description ......................................... 69

Answering Machine Bypass ....................... 24

Arm Only PIN ................................................. 28

Arming

Custom .......................... 1, 19, 22, 34, 45

Delayed ...................................................... 1

Force ................................................ 22, 47

from Master Keypad ................................ 29

Maximum Security ....................... 1, 19, 34

Normal ......................................... 1, 19, 34

Perimeter ..................................... 1, 19, 34

Perimeter Instant ......................... 1, 19, 34

Automatic Arming, Extend .............................. 1

Battery

Backup Calculation .................................... 5

Reports..................................................... 23

Test ...................................................... 1, 31

Battery/Sounder Test .............................. 1, 31

Bell Cutoff Delays ......................................... 50

BFSK Format ................................................. 80

Bypassing Allowed ...................................... 19

California March Time ................................... 22

Chime Mode .................................................... 1

CID Formats .................................................. 85

Clear Displays................................................. 1

Closing Ring Back ................................. 19, 34

Commercial Fire Mode .......................... 22, 48

California March Time .............................. 22

Multiple Keypad Use ................................ 23

Pulsing Fire Zone ..................................... 22

Single Keypad Use .................................. 23

Temporal ................................................... 22

Water Flow Zone Delay ........................... 22

Common Area ............................................... 22

Communicator Test .......................... 1, 24, 31

Custom Arming .................. 1, 19, 22, 34, 45

Day Monitor ................................................... 20

Defaults, Factory .......................................... 32

Delayed Arming .............................................. 1

Dirty Chamber/Smoke ........................... 26, 93

Disarming ........................................................ 1

from Master Keypad ................................ 29

DS7420i ........................................................ 67

DS9484 ........................................................... 7

.................. See also Octal Relay Modules

Duress PIN .................................................... 28

Emergency Key ............................. 22, 26, 45

Emergency Procedures................................ 26

Enable Remote Programmer Callback .......... 24

Entry Pre-Alert .............................................. 21

Entry/Exit Delays ........................... 19, 20, 50

Error Display ................................................... 1

Event History .................................................. 1

Extend Automatic Arming ............................... 1

Factory Defaults ........................................... 32

Fire Key ........................................................ 22

Fire Reset ................................................ 1, 26

Fire Safety .................................................... 27

Fire Trouble .............................................. 1, 26

Alarm - how to silence .............................. 1

Clear Display .............................................. 1

Fire Walk Test .................................. 1, 24, 31

Fire Zone ...................................................... 20

First Open After Alarm ................................. 23

Flow Zone, Water ........................................ 20

Force Arming ................................... 1, 22, 47

Formats

4/2 ............................................................ 79

BFSK ........................................................ 80

CID ............................................................ 85

SIA ............................................................ 83

General PIN ................................................... 28

Ground Fault Detect ............................. 22, 47

Ground Start ................................................. 21

HEX Values ................................................... 32

History, Read Event ................................. 1, 30

Input

Cross Matrix ..................................... 21, 66

Multiple Zone ............................................ 20

Single Zone .............................................. 20

Installation

Control/Communicator ................................ 8

Enclosure ................................................... 8

Fire Considerations .................................. 27

Interior Delayed ............................................ 19

Interior Entry/Exit Follower ........................... 20

Interior Home/Away ..................................... 20

Interior Instant ................................................ 20

Invisible Alarm....................................... 19, 35

Keypad ........................................................... 4

Keypad Alarms ............................................. 26

Keypad Assignment ............................. 22, 44

Keypad, Master ............................................ 29

Keypad Reports ........................................... 23

Keypad Sounder Output .............................. 21

Keyswitch Input ........................................... 20

Latch on Any Zone Alarm ............................ 21

Load Number ................................................ 25

Local Program Reports................................. 24

Low Battery .................................................. 23

Low Temperature Alarm ...................... 20, 21

Master Code ......................................... 28, 59

Master Keypad

Arming from ............................................. 29

Disarming from ......................................... 29

Displays.................................................... 29

Master Keypad Programming ....................... 22

Master PIN ..................................................... 28

Maximum Security Arming ............... 1, 19, 34

Multiple Keypad Use ..................................... 23

Multiple Zone Input ........................................ 20

Multiplex

Bus Outputs ............................................. 21

Bus Wiring Requirements .......................... 4

Smoke ....................................................... 20

Zone Addressing ..................................... 86

Normal Arming ................................. 1, 19, 34

Octal Relay Modules ..................................... 60

ON Outputs ................................................... 21

Open/Close Reports ...................... 23, 24, 49

Output ............................................................. 4

Access..................................................... 21

Cross Matrix ..................................... 21, 66

Keypad Sounder ...................................... 21

Multiplex Bus ............................................ 21

Panic/Duress ............................................ 21

Partition Assignment ................................ 42

Programming .................................... 21, 41

Output Function ............................................ 21

Partition Assignment ................................ 67

Programming ............................................ 66

Pager Delay .................................................. 59

Panic Key .............................................. 22, 45

Panic/Duress Output .................................... 21

Partition .................................................... 4, 29

Partition Assignment ..................................... 38

Partition Control Programming .............. 21, 42

Perimeter Arming ............................. 1, 19, 34

Perimeter Instant .............................. 1, 19, 34

Phone Answering Programming .......... 24, 58

Phone Number

Alternate between two ........................... 23

Dial Pulse/Tone on All ............................... 24

Programming .................................... 57, 74

PIN ................................................................. 28

Authority Levels....................................... 28

Length ...................................................... 59

Worksheet ........................................ 13, 14

Program Addresses ..................................... 93

Programmer’s Code .............................. 32, 59

Programming a Zone .................................... 35

Pulsing Fire Zone .......................................... 22

Quick Arm Control ........................................ 43

Read Event History .................................. 1, 30

Receivers ..................................................... 58

Remote Program Dial-out & Answer .............. 1

Remote Program Reports ............................. 24

Report Programming ............................. 23, 53

Reporting Problems ...................................... 88

Reports

AC .................................................... 23, 24

Battery...................................................... 23

Communicator Test .................................. 24

Dirty Chamber .......................................... 24

Duress...................................................... 23

Exit Error .................................................. 24

Keypad ..................................................... 23

Local Program .......................................... 24

Mux. Smoke Low Temperature ................ 24

Open/Close ............................... 23, 24, 49

Remote Program....................................... 24

System Trouble ........................................ 24

Walk Test .................................................. 24

Zone ................................................. 19, 23

Zone Restoral .......................................... 19

Reset

Error Display .............................................. 1

Fire ............................................................. 1

Restore ................................................. 19, 34

RS232 Interface ........................................... 52

SIA Formats .................................................. 83

Silencing Alarms ...................................... 1, 26

Silent Alarm ................................................... 19

Single Keypad Use ....................................... 23

Single Partition Mode .................................... 29

Single Zone Input .......................................... 20

Siren on Communication Fail ................ 19, 34

Smoke Alarm................................................. 20

Solid State Output Modules .......................... 21

Special Emergency Key ............................... 22

Supervisory Zone ........................................ 20

Swinger Shunts ................................... 19, 34

System

Problems .................................................. 89

Status (ready to arm) .............................. 21

Trouble Reports ....................................... 24

Walk Test ............................................. 1, 24

Worksheet ........................................ 12, 18

System Reset ............................................... 30

Temperature Alarm ....................................... 21

Temporal ........................................................ 22

Temporary PIN ............................................... 28

Test

Battery ................................................. 1, 31

Battery/Sounder.................................. 1, 31

Communicator ..................................... 1, 31

Fire Walk ............................................. 1, 31

System Walk ....................................... 1, 31

Test Report ................................................... 68

Timer Programming ............................... 50, 68

Trouble

Fire ...................................................... 1, 26

On Open ................................................... 19

On Shor ................................................... t 19

Zone Function .......................................... 23

UL Listings .................................................... 75

Unlimited PIN .................................................. 28

Water Flow Zone ......................................... 20

Water Flow Zone Delay ............................... 22

Wiring .................................................. 4, 9, 10

Worksheets

4/2 Format ................................................ 79

Alpha Description Programming ...... 70, 73

BFSK Format ............................................ 80

Pager Format ............................................ 82

Phone Number Programming ................... 74

PIN .................................................... 13, 14

System ............................................. 12, 18

Zone Location and Notes ................ 15, 18

Zone................................................................ 4

24-Hour .................................................... 19

Alarm ........................................................ 21

Alarm Delayed .......................................... 21

Bypass ................................................ 1, 39

Day Monitor .............................................. 20

Entry/Exit Delay ................................ 19, 20

Fire ........................................................... 20

Interior Entry/Exit Follower....................... 20

Interior Home/Away ................................. 20

Interior Instant .......................................... 20

Keyswitch Input ....................................... 20

Location and Notes Worksheet ....... 15, 18

Multiplex.................................................... 86

Multiplex Smoke ........................................ 20

Perimeter Instant ...................................... 19

Problems .................................................. 88

Programming ............................................ 20

Pulsing Fire ............................................... 22

Supervisory ............................................. 20

Water Flow .............................................. 20

Zone Function............................................... 19

Programming ............................................ 35

Reports..................................................... 23

Zone Restoral Reports ................................. 19

Zone Test ....................................................... 31

Index - continued

Bosch Security Systems, Inc.

130 Perinton Parkway

Fairport, NY, USA 14450-9199

(800) 289-0096

DS7400Xi (4+) Installation Instructions

P/N: F01U035325-01 7/07 Page 100

Boschhome Bosch Appliances Home Security System Ds7400Xi Users Manual F01U035325 01 (4+) Ref. Guide.PMD

en-us DS7400Xi_Version_4__Quick_Selection_Guide_enUS_2511502475 DS7400Xi Series Addressable Control Panels

DS7447E to the manual e70862ae-1167-4f47-9568-77a6b5c80283

Navigation menu

Versions of this User Manual:

Views

Navigation
