Manual 47150A

SERVICE

MANUAL

For Bradford White

TTW® Series Models:

M2TW75T*(BN,CX)

TW475S76(B,C)* (N,X)

(*) Denotes Warranty Years

Gas Water Heaters

TTW 75 SERIES

Troubleshooting Guide

and Instructions for Service

(To be performed ONLY by

qualified service providers)

Bradford White

TTW Series

Gas Water Heaters

Table of Contents

Page TTW Service Procedure

Introduction 4 - - -

How to use this manual 5 - - -

Tool required for service 5 - - -

Specifications 6 - - -

Control Timings 8 - - -

Sequence of Operation 9 - - -

Troubleshooting 12 - - -

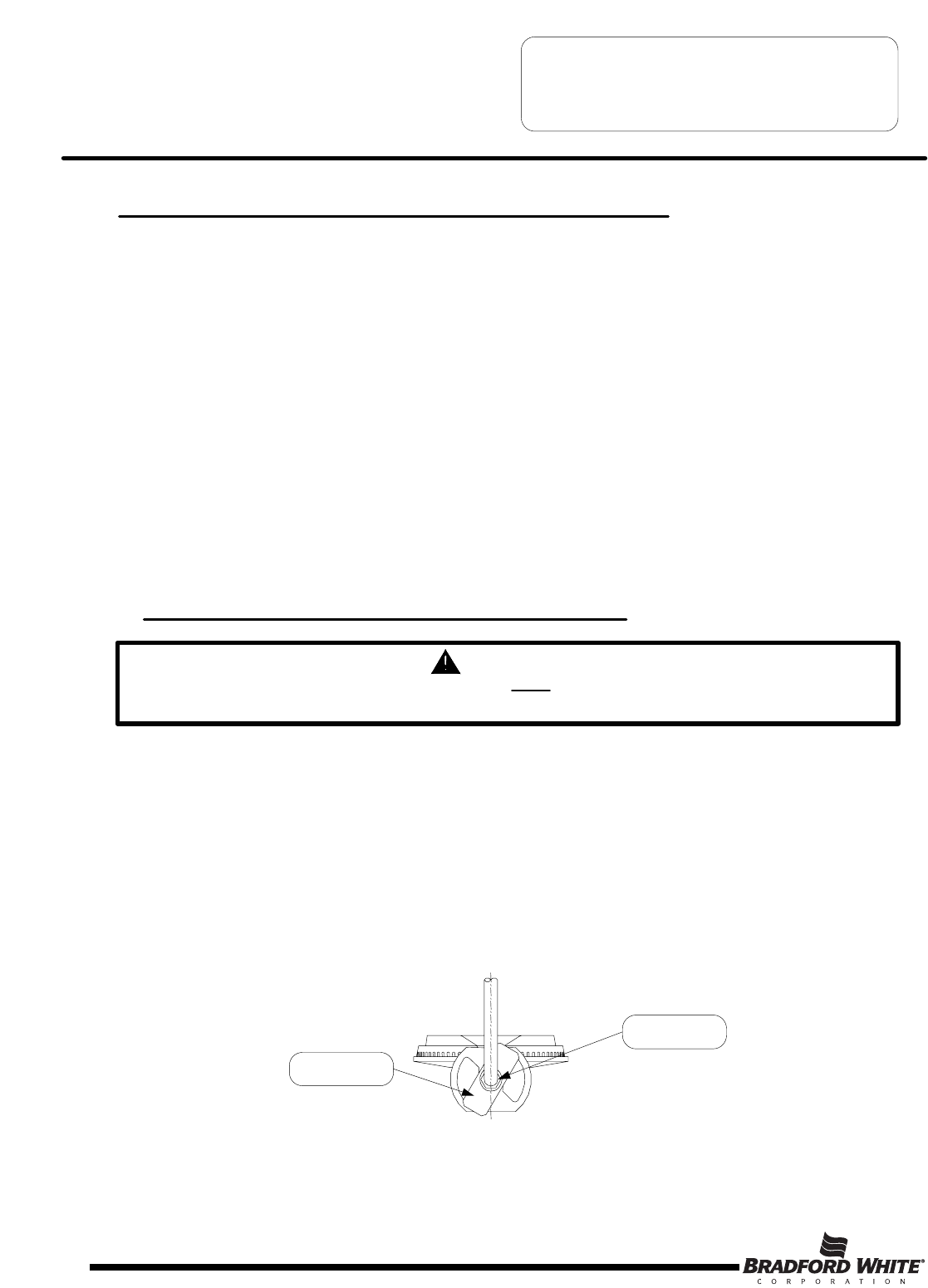

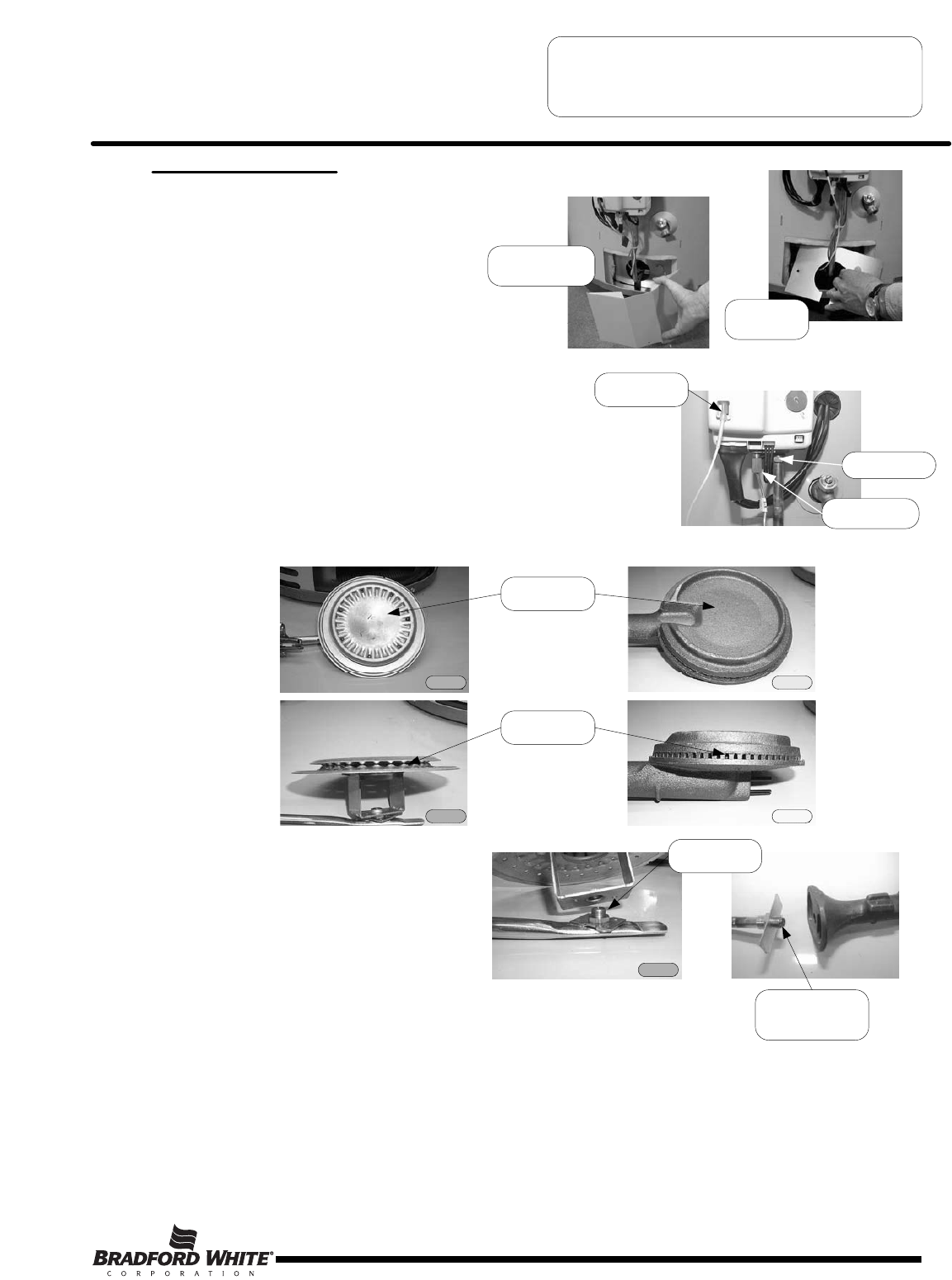

Burner Inspection, Cleaning and Replacement 14 I

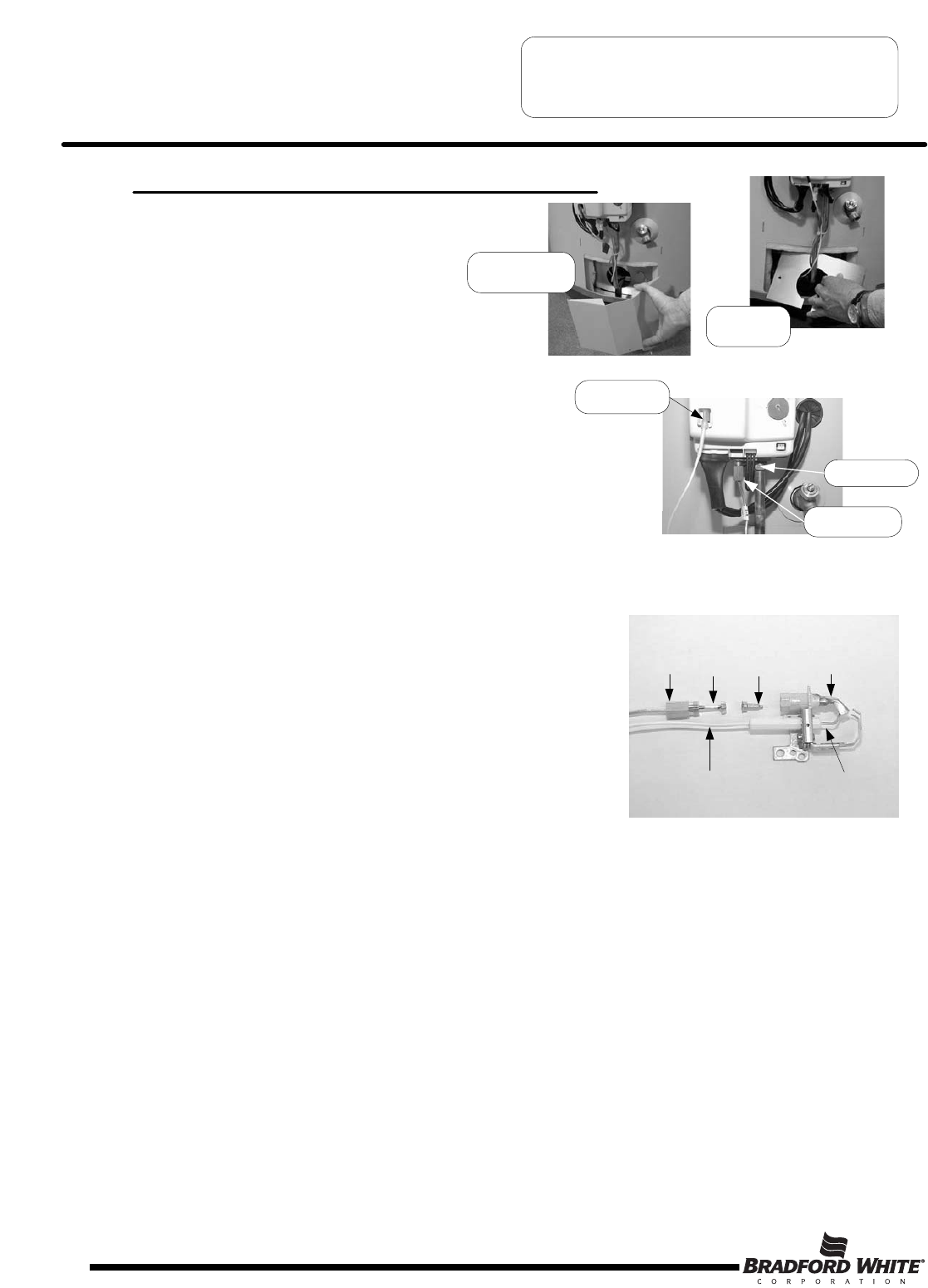

Pilot Testing, Cleaning and Replacement 16 II

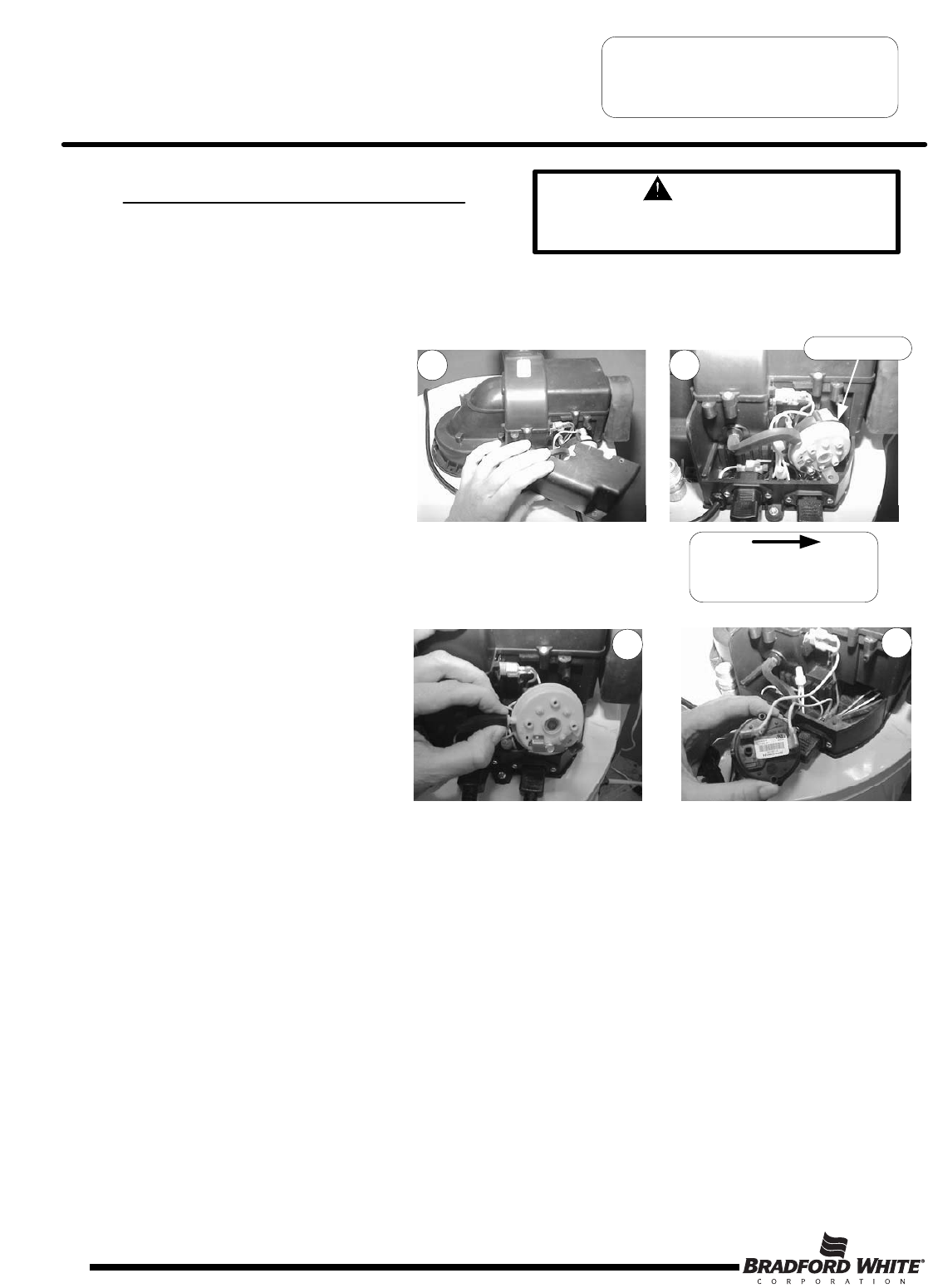

Pressure Switch Testing and Replacement 17 III

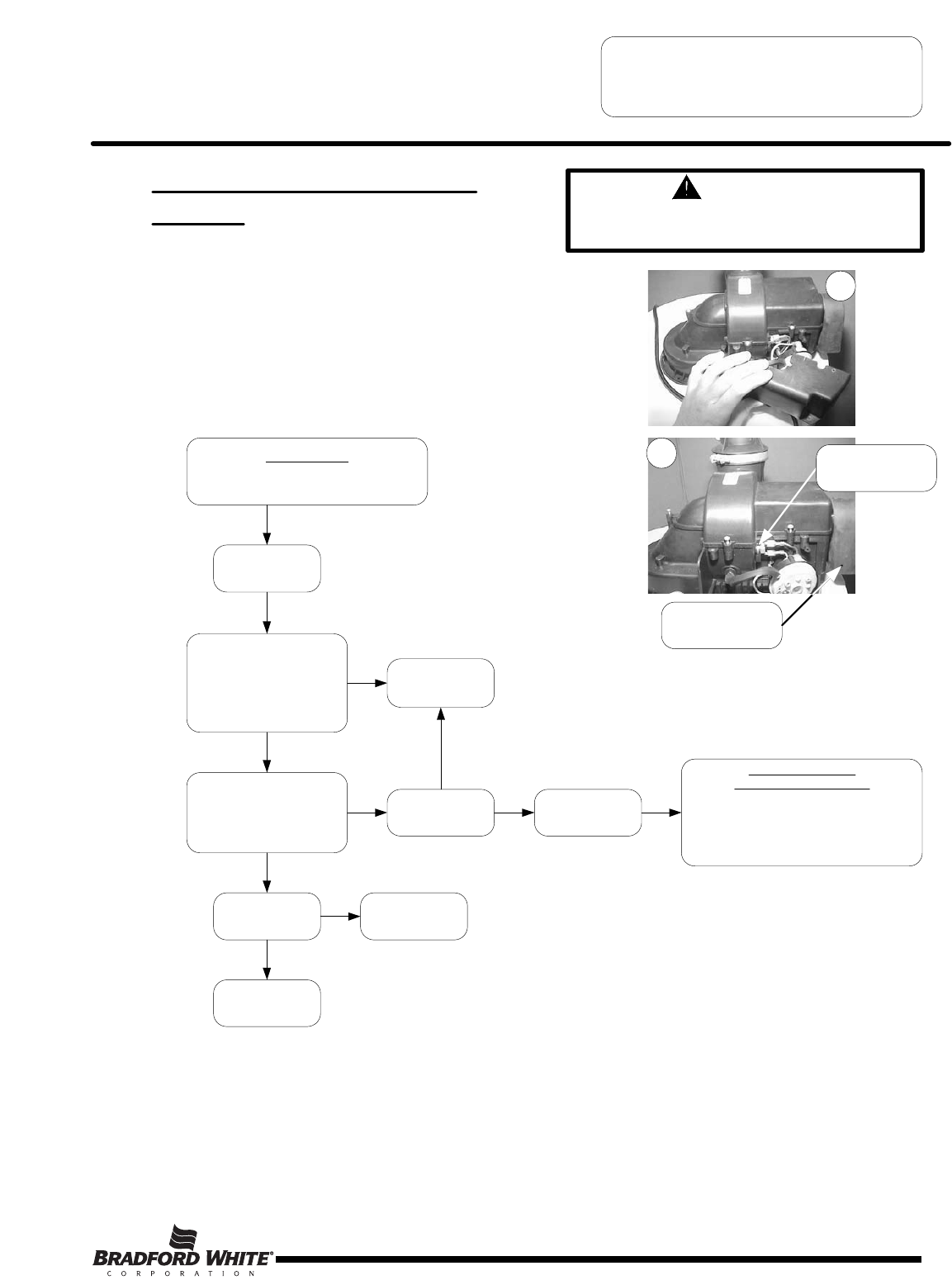

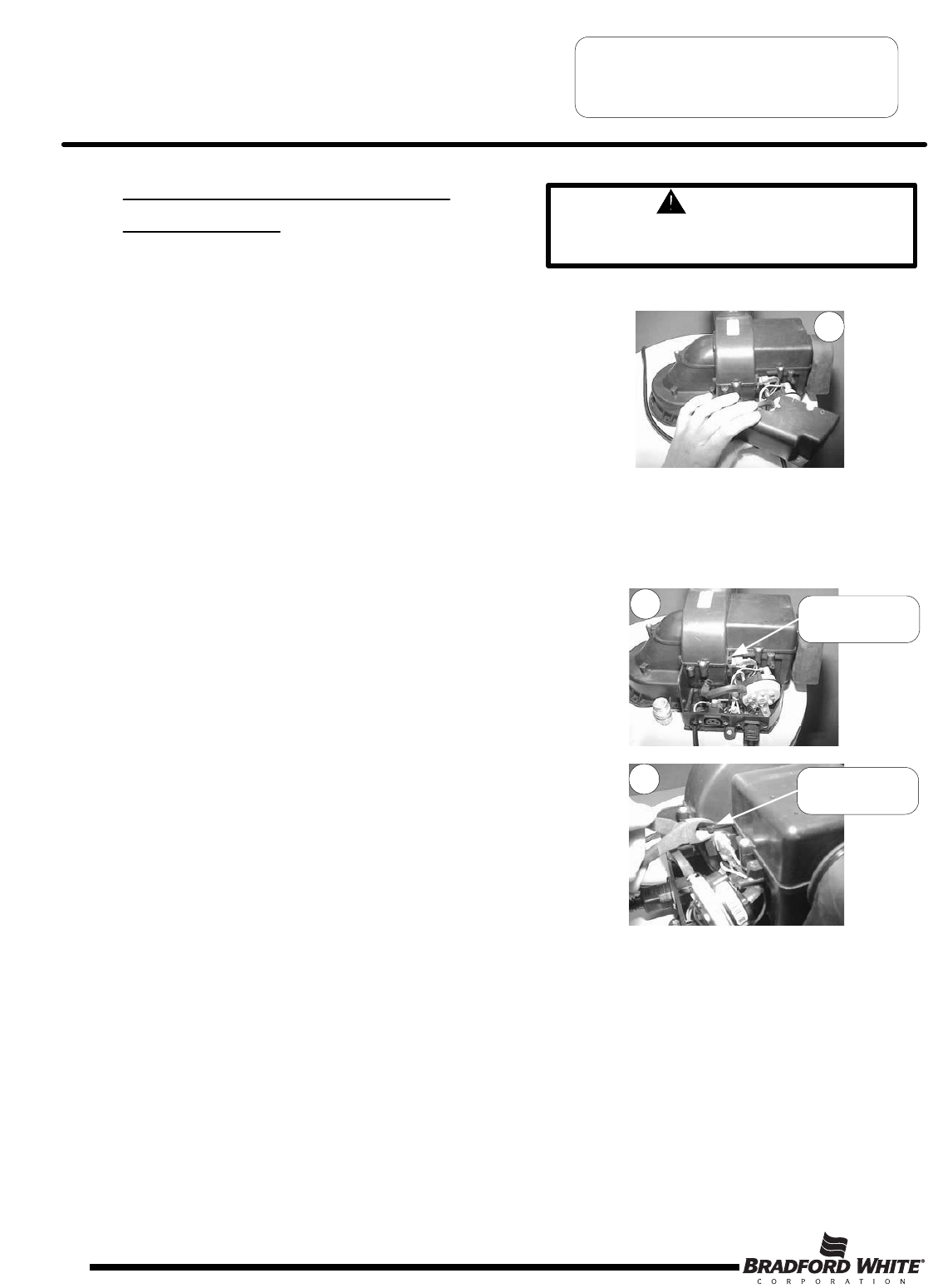

Blower Testing and Replacement 19 IV

Blower Temperature Switch Testing and Replacement 21 V

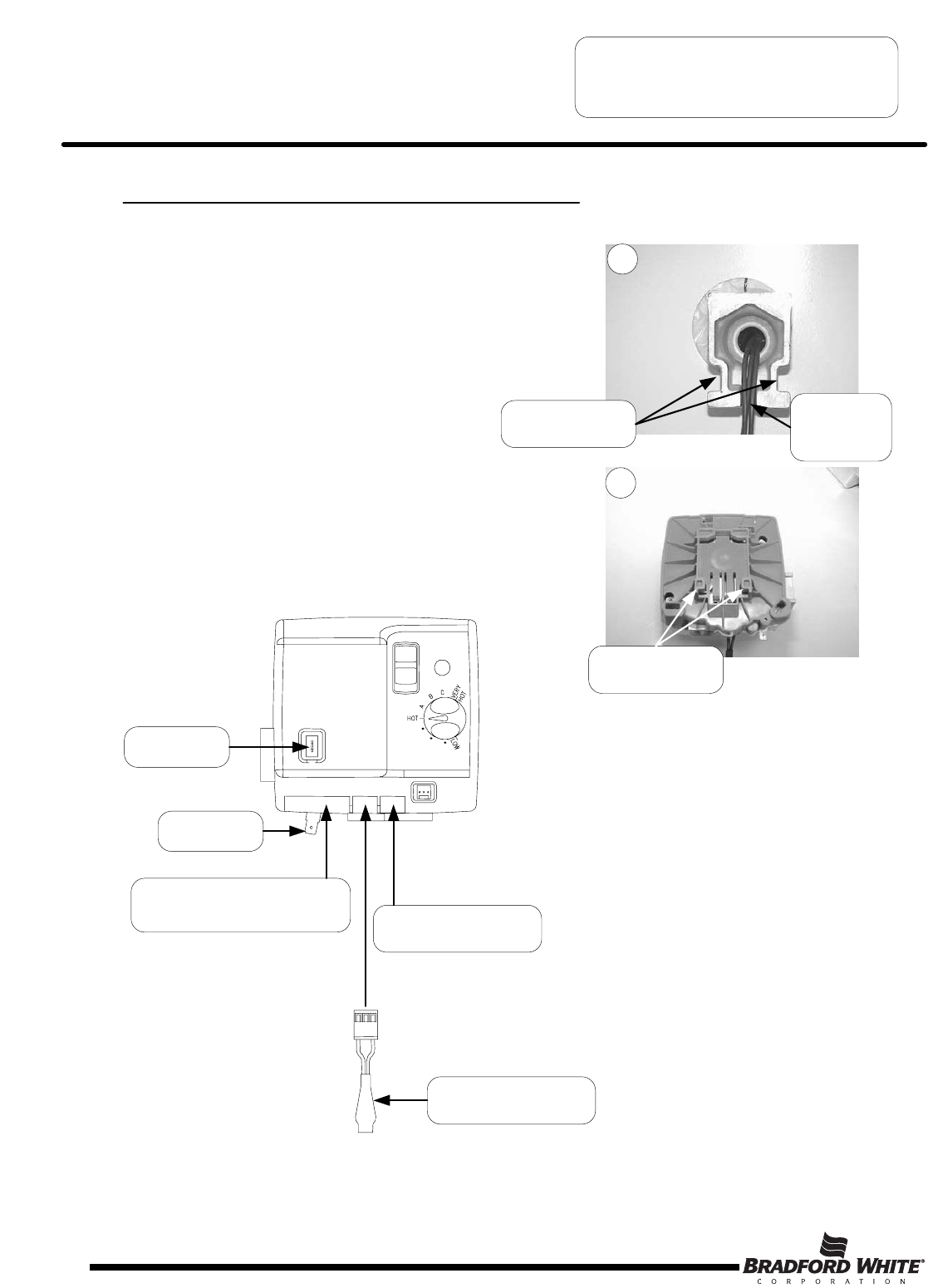

Gas Control & Thermal well Testing & Replacement 23 VI

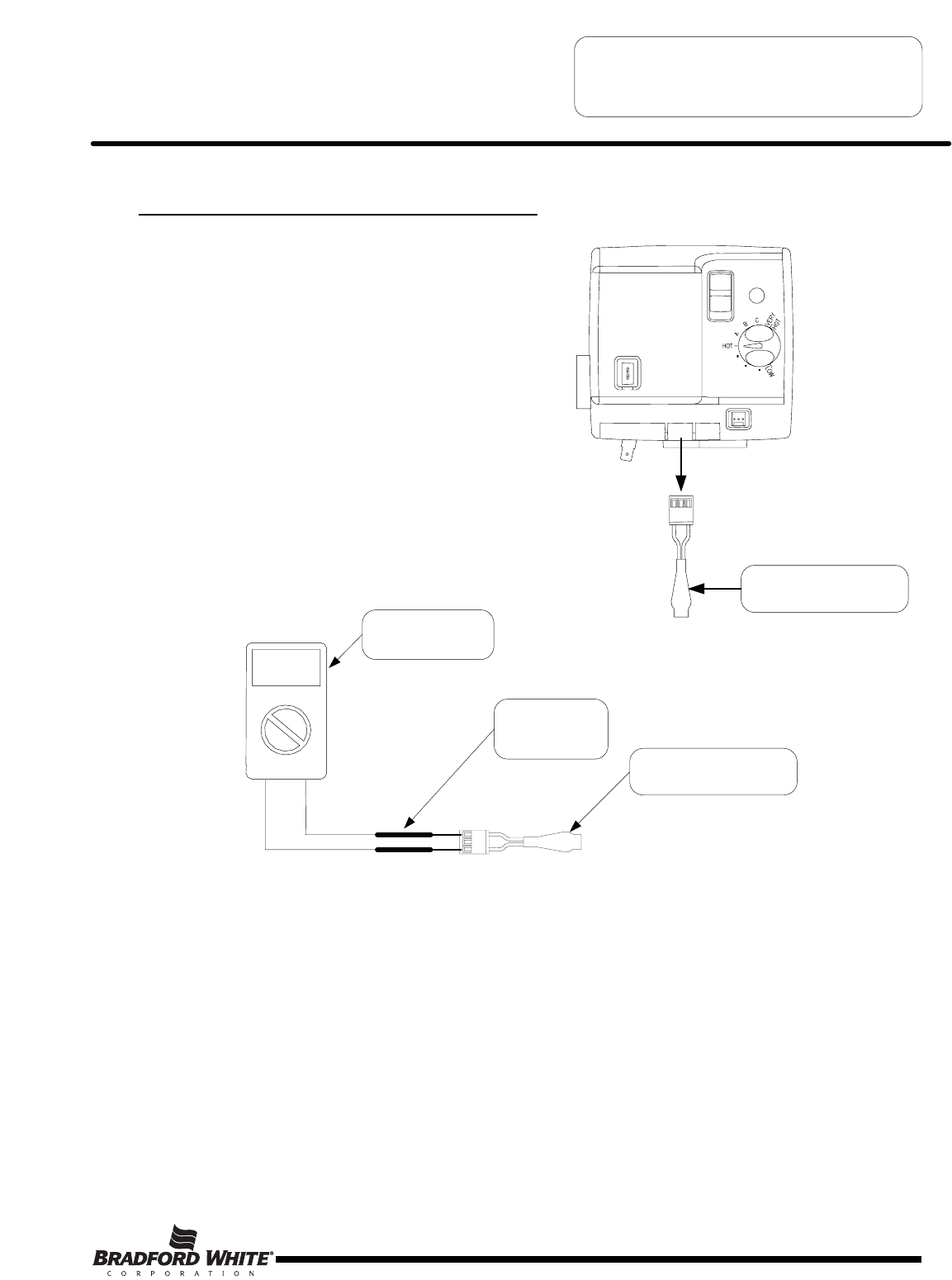

Simulated Resistive Device Testing and Replacement 27 VII

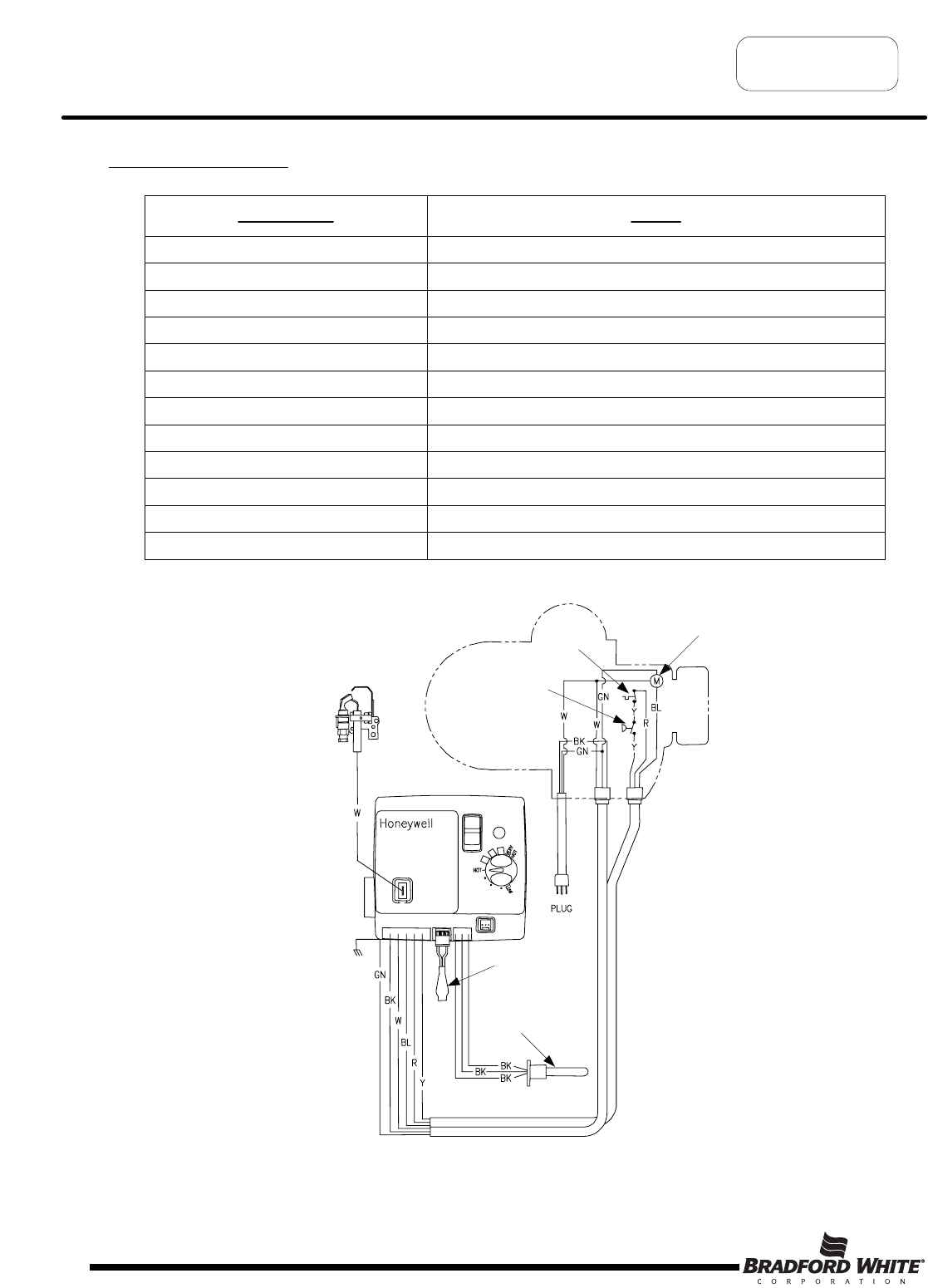

Safety Circuit Voltage Trace 28 VIII

115VAC Circuit Trace 29 IX

Dip Tube inspection and Replacement 30 X

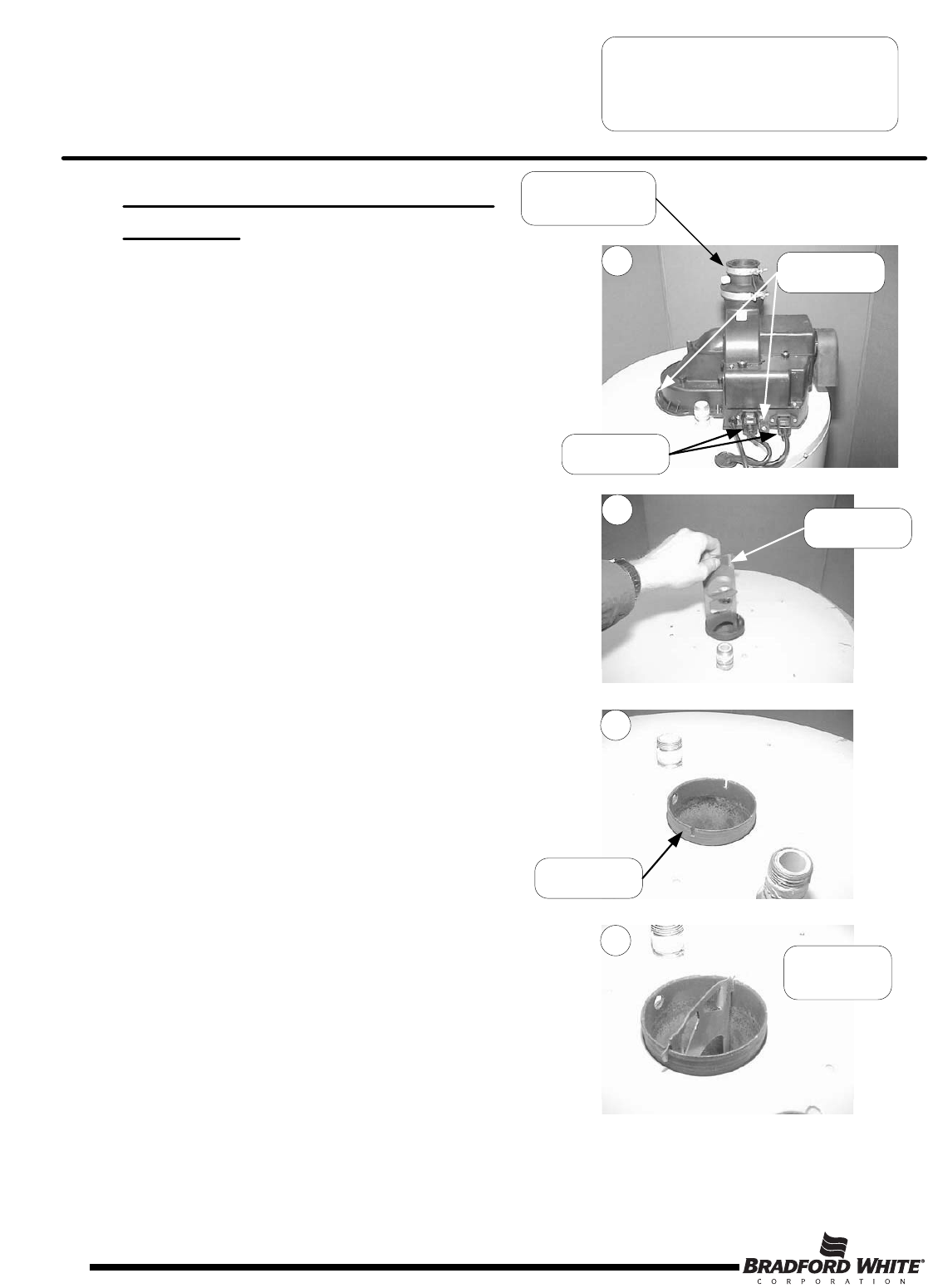

Anode Inspection and Replacement 31 XI

Flue Baffle Inspection and Replacement 32 XII

Glossary of Terms 33 - - -

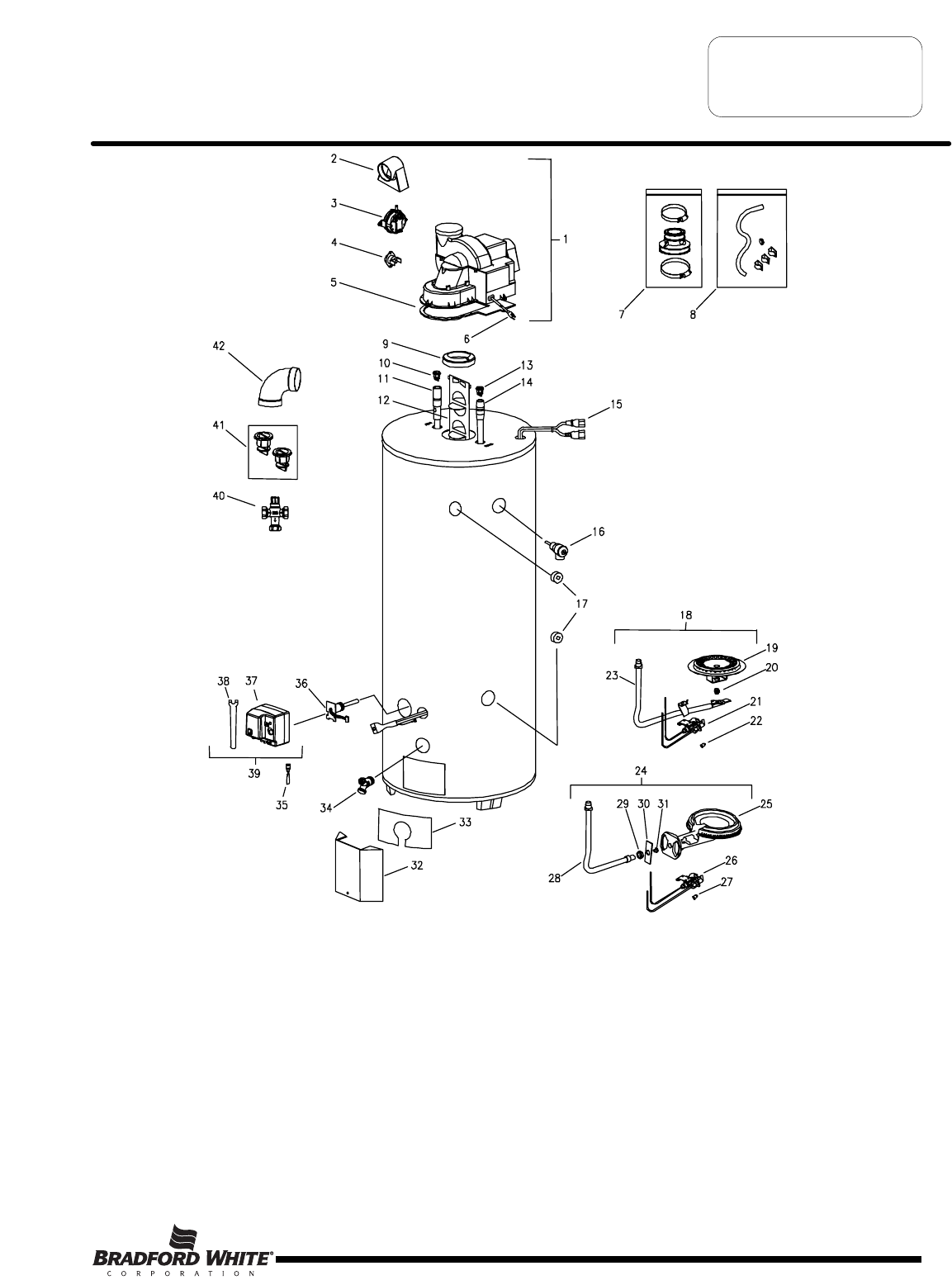

Parts List 35 - - -

Page 2

WARNING: If the information in these

instructions is not followed exactly, a fire or

explosion may result causing property damage,

personal injury, or death.

WHAT TO DO IF YOU SMELL GAS

Do not try to light any appliance.

Do not touch any electrical switch; do not use any

phone in your building.

Immediately call your gas supplier from a neighbor's

phone. Follow the gas supplier's instructions.

If you cannot reach your gas supplier, call the fire

department.

Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

FOR YOUR SAFETY

Do not store or use gasoline or other

flammable, combustible, or corrosive vapors

and liquids in the vicinity of this or any other

appliance.

CAUTION

Incorrect operation of this

appliance may create a hazard to

life and property and will nullify the

warranty.

DANGER

Do not store or use gasoline or

other flammable, combustible, or

corrosive vapors and liquids in the

vicinity of this or any other

appliance.

IMPORTANT

Before proceeding, please inspect the

water heater and its components for

possible damage. DO NOT install any

water heater with damaged

components. If damage is evident

then please contact the supplier where

the water heater was purchased or the

manufacturer listed on the rating plate

for replacement parts.

WARNING

Water heaters are heat producing appliances. To

avoid damage or injury, do not store materials

against the water heater or vent-air intake system.

Use proper care to avoid unnecessary contact

(especially by children) with the water heater and

vent-air intake components. UNDER NO

CIRCUMSTANCES MUST FLAMMABLE

MATERIALS, SUCH AS GASOLINE OR PAINT

THINNER BE USED OR STORED IN THE VICINITY

OF THIS WATER HEATER, VENT-AIR INTAKE

SYSTEM OR IN ANY LOCATION FROM WHICH

FUMES COULD REACH THE WATER HEATER

OR VENT-AIR INTAKE SYSTEM.

WARNING

DO NOT ATTEMPT TO LIGHT ANY GAS APPLIANCE

IF YOU ARE NOT CERTAIN OF THE FOLLOWING:

Liquefied petroleum gases/propane gas and

natural gas have an odorant added by the gas

supplier that aids in the detection of the gas.

Most people recognize this odor as a “sulfur” or

“rotten egg” smell.

Other conditions, such as “odorant fade” can

cause the odorant to diminish in intensity, or

”fade”, and not be as readily detectable.

If you have a diminished sense of smell, or are in

any way unsure of the presence of gas,

immediately contact your gas supplier from a

neighbor's telephone.

Gas detectors are available. Contact your gas

supplier, or plumbing professional, for more

information.

CAUTION

If sweat fittings are to be used DO NOT apply heat to

the nipples on top of the water heater. Sweat the

tubing to the adapter before fitting the adapter to the

water connections. It is imperative that heat is not

applied to the nipples containing a plastic liner. WARNING

FAILURE TO INSTALL AND MAINTAIN A NEW,

LISTED 3/4” X 3/4” TEMPERATURE AND PRESSURE

RELIEF VALVE WILL RELEASE THE

MANUFACTURER FROM ANY CLAIM THAT MIGHT

RESULT FROM EXCESSIVE TEMPERATURE AND

PRESSURES.

WARNING

Hydrogen gas can be produced in an operating

water heater that has not had water drawn from the

tank for a long period of time (generally two weeks or

more). Hydrogen gas is extremely flammable. To

prevent the possibility of injury under these

conditions, we recommend the hot water faucet to be

open for several minutes at the kitchen sink before

you use any electrical appliance which is connected

to the hot water system. If hydrogen is present,

there will be an unusual sound such as air escaping

through the pipes as hot water begins to flow. Do

not smoke or have open flame near the faucet at the

time it is open.

CAUTION

Turn off or disconnect the electrical power supply to the

water heater before servicing. Label all wires prior to

disconnection when servicing controls. Wiring errors

can cause improper and dangerous operation. Verify

proper operation after servicing.

Page 3

Page 4

Introduction

The new Bradford White TTW2 & TW4 water heaters are designed to provide reliable

performance with enhanced standard features. New design features include reliable spark to

pilot ignition system, enhanced diagnostics, simplified servicing, significantly quiet operation

and additional vent lengths.

Spark to Pilot Ignition System - employing the spark to pilot ignition system promotes

reliable and consistent pilot and main burner ignitions to provide hot water on demand.

Integrated Immersion Thermostat/Gas Control Valve with LED - was developed for ease

of troubleshooting by providing simple diagnostic codes to pinpoint an installation or

component performance issue.

New Powerful Blower - will eliminate problems with difficult venting situations.

Quieter and Cooler Blower Operation - blower noise is significantly reduced for both

interior and exterior environments. Cooler operation increases blower life by reducing bearing

wear and noise.

Rugged Wiring Connections - receptacle type connections promote error free wiring.

Increased Vent Lengths - increased venting performance is achieved while maintaining

Energy Factor & FHSR performance.

The TTW2 & TW4 water heaters use a combustion system were flue gases are combined with

dilution air to reduce the flue gas temperature in the blower. The diluted flue gases are

evacuated to the exterior through low temperature vent materials. The gas control maintains

water temperature, ignition sequence and regulates gas flow. A safety circuit consisting of a

pressure switch and blower temperature switch verifies proper conditions exist for safe and

reliable operation. If a situation outside of normal operating parameters exists, the gas control

diagnostic LED will flash a code to positively identify an operational issue.

This service manual is designed to facilitate problem diagnosis and enhance service efficiency.

To further promote quicker service times the new gas valve can be removed and replaced

without draining the water heater. A special tool is required and will be provided with each gas

valve kit shipped from our Service Parts department.

Please read the service manual completely before attempting service on this new series of

power vent models.

Tools Required for Service

It is intended for this manual to be used by qualified service personal for the primary purpose of

troubleshooting and repair of the Bradford White TTW Series water heaters. Understanding the

sequence of operation section of this manual will contribute greatly to troubleshooting the water

heater.

The Honeywell WV4460E Electronic Gas Control will display error codes in the event of abnormal

operation. Error codes are listed in the troubleshooting chart beginning on page 12 of this service

manual. The troubleshooting chart will also indicate the probable cause for the error code and

direct the service professional to a service procedure to properly diagnose the abnormal operation.

In some difficult to diagnose conditions, it may be necessary to isolate the heater from the vent

system to determine the problem.

Contact the Bradford White technical support group immediately if diagnosis can not be made

using the methods described in this service manual.

Page 5

Manometer: A liquid “U” tube type or a digital (magna-helic) type can be used. This

device is used to measure gas and/or air pressure and vacuum.

Multi-Meter: A digital type is strongly recommended. This device is used to measure

electrical values. The meter you select must have the capability to

measure volts AC, volts DC, Amps, micro-amps and ohms.

Electronic Probes: In some cases, standard multi-meter probes will damage or simply

not be effective to obtain certain voltage and ohm reading. It will be

necessary to have special electronic “pin” type multi-meter probes.

These probes are available at most electronic wholesale outlets.

Thermometer: Used to measure water temperature. An accurate thermometer is

recommended.

Water Pressure Gage: Used to measure water supply pressure. Also used to determine tank

pressure by adapting to the drain valve of the heater.

Gas Control Service Tool: BWC part number 239-45991-00. A specialized tool designed to remove

the gas control from gas control thermal well. Available from

your Bradford White parts supplier.

Various Hand Tools: Pipe wrench, channel locks, open end wrenchs (3/8",7/16",½"),

12" crescent wrench, Allen wrench set, screw drivers (common &

Phillips), ¼" nut driver, pliers (common & needle nose), socket set, side

cutters wire cutters, wire strippers, wire crimpers, torpedo level, small

shop vac, step ladder, and flashlight, 5 gallon pail.

How to Use This Manual

Specifications

Thermal well TCO Limit Residential 188°F (87°C), Commercial 199°F (93°C)

Residential Temperature

Set Point Range 60°F (16°C) to 160°F (71°C) (Approximate temperatures)

Blower Temperature

Switch Normally closed, opens @ 165°F (74°C), auto reset @ 130°F (54°C).

Blower M2TW75 and TW475S Models:

115VAC, 60Hz, 3.1 amps, 3000 RPM, 68CFM@0.4" W.C.

Pressure switch M2TW75 and TW475S Models:

Normally open, closes on vacuum increase @ -1.28, opens on vacuum decrease @ -1.25

Power supply Dedicated 115VAC, 60 Hz, 15A

Approved Gas Type Natural or Propane. Unit must match gas type supplied.

Venting System Power vent through the wall or vertical through the roof

Approved Vent Materials PVC, CPVC or ABS

Gas Supply Pipe Minimum 1/2" NPT (schedule 40 black iron pipe recommended)

Minimum Clearance

for Servicing 18" from top, 24" from front, 4" sides and rear.

Water Supply Pressure 150 PSI maximum allowable working pressure. Check local codes for supply pressure

Gas Pressure 5.0" W.C. min. for Nat gas, 11.0" W.C. min. for L.P. gas, 14.0" W.C. maximum (Nat. & L.P.)

Commercial Temperature

Set Point Range 80°F (27°C) to 180°F (82°C) (Approximate temperatures)

Page 6

Specifications

Venting Specifications:

Through the Wall

Terminating # of

Elbows

Maximum

Length ft (m)

Minimum

Length ft (m)

3" Diameter (7.6 cm) PVC Vent Connector Lengths

145 (13.7) 2 (.6)

Through the Wall 240 (12.2) 2 (.6)

Through the Wall 335 (10.7) 2 (.6)

Through the Wall 430 (9.1) 2 (.6)

Through the Wall

Terminating # of

Elbows

Maximum

Length ft (m)

Minimum

Length ft (m)

4" Diameter (10.2 cm) PVC Vent Connector Lengths

1175 (53.3) 10 (3.1)

Through the Wall 2170 (51.8) 10 (3.1)

Through the Wall 3165 (50.3) 10 (3.1)

Through the Wall 4160 (48.8) 10 (3.1)

Through the Roof 050 (15.2) 7 (2.1)

Through the Roof 145 (13.7) 7 (2.1)

Through the Roof 240 (12.2) 7 (2.1)

Through the Roof 335 (10.7) 7 (2.1)

Through the Roof 0180 (54.9) 15 (4.6)

Through the Roof 1175 (53.3) 15 (4.6)

Through the Roof 2170 (51.8) 15 (4.6)

Through the Roof 3165 (50.3) 15 (4.6)

Through the Wall 5155 (47.2) 10 (3.1)

Through the Roof 4160 (48.8) 15 (4.6)

Vent Tables

Page 7

Control Timings

Ignition State Timing

Pre-purge 2 Seconds

Trial for Ignition 90 Seconds

Flame Stabilization Period 3 Seconds

Inter-purge 15 Seconds

Flame Failure Response Time 1.5 Seconds (2 second. Maximum; 1 second minimum.)

Post-purge 15 Seconds

PS Fault Delay (failed open/close) Retry after 2 Minutes

Soft Lockout Retry after 5 Minutes

TCO Limit Lockout Indefinite (cycle power to restart)

Simulated Resistive Load Lockout Indefinite (cycle power to restart)

Hardware Error Lockout Indefinite (self clears if fault clears for at least 15 seconds)

Verify Resistive Delay Retry after 2 Minutes (repeats 5 times)

Specifications

Page 8

Blower

Motor

Blower

Temperature

Switch

Pressure

Switch

Pilot

Blower

Housing

Wiring Diagram

Simulated

Resistive

Device

Thermal

Well

Sequence of Operation

Thermostat calls for heat.

Prior to energizing blower, gas control checks safety circuit to insure the circuit is open. Normal switch positions

in the safety circuit are as follows:

a) Pressure switch normally open.

b) Blower temperature switch normally closed.

If the safety circuit is closed, the control waits 4 seconds, gas control LED flashes 2 times with 3 second pause.

Gas control waits 2 minutes then, blower runs for 30 seconds. This cycle repeats until safety circuit opens.

Power up Sequence

1Start Up.

Upon power up, the control runs a safe-start check with a typical start-up delay of 1-5 seconds.

2Simulated Resistive Load Device Check.

To assure no outputs are energized if the “Simulated Resistive device” is out of range, the control will test the

the device for proper operating range. If the device is within range the control resumes normal operation with no

perceptible delay. If the device is out of range, the control LED immediately flashes 7 times with 3 second pause.

Normal Heating Sequence

2Blower energizes.

Pressure switch proves blower/vent system operation.

If the pressure switch does not close within 30 seconds, the control LED Flashes 3 times with 3 second pause.

The blower runs for 30 seconds every 2 minutes trying to get the pressure switch or blower temperature switch to

close. This cycle repeats as long as there is a call for heat.

Blower pre-purge period (2 seconds)

5Trial for pilot ignition (90 seconds).

a) The gas control lights the pilot by activating spark igniter and gas flow to pilot burner.

b) If flame is not sensed within 90 seconds, igniter and gas flow are deactivated, blower will post purge and

control LED flashes 6 times with 3 second pause.

6Main burner Ignition

After pilot flame is sensed, gas control activates main valve for main burner ignition. The gas control will ignore

flame and pressure switch signals for 3 seconds allowing for main burner to stabilize.

Page 9

Steady state operation.

During Steady State Operation the Control Monitors:

Thermostat temperature sensor- When set point temperature is satisfied, gas valve is shut down and

blower will post purge for 15 seconds. Control LED flashes a short flash once every 4 seconds (idle) status

code.

Pressure switch / Blower temperature switch- If either switch opens, pilot valve and main valve is shut

down. The blower continues to runs for 30 seconds attempting to close the circuit. The control LED Flashes

3 times with 3 second pause.

Flame Sensor- If flame is lost, pilot & main valve are shut down, blower runs for 15 seconds. Control attempts

to re-light pilot 4 times. If unsuccessful, Blower is shut down and control proceeds to 5 minute lockout. Control

re-attempts to light pilot starting at normal heating sequence #2.

Thermostat satisfies.

Burner off.

Blower post purge (15 seconds).

Sequence of Operation

Abnormal Operation

1. Simulated Resistive Device Fault:

a) If the resistance is greater than 70,000 Ohms - the gas control immediately turns off all outputs. Control waits

and monitors resistance for 30 seconds. If the resistance is greater than 70,000 ohms after 30 seconds, the

gas control proceeds to verify resistive delay for 2 minutes and flashes 8 times then once with a three second

pause. This process is repeated 5 times until the control either returns to normal operation or proceeds to flashing

7 times with a 3 second pause.

b) If the resistance is below 3000 ohms - The gas control immediately turns off all outputs and proceeds to flash

8 times then once with three second pause. The error self clears if the resistance returns to normal range for at

least 15 seconds.

Normal Heating Sequence (cont.)

2. Temperature Sensor Fault:

a) Temperature sensor detected open circuit - The gas control Immediately turns off all outputs and proceeds to

flash 8 times then twice with three second pause. The error self clears if the fault clears for at least 15 seconds.

b) Temperature sensors not reading the same temperature within ±5.5 °F - The gas control Immediately turns off

all outputs and proceeds to flash 8 times then three times with three second pause. The error self clears if the fault

clears for at least 15 seconds.

c) Water temperature in excess of TCO (Temperature Cut Off) limit - The gas control immediately turns off pilot &

main valve and proceeds to flash 4 times with 3 second pause. Blower continues to run until gas control is reset.

Power needs to be cycled to remove gas control from TCO lockout.

Page 10

Sequence of Operation

Abnormal Operation (cont.)

3. Pressure Switch/Blower Temperature Fault:

a) Pressure switch closed at start of call for heat - The gas control waits four seconds then, proceeds to flash

2 times with 3 second pause. The control waits 2 minutes and then turns on blower for 30 seconds. The blower

turns off after 30 seconds and the control waits for pressure switch to open. Any time the Pressure switch opens,

the blower turns on (or stays on) and the control proceeds to waiting for pressure switch to close.

b) Pressure switch or blower temperature switch failed open - The gas control runs the blower for 30 seconds

waiting for the pressure switch and/or blower temperature switch to close. If either switch does not close in 30

seconds, the blower turns off and the control flashes 3 times with 3 second pause. The gas control waits two

minutes before turning on the blower for another 30 seconds to see the circuit close. This cycle repeats as long as

there is a call for heat or until the circuit closes.

c) Pressure switch or blower temperature switch opens during burner operation - The gas control turns off the

pilot and main valve, runs blower for 15 seconds (inter-purge) waiting for pressure switch and/or blower

temperature switch to close. If either switch fails to close, the control proceeds as described in 3b above. If the

circuit closes again by the end of the inter-purge, the recycle counter is incremented, if the recycle count has

not reached its limit (4), another trial for ignition begins. If the recycle count has been reached, the gas control

turns off the blower and flashes 6 times then 2 times with 3 second pause. The gas control waits 5 minutes before

repeating ignition sequence.

4. Trial For Ignition Fault:

a) Pressure switch opens during trial - The gas control turns off igniter and pilot valve. The gas control proceeds

as described in 3b above. If the pressure switch closes within 30 seconds the gas control will continue with trial for

ignition starting at blower pre-purge.

b) Flame Not Sensed - The gas control energizes the spark igniter attempting to light the pilot and prove flame. If

flame is not sensed within 90 seconds, the igniter turns off, the pilot valve is closed and the gas control runs the

blower through post purge and flashes 6 times then once with 3 second pause. The control waits 5 minutes before

repeating the ignition sequence.

5. Flame Sensing Fault:

b) Flame lost during run - The gas control turns off pilot and main valves, runs blower for 15 seconds (inter purge).

The gas control increments the recycle count, if the recycle count has not reached its limit (4), another trial for

ignition begins. If the recycle count has been reached, the gas control turns off the blower and flashes 6 times

then 3 times with 3 second pause. The gas control waits 5 minutes before repeating the ignition sequence.

c) Flame sensed out of sequence - the gas control only looks for pilot flame when the blower is running. If flame is

present when the pilot valve is not open, the gas control proceeds to wait for flame loss and flashes 5 times with 3

second pause. This continues until flame is lost, once the flame signal is lost, the control flashes 6 times then 4

times with 3 second pause. The control waits 5 minutes before repeating the ignition sequence.

Page 11

Short flash, once every

four seconds

“Heartbeat”, alternates

bright/dim

Thermostat calling

for heat (no fault).

Short flash once per

second

Weak pilot signal

on last call for

heat.

Two flash, three

second pause

Pressure switch

not working-

closed position.

Three flash, three

second pause

Pressure switch

or blower temp.

switch not working

-open position.

Four flash, three

second pause

Excessive tank

temperature.

System must be

reset.

Five flash, three

second pause

Undesired-false

pilot flame

present.

Troubleshooting

LED Status

Stand-by mode,

Waiting for call for

heat (no fault).

Control

Status

Service

Procedure

Probable Cause

Temperature demand is satisfied

Normal operation.

Adjust thermostat to

temp level

Tank temperature below set point of thermostat.

Normal operation.

Adjust thermostat to

temp level

1. Unstable pilot.

2. Pilot tube block or restricted.

3. Oxidation build up on pilot electrode.

4. Wire damage to pilot assembly or bad

connection at gas valve.

1. Page 14

2-4. Page 16

1. Pressure switch tubing kinked or blocked.

2. Blocked pressure tap on switch or blower.

3. Faulty pressure switch.

Page 17

1. Vent blockage or improper vent configuration.

2. Pressure switch tubing kinked or blocked.

3. Faulty pressure switch.

4. Blower not spinning up to speed.

5. Blower temp or exhaust temp too high

6. Faulty blower temperature switch.

1. Check vent or vent tables.

2 & 3 Page 18

4. Page 19

5 & 6 Page 21

1. Thermal well sensor out of calibration.

2. Faulty gas control.

3. Pluming leak

1. Page 23

2. Replace gas control,

page 23

1. Pilot valve stuck in open position. Replace gas control,

page 23

None, control LED not

on or flashing

No electrical

power

Control power switch in “OFF” position.

Supply voltage interrupted. Turn power on

Page 12

Observe green LED indicator on

Electronic gas control. Error flash codes

are displayed with a three second pause

before repeating. Check and repair the

system as noted in the troubleshooting

table below.

Green LED

Indicator

Six-four flash, three

second pause

Undesired-false

pilot flame

sensed.

System auto

resets.

Seven flash, three

second pause

Simulated

Resistive Device

Harness out of

specification.

Eight-one flash, three

second pause

Simulated

Resistive Device

Harness

specification

check.

Thermal well

sensor damaged

or unplugged

Eight-three flash, three

second pause Gas valve

electronics fault

detected

LED Status Control

Status

Service

Procedure

Probable Cause

Pilot valve stuck in open position. Replace gas control,

page 25

Simulated resistive device out of specification. Page 27

1. Damage to thermal well wire.

2. Thermal well sensor resistance out of range. Page 23

1. Control needs to be reset.

2. Control is wet or physically damaged.

1. Interrupt power supply

2. Replace gas control,

page 25

Eight-four flash, three

second pause

Gas valve fault

detected.

1. Control needs to be reset.

2. Control is wet or physically damaged.

1. Interrupt power supply

2. Replace gas control,

page 25

Troubleshooting

Six-three flash, three

second pause

Pilot flame

extinguished.

System auto

resets.

1. Unstable pilot.

2. Pilot tube blocked or restricted.

3. Oxidation build up on pilot electrode.

4. Wire damage to pilot assembly or bad

connection at gas valve.

5. Insufficient combustion air.

6. Gas pressure is out of specification.

1. Page 14

2-4. Page 16

5. Refer to installation manual

Page 13

Six-two flash, three

second pause

Pressure switch

or blower temp

switch opened

during burner

operation.

System auto

resets.

1. Check vent or vent tables.

2 & 3 Page 17

4. Refer to venting section of

installation manual

5. Page 19

6 & 7 Page 21

1. Vent blockage or improper vent configuration.

2. Pressure switch tubing kinked or blocked.

3. Faulty pressure switch.

4. Vent termination being affected by wind

5. Blower not spinning up to speed.

6. Blower temp or exhaust temp too high

7. Faulty blower temperature switch.

Six-one flash, three

second pause

Failed to light

pilot.

System auto

resets.

1. Unstable pilot.

2. Pilot tube blocked or restricted.

3. Oxidation build up on pilot electrode.

4. Wire damage to pilot assembly or bad

connection at gas valve.

1. Page 14

2-4. Page 16

Step 1. With main burner in operation, remove outer jacket door and slide inner door from left to right to open.

Step 2. To adjust for proper burning, loosen the air shutter nut, rotate the air shutter to close the opening in the

burner, then slowly rotate the air shutter open until flame becomes as blue as possible with a minimum of

yellow tips. Tighten the air shutter nut.

Too much air will cause the flame to lift off the burner ports and create noisy burner operation.

Too little air will result in soot formation.

Step 3. Close inner door and observe burner operation. Burner should operate as adjusted in step 2. If not,

repeat air shutter adjustment compensating for proper burner operation with inner door closed.

At periodic intervals (every 6 months) a visual inspection should be made of the pilot and main burner for proper

operation and to assure no debris is accumulating.

Pilot flame should be stable, some causes for an unstable pilot flame are:

a) Water heater vent is less than the allowable vent length.

b) Gas pressure is out of specification.

c) Pilot flame not fully engulfing spark/flame sensor.

Main burner should light smoothly from pilot and burn with a blue flame with a minimum of yellow tips.

Steel burner models self adjust air to gas ratio mixture and do not have an adjustable air shutter. Cast iron burner can

have the gas and air mixture properly proportioned by adjusting the air shutter on the mixer face of the main burner

(see cast iron burner adjustment below).

Main burner must be free from any debris accumulation that may effect burner operation (see burner cleaning

procedure on page 15).

Burner Inspection and Air Shutter Adjustment.

Cast Iron Burner Air Shutter Adjustment

WARNING

Inner door and burner components may be HOT when performing this operation. Take

necessary precaution to prevent personal injury.

Air Shutter Nut

TTW SERVICE PROCEDURE I

Burner Operation Inspection,

Adjustment, Cleaning and Replacement

Air Shutter

Page 14

Burner Cleaning

Step 1. Position gas control power switch to the

“OFF” position and unplug heater from wall

outlet.

Step 2. Turn off gas supply to water heater.

Step 3. Remove outer jacket door and remove inner door.

Step 4. Disconnect pilot tube (7/16 wrench) and

feedline (¾ wrench) from gas control.

Step 5. Disconnect igniter/flame sensor wire from gas control.

Step 6. Remove burner assembly from combustion chamber.

Step 7. Thoroughly inspect burner surface area and burner port area and

remove any loose debris.

Step 8. For cast iron burners, inspect for any debris build up inside

burner casting.

Burner

surface area

Burner

port area

Step 9. Unscrew burner from main burner

orifice. On cast iron burners, loosen

air shutter nut and unscrew feedline

from burner.

Step 10. Remove main burner orifice from

feedline (½" wrench on steel

burners, 3/8" wrench on cast iron)

inspect orifice, clean or replace if

necessary.

Step 11. Reassemble burner and reinstall into water heater. Restore gas supply

and check for gas leaks.

Step 12 To resume operation follow the instruction located on the lighting

instruction label or the lighting instruction located in the installation

and operating manual.

TTW SERVICE PROCEDURE I

Burner Operation Inspection,

Adjustment, Cleaning and Replacement

Page 15

L.P. Main burner

orifice. Left hand

thread

Main burner

orifice

Remove Outer

door.

Remove

inner door

Feedline nut

Pilot tubing nut

Igniter/flame

sense wire

TTW SERVICE PROCEDURE II

Pilot testing, Cleaning and Replacement

Pilot Inspection, Testing and Replacement

Step 1. Position gas control power switch to the

“OFF” position and unplug heater from wall

outlet.

Step 2. Turn off gas supply to water heater.

Step 3. Remove outer jacket door and remove inner door.

Remove Outer

door.

Remove

inner door

Feedline nut

Pilot tubing nut

Igniter/flame

sense wire

Step 4. Disconnect pilot tube nut (7/16 wrench) and feedline nut

(¾ wrench) from gas control.

Step 5. Disconnect igniter/flame sense wire from gas control.

Step 6. Remove burner assembly from combustion chamber.

Step 7. Remove pilot assembly from feedline (¼" nut driver).

Step 8. Visually inspect igniter/flame sense wire for damage. Replace

pilot if damage is found.

Step 9. With a multi-meter set to the ohms setting, check continuity

through igniter/flame sense wire. Replace pilot if no continuity.

Step 10. Visually inspect igniter/flame sense electrode for deterioration.

Replace pilot as necessary. Electrode should not be in contact

with pilot hood, If so, carefully adjust electrode to a gap

distance of 3/32" (.09) from pilot hood.

Step 11. Visually inspect igniter/flame sense electrode for oxidation

build up. Carefully clean any oxidation using very fine emery

cloth.

Step 13. Inspect pilot tubing and pilot orifice for blockage:

a) Remove ferrule nut from bottom of pilot assembly (7/16" wrench).

b) Remove pilot tube and pilot orifice.

c) Inspect pilot tubing and pilot orifice for blockage. Clean

or replace as necessary.

Step 14. Reassemble pilot and install to feedline. Reinstall burner assembly to water heater. Restore gas supply

and check for gas leaks.

Step 15 To resume operation follow the instruction located on the lighting instruction label or the lighting

instruction located in the installation and operating manual.

Step 12. Visually inspect pilot tubing for kinks or cracks. If damage is

found replace pilot.

Ferrule

nut

Pilot

orifice

Pilot

hood

Igniter/flame

sense electrode

Igniter/flame

sense wire

Pilot

tubing

Page 16

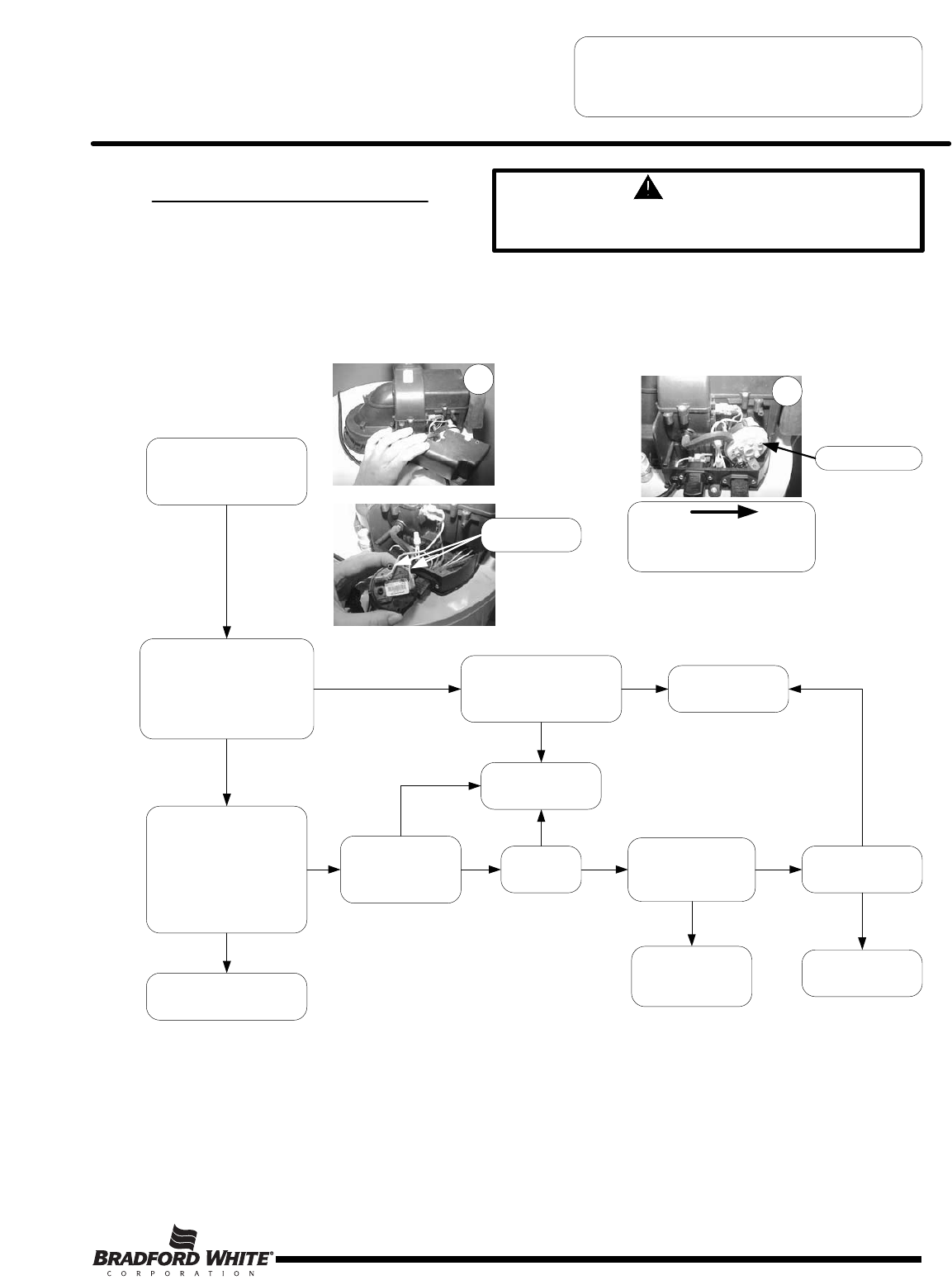

TTW SERVICE PROCEDURE III

Pressure Switch Testing and

Replacement

Pressure Switch Testing WARNING

120 volt potential exposure. Use caution

making voltage checks to avoid personal injury.

Step 1. Position power switch on gas control

to the “OFF” position.

Step 2. Remove the three screws (Phillips screw driver) from control access cover on blower assembly and

remove cover (see photo 1).

Step 3. Carefully remove pressure switch from blower housing (see photo 2)

Use a multi-meter set to the

ohms setting. With blower off,

check across pressure

switch terminals.

Are switch contacts open?

(no electrical continuity)

Check tubing and pressure

tap on switch for blockage.

Is there blockage?

Replace switch

(see page 18)

Position gas valve power

switch to the “ON” position

and adjust thermostat

to call for heat,

this will start the blower.

Check with multi-meter, do

pressure switch contacts

close with blower running?

With steps 1,2 & 3

complete,

disconnect wire leads from

pressure switch.

Switch contacts are OK.

See safety circuit trace

(page 28)

Is vent

system

blocked

NSee blower testing

(page 19)

Is blower OK?

Clear blockage

Correct blower

problem.

Pressure Switch

Slide pressure switch in direction

of arrow while tilting slightly away

from blower housing.

Is vent system length

within vent table

specifications

listed on page 7

Reconfigure vent

system to be

compliant with

vent tables.

Pressure switch

wire leads

Page 17

Check tubing and

pressure tap on

switch for blockage.

Is there blockage?

Pressure Switch Replacement WARNING

120 volt potential exposure. Use caution

to avoid personal injury.

Step 6. Reconnect wires from step 5 to new pressure switch.

Step 7. Reconnect tubing to new pressure switch.

Step 8. Carefully position pressure switch into blower housing.

Step 9. Position gas control power switch to “ON” position and verify proper heater operation.

Step 10. Replace control access cover from step 2.

Step 1. Position gas control power switch

to “OFF” position.

Step 2. Remove the three screws (Phillips screw driver) from control access cover on blower assembly and

remove cover (see photo 3).

Pressure Switch

Slide pressure switch in direction

of arrow while tilting slightly away

from blower housing.

Step 3. Carefully remove pressure

switch from blower

housing (see photo 4)

Step 4. Disconnect tubing from

pressure switch.

(see photo 5)

Step 5. Disconnect yellow wires

from pressure switch

(see photo 6)

TTW SERVICE PROCEDURE III

Pressure Switch Testing and

Replacement

Page 18

3 4

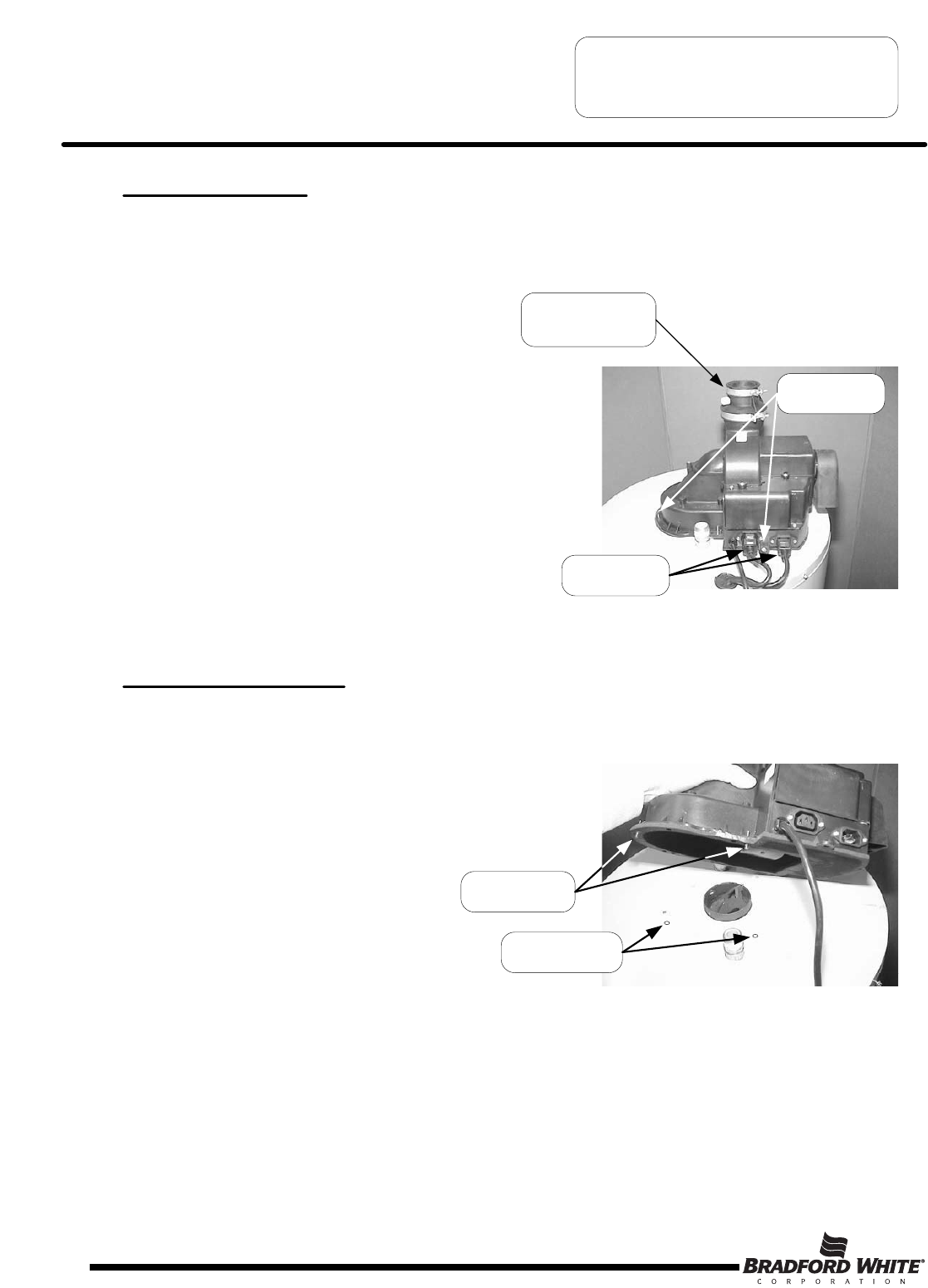

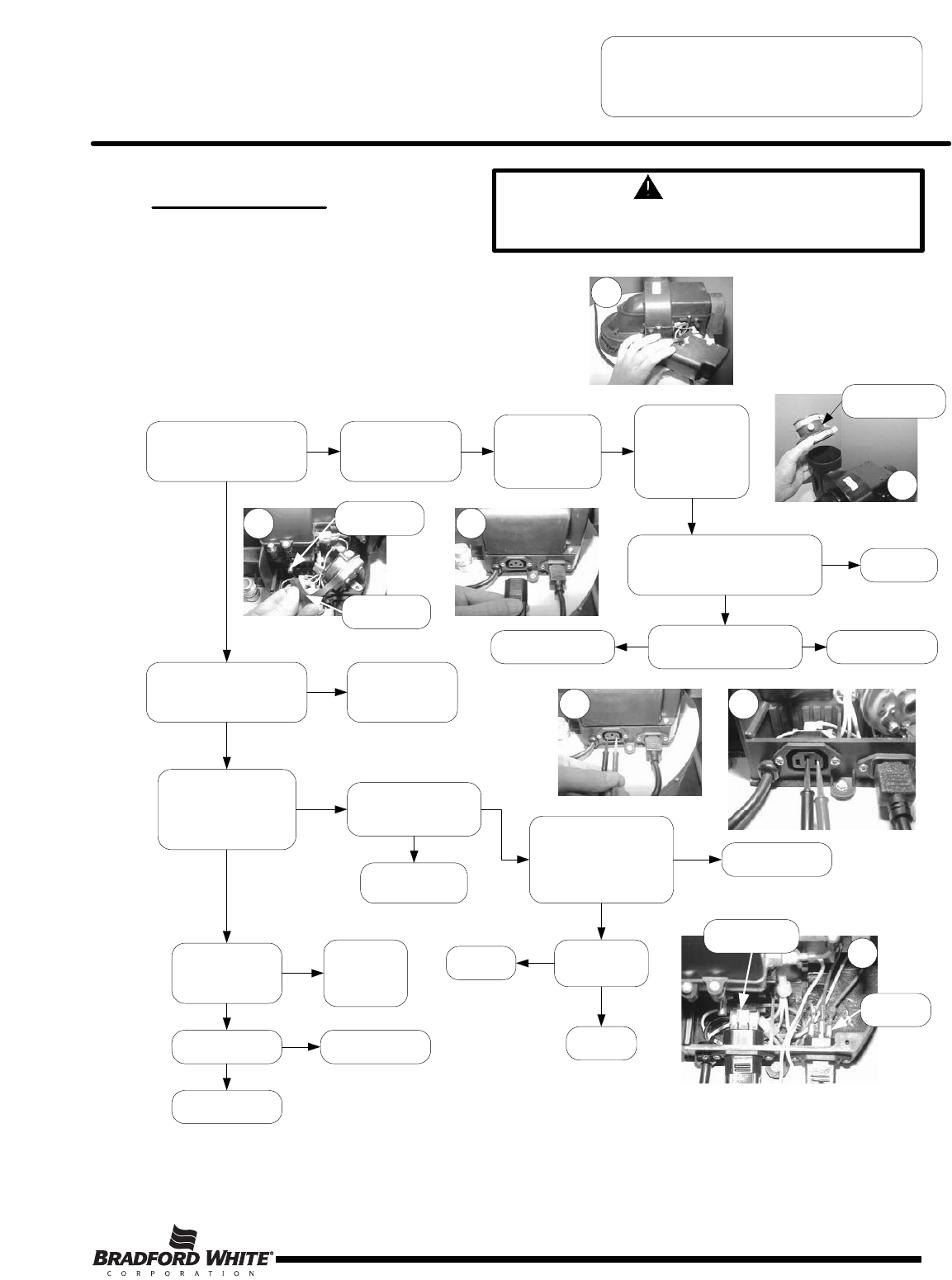

TTW SERVICE PROCEDURE IV

Blower Testing and Replacement

WARNING

115 volt potential exposure. Use caution when

making voltage checks to avoid personal injury.

Blower Testing

Is there 115VAC

across terminals

shown in photo 12 ?

Incorrect supply

voltage polarity

Determine

power source

problem and

correct.

Does blower energize

Within 2 minutes?

Disconnect cord set

shown in photo 9. Is

there 115VAC across

terminals shown in

photo 11

See pressure

switch testing

Page 17

Is there 115 VAC

at wall outlet?

Check power cord

for damage.

Disconnect

pressure switch

tubing from blower.

(see photo 8)

Connect

manometer to

pressure tap of

blower.

(see photo 8)

With blower running, and exhaust

adapter removed from top of

blower, is there a negative

pressure of -2.15" to -2.30" W.C.?

Step 1. Position gas control power switch

to “ON” position and adjust control to call for heat.

Step 2. Remove the three screws (Phillips Screw driver)

from control access cover on blower assembly and

remove cover (see photo 7).

Reconnect cord set

shown in photo 9, is

there 115VAC between

blue wire and green

ground wire

(see photo 13)

Replace blower

Does cord set

have electrical

continuity?

Disconnect vent

system from top of

blower and remove

vent adapter.

(see photo 10)

Does blower energize after

2 minutes, run for 30

seconds and shut down?

Is there 115vac across

blue and green wires

(see photo 13)

Blower OK

Repair or replace

power cord

Replace blower

Pressure

switch tubing

Pressure tap

Remove exhaust

adapter

Shown with pressure

switch removed.

Green ground

wire

Blue wire

Replace blower

Determine voltage

problem and correct.

Page 19

8 9

11 12

Replace

gas control

Replace

cord set

TTW SERVICE PROCEDURE IV

Blower Testing and Replacement

Step 1. Position gas control power switch to the “OFF” position.

Step 2. Unplug blower power cord from wall outlet.

Step 3. Disconnect vent system from exhaust adapter on top of

blower.

Step 4. Remove exhaust adapter from blower (blade screw driver)

and retain for use on new blower

Step 5. Unplug cord sets from blower.

Step 6. Remove the three blower mounting screws

(¼" nut driver).

Step 7. Remove blower with gasket from water heater.

Blower Mounting

Screws

Blower

Cord Sets

Step 8. Clean any debris from jacket head of water heater.

Step 9. Set new blower with gasket in place using locating pins on

blower flange to line up with location holes in jacket head.

Be sure not to damage gasket.

Step 10 Secure blower in place using mounting screws from step 6.

Step 11. Re-install exhaust adapter from step 4.

Step 12. Reconnect vent system to

exhaust adapter.

Step 13. Reconnect cord sets from step 5.

Step 14. Plug blower power cord into wall outlet.

Step 15. Position gas control power switch to the “ON” position.

Step 16. Verify proper blower operation.

Locating Pins

on blower flange

Pin location holes in

jacket head

Remove exhaust

adapter and retain for

use on new blower.

Blower removal

Blower Installation

Page 20

TTW SERVICE PROCEDURE V

Blower Temperature Switch Testing

and Replacement

Blower Temperature Switch

Testing.

WARNING

120 volt potential exposure. Use caution

to avoid personal injury.

Disconnect wire leads to

switch. Using a multi-meter

set to the ohms setting, is

there continuity between

the switch terminals?

Switch OK

Cool switch to

below 130°F

Switch Setting

Opens on rise @ approximately 165°F

Auto resets on fall @ approximately 130°F

Step 1. Position power switch on gas control

to the “OFF” position.

Step 2. Remove the three screws (Phillips screw driver) from

control access cover on blower and remove cover (see

photo 14).

Step 3. Locate blower temperature switch (see photo 15)

Reconnect wire leads and

observe heater operation.

Do exhaust gas

temperatures rise to or

above 165°F?

Replace switch

(see page 22)

Do switch

contacts open?

Do switch

contacts open?

Replace switch

(see page 22)

Exhaust

temperature is

too hot.

Common causes for

high exhaust temperature

1. Vent length is below minimum allowable.

2. Vent diameter not to specification.

3. Restricted dilution air inlet.

4. Missing or deteriorated flue baffle.

5. Gas pressure is out of specification.

Blower temperature

switch location

Air mixing inlet

Page 21

TTW SERVICE PROCEDURE V

Blower Temperature Switch Testing

and Replacement

Blower Temperature Switch

Replacement. WARNING

120 volt potential exposure. Use caution

to avoid personal injury.

Step 1. Position gas control power switch to the “OFF” position

and unplug heater from wall outlet.

Step 2. Remove the three screws (Phillips screw driver) from the

control access cover on blower and remove cover.

(see photo 16)

Step 3. Locate blower temperature switch (see photo 17)

Step 4. Disconnect red and yellow wire leads from switch.

Step 5. With an appropriate tool such as side cutters, snip the

retaining lug from the blower housing to allow removal of

temperature switch (see photo 18).

Step 6. Remove switch from blower housing.

Step 7. Install new switch. Be sure switch is properly seated in

mounting area.

Step 8. Reconnect red and yellows wires to new switch. Wires are

interchangeable with either terminal.

Step 9. Position gas control power switch to the “ON” position

and verify proper heater operation.

Step 10. Replace control access cover from step 2.

Blower temperature

switch location

Snip retaining lug

from blower housing

Page 22

Thermal Well Testing

Position gas valve power

switch to the “OFF”

position and disconnect

thermal well harness from

gas control.

Using a multi-meter set to the ohms setting, insert one meter probe into center wire

position of thermal well connector, insert the second probe into either of the outside

wire positions (see photo 19).

Alternate the probe on the outside position to the opposite outside wire position

(see photo 20).

Replace thermal well

(see page 25)

Using a multi-meter set to

the Ohms setting,

determine the resistance of

thermal well sensors 1 & 2

(see photos 19 & 20)

Disconnect thermal

well wire harness

19 20

Thermal well OK

TTW SERVICE PROCEDURE VI

Gas Control/Thermal Well Testing and

Replacement

Page 23

Gas Control Testing

See pages 24 & 25 for gas control

input & output testing.

Once the thermal well resistance values are known, the water

temperature must also be known to determine if the resistance

values are correct. See page 24 to obtain water temperature.

Are thermal well resistance values correct?

°F012345678 9

40 26109 25400 24712 24045 23399 22771 22163 21573 21000 20445

50 19906 19383 18876 18383 17905 17440 16990 16553 16128 15715

60 15314 14925 14548 14180 13823 13477 13140 12812 12494 12185

70 11884 11592 11308 11032 10763 10502 10248 1000 9760 9526

80 9299 9078 8862 8653 8449 8250 8057 7869 7685 7507

90 7333 7165 7000 6839 6683 6531 6383 6238 6098 5961

100 5827 5697 5570 5446 5326 5208 5094 4982 4873 4767

110 4663 4562 4464 4368 4274 4183 4094 4006 3922 3839

120 3758 3679 3602 3527 3453 3382 3312 3244 3177 3112

130 3048 2986 2925 2866 2808 2752 2697 2643 2590 2538

140 2488 2439 2391 2344 2298 2253 2209 2166 2124 2083

150 2043 2004 1966 1928 1891 1856 1820 1786 1753 1720

160 1688 1656 1625 1595 1566 1537 1509 1481 1454 1427

170 1402 1376 1351 1327 1303 1280 1257 1235 1213 1191

180 1170 1150 1129 1110 1090 1071 1953 1035 1017 999

190 982 965 949 933 917 901 886 871 857 842

200 828 814 801 788 775 762 749 737 725 713

In Degrees F

Sensor Resistance at Various Temperatures

Example: If temperature of water is 84°F, then the resistance through the sensor would be

8449 (see shaded area). NOTE: Sensor resistance increases as the temperature

falls.

WARNING

Stored water may be HOT when performing the following steps in this procedure.

Take necessary precaution to prevent personal injury.

TTW SERVICE PROCEDURE VI

Gas Control/Thermal Well Testing and

Replacement

Determine Water Temperature Inside Tank

Step 1. Position gas control power switch to “OFF” position.

Step 2. Draw approximately 4 gallons of water from drain valve into a container and discard. Draw an

additional gallon and immediately measure water temperature using an accurate thermometer. It may

be necessary to open a hot water faucet to allow heater to drain.

Step 3. Using the chart below, determine correct resistance value for the water temperature from step 2.

Note: It is important to understand once the resistance for the thermal well is determined from page 23, water flow

through the heater should not occur. Prior to performing the steps below, turn off the cold water supply to the

water heater. This will prevent cold water flow into the tank affecting the resistance value of thermal well.

Page 24

TTW SERVICE PROCEDURE VI

Gas Control & Thermal Well Testing

and Replacement

Gas Control & Thermal Well Removal From Water Heater

Step 1. Position gas valve power switch to the “OFF”

position and Unplug Heater from power supply.

Step 2. Drain heater to a point below the gas

control level.

Step 3. Turn off gas supply to water heater and

disconnect gas piping from gas control.

Step 4. Disconnect wire harnesses and burner assembly

from gas control.

Step 5. Remove gas control & thermal well by rotating flats of Thermal Well counter clockwise (1-5/16"wrench).

Gas Control

Thermal

Well

Page 25

Gas Control Removal From Thermal Well

Step 1. Position gas control power switch to the “OFF” position and unplug water heater from power supply.

Step 2. Turn off gas supply to water heater and disconnect gas piping from gas control.

Step 3. Disconnect wire harnesses & burner assembly from gas control.

Step 4. Using gas control service tool (239-45991-00) available from your BWC parts supplier, Insert tool into

back of gas control (see photos below)

Follow the steps below allows removal gas control from thermal well without

removing thermal well from tank.

Step 5. Pivot tool towards heater as far as possible (see photo below). Lift straight up on gas control. The

control should move about 1/8". Hold control in position and remove tool. Lift straight up on control to

remove completely from Thermal Well.

Service tool shown

inserted in to back

of control

Insert tool from

back of control

View from back of

control for clarity

With service tool inserted, pivot tool back towards

heater as far as possible. Lift straight up on control,

control will move 1/8". Remove tool and continue to lift

straight up on control to remove from Thermal Well.

Gas Control Assembly to Thermal Well

Step 6. Reconnect wire harnesses to gas control

per the illustration.

Step 7. Reconnect gas piping to gas control.

Restore gas supply and check for gas

leaks.

Step 8. To resume operation, follow the

instruction located on the lighting

instruction label or the lighting instruction

located in the installation and operation

manual.

5 pin

blower harness connection 3 pin

thermal well connection

Ground Wire

connection

Simulated Resistive

device

Igniter/sensor

connection

Thermal well

flange slots

Gas control Tabs

TTW SERVICE PROCEDURE VI

Gas Control & Thermal Well Testing

and Replacement

Page 26

Step 1. Install threaded end of thermal well into tank. Be sure

thermal well flange is positioned as shown in photo 24

for proper control alignment.

Step 2. Route wire leads back into relief opening.

(see photo 24)

Step 3. Align slots located on thermal well flange with tabs

located on back of gas control (see photos 24 & 25)

Step 4. Carefully push control back onto thermal well flange

as far as possibletowards water heater. Slide control

down to lock into position.

Step 5. Install burner and connect pilot and feedline to gas

control.

Route wires

through relief

opening

TTW SERVICE PROCEDURE VII

Simulated Resistive Device Testing

Simulated Resistive

device

Step 1. Position power switch on gas control to the

“OFF” position.

Step 2. Disconnect simulated resistive device from

gas control.

Step 3. Using a multi-meter set to the ohms setting

check resistance of simulated resistive

device. Resistance must be within 25,000

ohms and 45,000 ohms. If outside of this

range replace simulated resistive device.

Simulated Resistive Device Testing

Simulated Resistive

device

Electronic

“pin type”

Meter Probes

Multi-meter set to

ohms setting

Page 27

TTW SERVICE PROCEDURE VIII

Safety Circuit Voltage Trace

Safety Circuit Voltage

Trace WARNING

120 volt potential exposure. Use caution

making voltage checks to avoid personal injury.

Position gas control switch to the “ON”

position and adjust thermostat dial to call

for heat, Is there 10 to 13 VAC between

red wire leading to blower temperature

switch and green ground wire?

Blower must be running during this

voltage check.

(see photo 27)

Red wire leading to

blower temp. switch

Green ground wire

Yellow wire

leading from

pressure switch

Is there 10 to 13 VAC between yellow

wire leading from pressure switch and

green ground wire?

(see photo 27)

Do you hear or can you

see the igniter sparking?

Is LED on gas valve flashing

the “heartbeat” code

(alternating bright/dim)

Safety circuit

voltage is OK.

No voltage from gas control,

call for technical support.

NOTE: This procedure assumes a cool tank.

Verify 120VAC to gas

control (see page 29)

Is there continuity

through blower

temperature switch?

(see page 21)

Check for loose or

broken wire

connection at switch

terminals

Determine cause of blower

temperature switch

activation and correct.

Check igniter/sensor

(see page 16)

is igniter/sensor OK?

If burner does not light,

observe LED flash code

on gas valve and refer to

troubleshooting section

on page 12

Page 28

Step 2. Remove three screws (Phillips Screw driver) from control

access cover on blower and remove cover (see photo 26).

Faulty cord set or

gas control.

Correct igniter/

sensor problem.

TTW SERVICE PROCEDURE IX

120 VAC Trace

WARNING

120 volt potential exposure. Use caution

making voltage checks to avoid personal injury.

Disconnect cord set as

shown in photo 28

LED status

None, Control LED not

on or flashing.

Step 1. Verify 120VAC and proper polarity at wall outlet.

Step 2. With unit plugged in and control power switch in the “ON” position verify LED status.

LED status

Short flash, once every

four seconds.

LED status

“Heartbeat”, alternates

bright/dim.

LED status

Various flashing error

codes.

Waiting for

call for heat.

Thermostat calling

for heat

Verify error code as

listed on page 12

Using a volt meter set

to volts AC, is there

120VAC across

terminals shown in

photo 29 ?

2829

Reconnect cord set

shown in photo 28.

Repair damage

Check for damage to

AC supply power cord.

Replace Blower

Check for 120VAC between black & white wires.

-NOTE-

Electronic meter probes required. Use care not to

damage connector during this check.

Wire sheath pulled back to

identify wire colors

Wire harness

Disconnect wire harness

from gas control

(see photo 31).

Locate black & white wires at

connector, It may be necessary to pull

back wire sheath to identify wire colors.

(see photo 32)

Replace gas

control.

Is there 120VAC

across black & white

wires as shown in

photo 32?

Call for technical

support.

Is there 120VAC

across terminals

shown in photo 30 ?

Incorrect supply

voltage polarity

Page 29

120 VAC Circuit Trace

TTW SERVICE PROCEDURE X

Dip Tube

Inspection and replacement

Step 1. Position on/off switch of gas control valve to “OFF” position and unplug water heater from wall outlet.

Step 2. Turn off cold water supply to water heater. Connect hose to drain valve of water heater and route to an

open drain. Open a nearby hot water faucet to vent heater for draining. Open drain valve of water

heater and allow heater to drain to a point below the inlet connection nipple.

Step 3. Disconnect inlet nipple from plumbing system.

Step 4 With an appropriate tool such as a pipe wrench, remove inlet nipple/dip tube from the water heater.

Use caution not to damage pipe threads.

Step 5. Visually inspect inlet nipple/dip tube. Inlet nipple/dip tube should be free of cracks and any blockage.

Hydro-jet slots should be open and free of any blockage.

Any damage such as cracks, restriction due to deformation or unintentional holes are not field

repairable and the inlet nipple/dip tube must be replaced.

Step 6. Upon completion of inspection or subsequent replacement, reinstall inlet nipple/dip tube into water

heater. Connect nipple to plumbing system, resume water supply and refill with water.

Step 7. To resume operation follow the instructions located on the lighting instruction label or the lighting

instructions located in the installation and operation manual.

Dip Tube Inspection and Replacement

WARNING

Water Heater components and stored water may be HOT when performing the following

steps in this procedure. Take necessary precaution to prevent personal injury.

Page 30

TTW SERVICE PROCEDURE XI

Anode

Inspection and replacement

Step 1. Position on/off switch of gas control valve to the “OFF” position and unplug water heater from wall

outlet.

Step 2. Turn off cold water supply to water heater. Connect hose to drain valve of water heater and route to an

open drain. Open a nearby hot water faucet to vent water heater for draining. Open drain valve of

water heater and allow water heater to drain to a point below the outlet connection nipple.

Step 3. Disconnect outlet nipple from plumbing system.

Step 4 With an appropriate tool such as a pipe wrench, remove outlet nipple/anode from the water heater. Use

caution not to damage pipe threads.

Step 5. Visually inspect outlet nipple/anode. Outlet nipple/anode should show signs of depletion, this is

normal. If depletion is ½ of the original anode diameter (approximately ¾” diameter), replacement is

recommended. If any of the steel core of the anode is exposed, replacement is recommended.

Step 6. Upon completion of inspection or subsequent replacement, reinstall outlet nipple/anode into water

heater. Connect nipple to plumbing system, resume water supply and refill with water.

Step 7. To resume operation, follow the instructions located on the lighting instruction label or the lighting

instructions located in the installation and operation manual.

Anode Inspection and Replacement

WARNING

Water Heater components and stored water may be HOT when performing the following

steps in this procedure. Take necessary precaution to prevent personal injury.

Page 31

TTW SERVICE PROCEDURE XII

Flue Baffle

Inspection and replacement

Step 1. Position gas control power switch to the “OFF” position

and unplug blower from wall outlet.

Step 2. Disconnect vent system from exhaust adapter on top of

blower.

Step 3. Unplug cord sets from blower. (see photo 33).

Step 4. Remove the three blower mounting screws

(¼" nut driver) (see photo 33).

Step 5. Remove blower with gasket from water heater.

Step 6. Remove flue baffle from Heater (see photo 34).

Step 7. Inspect baffle for deterioration, missing restrictors.

Clean any scale or debris build up. Replace with new

baffle as necessary.

Step 8. Reinstall baffle into flue tube. Be sure baffle

hanger tab are inserted into notch location at the

top of the flue tube (see photos 35 & 36).

Step 9 Check Burner to insure no scale has accumulated during

this operation. See burner cleaning procedure on page 14.

Step 10. Reinstall blower on water heater. Connect vent

system and cords set to blower. Plug water heater

into wall outlet.

Step 11. To resume operation follow the lighting instruction

located on the lighting instruction label or the lighting

instruction located in the installation and operation

manual.

Blower Mounting

Screws

Blower

Cord Sets

Disconnect vent

system from exhaust

adapter.

Remove blower to gain access to

flue baffle

Flue Baffle

Flue tube

notch

Baffle shown

installed in flue

tube notch.

Page 32

NOTES

Page 33

Glossary of Terms

BTU British Thermal Units

GPM Gallons per Minute

Hz Hertz

KW/h Kilowatts per hour

LED Light Emitting Diode

NPT National Pipe Thread

Ohms Ohms of resistance

PSI Pounds per Square Inch

RPM Revolutions per Minute

TCO Temperature Cut Off

VAC Volts Alternating Current

W.C. Inches of Water Column

°C Degrees Centigrade

°F Degrees Fahrenheit

NOTES

Page 34

Parts List

1. Blower Complete

2. Air Mixing Inlet cover

3. Pressure Switch

4. Blower Temp. Switch

5. Blower Gasket

6. Blower Power Cord

7. Vent Adapter

8. Condensate Hose Kit

9. Flue Reducer

10. Heat Trap Outlet

11. Hot Water Outlet Anode

12. Flue Baffle

13. Heat Trap Inlet

14. Inlet Dip Tube

15. Wire Harness

16. T&P Valve

17. ¾ NPT Plug

18. Burner Assy. (Nat)

19. Burner Head

20. Main Burner Orifice

21. Pilot Assy. (Nat)

22. Pilot Orifice

23. Feedline

24. Burner Assy. (L.P.)

25. Cast Iron Burner

26. Pilot Assy. (L.P.)

27. Pilot Orifice (L.P.)

28. Feedline

29. Jam Nut

30. Air Shutter

31. Main Burner Orifice (L.P.)

32. Outer Door

33. Inner Door

34. Brass Drain Valve

35. Resistive Load Device

36. Thermal well

37. Gas Control

38. Gas Control Service

Tool

39. Kit-Gas Control

40. ASSE App’vd Mixing

Valve

41. Kit-Heat Trap Insert

42. Exhaust Termination

Elbow

Page 35

Optional

parts@bradfordwhite.com

techserv@bradfordwhite.com

www.bradfordwhite.com

Bradfordwhite Canada Commercial Gas Natural Light Duty Power Vent Ttw Tw4 Prior Naeca Archived Servicemanual 75Gal 47150A Bwc_manual User Manual

Canada Residential Gas Natural Power Vent Ttw2 M2 Quebec Servicemanual 75Gal 47150 canada_residential_gas_natural_power_vent_ttw2_m2_quebec_servicemanual_75gal_47150 canada_residential_gas_natural_power_vent_ttw2_m2_quebec_servicemanual_75gal_47150 uploads wp-content bradfordwhitecorp :

Navigation menu

Versions of this User Manual:

Views

Navigation
