BroMax Communications 2000I Wireless LAN User Manual Users Manual

BroMax Communications Inc Wireless LAN Users Manual

Users Manual

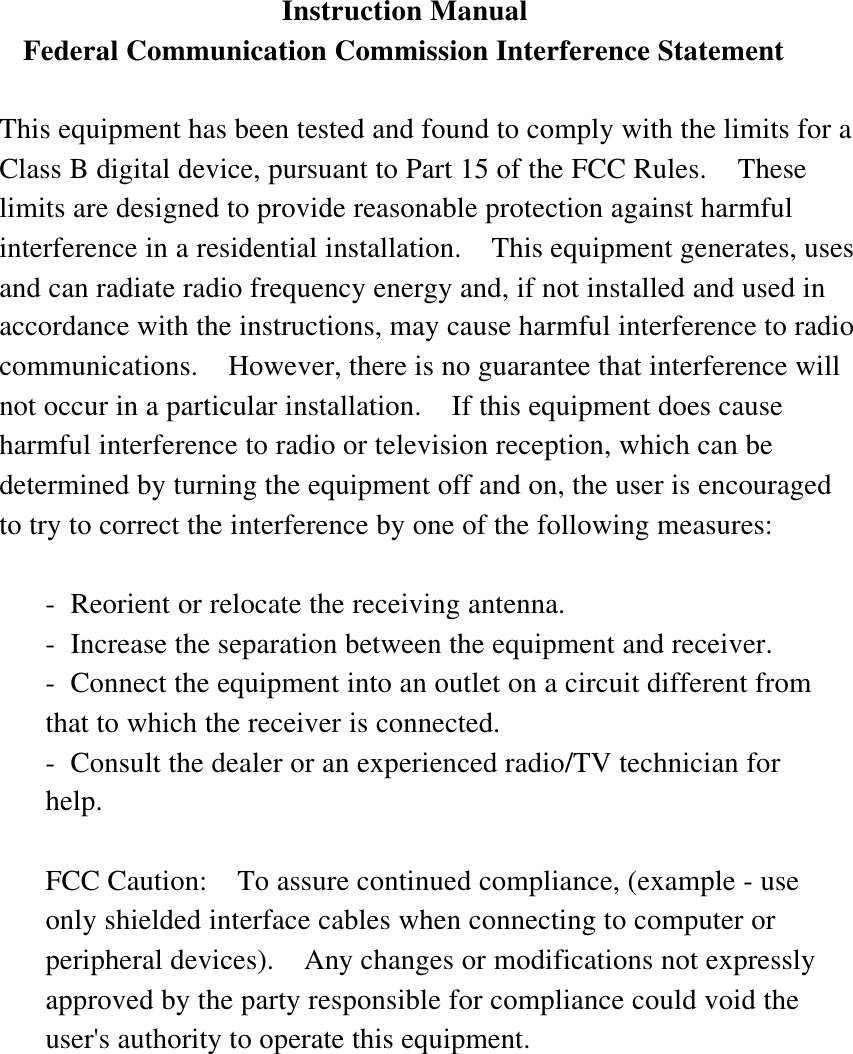

Instruction Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, usesand can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference willnot occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouragedto try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician forhelp. FCC Caution: To assure continued compliance, (example - useonly shielded interface cables when connecting to computer orperipheral devices). Any changes or modifications not expresslyapproved by the party responsible for compliance could void theuser's authority to operate this equipment.

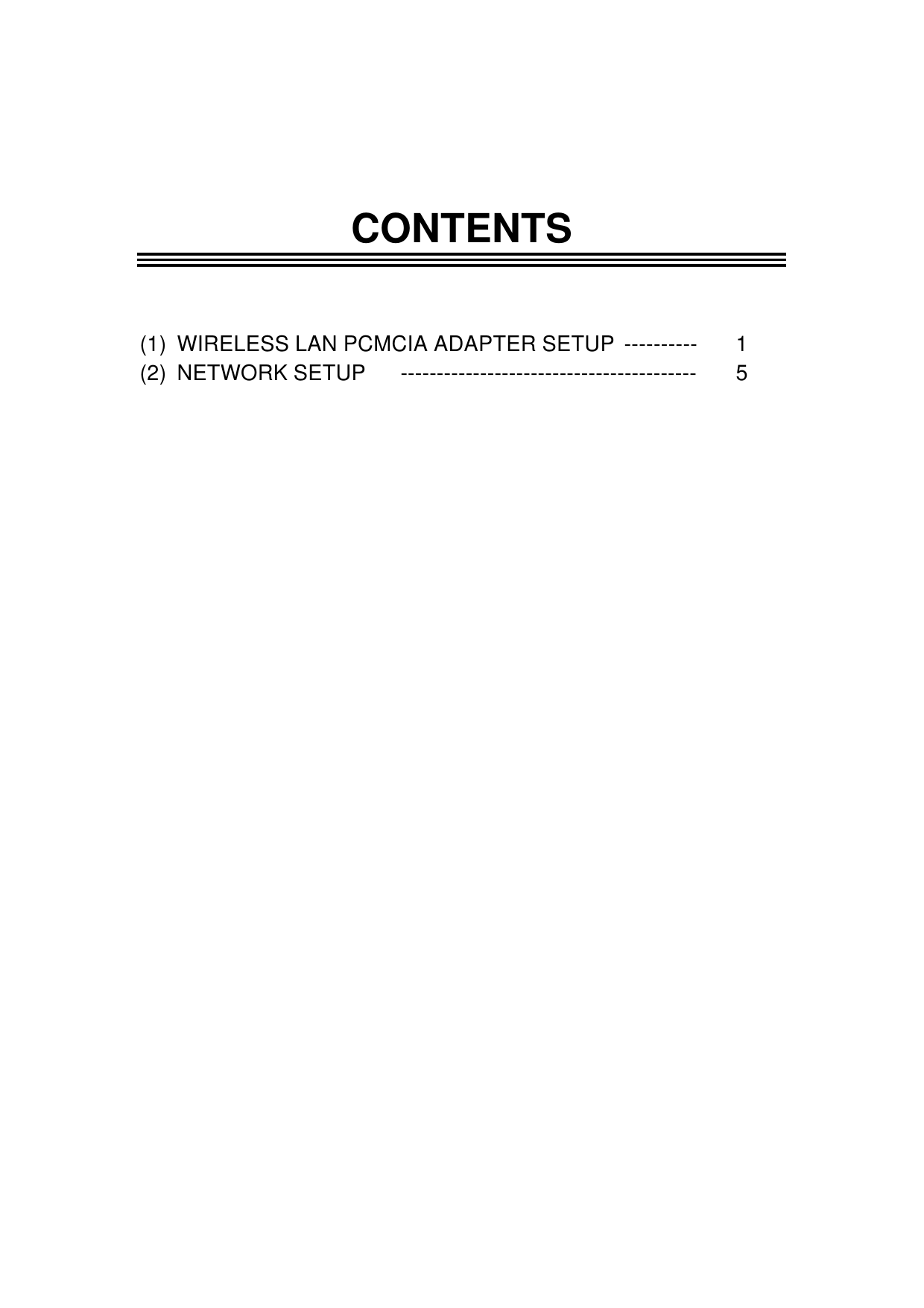

CONTENTS(1) WIRELESS LAN PCMCIA ADAPTER SETUP ---------- 1(2) NETWORK SETUP ----------------------------------------- 5

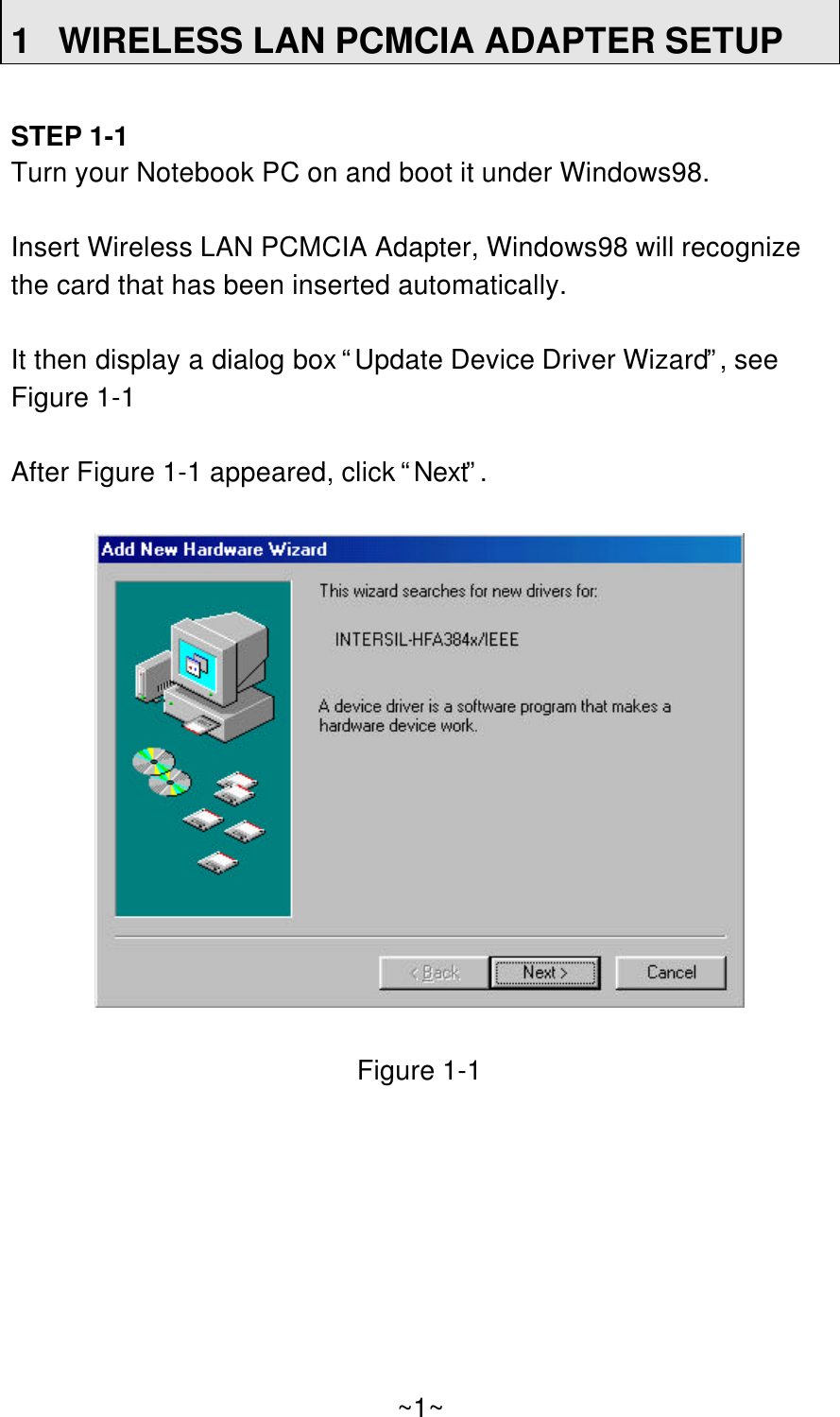

1WIRELESS LAN PCMCIA ADAPTER SETUPSTEP 1-1Turn your Notebook PC on and boot it under Windows98.Insert Wireless LAN PCMCIA Adapter, Windows98 will recognizethe card that has been inserted automatically.It then display a dialog box “Update Device Driver Wizard”, seeFigure 1-1After Figure 1-1 appeared, click “Next”.Figure 1-1~1~
STEP 1-2After you click “Next”, you will see Figure 1-2 displayed on screen.Figure 1-2Click “Next”.~2~

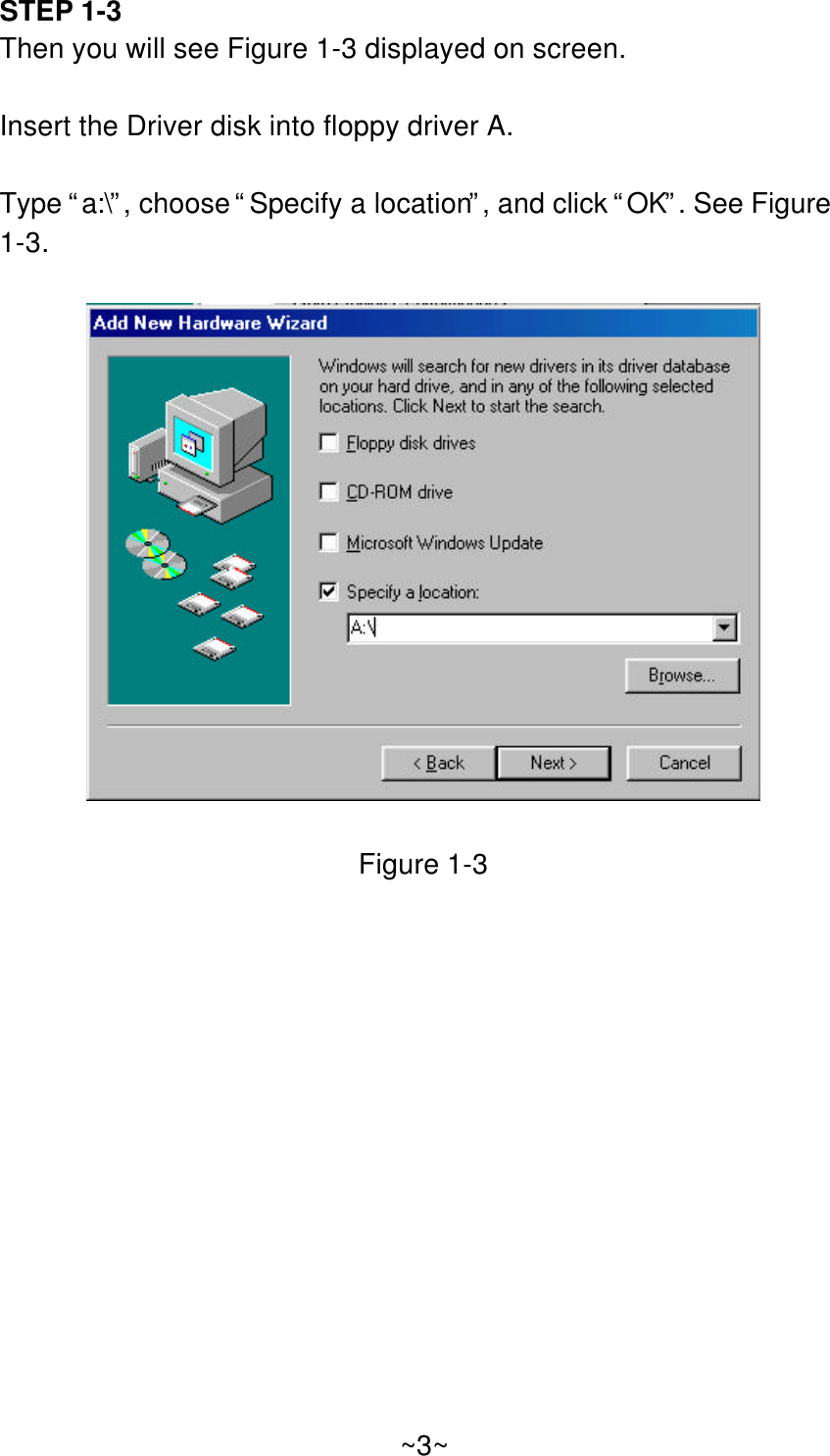

STEP 1-3Then you will see Figure 1-3 displayed on screen.Insert the Driver disk into floppy driver A.Type “a:\”, choose “Specify a location”, and click “OK”. See Figure1-3.Figure 1-3~3~

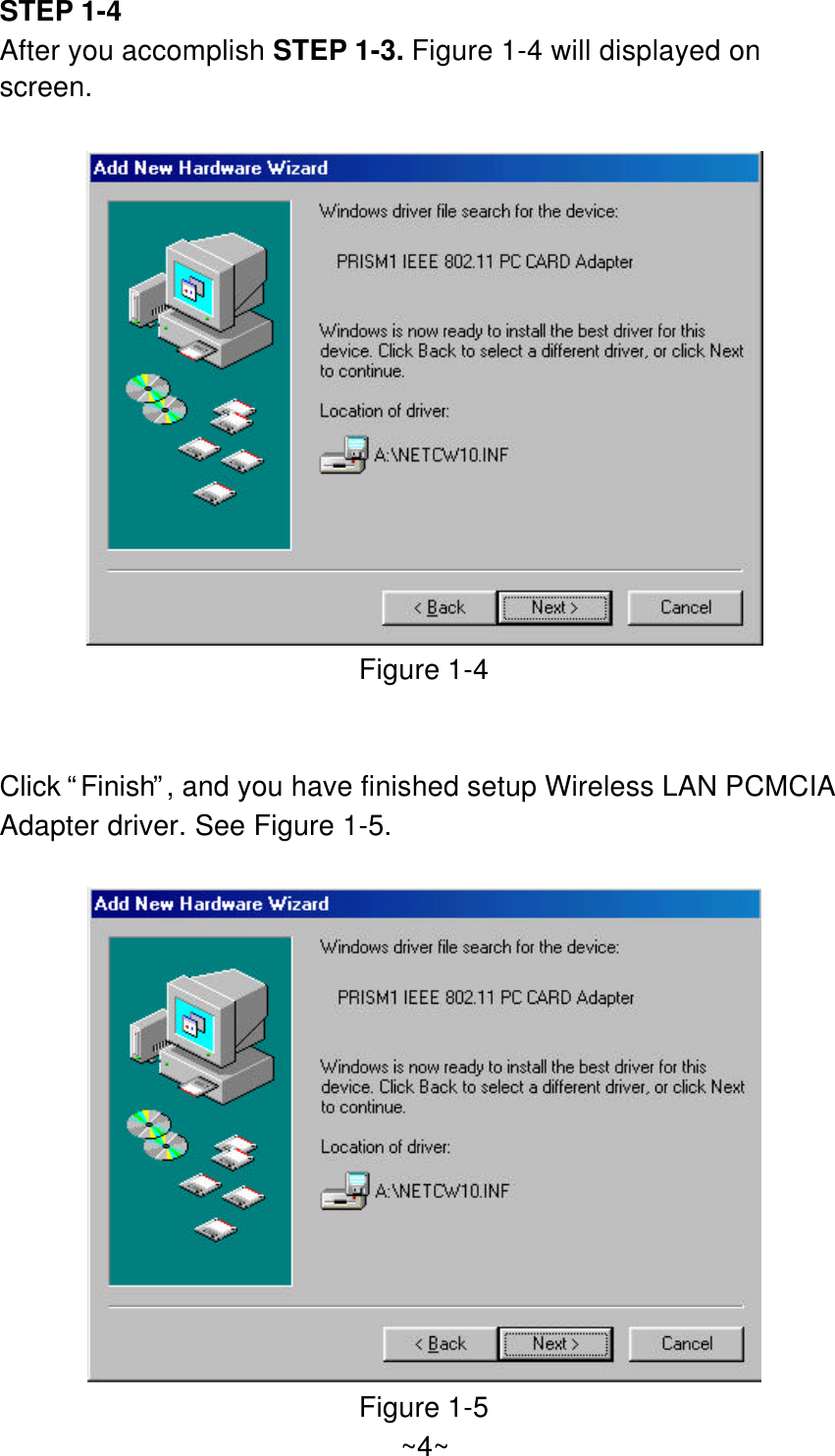

STEP 1-4After you accomplish STEP 1-3. Figure 1-4 will displayed onscreen.Figure 1-4Click “Finish”, and you have finished setup Wireless LAN PCMCIAAdapter driver. See Figure 1-5.Figure 1-5~4~

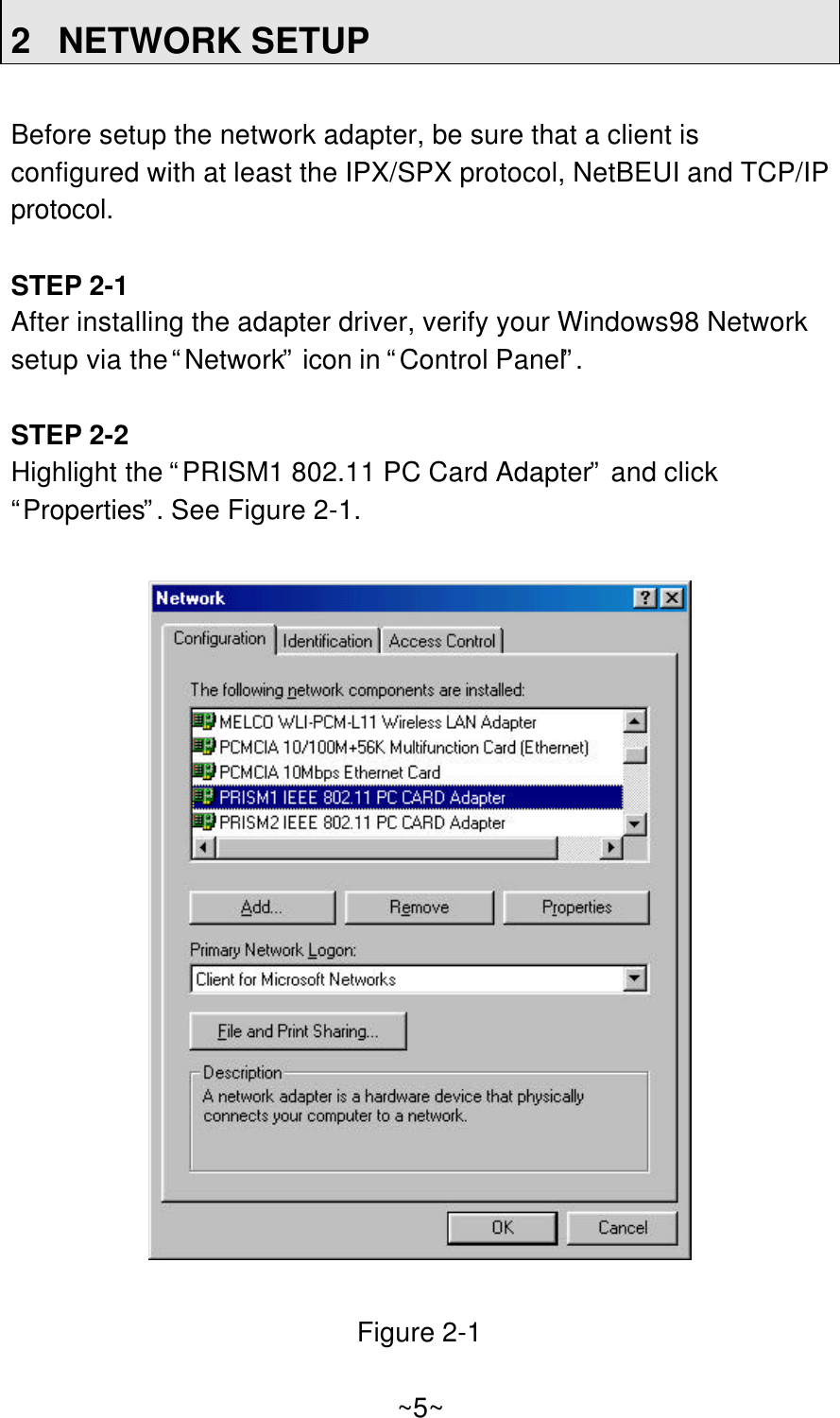

2NETWORK SETUPBefore setup the network adapter, be sure that a client isconfigured with at least the IPX/SPX protocol, NetBEUI and TCP/IPprotocol.STEP 2-1After installing the adapter driver, verify your Windows98 Networksetup via the “Network” icon in “Control Panel”.STEP 2-2Highlight the “PRISM1 802.11 PC Card Adapter” and click“Properties”. See Figure 2-1.Figure 2-1~5~

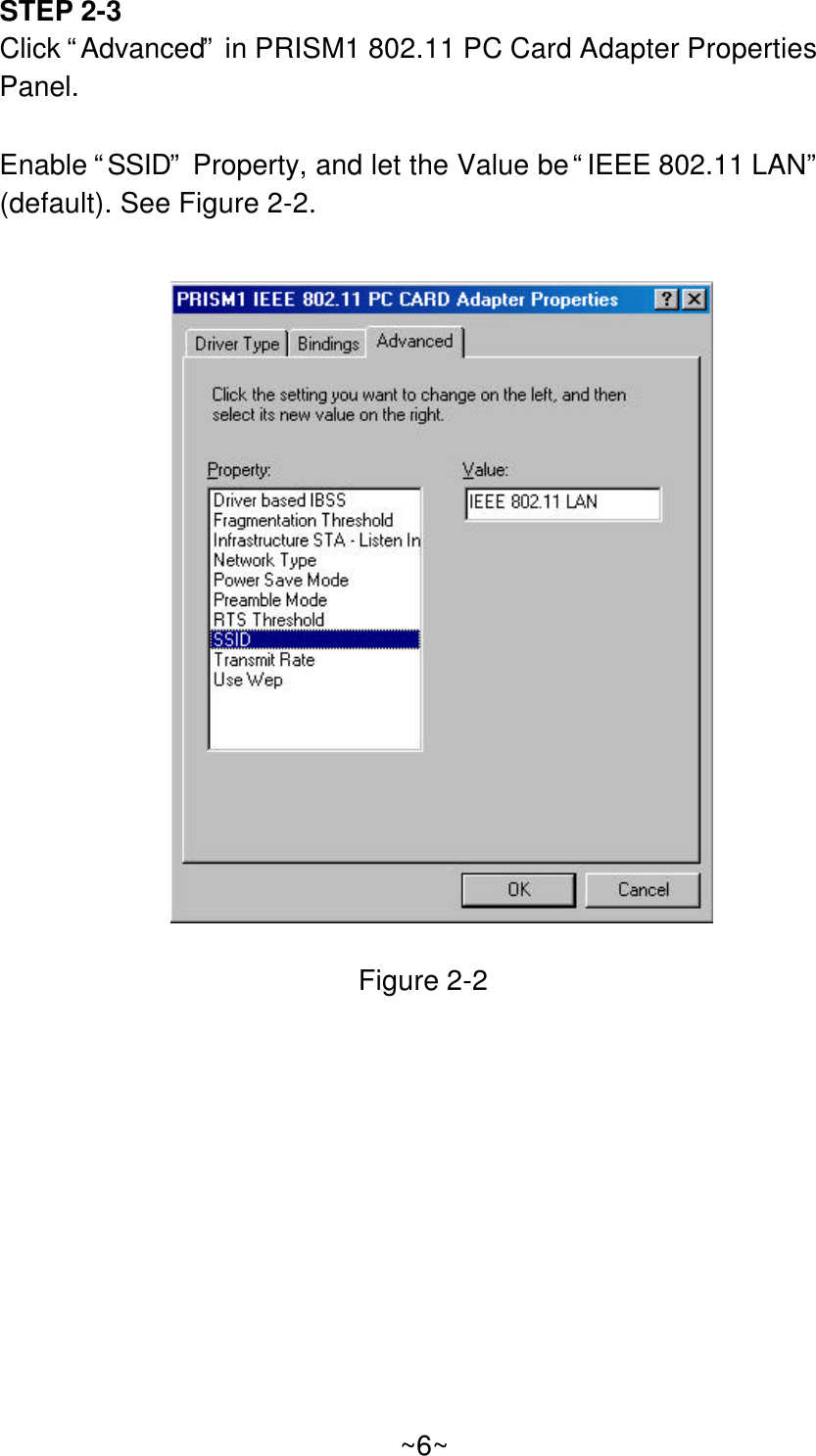

STEP 2-3Click “Advanced” in PRISM1 802.11 PC Card Adapter PropertiesPanel.Enable “SSID” Property, and let the Value be “IEEE 802.11 LAN”(default). See Figure 2-2.Figure 2-2~6~
STEP 2-4Enable “Network Mode” Property. See Figure 2-3.Select “Adhoc” if you are in point-to-point configuration.Select “Infrastructure” while you connect to LAN via Access Point.Figure 2-3~7~

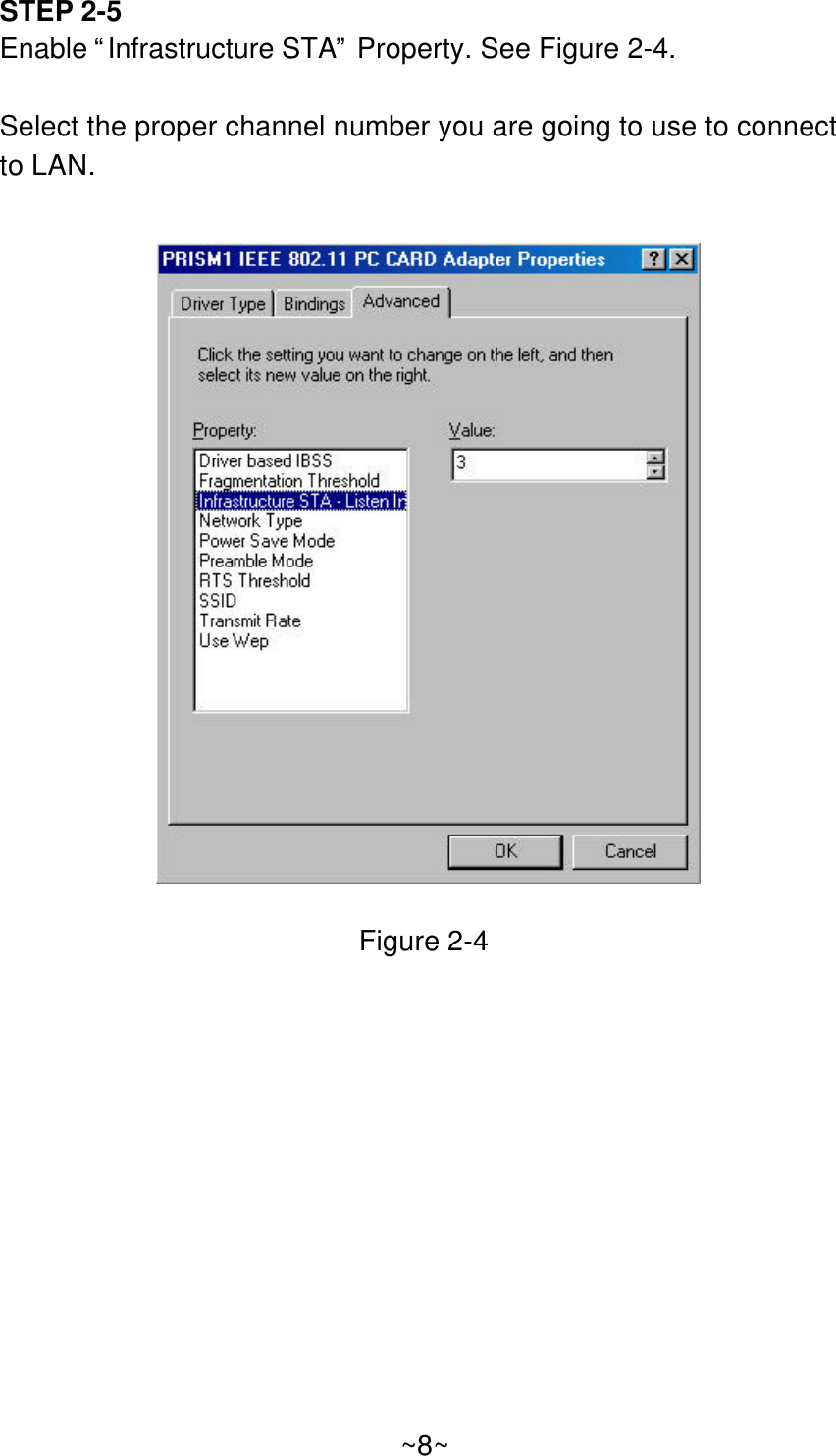

STEP 2-5Enable “Infrastructure STA” Property. See Figure 2-4.Select the proper channel number you are going to use to connectto LAN.Figure 2-4~8~
