CONTENTS
(1) WIRELESS LAN PCMCIA ADAPTER SETUP ---------- 1
(2) NETWORK SETUP ----------------------------------------- 5
1WIRELESS LAN PCMCIA ADAPTER SETUP
STEP 1-1
Turn your Notebook PC on and boot it under Windows98.
Insert Wireless LAN PCMCIA Adapter, Windows98 will recognize
the card that has been inserted automatically.

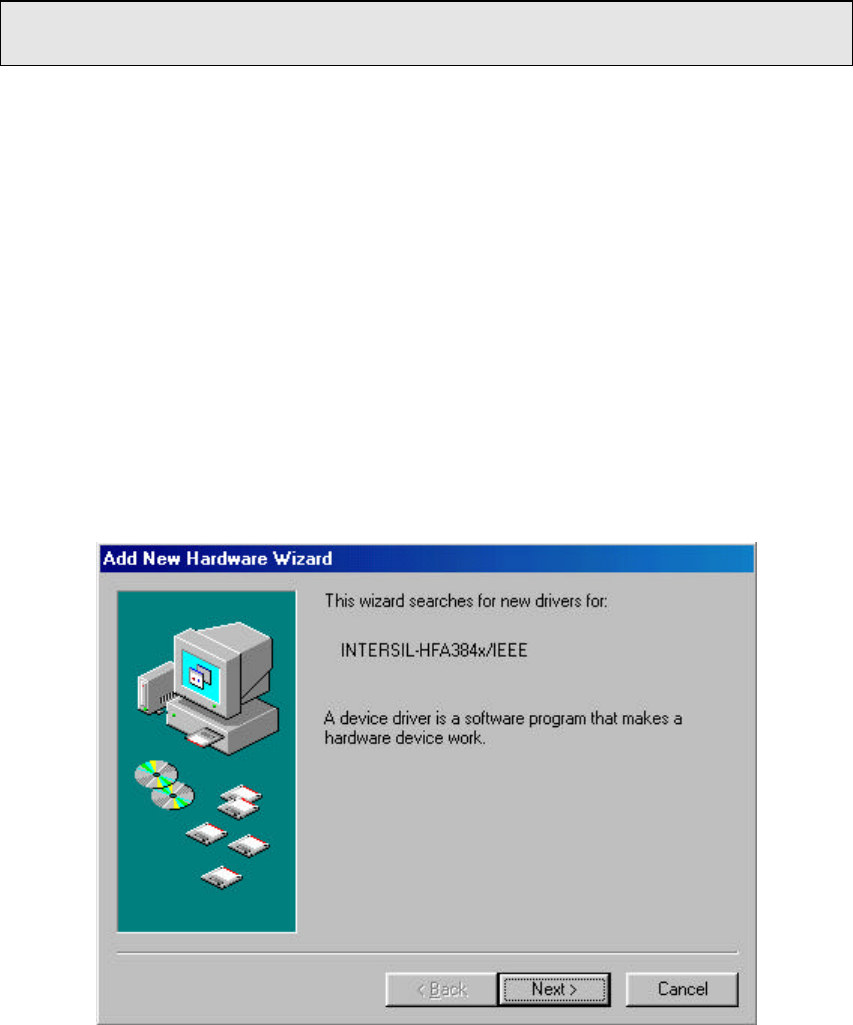

It then display a dialog box “Update Device Driver Wizard”, see
Figure 1-1
After Figure 1-1 appeared, click “Next”.
Figure 1-1
~1~
STEP 1-2

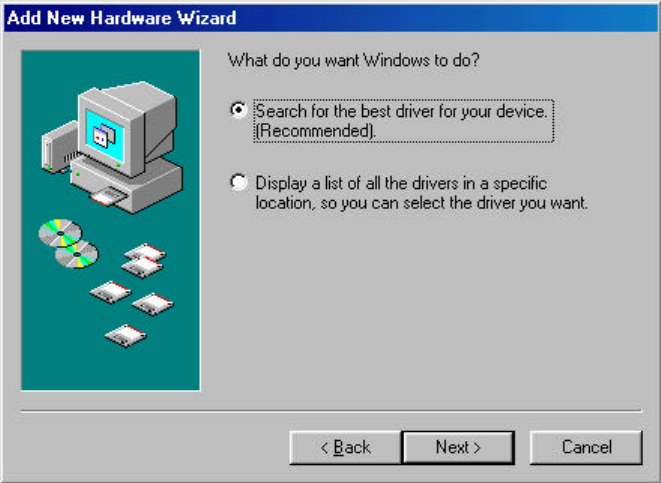

After you click “Next”, you will see Figure 1-2 displayed on screen.
Figure 1-2
Click “Next”.
~2~
STEP 1-3
Then you will see Figure 1-3 displayed on screen.
Insert the Driver disk into floppy driver A.

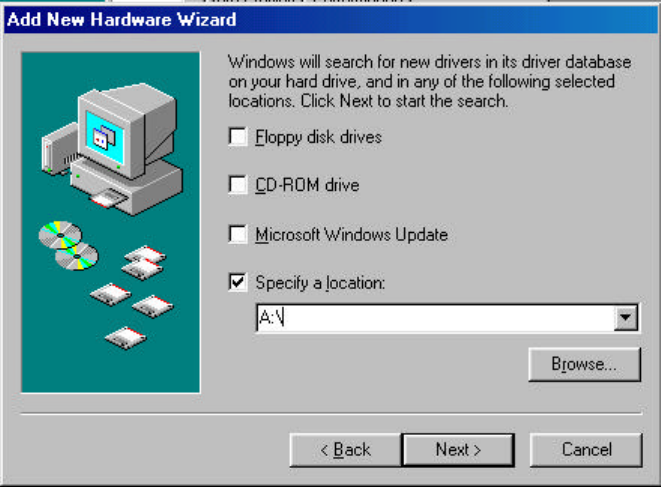

Type “a:\”, choose “Specify a location”, and click “OK”. See Figure
1-3.
Figure 1-3
~3~
STEP 1-4

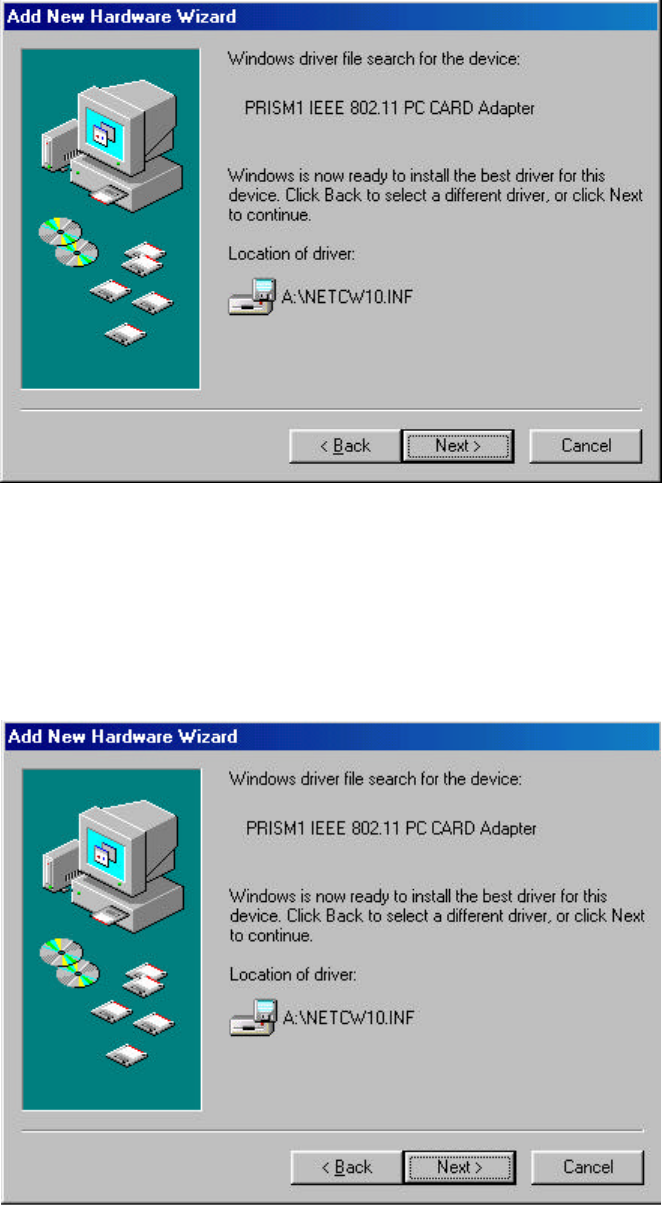

After you accomplish STEP 1-3. Figure 1-4 will displayed on
screen.
Figure 1-4
Click “Finish”, and you have finished setup Wireless LAN PCMCIA
Adapter driver. See Figure 1-5.
Figure 1-5
~4~
2NETWORK SETUP
Before setup the network adapter, be sure that a client is
configured with at least the IPX/SPX protocol, NetBEUI and TCP/IP
protocol.
STEP 2-1
After installing the adapter driver, verify your Windows98 Network
setup via the “Network” icon in “Control Panel”.
STEP 2-2

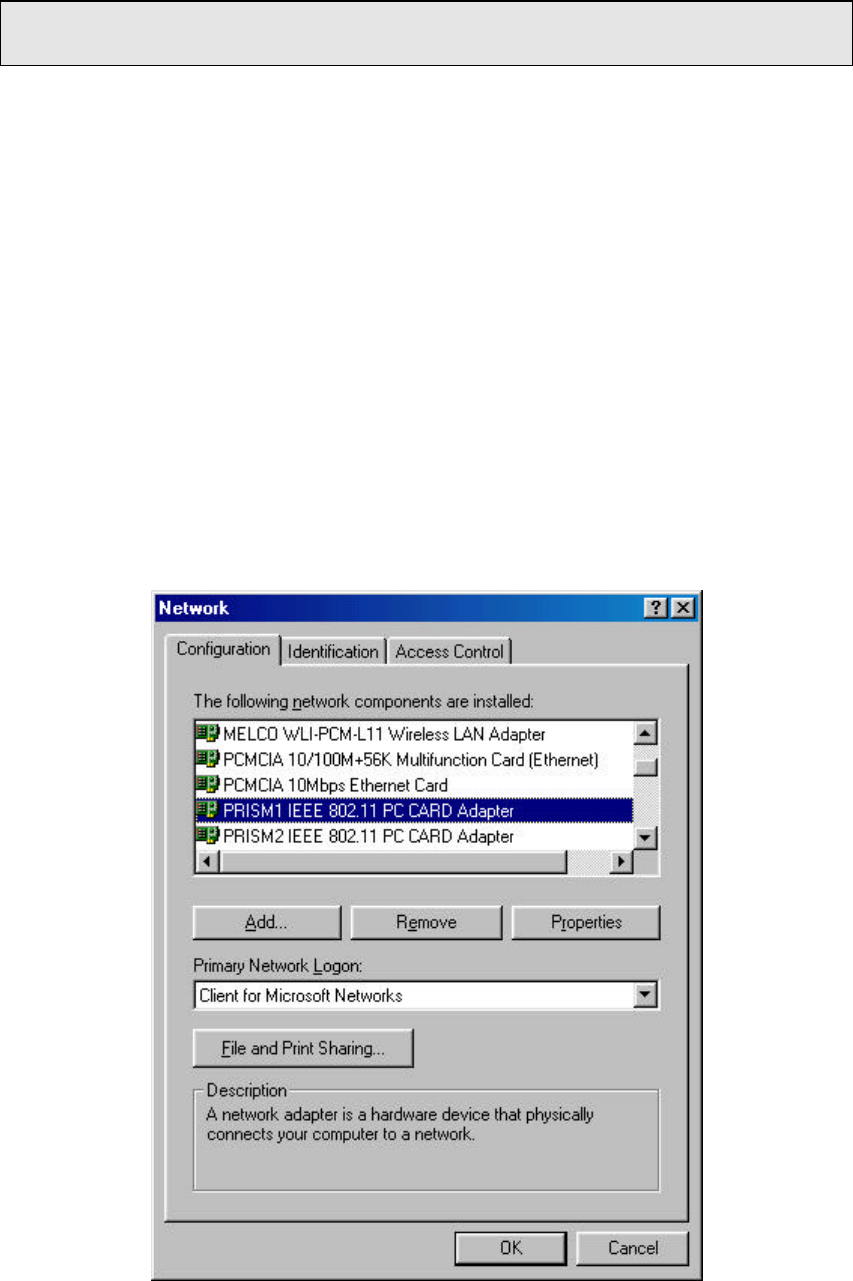

Highlight the “PRISM1 802.11 PC Card Adapter” and click
“Properties”. See Figure 2-1.
Figure 2-1
~5~
STEP 2-3
Click “Advanced” in PRISM1 802.11 PC Card Adapter Properties
Panel.
Enable “SSID” Property, and let the Value be “IEEE 802.11 LAN”
(default). See Figure 2-2.
Figure 2-2
~6~
STEP 2-4

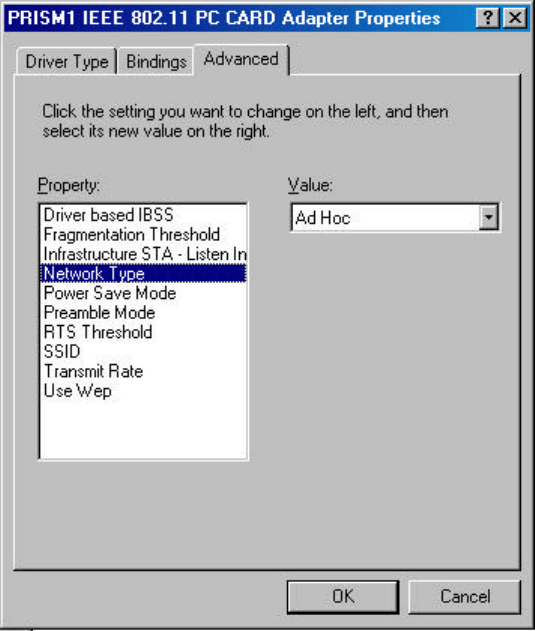

Enable “Network Mode” Property. See Figure 2-3.
Select “Adhoc” if you are in point-to-point configuration.
Select “Infrastructure” while you connect to LAN via Access Point.
Figure 2-3
~7~
STEP 2-5

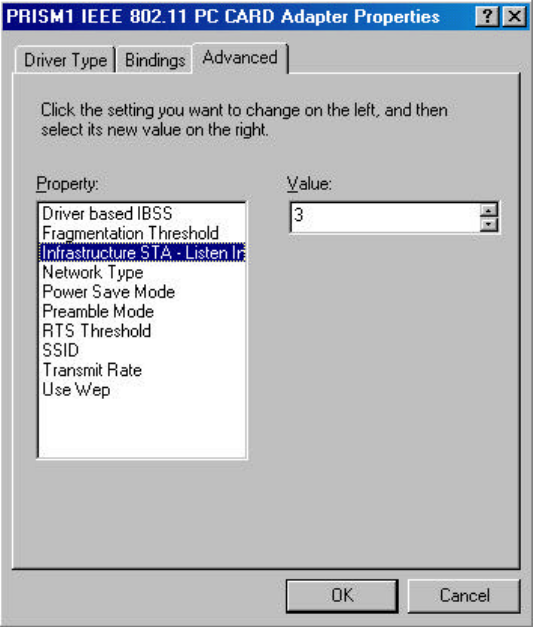

Enable “Infrastructure STA” Property. See Figure 2-4.
Select the proper channel number you are going to use to connect
to LAN.
Figure 2-4
