USB Wireless NetworkAdapterUser’s ManualRev 1.0

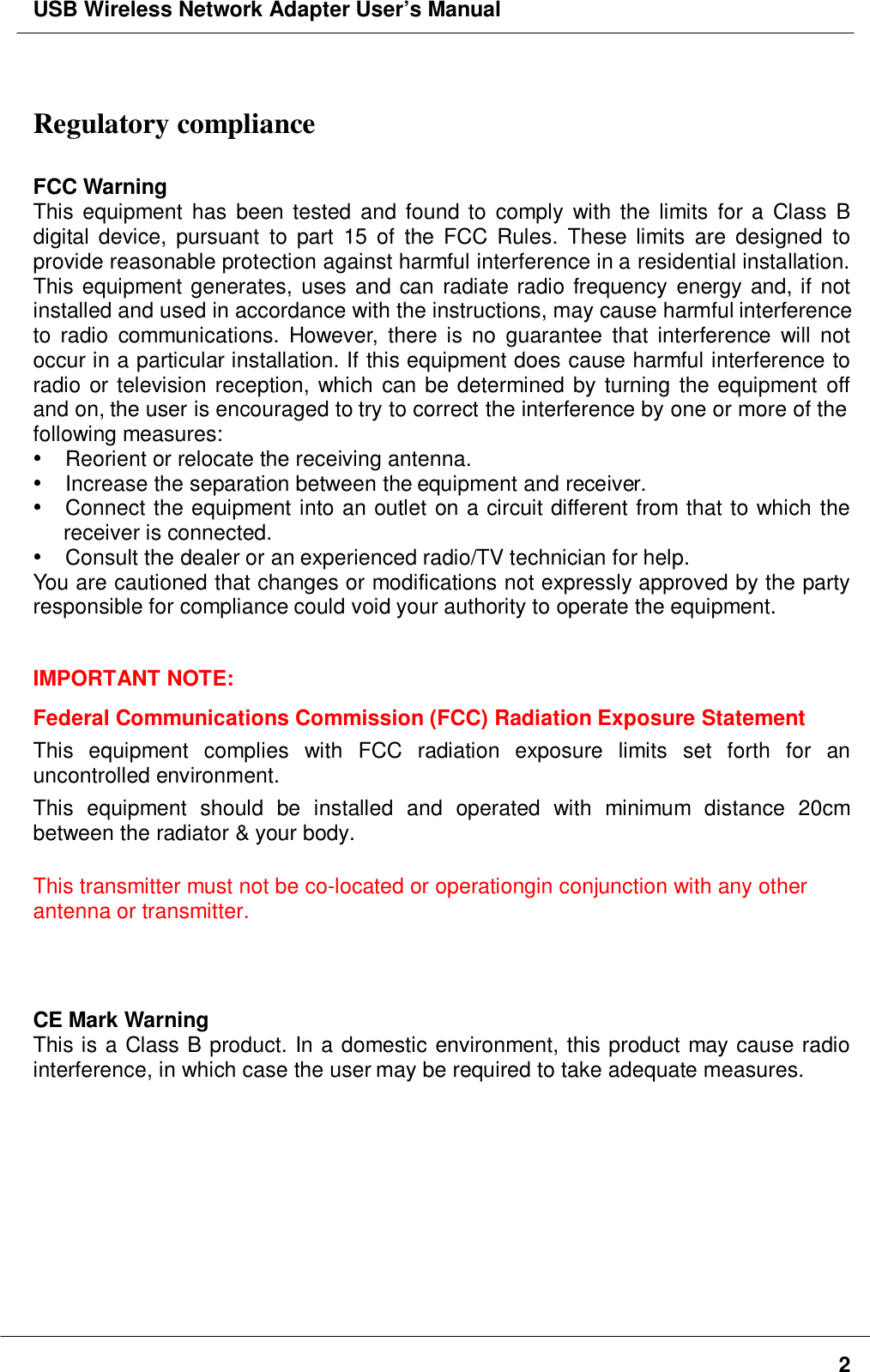

USB Wireless Network Adapter User’s Manual2Regulatory complianceFCC WarningThis equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interference toradio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected. Consult the dealer or an experienced radio/TV technician for help.You are cautioned that changes or modifications not expressly approved by the partyresponsible for compliance could void your authority to operate the equipment.IMPORTANT NOTE:Federal Communications Commission (FCC) Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for anuncontrolled environment.This equipment should be installed and operated with minimum distance 20cmbetween the radiator & your body.This transmitter must not be co-located or operationgin conjunction with any otherantenna or transmitter.CE Mark WarningThis is a Class B product. In a domestic environment, this product may cause radiointerference, in which case the user may be required to take adequate measures.
USB Wireless Network Adapter User’s Manual3About this manualThis User’s Manual describes how to install and operate your USB WirelessNetwork Adapter. Please read this manual before you install the product.This manual includes the following topics: Product description and features. Hardware installation procedure. Software installation procedure. FAQ

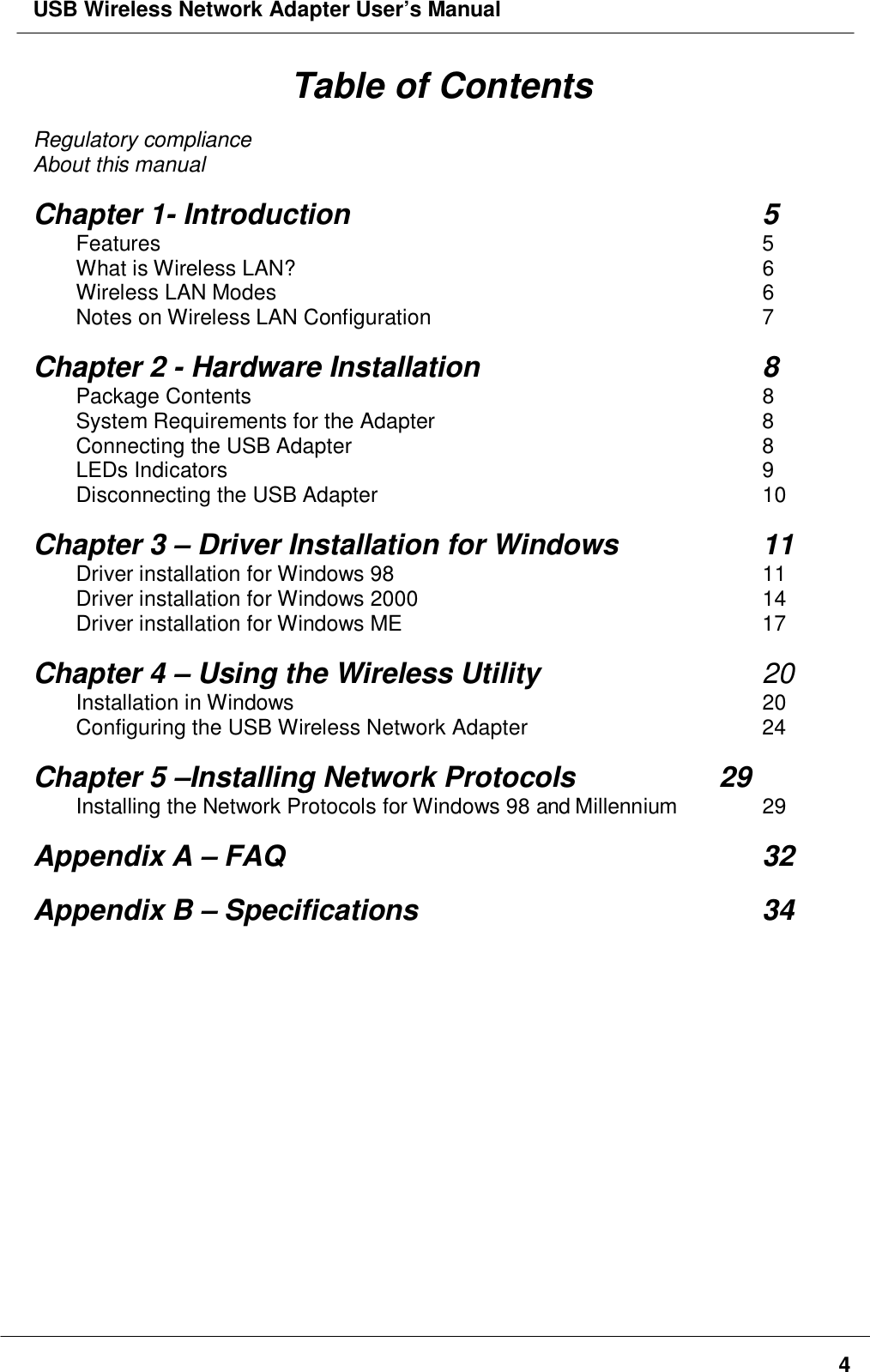

USB Wireless Network Adapter User’s Manual4Table of ContentsRegulatory complianceAbout this manualChapter 1- Introduction 5Features 5What is Wireless LAN? 6Wireless LAN Modes 6Notes on Wireless LAN Configuration 7Chapter 2 - Hardware Installation 8Package Contents 8System Requirements for the Adapter 8Connecting the USB Adapter 8LEDs Indicators 9Disconnecting the USB Adapter 10Chapter 3 – Driver Installation for Windows 11Driver installation for Windows 98 11Driver installation for Windows 2000 14Driver installation for Windows ME 17Chapter 4 – Using the Wireless Utility 20Installation in Windows 20Configuring the USB Wireless Network Adapter 24Chapter 5 –Installing Network Protocols 29Installing the Network Protocols for Windows 98 and Millennium 29Appendix A – FAQ 32Appendix B – Specifications 34
USB Wireless Network Adapter User’s Manual5Chapter 1 - IntroductionThank you for purchasing the USB Wireless Network Adapter. This high-speed USBWireless Network Adapter provides you with an innovative wireless networkingsolution. The Adapter is easy to set up and use. With this innovative wirelesstechnology, you can share files and printers on the network—without inconvenientwires! Now you can carry the LAN in your pocket!The Adapter is a network adapter with a rate of 1, 2, 5.5, and 11 Mbps operating inthe ISM band using Direct Sequence Spread Spectrum (DSSS) transmissionimplementing the IEEE 802.11b standard. This adapter provides Device Driversfor Windows 98, Windows 2000 and Windows ME. It also provides tools for theconfiguration of the adapter. The tool, as well as the installation steps of the plug-and-play procedure for the Microsoft Windows 98, Windows ME and Windows2000 operating systems, is described in this document.FeaturesThe USB Wireless Network Adapter offers compliance with the IEEE 802.11bspecification. This feature allows them to communicate with other wirelessdevices that support the standard. Features of the adapter are: Uses 2.4GHz frequency band, which complies with worldwiderequirement Wireless interface following the IEEE 802.11b standard Using Universal Serial Bus (USB) interface Enciphering/deciphering of wireless data by the implementation of theWEP algorithm Wire-free access to networked resources from anywhere beyond thedesktop Allows users move between Access Points without resetting theirconnection reconfiguration Delivers data rate up to 11 Mbps Supports 11, 5.5, 2, and 1 Mbps rates Provide USB Wireless Network Adapter Configuration utility Antenna is built in to the Adapter with LEDs indicating Power and Link Supports most popular operating systems: Window 98/2000 & WindowsME

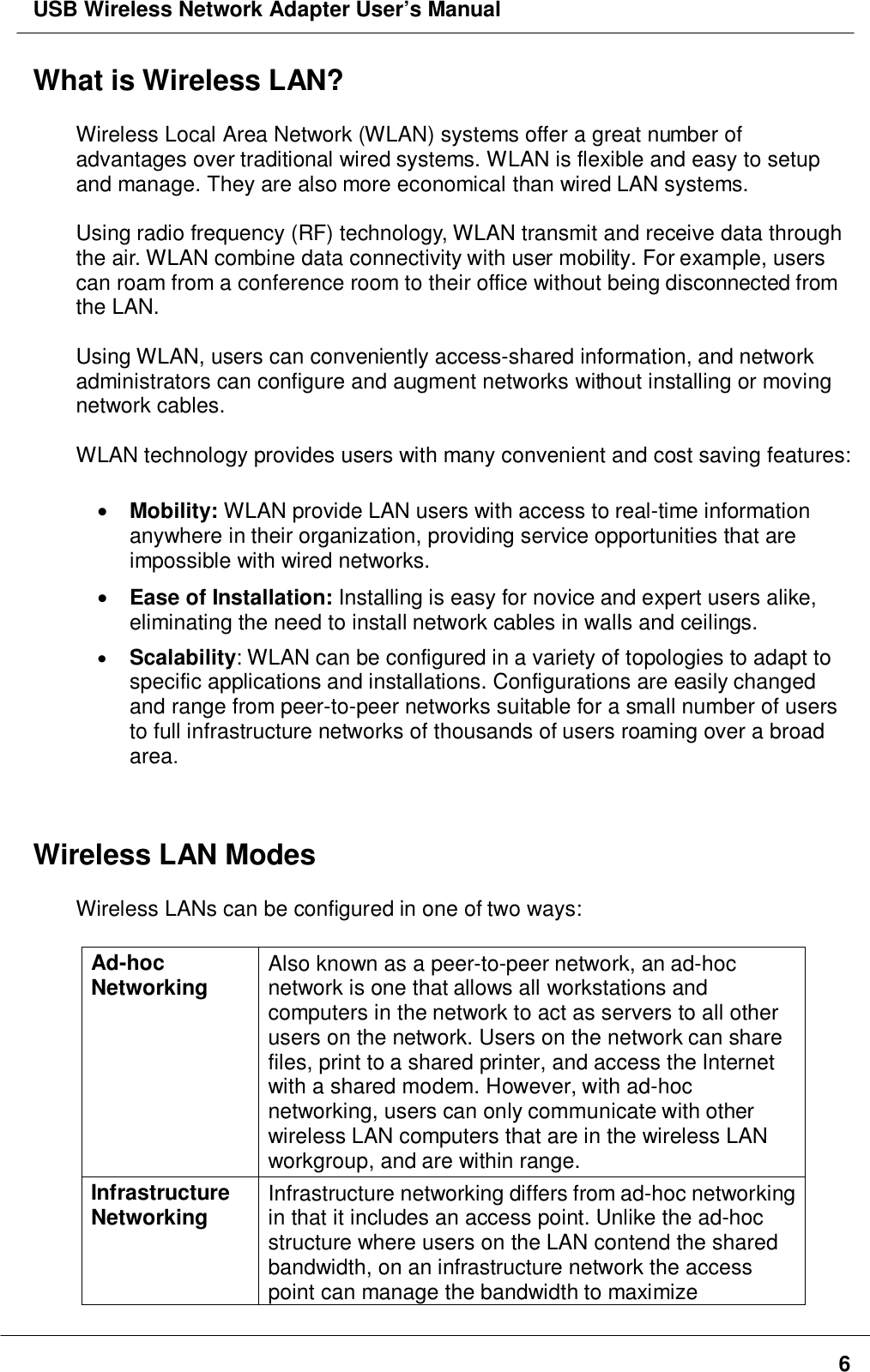

USB Wireless Network Adapter User’s Manual6What is Wireless LAN?Wireless Local Area Network (WLAN) systems offer a great number ofadvantages over traditional wired systems. WLAN is flexible and easy to setupand manage. They are also more economical than wired LAN systems.Using radio frequency (RF) technology, WLAN transmit and receive data throughthe air. WLAN combine data connectivity with user mobility. For example, userscan roam from a conference room to their office without being disconnected fromthe LAN.Using WLAN, users can conveniently access-shared information, and networkadministrators can configure and augment networks without installing or movingnetwork cables.WLAN technology provides users with many convenient and cost saving features:• Mobility: WLAN provide LAN users with access to real-time informationanywhere in their organization, providing service opportunities that areimpossible with wired networks.• Ease of Installation: Installing is easy for novice and expert users alike,eliminating the need to install network cables in walls and ceilings.• Scalability: WLAN can be configured in a variety of topologies to adapt tospecific applications and installations. Configurations are easily changedand range from peer-to-peer networks suitable for a small number of usersto full infrastructure networks of thousands of users roaming over a broadarea.Wireless LAN ModesWireless LANs can be configured in one of two ways:Ad-hocNetworking Also known as a peer-to-peer network, an ad-hocnetwork is one that allows all workstations andcomputers in the network to act as servers to all otherusers on the network. Users on the network can sharefiles, print to a shared printer, and access the Internetwith a shared modem. However, with ad-hocnetworking, users can only communicate with otherwireless LAN computers that are in the wireless LANworkgroup, and are within range.InfrastructureNetworking Infrastructure networking differs from ad-hoc networkingin that it includes an access point. Unlike the ad-hocstructure where users on the LAN contend the sharedbandwidth, on an infrastructure network the accesspoint can manage the bandwidth to maximize

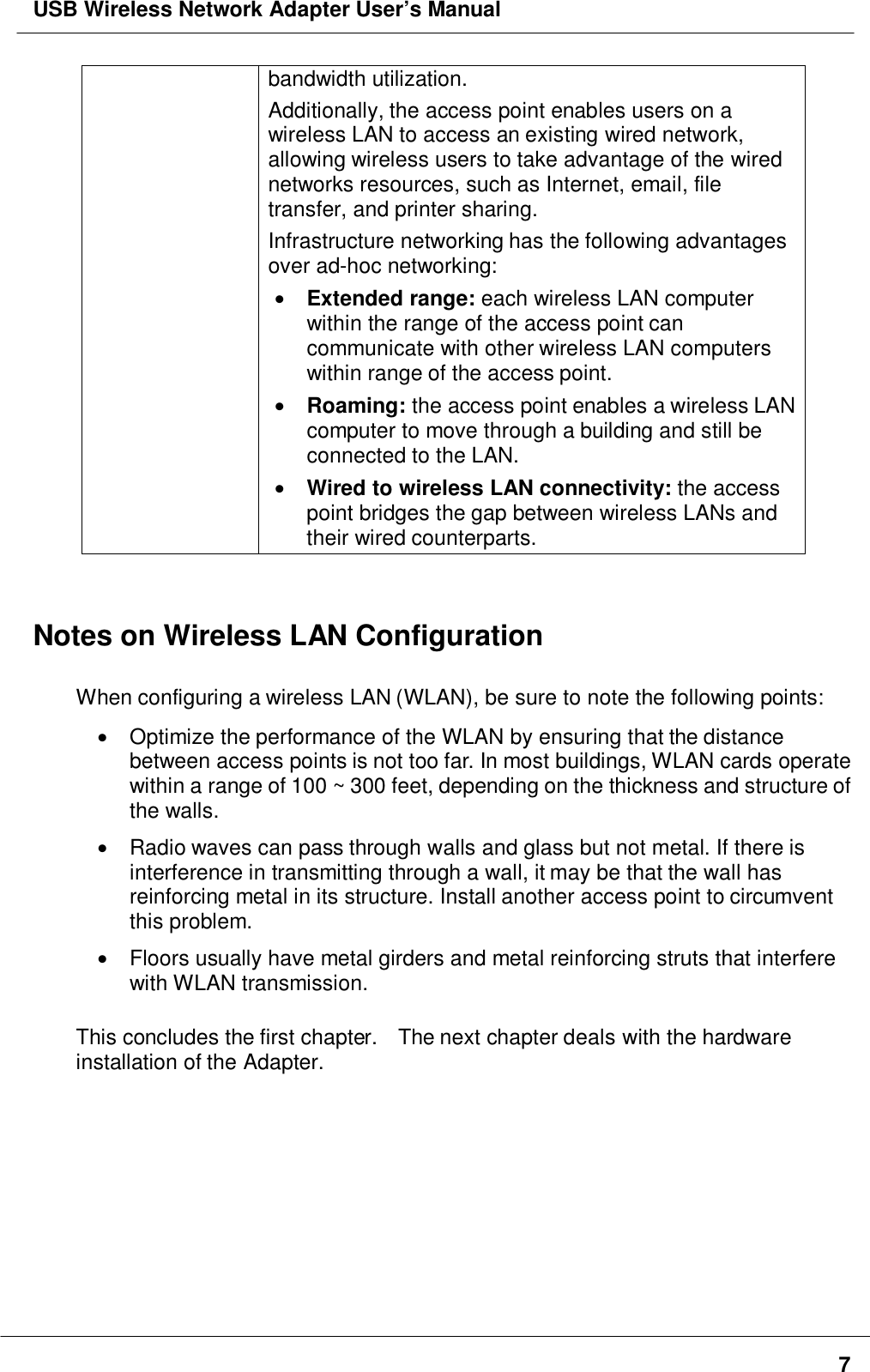

USB Wireless Network Adapter User’s Manual7bandwidth utilization.Additionally, the access point enables users on awireless LAN to access an existing wired network,allowing wireless users to take advantage of the wirednetworks resources, such as Internet, email, filetransfer, and printer sharing.Infrastructure networking has the following advantagesover ad-hoc networking:• Extended range: each wireless LAN computerwithin the range of the access point cancommunicate with other wireless LAN computerswithin range of the access point.• Roaming: the access point enables a wireless LANcomputer to move through a building and still beconnected to the LAN.• Wired to wireless LAN connectivity: the accesspoint bridges the gap between wireless LANs andtheir wired counterparts.Notes on Wireless LAN ConfigurationWhen configuring a wireless LAN (WLAN), be sure to note the following points:• Optimize the performance of the WLAN by ensuring that the distancebetween access points is not too far. In most buildings, WLAN cards operatewithin a range of 100 ~ 300 feet, depending on the thickness and structure ofthe walls.• Radio waves can pass through walls and glass but not metal. If there isinterference in transmitting through a wall, it may be that the wall hasreinforcing metal in its structure. Install another access point to circumventthis problem.• Floors usually have metal girders and metal reinforcing struts that interferewith WLAN transmission.This concludes the first chapter. The next chapter deals with the hardwareinstallation of the Adapter.

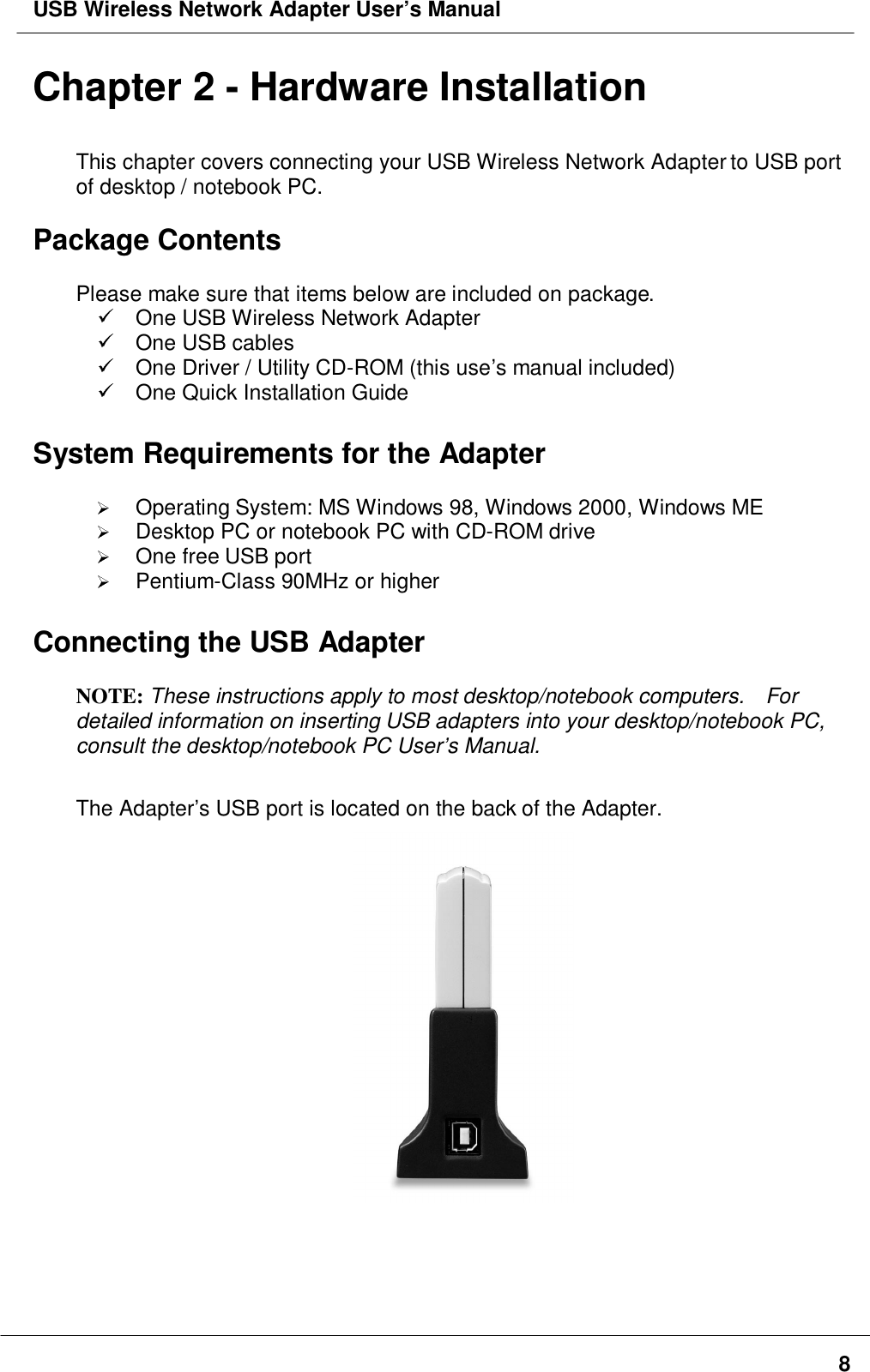

USB Wireless Network Adapter User’s Manual8Chapter 2 - Hardware InstallationThis chapter covers connecting your USB Wireless Network Adapter to USB portof desktop / notebook PC.Package ContentsPlease make sure that items below are included on package. One USB Wireless Network Adapter One USB cables One Driver / Utility CD-ROM (this use’s manual included) One Quick Installation GuideSystem Requirements for the Adapter Operating System: MS Windows 98, Windows 2000, Windows ME Desktop PC or notebook PC with CD-ROM drive One free USB port Pentium-Class 90MHz or higherConnecting the USB AdapterNOTE: These instructions apply to most desktop/notebook computers. Fordetailed information on inserting USB adapters into your desktop/notebook PC,consult the desktop/notebook PC User’s Manual.The Adapter’s USB port is located on the back of the Adapter.

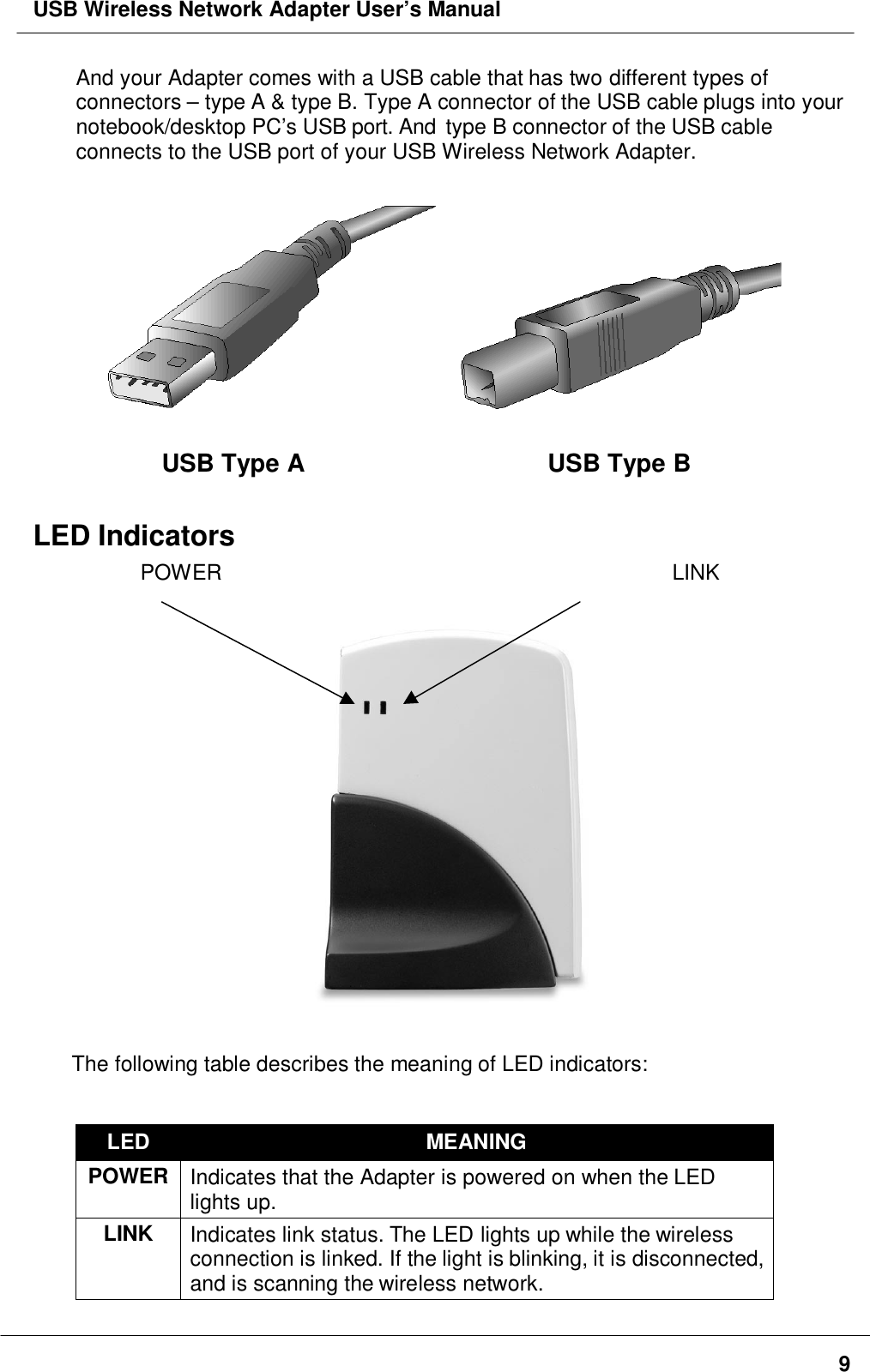

USB Wireless Network Adapter User’s Manual9And your Adapter comes with a USB cable that has two different types ofconnectors – type A & type B. Type A connector of the USB cable plugs into yournotebook/desktop PC’s USB port. And type B connector of the USB cableconnects to the USB port of your USB Wireless Network Adapter.USB Type A USB Type BLED IndicatorsPOWER LINK The following table describes the meaning of LED indicators:LED MEANINGPOWER Indicates that the Adapter is powered on when the LEDlights up.LINK Indicates link status. The LED lights up while the wirelessconnection is linked. If the light is blinking, it is disconnected,and is scanning the wireless network.

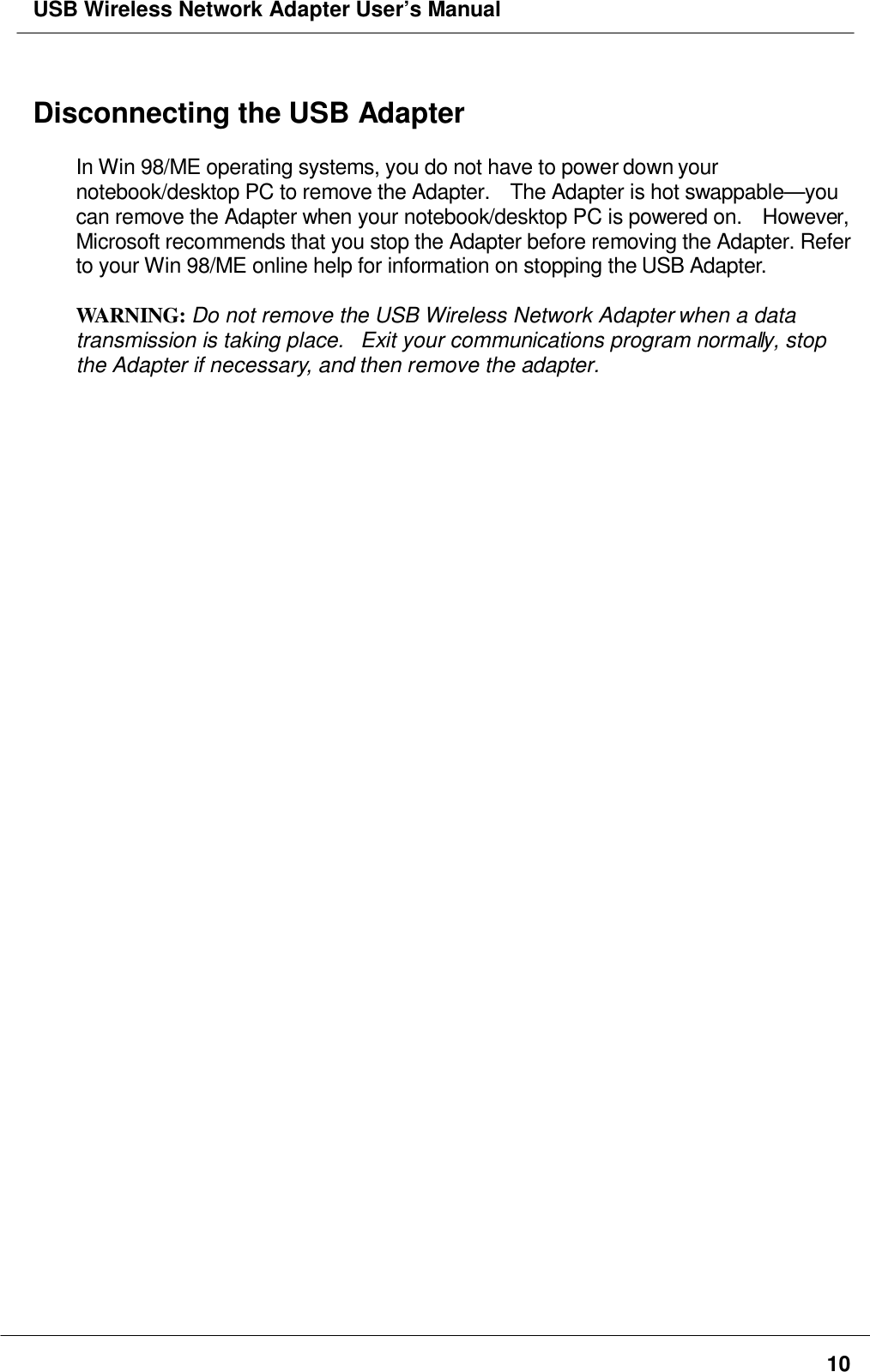

USB Wireless Network Adapter User’s Manual10Disconnecting the USB AdapterIn Win 98/ME operating systems, you do not have to power down yournotebook/desktop PC to remove the Adapter. The Adapter is hot swappable—youcan remove the Adapter when your notebook/desktop PC is powered on. However,Microsoft recommends that you stop the Adapter before removing the Adapter. Referto your Win 98/ME online help for information on stopping the USB Adapter.WARNING: Do not remove the USB Wireless Network Adapter when a datatransmission is taking place. Exit your communications program normally, stopthe Adapter if necessary, and then remove the adapter.

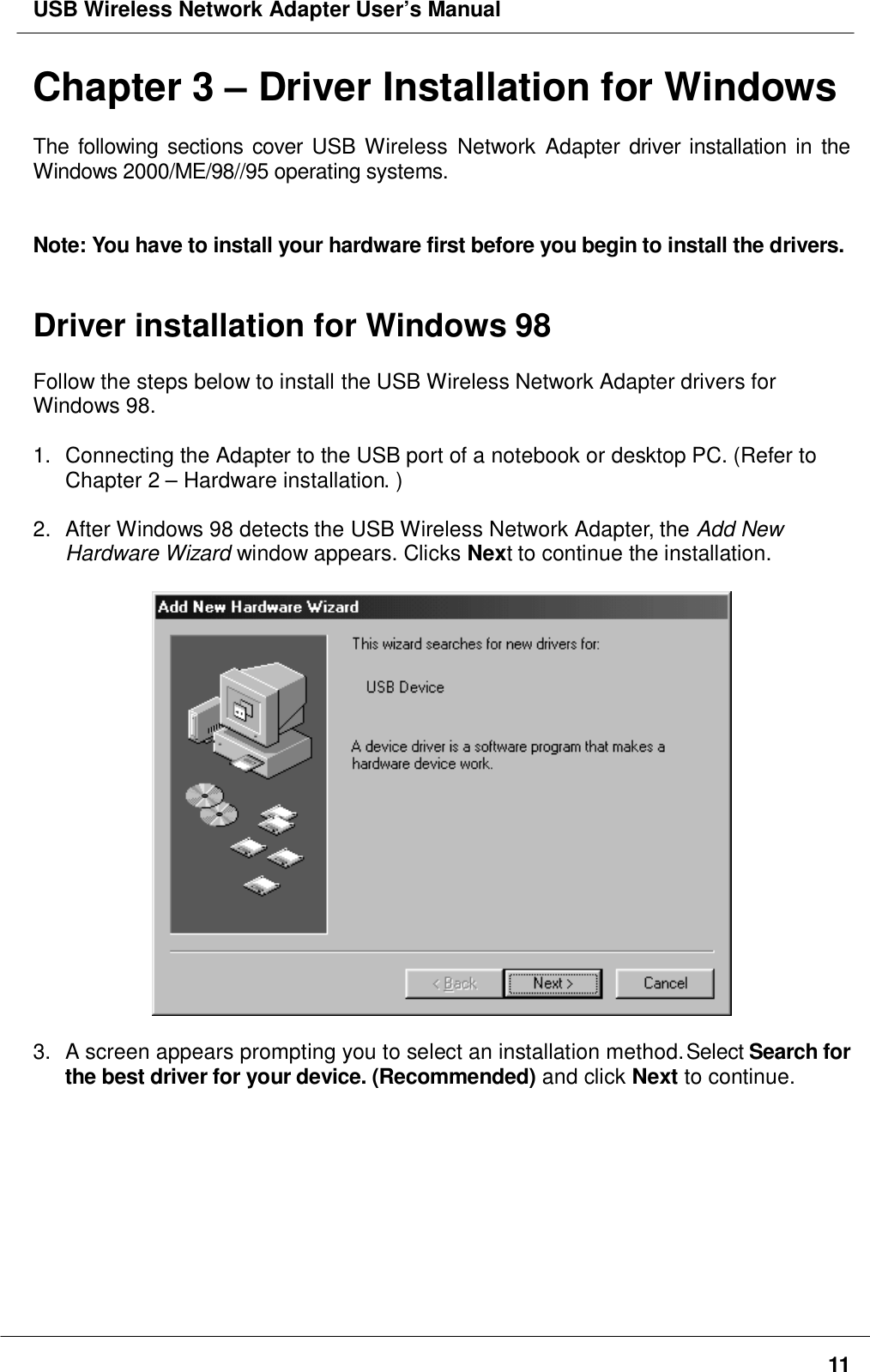

USB Wireless Network Adapter User’s Manual11Chapter 3 – Driver Installation for WindowsThe following sections cover USB Wireless Network Adapter driver installation in theWindows 2000/ME/98//95 operating systems.Note: You have to install your hardware first before you begin to install the drivers.Driver installation for Windows 98Follow the steps below to install the USB Wireless Network Adapter drivers forWindows 98.1. Connecting the Adapter to the USB port of a notebook or desktop PC. (Refer toChapter 2 – Hardware installation. )2. After Windows 98 detects the USB Wireless Network Adapter, the Add NewHardware Wizard window appears. Clicks Next to continue the installation.3. A screen appears prompting you to select an installation method. Select Search forthe best driver for your device. (Recommended) and click Next to continue.
USB Wireless Network Adapter User’s Manual124. Ensure that the CD-ROM drive is selected. Inserts the driver CD-ROM into yourCD-ROM drive and clicks Next to continue.5. The following screen appears showing the driver search result. Click Next tocontinue the installation.

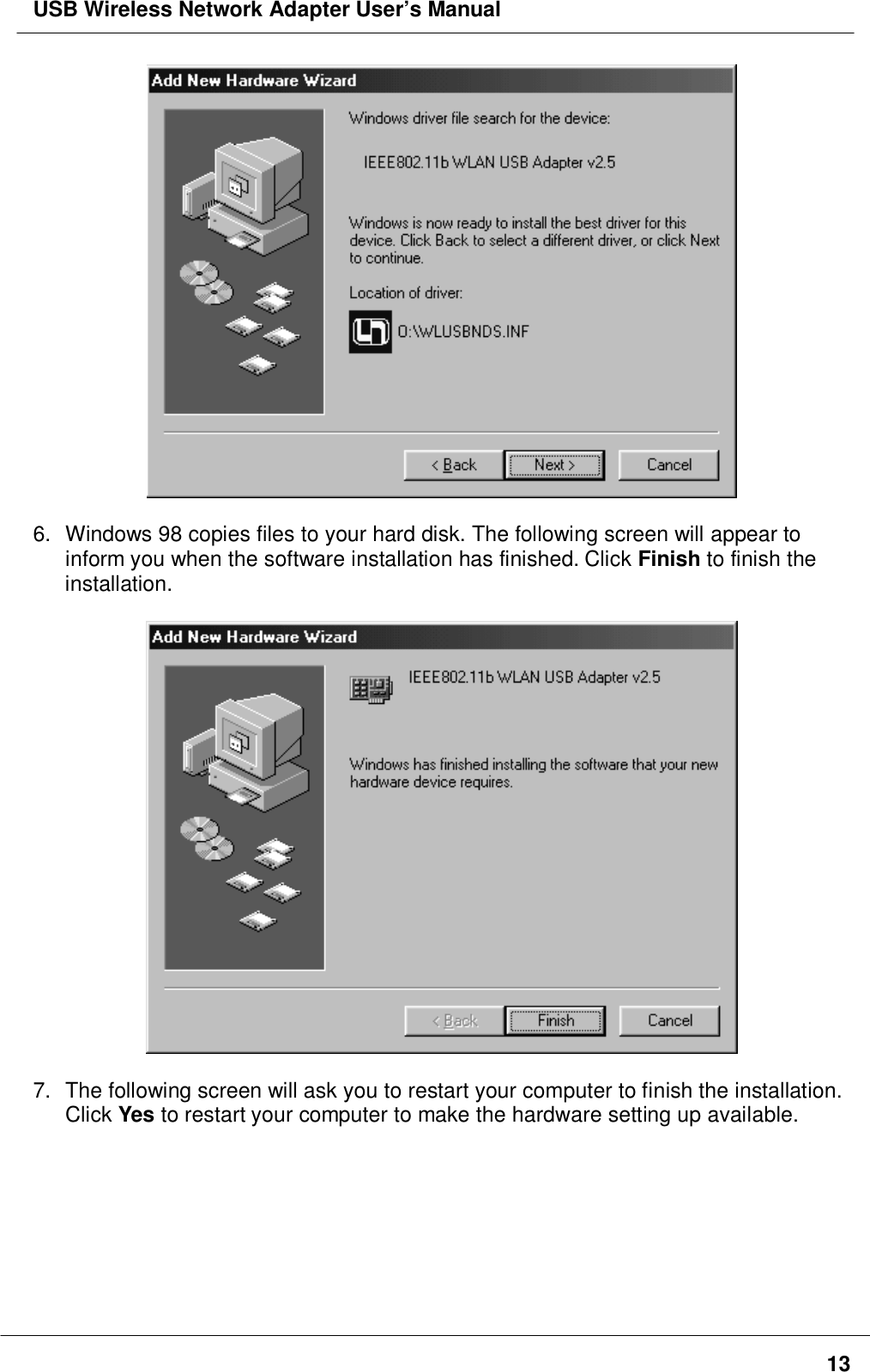

USB Wireless Network Adapter User’s Manual136. Windows 98 copies files to your hard disk. The following screen will appear toinform you when the software installation has finished. Click Finish to finish theinstallation.7. The following screen will ask you to restart your computer to finish the installation.Click Yes to restart your computer to make the hardware setting up available.

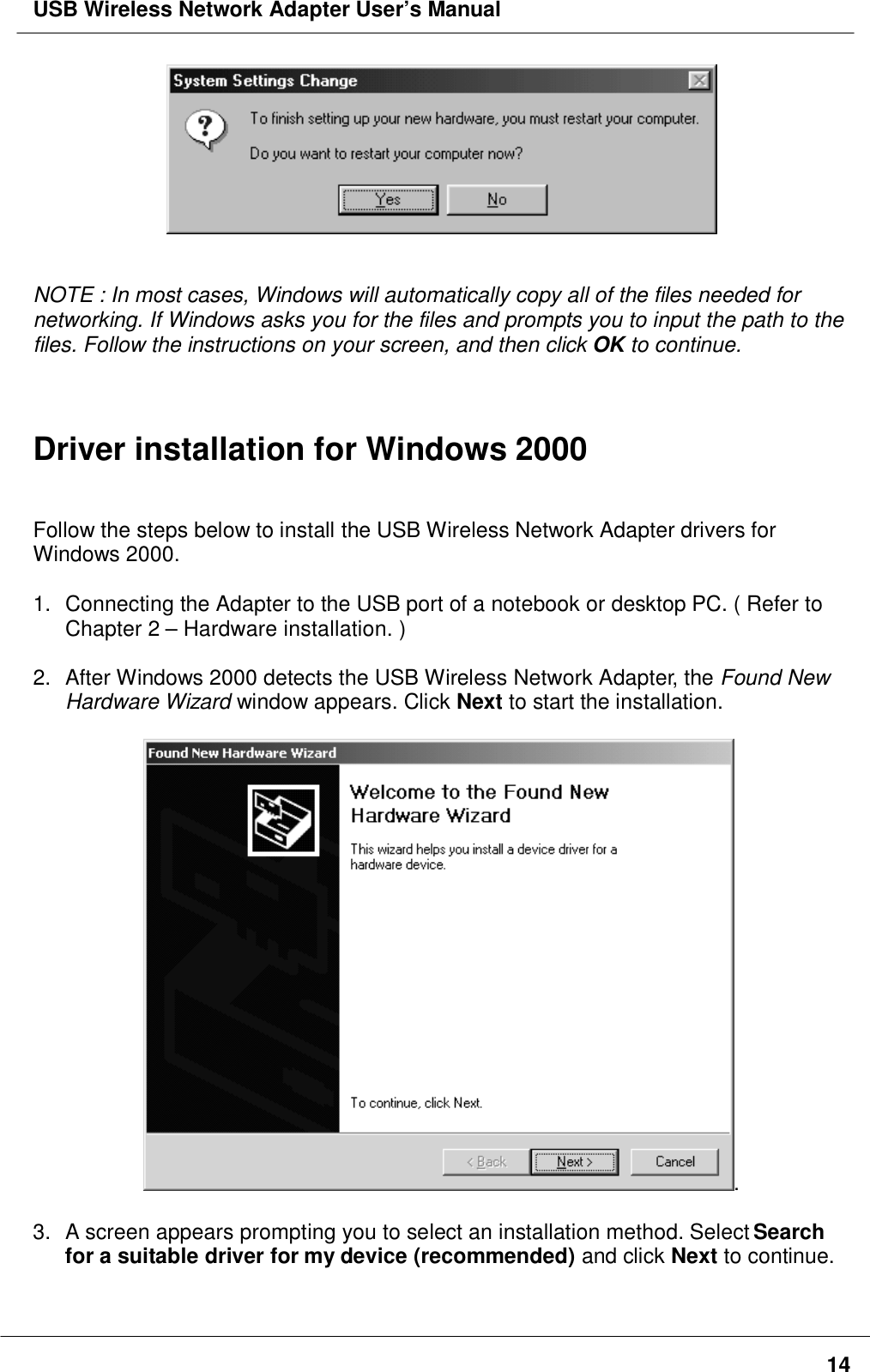

USB Wireless Network Adapter User’s Manual14NOTE : In most cases, Windows will automatically copy all of the files needed fornetworking. If Windows asks you for the files and prompts you to input the path to thefiles. Follow the instructions on your screen, and then click OK to continue.Driver installation for Windows 2000Follow the steps below to install the USB Wireless Network Adapter drivers forWindows 2000.1. Connecting the Adapter to the USB port of a notebook or desktop PC. ( Refer toChapter 2 – Hardware installation. )2. After Windows 2000 detects the USB Wireless Network Adapter, the Found NewHardware Wizard window appears. Click Next to start the installation..3. A screen appears prompting you to select an installation method. Select Searchfor a suitable driver for my device (recommended) and click Next to continue.

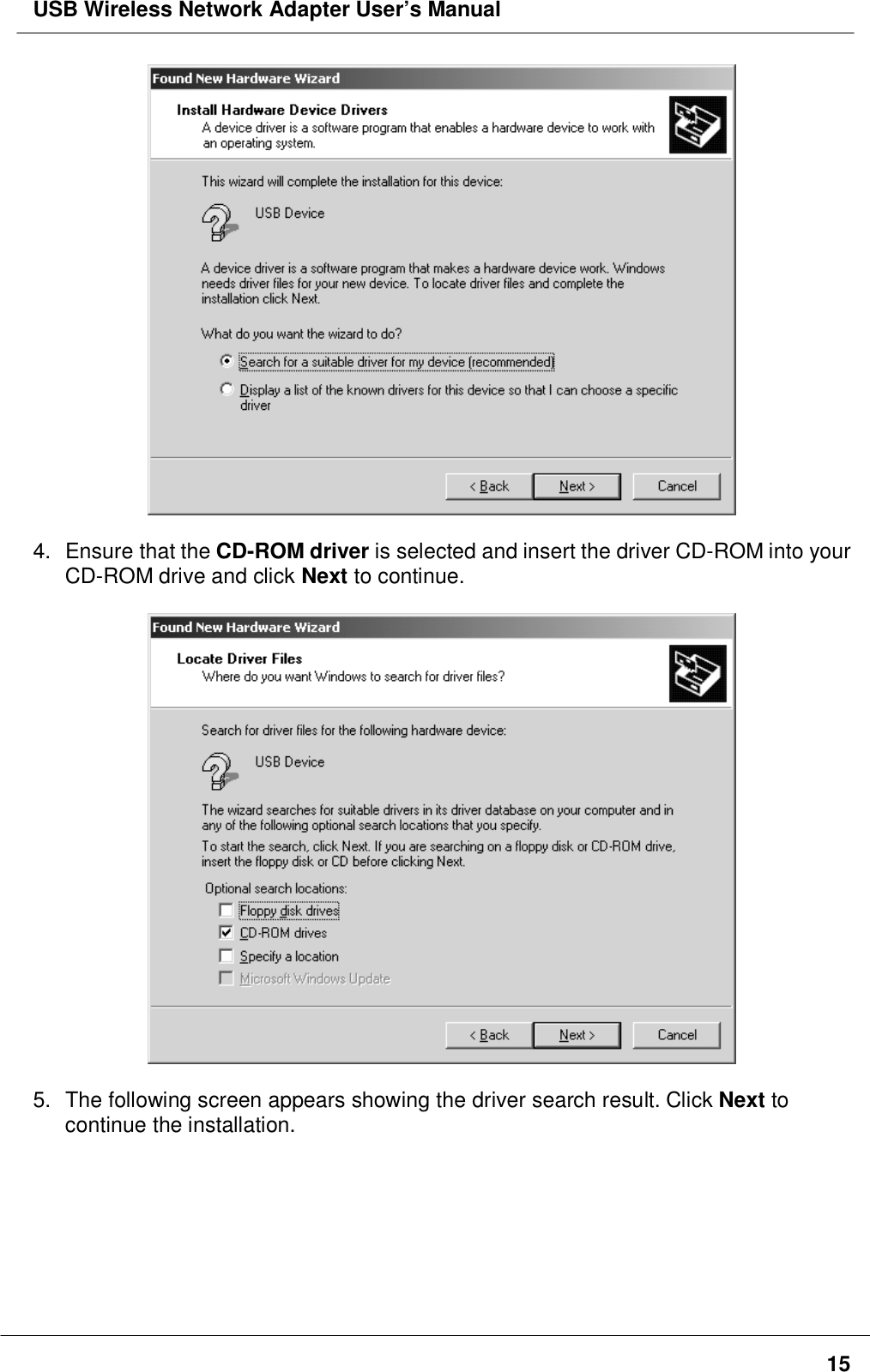

USB Wireless Network Adapter User’s Manual154. Ensure that the CD-ROM driver is selected and insert the driver CD-ROM into yourCD-ROM drive and click Next to continue.5. The following screen appears showing the driver search result. Click Next tocontinue the installation.

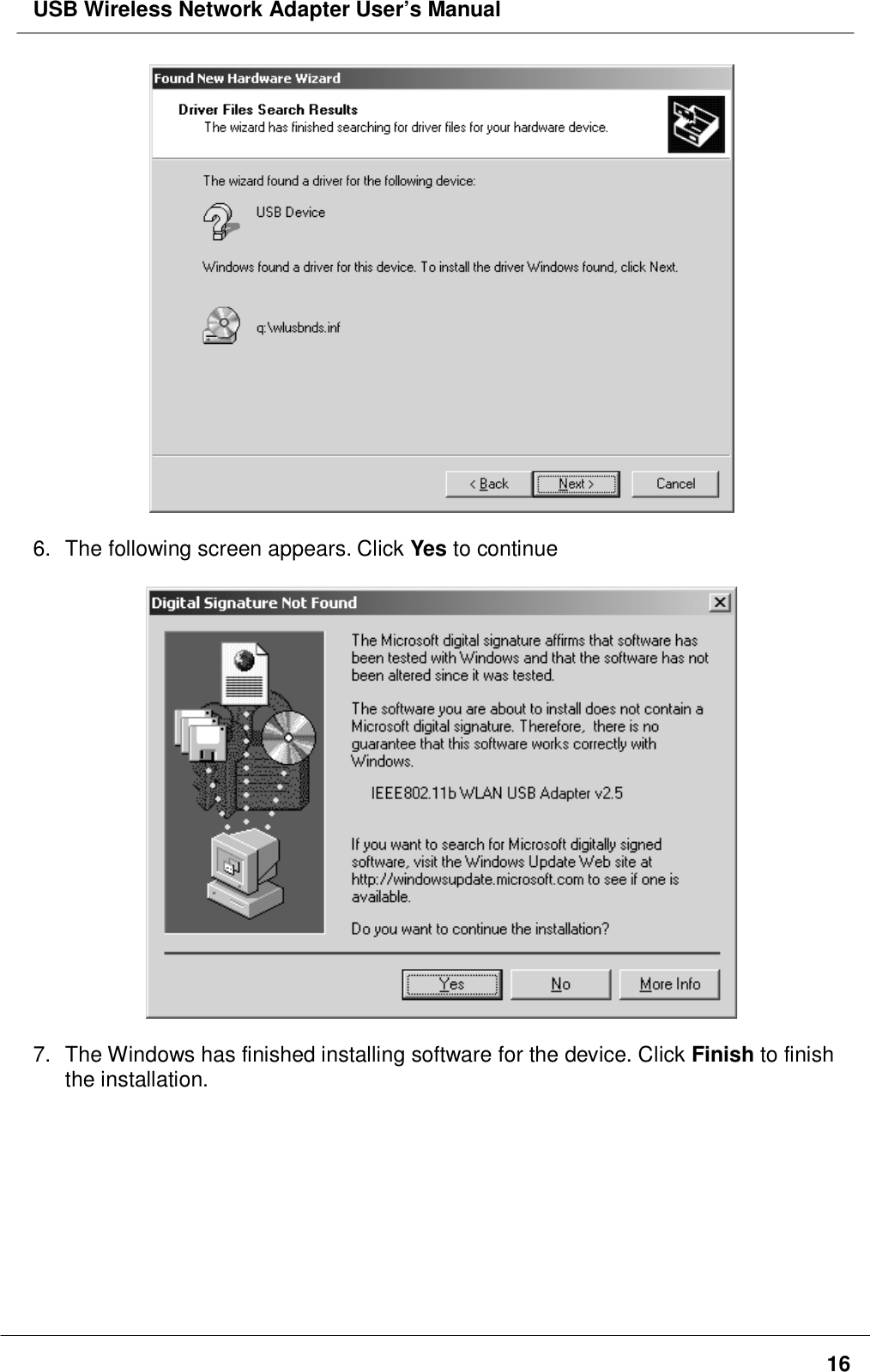

USB Wireless Network Adapter User’s Manual166. The following screen appears. Click Yes to continue7. The Windows has finished installing software for the device. Click Finish to finishthe installation.

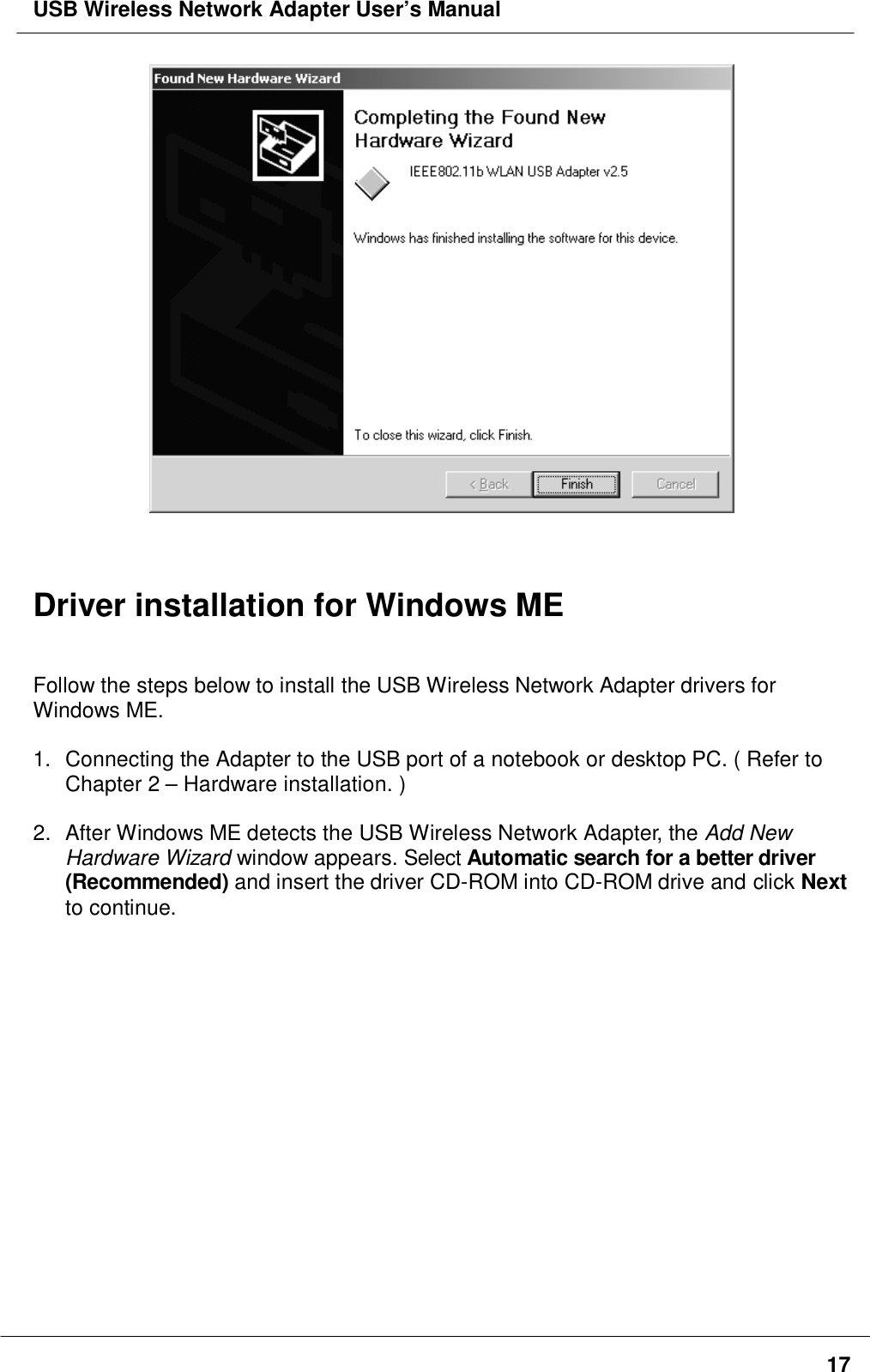

USB Wireless Network Adapter User’s Manual17Driver installation for Windows MEFollow the steps below to install the USB Wireless Network Adapter drivers forWindows ME.1. Connecting the Adapter to the USB port of a notebook or desktop PC. ( Refer toChapter 2 – Hardware installation. )2. After Windows ME detects the USB Wireless Network Adapter, the Add NewHardware Wizard window appears. Select Automatic search for a better driver(Recommended) and insert the driver CD-ROM into CD-ROM drive and click Nextto continue.

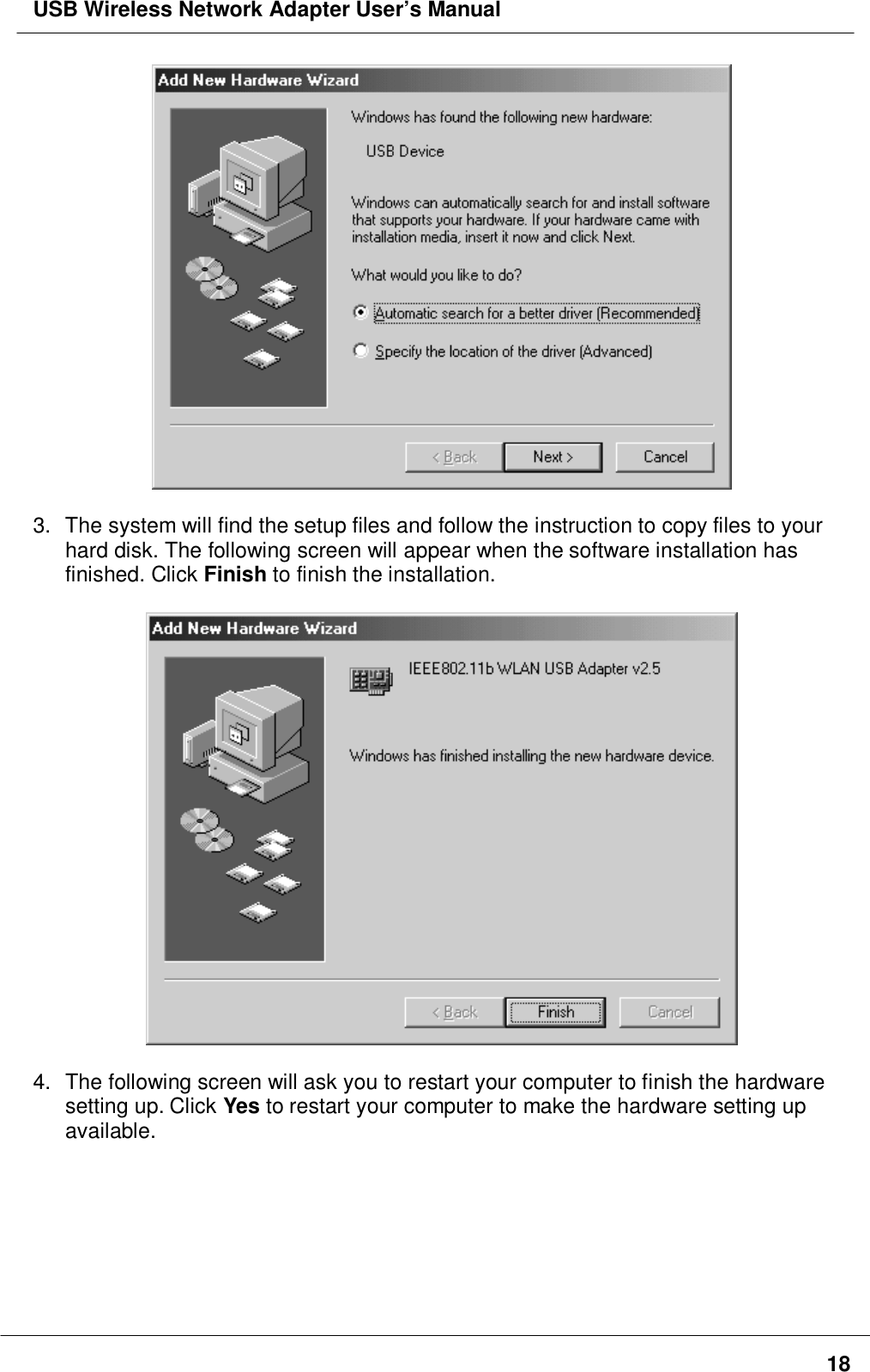

USB Wireless Network Adapter User’s Manual183. The system will find the setup files and follow the instruction to copy files to yourhard disk. The following screen will appear when the software installation hasfinished. Click Finish to finish the installation.4. The following screen will ask you to restart your computer to finish the hardwaresetting up. Click Yes to restart your computer to make the hardware setting upavailable.

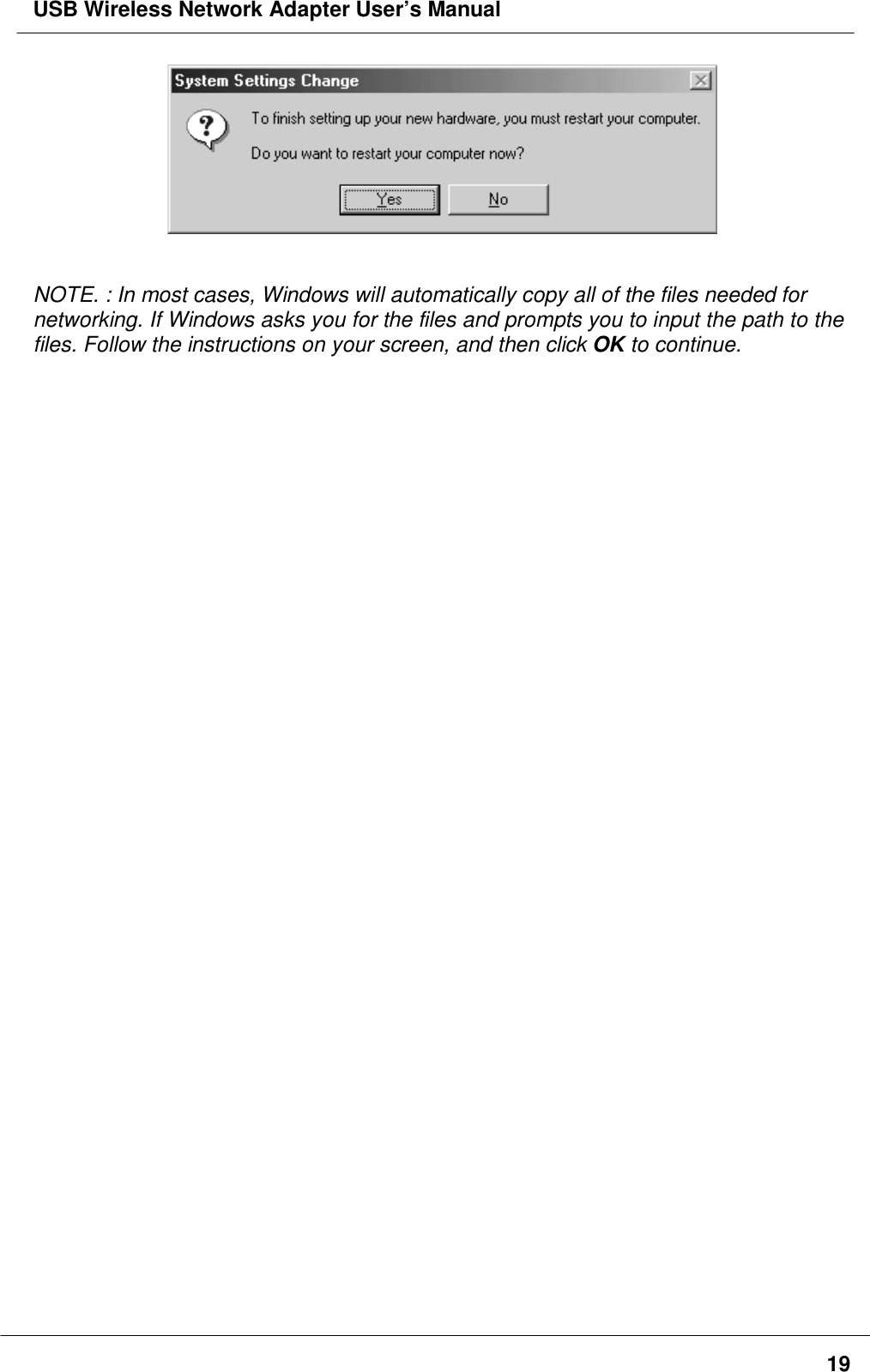

USB Wireless Network Adapter User’s Manual19NOTE. : In most cases, Windows will automatically copy all of the files needed fornetworking. If Windows asks you for the files and prompts you to input the path to thefiles. Follow the instructions on your screen, and then click OK to continue.

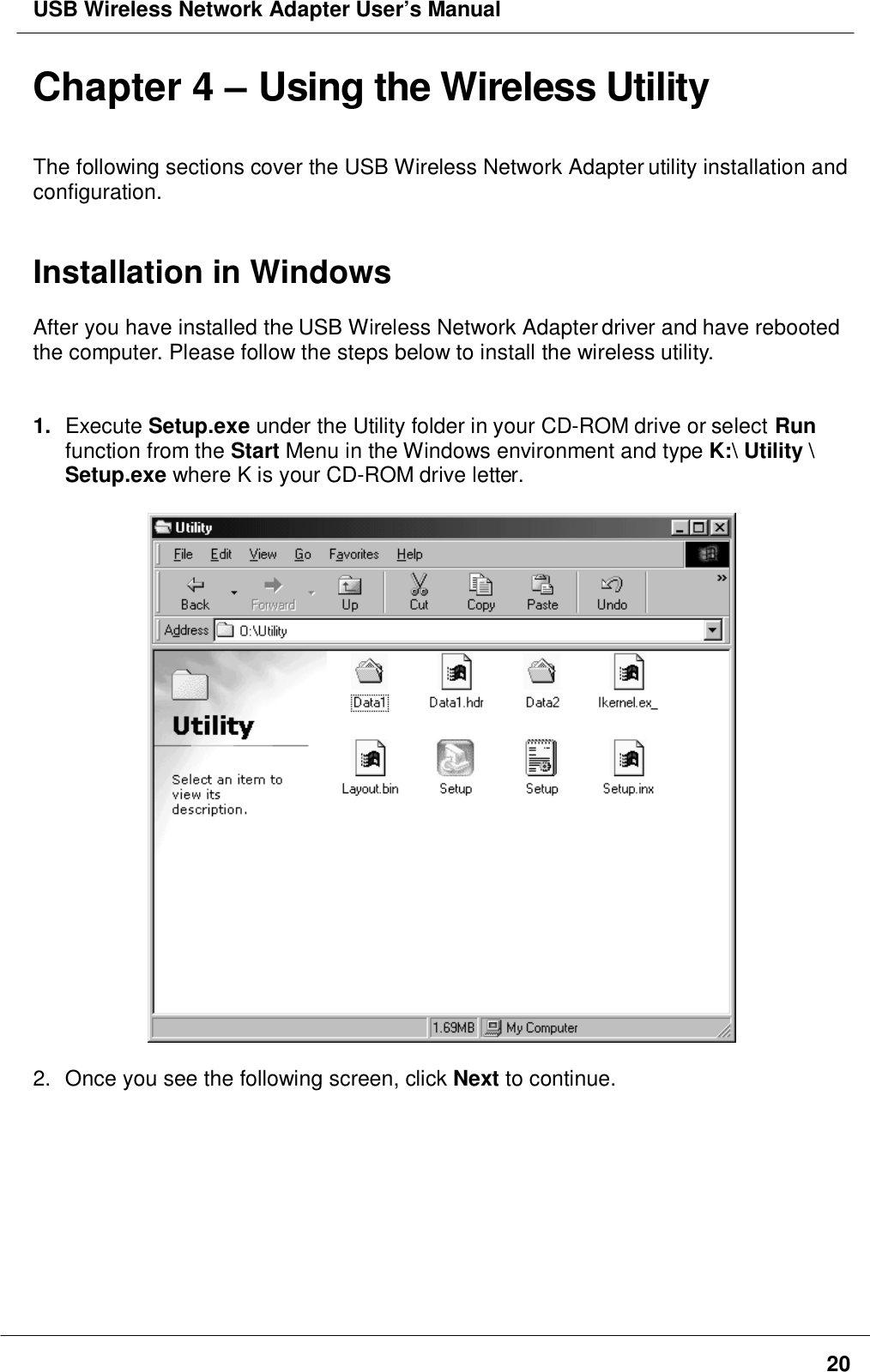

USB Wireless Network Adapter User’s Manual20Chapter 4 – Using the Wireless UtilityThe following sections cover the USB Wireless Network Adapter utility installation andconfiguration.Installation in WindowsAfter you have installed the USB Wireless Network Adapter driver and have rebootedthe computer. Please follow the steps below to install the wireless utility.1. Execute Setup.exe under the Utility folder in your CD-ROM drive or select Runfunction from the Start Menu in the Windows environment and type K:\ Utility \Setup.exe where K is your CD-ROM drive letter.2. Once you see the following screen, click Next to continue.

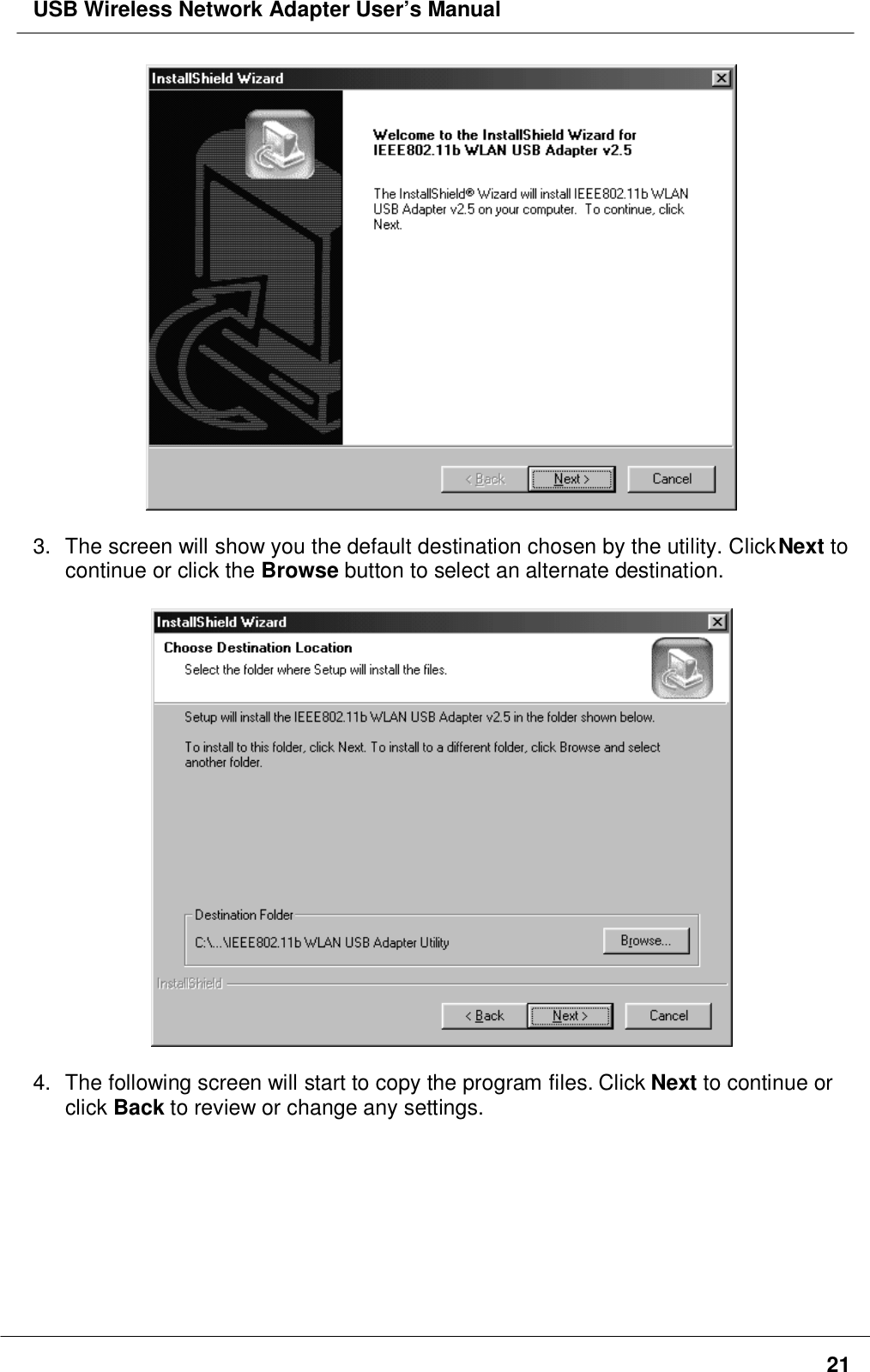

USB Wireless Network Adapter User’s Manual213. The screen will show you the default destination chosen by the utility. Click Next tocontinue or click the Browse button to select an alternate destination.4. The following screen will start to copy the program files. Click Next to continue orclick Back to review or change any settings.

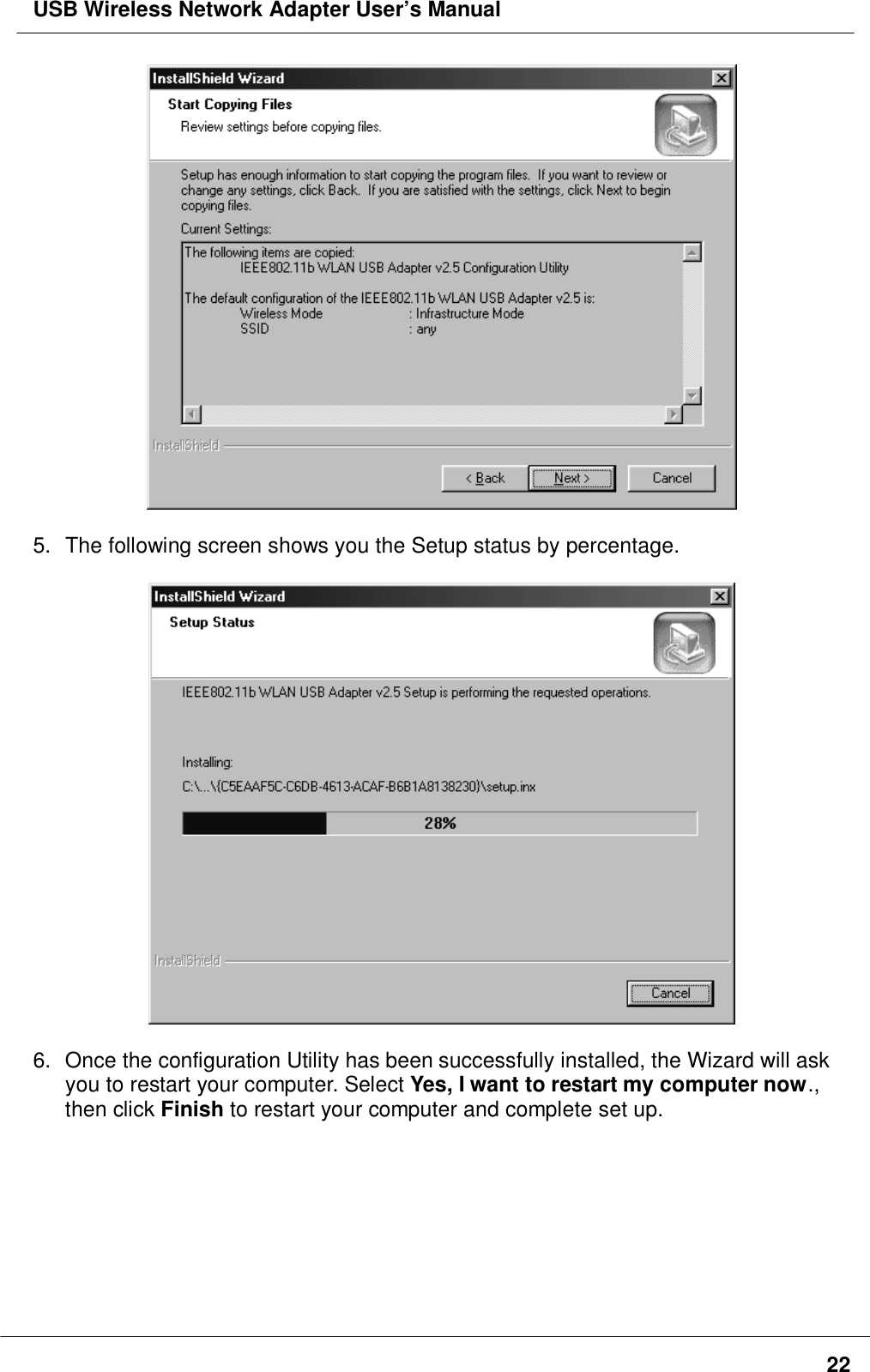

USB Wireless Network Adapter User’s Manual225. The following screen shows you the Setup status by percentage.6. Once the configuration Utility has been successfully installed, the Wizard will askyou to restart your computer. Select Yes, I want to restart my computer now.,then click Finish to restart your computer and complete set up.

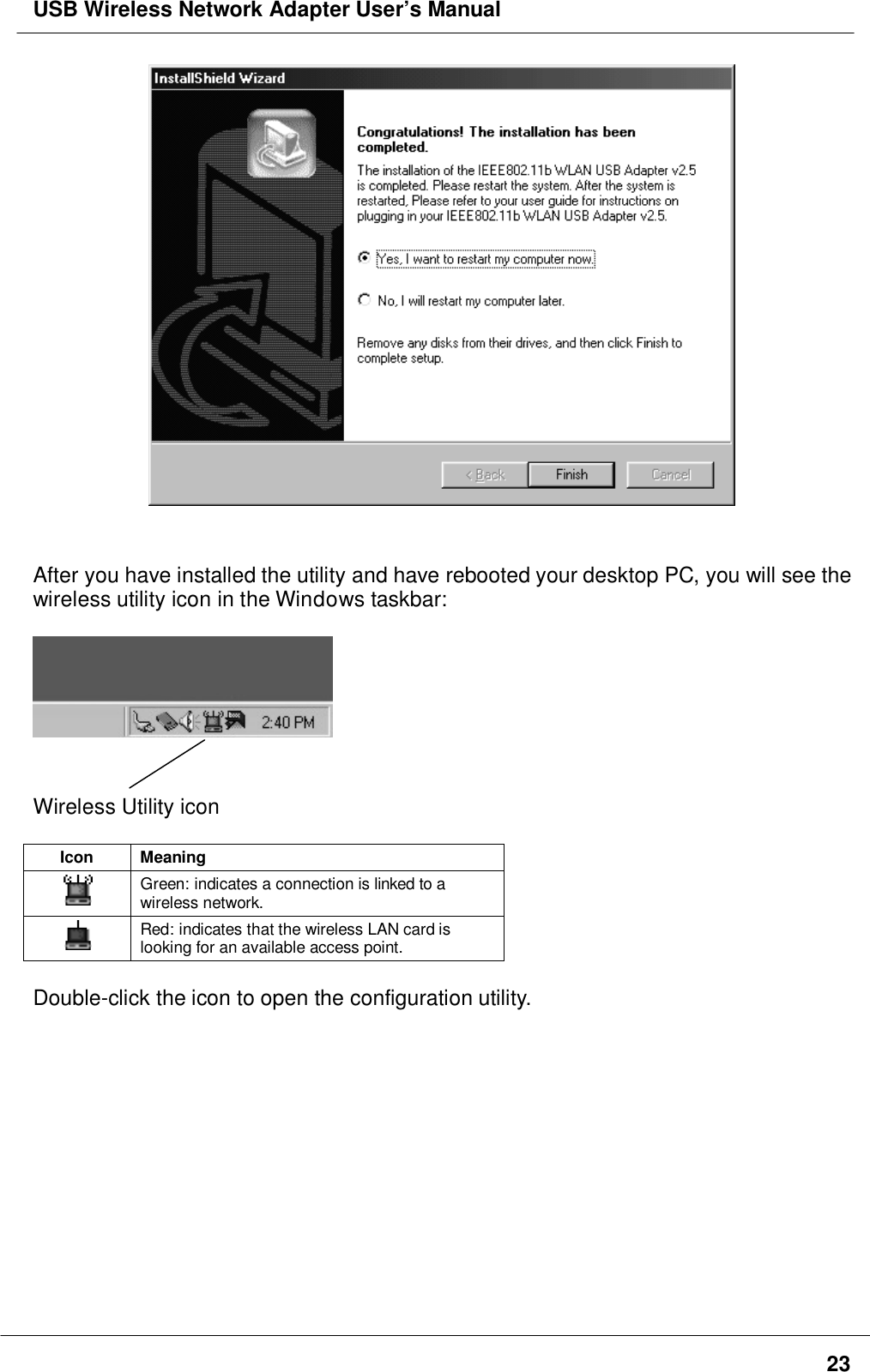

USB Wireless Network Adapter User’s Manual23After you have installed the utility and have rebooted your desktop PC, you will see thewireless utility icon in the Windows taskbar:Wireless Utility iconIcon MeaningGreen: indicates a connection is linked to awireless network.Red: indicates that the wireless LAN card islooking for an available access point.Double-click the icon to open the configuration utility.

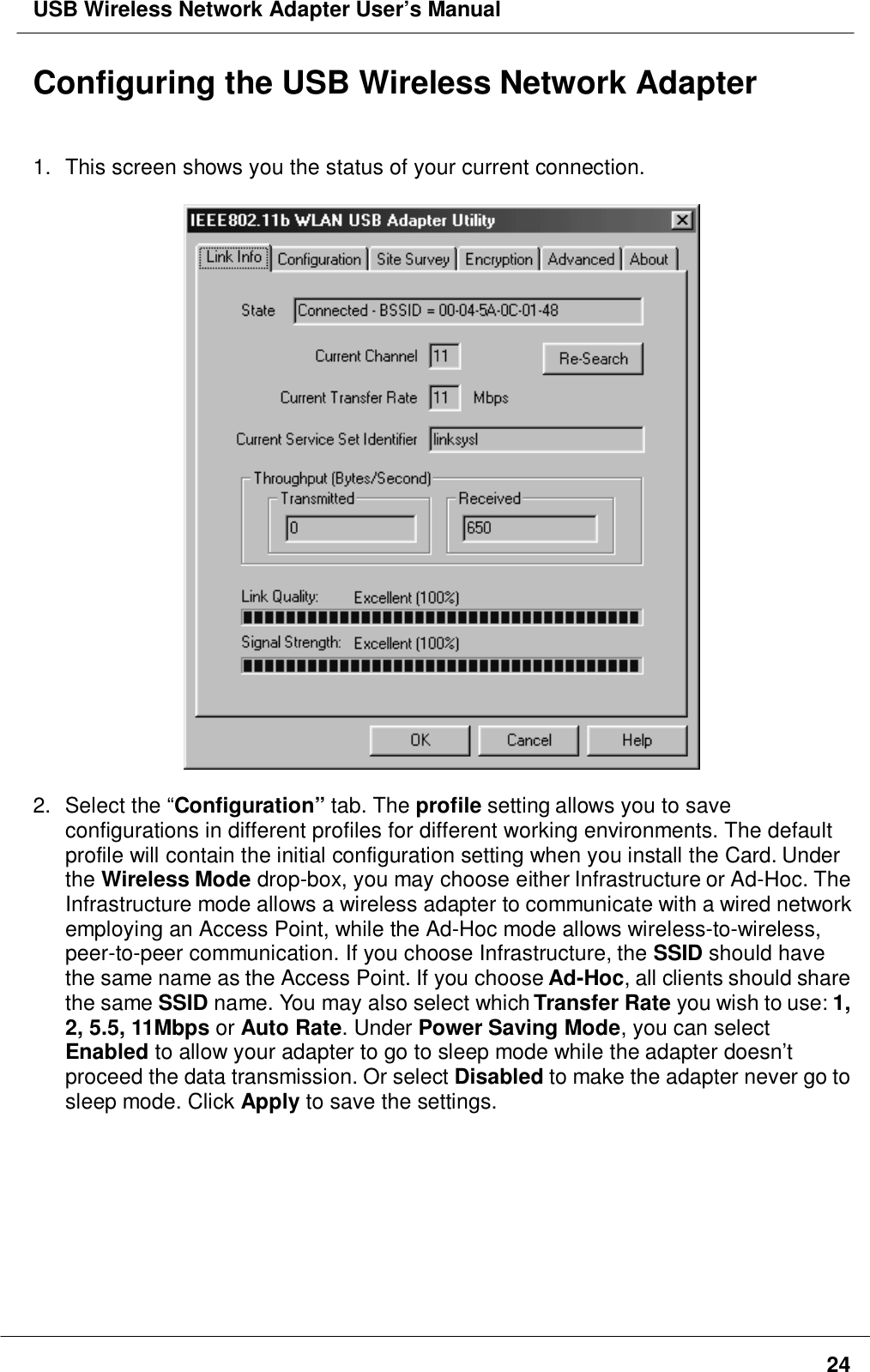

USB Wireless Network Adapter User’s Manual24Configuring the USB Wireless Network Adapter1. This screen shows you the status of your current connection.2. Select the “Configuration” tab. The profile setting allows you to saveconfigurations in different profiles for different working environments. The defaultprofile will contain the initial configuration setting when you install the Card. Underthe Wireless Mode drop-box, you may choose either Infrastructure or Ad-Hoc. TheInfrastructure mode allows a wireless adapter to communicate with a wired networkemploying an Access Point, while the Ad-Hoc mode allows wireless-to-wireless,peer-to-peer communication. If you choose Infrastructure, the SSID should havethe same name as the Access Point. If you choose Ad-Hoc, all clients should sharethe same SSID name. You may also select which Transfer Rate you wish to use: 1,2, 5.5, 11Mbps or Auto Rate. Under Power Saving Mode, you can selectEnabled to allow your adapter to go to sleep mode while the adapter doesn’tproceed the data transmission. Or select Disabled to make the adapter never go tosleep mode. Click Apply to save the settings.

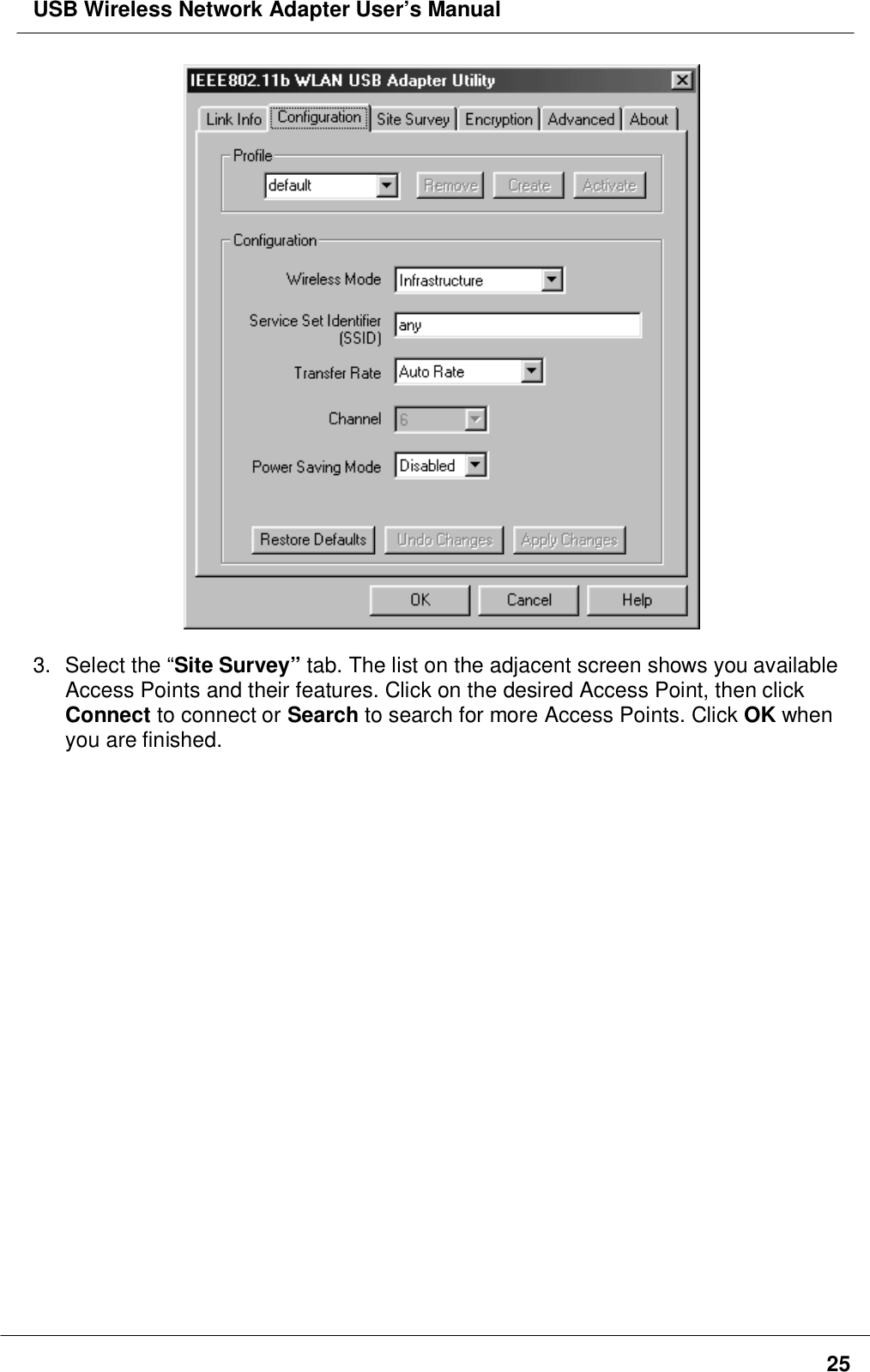

USB Wireless Network Adapter User’s Manual253. Select the “Site Survey” tab. The list on the adjacent screen shows you availableAccess Points and their features. Click on the desired Access Point, then clickConnect to connect or Search to search for more Access Points. Click OK whenyou are finished.

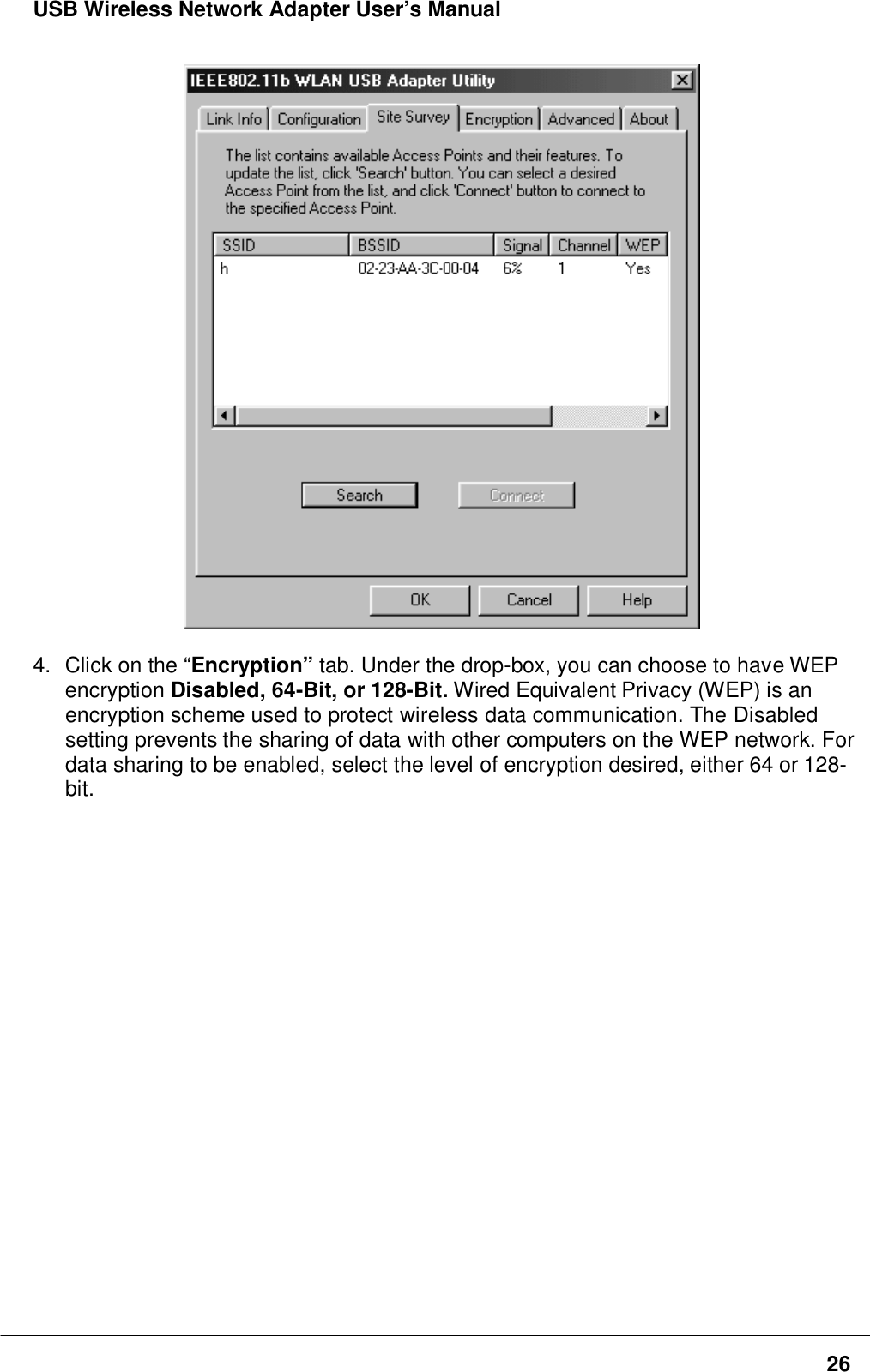

USB Wireless Network Adapter User’s Manual264. Click on the “Encryption” tab. Under the drop-box, you can choose to have WEPencryption Disabled, 64-Bit, or 128-Bit. Wired Equivalent Privacy (WEP) is anencryption scheme used to protect wireless data communication. The Disabledsetting prevents the sharing of data with other computers on the WEP network. Fordata sharing to be enabled, select the level of encryption desired, either 64 or 128-bit.

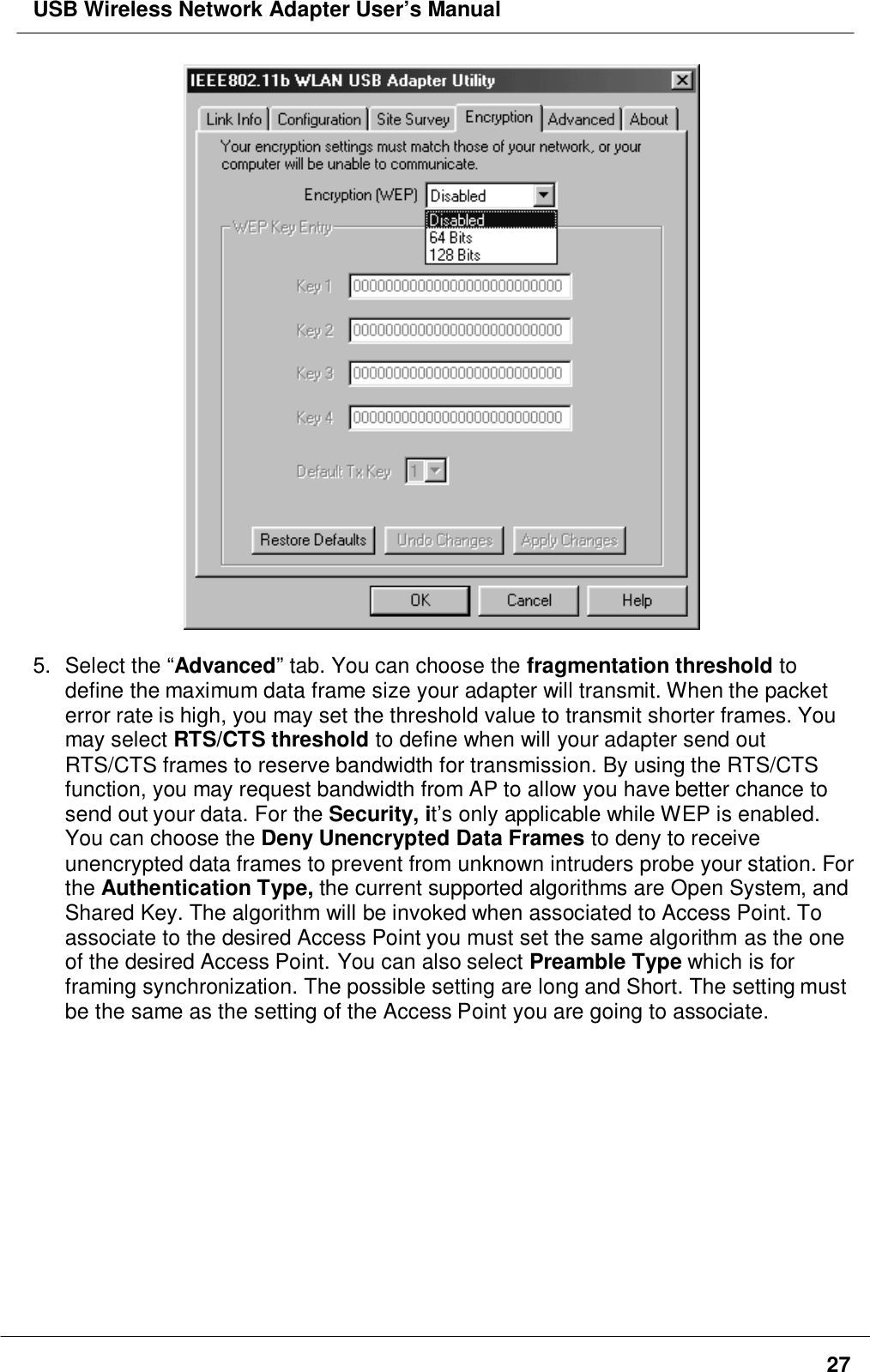

USB Wireless Network Adapter User’s Manual275. Select the “Advanced” tab. You can choose the fragmentation threshold todefine the maximum data frame size your adapter will transmit. When the packeterror rate is high, you may set the threshold value to transmit shorter frames. Youmay select RTS/CTS threshold to define when will your adapter send outRTS/CTS frames to reserve bandwidth for transmission. By using the RTS/CTSfunction, you may request bandwidth from AP to allow you have better chance tosend out your data. For the Security, it’s only applicable while WEP is enabled.You can choose the Deny Unencrypted Data Frames to deny to receiveunencrypted data frames to prevent from unknown intruders probe your station. Forthe Authentication Type, the current supported algorithms are Open System, andShared Key. The algorithm will be invoked when associated to Access Point. Toassociate to the desired Access Point you must set the same algorithm as the oneof the desired Access Point. You can also select Preamble Type which is forframing synchronization. The possible setting are long and Short. The setting mustbe the same as the setting of the Access Point you are going to associate.

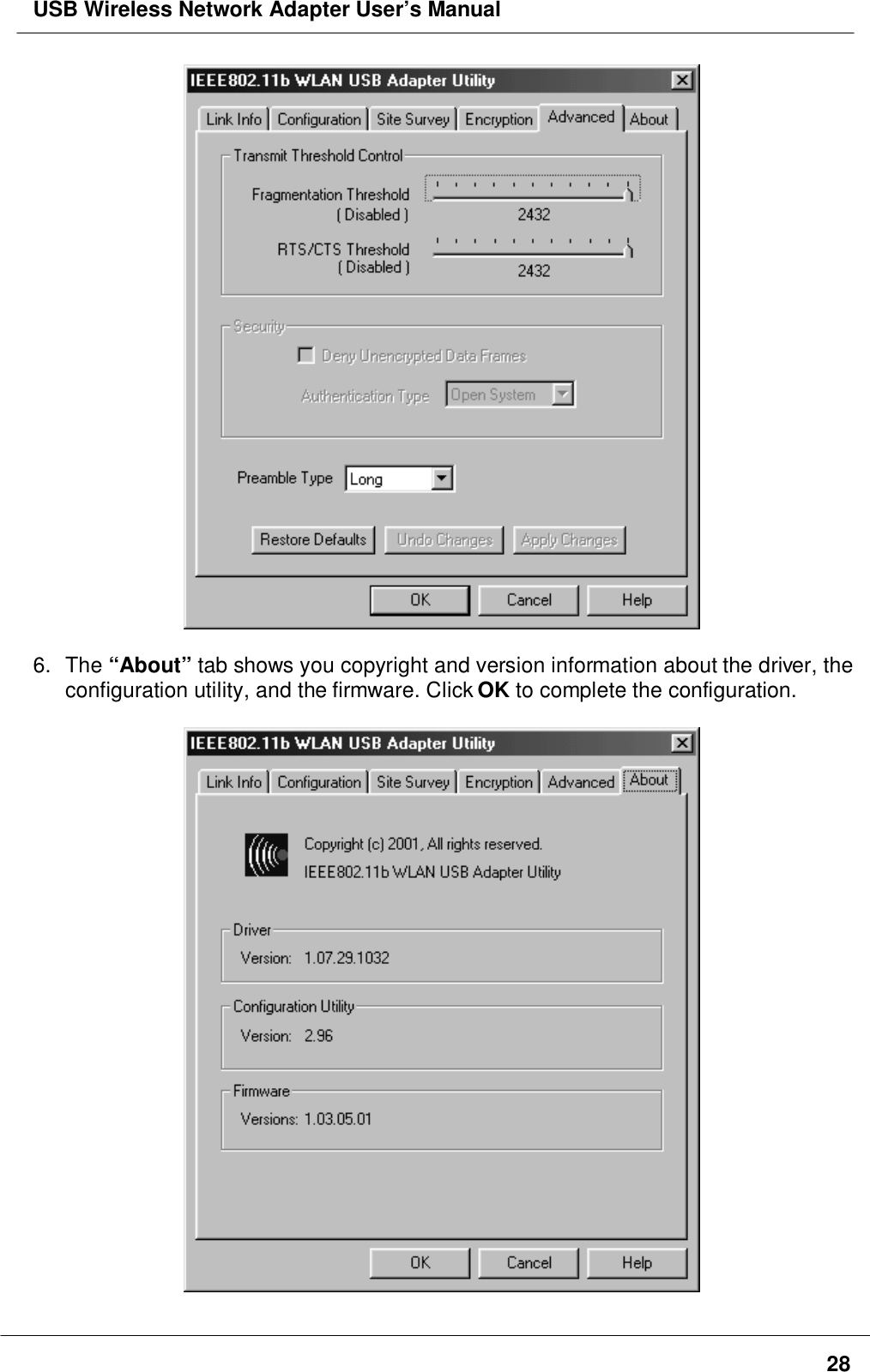

USB Wireless Network Adapter User’s Manual286. The “About” tab shows you copyright and version information about the driver, theconfiguration utility, and the firmware. Click OK to complete the configuration.

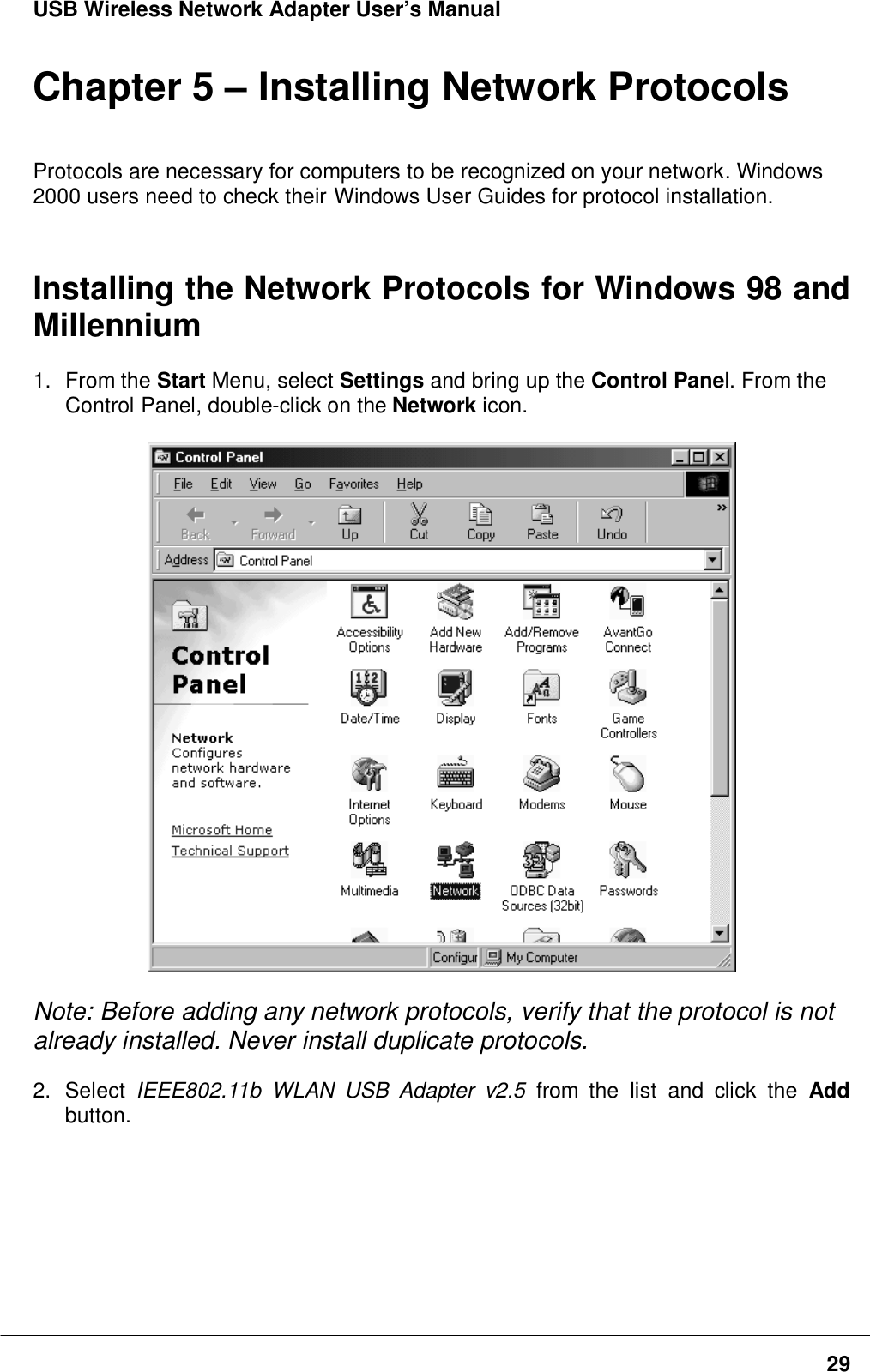

USB Wireless Network Adapter User’s Manual29Chapter 5 – Installing Network ProtocolsProtocols are necessary for computers to be recognized on your network. Windows2000 users need to check their Windows User Guides for protocol installation.Installing the Network Protocols for Windows 98 andMillennium1. From the Start Menu, select Settings and bring up the Control Panel. From theControl Panel, double-click on the Network icon.Note: Before adding any network protocols, verify that the protocol is notalready installed. Never install duplicate protocols.2. Select IEEE802.11b WLAN USB Adapter v2.5 from the list and click the Addbutton.

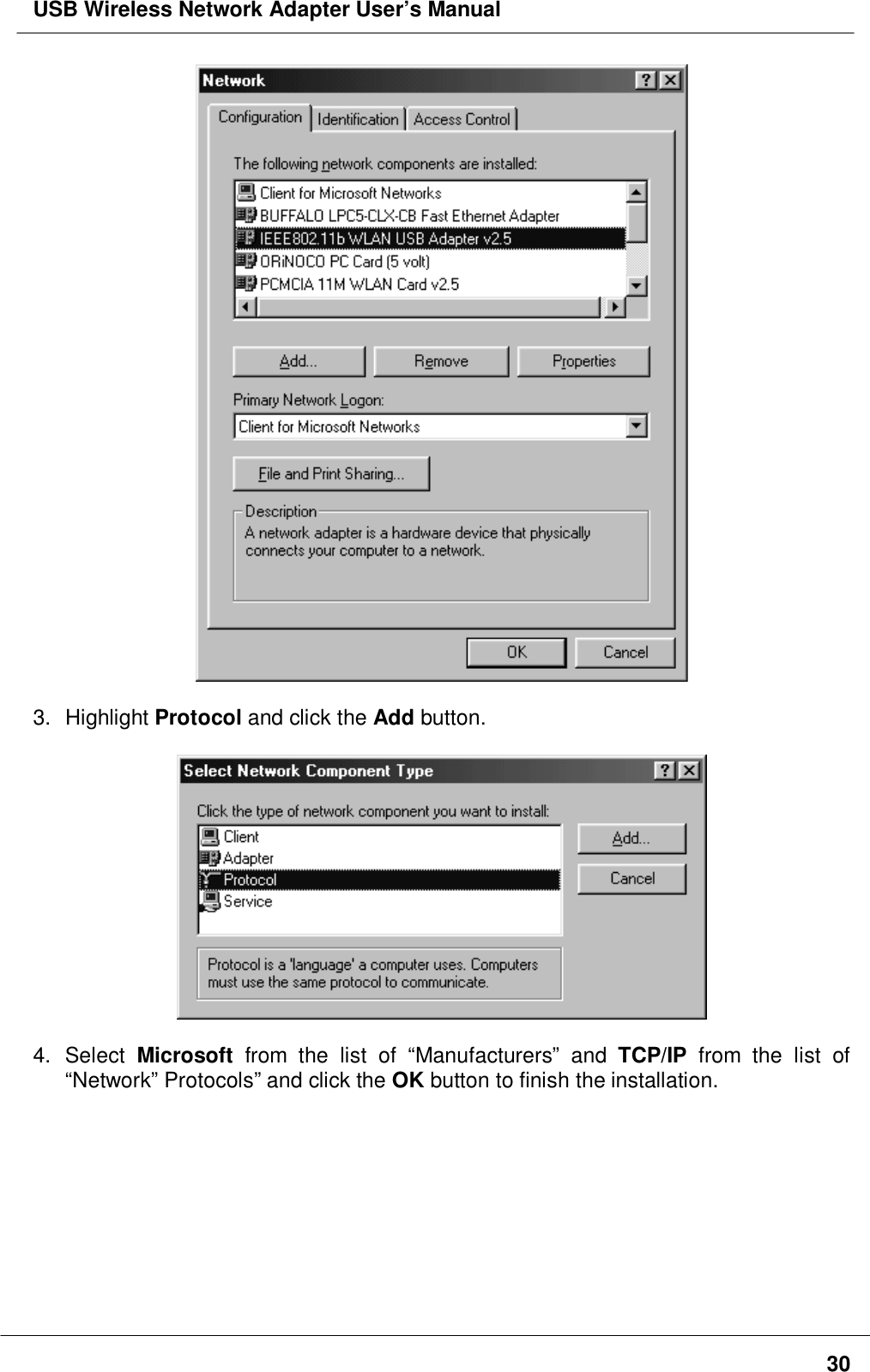

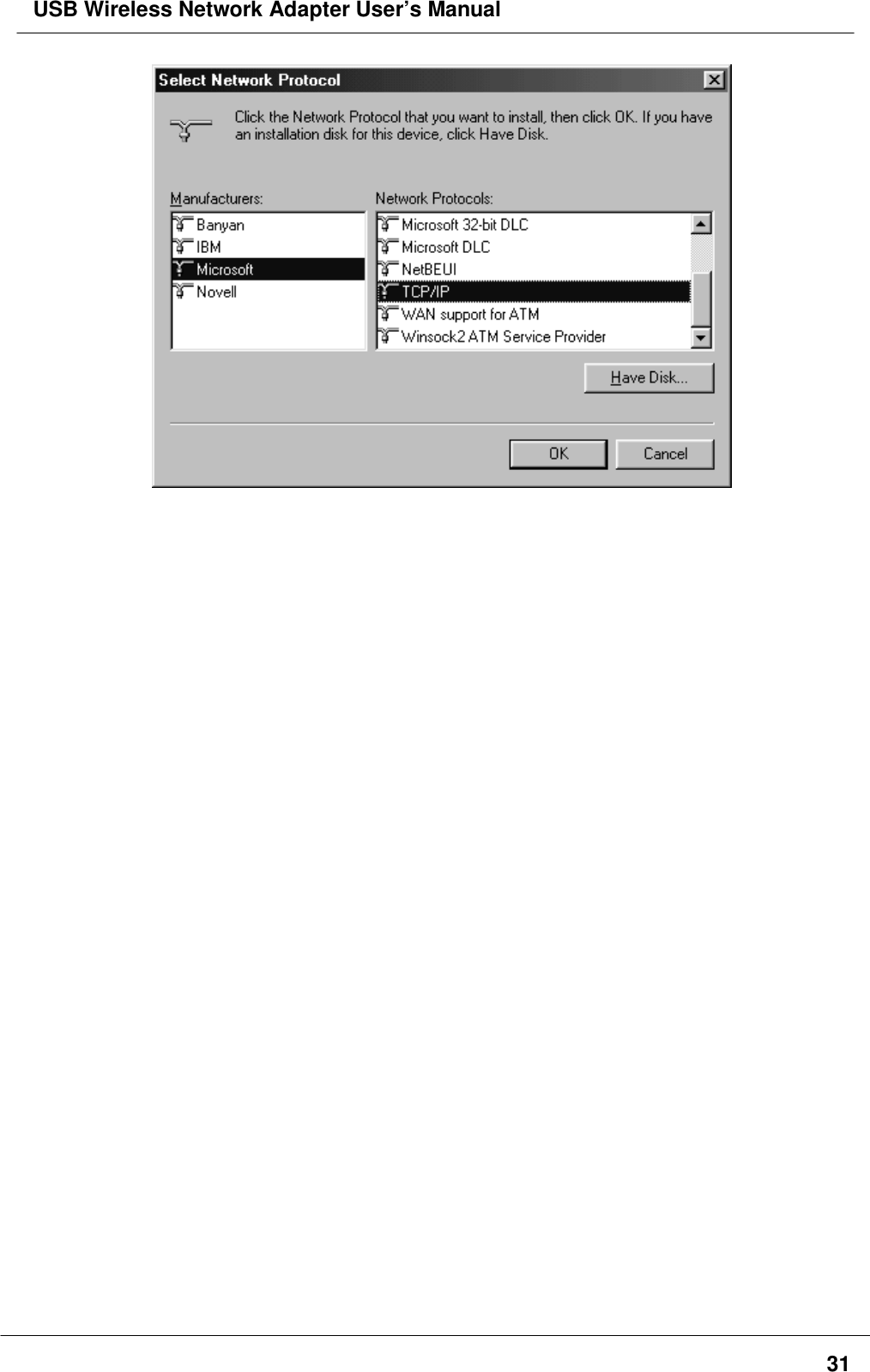

USB Wireless Network Adapter User’s Manual303. Highlight Protocol and click the Add button.4. Select Microsoft from the list of “Manufacturers” and TCP/IP from the list of“Network” Protocols” and click the OK button to finish the installation.
USB Wireless Network Adapter User’s Manual31

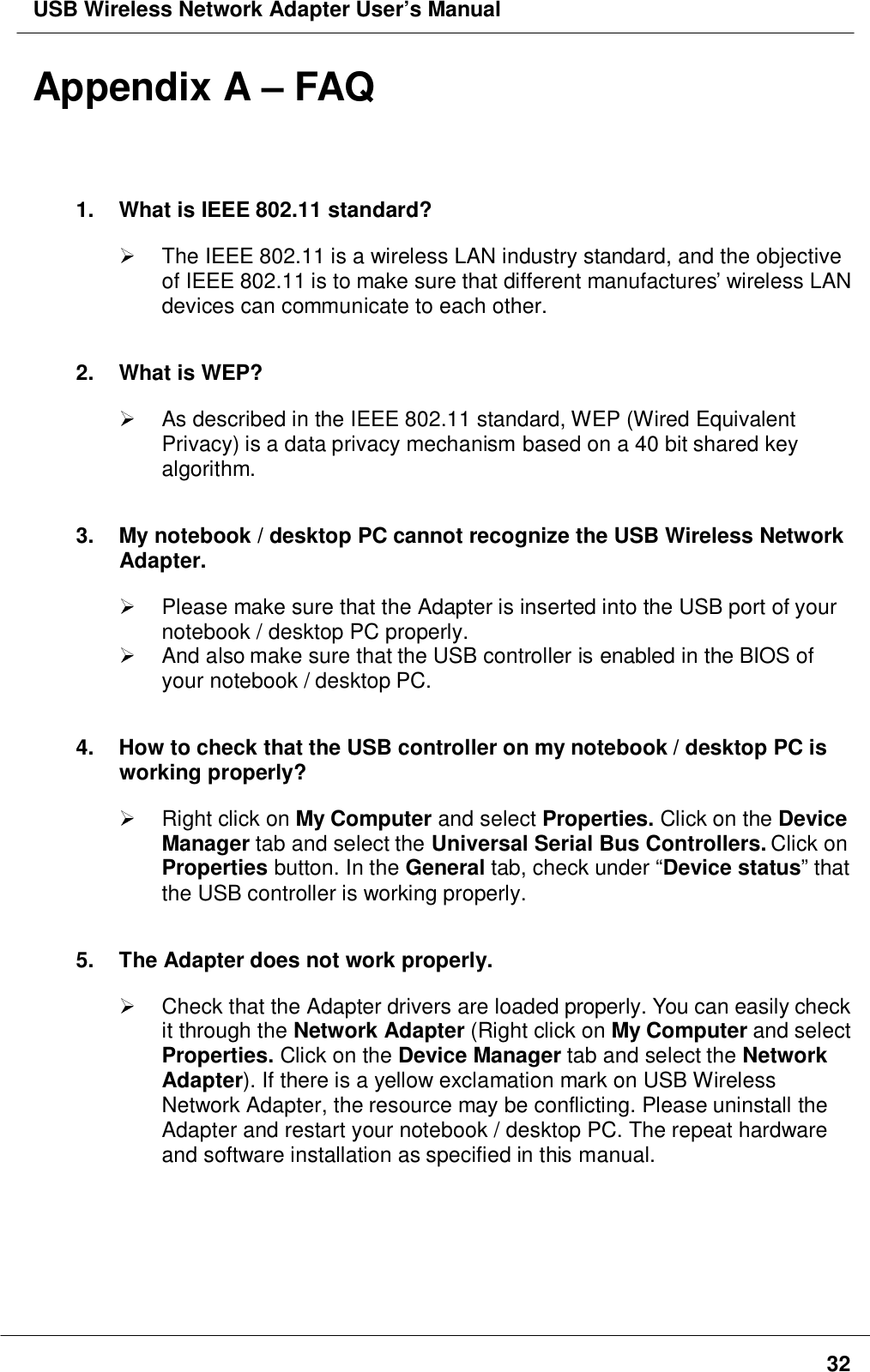

USB Wireless Network Adapter User’s Manual32Appendix A – FAQ1. What is IEEE 802.11 standard? The IEEE 802.11 is a wireless LAN industry standard, and the objectiveof IEEE 802.11 is to make sure that different manufactures’ wireless LANdevices can communicate to each other.2. What is WEP? As described in the IEEE 802.11 standard, WEP (Wired EquivalentPrivacy) is a data privacy mechanism based on a 40 bit shared keyalgorithm.3. My notebook / desktop PC cannot recognize the USB Wireless NetworkAdapter. Please make sure that the Adapter is inserted into the USB port of yournotebook / desktop PC properly. And also make sure that the USB controller is enabled in the BIOS ofyour notebook / desktop PC.4. How to check that the USB controller on my notebook / desktop PC isworking properly? Right click on My Computer and select Properties. Click on the DeviceManager tab and select the Universal Serial Bus Controllers. Click onProperties button. In the General tab, check under “Device status” thatthe USB controller is working properly.5. The Adapter does not work properly. Check that the Adapter drivers are loaded properly. You can easily checkit through the Network Adapter (Right click on My Computer and selectProperties. Click on the Device Manager tab and select the NetworkAdapter). If there is a yellow exclamation mark on USB WirelessNetwork Adapter, the resource may be conflicting. Please uninstall theAdapter and restart your notebook / desktop PC. The repeat hardwareand software installation as specified in this manual.

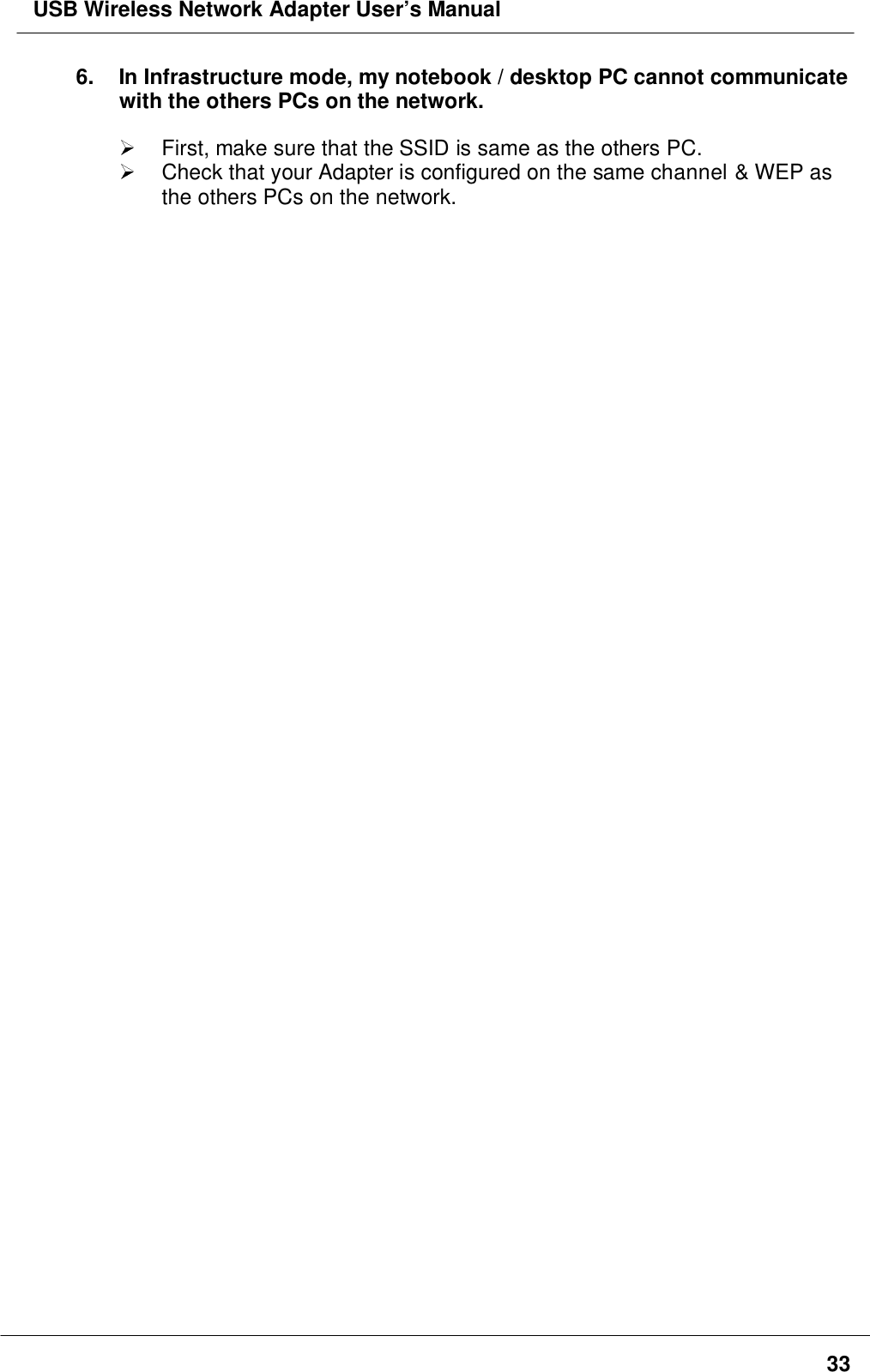

USB Wireless Network Adapter User’s Manual336. In Infrastructure mode, my notebook / desktop PC cannot communicatewith the others PCs on the network. First, make sure that the SSID is same as the others PC. Check that your Adapter is configured on the same channel & WEP asthe others PCs on the network.

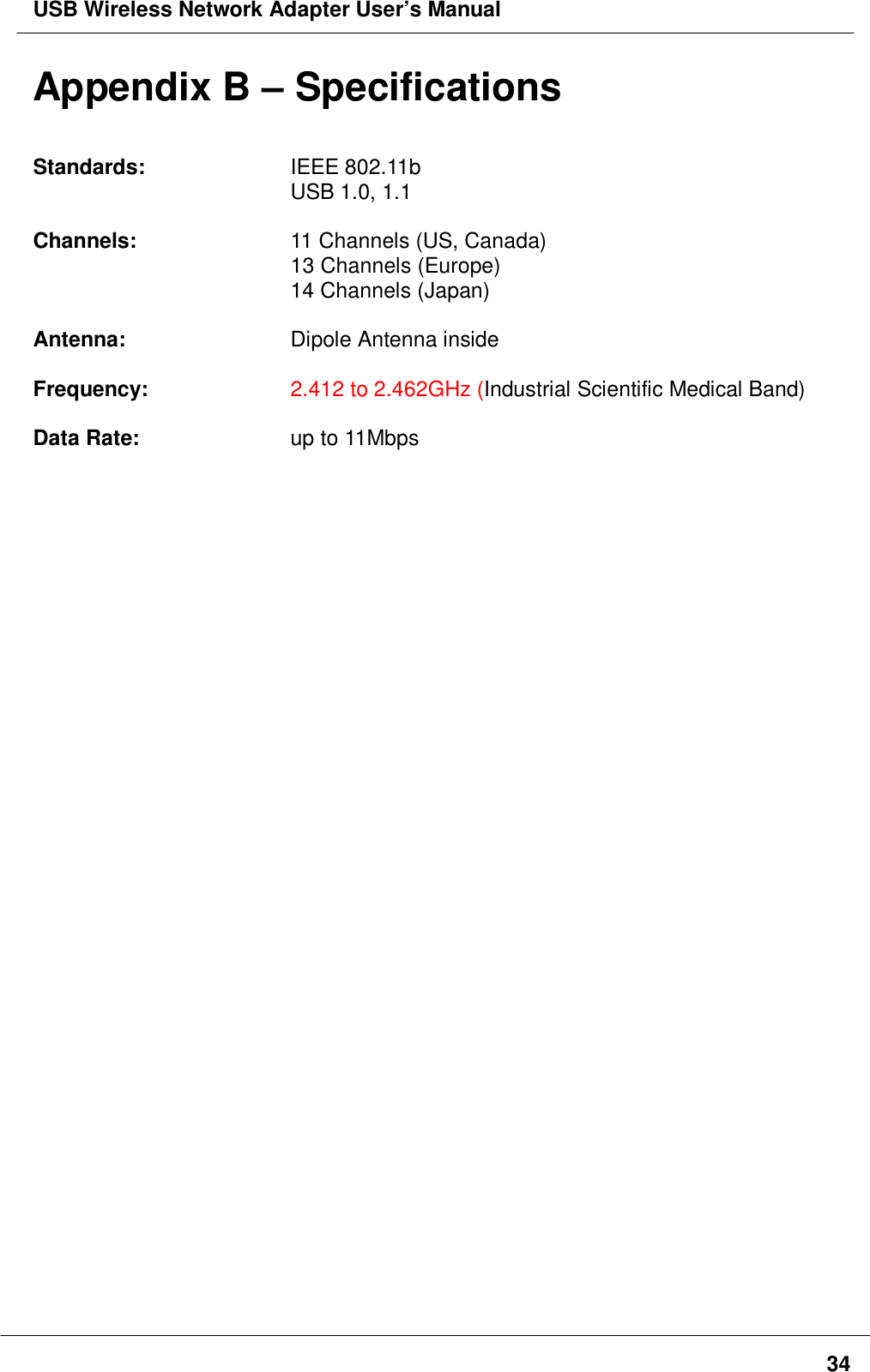

USB Wireless Network Adapter User’s Manual34Appendix B – SpecificationsStandards: IEEE 802.11bUSB 1.0, 1.1Channels: 11 Channels (US, Canada)13 Channels (Europe)14 Channels (Japan)Antenna: Dipole Antenna insideFrequency: 2.412 to 2.462GHz (Industrial Scientific Medical Band)Data Rate: up to 11Mbps
