Broadxent CB2480 BLUETOOTH AUDIO TRANSMITTER User Manual USERS MANUAL
Broadxent Pte Ltd. BLUETOOTH AUDIO TRANSMITTER USERS MANUAL
USERS MANUAL
Bluetooth Audio Transmitter
(MS-6868H)
User’s Guide
FCC Caution
1. The device complies with Part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. FCC RF Radiation Exposure Statement: The equipment complies with FCC
RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
3. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
4. Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
FCC Statement
This device is intended only for OEM integrators under the following
1) The antenna must be installed such that 20 cm is maintained between
antenna and users, and
2) The transmitter module may not be co-located with any other
transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not required.
However, the OEM integrator is still responsible for testing end-product for
any additional compliance requirements required with module installed (for
example, digital device emissions, PC peripheral requirements, etc.).
Important Note
In the event that these conditions can not be example certain laptop
configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid the FCC ID can not be used on the
final product. In these circumstances, OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a
separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where antenna
may be installed such that 20 cm may be maintained between antenna and
users (for example access points, routers, wireless ADSL and similar
equipment). The final end product must be labeled in a area with the following:
“Contains TX FCC ID: GI4L-MS6868H”.
Manual Information for End Users
The end user must not have manual instructions to remove or install device.
The user manual for end users must include the following information in a
prominent location: “IMPORTANT NOTE: To comply with FCC RF exposure
compliance requirements, the antenna used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and
must not be co-located operating in conjunction with any other antenna or
transmitter. as a result of e-mail transmission.”
Important Safety Precautions
Always read and follow these basic safety precautions carefully when handling
any piece of electronic component.
1. Keep this User Guide for future reference.
2. Keep this equipment away from humidity.
3. Lay this equipment on a reliable flat surface before setting it up.
4. The openings on the enclosure are for air convection hence protects the
equipment from overheating.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into the opening that could damage or cause electrical
shock.
7. If any of the following situations arises, get the equipment checked by a
service personnel:
Liquid has penetrated into the equipment
The equipment has been exposed to moisture
The equipment has not work well or you can not get it work
according to User Manual
The equipment has dropped and damaged
If the equipment has obvious sign of breakage
8. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60°C OR
BELOW -20°C, IT MAY DAMAGE THE EQUIPMENT.
4
Bluetooth Audio
Transmitter (MS-6868H)
Introduction

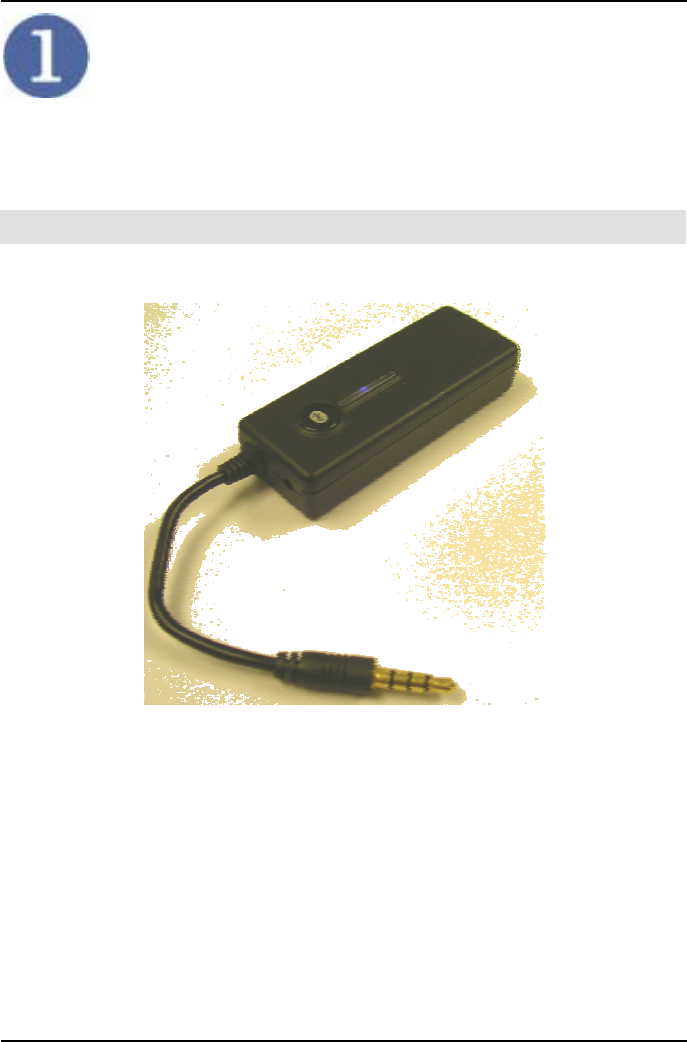

>>> 2.1 Appearance
>>> 2.2 Features
A Bluetooth Audio Transmitter with 3.5mm audio plug.
General Features
General
Power Source Li-Polymer rechargeable
Storage Temperature 0°C - 70°C
Operating Temperature 5°C - 55°C
Low Battery Indicator Green LED will blink twice rapidly in succession for every
5 sec interval.
LED One Bi-Color LED (Blue-Device in Bluetooth
operation/Green-Stand-by stage) or Separated LEDs
Buttons Power/Pair Button
Auto-Power Off Device will auto-power off after 3 minutes in standby mode.
Audio Features
Audio
Audio Sampling（ADC） 44.1kHz，16bit
Impedance 16 Ohms~32 Ohms@3.5mmjack
Input Audio Line 1.2Vrms
Bluetooth Interface
Blue
Standard Bluetooth Specification v1.2
Profile A2DP, Hands-free, Headset
RF Power Bluetooth Class 2 (0~4dBm)
6
Chipset CSR BC03MM or equivalent
Audio Codec Sub-Band Codec (SBC)
Distance 10 Meters
Play Time
Playtime
Audio Streaming Up to 7 hours
Standby Up to 100 hours
Battery Charging
MS-6868H is equipped with high quality Li-polymer battery. The battery duration could be
up to 7 hours of music listening after 3.5 hours of full charging. Make sure of power
sufficiency each time when you are about to use MS-6868H.

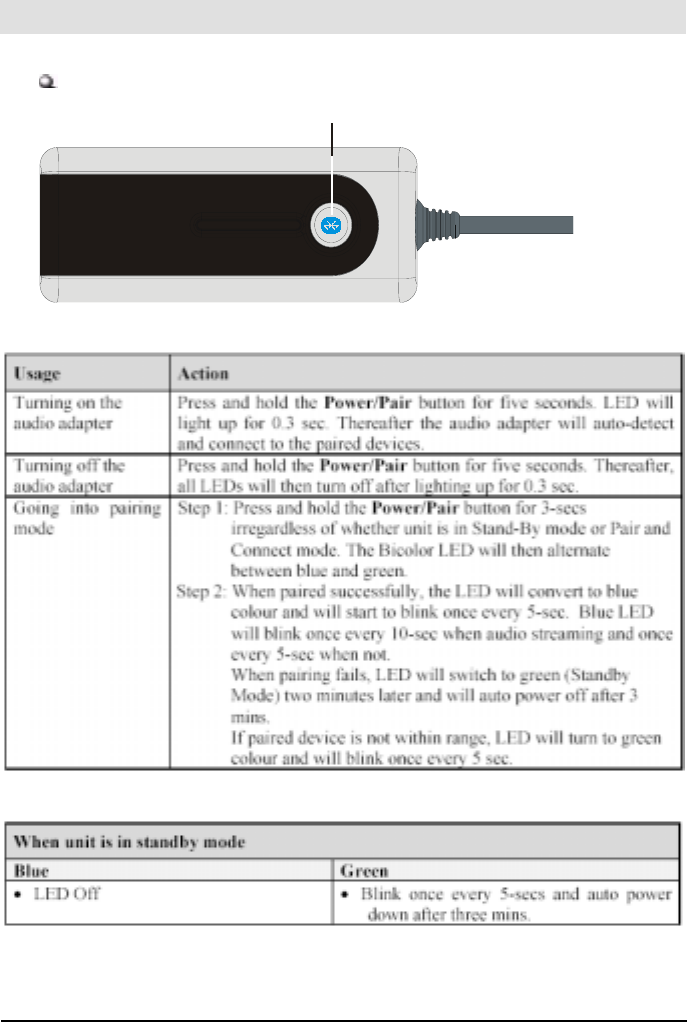

>>> 2.3 Control and Indications
Function Key and LED indication
Power/Pair button
