Brooks Automation LF60C RFID Reader User Manual RFID Reader LF60C SoliD
Brooks Automation (Germany) GmbH RFID Division RFID Reader RFID Reader LF60C SoliD
User Manual
English
Product Manual
RFID Reader LF60C SoliD
The operating manual must be read prior to the initial start-up. Observe the safety instructions!
Store for future use! This documentation is not subject to revisions.
ID130030 03/2013
This product manual corresponds with "Directive 1999/5/EC of the European Parliament
and the Council on radio equipment and telecommunications transmission equipment
and the mutual recognition of the conformity".
This product manual is addressed to the operating company who must pass it on to the
personnel responsible for installation, connection, use and repairs of the machine.
The plant manager must ensure that the information contained in this product manual and
in the accompanying documents has been read and understood.
The product manual must be stored in a place that is familiar and easily accessible to
employees and must be consulted whenever an employee is unsure of how to proceed.
The manufacturer does not assume any responsibility for injuries to persons or animals, or
damage to property or to the device arising from incorrect use or disregard or insufficient
consideration of the safety criteria contained in this product manual or based on
modifications of the device or the use of unsuitable spare parts.
The copyright for this product manual is held solely by
Brooks Automation (Germany) GmbH
RFID Division
Gartenstr. 19
95490 Mistelgau
Deutschland
or its legal successor.
Reproducing or circulating this product manual is only permitted with the exclusive
approval of the copyright holder. This also applies if only excerpts of the product
manual are copied or circulated. These requirements also apply for circulating the
product manual in digital form.
Status: March 2013
Information
Information
Archiving
Store the product manual in the vicinity of the device!
Always keep the product manual handy!
Symbols and signal words
The following symbols and signal words are used in this documentation. The
combination of a pictograph and a signal word classifies the respective safety
information. The symbol can vary depending on the type of danger.
Symbol Signal word Description
Death
DANGER This signal word must be used if death or
irreversible damage to health can occur if
the hazard information is not followed.
Risk of injury and
property damage
WARNING This signal word indicates bodily injuries
and property damage including injuries,
accidents, and health risks.
CAUTION This signal word indicates a risk of
property damage. In addition, there is a
slight risk of injuries.
No damage
ATTENTION This signal word warns of malfunctions
and may only be used if no damage to
health can occur.
IMPORTANT This signal word indicates cross-
references and ways in which operations
are facilitated. It excludes all risks of
property damage and injury risks.
Information
Target group
The operating instructions are addressed to personnel with the following areas of
responsibility:
Definition according to DIN EN 60204-1:
Instructed personnel:
Persons who have been instructed and, if required, trained by a specialist as to
the tasks assigned to them, the possible risks of incorrect behavior and the
required safety equipment and safety measures.
Specialized personnel:
Persons who can evaluate the work assigned to them and recognize possible risks
based on their specialized training, knowledge, experience and familiarity with
the relevant standards.
Area of responsibility Competence
Installation, transport and storage Specialized personnel
Commissioning, operation and
decommissioning Instructed personnel
Troubleshooting Specialized personnel
Contents
1 Identification . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.1 Designated use 8
1.2 Incorrect use 9
2 Declaration of Conformity . . . . . . . . . . . . . . . 10
2.1 USA - Federal Communications Commission (FCC) 10
2.2 Europe - CE conformity 12
3 General Instructions . . . . . . . . . . . . . . . . . . . 14
3.1 Liability and warranty 14
3.2 Objectives of the operating instructions 14
4 Safety Instructions . . . . . . . . . . . . . . . . . . . . 16
4.1 Area of application and symbols 16
4.1.1 Safety symbols - in compliance with DIN 4844-2 16
4.1.2 Warning symbols 17
4.1.3 Prohibition symbols 17
4.1.4 Other symbols 17
4.2 Obligations 18
4.2.1 Operating company's obligations 18
4.2.2 Operating personnel's obligations 18
4.3 ESD instructions 19
4.4 Residual risks 19
4.5 Additional instructions 20
5 Product Specifications . . . . . . . . . . . . . . . . . . 22
5.1 Function 22
5.2 Images 23
5.2.1 Front view 23
5.2.2 Rear view 24
5.3 Technical data 25
5.3.1 Device label 26
5.3.2 Power supply and current input 26
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.1 Safety instructions 27
6.2 Qualified installation personnel 29
6.3 Unpacking 29
Contents
6.4 Assembly of the device 30
6.5 Antenna installation 31
6.5.1 Positioning the antenna 31
6.5.2 Available antenna types 32
6.5.3 Dimensions for planning 32
6.6 Connecting the transponder reader 33
6.7 Power/RS485 bus connection 34
6.8 RS232 connection 35
6.9 Commissioning 35
6.9.1 Required operating conditions 35
6.9.2 Parameters of the serial interface 35
6.10 Ethernet connection 36
6.11 Input and output 37
6.12 DIP switches 38
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7.1 Operating personnel 39
7.2 Protocol change 39
7.2.1 General remarks 39
7.2.2 Automatic protocol recognition (default) 40
7.2.3 Protocol switchover using DIP switches 40
7.2.4 Protocol setting using DIP switches 40
7.3 Operation of the ASC-I1 protocol 41
7.3.1 Structure of the communication protocol 41
7.3.2 Package contents 41
7.3.3 Commands of protocol 43
7.3.4 Parameters 60
7.3.5 Message examples 62
7.4 Operation of SECS/HSMS Protocol 64
7.4.1 Introduction 64
7.4.2 SECS-I implementation 65
7.4.3 HSMS option 69
7.4.4 HSMS implementation 69
7.4.5 SECS-II implementation 76
7.4.6 Parameters 96
7.4.7 SEMI E99 107
7.4.8 Message details 111
Contents
7.4.9 HSMS message examples 124
7.4.10 SECS-I message examples 124
8 Service and Troubleshooting . . . . . . . . . . . . 147
8.1 General 147
8.2 Qualified troubleshooting personnel 148
8.3 Safety instructions 148
8.4 Error codes 149
8.4.1 Error ID and Alarm ID 149
8.4.2 SSACK 151
8.4.3 Stream function 152
8.5 Error display with LED 153
8.5.1 Power LED does not light up 153
8.5.2 Read fail LED flashes 153
8.6 Reader does not respond 153
8.7 Reset 154
8.8 Power cut 154
8.9 Software releases 154
8.10 Customer service 155
9 Dismantling and Storage . . . . . . . . . . . . . . . 156
9.1 Dismantling 156
9.2 Storage 156
10 Transport and Disposal . . . . . . . . . . . . . . . . 157
10.1 Transport 157
10.2 Disposal 157
11 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 158
11.1 Antennas 158
11.1.1 Available types 158
11.1.2 Reading and writing ranges 159
11.2 Cables 165
11.3 Power supply 165
11.4 Mounting adapter plates 166
Product Manual - RFID Reader LF60C SoliD 8
Chapter 1
Identification
1 Identification
This chapter gives you an overview of the following topics:
■ Designated use
■ Incorrect use
Model LF60C Serial number 1101MIS10001
Part number TLS-23B-7O00-T1-00E1 RS232/Ethernet
TLS-13B-7O00-T1-00E1 RS232
Model LF60CM Serial number 1101MIS10001
Part number TLS-23B-7O00-T1-66E1 RS232/Ethernet
Manufacturer
Brooks Automation (Germany) GmbH
RFID Division
Gartenstr. 19
95490 Mistelgau
GERMANY
Telephone +49 (0) 9279 - 991 550
Fax +49 (0) 9279 - 991 501
E-mail info.rfid@brooks.com
Website www.brooks-rfid.com
For information on the label, see Device label.
1.1 Designated use
This product was developed for reading and writing transponders only. Any other
use of this device constitutes misuse and renders the user's authority to install
and operate the device invalid.
This product is designed to be mounted and operated in an industrial setting as a
built-in-device only. It is not designed to be used as a stand-alone or portable
device or in a non-industrial setting, such as a household, vehicle or in the open-
air.
Product Manual - RFID Reader LF60C SoliD 9
Chapter 1
Identification
Intended use also includes the following:
■following all instructions in the operating instructions
■observing all safety information
Before using the device, the user should ensure that the national approval
requirements for use are met.
1.2 Incorrect use
Incorrect use, which can endanger the device, the user and third parties,
includes:
■the use of the device contrary to its intended use ( Designated use)
■modifying, extending or reconstructing the device without first consulting
Brooks Automation (Germany) GmbH
■operating the device when there are obvious problems
WARNING Risk of injury through incorrect modifications
There are risks from unauthorized modifications to the machine.
Only use original spare parts from the manufacturer. Do not make any changes,
attachments or modifications to the device without the approval of Brooks
Automation (Germany) GmbH.
WARNING Risk of injury and malfunction of machine operation through
incorrect use
There are risks attached to using the device incorrectly.
Use the device exclusively according to its intended use.
Product Manual - RFID Reader LF60C SoliD 10
Chapter 2
Declaration of Conformity
2 Declaration of Conformity
This chapter gives you an overview of the following topics:
■ USA - Federal Communications Commission (FCC)
■ Europe - CE conformity
2.1 USA - Federal Communications
Commission (FCC)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
■This device may not cause harmful interference and followed, read and
understood by all persons working with the device (especially the safety
information)
■This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, in accordance with part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception - this can be
determined by turning the equipment off and on - the user is encouraged to try to
correct the interference using one or more of the following measures:
■Reposition or relocate the receiving antenna.
■Increase the distance between the equipment and the receiver.
■Connect the equipment to an outlet to a circuit other than the one to
which the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for assistance.
Product Manual - RFID Reader LF60C SoliD 11
Chapter 2
Declaration of Conformity
FCC ID: N5GLF60C
Compliance with:
FCC Code of Federal Regulations, Part 15 Subpart C, Section §15.205
FCC Code of Federal Regulations, Part 15 Subpart C, Section §15.209
WARNING Changes or modifications not expressly approved by the party responsible for
compliance may void the user's authority to operate the equipment.
Product Manual - RFID Reader LF60C SoliD 12
Chapter 2
Declaration of Conformity
2.2 Europe - CE conformity
Konformitätserklärung gemäß dem Gesetz über Funkanlagen und
Telekommunikationsendeinrichtungen (FTEG) und der Richtlinie
1999/5/EG (R&TTE)
Declaration of Conformity in accordance with the Radio and Telecommunications
Terminal Equipment Act (FTEG) and Directive 1999/5/FC (R&TTE Directive)
Hersteller / Verantwortliche Person
Manufacturer / responsible person
BROOKS Automation
(Germany) GmbH / Herr
Dittrich
erklärt, dass das Produkt
declares that the product
LF60C SoliD
Type (ggf. Anlagenkonfiguration mit Angabe der
Module)
Type (if applicable, configuration including the
modules)
Telekommunikations(Tk-)endeinrichtung
Telecommunications terminal equipment Funkanlage
Radio equipment
Verwendungszweck
Intended purpose
Identification system
Geräteklasse
Equipment class 1
bei bestimmungsgemäßer Verwendung den grundlegenden Anforderungen des §
3 und den übrigen einschlägigen Bestimmungen des FTEG (Artikel 3 der R&TTE)
entspricht.
complies with the essential requirements of § 3 and the other relevant
provisions of the FTEG (Article 3 of the R&TTE Directive), when used for its
intended purpose.
Gesundheit und Sicherheit gemäß § 3 (1) 1. (Artikel 3 (1) a))
Health and safety requirements pursuant to § 3 (1) 1. (Article 3(1) a))
angewendete harmonisierte Normen
Harmonized standards applied
EN 60950-1:2006 +
A11:2009
Einhaltung der grundlegenden Anforderungen
auf andere Art und Weise (hierzu verwendete
Standards/ Spezifikationen)
Other means of proving conformity with the
essential requirements (standards /
specifications used)
- - -
Product Manual - RFID Reader LF60C SoliD 13
Chapter 2
Declaration of Conformity
Schutzanforderungen in Bezug auf die elektromagnetische
Verträglichkeit (§ 3 (1) 2, Artikel 3 (1) b)
Protection requirements concerning electromagnetic compatibility § 3(1)(2),
(Article 3(1)(b))
angewendete harmonisierte Normen
Harmonized standards applied
EN 301 489-1 V1.8.1
EN 301 489-3 V1.4.1
Einhaltung der grundlegenden Anforderungen
auf andere Art und Weise (hierzu verwendete
Standards/ Spezifikationen)
Other means of proving conformity with the
essential requirements (standards / interface
specifications used)
Maßnahmen zur effizienten Nutzung des Funkfrequenzspektrums
Measures for the efficient use of the radio frequency spectrum
Luftschnittstelle bei Funkanlagen gemäß § 3(2) (Artikel 3(2))
Air interface of the radio systems pursuant to § 3(2) (Article 3(2))
angewendete harmonisierte Normen
Harmonized standards applied
EN 300 330-1 V1.3.1
EN 300 330-2 V1.3.1
Einhaltung der grundlegenden Anforderungen
auf andere Art und Weise (hierzu verwendete
Standards/ Spezifikationen)
Other means of proving conformity with the
essential requirements (standards/specifications
used)
- - -
Mit der CE-Kennzeichnung bestätigt Brooks Automation die Übereinstimmung
mit der europäischen RoHS-Richtlinie 2011/65/EU.
With the CE marking Brooks Automation confirms compliance with the European
Directive 2011/65/EU concerning RoHS.
BROOKS Automation (Germany) GmbH
Gartenstr. 19
D-95490 Mistelgau
GERMANY
Telephone +49 (0) 9279 - 991 550
Fax +49 (0) 9279 - 991 501
E-mail info.rfid@brooks.com
Mistelgau, March 20, 2013 Gerald Dittrich
(Place and date of issue) (Name and signature)
Product Manual - RFID Reader LF60C SoliD 14
Chapter 3
General Instructions
3 General Instructions
This chapter gives you an overview of the following topics:
■ Liability and warranty
■ Objectives of the operating instructions
3.1 Liability and warranty
The "General sales and delivery conditions" of Brooks Automation (Germany)
GmbH always apply.
The warranty period is 12 months beginning with the delivery of the device, which
is verified by the invoice or other documents.
The warranty includes repairs of all damages to the device that occur during the
warranty period and were clearly caused by material or manufacturing defects.
Liability and warranty claims in cases of damage to persons or property are
excluded if they can be attributed to one or more of the following causes:
■incorrect use of the device
■disregard of the information in the operating instructions
■unauthorized structural modifications of the device
■insufficient maintenance and repairs
■disasters due to foreign objects or force majeure
3.2 Objectives of the operating instructions
These operating instructions serve as support and contain all the necessary safety
information that must be followed for general safety, transport, installation and
operation.
These operating instructions including all safety information (as well as all
additional documents) must be:
■followed, read and understood by all persons working with the device
(especially the safety information)
■easily available to all persons at all times
■immediately consulted in case of doubt (safety)
Product Manual - RFID Reader LF60C SoliD 15
Chapter 3
General Instructions
Objectives:
■to avoid accidents
■to increase the service life and reliability of the device
■to reduce costs due to production downtimes
Product Manual - RFID Reader LF60C SoliD 16
Chapter 4
Safety Instructions
4 Safety Instructions
This chapter gives you an overview of the following topics:
■ Area of application and symbols
■ Obligations
■ ESD instructions
■ Residual risks
■ Additional instructions
4.1 Area of application and symbols
The device was constructed according to state-of-the-art technology and
recognized safety regulations. In order to prevent any risks to life and limb of the
user, third parties or damage to the device, only use the device for its intended
purpose and in perfect condition with regard to safety.
Bodily injuries and/or property damage resulting from non-compliance with the
instructions given in the operating instructions are the responsibility of the
company operating the device or of the assigned personnel.
Malfunctions that could compromise safety must be eliminated immediately.
4.1.1 Safety symbols - in compliance with DIN 4844-2
Special safety symbols in accordance with DIN 4844-2 are used in the
corresponding passages in the text of these operating instructions and require
special attention depending on the combination of signal word and symbol.
DANGER Danger to life, risk of injuries or loss of property
Risks exist when disregarding the operating instructions and the safety
instructions therein.
Carefully read the operating instructions before initial commissioning. Perform
the required safety measures before initial commissioning.
Follow the general safety information as well as the special safety information
given in other chapters.
WARNING Risk of injuries when disregarding safety symbols
Risks exist when disregarding warnings in the operating instructions.
Please heed the warnings.
Product Manual - RFID Reader LF60C SoliD 17
Chapter 4
Safety Instructions

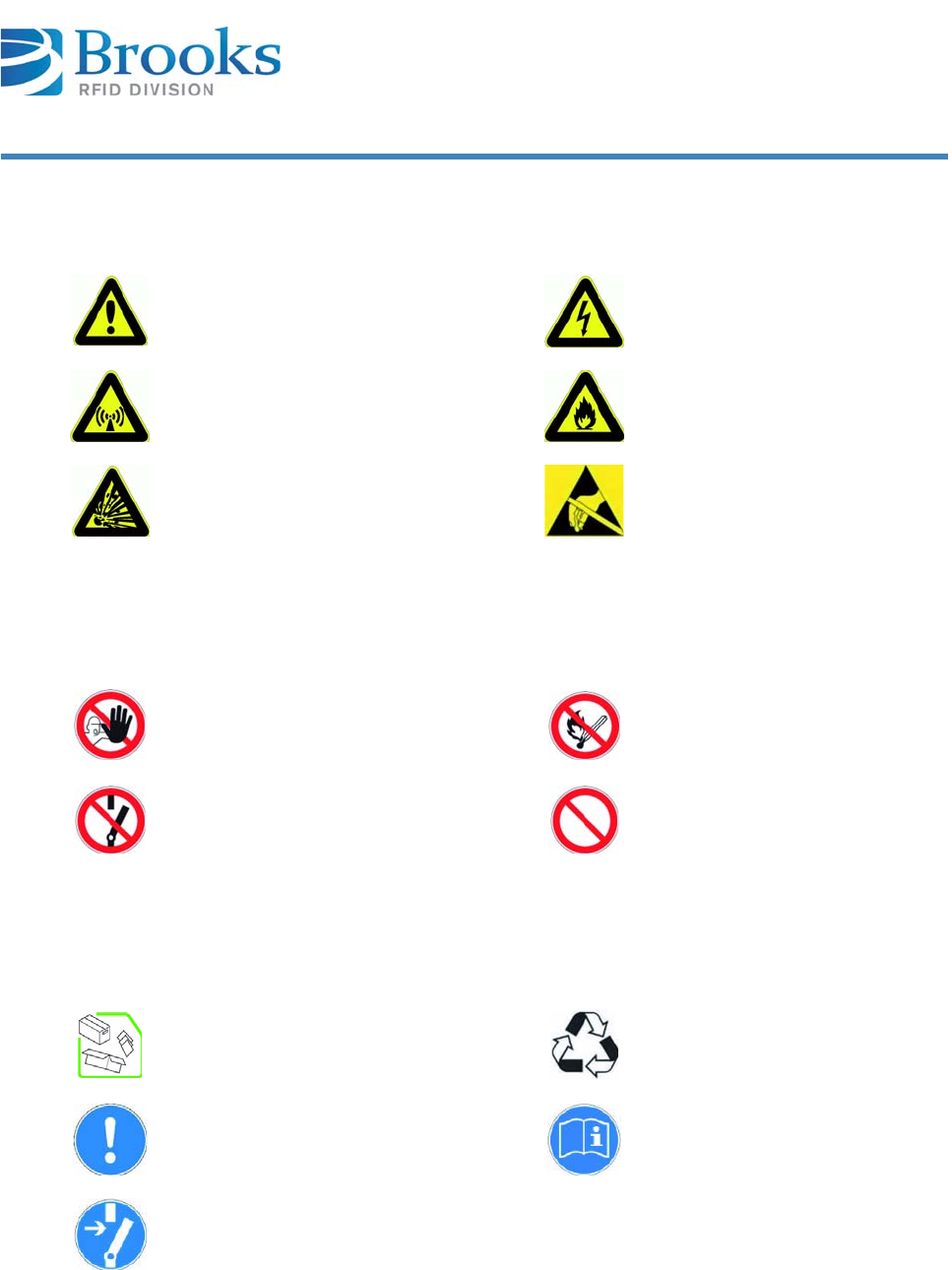

4.1.2 Warning symbols
4.1.3 Prohibition symbols
4.1.4 Other symbols
Warning: Hazardous
area Warning against
hazardous electrical
voltage
Warning against
electromagnetic
radiation
Warning: Flammable
materials
Warning: Potentially
explosive atmosphere Warning against
electrostatically
sensitive components
Unauthorized access
is prohibited Fire, open flame and
smoking is prohibited
Switching is
prohibited Prohibition
Dispose of packing
material according to
regulations
Recycling
Important
information Refer to manual
Disconnect from
power supply
Product Manual - RFID Reader LF60C SoliD 18
Chapter 4
Safety Instructions
4.2 Obligations
4.2.1 Operating company's obligations
The safe condition and use of the device is a requirement for the safe operation of
the device. The company operating the device therefore has the obligation to
ensure that the following points are adhered to:
4.2.2 Operating personnel's obligations
Operators are obligated to contribute to the prevention of work accidents and the
consequences of them by their personal conduct.
The device may only be operated by trained and authorized personnel!
Prevent unsafe and/or dangerous work procedures! If necessary, check
employees' actions!
Only permit personnel to be trained or instructed within the scope of
general training on the device under the supervision of an experienced
person!
Personnel must have understood the operating instructions. Have this
confirmed by signature!
Precisely establish responsibilities according to the various task areas
(operation, installation)!
Operating personnel must be committed to immediately reporting to their
superior any identifiable safety deficiencies which occur!
WARNING Risk of injuries due to insufficient personnel qualifications
A risk exists for personnel and the proper operation due to insufficiently
qualified personnel.
Only trained personnel may operate the device. New operators must be
instructed by the current operating personnel. The operating company must
precisely regulate and monitor the personnel's areas of responsibility and
competence.
Personnel for the areas of responsibility mentioned above must have the
corresponding qualification for this work (training, instructions). If necessary,
this can be done by the manufacturer on behalf of the operating company.
All warranty claims are void when disregarded.
Product Manual - RFID Reader LF60C SoliD 19
Chapter 4
Safety Instructions
4.3 ESD instructions
4.4 Residual risks
Even if all precautions have been taken, there may be unapparent residual risks!
Adhering to the safety instructions, the intended use and the operating
instructions as a whole can reduce residual risks!
CAUTION Static electricity can damage electronic components in the device. All persons
installing or maintaining the device must be trained in ESD protection.
ESD protective measures must be applied when opening the device.
Disconnect the power supply prior to removing or adding components!
Discharge your body and all tools used prior to touching any components
on the interior of the device!
Touch electronically sensitive parts carefully and only at their corners!
DANGER Risks from electric current
Electrical energy remains in lines, equipment and devices even when the device
is switched off.
Only allow qualified electricians to perform work on the electrical supply
system.
Product Manual - RFID Reader LF60C SoliD 20
Chapter 4
Safety Instructions
4.5 Additional instructions
■Read and understand all safety and operating instructions prior to
installing and operating the device.
■This documentation was written for specifically trained personnel. The
installation, operation and defect management may only be carried out
by specifically trained personnel.
■Retain these instructions. Keep this documentation in a location that is
accessible to all personnel involved with the installation, use and
troubleshooting of the device.
■Observe all warnings. Follow all warnings on and in the device and in the
documentation.
ATTENTION Disconnect the device from the power supply system if active parts of the
device can be accessed with tools. Access is only permitted for authorized
personnel.
Regularly check the electrical equipment of the device. Regularly check all
moving cables for damage within the scope of maintenance and repairs.
DANGER Risk of fire and explosions
Fire and explosions may occur within the vicinity of the device.
Smoking, open flames and fire are strictly prohibited in the vicinity of the
device. Do not store any flammable liquids within the hazardous area. Keep a
fire extinguisher in the vicinity of the device.
WARNING Warning against electromagnetic radiation
Electromagnetic radiation develops when transmitting and receiving data.
Set the antenna in such a position that it is not in the vicinity of or touches a
human body while transmitting.
Product Manual - RFID Reader LF60C SoliD 21
Chapter 4
Safety Instructions
■Install the device only in accordance with the manufacturer's
instructions.
■Use only the accessories and cables supplied by the manufacturer.
■Troubleshooting that is not described in the chapter Service and
Troubleshooting may only be performed by the manufacturer.
■People with hearing aids should be aware that the radio signals emitted
by the device can cause annoying noises in the hearing aid.
■Do not connect the device to power supplies such as normal household
electrical outlets. The device should only be connected to power supplies
as specified in this document.
■When removing a cable, only pull on the plug and not on the cable.
Connect cable connectors straight and carefully to avoid damaging the
contacts.
■Never bend the antenna cables too far or subject them to mechanical
forces.
■When spare parts are required, use only the spare parts that were
specified by the manufacturer. Unauthorized spare parts can result in
fire, electric shock or other hazards.
Rules and
regulations The provisions of the accident-prevention regulations of the government safety
organizations always apply to all work on the device.
The following must also be observed:
■applicable legally binding accident-prevention regulations
■applicable binding regulations at the place of use
■the recognized technical rules for safe and professional work
■existing environmental protection regulations
■other applicable regulations
Product Manual - RFID Reader LF60C SoliD 22
Chapter 5
Product Specifications
5 Product Specifications
This chapter gives you an overview of the following topics:
■ Function
■ Images
■ Technical data
5.1 Function
The BROOKS Transponder Reader System is a high-frequency identification
system that uses FM transmissions.
The basic item is a transponder that works as a forgery-proof electronic identity
disk.
The reading unit of the system sends an energy impulse via the antenna. The
capacitor of the passive, battery-free transponder is charged by this impulse.
After that, the transponder returns a signal with the stored data.
The total reading cycle takes less than 100 ms.
Since a sight connection between the transponder and the reader is not
absolutely necessary, the transponder can also be identified through non-metallic
material.
The data received by the transponder reader is transmitted to the host computer
via
■a serial interface,
■an RS485 interface (requires Brooks LF60 Gateway) or
■an optional Ethernet interface.
Product Manual - RFID Reader LF60C SoliD 23
Chapter 5
Product Specifications
5.2 Images

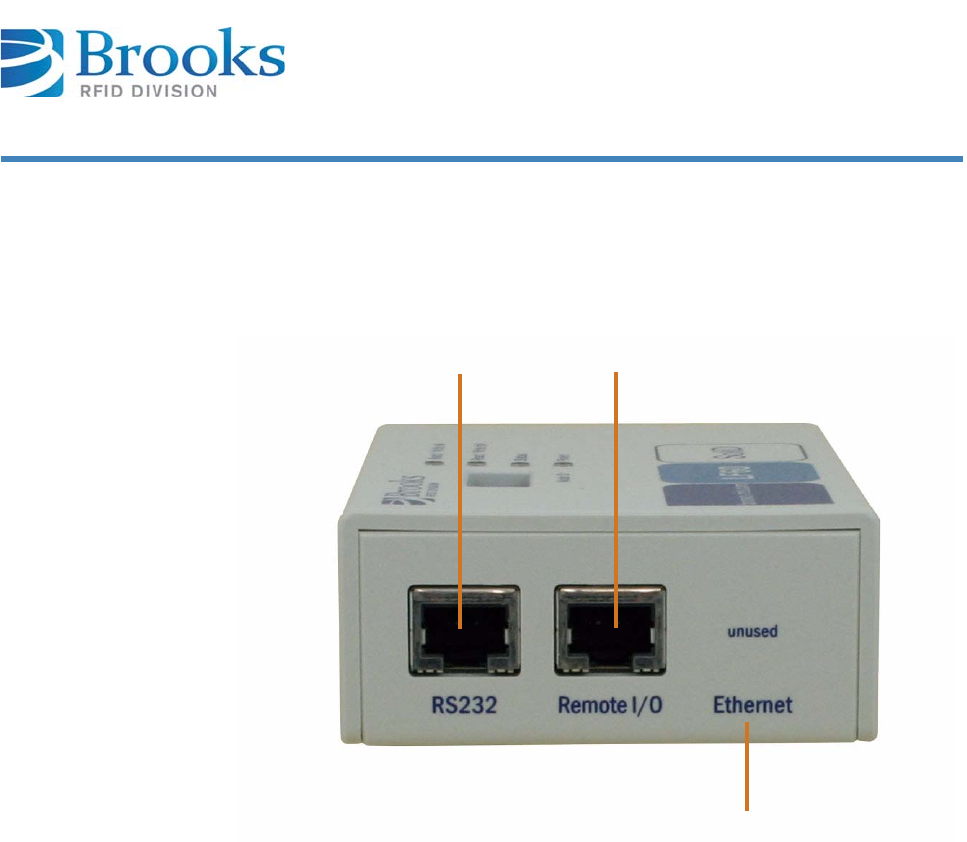

5.2.1 Front view
1RS232 port
2Remote I/O port
(LF60CM: 5-pin connecting plug with screw terminals)
3Ethernet interface (optionally available)
12
3
Product Manual - RFID Reader LF60C SoliD 24
Chapter 5
Product Specifications

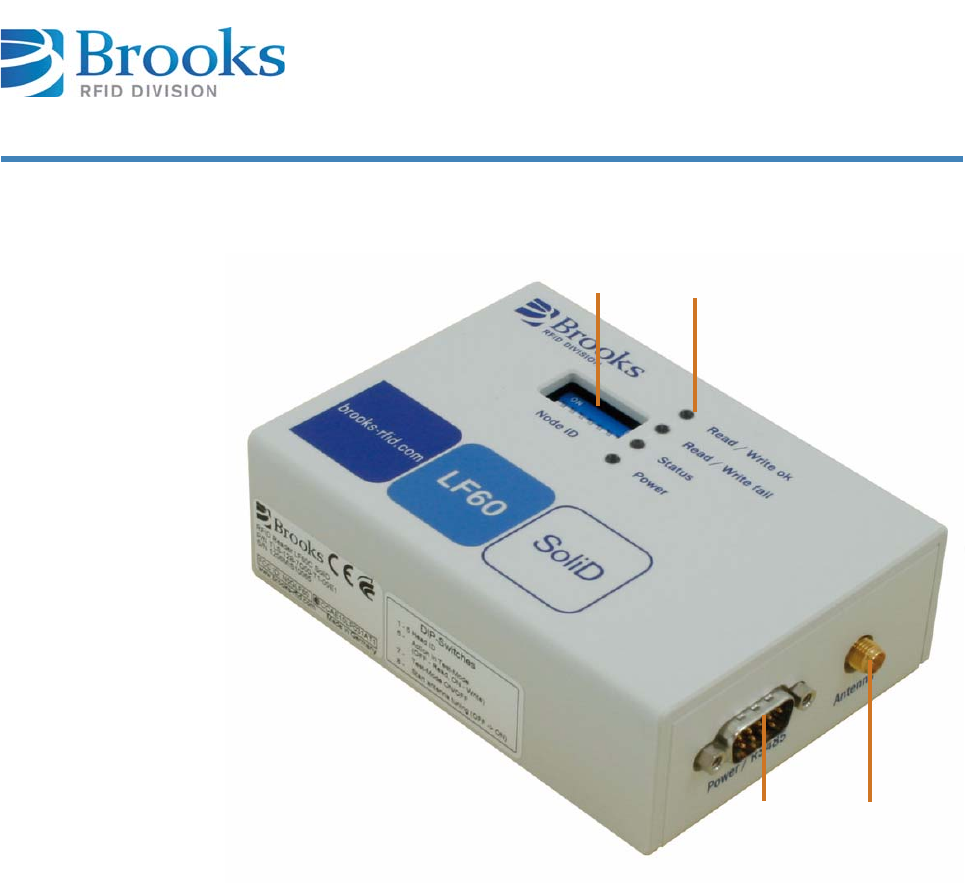

5.2.2 Rear view
1Switches:
Protocol selection (from FW SG2IS12 / SG2IV1.2)
Test Mode
Auto Tuning
2Status LEDs:
Read / Write ok
Read / Write fail
Status
Power
3Antenna port
4Power/RS485 bus connection
(LF60CM: 3-pin connecting plug with screw terminals)
1
3
2
4
Product Manual - RFID Reader LF60C SoliD 25
Chapter 5
Product Specifications
5.3 Technical data
Technical data - device
Operating temperature 0 °C to +50 °C
32 °F to 122 °F
Storage temperature -20 °C to +70 °C
-4 °F to +158 °F
Permissible humidity at 50 °C / 122 °F 25 - 80 %
Transmitter frequency 134.2 kHz
Protection class IP 40
Housing material PS
Weight about 180 g
Fuse 375 mA (T)
Serial interface RS232 4,800 Bd - 57,600 Bd
Product Manual - RFID Reader LF60C SoliD 26
Chapter 5
Product Specifications
5.3.1 Device label

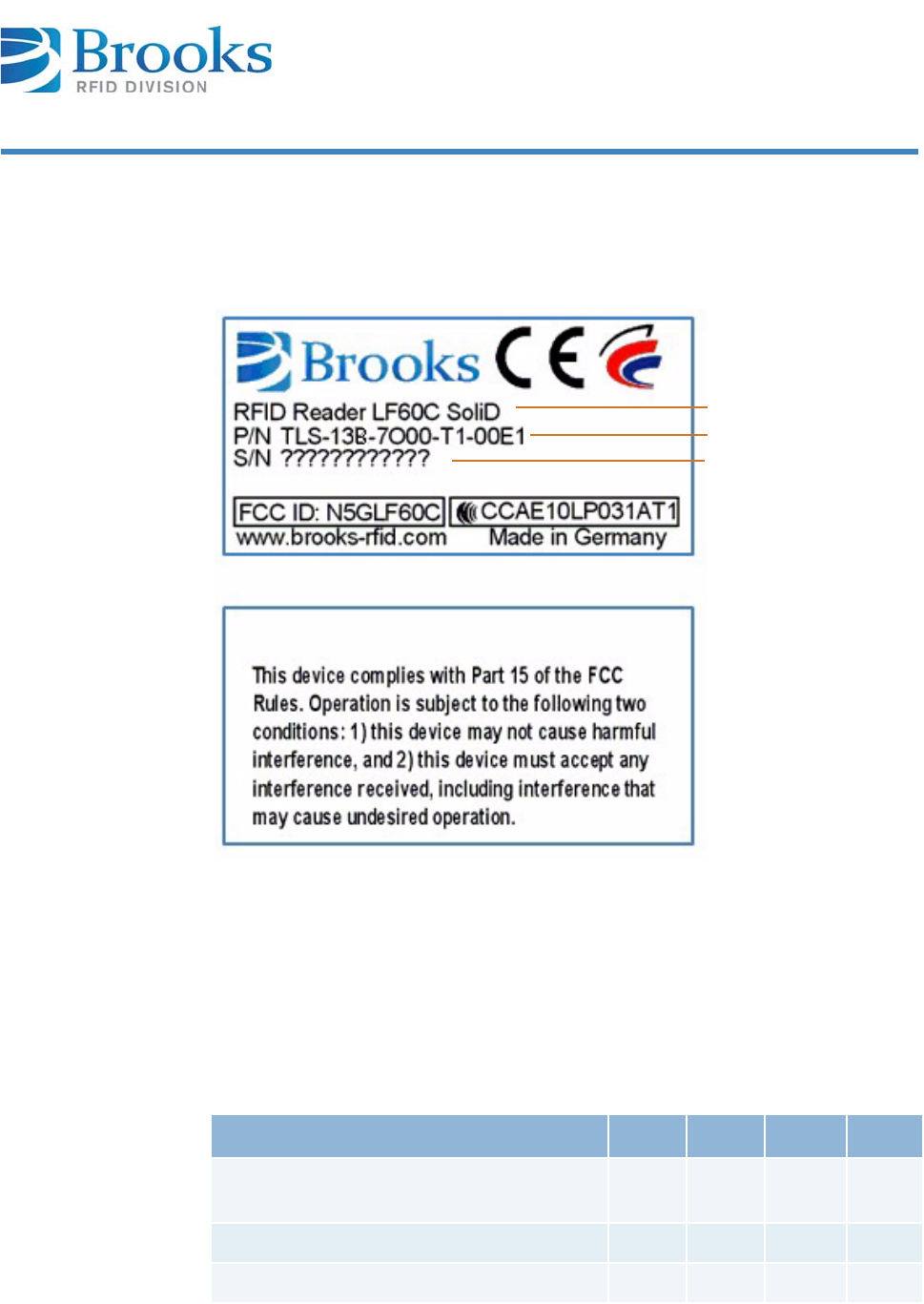

The device label with the CE mark, part/serial number, and the MAC address is on
the device housing.
5.3.2 Power supply and current input
1Part number
2Serial number
3MAC address
Description Min Type Max Unit
Voltage (proof against connecting to the
wrong port) 18 24 30 V DC
Current (reading/writing) 80 mA
Current (passive) 60 mA
1
2
3
Product Manual - RFID Reader LF60C SoliD 27
Chapter 6
Installation
6 Installation
This chapter gives you an overview of the following topics:
■ Safety instructions
■ Qualified installation personnel
■ Unpacking
■ Assembly of the device
■ Antenna installation
■ Connecting the transponder reader
■ Power/RS485 bus connection
■ RS232 connection
■ Commissioning
■ Ethernet connection
■ Input and output
■ DIP switches
6.1 Safety instructions
Follow the instructions in the safety chapter
Follow the general safety instructions in the chapter Safety Instructions.
CAUTION The device is designed for indoor use in an industrial setting only.
Installation is only allowed in an interior room at a constant temperature
between 0° C / 32 °F and +50 °C / 122 °F, and a relative humidity between
25 % and 80 %.
Never use the device near or in water.
Never pour liquids of any type over the device. If the device should accidentally
come in contact with liquid, disconnect it and have it checked by a technician.
Do not install the device near heat sources such as radiators, heat registers,
stoves or other devices (including amplifiers) that generate heat.
Do not install the device in a flammable environment.
Product Manual - RFID Reader LF60C SoliD 28
Chapter 6
Installation
CAUTION Never expose the device to extreme temperature fluctuations, since otherwise
condensation develops in the device and causes damage.
Do not install the device in the vicinity of voltage lines or other power lines with
which they could collide (for example, when drilling), which could result in
serious injuries or even death.
The device (especially the antenna) should not be installed in the immediate
vicinity of electrical equipment such as medical devices, monitors, telephones,
TV sets, magnetic disks and metal objects.
This could result in reduced read and write ranges.
Never use the device in explosive areas (such as paint warehouses).
CAUTION Do not use the device in areas where it is exposed to vibrations or shocks.
ATTENTION The installation location must be adequately illuminated during the installation.
Never install the device during a lightning storm.
Verify that the installation meets the requirements of the (country specific) FCC
for human exposure to radio frequencies.
Product Manual - RFID Reader LF60C SoliD 29
Chapter 6
Installation
6.2 Qualified installation personnel
6.3 Unpacking
The device and the accessories are packed under clean-room conditions. In order
to maintain this condition, the device must also be unpacked in clean-room
conditions.
Disposing of the
packaging material
ATTENTION When determining the installation site, keep in mind the length of the antenna
wire and the read/write range of the antenna used.
CAUTION The installation is to be carried out by specially trained personnel only. If you
are uncertain about their qualification, contact the manufacturer.
CAUTION Operating the device without special training can result in damage to the reader
and/or connected devices.
The packaging material consists of cardboard and foil. Dispose of these
materials separately and observing the respective regulations of your country.
Product Manual - RFID Reader LF60C SoliD 30
Chapter 6
Installation
6.4 Assembly of the device
Installation

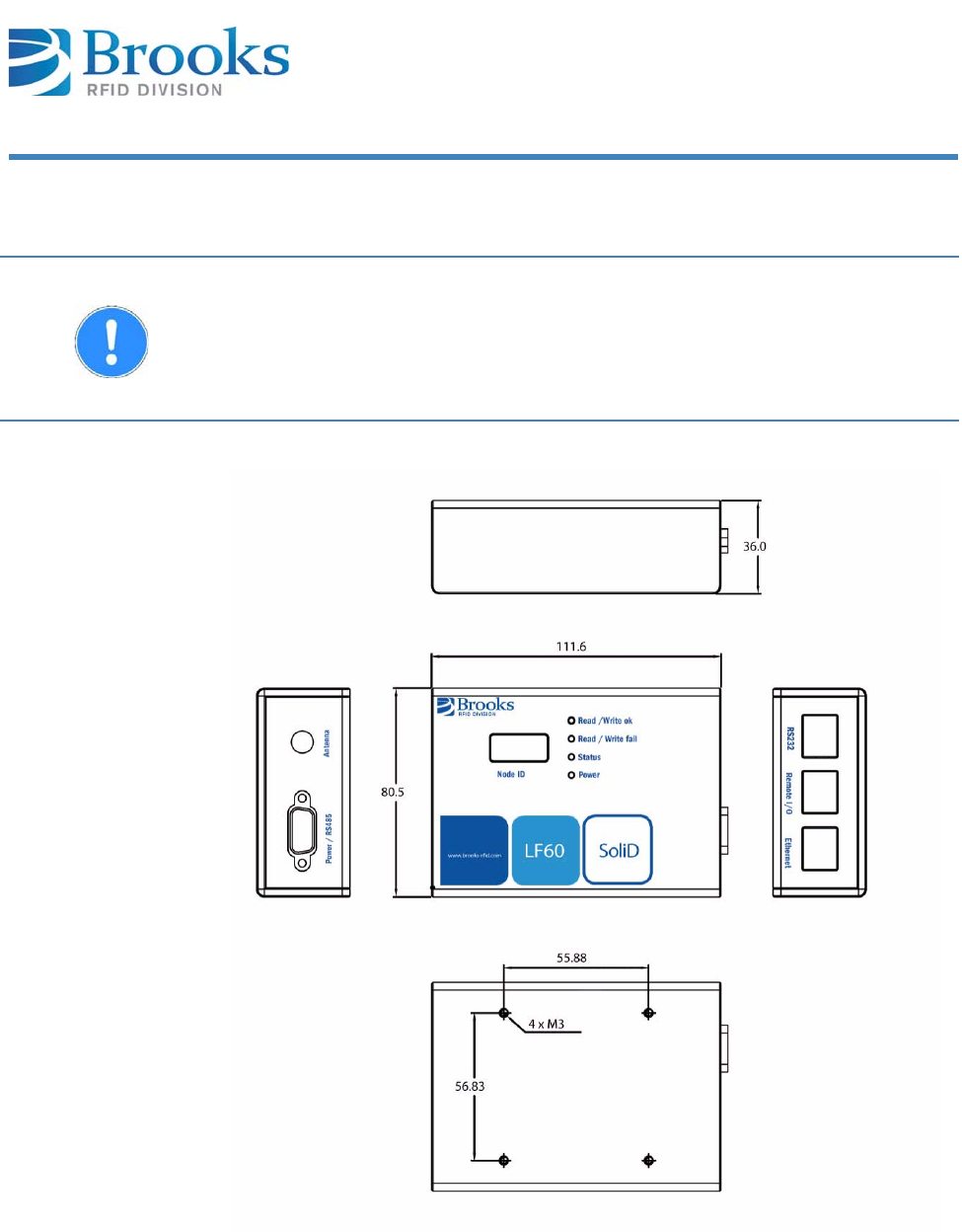

dimensions
ATTENTION The mounting surface must be stable, non-flammable, dry and clean.
If necessary, clean it before installing the device.
The device must be installed so that air can freely circulate vertically through
the heat sink, and the operating and environmental conditions specified under
Technical data are met at all times.
Product Manual - RFID Reader LF60C SoliD 31
Chapter 6
Installation
6.5 Antenna installation
6.5.1 Positioning the antenna
Reliable reading and writing depends on the distance from and orientation of the
transponder to the antenna.
ATTENTION When installing the antenna, consider the required reading and writing ranges.
The reader can only be used properly if the transponder is located within the
individual reading/writing range of the antenna.
If the transponder is very close to the antenna, the transponder may be de-
tuned by the metal of the antenna and a reading/writing is not possible. We
recommend keeping a minimum distance between transponder and antenna of
about 10 mm.

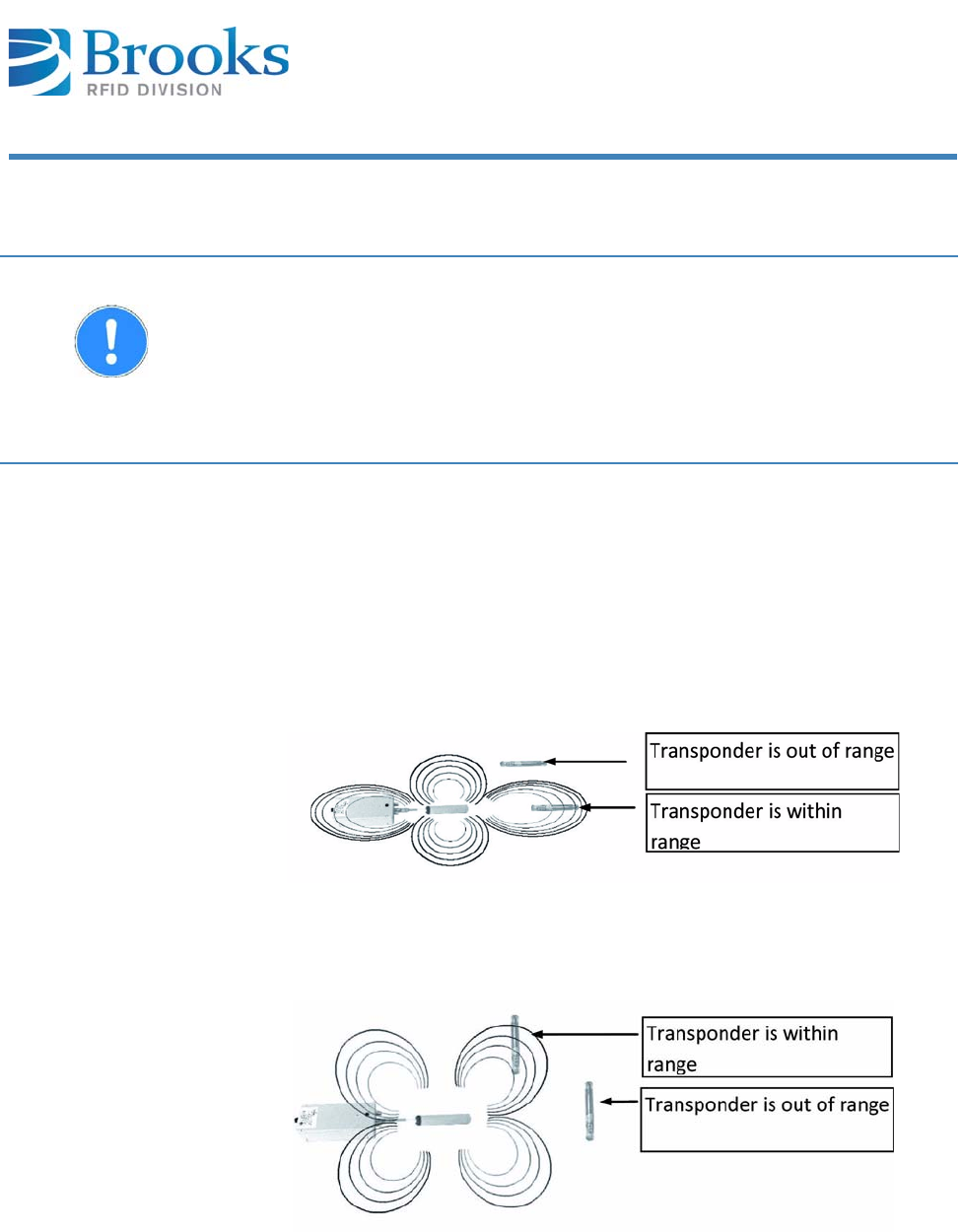

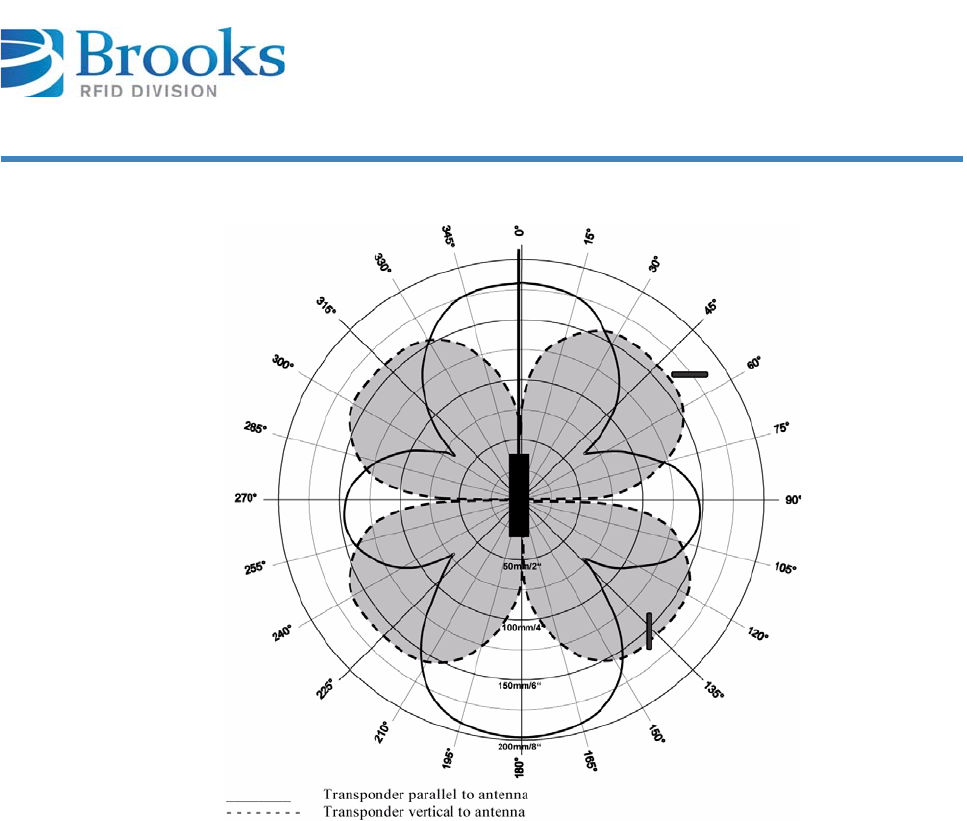

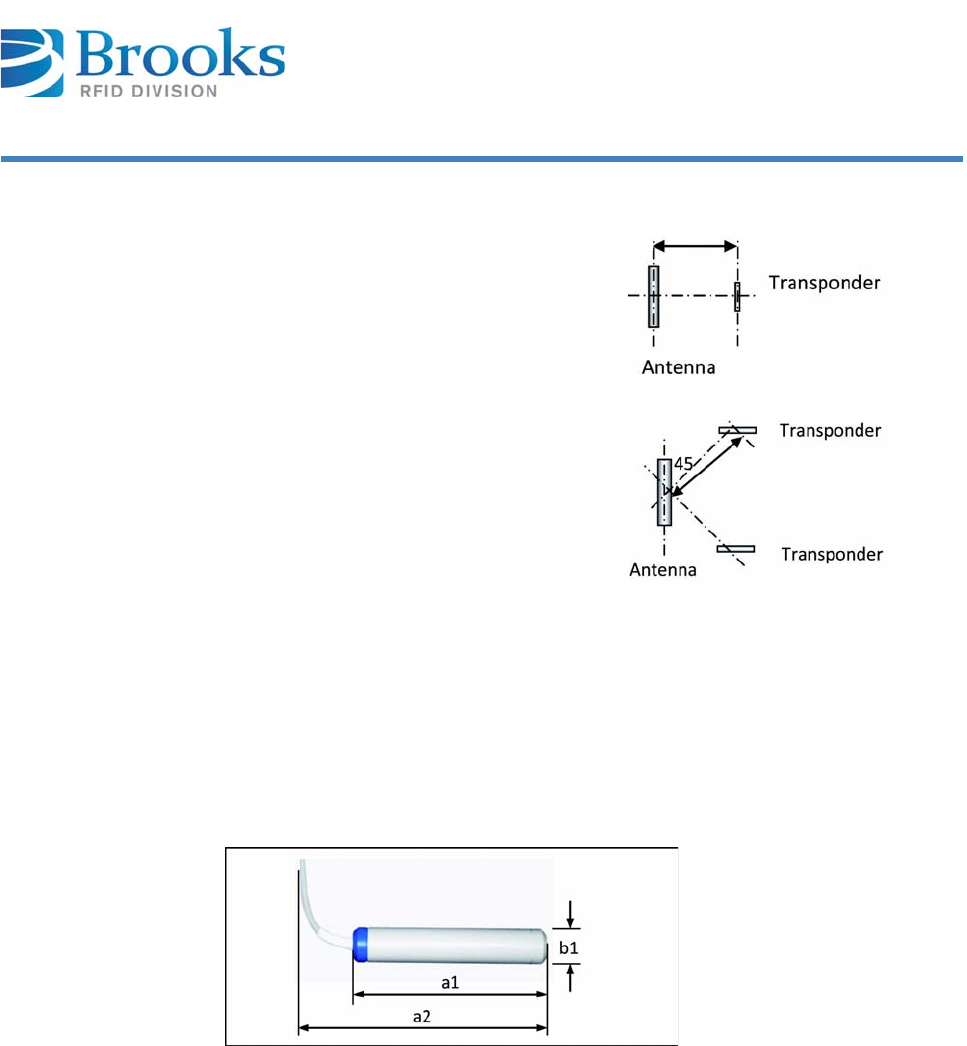

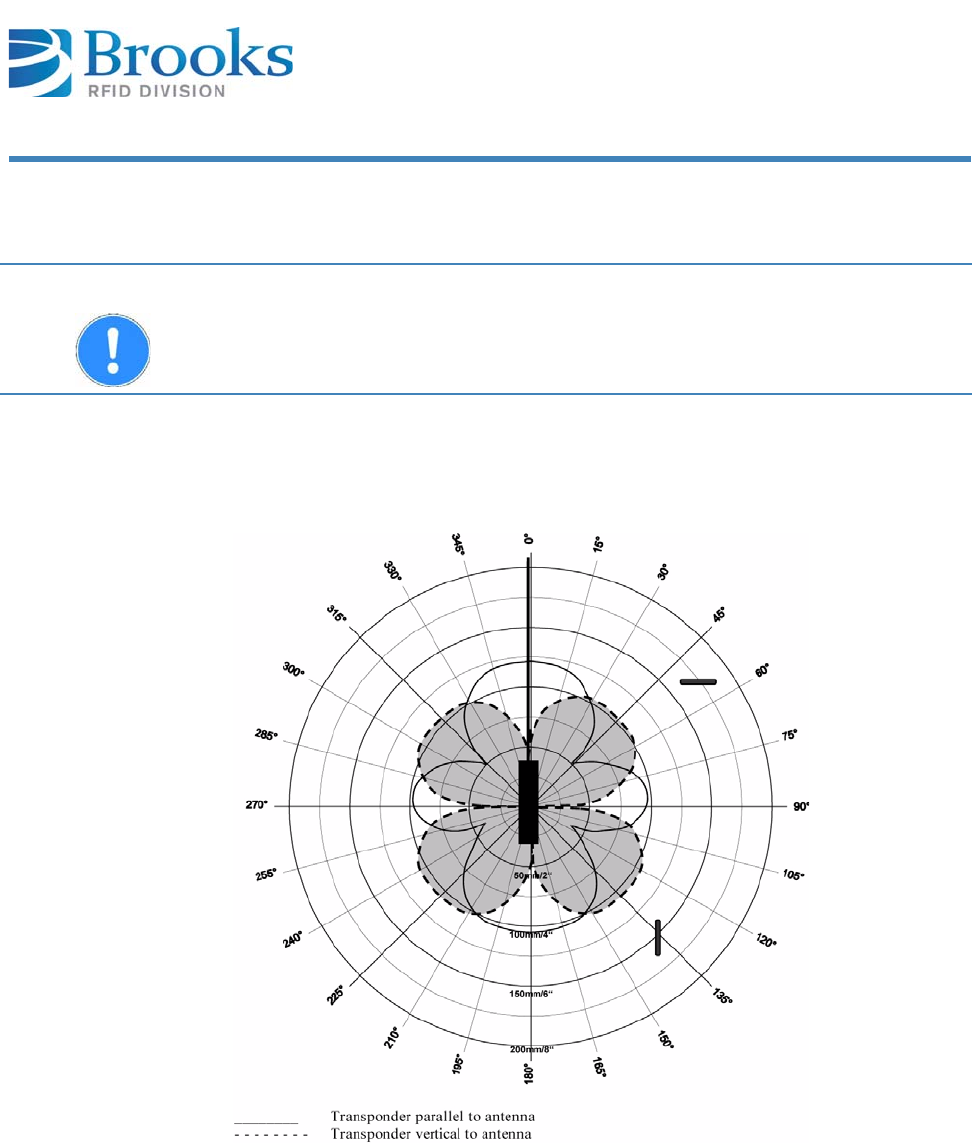

Transponder parallel to the axis of the antenna:
Transponder perpendicular to the axis of the antenna:
Product Manual - RFID Reader LF60C SoliD 32
Chapter 6
Installation
6.5.2 Available antenna types
Different types of antennas are available on request.
6.5.3 Dimensions for planning
Rod antenna
Parallel The illustration shows
the optimal position
of the transponder if
it is positioned
parallel to the axis of
the antenna.
Perpendicu-
lar The illustration shows
the optimal position
of the transponder if
it is perpendicular to
the axis of the
antenna.

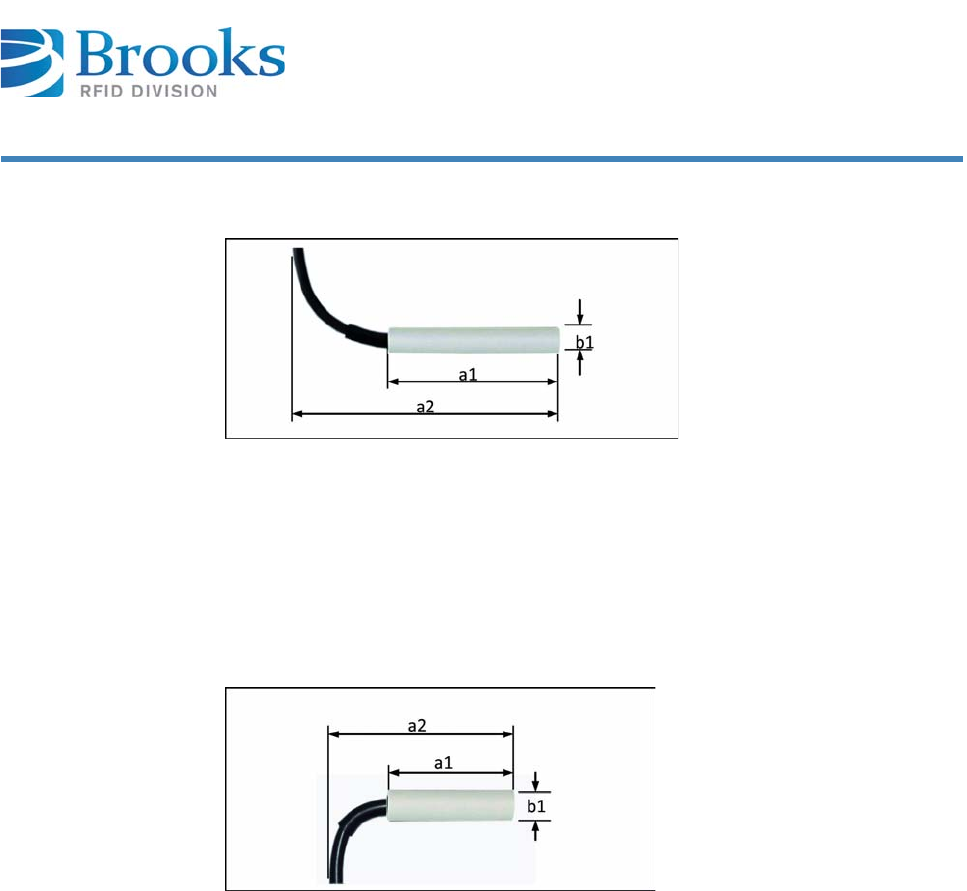

a1 Length of antenna cylinder 125 mm
a2 Complete mounting dimensions (cable with 90 °
angle) 150 mm
b1 Diameter of antenna cylinder 23.0 mm
Product Manual - RFID Reader LF60C SoliD 33
Chapter 6
Installation
Mini antenna
Micro antenna
6.6 Connecting the transponder reader
Antenna Connect the antenna to the antenna port ( Images).
a1 Length of antenna cylinder 68 mm
a2 Complete mounting dimensions (cable with 90 °
angle) 85 mm
b1 Diameter of antenna cylinder 10.0 mm
a1 Length of antenna cylinder 40 mm
a2 Complete mounting dimensions (cable with 90 °
angle) 60 mm
b1 Diameter of antenna cylinder 10.0 mm
Product Manual - RFID Reader LF60C SoliD 34
Chapter 6
Installation
6.7 Power/RS485 bus connection
LF60C Software version SG2S12/SG2IV1.2 does not support communication over
RS485.
The device can be connected to an interior DC power circuit of the equipment or
to a DC adapter.
Once the device is connected to the power supply, the power LED lights up.
If the LED does not light up, please refer to chapter Customer service.
LF60CM
3-pin connecting plug
DANGER Risk of death due to dangerous voltage
Risks exist when supplying the device with the incorrect voltage.
Only use cables, plugs and adapters supplied by the manufacturer.
Observe power ratings of the technical data ( Technical data).

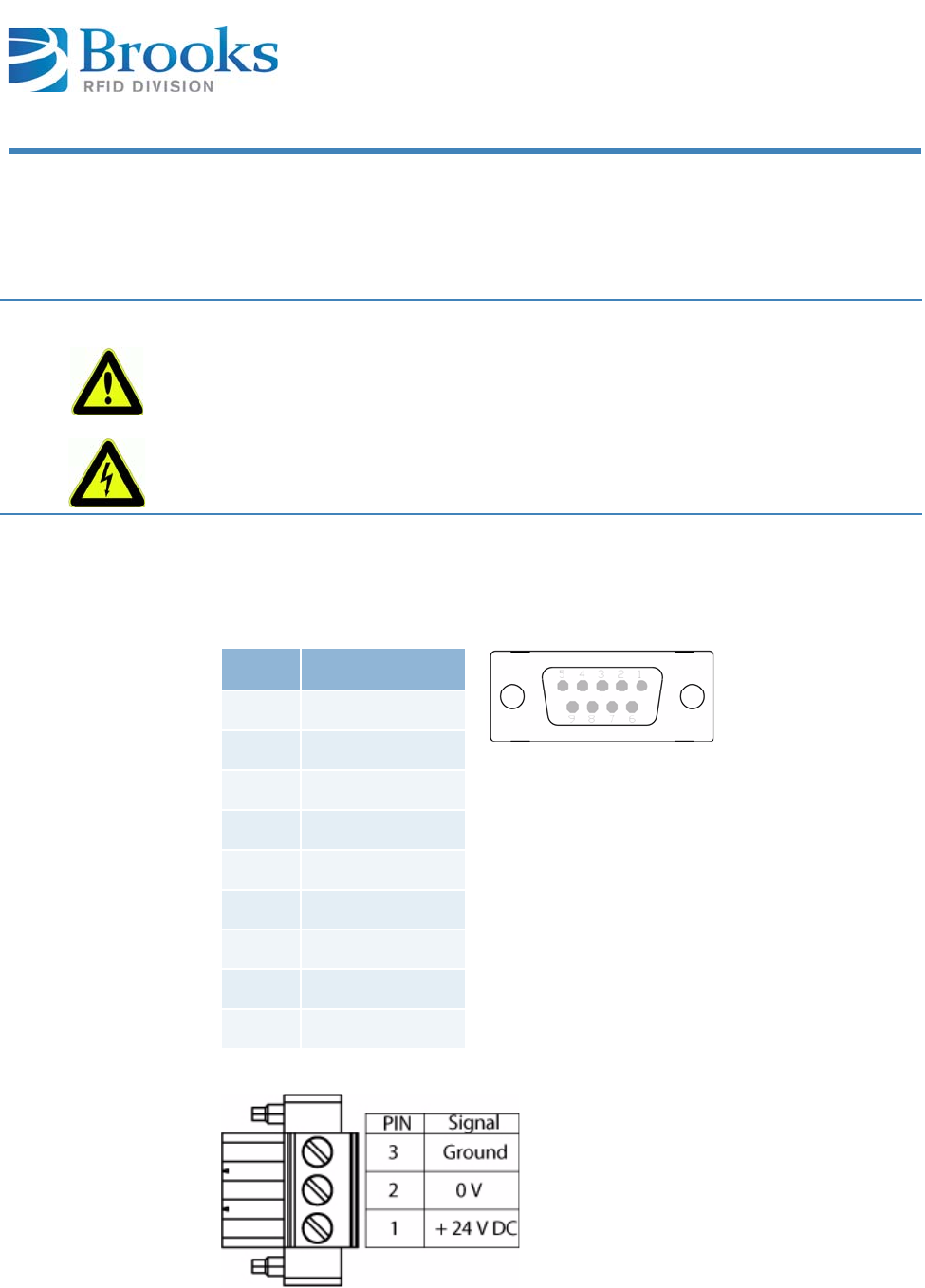

Pin Signal
1Not used
2RS485 B
3Signal ground
4Not used
5Power ground
6Signal ground
7RS485 A
8Not used
9+24 V DC
Product Manual - RFID Reader LF60C SoliD 35
Chapter 6
Installation
6.8 RS232 connection
The RS232 port is a shielded RJ45 socket. A cable for connecting to a PC is
available.
6.9 Commissioning
6.9.1 Required operating conditions
To operate the reader, the following requirements must be met:
6.9.2 Parameters of the serial interface
Pin Signal
4Ground
5TxD
6RxD
An antenna must be connected correctly to the reader.
The power supply must be connected.
The transponder must be located within the individual reading/writing
range of the antenna.
A host must be connected to the reader.
Baud rate 19,200
Data bits 8
Stop bit 1
Parity EVEN (ASCII protocol)
NONE (SECS protocol)
Product Manual - RFID Reader LF60C SoliD 36
Chapter 6
Installation
6.10 Ethernet connection
The 10/100 BaseT Ethernet interface has the following default settings:
DHCP mode OFF
IP address 10.73.254.211
Gateway address 10.73.254.254
Subnet mask 255.255.254.0
If DHCP is enabled and the DHCP Server is not available, the device initializes the
Ethernet connection with the following values:
IP address 169.254.MAC5.MAC6
Gateway 169.254.MAC5.254
Subnet mask 255.255.255.0
Primary DNS Server IP 0.0.0.0
Secondary DNS Server I 0.0.0.0
(MAC address MAC1:MAC2:MAC3:MAC4:MAC5:MAC6)

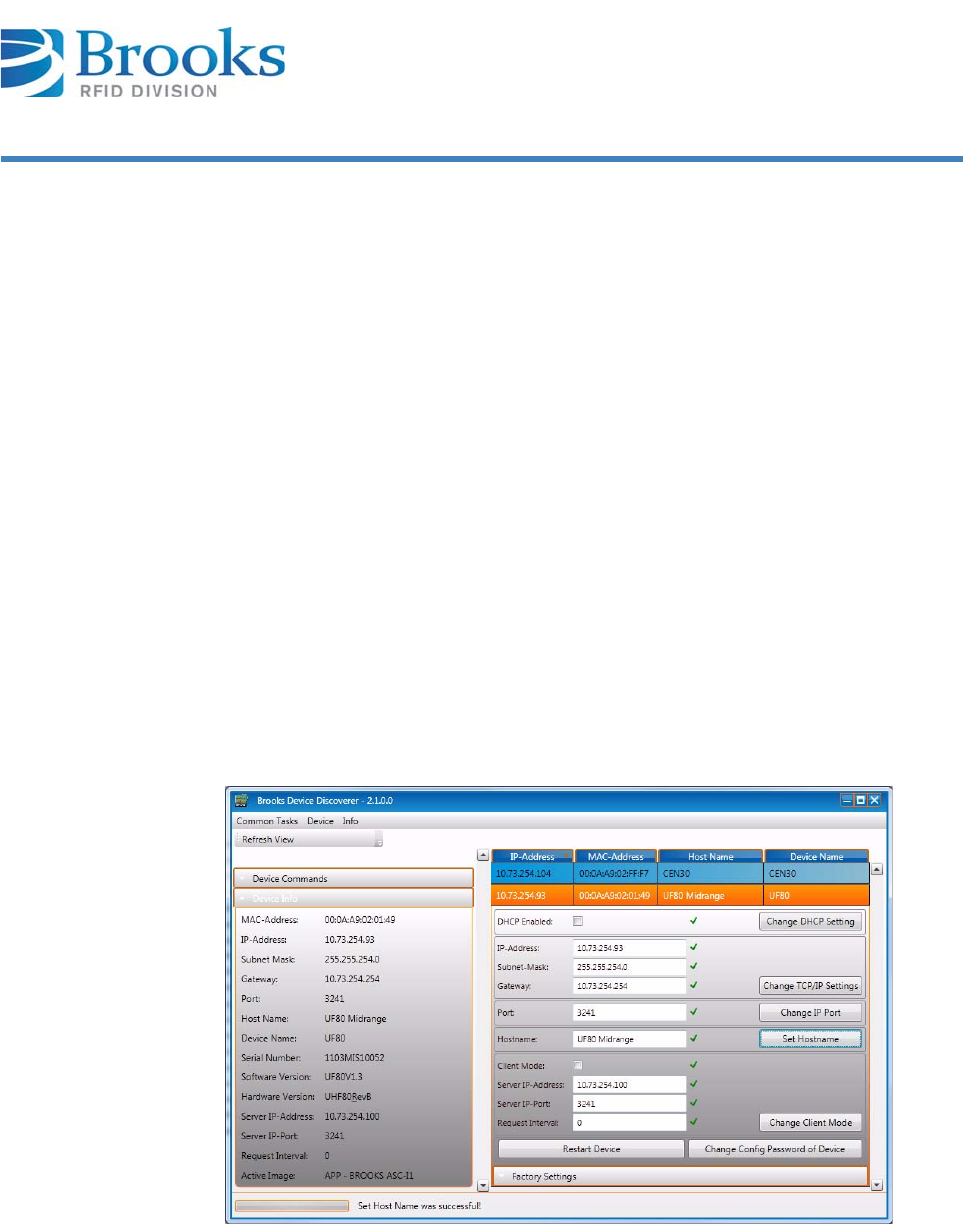

The Brooks Device Discoverer Tool can be used to find a device in the network
and to change the network settings easily. After sending a configuration message,
the tool requests the device configuration password. Please enter the default
passwort for Brooks RFID devices: BROOKS.
The tool can also be used to perform a firmware update!
For more information on the tool please refer to the manual of the Brooks Device
Discoverer.
Product Manual - RFID Reader LF60C SoliD 37
Chapter 6
Installation
6.11 Input and output

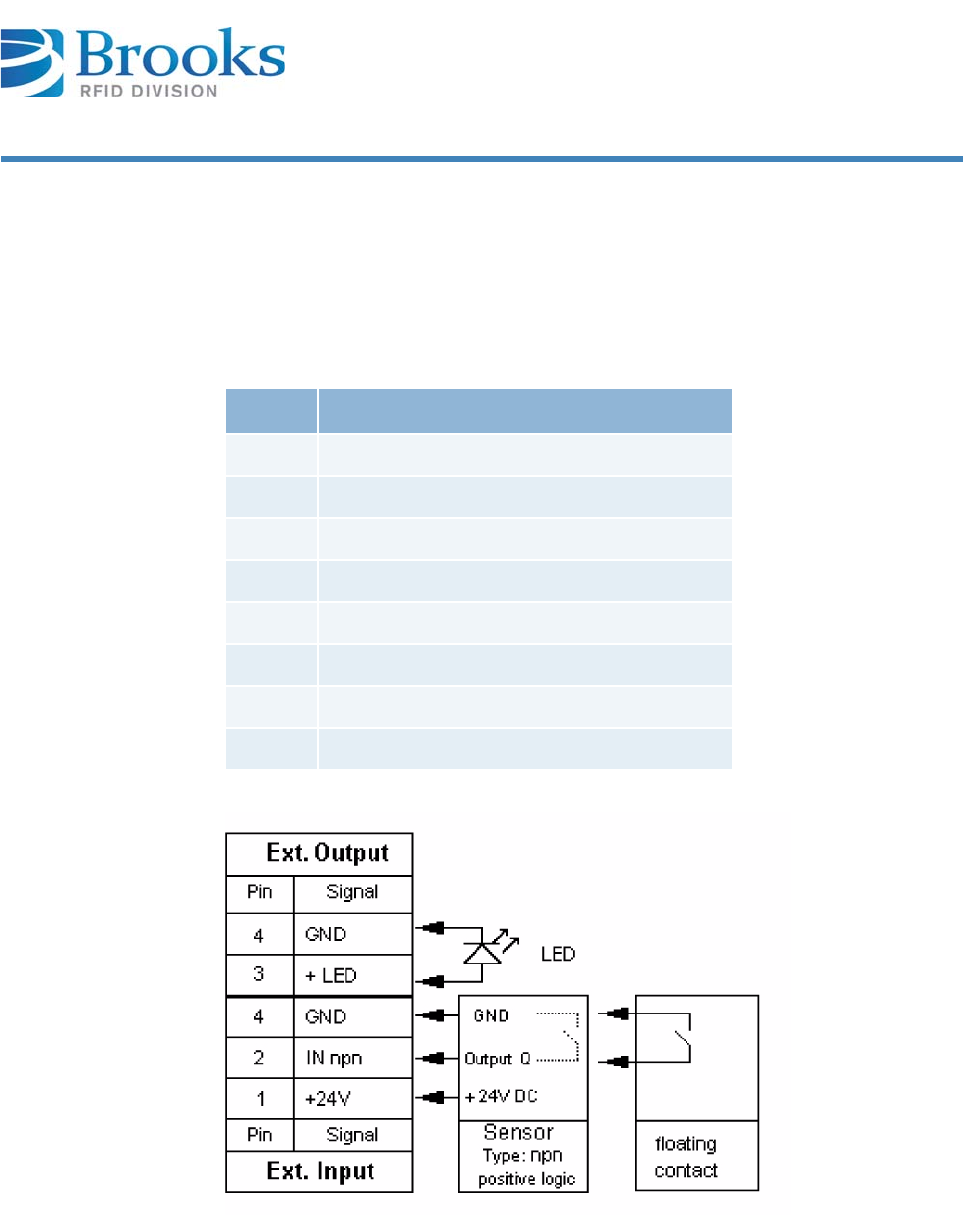

LF60C The port labeled Remote I/O is used for external presence sensors and an
external output like a LED for status indication. The input signal is used for pod
placement and pod removal events.
The port is a shielded RJ45 socket.
Pin Signal
124 V DC/5 V DC (changeable by jumper)
2Input
3Output (LED)
4Ground
5Not used
6Not used
7Not used
8Not used
Product Manual - RFID Reader LF60C SoliD 38
Chapter 6
Installation
LF60CM

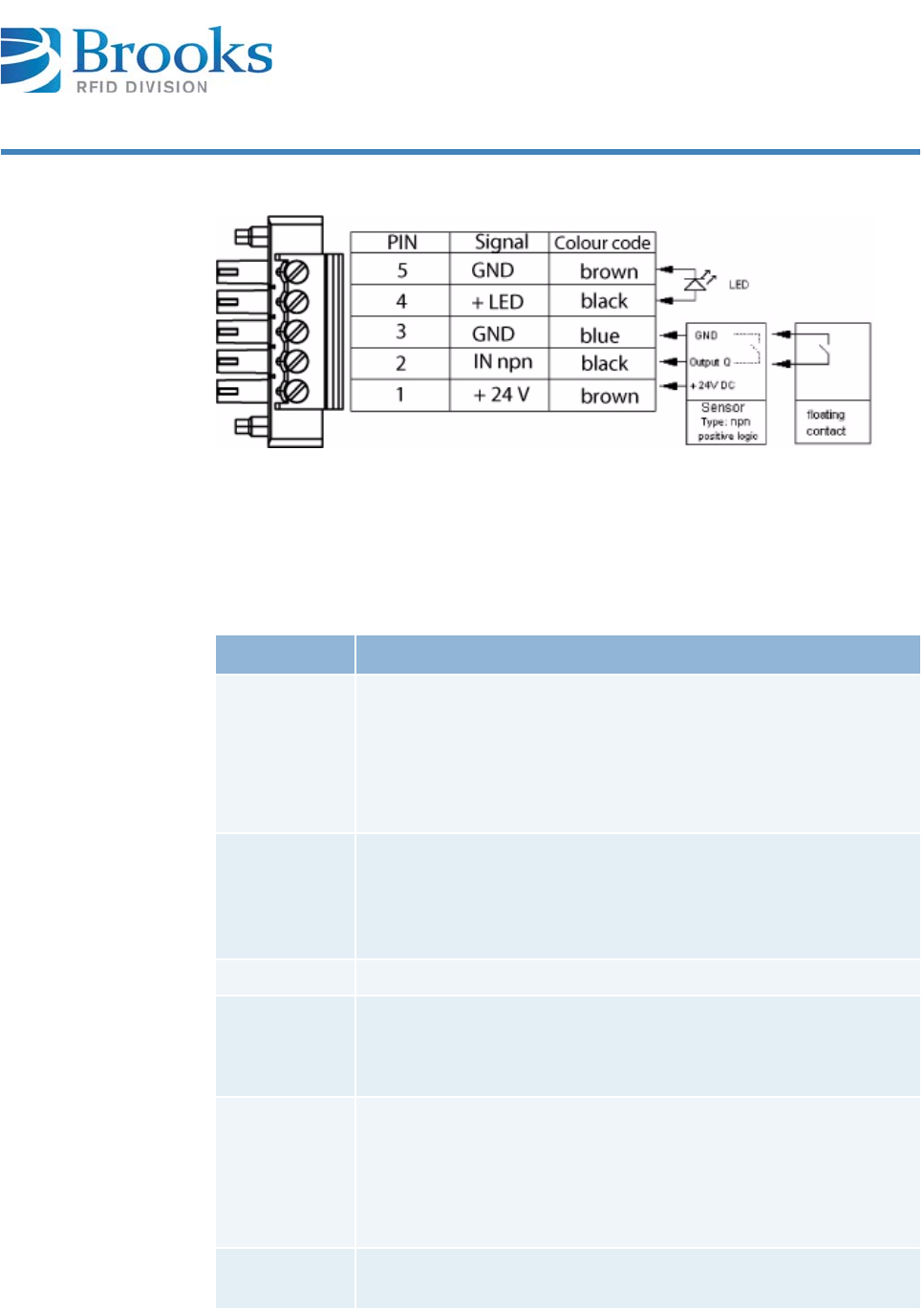

5-pin connecting plug
6.12 DIP switches
The activation of a DIP switch depends on the value of parameter 36.
Switch # "Test mode" function
1Deactivation of automatic protocol recognition from version
SG2S12
"OFF" - automatic protocol recognition active
"ON" - automatic protocol recognition deactivated
The protocol setting depends on the DIP2 switch setting.
2Protocol selection (only if DIP1 is set to "ON") from version
SG2S1
"OFF" - ASCII protocol
"ON" - SECS/HSMS protocol
3 - 5 No function
6Switches between reading and writing action in test mode.
"OFF" only reading a tag
"ON" reading and writing a tag
7Switches the reader into test mode.
In test mode, the reader reads or writes (depends on the
setting of switch 6) permanently to the tag, and shows the
result via LED 'Read/Write ok' and 'Read/Write fail'.
"ON" test mode activation
8Launch automatic antenna tuning on switching from "OFF" to
"ON".
Product Manual - RFID Reader LF60C SoliD 39
Chapter 7
Operation
7Operation
This chapter gives you an overview of the following topics:
■ Operating personnel
■ Protocol change
■ Operation of the ASC-I1 protocol
■ Operation of SECS/HSMS Protocol
7.1 Operating personnel
7.2 Protocol change
7.2.1 General remarks
The reader has the option of communicating with a connected host system using
ASCII or SECS/HSMS protocols. The selection of protocol can be made in different
ways:
■Automatic protocol recognition
■Protocol switchover using DIP switches
■Protocol setting using DIP switches
After a reset the protocol set at present is displayed briefly with the aid of the
"Read/Write ok" and Read/Write fail" LEDs ( Reset).
CAUTION The RFID Reader LF60C SoliD is designed to be operated by specially trained
personnel only. If you have doubts about the required qualifications, contact the
manufacturer.
Operating the device without special training can result in damage to the reader
and/or connected devices.
Product Manual - RFID Reader LF60C SoliD 40
Chapter 7
Operation
7.2.2 Automatic protocol recognition (default)
The reader automatically adapts to the relevant protocol by checking and
analyzing the first message it receives after a reset. Depending on the data
received, the interface is switched over accordingly and reinitialized. This
procedure can take several seconds. The messages sent are then lost. The
protocol found is used for further communication. Another change can only take
place after another reset.
Automatic protocol recognition can be deactivated by setting Parameter 98
(0x62) (from FW SG2S12 / SG2IV1.2: also with DIP1).
7.2.3 Protocol switchover using DIP switches
On power-up reset it is possible to switch the default protocol of the reader. To
activate this feature, it is necessary to set DIP switches 5 to 8 to the "ON" state.
After the power-up reset, the reader changes the protocol. The new protocol is
shown by the LEDs, and the reader waits until the DIP switches are changed.
Read/Write Error LED SECS Protocol
Read/Write OK LED ASCII Protocol
The activation of a DIP switch depends on the value of parameter 36.
7.2.4 Protocol setting using DIP switches
A protocol change can also be performed by setting the DIP switches ( DIP
switches). From firmware SG2S12 / SG2IV1.2 it is also possible to deactivate
automatic switchover and non-adjustably set the appropriate protocol by setting
DIP switch 2. At this setting any messages in the other protocol are discarded.
ATTENTION If after a reset undefined or random characters are sent to the reader, this can
cause an unintentional change in parity or protocol! To prevent this, after
making the correct protocol selection, set Parameter 98 (0x62) (or from
firmware SG2S12 / SG2IV1.2: with DIP switches 1 and 2).
Switch # Protocol change function
1 - 4 "OFF"
5 - 8 "ON"
Product Manual - RFID Reader LF60C SoliD 41
Chapter 7
Operation
7.3 Operation of the ASC-I1 protocol
7.3.1 Structure of the communication protocol
General remarks:
■The communication is done with ASCII packages.
■Each reader represents a transponder reader with an RS232 interface or
Ethernet interface to which an address from 0 to E can be assigned.
When the reader is delivered, the address is 0.
■After each command to the reader, a defined response is sent. We
recommend waiting for this response before sending a new command.
7.3.2 Package contents
General remarks:
Each package includes a package header (three characters), a message (two or
more characters) and the end of the package (five characters).
Package header The header includes the start character (one character) and the package length
(two characters).
The message length describes the number of characters of a message.
Package header Message End of package
Package header
Start Length 1 Length 2
Start Start character (ASCII character ´S´)
Length 1 High byte package length (hexadecimal)
ASCII character ´0´..´F´
Length 2 Low byte package length (hexadecimal)
ASCII character ´0´..´F´
Product Manual - RFID Reader LF60C SoliD 42
Chapter 7
Operation
Message structure The message includes a command, a target address and a source address as well
as information.
The message length describes the number of characters of a message.
* The reader is preset with 0 when delivered.
End of package The end of the package includes an end character (one character) and in case of a
serial interface also a checksum (four characters).
Message
Command Address Information
Command ASCII character ( Commands reader to host)
Address Target/source address;
ASCII character '0'...'E' for the reader *
Information Depends on the command (includes
none, one or more ASCII characters '0'...'F')
End of package
End Checksum 1 Checksum 2 Checksum 3 Checksum 4
End End character ASCII character no. 13
(hexadecimal 0D)
Checksum 1 High byte - XOR logic of all data (package header, message and
end character);
ASCII '0'..'F'
Checksum 2 Low byte - XOR logic of all data (package header, message and
end character);
ASCII '0'..'F'
Checksum 3 High byte - addition of all data (package header, message and
end character);
ASCII '0'..'F'
Checksum 4 Low byte - addition of all data (package header, message and
end character);
ASCII '0'..'F'
ATTENTION When using the TCP/IP interface option, the checksum is not used (is not
transmitted).
Product Manual - RFID Reader LF60C SoliD 43
Chapter 7
Operation
7.3.3 Commands of protocol
Commands host to
reader Command Description
XRead data
WWrite data
rAutomatic read/acknowledgement
GRequest parameter value
PSet parameter
NReset
HHeartbeat
VQuery software version
LLock a page of the transponder
ISet tuning of the RF module
JRequest tuning settings of the RF module
aSensor event/acknowledgement
Product Manual - RFID Reader LF60C SoliD 44
Chapter 7
Operation
Commands reader
to host Command Description
xRead data/acknowledgement
wWrite data/acknowledgement
RAutomatic read
gRequest parameter value/acknowledgement
pSet parameter/acknowledgement
nReset/acknowledgement
eError message
hHeartbeat/acknowledgement
vQuery software version/acknowledgement
lLock a page of the transponder/acknowledgement
iSet tuning of the RF module/acknowledgement
jRequest tuning settings of the RF module/acknowledgement
ASensor event
Product Manual - RFID Reader LF60C SoliD 45
Chapter 7
Operation
Message items
Command of the message. See table in chapter Commands reader to host
The data are interpreted in HEX format. That means that 2 ASCII characters
define one byte tag data in HEX format. The data always contains all 8 bytes of
the specified page of the transponder.
Example:
Tag data in ASCII "12345678" (8 bytes)
Tag data in HEX 0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38
Data in message "3132333435363738" (16 ASCII characters)
Defines the page of the transponder for a read or write action. The two ASCII
characters (2 bytes) define the page number of the tag in decimal format.
Example: page 1 "01"
page 10 "10"
page 17 "17"
Number of the parameter. One ASCII character (1 byte) display the parameter
number in hex format.
Example: parameter 1 "1"
Value of a parameter. Two ASCII characters (2 bytes) display the value of the
parameter in decimal format.
Example: value 45 "45"
CMD 1 byte
Data 16 bytes
Page 2 bytes
Parameter No. 1 byte
Parameter value 2 bytes
Product Manual - RFID Reader LF60C SoliD 46
Chapter 7
Operation
Address of the device (0 .. E).
The default address of the card is 0 on delivery.
This feature is not used for the single reader. This code is always "0000".
Contains the 4-byte serial number of the reader. The serial number is also shown
on the label of the reader.
Example: “1234”
Reader ID 1 byte
Response code 4 bytes
Serial No. 4 bytes
Product Manual - RFID Reader LF60C SoliD 47
Chapter 7
Operation
X - Read data Command X starts the reading of a transponder.
If there is no tag in the reading range of the antenna, the reader returns an error
message (error 4 - no tag).
Data item "Page" can have the following values.
1) 'E' respectively 'F' in ID Bit 0...3 of the reading ID
If there is no tag in the reading range of the antenna, the reader repeats the
reading before an error message is sent out. The number of repeats is defined in
parameter 4 (r/w maxrepeat).
No acknowledgement is expected from the host.
In case of a read request for more than one page (value 98 or 99), the protocol is
repeated. For the end of reading the reader sends an additional package. The
message includes the command 'x' and the source address '0'...'E'.
If the reading fails, the reading is repeated (parameter 3: r/w delay time;
parameter 4: r/w maxrepeat). If it fails again, the reader sends an error message
'no tag(4)' to the host.
If the sensor check is activated, the circuit status of the floating contact
connected to the external input is checked before a read process is triggered by
the host. If it is not connected, the error message "NOTAG" is sent; otherwise the
read process is started.
Value Description
'01' to '17’ read page#
’98’ read more pages until end character or empty character1)
’99’ read entire tag data
Host Reader
CMD Reader ID Page
X 1 byte 2 bytes
Reader Host
CMD Reader ID Page Data
x 1 byte 2 bytes 16 bytes
Product Manual - RFID Reader LF60C SoliD 48
Chapter 7
Operation
W - Write data The command W starts the writing to a transponder.
If there is no tag in the writing range of the antenna, the reader returns an error
message (error 4 - no tag).
If 'write tag' fails, writing is repeated in the defined time frame (parameter 3: r/w
delay time; parameter 4: r/w maxrepeat). If it fails again, the reader sends an
error message 'no tag(4)' to the terminal.
If the sensor check is activated, the circuit status of the floating contact
connected to the external input is checked before a write process is triggered by
the terminal. If it is not connected, the error message "NOTAG" is sent; otherwise
the write process is started.
Host Reader
CMD Reader ID Page Data
W 1 byte 2 bytes 16 bytes
Reader Host
CMD Reader ID
w1 byte
Product Manual - RFID Reader LF60C SoliD 49
Chapter 7
Operation
R - Automatic read The external input is used to trigger an automatic read action. The R command
sends the read data to the host. The host then has to confirm the message.
Depending on the readmode configuration (parameter 1: readmode), the reader
reads the following pages:
Reading more pages (readmode "tag" or "whole"): protocol is repeated. The end
package includes the command 'R' and the source address '0'...'E'
No acknowledgement from the host: information is repeated with the following
parameters (parameter 5: RS232 delay time; parameter 6: RS232 maxrepeat)
Reading not possible: repeated read time frame (parameter 3: r/w delay time;
parameter 4: r/w maxrepeat).
Reading again not possible: tag sends error message no tag (4) to the host.
The delay time for the presence sensor is configurable (parameter 0: sensor
delay).
An automatic reading is only possible if all messages that have to be confirmed
have been confirmed by the previous read, or if the waiting period (rs232
repeattime) has expired after the last sending (rs232 maxrepeat).
readmode = page (0) sequential read for different pages (parameter 2:
readpage)
readmode = tag (1) read a tag until the end character ('E' - end
character or 'F' empty) in ID bit 0…3
readmode = whole (2) read the whole tag (all pages)
Reader Host
CMD Reader ID Page Data
R 1 byte 2 bytes 16 bytes
Host Reader
CMD Reader ID
r1 byte
Product Manual - RFID Reader LF60C SoliD 50
Chapter 7
Operation
G - Request
parameter value The command G is used to request the value of all public parameters of the
device.
The reader sends an individual protocol package for each available public
parameter. After the last parameter the reader sends an end package including
the command 'g' and the source address '0'..'E'
Host Reader
CMD Reader ID
G1 byte
Reader Host
CMD Reader ID Parameter No. Parameter value
g 1 byte 2 bytes 16 bytes
Product Manual - RFID Reader LF60C SoliD 51
Chapter 7
Operation
P - Set parameter Command P can be used to change the value of individual parameters. After
successfully changing a parameter, the device sends a confirmation message.
Host Reader
CMD Reader ID Parameter No. Parameter value
P 1 byte 1 byte 2 bytes
Reader Host
CMD Reader ID
g1 byte
Product Manual - RFID Reader LF60C SoliD 52
Chapter 7
Operation
N - Reset The command N performs a reset of the reader hardware and software. After the
reset the device sends a confirmation message.
If the power to the device has been turned on (hardware reset), the host is
informed about it (RS232 interface only).
With regard to the TCP/IP option of the device, no command is sent after a
hardware reset because a TCP/IP connection must be opened first. If the TCP/IP
connection is open, the reader sends a heartbeat command.
Host Reader
CMD Reader ID
N1 byte
Reader Host
CMD Reader ID
n1 byte
Product Manual - RFID Reader LF60C SoliD 53
Chapter 7
Operation
e - Error message If an error occurs, the device sends an error message with the corresponding
error code to the host.
For more information on error codes and the corresponding correcting actions
please refer to Error codes.
Reader Host
CMD Reader ID Error ID
e 1 byte 1 byte
Product Manual - RFID Reader LF60C SoliD 54
Chapter 7
Operation
H - Heartbeat The command H sends a heartbeat request to the reader. The reader responds
with his serial number and a response code.
The response code is part of the protocol but is not used for this device. The
response code is always '0000'.
Because of compatibility with other systems, the heartbeat is also allowed with
the address 'F'.
Host Reader
CMD Reader ID
H1 byte
Reader Host
CMD Reader ID Serial No. Response code
h 1 byte 4 bytes 4 bytes
Product Manual - RFID Reader LF60C SoliD 55
Chapter 7
Operation
V - Query software
version The command V is used to request the installed software version of the
transponder reader.
The 8 characters of the software version are described by 16 ASCII characters.
Each character is described in HEX format represented by 2 ASCII characters (see
section Message examples).
Host Reader
CMD Reader ID
V1 byte
Reader Host
CMD Reader ID Software version
v 1 byte 16 bytes
Product Manual - RFID Reader LF60C SoliD 56
Chapter 7
Operation
L - Lock a page of
the transponder An individual page of a multipage transponder can be locked (read only).
If the page of the transponder could not be locked, the writing action is repeated
automatically (parameter 3: r/w delaytime and parameter 4: r/w maxrepeat).
If the page still could not be locked, an error message NoTag (4) is sent to the
host. If the page was already locked, the successful feedback follows just as at
the first locking.
If the sensor check is activated, the status of the external sensor is checked first
before a lock process is started. If the sensor is not triggered, the error message
"NOTAG" is sent; otherwise the lock process is started.
Host Reader
CMD Reader ID Page
L 1 byte 2 bytes
Reader Host
CMD Reader ID
l1 byte
ATTENTION A locked page cannot be unlocked. This page is locked permanently.
Product Manual - RFID Reader LF60C SoliD 57
Chapter 7
Operation
I - Set tuning of the
RF module Depending on the surroundings of the antenna it might be necessary to tune the
RF module to get the optimal reading/writing range for this special installation
environment. The RF module therefore has 3 capacitors which can be switched
ON or OFF.
Each capacitor has one reserved bit which shows its status.
The tuning can be set manually (not recommended) or automatic tuning can be
performed (recommended).
■0 - OFF
■1 - ON
Bit 20 corresponds to capacitor C0.
To start the automatic tuning, use value 08 (I008).
If no reasonable calibration was found, the error "5 - Invalid" is sent instead of
the confirmation, and all capacitors are switched ON.
Host Reader
CMD Reader ID Value
I 1 byte 2 bytes
Reader Host
CMD Reader ID
i1 byte
Hex. value Bin. value Meaning
00 0000 0000 no capacitor is set
07 0000 0111 all 3 capacitors are set
08 0000 1000 starts the automatic tuning
Product Manual - RFID Reader LF60C SoliD 58
Chapter 7
Operation
J - Request tuning
settings of RF
module
Command J requests the current setting of the tuning capacitors. The response
message contains the current status of the capacitors in hexadecimal format.
Each capacitor has one reserved bit which shows its status.
Host Reader
CMD Reader ID
J1 byte
Reader Host
CMD Reader ID Value
j 1 byte 2 bytes
Product Manual - RFID Reader LF60C SoliD 59
Chapter 7
Operation
A - Sensor event If parameter watchport is activated ('01'), the reader reports the release event of
the external sensor. The event message must be confirmed by the host.
If the host does not send an acknowledge message, the message is repeated
(value 6: RS232 maxrepeat) in the defined time frame (value 5: RS232
delaytime).
Host Reader
CMD Reader ID
A1 byte
Reader Host
CMD Reader ID
a1 byte
Product Manual - RFID Reader LF60C SoliD 60
Chapter 7
Operation
7.3.4 Parameters
Parameter 0
(0x00) Sensor delay
Operation delay for the presence sensor.
01 .. 99 (0.1 seconds)
Default: 10 (1s)
Parameter 1
(0x01) Read mode
Readmode for automatic read triggered by external input.
00 - read only one page
01 - read until end character or empty character2)
02 - read all pages
10 - read only one page with sensor check first1)
11 - read until end/empty character with sensor check first1) 2)
12 - read all pages with sensor check first1)
99 - deactivate sensor
1) If the sensor check is activated (first byte is 1) the circuit state of the floating
contact connected to the external input is checked before a read- or write-process
triggered by the terminal. If it is not connected, the error message "NOTAG" is
sent, otherwise the read respectively write process is started.
2) 'E' respectively 'F' in ID Bit 0...3 of the reading ID
Default: 00 (read only one page)
No.
(dec.) No.
(hex) Parameter name
00x00 Sensor delay
10x01 Read mode
20x02 Read page
30x03 r/w repeat time
40x04 r/w max repeat
50x05 RS232 repeat time
60x06 RS232 max repeat
70x07 Watch port
F Reader address
Product Manual - RFID Reader LF60C SoliD 61
Chapter 7
Operation
Parameter 2
(0x02) Read page
Page for readmode "00".
00 - First page of any type of transponder
01 .. 17 - Page of multipage transponder
Default: 00 (first page of any type of transponder)
Parameter 3
(0x03) r/w repeat time
Time between two read or write attempts.
01 .. 99 (0.1 s)
Default: 05 (0.5 s)
Parameter 4
(0x04) r/w max repeat
Maximum number of read/write attempts.
01 .. 99
Default: 05
Parameter 5
(0x05) RS232 repeat time
In case no confirmation message from the host was received, the device waits
this time before sending a repeat message. The number of repeats is defined in
parameter 6 (RS232 maxrepeat).
01.. 99 (0.1 s)
Default: 45 (4.5 s)
Parameter 6
(0x06) RS232 max repeat
If the host does not send the expected confirmation message, the device repeats
the message according the value of this parameter. After that, an error message
is sent.
00 - never ending
01 .. 99 - number of attempts
Default: 3
Parameter 7
(0x07) Watch port
Enables/disables the event message to the host that the floating contact
(external input) was opened.
00 - not activated (no event message)
01 - activated
Default: 1
Product Manual - RFID Reader LF60C SoliD 62
Chapter 7
Operation
Parameter F Reader address
Reader address of the device.
0 .. E - 0 up to 14
Default: 0
7.3.5 Message examples
Calculation for the XOR checksum:
53 XOR 30 XOR 32 XOR 48 XOR 30 XOR 0D = 24 '2' '4'
Calculation for the addition checksum:
53 + 30 + 32 + 48 + 30 + 0D = 13A
Only low significant bytes are used: 3A '3' 'A'
X - Read data (read page 1 of multipage transponder)
>> X001
<< x0013232323232323232
Command X
Reader ID 0
Page 01
Data '3232323232323232' ASCII "22222222"
ASCII HEX Description
’S’ 53 start character
’0’ 30 high byte message length
’2’ 32 low byte message length
’H’ 48 first character message: value
’0’ 30 second character message: target address
CR 0D end character
’2’ 32 high byte checksum XOR
’4’ 34 low byte checksum XOR
’3’ 33 high byte checksum addition
’A’ 41 low byte checksum addition
Product Manual - RFID Reader LF60C SoliD 63
Chapter 7
Operation
W - Write data (write to page 1 of multipage transponder)
>> W0013132333435363738
<< w0
Command W
Reader ID 0
Page 01
Data '3132333435363738' ASCII "12345678"
R - Automatic reading
<< R0013132333435363738
>> r0
Command R
Reader ID 0
Page 01
Data '3132333435363738' ASCII "12345678"
V - Request software version
>> V0
<< v05347324956312E30
Command V
Reader ID 0
Software Version '5347324956312E30' ASCII "SG2IV1.0"
Product Manual - RFID Reader LF60C SoliD 64
Chapter 7
Operation
7.4 Operation of SECS/HSMS Protocol
7.4.1 Introduction
The SECS-I standard defines a communication interface that is suitable for
exchanging messages between semiconductor processing equipment and a host.
A host is a computer or network of computers that exchanges information with
the equipment to perform/execute the production.
The standard does not define the data contained within a message. The meaning
of messages must be determined through a message contents standard such as
SEMI Equipment Communications Standard E5 (SECS-II).
This standard provides the means for independent manufacturers to produce
equipment and hosts that can be connected without requiring specific knowledge
of each other.
The SECS-I protocol can be seen as a layered protocol used for point-to-point
communication. The layers within SECS-I are the physical link, the block transfer
protocol and the message protocol.
The standard is not intended to meet the communication needs of all possible
applications. For example, the speed of RS232 may be insufficient to meet the
needs of transferring mass amounts of data or programs in a short period, such
as may be required for high-speed functional test applications.
In a network, the roles of host and equipment may be assumed by any party of
the network. In this situation, one end of the communications link must assume
the role of the equipment and the other the role of the host.
Electronic Industries Association Standards:
EIA RS-232-C Interface between Data Terminal Equipment and Data
Communication Equipment Employing Serial Binary Data Interchange.
Product Manual - RFID Reader LF60C SoliD 65
Chapter 7
Operation
7.4.2 SECS-I implementation
This message set describes the communication between a SECS-I reader and a
host. The host and the transponder reader communicate via an RS232 interface
(SECS-I).
Character structure Data is transmitted or received in a serial bit stream of 10 bits per character at
one of the specified data rates. The standard character has one start bit (0), 8
data bits and one stop bit (1). All bit transmissions are of the same duration.
SECS-I performs no parity or other verification of the individual bytes.
Block transfer
protocol The gateway uses an interpretation of SECS-I by a serial transport layer. The
following are some points to note about this implementation.
Master-Slave The host connects to the reader. If there is a conflict, the host "gives in" (i.e.
receives before sending).
In the course of communication, the reader takes on the role of the master and
the host takes on the role of the slave.
Control characters The four standard handshake codes used in the block transfer protocol are
displayed in the table below.
<ENQ> 0x05 Request to send
<EOT> 0x04 Empfangsbereit
<ACK> 0x06 Korrekter Empfang
<NAK> 0x15 Fehlerhafter Empfang
Product Manual - RFID Reader LF60C SoliD 66
Chapter 7
Operation
Message block
structure SECS message blocks have the following form:
The operation of all communication functions above the block transfer protocol is
linked in information contained in a 10-byte data element, called the header.
The header is always the first 10 bytes of every block sent by the block transfer
protocol.
The length includes all bytes sent after the length byte, excluding the two
checksum bytes. The maximum block length allowed by SECS-I is 254 bytes and
the minimum is 10 bytes.
The reverse bit (R bit) signifies the direction of a message. The R-bit (msb) is
set to 0 for messages to the equipment and to 1 for messages to the host.
The device ID is a definite number to contact the reader.
The device ID consists of the 8-bit gateway ID (bit 0 - bit 7), which is identical
with the last two characters of the reader's serial number, and a 5-bit fixed reader
number
(bit 8 - bit 14 = 0x01).
Of course, the ID can be changed within the valid scope.
Byte msb Description
Length 0Length without checksum, 10 - 254
1 R Upper device ID (Reader ID)
2Lower device ID (Gateway ID)
3 W Upper message ID (Stream)
4Lower message ID (Function)
5 E Upper block number
6Lower block number
System
bytes
7System byte 1
8System byte 2
9System byte 3
10 System byte 4
Text 11 - 254 message text, user data
Check sum 255, 256 16-bit unsigned checksum
Product Manual - RFID Reader LF60C SoliD 67
Chapter 7
Operation
Direction reader to host 0x81xx *
Direction Host to equipment (reader)0x01xx *
* The serial number is located on a label on the reader.
The W bit indicates that the sender of a primary message expects a reply. A value
of 1 in the W bit means that a reply is expected.
The message ID identifies the format and content of the message being sent.
A primary message is defined as any odd-numbered message.
A secondary message is defined as any even-numbered message.
The end bit determines whether a block is the last block of the message. A value
of 1 means that the block is the last block.
A message sent as more than one block is called a multi-block message. A
block number of 1 is given to the first block, and the block number is incremented
by one for each subsequent block until the entire message is sent.
As all messages can be sent in one block, the block number always has the value
1.
The system bytes in the header of each message for a given device ID must
meet the following requirements:
■The system bytes of a primary message must be distinct from the bytes
of all currently open transactions initiated from the same end of the
communications link.
■The system bytes of the reply message are required to be the same as
the system bytes of the corresponding primary message.
The system bytes are incremented for each primary message.
The checksum is calculated as the numeric sum of the unsigned binary values of
all the bytes, after the length byte and before the checksum and in a single block.
Upper device ID R-bit 0 0 0 0 0 1
Lower device ID Last two digits of the serial
number
Product Manual - RFID Reader LF60C SoliD 68
Chapter 7
Operation

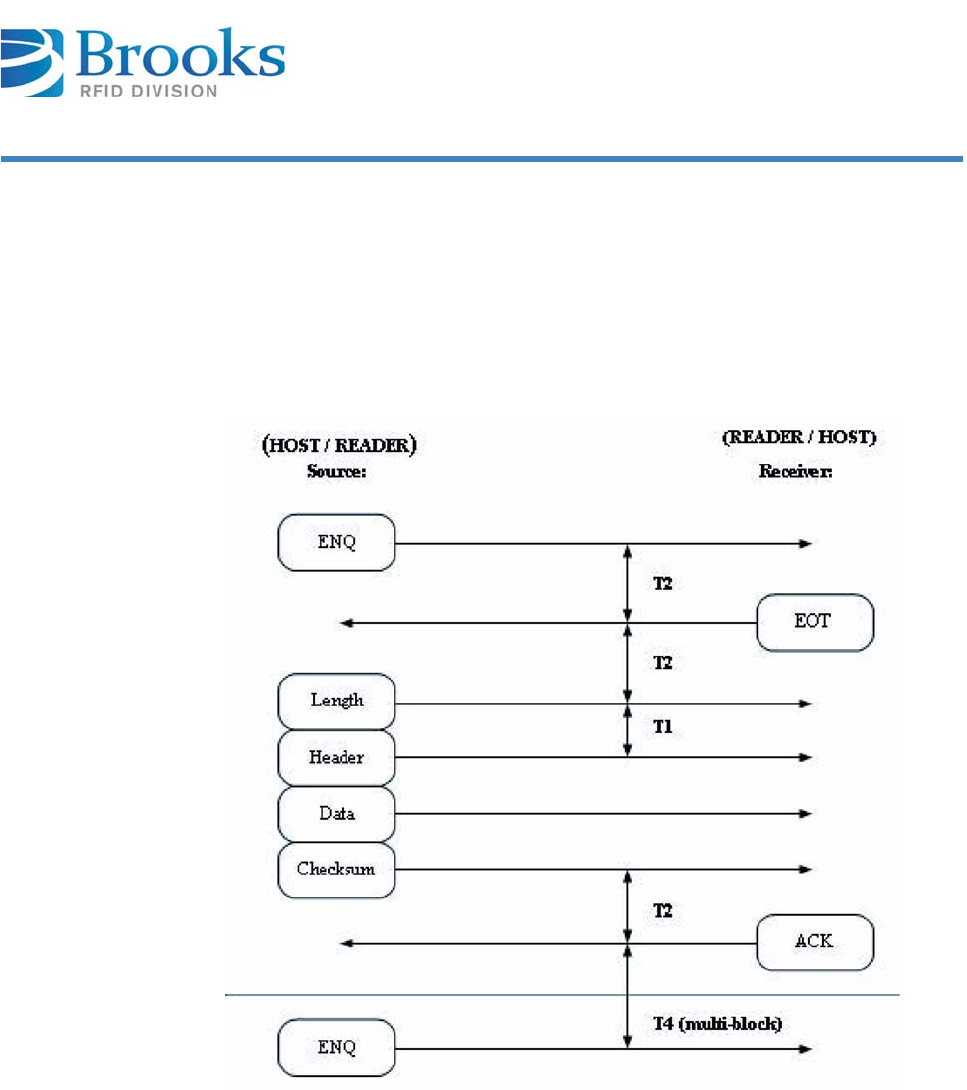

Block transfer
protocol The drawing below illustrates some simple message interactions between the host
and the equipment. The figure shows the possible handshake sequence to acquire
the status of the equipment.
When the host wants to send, it first sends an <ENQ> and then tries to read.
If it receives an <EOT>, it sends its message and then expects an <ACK>.
If it receives an <ENQ>, it puts off sending its message, sends an <EOT> and
then reads the other message.
When both the host and the equipment try to send at the same time, the host
must cancel its inquiry because the host is working in slave mode. It must first
receive the equipment message because the reader is the master. Only then can
the host send its message.
For more detailed information about all possible cases, see SEMI E4.
(SEMI Equipment Communication Standard 1 Message Transfer SECS-I)
Product Manual - RFID Reader LF60C SoliD 69
Chapter 7
Operation
7.4.3 HSMS option
The hardware version with an Ethernet interface uses the HSMS protocol. It works
as a HSMS server. That means that it waits for a connection inquiry of any HOST
PC.
TCP/IP: IP address xxx.xxx.xxx.xxx Port 3241
If a connection inquiry of any HOST takes place, the reader initializes the HSMS
connection, and the SECS-II messages defined in the message set are forwarded
from the reader to the respective HOST and vice versa.
It is possible to operate all readers connected to the network via one or several
HOST PCs.
But one HSMS reader can only be connected to one HOST at a time.
Use the Brooks Device Discoverer to change the TCP/IP settings.
7.4.4 HSMS implementation
HSMS defines the procedure for all message exchanges between entities across

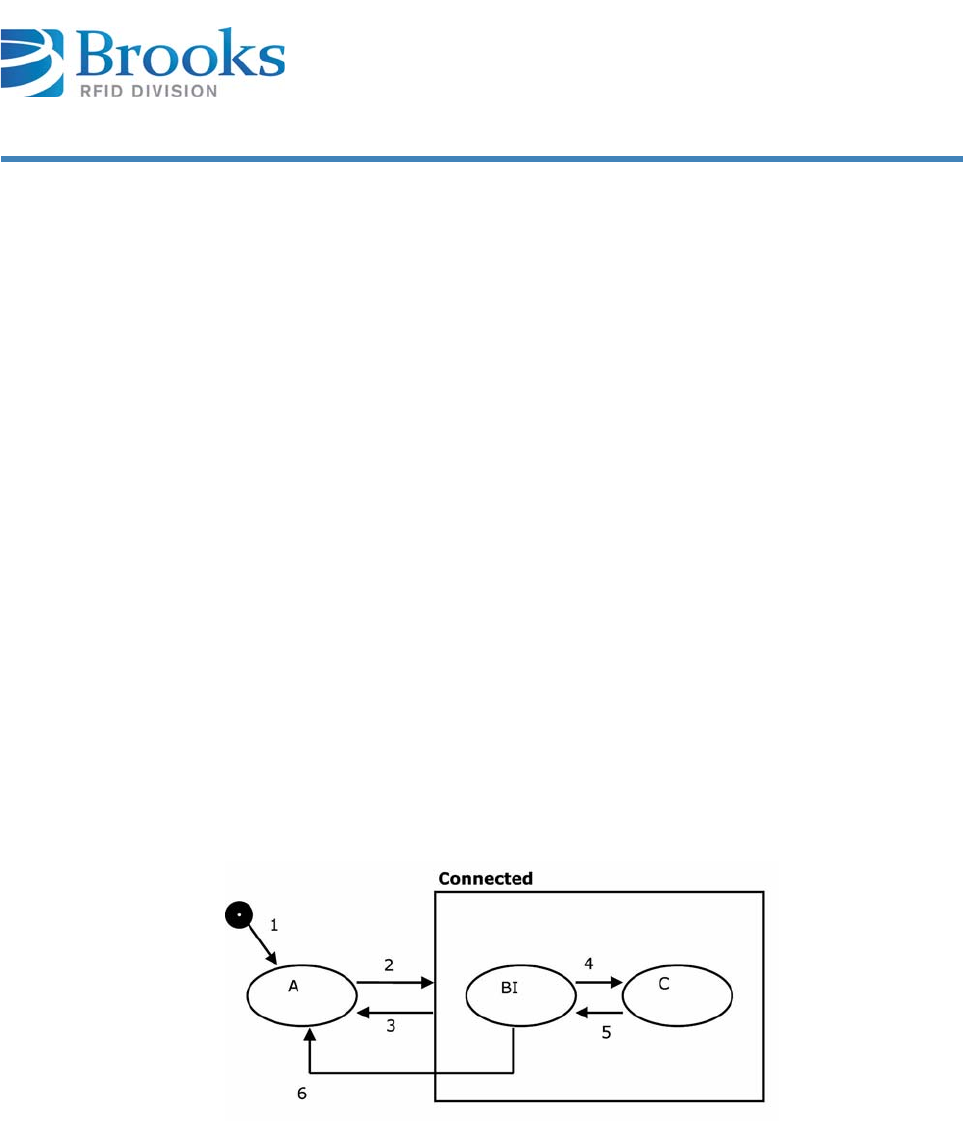

the TCP/IP. The HSMS Connection Status Diagram - The HSMS status machine is
illustrated in the diagram below. The behavior described in this diagram defines
the basic requirements of HSMS:
A - NOT CONNECTED
The entity is ready to listen for or to initiate TCP/IP connections, but either has
not yet established any connections or all previously established TCP/IP
connections have been terminated.
CONNECTED
A TCP/IP connection has been established. This status has two sub-statuses, NOT
SELECTED and SELECTED.
Product Manual - RFID Reader LF60C SoliD 70
Chapter 7
Operation
B - NOT SELECTED
A sub-status of CONNECTED in which no HSMS session has been established or
any previously established HSMS sessions have ended.
C - SELECTED
A sub-status of CONNECTED in which at least one HSMS session has been
established. This is the normal "operating" status of HSMS: data messages may
be exchanged in this status.
The specification of a required TCP Application Program Interface (API) for use in
implementations is outside the scope of HSMS. An HSMS implementation may use
any TCP/IP API sockets, TLI (Transport Layer Interface), etc.
#Current
status Trigger New status Comment
1 ... Local entity-specific
preparation for TCP/
IP communication
Not
connected Action depends on connection
procedure to be used: active or
passive.
2 Not connected A TCP/IP connection
is established for
HSMS
communication.
Connected -
Not selected None
3 Connected Breaking of TCP
connection Not
connected HSMS only permits termination of
the connection when the connection
is in the Not selected sub-status.
4 Not selected Successful completion
of HSMS Select
procedure.
Selected HSMS communication is now fully
established: data message
exchange is permitted.
5 Selected Successful completion
of HSMS Deselect or
Separate.
Not selected This transition normally indicates
the end of HSMS communication; an
entity would immediately proceed to
break the TCP/IP connection.
6 Not selected T7 connection
timeout Not
connected There is a time limit on how long an
entity is required to remain in the
Not selected status before either
entering in Selected status or
returning to Not connected status.
Product Manual - RFID Reader LF60C SoliD 71
Chapter 7
Operation

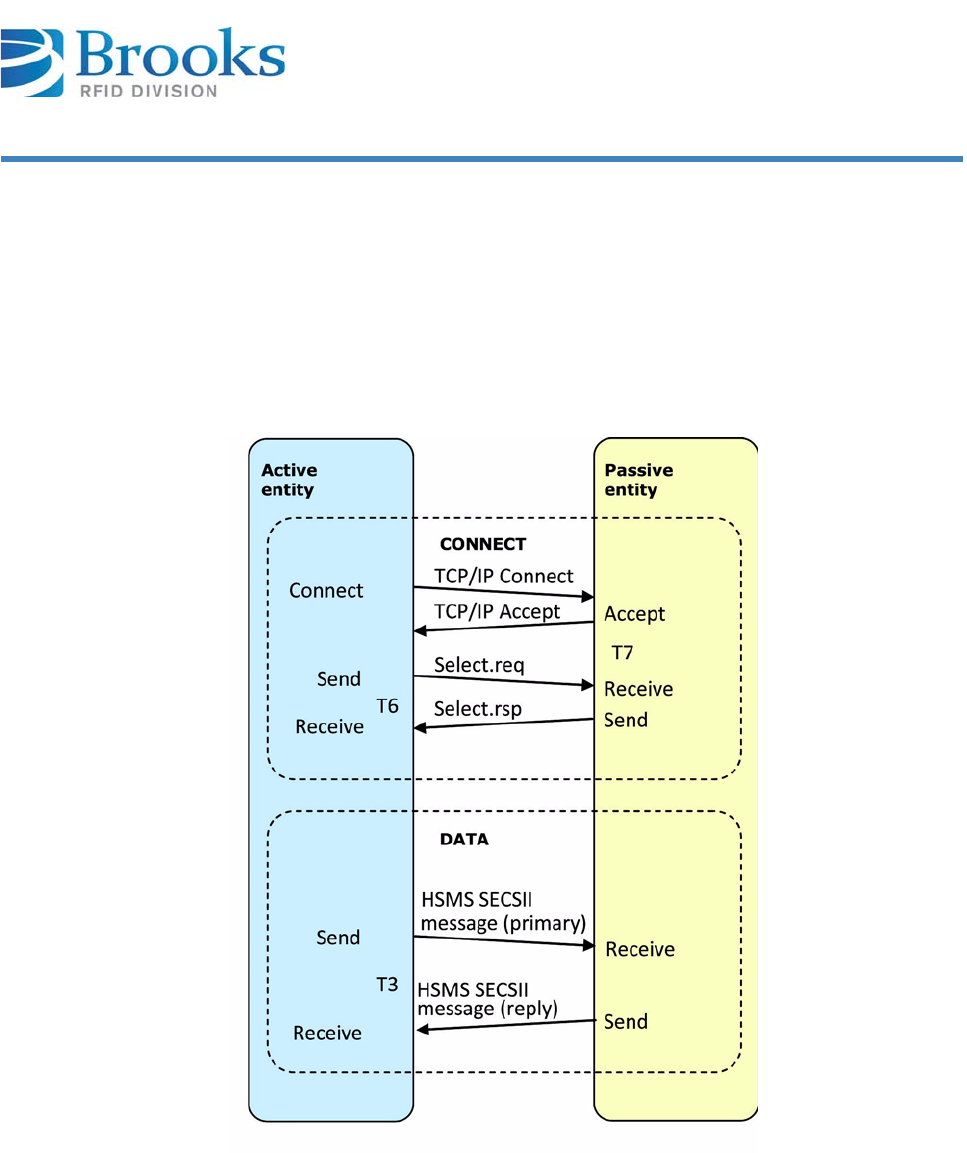

HSMS message
exchange
procedures
HSMS defines the procedures for all message exchanges between entities across
the TCP/IP connection established according to the procedures in the previous
section. As explained in the overview, once the connection is established, the two
entities establish HSMS communications with the Select procedure. The data
messages may be exchanged in any direction at any time. When the entities wish
to end HSMS communication, the Deselect or Separate procedure is used to
terminate the HSMS communication.
Product Manual - RFID Reader LF60C SoliD 72
Chapter 7
Operation
HSMS message
format This section defines the detailed format of the messages used by the procedures
in the previous section. An HSMS message is transmitted as a single continuous
stream of bytes in the following order:
The minimum possible message length is 10 (header only).
The maximum possible message length depends on SECS-I.
Number of bytes Description
4 bytes Message length. MSB first. Specifies the number of
bytes in the message header plus the message text.
10 bytes Message header
0 - n bytes Message text. Format is further specified by P-type
field of message header. The message text
corresponds to message data by SECS-II encoding.
Product Manual - RFID Reader LF60C SoliD 73
Chapter 7
Operation
HSMS message
header The message header is a 10-byte field. The bytes in the header are numbered
from byte 0 (first byte transmitted) to byte 9. The format of the message header
is as follows:
The physical byte order is designed to correspond as closely as possible to the
SECS-I header.
The session ID is a 16-bit unsigned integer value, which occupies bytes 0 and 1 of
the header (byte 0 is MSB). Its purpose is to provide an association by reference
between control messages and subsequent messages.
Header byte 2 is used in different ways for different HSMS messages. For control
messages, it contains 0 or a status code. For a data message, it contains the W
bit and SECS stream.
Header byte 3 contains 0 or a status code for control messages. For data
messages, it contains the SECS function.
P-type is an 8-bit unsigned integer value which occupies byte 4 of the message
header; message header and message text are encoded. Only P-type = 0 is
defined by HSMS to mean SECS-II message encoding. For non-zero P-type
values, see SEMI E37.
Bytes Description
0-1 Session ID (Device ID)
2Header byte 2
3Header byte 3
4P-type
5S-type
6-9 System bytes
Product Manual - RFID Reader LF60C SoliD 74
Chapter 7
Operation
S-type (session type) is a 1-byte unsigned integer value which occupies header
byte 5.
The system bytes are used to uniquely identify a transaction among the set of
open transactions. The system bytes are also defined as SECS-I-specific.
Value Description
0 SECS-II Encoding
1 - 127 Reserved for subsidiary standards
128 -
255 Reserved, not used
Value Description Value Description
0 Data message 6 Linktest.rsp
1 Select.req 7 Reject.req
2 Select.rsp 8 Not used
3 Deselect.req 9 Separate.req
4 Deselect.req 10 Not used
5 Linktest.req 11-255 Reserved, not used
Product Manual - RFID Reader LF60C SoliD 75
Chapter 7
Operation
HSMS message
format summary
* Indicates further specification by subsidiary standards
Message header
Message
type bytes 0 - 1
Session ID byte 2 byte 3 byte
4
P-type
byte
5
S-type
bytes 6 - 9
System bytes Message
text
Data
message *
(no R bit) W bit and
SECS
stream
SECS
Functio
n
00Primary:
Unique Reply:
Same as
primary
Text
Select req * 0 0 0 1 Unique None
Select.rsp Same
as.req 0Select
status 02Same as.reqNone
Deselect.req * 0 0 0 3 Unique None
Deselect.rsp Same
as.req 0 Deselec
t Status 04Same as.reqNone
Linktest.req 0xFFFF 0 0 0 5 Unique None
Linktest.rsp 0xFFFF 0 0 0 6 Same as.req None
Reject.req Same as
message
being
rejected
P-type or
S-type of
message
being
rejected
Reason
code 07Same as
message being
rejected
None
Separate.req * 0 0 0 9 Unique None
Product Manual - RFID Reader LF60C SoliD 76
Chapter 7
Operation
7.4.5 SECS-II implementation
Introduction The SEMI Equipment Communication Standard Part 2 (SECS-II) defines how
messages exchanged between intelligent equipment and a host are interpreted.
It is the intent of this standard to be fully compatible with SEMI Equipment
Communication Standard E4 (SECS-I).
The messages defined in this specification support the typical activities required
for the BROOKS transponder reader.
SECS-II gives form and meaning to messages exchanged between the equipment
and the host using a message transfer protocol, such as SECS-I. SECS-II defines
the method of conveying information between the equipment and the host in the
form of messages.
These messages are organized into categories of activities, called streams, which
contain specific messages, called functions. In SECS-II, messages are identified
by a stream code (0-127, 7 bits) and a function code (0-255, 8 bits). Each
combination of stream and function represents a unique message identification.
SECS-II defines the structure of messages into entities called items and lists of
items. These data structures define the logical divisions of the message as
distinct from the physical division of the message transfer protocol.
An item is an information packet that has a length and format defined by the first
2, 3 or 4 bytes of the item. These bytes are called the item header. The item
header consists of the format byte and the length byte as shown below.
Product Manual - RFID Reader LF60C SoliD 77
Chapter 7
Operation
A list is an ordered set of elements, whereby an element can be either an item or
a list. The list header has the same form as an item header with format type 0.
However, the length byte refers to the number of elements in the list rather than
to the number of bytes.
Byte Name Description
0Format and
number of
the length
bytes
The data format is coded in the upper 6
bits.
The two less significant bits determine the
number of the following length bytes.
1
1-2
1-3
Length bytes The length corresponds to the number of
the bytes of a data element. In the "List"
format, the length corresponds to the
number of the list elements.
The standard does not require the
minimum possible number of length bytes
for a given data length.
Next <Length> Data Data bytes of a data element or number of
the data elements in case of the "List"
format.
Product Manual - RFID Reader LF60C SoliD 78
Chapter 7
Operation
Data items The formats represent arrays of types: <type>[number of elements], whereby
<type> is one of the following:
Oct-
code Hex-
code Format Meaning Example
00 01 List List element with the
number of the
"Length" data
elements
<L2>
<A "Hello">
<B 0x00>
11 25 Boolean 1-byte Boolean
false = 00
true = 01 <Boolean1 0x00>
10 21 Binary Byte sequence
of the length "Length" <B1 0x01>
20 41 ASCII Printable ASCII
characters <A "Hello">
31 65 I1 1-byte signed integer <I1 123>
32 69 I2 2-byte signed integer <I2 -12345>
34 71 I4 4-byte signed integer <I4 2147483647>
30 61 I8 8-byte signed integer <I8
931372980293834>
51 A5 U1 1-byte unsigned
integer <U1 0>
52 A9 U2 2-byte unsigned
integer <U2 #empty>
54 B1 U4 4-byte unsigned
integer <U4 429489725>
50 A1 U8 8-byte unsigned
integer <U8
763468676756767>
40 91 F8 8-byte floating point <F8 1.223 e204>
44 81 F4 4-byte floating point <F4 -1.23 >
Product Manual - RFID Reader LF60C SoliD 79
Chapter 7
Operation
Data item examples
Message set The SECS-II message set used by the LDN reader consists of six different stream
types.
Stream 1: (Equipment status)
S1F1 and S1F2 Are you there request
S1F15 and S1F16 Request offline
S1F17 and S1F18 Request online
Stream 2: (Equipment control)
S
S2F13 and S2F14 Equipment constant request
S2F15 and S2F16 New equipment constant request
S2F19 and S2F20 Reset send
Stream 3: (Material status)
S3F5 and S3F6 Cassette found send
S3F7 and S3F8 Cassette lost send
S3F11 and S3F12 Read MID at I/O port
S3F13 and S3F14 Return read MID
S3F65 and S3F66 Write MID at I/O port
S3F67 and S3F68 Return write success
S3F73 and S3F74 Lock MID at I/O port
S3F75 and S3F76 Return lock success
Meaning Format Length
1-byte integer 65 01 xx
4-byte integer 71 04 MSB ... ... LSB
ASCII 41 06 1st chr 2nd chr 3rd chr 4th chr 5th chr 6th chr
Zero-length xx 00
List data item 01 03 1st element 2nd element 3rd element
Product Manual - RFID Reader LF60C SoliD 80
Chapter 7
Operation
Stream 5: (Exception handling)
S5F1 and S5F2 Alarm report send
Stream 9: (System errors)
S9F1 Unrecognized device ID
S9F3 Unrecognized stream type
S9F5 Unrecognized function type
S9F7 Illegal data
S9F9 Transaction timer timeout
For more information on error codes and the corresponding correcting actions
please refer to Error codes.
According to SEMI E99 carrier ID read / writer functional standard for SECS-I and
SECS-II protocol, the RFID Reader LF60C SoliD supports these defined stream 18
messages:
Stream 18: (Equipment status)
S18F1 and S18F2 Read attribute request
S18F3 and S18F4 Write attribute request
S18F5 and S18F6 Read request
S18F7 and S18F8 Write request
S18F9 and S18F10 Read ID request
S18F11 and S18F12 Write ID request
S18F13 and S18F14 Subsystem command request
Product Manual - RFID Reader LF60C SoliD 81
Chapter 7
Operation
Data item
dictionary This section defines the data items used in the standard SECS-II messages
described in the section "Message details".
Syntax:
Acknowledge code
0 : Sensor 0 was the initiator
>0 : Error, not accepted
Where used S3F6, S3F8
Acknowledge code
0 : No error
>0 : Error, not accepted
Where used S5F2
Name A unique name for this data item. This name is used in the
message definitions.
Format The permitted item format code which can be used for this
standard data item.
Item format codes are shown in hex and octal, as described in
the chapter Data items.
The notification "3()" indicates any of the signed integer
formats (30, 31, 32, 34).
Description A description of the data item, with the meanings of specific
values.
Where used The standard messages in which the data item appears.
ACKC3 Format: B[1]
ACKC5 Format: B[1]
Product Manual - RFID Reader LF60C SoliD 82
Chapter 7
Operation
Description The value of the alarm status refers to the last reading
process. If a read or write error occurs, the alarm status is set.
A successful read or write resets the alarm status.
When leaving maintenance mode, the alarm status is also
deleted.
0 ... No alarm
1 ... Alarm
Where used S18F13
Alarm code byte
Only the occurrence of an error is reported. Errors are not generally reset.
bit 8 = 1 Alarm is set
Where used S5F1
Alarm identifier
0 No error
1 Auto read failed, the reader is engaged
2 External read failed, the reader is engaged
3 External write failed, the reader is engaged
4 No tag could be recognized when the sensor was covered or the carrier
had been removed prematurely (sensor uncovered)
5 Invalid command or parameter detected
6 Unknown error
7Reserved
8 Parity error or checksum error detected
9 Unexpected confirmation was sent
10 Locked page could not be written
11 Reserved
12 Incorrect type of transponder
13 External read or write failed because the sensor is not covered
14 Reserved
15 Reserved
16 Reserved
For more information on error codes and the corresponding correcting actions
please refer to Error codes.
Where used S5F1
ALARM STATUS Format: A[1]
ALCD Format: B[1]
ALID Format: B[1]
Product Manual - RFID Reader LF60C SoliD 83
Chapter 7
Operation
Alarm text
The length of the alarm text is 0 to 40 characters.
According to the reader version, status information about the sensor or sensors is
also transmitted during a reader error message.
The information should be interpreted as follows:
ALTX[0] Initiator of an error message
“0”: Sensor 0
“1”: Sensor 1 (not available)
“F”: Cannot be assigned
ALTX[1] Status of sensor 0
“0”: Sensor not occupied
“1”: Sensor is occupied
“E”: Sensor status is not available
“F”: Sensor not defined
ALTX[3] ‘:’ a colon separates the alarm text from the sensor statuses
Where used S5F1
Description: Identifier for an attribute for a specific type of object.
CIDRW attribute definitions:
"Configuration"… Number of heads
"AlarmStatus” Current CIDRW sub-status of ALARM STATUS
"OperationalStatus" Current CIDRW sub-status of OPERATING
"SoftwareRevisionLevel" Revision (version) of software - 8-byte maximum
"CarrierIDOffset" Offset of CID in CID field (MID area)
"CarrierIDLength" Length of CID in CID field (MID area)
"SERIALNUM” String of Serial number
"HARDWARE" String of hardware release
"SELF_TEST_RESULT" Delivers the result from the last triggered self test
"MANUFACTURER" String of manufacturer
"ECID_00" parameter 0 - Gateway ID (ECID=0)
"ECID_01" parameter 1 - Baudrate (ECID=1)
"ECID_02" parameter 2 - Inter-character-timeout T1
"ECID_03" parameter 3 - Block-protocol-timeout T2
"ECID_04" parameter 4 - Reply-timeout T3
"ECID_05" parameter 5 - Inter-block-timeout T4
ALTX Format: A[max40]
ALTRID Format: A[max25]
Product Manual - RFID Reader LF60C SoliD 84
Chapter 7
Operation
"ECID_06" parameter 6 - Retry-limit RTY
"ECID_07" parameter 7 - TARGETID high byte
"ECID_08" parameter 8 - TARGETID low byte
"ECID_09" parameter 9 - Heartbeat time
"ECID_10" parameter 10 - FIX
"ECID_11" parameter 11 - Reader ID
"ECID_12" parameter 12 - HeadID
"ECID_20" parameter 20 - Sensor delay for presence sensor
"ECID_22" parameter 22 - Sensor triggered action for presence sensor
"ECID_23" parameter 23 - Triggered read frequency
"ECID_24" parameter 24 - R/W max repeat
"ECID_25" parameter 25 - Transponder type
"ECID_26" parameter 26 - Sensor activity
"ECID_27" parameter 27 - Watchport for presence
"ECID_29" parameter 29 - Transponder load duration (read mode)
"ECID_30" parameter 30 - r/w synchronize
"ECID_31" parameter 31 - Auto-adjust value (read mode)
"ECID_32" parameter 32 - Auto-adjust value (write mode)
"ECID_33" parameter 33 - Automatic antenna adjustment
"ECID_34" parameter 34 - Sensor type for presence sensor
"ECID_35" parameter 35 - Special features
"ECID_36" parameter 36 - DIP switch activation
"ECID_37" parameter 37 - MID area
"ECID_38" parameter 38 - Test after software reset
"ECID_40" parameter 40 - Transponder load duration (write mode)
"ECID_41" parameter 41 - Delay time between read cycles
"ECID_42" parameter 42 - CarrierIDOffset
"ECID_43" parameter 43 - CarrierIDLength
"ECID_44" parameter 44 - FixedMID
"ECID_45" parameter 45 - MIDFormat
"ECID_98" parameter 98 - Protocol change allowed
"ECID_99" parameter 99 - Customer code
Head attribute definitions: *
"HeadStatus" The current status
"HeadID" Head number 00-31 (2 digits)
* With regard to an RFID Reader LF60C SoliD, the head attribute definition
"HeadStatus" is equal to the "OperationalStatus" of the CIDRW.
Where used S18F1, S18F3
Product Manual - RFID Reader LF60C SoliD 85
Chapter 7
Operation
Description: Value of the specified attribute.
CIDRW attribute definitions:
"Configuration” Number of heads "01"
"AlarmStatus” Current CIDRW sub-status of ALARM
STATUS
"0" …NO
"1" …ALARMS
"OperationalStatus" Current CIDRW sub-status of OPERATING
"IDLE” … Reader in IDLE mode
"BUSY” … Reader is busy
"MANT" … Maintenance mode
"SoftwareRevisionLevel" Revision (version) of Software - 8-byte maximum
"SERIALNUM" String of Serialnumber - 15 bytes maximum
"HARDWARE" String of hardware release - 10 bytes maximum
"SELF_TEST_RESULT" Delivers the result from the last triggered hardware
self test. A self test can be triggered by S18F13 with
SSCMD "PerformDiagnostics"
"P" … No hardware errors detected
"F" … Hardware errors detected
"MANUFACTURER" String of manufacturer "BROOKS"
ECID_00 to ECID_99 see data item ECV parameters 0 - 99
Head attribute definitions:
"HeadStatus" The current status
"IDLE" ... Reader in IDLE mode
"BUSY" ... Reader is busy
"NOOP" ... Not operating
"HeadID" Head number 00-31 (2 digits)
"00" ... Reader 0
"31" ... Reader 31
Where used S18F2, S18F3
ATTRVAL Format: A[max4]
Product Manual - RFID Reader LF60C SoliD 86
Chapter 7
Operation
Description Status request value
OpStatus
Operation status Maintenance or Idle
"OP" ... Operating status
"MT" ... Maintenance status
LEDStatus
LED state
"Off" ... Switch LED off
"On" ... Switch LED on
"Flash" ... Switch LED to flash with 1Hz
LedNO
LED number, 1 byte
"1" Status LED
"2" Status LED
"3" External output
"4" Read OK LED
"5" Read Fail LED
Timeout
Timeout period
Units Seconds
Range "1" - "98"
"99" has a special meaning: it specifies "always". For example, a LED is turned on
with the TIMEOUT value of 99; it will stay on until the host turns it off or the
device is reset.
Where used S18F13
Description A vector or string of unformatted data.
Multipage transponder DATA area depends on the MID area,
can be page 1 - page 17
Read/write transponder DATA correspond to 8 byte MID
Read/only transponder DATA correspond to 8 byte MID
Where used S18F6, S18F7
CPVAL Format: A[]
DATA Format:
A [max 200]
Product Manual - RFID Reader LF60C SoliD 87
Chapter 7
Operation
Multipage-transponder (page 1 to page 17):
Start the reading or writing on the following page of a multipage transponder:
...
"01" page 1 "81" Locked page 1
... ...
"11" page 17 "91" Locked page 17
Read/only transponder "F0" Read only the one page
Read/only transponder "F1" Read or write only the one page
Where used S18F5, S18F7
Acknowledge code for new reader constant
0 ... Parameter was set successfully
1 ... Parameter could not be set
Where used S2F16
DATALENGTH Format: U2
Description Total bytes to be sent.
The DATALENGTH corresponds to the quantity of bytes that are to be read or
written.
The valid range depends on the length of the MID area (parameter 37).
Where used S18F5, S18F7
DATASEG Format:A[2]
Description Used to identify the data requested.
The DATASEG corresponds to the page number (PAGEID) of the ISO 15693
transponder.
"00" First page of any type of transponder or first page of
DATA area in case of a multipage transponder.
EAC Format: B[1]
Product Manual - RFID Reader LF60C SoliD 88
Chapter 7
Operation
Parameter number of reader (see data item ECV)
Where used 2F13, S2F15
Reader parameter definition.
The values are displayed as decimal values.
Equipment model number.
Where used S1F2
Material format code.
20: The material port number corresponds to the sensor number and status
Where used S3F5, S3F7
SECS message block header associated with message block in error.
Where used S9F1, S9F3, S9F5, S9F7, S9F9
ECID Format: U1
ECV Format: U1
MDLN Format: A[6]
MF Format: B[1]
MHEAD Format: B[10]
Product Manual - RFID Reader LF60C SoliD 89
Chapter 7
Operation
Description Material ID
Depending on the type of transponder, it is
possible to modify the length of the MID.
Multipage transponder MID can be set from "0" (no MID)
to "10" (MID occupies the first 10
pages (writeable))
Read/write transponder MID corresponds to DATA (writeable)
Read/only transponder MID corresponds to DATA (fix)
Where used S18F10, S18F11
Material ID acknowledge code
0 Material ID acknowledged; the presence sensor was the initiator
1 Not defined
2 Material ID acknowledged - reaction on externally
triggered action; the message cannot be related to any sensor
>2 Material ID not acknowledged
The data item port number PTN indicates the initiator.
Where used S3F14, S3F68
MID Format: A
IMPORTANT Please note parameters 42 - 45.
MIDAC Format: B[1]
Product Manual - RFID Reader LF60C SoliD 90
Chapter 7
Operation
Material ID acknowledge code
2 Acknowledge, will send MID later in S3F13
Where used S3F12
Acknowledge code for OFF-LINE request.
0 OFF-LINE acknowledge (reader is offline)
Where used S1F16
Acknowledge code for ON-LINE request.
0 ON-LINE accepted (reader is online)
Where used S1F18
Page number of multipage, read/only and read/write transponders
0x00 : First page of the data area of a multipage transponder.
Multipage transponder (pages 1 to 17):
If only one page of the multipage transponder is read, note the following:
0x01 : (1) page 1 0x81 : (129) locked page 1
... ...
0x11 : (17) page 17 0x91 : (146) locked page 17
Read-only transponder:
0xF0 : (240) Read one page only
Read/write transponder:
0xF1 : (241) Read or write one page only
Where used S3F11
MIDRA Format: B[1]
OFLACK Format: B[1]
ONLACK Format: B[1]
PAGE_ID Format: B[1]
Product Manual - RFID Reader LF60C SoliD 91
Chapter 7
Operation
The cassette identifier that has been read or will be written. The PAGEDATA
corresponds to the value of a transponder page.
PAGEDATA [0] Corresponds to the page number. The value of the page
number is displayed in the data item "PAGE_ID".
PAGEDATA [1] The 8 bytes (one page) of the transponder ID follow.
PAGEDATA [8]
Where used S3F7, S3F12, S3F13, S3F65
Information about the status of up to two sensors and the initiator of the
message.
The second sensor is not implemented yet.
For special applications, the reading process of the transponder reader is
triggered by two sensors. In this case it is necessary to distinguish between the
two sensors. The initiator represents the number of the sensor that has caused
the message.
Default: Only sensor 0 is defined.
bit 7 ........ bit 0
Initiator Sensor 1 Sensor 0
Sensor 0: bit 0 - bit 2
The current status of sensor 0 is described in three bits.
0 Sensor not occupied
1 Sensor occupied
7 Sensor not defined
Sensor 1: bit 3 - bit 5 (defined for future developments)
The current status of sensor 1 is described in three bits.
0 Sensor not occupied
1 Sensor occupied
7 Sensor not defined
Initiator: bit 6 - bit 7
The initiator represents the number of the sensor that has caused the message.
0Sensor 0
1 Sensor 1 (not implemented yet)
3 Cannot be assigned
Where used S3F5, S3F7, S3F12, S3F13, S3F67
PAGEDATA Format: B[9]
PIN Format: B[1]
Product Manual - RFID Reader LF60C SoliD 92
Chapter 7
Operation
Description Preventive maintenance information
"NE "… Normal execution
"MR "… Maintenance required
Where used S18F2, S18F4, S18F8, S18F10, S18F12, S18F14
Reset acknowledge code
0 … Reset to be done
1 … Reset could not be done
Where used S2F20
Reset code
1… Power-up reset
2 … Software reset
Where used S2F19
Stored SECS message block header. Only the last message is stored, which must
still be confirmed by the host.
Where used S9F9
Software revision code.
Where used S1F2
PM Information Format: A[2]
RAC Format: B[1]
RIC Format: B[1]
SHEAD Format: B[10]
SOFTREV Format: A[max 6]
Product Manual - RFID Reader LF60C SoliD 93
Chapter 7
Operation
Description: Result information on the status of the request concerning the
service request.
"NO" Normal operation
Indicates the success of the requested action.
"EE" Execute error
Cannot read tag data. Cannot read ID sequence.
However, equipment is normal.
"CE" Communication error
Syntax error of message or message format or value.
"HE" Hardware error
ID reader/writer head fault, ID reader/writer head is
powered off.
"TE" Tag error
For more information on error codes and the corresponding correcting actions
please refer to Error codes.
Where used S18F2, S18F4, S18F6, S18F8, S18F10, S18F12, S18F14
SSACK Format: A[2]
Product Manual - RFID Reader LF60C SoliD 94
Chapter 7
Operation
Description: Indicates an action to be performed by the subsystem.
Used to differentiate between the different subsystem commands indicated.
"ChangeStatus" … Change status
CPVAL: <OpStatus>
"GetStatus" … Get status
"Reset" … Reset CIDRW
"PerformDiagnostics"… A hardware self test is performed. To get the result
read parameter "SELF_TEST_RESULT"
"ADJUST" … Triggers a automatic antenna adjustment
"DefaultParams" … Set default reader parameters
"SetLED" … Set one of the device LEDs
CPVAL's: 1.<LEDStatus>
2.<Timeout>
3.<LEDNo>
Where used S18F13
Description Provides status information of a subsystem component.
Consists of PM Information and the current values of the
CIDRW attributes AlarmStatus, OperatingStatus, and
HeadStatus.
List of a Status
L,4
<PMInformation>
<AlarmStatus>
<OperatingStatus>
<HeadStatus>
For data items OperatingStatus and HeadStatus, see data item ATTRVAL.
Where used S18F2, S18F4, S18F8, S18F10, S18F12, S18F14
SSCMD Format: A[max
18]
STATUS Format: A[max 5]
Product Manual - RFID Reader LF60C SoliD 95
Chapter 7
Operation
Description Identifies where a request for action or data is
to be applied. Alternatively, you can use the HeadID.
See also reader parameter definitions (data
item ECV) parameter 7, 8 and 12.
The 4 ASCII character TARGETID is changeable, and defined
in parameter 7 and 8 ("ECID_07", "ECID_08").
The 2 ASCII character HeadID is changeable,
and defined in parameter 12 ('ECID_12').
Where used S18F1, S18F3, S18F5, S18F7, S18F9, S18F11, S18F13
TARGETID Format: A[max 4]
Product Manual - RFID Reader LF60C SoliD 96
Chapter 7
Operation
7.4.6 Parameters
No.
(dec.) No.
(hex) Parameter name
00x00 Gateway ID
10x01 Baudrate
20x02 Inter-character timeout T1
30x03 Block protocol timeout T2
40x04 Reply timeout T3
50x05 Inter-block timeout T4
60x06 Retry limit RTY
70x07 TARGETID high byte
80x08 TARGETID low byte
90x09 Heartbeat time
11 0x0B ReaderID
12 0x0C HeadID
20 0x14 Sensor delay for presence sensor
22 0x16 Sensor-triggered action for presence sensor
23 0x17 Triggered read frequency
24 0x18 r/w max repeat
25 0x19 Transponder type
26 0x1A Sensor activity
27 0x1B Watchport for presence
29 0x1D Transponder load duration (read mode)
30 0x1E r/w synchronize
31 0x1F Auto-adjust value (read mode)
32 0x20 Auto-adjust value (write mode)
33 0x21 Automatic antenna adjustment
34 0x22 Sensor type for presence sensor
35 0x23 Special features
36 0x24 DIP switch activation
Product Manual - RFID Reader LF60C SoliD 97
Chapter 7
Operation
Parameter 0
(0x00) Gateway ID
The gateway ID is a part of the device ID. The BROOKS reader works
simultaneously as a gateway and as a reader (CIDRW with integrated head).
It is the "lower message ID" in the message header.
00 .. 255
Default: Last two characters of hex serial number
The default gateway ID corresponds to parameter 8 (low byte TargetID).
Parameter 1
(0x01) Baudrate
Data transmission rate to the SECS-Host
3: 300 Baud
6: 600 Baud
12: 1,200 Baud
24: 2,400 Baud
48: 4,800 Baud
96: 9,600 Baud
192: 19,200 Baud
200: 38,400 Baud
201: 57,600 Baud
202: 115,200 Baud
Default: (192) 19,200 Baud (see accompanying letter of the reader)
37 0x25 MID area
38 0x26 Test after software reset
40 0x28 Transponder load duration (write-mode)
41 0x29 Delay time between read cycles
42 0x2A CarrierIDOffset
43 0x2B CarrierIDLength
44 0x2C FixedMID
46 0x2D MIDFormat
98 0x62 Protocol change allowed
99 0x63 Customer code
No.
(dec.) No.
(hex) Parameter name
Product Manual - RFID Reader LF60C SoliD 98
Chapter 7
Operation
Parameter 2
(0x02) Inter-character timeout T1
1 .. 100 1/10 s
Default: (5) 0.5 s
Parameter 3
(0x03) Block protocol timeout T2
2 .. 250 1/10 s
Default: (10) 1 s
Parameter 4
(0x04) Reply timeout T3
1 .. 120 1 s
Default: (10) 10 s
Parameter 5
(0x05) Inter-block timeout T4
This parameter is ineffective if the used messages are not larger than one block.
1 .. 120 1 s
Default: (45) 45 s
Parameter 6
(0x06) Retry limit RTY
Number of times a question or message is to be repeated.
0 .. 31
Default: 3
Parameter 7
(0x07) TARGETID high byte
High byte of the predefined TARGETID.
Default: 0x12
* Note parameter 12
Parameter 8
(0x08) TARGETID low byte
Low byte of the predefined TARGETID.
Default: 0x34
* Note parameter 12
Product Manual - RFID Reader LF60C SoliD 99
Chapter 7
Operation
Parameter 9
(0x09) Heartbeat time
The reader offers the option of generating a regular heartbeat. This means the
reader sends an S1F1 message to the host at the defined interval.
0 … No heartbeat
1 … 255 10 s (10 s - 2,550 s)
Default: 0 no heartbeat
Parameter 11
(0x0B) ReaderID
The reader ID is a part of the device ID. In the message header, it corresponds to
the 7 LSB (last significant bits) of the "upper message ID".
00 .. 127
Default: 0x01
The BROOKS reader works simultaneously as a gateway and a reader (CIDRW
with integrated head). Therefore the reader ID is predefined as 0x01. Of course,
the ID can be changed within the valid scope.
Parameter 12
(0x0C) HeadID
If you use a 2-byte TARGETID, this parameter corresponds to TARGETID.
00 .. 31
Default: 0x01
The head ID is predefined as 0x01. Of course, the ID can be changed within the
valid scope.
Parameter 20
(0x14) Sensor delay for presence sensor
Delay time for sensor signal to start an automatic read.
0 .. 255 1/10 s
Default: (10) 1 s
Parameter 22
(0x16) Sensor-triggered action for presence sensor
0: Read all transponders
1: Read page 1 of a multipage transponder
...
17: Read page 17 of a multipage transponder
240: Read a read/only transponder
241: Read a read/write transponder
Default: (0) read all transponders
Product Manual - RFID Reader LF60C SoliD 100
Chapter 7
Operation
Parameter 23
(0x17) Triggered read frequency
If a read/write error occurs, the triggered read frequency defines the time
between two attempts to read or write a transponder; or the read frequency if
there is a triggered read (no polling).
2 .. 10 from 1/10 s
Default: (5) 500 ms
Parameter 24
(0x18) r/w max repeat
Delay time for sensor signal to start a defined action.
0 .. 255
Default: 5
Parameter 25
(0x19) Transponder type
This parameter defines the validity of the read transponder data.
00 ... Read and write TIRIS type
Each transponder page consists of 8 data bytes.
The validity of the data bytes is
checked by a 2 byte CRC checksum.
Default: 00
Parameter 26
(0x1A) Sensor activity
The transponder reader offers the option of deactivating the connected sensor.
0 Sensor not activated
1 Sensor activated
Default: 1
Parameter 27
(0x1B) Watchport for presence
Enables a message to the host if a cassette/FOUP is detected on the I/O port, or if
it is removed from the I/O port.
A sensor is required to use this option.
0 Report nothing
1 Report cassette/FOUP is removed
2 Report cassette/FOUP is detected
3 Report cassette/FOUP is detected and cassette is removed
Default: (3) Report cassette/FOUP is detected and removed
Product Manual - RFID Reader LF60C SoliD 101
Chapter 7
Operation
Parameter 29
(0x1D) Transponder load duration (read mode)
The time required to load a transponder during a read process.
The default value (50 ms) should not be changed.
00 .. 255 ms
Default: (50) 50 ms
Parameter 30
(0x1E) r/w synchronize
Enables/disables reader synchronization. If synchronization is enabled, the reader
takes notice of interference or other active readers and synchronizes the reading
cycle.
00 … Synchronization disabled
01 … Synchronization enabled
Default: (01) enabled
Parameter 31
(0x1F) Auto-adjust value (read mode)
The influence of interferences in the environment of the readers can be minimized
by using the automatic adjustment during the operation. If the parameter is set
to defined values (0x00 - 0x08), the reader starts the adjustment.
In case of automatic adjustment, the reader requires up to two seconds. During
this time the reader cannot receive any serial data.
00 ... 0x07 Range of manual adjustment (read mode only)
0x08 Start automatic adjustment (read and write mode)
Parameter 32
(0x20) Auto-adjust value (write mode)
The influence of interferences in the environment of the readers can be minimized
by using the automatic adjustment during the operation. If the parameter is set
to defined values (0x00 - 0x08), the reader starts the adjustment.
In the case of automatic adjustment, the reader requires up to two seconds.
During this time the reader cannot receive any serial data.
00 ... 0x07 Range of manual adjustment (write mode only)
0x08 Start automatic adjustment (read and write mode)
IMPORTANT Automatic adjustment changes the adjustment of the read and write modes
(parameters 31 and 32).
Product Manual - RFID Reader LF60C SoliD 102
Chapter 7
Operation
Parameter 33
(0x21) Automatic antenna adjustment
The parameter defines the permitted causes for an antenna adjustment.
0 Automatic adjustment is not activated
1 Automatic adjustment only by DIP8
2 Automatic adjustment only by external command
3 Automatic adjustment by DIP8 or external command
Default: (3) automatic antenna adjustment by DIP8 or external command
Parameter 34
(0x22) Sensor type for presence sensor
Type of sensor signal to start an automatic read.
0 Automatic read starts if sensor is covered
1 Automatic read starts if sensor is not covered
Default: (0) sensor is covered
Parameter 35
(0x23) Special features
After a hardware reset, the reader offers an automatic read if the presence sensor
is covered.
bit 0: value 0: Effect auto read after reset, if sensor is covered
value 1: Effect no auto read after reset, if sensor is coverd (default)
bit 1: value 0: Effect a sensor triggered auto read (default)
value 1: Effect no sensor triggerd auto read
bit 2: Without function
bit 3: Without function
bit 4: The setting of the LEDs by S18F13 "SetLED" is prioritized
Default: 0x01 (0000 0001)
Parameter 36
(0x24) DIP switch activation
Bits 0 to bit 4 define the behavior of DIP switches 8 down to 5. DIP switches 4
down to 1 have no function at this time.
bit0: DIP 8 for tuning is active in test mode
bit1: DIP 8 for tuning is active in normal mode
bit2: DIP 7 (activate test mode) activation
bit3: DIP 6 (type of test mode) activation
bit4: DIP 5 can be used for protocol change
Default: 0x1F (0001 1111)
Product Manual - RFID Reader LF60C SoliD 103
Chapter 7
Operation
Parameter 37
(0x25) MID area
This parameter defines the range of the MID.
'0' … '10' pages
Default: '2' - MID area = 2 pages = 16 bytes (depends on parameter 25).
Parameter 38
(0x26) Test after software reset
This parameter enables/disables the initial test after a software reset.
0 No initial test after software reset
1 Initial test after software reset
Default: (0) No initial test after software reset
Parameter 40
(0x28) Transponder load duration (write-mode)
The time required to load a transponder during a write process.
The default value (50 ms) should not be changed.
00 .. 255 ms
Default: (50) 50 ms
Parameter 41
(0x29) Delay time between read cycles
The delay time between two reading cycles. It takes care of the reading module
lifetime.
To increase reading speed, set the delay time to zero.
1 .. 250 1 ms
Default: (10) 10 ms
IMPORTANT See also parameters 42 - 45 and 99.
Product Manual - RFID Reader LF60C SoliD 104
Chapter 7
Operation

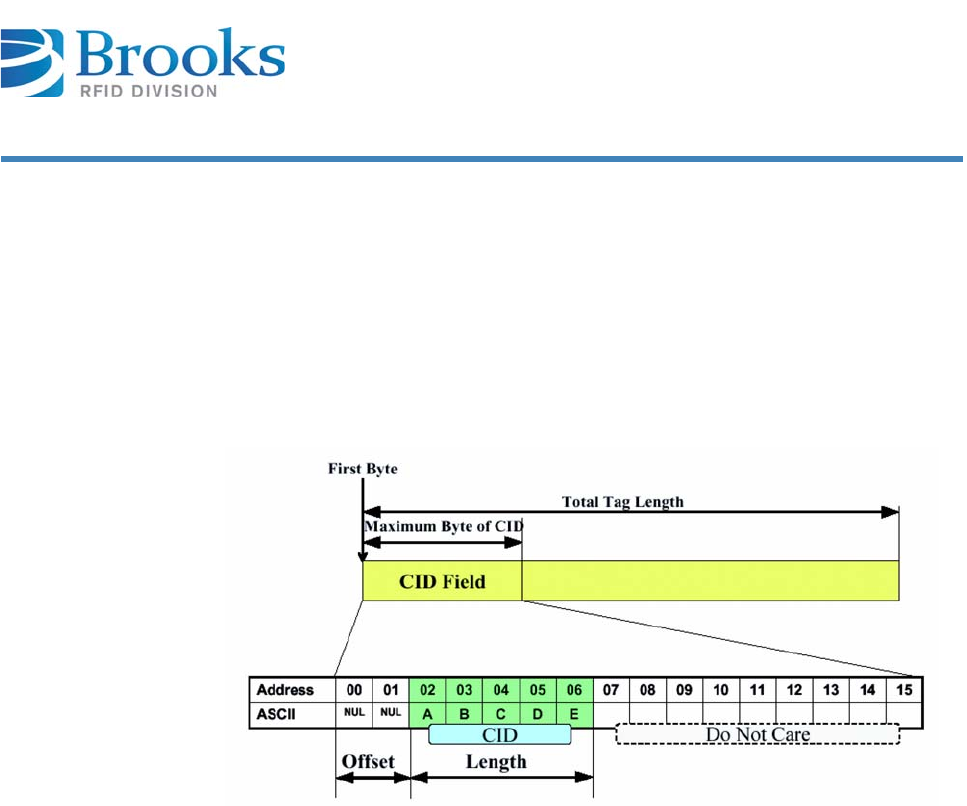

Parameter 42
(0x2A) CarrierIDOffset
Defines the offset of the CID within the CID field (MID area -parameter 37).
The valid value range depends on the value of the MID area and the value of the
CarrierIDLength.
Valid range 0 … maximum bytes of CID -1
Default 0
Offset + Length cannot be larger than the length of the CID field.
Parameter 43
(0x2B) CarrierIDLength
Defines the length of the CID within the CID field (MID area - parameter 37).
The valid value range depends on the value of the MID area and the value of the
CarrierIDOffset (see parameter 42: CarrierIDOffset).
Valid range: 1 … maximum bytes of CID field
Default: 16
Product Manual - RFID Reader LF60C SoliD 105
Chapter 7
Operation
Parameter 44
(0x2C) FixedMID
Defines the read, write and error behavior regarding the CarrierIDLength defined
in SEMI E99-0303.
0 Dynamic CID length (to ensure compatibility with older versions).
MID length is variable for writing to the tag.
Reading up to the first non-visible ASCII character.
1 Fixed CID length (to meet the new standard revision).
Length of MID in the tag must be the same as the reader settings. If
there is a non-visible ASCII character within the CID field, an error
occurs.
Default: 1
Parameter 45
(0x2D) MIDFormat
Defines the physical format of the MID data in the transponder memory. Affects
the messages S18F9/F10 and S18F11/F12.
0 E99 standard format left aligned - meets the
requirement of the SEMI standard E99
Default: 0
Examples: MID string is '123456789ABC'
Parameter 45 = '0':
Tag memory:
Output string: '123456789ABC'
Page 2 9 A B C 0x00 0x00 0x00 0x0
0
Memory address 15 14 13 12 11 10 9 8
Page 1 1 2 3 4 5 6 7 8
Memory address 7 6 5 4 3 2 1 0
Product Manual - RFID Reader LF60C SoliD 106
Chapter 7
Operation
Parameter 98
(0x62) Protocol change allowed
This parameter enables/disables the automatic change between the BROOKS
ASCII and SECS protocol. If protocol change is enabled, the reader detects the
protocol type on the communication port, and switches to the new protocol type.
The setting of parameter 98 will not reflect the protocol change by DIP switches
on power up reset (see chapter DIP switches)!
0 No protocol change is allowed
1 Protocol change is allowed
Default: (1) Protocol change is allowed
Parameter 99
(0x63) Customer code
If the customer requires special parameter settings that deviate from the default
values, a customer code can be assigned by BROOKS to set several parameter
values via one parameter.
The following parameters are defined:
'00' Sets the following parameters:
Reader complies with the last revisions of SEMI E99-0303
'03' Sets the following parameter:
Reader complies with older reader versions before the revision of
SEMI E99-0303.
Parameter Value
37 2
42 0
43 16
44 1
45 0
Parameter Value
37 1
42 0
43 8
44 0
45 0
Product Manual - RFID Reader LF60C SoliD 107
Chapter 7
Operation
7.4.7 SEMI E99
Introduction The purpose of the Carrier ID reader/writer functional standard is to provide a
common specification for concepts, behavior and services provided by a carrier ID
reader/writer to an upstream controller. A standard interface increases the
interchangeability of a carrier ID reader/writer, so that users and equipment
suppliers have a wide choice.
Scope:
■The interface standard addresses the functional requirements for a
generic carrier ID reader/writer interface with an upstream controller.
■The specification includes the required behavior and required
communications for a carrier ID reader and writer.
■The specification does not require, define or prohibit asynchronous
messages sent by the carrier ID reader or writer.
■This standard does not purport to address safety issues, if any,
associated with its use.

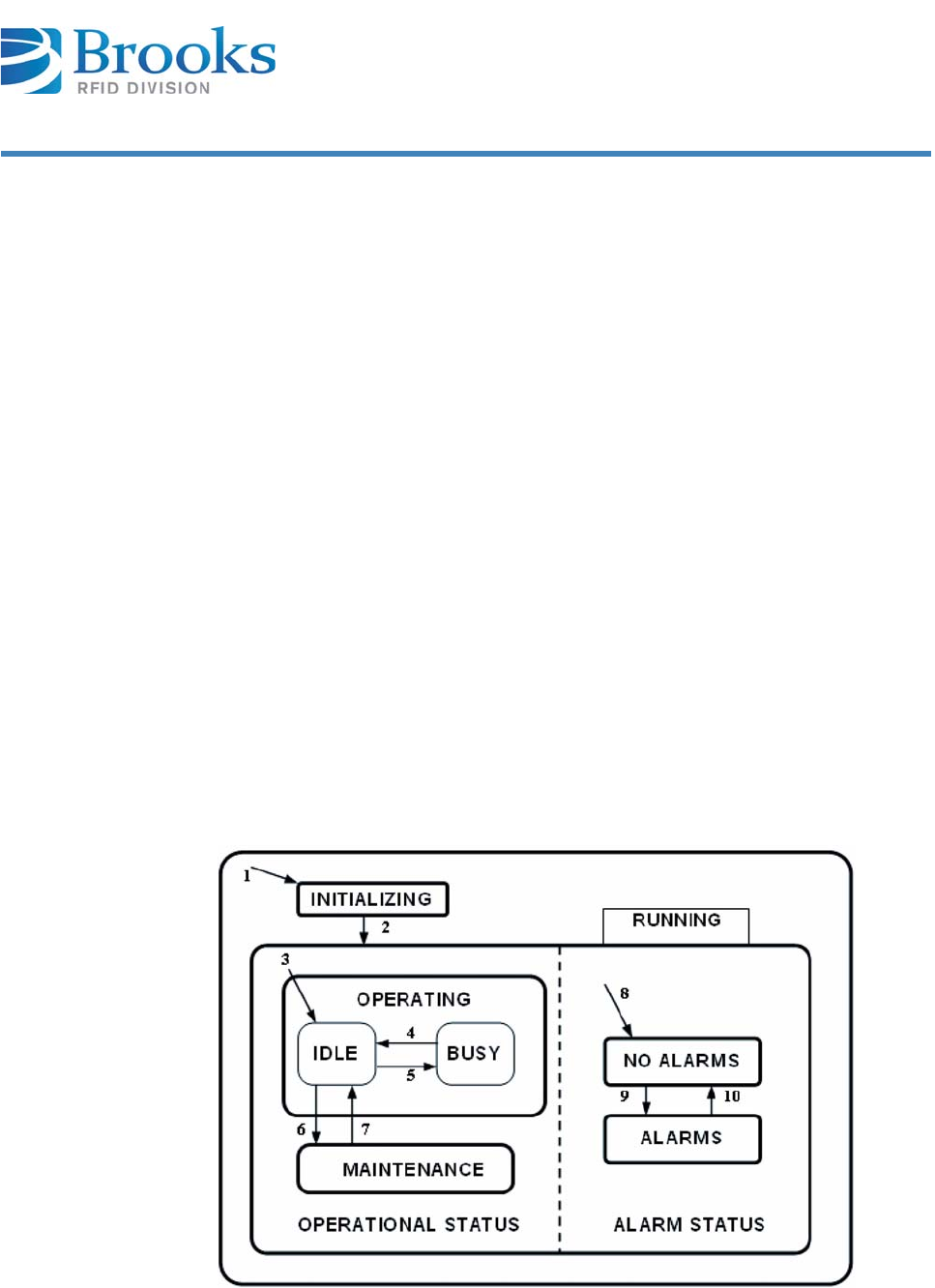

Status models To facilitate independent control of the individual heads, there are two separate
status models defined, one for the CIDRW subsystem and one for each individual
head. The BROOKS reader combines the CIDRW subsystem with the head.
The status model for the BROOKS reader is displayed in the status model below.
Product Manual - RFID Reader LF60C SoliD 108
Chapter 7
Operation
The table below defines the status of the BROOKS transponder reader.
Status Definition
ALARM
STATUS Displays the presence or absence of alarms.
ALARMS An alarm condition exists.
BUSY A service is being performed that affects the status of the
hardware.
CIDRW Super-status of the CIDRW status model. Always active when
the CIDRW is powered on.
IDLE No service is being performed. All heads are idle.
INITIALIZ-
ING The CIDRW is carrying out initialization and a self-diagnostic.
Presence or absence of alarms is initially determined in this
status.
NO ALARMS No alarm condition exists.
OPERATING Normal operating status where reading and/or writing
operations can be performed.
OPERATING
STATUS The CIDRW is fully capable of performing all services that it
supports.
RUNNING The CIDRW is operational and able to communicate.
MAINTE-
NANCE Internal setup and maintenance activities.
Product Manual - RFID Reader LF60C SoliD 109
Chapter 7
Operation
The table below defines the transitions of the BROOKS SECS-I status model of the
transponder reader.
#Previous
state Trigger New
status Action Comment
1Any Power-up or reset INITIALIZ-
ING Initialize
hardware and
software
Default entry on power-up
2INITIALIZ-
ING Initialization is
complete. RUNNING None The CIDRW is now able to
communicate.
3INITIALIZ-
ING Default entry into
OPERATING IDLE None Internal
4IDLE A service request to
read or write or
perform diagnostics
is received.
BUSY None
5BUSY All services request
that effect IDLE None
6IDLE A user selects the
MAIN-TENANCE
status and all
heads are IDLE.
MAINTE-
NANCE None The upstream controller
may send a request or the
operator may set a switch to
select the MAINTENANCE
status. Maintenance and
setup activities may now be
performed.
7MAINTE-
NANCE A user selects the
OPERATING status
and all heads are
IDLE
IDLE None The upstream controller
may send a request or the
operator may set a switch to
select the OPERATING
status. Normal operating
activities may now be
performed.
8INITIALIZ-
ING Default entry into
ALARM STATUS ALARMS or
NO
ALARMS
None
9NO
ALARMS An alarm condition
is detected. ALARMS None
10 ALARMS All alarm conditions
have cleared. NO
ALARMS None
11 Any A reset service
request is received. CIDRW None
Product Manual - RFID Reader LF60C SoliD 110
Chapter 7
Operation
Valid services per
status The following table shows which of the various services can be performed by the
reader when the reader is in various individual statuses.
Service
Write ID
Write data
Set attributes
Reset
Read ID
Read data
Perform diag.
Get status
Get attributes
Change status
Reader status
INIT
IDLE/BUSY XXXXXXXXX
MANT X X X X X X X X
IMPORTANT Note that the CIDRW may not be able to communicate when in initializing
status after power-up or reset service.
Product Manual - RFID Reader LF60C SoliD 111
Chapter 7
Operation
7.4.8 Message details
Equipment status S1F0: ABORT TRANSACTION (reader <-> host)
Used instead of an expected reply to abort a transaction. Function 0 is defined in
every stream and has the same meaning in every stream.
S1F0 W . * Header only
S1F1: ARE YOU THERE REQUEST (reader <-> host, reply)
Establishes if the gateway/reader or host is online.
S1F1 W . * Header only
S1F2: ON-LINE DATA (host -> reader)
The host signals that it is online.
S1F2
<L[2]
<A[6]MDLN >
<A[6]SOFTREV >
>
S1F2: ON-LINE (reader -> host)
The reader signals that it is online.
S1F2
<L[2]
<A[6]MDLN >
<A[6]SOFTREV >
>.
S1F15: REQUEST OFF_LINE (host ->reader, reply)
The reader is requested to change the communication status to offline.
The reader can only be set online again by using message S1F17 (or reset
S2F19); all other messages are aborted by the SxF0 message.
S1F15 W. *Header only
S1F16: OFFLINE ACKNOWLEDGE (reader -> host)
Acknowledge.
S1F16
<B[1]OFLACK>.
Product Manual - RFID Reader LF60C SoliD 112
Chapter 7
Operation
S1F17: REQUEST ON_LINE (host -> reader, reply)
The reader is requested to change the communication status to online.
S1F17 W.*Header only
S1F18: ONLINE ACKNOWLEDGE (reader -> host)
Acknowledge.
S1F18
<B[1]ONLACK>.
Equipment control S2F0: ABORT TRANSACTION (reader <-> host)
Used instead of an expected reply to abort a transaction. Function 0 is defined in
every stream and has the same meaning in every stream.
S2F0 W . * Header only
S2F13: EQUIPMENT CONSTANT REQUEST (host-> reader, reply)
The host requests a constant from the reader.
S2F13 W
<L[1]
<U1[1] ECID>
>.
S2F14: EQUIPMENT CONSTANT DATA (reader -> host)
The reader sends the requested constant to the host.
S2F14
<L[1]
<U1[1] ECV>
>.
S2F15: NEW EQUIPMENT CONSTANT SENT (host-> reader, reply)
The host changes a reader constant.
S2F15 W
<L[1]
<L[2]
<U1[1] ECID>
<U1[1] ECV>
>
>.
Product Manual - RFID Reader LF60C SoliD 113
Chapter 7
Operation
S2F16: NEW EQUIPMENT CONSTANT ACKNOWLEDGE (reader ->
host)
The reader acknowledges the setting of the reader constant.
S2F16
<B[1] EAC>.
S2F19: RESET SEND (host -> reader, reply)
The host requests the reader to reset the hardware and software.
If a heartbeat time is set (parameter 9), the reader sends an S1F1 message when
the reset is finished.
The power-up reset requires a few seconds.
S2F19 W
<B[1] RIC>.
S2F20: RESET ACKNOWLEDGE (reader -> host)
The reader acknowledges the reset.
This message will only appears if a software reset (RIC=2) is triggered.
S2F20
<B[1] RAC>.
Material status S3F0: ABORT TRANSACTION (reader <-> host)
Used instead of an expected reply to abort a transaction. Function 0 is defined in
every stream and has the same meaning in every stream.
S3F0 W. * Header Only
S3F5: CASSETTE FOUND SEND (reader -> host, reply)
The reader sends the information that a cassette was detected by the presence
sensor.
This message is sent only if a sensor is connected and activated (see parameters
27 'watchport' and 26 'sensor activity').
S3F5 W.
<L[2]
<B[1] MF>
<B[1] PTN>
>.
S3F6: CASSETTE FOUND ACKNOWLEDGE (host -> reader)
The host acknowledges the cassette found message.
S3F6
<B[1] ACKC3>.
Product Manual - RFID Reader LF60C SoliD 114
Chapter 7
Operation
S3F7: CASSETTE LOST SEND (reader -> host, reply)
The reader sends the information that the cassette was removed from the I/O
port (presence sensor).
This message is sent only if a sensor is connected and activated (see parameters
27 'watchport' and 26 'sensor activity'). The PAGEDATA can be given only if the
PAGEDATA that was read last is still available.
S3F7 W.
<L[3]
<B[1] MF >
<B[1] PTN >
<B[9] PAGEDATA >*
>.
* a zero-length PAGEDATA indicates that no PAGEDATA is available (case of error)
S3F8: CASSETTE LOST ACKNOWLEDGE (host -> reader)
The host acknowledges the cassette lost message.
S3F8
<B[1] ACKC3>.
S3F11: READ MID AT I/O PORT (host -> reader, reply)
The host requests the reader to read the PAGEDATA of the given PAGE_ID.
S3F11 W
<B[1] PAGE_ID>.
S3F12: READ ACKNOWLEDGE (reader -> host)
The reader only acknowledges the receipt of the reading command.
The PAGEDATA is sent later.
S3F12
<L[3]
<B[1] PTN>*
<B[1] MIDRA>
<B[9] PAGEDATA>**
>.
* a zero-length PTN indicates that no PTN is available
** a zero-length PAGEDATA indicates that no DATA is available
Product Manual - RFID Reader LF60C SoliD 115
Chapter 7
Operation
S3F13: RETURN READ MID (reader -> host, reply)
The reader sends the ID of the cassette at the I/O port to the host.
S3F13 W
<L[2]
<B[1] PTN>
<B[9] PAGEDATA >
>.
S3F14: MID ACKNOWLEDGE (host -> reader)
The host acknowledges the received data.
S3F14
<B[1] MIDAC>.
S3F65: WRITE MID AT I/O PORT (host -> reader, reply)
The host requests that the reader write the PAGEDATA.
S3F65 W
<B[9] PAGEDATA >
S3F66: WRITE ACKNOWLEDGE (reader -> host)
The reader only acknowledges the receipt of the write command.
The write acknowledge is sent later.
S3F66
<L[2]
<B[1] MIDRA>
<B[9] PAGEDATA >
>.
S3F67: RETURN WRITE SUCCESS (reader -> host, reply)
The reader reports the successful writing of the transponder. The reader sends
information about the presence sensor.
S3F67 W
<B[1] PTN>.
S3F68: WRITE SUCCESS ACKNOWLEDGE (host -> reader)
The host acknowledges the received data.
S3F68
<B[1] MIDAC>.
Product Manual - RFID Reader LF60C SoliD 116
Chapter 7
Operation
S3F73: LOCK MID AT I/O PORT (host -> reader, reply)
The host requests the reader to lock the requested page.
S3F73 W
<B[1] PAGE_ID>.
S3F74: LOCK ACKNOWLEDGE (reader -> host)
The reader acknowledges the receipt of the locking command only.
The locking acknowledgement is sent later.
S3F74
<L[2]
<B[1] MIDRA>
<B[9] PAGEDATA >
>.
S3F75: RETURN LOCK SUCCESS (reader -> host, reply)
The reader reports the successful locking of the given page. The reader sends
information about the presence sensor.
S3F75 W
<B[1] PTN>.
S3F76: LOCK SUCCESS ACKNOWLEDGE (host -> reader)
The host acknowledges the receipt of the lock success message (S3F75).
S3F76
<B[1] MIDAC>.
Exception handling S5F0: ABORT TRANSACTION (reader <-> host)
Used instead of an expected reply to abort a transaction. Function 0 is defined in
every stream and has the same meaning in every stream.
S5F0 W . * Header only
ATTENTION Locking a transponder page is permanent.
You cannot unlock a transponder page.
Product Manual - RFID Reader LF60C SoliD 117
Chapter 7
Operation
S5F1: GATEWAY READER ALARM REPORT SEND (reader -> host,
reply)
The reader reports all errors to the host.
S5F1 W
<L[3]
<B[1] ALCD >* alarm code byte
<B[1] ALID > * alarm ID
<A[MAX 40] ALTX >* alarm text
>.
S5F2: ALARM REPORT ACKNOWLEDGE (host -> reader)
The host acknowledges an alarm.
S5F2
<B[1] ACKC5>.Exception handling
System errors S9F1: UNRECOGNIZED DEVICE ID (reader -> host)
The device ID in the message block header does not correspond to the equipment
device ID.
S9F1
<B[10] MHEAD > .
S9F3: UNRECOGNIZED STREAM TYPE (reader -> host)
The reader does not recognize the stream type in the message block header.
S9F3
< B[10] MHEAD > .
S9F5: UNRECOGNIZED FUNCTION TYPE (reader -> host)
The reader does not recognize the function number in the message block header.
S9F5
< B[10] MHEAD > .
S9F7: ILLEGAL DATA (reader -> host)
The reader does not recognize the data in the message.
S9F7
< B[10] MHEAD > .
Product Manual - RFID Reader LF60C SoliD 118
Chapter 7
Operation
S9F9: TRANSACTION TIMER TIMEOUT (reader -> host)
This message indicates that a transaction timer has timed out and that the
corresponding transaction was aborted. Only the last sent message (which must
be confirmed by the host) is stored and controlled.
S9F9
< B[10] SHEAD > .
For more information on error codes and the corresponding correcting actions
please refer to
Subsystem control
and data S18F0: ABORT TRANSACTION (reader <-> host)
Used instead of an expected reply to abort a transaction. Function 0 is defined in
every stream and has the same meaning in every stream.
S18F0 W . * Header only
S18F1: READ ATTRIBUTE REQUEST (RAR) (host -> reader, reply)
This message requests the current values of specific attributes of the subsystem
component indicated in the TARGETID.
S18F1 W
L,2
1. <TARGETID>
2. L,n 1. <ATTRID1>
…
n. <ATTRIDn>
Product Manual - RFID Reader LF60C SoliD 119
Chapter 7
Operation
S18F2: READ ATTRIBUTE DATA (RAD) (reader -> host)
This message returns the current values of the requested attributes and the
current status of the requested component indicated in the TARGETID.
S18F2
L,4 1. <TARGETID>
2. <SSACK>
3. L,n 1. <ATTRVAL1>
…
n. <ATTRVALn>
4. L,1 L,s
1. <STATUS1>
…
s. <STATUSs>
If the ATTRID of the S18F1 message is unknown, the corresponding ATTRVAL has
the value <nothing>.
S18F3: WRITE ATTRIBUTE REQUEST (WAR) (host -> reader, reply)
This message requests the subsystem to set the value of the read/write attributes
of the component specified in the TARGETID.
S18F3 ,W
L,2 1. <TARGETID>
2. L,n
1. L,2 1. <ATTRID1>
2. <ATTRVAL1>
n. L,2 1. <ATTRIDn>
2. <ATTRVALn>
Product Manual - RFID Reader LF60C SoliD 120
Chapter 7
Operation
S18F4: WRITE ATTRIBUTE ACKNOWLEDGE (WAA) (reader -> host)
This message acknowledges the success or reports the error of the request to
write attribute data to the subsystem indicated in the TARGETID.
S18F4 L,3
1. <TARGETID>
2. <SSACK>
3. L,1
L,s 1. <STATUS1>
…
s. <STATUSs>
If the ATTRID of the S18F3 message is unknown, a communication error (CE)
occurs.
S18F5: READ REQUEST (RR) (host -> reader, reply)
The host requests the subsystem indicated in the TARGETID to read information.
DATASEG may be used to indicate a specific section of data to be read.
DATALENGTH is used to limit the amount of data for that section.
S18F5 W
L,3 1. <TARGETID>
2. <DATASEG>
3. <DATALENGTH>
If DATASEG and DATALENGTH are both omitted (zero length items), then all
pages of the data area are requested. If only DATALENGTH is omitted, all data
within the indicated section is requested.
S18F6: READ DATA (RD) (reader -> host)
This message is used to return requested information from the subsystem
indicated in the TARGETID or to acknowledge the result of the request.
S18F6
L,3 1. <TARGETID>
2. <SSACK>
3. <DATA>
If the TARGETID is unknown, a communication error (CE) occurs.
Product Manual - RFID Reader LF60C SoliD 121
Chapter 7
Operation
S18F7: WRITE DATA REQUEST (WAR) (host -> reader, reply)
This message requests to write data to the subsystem component indicated in the
TARGETID. DATASEG may be used to indicate a specific section of the data area
to be written or overwritten.
S18F7 W
L,4
1. <TARGETID>
2. <DATASEG>
3. <DATALENGTH
4. <DATA>
If DATASEG and DATALENGTH are both omitted (zero length items), then all data
in the data area are to be overwritten. If only DATALENGTH is omitted or if
DATALENGTH has a value of zero, then all data within the indicated section are to
be written.
If DATASEG is omitted (zero length items), the value of DATALENGTH sets the
length of data that is to be written. If the length of the data that is to be written is
longer than the value of DATALENGTH, a communication error (CE) occurs.
S18F8: WRITE DATA ACKNOWLEDGE (WDA) (reader -> host)
This message acknowledges the success or failure of writing data to the
subsystem indicated in the TARGETID.
S18F8
L,3 1. <TARGETID>
2. <SSACK>
3. L,1
L,s 1. <STATUS1>
…
s. <STATUSs>
If the TARGETID is unknown, a communication error (CE) occurs.
S18F9: READ ID REQUEST (RIR) (host -> reader, reply)
This message is used to request the subsystem indicated by the TARGETID to
read the MID.
S18F9,W
<TARGETID>
Product Manual - RFID Reader LF60C SoliD 122
Chapter 7
Operation
S18F10: READ ID DATA (RID) (reader -> host)
This message returns a requested material identifier MID as read by the
subsystem indicated in the TARGETID.
S18F10
L,4 1. <TARGETID>
2. <SSACK>
3. <MID>
4. L,1
L,s
1. <STATUS1>
…
s. <STATUSs>
S18F11: WRITE ID REQUEST (WIR) (host -> reader, reply)
This message is used to request the subsystem indicated by the TARGETID to
write the MID.
S18F11 W
L,2 1. <TARGETID>
2. <MID>
ATTENTION The reader must be in maintenance mode to write the MID with message
S18F11.
Product Manual - RFID Reader LF60C SoliD 123
Chapter 7
Operation
S18F12: WRITE ID ACKNOWLEDGE (WIA) (reader -> host)
This message acknowledges the success or error of writing the MID to the
subsystem indicated in the TARGETID.
S18F12
L,3 1. <TARGETID>
2. <SSACK>
3. L,1
L,s
1. <STATUS1>
…
s. <STATUSs>
If the TARGETID is unknown, a communication error (CE) occurs.
S18F13: SUBSYSTEM COMMAND REQUEST (SCR) (host -> reader,
reply)
This message is used to request the subsystem indicated in the TARGETID to
perform a specific action.
S18F13 W
L,3 1. <TARGETID>
2. <SSCMD>
3. L,n
1. <CPVAL>
…
n. <CPVALn>
S18F14: SUBSYSTEM COMMAND ACKNOWLEDGE (SCA) (reader ->
host)
This message reports the result from the subsystem specified in the TARGETID
for the requested action.
S18F14
L,3 1. <TARGETID>
2. <SSACK>
3. L,1
L,s
1. <STATUS1>
…
s. <STATUSs>
If the TARGETID is unknown, a communication error (CE) occurs.
Product Manual - RFID Reader LF60C SoliD 124
Chapter 7
Operation

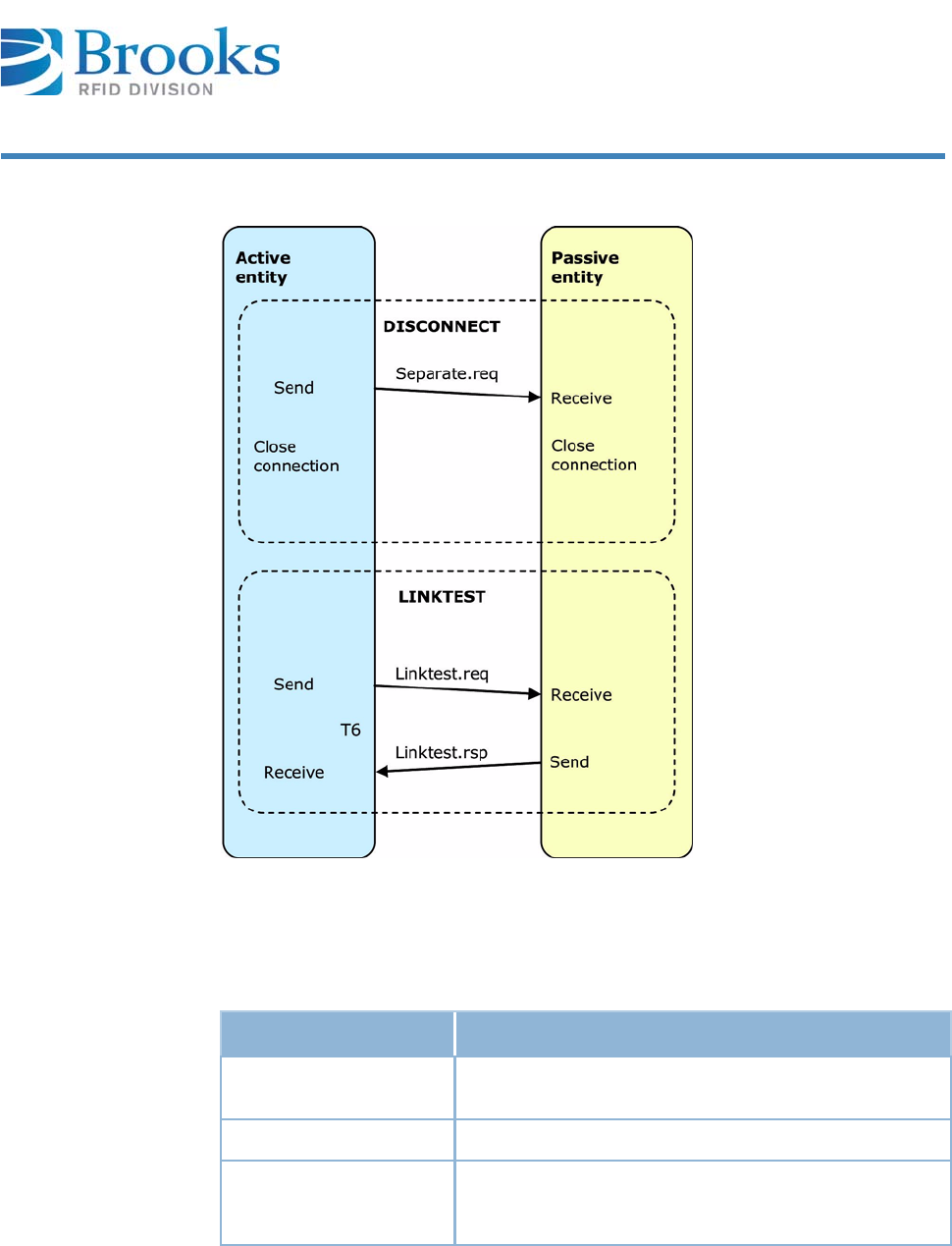

7.4.9 HSMS message examples
Starting routine of the HSMS protocol
Outgoing: Length byte ( 00 00 00 0A )
Outgoing: Select.req ( FF FF 00 00 00 01 80 00 00 01 )
Incoming: Length byte ( 00 00 00 0A )
Incoming: Select.rsp ( FF FF 00 00 00 02 80 00 00 01 )
Outgoing: Length byte ( 00 00 00 0A )
Outgoing: Linktest.req ( FF FF 00 00 00 05 80 00 00 02 )
Incoming: Length byte ( 00 00 00 0A )
Incoming: Linktest.req ( FF FF 00 00 00 05 80 00 00 01 )
Outgoing: Length byte ( 00 00 00 0A )
Outgoing: Linktest.rsp ( FF FF 00 00 00 06 80 00 00 01 )
Incoming: Length byte ( 00 00 00 0A )
Incoming: Linktest.rsp ( FF FF 00 00 00 06 80 00 00 02 )
Link test
Incoming: Length byte ( 00 00 00 0A )
Incoming: Linktest.req ( FF FF 00 00 00 05 80 00 00 1C )
Outgoing: Length byte ( 00 00 00 0A )
Outgoing: Linktest.rsp ( FF FF 00 00 00 06 80 00 00 1C )
Separate request
Incoming: Length byte ( 00 00 00 0A )
Incoming: Separate.req ( FF FF 00 00 00 09 80 00 00 03 )
7.4.10 SECS-I message examples
S1F1 Message from the reader to the host
Reader to Host: S1F1
14:08:17 Incoming: ENQ ( 05 )
14:08:17 Outgoing: EOT ( 04 )
14:08:17 Incoming: Length Byte ( 0A )
14:08:17 Incoming: Header ( 81 34 81 01 80 01 00 01 00 01 )
14:08:17 Incoming: Checksum ( 01 BA )
14:08:17 Outgoing: ACK ( 06 )
Host to Reader: S1F2
14:08:17 Outgoing: ENQ ( 05 )
14:08:17 Incoming: EOT ( 04 )
14:08:17 Outgoing: Length Byte ( 10 )
14:08:17 Outgoing: Header ( 01 34 01 02 80 01 00 01 00 01 )
14:08:17 Outgoing: Data ( 01 02 41 00 41 00 )
14:08:17 Outgoing: Checksum ( 01 40 )
Product Manual - RFID Reader LF60C SoliD 125
Chapter 7
Operation
S1F1 Message from the host to the reader
Host to Reader: S1F1
14:04:09 Outgoing: ENQ ( 05 )
14:04:11 Incoming: EOT ( 04 )
14:04:11 Outgoing: Length Byte ( 0A )
14:04:11 Outgoing: Header ( 01 34 81 01 80 01 00 00 00 27 )
14:04:11 Outgoing: Checksum ( 01 5F )
14:04:11 Incoming: ACK ( 06 )
Reader to Host: S1F2
14:04:11 Incoming: ENQ ( 05 )
14:04:11 Outgoing: EOT ( 04 )
14:04:11 Incoming: Length Byte ( 1C )
14:04:11 Incoming: Header ( 81 34 01 02 80 01 00 00 00 27 )
14:04:11 Incoming: Data ( 01 02 41 06 4C )
14:04:11 Incoming: Data ( 36 30 53 47 32 41 06 53 )
14:04:11 Incoming: Data ( 47 32 53 31 30 )
14:04:11 Incoming: Checksum ( 04 EF )
14:04:11 Outgoing: ACK ( 06 )
Message S1F15 puts the reader offline
Host to Reader: S1F15
10:32:53 Outgoing: ENQ ( 05 )
10:32:53 Incoming: EOT ( 04 )
10:32:54 Outgoing: Length byte ( 0A )
10:32:54 Outgoing: Header ( 01 FF 81 0F 80 01 00 00 00 02 )
10:32:54 Outgoing: Checksum ( 13 02 )
10:32:54 Incoming: ACK ( 06 )
Reader to Host: S1F16
10:32:54 Incoming: ENQ ( 05 )
10:32:54 Outgoing: EOT ( 04 )
10:32:54 Incoming: Length byte ( 0D )
10:32:54 Incoming: Header ( 81 FF 01 10 80 01 00 00 00 02 )
10:32:54 Incoming: Data ( 21 01 00 )
10:32:54 Incoming: Checksum ( 02 36 )
10:32:54 Outgoing: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 126
Chapter 7
Operation
Message S1F17 puts the reader online
Host to Reader: S1F17
10:33:24 Outgoing: ENQ ( 05 )
10:33:24 Incoming: EOT ( 04 )
10:33:24 Outgoing: Length byte ( 0A )
10:33:24 Outgoing: Header ( 01 FF 81 11 80 01 00 00 00 04 )
10:33:24 Outgoing: Checksum ( 17 02 )
10:33:24 Incoming: ACK ( 06 )
Reader to Host: S1F18
10:33:24 Incoming: ENQ ( 05 )
10:33:24 Outgoing: EOT ( 04 )
10:33:24 Incoming: Length byte ( 0D )
10:33:24 Incoming: Header ( 81 FF 01 12 80 01 00 00 00 04 )
10:33:24 Incoming: Data ( 21 01 00 )
10:33:24 Incoming: Checksum ( 02 3A )
10:33:24 Outgoing: ACK ( 06 )
Request reader constant with message S2F13
Host to Reader (Gateway): S2F13
10:34:01 Outgoing: ENQ ( 05 )
10:34:01 Incoming: EOT ( 04 )
10:34:01 Outgoing: Length byte ( 0F )
10:34:01 Outgoing: Header ( 01 FF 82 0D 80 01 00 00 00 05 )
10:34:01 Outgoing: Data ( 01 01 A5 01 01 ) Parameter 1
10:34:01 Outgoing: Checksum ( 3A 02 )
10:34:01 Incoming: ACK ( 06 )
Reader to Host: S2F14
10:34:01 Incoming: ENQ ( 05 )
10:34:01 Outgoing: EOT ( 04 )
10:34:01 Incoming: Length byte ( 0F )
10:34:01 Incoming: Header ( 81 FF 02 0E 80 01 00 00 00 05 )
10:34:01 Incoming: Data ( 01 01 A5 01 C0 ) Value 192
10:34:01 Incoming: Checksum ( 03 7E )
10:34:01 Outgoing: ACK ( 06 )
The host requests the reader parameter "1" (transmission rate).
The reader sends the value "C0" (192) that confirms the 19,200 baud.
Product Manual - RFID Reader LF60C SoliD 127
Chapter 7
Operation
New reader constant sent with S2F15
Host to Reader: S2F15
10:39:32 Outgoing: ENQ ( 05 )
10:39:32 Incoming: EOT ( 04 )
10:39:32 Outgoing: Length byte ( 14 )
10:39:32 Outgoing: Header( 01 FF 82 0F 80 01 00 00 00 07 )
10:39:32 Outgoing: Data
01 01
01 02
A5 01 14 Parameter 20
A5 01 05 Value 5
10:39:32 Outgoing: Checksum ( 83 02 )
10:39:32 Incoming: ACK ( 06 )
Reader to Host: S2F16
10:39:32 Incoming: ENQ ( 05 )
10:39:32 Outgoing: EOT ( 04 )
10:39:32 Incoming: Length byte ( 0D )
10:39:32 Incoming: Header( 81 FF 02 10 80 01 00 00 00 07 )
10:39:32 Incoming: Data ( 21 01 00 ) ECV 0
10:39:32 Incoming: Checksum ( 02 3C )
10:39:32 Outgoing: ACK ( 06 )
The host sets the reader parameter "20" (sensor delay) to the value "5".
The reader acknowledges the new constant with ECV = 0.
Host requests a software reset with S2F19
Host to Reader: S2F19
14:18:46 Outgoing: ENQ ( 05 )
14:18:46 Incoming: EOT ( 04 )
14:18:46 Outgoing: Length Byte ( 0D )
14:18:46 Outgoing: Header ( 01 34 82 13 80 01 00 00 00 2E )
14:18:46 Outgoing: Data ( 21 01 02 ) Software reset
14:18:46 Outgoing: Checksum ( 01 9D )
14:18:46 Incoming: ACK ( 06 )
Reader to Host: S2F20
14:18:46 Incoming: ENQ ( 05 )
14:18:46 Outgoing: EOT ( 04 )
14:18:46 Incoming: Length Byte ( 0D )
14:18:46 Incoming: Header ( 81 34 02 14 80 01 00 00 00 2E )
14:18:46 Incoming: Data ( 21 01 00 )
14:18:46 Incoming: Checksum ( 01 9C )
14:18:46 Outgoing: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 128
Chapter 7
Operation
Host requests a hardware reset with S2F19
Host to Reader: S2F19
14:18:59 Outgoing: ENQ ( 05 )
14:18:59 Incoming: EOT ( 04 )
14:18:59 Outgoing: Length Byte ( 0D )
14:18:59 Outgoing: Header ( 01 34 82 13 80 01 00 00 00 2F )
14:18:59 Outgoing: Data ( 21 01 01 ) Hardware reset
14:18:59 Outgoing: Checksum ( 01 9D )
14:18:59 Incoming: ACK ( 06 )
The reader sends the message S3F5 after the sensor detects a
cassette
Reader to Host: S3F5
15:51:45 Incoming: ENQ ( 05 )
15:51:46 Outgoing: EOT ( 04 )
15:51:46 Incoming: Length byte ( 12 )
15:51:46 Incoming: Header ( 81 FF 83 05 80 01 00 03 00 04 )
15:51:46 Incoming: Data
01 02
21 01 20 MF 0x20
21 01 39 Initiator=0, Sensor 0=1
15:51:46 Incoming: Checksum ( 03 30 )
15:51:46 Outgoing: ACK ( 06 )
Host to Reader: S3F6
15:51:46 Outgoing: ENQ ( 05 )
15:51:46 Incoming: EOT ( 04 )
15:51:46 Outgoing: Length byte ( 0D )
15:51:46 Outgoing: Header ( 01 FF 03 06 80 01 00 03 00 04 )
15:51:46 Outgoing: Data ( 21 01 00 ) ACKC3
15:51:46 Outgoing: Checksum ( B4 01 )
15:51:46 Incoming: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 129
Chapter 7
Operation
The reader sends the message S3F13 after the sensor was detected
and the transponder could be read
Reader to Host: S3F13
15:51:46 Incoming: ENQ ( 05 )
15:51:46 Outgoing: EOT ( 04 )
15:51:46 Incoming: Length byte ( 1A )
15:51:46 Incoming: Header ( 81 FF 83 0D 80 01 00 03 00 05 )
15:51:46 Incoming: Data
01 02
21 01 39 Initiator=0, Sensor 0=1
21 09 81 11 11 11 11 10 00 00 00
PAGEDATA
15:51:46 Incoming: Checksum ( 03 F6 )
15:51:46 Outgoing: ACK ( 06 )
Host to Reader: S3F14
15:51:46 Outgoing: ENQ ( 05 )
15:51:46 Incoming: EOT ( 04 )
15:51:46 Outgoing: Length byte ( 0D )
15:51:46 Outgoing: Header ( 01 FF 03 0E 80 01 00 03 00 05 )
15:51:46 Outgoing: Data ( 21 01 00 ) ACKC3
15:51:46 Outgoing: Checksum ( BD 01 )
15:51:46 Incoming: ACK ( 06 )
The material ID acknowledgement MIDAC depends on the sensor status PTN. The
initiator was the sensor 0 and the host acknowledges with "0".
The reader sends the message S3F7 after the cassette was
removed from the sensor.
Reader to Host: S3F7
15:51:52 Incoming: ENQ ( 05 )
15:51:52 Outgoing: EOT ( 04 )
15:51:52 Incoming: Length byte ( 1D )
15:51:52 Incoming: Header ( 81 FF 83 07 80 01 00 03 00 06 )
15:51:52 Incoming: Data
01 03
21 01 20MF 0x20
21 01 38 Initiator=0, Sensor 0=0
21 09 81 11 11 11 11 10 00 00 00
Last read PAGEDATA
15:51:52 Incoming: Checksum ( 04 34 )
15:51:52 Outgoing: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 130
Chapter 7
Operation
Host to Reader: S3F8
15:51:52 Outgoing: ENQ ( 05 )
15:51:52 Incoming: EOT ( 04 )
15:51:52 Outgoing: Length byte ( 0D )
15:51:52 Outgoing: Header ( 01 FF 03 08 80 01 00 03 00 06 )
15:51:52 Outgoing: Data ( 21 01 00 ) ACKC3
15:51:52 Outgoing: Checksum ( B8 01 )
15:51:52 Incoming: ACK ( 06 )
The reader detects an unrecognized device ID and sends the
message S9F1.
Host to Reader: S1F1
16:42:58 Outgoing: ENQ ( 05 )
16:42:58 Incoming: EOT ( 04 )
16:42:58 Outgoing: Length byte ( 0A )
16:42:58 Outgoing: Header ( 02 FF 81 01 80 01 00 00 00 31 )
16:42:58 Outgoing: Checksum ( 35 02 )
16:42:58 Incoming: ACK ( 06 )
Reader to Host: S9F1
16:42:58 Incoming: ENQ ( 05 )
16:42:58 Outgoing: EOT ( 04 )
16:42:58 Incoming: Length byte ( 16 )
16:42:58 Incoming: Header ( 81 FF 09 01 80 01 00 07 00 18 )
16:42:58 Incoming: Data
21 0A 02 FF 81 01 80 01 00 00 00 31
MHEAD error message
16:42:58 Incoming: Checksum ( 04 8A )
16:42:58 Outgoing: ACK ( 06 )
The device ID in the message block header does not correspond to the device ID
in the reader detecting the error.
Product Manual - RFID Reader LF60C SoliD 131
Chapter 7
Operation
The reader detects a wrong stream number and sends the S9F3
message
Host to Reader: S4F1
20:03:20 Outgoing: ENQ ( 05 )
20:03:20 Incoming: EOT ( 04 )
20:03:20 Outgoing: Length byte ( 0A )
20:03:20 Outgoing: Header ( 01 FF 84 01 80 01 00 00 00 08 )
20:03:20 Outgoing: Checksum ( 0E 02 )
20:03:20 Incoming: ACK ( 06 )
Reader to Host: S9F3
20:03:20 Incoming: ENQ ( 05 )
20:03:20 Outgoing: EOT ( 04 )
20:03:20 Incoming: Length byte ( 16 )
20:03:20 Incoming: Header ( 81 FF 09 03 80 01 00 00 00 09 )
20:03:20 Incoming: Data ( 21 0A 01 FF 84 ) The wrong message header
20:03:20 Incoming: Data ( 01 80 01 00 00 00 08 )
20:03:20 Incoming: Checksum ( 04 4F )
20:03:20 Outgoing: ACK ( 06 )
The stream "4" is not part of the BROOKS SECS-II message set, so a S9F3 error
message appears.
The reader detects an unrecognized function and sends the
message S9F5.
Host to Reader: S1F3
19:54:43 Outgoing: ENQ ( 05 )
19:54:43 Incoming: EOT ( 04 )
19:54:43 Outgoing: Length byte ( 0A )
19:54:43 Outgoing: Header ( 01 FF 81 03 80 01 00 00 00 06 )
19:54:43 Outgoing: Checksum ( 0B 02 )
19:54:43 Incoming: ACK ( 06 )
Reader to Host: S9F5
19:54:43 Incoming: ENQ ( 05 )
19:54:43 Outgoing: EOT ( 04 )
19:54:43 Incoming: Length byte ( 16 )
19:54:43 Incoming: Header ( 81 FF 09 05 80 01 00 00 00 07 )
19:54:43 Incoming: Data ( 21 0A 01 FF 81 ) The wrong message header
19:54:43 Incoming: Data ( 03 80 01 00 00 00 06 )
19:54:43 Incoming: Checksum ( 04 4C )
19:54:43 Outgoing: ACK ( 06 )
The function "3" is not part of the SECSII message set, so a S9F5 error message
appears.
Product Manual - RFID Reader LF60C SoliD 132
Chapter 7
Operation
The reader detects wrong data and sends the S9F7 message
Host to Reader: S2F13
16:49:00 Outgoing: ENQ ( 05 )
16:49:00 Incoming: EOT ( 04 )
16:49:00 Outgoing: Length byte ( 0F )
16:49:00 Outgoing: Header ( 01 FF 82 0D 80 01 00 00 00 36 )
16:49:00 Outgoing: Data ( 01 01 A5 01 0F )
16:49:00 Outgoing: Checksum ( 79 02 )
16:49:00 Incoming: ACK ( 06 )
Reader to Host: S2F14
16:49:00 Incoming: ENQ ( 05 )
16:49:00 Outgoing: EOT ( 04 )
16:49:00 Incoming: Length byte ( 0E )
16:49:00 Incoming: Header ( 81 FF 02 0E 80 01 00 00 00 36 )
16:49:00 Incoming: Data ( 01 01 A5 00 )
16:49:00 Incoming: Checksum ( 02 EE )
16:49:00 Outgoing: ACK ( 06 )
Reader to Host: S9F7:
16:49:00 Incoming: ENQ ( 05 )
16:49:00 Outgoing: EOT ( 04 )
16:49:00 Incoming: Length byte ( 16 )
16:49:00 Incoming: Header ( 81 FF 09 07 80 01 00 07 00 1F )
16:49:00 Incoming: Data ( 21 0A 01 FF 82 )
16:49:00 Incoming: Data ( 0D 80 01 00 00 00 36 )
16:49:00 Incoming: Checksum ( 04 A8 )
16:49:00 Outgoing: ACK ( 06 )
The reader replies to the S2F13 equipment constant request message without
data, because the parameter was invalid. Additionally, the reader sends the S9F7
illegal data message.
The secondary message fails and the reader sends the S9F9
message
Reader to Host: S1F1
20:07:16 Incoming: ENQ ( 05 )
20:07:16 Outgoing: EOT ( 04 )
20:07:16 Incoming: Length byte ( 0A )
20:07:16 Incoming: Header ( 81 FF 81 01 80 01 00 00 00 01 )
20:07:16 Incoming: Checksum ( 02 84 )
20:07:16 Outgoing: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 133
Chapter 7
Operation
Host to Reader: S9F9
20:08:01 Incoming: ENQ ( 05 )
20:08:01 Outgoing: EOT ( 04 )
20:08:01 Incoming: Length byte ( 16 )
20:08:01 Incoming: Header ( 81 FF 09 09 80 01 00 00 00 02 )
20:08:01 Incoming: Data ( 21 0A 81 FF 81 )
20:08:01 Incoming: Data ( 01 80 01 00 00 00 01 ) The stored header
20:08:01 Incoming: Checksum ( 04 C3 )
20:08:01 Outgoing: ACK ( 06 )
Host requests reader attributes with S18F1
Host to Reader: S18F1
15:19:31 Outgoing: ENQ ( 05 )
15:19:31 Incoming: EOT ( 04 )
15:19:31 Outgoing: Length byte ( 5A )
15:19:31 Outgoing: Header ( 01 FF 92 01 80 01 00 00 00 03 )
15:19:31 Outgoing: Data
01 02
41 04 31 32 33 34
01 04
41 0D 43 6F 6E 66 69 67 75 72 61 74 69 6F 6E
41 0B 41 6C 61 72 6D 53 74 61 74 75 73
41 11 4F 70 65 72 61 74 69 6F 6E 61 6C 53 74 61 74 75 73
41 15 53 6F 66 74 77 61 72 65 52 65 76 69 73 69 6F 6E 4C 65 76 65 6C
15:19:31 Outgoing: Checksum ( CD 02 )
15:19:31 Incoming: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 134
Chapter 7
Operation
Reader to Host: S18F2
15:19:31 Incoming: ENQ ( 05 )
15:19:31 Outgoing: EOT ( 04 )
15:19:31 Incoming: Length byte ( 44 )
15:19:31 Incoming: Header ( 81 FF 12 02 80 01 00 00 00 03 )
15:19:31 Incoming: Data
01 04
41 04 31 32 33 34 TARGETID "1234"
41 02 4E 4F SSACK "NO"
01 04
41 02 30 31 Configuration "01"
41 01 30 Alarmstatus "0"
41 04 49 44 4C 45 OperatingStatus "IDLE"
41 06 53 47 32 53 31 30 SoftwareRevisionLevel "SG2S10"
01 04 ' STATUS <L4>
41 02 4E 45 PMInformation "NE"
41 01 30 Alarmstatus "0"
41 04 49 44 4C 45 OperatingStatus "IDLE"
41 04 49 44 4C 45 HeadStatus "IDLE"
15:19:31 Incoming: Checksum ( 0C 29 )
15:19:31 Outgoing: ACK ( 06 )
The host requests all fundamental CIDRW attributes defined in ATTRID.
The reader answers with the actual attribute values.
Product Manual - RFID Reader LF60C SoliD 135
Chapter 7
Operation
Host writes new reader attributes with S18F3
Host to Reader: S18F3
15:18:14 Outgoing: ENQ ( 05 )
15:18:14 Incoming: EOT ( 04 )
15:18:14 Outgoing: Length Byte ( 8E )
15:18:14 Outgoing: Header ( 01 34 92 03 80 01 00 00 00 44 )
15:18:14 Outgoing: Data ( 01 02 41 02 30 31
01 06
01 02
41 0D 43 6F 6E 66 69 67 75 72 61 74 69 6F 6E
41 02 30 31
01 02
41 11 4F 70 65 72 61 74 69 6F 6E 61 6C 53 74 61 74 75 73 41 04 49 44 4C 45
01 02
41 0B 41 6C 61 72 6D 53 74 61 74 75 73
41 01 31
01 02
41 0F 43 61 72 72 69 65 72 49 44 4F 66 66 73 65 74
41 01 30
01 02
41 06 48 65 61 64 49 44 41 01 31 01 02
41 0F 43 61 72 72 69 65 72 49 44 4C 65 6E 67 74 68
41 02 31 30 )
15:18:14 Outgoing: Checksum ( 26 62 )
15:18:14 Incoming: ACK ( 06 )
Reader to Host: S18F4
15:18:14 Incoming: ENQ ( 05 )
15:18:14 Outgoing: EOT ( 04 )
15:18:14 Incoming: Length Byte ( 2B )
15:18:14 Incoming: Header ( 81 34 12 04 80 01 00 00 00 44 )
15:18:14 Incoming: Data ( 01 03 41 02 30 31)
15:18:14 Incoming: Data ( 41 02 4E 4F)
15:18:14 Incoming: Data (01 01)
15:18:14 Incoming: Data (01 04)
15:18:14 Incoming: Data (41 02 4E 45)
15:18:14 Incoming: Data (41 01 31)
15:18:14 Incoming: Data (41 04 49 44 4C 45)
15:18:14 Incoming: Data (41 04 49 44 4C 45)
15:18:14 Incoming: Checksum ( 07 2E )
15:18:14 Outgoing: ACK ( 06 )
The host writes all fundamental CIDRW attributes defined in ATTRID.
The reader answers with the actual attribute values.
Product Manual - RFID Reader LF60C SoliD 136
Chapter 7
Operation
Host reads data on page 8 of a multipage transponder with S18F5
Host to Reader: S18F5
17:52:17 Outgoing: ENQ ( 05 )
17:52:17 Incoming: EOT ( 04 )
17:52:17 Outgoing: Length byte ( 1A )
17:52:17 Outgoing: Header ( 01 FF 92 05 80 01 00 00 00 08 )
17:52:17 Outgoing: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 30 38 DATASEG "08"
A9 02 00 08 DATALENGTH 0x08
17:52:17 Outgoing: Checksum ( 91 02 )
17:52:17 Incoming: ACK ( 06 )
Reader to Host: S18F6
17:52:17 Incoming: ENQ ( 05 )
17:52:17 Outgoing: EOT ( 04 )
17:52:17 Incoming: Length byte ( 20 )
17:52:17 Incoming: Header ( 81 FF 12 06 80 01 00 00 00 08 )
17:52:17 Incoming: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 4E 4F SSACK "NO"
41 08 30 31 32 33 34 35 36 37 DATA "01234567"
17:52:17 Incoming: Checksum ( 05 F9 )
17:52:17 Outgoing: ACK ( 06 )
The host reads 8 bytes on page 8 of a multipage transponder. The reader shows
the success of the operation with SSACK "NO" (normal operation) and with the
read values.
Product Manual - RFID Reader LF60C SoliD 137
Chapter 7
Operation
Host writes data on page 10 with S18F7
Host to Reader: S18F7
13:14:15 Outgoing: ENQ ( 05 )
13:14:15 Incoming: EOT ( 04 )
13:14:15 Outgoing: Length byte ( 24 )
13:14:15 Outgoing: Header (01 FF 92 07 80 01 00 00 00 18 )
13:14:15 Outgoing: Data
01 04
41 04 31 32 33 34 TARGETID "1234"
41 02 30 41 DATASEG "0A"
A9 02 00 08 DATALENGTH 0x08
41 08 41 42 43 44 45 46 47 48 DATA ABCDEFGH"
13:14:15 Outgoing: Checksum ( 1A 02 )
13:14:15 Incoming: ACK ( 06 )
Reader to Host: S18F8
13:14:16 Incoming: ENQ ( 05 )
13:14:16 Outgoing: EOT ( 04 )
13:14:16 Incoming: Length byte ( 2D )
13:14:16 Incoming: Header ( 81 FF 12 08 80 01 00 00 00 18 )
13:14:16 Incoming: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 4E 4F SSACK "NO"
01 01
01 04 STATUS <L4>
41 02 4E 45 PMInformation "NE"
41 01 30 Alarmstatus "0"
41 04 49 44 4C 45 OperatingStatus "IDLE"
41 04 49 44 4C 45 HeadStatus "IDLE"
13:14:16 Incoming: Checksum ( 08 3B )
13:14:16 Outgoing: ACK ( 06 )
The host writes the ASCII string "ABCDEFGH" to page 10. The reader confirms
the write command with SSACK "NO" in the S18F8 message.
Product Manual - RFID Reader LF60C SoliD 138
Chapter 7
Operation
Host reads the material ID of a multipage transponder with S18F9
Host to Reader: S18F9
14:31:32 Outgoing: ENQ ( 05 )
14:31:32 Incoming: EOT ( 04 )
14:31:32 Outgoing: Length byte ( 10 )
14:31:32 Outgoing: Header ( 01 FF 92 09 80 01 00 00 00 2D )
14:31:32 Outgoing: Data
41 04 31 32 33 34 TARGETID "1234"
14:31:32 Outgoing: Checksum ( 58 02 )
14:31:32 Incoming: ACK ( 06 )
Reader to Host: S18F10
14:31:32 Incoming: ENQ ( 05 )
14:31:32 Outgoing: EOT ( 04 )
14:31:32 Incoming: Length byte ( 37 )
14:31:32 Incoming: Header ( 81 FF 12 0A 80 01 00 00 00 2D )
14:31:32 Incoming: Data
01 04
41 04 31 32 33 34 TARGETID "1234"
41 02 4E 4F SSACK "NO"
41 08 4E 72 2E 30 30 31 32 33 MID "Nr.00123"
01 01
01 04 STATUS <L4>
41 02 4E 45 PMInformation "NE"
41 01 30 Alarmstatus "0"
41 04 49 44 4C 45 OperatingStatus "IDLE"
41 04 49 44 4C 45 HeadStatus "IDLE"
14:31:32 Incoming: Checksum ( 0A 80 )
14:31:32 Outgoing: ACK ( 06 )
The host wants to read the material ID of any transponder. The reader confirms
the success of the read command with SSACK "NO" and returns the material ID
"No.00123". (For chapter data items, see page 49).
Product Manual - RFID Reader LF60C SoliD 139
Chapter 7
Operation
Host writes the material ID of a multipage transponder with
S18F11
Host to Reader: S18F11
16:46:22 Outgoing: ENQ ( 05 )
16:46:22 Incoming: EOT ( 04 )
16:46:22 Outgoing: Length byte ( 1C )
16:46:22 Outgoing: Header ( 01 FF 92 0B 80 01 00 00 00 66 )
16:46:22 Outgoing: Data
01 02
41 04 31 32 33 34 TARGETID "1234"
41 08 4E 72 2E 30 30 41 42 43 MID "Nr.00ABC"
16:46:22 Outgoing: Checksum ( F3 02 )
16:46:22 Incoming: ACK ( 06 )
Reader to Host: S18F12
16:46:23 Incoming: ENQ ( 05 )
16:46:23 Outgoing: EOT ( 04 )
16:46:23 Incoming: Length byte ( 2D )
16:46:23 Incoming: Header ( 81 FF 12 0C 80 01 00 00 00 66 )
16:46:23 Incoming: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 4E 4F SSACK "NO"
01 01
01 04 STATUS <L4>
41 02 4E 45 PMInformation "NE"
41 01 30 Alarmstatus "0"
41 04 4D 41 4E 54 OperatingStatus "MANT"
41 04 4E 4F 4F 50 HeadStatus "NOOP"
16:46:23 Incoming: Checksum ( 08 BD )
16:46:23 Outgoing: ACK ( 06 )
The host wants to write a new material ID to a transponder. The reader confirms
the success of the write MID command with SSACK "NO". Note: the material ID
can be changed only if the reader is in maintenance status (MANT). If the reader
remains in IDLE status, the command fails and the reader answers with SSACK
"EE" (execute error).
Product Manual - RFID Reader LF60C SoliD 140
Chapter 7
Operation
Host changes the reader status from IDLE to MANT with S18F13
Host to Reader: S18F13
17:12:29 Outgoing: ENQ ( 05 )
17:12:29 Incoming: EOT ( 04 )
17:12:29 Outgoing: Length byte ( 25 )
17:12:29 Outgoing: Header ( 01 FF 92 0D 80 01 00 00 00 67 )
17:12:29 Outgoing: Data
01 03
41 04 31 32 33 34 ' TARGETID "1234"
41 0B 43 68 61 6E 67 65 53 74 61 74 65
SSCMD "ChangeStatus"
01 01
41 02 4D 54 CPVAL1 "MT"
17:12:29 Outgoing: Checksum ( 13 02 )
17:12:29 Incoming: ACK ( 06 )
Reader to Host: S18F14
17:12:29 Incoming: ENQ ( 05 )
17:12:29 Outgoing: EOT ( 04 )
17:12:29 Incoming: Length byte ( 2D )
17:12:29 Incoming: Header ( 81 FF 12 0E 80 01 00 00 00 67 )
17:12:29 Incoming: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 4E 4F SSACK "NO"
01 01
01 04 STATUS <L4>
41 02 4E 45 PMInformation "NE"
41 01 30 Alarmstatus "0"
41 04 4D 41 4E 54 OperatingStatus "MANT"
41 04 4E 4F 4F 50 HeadStatus "NOOP"
17:12:29 Incoming: Checksum ( 08 C0 )
17:12:29 Outgoing: ACK ( 06 )
ChangeStatus is an optional service that requests the CIDRW to change its
operating sub status to MAINTENANCE ("MT") or to OPERATING ("OP").
In MAINTENANCE status, the reader could not read (S18F5) or write (S18F7) any
DATA in the defined DATASEG.
Product Manual - RFID Reader LF60C SoliD 141
Chapter 7
Operation
Host requests a reset with S18F13
Host to Reader: S18F13
11:45:34 Outgoing: ENQ ( 05 )
11:45:34 Incoming: EOT ( 04 )
11:45:34 Outgoing: Length byte ( 1F )
11:45:34 Outgoing: Header ( 01 FF 92 0D 80 01 00 00 00 3F )
11:45:34 Outgoing: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 05 52 65 73 65 74 SSCMD "Reset"
01 01
41 02 4D 54 CPVAL1 "MT"
11:45:34 Outgoing: Checksum ( A1 02 )
11:45:34 Incoming: ACK ( 06 )
Reader to Host: S18F14
11:45:34 Incoming: ENQ ( 05 )
11:45:34 Outgoing: EOT ( 04 )
11:45:34 Incoming: Length byte ( 2D )
11:45:34 Incoming: Header ( 81 FF 12 0E 80 01 00 00 00 3F )
11:45:34 Incoming: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 4E 4F SSACK "NO"
01 01
01 04 STATUS <L4>
41 02 4E 45 PMInformation "NE"
41 01 30 Alarmstatus "0"
41 04 49 44 4C 45 OperatingStatus "IDLE"
41 04 49 44 4C 45 HeadStatus "IDLE"
11:45:34 Incoming: Checksum ( 08 68)
11:45:34 Outgoing: ACK ( 06 )
Reset is an optional service used to reinitialize the reader. If reader parameter 9 is
unequal to 0x00, the reset causes a S1F1 "Are you there" message from the
reader.
Product Manual - RFID Reader LF60C SoliD 142
Chapter 7
Operation
Host requests the setting of a LED with S18F13
Host to Reader: S18F13
15:37:12 Outgoing: ENQ ( 05 )
15:37:12 Incoming: EOT ( 04 )
15:37:12 Outgoing: Length Byte ( 28 )
15:37:12 Outgoing: Header ( 01 34 92 0D 80 01 00 00 00 46 )
15:37:12 Outgoing: Data ( 01 03)
41 02 30 31 TargetID "01"
41 06 53 65 74 4C 45 44 SSCMD "SetLED"
01 03
41 05 46 4C 41 53 48 LedState "FLASH"
41 02 31 30 Timeout "10"
41 01 33 ) LEDNo "3" external LED
15:37:12 Outgoing: Checksum ( 07 5C )
15:37:12 Incoming: ACK ( 06 )
Reader to Host: S18F14
15:37:12 Incoming: ENQ ( 05 )
15:37:12 Outgoing: EOT ( 04 )
15:37:12 Incoming: Length Byte ( 2B )
15:37:12 Incoming: Header ( 81 34 12 0E 80 01 00 00 00 46 )
15:37:12 Incoming: Data ( 01 03 41 02 30 )
15:37:12 Incoming: Data ( 31 41 02 4E 4F 01 01 01 )
15:37:12 Incoming: Data ( 04 41 02 4E 45 41 01 31 )
15:37:12 Incoming: Data ( 41 04 49 44 4C 45 41 04 )
15:37:12 Incoming: Data ( 49 44 4C 45 )
15:37:12 Incoming: Checksum ( 07 3A )
15:37:12 Outgoing: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 143
Chapter 7
Operation
Host requests a perform diagnostic with S18F13
the reader has no valid adjustment!
Host to Reader: S18F13
15:52:29 Outgoing: ENQ ( 05 )
15:52:29 Incoming: EOT ( 04 )
15:52:29 Outgoing: Length Byte ( 26 )
15:52:29 Outgoing: Header ( 01 34 92 0D 80 01 00 00 00 4A )
15:52:29 Outgoing: Data ( 01 03
41 02 30 31
41 12 50 65 72 66 6F 72 6D 44 69 61 67 6E 6F 73 74 69 63 73
"PerformDiagnostics"
01 00 )
15:52:29 Outgoing: Checksum ( 09 EE )
15:52:29 Incoming: ACK ( 06 )
Reader to Host: S18F14
15:52:29 Incoming: ENQ ( 05 )
15:52:29 Outgoing: EOT ( 04 )
15:52:29 Incoming: Length Byte ( 2B )
15:52:29 Incoming: Header ( 81 34 12 0E 80 01 00 00 00 4A )
15:52:29 Incoming: Data ( 01 03 41 02 30 )
15:52:29 Incoming: Data ( 31 41 02 4E 4F 01 01 01 )
15:52:29 Incoming: Data ( 04 41 02 4E 45 41 01 31 )
15:52:29 Incoming: Data ( 41 04 49 44 4C 45 41 04 )
15:52:29 Incoming: Data ( 49 44 4C 45 )
15:52:29 Incoming: Checksum ( 07 3E )
15:52:29 Outgoing: ACK ( 06 )
Host to Reader: S18F1
15:52:39 Outgoing: ENQ ( 05 )
15:52:39 Incoming: EOT ( 04 )
15:52:39 Outgoing: Length Byte ( 24 )
15:52:39 Outgoing: Header ( 01 34 92 01 80 01 00 00 00 4B )
15:52:39 Outgoing: Data ( 01 02
41 02 30 31
01 01
41 10 53 45 4C 46 5F 54 45 53 54 5F 52 45 53 55 4C 54 )
"SELF_TEST_RESULT"
15:52:39 Outgoing: Checksum ( 07 95 )
15:52:39 Incoming: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 144
Chapter 7
Operation
Reader to Host: S18F2
15:52:39 Incoming: ENQ ( 05 )
15:52:39 Outgoing: EOT ( 04 )
15:52:39 Incoming: Length Byte ( 30 )
15:52:39 Incoming: Header ( 81 34 12 02 80 01 00 00 00 4B )
15:52:39 Incoming: Data ( 01 04
15:52:39 Incoming: Data (41 02 30 31)
15:52:39 Incoming: Data (41 02 4E 4F)
15:52:39 Incoming: Data (01 01)
15:52:39 Incoming: Data (41 01 46) "F" Failure Detected
15:52:39 Incoming: Data (01 01 01 04 41 02 )
15:52:39 Incoming: Data ( 4E 45 41 01 31 41 04 49 )
15:52:39 Incoming: Data ( 44 4C 45 41 04 49 44 4C )
15:52:39 Incoming: Data ( 45 )
15:52:39 Incoming: Checksum ( 07 BE )
The reader detects a wrong TARGETID
Host to Reader: S18F5
13:44:33 Outgoing: ENQ ( 05 )
13:44:33 Incoming: EOT ( 04 )
13:44:33 Outgoing: Length byte ( 1A )
13:44:33 Outgoing: Header ( 01 FF 92 05 80 01 00 00 00 40 )
13:44:33 Outgoing: Data
01 03
41 04 30 30 30 30 TARGETID "0000"
41 02 30 31 DATASEG "01"
A9 02 00 08 DATALENGTH 0x08
13:44:33 Outgoing: Checksum ( B8 02 )
13:44:33 Incoming: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 145
Chapter 7
Operation
Reader to Host: S18F6
13:44:33 Incoming: ENQ ( 05 )
13:44:33 Outgoing: EOT ( 04 )
13:44:33 Incoming: Length byte ( 18 )
13:44:33 Incoming: Header ( 81 FF 12 06 80 01 00 00 00 40 )
13:44:33 Incoming: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 43 45 SSACK "CE"
41 00 DATA ""
13:44:33 Incoming: Checksum ( 04 78 )
13:44:33 Outgoing: ACK ( 06 )
The TARGETID in the S18F5 message does not correspond to the TARGETID in the
reader detecting the error. The reader therefore answers with communication
error "CE".
The reader detects no tag
Host to Reader: S18F5
17:29:25 Outgoing: ENQ ( 05 )
17:29:25 Incoming: EOT ( 04 )
17:29:25 Outgoing: Length byte ( 1A )
17:29:25 Outgoing: Header ( 01 FF 92 05 80 01 00 00 00 43 )
17:29:25 Outgoing: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 30 31 DATASEG "01"
A9 02 00 08 DATALENGTH 0x08
17:29:25 Outgoing: Checksum ( C5 02 )
17:29:25 Incoming: ACK ( 06 )
Product Manual - RFID Reader LF60C SoliD 146
Chapter 7
Operation
Reader to Host: S18F6
17:29:27 Incoming: ENQ ( 05 )
17:29:27 Outgoing: EOT ( 04 )
17:29:27 Incoming: Length byte ( 18 )
17:29:27 Incoming: Header ( 81 FF 12 06 80 01 00 00 00 43 )
17:29:27 Incoming: Data
01 03
41 04 31 32 33 34 TARGETID "1234"
41 02 54 45 SSACK "TE"
41 00 DATA ""
17:29:27 Incoming: Checksum ( 04 8C )
17:29:27 Outgoing: ACK ( 06 )
The reader receives a valid S18F5 message.
If there is no tag in the reading (writing) range of the antenna, the reader
answers with a tag error "TE".
Product Manual - RFID Reader LF60C SoliD 147
Chapter 8
Service and Troubleshooting
8 Service and Troubleshooting
This chapter gives you an overview of the following topics:
■ General
■ Qualified troubleshooting personnel
■ Safety instructions
■ Error codes
■ Error display with LED
■ Reader does not respond
■ Reset
■ Power cut
■ Software releases
■ Customer service
8.1 General
Follow the instructions specified in the safety chapter
Follow the general safety information in the chapter Safety Instructions.
The transponder reader and its components must be serviced by the
manufacturer only!
If errors occur, follow the instructions in this section. Do not carry out any
error eliminating measures other than the ones described in this section!
If you are uncertain about errors and their handling, contact the
manufacturer, see Customer service. Have the serial number of the
transponder reader ready as shown on the label (see Device label) when
contacting the manufacturer!
Product Manual - RFID Reader LF60C SoliD 148
Chapter 8
Service and Troubleshooting
8.2 Qualified troubleshooting personnel
8.3 Safety instructions
CAUTION Error handling shall be carried out by specially trained personnel only. If you are
uncertain about the qualifications that are required, contact the manufacturer.
CAUTION Error handling the device without the special skills required and unqualified
interference with the device can result in personal injury and damage to the
reader and/or connected devices.
All antenna resonant circuit components carry high voltages.
WARNING When spare parts are required, use only manufacturer-specified parts.
Unauthorized substitution of parts can result in fire, electric shock or other
hazards.
Electrostatic charges can damage electronic components within the device.
ESD protective measures must be applied when opening the device ( ESD
instructions).
CAUTION Never short-circuit the fuse! This may result in fire or damage to the device.
Only use fuses specified by the manufacturer.
Product Manual - RFID Reader LF60C SoliD 149
Chapter 8
Service and Troubleshooting
8.4 Error codes
8.4.1 Error ID and Alarm ID
ID Name Description Possible cause Correcting action
0none no error not used no
1auto fail automatic reading is not
possible * reader is still busy with
a former read or write
request
wait until the former request is
done
2ex fail read or write initiated
from the host and/or
other actions cannot be
carried out *
reader is still busy with
a former read or write
request
wait until the former request is
done
3write fail data transfer to the
transponder not
possible *
reader is still busy with
a former read or write
request
wait until the former request is
done
4no tag no transponder or
antenna is installed
no readable tag within
the reading range put a transponder into the antenna
range, verify type and function of
the transponder
antenna is not
connected correctly check antenna connection
antenna and
transponder are in a
bad orientation
check orientation between antenna
and transponder (see Antenna
installation)
antenna is not tuned perform an antenna tuning (see
DIP switches)
disturbing field at
transmitting freqency check antenna surroundings for
possible disturbing sources
(monitors, servo motors, ...)
antenna is damaged or
too close to metal exchange antenna, verify antenna
installation
5invalid invalid parameter or
data
data sent with a
command are wrong check syntax and data of command
sent parameter is not
implemented or is out of
range
check syntax and value of
parameter
6unknown unknown error not used no
Product Manual - RFID Reader LF60C SoliD 150
Chapter 8
Service and Troubleshooting
7unconfig the device is not
configured wrong reader address is
sent check syntax of message, check
parameter F „Reader address“
8check parity and/or checksum
error
wrong baud rate is set check baud rate of serial interface
(COM port)
transmission errors on
serial communication check RS232 cable and connectors,
check disturbing sources at RS232
9void ackn no valid acknowledge
(unexpected
acknowledge)
double or wrong
acknowledgement check host communication settings
serial communication is
interrupted check RS232 cable and connectors,
check disturbing sources at RS232
Ethernet communication
is interrupted check Ethernet cable and connec-
tors, check the Link LED and the
Traffic LED, verify IP address set-
tings
A (10) locked locked page cannot be
written page to be written is
locked (permanently
write protected)
check page number to write,
replace tag with new one
:msg len message too long or too
short or message is not
received completley
length of message is
longer than shown at
the length byte
check message length, check
length byte
no valid end sign of
message (end sign 0xD)
detected
check syntax of message
not all characters are
transmitted
(Intercharacter timeout)
check syntax of messages, check
RS232 or Ethernet connection
;invalid invalid command unknown command was
sent check syntax of command
B (11) no ackn the message which has
to be confirmed has
been sent the maximum
number of times (RS232
maxrepeat) and has not
been confirmed by the
terminal within the
defined time frame (see
Parameter 5 (0x05))
host system does not
acknowledge the
message
check availability of the host
system (terminal), check RS232
cables and connectors, check
Ethernet cable and connectors,
check the Connect LED and the
Traffic LED, verify IP address
settings
ID Name Description Possible cause Correcting action
Product Manual - RFID Reader LF60C SoliD 151
Chapter 8
Service and Troubleshooting
* because the device is still busy or because a message has not been confirmed
by the previous read up to now
8.4.2 SSACK
C (12) bad type incorrect transponder
type incorrect transponder
type is used (read only
or read/write instead of
Multipage)
check transponder type and replace
it
ID Name Description Possible cause Correcting action
SSACK Name Description Possible cause Correcting action
NO Normal
mode indicates the success of
the operation requested -no
EE Execute
error
transponder data and
read ID sequence can-
not be read
transponder has no or
too less valid ASCII
characters on MID area
program transponder with valid
ASCII characters on MID area
parameters for MID
area are not matching
transponder data
set reader parameters for MID area
corresponding to transponder data
area for the MID
reader is still busy with
a former read or write
request
wait until the former request is
done
incorrect reader mode
for operation switch to correct mode (MANT for
writing MID)
CE Commu-
nication
error
syntax error of message
ore message format or
incorrect value
data sent with a com-
mand are wrong check syntax and data of command
list format, amount of
lists or data type is
wrong
check syntax of SECS message
sent parameter is not
implemented or not
within the range
check syntax and parameter value
HE Hard-
ware
error
error in the head of the
ID reader/writer, head
of the ID reader/writer
is deactivated
Product Manual - RFID Reader LF60C SoliD 152
Chapter 8
Service and Troubleshooting
8.4.3 Stream function
TE Tag error no transponder or
antenna installed
no readable tag within
the reading range put a transponder into the antenna
range, verify type and function of
the transponder
antenna is not
connected correctly check antenna connection
antenna and
transponder are in a
bad orientation
check orientation between antenna
and transponder (see Antenna
installation)
antenna is not tuned perform an antenna tuning
disturbing field at
transmitting freqency check antenna surroundings for
possible disturbing sources
(monitors, servo motors, ...)
antenna is damaged or
too close to metal exchange antenna, verify antenna
installation
SSACK Name Description Possible cause Correcting action
Stream
Function Description Possible cause Correcting action
S9F1 unrecognized DeviceID message with wrong Devi-
ceID was sent to the reader send a message with the correct
DeviceID (can be taken from the
S9F1 message)
S9F3 unrecognized stream type message with a unkown
stream type was sent to the
reader
check stream function syntax of the
message
S9F5 unrecognized function type messagw with a unkown
function type was sent to the
reader
check strem function syntax of the
message
S9F7 illegal data wrong RIC at reset message check RIC value
S9F9 Transaction Timer Timeout
host system does not
acknowledge the message or
sends no answer
Check availability of the host sys-
tem (terminal), check RS232 cable
and connector, check Ethernet
cable and connector, check link LED
and traffic LED, check IP address
settings
Product Manual - RFID Reader LF60C SoliD 153
Chapter 8
Service and Troubleshooting
8.5 Error display with LED
8.5.1 Power LED does not light up
8.5.2 Read fail LED flashes
8.6 Reader does not respond
Check the power supply and the connection cables!
If the LED does not light up, disconnect the device from the power supply
and carefully remove the fuse. Test the fuse. If it is defective, replace it
with a fuse specified by the manufacturer!
If the above measures do not solve the problem, leave the reader
disconnected and contact the manufacturer!
Reader detected a hardware failure: no valid antenna adjustment or
antenna has broken.
Switch DIP8 to "On" to start an antenna tuning!
If Read fail LED flashes again:
Check if the antenna is located too near to a strong metallic environment.
Relocate the antenna with more distance!
Check if the antenna and the antenna cable are connected correctly. Use
another antenna cable if available!
If these measures do not solve the problem, contact the manufacturer!
Check if the interface connection cable is undamaged and correctly
connected to both reader and host!
Check the status as indicated by the LED!
Download the test software from the Internet www.brooks-rfid.com
Service). Follow the instructions!
If these measures do not solve the problem, contact the manufacturer!
Product Manual - RFID Reader LF60C SoliD 154
Chapter 8
Service and Troubleshooting
8.7 Reset
8.8 Power cut
After a power cut, the reader performs a reset with self-test. The self-test can
take up to five seconds. In the first step of these self-tests, all LEDs (status, read
fail, read ok) light up. In the second step, the reader displays the selected
protocol type. The read fail LED signalizes the SECS-II protocol. The read ok LED
signalizes the ASCII protocol.
If the test was successful, all LEDs, except for the power LED, go out.
8.9 Software releases
In the case of a malfunction, a hardware reset can be performed by
switching the power supply off and on!
After the reset, the reader performs a self-test. The self test can take up to
five seconds. As the first step in these self-tests, all LEDs (Status, Read OK
and Read Fail) light up. At the second step, the reader displays the selected
protocol type. The read fail LED signalizes the SECS-II protocol. The read
ok LED signalizes the ASCII protocol. If the test was successful, all LEDs
except the power LED go out!
Release
Date Version Description
May 2011 SG2S10/SG2IV1.0 First version
Januar 2012 SG2S11/SG2IV1.1 Hardware version 25 characters long,
serial UDP protocol, parity and baud rate
can also be set in ASCII
Mai 2012 SG2S12/SG2IV1.2 Auto. protocol recognition can be
deactivated with DIP1, manual protocol
setting with DIP2
Product Manual - RFID Reader LF60C SoliD 155
Chapter 8
Service and Troubleshooting
8.10 Customer service
Brooks Automation (Germany) GmbH
RFID Division
Gartenstr. 19
D-95490 Mistelgau
GERMANY
Telephone +49 (0) 9279 - 991 550
Fax +49 (0) 9279 - 991 501
E-mail rfid.support@brooks.com
24 hour technical support hotline (Brooks):
US and Canada +1 978 262 2900
Europe +49 1804 2255 4887
Japan +81 45 477 5980
China +86 21 5131 7066
Taiwan +886 3 5525225
Korea +82 31 288 2500
Singapore +65 6464 1481
Product Manual - RFID Reader LF60C SoliD 156
Chapter 9
Dismantling and Storage
9 Dismantling and Storage
This chapter gives you an overview of the following topics:
■ Dismantling
■ Storage
9.1 Dismantling
9.2 Storage
Store the reader and its components in a clean and dry environment with the
power supply disconnected. Make sure the contacts remain clean. Observe the
necessary storage conditions.
Remove the power supply device!
Remove all cables!
Loosen and remove the mounting screws!
Remove the device from the installation area!
Product Manual - RFID Reader LF60C SoliD 157
Chapter 10
Transport and Disposal
10 Transport and Disposal
This chapter gives you an overview of the following topics:
■ Transport
■ Disposal
10.1 Transport
For transportation purposes such as mailing, use a firm cardboard box. Use
adequate padding material to protect the device on all sides.
10.2 Disposal
Disconnect the electronic components from the case and dispose of them as
follows:
■the case as plastic trash
■the electronic components, antennas and cables as electronic waste
The device and its components are made of various materials.
Dispose of these materials separately, and observing the legal regulations of
your country.
Do not dispose of the device in regular household waste.
Product Manual - RFID Reader LF60C SoliD 158
Chapter 11
Accessories
11 Accessories
This chapter gives you an overview of the following topics:
■ Antennas
■ Cables
■ Power supply
■ Mounting adapter plates
11.1 Antennas
11.1.1 Available types
.
xx = cable length
03 300 mm
05 500 mm
10 1,000 mm
15 1,500 mm
other length on request
Special antenna types are available on request.

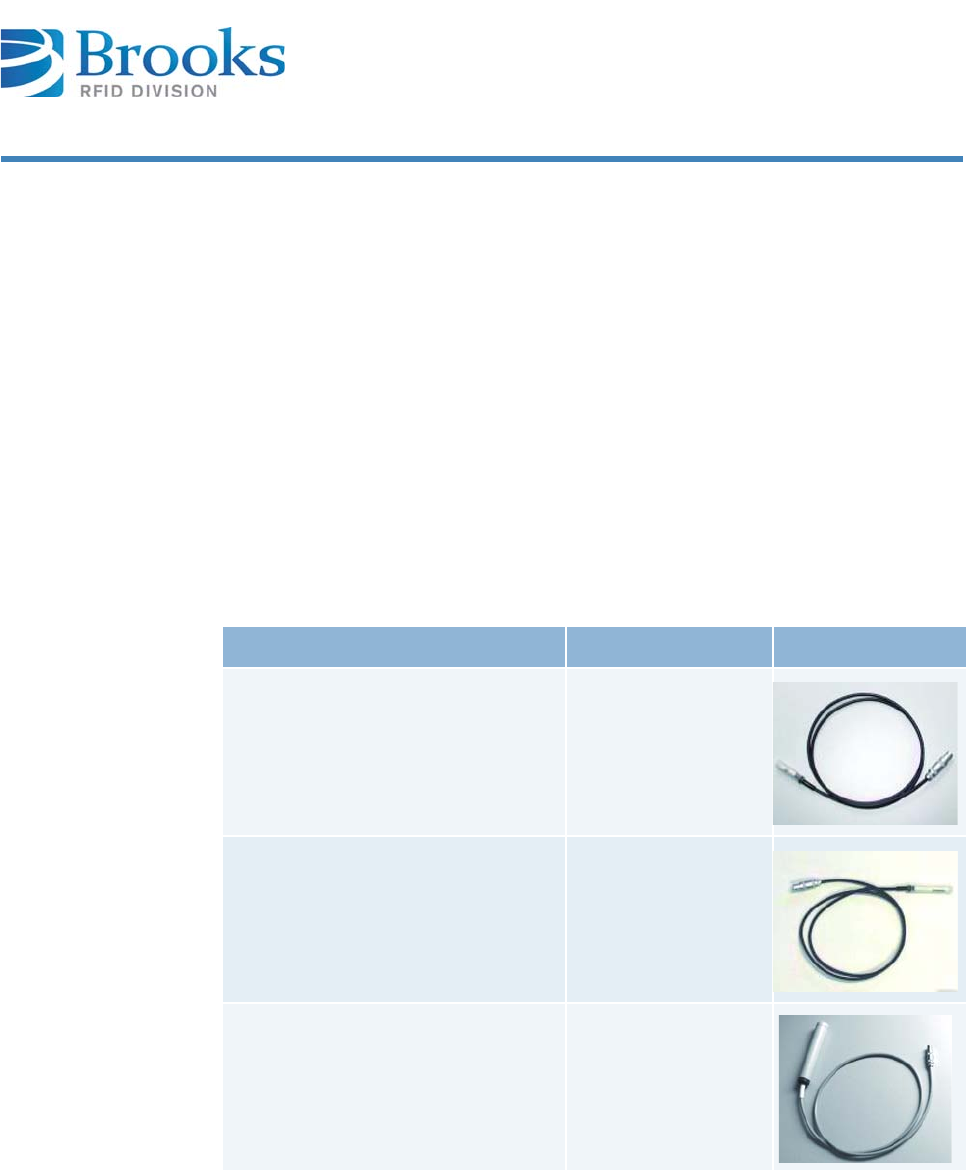

Type Part-No. Picture
Micro antenna (xx = cable length) ANT-7Mxx
Mini antenna (xx = cable length) ANT-7Kxx
Rod antenna (xx = cable length) ANT-7Sxx
Product Manual - RFID Reader LF60C SoliD 159
Chapter 11
Accessories
11.1.2 Reading and writing ranges
The following reading/writing ranges are measured with a 32 mm glass
transponder (read only, read/write, multipage). If you use a multipage
transponder, the diagrams are only valid for page 1 of the multipage transponder.
Reading range
micro antenna
ATTENTION If the transponder is very close to the antenna the transponder may be de-
tuned by the metal of the antenna and reading/writing is not possible. We
recommend keeping a minimum distance between transponder and antenna of
about 10 mm.
Product Manual - RFID Reader LF60C SoliD 160
Chapter 11
Accessories
Writing range
micro antenna
Product Manual - RFID Reader LF60C SoliD 161
Chapter 11
Accessories
Reading range mini
antenna
Product Manual - RFID Reader LF60C SoliD 162
Chapter 11
Accessories
Writing range mini
antenna
Product Manual - RFID Reader LF60C SoliD 163
Chapter 11
Accessories

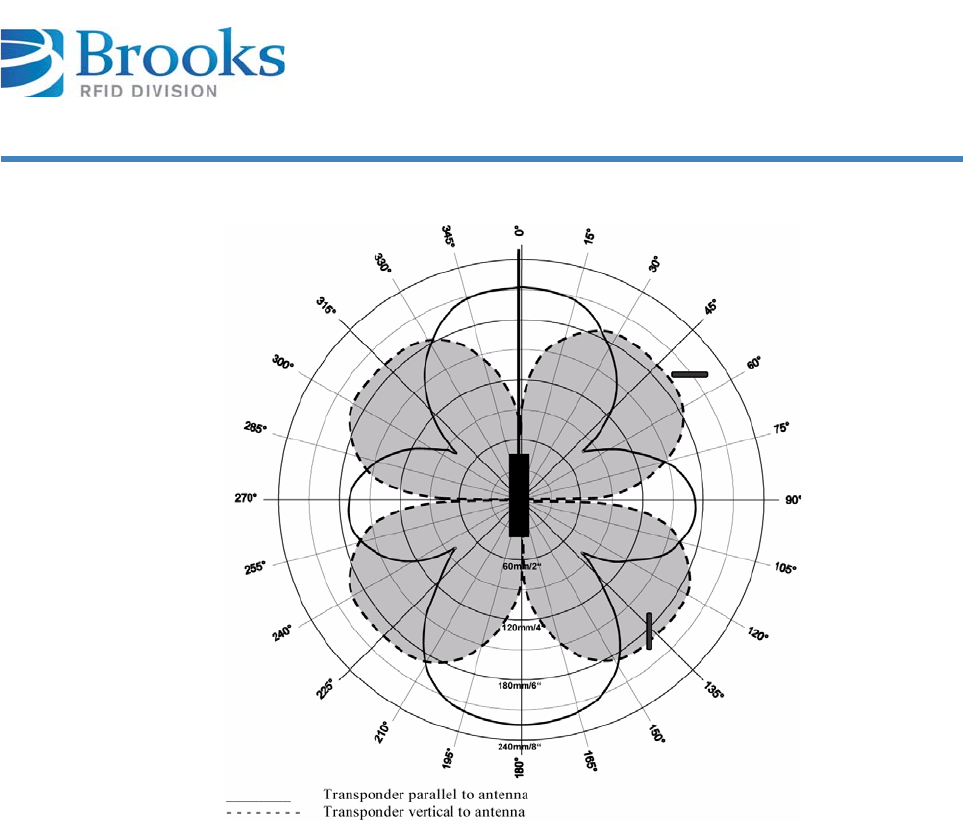

Reading range rod
antenna
Product Manual - RFID Reader LF60C SoliD 164
Chapter 11
Accessories

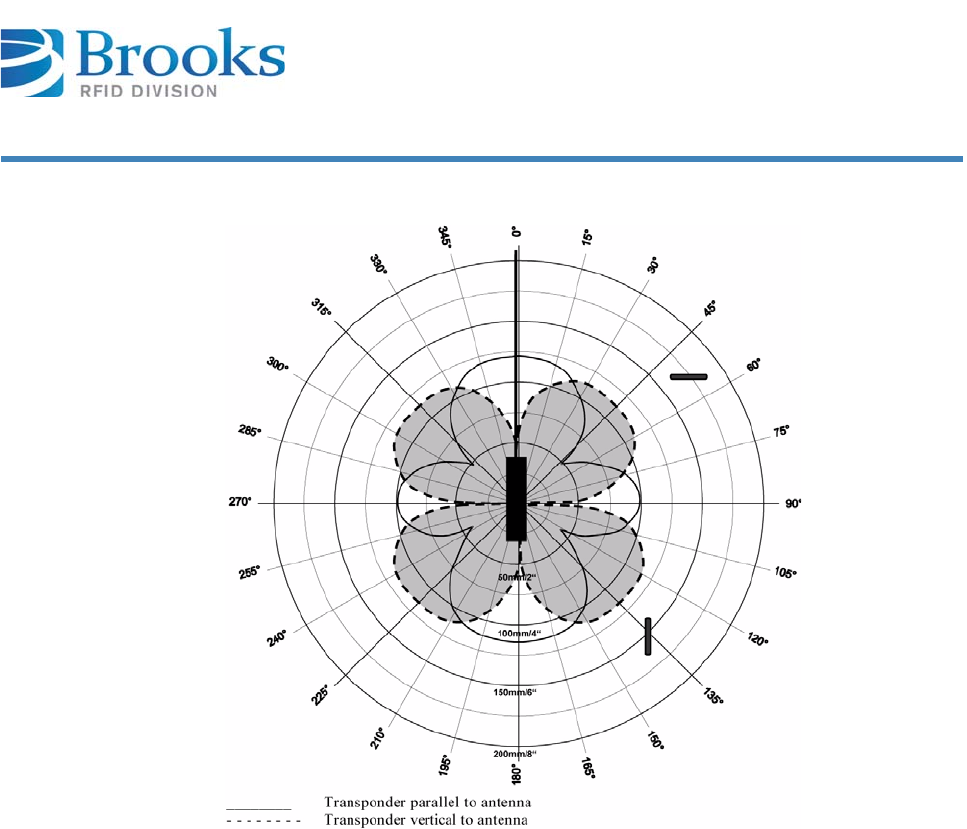

Writing range rod
antenna
Product Manual - RFID Reader LF60C SoliD 165
Chapter 11
Accessories

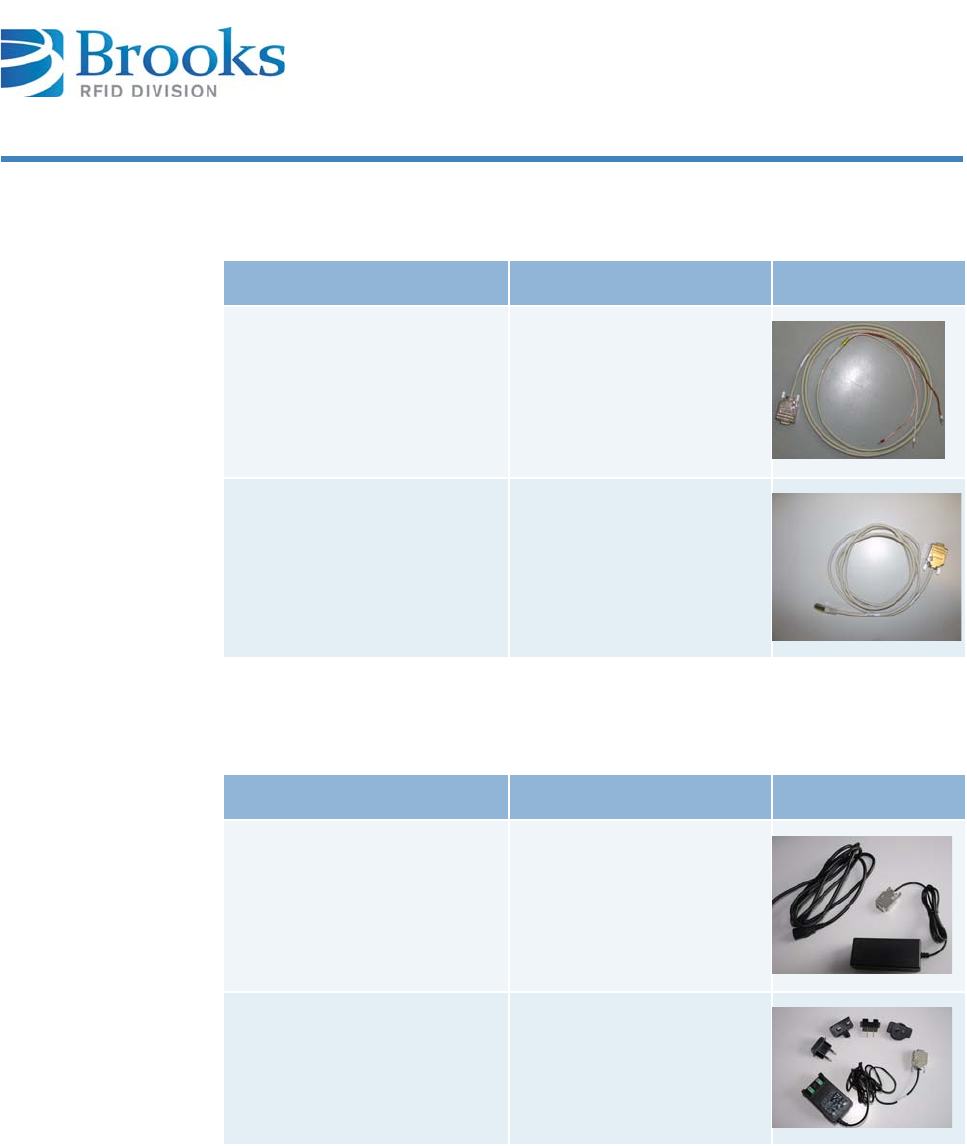

11.2 Cables
11.3 Power supply
Type Part-No. Picture
Power supply cable
(cable length: 2,000 mm) KBV24-20-020
RS232 cable
(cable length: 2,000 mm) RSK9-20-020
Type Part-No. Picture
Power supply 1.8 A SVG24V-1,8A-020
SVG24V-1,8A-GB-020
SVG24V-1,8A-US-020
Power supply 0.6 A SVG24V-0,6-UNI-020
Product Manual - RFID Reader LF60C SoliD 166
Chapter 11
Accessories
11.4 Mounting adapter plates
No. Part-No. Picture
1RMS-020
Vertical mounting
2RMS-040
Fixing holes like LF60 Eco
3RMS-050
Fixing holes like LF80
4RMS-060
Fixing holes like ATR9000
Index
A
A - Sensor event 59
ACKC3 81
ACKC5 81
ALARM STATUS 82
ALCD 82
ALID 82
ALTRID 83
ALTX 83
Antenna 32
Antenna port 24
ATTRVAL 85
Automatic tuning 57
B
Block transfer protocol 68
C
Carrier ID 107
CE conformity 12
Checksum 62, 67
CIDRW 107
CMD 45
Commands of protocol 43
CPVAL 86
D
DATA 86
Data 45
DATALENGTH 87
DATASEG 87
DC power 34
Device ID 66
Device label 26
DHCP-Server 36
DIP switches 38
E
e - Error message 53
EAC 87
ECID 88
ECV 88
EIA RS-232-C 64
Electronic Industries Association Standards 64
Error message 47
Ethernet 36
F
FCC Rules 10
Index
G
G - Request parameter value 50
H
H - Heartbeat 54
High byte 41
HSMS message examples 124
HSMS message format 72
HSMS message format summary 75
HSMS option 69
Humidity 27
I
I - Set tuning of the RF module 57
IP address 36
J
J - Request tuning 58
L
L - Lock a page of the transponder 56
Low byte 41
M
MDLN 88
Message 41
Message block structure 66
Message set 79
MF 88
MHEAD 88
Micro antenna 33
MID 89
MIDAC 89
MIDRA 90
Mini antenna 33
N
N - Reset 52
No tag 47
NOTAG 48
O
OFLACK 90
ONLACK 90
P
P - Set parameter 51
Page 45
PAGE_ID 90
Index
PAGEDATA 91
Parameter 38, 45
Parameter 0, Gateway ID 97
Parameter 0, Sensor delay 60
Parameter 1, Baudrate 97
Parameter 1, Read mode 60
Parameter 11, ReaderID 99
Parameter 12, HeadID 99
Parameter 2, Inter-character timeout T1 98
Parameter 2, Read page 61
Parameter 20, Sensor delay for presence sensor 99
Parameter 22, Sensor-triggered action for presence sensor 99
Parameter 23, Triggered read frequency 100
Parameter 24, r/w max repeat 100
Parameter 25, Transponder type 100
Parameter 26, Sensor activity 100
Parameter 27, Watchport for presence 100
Parameter 29, Transponder load duration (read mode) 101
Parameter 3, Block protocol timeout T2 98
Parameter 3, r/w repeat time 61
Parameter 30, r/w synchronize 101
Parameter 31, Auto-adjust value (read mode) 101
Parameter 32, Auto-adjust value (write mode) 101
Parameter 33, Automatic antenna adjustment 102
Parameter 34, Sensor type for presence sensor 102
Parameter 35, Special features 102
Parameter 36, DIP switch activation 102
Parameter 37, MID area 103
Parameter 38, Test after software reset 103
Parameter 4, r/w max repeat 61
Parameter 4, Reply timeout T3 98
Parameter 40, Transponder load duration (write-mode) 103
Parameter 41, Delay time between read cycles 103
Parameter 42, CarrierIDOffset 104
Parameter 43, CarrierIDLength 104
Parameter 44, FixedMID 105
Parameter 45, MIDFormat 105
Parameter 5, Inter-block timeout T4 98
Parameter 5, RS232 repeat time 61
Parameter 6, Retry limit RTY 98
Parameter 6, RS232 max repeat 61
Parameter 7, TARGETID high byte 98
Parameter 7, Watchport 61
Parameter 8, TARGETID low byte 98
Parameter 9, Heartbeat time 99
Parameter 98, Protocol change allowed 106
Parameter 99, Customer code 106
Parameter F, Reader address 62
Parameter No. 45
Index
Parameter value 45
PIN 91
PM Information 92
Power/RS485 bus connection 24, 34
Prohibition symbols 17
R
R - Automatic read 49
RAC 92
Read mode 60
Read page 61
Reader address 62
Reader ID 46
Relative humidity 27
Remote I/O 37
Remote I/O port 23
Response code 46
RIC 92
RJ45 35
Rod antenna 32
RS232 35
RS232 max repeat 61
RS232 port 23
RS232 repeat time 61
S
Safety Instructions 16
Safety symbols 16
SECS-I 64
SECS-I message examples 124
SECS-II 64, 76
SEMI E99 107
SEMI Equipment Communication Standard 76
SEMI Equipment Communications Standard 64
Sensor delay 60
Serial No. 46
Serial number 26
SHEAD 92
SOFTREV 92
SSACK 93
SSCMD 94
STATUS 94
T
TARGETID 95
Temperature 27
V
V - Query software version 55
