Brookstone 683219 Weather Station with Outdoor Sensor User Manual
Brookstone,Inc Weather Station with Outdoor Sensor
User Manual
683219
Merrimack, New Hampshire USA 03054 • 800-846-3000 • Brookstone.com
Find thousands more
great ideas online
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Wireless Weather
Forecaster
WEATHER AT A GLANCE IS TIME WELL SPENT
Partly sunny
with a chance
of genius.
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 1 / 12 Date: 2011-9-12 page(s): 24, 1
1
Table of conTenTs
Warnings and Cautions......................................................3
Location of Parts and Controls............................................... 7

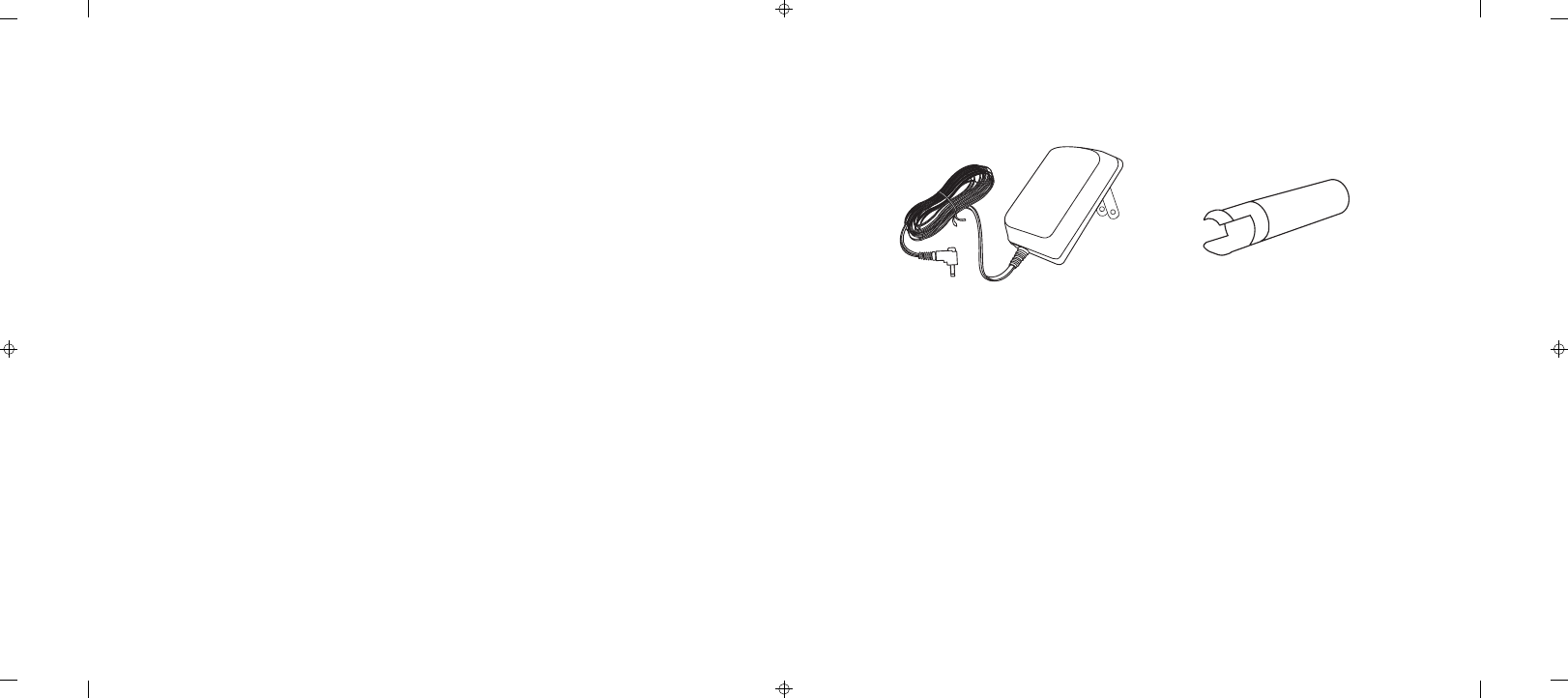

Accessories ...............................................................10
Set Up ....................................................................11
Using the Weather Beacon ................................................14
Setting the Time ...........................................................15
Preferences ...............................................................15
Reset .....................................................................15
Specifications..............................................................16
Troubleshooting............................................................17
Warranty ..................................................................21
suppliers other than Brookstone may provide their own warranties to the purchaser,
but Brookstone, in so far as permitted by law, provides these products “as is.”
This warranty does not apply to: a) damage caused by failure to follow instructions
relating to product’s use or the installation of components; b) damage caused by
accident, abuse, misuse, fire, floods, earthquake or other external causes; c) damage
caused by service performed by anyone who is not a representative of Brookstone;
d) accessories used in conjunction with a covered product; e) a product or part
that has been modified to alter functionality or capability; f) items intended to be
periodically replaced by the purchaser during the normal life of the product including,
without limitation, batteries or light bulbs; g) any product sold “as is” including, without
limitation, floor demonstration models and refurbished items; or h) a product that is
used commercially or for a commercial purpose.
BrOOKSTONe SHall NOT Be lIaBle FOr INcIdeNTal Or cONSeQUeNTIal
daMageS reSUlTINg FrOM THe USe OF THIS PrOdUcT, Or arISINg
OUT OF aNY BreacH OF THIS WarraNTY. TO THe eXTeNT PerMITTed BY
aPPlIcaBle laW, BrOOKSTONe dISclaIMS aNY aNd all STaTUTOrY Or
IMPlIed WarraNTIeS, INclUdINg, WITHOUT lIMITaTION, WarraNTIeS
OF MercHaNTaBIlITY, FITNeSS FOr a ParTIcUlar PUrPOSe aNd
WarraNTIeS agaINST HIddeN Or laTeNT deFecTS. IF BrOOKSTONe
caNNOT laWFUllY dISclaIM STaTUTOrY Or IMPlIed WarraNTIeS, THeN
TO THe eXTeNT PerMITTed BY laW, all SUcH WarraNTIeS SHall Be
lIMITed IN dUraTION TO THe dUraTION OF THIS eXPreSS WarraNTY.
Some states disallow the exclusion or limitation of incidental or consequential damages
or how long an implied warranty lasts, so the above exclusions or limitations may not
apply to you. This warranty gives you specific legal rights and you may also have other
rights, which vary from state to state.
22
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 2 / 12 Date: 2011-9-12 page(s): 2, 23
one (1) year lIMITed WarranTy
Brookstone® warrants this product against defects in materials and/or workmanship
under normal use for a period of ONE (1) YEAR from the date of purchase by the
original purchaser (“Warranty Period”). If a defect arises and a valid claim is received
within the Warranty Period, at its option, Brookstone will either 1) repair the defect
at no charge, using new or refurbished replacement parts, or 2) replace the product
with a new product that is at least functionally equivalent to the original product, or
3) provide a store credit in the amount of the purchase price of the original product.
A replacement product or part, including a user-installable part installed in accordance
with instructions provided by Brookstone, assumes the remaining warranty of the
original product. When a product or part is exchanged, any replacement item becomes
your property and the replaced item becomes Brookstone’s property. When a store
credit is given, the original product must be returned to Brookstone and becomes
Brookstone’s property.
Obtaining Service: To obtain warranty service, call Brookstone Limited Warranty Service
at 1-800-292-9819. Please be prepared to describe the product that needs service
and the nature of the problem. A purchase receipt is required. All repairs and
replacements must be authorized in advance. Service options, parts availability and
response times will vary. You are responsible for delivery and the cost of delivery of
the product or any parts to the authorized service center for replacement, per our
instructions.
Limits and Exclusions: Coverage under this Limited Warranty is limited to the United
States of America, including the District of Columbia and the U.S. Territories of
Guam, Puerto Rico, and the U.S. Virgin Islands. This Limited Warranty applies only
to products manufactured for Brookstone that can be identified by the “Brookstone”
trademark, trade name, or logo affixed to them or their packaging. The Limited
Warranty does not apply to any non-Brookstone products. Manufacturers or
21 2
Place the wireless transmitter outside and the
base unit inside (temperature and humidity will
display automatically).
Initial forecast must be set. Use the + and — buttons
to scroll through the forecast icons and select the one
that best represents your current weather.
To know the weather at a glance, learn the colors:
Yellow = clear, Purple = cloudy, Green=partly cloudy,
Blue = rain, Red = thunderstorm, White = snow.
If you read noThIng else,
read ThIs:
1
2
3
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 3 / 12 Date: 2011-9-12 page(s): 22, 3
3
cauTIon
• TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
THERE ARE NO SERVICEABLE PARTS INSIDE.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
The lightning flash with arrow-head symbol within an equilateral triangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the unit’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the unit.
IMPorTanT safeTy InsTrucTIons
All of the safety and operating instructions should be read, adhered to and followed
before the unit is operated.
save These InsTrucTIons
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
noTes
20
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 4 / 12 Date: 2011-9-12 page(s): 4, 21
noTes
19 4
danger
To reduce the risk of electric shock, burns, fire or injury:
1. Do not use while bathing or in a shower.
2. Do not place or store Base Unit where it can fall or be pulled into a tub or sink.
3. Do not place Base Unit in, drop or submerge in water or other liquid.
4. Do not reach for Base Unit that has fallen into water. Unplug it immediately.
5. Care should be taken so that objects do not fall and liquids are not
spilled onto the Base Unit.
WarnIng
1. Close supervision is necessary when this appliance/product is used by or near
children or mentally disabled individuals.
2. Use this unit only for its intended use as described in this manual.
3. Unplug this unit during lightning storms.
4. Never drop or insert an object into any opening.
5. Protect the power cord from being walked on or pinched, particularly at plug
outlets and the point where it exits the unit.
6. Do not allow cord to touch hot surfaces.
7. The unit should be situated away from direct sunlight or heat sources such
as radiators, electric heaters, heat registers, stoves, or other units (including
amplifiers) that produce heat. Avoid placing on top of stereo equipment that
radiates heat.
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 5 / 12 Date: 2011-9-12 page(s): 20, 5
baTTery PrecauTIons
• Dispose of the old batteries properly. Do not dispose of the old batteries in a fire.
• Do not leave the batteries where a child or pet could play with or swallow them. If
the batteries are swallowed, contact a physician immediately.
• The batteries may explode if mistreated. Do not attempt to recharge or
disassemble the batteries.
• Use only fresh batteries of the required size and type. Do not mix old and
new batteries, different types of batteries, or rechargeable batteries of
different capacities.
8. Never block the air openings of the unit with materials such as clothing,
plastic bags or papers, or place it on a soft surface such as a bed or couch,
where the air openings may be blocked.
9. Do not overload electrical outlet. Use only the power source as indicated.
10. Do not carry this unit by cord or use cord as handle.
11. Never operate this unit if the adapter has a damaged cord or plug, if it is not
working properly, or if it has been dropped or damaged, or dropped into water.
Do not attempt to fix it yourself.
12. To avoid the risk of electric shock, do not disassemble or attempt to repair the
unit. Incorrect repair can cause risk of electric shock or injury to persons when
unit is used.
13. Do not operate in the presence of explosive and/or flammable fumes.
14. Never remove the Adapter plug from the socket by pulling the power cord.
5
TroubleshooTIng
ISSUE SOLUTION
The Base unit is not receiving a
signal from the transmitter.
Move the transmitter closer to the base
unit (within 100 feet).
Re-sync the Base unit and the transmitter.
See page 12.
18
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 6 / 12 Date: 2011-9-12 page(s): 6, 19
TroubleshooTIng
ISSUe SOlUTION
There is no Snow icon when
setting the initial forecast.
You will not see the snow icon when setting
the forecast. Snow cannot be selected as
a Forecast when setting the initial forecast.
If it is snowing, rain must be selected. The
unit will be able to determine if it is raining
or snowing due to temperature. When the
unit shows the forecast the Snow icon will
display if Snow is predicted.
Temperature and humidity data
on Transmitter and Base unit
are not the same.
Base unit and transmitter need some time to
sync when it they are first set up. Give the
unit a few hours to fully sync.
Base unit could be picking up a transmission
from another unit close by.
Base unit and transmitter may need to be
re-synced (see page 12).
The Weather Forecast does not
change or is not accurate.
The Initial Forecast needs to be set. See
page 11.
The Initial Forecast needs to be calibrated.
See page 13.
17
fcc InforMaTIon
This equipment has been tested and found to comply with the limits for a Class B
Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This equipment may not cause harmful interference.
2. This equipment must accept any interference received, including interference
that may cause undesired operation.
Modifications not authorized by the manufacturer may void the user’s authority to
operate this device.
6
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 7 / 12 Date: 2011-9-12 page(s): 18, 7
7
locaTIon of ParTs and conTrols (BASE UNIT)
1. Temperature Trend
2. Outdoor Temperature
3. Highest Daily Temperature
4. Lowest Daily Temperature
5. Indoor Temperature
6. Clock
7. Forecast Icon
8. Highest Daily Humidity
9. Lowest Daily Humidity
10. Humidity Trend
11. Outdoor Humidity
12. Transmitter Low Battery Icon
13. Weather Forecast Beacon
12
7
6
5
4
3
2
8
11
10
9
13
1
16
sPecIfIcaTIons
POWER SUPPLY
Base Unit:..................................... AC 120V 60 Hz (Input)
DC 4.5VDC 150mA
Transmitter:.................................... 2 AAA Batteries
TRANSMISSION
Remote transmission to Base unit: . . . . . . . . . . . . .433 Mhz
Transmission Range: . . . . . . . . . . . . . . . . . . . . . . . . . . .100 feet
PRODUCT DIMENSIONS
Base Unit .....................................Approx. 4" w x 4 1/8" h
Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Approx. 2 3/8" w x 3 3/4" h
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 8 / 12 Date: 2011-9-12 page(s): 8, 17
15
seTTIng The TIMe
1. Remove the rear compartment door on the Base unit.
2. Using the + and – buttons, scroll to select the current time. Press and hold
the + and – buttons to scroll faster.
Preferences
BASE UNIT:
• Press the 12/24 button to display the time in 12 hour or 24 hour format
• Press the C/F button to display with temperature in Celsius or Fahrenheit
TRANSMITTER
• Press the C/F button to display the temperature in Celsius or Fahrenheit
reseT
BASE UNIT:
• Press the Reset button with a thin, blunt object, such as a paper clip, to
reset the unit to default settings
TRANSMITTER
• Press the button to reset the unit to default settings
8
locaTIon of ParTs and conTrols (BASE UNIT, BACK)
1. Rear Compartment Door w/ Color Code Key Chart
2. + Button (Time Set/Forecast Select)
3. - Button (Time Set/Forecast Select)
4. 12/24 Hour Button
5. Cº/Fº Button
6. Forecast Button
7. Reset Button
8. DC Input
9. Weather Forecast
Beacon On/Off
10. Stand Socket
11. Sync Button
11
23 4 56
10
9
8
7
1
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 9 / 12 Date: 2011-9-12 page(s): 16, 9
9
locaTIon of ParTs and conTrols (TRANSMITTER)
1. Outdoor Temperature
2. Outdoor Humidity
3. Hanging Hole
4. Battery Compartment
5. Cº/Fº Button
6. Reset Button
7. Flip Out Stand
124
3
7
5
6
14
usIng The WeaTher beacon
The weather beacon uses color to indicate the weather forecast 6 to 8 hours ahead.
Press the BEACON button to turn the Weather Beacon on or off.
WEATHER BEACON KEY
Cloudy: Purple Partly Cloudy: Green
Rain: Blue
Clear: Yellow
Thunderstorm: Red
Snow: White
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 10 / 12 Date: 2011-9-12 page(s): 10, 15
13
lOcaTION OF TraNSMITTer
Select a location for the Transmitter that is within 100 feet of the Base Unit. For
the best results, the Transmitter should not be placed in direct sunlight, where water
may accumulate, or near other electronic devices.
lOcaTION OF BaSe UNIT
Select a location for the Base Unit that is within 100 feet of the Transmitter. For
best results, the Base Unit should be placed in an area where it will not be exposed
to extreme temperatures from heaters, air conditioners, etc.
calIBraTINg THe INITIal FOrecaST
After 72 hours, if the unit is not showing an appropriate forecast, the initial forecast
may need to be reset. Make sure to calibrate when weather conditions are well
defined (for example; very clear or currently raining).
1. Remove the REAR COMPARTMENT DOOR.
2. Press and hold the FORECAST button for 3 seconds until the WEATHER
FORECAST ICONS start to flash.
3. Using the + and – buttons, scroll through the WEATHER FORECAST ICONS
and select the one that best represents the current weather.
4. Press the Forecast button to save and set the current Forecast.
5. Replace the rear compartment door.
10
accessorIes
ADAPTER
STAND
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 11 / 12 Date: 2011-9-12 page(s): 14, 11
seT uP
BASE UNIT
1. Remove REAR COMPARTMENT DOOR and plug in ADAPTER.
2. Push STAND into STAND SOCKET.
SETTING THE INITIAL FORECAST
When the Base Unit is first plugged in, the cloudy WEATHER FORECAST ICON
will flash. The forecast must then be set so the unit can predict the future forecast.
We recommend setting the initial forecast during daylight conditions.
1. Remove the REAR COMPARTMENT DOOR.
2. Using the + or – buttons, scroll through the WEATHER FORECAST ICONS
(shown below) and select the one that best represents the current weather.
Cloudy Partly Cloudy
Rain
Clear
Thunderstorm
Note: You will not see the snow icon when setting the forecast. Snow cannot be
selected as a Forecast when setting the initial forecast. If it is snowing, rain must
11
be selected. The unit will determine if it is raining or snowing, due to temperature.
When the unit shows the forecast, the Snow icon will display if Snow is predicted.
3. Replace the REAR COMPARTMENT DOOR after setting the initial forecast.
4. After initial set up, approximately 48 hours are needed before the weather
forecast is accurate. Once the weather forecast is accurate, the unit will forecast
weather 6-8 hours ahead.
Note: As with all weather forecasting, an absolute accurate forecast cannot be
guaranteed due to sudden weather changes.
TRANSMITTER
1. Unscrew and remove the BATTERY DOOR.
2. Insert two AAA batteries (not included) according to the polarity indicators
inside the compartment.
3. Replace BATTERY DOOR and tighten screw to secure.
Note: A low battery icon will appear on the Base Unit display when the
Transmitter batteries are low.
SYNCING THE BASE UNIT WITH THE TRANSMITTER
Once the Base Unit is plugged in, and batteries are placed in the Transmitter,
the Transmitter will automatically send the temperature and humidity to the
Base Unit. The LED on the Transmitter blinks during transmission.
After a few minutes, if the temperature and humidity do not show on the Base Unit
display, press and hold the SYNC button on the Base Unit for 3 seconds to sync the
Base Unit with the Transmitter.
12
683219_INS_MyWeather Wireless Transmitter
Size:5”Wx4.75”H_Output:100%_Prints:1/1,Blk
Cyan Magenta Yellow Black
www.croptima.com
683219_INS_MyWeather Wireless Transmitter.indd Sheet: 12 / 12 Date: 2011-9-12 page(s): 12, 13
