Before you can use the machine, you must set up the hardware and install the software.
Please read this “Quick Setup Guide” for the correct setup procedure and installation
instructions.
Keep this “Quick Setup Guide”, User’s Guide and supplied CD-ROM in a convenient place for
quick and easy reference at all times.
Step 1
Setting Up the Machine
Step 2
Installing the Drivers & Software
Setup is Complete!
Installing the Drivers & Software
Setting Up
the Machine
Windows®
USB
Windows®
Parallel
Windows
NT® 4.0
Parallel
Macintosh®
USB
Macintosh®
Optional Wireless
Network
Windows®
Optional Wireless
Network
DCP-7020
Quick Setup Guide
1
Carton components may differ from one country to another.
Save all packing materials and the carton.
Carton Components
Quick Setup Guide
CD-ROMs
For Windows®
For Macintosh®
User’s Guide
Drum Unit Assembly
(including Starter Toner Cartridge)
AC Power Cord Accessory Order Form
(USA/Canada only)
The interface cable is not a standard accessory. Please purchase the appropriate interface cable for the
interface you intend to use (Parallel or USB).
■USB interface cable
Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2.0 meters).
Do not connect the USB cable to a non-powered hub or a Mac® keyboard.
When you use a USB cable, make sure you connect it to the USB port of your computer and not to a
USB port on a keyboard or a non-powered USB hub.
■Parallel interface cable
Please make sure you use a Parallel interface cable that is no longer than 6 feet (2.0 meters).
Use a shielded interface cable that is IEEE 1284-compliant.
When you move the machine, grasp the side handholds that are under the scanner. Do NOT carry the
machine by holding it at the bottom.
DCP
1
7
9
2
3
4
5
6
8

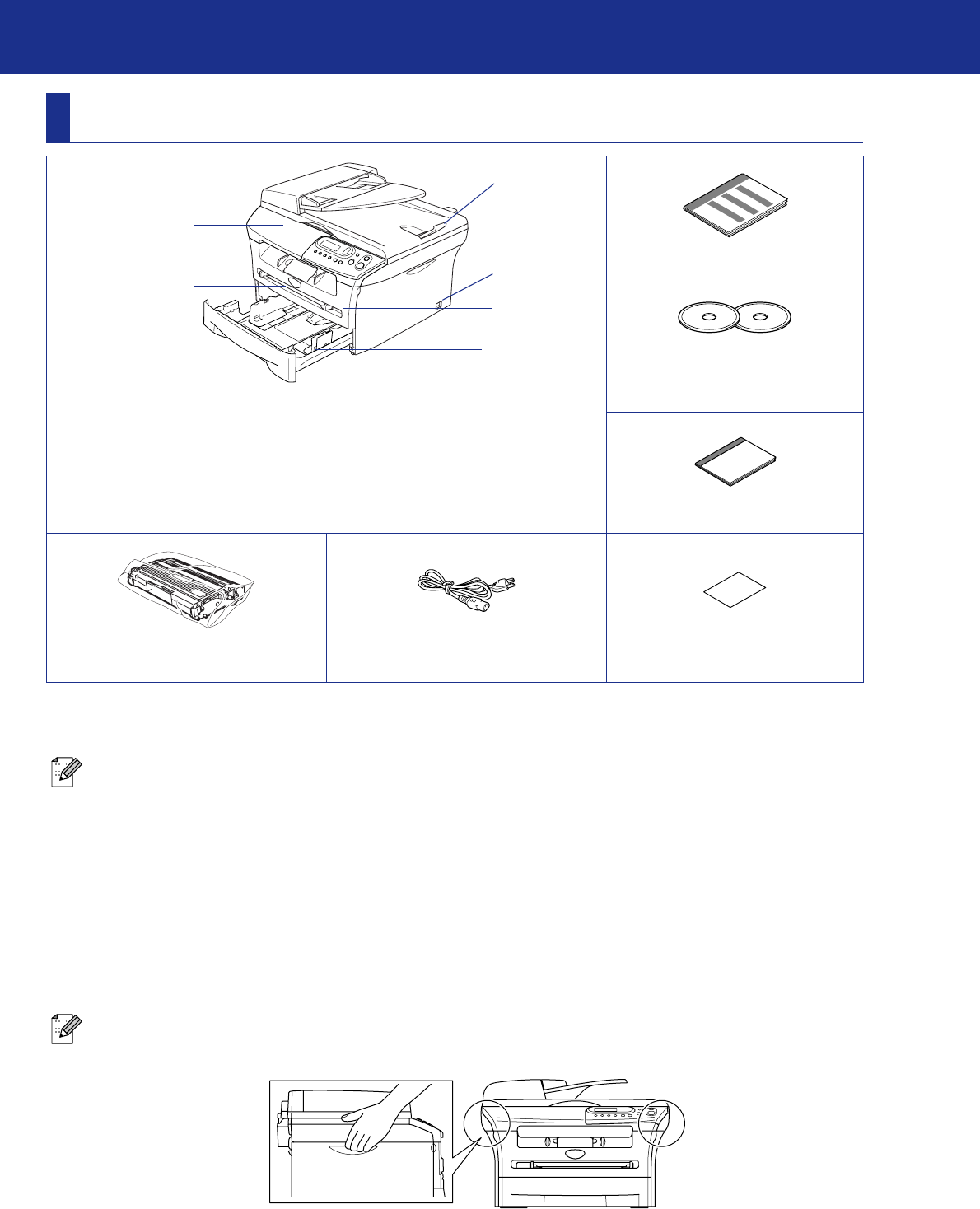

1. Automatic Document Feeder (ADF)
2. Control Panel
3. Face-down Output Tray
Support Flap with Extension
(Support Flap)
4. Manual Feed Slot
5. Paper Tray
6. Front Cover
7. Power Switch
8. Document Cover
9. ADF Document Output Support
Flap
■Getting Started
2
Control Panel

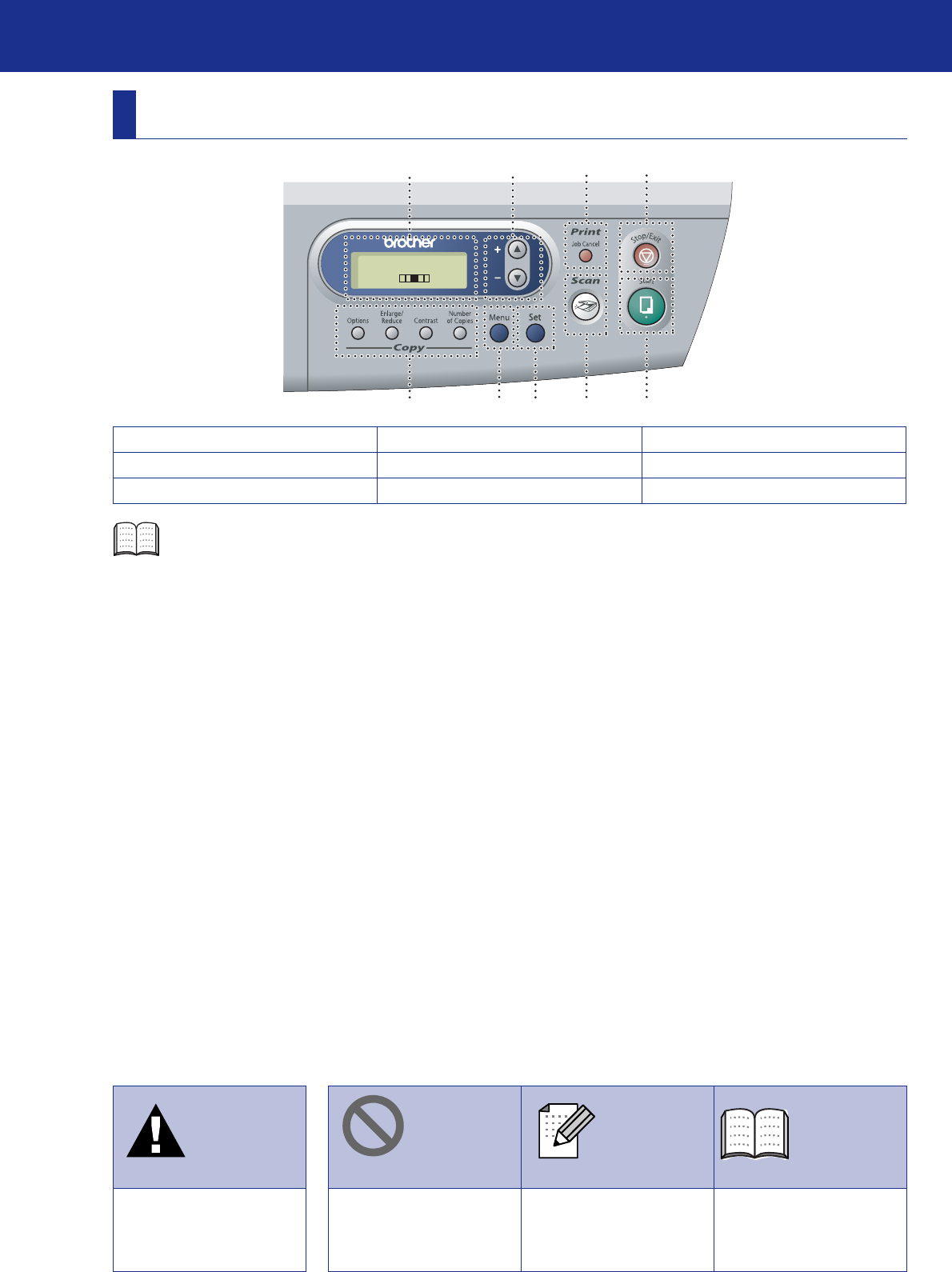

1. Liquid Crystal Display (LCD) 2. Navigation keys 3. Job Cancel key
4. Stop/Exit key 5. Start key 6. Scan key
7. Set key
8. Menu key 9. Copy keys (Temporary Settings)
For the details of the control panel, see "Control panel overview" in Chapter 1 of the User’s Guide.
Warning Improper Setup Hint User’s Guide
Indicates warnings that
must be observed to
prevent possible
personal injury.
Alerts you to devices and
operations that are not
compatible with the
machine.
Indicates notes and
useful tips to remember
when using the machine.
Indicates reference to the
User’s Guide.
Stack Copies:01
100% Auto
1 2
3
4
56789
3
Table of Contents
Setting Up the Machine
1. Install the Drum Unit Assembly ........................................................................ 4
2. Load Paper in the Paper Tray ...........................................................................5
3. Install the Power Cord ....................................................................................... 6
4. Selecting Your Language (Canada Only)......................................................... 6
5. Setting the LCD Contrast ..................................................................................6
Installing the Drivers & Software
Supplied CD-ROM “MFL-Pro Suite”..................................................................... 8
For USB Interface Cable Users
■For Windows® 98/98SE/Me/2000 Professional/XP ...........................................10
For Parallel Interface Cable Users
■For Windows® 98/98SE/Me/2000 Professional/XP ...........................................13
For Windows NT® Workstation Version 4.0 Users ........................................... 16
For Optional NC-2200w Users
■External Wireless Print/Scan Server Users......................................................18
For USB Interface Cable Users
■For Mac OS® 9.1 to 9.2 .......................................................................................20
■For Mac OS® X 10.2.4 or greater........................................................................22
For Optional NC-2200w Users
■For Mac OS® X 10.2.4 or greater........................................................................25
■ Options and Consumables
Options................................................................................................................. 28
Replacement Consumables................................................................................ 28
Step 1
Step 2
4
Setting Up the Machine
Do NOT connect the interface cable.
Connecting the interface cable is
done when installing the driver.

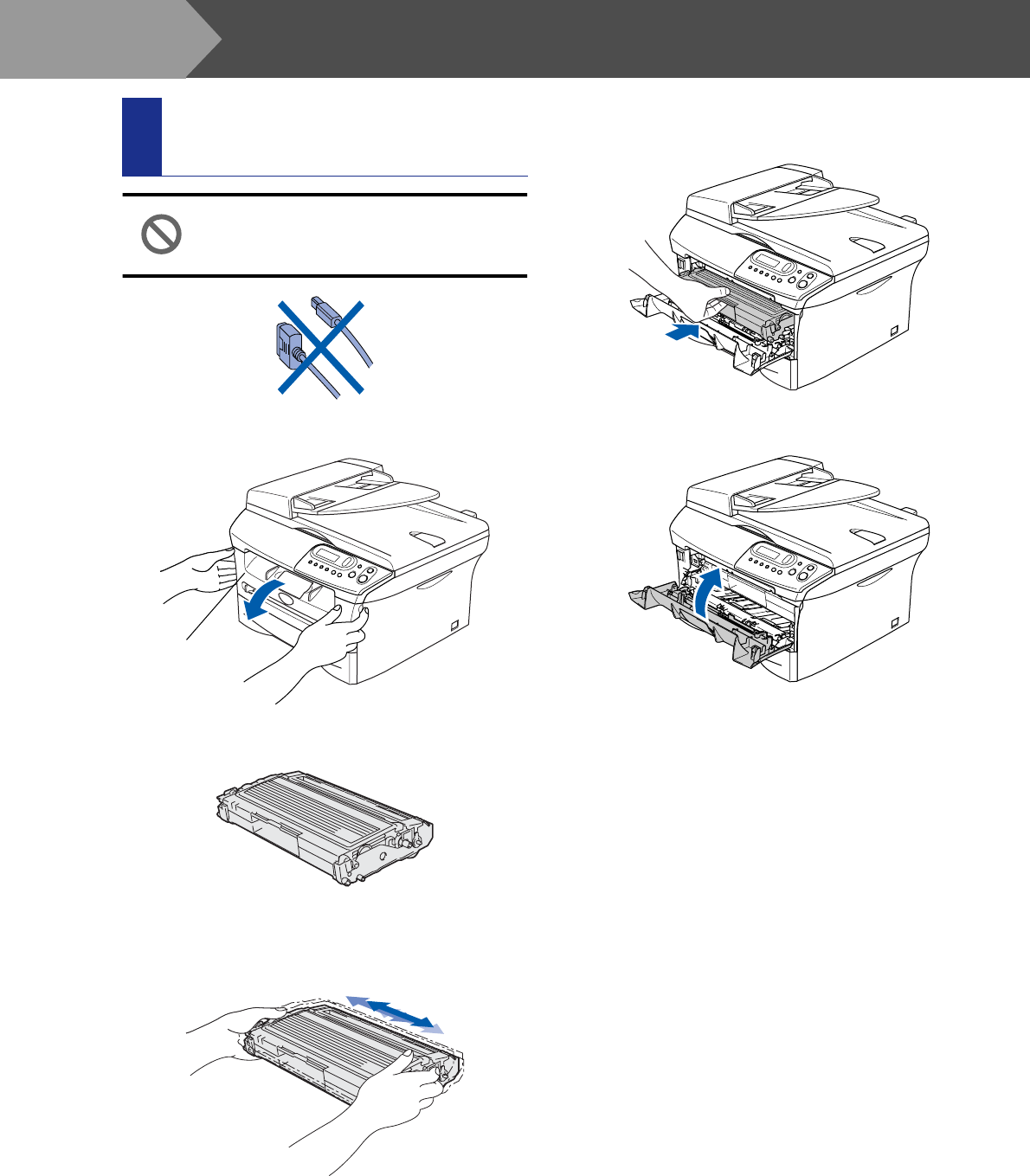

1Open the front cover of the machine.
2Unpack the drum unit assembly.
3Gently rock it from side to side several times
to distribute the toner evenly inside the
assembly.
4Put the drum unit assembly into the
machine.
5Close the front cover of the machine.
1Install the Drum Unit
Assembly
Front Cover
Step 1
5
Setting Up
the Machine
Windows®
USB
Windows®
Parallel
Windows
NT® 4.0
Parallel
Macintosh®
USB
Macintosh®
Optional Wireless
Network
Windows®
Optional Wireless
Network

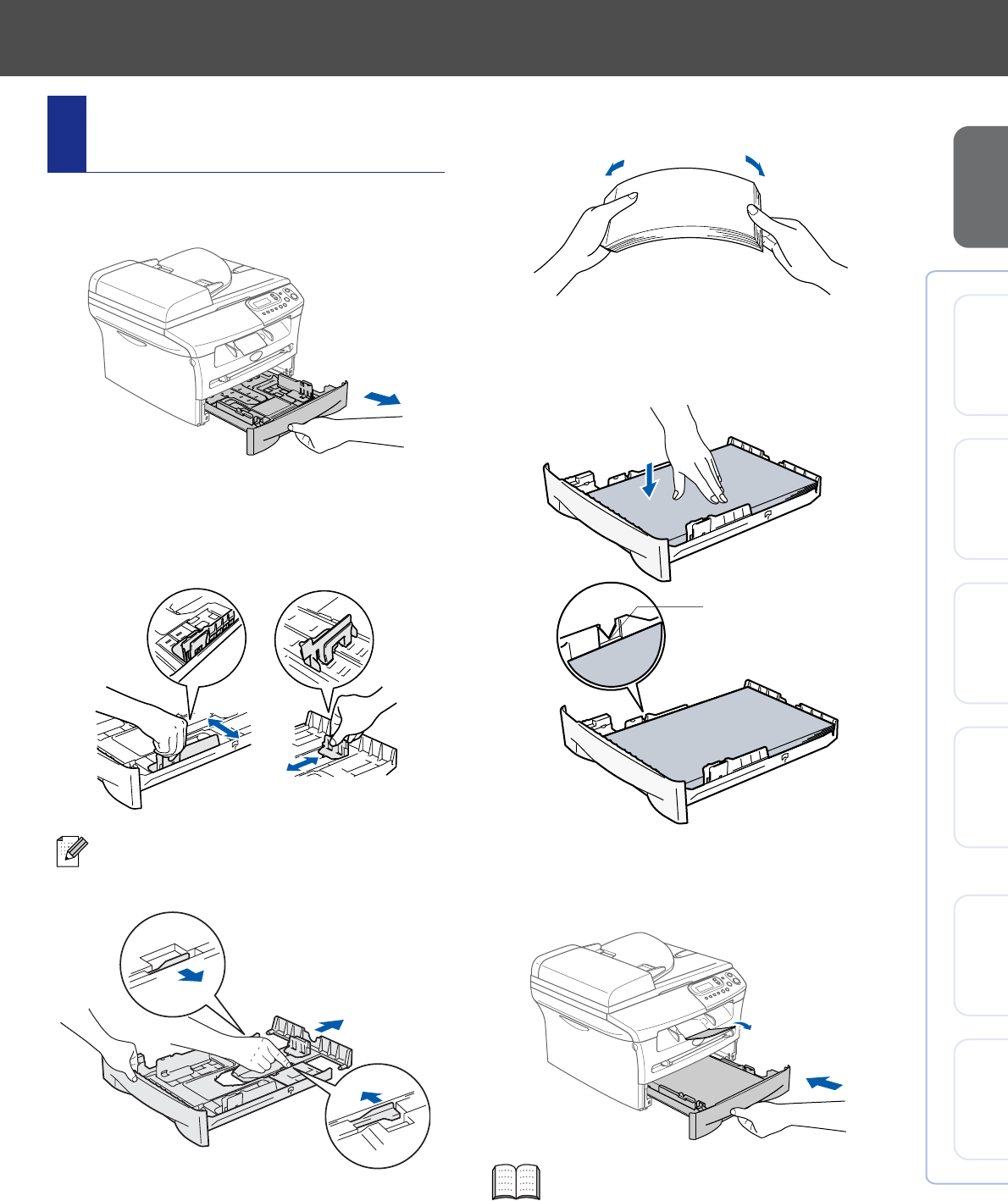

1Pull the paper tray completely out of the
machine.
2While pressing the paper guide release
lever, slide the adjusters to fit the paper
size. Check that the guides are firmly in the
slots.
3Fan the stack of paper well to avoid paper
jams and misfeeds.
4Put paper in the paper tray.
Check that the paper is flat in the tray and
below the maximum paper mark.
5Put the paper tray firmly back in to the
machine and unfold the output tray support
flap before you use the machine.
2Load Paper in the Paper
Tray
For Legal size paper, press in the inside
latches and pull out the back of the paper
tray.
For details on supported paper specifications,
see “About paper” in Chapter 1 of the User’s
Guide.
Maximum paper mark
6
Setting Up the Machine
Do not connect the Parallel or USB
cable yet.

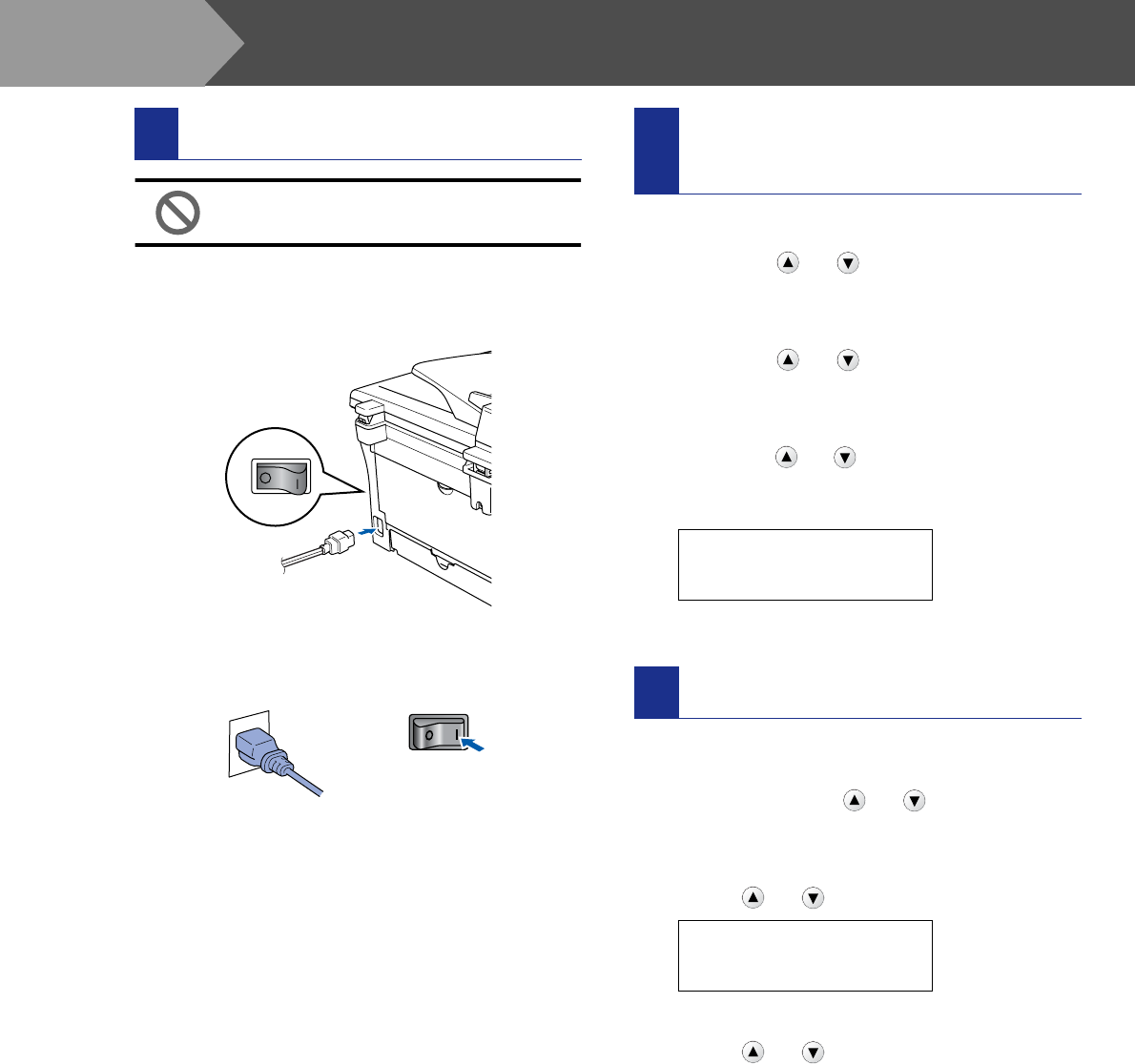

1Make sure that the power switch is off.
Connect the AC power cord to the machine.
2Plug the AC power cord into an AC outlet.
Turn the power switch on.
1Press Menu.
2Press the or to select
1.General Setup.
Press Set.
3Press the or to select
0.Local Language.
Press Set.
4Press the or to select your language
(English or Français), and then press
Set.
5Press Stop/Exit.
You can change the contrast to help the LCD look
lighter or darker.
1Press Menu and or to select
1.General Setup.
Press Set.
2Press or to select 5.LCD Contrast.
Press Set.
3Press or to select Light or Dark.
Press Set.
4Press Stop/Exit.
3Install the Power Cord 4Selecting Your
Language (Canada Only)
Local Language
English
5Setting the LCD Contrast
General Setup
5.LCD Contrast
Step 1
7
Setting Up
the Machine
Windows®
USB
Windows®
Parallel
Windows
NT® 4.0
Parallel
Macintosh®
USB
Macintosh®
Optional Wireless
Network
Windows®
Optional Wireless
Network
Continue to Step 2,
Installing the Drivers & Software
8
Installing the Drivers & Software

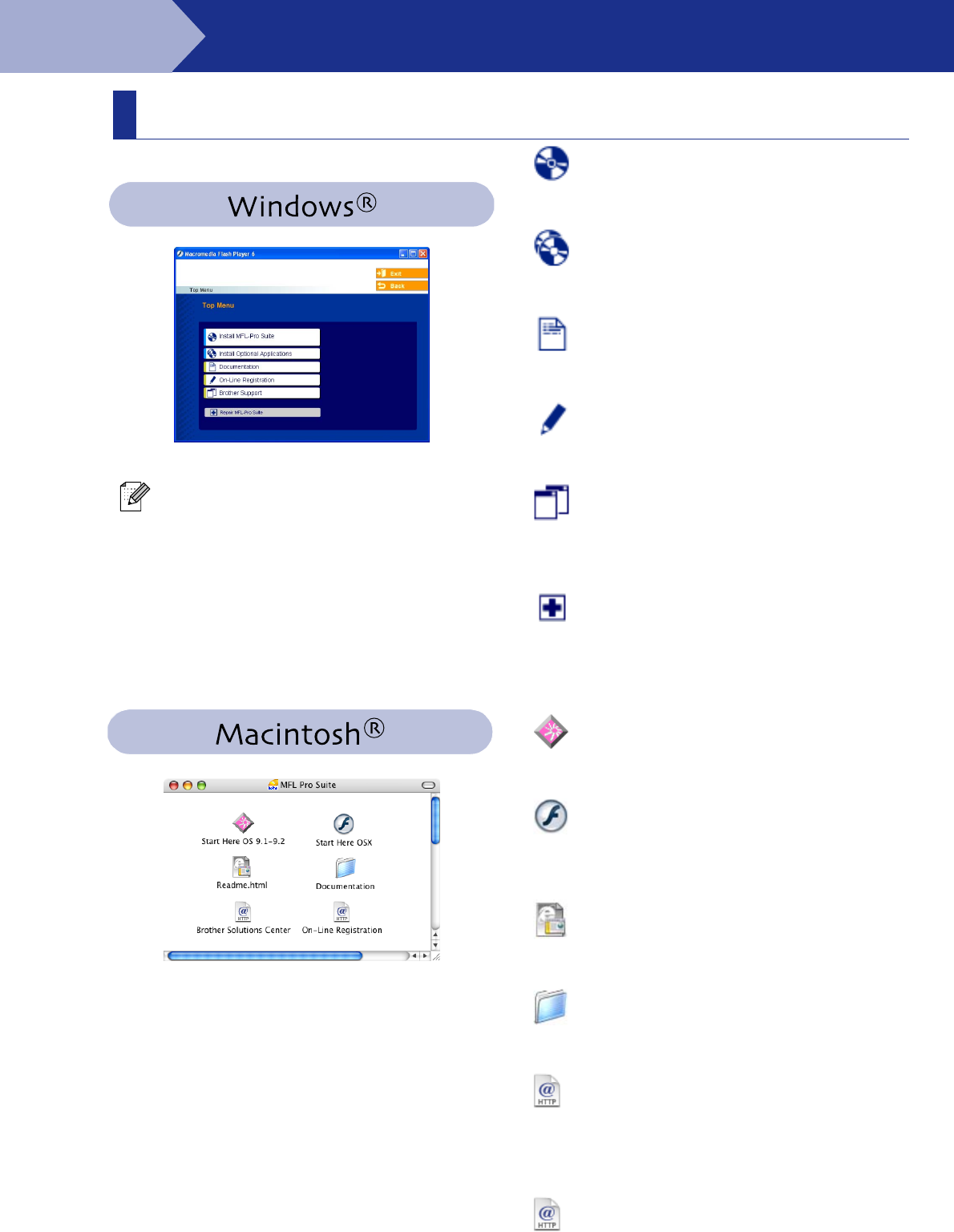

The CD-ROM includes the following items:
Install MFL-Pro Suite
You can install the MFL-Pro Suite and multifunction
drivers.
Install Optional Applications
You can install additional MFL-Pro Suite software
utilities.
Documentation*1
View the User’s Guide and other documentation in
PDF format (Viewer included).
On-Line Registration
You will be pointed to the Brother Product Registration
Web page for quick registration of your machine.
Brother Support
View contact information for Brother Customer
Service and how to locate a Brother Authorized
Service Center.
Repair MFL-Pro Suite
If you experience errors while installing the MFL-Pro
Suite, you can use this function to automatically repair
and re-install the software.
Start Here OS 9.1-9.2
You can install the printer driver, scanner driver and
Presto!® PageManager® for Mac OS® 9.1 - 9.2.
Start Here OSX
You can install the printer driver, scanner driver and
Presto!® PageManager® for Mac OS® 10.2.4 or
greater.
Readme.html
You can get important information and
troubleshooting tips.
Documentation*1
View the User’s Guide and other documentation in
PDF format.
Brother Solutions Center
You can access the Brother Solutions Center, a Web
site offering information about your Brother product
including FAQs, User’s Guides, Driver updates and
Tips for using your machine.
On-Line Registration
You will be pointed to the Brother Product Registration
Web Page for quick registration of your machine.
Supplied CD-ROM “MFL-Pro Suite”
MFL-Pro Suite includes Printer Driver, Scanner
Driver, ScanSoft
®
PaperPort
®
9.0SE,
ScanSoft
®
OmniPage
®
and True Type
®
fonts.
PaperPort® 9.0SE is a document management
application for viewing scanned documents.
ScanSoft ® OmniPage®, which is integrated
into PaperPort® 9.0SE, is an OCR application
that converts an image into text and inserts it
into your default word processor.
*1The User’s Guide on the CD-ROM includes the
Software User’s Guide for features available
when connected to a computer (e.g. Printing and
scanning).
Step 2
9
Setting Up
the Machine
Windows®
USB
Windows®
Parallel
Windows
NT® 4.0
Parallel
Macintosh®
USB
Macintosh®
Optional Wireless
Network
Windows®
Optional Wireless
Network
Installing the Drivers & Software
Follow the instructions on this page for your operating system and interface cable.
For the latest drivers and to find the best solution for your problem or question, access the
Brother Solutions Center directly from the driver or go to http://solutions.brother.com
Step 2
USB Interface Cable Users .......................................... Go to page 10
(For Windows® 98/98SE/Me/2000 Professional/XP)
Parallel Interface Cable Users ..................................... Go to page 13
(For Windows® 98/98SE/Me/2000 Professional/XP)
Windows NT® Workstation Version 4.0 Users........... Go to page 16
(For Parallel Interface Cable Users)
Optional NC-2200w Users
■For Mac OS® X 10.2.4 or greater ............................. Go to page 25
Optional NC-2200w Users............................................ Go to page 18
(External Wireless Print/Scan Server)
USB Interface Cable Users
■For Mac OS® 9.1 to 9.2 ............................................. Go to page 20
■For Mac OS® X 10.2.4 or greater ............................. Go to page 22
10
Installing the Drivers & Software
Make sure that you have completed the instructions from Step 1 “Setting Up
the Machine” on pages 4 - 6.

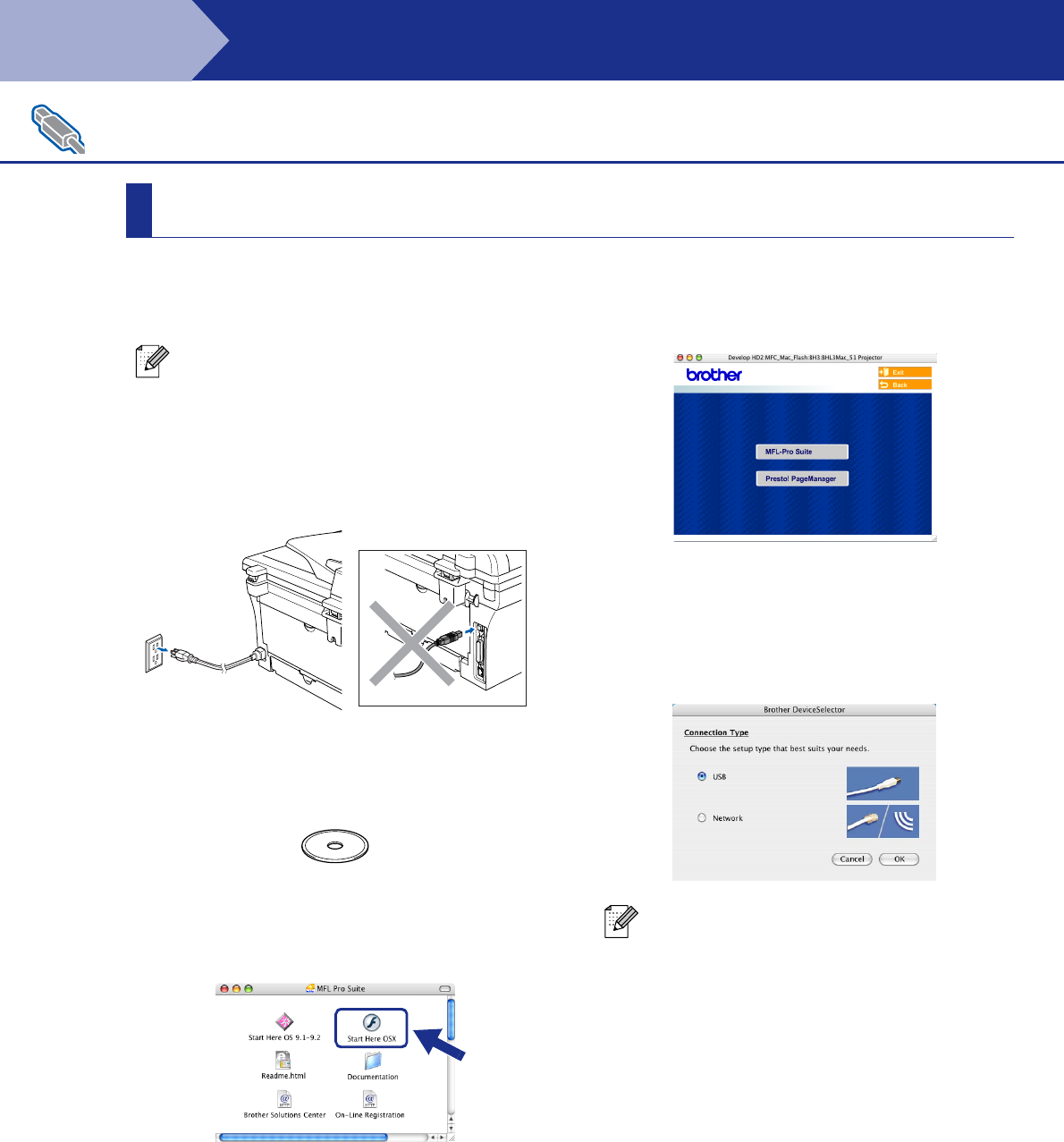

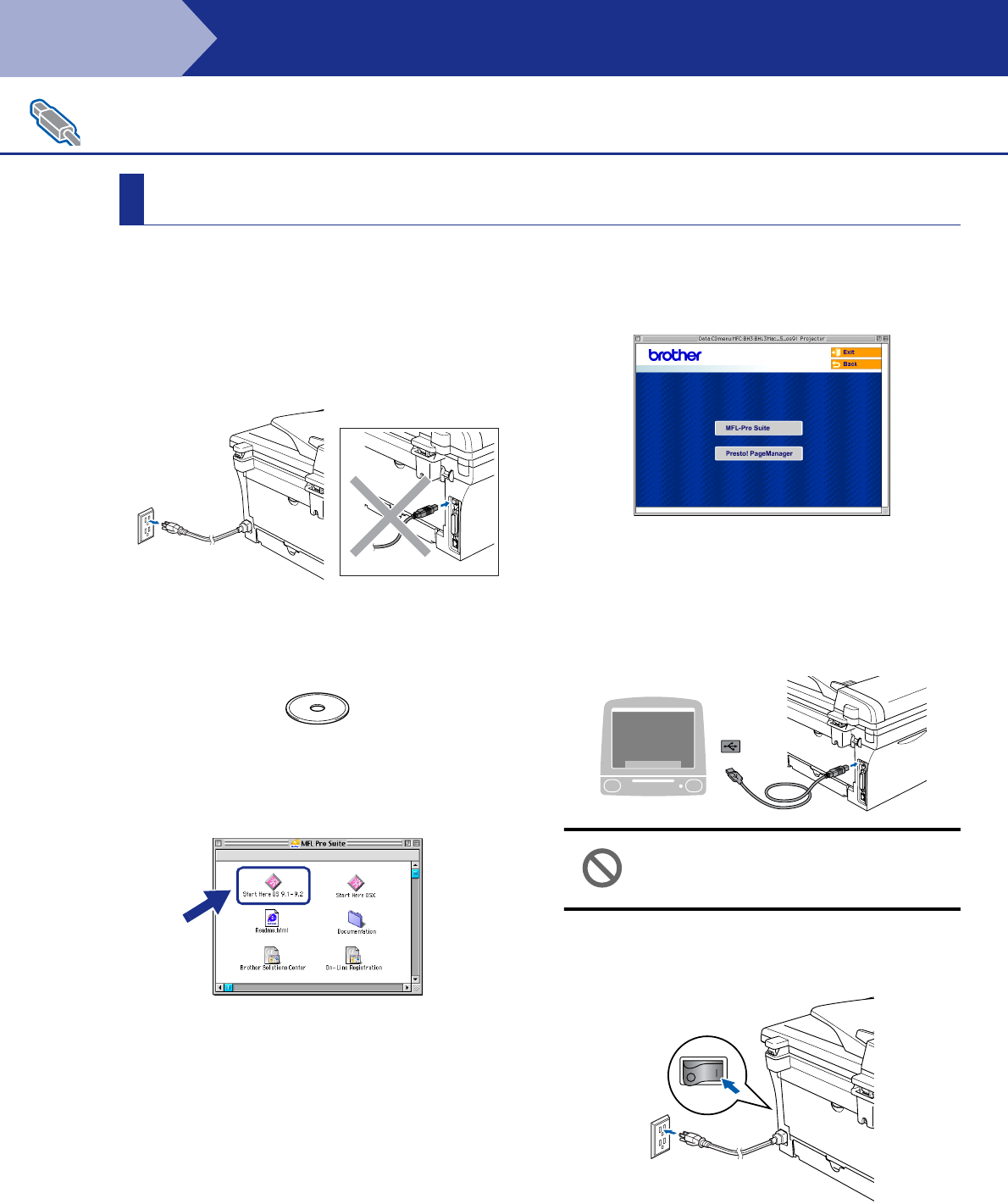

1Turn off and unplug the machine from the
AC outlet and disconnect it from your
computer, if you already connected an
interface cable.
2Turn on your computer.
(For Windows® 2000 Professional/XP, you
must be logged on with Administrator
rights.)

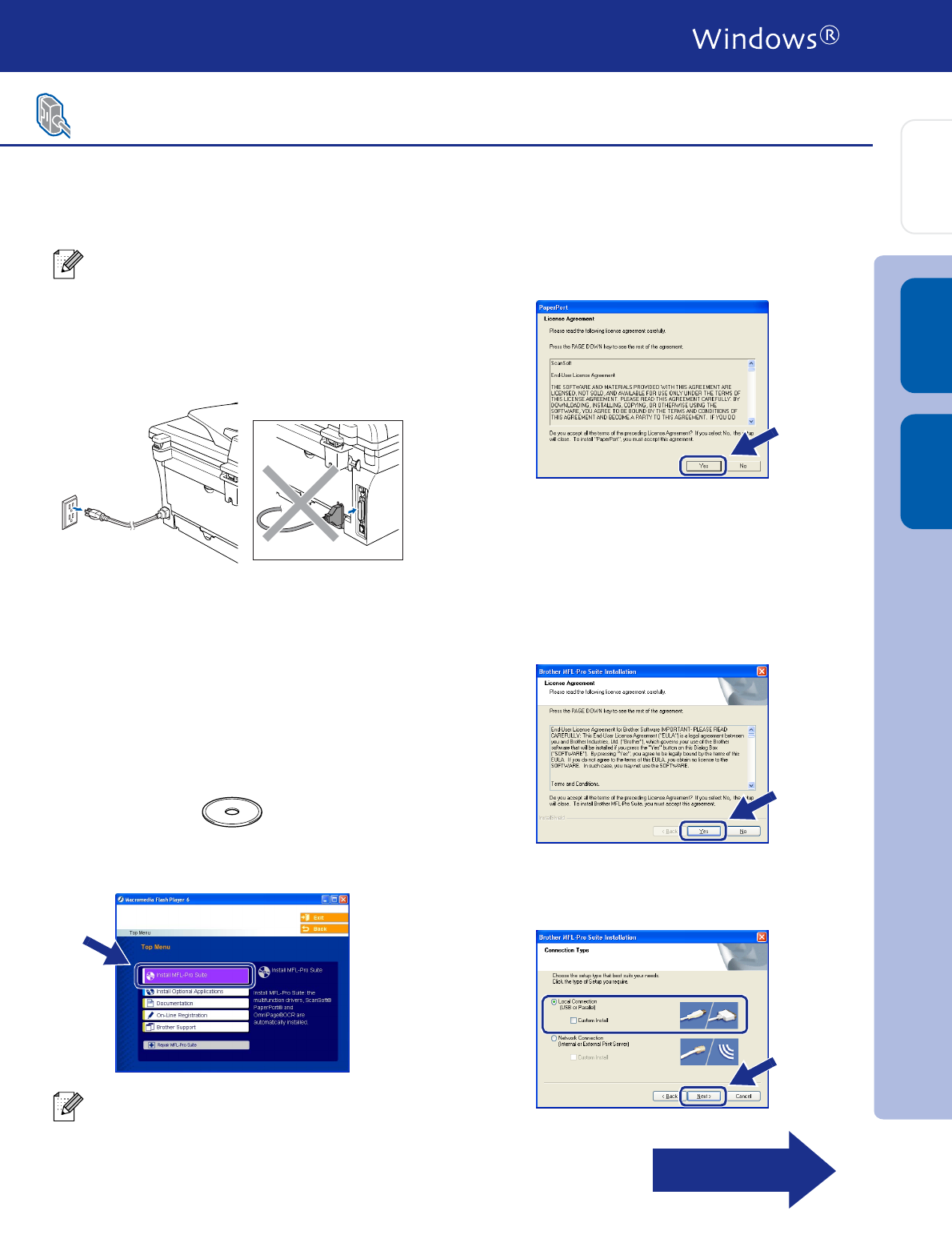

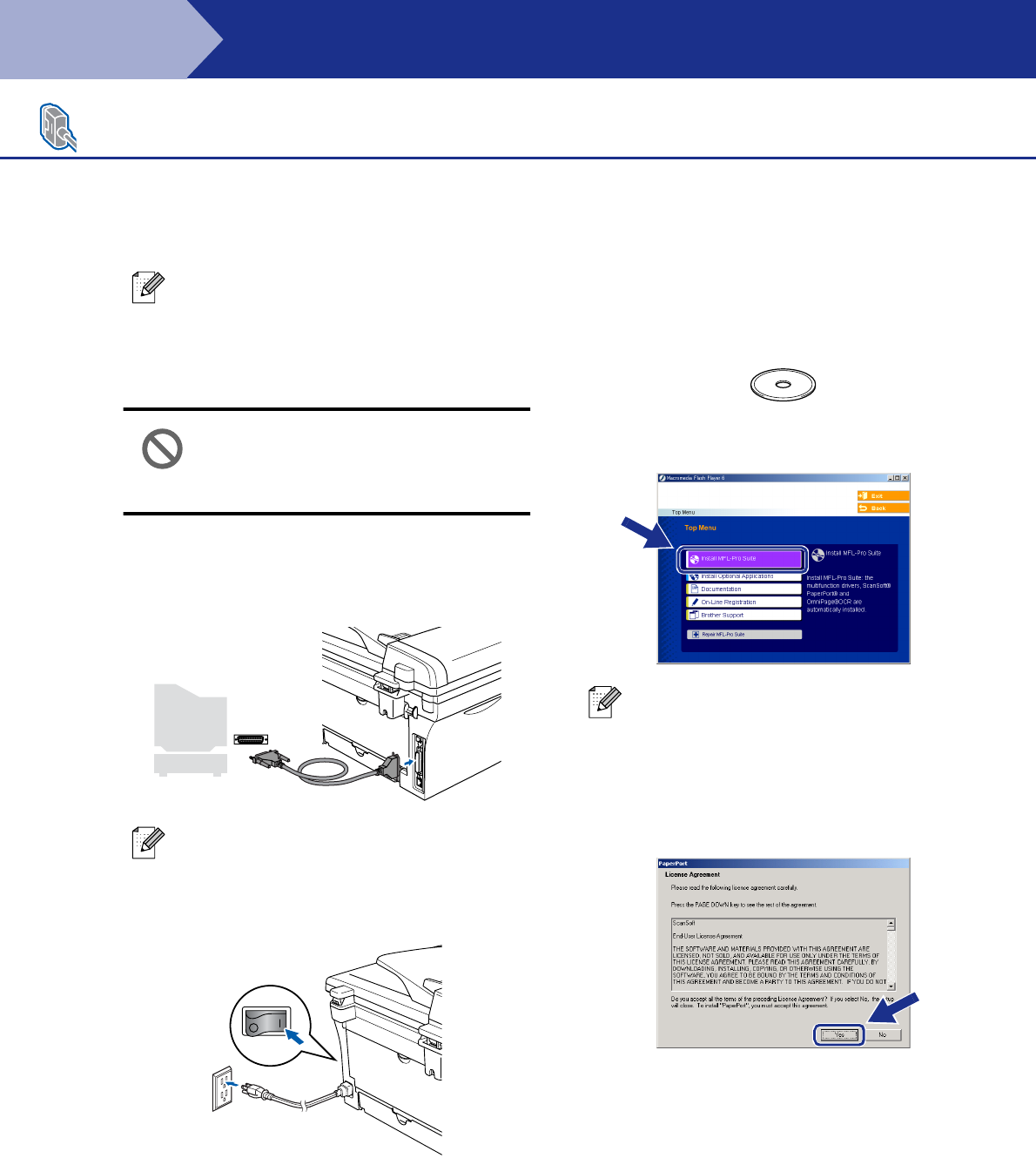

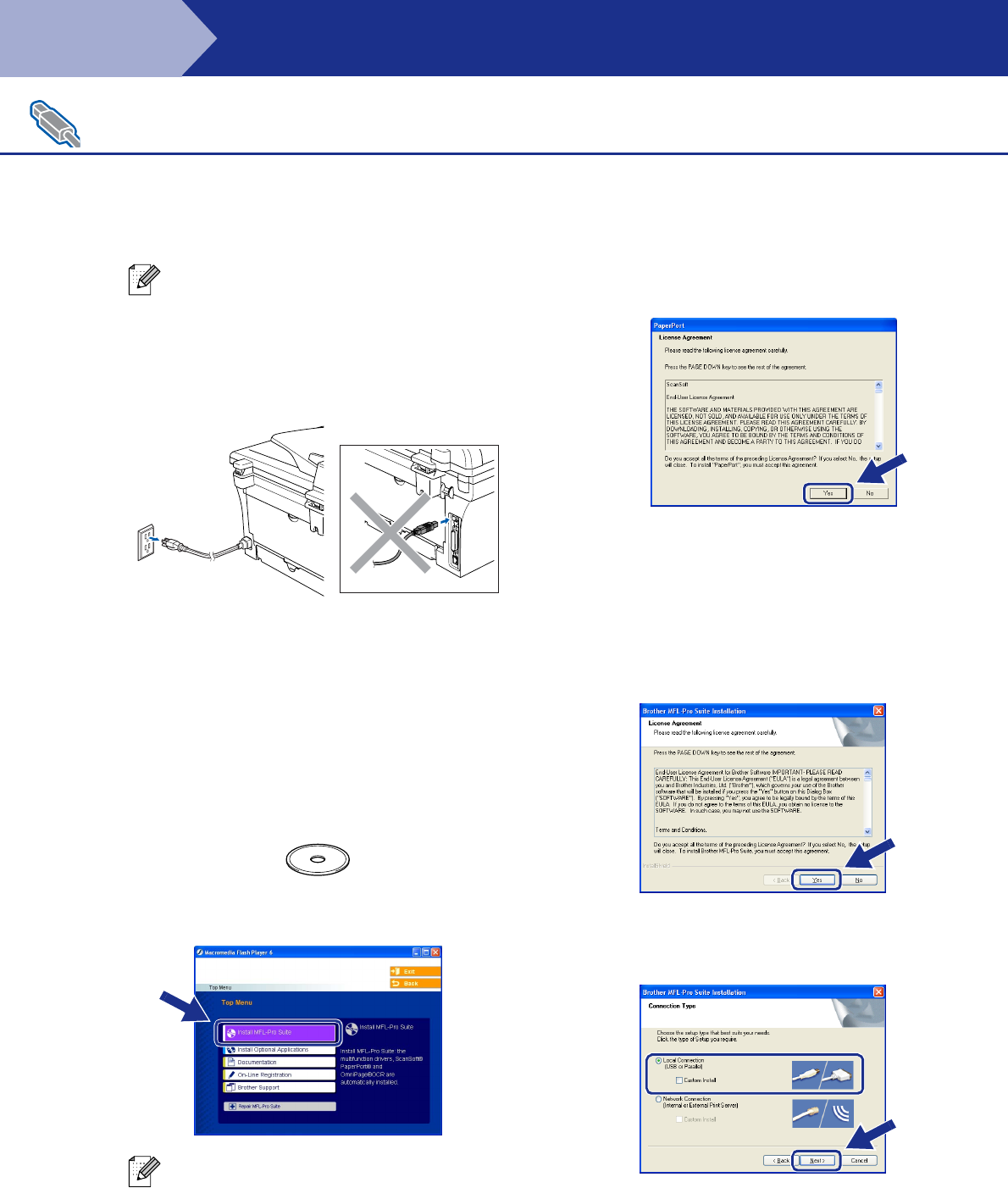

3Insert the supplied CD-ROM for Windows®
into your CD-ROM drive. If the model name
screen appears, select your machine. If the
language screen appears, select your
language.
4The CD-ROM main menu will appear.
Click Install MFL-Pro Suite.
5After reading and accepting the ScanSoft®
PaperPort® 9.0SE License Agreement, click
Yes.
6The installation of PaperPort® 9.0SE will
automatically start and is followed by the
installation of MFL-Pro Suite.

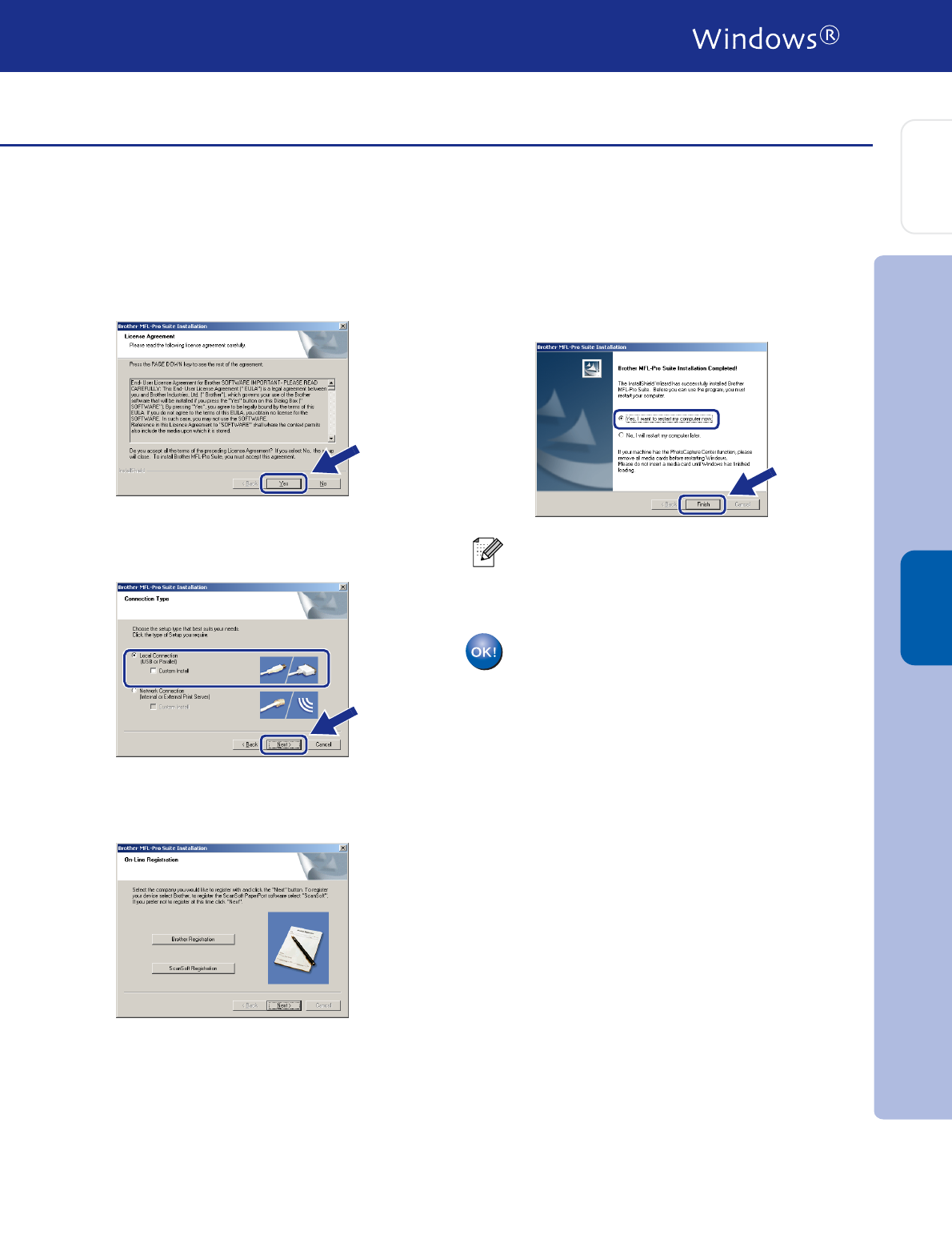

7When the Brother MFL-Pro Suite Software
License Agreement window appears, read
the agreement, then click Yes if you agree
to its terms.
8Select Local Connection, and then click
Next.
The installation will continue.
For USB Interface Cable Users
(For Windows® 98/98SE/Me/2000 Professional/XP)
Please close any applications running before
installing the MFL-Pro Suite.
If this window does not appear, use
Windows® Explorer to run the setup.exe
program from the root directory of the Brother
CD-ROM.
Step 2
11
9When this screen appears, connect the
USB interface cable to your PC, and then
connect it to the machine.
(For Windows® XP)
(For Windows® 98/98SE/Me/2000)
DO NOT connect the machine to a
USB port on a keyboard or a non-
powered USB hub.
0Plug in the power cord and turn on the
machine.
It will take a few seconds for the installation
screen to appear.
The installation of the Brother drivers will
automatically start. The screens appear one
after another, please wait, it will take a few
seconds for all the screens to appear.
DO NOT try to cancel any of the
screens during this installation.
AWhen the On-Line Registration screen is
displayed, make your selection and follow
the on-screen instructions.
Brother recommends that you connect the
machine directly to your computer.
Continued ...
Installing the Drivers & Software
Setting Up
the Machine
Windows®
USB
12
Installing the Drivers & Software
BClick Finish to restart your computer.
(After restarting the computer, for
Windows® 2000 Professional/XP, you must
be logged on with Administrator rights.)
The MFL-Pro Suite, Brother Printer
Driver and Scanner driver have been
installed and the installation is now
complete.
For USB Interface Cable Users
(For Windows® 98/98SE/Me/2000 Professional/XP)
If the installation is unsuccessful, try installing
again using Repair MFL-Pro Suite from the
CD-ROM main menu.
Select Repair MFL-Pro Suite and follow the
instructions on the screen.
Step 2
13
Make sure that you have completed the instructions from Step 1 “Setting Up
the Machine” on pages 4 - 6.
1Turn off and unplug the machine from the
AC outlet and disconnect it from your
computer, if you already connected an
interface cable.
2Turn on your computer.
(For Windows® 2000 Professional/XP, you
must be logged on with Administrator
rights.)
3Insert the supplied CD-ROM for Windows®
into your CD-ROM drive. If the model name
screen appears, select your machine. If the
language screen appears, select your
language.
4The CD-ROM main menu will appear.
Click Install MFL-Pro Suite.
5After reading and accepting the ScanSoft®
PaperPort® 9.0SE License Agreement, click
Yes.
6The installation of PaperPort® 9.0SE will
automatically start and is followed by the
installation of MFL-Pro Suite.
7When the Brother MFL-Pro Suite Software
License Agreement window appears, read
the agreement, then click Yes if you agree
to its terms.
8Select Local Connection, and then click
Next.
The installation will continue.
For Parallel Interface Cable Users
(For Windows® 98/98SE/Me/2000 Professional/XP)
Please close any applications running before
installing the MFL-Pro Suite.
If this window does not appear, use
Windows® Explorer to run the setup.exe
program from the root directory of the Brother
CD-ROM. Continued ...
Installing the Drivers & Software
Setting Up
the Machine
Windows®
Parallel
Windows®
USB
14
Installing the Drivers & Software

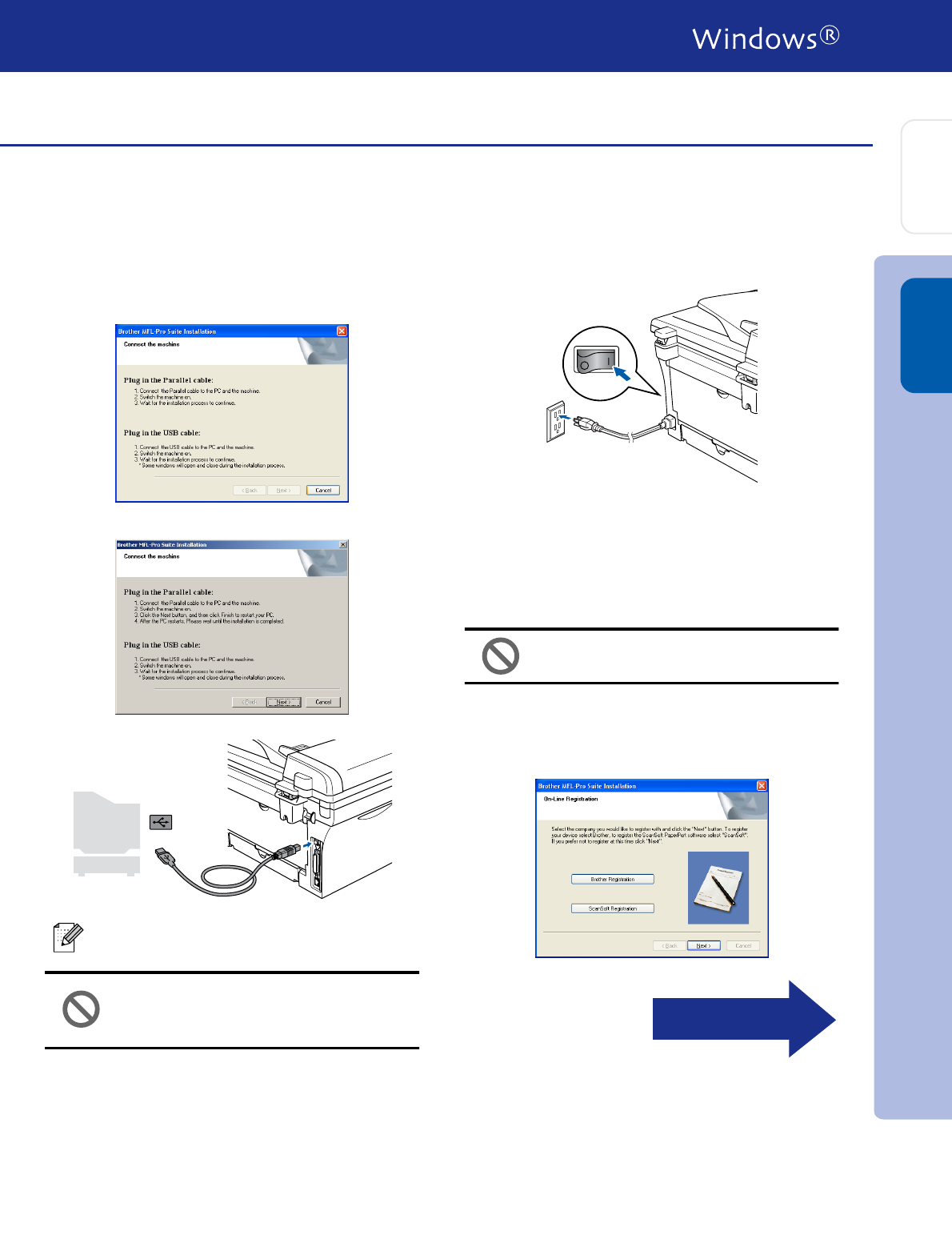

9When this screen appears, connect the
parallel interface cable to your PC, and then
connect it to the machine.
(For Windows® XP)
(For Windows® 98/98SE/Me/2000)

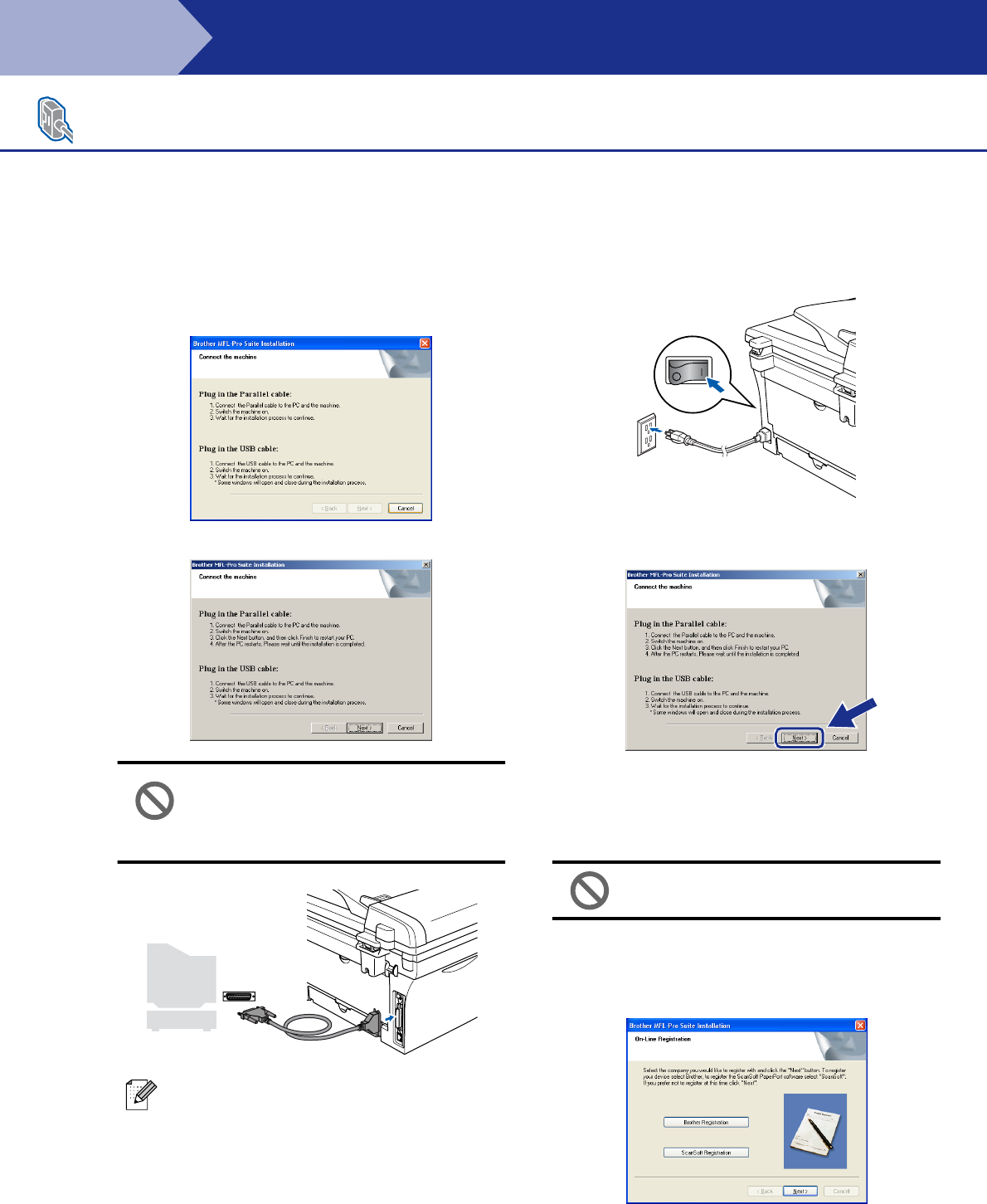

DO NOT plug in the power cord
before connecting the parallel
interface cable. It may cause
damage to your machine.
0Plug in the power cord and turn on the
machine.
AFor Windows® 98/98SE/Me/2000
Professional users, click Next.
For Windows® XP users, wait for a while
since the installation of the Brother drivers
will automatically start. The screens appear
one after another.
DO NOT try to cancel any of the
screens during this installation.
BWhen the On-Line Registration screen is
displayed, make your selection and follow
the on-screen instructions.
For Parallel Interface Cable Users
(For Windows® 98/98SE/Me/2000 Professional/XP)
Brother recommends that you connect the
machine directly to your computer.
Step 2
15
CWhen the following screen appears, click
Finish and wait as the PC restarts
Windows® and continues the installation.
DAfter the computer restarts, the installation
of the Brother drivers will automatically start.
Follow the instructions on the screen.
(For Windows® 2000 Professional/XP, you
must be logged on with Administrator
rights.)

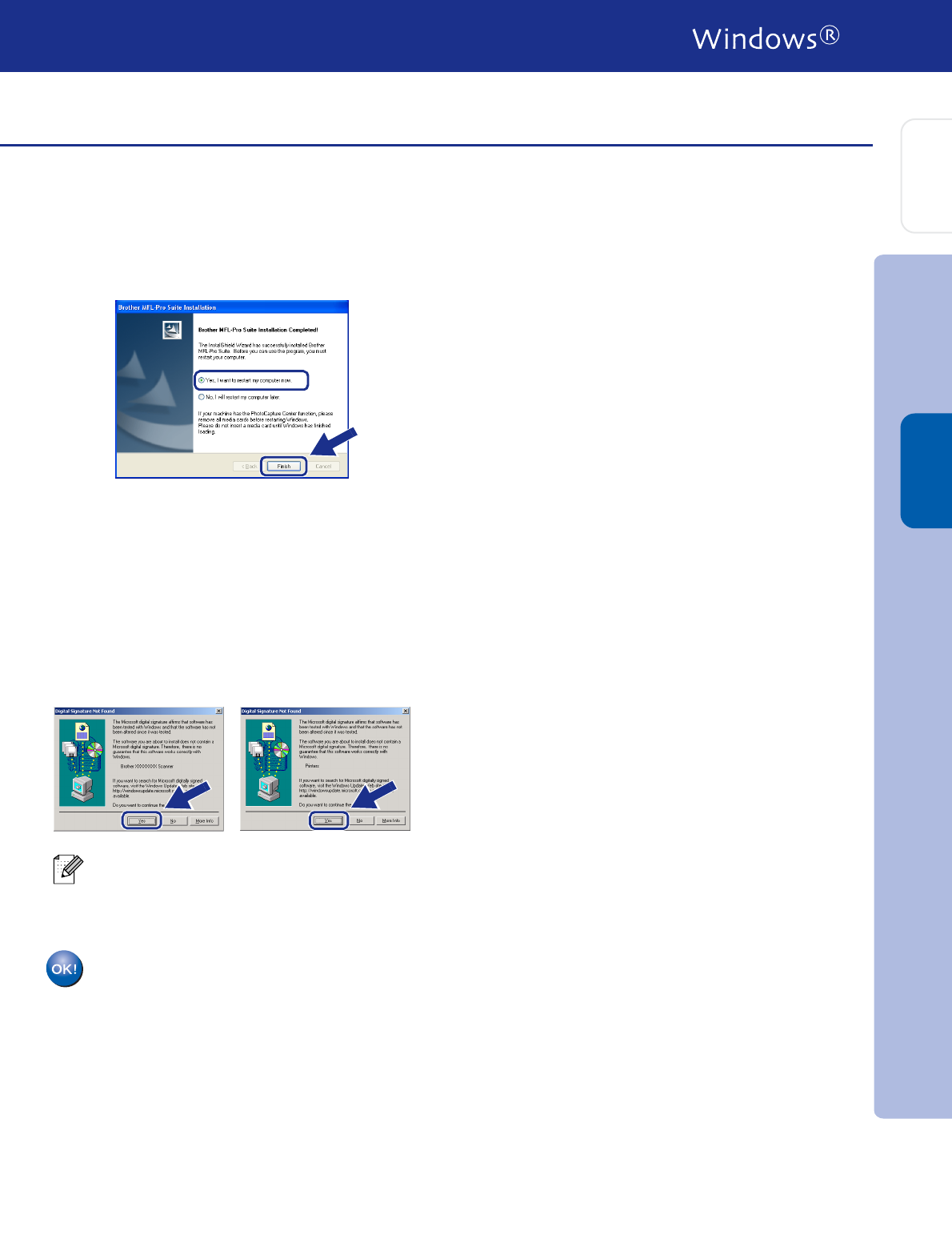

EFor Windows® 2000 Professional users, if
the Digital Signature Not Found dialog
boxes appear, click Yes to install the driver.
The MFL-Pro Suite, Printer driver and
Scanner driver have been installed and
the installation is now complete.
If the installation is unsuccessful, try installing
again using Repair MFL-Pro Suite from the
CD-ROM main menu.
Select Repair MFL-Pro Suite and follow the
instructions on the screen.
Installing the Drivers & Software
Setting Up
the Machine
Windows®
Parallel
16
Installing the Drivers & Software
Make sure that you followed the instructions from Step 1 “Setting Up the
Machine” on pages 4 - 6.
1Turn on your computer.
You must be logged on with Administrator
rights.
DO NOT plug in the power cord
before connecting the parallel
interface cable. It may cause
damage to your machine.
2Connect the parallel interface cable to your
computer, and then connect it to the
machine.

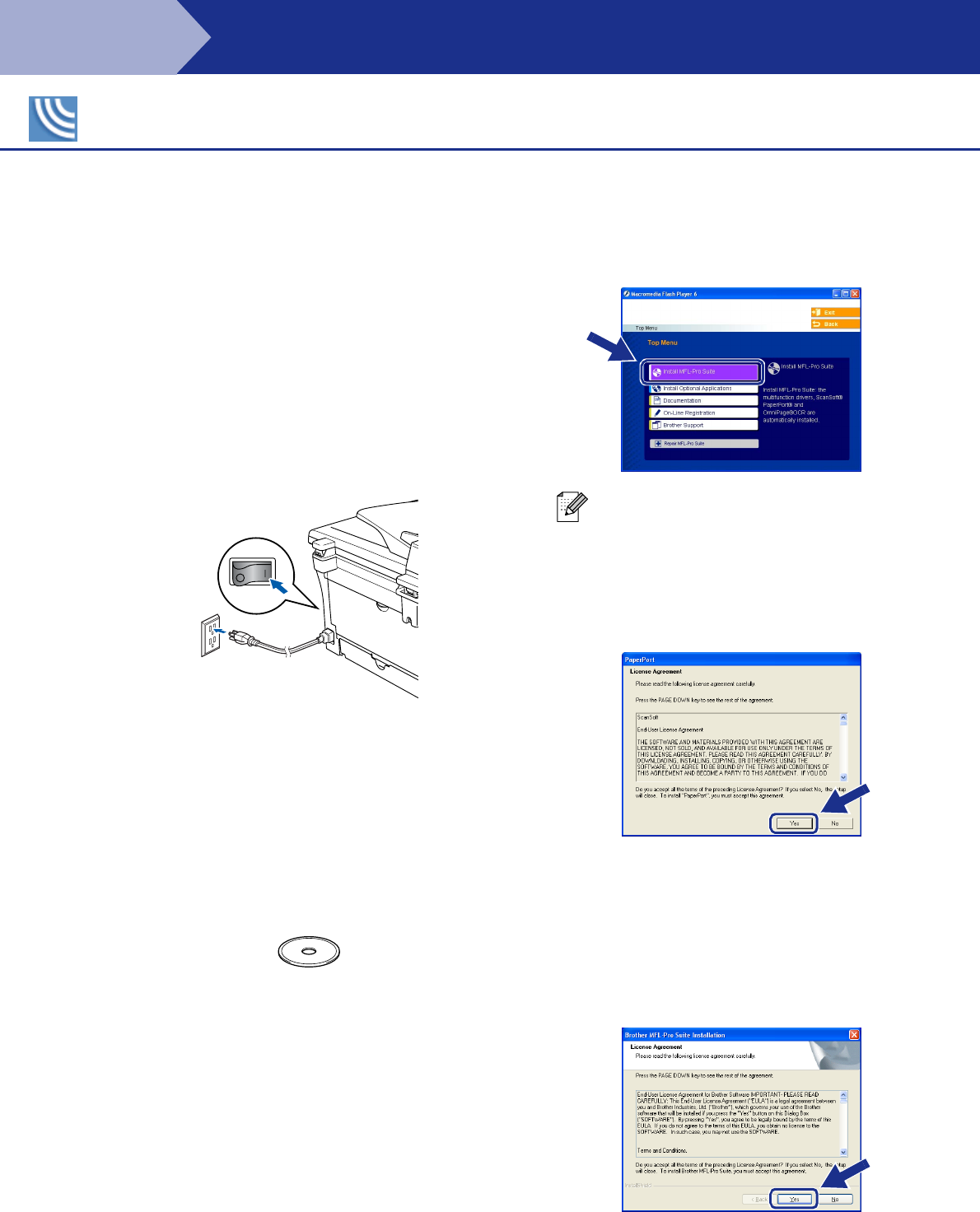

3Plug in the power cord and turn on the
machine.
4Insert the Supplied CD-ROM for Windows®
into your CD-ROM drive. If the model name
screen appears, select your machine. If the
language screen appears, select your
language.
5The CD-ROM main menu will appear.
Click Install MFL-Pro Suite.
6After reading and accepting the ScanSoft®
PaperPort® 9.0SE License Agreement, click
Yes.
7The installation of PaperPort® 9.0SE will
automatically start and is followed by the
installation of MFL-Pro Suite.
For Windows NT® Workstation Version 4.0 Users
Please close any applications running before
installing the MFL-Pro Suite.
Brother recommends that you connect the
machine directly to your computer.
If this window does not appear, use
Windows® Explorer to run the setup.exe
program from the root directory of the
Brother CD-ROM.
Step 2
17
8When the Brother MFL-Pro Suite Software
License Agreement window appears, read
the agreement, then click Yes if you agree
to its terms.
9Select Local Connection, and then click
Next.
The installation will continue.
0When the On-Line Registration screen is
displayed, make your selection and follow
the on-screen instructions.
AWhen the following screen appears, click
Finish and wait as the PC restarts Windows
and continues the installation.
(You must be logged on with Administrator
rights.)
The MFL-Pro Suite, Printer driver and
Scanner driver have been installed and
the installation is now complete.
If the installation is unsuccessful, try installing
again using Repair MFL-Pro Suite from the
CD-ROM main menu.
Select Repair MFL-Pro Suite and follow the
instructions on the screen.
Installing the Drivers & Software
Setting Up
the Machine
Windows
NT® 4.0
Parallel
18
Installing the Drivers & Software
Make sure that you followed the instructions from Step 1 “Setting Up the
Machine” on pages 4 - 6.
1Before installation, read the Quick Setup
Guide for NC-2200w External Wireless
Print/Scan Server and follow the instruction.
2If you are using Personal Firewall software,
disable it. Once you are sure that you can
print, re-start your Personal Firewall
software. Close any applications running
before installing the MFL-Pro Suite.
3Plug in the power cord and turn on the
machine.
4Turn on your computer.
(For Windows® 2000 Professional/XP/
Windows NT® 4.0, you must be logged on
with Administrator rights.)
5Insert the supplied CD-ROM for Windows®
into your CD-ROM drive. If the model name
screen appears, select your machine. If the
language screen appears, select your
language.
6The CD-ROM main menu will appear.
Click Install MFL-Pro Suite.
7After reading and accepting the ScanSoft®
PaperPort® 9.0SE License Agreement, click
Yes.
8The installation of PaperPort® 9.0SE will
automatically start and is followed by the
installation of MFL-Pro Suite.
9When the Brother MFL-Pro Suite Software
License Agreement window appears, read
the agreement, then click Yes if you agree
to its terms.
For Optional NC-2200w Users
(For External Wireless Print/Scan Server Users)
If this window does not appear, use
Windows® Explorer to run the setup.exe
program from the root directory of the Brother
CD-ROM.
Step 2
19

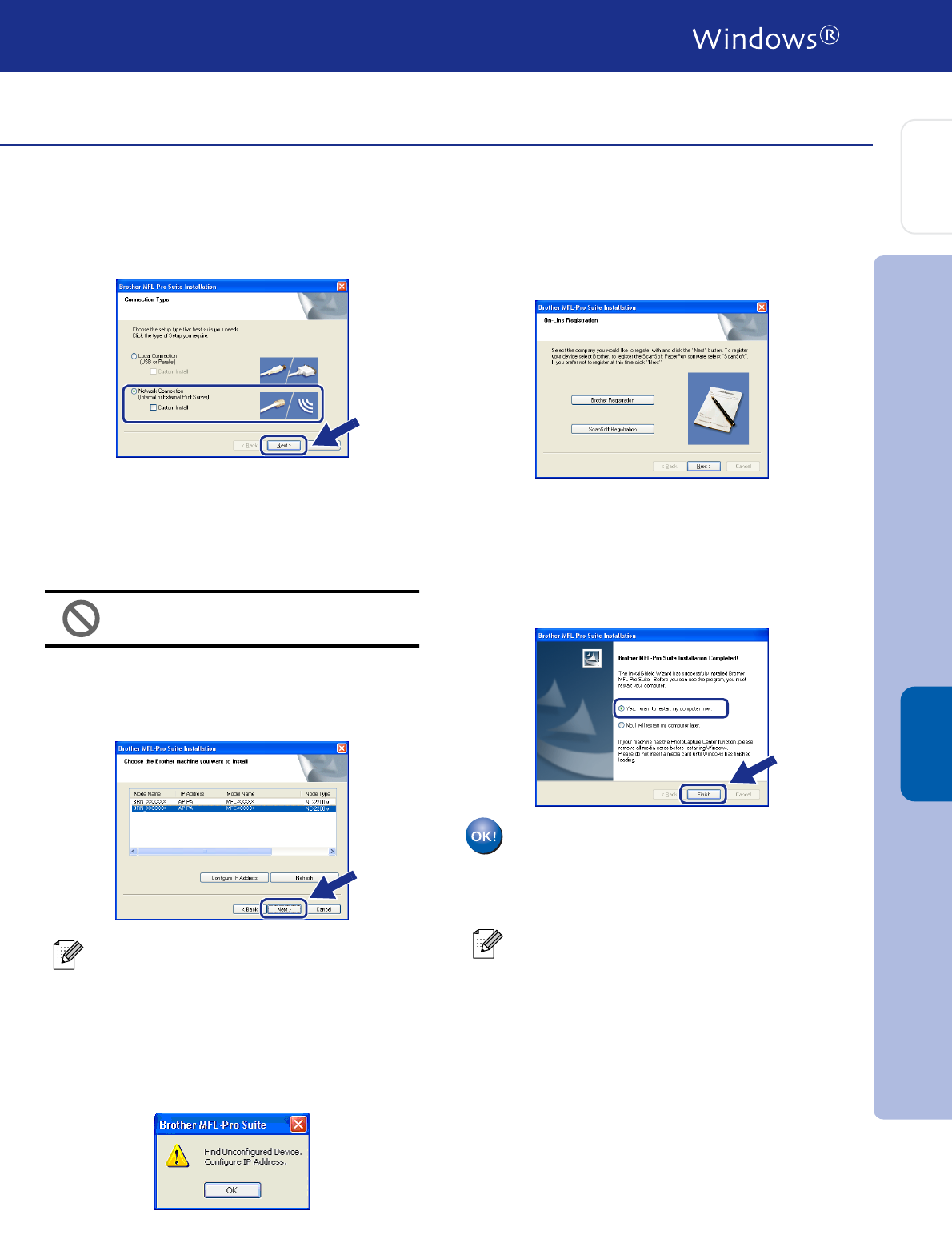

0Select Network Connection and then click
Next.
AThe installation of the Brother drivers will
automatically start. The installation screens
appear one after another. Please wait, it will
take a few seconds for all the screens to
appear.
DO NOT try to cancel any of the
screens during this installation.
BIf the machine is configured for your
network, select your machine from the list
and then click Next.
If the machine is not yet configured for use
on your network, the Configure IP Address
window will appear. Enter the IP address
information appropriate to your network by
following the on-screen instructions.
CWhen the On-Line Registration screen is
displayed, make your selection and follow
the on-screen instructions.
DWhen the following screen appears, click
Finish and wait as the PC restarts Windows
and continues the installation.
(For Windows® 2000 Professional/XP/
Windows NT® 4.0, you must be logged on
with Administrator rights.)
The MFL-Pro Suite, Network Printer
driver, Network Scanner driver have
been installed and the installation is
now complete.
This window will not appear if there is only
one of this Brother model connected on the
network, it will be selected automatically.
■For Network installations, the Repair
MFL-Pro Suite selection from the main
menu is not supported.
■Network Scanning is not supported in
Windows NT® 4.0.
Installing the Drivers & Software
Setting Up
the Machine
Windows®
Optional Wireless
Network
20
Installing the Drivers & Software
Make sure that you have completed the instructions from Step 1 “Setting Up
the Machine” on pages 4 - 6.
1Turn off and unplug the machine from the
AC outlet and disconnect it from your
Macintosh®, if you already connected an
interface cable.
2Turn on your Macintosh®.
3Insert the supplied CD-ROM for Macintosh®
into your CD-ROM drive.
4Double-click the Start Here OS 9.1-9.2 icon
to install the printer and scanner drivers. If
the language screen appears, select your
language.
5Click MFL-Pro Suite to install.
6Follow the on-screen instructions, and
restart your Macintosh®.
7Connect the USB interface cable to your
Macintosh®, and then connect it to the
machine.
DO NOT connect the machine to a
USB port on a keyboard or a non
powered USB hub.

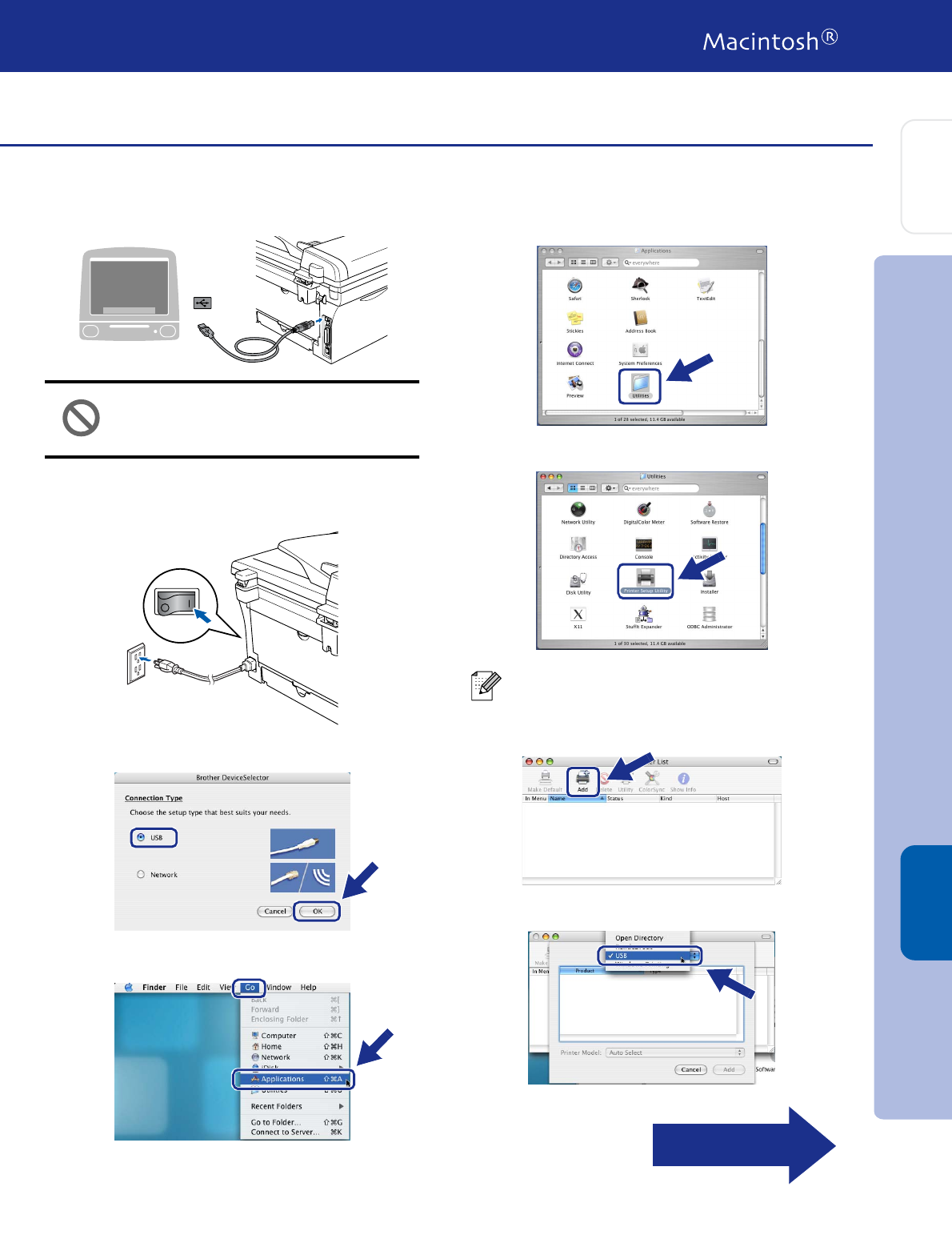

8Plug in the power cord and turn on the
machine.
For USB Interface Cable Users
For Mac OS® 9.1 to 9.2
Step 2
21

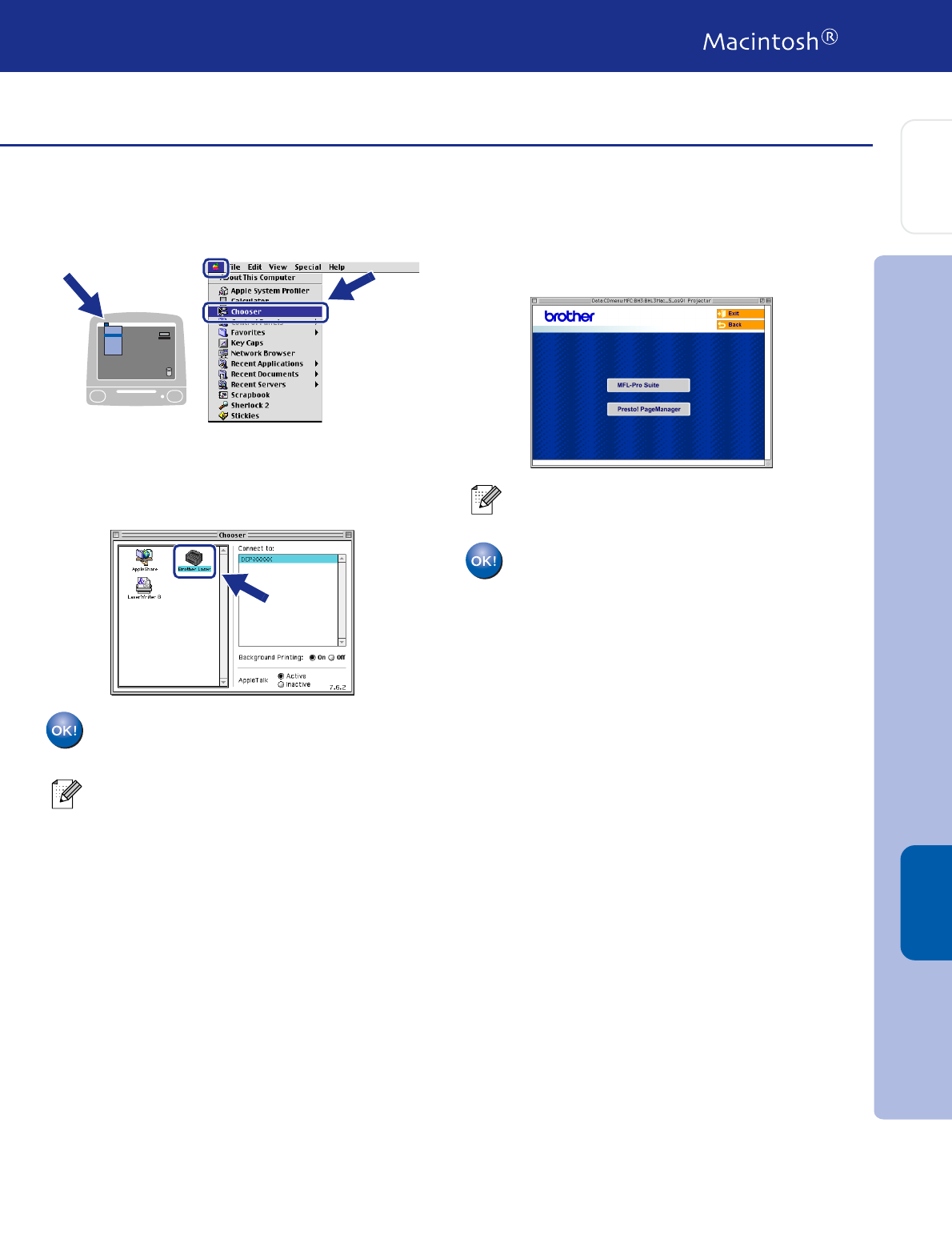

9From the Apple® menu, open the Chooser.
0Click the Brother Laser icon.
On the right side of the Chooser, select the
machine to which you want to print.
Close the Chooser.
The MFL-Pro Suite, Printer driver and
Scanner driver have been installed.
ATo install Presto!® PageManager®, click the
Presto! PageManager icon and follow the
on-screen instructions.
Presto!® PageManager® has been
installed and the installation is now
complete.
The ControlCenter2.0 is not supported in Mac
OS® 9.1 to 9.2.
You can easily scan, share and organize
photos and documents using Presto!®
PageManager®.
Installing the Drivers & Software
Setting Up
the Machine
Macintosh®
USB
22
Installing the Drivers & Software
Make sure that you have completed the instructions from Step 1 “Setting Up
the Machine” on pages 4 - 6.
1Disconnect the machine from the power
socket and from your Macintosh®, if you
already connected an interface cable.
2Turn on your Macintosh®.
3Insert the supplied CD-ROM for Macintosh®
into your CD-ROM drive.
4Double-click the Start Here OSX icon to
install the printer driver, Scanner driver and
Remote Setup program. If the language
screen appears, select your language.
5Click MFL-Pro Suite to install.
6Follow the on-screen instructions, and
restart your Macintosh®.
7After the DeviceSelector window appears,
connect the USB interface cable to your
Macintosh® and then to the machine.
For USB Interface Cable Users
For Mac OS® X 10.2.4 or greater
For Mac OS® X 10.2.0 to 10.2.3 user, please
upgrade to Mac OS® X 10.2.4 or greater.
(The latest information for Mac OS® X, please
visit at: http://solutions.brother.com)
The DeviceSelector window will not appear if
you have also connected a USB interface
cable to the machine before restarting your
Macintosh®or if you are overwriting a
previously installed version of the Brother
software. If you encounter this problem
continue with the installation skipping step 9
and then see the Software User’s Guide for
details on selecting which machine the
ControlCenter2.0 will connect with.
Step 2
23
DO NOT connect the machine to a
USB port on a keyboard or a non-
powered USB hub.
8Plug in the power cord and turn on the
machine.
9Select USB and then click OK.
0Select Applications from the Go menu.
AOpen the Utilities folder.
BOpen the Printer Setup Utility icon.
CClick Add.
DSelect USB.
For Mac OS® X 10.2.x users, open Print
Center icon.
Continued ...
Installing the Drivers & Software
Setting Up
the Machine
Macintosh®
USB
24
Installing the Drivers & Software

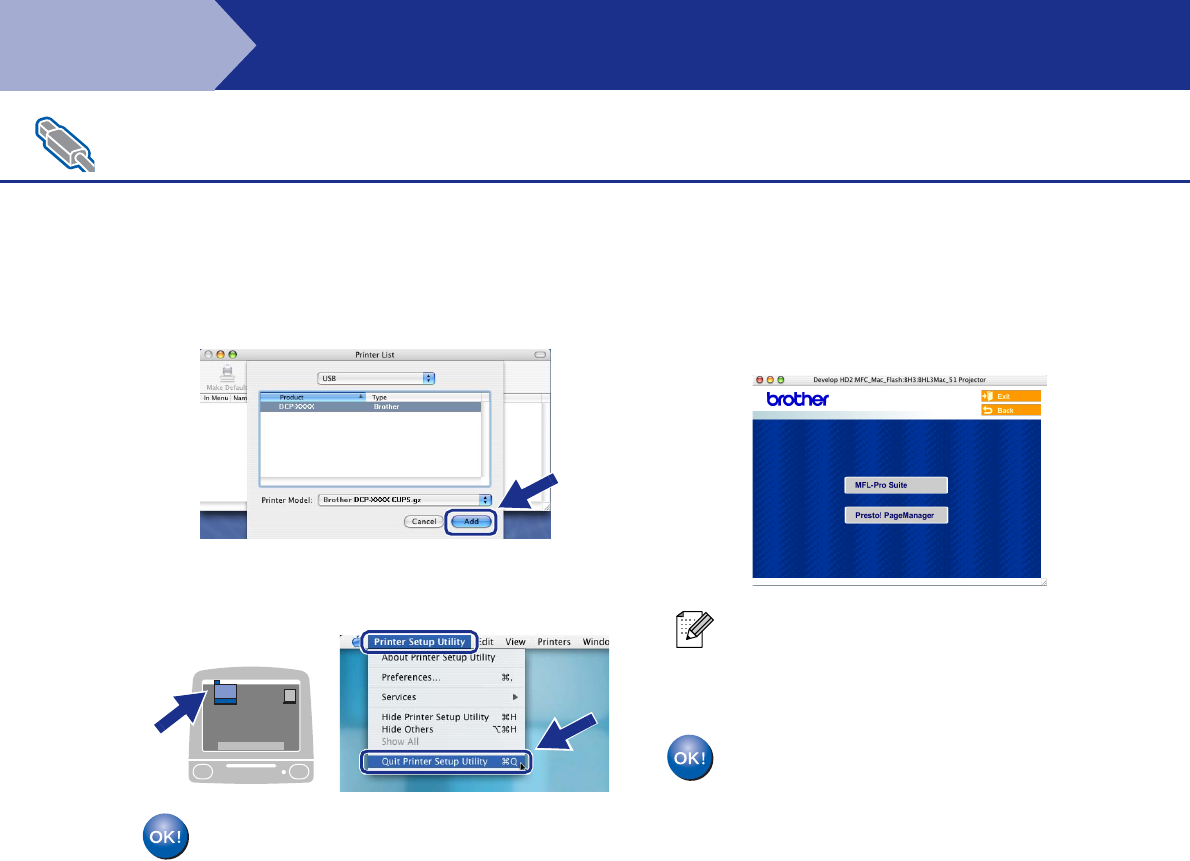

ESelect DCP-XXXX (XXXX is your model
name), and then click Add.

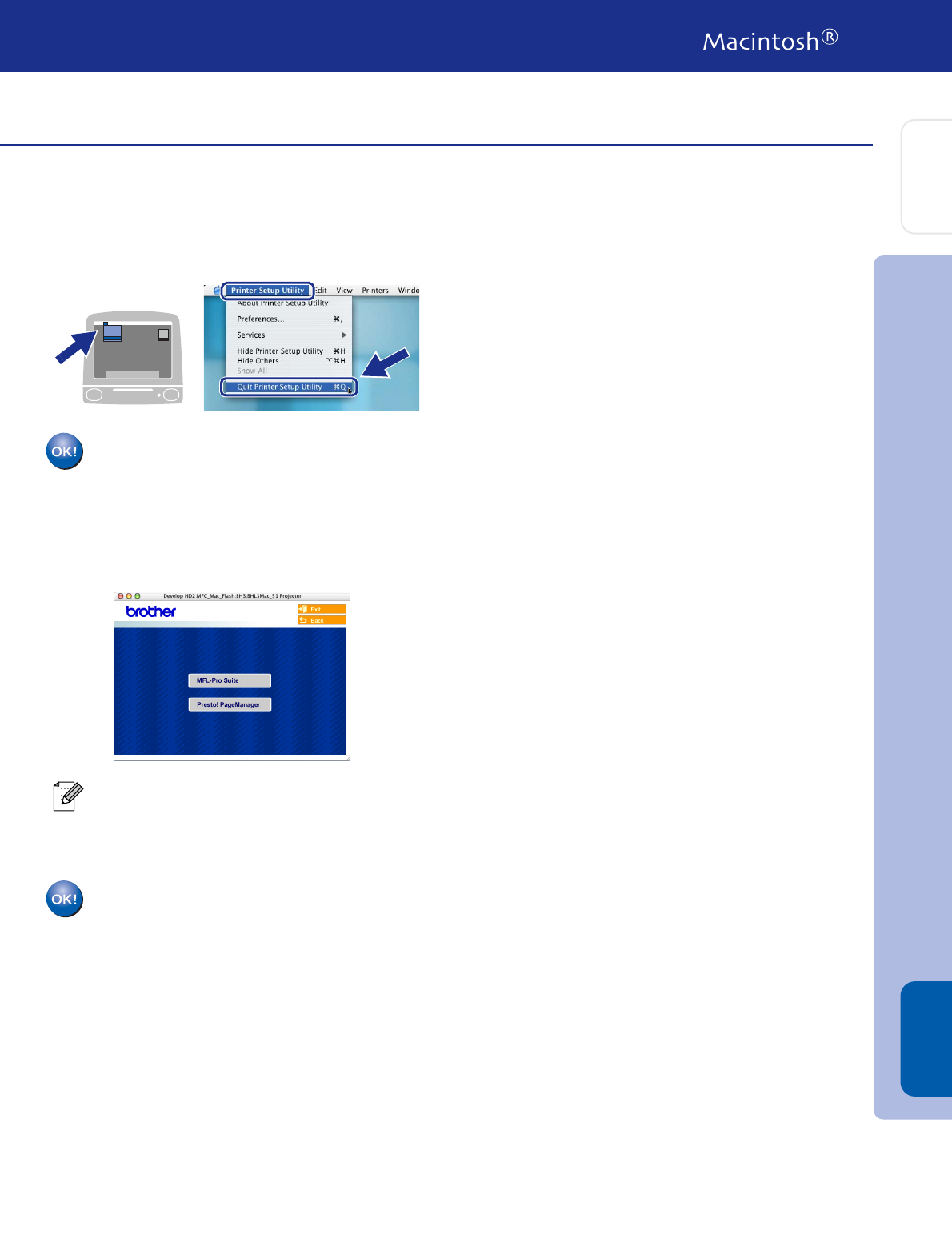

FSelect Quit Printer Setup Utility from the
Printer Setup Utility menu.
The MFL-Pro Suite, Printer driver,
Scanner driver and ControlCenter2.0
have been installed.
GTo install Presto!® PageManager®, click the
Presto! PageManager icon and follow the
on-screen instructions.
Presto!® PageManager® has been
installed and the installation is now
complete.
For USB Interface Cable Users
When Presto!® PageManager® is installed
OCR capability is added to the Brother
ControlCenter2.0. You can also easily scan,
share, and organize photos and documents
using Presto!® PageManager®.
Step 2
25
Make sure that you have completed the instructions from Step 1 “Setting Up
the Machine” on pages 4 - 6.
1Before installation, read the Quick Setup
Guide for NC-2200w External Wireless
Print/Scan Server and follow the instruction.
2Turn on your Macintosh®.
3Insert the supplied CD-ROM for Macintosh®
into your CD-ROM drive.
4Double-click the Start Here OSX icon to
install the printer driver and Remote Setup
program. If the language screen appears,
select your language.
5Click MFL-Pro Suite to install.
6Follow the on-screen instructions, and
restart your Macintosh®.

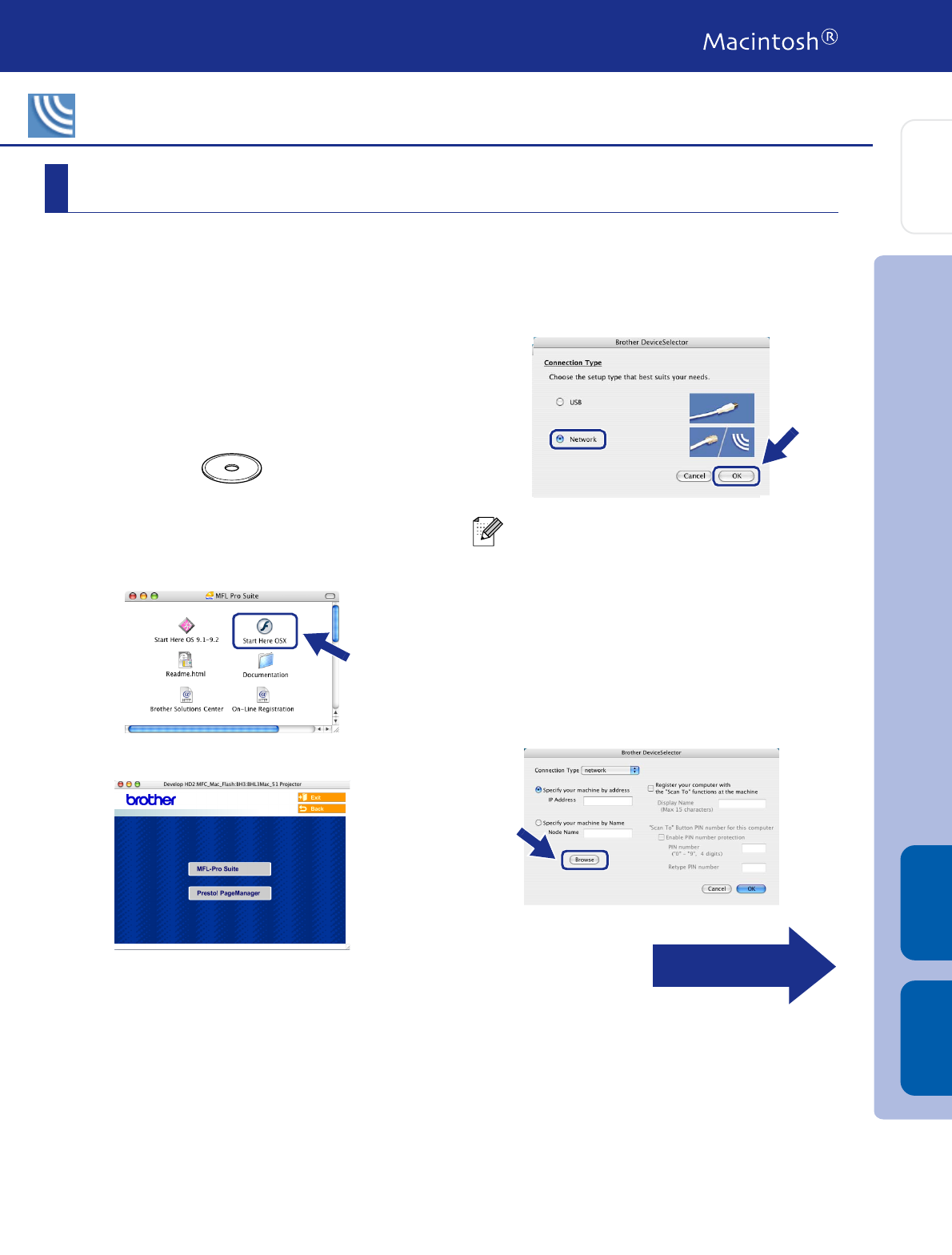

7After the DeviceSelector window appears,
select Network and then click OK.
8Click Browse.
For Optional NC-2200w Users
(For External Wireless Print/Scan Server Users)
For Mac OS® X 10.2.4 or greater
The DeviceSelector window will not appear if
you have also connected a USB interface
cable to the machine before restarting your
Macintosh®or if you are overwriting a
previously installed version of the Brother
software. If you encounter this problem
continue with the installation skipping steps 7
to 9 and then see the Software User’s Guide
for details on selecting which machine the
ControlCenter2.0 will connect with.
Continued ...
Installing the Drivers & Software
Macintosh®
Optional Wireless
Network
Macintosh®
USB
Setting Up
the Machine
26
Installing the Drivers & Software

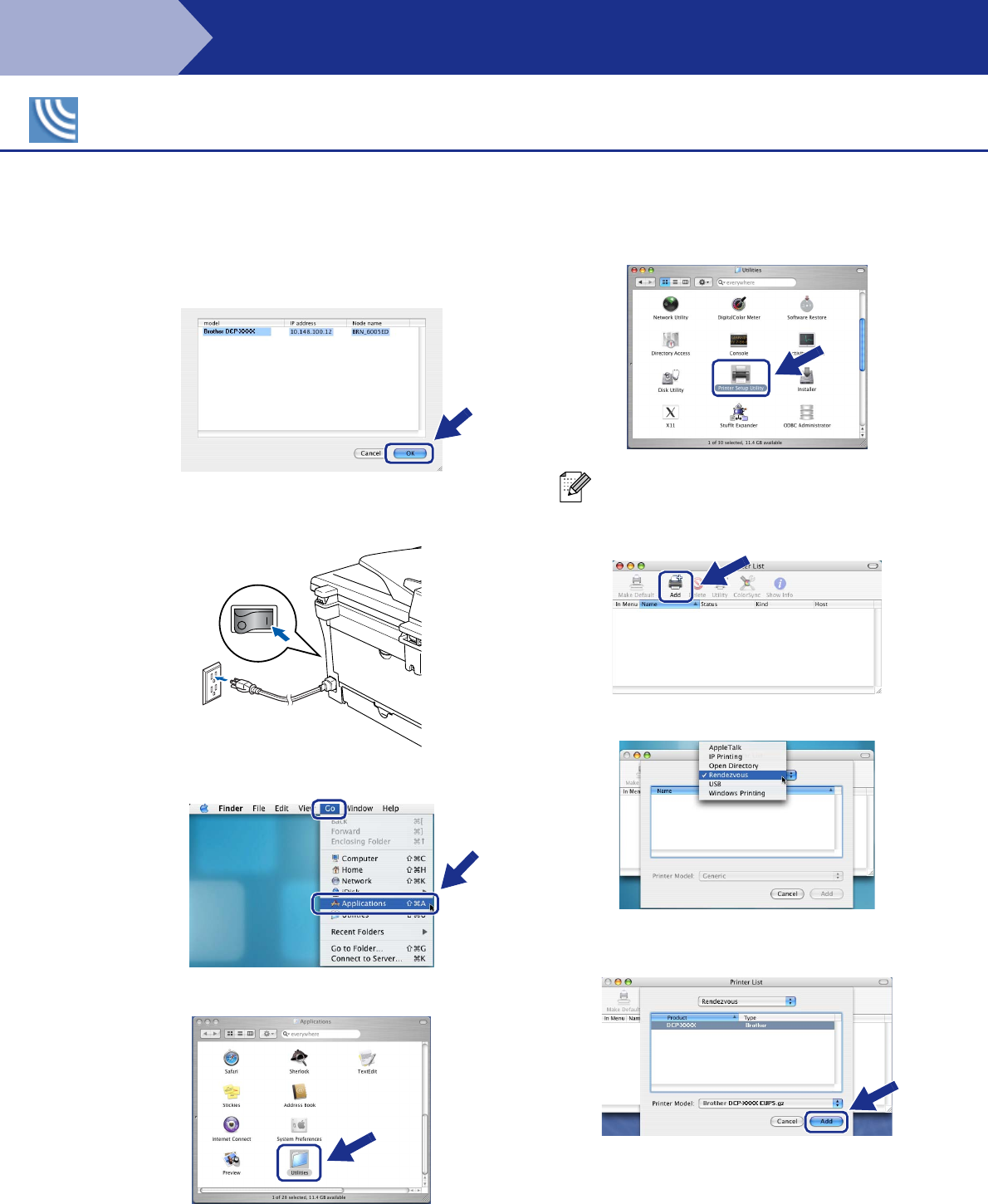

9Select your model name, and then click OK.
Click OK again to close the
DeviceSelector.
0Plug in the power cord and turn on the
machine.
ASelect Applications from the Go menu.
BOpen the Utilities folder.
COpen the Printer Setup Utility icon.
DClick Add.
EMake the selection shown below.
FSelect Brother DCP-XXXX (XXXX is your
model name) and then click the Add button.
For Optional NC-2200w Users
(For External Wireless Print/Scan Server Users)
For Mac OS® X 10.2.x users, open Print
Center icon.
Step 2
27
GSelect Quit Printer Setup Utility from the
Printer Setup Utility menu.
The MFL-Pro Suite, Printer driver,
Scanner driver and ControlCenter2.0
have been installed.
HTo install Presto!® PageManager®, click the
Presto! PageManager icon and follow the
on-screen instructions.
Presto!® PageManager® has been
installed and the installation is now
complete.
When Presto!® PageManager® is installed
OCR capability is added to the Brother
ControlCenter2.0. You can also easily scan,
share, and organize photos and documents
using Presto!® PageManager®.
Installing the Drivers & Software
Setting Up
the Machine
Macintosh®
Optional Wireless
Network
28
■Options and Consumables
The machine has the following optional accessories. You can expand the capabilities of the
machine by adding these items.
When the time comes to replace consumables, an error message will be indicated on the LCD.
For more information about the consumables for your printer, visit http://solutions.brother.com
or contact your local Brother re-seller.

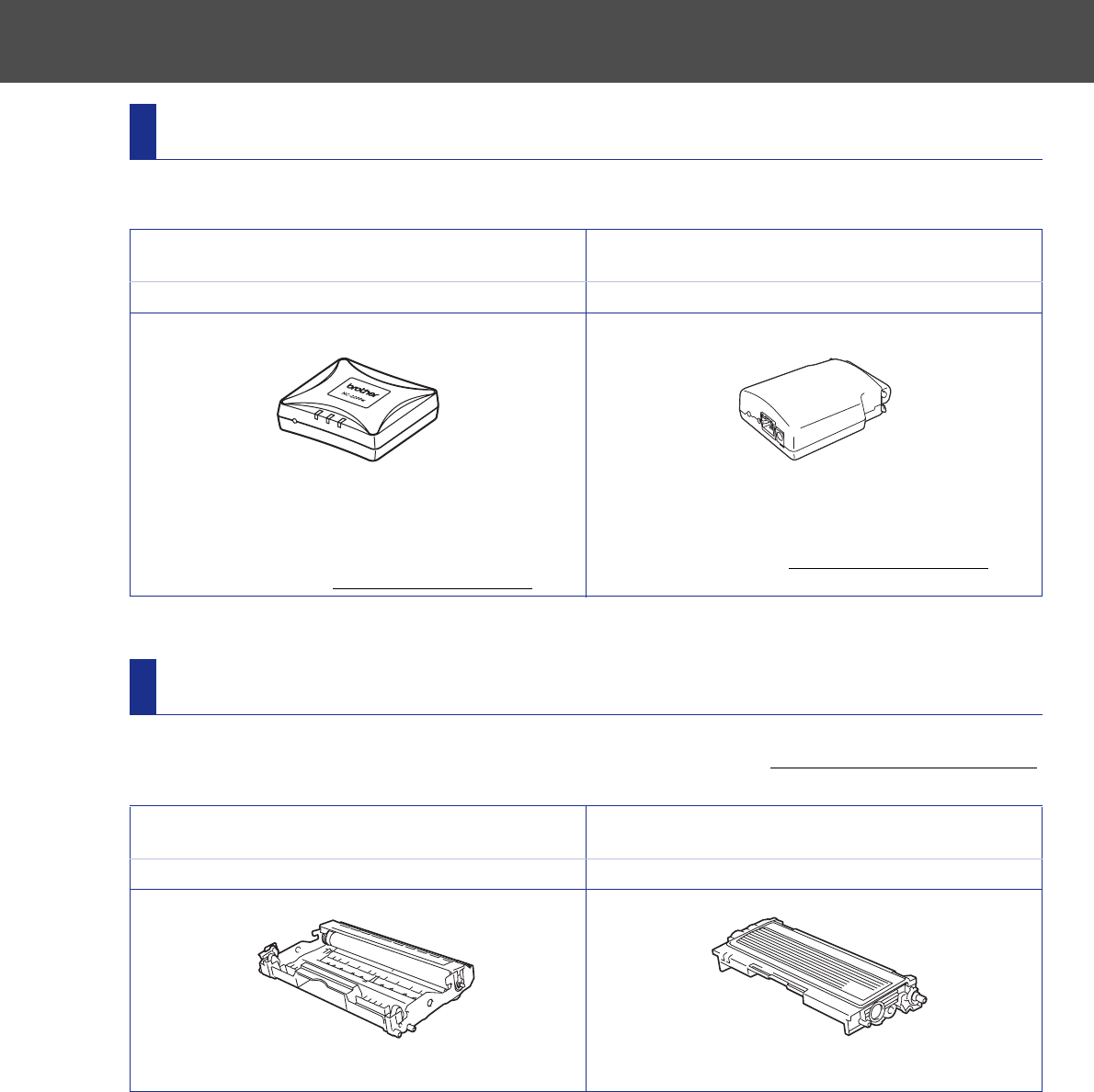

Options
External Wireless Print/Scan Server External Print Server
NC-2200w NC-2100p
If you are going to connect the machine to your wireless
network, purchase the optional Wireless print/scan server
(802.11b). The NC-2200w can be connected to the USB
interface port of your machine.
For more information, visit http://solutions.brother.com.
If you are going to connect the machine to your Ethernet
network, buy the optional Network device. The NC-2100p can
be connected to the parallel interface port of your machine.
For more information, visit http://solutions.brother.com.
Replacement Consumables
Drum Unit Toner
DR-350 TN-350
Trademarks
The Brother logo is a registered trademark of Brother Industries, Ltd.
Brother is a registered trademark of Brother Industries, Ltd.
Multi-Function Link is a registered trademark of Brother International Corporation.
© 2005 Brother Industries, Ltd. All rights reserved.
Windows, Microsoft and Windows NT are registered trademarks of Microsoft in the U.S. and other countries.
Macintosh, QuickDraw, iMac and iBook are trademarks or registered trademarks of Apple Computer, Inc.
Postscript and Postscript Level 3 are registered trademarks or trademarks of Adobe Systems Incorporated.
PaperPort and OmniPage are registered trademarks of ScanSoft, Inc.
Presto! PageManager is a registered trademark of NewSoft Technology Corporation.
Each company whose software title is mentioned in this manual has a Software License Agreement specific to its
proprietary programs.
All other brand and product names mentioned in this manual are registered trademarks of their respective
companies.
Compilation and Publication
Under the supervision of Brother Industries Ltd., this manual has been compiled and published, covering the latest
product descriptions and specifications.
The contents of this manual and the specifications of this product are subject to change without notice.
Brother reserves the right to make changes without notice in the specifications and materials contained herein and
shall not be responsible for any damages (including consequential) caused by reliance on the materials presented,
including but not limited to typographical and other errors relating to the publication.
This product is designed for use in a Professional Environment.
©2005 Brother Industries, Ltd.
USA/CAN

Navigation menu
