FCC 13-Dec.-2011 Ver.1.7
Confidential
1/14
WYSAGBUX7
WLAN Module
IEEE802.11b/g/n
Model Name: WYSAGBUX7
Users Manual
FCC 13-Dec.-2011 Ver.1.7
Confidential
2/14
WYSAGBUX7
Document constituent list
Control name Control No. Document Page
General Items HD-AG-A 1/1
Absolute maximum ratings HD-AM-A 1/1
Electrical characteristics HD-AE-A 1/3-3/3
Circuit schematic HD-MC-A 1/1
Outline / Appearance HD-AD-A 1/1
Outline / Appearance HD-AD-B 1/1
Pin Descriptions HD-BA-A 1/1
Regulatory Information
Rev. record
16-Nov-2009> Ver.1.0: Newly Issued
10-Dec-2009> Ver.1.1: 11n Draft -> 11n, Add note (g) on Page 3,
Add Pin Descriptions (HD-BA-A) on Page 11.
16-Dec-2009> Ver.1.2: Correct the error on Page 12.
28-Jan.-2010> Ver.1.3: Add Tx Power condition “Average Power “ on Page 6 and 7.
03-Mar.-2010> Ver.1.4: Add Mexico “Cofetel ID” on page 13.
26-Mar.-2010> Ver.1.5: Add Taiwan “NCC ID” on page 13.
20-Apr.-2011> Ver.1.6: Add USB2.0 Specification on page5.
Change Indication Label size and design on page 10.
13-Dec.-2011> Ver.1.7 Change FCC/IC Regulatory Information
FCC 13-Dec.-2011 Ver.1.7
Confidential
3/14
WYSAGBUX7
Control No.
HD-AG-A (1/1)
Control name
General Items
Scope
This specification (“Specification”) applies to the hybrid IC “WYSAGBUX7” for use WLAN Module
(“Product”).
1. Model name: WYSAGBUX7
2. Brand name :
3. Manufacture: BROTHER INDUSTRIES, LTD.
4. Function: Radio frequency transfer Module. (IEEE802.11b/g/n standard conformity)
5. Application: Printer
6. Structure: Hybrid IC loaded with silicon monolithic and GaAs semiconductor
7. Ability of lead free mounting at customer's assembly (Heat resistance of this Product) : Yes
Containment of hazardrous substance in this Product
*This product conforms to RoHS Directive (2002/95/EC).
8. Outline: 6-pin Connector
9. Marking: Model name, Brand name, Type Approval number, MAC address, Lot number
10. Features:
-IEEE802.11b/g/n standard conformity
Transmit speed: 11n(20MHz) 6.5/7.2/13/14.4/19.5/21.7/26/28.9/39/43.3/52/57.8/58.5/65/72.2Mbps
11g 54/48/36/24/18/12/9/6Mbps 11b 11/5.5/2/1 Mbps
Modulation: 11g/n (OFDM): BPSK, QPSK, 16QAM, 64QAM 11b (DSSS): BPSK, QPSK, CCK
Channel Number: 1 to 11 channels
Interface: USB2.0
OSC (30MHz), Pattern Antenna (Monopole antenna), Connector
11. Security: WEP (64/128bit), TKIP (WPA), AES (WPA2)
12. Packing: Packaging method: Trey
13. Notes:
a. Any question arising from this Specification shall be solved through mutual discussion by the parties
hereof.
b. This Product is not designed for radiation durable and should not be used under the circumstance of
radiation.
c. The operating conditions of this Product are as shown in this Specification.
d. This Product mentioned in this Specification is manufactured for use in Printer.
This Product shall not be used in any special equipment (such as medical equipment, space equipment, air craft,
disaster prevention equipment), where higher safety and reliability are duly required. Also, evaluation of the
safety function of this Product even for use in general electronics equipment shall be thoroughly made and when
necessary, a protective circuit shall be added at design stage, all at the customer’s sole risk.
e. Communication between this Product and others might not be established nor maintained depending
upon radio environment or operating conditions of this Product and other ISM band at 2.4GHz
products.
f. This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the
other wireless devices which operate in same frequency band of this Product, there is a possibility that
interference occurs between this Product and such other devices. If such interference occurs, please stop
the operation of other devices or relocate this Product before using this Product or do not use this
Product around the other wireless devices.
g. Please note that this users manual should not be provided to end-users.
FCC 13-Dec.-2011 Ver.1.7
Confidential
4/14
WYSAGBUX7
Control No.
HD-AM-A (1/1)
Control name
Absolute maximum ratings
Absolute maximum ratings
Rating
Item Symbol
Min. Typ. Max. Unit Remark
Supply voltage 1 VCC3V3 -0.3 4.1 V
Storage temperature range Tstg -30 85 Degrees C
Operation temperature range Topr -5 25 55 Degrees C
Recommendation operating range
Rating
Item Symbol
Min. Typ. Max. Unit Remark
Supply voltage 1 VCC3V3 3.0 3.3 3.6 V
FCC 13-Dec.-2011 Ver.1.7
Confidential
5/14
WYSAGBUX7
Control No.
HD-AE-A (1/3)
Control name
Electrical characteristics
DC Specifications
The Specification applies for Topr.= 25 degrees C, Supply voltage=Typical voltage
No. Parameter Condition Symbol Min. Typ. Max. Unit Remark
1 Operating Voltage 1 VCC3V3 - 3.3 - V
2 Peak Current1 Ip1 - - 800 mA
3 TX Current1 Burst Tx (11g/54Mbps) TC1 - 145 371 mA Duty 15.4%
4 RX Current1 Burst Rx (11g/54Mbps) RC1 - 124 142 mA
5 TX Current2 Burst Tx (11b/11Mbps) TC2 - 236 446 mA Duty49.2 %
6 RX Current2 Burst Rx (11b/11Mbps) RC2 - 122 140 mA
7 TX Current3 Burst Tx (11n/72.2Mbps) TC3 - 140 343 mA Duty13.6 %
6 RX Current3 Burst Rx (11n/72.2Mbps) RC3 - 125 143 mA
USB2.0 Specifications
The Specification applies for Topr.=25 degrees C, Supply voltage=Typical voltage
No. Parameter Condition Symbol Min. Typ. Max. Unit Remark
1 D+ / D-
Input low voltage Full-Speed VIL 0 0.8 V
2 D+ / D-
Input high voltage Full-Speed VIH 2.0 3.6 V
3 D+ / D-
Output low voltage Full-Speed VOL 0 0.3 V
4 D+ / D-
Output high voltage Full-Speed VOH 2.8 3.6 V
100 mV Squelch detected
5
D+ / D-
Squelch Detection
Threshold
(differential)
High-Speed VHSSQ
150 mV No squelch detected
6
D+ / D-
Differential input
Signaling levels
High-Speed -
See Receiver Eye Diagram Template Section 7.1.2.2 o
f
USB 2.0 Specifications.
7 D+ / D-
Output High Voltage High-Speed VHSOH 360 440 mV
8 D+ / D-
Output Low Voltage High-Speed VHSOL -10 10 mV
FCC 13-Dec.-2011 Ver.1.7
Confidential
6/14
WYSAGBUX7
Control No.
HD-AE-A (2/3)
Control name
Electrical characteristics
RF Specifications (WLAN 11n(Draft)/72.2Mbps, OFDM)
The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2462 MHz
2 TX Power w/o Ant Gain
Average power Po1 10 12 14 dBm
1st Side Lobe M1 - -20 dBc
2nd Side Lobe M2 - -28 dBc
3 Spectrum Mask
3rd Side Lobe M3 - -45 dBc
4 Symbol clock tolerance Fs -25 25 ppm
5 Frequency tolerance Ft -25 25 ppm
6 EVM rms EVM - -28 dB
7 TX Out of band spurious1 f<2387MHz,
2496.5MHz<f TOS1 - 2.5 uW
8 TX Out of band spurious2 2387MHz<f<2400MHz,
2483.5MHz<f<2496.5MHz TOS2 - 25 uW
9 Rx sensitivity PER<10% SEN -70 -64 dBm
10 Maximum Input Level PER<10% MIL -20 - dBm
11 RX Out of band spurious1 f<1GHz ROS1 - 4 nW
12 RX Out of band spurious2 f>1GHz ROS2 - 20 nW
RF Specifications (WLAN 11g/54Mbps, OFDM)
The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2462 MHz
2 TX Power w/o Ant Gain
Average Power Po1 11 13 15 dBm
1st Side Lobe M1 - -20 dBc
2nd Side Lobe M2 - -28 dBc
3 Spectrum Mask
3rd Side Lobe M3 - -40 dBc
4 Symbol clock tolerance Fs -25 25 ppm
5 Frequency tolerance Ft -25 25 ppm
6 EVM rms EVM - -25 dB
7 TX Out of band spurious1 f<2387MHz,
2496.5MHz<f TOS1 - 2.5 uW
8 TX Out of band spurious2 2387MHz<f<2400MHz,
2483.5MHz<f<2496.5MHz TOS2 - 25 uW
9 Rx sensitivity PER<10% SEN -73 -65 dBm
10 Maximum Input Level PER<10% MIL -20 - dBm
11 RX Out of band spurious1 f<1GHz ROS1 - 4 nW
12 RX Out of band spurious2 f>1GHz ROS2 - 20 nW
FCC 13-Dec.-2011 Ver.1.7
Confidential
7/14
WYSAGBUX7
Control No.
HD-AE-A (3/3)
Control name
Electrical characteristics
RF Specifications (WLAN 11b/11Mbps, CCK)
The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage
No. Parameter Condition Symbol Min Typ Max Unit Remark
1 RF frequency range FREQ 2412 2462 MHz
2 TX Power w/o Ant Gain
Average Power Po1 15 17 19 dBm
1st Side Lobe M1 - -30 dBc
3 Spectrum Mask 2nd Side Lobe M2 - -50 dBc
Power up TU - 2 us
4 Power up-down rump Power down TD - 2 us
5 Frequency tolerance Ft -25 25 ppm
6 EVM Peak EVM - 35 %
7 TX Out of band spurious1 f<2387MHz,
2496.5MHz<f TOS1 - 2.5 uW
8 TX Out of band spurious2 2387MHz<f<2400MHz,
2483.5MHz<f<2496.5MHz TOS2 - 25 uW
9 Rx sensitivity PER<8% SEN -86 -76 dBm
10 Maximum Input Level PER<8% MIL -10 - dBm
11 RX Out of band spurious1 f<1GHz ROS1 - 4 nW
12 RX Out of band spurious2 f>1GHz ROS2 - 20 nW
FCC 13-Dec.-2011 Ver.1.7
Confidential
8/14
WYSAGBUX7

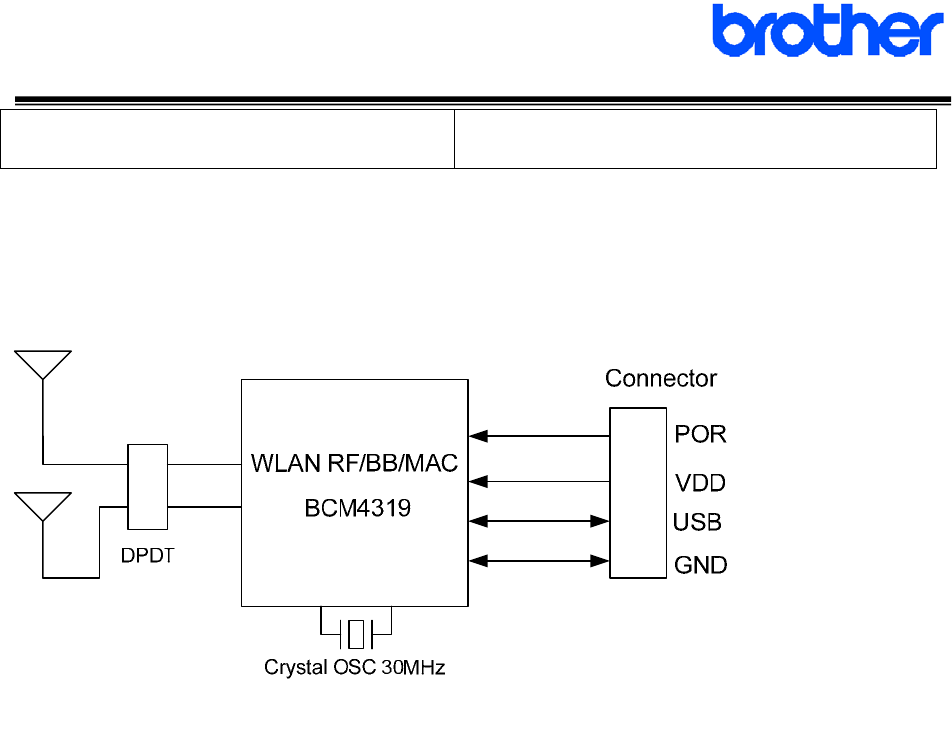

Block Diagram
Control No.
HD-MC-A (1/1)
Control name
Circuit Schematic
FCC 13-Dec.-2011 Ver.1.7
Confidential
9/14
WYSAGBUX7
Control No.
HD-AD-A (1/1)
Control name
Outline/Appearance
OUTLINE
30.0+/-0.2
3.5
3.0
1
6
Unit: mm
FCC 13-Dec.-2011 Ver.1.7
Confidential
10/14
WYSAGBUX7
Control No.
HD-AD-B (1/1)
Control name
Outline/Appearance

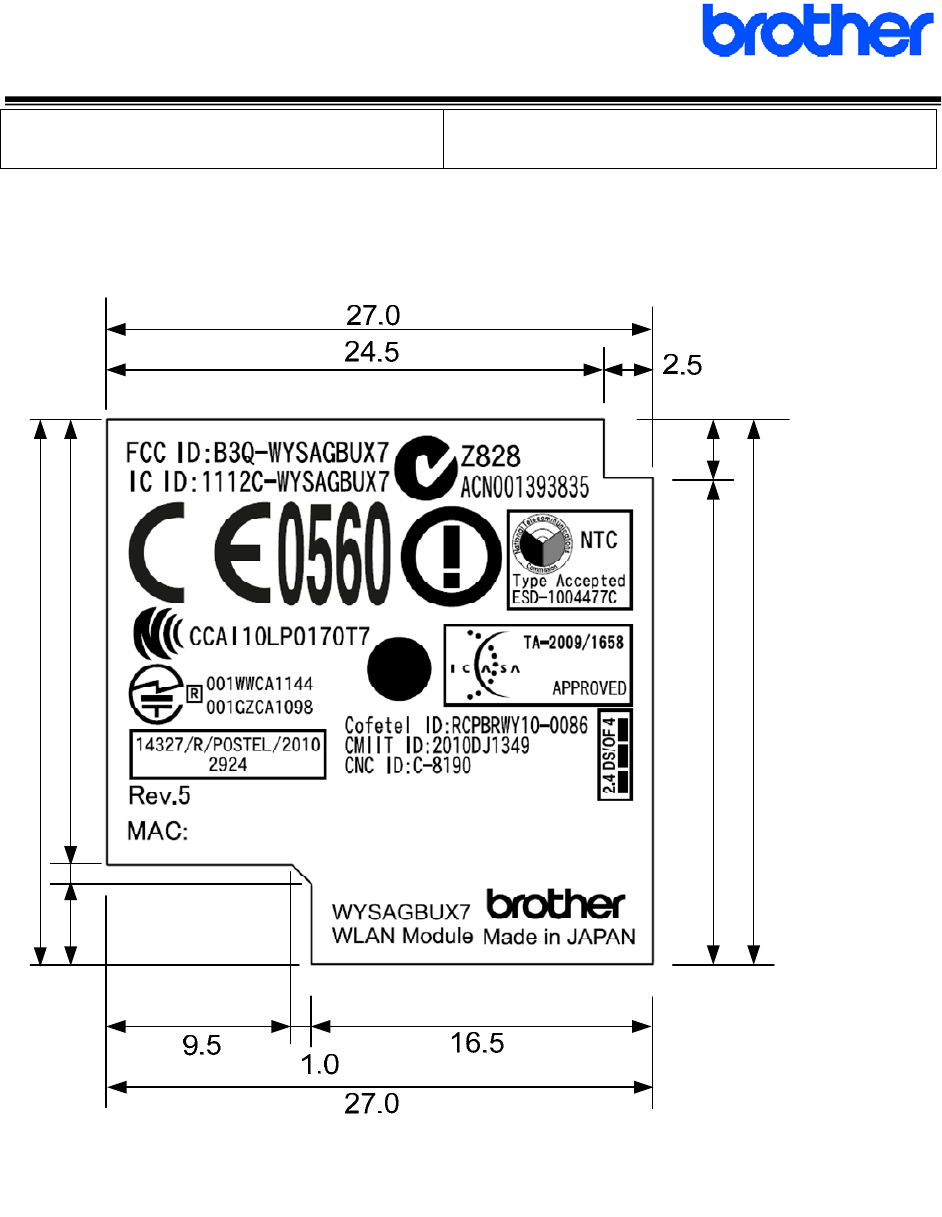

Indication label (example)
27.0 1.0
4.0
22.0
27.0
3.0 24.0
Material: PET / Label color: White
Unit: mm
FCC 13-Dec.-2011 Ver.1.7
Confidential
11/14
WYSAGBUX7
Control No.
HD-BA-A (1/1)
Control name
Pin Descriptions

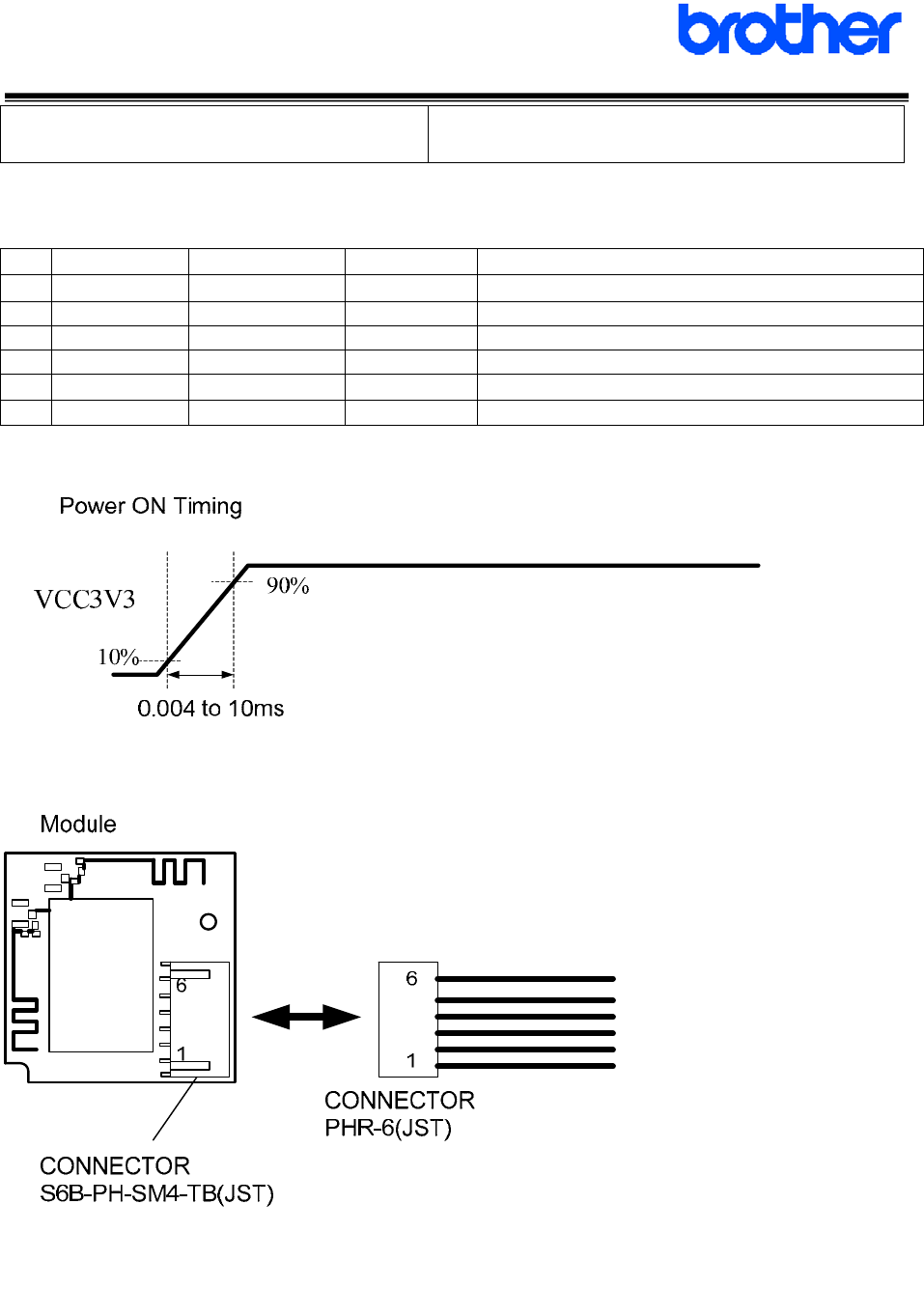

Pin Descriptions
Connector Number
No. Pin Name I/O Type Description
1 POR Input RESET Power On Reset
2 VCC3V3 Input Power DC 3.3V
3 D+ Input/Output USB USB D+ Signal
4 D- Input/Output USB USB D- Signal
5 GND Input/Output GND Ground
6 GND Input/Output GND Ground
FCC 13-Dec.-2011 Ver.1.7
Confidential
12/14
WYSAGBUX7
FCC Regulatory Information
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
Notice
- At the installation of our WLAN Module (Model No.: WYSAGBUX7) into the device, following information
should be provided with end-user under the responsibility of the manufacture who integrates it into their device.
CAUTION: This product is certified as a Portable device under specified conditions.
When you install this product, please use it within the specification range of this product to comply with
SAR requirements.
For further information, please contact us.
For other conditions, this equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provided with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may Cause undesired
operation.
The following sentence has to be displayed on the outside of the device in which the module is
installed:
"Contains Transmitter Module FCC ID: B3Q-WYSAGBUX7 / IC ID: 1112C-WYSAGBUX7", or
"Contains FCC ID: B3Q-WYSAGBUX7 / IC ID: 1112C-WYSAGBUX7"
FCC 13-Dec.-2011 Ver.1.7
Confidential
13/14
WYSAGBUX7

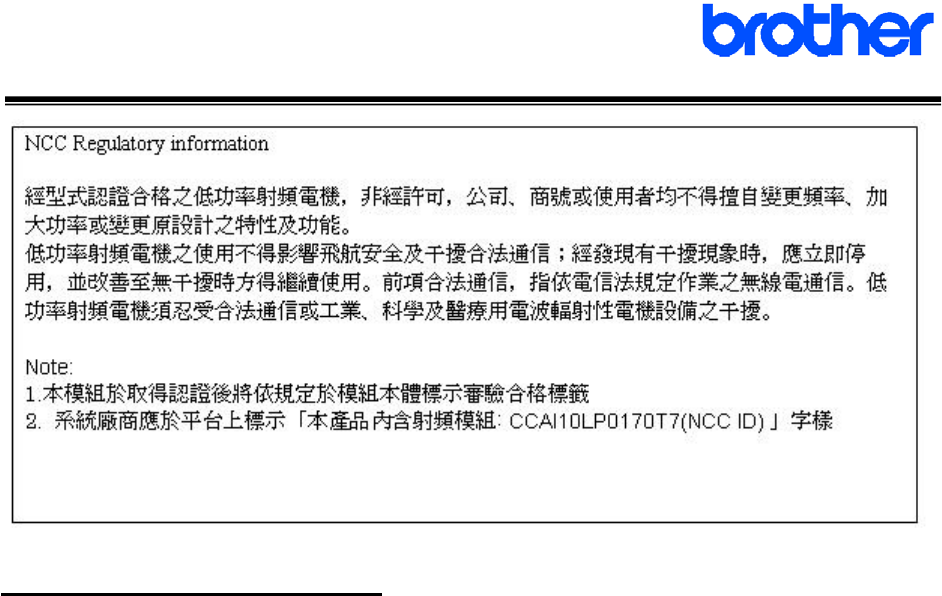

Canada Regulatory Information
CAUTION: This product is certified as a Portable device under specified conditions.
When you install this product, please use it within the specification range of this product to comply with
SAR requirements.
For further information, please contact us.
For other conditions, this equipment must be installed and operated in accordance with provided instructions
and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. End-users and installers must be provided with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
the device.
L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
FCC 13-Dec.-2011 Ver.1.7
Confidential
14/14
WYSAGBUX7
Mexico Regulatory Information
Please read this manual before this Module is used.
Model name : WYSAGBUX7
Brand name : brother
Cofetel ID: RCPBRWY10-0086
CAUTION: This device should be used in separation distance of at least 20 centimeters maintained between transmitter’s
radiating structure and the body of the user or nearby persons.
Specificiations: Vcc 3.3V, RF frequency 2.4GHz, Current 800mA (Maximum), RF Output 50.2mW
Cto.Nemesio Diez Riega No.8 M2 L4 P.I.CerrilloII Estado de Mèxico 52000
Brother International de Mèxico, S.A. de C.V.
Telephone : 55-8503-8742
Fax : 55-8503-8720
