MODEL TSTATBBPS701

PROGRAMMABLE DIGITAL

THERMOSTAT

NOTE TO INSTALLER:

This manual must be left with the equipment user.

Heating & Cooling Systems

USERS INFORMATION MANUAL

67

70

HEAT

COOL

AUTO

o

o

Am

6:03

68

Su

Heat Pump & Heat Cool

7 Day Programmable

4 Time Periods per Day

Auto Changeover

Large, Easy To Read

Display

Thermoglow Backlight

Very Easy to Program

Programmable Fan

No Batteries Required

Outdoor Temperature

Sensor Available

Table Of Contents

FRONT PANEL

DISPLAY

QUICK START Set the clock and go

BASIC OPERATION

PROGRAMMING 4 Time Periods

ADVANCED SETUP

ABOUT ADVANCED OPERATION

WARRANTY

Page 1

CAUTION

Follow Installation Instructions before proceeding.

SET THERMOSTAT TO MODE “OFF” PRIOR TO

CHANGING SETTINGS IN SETUP OR RESTORING

FACTORY DEFAULTS.

2

3

5

6

8

12

17

23

Residential Light Commercial Systems Carrier Corporation 4/01

TSTATBBPS101

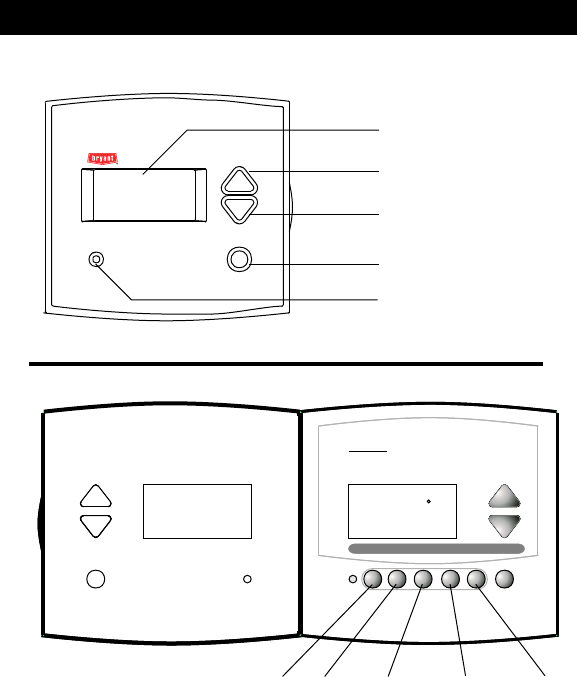

Front Panel

Page 2

Backlit LCD Display

Warmer or + Button

Cooler or - Button

Mode Button

Heat or Cool Indicator

Red = Heat, Green = Cool

67

70

HEAT

COOL

AUTO

o

o

Am

6:03

68

S

SET CLOCK

PROGRAMVACATIONOUTSIDEFAN MODE

Programmable

Thermostat

FAN PROGRAMVACATION SET CLOCKOUTSIDE

67

70

HEAT

COOL

AUTO

o

o

Am

6:03

68

Su

1

2

4

3

Mode Indicators

Selects the operation mode of the equipment.

HEAT - indicates the heat mode.

COOL - indicates the air conditioning mode.

AUTO - indicates the system will automatically

changeover between heat and cool modes

as the temperature varies.

OFF - indicates the entire system is turned off.

PROGRAM ON - indicates the stored program

is enabled to run. Page 8.

Clock with Day of the Week

Indicates the current time and day. This clock is

also used to program the timer periods. Page 5.

Room Temperature Display

Indicates the current room temperature.

Desired Set Temperature

Indicates desired room temperature(s). Page 7.

Display

Page 3

1

1

1

1

2

3

4

4

7

6

8

10

11

9

88

88

HEAT

COOL

OFF

AUTO

Fan On

Program

ServiceFilter

Locked

Setup

On

Start

o

o

Am

Pm

12:00

88

SMTWTFS

:

5

Outside

Day

Night

Evening

Morning

5

6

7

8

9

10

11

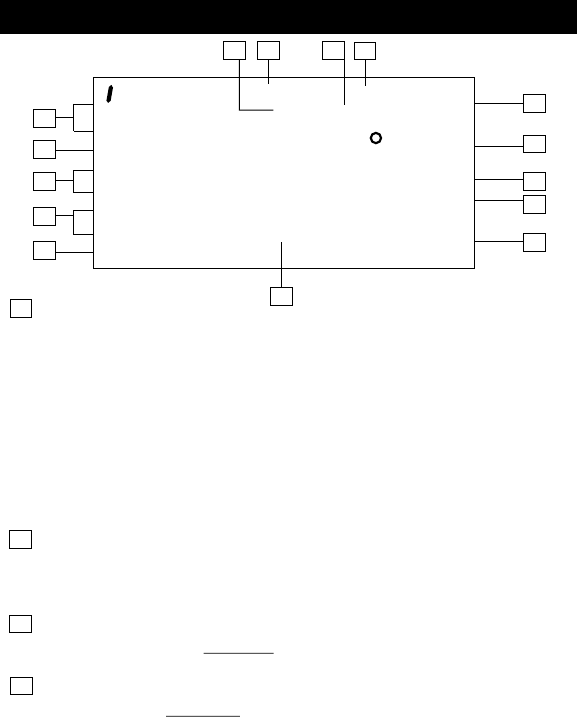

Outside Indication

Indicates the temperature displayed is from

the optional outside sensor. Page 21.

Morning, Day, Evening & Night Indication

Indicates the program time period. Page 8-11.

Setup Indication

Indicates the thermostat is in the programming

mode. Page 12.

Fan Operation Indication

Fan On - indicates constant, continuous fan

operation.

When Fan On is not lit - indicates the fan will

only operate when necessary to heat or

to cool. Page 7.

Service Filter Indication

Service Filter indicates when the filter should

be serviced under normal conditions.

Appears after 0 - 1950 hours of blower

operation (adjustable). Page 15.

Locked Indication

Locked appears after the right combination of

buttons are pressed, rendering the buttons

inoperative. Page 22.

Start Indication

Start appears when programming

timer functions. Page 8.

Display

Page 4

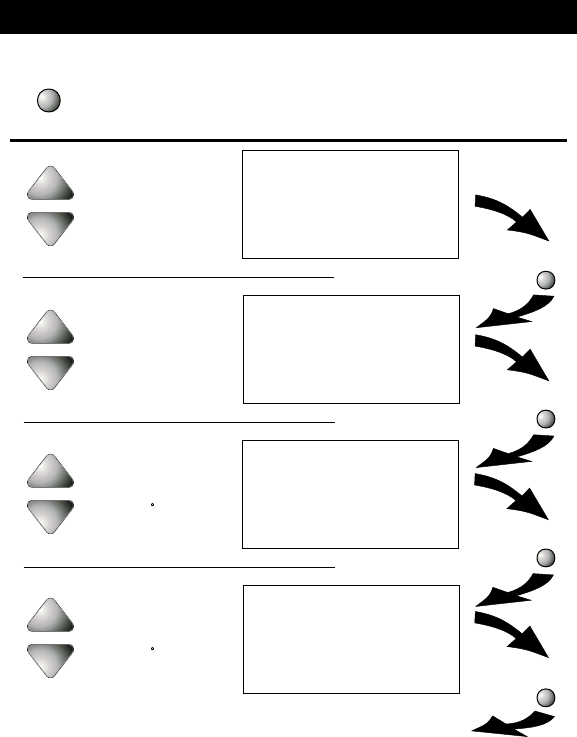

During Setup & Programming:

.

(Represented in dark black)

Pressing the Up and Down

buttons will modify the flashing

selection.

Press the SET CLOCK

button.

Press the SET CLOCK

button as above to

return to normal

operation.

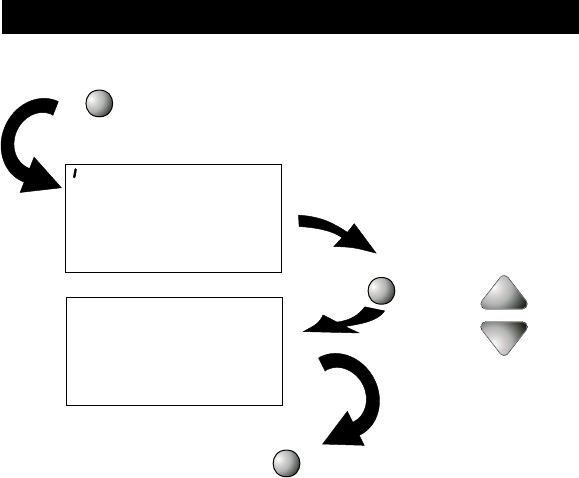

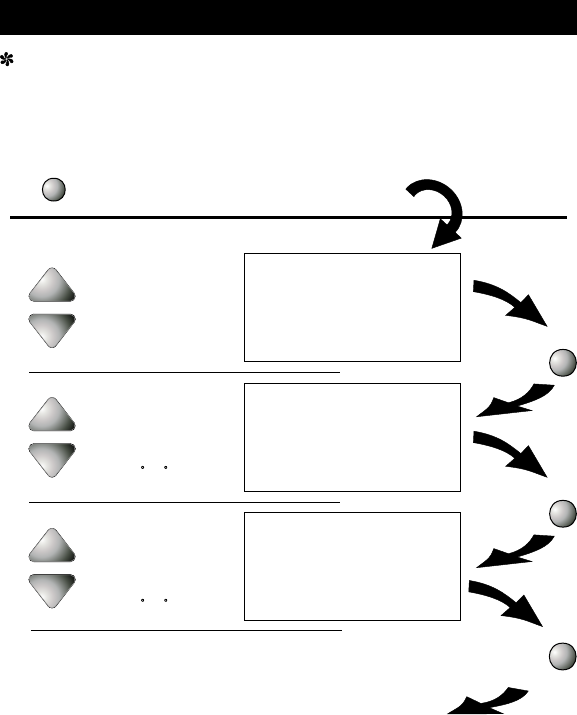

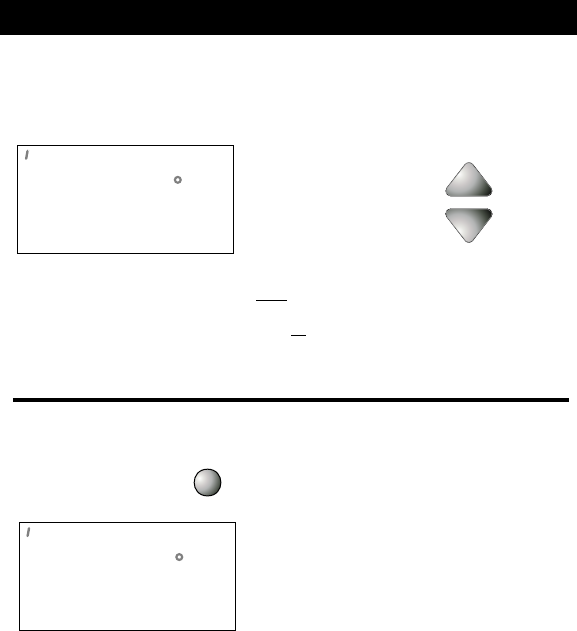

Quick Start Set the Clock and Go

Page 5

This thermostat is preprogrammed from the

factory to operate 1 or 2 Stage equipment without

the need for further programming. To optimize the

installation of this thermostat follow the instructions

in the Advanced Setup section.

2

Setup

S

buttons.

To adjust the

clock or Day use

Press

Setup

Am

12:00 i

:

SET CLOCK

SET CLOCK

MODE

The HEAT setting indicates the

temperature the room has to

reach before the furnace will

turn on to heat the room.

The COOL setting indicates the

temperature the room has to

reach before the air conditioner

will turn on to cool the room.

OFF indicates both heating

and air conditioning

systems are turned off.

AUTO will automatically select

heat or cool based on room

temperature demand.

Program On will activate the

stored timer operation.

(Morning, Day, Evening

& Night Periods)

Select Mode

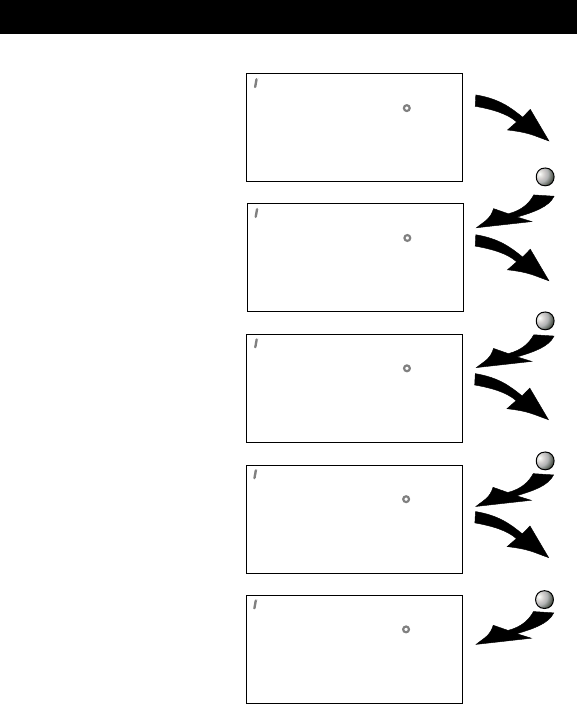

Basic Operation

Page 6

69

HEAT

o

Pm

12:00

70

M

:

72

COOL

o

Pm

12:00

70

M

:

69

72

HEAT

COOL

AUTO

o

o

Pm

12:00

70

M

:

OFF

Pm

12:00

70

M

:

70

73

HEAT

COOL

ProgramOn

o

o

Pm

12:00

70

Day

M

:

Press

MODE

Press

MODE

Press

MODE

Press

MODE

buttons.

In any mode, adjust the

desired Set Temperature

with

Pressing the Up or Down buttons in Auto mode will adjust both the heat and cool

set temperatures simultaneously.

Pressing the Up or Down buttons in Heat or Cool modes will adjust only the

heat or cool set temperature.

Select Desired Temperature

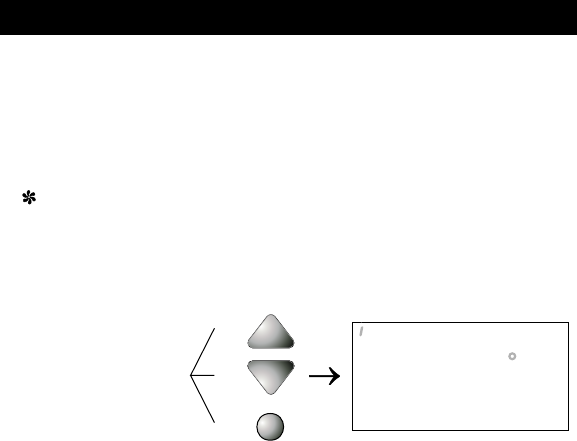

Fan

Operation

Page 7

Basic Operation

69

72

HEAT

COOL

AUTO

o

o

Pm

12:00

70

M

:

Fan On indicates constant fan operation.

This feature is active even if the thermostat

is set to Off.

55

85

HEAT

COOL

o

o

Pm

12:00

65

S

:

Fan On

Press

FA N

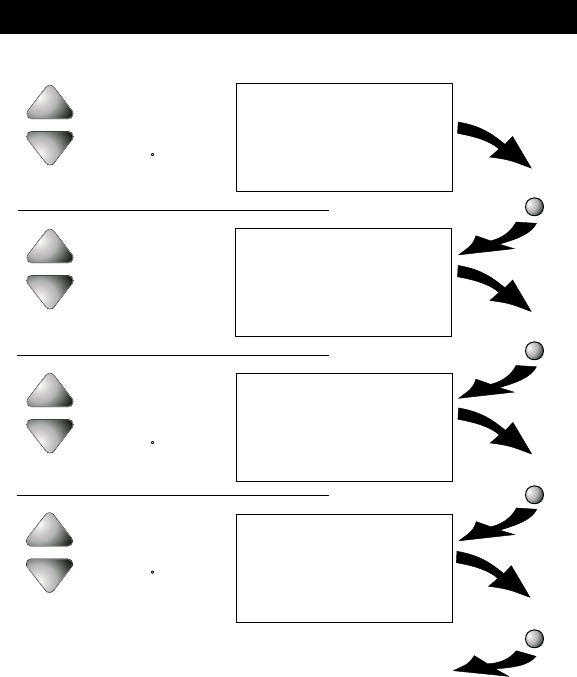

Programming 4 Time Periods

Page 8

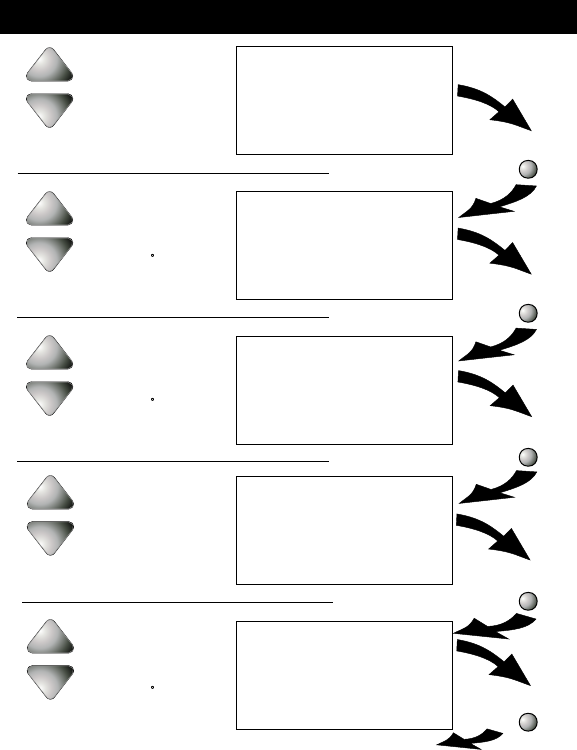

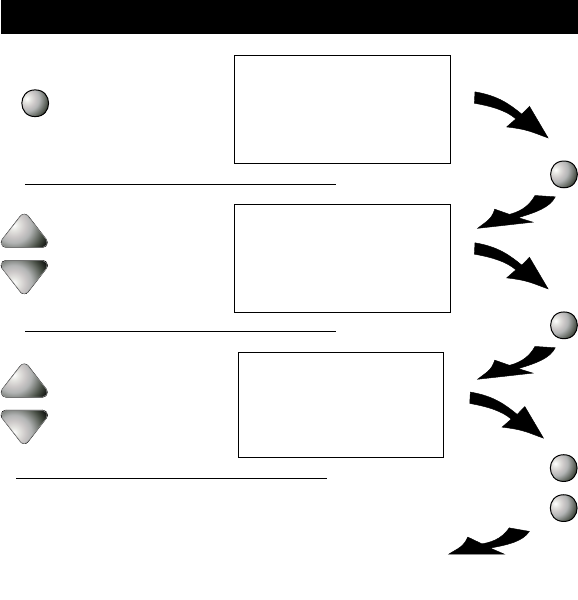

Press the PROGRAM button to enter time period programming.

Continued

Select the day of week

Adjust the start time

for Morning.

Adjust the heating

setpoint for Morning.

Adjust the cooling

setpoint for Morning.

(M - S)

(35 - 99 )

(35 - 99 )

M

Start

Am

7 30

Morning

M

:

74

COOL

o

Am

7 30

Morning

M

:

72

74

HEAT

COOL

o

o

Am

7 30

Morning

M

:

Use the back cover Programming Worksheet to help with this section.

Press

PROGRAM

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Programming 4 Time Periods

Page 9

Continued

Adjust the start time

for Evening.

Adjust the cooling

setpoint for Evening.

Adjust the start time

for Day.

Adjust the heating

setpoint for Day.

Adjust the cooling

setpoint for Day.

(35 - 99 )

(35 - 99 )

(35 - 99 )

Start

Am

I0 30

Day

M

:

Start

Pm

5 30

Evening

M

:

Day

75

COOL

o

Am

I0 30

M

:

Evening

75

COOL

o

Pm

5 30

M

:

Day

73

75

HEAT

COOL

o

o

Am

I0 30

M

:

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Programming 4 Time Periods

Page 10

Continued

Adjust the heating

setpoint for Night

Adjust the heating

setpoint for Evening.

Adjust the cooling

setpoint for Night.

Adjust the start time

for Night.

Start

Pm

I I 30

Night

M

:

Night

78

COOL

o

Pm

I I 30

M

:

Pm

5 30

Evening

M

:

73

75

HEAT

COOL

o

o

Night

70

78

HEAT

COOL

o

o

Am

I I 30

M

:

(35 - 99 )

(35 - 99 )

(35 - 99 )

Press

MODE

Press

MODE

Press

MODE

Press

MODE

Programming 4 Time Periods

Page 11

py

18:no

co

T

:

Select Yes or No to copy

the previous day’s

program to this day.

Yes

No

If Yes is selected:

If No is selected:

Selecting Yes, then pressing mode will copy the

previous day’s program and then will ask the

same copy question again. If yes is selected

each time, this routine will repeat.

The copy command becomes available after

programming the entire previous day.

If No is selected, as in previous steps, flashing prompts for input will appear for

the 4 time periods for the next day.

Press

MODE

Press

MODE

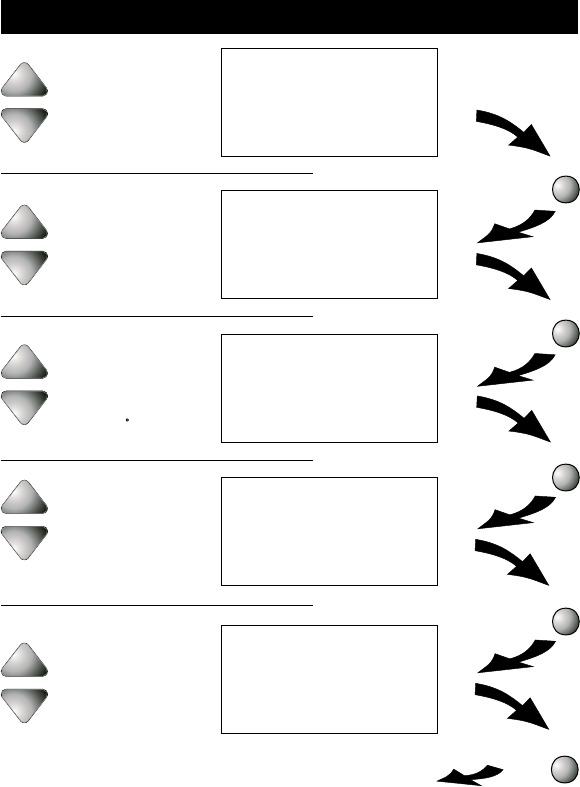

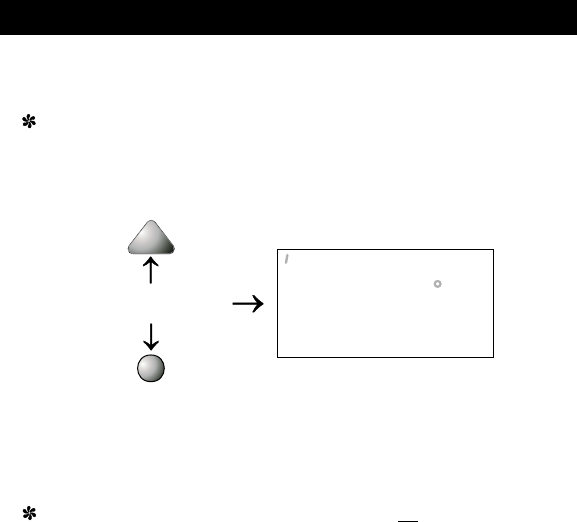

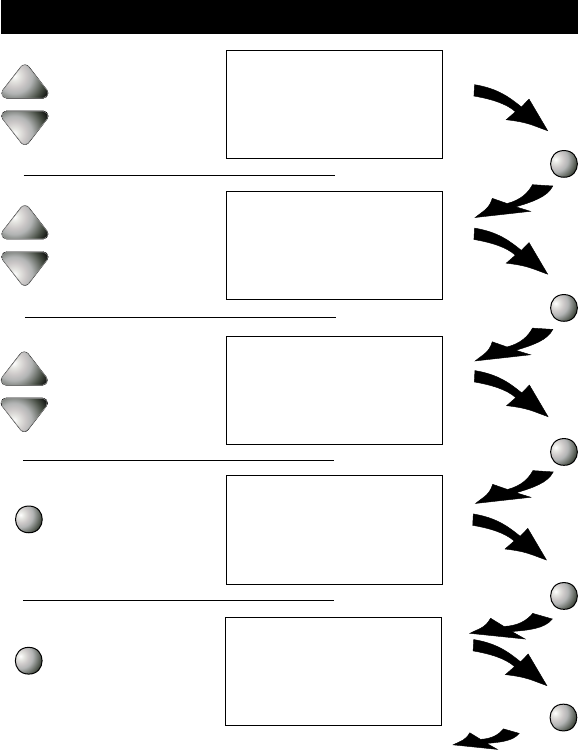

Advanced Setup

Page 12

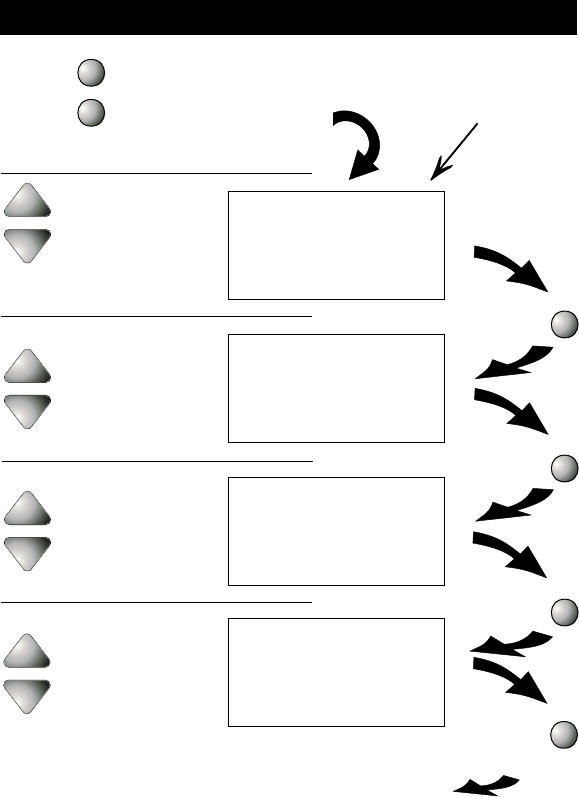

Press the Mode button.

While holding the Mode,

press the Program button

to enter Setup screens.

NOTE: Each step # is located at

the top right corner of the

display for easy reference.

PROGRAM

MODE

Select the day of the

week.

Select residential Heat

Pump, On or Off.

On

Off

Adjust the time of day

clock.

Tip: To change hours quickly, press and

hold the override button in and press

the up or down buttons.

Press

Press

Press

Press

Continued

MODE

MODE

MODE

MODE

Setup

AM

I2:00

I

Setup

2

Mo

OFF

Setup

HP

3

Setup

O

4

Select the reversing

valve polarity for

Heat Pump, O or B.

(Step 4 only appears if

heat pump is on in step 3)

B

O

Page 13

Advanced Setup

Adjust the deadband

from 1 - 6 degrees.

Adjust the minimum

difference between

cooling & heating

setpoints.

(0 - 6 )

Select the cycles per

hour limit.

d=cycles per hour

limit defeated.

d1=d + defeat 5 min.

Compressor lockout.

(d, d1, 2 - 6)

Press

Press

Press

MODE

MODE

MODE

OFF

Setup

EH

5

Setup

Cy

6

8

Setup

8

2

8

6

COOL

Setup

HEAT

8

If

2

7

Select Electric Heat On

or Off. (Step 5 only

appears if heat pump is

off in step 3)

On

Off

Press

Continued

MODE

Adjust the programmable

fan timer.

0 - 60 minutes.

0:00 = off

Press

MODE

9

Fan On

Setup

0:00

:

Advanced Setup

Page 14

Press

Press

Press

Press

Press

Continued

MODE

MODE

MODE

MODE

MODE

Adjust the programmable

fan start time. (step 10

appears only if step 9

is not 0:00)

Adjust the programmable

fan stop time. (step 11

appears only if step 9

is not 0:00)

Press

FA N

Reset the Energy Watch

Heat hour counter.

(0 - 1999)

Select the display back-

light always On, or Off

after 8 seconds.

On

Off

I0

Fan On

Setup

On

Am

7:00

I I

OFF

Fan On

Setup

Pm

9:00

I2

Setup

On

L I

I3

HEAT

Setup

0

I4

COOL

Setup

0

Press

FA N

Reset the Energy Watch

Cool hour counter.

(0 - 1999)

Advanced Setup

Page 15

Press

Press

MODE

MODE

MODE

FA N

Press

Press the Mode button.

While holding the Mode, press the Fan

button for 2 seconds to leave the Setup

screens. If no buttons are pressed, the

display will leave the setup screens after

30 seconds.

Select thermostat

operation in degrees

Fahrenheit or Centigrade.

C

F

Adjust the number of

hours the blower will

run before the Service

Filter icon appears on

the display. 0 = off.

(0 - 1950)

Press

FA N

Reset the Service Filter

counter. This will also

remove the Service

Filter icon from the

display

I5

ServiceFilter

Setup

0

I6

ServiceFilter

Setup

0

I7

Setup

F

Advanced Setup

Page 16

Step # Description Range Factory Default

1 Time of day clock set 24 hour 12:00 Am

2 Day of the week Sun - Sat Monday

3

4

5

6

7

8

9 Programmable Fan

12

13

14

15 Reset Service Filter icon - - - -

16 Service Filter run time set 0 - 1950 0

17

Heat Pump Off / On Off

Reversing Valve polarity O / B O

Electric Heat Off / On Off

Deadband or Temperature swing 1 - 6 1

Forced minimum difference heat/cool 0 - 6 2

Cycles per hour d, d1, 2 - 6 6

0:00 - 0:60 0:00

10 Programmable Fan Start Time 24 hour 7:00 Am

11 Programmable Fan Stop Time 24 hour 9:00 Pm

Thermoglow backlight Off / On On

Energy Watch - Heat Timer 0 - 1999 0

Energy Watch - Cool Timer 0 - 1999 0

Fahrenheit or Centigrade F / C F

Advanced Setup Table

About Advanced Features & Operation

Page 17

MEMORY BACKUP - In the event of a power loss, the

thermostat will retain the stored program settings without

external power or batteries.

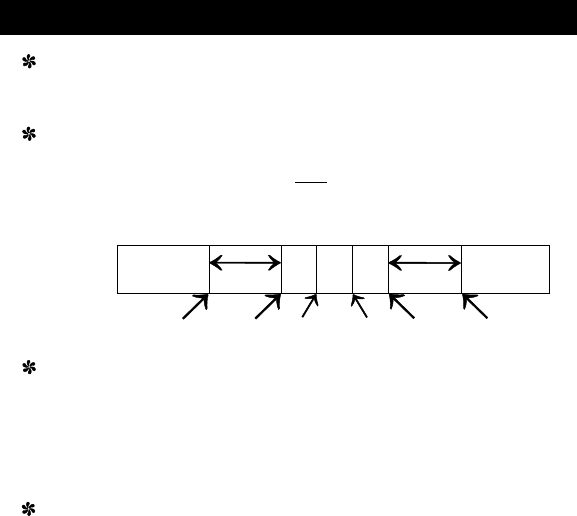

2 STAGE OPERATION - The 2nd Stage of heat or cool is

turned on when (1) the 1st Stage has been on for a

minimum of two minutes, and (2) the temperature spread

from the setpoint is equal to or greater than: the setpoint

plus the deadband, plus 2 degrees.

Heat

Setpoint

Cool

Setpoint

Dead

Band

Dead

Band

2 degrees 2 degrees

1st Stage

turn on

2nd Stage

turn on

1st Stage

turn on

2nd Stage

turn on

Heating Cooling

MINIMUM HEAT/COOL SETPOINT DIFFERENCE - The Heat

and Cool setpoints will not be allowed to come any closer

to each other than the value set in Advanced Setup step

# 7, on page 13. This minimum difference is enforced

during Auto changeover operation.

and Program On

PROGRAMMABLE FAN - If the Programmable Fan timer is

set to a value other than 0:00, the fan will run for the

preprogrammed amount of time,

The Programmable Fan timer will start the fan at the top

of each hour. The Programmable Fan may be active

even if the thermostat mode is Off. Steps 10 & 11

restrict the hours in which Programmable Fan may

operate. Step# 10, page 14 is the start time and step# 11

is the stop time. Setting the times to the same setting

in both steps 10 & 11 will allow Programmable Fan to

operate 24 hours a day.

page 13, step# 9.

About Advanced Features & Operation

Page 18

ELECTRIC HEAT - Selecting Electric Heat on, page 13,

step 5, will cause the thermostat to turn on the fan

any time there is a heat demand. Since all

control the fan, this feature should be off

is only electric.

immediately

gas furnaces

unless the heater

EMERGENCY HEAT - Is a feature available to Heat Pump

installations. To turn on Emergency Heat press in the

Fan button. While holding the Fan button press

Up button for 2 seconds. The Cool setpoint display

will read ‘EH’.

During Emergency Heat the thermostat will turn

on the fan and the 2nd stage of heat, when there is a

demand for heat, locking out the 1st stage compressor.

Exiting Emergency Heat is the same as entering. During

Emergency Heat only OFF and HEAT are available.

the

Press for

Emergency Heat

FA N

74

eh

HEAT

o

o

Am

12:00

73

:

About Advanced Features & Operation

Page 19

KEYPAD LOCK - To prevent unauthorized use of the thermostat,

the front panel buttons may be disabled. To disable, or

‘lock’ the keypad, press and hold in the Mode button.

While holding the Mode button in, press the Up and Down

buttons in together. The Locked icon will appear on the

display.

Press all 3 for

Keypad Lockout

To unlock the buttons, again press and hold the Mode

button. While holding the Mode button in, press the Up

and Down buttons in together. The Locked icon will

disappear from the display.

MODE

55

85

HEAT

COOL

Locked

o

o

Pm

12:00

65

:

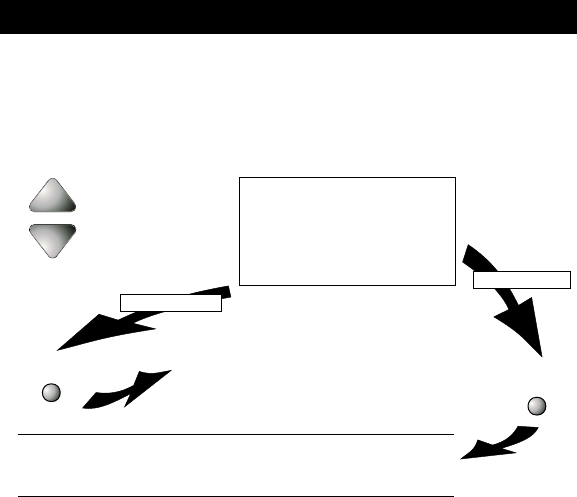

VACATION MODE - When the thermostat is in Vacation mode, the

thermostat will operate under the Vacation time period set points.

In order for Vacation mode to become active the thermostat must

be in the Program On mode. Vacation mode will take effect when

the time clock reaches 12:00am.

y

23

Setup

0

24

COOL

Setup

85

25

HEAT

Setup

55

unoccupied

unoccupied

unoccupied

8

Press

Press

MODE

MODE

VACATION

Press

Press the Vacation button to exit

the Setup screens. If no buttons are

pressed, the display will leave the

setup screens after 30 seconds.

About Advanced Features & Operation

Page 20

Press the VACATION button to enter the

vacation programming setup steps.

VACATION

Select the number of days

that the Vacation Schedule

will be in effect. A value

of 0 disables Vacation

mode.

Adjust the cooling

setpoint for Vacation

mode.

(35 - 99 )

Adjust the heating

setpoint for Vacation

mode.

(35 - 99 )

About Advanced Features & Operation

Page 21

DUAL SETPOINT BEHAVIOR - The adjustable setpoint range

is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in

Centigrade. When in the modes Heat or Cool, this

adjustable range is unhampered.

When adjusting any Auto mode, including programming

4 Time periods, the thermostat will not

Heat setpoint to get closer to the Cool setpoint

than the value programmed as the minimum difference

step 7, page 13.

When entering the Auto mode from Cool, the Heat and

Cool setpoints will remain spread apart by the amount

that they were adjusted, prior to entering Auto.

For example: If the Cool setpoint was set to 80 while

in the Cool mode and the Heat setpoint was adjusted to

70 while in the Heat mode, upon entering the Auto mode

the Heat and Cool setpoints would be 80 and 70. Both

setpoints would then move up and down together, (in this

example spread by 10 degrees), by pressing the up or

down buttons.

To move the Heat and Cool setpoints closer together,

enter the Cool or Heat mode by pressing the Mode button,

then adjust the setpoint(s) closer together. Heat is limited

to how close it can come to Cool by step 7, page 13.

allow the

in

About Advanced Features & Operation

Page 22

FACTORY DEFAULTS - If, for any reason it is desirable to

return all stored settings back to the factory default

settings, press the Mode button. While holding the Mode

button in, press the Fan button for 5 sec. All icons will

appear. Press and hold in the Fan button until Fd

appears. This resets all factory settings. To calibrate

room temperature, press the Up and Down arrow buttons

simultaneously, twice.

At this point use the Up and Down buttons to calibrate

room temperature, if needed. Press the Mode button to

return to normal operation. NOTE CAUTION ON PAGE 1.

OUTSIDE SENSOR (Optional Accessory) - When connected

to terminals RS+5, RS, & GND on the back of the

thermostat, the thermostat will read the temperature from

the Outside

not control to this sensor, it is only to read outside

To read the temperature

press the Outside button of the thermostat .

The display will then only show Outside temperature.

Pressing the Outside button will then return the display to

normal operation.

Sensor when asked to. This thermostat will

temperature.

from the Outside Sensor,

The Outside Sensor is available in a wired or wireless

version. The wired sensor can be connected to the

thermostat with

Unshielded,

See the Outside Sensor instructions for further details.

up to 500’ of 20 ga. or 300’ of 18 ga.

thermostat wire.

Page 23

Warranty

Five-Year Warranty - This Product is warranted to be free from defects in material and

workmanship. If defect appears within five years from the date of original installation, whether

or not actual use begins on that date, then the product does meet this warranty. A new or

remanufactured part, at the manufacturer’s sole option, to replace any defective part will be

provided without charge for the part itself; PROVIDED the defective part is returned to the

distributor through a qualified servicing dealer.

THIS WARRANTY DOES NOT INCLUDE LABOR OR OTHER COSTS incurred for diagnosing,

repairing, removing, installing, shipping, servicing or handling of either defective parts or

replacement parts. Such costs may be covered by a separate warranty provided by the installer.

THIS WARRANTY APPLIES ONLY TO PRODUCTS IN THEIR ORIGINAL INSTALLATION

LOCATION AND BECOMES VOID UPON REINSTALLATION.

LIMITATIONS OF WARRANTIES – ALL IMPLIED WARRANTIES (INCLUDING IMPLIED

WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY) ARE

HEREBY LIMITED IN DURATION TO THE PERIOD FOR WHICH THE LIMITED WARRANTY

IS GIVEN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESSED

WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MANY NOT BE ALTERED,

ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON

WHATSOEVER.

ALL WORK UNDER THE TERMS OF THIS WARRANTY SHALL BE PERFORMED DURING

NORMAL WORKING HOURS. ALL REPLACEMENT PARTS, WHETHER NEW OR

REMANUFACTURED, ASSUME AS THEIR WARRANTY PERIOD ONLY THE REMAINING

TIME PERIOD OF THIS WARRANTY.

THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR:

1. Normal maintenance as outlined in the installation and servicing instructions or owners

manual including filter cleaning and/or replacement and lubrication.

2. Damage or repairs required as a consequence of faulty installation, misapplication, abuse,

improper servicing, unauthorized alteration or improper operation.

3. Failure to start due to voltage conditions, blown fuses, open circuit breakers or other

damages due to the inadequacy or interruption of electrical service.

4. Damage as a result of floods, winds, fires, lightning, accidents, corrosive environments or

other conditions beyond the control of the Manufacturer.

5. Parts not supplied or designated by the Manufacturer, or damages resulting from their use.

6. Manufacturer products installed outside the continental U.S.A., Alaska, Hawaii, and

Canada.

7. Electricity or fuel costs or increases in electricity or fuel costs from any reason whatsoever

including additional or unusual use of supplemental electric heat.

8. ANY SPECIAL INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL

DAMAGE OF ANY NATURE WHATSOEVER. Some states do not allow the exclusion of

incidental or consequential damages, so the above may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which may vary

form state to state.

Programming Worksheet see page 8

No

Yes

No

Yes

No

Yes

No

Yes

Form No. OM17-45

Catalog No. 13TS-TA52

No

Yes

No

Yes

F

R

I

D

A

Y

T

U

R

A

S

D

A

Y

Morning

Morning

Day

Day

Evening

Evening

Night

Night

Copy Fri Sat

Copy Tue Wed

Copy Thu Fri

S

U

N

D

A

Y

Morning

Day

Evening

Night

Copy Sat Sun

Copy Wed Thu

W

E

N

E

S

D

D

A

Y

T

U

R

H

S

D

A

Y

Morning

Morning

Day

Day

Evening

Evening

Night

Night

DAY PERIOD HEAT

START TIME COOL

Copy Mon Tue

M

O

N

D

A

Y

T

U

E

S

D

A

Y

Morning

Morning

Day

Day

Evening

Evening

Night

Night

Printed on recycled paper.

P/N 88-307

Rev. 1
