Budderfly M0021501 Power Meter User Manual

Budderfly LLC Power Meter

User Manual

 POWER METER M0021501Description:InstallingaBudderflyadaptertransformsyourbuilding’sexistingwiringintothe“BudderflyOpenNetwork”andallowstheadaptertomonitorenergyconsumptionandcommunicatethedatatoafacilitycontroller.Budderflyadaptorswillusetheexistingpowerlineforcommunicationandthusrequirenore‐wiring.UsingourBudderflysoftware,youcanvisualizeconsumptiondataandmanageeachindividualadapter.TheBudderflyPowerMeterisacomponentoftheBudderflysystemanddesignedtoworkwithallotherBudderflydevices.Onceinstalled,theBudderflyPowerMeteralsoactsasrepeaterstoextendtherangeofthenetworkandincreaseefficiency.WarningRISKOFFIRERISKOFELECTRICALSHOCKRISKOFBURNSToavoidtheriskofFire,ElectricalShock,Burnsorotherhazardswerecommendthefollowing:• UseBudderflyPowerMeterindooronly.• NeverconnecttheBudderflyPowerMetertomedicaland/orlifesupportequipment.• DoNotusetheBudderflyPowerMeterwhereexcessivemoistureispresentornearWaterrelatedApplications• NeverusetheBudderflyPowerMeterwithloadsthatexceedthemaximumratingspecified.

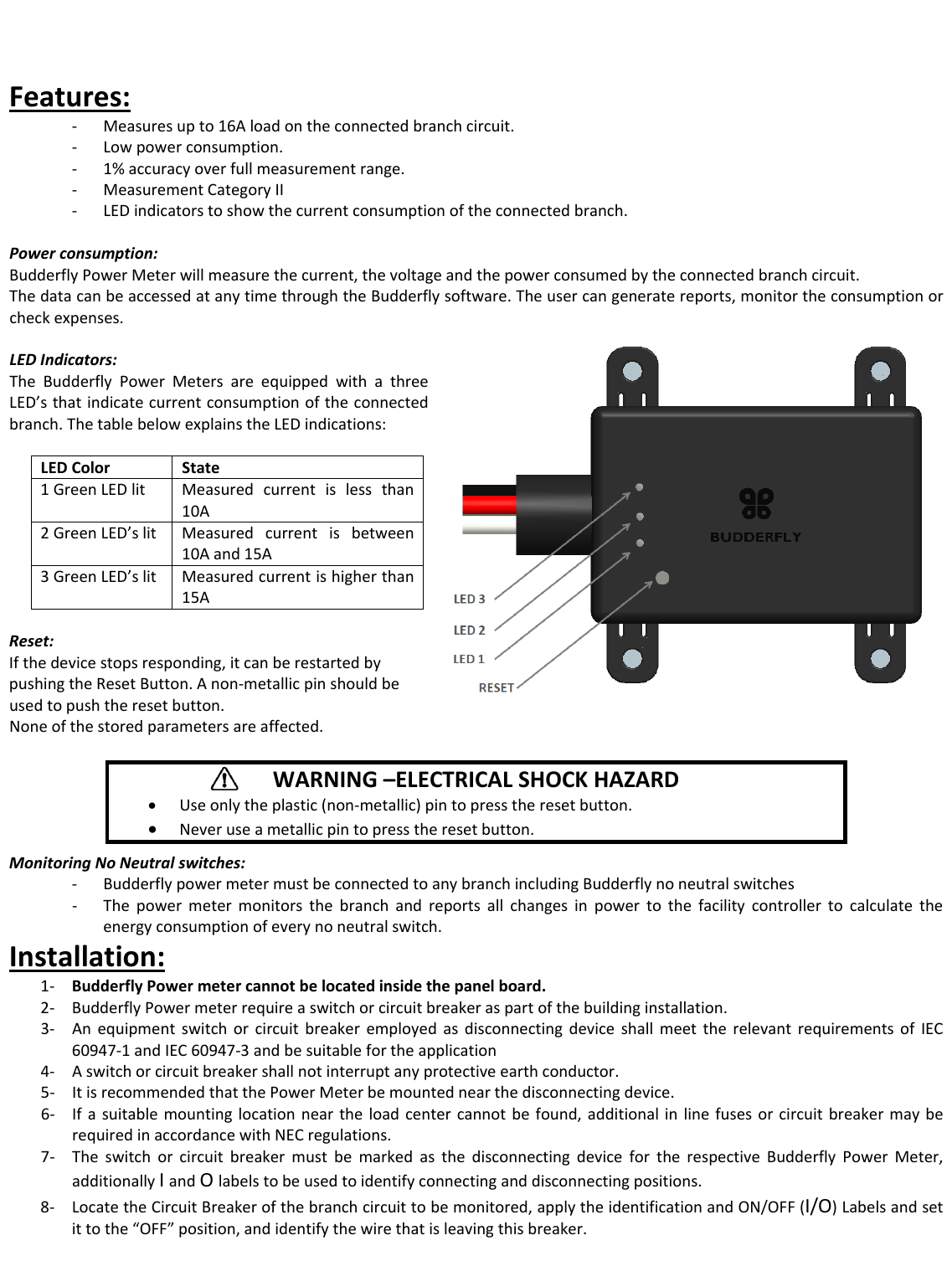

Features:‐ Measuresupto16Aloadontheconnectedbranchcircuit.‐ Lowpowerconsumption.‐ 1%accuracyoverfullmeasurementrange.‐ MeasurementCategoryII‐ LEDindicatorstoshowthecurrentconsumptionoftheconnectedbranch.Powerconsumption:BudderflyPowerMeterwillmeasurethecurrent,thevoltageandthepowerconsumedbytheconnectedbranchcircuit.ThedatacanbeaccessedatanytimethroughtheBudderflysoftware.Theusercangeneratereports,monitortheconsumptionorcheckexpenses.LEDIndicators:TheBudderflyPowerMetersareequippedwithathreeLED’sthatindicatecurrentconsumptionoftheconnectedbranch.ThetablebelowexplainstheLEDindications:LEDColorState1GreenLEDlitMeasuredcurrentislessthan10A2GreenLED’slitMeasuredcurrentisbetween10Aand15A3GreenLED’slitMeasuredcurrentishigherthan15AReset:Ifthedevicestopsresponding,itcanberestartedbypushingtheResetButton.Anon‐metallicpinshouldbeusedtopushtheresetbutton.Noneofthestoredparametersareaffected.MonitoringNoNeutralswitches:‐ BudderflypowermetermustbeconnectedtoanybranchincludingBudderflynoneutralswitches‐ Thepowermetermonitorsthebranchandreportsallchangesinpowertothefacilitycontrollertocalculatetheenergyconsumptionofeverynoneutralswitch.Installation:1‐ BudderflyPowermetercannotbelocatedinsidethepanelboard.2‐ BudderflyPowermeterrequireaswitchorcircuitbreakeraspartofthebuildinginstallation.3‐ AnequipmentswitchorcircuitbreakeremployedasdisconnectingdeviceshallmeettherelevantrequirementsofIEC60947‐1andIEC60947‐3andbesuitablefortheapplication4‐ Aswitchorcircuitbreakershallnotinterruptanyprotectiveearthconductor.5‐ ItisrecommendedthatthePowerMeterbemountednearthedisconnectingdevice.6‐ Ifasuitablemountinglocationneartheloadcentercannotbefound,additionalinlinefusesorcircuitbreakermayberequiredinaccordancewithNECregulations.7‐ TheswitchorcircuitbreakermustbemarkedasthedisconnectingdevicefortherespectiveBudderflyPowerMeter,additionallyIandOlabelstobeusedtoidentifyconnectinganddisconnectingpositions.8‐ LocatetheCircuitBreakerofthebranchcircuittobemonitored,applytheidentificationandON/OFF(I/O)Labelsandsetittothe“OFF”position,andidentifythewirethatisleavingthisbreaker.WARNING–ELECTRICALSHOCKHAZARD• Useonlytheplastic(non‐metallic)pintopresstheresetbutton.• Neveruseametallicpintopresstheresetbutton.

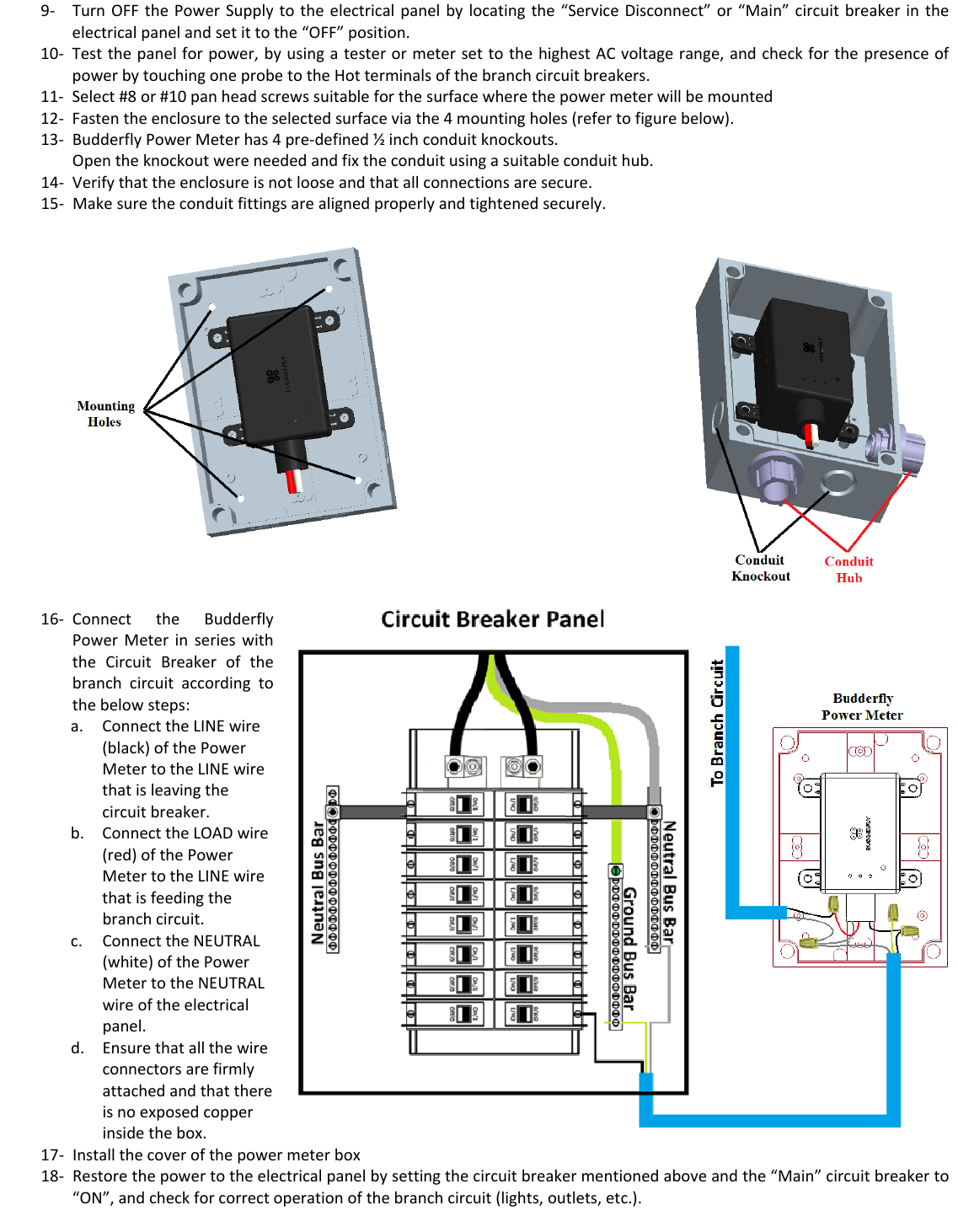

9‐ TurnOFFthePowerSupplytotheelectricalpanelbylocatingthe“ServiceDisconnect”or“Main”circuitbreakerintheelectricalpanelandsetittothe“OFF”position.10‐ Testthepanelforpower,byusingatesterormetersettothehighestACvoltagerange,andcheckforthepresenceofpowerbytouchingoneprobetotheHotterminalsofthebranchcircuitbreakers.11‐ Select#8or#10panheadscrewssuitableforthesurfacewherethepowermeterwillbemounted12‐ Fastentheenclosuretotheselectedsurfaceviathe4mountingholes(refertofigurebelow).13‐ BudderflyPowerMeterhas4pre‐defined½inchconduitknockouts.Opentheknockoutwereneededandfixtheconduitusingasuitableconduithub.14‐ Verifythattheenclosureisnotlooseandthatallconnectionsaresecure.15‐ Makesuretheconduitfittingsarealignedproperlyandtightenedsecurely.16‐ ConnecttheBudderflyPowerMeterinserieswiththeCircuitBreakerofthebranchcircuitaccordingtothebelowsteps:a. ConnecttheLINEwire(black)ofthePowerMetertotheLINEwirethatisleavingthecircuitbreaker.b. ConnecttheLOADwire(red)ofthePowerMetertotheLINEwirethatisfeedingthebranchcircuit.c. ConnecttheNEUTRAL(white)ofthePowerMetertotheNEUTRALwireoftheelectricalpanel.d. Ensurethatallthewireconnectorsarefirmlyattachedandthatthereisnoexposedcopperinsidethebox.17‐ Installthecoverofthepowermeterbox18‐ Restorethepowertotheelectricalpanelbysettingthecircuitbreakermentionedaboveandthe“Main”circuitbreakerto“ON”,andcheckforcorrectoperationofthebranchcircuit(lights,outlets,etc.).

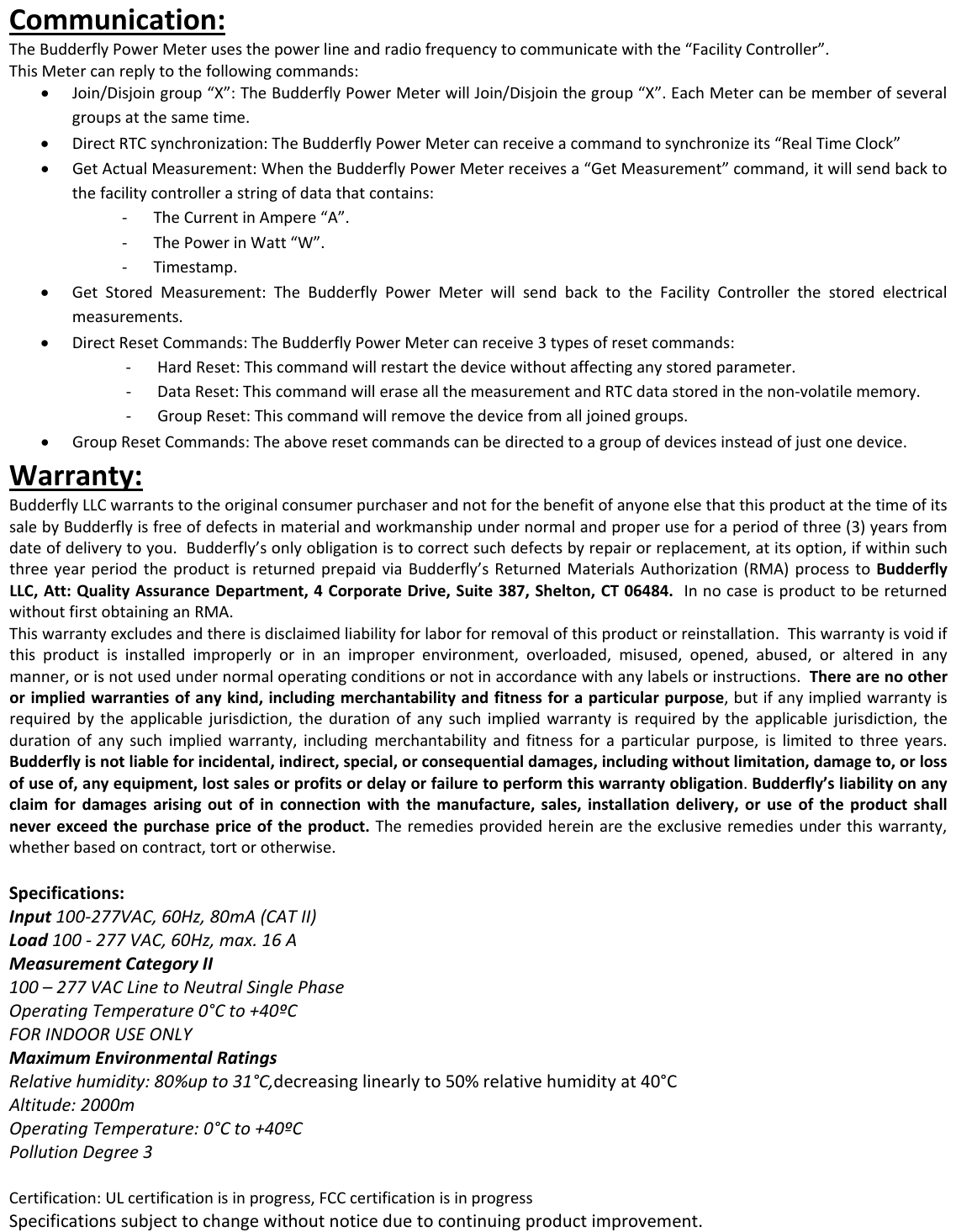

Communication:TheBudderflyPowerMeterusesthepowerlineandradiofrequencytocommunicatewiththe“FacilityController”.ThisMetercanreplytothefollowingcommands:• Join/Disjoingroup“X”:TheBudderflyPowerMeterwillJoin/Disjointhegroup“X”.EachMetercanbememberofseveralgroupsatthesametime.• DirectRTCsynchronization:TheBudderflyPowerMetercanreceiveacommandtosynchronizeits“RealTimeClock”• GetActualMeasurement:WhentheBudderflyPowerMeterreceivesa“GetMeasurement”command,itwillsendbacktothefacilitycontrollerastringofdatathatcontains:‐ TheCurrentinAmpere“A”...r.y.s.‐ ThePowerinWatt“W”‐ Timestamp• GetStoredMeasurement:TheBudderflyPowerMeterwillsendbacktotheFacilityControllerthestoredelectricalmeasurements.• DirectResetCommands:TheBudderflyPowerMetercanreceive3typesofresetcommands:‐ HardReset:Thiscommandwillrestartthedevicewithoutaffectinganystoredparamete‐ DataReset:ThiscommandwilleraseallthemeasurementandRTCdatastoredinthenon‐volatilememor‐ GroupReset:Thiscommandwillremovethedevicefromalljoinedgroup• GroupResetCommands:Theaboveresetcommandscanbedirectedtoagroupofdevicesinsteadofjustonedevice.Warranty:BudderflyLLCwarrantstotheoriginalconsumerpurchaserandnotforthebenefitofanyoneelsethatthisproductatthetimeofitssalebyBudderflyisfreeofdefectsinmaterialandworkmanshipundernormalandproperuseforaperiodofthree(3)yearsfromdateofdeliverytoyou.Budderfly’sonlyobligationistocorrectsuchdefectsbyrepairorreplacement,atitsoption,ifwithinsuchthreeyearperiodtheproductisreturnedprepaidviaBudderfly’sReturnedMaterialsAuthorization(RMA)processtoBudderflyLLC,Att:QualityAssuranceDepartment,4CorporateDrive,Suite387,Shelton,CT06484.InnocaseisproducttobereturnedwithoutfirstobtaininganRMA.Thiswarrantyexcludesandthereisdisclaimedliabilityforlaborforremovalofthisproductorreinstallation.Thiswarrantyisvoidifthisproductisinstalledimproperlyorinanimproperenvironment,overloaded,misused,opened,abused,oralteredinanymanner,orisnotusedundernormaloperatingconditionsornotinaccordancewithanylabelsorinstructions.Therearenootherorimpliedwarrantiesofanykind,includingmerchantabilityandfitnessforaparticularpurpose,butifanyimpliedwarrantyisrequiredbytheapplicablejurisdiction,thedurationofanysuchimpliedwarrantyisrequiredbytheapplicablejurisdiction,thedurationofanysuchimpliedwarranty,includingmerchantabilityandfitnessforaparticularpurpose,islimitedtothreeyears.Budderflyisnotliableforincidental,indirect,special,orconsequentialdamages,includingwithoutlimitation,damageto,orlossofuseof,anyequipment,lostsalesorprofitsordelayorfailuretoperformthiswarrantyobligation.Budderfly’sliabilityonanyclaimfordamagesarisingoutofinconnectionwiththemanufacture,sales,installationdelivery,oruseoftheproductshallneverexceedthepurchasepriceoftheproduct.Theremediesprovidedhereinaretheexclusiveremediesunderthiswarranty,whetherbasedoncontract,tortorotherwise.Specifications:Input100‐277VAC,60Hz,80mA(CATII)Load100‐277VAC,60Hz,max.16AMeasurementCategoryII100–277VACLinetoNeutralSinglePhaseOperatingTemperature0°Cto+40ºCFORINDOORUSEONLYMaximumEnvironmentalRatingsRelativehumidity:80%upto31°C,decreasinglinearlyto50%relativehumidityat40°CAltitude:2000mOperatingTemperature:0°Cto+40ºCPollutionDegree3Certification:ULcertificationisinprogress,FCCcertificationisinprogressSpecificationssubjecttochangewithoutnoticeduetocontinuingproductimprovement.

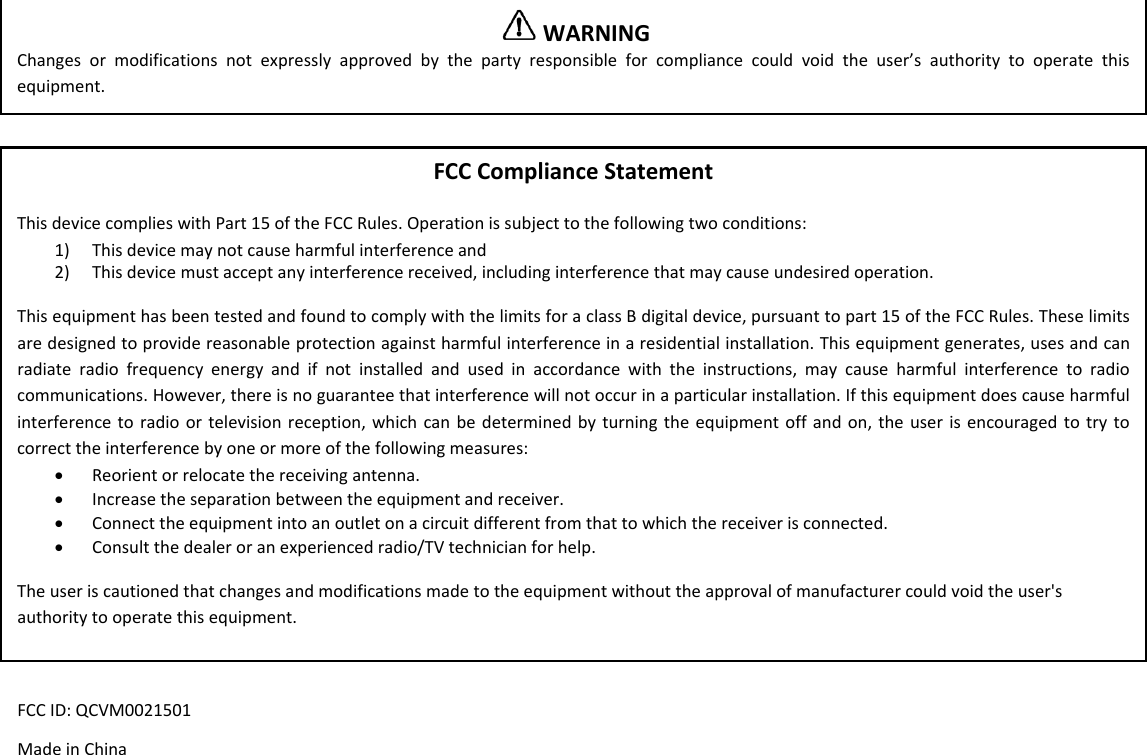

WARNINGChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.FCCComplianceStatementThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:1) Thisdevicemaynotcauseharmfulinterferenceand2) Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaclassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyandifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:• Reorientorrelocatethereceivingantenna.• Increasetheseparationbetweentheequipmentandreceiver.• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.Theuseriscautionedthatchangesandmodificationsmadetotheequipmentwithouttheapprovalofmanufacturercouldvoidtheuser'sauthoritytooperatethisequipment.FCCID:QCVM0021501MadeinChina
