Budderfly S0311010 RF Switch User Manual

Budderfly LLC RF Switch

User Manual

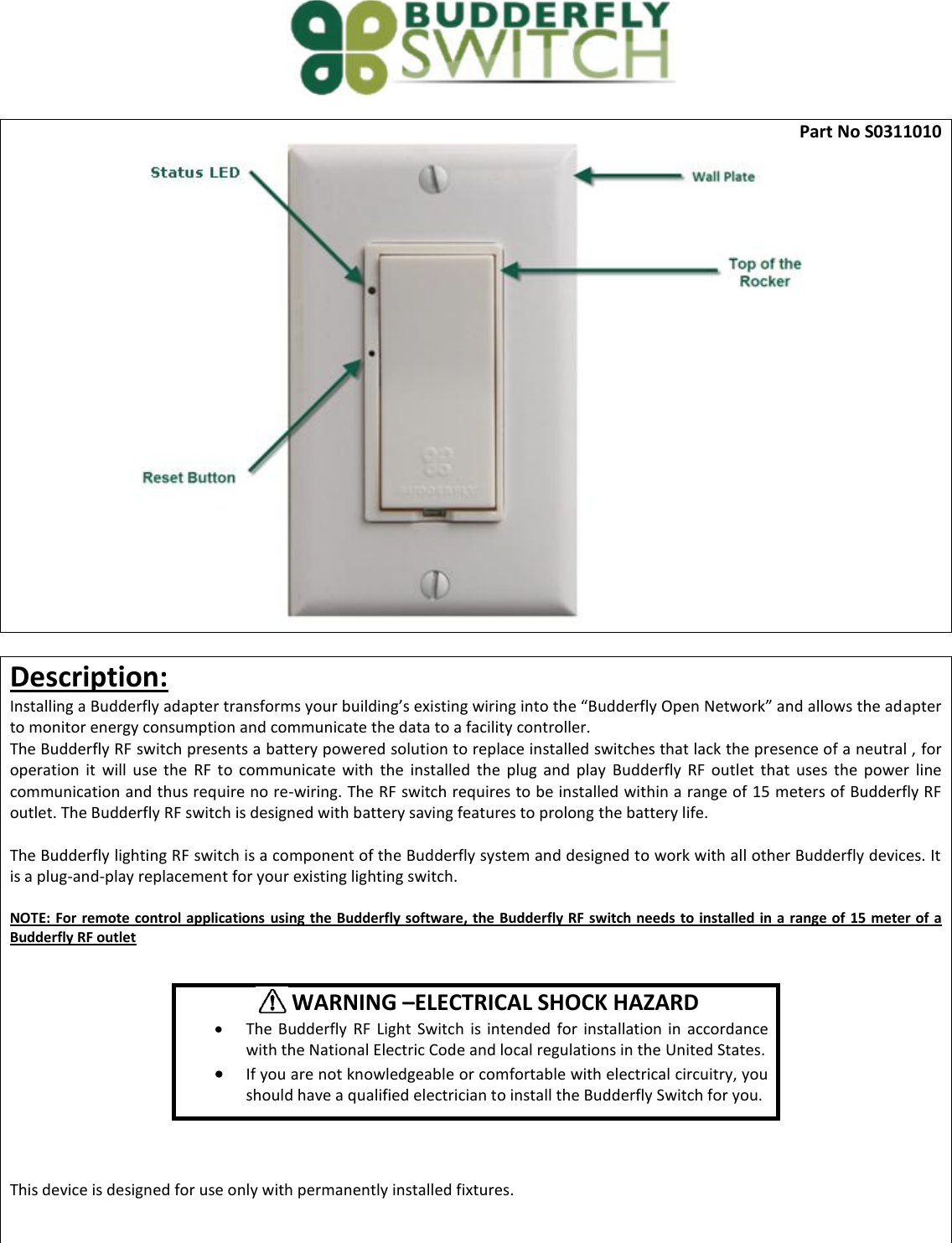

 Part No S0311010   Description: Installing a Budderfly adapter transforms your building’s existing wiring into the “Budderfly Open Network” and allows the adapter to monitor energy consumption and communicate the data to a facility controller.  The Budderfly RF switch presents a battery powered solution to replace installed switches that lack the presence of a neutral , for operation  it  will  use  the  RF  to  communicate  with  the  installed  the  plug  and  play  Budderfly  RF  outlet  that  uses  the  power  line communication and thus require no re-wiring. The RF switch requires to be installed within a range of 15 meters of Budderfly RF outlet. The Budderfly RF switch is designed with battery saving features to prolong the battery life.  The Budderfly lighting RF switch is a component of the Budderfly system and designed to work with all other Budderfly devices. It is a plug-and-play replacement for your existing lighting switch.   NOTE: For remote control applications using the  Budderfly software, the Budderfly RF  switch needs  to installed in a range of  15 meter of a Budderfly RF outlet           This device is designed for use only with permanently installed fixtures.           WARNING –ELECTRICAL SHOCK HAZARD  The  Budderfly  RF  Light  Switch  is intended  for installation  in  accordance with the National Electric Code and local regulations in the United States.  If you are not knowledgeable or comfortable with electrical circuitry, you should have a qualified electrician to install the Budderfly Switch for you.

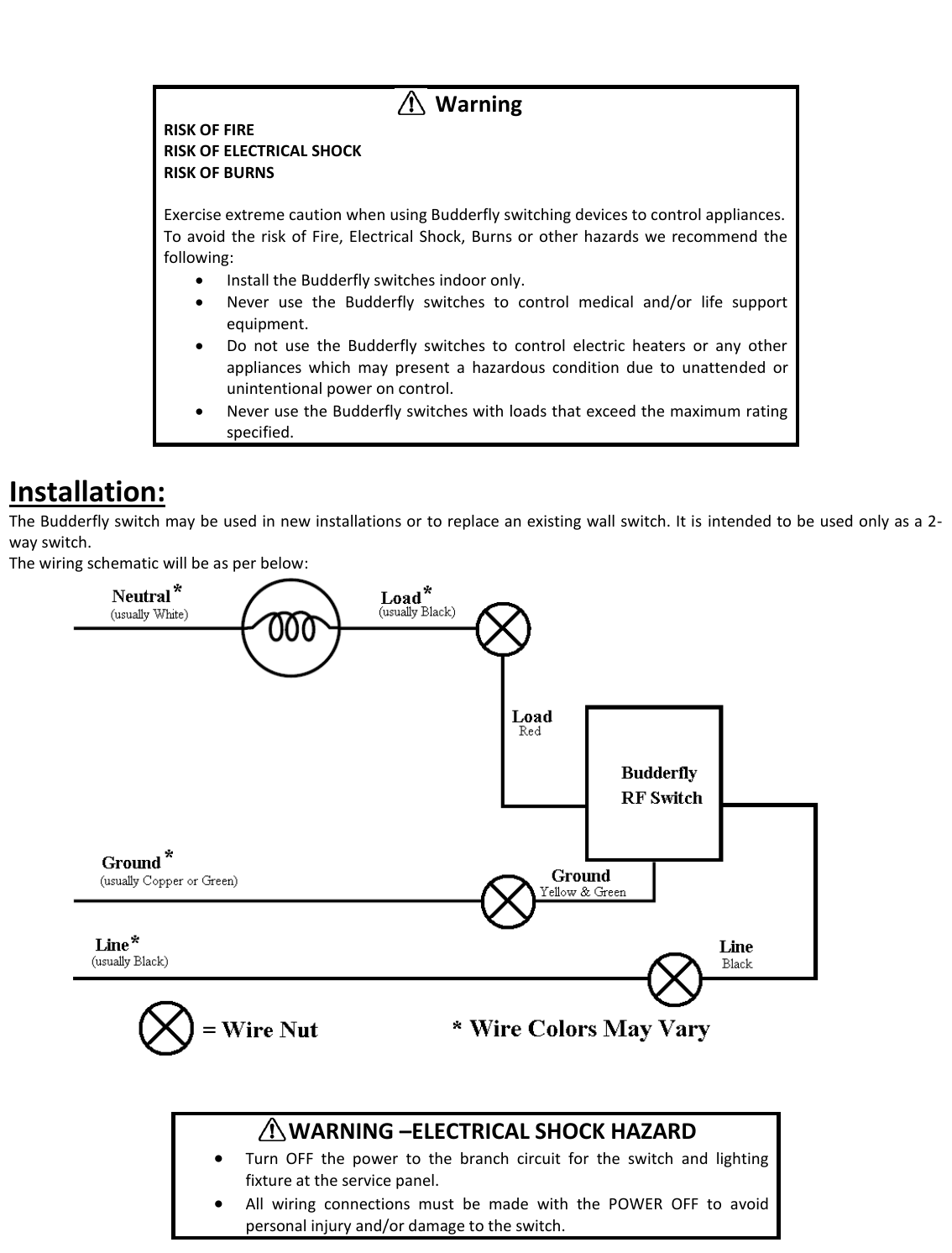

                   Installation: The Budderfly switch may be used in new installations or to replace an existing wall switch. It is  intended to be used only as a 2-way switch. The wiring schematic will be as per below:            Warning RISK OF FIRE RISK OF ELECTRICAL SHOCK RISK OF BURNS  Exercise extreme caution when using Budderfly switching devices to control appliances. To avoid  the  risk  of  Fire,  Electrical Shock,  Burns  or  other hazards  we  recommend  the following:  Install the Budderfly switches indoor only.  Never  use  the  Budderfly  switches  to  control  medical  and/or  life  support equipment.  Do  not  use  the  Budderfly  switches  to  control  electric  heaters  or  any  other appliances  which  may  present  a  hazardous  condition  due  to  unattended  or unintentional power on control.  Never use the Budderfly switches with loads that exceed the maximum rating specified.       WARNING –ELECTRICAL SHOCK HAZARD  Turn  OFF  the  power  to  the  branch  circuit  for  the  switch  and  lighting fixture at the service panel.   All  wiring  connections  must  be  made  with  the  POWER  OFF  to  avoid personal injury and/or damage to the switch.

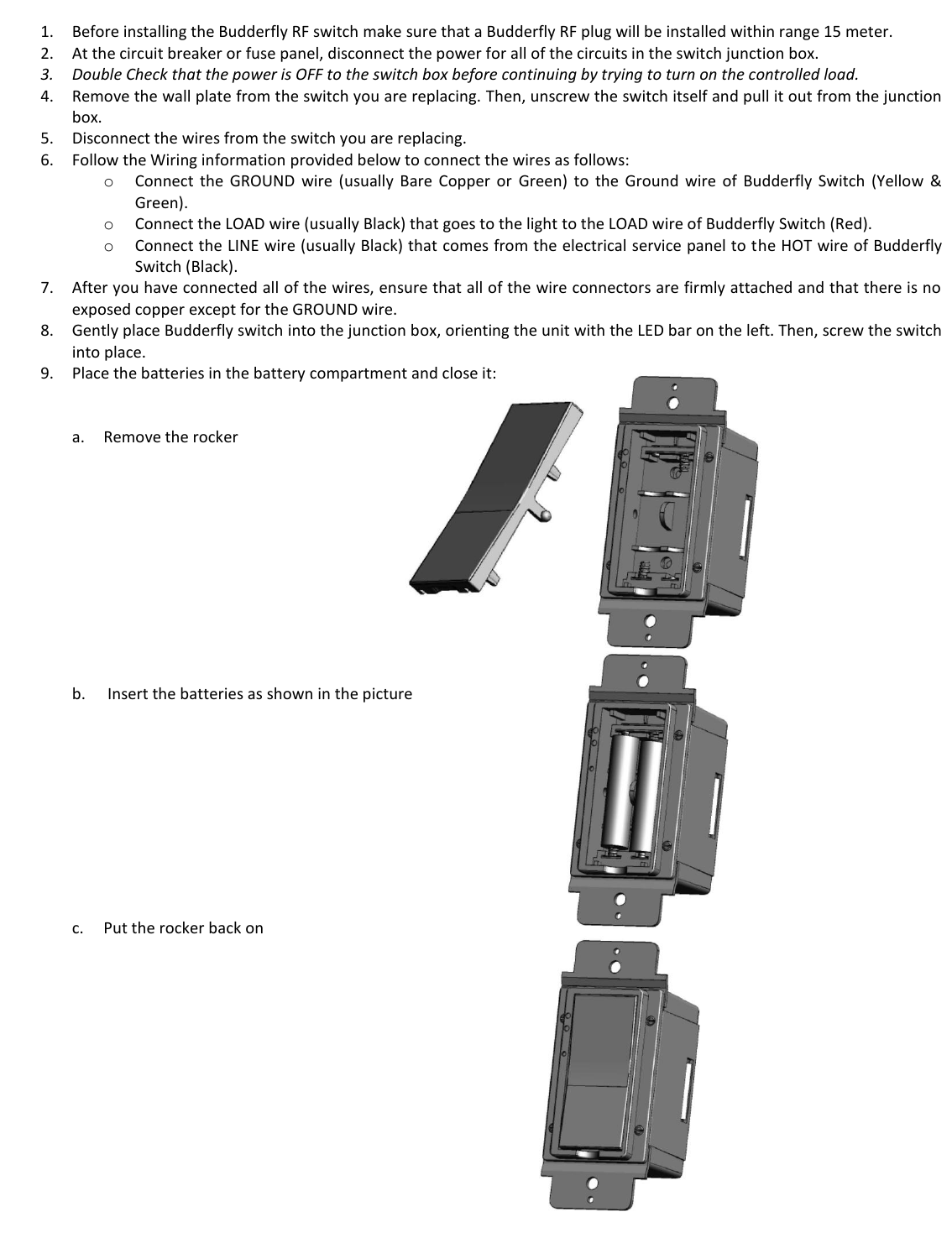

 1. Before installing the Budderfly RF switch make sure that a Budderfly RF plug will be installed within range 15 meter. 2. At the circuit breaker or fuse panel, disconnect the power for all of the circuits in the switch junction box. 3. Double Check that the power is OFF to the switch box before continuing by trying to turn on the controlled load. 4. Remove the wall plate from the switch you are replacing. Then, unscrew the switch itself and pull it out from the junction box. 5. Disconnect the wires from the switch you are replacing. 6. Follow the Wiring information provided below to connect the wires as follows: o Connect  the  GROUND  wire  (usually  Bare  Copper  or  Green)  to  the  Ground  wire  of  Budderfly  Switch  (Yellow  & Green). o Connect the LOAD wire (usually Black) that goes to the light to the LOAD wire of Budderfly Switch (Red). o Connect the LINE wire (usually Black) that comes from the electrical service panel to the HOT wire of Budderfly Switch (Black). 7. After you have connected all of the wires, ensure that all of the wire connectors are firmly attached and that there is no exposed copper except for the GROUND wire. 8. Gently place Budderfly switch into the junction box, orienting the unit with the LED bar on the left. Then, screw the switch into place. 9. Place the batteries in the battery compartment and close it:     a. Remove the rocker            b.  Insert the batteries as shown in the picture            c. Put the rocker back on

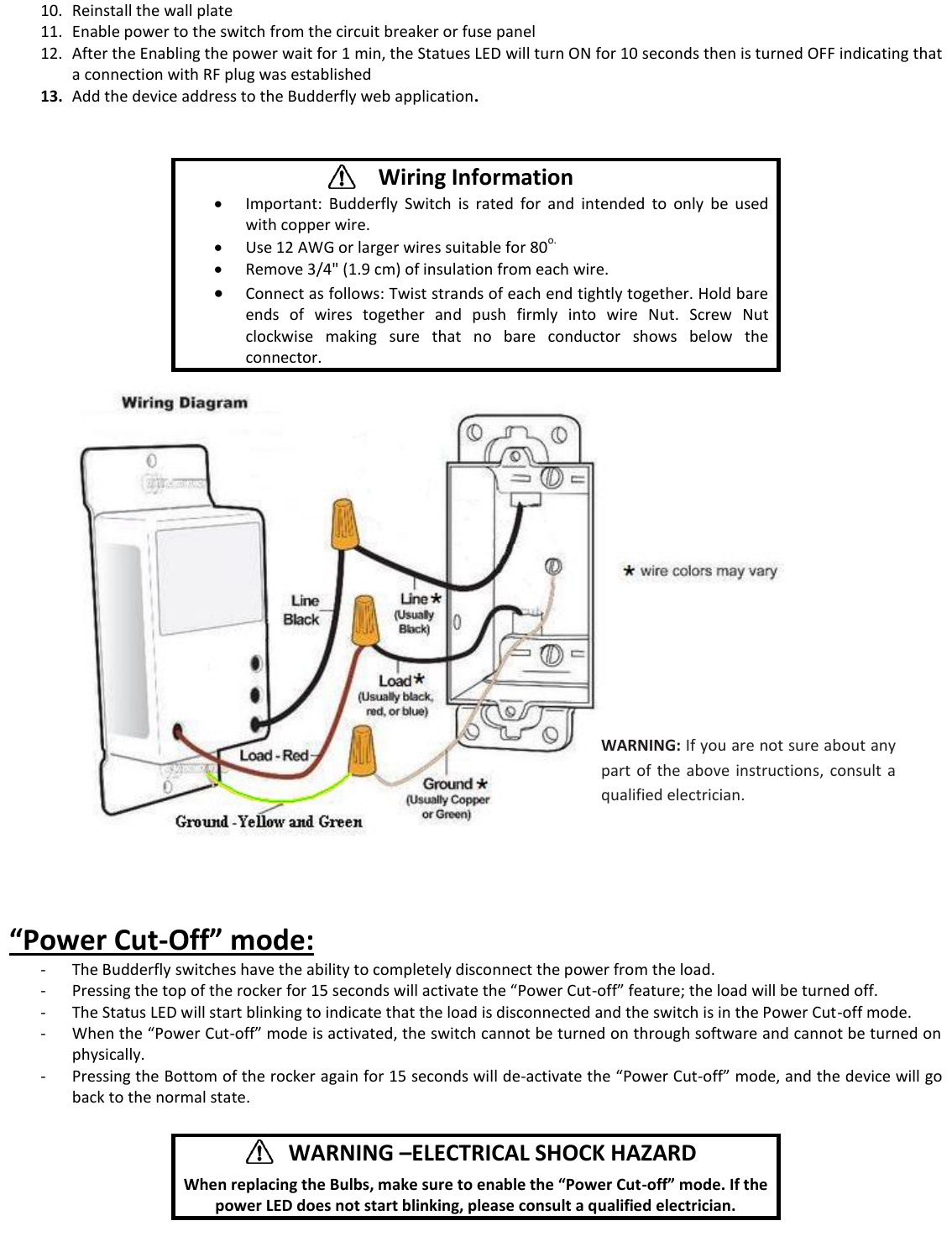

10. Reinstall the wall plate 11. Enable power to the switch from the circuit breaker or fuse panel 12. After the Enabling the power wait for 1 min, the Statues LED will turn ON for 10 seconds then is turned OFF indicating that a connection with RF plug was established 13. Add the device address to the Budderfly web application.                   “Power Cut-Off” mode: - The Budderfly switches have the ability to completely disconnect the power from the load. - Pressing the top of the rocker for 15 seconds will activate the “Power Cut-off” feature; the load will be turned off. - The Status LED will start blinking to indicate that the load is disconnected and the switch is in the Power Cut-off mode. - When the “Power Cut-off” mode is activated, the switch cannot be turned on through software and cannot be turned on physically. - Pressing the Bottom of the rocker again for 15 seconds will de-activate the “Power Cut-off” mode, and the device will go back to the normal state.       Wiring Information  Important:  Budderfly  Switch  is  rated  for  and  intended  to  only  be  used with copper wire.  Use 12 AWG or larger wires suitable for 80o.  Remove 3/4" (1.9 cm) of insulation from each wire.  Connect as follows: Twist strands of each end tightly together. Hold bare ends  of  wires  together  and  push  firmly  into  wire  Nut.  Screw  Nut clockwise  making  sure  that  no  bare  conductor  shows  below  the connector.       WARNING –ELECTRICAL SHOCK HAZARD    When replacing the Bulbs, make sure to enable the “Power Cut-off” mode. If the power LED does not start blinking, please consult a qualified electrician. WARNING: If you are not sure about any part  of  the  above instructions,  consult  a qualified electrician.

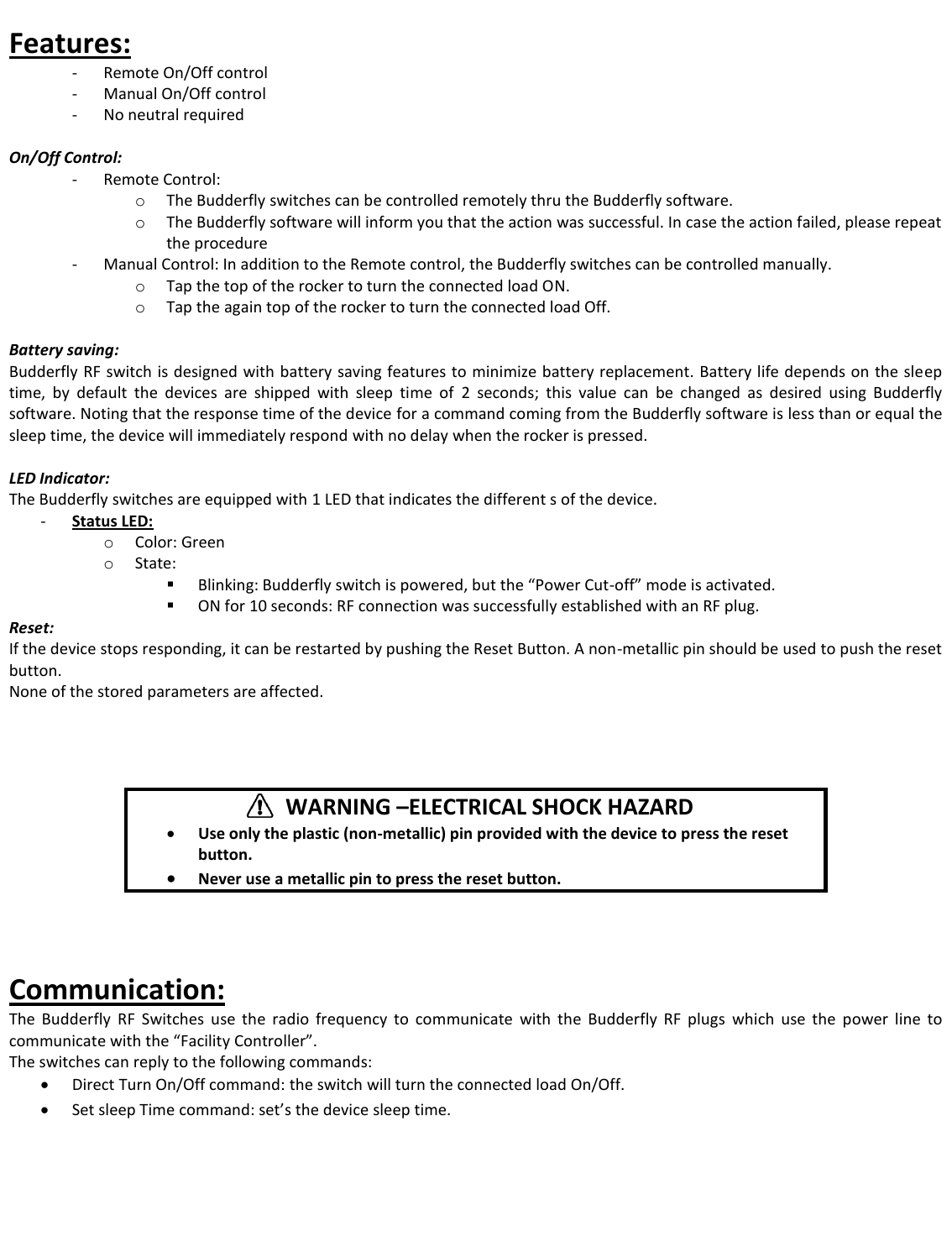

 Features:  - Remote On/Off control  - Manual On/Off control - No neutral required  On/Off Control: - Remote Control: o The Budderfly switches can be controlled remotely thru the Budderfly software. o The Budderfly software will inform you that the action was successful. In case the action failed, please repeat the procedure - Manual Control: In addition to the Remote control, the Budderfly switches can be controlled manually. o Tap the top of the rocker to turn the connected load ON. o Tap the again top of the rocker to turn the connected load Off.  Battery saving: Budderfly RF switch is designed with battery saving features to minimize battery replacement. Battery life depends on the sleep time,  by  default  the  devices  are  shipped  with  sleep  time  of  2  seconds;  this  value  can  be  changed  as  desired  using  Budderfly software. Noting that the response time of the device for a command coming from the Budderfly software is less than or equal the sleep time, the device will immediately respond with no delay when the rocker is pressed.  LED Indicator: The Budderfly switches are equipped with 1 LED that indicates the different s of the device. - Status LED: o Color: Green o State:   Blinking: Budderfly switch is powered, but the “Power Cut-off” mode is activated.  ON for 10 seconds: RF connection was successfully established with an RF plug. Reset: If the device stops responding, it can be restarted by pushing the Reset Button. A non-metallic pin should be used to push the reset button. None of the stored parameters are affected.          WARNING –ELECTRICAL SHOCK HAZARD  Use only the plastic (non-metallic) pin provided with the device to press the reset button.  Never use a metallic pin to press the reset button.   Communication: The  Budderfly  RF  Switches  use  the  radio  frequency  to  communicate  with  the  Budderfly  RF  plugs  which  use  the  power  line  to communicate with the “Facility Controller”. The switches can reply to the following commands:  Direct Turn On/Off command: the switch will turn the connected load On/Off.  Set sleep Time command: set’s the device sleep time.

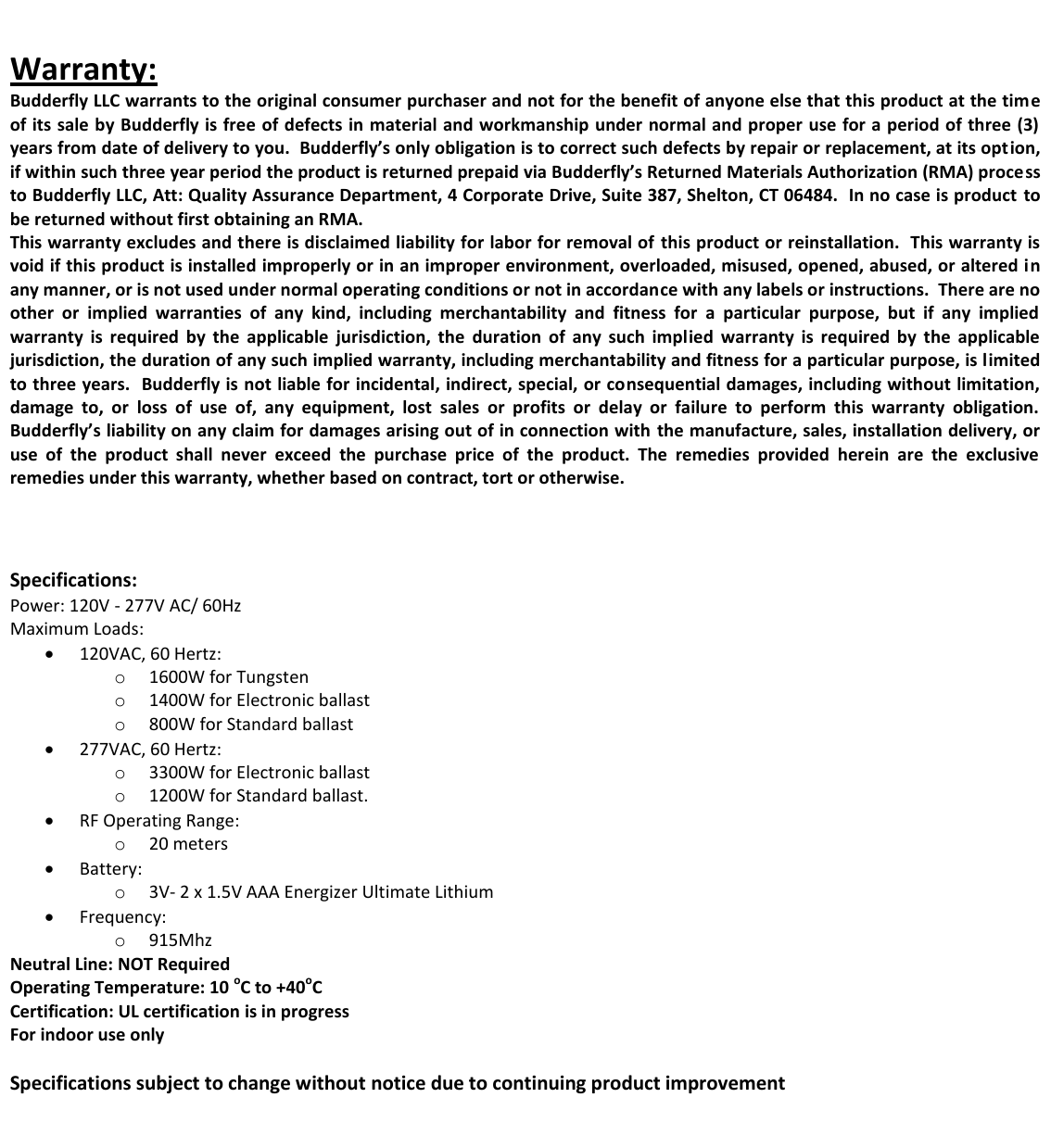

  Warranty: Budderfly LLC warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Budderfly is free of defects in material and workmanship under normal and proper use for a period of three (3) years from date of delivery to you.  Budderfly’s only obligation is to correct such defects by repair or replacement, at its option, if within such three year period the product is returned prepaid via Budderfly’s Returned Materials Authorization (RMA) process to Budderfly LLC, Att: Quality Assurance Department, 4 Corporate Drive, Suite 387, Shelton, CT 06484.  In no case is product  to be returned without first obtaining an RMA. This warranty excludes and there is disclaimed liability for labor for removal of  this product or reinstallation.  This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions.  There are no other  or  implied  warranties  of  any  kind,  including  merchantability  and  fitness  for  a  particular  purpose,  but  if  any  implied warranty  is  required  by  the  applicable  jurisdiction,  the  duration  of  any  such  implied  warranty  is  required  by  the  applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to three years.  Budderfly is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage  to,  or  loss  of  use  of,  any  equipment,  lost  sales  or  profits  or  delay  or  failure  to  perform  this  warranty  obligation. Budderfly’s liability on any claim for damages arising out of in connection with  the manufacture, sales, installation delivery, or use  of  the  product  shall  never  exceed  the  purchase  price  of  the  product.  The  remedies  provided  herein  are  the  exclusive remedies under this warranty, whether based on contract, tort or otherwise.    Specifications: Power: 120V - 277V AC/ 60Hz Maximum Loads:  120VAC, 60 Hertz:  o 1600W for Tungsten o 1400W for Electronic ballast o 800W for Standard ballast  277VAC, 60 Hertz:  o 3300W for Electronic ballast o 1200W for Standard ballast.  RF Operating Range: o 20 meters  Battery:  o 3V- 2 x 1.5V AAA Energizer Ultimate Lithium  Frequency:  o 915Mhz Neutral Line: NOT Required Operating Temperature: 10 oC to +40oC Certification: UL certification is in progress For indoor use only  Specifications subject to change without notice due to continuing product improvement

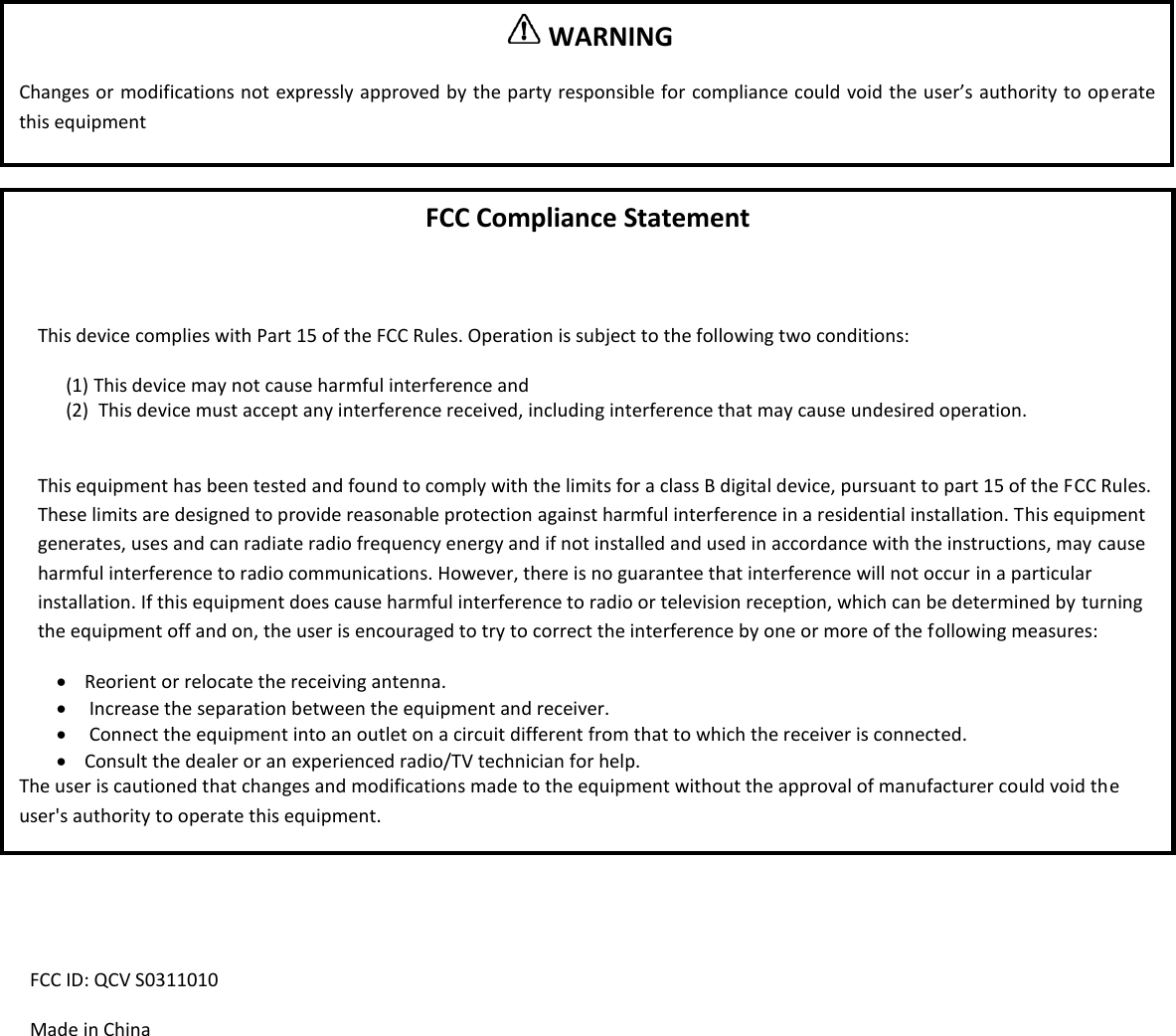

                  FCC ID: QCV S0311010 Made in China   WARNING  Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment FCC Compliance Statement  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2)  This device must accept any interference received, including interference that may cause undesired operation.  This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.   Increase the separation between the equipment and receiver.   Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.
