Buffalo Filter BF0001 Buffalo Filter Limited Module RFID System User Manual BF0001 Manual rev 1

Buffalo Filter Buffalo Filter Limited Module RFID System BF0001 Manual rev 1

User Manual

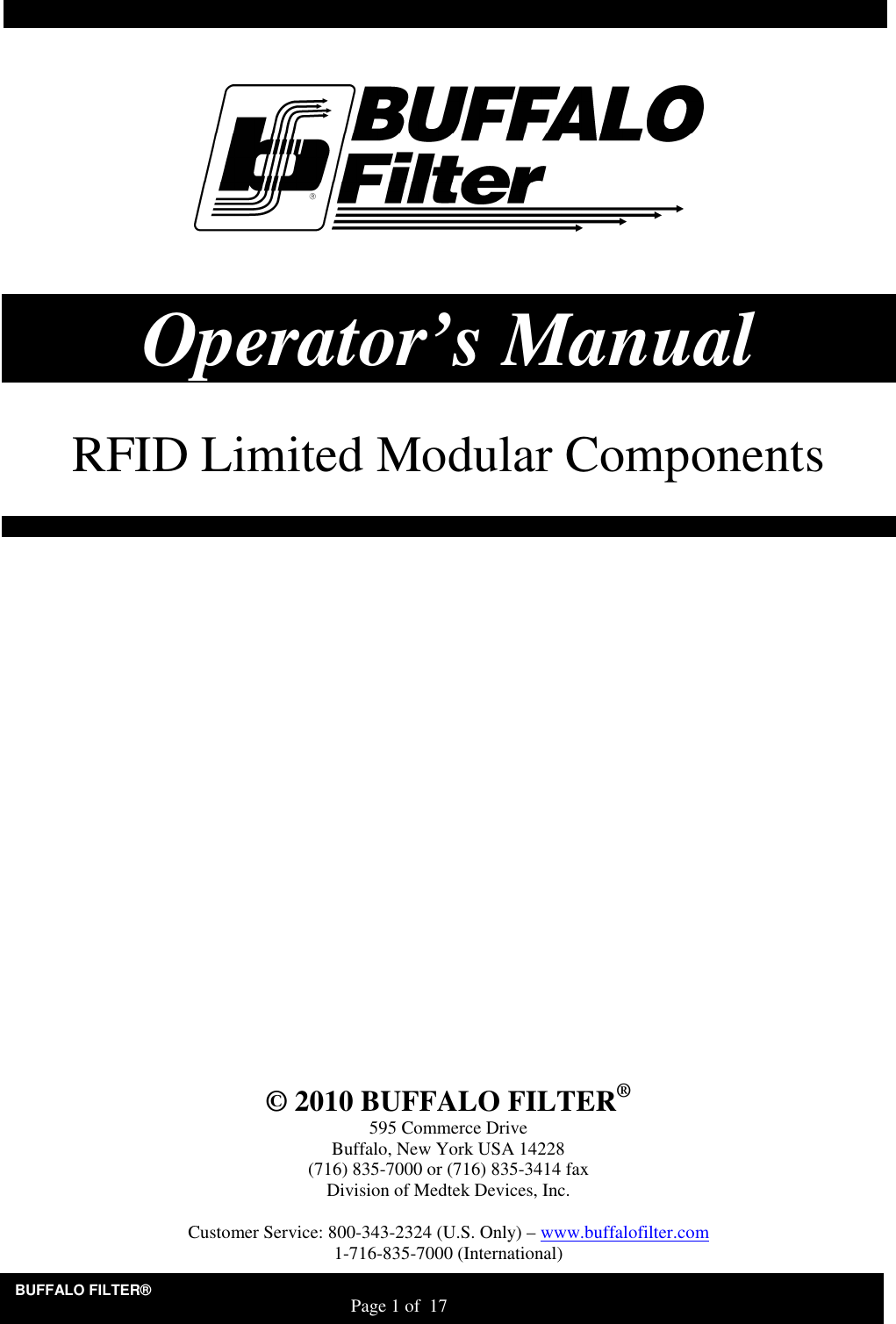

BUFFALO FILTER®                                                                   Page 1 of  17       Operator’s Manual   RFID Limited Modular Components                            © 2010 BUFFALO FILTER® 595 Commerce Drive Buffalo, New York USA 14228 (716) 835-7000 or (716) 835-3414 fax Division of Medtek Devices, Inc.  Customer Service: 800-343-2324 (U.S. Only) – www.buffalofilter.com 1-716-835-7000 (International)

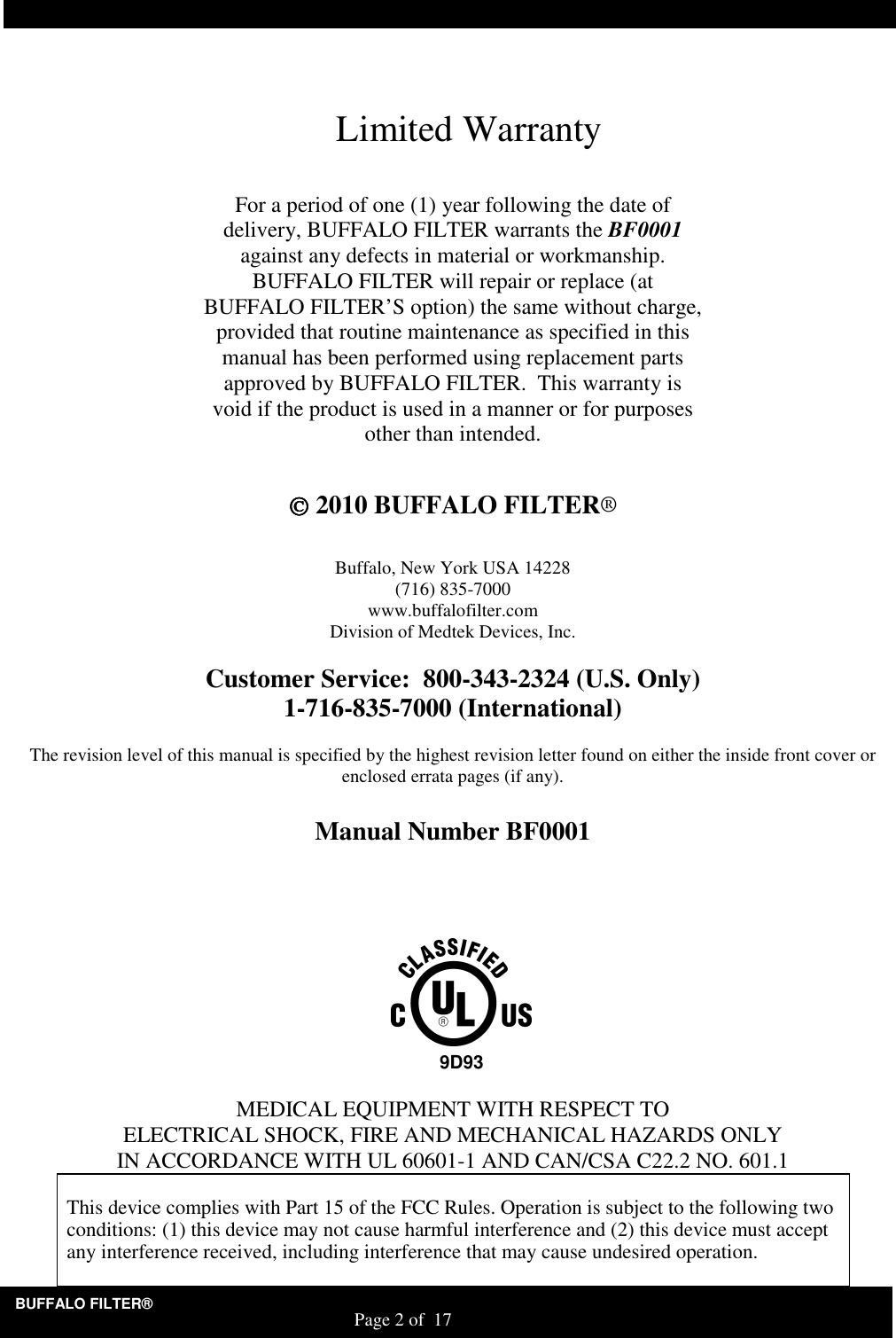

BUFFALO FILTER®                                                                   Page 2 of  17    Limited Warranty  For a period of one (1) year following the date of delivery, BUFFALO FILTER warrants the BF0001 against any defects in material or workmanship. BUFFALO FILTER will repair or replace (at BUFFALO FILTER’S option) the same without charge, provided that routine maintenance as specified in this manual has been performed using replacement parts approved by BUFFALO FILTER.  This warranty is void if the product is used in a manner or for purposes other than intended.    2010 BUFFALO FILTER®   Buffalo, New York USA 14228 (716) 835-7000 www.buffalofilter.com Division of Medtek Devices, Inc.  Customer Service:  800-343-2324 (U.S. Only) 1-716-835-7000 (International)  The revision level of this manual is specified by the highest revision letter found on either the inside front cover or enclosed errata pages (if any).  Manual Number BF0001           MEDICAL EQUIPMENT WITH RESPECT TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH UL 60601-1 AND CAN/CSA C22.2 NO. 601.1  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.  9D93

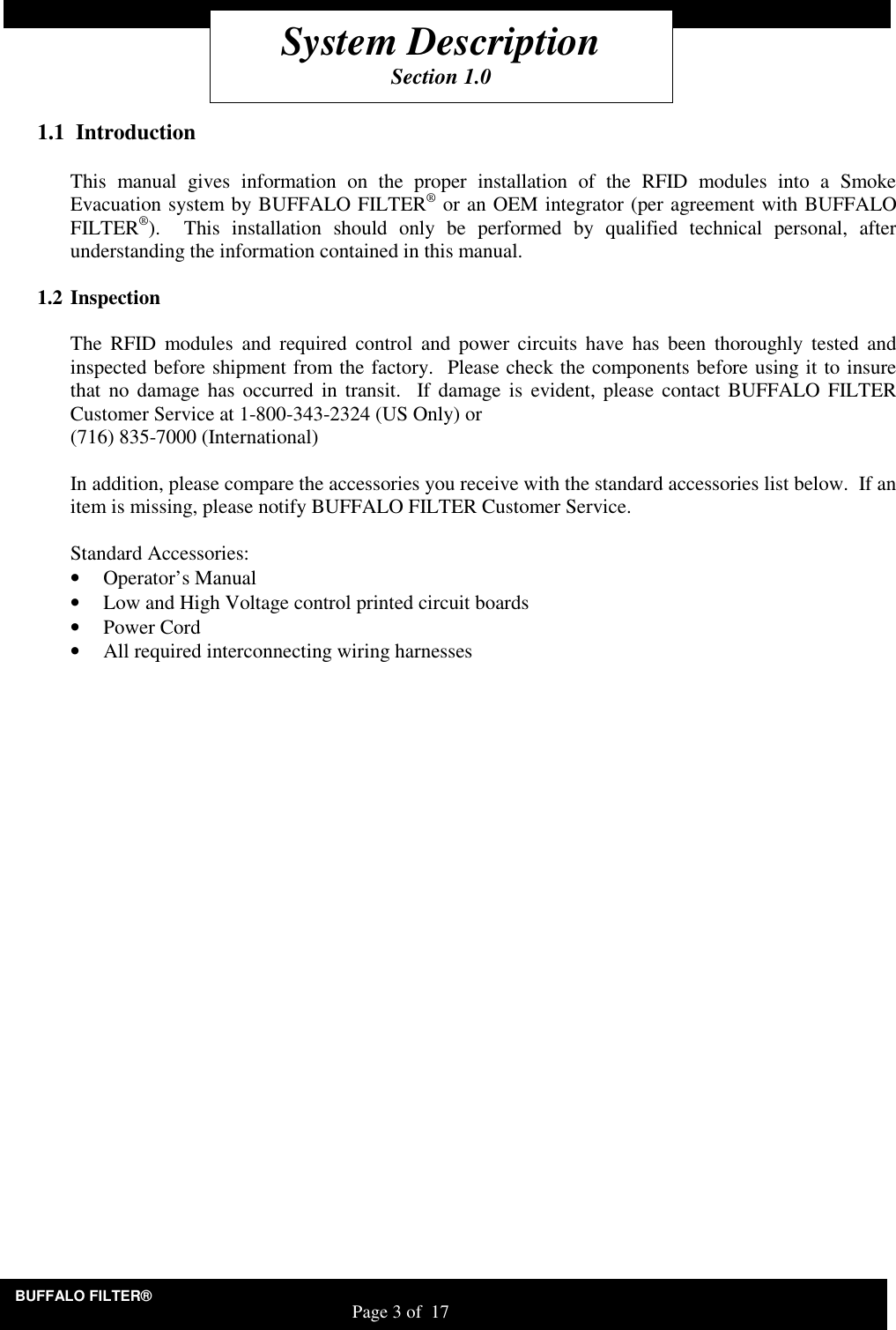

BUFFALO FILTER®                                                                   Page 3 of  17    1.1  Introduction  This  manual  gives  information  on  the  proper  installation  of  the  RFID  modules  into  a  Smoke Evacuation system by BUFFALO FILTER® or an OEM integrator (per agreement with BUFFALO FILTER®).    This  installation  should  only  be  performed  by  qualified  technical  personal,  after understanding the information contained in this manual.    1.2 Inspection  The  RFID  modules  and  required  control  and  power  circuits have  has  been  thoroughly  tested  and inspected before shipment from the factory.  Please check the components before using it to insure that  no damage has occurred in  transit.  If damage is evident, please  contact BUFFALO FILTER Customer Service at 1-800-343-2324 (US Only) or  (716) 835-7000 (International)  In addition, please compare the accessories you receive with the standard accessories list below.  If an item is missing, please notify BUFFALO FILTER Customer Service.  Standard Accessories: • Operator’s Manual • Low and High Voltage control printed circuit boards • Power Cord • All required interconnecting wiring harnesses System Description Section 1.0

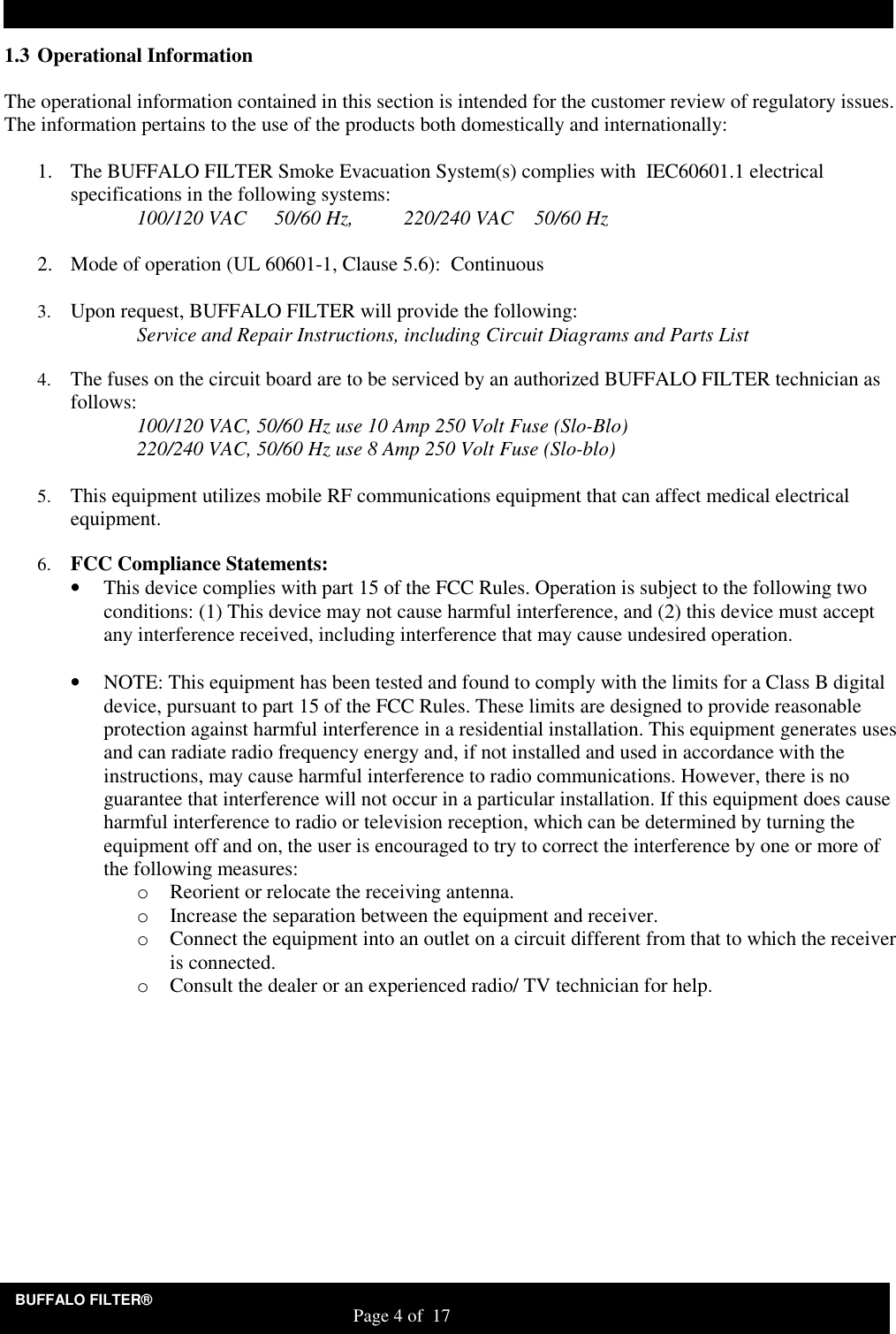

BUFFALO FILTER®                                                                   Page 4 of  17 1.3 Operational Information  The operational information contained in this section is intended for the customer review of regulatory issues.  The information pertains to the use of the products both domestically and internationally:  1. The BUFFALO FILTER Smoke Evacuation System(s) complies with  IEC60601.1 electrical specifications in the following systems:     100/120 VAC   50/60 Hz,          220/240 VAC   50/60 Hz  2. Mode of operation (UL 60601-1, Clause 5.6):  Continuous  3. Upon request, BUFFALO FILTER will provide the following:  Service and Repair Instructions, including Circuit Diagrams and Parts List  4. The fuses on the circuit board are to be serviced by an authorized BUFFALO FILTER technician as follows:   100/120 VAC, 50/60 Hz use 10 Amp 250 Volt Fuse (Slo-Blo)      220/240 VAC, 50/60 Hz use 8 Amp 250 Volt Fuse (Slo-blo)  5. This equipment utilizes mobile RF communications equipment that can affect medical electrical equipment.   6. FCC Compliance Statements: • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. o Consult the dealer or an experienced radio/ TV technician for help.

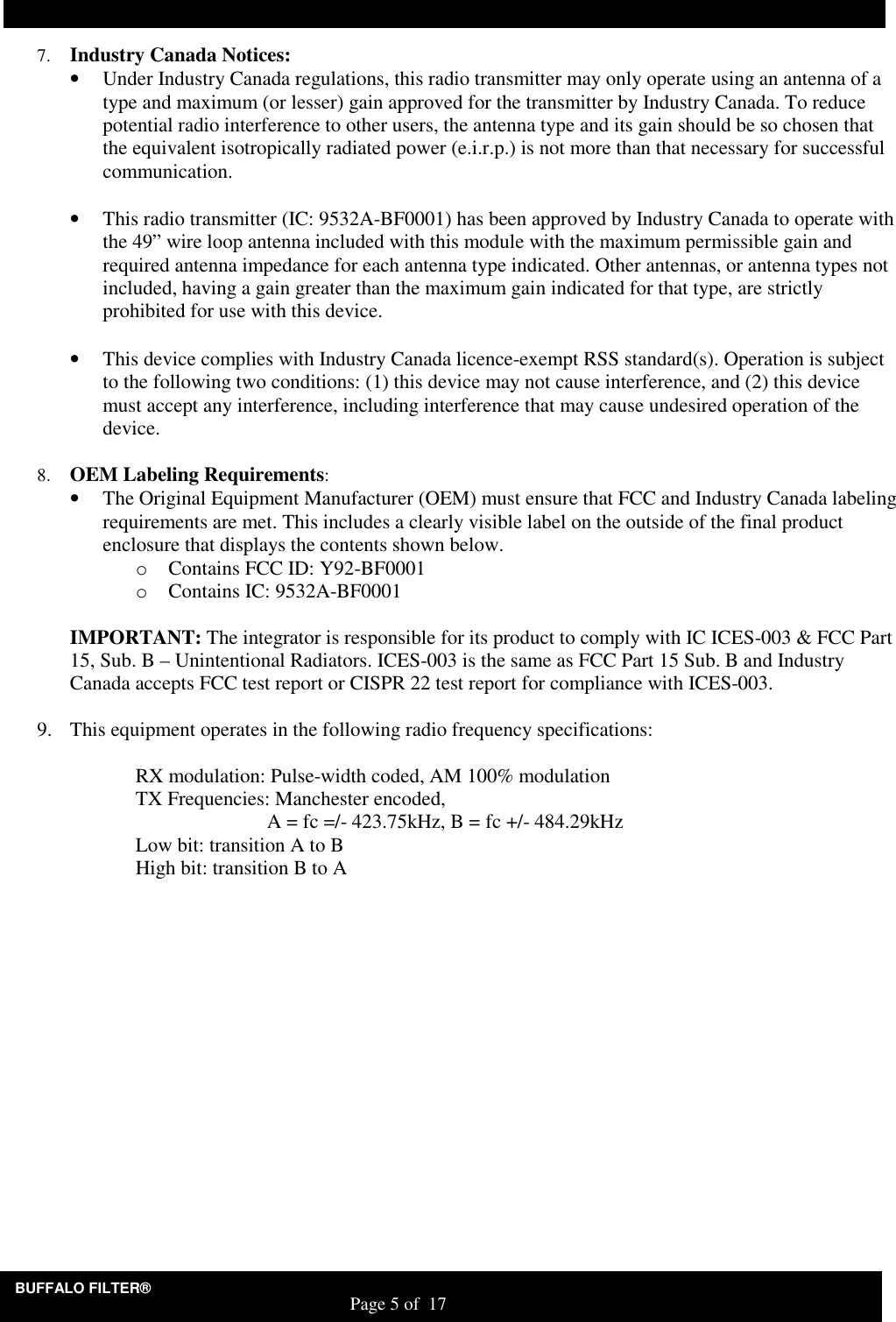

BUFFALO FILTER®                                                                   Page 5 of  17 7. Industry Canada Notices: • Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.  • This radio transmitter (IC: 9532A-BF0001) has been approved by Industry Canada to operate with the 49” wire loop antenna included with this module with the maximum permissible gain and required antenna impedance for each antenna type indicated. Other antennas, or antenna types not included, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.  • This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.  8. OEM Labeling Requirements: • The Original Equipment Manufacturer (OEM) must ensure that FCC and Industry Canada labeling requirements are met. This includes a clearly visible label on the outside of the final product enclosure that displays the contents shown below. o Contains FCC ID: Y92-BF0001 o Contains IC: 9532A-BF0001  IMPORTANT: The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15, Sub. B – Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry Canada accepts FCC test report or CISPR 22 test report for compliance with ICES-003.  9. This equipment operates in the following radio frequency specifications:    RX modulation: Pulse-width coded, AM 100% modulation   TX Frequencies: Manchester encoded,        A = fc =/- 423.75kHz, B = fc +/- 484.29kHz   Low bit: transition A to B   High bit: transition B to A

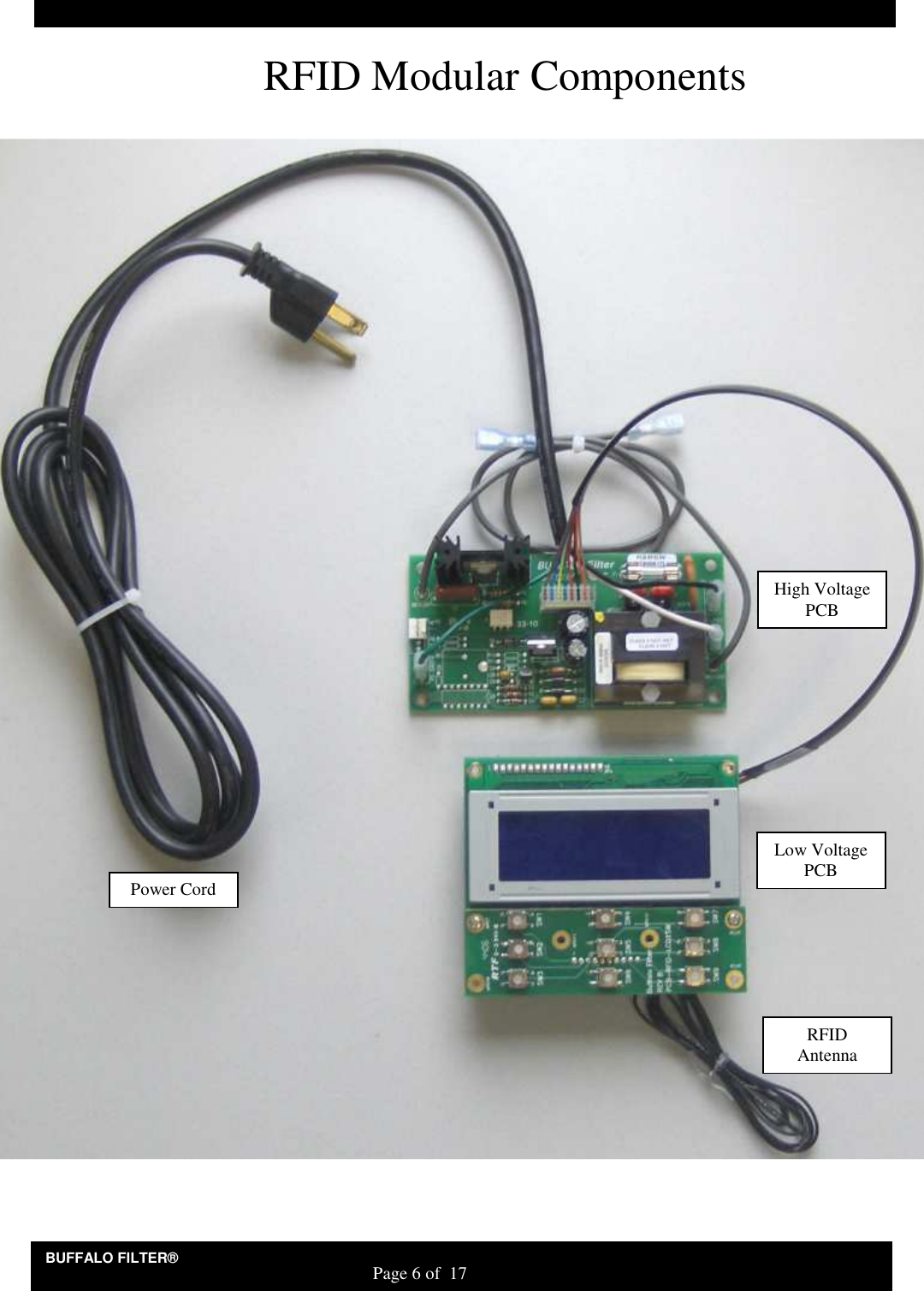

BUFFALO FILTER®                                                                   Page 6 of  17  RFID Modular Components                                   1.4  Power Cord Low Voltage PCB High Voltage PCB RFID Antenna

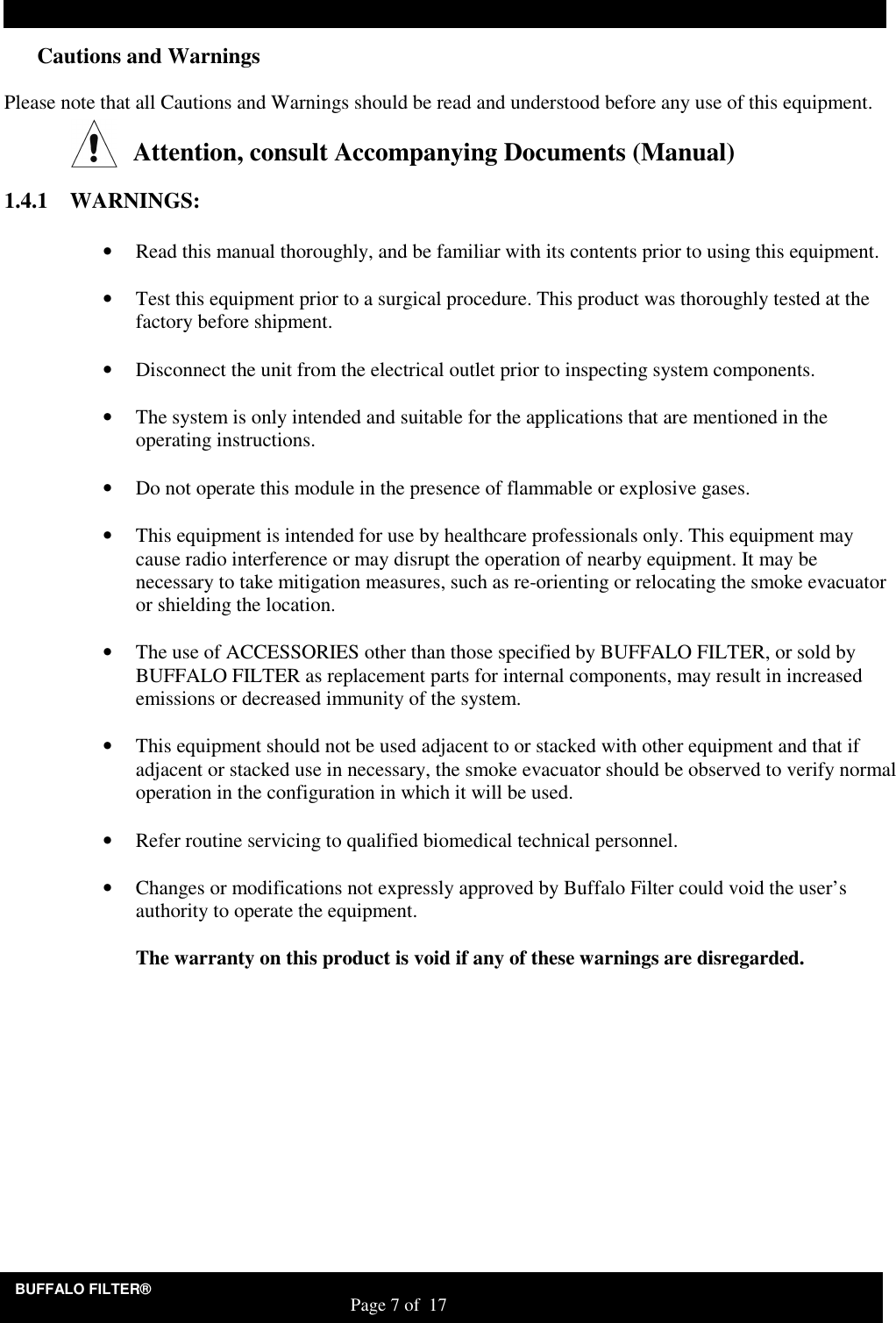

BUFFALO FILTER®                                                                   Page 7 of  17 Cautions and Warnings  Please note that all Cautions and Warnings should be read and understood before any use of this equipment.   Attention, consult Accompanying Documents (Manual)         1.4.1 WARNINGS:  • Read this manual thoroughly, and be familiar with its contents prior to using this equipment.   • Test this equipment prior to a surgical procedure. This product was thoroughly tested at the factory before shipment.   • Disconnect the unit from the electrical outlet prior to inspecting system components.   • The system is only intended and suitable for the applications that are mentioned in the operating instructions.   • Do not operate this module in the presence of flammable or explosive gases.   • This equipment is intended for use by healthcare professionals only. This equipment may cause radio interference or may disrupt the operation of nearby equipment. It may be necessary to take mitigation measures, such as re-orienting or relocating the smoke evacuator or shielding the location.   • The use of ACCESSORIES other than those specified by BUFFALO FILTER, or sold by BUFFALO FILTER as replacement parts for internal components, may result in increased emissions or decreased immunity of the system.   • This equipment should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use in necessary, the smoke evacuator should be observed to verify normal operation in the configuration in which it will be used.   • Refer routine servicing to qualified biomedical technical personnel.   • Changes or modifications not expressly approved by Buffalo Filter could void the user’s authority to operate the equipment.   The warranty on this product is void if any of these warnings are disregarded.

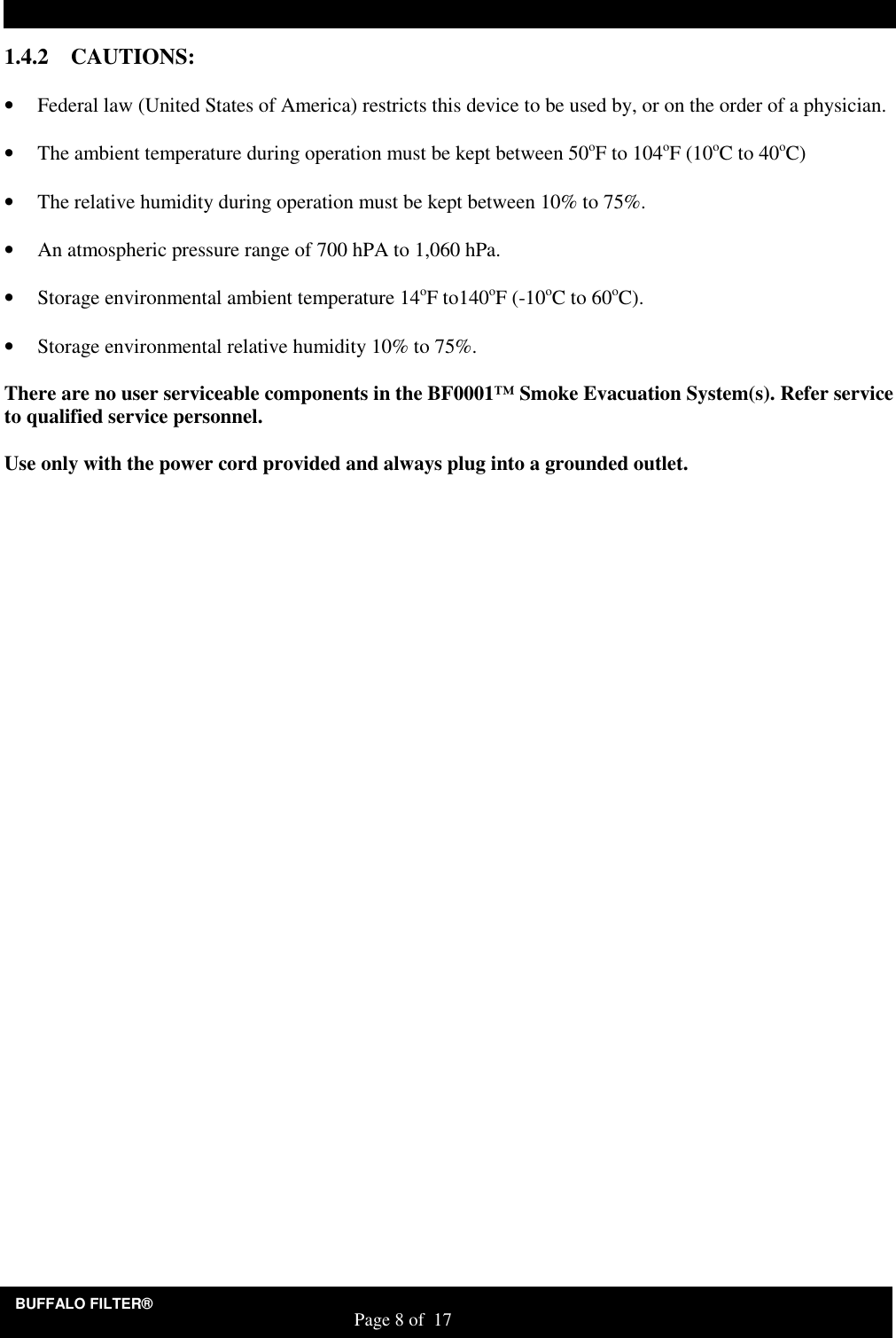

BUFFALO FILTER®                                                                   Page 8 of  17 1.4.2 CAUTIONS:  • Federal law (United States of America) restricts this device to be used by, or on the order of a physician.     • The ambient temperature during operation must be kept between 50oF to 104oF (10oC to 40oC)  • The relative humidity during operation must be kept between 10% to 75%.   • An atmospheric pressure range of 700 hPA to 1,060 hPa.  • Storage environmental ambient temperature 14oF to140oF (-10oC to 60oC).  • Storage environmental relative humidity 10% to 75%.     There are no user serviceable components in the BF0001™ Smoke Evacuation System(s). Refer service to qualified service personnel.  Use only with the power cord provided and always plug into a grounded outlet.

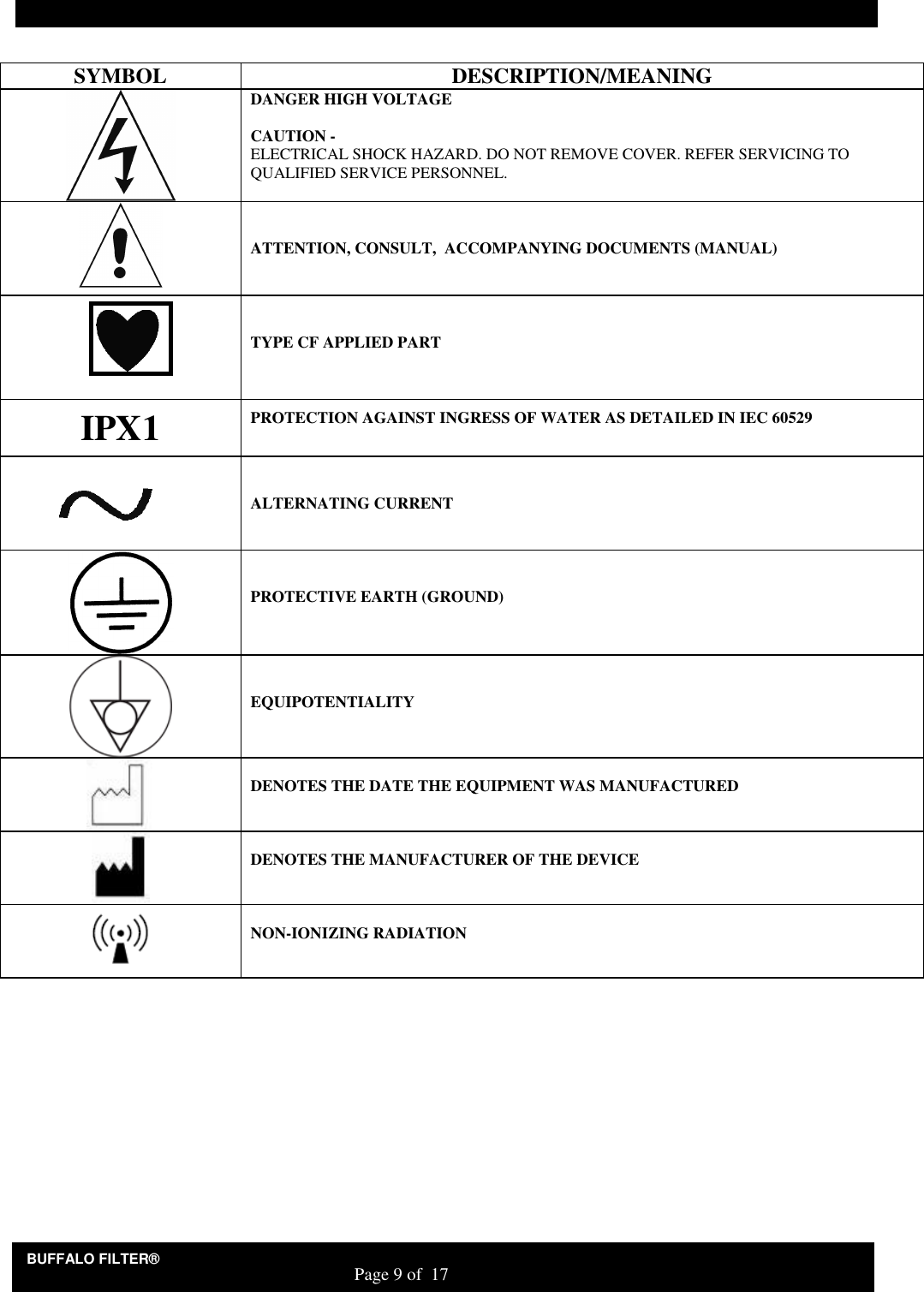

BUFFALO FILTER®                                                                   Page 9 of  17  SYMBOL  DESCRIPTION/MEANING  DANGER HIGH VOLTAGE  CAUTION -  ELECTRICAL SHOCK HAZARD. DO NOT REMOVE COVER. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.    ATTENTION, CONSULT,  ACCOMPANYING DOCUMENTS (MANUAL)        TYPE CF APPLIED PART IPX1   PROTECTION AGAINST INGRESS OF WATER AS DETAILED IN IEC 60529       ALTERNATING CURRENT      PROTECTIVE EARTH (GROUND)    EQUIPOTENTIALITY   DENOTES THE DATE THE EQUIPMENT WAS MANUFACTURED   DENOTES THE MANUFACTURER OF THE DEVICE   NON-IONIZING RADIATION

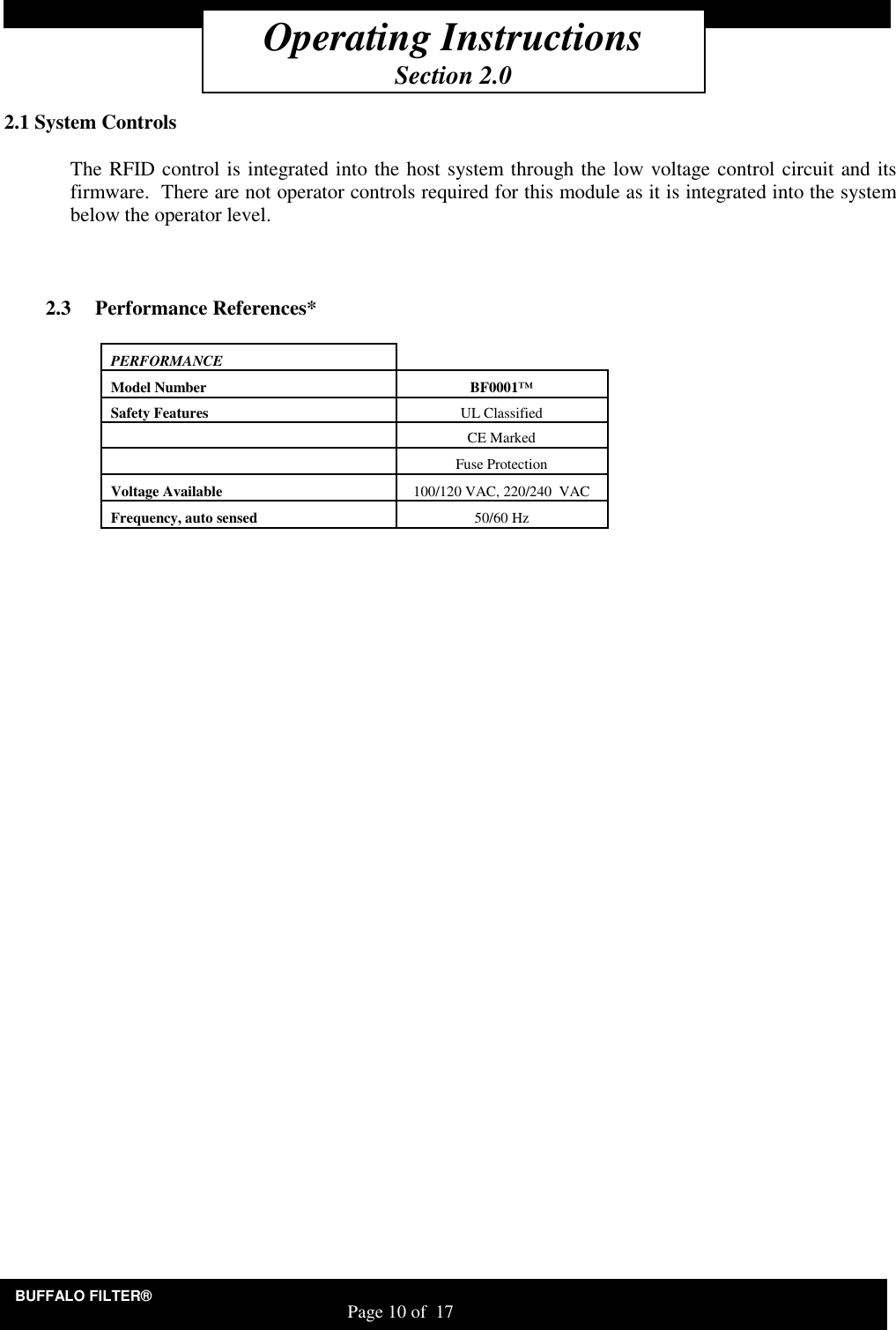

BUFFALO FILTER®                                                                   Page 10 of  17    2.1 System Controls  The RFID control is integrated into the host system through the low voltage control circuit and its firmware.  There are not operator controls required for this module as it is integrated into the system below the operator level.    2.3 Performance References*     PERFORMANCE Model Number  BF0001™ Safety Features            UL Classified    CE Marked    Fuse Protection Voltage Available  100/120 VAC, 220/240  VAC Frequency, auto sensed  50/60 Hz        Operating Instructions Section 2.0

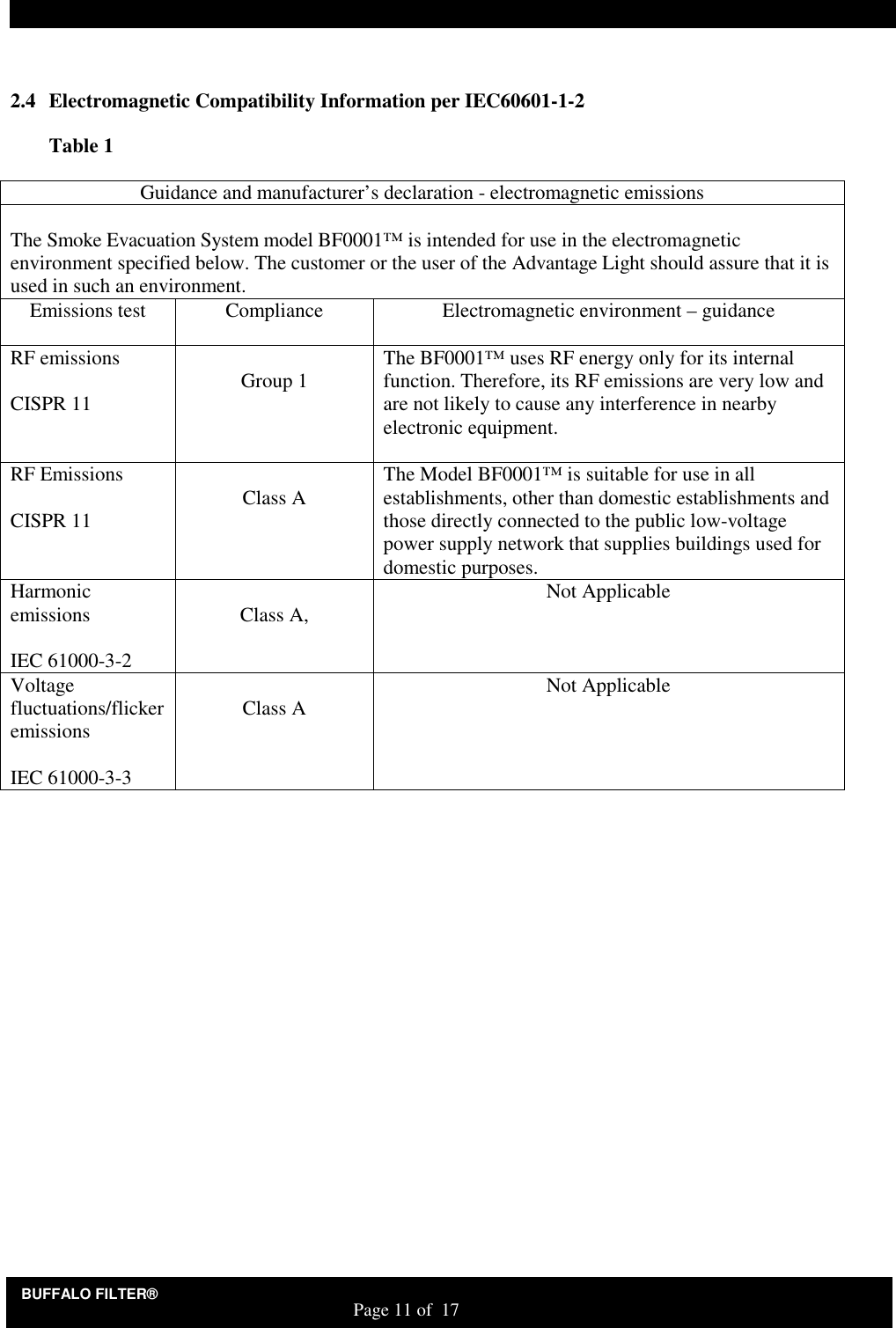

BUFFALO FILTER®                                                                   Page 11 of  17   2.4 Electromagnetic Compatibility Information per IEC60601-1-2  Table 1    Guidance and manufacturer’s declaration - electromagnetic emissions  The Smoke Evacuation System model BF0001™ is intended for use in the electromagnetic environment specified below. The customer or the user of the Advantage Light should assure that it is used in such an environment. Emissions test  Compliance  Electromagnetic environment – guidance  RF emissions  CISPR 11  Group 1  The BF0001™ uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.  RF Emissions   CISPR 11  Class A  The Model BF0001™ is suitable for use in all establishments, other than domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes. Harmonic emissions  IEC 61000-3-2  Class A,  Not Applicable Voltage fluctuations/flicker emissions  IEC 61000-3-3  Class A  Not Applicable

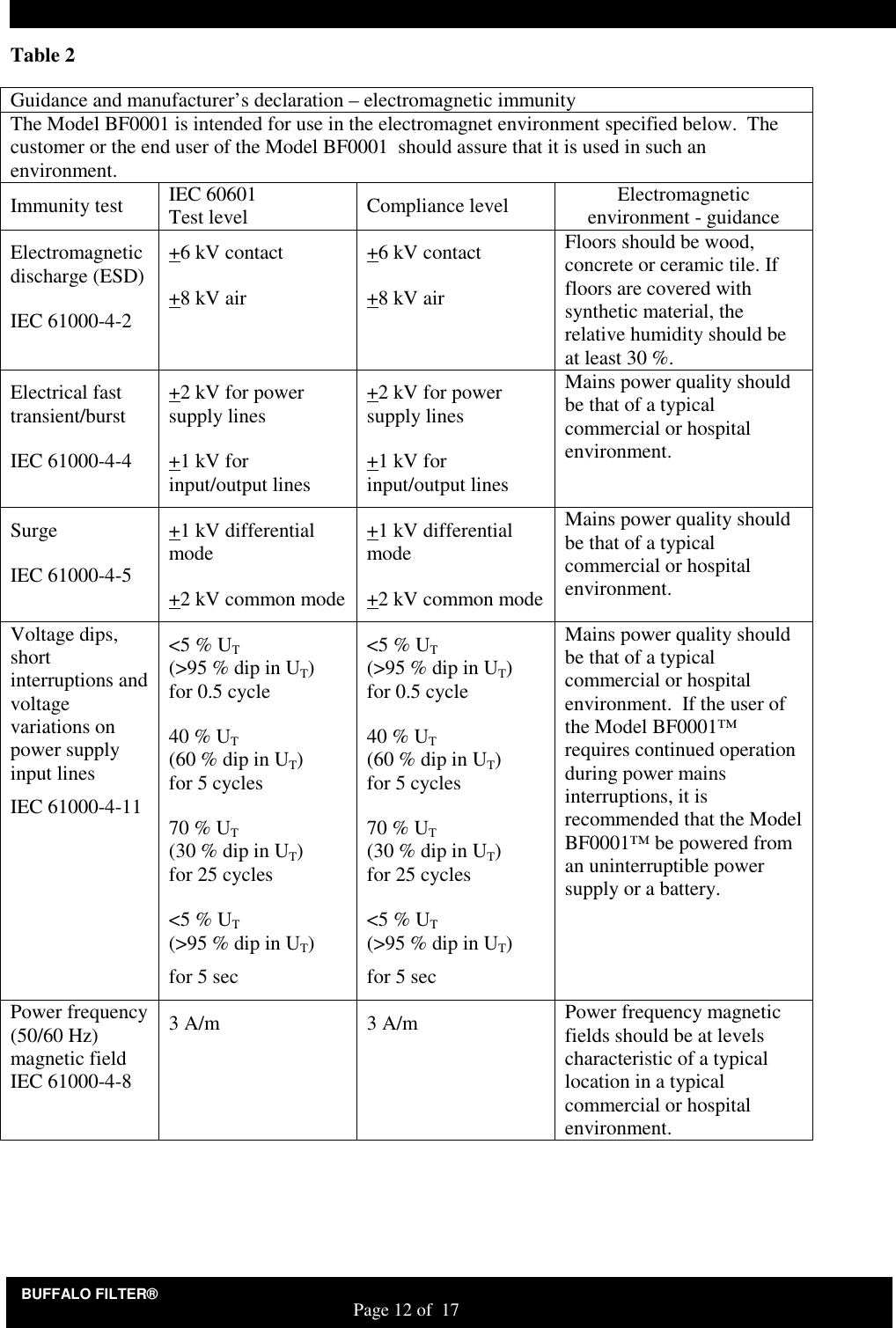

BUFFALO FILTER®                                                                   Page 12 of  17 Table 2   Guidance and manufacturer’s declaration – electromagnetic immunity The Model BF0001 is intended for use in the electromagnet environment specified below.  The customer or the end user of the Model BF0001  should assure that it is used in such an environment. Immunity test  IEC 60601 Test level  Compliance level  Electromagnetic environment - guidance Electromagnetic discharge (ESD) IEC 61000-4-2 +6 kV contact +8 kV air +6 kV contact +8 kV air Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the  relative humidity should be at least 30 %. Electrical fast transient/burst IEC 61000-4-4 +2 kV for power supply lines +1 kV for input/output lines +2 kV for power supply lines +1 kV for input/output lines Mains power quality should be that of a typical commercial or hospital environment. Surge IEC 61000-4-5 +1 kV differential mode +2 kV common mode +1 kV differential mode +2 kV common mode Mains power quality should be that of a typical commercial or hospital  environment. Voltage dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11 <5 % UT (>95 % dip in UT) for 0.5 cycle 40 % UT (60 % dip in UT) for 5 cycles 70 % UT (30 % dip in UT) for 25 cycles <5 % UT (>95 % dip in UT) for 5 sec <5 % UT (>95 % dip in UT) for 0.5 cycle 40 % UT (60 % dip in UT) for 5 cycles 70 % UT (30 % dip in UT) for 25 cycles <5 % UT (>95 % dip in UT) for 5 sec Mains power quality should be that of a typical commercial or hospital environment.  If the user of the Model BF0001™ requires continued operation during power mains interruptions, it is recommended that the Model BF0001™ be powered from an uninterruptible power supply or a battery. Power frequency (50/60 Hz) magnetic field IEC 61000-4-8 3 A/m  3 A/m  Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.

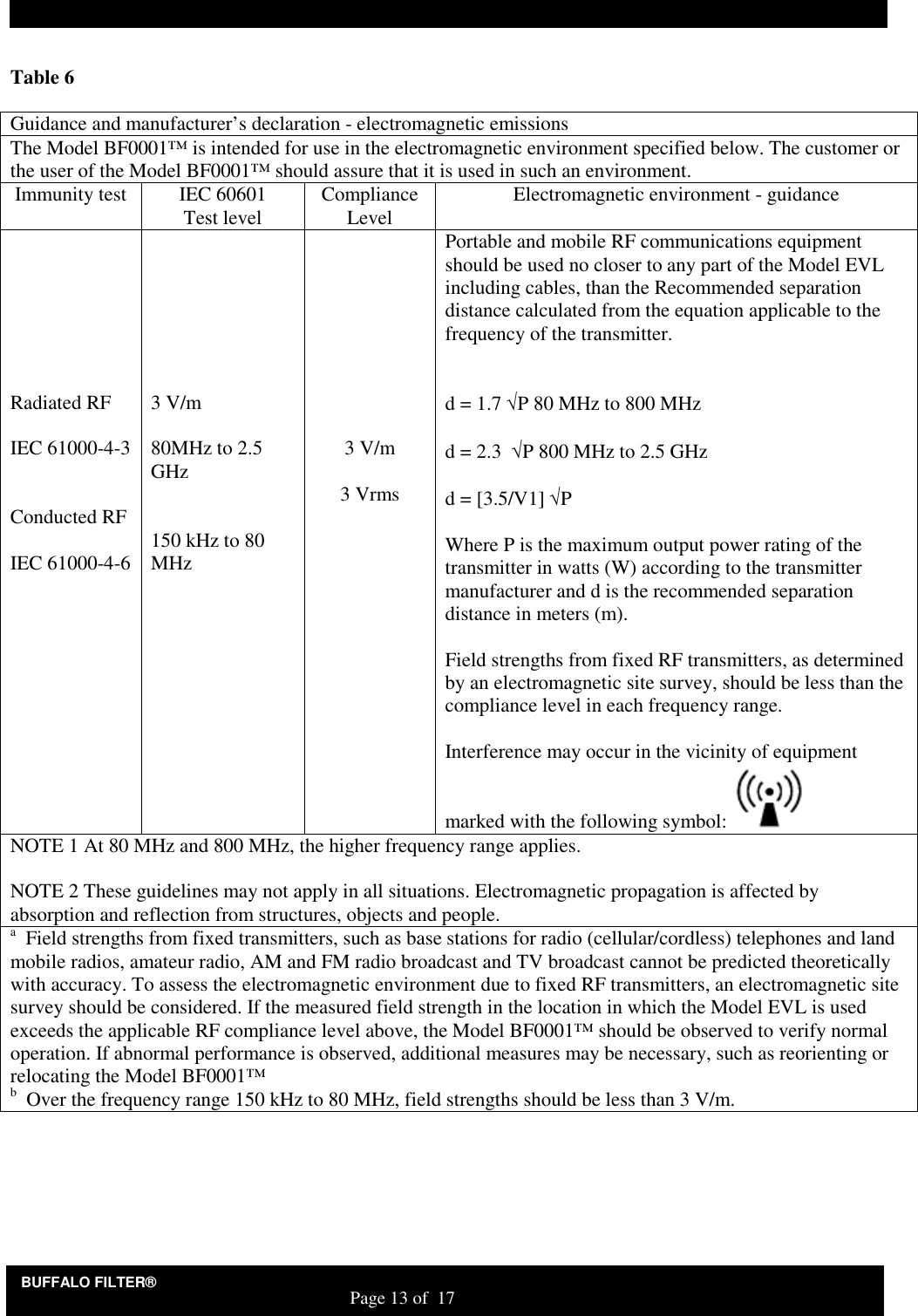

BUFFALO FILTER®                                                                   Page 13 of  17  Table 6  Guidance and manufacturer’s declaration - electromagnetic emissions The Model BF0001™ is intended for use in the electromagnetic environment specified below. The customer or the user of the Model BF0001™ should assure that it is used in such an environment. Immunity test  IEC 60601 Test level  Compliance Level  Electromagnetic environment - guidance        Radiated RF  IEC 61000-4-3   Conducted RF  IEC 61000-4-6         3 V/m  80MHz to 2.5 GHz   150 kHz to 80 MHz           3 V/m  3 Vrms  Portable and mobile RF communications equipment should be used no closer to any part of the Model EVL including cables, than the Recommended separation distance calculated from the equation applicable to the frequency of the transmitter.   d = 1.7 √P 80 MHz to 800 MHz  d = 2.3  √P 800 MHz to 2.5 GHz  d = [3.5/V1] √P  Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).    Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than the compliance level in each frequency range.  Interference may occur in the vicinity of equipment marked with the following symbol:   NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.  NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a   Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Model EVL is used exceeds the applicable RF compliance level above, the Model BF0001™ should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Model BF0001™ b   Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

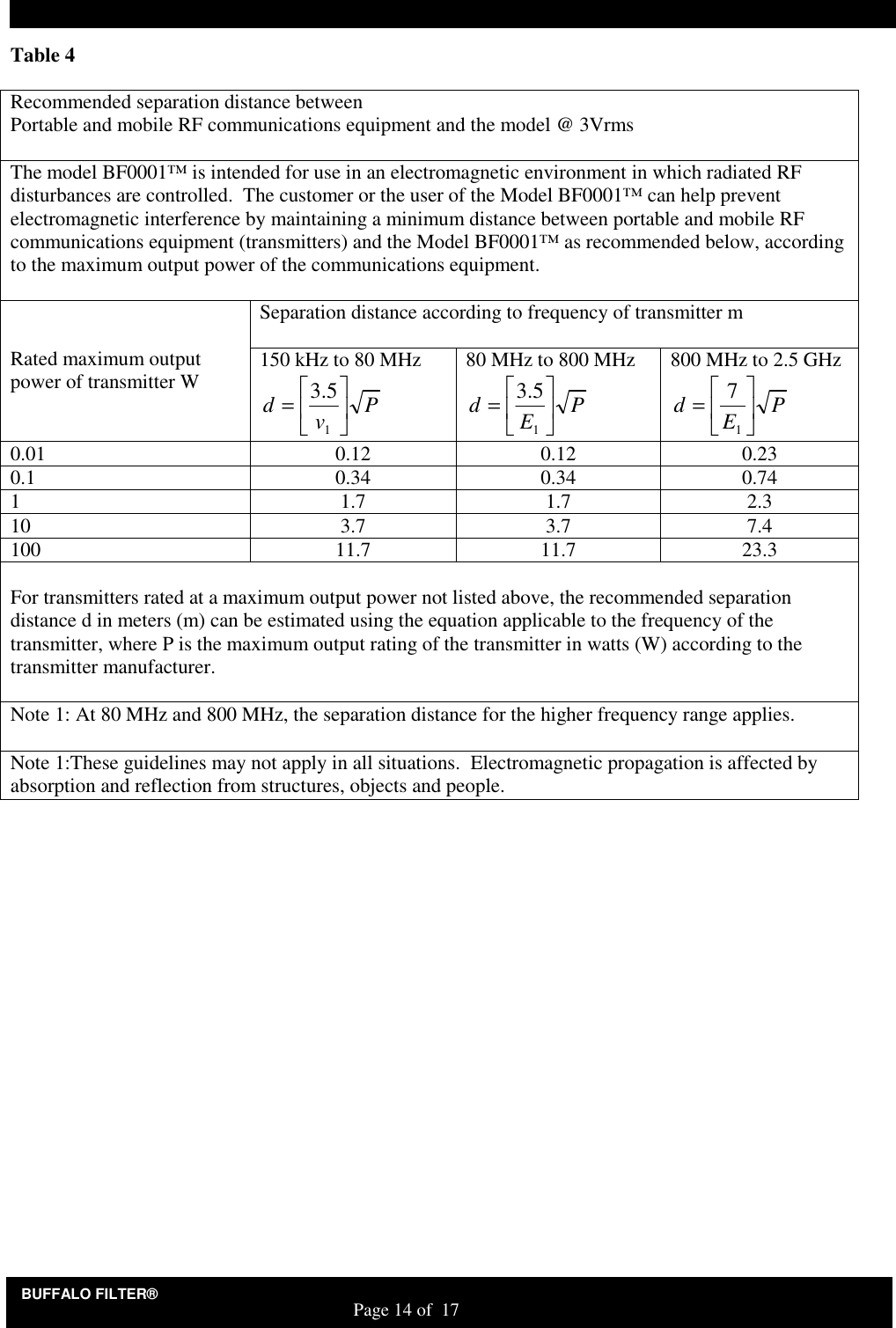

BUFFALO FILTER®                                                                   Page 14 of  17 Table 4   Recommended separation distance between Portable and mobile RF communications equipment and the model @ 3Vrms  The model BF0001™ is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.  The customer or the user of the Model BF0001™ can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Model BF0001™ as recommended below, according to the maximum output power of the communications equipment.  Separation distance according to frequency of transmitter m  Rated maximum output power of transmitter W  150 kHz to 80 MHz Pvd=15.3  80 MHz to 800 MHz PEd=15.3  800 MHz to 2.5 GHz PEd=17 0.01  0.12  0.12  0.23 0.1  0.34  0.34  0.74 1  1.7  1.7  2.3 10  3.7  3.7  7.4 100  11.7  11.7  23.3  For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output rating of the transmitter in watts (W) according to the transmitter manufacturer.  Note 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. Note 1:These guidelines may not apply in all situations.  Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

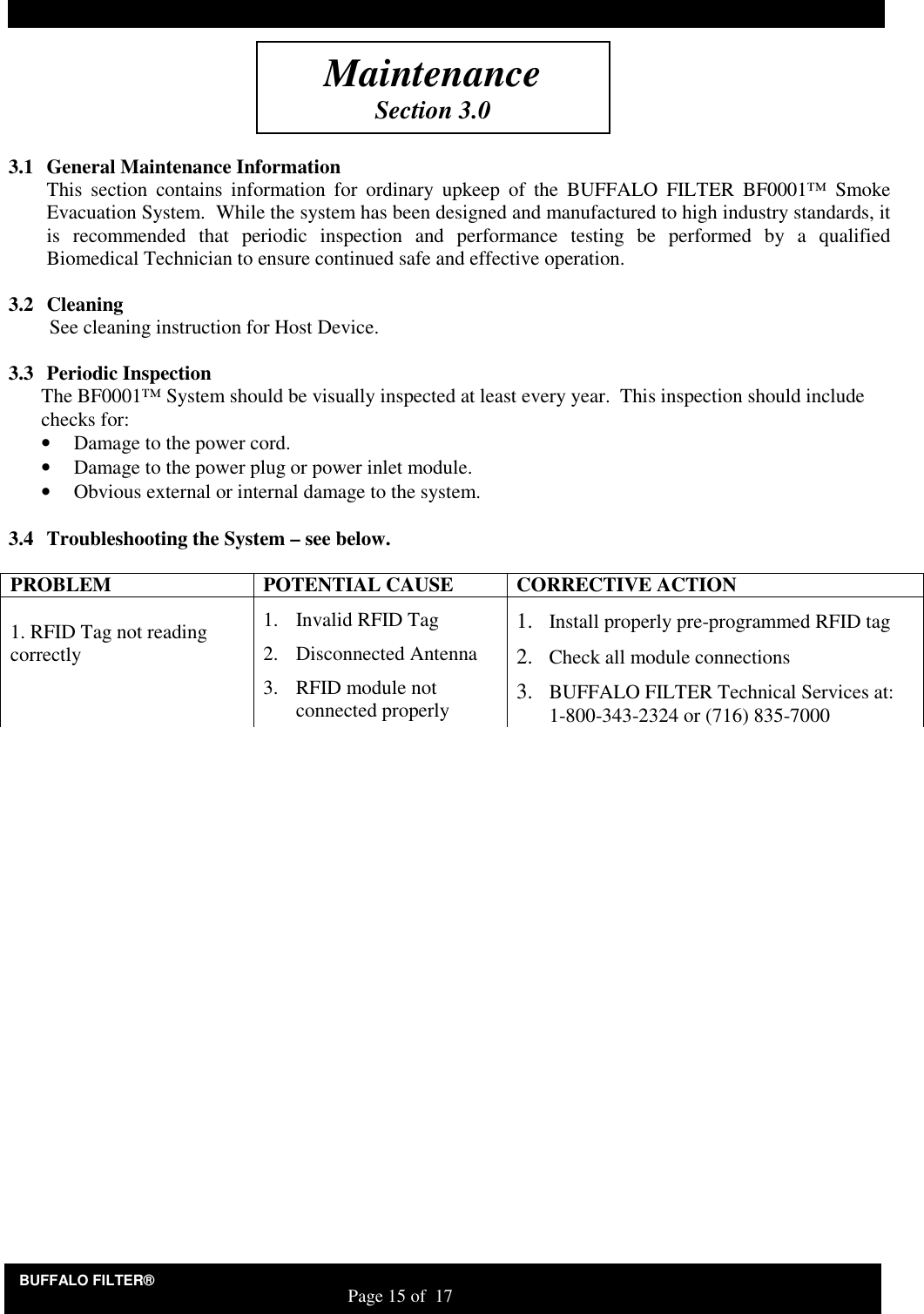

BUFFALO FILTER®                                                                   Page 15 of  17      3.1 General Maintenance Information This  section  contains  information  for  ordinary  upkeep  of  the  BUFFALO  FILTER  BF0001™  Smoke Evacuation System.  While the system has been designed and manufactured to high industry standards, it is  recommended  that  periodic  inspection  and  performance  testing  be  performed  by  a  qualified Biomedical Technician to ensure continued safe and effective operation.  3.2 Cleaning See cleaning instruction for Host Device.   3.3 Periodic Inspection The BF0001™ System should be visually inspected at least every year.  This inspection should include checks for: • Damage to the power cord. • Damage to the power plug or power inlet module.  • Obvious external or internal damage to the system.  3.4 Troubleshooting the System – see below.  PROBLEM  POTENTIAL CAUSE  CORRECTIVE ACTION  1. RFID Tag not reading correctly 1. Invalid RFID Tag 2. Disconnected Antenna 3. RFID module not connected properly 1. Install properly pre-programmed RFID tag 2. Check all module connections 3. BUFFALO FILTER Technical Services at: 1-800-343-2324 or (716) 835-7000   Maintenance Section 3.0

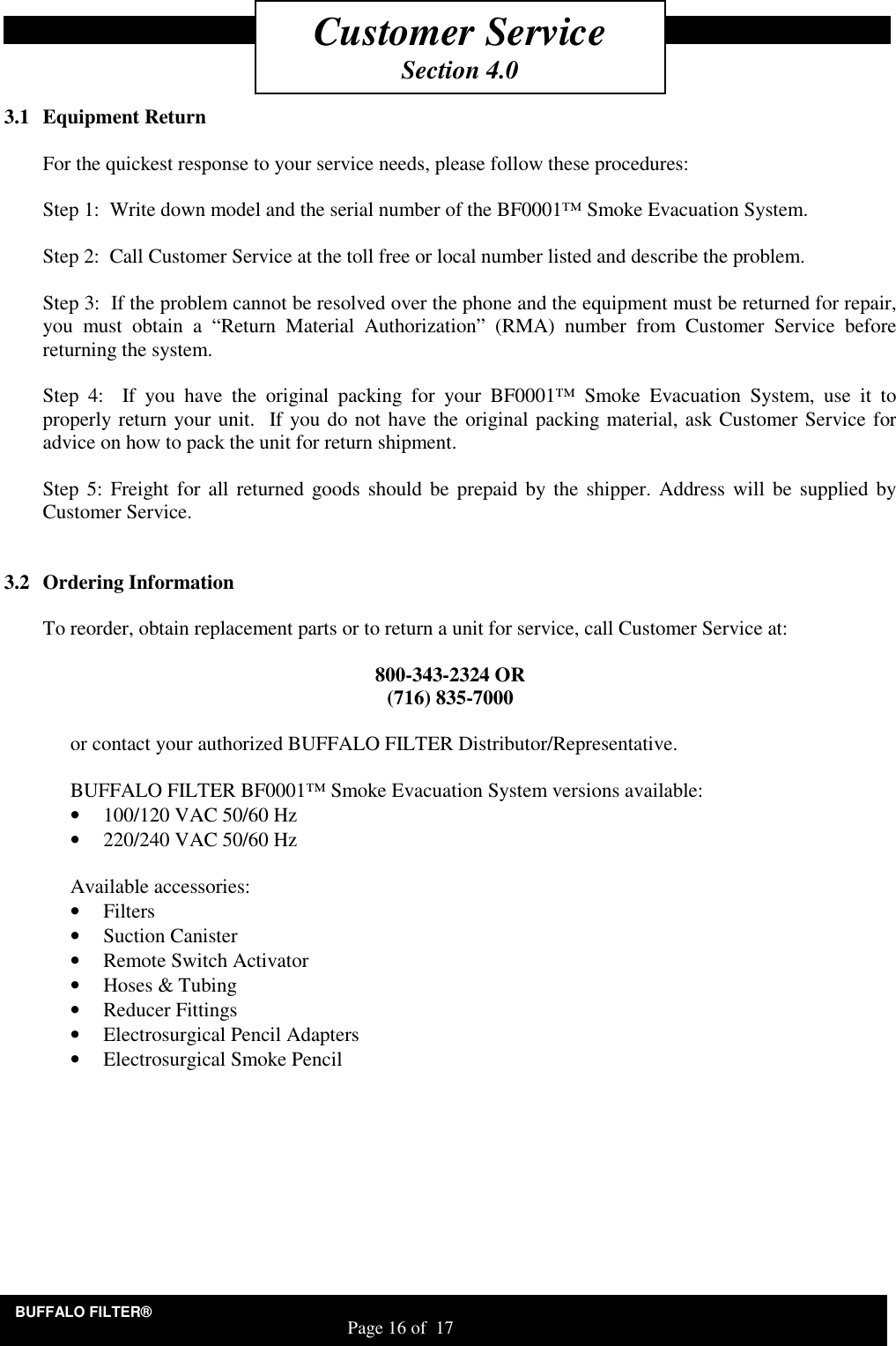

BUFFALO FILTER®                                                                   Page 16 of  17     3.1 Equipment Return  For the quickest response to your service needs, please follow these procedures:  Step 1:  Write down model and the serial number of the BF0001™ Smoke Evacuation System.  Step 2:  Call Customer Service at the toll free or local number listed and describe the problem.  Step 3:  If the problem cannot be resolved over the phone and the equipment must be returned for repair, you  must  obtain  a  “Return  Material  Authorization”  (RMA)  number  from  Customer  Service  before returning the system.  Step  4:    If  you  have  the  original  packing  for  your  BF0001™  Smoke  Evacuation  System,  use  it  to properly return your unit.  If you do not have the original packing material, ask Customer Service for advice on how to pack the unit for return shipment.  Step 5: Freight for all returned goods should be  prepaid by the  shipper.  Address will  be  supplied by Customer Service.     3.2 Ordering Information  To reorder, obtain replacement parts or to return a unit for service, call Customer Service at:  800-343-2324 OR (716) 835-7000  or contact your authorized BUFFALO FILTER Distributor/Representative.  BUFFALO FILTER BF0001™ Smoke Evacuation System versions available: • 100/120 VAC 50/60 Hz • 220/240 VAC 50/60 Hz  Available accessories: • Filters  • Suction Canister • Remote Switch Activator • Hoses & Tubing • Reducer Fittings • Electrosurgical Pencil Adapters  • Electrosurgical Smoke Pencil    Customer Service Section 4.0

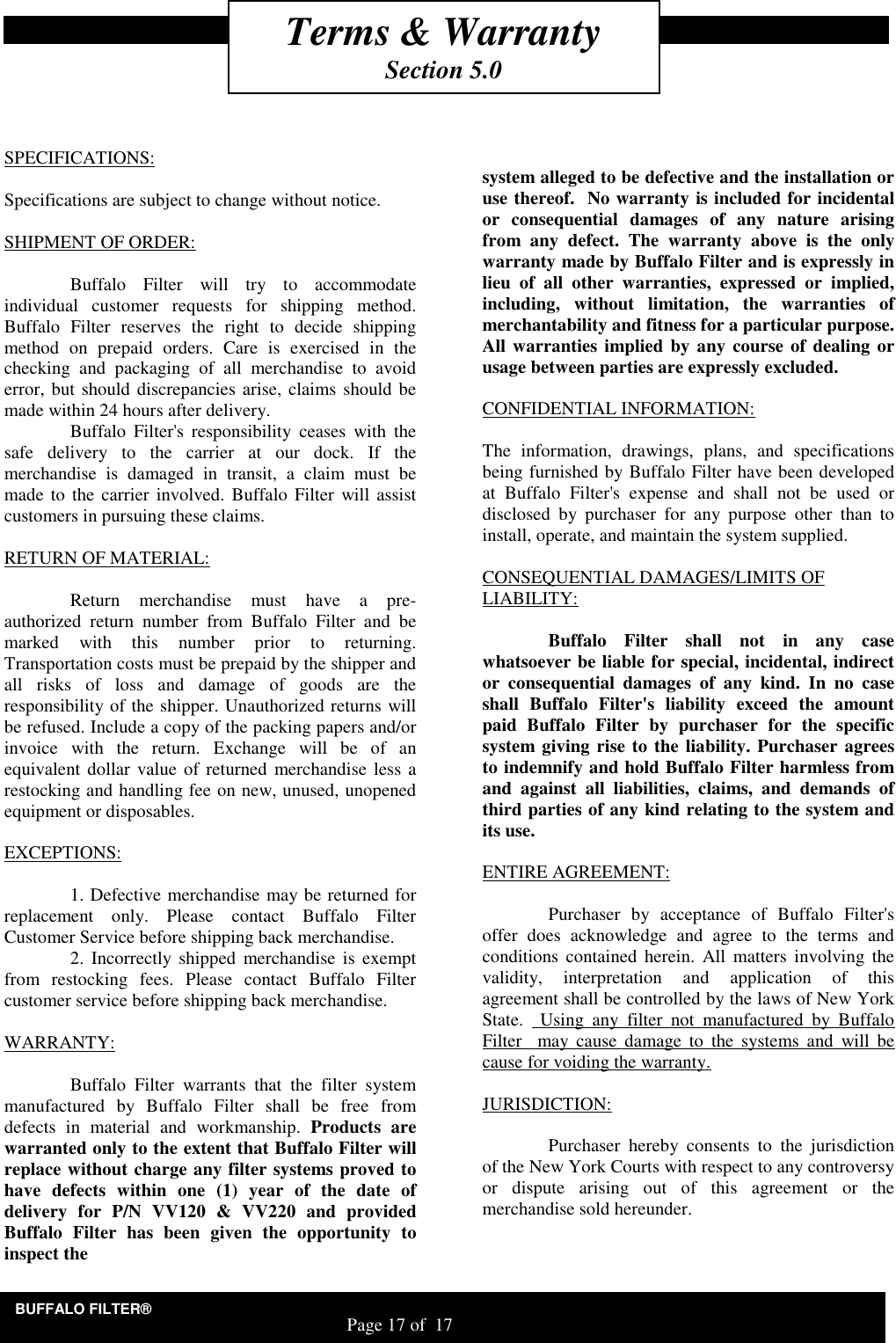

BUFFALO FILTER®                                                                   Page 17 of  17    SPECIFICATIONS:  Specifications are subject to change without notice.  SHIPMENT OF ORDER:    Buffalo  Filter  will  try  to  accommodate individual  customer  requests  for  shipping  method. Buffalo  Filter  reserves  the  right  to  decide  shipping method  on  prepaid  orders.  Care  is  exercised  in  the checking  and  packaging  of  all  merchandise  to  avoid error, but should discrepancies arise, claims should be made within 24 hours after delivery.   Buffalo  Filter's  responsibility  ceases  with  the safe  delivery  to  the  carrier  at  our  dock.  If  the merchandise  is  damaged  in  transit,  a  claim  must  be made to  the carrier involved.  Buffalo  Filter will assist customers in pursuing these claims.  RETURN OF MATERIAL:    Return  merchandise  must  have  a  pre-authorized  return  number  from  Buffalo  Filter  and  be marked  with  this  number  prior  to  returning. Transportation costs must be prepaid by the shipper and all  risks  of  loss  and  damage  of  goods  are  the responsibility of the shipper. Unauthorized returns will be refused. Include a copy of the packing papers and/or invoice  with  the  return.  Exchange  will  be  of  an equivalent dollar value of returned  merchandise less a  restocking and handling fee on new, unused, unopened equipment or disposables.  EXCEPTIONS:    1. Defective merchandise may be returned for replacement  only.  Please  contact  Buffalo  Filter Customer Service before shipping back merchandise.   2.  Incorrectly shipped  merchandise  is exempt from  restocking  fees.  Please  contact  Buffalo  Filter customer service before shipping back merchandise.  WARRANTY:    Buffalo  Filter  warrants  that  the  filter  system manufactured  by  Buffalo  Filter  shall  be  free  from defects  in  material  and  workmanship.  Products  are warranted only to the extent that Buffalo Filter will replace without charge any filter systems proved to have  defects  within  one  (1)  year  of  the  date  of delivery  for  P/N  VV120  &  VV220  and  provided Buffalo  Filter  has  been  given  the  opportunity  to inspect the       system alleged to be defective and the installation or use thereof.  No warranty is included for incidental or  consequential  damages  of  any  nature  arising from  any  defect.  The  warranty  above  is  the  only warranty made by Buffalo Filter and is expressly in lieu  of  all  other  warranties,  expressed  or  implied, including,  without  limitation,  the  warranties  of merchantability and fitness for a particular purpose. All warranties implied by any course of dealing or usage between parties are expressly excluded.   CONFIDENTIAL INFORMATION:  The  information,  drawings,  plans,  and  specifications being furnished by Buffalo Filter have been developed at  Buffalo  Filter's  expense  and  shall  not  be  used  or disclosed  by  purchaser  for  any  purpose  other  than  to install, operate, and maintain the system supplied.  CONSEQUENTIAL DAMAGES/LIMITS OF LIABILITY:    Buffalo  Filter  shall  not  in  any  case whatsoever be liable for special, incidental, indirect or  consequential  damages  of  any  kind.  In  no  case shall  Buffalo  Filter's  liability  exceed  the  amount paid  Buffalo  Filter  by  purchaser  for  the  specific system giving rise to the liability. Purchaser agrees to indemnify and hold Buffalo Filter harmless from and  against  all  liabilities,  claims,  and  demands  of third parties of any kind relating to the system and its use.  ENTIRE AGREEMENT:    Purchaser  by  acceptance  of  Buffalo  Filter's offer  does  acknowledge  and  agree  to  the  terms  and conditions  contained  herein.  All  matters  involving  the validity,  interpretation  and  application  of  this agreement shall be controlled by the laws of New York State.    Using  any  filter  not  manufactured  by  Buffalo Filter    may  cause  damage  to  the  systems  and  will  be cause for voiding the warranty.  JURISDICTION:    Purchaser  hereby  consents  to  the  jurisdiction of the New York Courts with respect to any controversy or  dispute  arising  out  of  this  agreement  or  the merchandise sold hereunder.    Terms & Warranty Section 5.0
