User manual

Cat® B100 Phone

User manual

Please Read Before

oceeding

Safety

recautions

Please read the safety precautions carefully to ensure the correct use of your mobile

phone.

Despite the nature of this rugged device, avoid hitting, throwing, dropping, crushing,

bending, and puncturing your mobile phone.

Avoid using your mobile phone in a damp environment, such as the bathroom. Prevent

your mobile phone from being intentionally soaked or washed in liquid.

Do not switch on your mobile phone when it is prohibited to use phones or when the phone

may cause interference or danger.

Do not use your mobile phone while driving.

Follow any rules or regulations in hospitals and health care facilities. Switch off your mobile

phone near medical equipment.

Switch off your mobile phone in aircraft. The phone may cause interference to control

equipment of the aircraft.

Switch off your mobile phone near high-precision electronic devices. The phone may affect

the performance of these devices.

Do not attempt to disassemble your mobile phone or its accessories. Only qualified

personnel are allowed to service or repair the phone.

Do not place your mobile phone or its accessories in containers with a strong

electromagnetic field.

Do not place magnetic storage media near your mobile phone. Radiation from the phone

may erase the information stored on them.

Do not put your mobile phone in a high-temperature place or use it in a place with

flammable gas such as a gas station.

Keep your mobile phone and its accessories away from young children. Do not allow

children to use your mobile phone without guidance.

Use only approved batteries and chargers to avoid the risk of explosions. Observe any laws

or regulations on the use of wireless devices. Respect others’ privacy and legal rights when

using your wireless device.

Do not use the mobile phone in airplanes, hospitals, gas stations, or professional garages.

For medical implant patients (heart, insulin, etc.), keep the mobile phone 15cm away from

the implant and, while calling, keep the phone on the opposite side of the implant.

Strictly follow the relevant instructions of this manual while using the USB cable. Otherwise,

your mobile phone or PC may be damaged.

Legal

Notice

www.cat.com / www.caterpillar.com

CAT,

CATERPILLAR, BUILT FOR

IT,

their respective logos,

“Caterpillar Y

ellow”

, the “Power Edge” trade dress

as well as corporate and product

identity

used herein, are trademarks

Caterpillar and may not be used

without permission.

No part of this

document

may be

reproduced

transmitted

in any form or

means

without

prior

written

consent of Caterpillar,

Inc.

The product described in this manual may include

copyrighted

software

and

possible licensors. Customers shall not in any manner reproduce,

distribute, modify, decompile,

disassemble, decrypt, extract, reverse

engineer, lease, assign,

sublicense the said software or hardware, unless

such

restrictions

are

prohibited by

applicable laws or such actions are

approved by respective

holders

under

licenses.

Notice

Some features of the product and its accessories described herein rely on the

sof

are

installed, capacities and settings of the local network, and may not be activated

may be

limited

by local network operators or network service

providers.

Thus,

the

descriptions

herein may not exactly match the product or its accessories you

purc

hase.

The manufacturer reserves the right to change or modify any information or specifications

contained in this manual without prior notice or obligation.

The

manufacturer

is not

responsible

for the

legitimacy

and quality of any products

that

you

upload or

download through

this mobile phone,

including

but not

limited

the

text,

pictures, music, movies, and

non-built-in

software with

consequences arising from the

installation

or usage of the preceding products on

this

mobile phone shall be your

responsibility

Warnings

This device is certified to Ingress Protection rating of IP67 for dust and water immersion. It

meets Military Standard MilSpec 810G for temperature extremes, salt mist, thermal shock,

vibration and drop test up to 1.8M onto concrete.

To ensure the device will meet this level of protection, the port covers (USB and Headphone)

must be securely in place, and the rear cover properly fitted and locked.

The device is designed to get wet, but it is not designed to be submerged for prolonged periods.

Water damage that occurs as a result of these covers not being fitted securely will not be

covered by the warranty.

This device is durable in design, but it is not indestructible. It is drop tested to 1.8 meters so it

will be protected against accidental drops during normal use. Deliberate abuse of the device

may cause damage and invalidate the warranty.

Warranty

Information

Terms and Conditions of warranty are available at www.catphones.com.

Two-Year Limited Warranty Summary: Cat Phone warrants that at the time of original

purchase, the hardware product and accessories are free of defects in design, material, and

workmanship. The warranty shall last for twenty-four (24) months from the date of original

purchase for mobile devices, and twelve (12) months for accessories (whether included in the

mobile device sales package or sold separately).

The contents of this manual are provided “as is.” Except as required by applicable laws, no

warranties of any kind, either express or implied, including but not limited to, the implied

warranties of merchantability and fitness for a particular purpose, are made in relation to the

accuracy, reliability or contents of this manual.

To the maximum extent permitted by applicable law, in no case shall the manufacturer be liable

for any special, incidental, indirect, or consequential damages, or lost profits, business, revenue,

data, goodwill or anticipated savings.

Import

and Export Regulations

Customers shall comply with all applicable export or

import

laws and

regulations

and will

obtain all necessary

governmental

permits and licenses in order to

expor

re-export, or

import

the product

mentioned

in this manual

including

the software

and

technical data

therein.

Contents

Welcome to the Cat B100 Phone ................................................................................................................... 7

Features ...................................................................................................................................................... 7

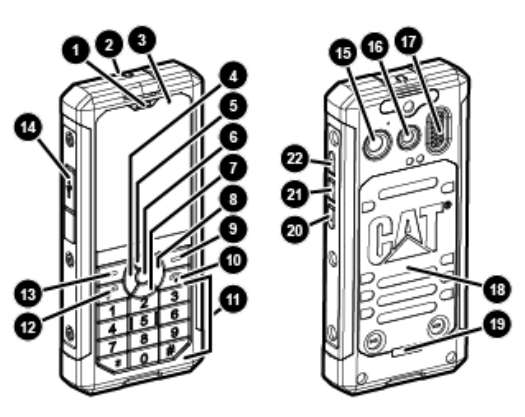

Getting to Know Your Mobile Phone

........................................................................................................ 8

Key Functions ............................................................................................................................................. 9

Getting Started

with

Your Mobile Phone ................................................................................................... 10

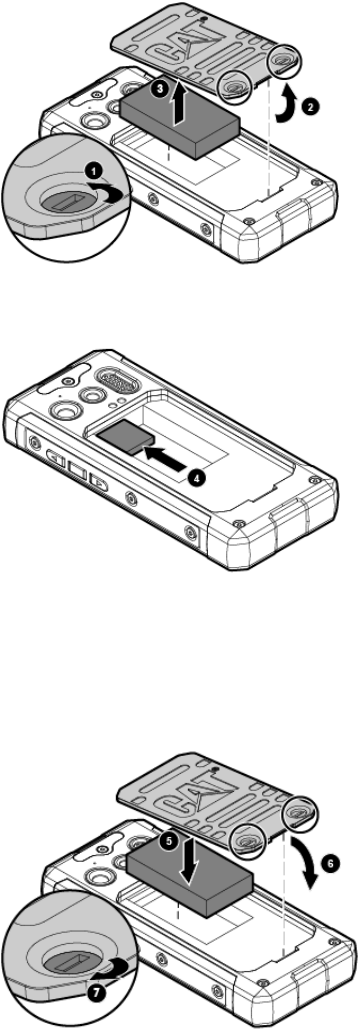

Inserting the SIM and Battery .................................................................................................................... 10

Charging the Battery ................................................................................................................................. 11

Powering

On or

Your Mobile Phone ................................................................................................. 12

rotecting

Your

Mobile Phone

............................................................................................................... 12

Using the

Flight Mode

............................................................................................................................ 12

Accessing Applications

........................................................................................................................ 13

Making and Receiving Calls ...................................................................................................................... 13

Sending Messages

............................................................................................................................... 13

Getting

to Know the Main

creen ......................................................................................................... 13

Phone

.......................................................................................................................................................... 15

Making

Call

......................................................................................................................................... 15

Answering or Rejecting a Call ................................................................................................................... 15

Other Operations During a

Call

................................................................................................................ 15

Using the Call Center ................................................................................................................................ 16

Phonebook/Names ....................................................................................................................................... 18

Adding a New Contact .............................................................................................................................. 18

Viewing and Editing a Contact .................................................................................................................. 18

Deleting a Contact ..................................................................................................................................... 18

Phonebook Settings .................................................................................................................................. 18

Messaging .................................................................................................................................................... 19

Creating

and

Sending

a Text

Message (SMS)

.................................................................................... 19

Creating and Sending a Multimedia Message (MMS)

....................................................................... 19

Opening and Viewing a Multimedia Message

..................................................................................... 19

Replying to a Message

.......................................................................................................................... 19

Customizing the Message Settings

...................................................................................................... 19

Email ............................................................................................................................................................. 20

Creating an Initial Email Account .............................................................................................................. 20

Viewing

an Email

Message

................................................................................................................... 20

Creating

and

Sending

an Email

Message

........................................................................................... 20

Replying to an Email

Message

............................................................................................................... 20

Deleting

an Email

ccount

................................................................................................................... 20

Changing

Account

tings

....................................................................................................... 21

Getting Connected

.................................................................................................................................... 21

wser

.................................................................................................................................................... 21

Bluetooth ................................................................................................................................................... 22

Multimedia

.................................................................................................................................................. 23

Taking Photos and

Recording

ideos

.................................................................................................... 23

Enjoying Music ........................................................................................................................................... 24

Listening

to FM

Radio

........................................................................................................................... 25

Fun and Games ............................................................................................................................................ 25

Using

Maps

.................................................................................................................................................. 26

Enabling Location ...................................................................................................................................... 26

Opening Maps ........................................................................................................................................... 26

Searching

for

Places of

Interest

............................................................................................................ 26

Getting Directions

.................................................................................................................................. 26

Using Other

Applications

............................................................................................................................ 27

Using the Calendar .................................................................................................................................. 27

Setting the

Alarm

..................................................................................................................................... 27

Using the Calculator

.............................................................................................................................. 27

Using the File

Manager

......................................................................................................................... 28

Managing

Your

Mobile Phone

................................................................................................................... 29

Setting

the Date and

ime

..................................................................................................................... 29

Setting

the Displa

................................................................................................................................. 29

Setting

Phone Ringtone ........................................................................................................................... 29

Setting

Phone

vices

.......................................................................................................................... 30

Ways to Free Up Your

Mobile

Phone

Memor

.................................................................................... 30

Reset

ting

Your Mobile Phone ................................................................................................................... 30

Specifications

............................................................................................................................................ 31

Appendix ....................................................................................................................................................... 33

Warnings

and

recautions ...................................................................................................................... 33

Accessories

............................................................................................................................................. 34

Cleaning and

Maintenance

.................................................................................................................... 35

Emergency Call

....................................................................................................................................... 36

FCC

Statement

...................................................................................................................................... 36

RF Exposure

Information

AR) ................................................................................................................ 36

Prevention of

Hearing Loss

.................................................................................................................... 37

Declaration

Conf

ormity

.................................................................................................................... 38

CE SAR Compliance ............................................................................................................................... 40

Disposal

and

Recycling

Inf

ormation

.................................................................................................... 41

Welcome to the Cat B100 Phone

The B100 is waterproof, dustproof, and rugged enough to withstand a drop of 1.8M onto a hard

surface. It is equipped with a noise canceling microphone and a loud high-quality speaker. As

well as being a rugged mobile phone, with it you will be able to enjoy web browsing, messaging,

music and more with its high-capacity battery and expandable memory up to 32GB.

Features

 MIL SPEC 810G: 1.8M (6ft) Drop onto cement; Operating temperature: -25 C (-13 F)

to 55 C (131 F)

 IP 67: Waterproof up to 1M (3ft) for 30 minutes; Dust resistant

 Micro SD card support up to 32GB

 Bluetooth V2.0 +EDR/A2DP (FTP, OPP, DUN, SPP, A2DP, AVRCP)

 FM radio

 3 MP camera, contains video camera

 Dual noise canceling microphones

 Predictive text

 GPS

 Browser

 Flashlight

 HAC certified (AWS model only)

 TTY capable

 High audio quality loud speaker

 Can be used with drop-in charger*

 Memory management via USB

* Drop-in charger sold separately

Getting to Know Your Mobile Phone

1. Earpiece

Earpiece

15. Rear Camera

2. Headset Jack

16. Flash

3. Display

17. Speaker

4. Messaging/Menu Scroll Left

18. Rear Cover

Media Player/Menu Scroll

19. Rear Cover Latch

6. User Profiles/Select

20. Volume Down

7. Alarm/Menu Scroll Down

21. Flashlight

8. Camera/Menu Scroll Right

22. Volume Up

9. Names/Right Select

10. End Call/Power

11. Number Pad

12.

Send/Answer

13. Menu/Left Select

14. USB Port

Key Functions

End Call/Power key

Press to turn on your mobile phone or end a call.

Send/Answer key

Press to make or answer a call.

Menu/Left Select key

Press to access menu options.

Names/Right Select key

Press to add or search contacts or go back to the previous

screen.

User Profiles/Select key

Press to access user profile volume settings or to select

applications and options.

Side Flashlight key

Press and hold until the flashlight is on or off.

Getting Started

with

Your Mobile Phone

Inserting the SIM and Battery

Loosen the captive screws

2. Remove the back cover.

3. Remove the battery.

4. Insert the SIM card with contacts facing downward into the available slot.

5. Insert the battery.

6. Replace the back cover. Align the prongs at the top with square holes inside the

case, then press down to secure as shown.

7. Tighten the captive screws.

Charging the Battery

Before using the device for the first time, or when it has not been used for an extended period,

the battery must be charged.

Warning: Use only Cat® approved chargers and cables. Unapproved equipment may cause

damage to the device or cause batteries to explode.

If the battery is completely discharged, it is not possible to switch on the device when the power

is first connected. Allow an exhausted battery to charge for at least five minutes before

attempting to switch on the device.

1. Open the USB cover and plug in the USB cable.

Note: Be aware of the plugs orientation. Damage can occur when the connector the is inserted

the wrong way, which is not covered by the warranty.

2. Insert the other end of the cable into the wall charger.

3. Insert the power cord on the wall charger into an electrical socket.

Note: Never remove the battery during charging as doing so may cause damage to the device.

4. When charging is complete, remove the connector from the device and then remove the

wall charger. Ensure that the USB port is correctly sealed, to protect the product from

moisture.

Important Information About the Battery

Caution: There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of

used batteries according to the instructions.

 If the battery has not been used for a long period of time, you may not be able to

power

your mobile phone

immediately

after you begin charging the battery. Allow

the battery

charge for a few minutes with the phone powered off before

attempting

to power on

the

phone. The on-screen charge

animation

may not be

displayed during this

period.

 Over time, the battery will not hold a charge for as long as it did when it was new.

When

the

battery life becomes

noticeably

shorter than usual after being charged

properly,

replace

the

battery with a new one of the same

type.

 Using data services increases demand on the battery and will reduce the length of

time it

can

hold a c

harge.

 The time required to charge the battery depends on the

environmental temperature

and

the

age of the

bat

tery

 When the battery power level is low, the phone plays an alert and displays a

message.

Powering

On or

Your Mobile Phone

 To power on the phone, press and hold the End Call/Power key for 2-3 seconds.

 To power off the phone, press and hold the End Call/Power key.

Note:

If personal identification number

(PIN)

protection is enabled on your SIM

card,

you must

enter your PIN before using the mobile phone.



When

the battery power is almost exhausted, your phone will power off

automatically

rotecting

Your

Mobile Phone

Enabling Your SIM Card PIN

1. Press Menu > Settings > Security settings > SIM security.

2. Select PIN lock > Turn on.

3. Set a pin for your SIM card.

4. You will need this PIN to access your SIM card in the future.

Note:

You can dial emergency numbers any time from your mobile phone.

Locking

the Phone

Your phone will have an automatic keypad lock that, by default, will set when the phone has

been idle for 30 seconds. To unlock the keypad, press Unlock > *.

To keep your data more secure, lock the phone

When the phone

locked, you can still

receive messages and

calls.

1. Press Menu > Settings > Security settings > Phone security.

2. Press On and enter your phone password.

The factory default password is 1122. This password can be changed under Security

settings. If you change your password keep note of the new password created.

3. The phone lock is now active. When restarting the phone you will be prompted to enter

your password before accessing the phones features.

Using the

Flight Mode

Some locations might require you to turn off your phone’s wireless connections. Respect

warnings and instructions to power off mobile devices in restricted areas. Rather than powering

off your phone, you can set it to Flight mode.

1. Press Menu > Settings > Phone settings > Flight mode.

2. Select Flight mode and press OK.

3. Press Yes to switch modes.

4. Press Back to return to the main screen.

Accessing Applications

1. To access the applications, press Menu.

2. Use the Menu scroll buttons to highlight the applicable application and press OK or

Select.

3. Select the features listed for each application.

Making and Receiving Calls

1. To make a phone call, dial the number or press Names from the main screen:

 Dial: Enter the number and press Send/Answer .

 Names: Press Names, scroll to select a contact name, and press Send/Answer.

2. To receive a call, press Send/Answer.

Sending Messages

To send messages via text (SMS) or multimedia (MMS), press Menu > Messaging.

Getting

to Know the Main

creen

After you sign in, or when you power on the phone, the main screen appears. The main screen

is your starting point to access the features on your phone. It displays the date and time and

allows you to access applications, user volume profiles, and contact names. You can customize

the main screen with different wallpaper and choose the items to display.

Display

out

Notifications

and

Status

Inf

ormation

The main screen displays the time, battery status, notification messages, and analog or digital

clock. The screen provides access to the Menu, User Profiles, and Names.

Status Icons

Connected to GPRS mobile network

No SIM card installed

Connected to a 2G network

Battery is drained

Connected to a 3G network

Battery is full

Roaming

Battery is half full

Mobile network signal strength

Battery is charging

Searching for a network signal

Bluetooth is on

No Signal

Connected to Bluetooth

device

Airplane Mode

Notification Icons

New Text or email message

Second incoming call

Alarm is set

Call on hold

Incoming call

Location enabled

Missed call

Currently on call

allpapers

You can select system or user-defined wallpapers. When changing the wallpaper, the screen

image does not affect all pages, only the idle screen.

1. To change the wallpaper, press Menu > Settings.

2. Select Phone settings > Display > Wallpaper.

3. Select System or User defined.

 System: Scroll and view the images. Select an image to set as the wallpaper, and

press OK.

 User defined: The file manager displays the available space. Select Open and

scroll through the list of items to use as wallpaper, such as photos that you

downloaded. Select a photo to set as the wallpaper, and press OK.

4. Press Back until the main screen appears.

Using the USB Mass Storage

To transfer music and pictures from your PC onto your mobile phone’s microSD card, set the

microSD card as USB mass storage.

1. Connect your mobile phone to your PC with the USB cable.

2. Select the Mass storage option on your device storage.

3. Mass storage folders for Phone and MicroSD card will pop up on your PC screen. You

can now transfer files from your PC to your phone’s microSD card.

Note:

While the USB mass storage function is enabled, some functions might not be available.

There is a Phone Suite PC application available for download via the www.catphones.com

website. The link is available under the B100 model support page. It can be used for editing

contacts, messaging, file management and calendar entries

Phone

There are several ways to place a phone call. You can dial a number, or select a number in

your

contacts list or from a text message. When you

are

on a call, you can either answer

incoming

calls or send them to your

voicemail

box. You

can

also set up conference calls

with two additional people if the option is supported by your network

Making

Call

To make a call, dial a number or select a number from Names or Dialed calls.

Note: Be careful not to block the microphone with your fingers. The microphone is located

between the 0 and # key on the front and by the camera lens on the back of the phone.

Making

a Call

with

the Dialer

1. From the main screen, use the keypad to dial the number.

2. Press Send/Answer.

3. When the call is complete, press End Call/Power to hang up.

Making

a Call from

Names

1. From the main screen, press Names.

2. From the Phonebook, select the appropriate contact to call and press Send/Answer.

3. When the call is complete, press End Call/Power to hang up.

Making

a Call from Dialed calls

1. From the main screen, press Send/Answer. The Dialed calls tab appears.

2. You can scroll to the left or right to view All calls, Missed calls, or Received calls tabs.

3. From the appropriate tab, select the number to call and press Send/Answer.

4. When the call is complete, press End Call/Power to hang up.

Answering or Rejecting a Call

To answer a phone call, press Send/Answer key. The screen displays the caller ID.

To reject a phone call, press Reject.

Other Operations During a

Call

Making

Conference Call

If you receive a new call while you are already on a call, you can connect the second

call

the call you are on. This feature is known as conference calling. You can also set up a

conference call with

multiple

caller

Note: Contact your network operator to learn whether it supports conference calls and how

many participants you can add.

1. To initiate a conference call, dial the number of the first person to be on the call.

2. While on the call enter the phone number of the person you want to join the conversation

or find them using Options > Phonebook and press send. The first call is automatically

placed on hold.

3. Once you have connected to the person you have added, press Options > Conference.

4. To add more people, repeat steps 2 and 3.

5. To split the conference back to separate conversations, press Options > Split.

6. To end the conference call and disconnect everyone, press End call.

Switching Between Calls

If you receive a new call while you are already on a call, you can switch between the

two

calls.

1. While you are on two calls, press the Send key.

The current call is placed on hold and you are connected to the other

call.

3. To switch back to your original call, press

Options > Swap

Recording a Call

While in a call, press Options > Sound recorder. The tool will automatically start recording

your call. Press Stop to end the recording.

Saved recordings can be found under Menu > Multimedia > Sound recorder.

Using the Call Center

The Call center contains the history of calls that you have dialed, received, or missed. You can

use the history to quickly find a recently called number or add an incoming number to your

contact list.

The Call center also contains advanced call settings.

Viewing Call History

1. Press Menu > Call center > Call history.

The Dialed calls tab appears.

2. Scroll to the left or right to view the All calls, Missed calls, or Received calls tabs.

3. Press Options > Advanced.

4. Advanced options allow you to view call timers, call cost, text message counter, and

GPRS counter.

Changing Call Settings

1. Press Menu > Call center > Call settings > Advanced settings.

A list of settings appears.

Change any settings as needed. Settings include: blacklist, auto redial, call time display and

reminder, auto quick end, reject by SMS, connect notice, and answer mode.

Adding a Contact from the Call Center

1. From the main screen, press Send/Answer.

This is a shortcut to access the Dialed calls tab.

2. If necessary, scroll to the left or right to view the All calls, Missed calls, or Received

calls tabs.

3. From the appropriate tab, select the number to add to contacts and press Options >

Save to Phonebook.

Clearing the Call Log

1. From the main screen, press Send/Answer.

The Dialed calls tab appears.

2. If necessary, scroll to the left or right to view the All calls, Missed calls, or Received

calls tabs.

3. Press Options > Delete or Delete all and press Yes to confirm.

Phonebook/Names

The Phonebook

application

enables you to save and manage

information

such as phone

number

s and addresses of your contacts. After you save the contact

information

on your

mobile phone

it provides easy access to people with whom you want to

communicate.

Adding a New Contact

1. Press Menu > Phonebook > Add new contact >Center Select key to save.

Alternatively, press Names > Add new contact > Center Select key to save.

2. Enter the applicable information. You must press the keys for the letters. For example,

press the 2 key once for a, twice for b, and three times for c.

3. Press Options > Save.

4. To add more detail to the contact, press Options > Add detail.

5. Add any details, including mobile, home, office, and fax numbers; additional email

address; company name and job title; caller video; birthday; URL; address; and notes.

Viewing and Editing a Contact

1. Press Names and select the applicable contact.

2. Press Options > View.

3. To edit the contact details, press Options > Edit.

4. Make any changes. Then press Select > Save and press Yes to confirm.

Deleting a Contact

1. Press Names and select the contact to delete.

2. Press Options > Delete and press Yes to confirm.

Phonebook Settings

To edit your phonebook settings, go to Menu > Phonebook > Options > Phonebook Settings.

Here you can edit your storage preferences and speed dial selections as well as view your

phone number, memory status. You can also delete all contacts from this menu.

Messaging

The Messaging

application

allows you to exchange text messages (SMS) and

multimedia

messages (MMS) with anyone using an SMS or

MMS-capable

phone. With

the

application,

you can read and send

emails.

Creating

and

Sending

a Text

Message (SMS)

From the main screen, press Menu > Messaging > Write message.

2. Enter the message you would like to send. You must press the keys for the letters.

For example, press the 2 key once for a, twice for b, and three times for c.

3. When you have finished entering the message, press

Options > Send to

and

select

Enter recipient

to input the number of your contact. You can also

choose

Add from phonebook

to select the recipient from your contact list. If

you wish to add multiple recipients, scroll back up to

Enter recipient

Add

from phonebook.

4. When your selected recipients have been entered, press the

center Select

button

to send.

Alternatively, you can find your recipient in the phonebook, press

Options > Send

message

Creating and Sending a Multimedia Message (MMS)

Multimedia Message format can include images, videos, audio, or business cards with your

own or a contacts information.

1. While typing an SMS, press Options > Switch to MMS.

2. Enter the applicable information. You must press the keys for the letters. For

example, press the 2 key once for a, twice for b, and three times for c.

3. Select which recipient you would like to send the message to from your phonebook.

Opening and Viewing a Multimedia Message

When a message is received, from the main screen press Menu > Messaging > Inbox and

select the message you would like to view.

Replying to a Message

1. While viewing a message, press Options > Reply.

2. Enter the applicable information. You must press the keys for the letters. For

example, press the 2 key once for a, twice for b, and three times for c.

3. When you have finished entering the message, press the center Select button to

send it.

Customizing the Message Settings

1. From the main screen, press Menu > Messaging > Message settings.

2. In this screen you will be able to edit settings for Text, multimedia, and service

messages.

Menu > Messaging > Email

Your mobile phone supports POP3, IMAP used by most email services.

Creating an Initial Email Account

Before using the Email application for the first time, you must configure your email account.

You will need to know the email address you want the phone to use (emailuser@gmail.com)

and the password associated with that account.

1. Menu > Messaging > Email.

2. Select a service and follow the prompts.

Viewing

an Email

Message

1. Menu > Messaging > Email >Inbox.

2. Press Options > Retrieve Email.

3. Select the email message to view.

Creating

and

Sending

an Email

Message

1. Menu > Messaging > Email > Options> Write Email.

2. To enter the recipient’s email address, select To > Edit > Enter recipient or Add

from Phonebook. When the recipient has been found, press Back to return to your

email draft

3. Enter the message subject (Optional).

4. To write your message, you must press the keys for the letters. For example, press

the 2 key once for a, twice for b, and three times for c.

5. When you have the message you would like to send ready, press Options > Send.

Replying to an Email

Message

1. While viewing an email, press Options > Reply.

2. Enter the message you would like to send.

3. Press Options > Send.

Deleting

an Email

ccount

1. Options > Email accounts.

2. Select the account you would like to remove and press Options > Delete > Yes.

3. A notification will appear telling you the account has been deleted.

Changing

Account

tings

You can change a number of settings for an account, including how often you check for

emails, how you are notified of a new mail, and details about the servers the account uses to

send and receive mails.

Note:

Your account’s incoming and outgoing settings depend on the kind of email service

for your account: POP3, IMAP, or Exchange. You can enter the necessary details manually,

although you will typically need to contact your email service provider to determine the right

settings for the account.

Getting Connected

GPRS/3G

Your mobile phone will be automatically configured to use your wireless service provider’s

GPRS/3G service (if available) when you turn on the phone for the first time.

Checking the Network Connection

Your mobile phone will automatically read the access point of the SIM card. For this reason,

do not change the parameters of the access point; otherwise, you might not be able to

access network sources.

wser

Your mobile phone comes with a browser to access the Internet.

Opening

a Web Page

1. Press Menu > Browser.

A message states “Using data may incur additional charges.” Select Yes to continue

or No to cancel.

Charges are dependent on your ISP.

2. To open a web page, press Edit, enter the web page address in the URL field, and

press Go.

As you enter the address, matching web page addresses appear on the screen. If

you see the address you want, select it and go directly to that web page.

Setting a Home Page

1. While in the browser, select Menu.

2. Under the dropdown menu that appears, select Settings > Advanced > Homepage.

3. Enter the domain you would like to set as your homepage.

4. Press Done > Save.

Managing

Bookmarks

You can store as many bookmarks as needed on your mobile phone

Adding

Bookmark

1. While in the browser, select Menu

2. Under the dropdown menu that appears, select Bookmarks > Add.

3. Type a title you would like to recognize the webpage by.

4. Enter the address and press Add.

Opening

Bookmark

1. While in the browser, select Menu.

2. Under the dropdown menu that appears, select Bookmarks.

3. Find the bookmark you would like to view and press Open.

Customizing

the

Browser

tings

1. While in the browser, select Menu.

2. Under the dropdown menu, select Settings.

3. From here, various changes can be made, such as what zoom setting you would like

to be at.

4. More options can be found under Advanced.

Managing

a Web P

age

To navigate a web page, use the directional arrows to move your cursor. When hovering

over the area you would like to zoom in on or the link you would like to click, press the

center Select button. Use the keypad to type out any web addresses or search terms. The

Menu button lets you access the address bar, bookmarks, settings, and various other

navigation tools.

Bluetooth

Your mobile phone includes Bluetooth connectivity, which allows you to create a wireless

connection with other Bluetooth devices so that you can share files with others, talk hands-

free with a Bluetooth headset, or even transfer photos on your phone to your PC.

If you are using Bluetooth, remember to stay within 10 meters (33 feet) of your Bluetooth

devices. Be aware that obstacles like walls or other electronic equipment may interfere with

your Bluetooth connection.

Turning On Bluetooth

1. Press Menu > Settings > Connectivity > Bluetooth.

2. Press Select to set the Bluetooth power to On.

The Bluetooth icon appears at the top of the screen.

3. To set the visibility to On and make your phone visible to other Bluetooth devices,

press Select.

The Bluetooth options allow you to search for other Bluetooth devices, customize your

phone Bluetooth name, and use advanced features.

Pairing and Connecting a Bluetooth Device

Your mobile Bluetooth

lets you do the

following:

 Hands Free Profile (HFP): allows you to use a hands-free Bluetooth device.

 Headset Profile (HSP): allows you to use a mono Bluetooth headset.

 Object Push Profile (OPP): allows you to transfer files through Bluetooth.

 Advanced Audio Distribution Profile (A2DP): allows you to use a stereo Bluetooth

headset.

 A/V Remote Control Profile (AVRCP): allows you to control what plays through the

Bluetooth headset remotely.

Before you use Bluetooth, you need to pair your mobile phone with another Bluetooth device

as follows:

1. Ensure that the Bluetooth function on your mobile phone is enabled.

2. Go to Menu > Settings > Connectivity > Search audio device. Your mobile phone

will then scan for Bluetooth devices in range.

3. Select the device you want to pair with your mobile phone

4. Enter the pairing password to complete the

connection.

Note:

After pairing is complete, connecting to that Bluetooth device

again

does not require

the password.

Sending

Files via

Bluetooth

With Bluetooth, you can share pictures, videos, or music files with your family and friends.

To send files via Bluetooth:

1. Press Menu > File Manager > Options > Open.

2. Select a folder (for example, Photos), and press Options > Open.

3. Select a photo to send, and press Options > Send > Via Bluetooth.

4. Select a paired device.

Disconnecting

Unpairing

Bluetooth

vice

1. Press Menu > Settings > Connectivity > Bluetooth > My device.

2. Scroll to active connection.

3. Select Option > Disconnect.

Multimedia

addition

to being a

communication

device and personal assistant, your mobile phone

also provides you with a

multitude

entertainment possibilities.

You can take

photos,

create videos and audio clips, and

download

and listen to

music.

Taking Photos and

Recording

ideos

The camera is a combination of camera and camcorder that you can use to shoot and share

pictures and videos.

Taking


1. Press Menu > Camera.

2. Compose your photo

within

the photo capture

screen.

Press the

center Select key

to take your photo.

Press the

return arrow right soft key

to close the camera.

End/Power down key

will exit the camera application.

wing

Your

Photos

1. Press Menu > Multimedia > Image viewer.

Your photos appear as thumbnails.

2. Select a photo and press Options to choose various tasks, including view, send, and

delete photos.

Shooting

ideo

1. Press Menu > Camera.

2. Press down on the directional pad to change to video recorder.

3. Ready your video within the capture screen.

4. Press

the

center Select key to begin the recording.

5. To end the recording, press the stop button.

6. The video will be automatically saved in your media files.

wing

Your

ideos

1. To view your video immediately after recording, select the menu button on the left of

the screen.

2. Scroll down to select play.

3. Alternatively, go to Menu > File Manager > Videos.

Enjoying Music

You can transfer music files from your PC to your microSD card so you can listen to music

on your mobile phone.

Copying

Music to the Micro SD Card

1. Insert your microSD card.

2. Connect the phone to your computer with a USB cable.

3. On your computer, navigate to the USB drive and open it.

4. Create a folder in the root directory of the microSD card (for example, Music).

5. Copy the music from your computer to the folder you created.

6. After copying the music, eject the drive as required by your computer operating

system to safely remove the mobile phone.

7. Disconnect the mobile phone from the computer.

Playing Music

1. Go to Menu > Multimedia > Media player > My playlists.

2. Select the song you would like to play and press the center Select key.

Tip: When you are listening to music, press Back to use another application. Your music

continues to play. To return to the music controls,

Adding

Music to a

Pla

ylist

1. Go to Menu > Multimedia > Media Player > My Playlists.

2. Press Options, choose New.

3. Enter preferred name for the new playlist, press Options > Done.

4. Press Add, choose your storage device and follow the directory path to locate your

audio files.

5. Press OK to add music to the playlist.

Listening

to FM

Radio

FM Radio allows you to listen to FM radio stations on your mobile phone. Since FM Radio

uses the provided wired stereo headset as the antenna, connect the headset first to the

audio jack of your phone before opening the application.

Playing

the FM

Radio

1. Be sure that headphones are plugged into the audio jack.

2. Press Menu > Multimedia > FM radio.

3. The FM Radio automatically scans for available FM channels, saves them as

presets, and plays the first FM channel found.

4. To control the volume, press the Volume Up and Volume Down keys on the side of

the phone.

5. To tune the radio, press the Left and Right scroll keys.

6. To turn the radio off and on, press the Up and Down scroll keys.

Recording the FM

Radio

1. To record the radio, press Options > Record.

The radio begins recording.

2. Press Pause, Continue, or Stop.

3. Once the recording is stopped you will be prompted to save by pressing the center

Select key.

4. Recorded sessions can be found under Menu > Multimedia > Sound Recorder.

Fun and Games

Options:

 Java

 Google Maps

 Java settings

Using

Maps

lets you find

your current location,

view real

-time

traffic conditions

(depending

availability

in your location), and get detailed

directions

to various

destinations

on a

satellite,

traffic, or

other

kind of

map.

Enabling Location

Before

you

open Maps

to find

your location

for

places

interest,

you

must

enable

the

“location

source” receiver.

Go to Menu > Settings > GPS Settings > Turn Receiver on > Yes for confirmation.

Opening Maps

Maps must be downloaded from the browser before you can access the application.

1. Go to Fun & Games > Google Maps.

2. You will be redirected to the browser and prompted to download the application.

3. Confirm Yes.

4. After Maps has been downloaded, it can be accessed in Fun & Games.

Searching

for

Places of

Interest

1. While

viewing

a map, press Menu > Search Map.

2. Enter the place you want to search, then press the center Select button and

confirm your selection.

te:

You can also select one option from the suggestions

list.

3. Your search results will then be displayed. Press the center Select button to

display information about your results

Getting Directions

1. While

viewing

a map, without a destination chosen, press Menu > Get Directions.

2. Enter the starting point in the first text box, and then enter your destination in the

second text box.

3. Choose the tab for car, public transit, or walking directions

4. Select Show directions.

5. A list will appear with the instructions for how to reach your destination

Note: To view a step on the map, highlight the desired step and select it with the center

Select key.

6. When you finish viewing or following the directions, press Back to return to the map.

7. Clear Map to reset the

map.

Using Other

Applications

Using the Calendar

Use the calendar to create and manage events, meetings, and

appointments.

Creating a

Calendar Event

1. Press Menu > Organizer > Calendar.

2. Use the scroll keys to select a date.

Press

Options > Add event

Enter the event details, such as type of event (such as a reminder or meeting), start

and end times, subject, frequency, location, and any details.

Press

and then

Yes

to confirm.

Setting the

Alarm

You can set a new alarm or

modify

an existing

alarm.

1. Press Menu > Organizer > Alarm.

2. Use the scroll keys to select a time and press Edit.

Use the

left/right scroll keys

to set the alarm On.

Enter the alarm time in 4-digit format. To toggle between AM and PM, press the

Select

key while the time is highlighted.

Use the

scroll keys

to set the alarm details, such as frequency, alarm tone, snooze

minutes, and alert type.

Press

Done

and then

Yes

to save. The time appears in the list of alarm times. An

alarm icon appears at the top of the screen.

Using the Calculator

Use the calculator to solve simple

arithmetic problems

or use its advanced operators to

solve

more complex

equations.

1. Press Menu > Organizer > Calculator.

2. Use the scroll keys to add, subtract, multiply, or divide. For example:

 Use the keypad to enter “100”.

 Scroll to select the multiply sign (X).

 Enter “5”.

 Press OK.

The answer “= 500” appears.

Using the File

Manager

File Manager allows you to

organize,

edit,

and delete

files

and

folder

Creating

a F

older

1. Press Menu > File Manager.

The phone displays the total space and the free space.

2. Press Options > Open.

The phone displays a list of folders, such as My Music and Photos.

Press

Options > New folder

Use the keypad to enter the name of the new folder and press

Select

The new folder appears in the folder list.

Moving

Copying Files

1. Press Menu > File Manager.

2. Press Options > Open.

3. From the folder list, open the source folder that contains a file you want to copy.

Press

Options > Copy > Select

“Copy to” appears at the top of the screen.

Press

Options > Open > [destination folder] >Select

The file is copied to the destination folder.

6. Open the destination folder to ensure that the file copied.

Deleting Files

1. Press Menu > File Manager.

2. Press Options > Open.

The phone displays a list of folders, such as My Music and Photos.

3. Open the source folder that contains the file you want to delete.

Press

Options > Delete

Press

Yes

to confirm.

The file is deleted from the folder.

Managing

Your

Mobile Phone

Use Menu > Settings to configure your phone. Settings include options for phone, GPS,

security, connectivity, sound effects, and restoring factory settings

Setting

the Date and

ime

When you first start the phone, you are asked if you want the time and date to update

automatically using the time provided by the network.

Note:

When the time provided by the network is automatically used, you cannot set the date,

time, and time zone.

1. Press Menu > Settings > Phone settings > Time and date > Set time/date.

2. Enter the time in HH:MM (hour:minutes) format. Press Select to toggle between AM and

PM.

Enter the date in DD.MM.YYYY (day.month.year) format.

Use the

scroll keys

to toggle daylight savings off and on.

Press

OK.

The

Time and date

menu also allows you to enter your home city, change the time and date

format, and update with your time zone.

If you want the phone to auto-update the time, press

Phone settings > Auto update time

and use the

scroll keys

to toggle off and on.

Setting

the Displa

Adjusting

the Screen Brightness and Display Time

1. Press Menu > Settings > Phone settings > Misc. settings > LCD backlight.

2. Use the scroll keys to adjust the brightness lighter or darker.

3. Use the scroll keys to adjust the time in seconds before the screen turns off when it is

idle.

Press

OK.

Setting

Phone Ringtone

To adjust phone volume and ringtone, press

Menu > User Profiles

Alternatively, press the

Select

key from the main screen.

The User profiles menu allows you to adjust or customize general phone settings, create and

activate your own style of settings, and adjust the volume for silent, meeting, or outdoor use.

Turning

On Silent Mode

1. From the main screen, press Select.

2. Under User profiles, press Silent > Options > Activate.

The phone remains in Silent mode until you select and activate another setting.

Customizing

the

Ringtone Types and

olume

Under

User profiles

, you can customize settings such as the alert type (ring/vibrate), ring

type, incoming call ringtone, ringtone volume, message volume, keytone volume, and power

on and off tones. As you scroll down through the settings, use the

left/right scroll keys

increase/decrease the volume for each setting.

For example, under

User profiles > General > Options > Customize

, select

Ringtone

volume

and press the

left/right scroll keys

to decrease/increase the volume. Press

Options

Change

Save

Setting

Phone

vices

1. Press Menu > Services.

Setting up the

Default

Netw

ork

1. On the Settings screen, select Network Settings.

2. Here you can change your Network Selection and Service selection, view your

Network information, and change GPRS Connection settings.

Note:

Check the

availability

of service and plan rates of data connections with your network

service provider.

Ways to Free Up Your Mobile Phone Memory

 Move files and email attachments to the microSD card.

 In the Browser, clear all temporary Internet files and Browser history information.

 Uninstall the downloaded programs that you no longer use (i.e. Google Maps).

 Reset your mobile phone.

Reset

ting

Your Mobile Phone

Restoring Factory

Data

If you reset your phone to the settings that were configured at the factory, all of your

personal data from internal phone storage, including information about your Google Account,

any other accounts, your system and application settings, and any downloaded applications

will be erased. Resetting the phone does not erase any system software updates that you

downloaded or any files on your microSD card, such as music or photos.

1. Press Menu > Settings > Restore factory settings.

2. You will be asked to “Input phone password”. The factory default password is 1122. If

you have changed the default password, enter your chosen password.

3. Press OK. A message will read, “Restore settings and restart the phone?” Press Yes to

continue or No to cancel.

Specifications

Item

Specifications*

Operating

ystem

Proprietary

Processor

MTK 6276W

Memory

128MB/64MB

Micro SD card support up to 32G

Network

2G GSM/GPRS/EDGE

3G WCDMA (Max data rate: 384 kbps)

Band ***

GSM/GPRS/EDGE Quad-Band 850/900/1800/1900 MHz

EU version:

WCDMA Dual-Band 900/2100MHz (Europe/Africa)

US Version:

WCDMA Tri-Band 850/AWS (1700/2100)/1900 (USA, Canada,

Latin America)

Please check with your reseller to verify which version you

have purchased.

Display

2.2” QVGA 240 X 320 TFT

Camera

3 MP

Video player and Capture

Connecti

vity

Bluetooth V2.0 +EDR/A2DP

3.5mm headset jack

Micro USB2.0

Bat

tery

1150mAh (removable)

Talk time up to 10 hours

Standby up to 23 days

Other

Bluetooth, GPS

Extras

FM radio

* Design and specifications are subject to change without prior notice

Loud hands-free speakerphone

Dimensions

123 x 56 x 17.5mm

eight

136 g

MIL SPEC

810G and

IP67 Certified

Impact resistant up to 1.8M

Waterproof up to 1m for 30 mins (battery door must be

correctly fitted and all ports must be sealed securely)

Operational between -25

C (-13 F) to 55

C (131 F)

Resistant to dust

Appendix

Warnings

and

recautions

This section contains

important information pertaining

to the

operating instructions

your

device. It also contains

information

about how to use the device safely. Read this

information

carefully before using your

device.

Waterproof Casing

USB and Headphone Port covers must be securely in place, and the rear cover properly fitted

and locked to ensure the device will meet this level of protection.

Electronic

vice

Power off your device if using the device is

prohibited.

Do not use the device when using

the

device causes danger or

interference

with electronic

devices.

Medical

vice

Follow rules and

regulations

set forth by hospitals and health care facilities. Do not use

your

device when using the device is

prohibited.

Pacemaker

manufacturers recommend

that a

minimum

distance of 15 cm be

maintained

between a device and a pacemaker to prevent

potential interference

with the pacemaker. If

you

are using a pacemaker, use the device on the opposite side of the pacemaker and do

not

car

the device in your front

poc

et.

Potentially Explosive

Atmosphere

Power off your device in any area with a

potentially

explosive atmosphere, and comply with

all signs and instructions. Areas that may have potentially explosive atmospheres include the

areas where you would normally be advised to turn off your vehicle engine. Triggering of sparks

in such areas could cause an explosion or a fire, resulting in bodily injuries or even deaths. Do

not power on your device at refueling points such as service stations. Comply with restrictions

on the use of radio equipment in fuel depots, storage, and distribution areas, and chemical

plants. In addition, adhere to restrictions in areas where blasting operations are in progress.

Before using the device, watch out for areas that have potentially explosive atmospheres that

are often, but not always, clearly marked. Such locations include areas below the deck on boats,

chemical transfer or storage facilities, and areas where the air

contains

chemicals or

particles such as grain, dust, or metal powders. Ask the

manufacturers

vehicles

using

liquefied petroleum gas (such as propane or butane) whether this device can be safely used in

their vicinity.

Traffic

ecurity

Observe local laws and

regulations

while using the device. In

addition,

if using the device

while

driving

a vehicle, comply with the

following guidelines:

Concentrate on driving. Your first responsibility is to drive safely.

Do not talk on the device while

driving.

Use hands-free

accessories.

When you have to make or answer a call, park the vehicle at the road side before using

your

device.

RF signals may affect electronic systems of motor vehicles. For more information, consult the

vehicle manufacturer.

In a motor vehicle, do not place the device over the air bag or in the air bag deployment area.

Otherwise, the device may hurt you owing to the strong force when the air bag inflates.

Do not use your device while flying in an aircraft. Power off your device before boarding an

aircraft. Using wireless devices in an aircraft may cause danger to the operation of the aircraft

and disrupt the wireless telephone network. It may also be considered illegal.

Operating

vir

onment

Do not use or charge the device in dusty, damp, and dirty places or places with magnetic fields.

Otherwise, it may result in a

malfunction

of the

circuit.

The device complies with the RF specifications when the device is used near your ear or at a

distance of 1.5 cm from your body. Ensure that the device accessories such as a device

case and a device holster are not composed of metal

components.

Keep your device 1.5 cm

from your body to meet the

requirement

earlier

mentioned.

On a stormy day with thunder, do not use your device when it is being charged, to prevent

danger caused by

lightning.

When you are on a call, do not touch the antenna. Touching the antenna affects the call

quality

and results in increase in power

consumption.

As a result, the talk time and the

standby

time

are

reduced.

While using the device, observe the local laws and

regulations,

and respect others’ privacy

and

legal

rights.

Keep the ambient

temperature

between 0°C and 40°C while the device is being charged.

eep

the ambient

temperature

between

–10°C

to 55°C for using the device powered by a

bat

tery

Safety

Children

Comply with all

precautions

with regard to

children’s

safety. Letting a child play with

your

device or its accessories, which may include parts that can be detached from the device,

may

be dangerous, as it may present a choking hazard. Ensure that small children are kept

from the device and

accessories.

Accessories

Choose only batteries, chargers, and accessories approved for use with this model by

the

device manufacturer.

The use of any other type of battery, charger, or accessory may

validate

any

warranty

for the device, may be in

violation

of local rules or laws, and may

dangerous.

Please contact your dealer for

information

about the

availability

of approved

bat

teries,

harger

s, and accessories in your

area.

Battery

and

Charger

Unplug the charger from the electrical plug and the device when not in

use.

The battery can be charged and discharged hundreds of times before it

eventually

wears

out. When the standby time and the talk time are shorter than the normal time, replace the

battery.

Use the AC power supply defined in the specifications of the charger. An improper power

voltage may cause a fire or a malfunction of the charger.

Do not connect two poles of the battery with

conductors,

such as metal materials, keys,

jewelries. Otherwise, the battery may be

short-circuited

and may cause injuries and burns

your

body

If battery

electrolyte

leaks out, ensure that the

electrolyte

does not touch your skin and

eyes.

When the

electrolyte

touches your skin or splashes into your eyes, wash your eyes

with

clean

water

immediately

and consult a

doctor

If there is a case of battery

deformation,

color change, or

abnormal

heating while you

charge or store the battery, remove the battery immediately and stop using it. Otherwise, it may

lead to battery leakage, overheating, explosion, or fire.

If the power cable is damaged (for example, the cord is exposed or broken), or the plug loosens,

stop using the cable at once. Otherwise, it may lead to an electric shock, a short circuit of the

charger, or a fire.

Do not dispose of batteries in fire as they may explode. Batteries may also explode if damaged.

Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or

expose to water or other liquids, expose to fire, explosion or other hazard.

Avoid dropping the device or battery. If the device or battery is dropped, especially on a hard

surface, and the user suspects damage, take it to a qualified service center for inspection.

Improper battery use may result in a fire, explosion or other hazard.

Promptly

dispose of used batteries in accordance with local

regulations.

The device should only be connected to products that bear the USB-IF logo or have

completed

the USB-IF

compliance program.

CAUTION

– RISK OF

EXPLOSION

IF BATTERY IS REPLACED BY AN INCORRECT

TYPE.

DISPOSE

OF USED BATTERIES

ACCORDING

TO THE

INS

TRU

CTIONS.

Cleaning and

Maintenance

The battery and charger are not

water-resistant.

Keep them dry. Protect the device, battery,

and

charger from water or vapor. Do not touch the charger with wet hands. Otherwise, it

may

lead

a short circuit, a

malfunction

of the device, and an electric shock to the

user

Do not place your device, battery, and charger in places where they can get damaged

because

of collision. Otherwise, it may lead to battery leakage, device malfunction, overheating,

fire, or

explosion.

Do not place magnetic storage media such as magnetic cards and floppy disks near the device.

Radiation from the device may erase the

information

stored on

them.

Do not leave your device, battery, and charger in a place with an extreme high or

low

temperature. Otherwise, they may not function properly and may lead to a fire or an explosion.

When the

temperature

is lower than 0°C,

performance

of the battery is

affected.

Do not place sharp metal objects such as pins near the earpiece. The earpiece may attract

these

objects and hurt you when you are using the

device.

Before you clean or

maintain

the device, power off the device and disconnect it from

the

harger

Do not use any chemical detergent, powder, or other chemical agents (such as alcohol

and

benzene) to clean the device and the charger. Otherwise, parts of the device may be

damaged or a fire can be caused. You can clean the device and the charger with a piece of

damp and soft

antistatic

cloth.

Do not

dismantle

the device or accessories. Otherwise, the

warranty

on the device

and

accessories is invalid and the

manufacturer

is not liable to pay for the

damage.

If the device screen is broken by

colliding

with hard objects, do not touch or try to remove

the

broken part. In this case, stop using the device

immediately,

and then contact an

authoriz

service center in

time.

Emergency Call

You can use your device for emergency calls in the service area. The

connection,

however

cannot be guaranteed in all

conditions.

You should not rely solely on the device for

essential

communications.

FCC

Statement

This mobile phone complies with part 15 of the

FCC

Rules. Operation is subject to the

following

two

conditions:

(1) This device may not cause

harmful

interference, and (2) this

device

must

accept any

interference

received,

including interference

that may cause

undesired

operation.

This mobile phone has been tested and found to comply with the limits for a Class B

digital

device, pursuant to Part 15 of the

FCC

Rules. These limits are designed to provide

reasonable

protection

against

harmful interference

in a

residential installation.

This

equipment generates,

uses and can radiate radio frequency energy and, if not installed and

used in accordance

with

the

instructions,

may cause

harmful interference

to radio

communications.

However, there

guarantee that

interference

will not occur in a

particular installation.

If this

equipment does

cause

harmful interference

to radio or

television

reception, which can be

determined

turning

the

equipment

off and on, the

user is encouraged to try to correct the

interference

by one

more of the

following

measures:

 Reorient or relocate the receiving

antenna.

 Increase the separation between the

equipment

and

recei

ver

 Connect the

equipment

into an outlet on a circuit

different

from that to which the

receiver

connected.

 Consult the dealer or an experienced radio/TV technician for

help.

FCC Caution: Changes or modifications not expressly approved by the party responsible for

compliance could void the user‘s authority to operate the equipment.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

RF Exposure

Information

AR)

This device meets the

government’s requirements

for exposure to radio

aves.

This device is designed and

manufactured

not to exceed the emission limits for

exposure

radio frequency

(RF)

energy set by the Federal

Communications Commission

of the

.S.

vernment.

For body worn

operation,

this device has been tested and meets the

FCC RF

exposure

guidelines

for use with an accessory that contains no metal and

positions

the handset a

minimum

of 1 cm from the body. Use of other accessories may not ensure

compliance

with

FCC RF

exposure

guidelines.

The highest reported SAR values under the

FCC

regulatory

for the phone are list

below:

Head SAR: 0.74

W/k

Body SAR: 0.93

W/k

The highest reported SAR values under the CE

regulatory

for the phone are list

below:

Head SAR: 0.90

W/k

Body SAR: 0.79

W/k

To reduce the level of exposure to

radiation,

please do the

following:

(i) use the mobile

phone in good reception

conditions,

(ii) use a hand free

kit,

(iii) for pregnant women, please hold the mobile phone far from

stomach,

(iv) use a mobile

phone far from genital

par

ts.

For the device which tests in accordance to EN60950-1:2006, it is

mandatory

perform

audio

tests for EN50332.

This device has been tested to comply with the Sound Pressure Level

requirement

laid

down

in the applicable EN 50332-1and/or EN 50332-2 standards. Permanent hearing loss

may occur

earphones or headphones are used at high volume for

prolonged

periods of

time.

Cat phone User Guide Hearing Aid Compatibility (HAC)

The Cat® B100 (US version) is hearing-aid compatible under the FCC requirements for hearing-

aid compatibility (HAC). B100 HAC Rating: M3/ T3

The FCC hearing aid compatibility rules require that certain phones be tested and rated under

the American National Standard Institute (ANSI) C63.19 hearing aid compatibility standards.

The ANSI standard for hearing-aid compatibility contains two types of ratings:

 M: For reduced radio-frequency interference to enable acoustic coupling with hearing

aids that don’t operate in telecoil mode.

 T: For inductive coupling with hearing aids operating in telecoil mode.

These ratings are given on a scale from one to four, where four is the most compatible. A phone

is considered hearing-aid compatible under the FCC requirements if it is rated M3 or M4 for

acoustic coupling and T3 or T4 for inductive coupling.

Hearing-aid compatibility ratings aren't a guarantee that a particular hearing aid works well with

a particular phone. Some hearing aids may work well with phones that do not meet the FCC

requirements for Hearing Aid Compatibility. To ensure that a particular hearing aid works well

with a particular phone, use them together before purchasing.

The SAR limit set by the FCC is 1.6W/kg.

0.951

0.562

1.13

0.87

1.5cm

Prevention of

Hearing Loss

Warning statement

requirement

under EN 60950-1:A12.

To prevent possible hearing damage, do not listen at high volume levels for

long

periods.

Using a headset at high volume can damage your hearing. To reduce the risk of damage to

hearing, lower the headset volume to a safe and comfortable level.

Note: For France,

headphones/earphones

for this device are

compliant

with the

sound

pressure level

requirement

laid down in the applicable EN 50332-1: 2000

and/or

EN50332-

2: 2003 standard as required by French Article L.5232-1.

Afin d’éviter des dommages auditifs éventuels, ne pas écouter à un niveau sonore élevé

pendant une longue durée.

L’écoute d’un baladeur musical à forte puissance peut endommager l’oreille de l’utilisateur et

entraîner des troubles auditifs (surdité temporaire ou definitive, bourdonnements d’oreille,

acouphénes, hyperacousie). Il est donc vivement recommandé de ne pas utilizer le baladeur à

plein volume ni plus d’une heure par jour à volume moyen.

Background noise, as well as continued exposure to high volume levels, can make sounds

seem quieter than they actually are. Turn on the audio and check the volume before inserting

anything in your ear. For more information about hearing loss, consult the HAC User guide for

Hearing Aid compatibility.

Declaration

Conf

ormity

Complies with the essential

requirements

of Article 3 of the R&TTE

1999/5/EC

Directive, if

used

for

its intended use and that the

following

standards have been

applied:

1. Health (Article

3.1(a) of the R&TTE

Directiv

Applied

Standard(s):

 EN 50360:2001/A1:2012

 EN 62209-1:2006

 EN 62209-2:2010

 EN 62311:2008

 EN 62479:2010

Safety (Article

3.1(a) of the R&TTE

Directiv

Applied

Standard(s):

 EN 60950-1:20

06/A

11:2009+A1:201

0+A1

2:2011

 EN 50332-1:2000

 EN 50332-2:2003

3. Electromagnetic compatibility (Article

3.1 (b) of the R&TTE

Directiv

Applied

Standard(s):

 EN 301 489-1 V1.9.2/-3 V1.4.1/-7 V1.3.1/-17 V2.2.1/-24 V1.51.

Radio

frequency spectrum

usage

(

Article 3.2 of the R&TTE Directive)

Applied

Standard(s):

 EN 301 511 V9.0.2

 EN 301 908-1 V5.2.1/ -2 V5.2.1

 EN 300 328 V1.7.1

 EN 300 440-1 V1.6.1/ -2 V1.4.1

EMC

Directive (2004/108 /EC)

Applied

Standard(s):

 EN 61000-3-2:2006/A1:2009/A2:2009

 EN 61000-3-3:2008

 EN55022:2010/ AC:2011 Class B

 EN55024: 2010

CE Mark & NB Identification Number

CETECOM

Countries List where the device will be sold to

Austria

Malta

Belgium

Netherlands

Cyprus

Poland

Czech Republic

Portugal

Denmark

Slovakia

Estonia

Slovenia

Finland

Spain

France

Sweden

Germany

United Kingdom

Greece

Iceland

Hungary

Leichtenstein

Ireland

Norway

Italy

Switzerland

Latvia

Bulgaria

Lithuania

Romania

Luxembourg

Turkey

CE SAR Compliance

This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the

general public to electromagnetic fields by way of health protection.

The limits are part of extensive recommendations for the protection of the general public. These

recommendations have been developed and checked by independent scientific organizations

through regular and thorough evaluations of scientific studies. The unit of measurement for the

European Council’s recommended limit for mobile devices is the “Specific Absorption Rate”

(SAR), and the SAR limit is 2.0 W/ kg averaged over 10 gram of tissue. It meets the

requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

For body worn

operation,

this device has been tested and meets the

ICNIRP

exposure

guidelines

and the European Standard EN 62311 and EN 62209-2, for use with

dedicated

accessories. Use of other accessories which contain metals may not ensure

compliance

with

ICNIRP

exposure

guidelines.

SAR is measured with the device at a separation of 1.5 cm to the body, while

transmitting

the

highest certified output power level in all frequency bands of the mobile device.

The distance of 1.5cm should be kept between body and

device.

Disposal

and

Recycling

Inf

ormation

This symbol on the device (and any included batteries) indicates that they should not

disposed of as normal

household

garbage. Do not dispose of your device or batteries as

unsorted municipal waste. The device (and any batteries) should be handed over to a certified

collection

point for recycling or proper disposal at the end of their

life.

For more detailed

information

about the recycling of the device or batteries, contact your

local

city office, the household waste disposal service, or the retail store where you purchased

this

device.

The disposal of this device is subject to the Waste from Electrical and Electronic

Equipment

(WEEE)

directive of the European Union. The reason for separating

WEEE

and

batteries

from

other waste is to

minimize

the

potential environmental

impacts on human

health of

hazardous substances that may be

present.

Reduction of

Hazardous Substances

This device is

compliant

with the EU

Registration,

Evaluation,

Authorization

and Restriction

Chemicals

(REACH)

Regulation (Regulation No 1907/2006/EC of the European Parliament

and

the Council) and the EU Restriction of Hazardous Substances (RoHS) Directive

(Directi

2002/95/EC

of the European Parliament and of the Council). For more

information

about

the

REACH compliance of the device, visit the Website www.catphones.com/certification. You are

recommended

to visit the Website

regularly

for up-to-date

information.

Regulatory

Conf

ormance

Hereby, the

manufacturer

declares that this device is in

compliance

with the

essential

requirements

and other relevant

provisions

of Directive 1999/5/EC.

For the Declaration of

Conformity,

visit the Web site

www

.catphones.com

0682

Note: Observe the national local regulations in the location where the device is to be used. This

device may be restricted for use in some or all member states of the

European

Union (EU).

Note: This device may be operated in all member states of the EU.

France: Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz. Italy: For

private use, a general authorization is required if WAS/RLAN’s are used outside own premises.

For public use, a general

authorization

is required.

Luxembourg:

General

authorization

required

for network and service

supply

Norway: This subsection does not apply for the

geographical

area

within

a radius of 20

from the centre of

-Ålesund.

V100R001B03_01

Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s). Operation is

subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause

undesired operation of the device.

Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareeils radio

exempts de license. L’exploitation est autoriséaux deux conditions suivantes:

1. L’appariel ne doit pas prduire de brouillage.

2. L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le

brouillage est susceptible d’en compromettre le fonctionnement.

This class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radiation Exposure Statement:

The product comply with the Canada portable RF exposure limit set forth for an uncontrolled

environment and are safe for intended operation as described in this manual. The further RF

exposure reduction can be achieved if the product can be kept as far as possible from the user

body or set the device to lower output power if such function is available.

Déclaration d’exposition aux radiations:

Le produit est conforme aux limites d’exposition pour les appareils portables RF pour les Etats-

Unis et le Canada établies pour un environnement non contrôlé.

Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La reduction aux

expositions RF peut étre augmentée si l’appareil peut être conserve aussi loin que possible du

corps de l’utilisateur ou que le dispositive est réglé sur la puissance de sortie la plus faible si

une telle function est disponible.

Bullitt Group B100 Rugged Mobile Phone User Manual

Bullitt Group Rugged Mobile Phone

User manual

Navigation menu

Namespaces

Views

Navigation
