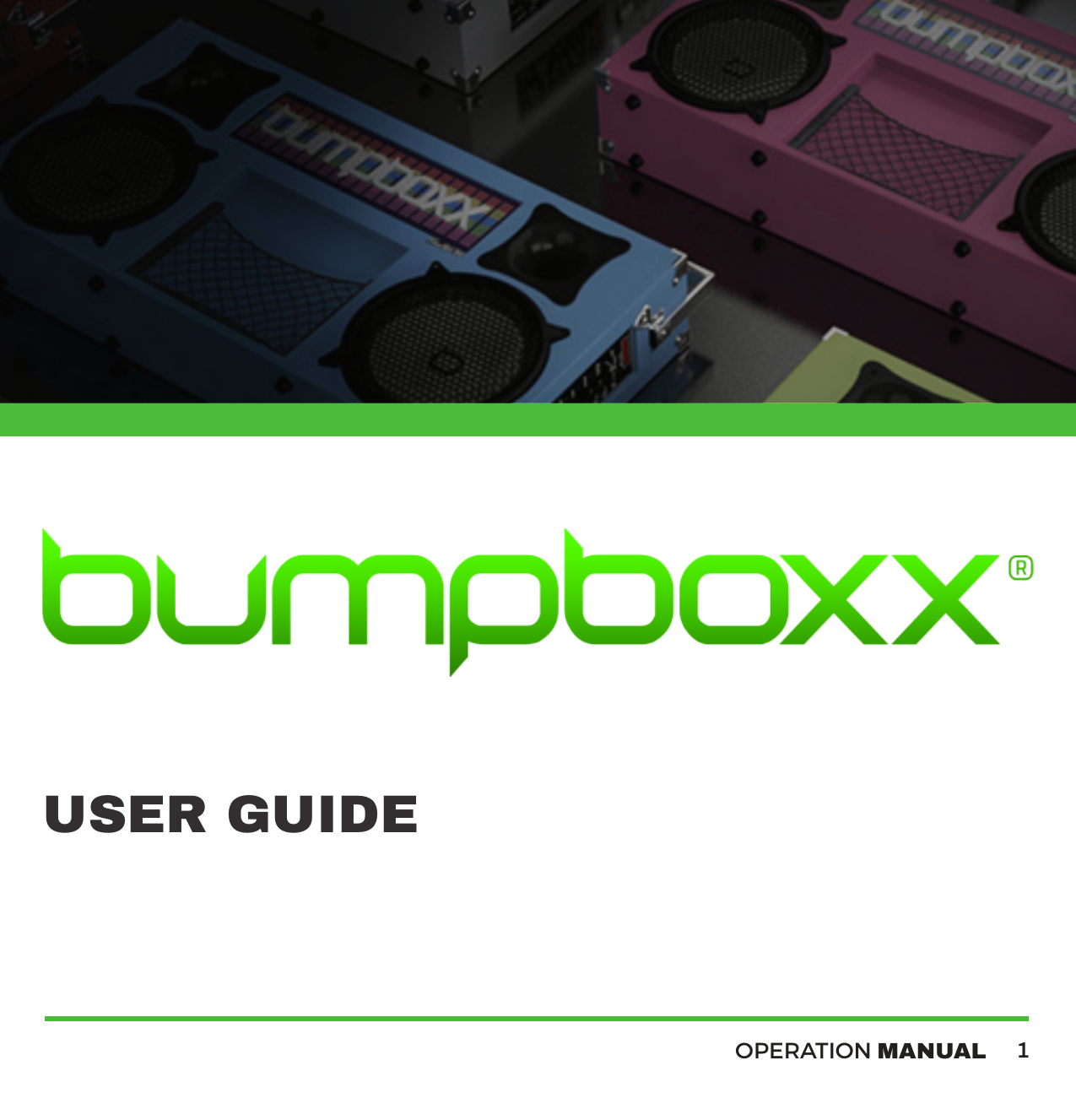

USER GUIDEOPERATION MANUAL1

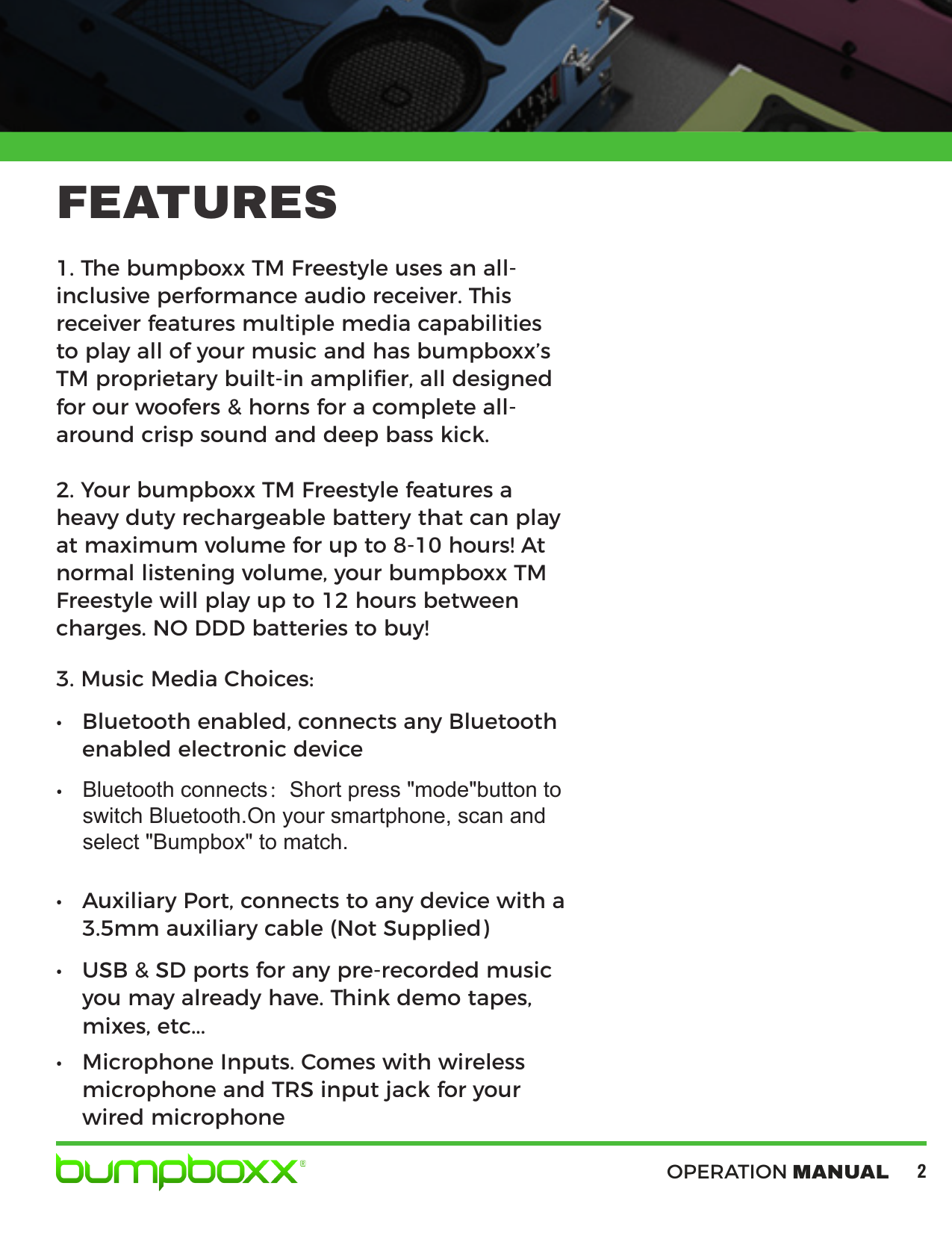

OPERATION MANUAL21. The bumpboxx TM Freestyle uses an all- inclusive performance audio receiver. This receiver features multiple media capabilities to play all of your music and has bumpboxx’s TM proprietary built-in amplifier, all designed for our woofers & horns for a complete all-around crisp sound and deep bass kick.2. Your bumpboxx TM Freestyle features aheavy duty rechargeable battery that can play at maximum volume for up to 8-10 hours! At normal listening volume, your bumpboxx TM Freestyle will play up to 12 hours between charges. NO DDD batteries to buy!3. Music Media Choices:• Bluetooth enabled, connects any Bluetoothenabled electronic device•Auxiliary Port, connects to any device with a3.5mm auxiliary cable (Not Supplied)• USB & SD ports for any pre-recorded musicyou may already have. Think demo tapes,mixes, etc...• Microphone Inputs. Comes with wirelessmicrophone and TRS input jack for yourwired microphoneFEATURES•Bluetooth connects：Short press "mode"button to switch Bluetooth.On your smartphone, scan and select "Bumpbox" to match.

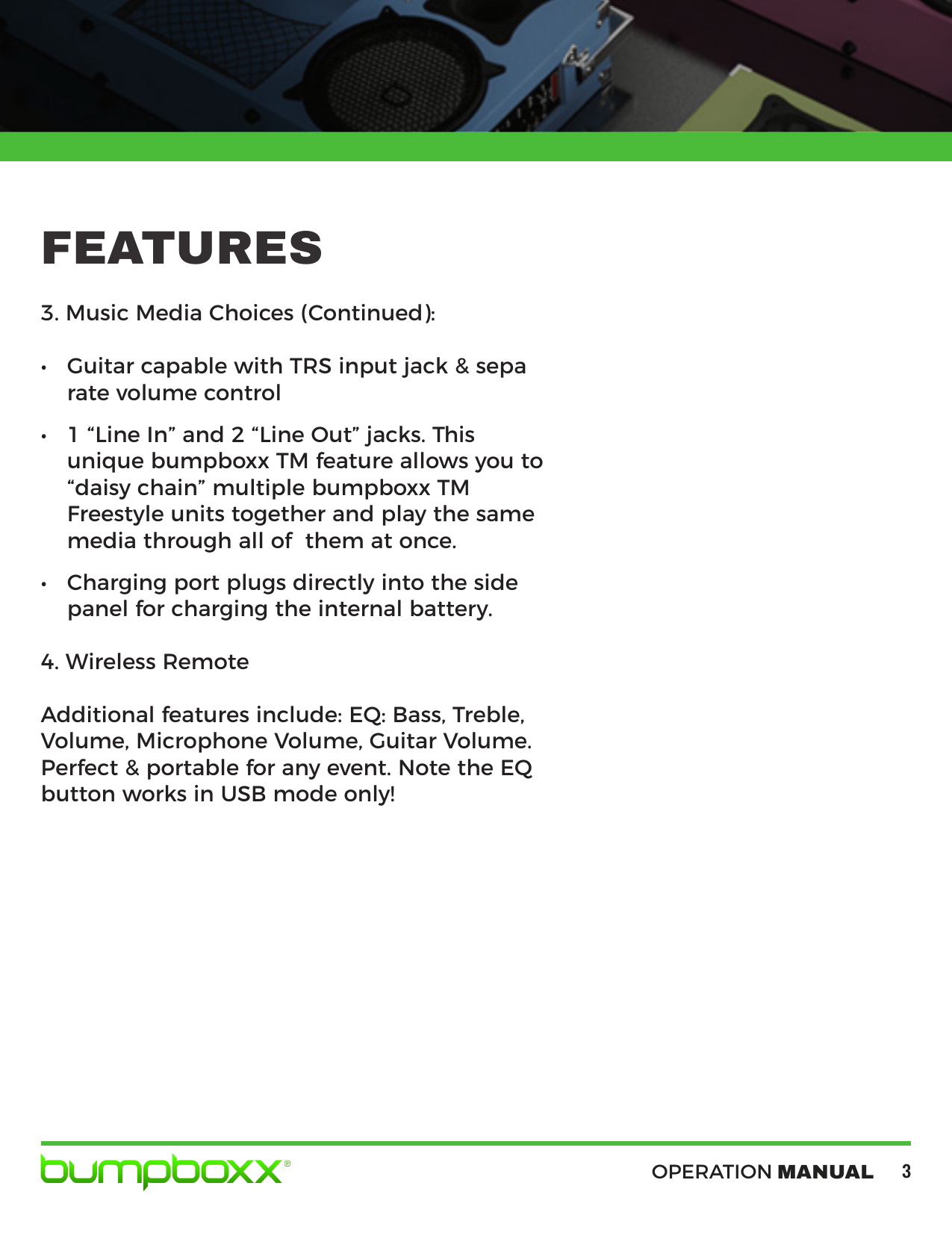

OPERATION MANUAL33. Music Media Choices (Continued):• Guitar capable with TRS input jack & separate volume control• 1 “Line In” and 2 “Line Out” jacks. Thisunique bumpboxx TM feature allows you to“daisy chain” multiple bumpboxx TMFreestyle units together and play the samemedia through all of them at once.• Charging port plugs directly into the sidepanel for charging the internal battery.4. Wireless RemoteAdditional features include: EQ: Bass, Treble, Volume, Microphone Volume, Guitar Volume. Perfect & portable for any event. Note the EQ button works in USB mode only! FEATURES
OPERATION MANUAL4PANELPLUGIN LED DISPLAYFLASH DRIVEPLAYER READERMENU FUNCTIONSGUITAR VOLUMEGUITAR INPUTLINE INLINE OUT 1LINE OUT 2POWER ON/OFFMAX. VOUMEEQ: BASSEQ: TREBLEEQ: ECHOMIC. VOL.MIC. PRIORITY POWER ON/OFFMIC. WIRED AUXAUX. INPUTAC ADAPTER SD/MMC CARD DC 5V 1.2A OU TPUTUS B 1 US B 2
OPERATION MANUAL51. POWER BUTTON2. PLAY/PAUSE BUTTON: Press the arrow keys to enter the desired track then press the play button. If you input the desired track and you are out of range it will continue to play the current track. 3. EQ BUTTON: The sound equalizer change mode. MODES: Natural, Rock, Pop, Classic, Soul, Jazz, DBB & DRS WOW.4. STOP BUTTON: Will stop the current track playing.5. MUTE BUTTON: Mute the current sound with this button. 6. PREVIOUS BUTTON: Will play the previous track in the play list.7. NEXT BUTTON: Will skip to the next track in the play list.8. VOLUME DECREASE BUTTON: decrease current volume.9. VOLUME INCREASE BUTTON: increase current volume.10. REPEAT BUTTON: • Press once for one-time repeat all• Press twice for random play• Press three times for repeat all• Press four times for repeat all11. USB/SD/MMC CARD FUNCTION12. ARROW BUTTONS: left & right to switch between or go backwards between specific tracks13. PLAY & PAUSE BUTTON will record the USB thumb stick onlyREMOTE CONTROL FUNCTIONS

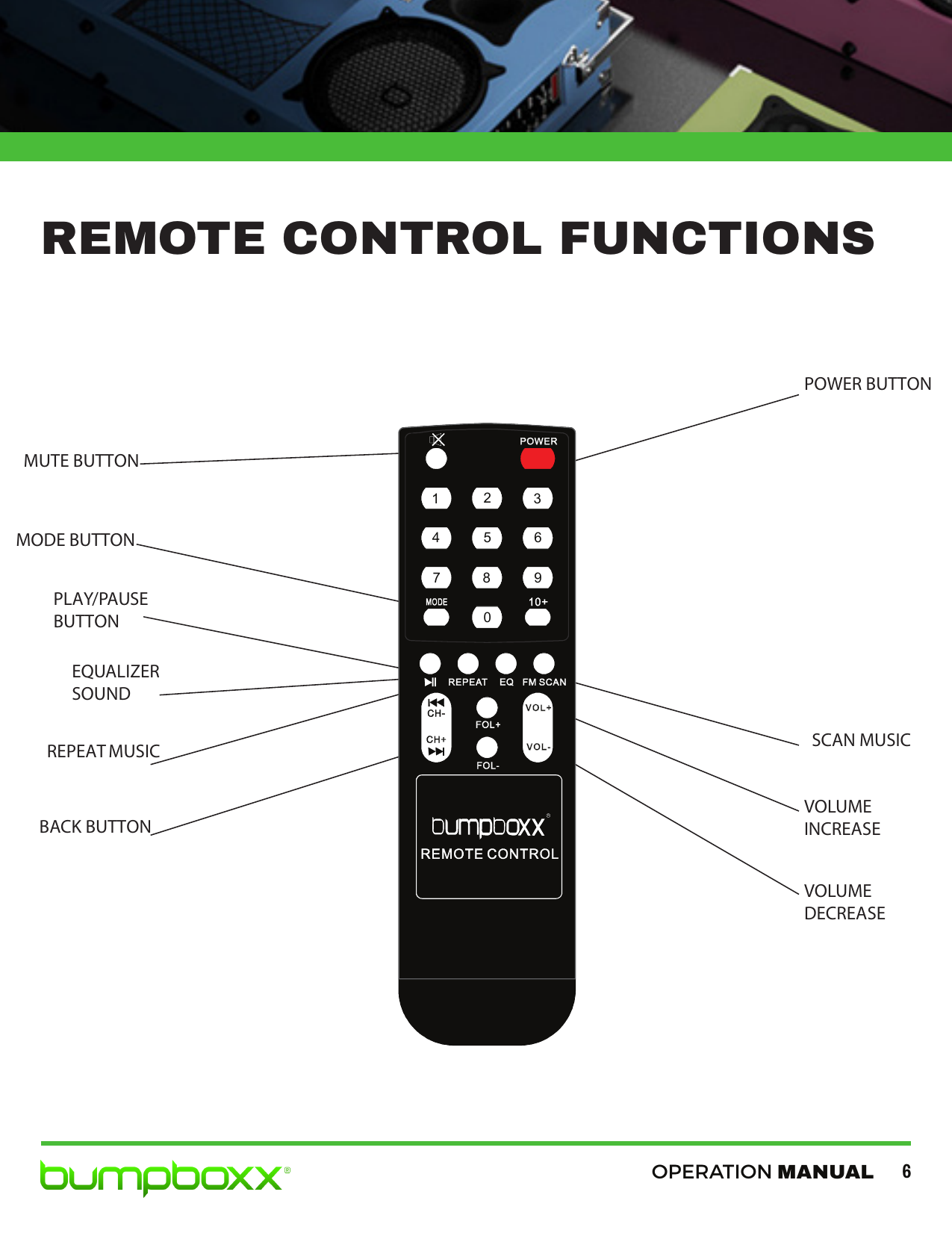

OPERATION MANUAL 6POWER BUTTONMODE BUTTONMUTE BUTTONSCAN MUSICEQUALIZER SOUNDREPEAT MUSICVOLUME DECREASEVOLUME INCREASEBACK BUTTONPLAY/PAUSE BUTTON124567 90RREMOTE CONTROL FUNCTIONS38
OPERATION MANUAL7OPERATION INSTRUCTIONS1. POWER BUTTON2. PLAY/PAUSE BUTTON: Press the arrow keys to enter the desired track then press the play button. If you input the desired track and you are out of range it will continue to play the current track. 3. EQ BUTTON: The sound equalizer change mode. MODES: Natural, Rock, Pop, Classic, Soul, Jazz, DBB & DRS WOW.4. STOP BUTTON: Will stop the current track playing.5. MUTE BUTTON: Mute the current sound with this button. 6. PREVIOUS BUTTON: Will play the previous track in the play list.7. NEXT BUTTON: Will skip to the next track in the play list.8. VOLUME DECREASE BUTTON: decrease current volume.9. VOLUME INCREASE BUTTON: increase current volume.10. REPEAT BUTTON: • Press once for one-time repeat all• Press twice for random play• Press three times for repeat all• Press four times for repeat all11. USB/SD/MMC CARD FUNCTION12. ARROW BUTTONS: left & right to switch between or go backwards between specific tracksNOTE: For best longevity of battery it is advised to tip off charge after every use.
OPERATION MANUAL8TROUBLE-SHOOTINGNO SOUND OR SOUND KEEPS CUTTING IN AND OUT? Please make sure your bumpboxx is fully charged. Another reason for sound cutting out is you are out of Bluetooth range. I CANNOT PAIR MY BLUETOOTH TO MY BUMPBOXXPlease try turning the Bluetooth off & then on in your phone settings. Then press the Menu Button on the bumpboxx until the bluetooth “BLUE” pairing is set, you will hear a chime and then another when you pair to your Bluetooth Device. MY LED SOUND MOTION DISPLAY ISN’T WORKINGPlease move your bumpboxx device out of direct sunlight. The LED display isn’t as visible with UV rays from the sunlight. MY REMOTE CONTROL ISN’T WORKINGPlease make sure you have fresh batteries installed or make sure you are aiming directly at the side panel. We use an IR remote so you will need to point at the side panel.THE BLUE LIGHT WILL BLINK WHILE CHARGING. When your bumpboxx is fully charged it will be solid blue.MY VOLUME IS VERY LOW EVEN THOUGH VOLUME IS MAXTry pressing and holding the >> button until it reads 30 in the display box. This is the volume override.

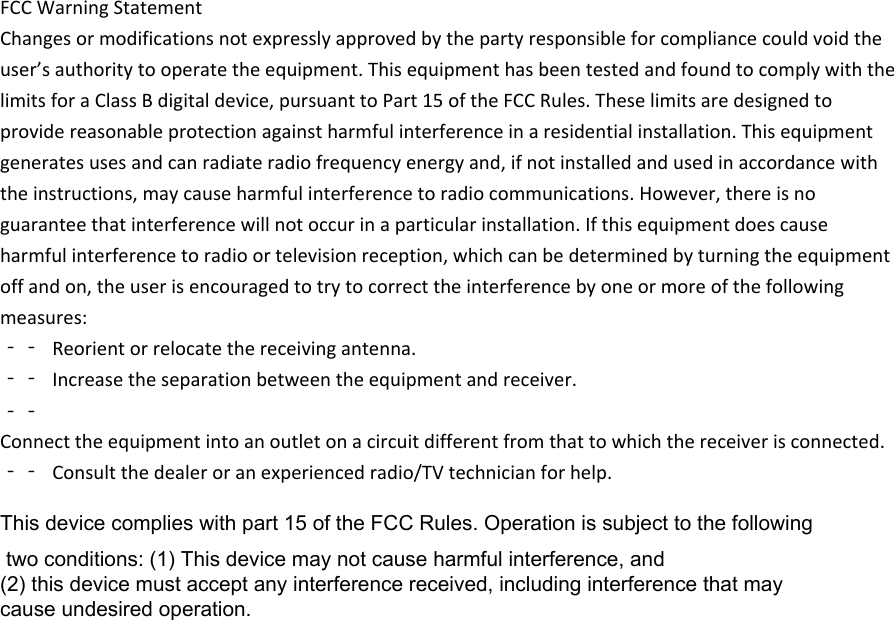

FCCWarningStatementChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:‐‐ Reorientorrelocatethereceivingantenna.‐‐ Increasetheseparationbetweentheequipmentandreceiver.‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
