Manual - ABB Keypad
QR-Link
English
EN
FR
ES
...
KP-4.1
KP-4.1/ Date
IMPORTANT: Carefully read all instructions and safety
information about this device before operation. Please leave
this document with the homeowner for future reference.
WARNING: Installation must be performed by a licensed
electrician or electrical professional. Improper installation can
cause property damage, personal injury, or loss of life.
WARNING: FIRE
Work performed incorrectly can cause res. Use the device
only in a certied wall box. Recommended: Carlon® products,
which have a high safety standard. Do not connect equipment that
is not intended to be controlled by this device. Please refer to the
equipment manufacturer if it is unclear.
WARNING: DAMAGED DEVICE
A damaged device could result in serious injury or death. If
the device shows any damage to its body or wiring insulation,
immediately turn off the power at the circuit breaker or fuse. Replace
the device with an undamaged device. Do not try to repair the device.
Intended Use
The ABB Keypad is used to manually command up to 4 specic
functions or user-created scenes with its 4-button keypad. No electrical
loads are directly wired to this device. Instead, it communicates
wirelessly via the ABB-free@home system to other connected devices
in order to control those devices.
For information about the many functions of this device, see the system
manual at www.abb.com/us/freeathome.
INSTALLATION
WARNING: SHOCK HAZARD
1. Turn the power OFF at the circuit breaker before installing.
2. Remove the old wall plate from the wall. Remove the old switch from
the wall box.
3. Disconnect all three wires from the switch.
4. Connect the ABB Keypad.

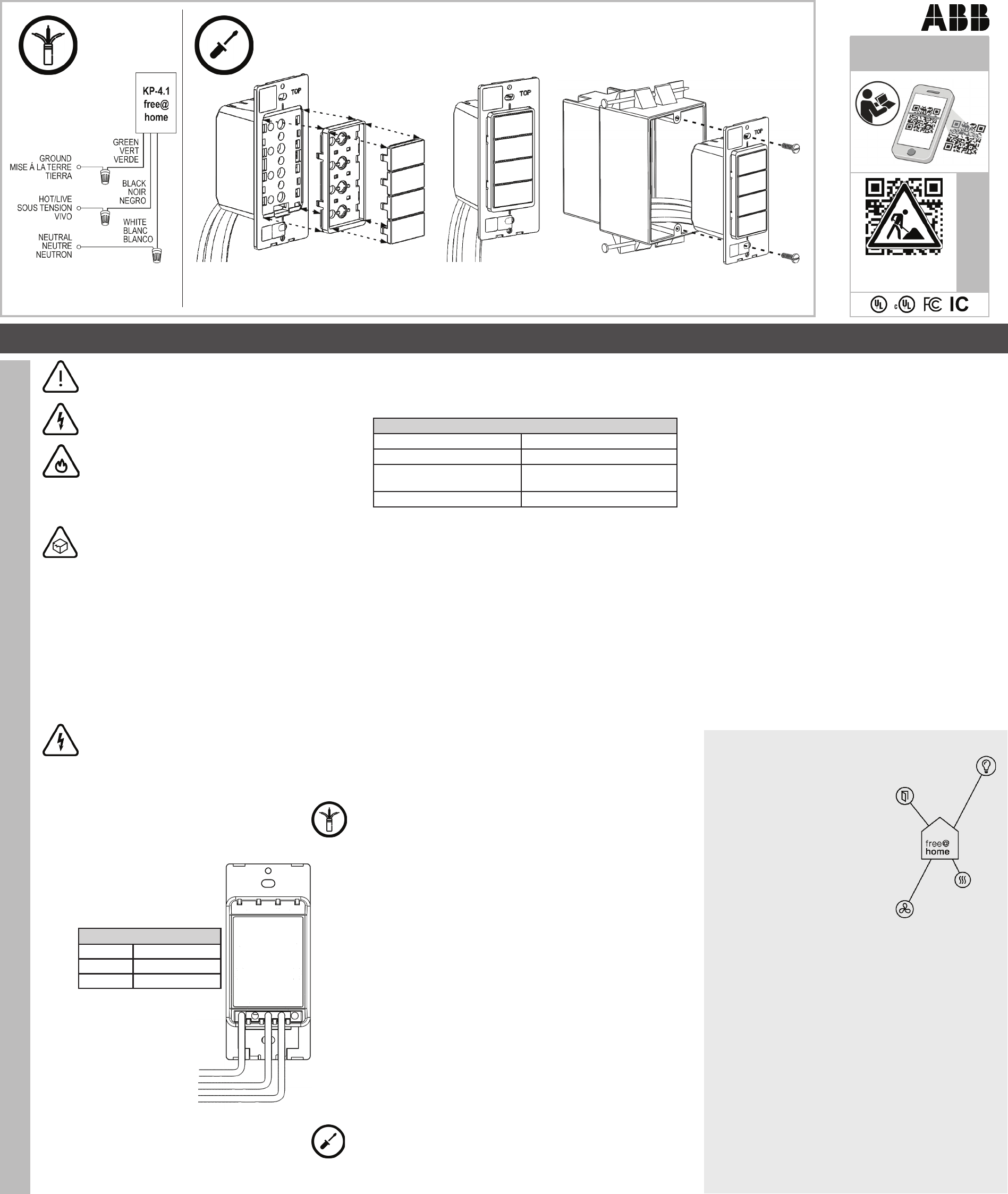

Wiring Connection Diagrams
green
white
BLACK
Wiring Connection
Black Hot/Live (120VAC)
White Neutral
Green Ground
5. Mount the Keypad. Using a screwdriver and the screws
provided, mount the ABB Keypad.
6. Replace the wall plate.
7. Turn the power ON at the circuit breaker.
Replacing the 4-button Keypad and Bezel: The 4-button keypad
and bezel of the device can be exchanged. Turn the power OFF before
removing the adapter bezel with a screwdriver. Turn the power ON after
the 4-button keypad and bezel have been assembled.
KP-4.1 Technical Data
Operating Voltage 120 VAC, 60 Hz
Connection Hot and Neutral WIre Required
Wireless Transmission Protocol free@home, 2.400 - 2.483 GHz,
Meshed
Ambient Operating Temperature 23° F to 113° F (-5°C to 45°C)
SETUP AND COMMUNICATION
Detailed information about setup is available in the technical reference
manual and the online help for the System Access Point at
www.abb.com/us/freeathome.
1. The Keypad needs to be congured to work with other devices on
the free@home network. To complete setup, you will need the ABB-
free@home System Access Point (SysAP) and a computer (tablet,
laptop, or desktop computer).
2. Walls, ceilings, and electrical equipment can affect wireless
communication, especially steel reinforcements or other large metal
objects. Electrical devices that send high-frequency signals (such
as computers, wireless routers, audio systems, and video systems)
should be at least 3-feet from this device.
3. When rst powered, the device is in discovery mode for 30 minutes.
This time period allows the SysAP to see and connect to the device.
During this time, the user can login to the SysAP and add the device
to the free@home network.
4. After 30 minutes, the device will automatically exit discovery mode.
To re-enter discovery mode, the user must turn the power OFF and
back ON again. This will place the device in discovery mode for
another 30 minutes.
5. Once a device has been added to a network, it will no longer enter
discovery mode at power-up. To add the device to a new network,
the user must rst force the device to forget its existing network
by resetting it back to factory settings. This takes two people to do
safely. Follow these steps to reset:
A) Turn the power OFF at the circuit breaker.
B) Turn the power ON at the circuit breaker while pressing the
bottom button for at least 15 seconds, until the LED light stops
ashing.
C) Return to steps 3-4 of SETUP AND COMMUNICATION to
connect the device to a new network.
Codes
Install according to national and local electrical codes.
Grounding
When there is no ground connector in the wall box, the National
Electrical Code (NEC®) allows a control to be installed as a
replacement ONLY IF 1) a non-metal, non-burning faceplate is attached
with non-metal screws, OR 2) the circuit is protected by a ground fault
circuit interrupter (GFCI). When installing a control, be sure to cap or
remove the green wire before screwing the control into the wall box.
Cleaning:
To clean, wipe with a clean damp cloth. DO NOT use any chemical
cleaning solutions.
FCC/IC Information
This device complies with part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause unwanted
operation. Modications not expressly approved by the manufacturer could void
the user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used according to the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in an installation.
If this equipment does cause harmful interference to radio or television reception,
which can be tested by turning the equipment off and on, the user is encouraged
to try to correct the interference by doing one or more of the following:
• Reposition or move the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a different circuit (not the circuit used
by the receiver).
• Consult the dealer or an experienced radio/TV technician for help.
Customer Service
800-816-7809
7:00 am - 5:30 pm, CST, Monday - Friday
elec_custserv@tnb.com
Technical Support
888-385-1221, Option 1
7:00 am - 5:00 pm, CST, Monday - Friday
lvps.support@us.abb.com
For information about the many functions
of this device, see the system manual at
www.abb.com/us/freeathome
ABB Inc.
Electrication Products
8155 T&B Boulevard
Memphis, TN 38125
www.abb.com/us/freeathome
ABB-free@home is a trademark of ABB Inc. NEC is a registered
trademark of the National Fire Protection Association, Quincy,
Massachusetts.
© 2018 ABB Inc.
Keypad, ABB-free@home Installation and Operation Instructions
