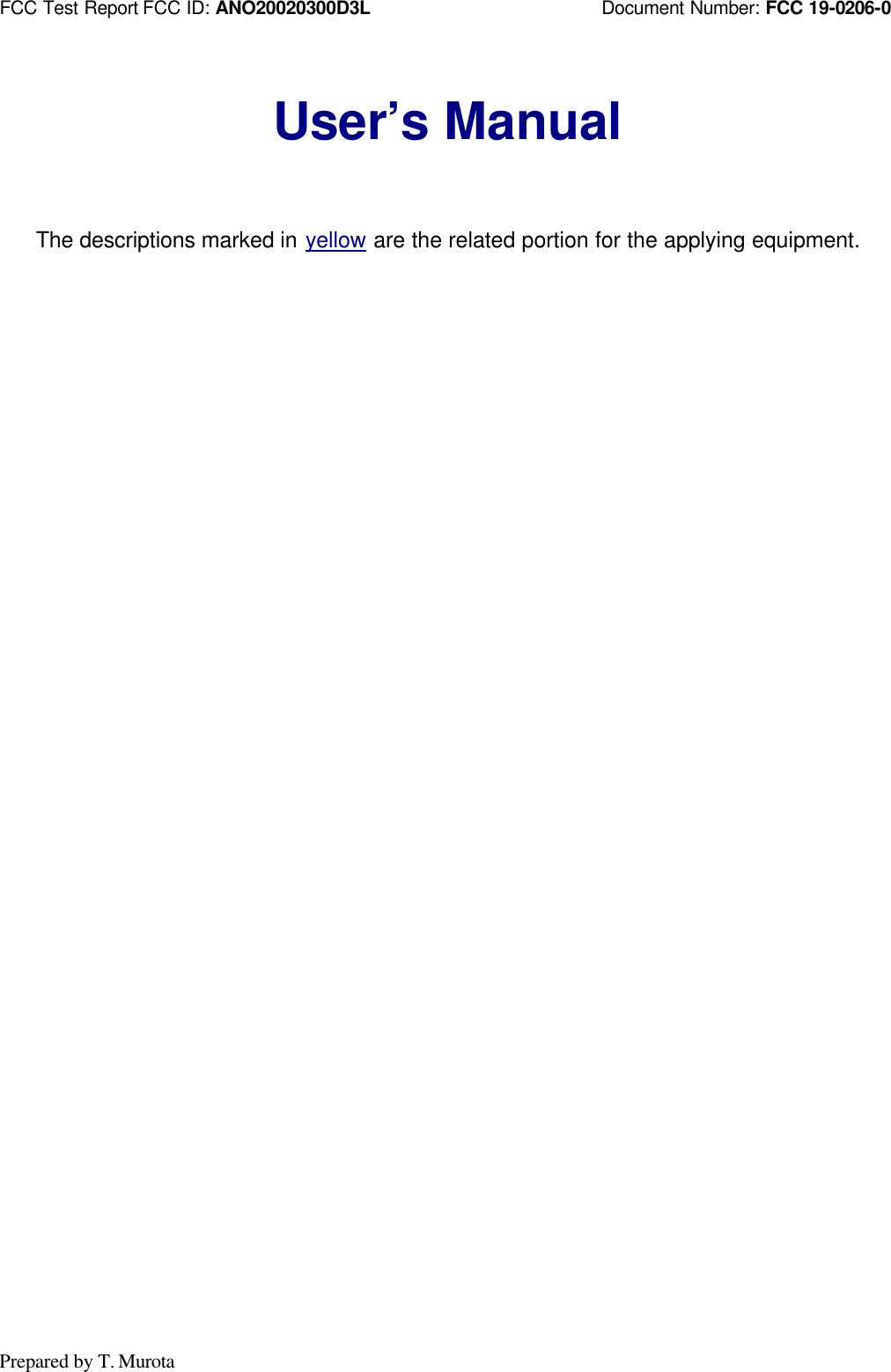

FCC Test Report FCC ID: ANO20020300D3L Document Number: FCC 19-0206-0Prepared by T. MurotaUser’s ManualThe descriptions marked in yellow are the related portion for the applying equipment.

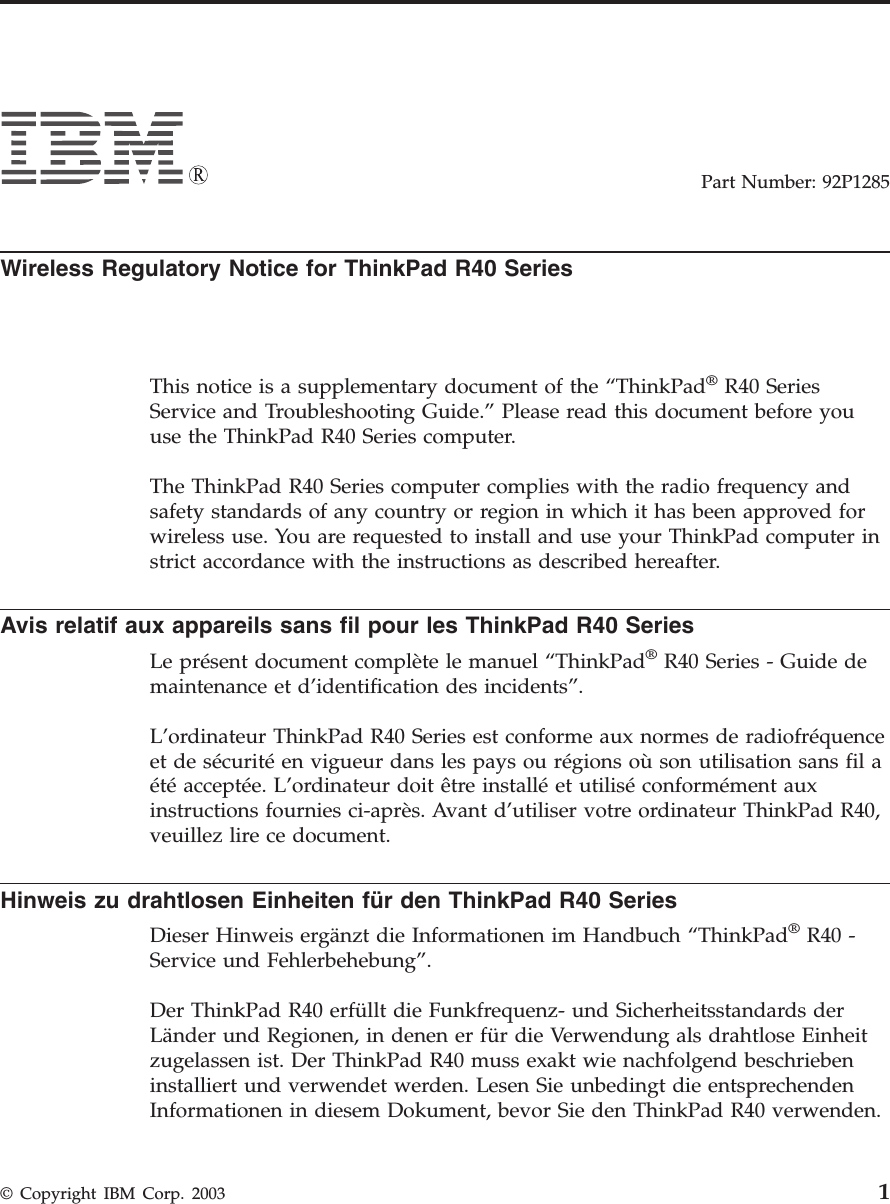

Part Number: 92P1285Wireless Regulatory Notice for ThinkPad R40 SeriesThis notice is a supplementary document of the “ThinkPad®R40 SeriesService and Troubleshooting Guide.” Please read this document before youuse the ThinkPad R40 Series computer.The ThinkPad R40 Series computer complies with the radio frequency andsafety standards of any country or region in which it has been approved forwireless use. You are requested to install and use your ThinkPad computer instrict accordance with the instructions as described hereafter.Avis relatif aux appareils sans fil pour les ThinkPad R40 SeriesLe présent document complète le manuel “ThinkPad®R40 Series - Guide demaintenance et d’identification des incidents”.L’ordinateur ThinkPad R40 Series est conforme aux normes de radiofréquenceet de sécurité en vigueur dans les pays ou régions où son utilisation sans fil aété acceptée. L’ordinateur doit être installé et utilisé conformément auxinstructions fournies ci-après. Avant d’utiliser votre ordinateur ThinkPad R40,veuillez lire ce document.Hinweis zu drahtlosen Einheiten für den ThinkPad R40 SeriesDieser Hinweis ergänzt die Informationen im Handbuch “ThinkPad®R40 -Service und Fehlerbehebung”.Der ThinkPad R40 erfüllt die Funkfrequenz- und Sicherheitsstandards derLänder und Regionen, in denen er für die Verwendung als drahtlose Einheitzugelassen ist. Der ThinkPad R40 muss exakt wie nachfolgend beschriebeninstalliert und verwendet werden. Lesen Sie unbedingt die entsprechendenInformationen in diesem Dokument, bevor Sie den ThinkPad R40 verwenden.© Copyright IBM Corp. 2003 1

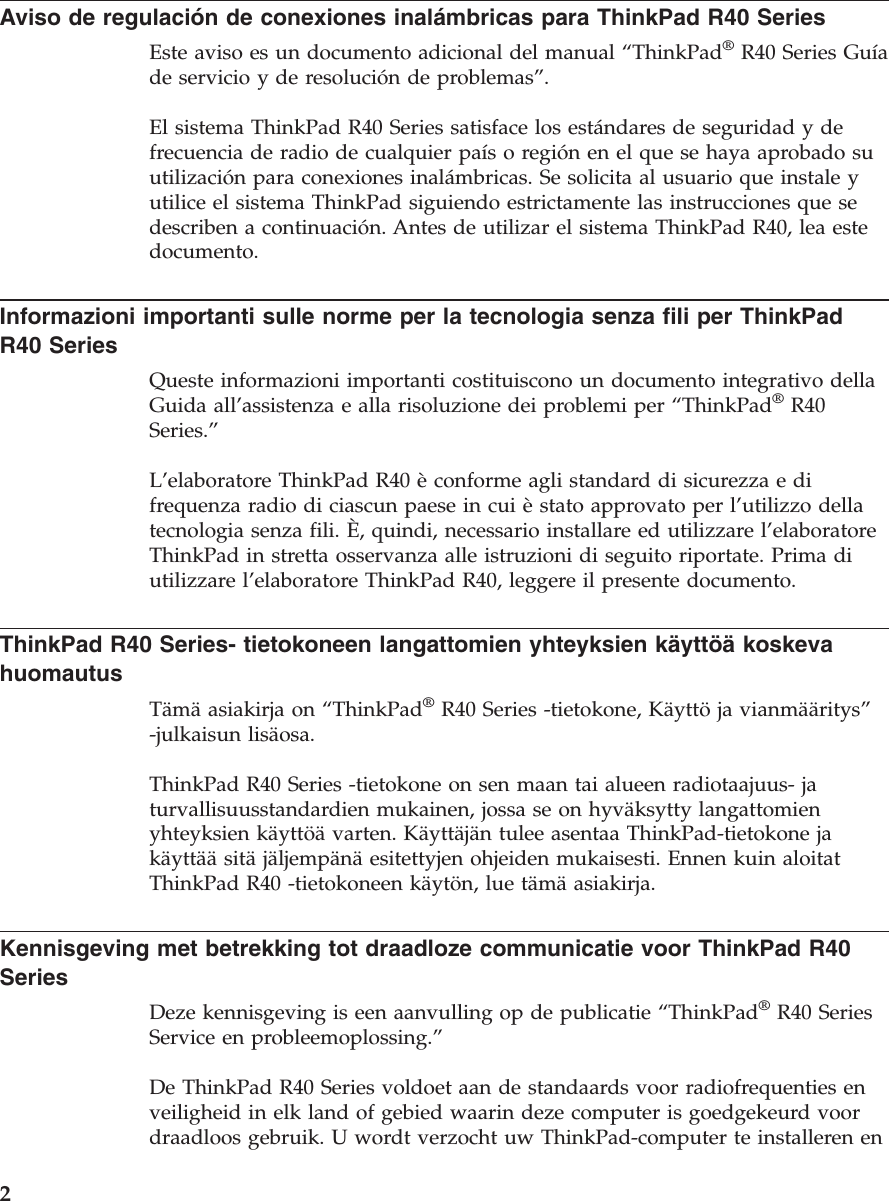

Aviso de regulación de conexiones inalámbricas para ThinkPad R40 SeriesEste aviso es un documento adicional del manual “ThinkPad®R40 Series Guíade servicio y de resolución de problemas”.El sistema ThinkPad R40 Series satisface los estándares de seguridad y defrecuencia de radio de cualquier paísoregión en el que se haya aprobado suutilización para conexiones inalámbricas. Se solicita al usuario que instale yutilice el sistema ThinkPad siguiendo estrictamente las instrucciones que sedescriben a continuación. Antes de utilizar el sistema ThinkPad R40, lea estedocumento.Informazioni importanti sulle norme per la tecnologia senza fili per ThinkPadR40 SeriesQueste informazioni importanti costituiscono un documento integrativo dellaGuida all’assistenza e alla risoluzione dei problemi per “ThinkPad®R40Series.”L’elaboratore ThinkPad R40 èconforme agli standard di sicurezza e difrequenza radio di ciascun paese in cui èstato approvato per l’utilizzo dellatecnologia senza fili. È, quindi, necessario installare ed utilizzare l’elaboratoreThinkPad in stretta osservanza alle istruzioni di seguito riportate. Prima diutilizzare l’elaboratore ThinkPad R40, leggere il presente documento.ThinkPad R40 Series- tietokoneen langattomien yhteyksien käyttöä koskevahuomautusTämäasiakirja on “ThinkPad®R40 Series -tietokone, Käyttöja vianmääritys”-julkaisun lisäosa.ThinkPad R40 Series -tietokone on sen maan tai alueen radiotaajuus- jaturvallisuusstandardien mukainen, jossa se on hyväksytty langattomienyhteyksien käyttöä varten. Käyttäjän tulee asentaa ThinkPad-tietokone jakäyttää sitäjäljempänäesitettyjen ohjeiden mukaisesti. Ennen kuin aloitatThinkPad R40 -tietokoneen käytön, lue tämäasiakirja.Kennisgeving met betrekking tot draadloze communicatie voor ThinkPad R40SeriesDeze kennisgeving is een aanvulling op de publicatie “ThinkPad®R40 SeriesService en probleemoplossing.”De ThinkPad R40 Series voldoet aan de standaards voor radiofrequenties enveiligheid in elk land of gebied waarin deze computer is goedgekeurd voordraadloos gebruik. U wordt verzocht uw ThinkPad-computer te installeren en2

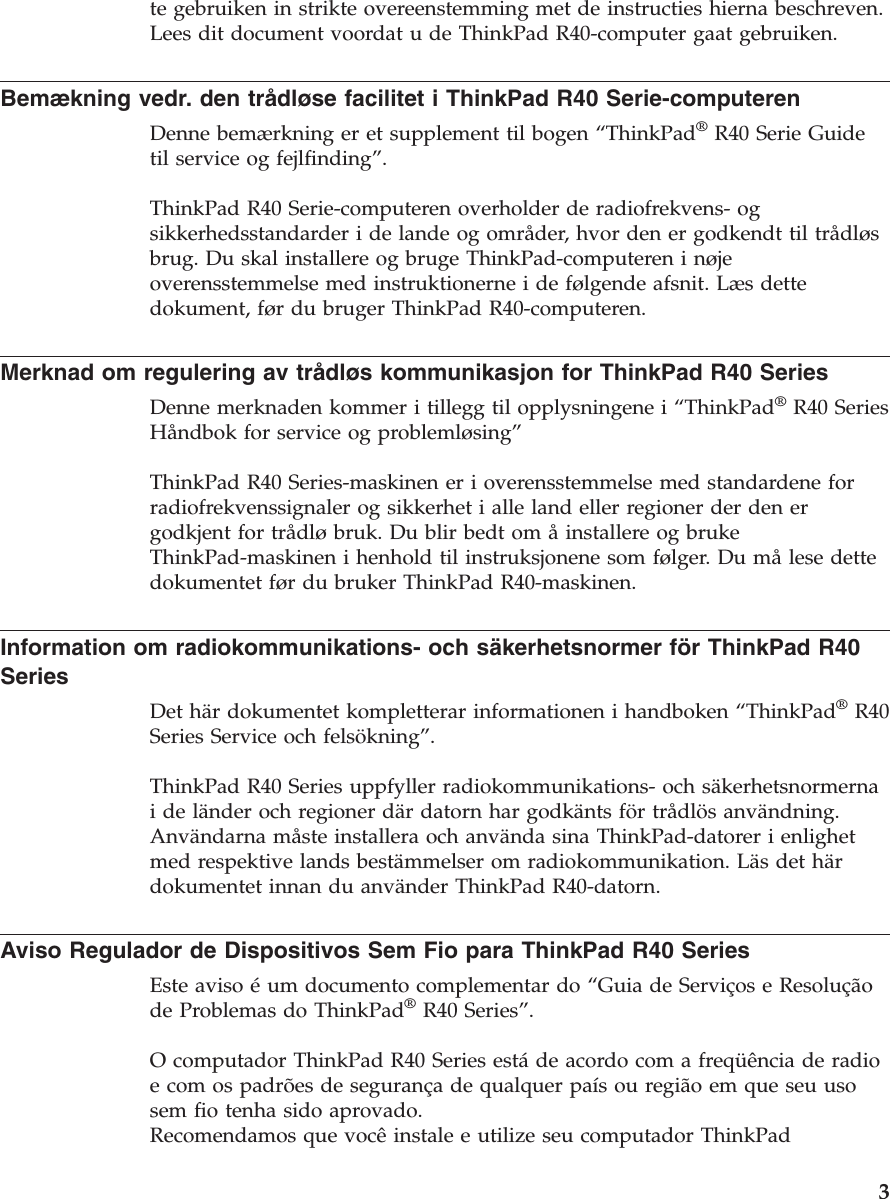

te gebruiken in strikte overeenstemming met de instructies hierna beschreven.Lees dit document voordat u de ThinkPad R40-computer gaat gebruiken.Bemækning vedr. den trådløse facilitet i ThinkPad R40 Serie-computerenDenne bemærkning er et supplement til bogen “ThinkPad®R40 Serie Guidetil service og fejlfinding”.ThinkPad R40 Serie-computeren overholder de radiofrekvens- ogsikkerhedsstandarder i de lande og områder, hvor den er godkendt til trådløsbrug. Du skal installere og bruge ThinkPad-computeren i nøjeoverensstemmelse med instruktionerne i de følgende afsnit. Læs dettedokument, før du bruger ThinkPad R40-computeren.Merknad om regulering av trådløs kommunikasjon for ThinkPad R40 SeriesDenne merknaden kommer i tillegg til opplysningene i “ThinkPad®R40 SeriesHåndbok for service og problemløsing”ThinkPad R40 Series-maskinen er i overensstemmelse med standardene forradiofrekvenssignaler og sikkerhet i alle land eller regioner der den ergodkjent for trådløbruk. Du blir bedt om åinstallere og brukeThinkPad-maskinen i henhold til instruksjonene som følger. Du målese dettedokumentet før du bruker ThinkPad R40-maskinen.Information om radiokommunikations- och säkerhetsnormer för ThinkPad R40SeriesDet här dokumentet kompletterar informationen i handboken “ThinkPad®R40Series Service och felsökning”.ThinkPad R40 Series uppfyller radiokommunikations- och säkerhetsnormernaideländer och regioner där datorn har godkänts förtrådlös användning.Användarna måste installera och använda sina ThinkPad-datorer i enlighetmed respektive lands bestämmelser om radiokommunikation. Läs det härdokumentet innan du använder ThinkPad R40-datorn.Aviso Regulador de Dispositivos Sem Fio para ThinkPad R40 SeriesEste aviso éum documento complementar do “Guia de Serviços e Resoluçãode Problemas do ThinkPad®R40 Series”.O computador ThinkPad R40 Series estáde acordo com a freqüência de radioe com os padrões de segurança de qualquer paísouregião em que seu usosem fio tenha sido aprovado.Recomendamos que vocêinstale e utilize seu computador ThinkPad3

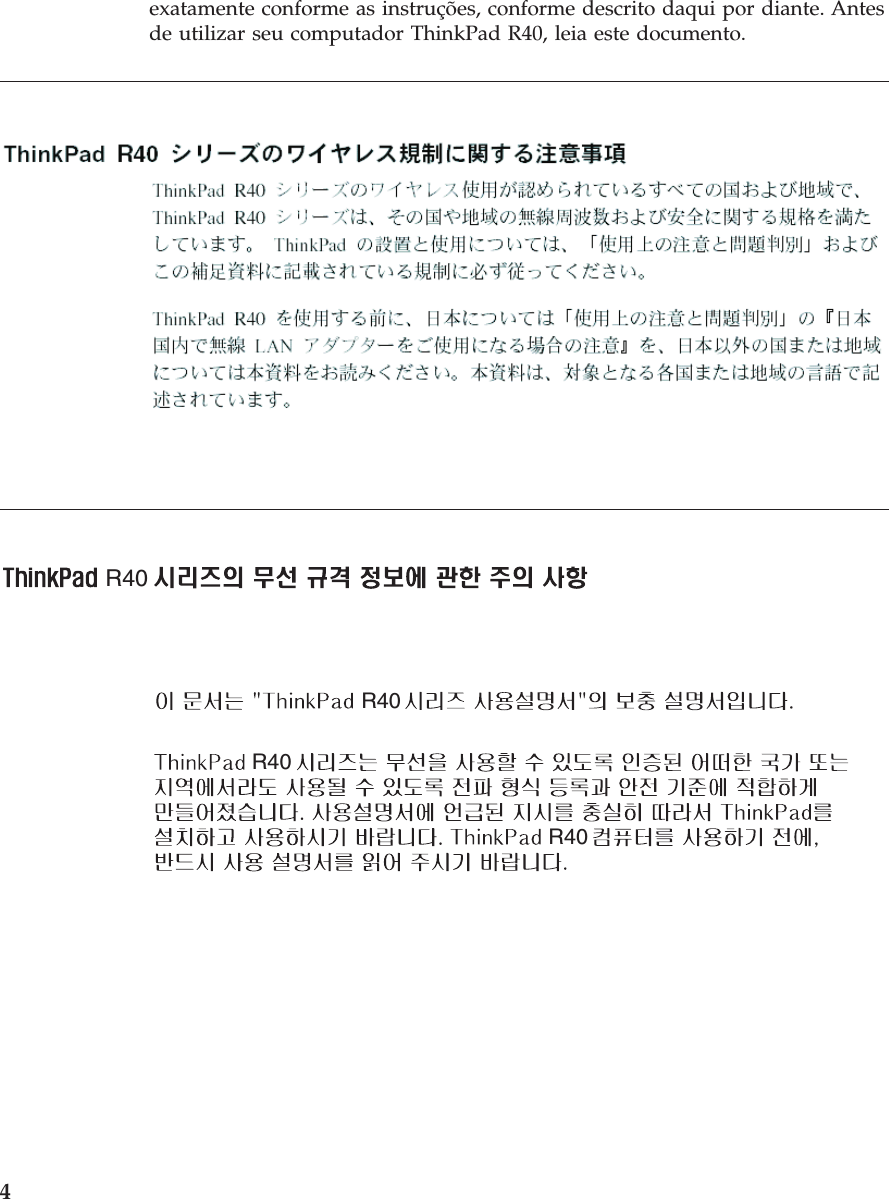

exatamente conforme as instruções, conforme descrito daqui por diante. Antesde utilizar seu computador ThinkPad R40, leia este documento.R40R40R40R404
5

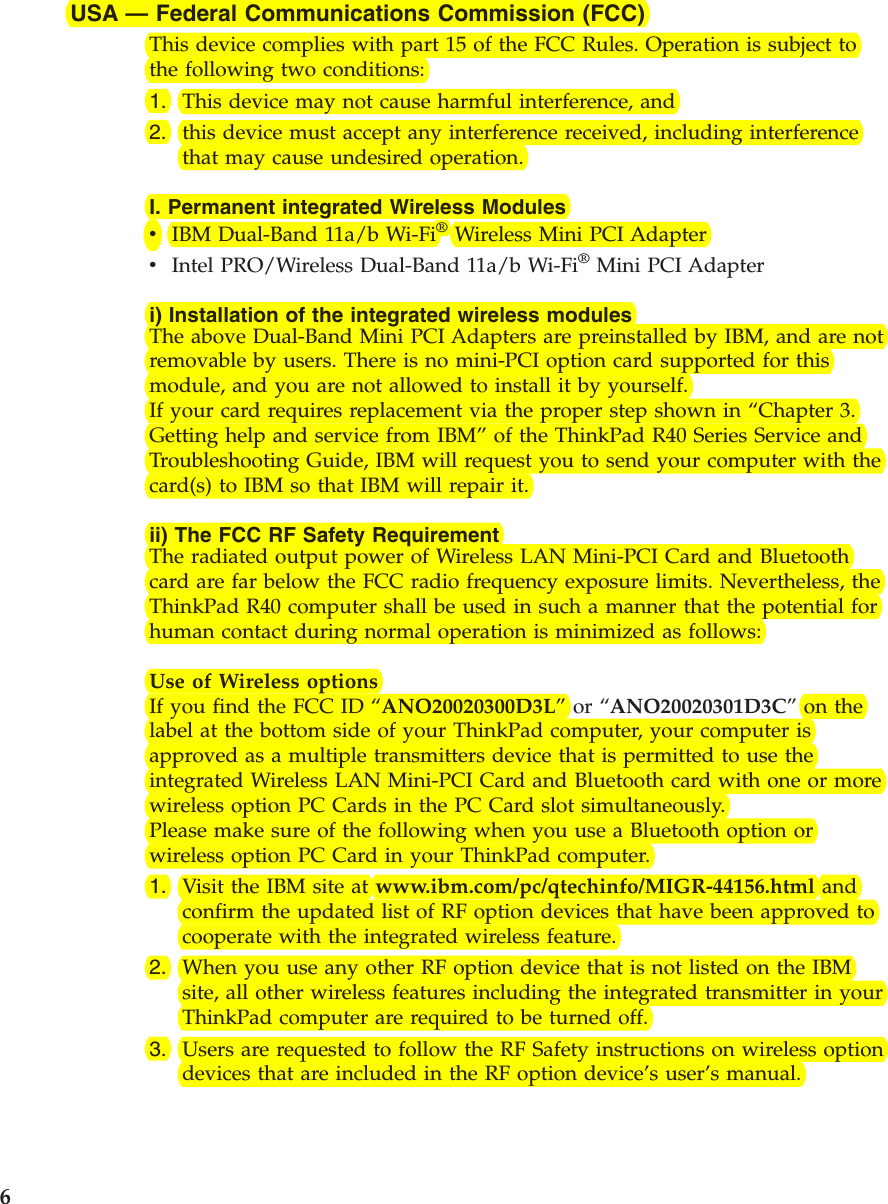

USA —Federal Communications Commission (FCC)This device complies with part 15 of the FCC Rules. Operation is subject tothe following two conditions:1. This device may not cause harmful interference, and2. this device must accept any interference received, including interferencethat may cause undesired operation.I. Permanent integrated Wireless ModulesvIBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI AdaptervIntel PRO/Wireless Dual-Band 11a/b Wi-Fi®Mini PCI Adapteri) Installation of the integrated wireless modulesThe above Dual-Band Mini PCI Adapters are preinstalled by IBM, and are notremovable by users. There is no mini-PCI option card supported for thismodule, and you are not allowed to install it by yourself.If your card requires replacement via the proper step shown in “Chapter 3.Getting help and service from IBM”of the ThinkPad R40 Series Service andTroubleshooting Guide, IBM will request you to send your computer with thecard(s) to IBM so that IBM will repair it.ii) The FCC RF Safety RequirementThe radiated output power of Wireless LAN Mini-PCI Card and Bluetoothcard are far below the FCC radio frequency exposure limits. Nevertheless, theThinkPad R40 computer shall be used in such a manner that the potential forhuman contact during normal operation is minimized as follows:Use of Wireless optionsIf you find the FCC ID “ANO20020300D3L”or “ANO20020301D3C”on thelabel at the bottom side of your ThinkPad computer, your computer isapproved as a multiple transmitters device that is permitted to use theintegrated Wireless LAN Mini-PCI Card and Bluetooth card with one or morewireless option PC Cards in the PC Card slot simultaneously.Please make sure of the following when you use a Bluetooth option orwireless option PC Card in your ThinkPad computer.1. Visit the IBM site at www.ibm.com/pc/qtechinfo/MIGR-44156.html andconfirm the updated list of RF option devices that have been approved tocooperate with the integrated wireless feature.2. When you use any other RF option device that is not listed on the IBMsite, all other wireless features including the integrated transmitter in yourThinkPad computer are required to be turned off.3. Users are requested to follow the RF Safety instructions on wireless optiondevices that are included in the RF option device’s user’s manual.6

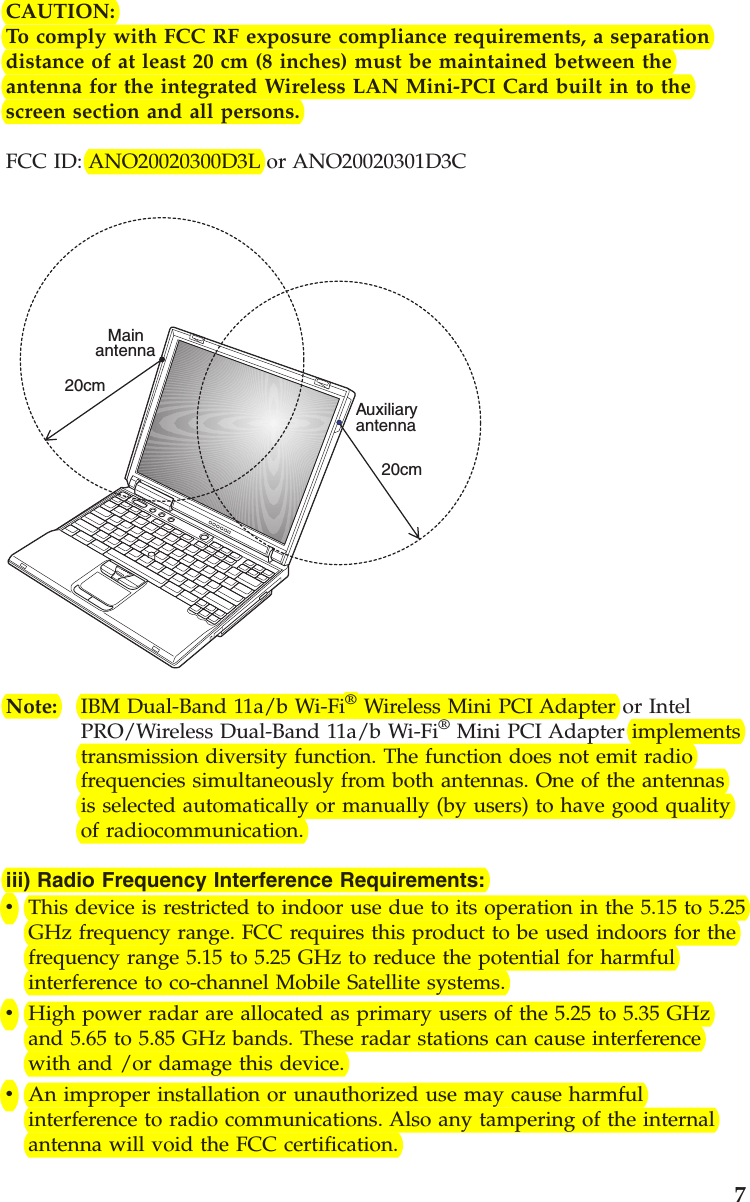

CAUTION:To comply with FCC RF exposure compliance requirements, a separationdistance of at least 20 cm (8 inches) must be maintained between theantenna for the integrated Wireless LAN Mini-PCI Card built in to thescreen section and all persons.FCC ID: ANO20020300D3L or ANO20020301D3CMain20cm20cmAuxiliaryantennaantennaNote: IBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI Adapter or IntelPRO/Wireless Dual-Band 11a/b Wi-Fi®Mini PCI Adapter implementstransmission diversity function. The function does not emit radiofrequencies simultaneously from both antennas. One of the antennasis selected automatically or manually (by users) to have good qualityof radiocommunication.iii) Radio Frequency Interference Requirements:vThis device is restricted to indoor use due to its operation in the 5.15 to 5.25GHz frequency range. FCC requires this product to be used indoors for thefrequency range 5.15 to 5.25 GHz to reduce the potential for harmfulinterference to co-channel Mobile Satellite systems.vHigh power radar are allocated as primary users of the 5.25 to 5.35 GHzand 5.65 to 5.85 GHz bands. These radar stations can cause interferencewith and /or damage this device.vAn improper installation or unauthorized use may cause harmfulinterference to radio communications. Also any tampering of the internalantenna will void the FCC certification.7

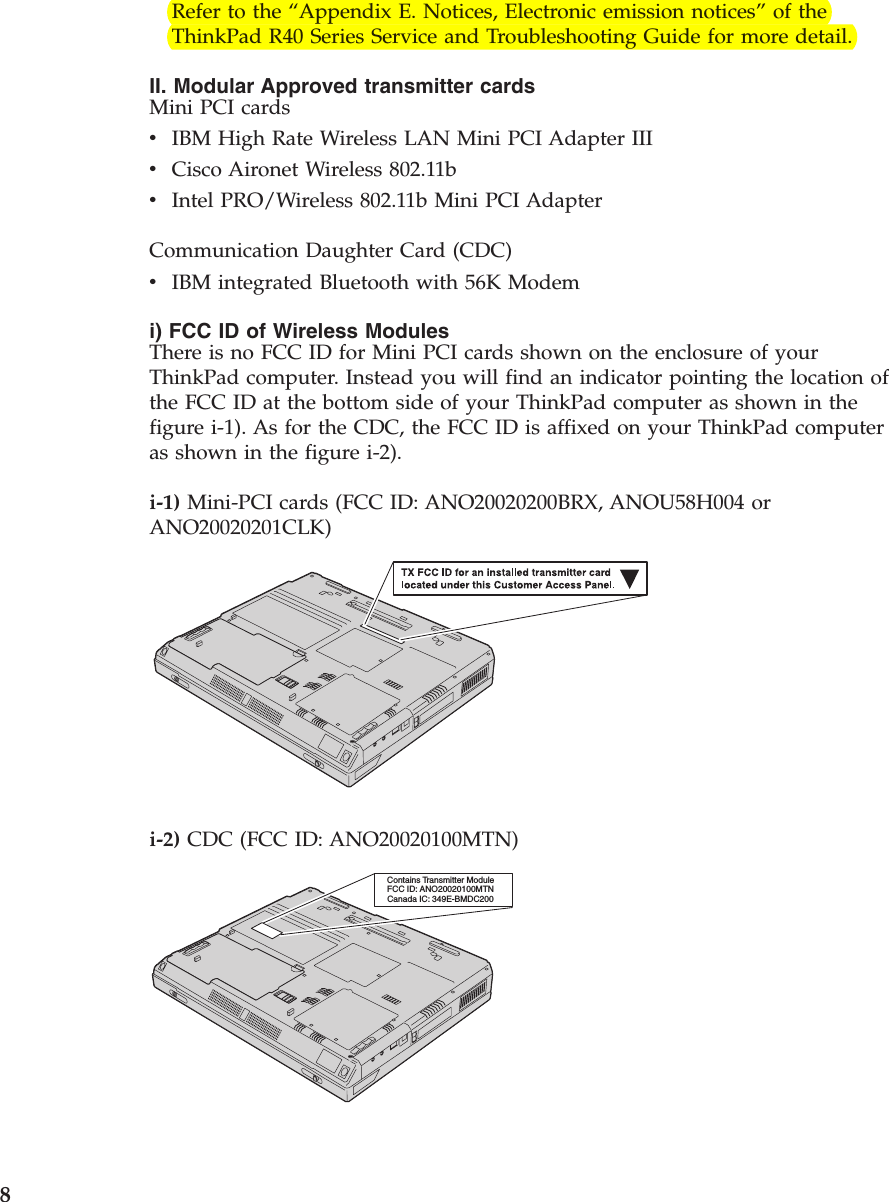

Refer to the “Appendix E. Notices, Electronic emission notices”of theThinkPad R40 Series Service and Troubleshooting Guide for more detail.II. Modular Approved transmitter cardsMini PCI cardsvIBM High Rate Wireless LAN Mini PCI Adapter IIIvCisco Aironet Wireless 802.11bvIntel PRO/Wireless 802.11b Mini PCI AdapterCommunication Daughter Card (CDC)vIBM integrated Bluetooth with 56K Modemi) FCC ID of Wireless ModulesThere is no FCC ID for Mini PCI cards shown on the enclosure of yourThinkPad computer. Instead you will find an indicator pointing the location ofthe FCC ID at the bottom side of your ThinkPad computer as shown in thefigure i-1). As for the CDC, the FCC ID is affixed on your ThinkPad computeras shown in the figure i-2).i-1) Mini-PCI cards (FCC ID: ANO20020200BRX, ANOU58H004 orANO20020201CLK)i-2) CDC (FCC ID: ANO20020100MTN)Contains Transmitter ModuleFCC ID: ANO20020100MTNCanada IC: 349E-BMDC2008

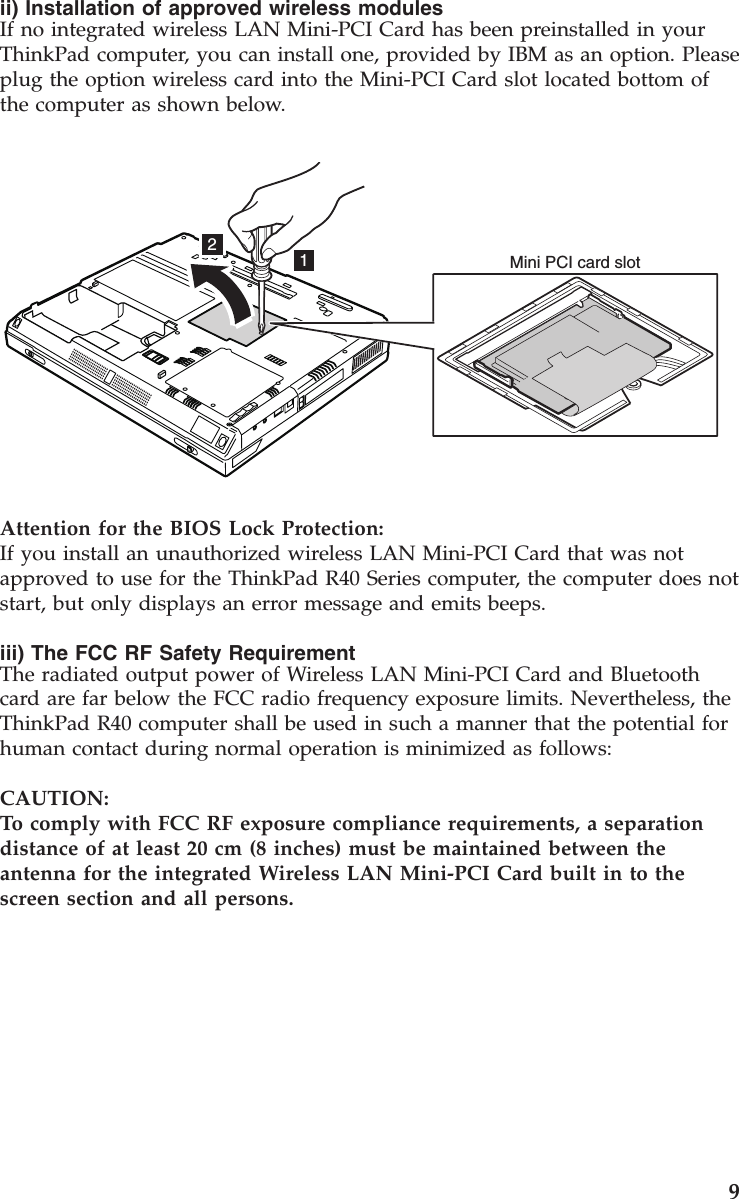

ii) Installation of approved wireless modulesIf no integrated wireless LAN Mini-PCI Card has been preinstalled in yourThinkPad computer, you can install one, provided by IBM as an option. Pleaseplug the option wireless card into the Mini-PCI Card slot located bottom ofthe computer as shown below.12Mini PCI card slotAttention for the BIOS Lock Protection:If you install an unauthorized wireless LAN Mini-PCI Card that was notapproved to use for the ThinkPad R40 Series computer, the computer does notstart, but only displays an error message and emits beeps.iii) The FCC RF Safety RequirementThe radiated output power of Wireless LAN Mini-PCI Card and Bluetoothcard are far below the FCC radio frequency exposure limits. Nevertheless, theThinkPad R40 computer shall be used in such a manner that the potential forhuman contact during normal operation is minimized as follows:CAUTION:To comply with FCC RF exposure compliance requirements, a separationdistance of at least 20 cm (8 inches) must be maintained between theantenna for the integrated Wireless LAN Mini-PCI Card built in to thescreen section and all persons.9

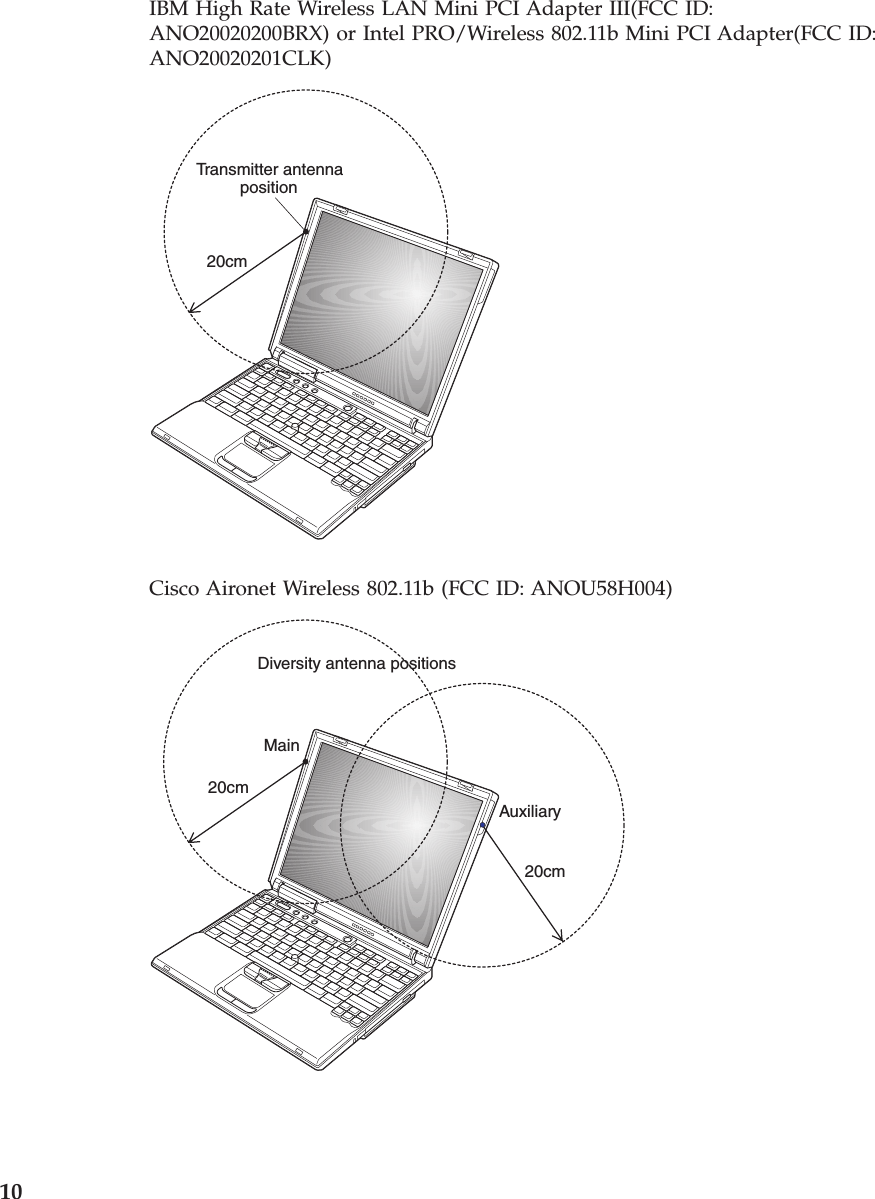

IBM High Rate Wireless LAN Mini PCI Adapter III(FCC ID:ANO20020200BRX) or Intel PRO/Wireless 802.11b Mini PCI Adapter(FCC ID:ANO20020201CLK)position20cmTransmitter antennaCisco Aironet Wireless 802.11b (FCC ID: ANOU58H004)Main20cm20cmDiversity antenna positionsAuxiliary10

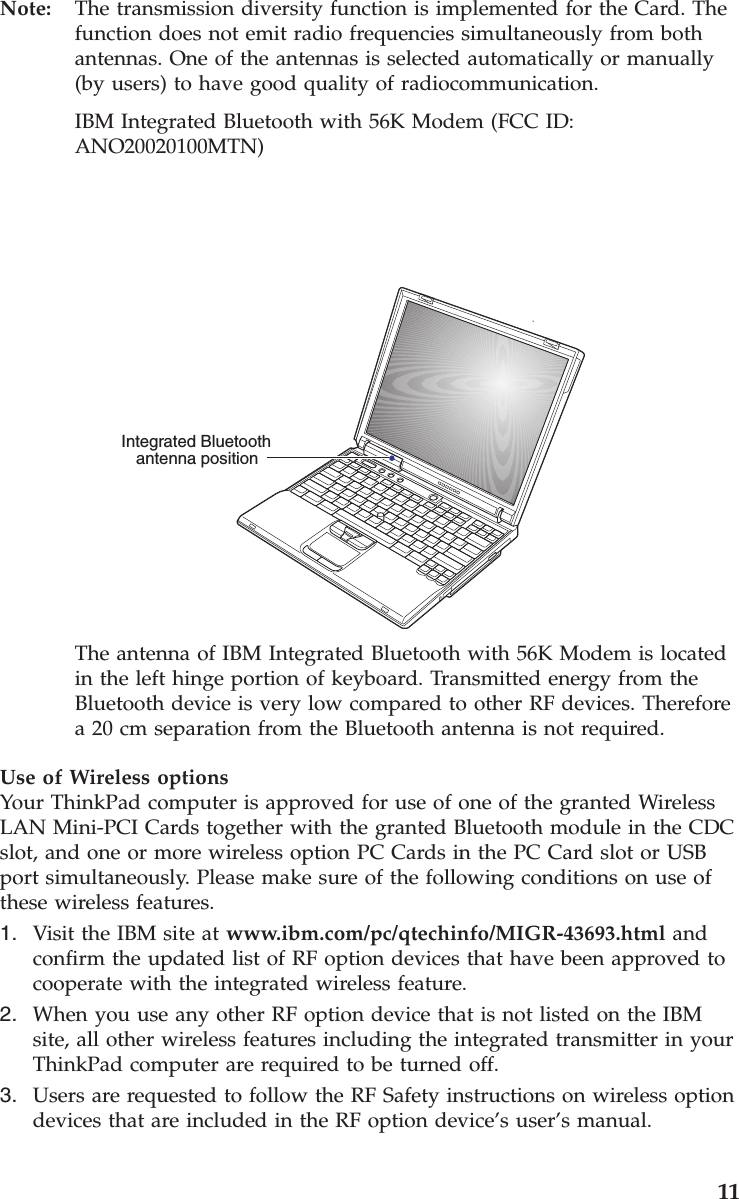

Note: The transmission diversity function is implemented for the Card. Thefunction does not emit radio frequencies simultaneously from bothantennas. One of the antennas is selected automatically or manually(by users) to have good quality of radiocommunication.IBM Integrated Bluetooth with 56K Modem (FCC ID:ANO20020100MTN)Integrated Bluetoothantenna positionThe antenna of IBM Integrated Bluetooth with 56K Modem is locatedin the left hinge portion of keyboard. Transmitted energy from theBluetooth device is very low compared to other RF devices. Thereforea 20 cm separation from the Bluetooth antenna is not required.Use of Wireless optionsYour ThinkPad computer is approved for use of one of the granted WirelessLAN Mini-PCI Cards together with the granted Bluetooth module in the CDCslot, and one or more wireless option PC Cards in the PC Card slot or USBport simultaneously. Please make sure of the following conditions on use ofthese wireless features.1. Visit the IBM site at www.ibm.com/pc/qtechinfo/MIGR-43693.html andconfirm the updated list of RF option devices that have been approved tocooperate with the integrated wireless feature.2. When you use any other RF option device that is not listed on the IBMsite, all other wireless features including the integrated transmitter in yourThinkPad computer are required to be turned off.3. Users are requested to follow the RF Safety instructions on wireless optiondevices that are included in the RF option device’s user’s manual.11

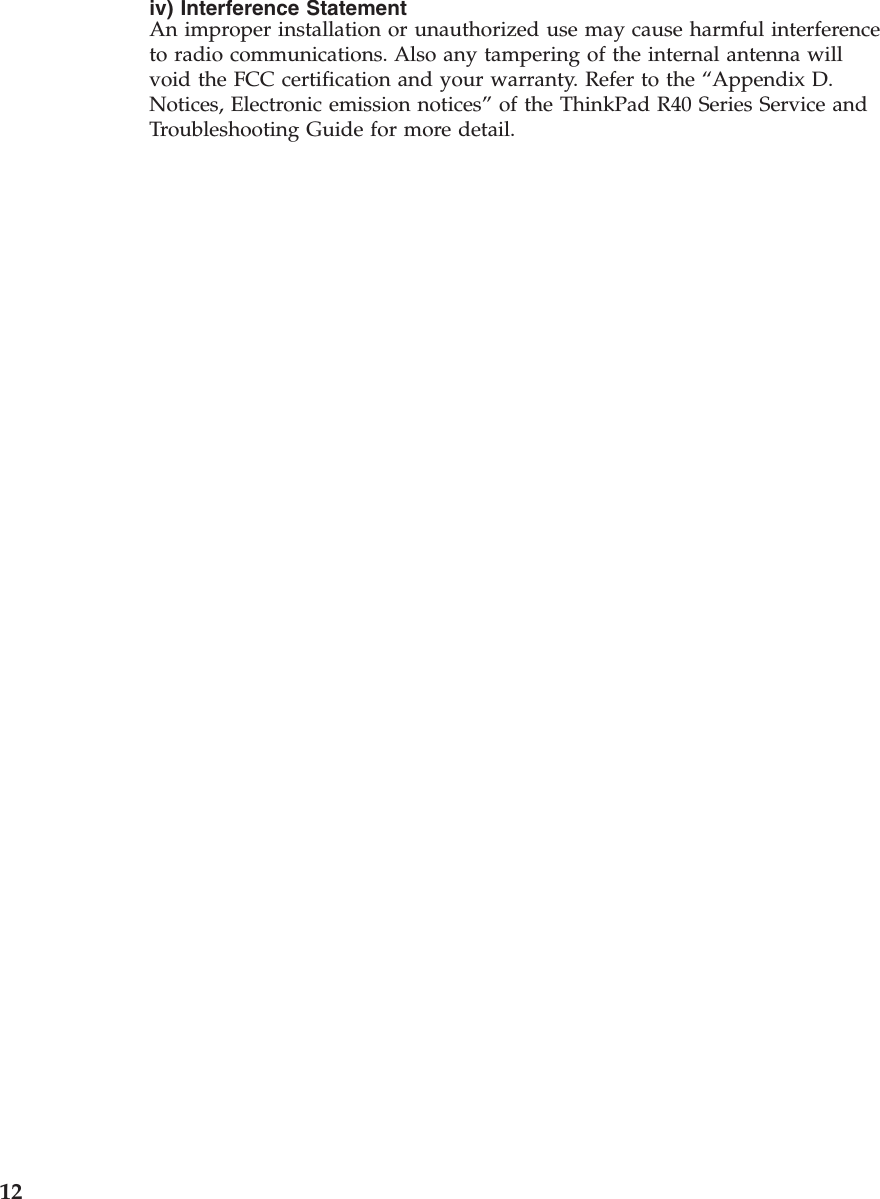

iv) Interference StatementAn improper installation or unauthorized use may cause harmful interferenceto radio communications. Also any tampering of the internal antenna willvoid the FCC certification and your warranty. Refer to the “Appendix D.Notices, Electronic emission notices”of the ThinkPad R40 Series Service andTroubleshooting Guide for more detail.12

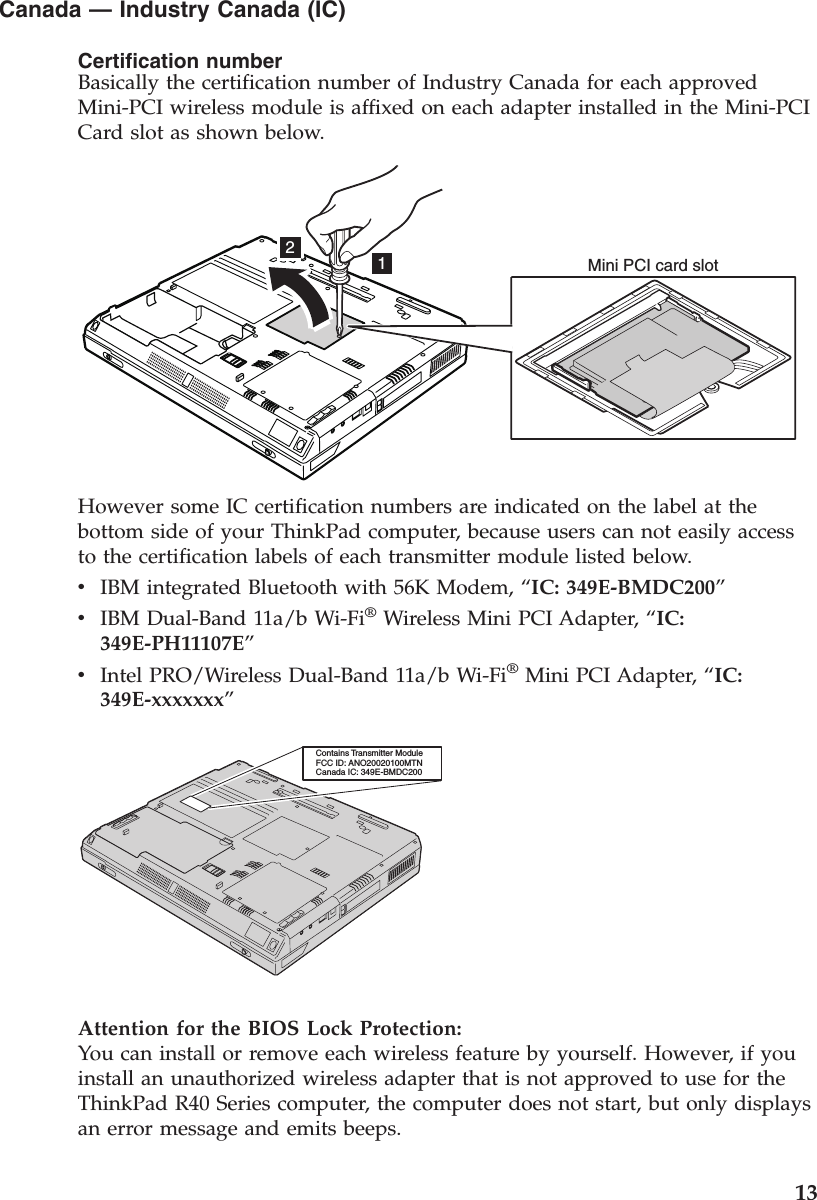

Canada —Industry Canada (IC)Certification numberBasically the certification number of Industry Canada for each approvedMini-PCI wireless module is affixed on each adapter installed in the Mini-PCICard slot as shown below.12Mini PCI card slotHowever some IC certification numbers are indicated on the label at thebottom side of your ThinkPad computer, because users can not easily accessto the certification labels of each transmitter module listed below.vIBM integrated Bluetooth with 56K Modem, “IC: 349E-BMDC200”vIBM Dual-Band 11a/b Wi-Fi®Wireless Mini PCI Adapter, “IC:349E-PH11107E”vIntel PRO/Wireless Dual-Band 11a/b Wi-Fi®Mini PCI Adapter, “IC:349E-xxxxxxx”Contains Transmitter ModuleFCC ID: ANO20020100MTNCanada IC: 349E-BMDC200Attention for the BIOS Lock Protection:You can install or remove each wireless feature by yourself. However, if youinstall an unauthorized wireless adapter that is not approved to use for theThinkPad R40 Series computer, the computer does not start, but only displaysan error message and emits beeps.13

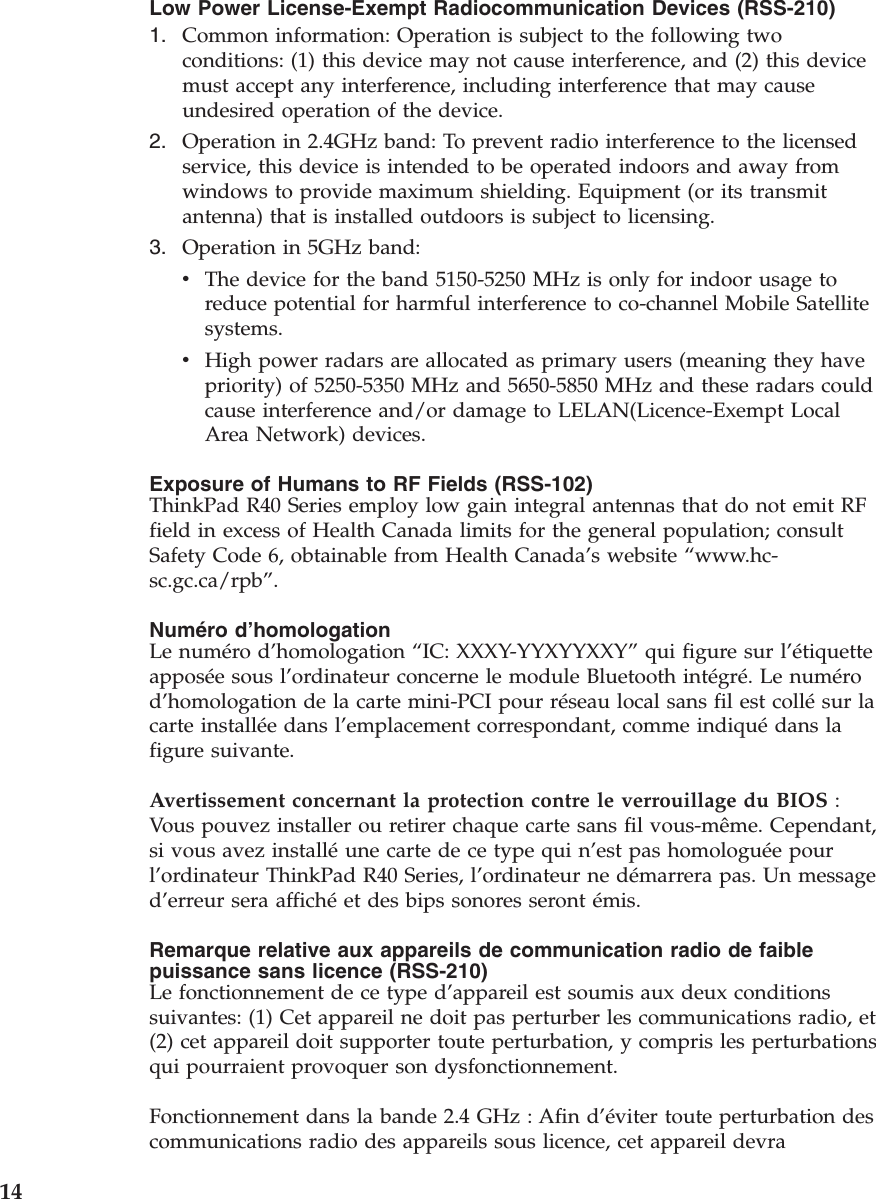

Low Power License-Exempt Radiocommunication Devices (RSS-210)1. Common information: Operation is subject to the following twoconditions: (1) this device may not cause interference, and (2) this devicemust accept any interference, including interference that may causeundesired operation of the device.2. Operation in 2.4GHz band: To prevent radio interference to the licensedservice, this device is intended to be operated indoors and away fromwindows to provide maximum shielding. Equipment (or its transmitantenna) that is installed outdoors is subject to licensing.3. Operation in 5GHz band:vThe device for the band 5150-5250 MHz is only for indoor usage toreduce potential for harmful interference to co-channel Mobile Satellitesystems.vHigh power radars are allocated as primary users (meaning they havepriority) of 5250-5350 MHz and 5650-5850 MHz and these radars couldcause interference and/or damage to LELAN(Licence-Exempt LocalArea Network) devices.Exposure of Humans to RF Fields (RSS-102)ThinkPad R40 Series employ low gain integral antennas that do not emit RFfield in excess of Health Canada limits for the general population; consultSafety Code 6, obtainable from Health Canada’s website “www.hc-sc.gc.ca/rpb”.Numéro d’homologationLe numéro d’homologation “IC: XXXY-YYXYYXXY”qui figure sur l’étiquetteapposée sous l’ordinateur concerne le module Bluetooth intégré.Lenumérod’homologation de la carte mini-PCI pour réseau local sans fil est collésur lacarte installée dans l’emplacement correspondant, comme indiquédans lafigure suivante.Avertissement concernant la protection contre le verrouillage du BIOS :Vous pouvez installer ou retirer chaque carte sans fil vous-même. Cependant,si vous avez installéune carte de ce type qui n’est pas homologuée pourl’ordinateur ThinkPad R40 Series, l’ordinateur ne démarrera pas. Un messaged’erreur sera affichéet des bips sonores seront émis.Remarque relative aux appareils de communication radio de faiblepuissance sans licence (RSS-210)Le fonctionnement de ce type d’appareil est soumis aux deux conditionssuivantes: (1) Cet appareil ne doit pas perturber les communications radio, et(2) cet appareil doit supporter toute perturbation, y compris les perturbationsqui pourraient provoquer son dysfonctionnement.Fonctionnement dans la bande 2.4 GHz : Afin d’éviter toute perturbation descommunications radio des appareils sous licence, cet appareil devra14

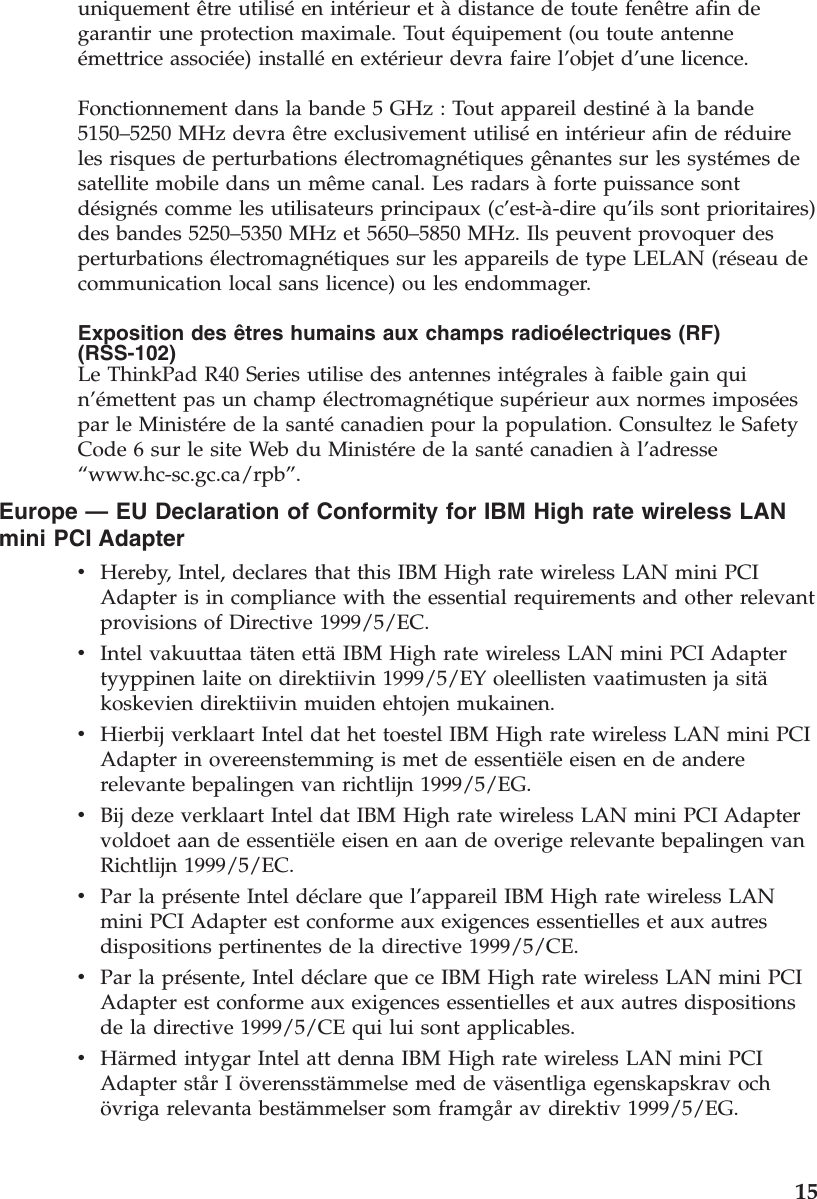

uniquement être utiliséen intérieur et àdistance de toute fenêtre afin degarantir une protection maximale. Tout équipement (ou toute antenneémettrice associée) installéen extérieur devra faire l’objet d’une licence.Fonctionnement dans la bande 5 GHz : Tout appareil destinéàla bande5150–5250 MHz devra être exclusivement utiliséen intérieur afin de réduireles risques de perturbations électromagnétiques gênantes sur les systémes desatellite mobile dans un même canal. Les radars àforte puissance sontdésignés comme les utilisateurs principaux (c’est-à-dire qu’ils sont prioritaires)des bandes 5250–5350 MHz et 5650–5850 MHz. Ils peuvent provoquer desperturbations électromagnétiques sur les appareils de type LELAN (réseau decommunication local sans licence) ou les endommager.Exposition des êtres humains aux champs radioélectriques (RF)(RSS-102)Le ThinkPad R40 Series utilise des antennes intégrales àfaible gain quin’émettent pas un champ électromagnétique supérieur aux normes imposéespar le Ministére de la santécanadien pour la population. Consultez le SafetyCode 6 sur le site Web du Ministére de la santécanadien àl’adresse“www.hc-sc.gc.ca/rpb”.Europe —EU Declaration of Conformity for IBM High rate wireless LANmini PCI AdaptervHereby, Intel, declares that this IBM High rate wireless LAN mini PCIAdapter is in compliance with the essential requirements and other relevantprovisions of Directive 1999/5/EC.vIntel vakuuttaa täten ettäIBM High rate wireless LAN mini PCI Adaptertyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitäkoskevien direktiivin muiden ehtojen mukainen.vHierbij verklaart Intel dat het toestel IBM High rate wireless LAN mini PCIAdapter in overeenstemming is met de essentiële eisen en de andererelevante bepalingen van richtlijn 1999/5/EG.vBij deze verklaart Intel dat IBM High rate wireless LAN mini PCI Adaptervoldoet aan de essentiële eisen en aan de overige relevante bepalingen vanRichtlijn 1999/5/EC.vPar la présente Intel déclare que l’appareil IBM High rate wireless LANmini PCI Adapter est conforme aux exigences essentielles et aux autresdispositions pertinentes de la directive 1999/5/CE.vPar la présente, Intel déclare que ce IBM High rate wireless LAN mini PCIAdapter est conforme aux exigences essentielles et aux autres dispositionsde la directive 1999/5/CE qui lui sont applicables.vHärmed intygar Intel att denna IBM High rate wireless LAN mini PCIAdapter stårIöverensstämmelse med de väsentliga egenskapskrav ochövriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.15

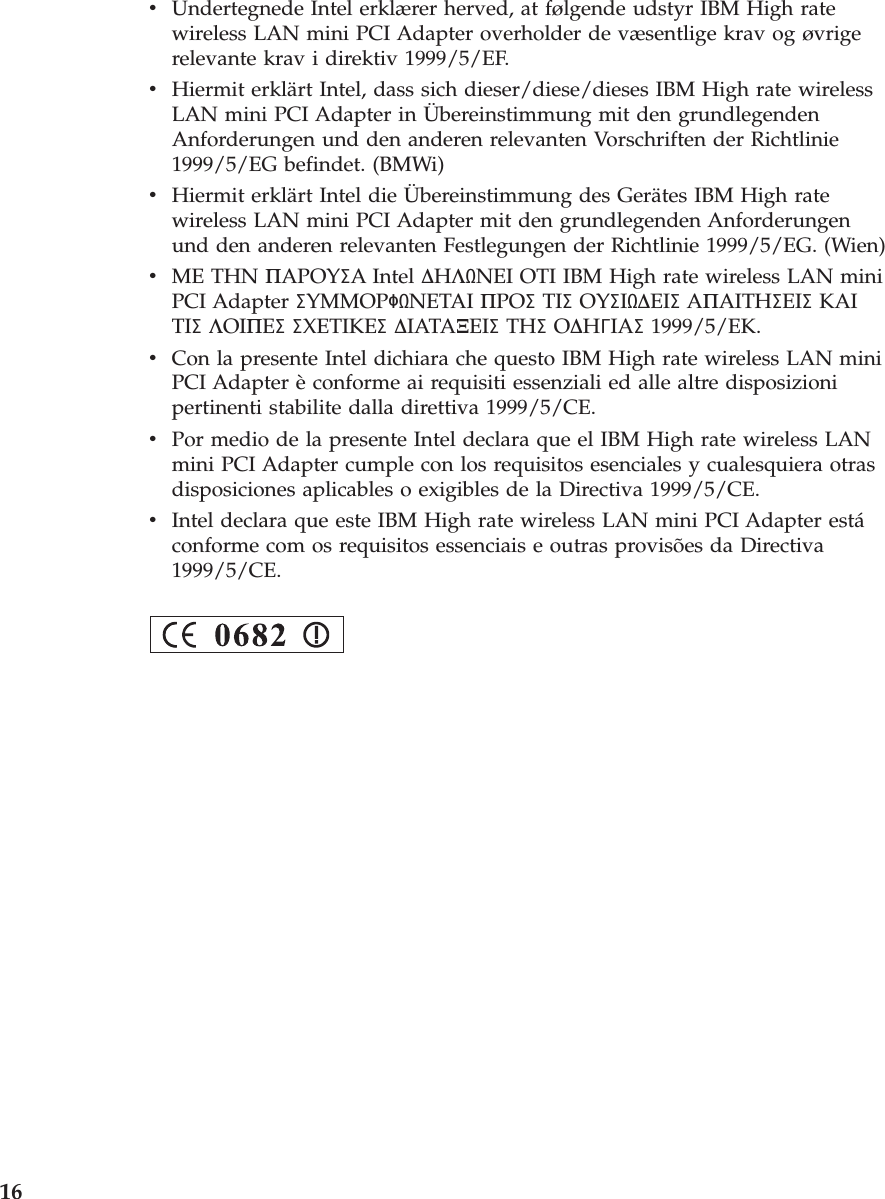

vUndertegnede Intel erklærer herved, at følgende udstyr IBM High ratewireless LAN mini PCI Adapter overholder de væsentlige krav og øvrigerelevante krav i direktiv 1999/5/EF.vHiermit erklärt Intel, dass sich dieser/diese/dieses IBM High rate wirelessLAN mini PCI Adapter in Übereinstimmung mit den grundlegendenAnforderungen und den anderen relevanten Vorschriften der Richtlinie1999/5/EG befindet. (BMWi)vHiermit erklärt Intel die Übereinstimmung des Gerätes IBM High ratewireless LAN mini PCI Adapter mit den grundlegenden Anforderungenund den anderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien)vME THN ΠAPOYΣA Intel ∆HΛNEI OTI IBM High rate wireless LAN miniPCI Adapter ΣYMMOPΦNETAI ΠPOΣTIΣOYΣI∆EIΣAΠAITHΣEIΣKAITIΣΛOIΠEΣΣXETIKEΣ∆IATAΞEIΣTHΣO∆HΓIAΣ1999/5/EK.vCon la presente Intel dichiara che questo IBM High rate wireless LAN miniPCI Adapter èconforme ai requisiti essenziali ed alle altre disposizionipertinenti stabilite dalla direttiva 1999/5/CE.vPor medio de la presente Intel declara que el IBM High rate wireless LANmini PCI Adapter cumple con los requisitos esenciales y cualesquiera otrasdisposiciones aplicables o exigibles de la Directiva 1999/5/CE.vIntel declara que este IBM High rate wireless LAN mini PCI Adapter estáconforme com os requisitos essenciais e outras provisões da Directiva1999/5/CE.16
17

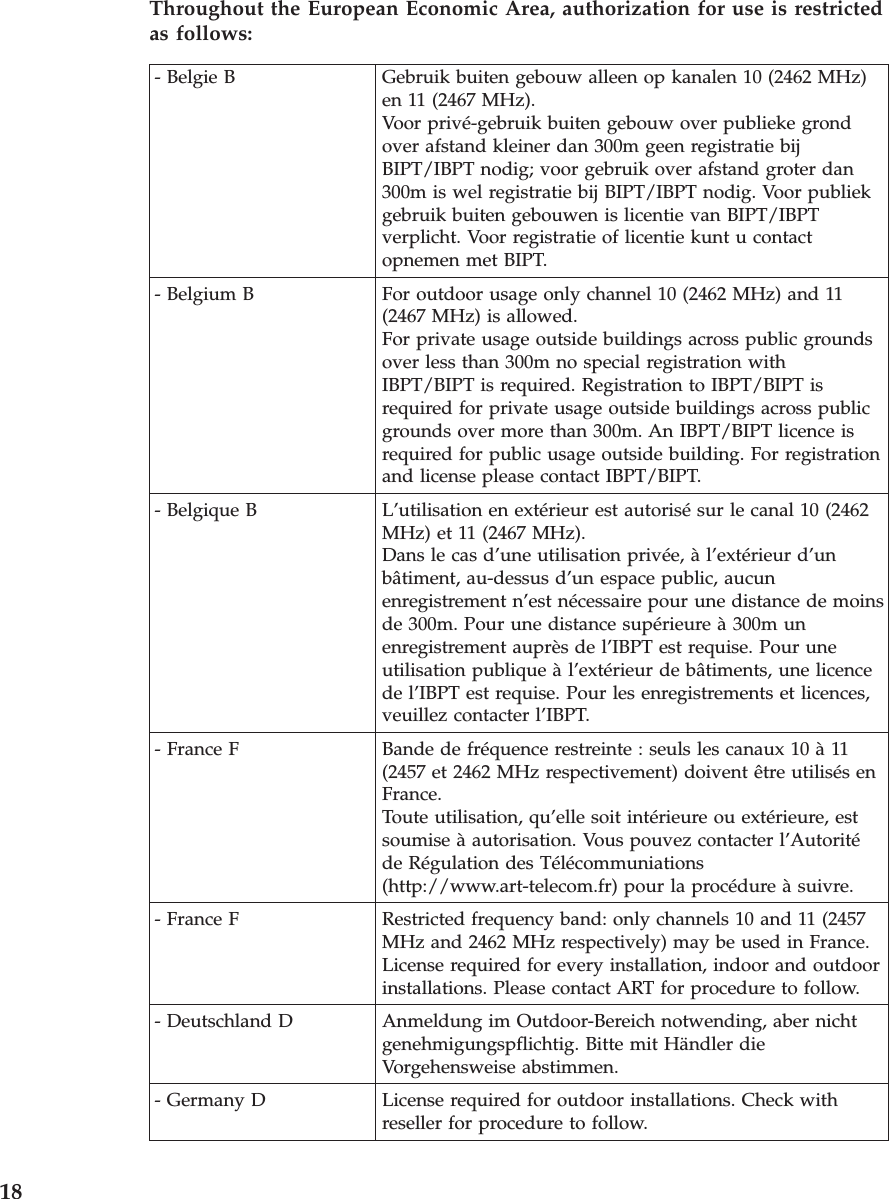

Throughout the European Economic Area, authorization for use is restrictedas follows:- Belgie B Gebruik buiten gebouw alleen op kanalen 10 (2462 MHz)en 11 (2467 MHz).Voor privé-gebruik buiten gebouw over publieke grondover afstand kleiner dan 300m geen registratie bijBIPT/IBPT nodig; voor gebruik over afstand groter dan300m is wel registratie bij BIPT/IBPT nodig. Voor publiekgebruik buiten gebouwen is licentie van BIPT/IBPTverplicht. Voor registratie of licentie kunt u contactopnemen met BIPT.- Belgium B For outdoor usage only channel 10 (2462 MHz) and 11(2467 MHz) is allowed.For private usage outside buildings across public groundsover less than 300m no special registration withIBPT/BIPT is required. Registration to IBPT/BIPT isrequired for private usage outside buildings across publicgrounds over more than 300m. An IBPT/BIPT licence isrequired for public usage outside building. For registrationand license please contact IBPT/BIPT.- Belgique B L’utilisation en extérieur est autorisésur le canal 10 (2462MHz) et 11 (2467 MHz).Dans le cas d’une utilisation privée, àl’extérieur d’unbâtiment, au-dessus d’un espace public, aucunenregistrement n’est nécessaire pour une distance de moinsde 300m. Pour une distance supérieure à300m unenregistrement auprèsdel’IBPT est requise. Pour uneutilisation publique àl’extérieur de bâtiments, une licencede l’IBPT est requise. Pour les enregistrements et licences,veuillez contacter l’IBPT.- France F Bande de fréquence restreinte : seuls les canaux 10 à11(2457 et 2462 MHz respectivement) doivent être utilisésenFrance.Toute utilisation, qu’elle soit intérieure ou extérieure, estsoumise àautorisation. Vous pouvez contacter l’Autoritéde Régulation des Télécommuniations(http://www.art-telecom.fr) pour la procédure àsuivre.- France F Restricted frequency band: only channels 10 and 11 (2457MHz and 2462 MHz respectively) may be used in France.License required for every installation, indoor and outdoorinstallations. Please contact ART for procedure to follow.- Deutschland D Anmeldung im Outdoor-Bereich notwending, aber nichtgenehmigungspflichtig. Bitte mit Händler dieVorgehensweise abstimmen.- Germany D License required for outdoor installations. Check withreseller for procedure to follow.18

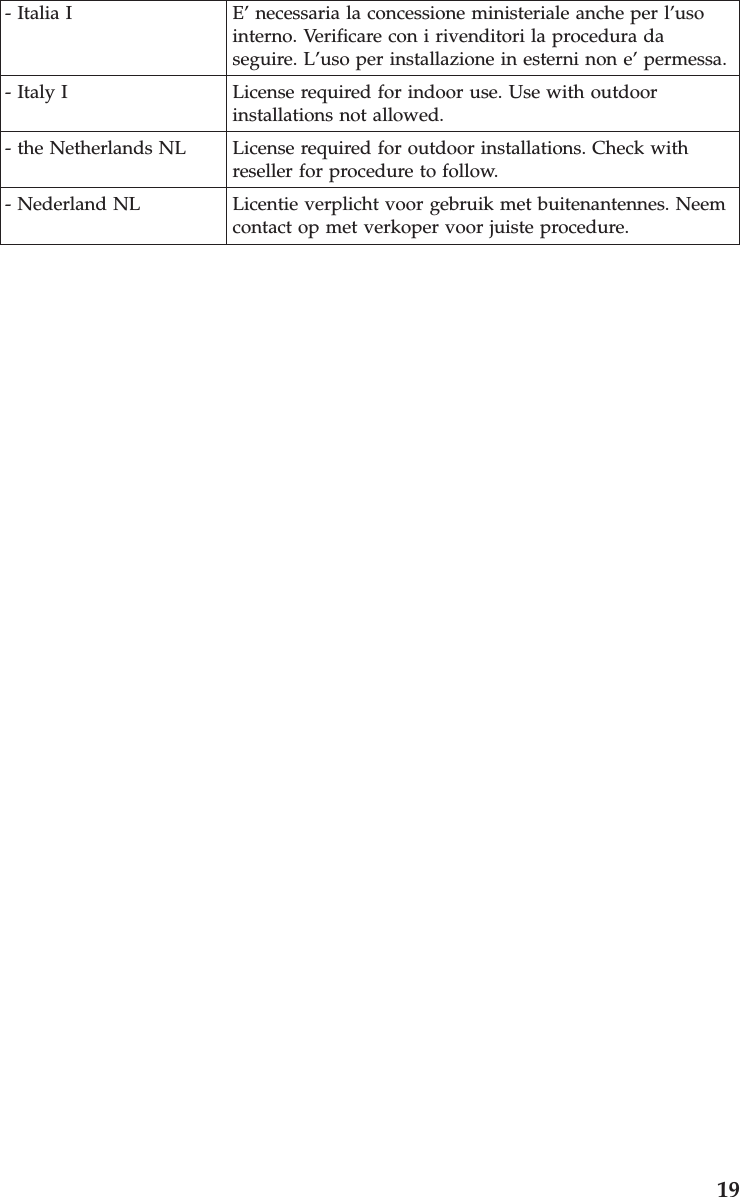

- Italia I E’necessaria la concessione ministeriale anche per l’usointerno. Verificare con i rivenditori la procedura daseguire. L’uso per installazione in esterni non e’permessa.- Italy I License required for indoor use. Use with outdoorinstallations not allowed.- the Netherlands NL License required for outdoor installations. Check withreseller for procedure to follow.- Nederland NL Licentie verplicht voor gebruik met buitenantennes. Neemcontact op met verkoper voor juiste procedure.19
20
21
22
23
24

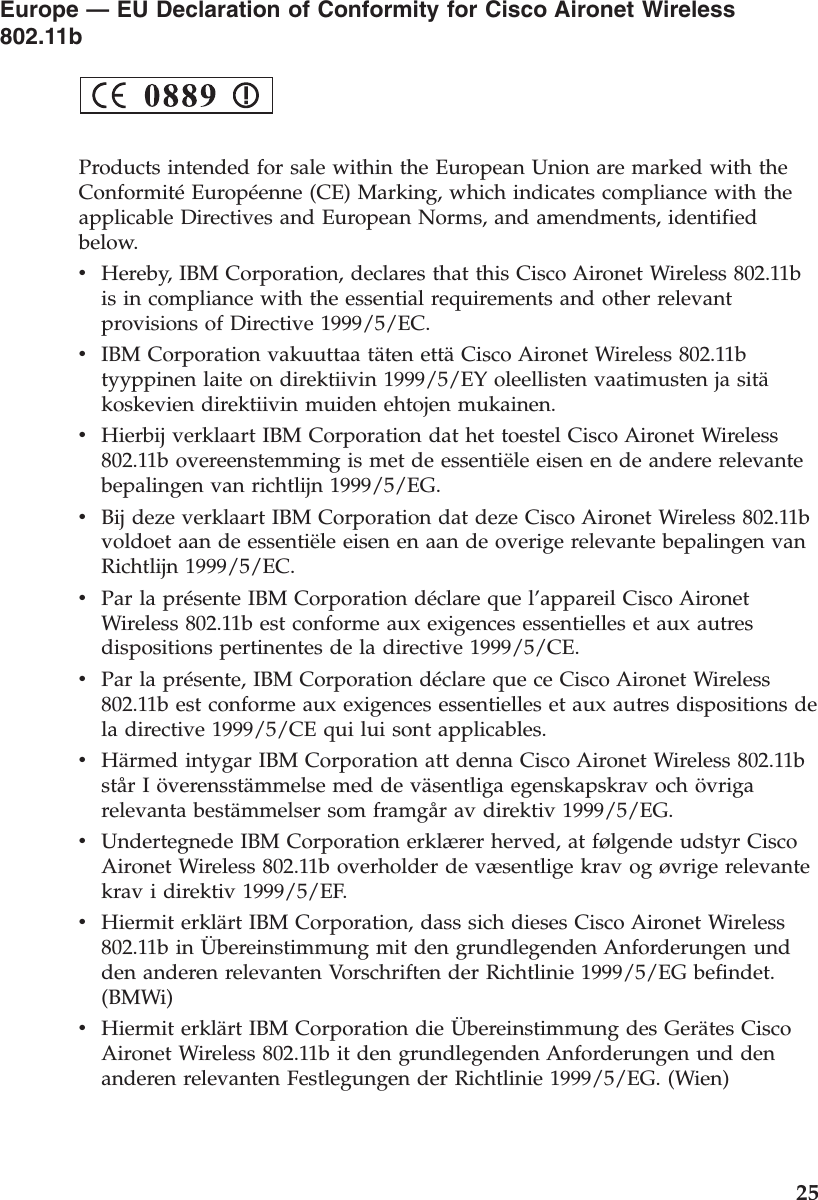

Europe —EU Declaration of Conformity for Cisco Aironet Wireless802.11bProducts intended for sale within the European Union are marked with theConformitéEuropéenne (CE) Marking, which indicates compliance with theapplicable Directives and European Norms, and amendments, identifiedbelow.vHereby, IBM Corporation, declares that this Cisco Aironet Wireless 802.11bis in compliance with the essential requirements and other relevantprovisions of Directive 1999/5/EC.vIBM Corporation vakuuttaa täten ettäCisco Aironet Wireless 802.11btyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitäkoskevien direktiivin muiden ehtojen mukainen.vHierbij verklaart IBM Corporation dat het toestel Cisco Aironet Wireless802.11b overeenstemming is met de essentiële eisen en de andere relevantebepalingen van richtlijn 1999/5/EG.vBij deze verklaart IBM Corporation dat deze Cisco Aironet Wireless 802.11bvoldoet aan de essentiële eisen en aan de overige relevante bepalingen vanRichtlijn 1999/5/EC.vPar la présente IBM Corporation déclare que l’appareil Cisco AironetWireless 802.11b est conforme aux exigences essentielles et aux autresdispositions pertinentes de la directive 1999/5/CE.vPar la présente, IBM Corporation déclare que ce Cisco Aironet Wireless802.11b est conforme aux exigences essentielles et aux autres dispositions dela directive 1999/5/CE qui lui sont applicables.vHärmed intygar IBM Corporation att denna Cisco Aironet Wireless 802.11bstårIöverensstämmelse med de väsentliga egenskapskrav och övrigarelevanta bestämmelser som framgår av direktiv 1999/5/EG.vUndertegnede IBM Corporation erklærer herved, at følgende udstyr CiscoAironet Wireless 802.11b overholder de væsentlige krav og øvrige relevantekrav i direktiv 1999/5/EF.vHiermit erklärt IBM Corporation, dass sich dieses Cisco Aironet Wireless802.11b in Übereinstimmung mit den grundlegenden Anforderungen undden anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet.(BMWi)vHiermit erklärt IBM Corporation die Übereinstimmung des Gerätes CiscoAironet Wireless 802.11b it den grundlegenden Anforderungen und denanderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien)25

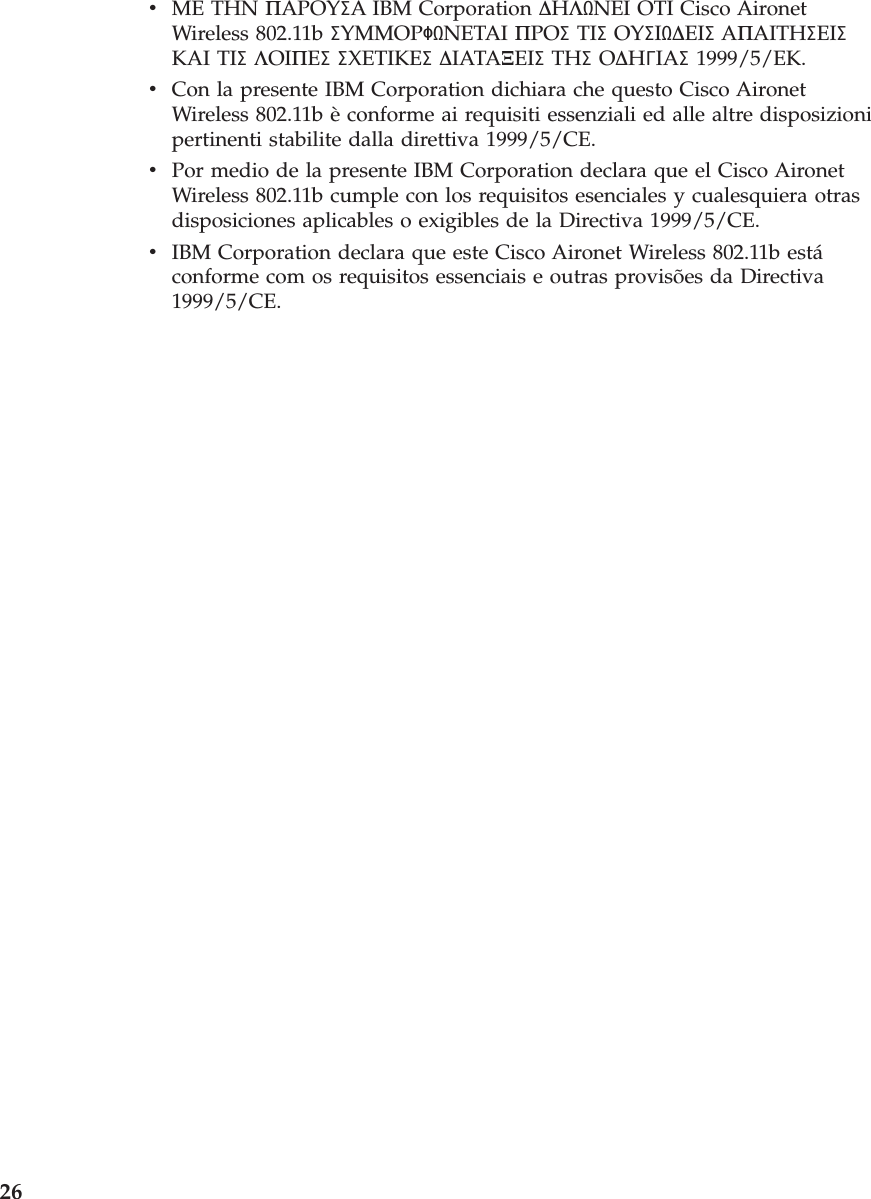

vME THN ΠAPOYΣA IBM Corporation ∆HΛNEI OTI Cisco AironetWireless 802.11b ΣYMMOPΦNETAI ΠPOΣTIΣOYΣI∆EIΣAΠAITHΣEIΣKAI TIΣΛOIΠEΣΣXETIKEΣ∆IATAΞEIΣTHΣO∆HΓIAΣ1999/5/EK.vCon la presente IBM Corporation dichiara che questo Cisco AironetWireless 802.11b èconforme ai requisiti essenziali ed alle altre disposizionipertinenti stabilite dalla direttiva 1999/5/CE.vPor medio de la presente IBM Corporation declara que el Cisco AironetWireless 802.11b cumple con los requisitos esenciales y cualesquiera otrasdisposiciones aplicables o exigibles de la Directiva 1999/5/CE.vIBM Corporation declara que este Cisco Aironet Wireless 802.11b estáconforme com os requisitos essenciais e outras provisões da Directiva1999/5/CE.26
27

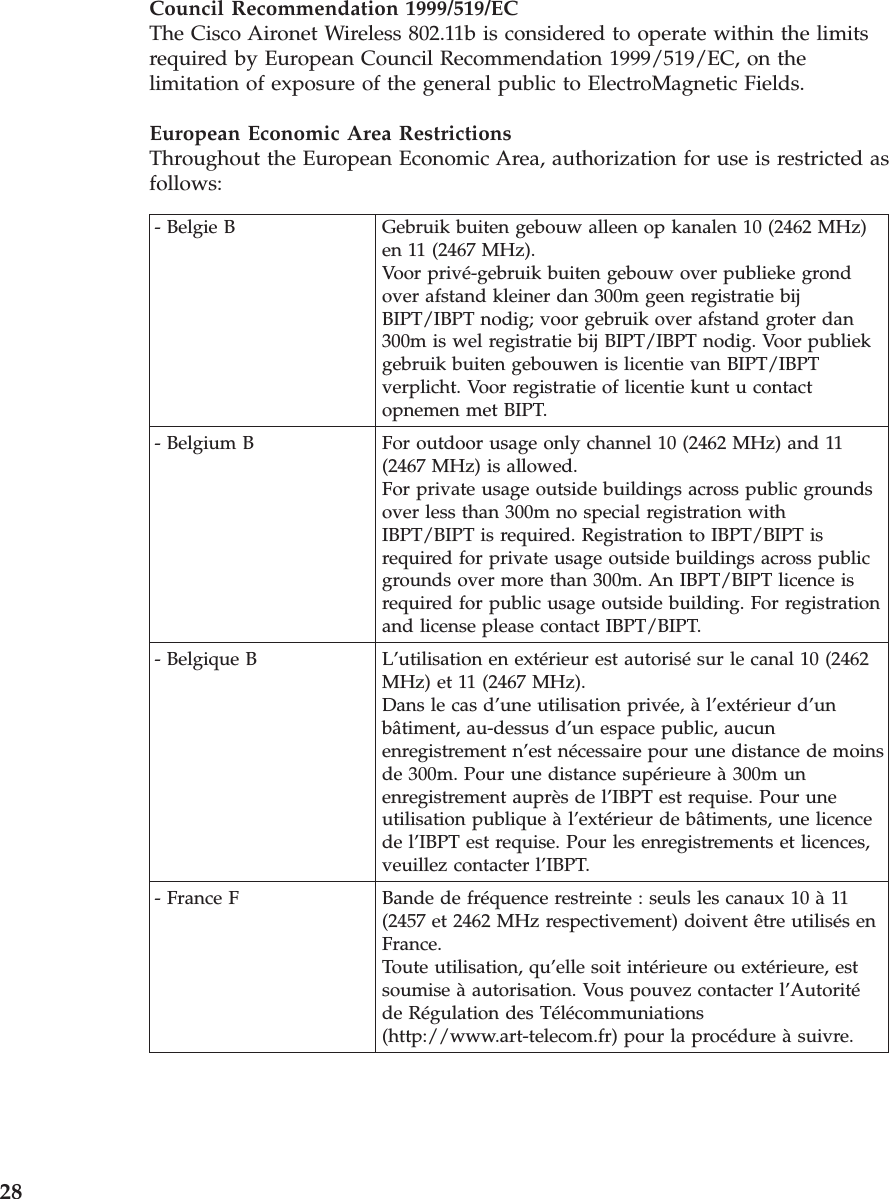

Council Recommendation 1999/519/ECThe Cisco Aironet Wireless 802.11b is considered to operate within the limitsrequired by European Council Recommendation 1999/519/EC, on thelimitation of exposure of the general public to ElectroMagnetic Fields.European Economic Area RestrictionsThroughout the European Economic Area, authorization for use is restricted asfollows:- Belgie B Gebruik buiten gebouw alleen op kanalen 10 (2462 MHz)en 11 (2467 MHz).Voor privé-gebruik buiten gebouw over publieke grondover afstand kleiner dan 300m geen registratie bijBIPT/IBPT nodig; voor gebruik over afstand groter dan300m is wel registratie bij BIPT/IBPT nodig. Voor publiekgebruik buiten gebouwen is licentie van BIPT/IBPTverplicht. Voor registratie of licentie kunt u contactopnemen met BIPT.- Belgium B For outdoor usage only channel 10 (2462 MHz) and 11(2467 MHz) is allowed.For private usage outside buildings across public groundsover less than 300m no special registration withIBPT/BIPT is required. Registration to IBPT/BIPT isrequired for private usage outside buildings across publicgrounds over more than 300m. An IBPT/BIPT licence isrequired for public usage outside building. For registrationand license please contact IBPT/BIPT.- Belgique B L’utilisation en extérieur est autorisésur le canal 10 (2462MHz) et 11 (2467 MHz).Dans le cas d’une utilisation privée, àl’extérieur d’unbâtiment, au-dessus d’un espace public, aucunenregistrement n’est nécessaire pour une distance de moinsde 300m. Pour une distance supérieure à300m unenregistrement auprèsdel’IBPT est requise. Pour uneutilisation publique àl’extérieur de bâtiments, une licencede l’IBPT est requise. Pour les enregistrements et licences,veuillez contacter l’IBPT.- France F Bande de fréquence restreinte : seuls les canaux 10 à11(2457 et 2462 MHz respectivement) doivent être utilisésenFrance.Toute utilisation, qu’elle soit intérieure ou extérieure, estsoumise àautorisation. Vous pouvez contacter l’Autoritéde Régulation des Télécommuniations(http://www.art-telecom.fr) pour la procédure àsuivre.28

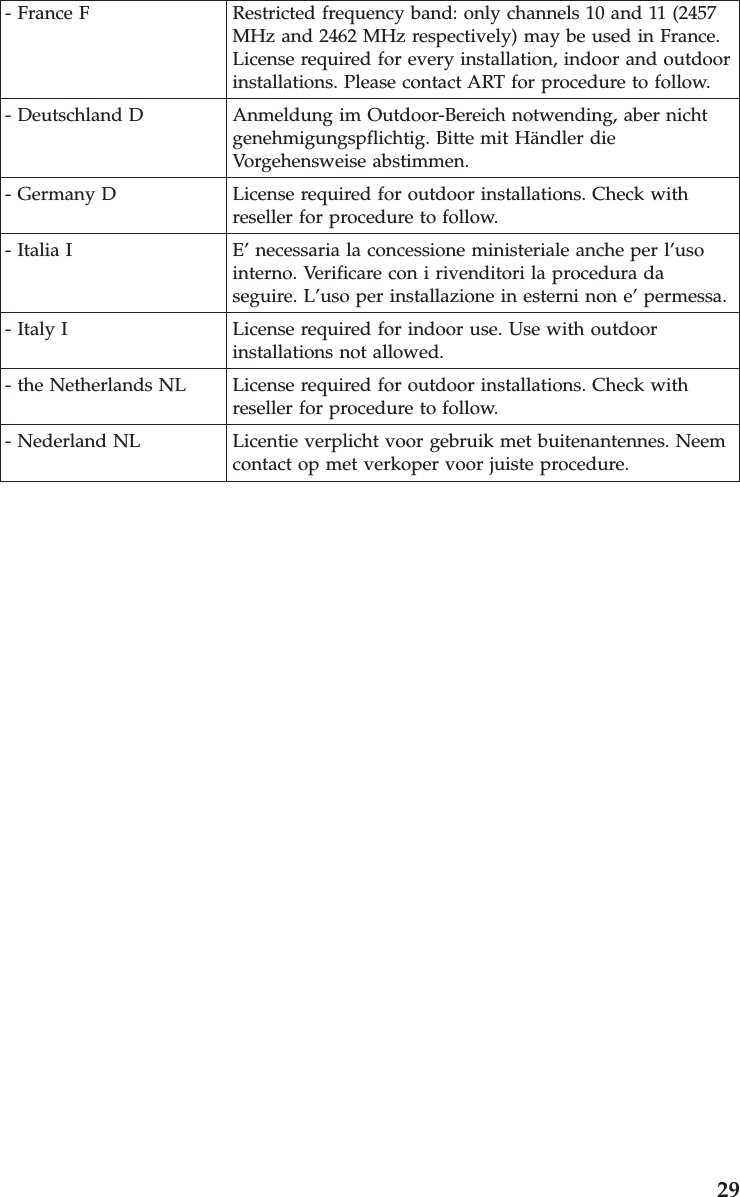

- France F Restricted frequency band: only channels 10 and 11 (2457MHz and 2462 MHz respectively) may be used in France.License required for every installation, indoor and outdoorinstallations. Please contact ART for procedure to follow.- Deutschland D Anmeldung im Outdoor-Bereich notwending, aber nichtgenehmigungspflichtig. Bitte mit Händler dieVorgehensweise abstimmen.- Germany D License required for outdoor installations. Check withreseller for procedure to follow.- Italia I E’necessaria la concessione ministeriale anche per l’usointerno. Verificare con i rivenditori la procedura daseguire. L’uso per installazione in esterni non e’permessa.- Italy I License required for indoor use. Use with outdoorinstallations not allowed.- the Netherlands NL License required for outdoor installations. Check withreseller for procedure to follow.- Nederland NL Licentie verplicht voor gebruik met buitenantennes. Neemcontact op met verkoper voor juiste procedure.29
30
31

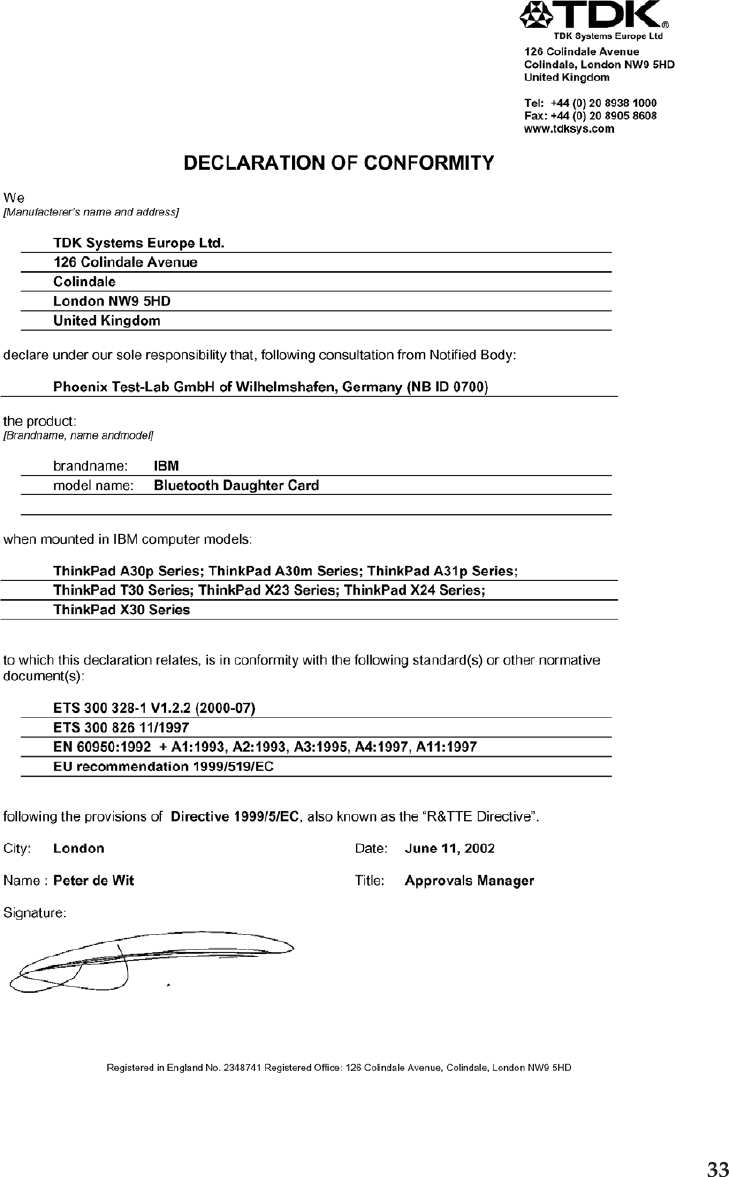

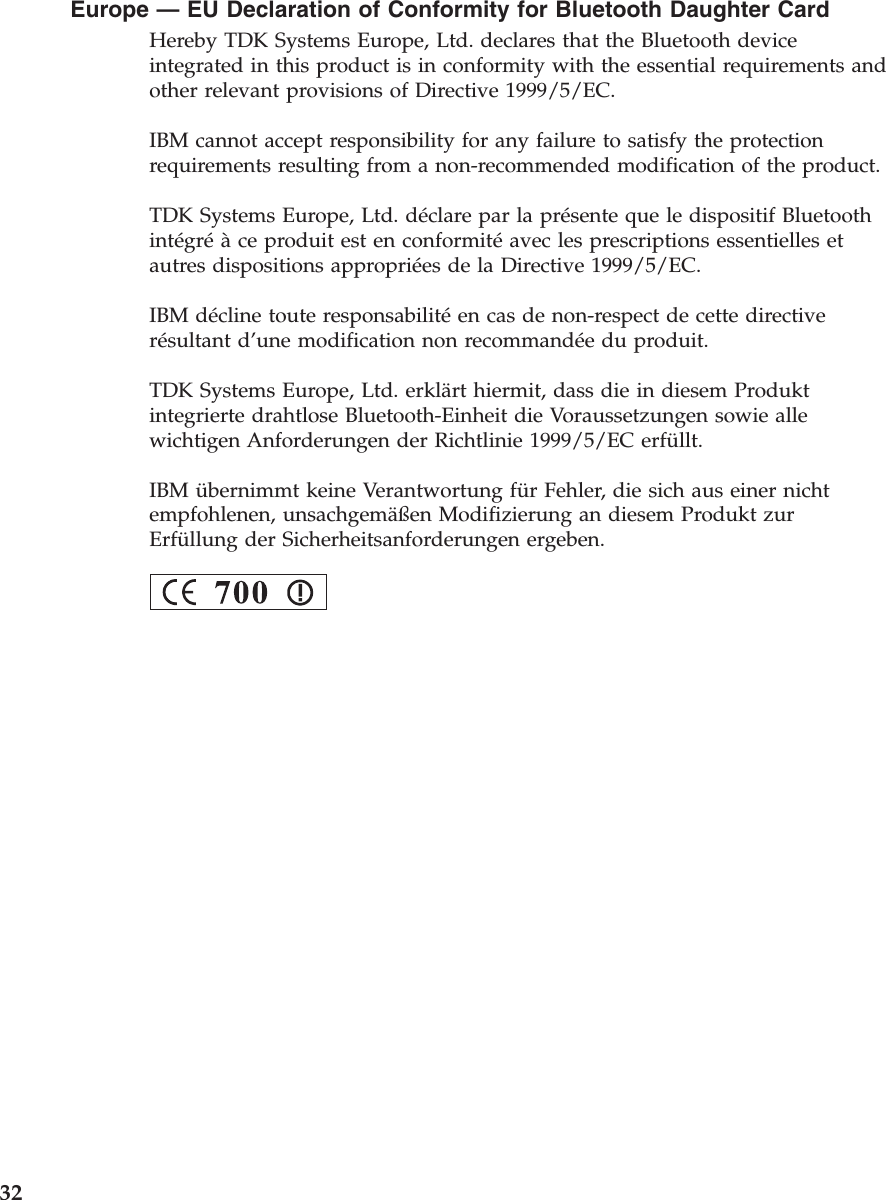

Europe —EU Declaration of Conformity for Bluetooth Daughter CardHereby TDK Systems Europe, Ltd. declares that the Bluetooth deviceintegrated in this product is in conformity with the essential requirements andother relevant provisions of Directive 1999/5/EC.IBM cannot accept responsibility for any failure to satisfy the protectionrequirements resulting from a non-recommended modification of the product.TDK Systems Europe, Ltd. déclare par la présente que le dispositif Bluetoothintégréàce produit est en conformitéavec les prescriptions essentielles etautres dispositions appropriées de la Directive 1999/5/EC.IBM décline toute responsabilitéen cas de non-respect de cette directiverésultant d’une modification non recommandée du produit.TDK Systems Europe, Ltd. erklärt hiermit, dass die in diesem Produktintegrierte drahtlose Bluetooth-Einheit die Voraussetzungen sowie allewichtigen Anforderungen der Richtlinie 1999/5/EC erfüllt.IBM übernimmt keine Verantwortung für Fehler, die sich aus einer nichtempfohlenen, unsachgemäßen Modifizierung an diesem Produkt zurErfüllung der Sicherheitsanforderungen ergeben.32
33

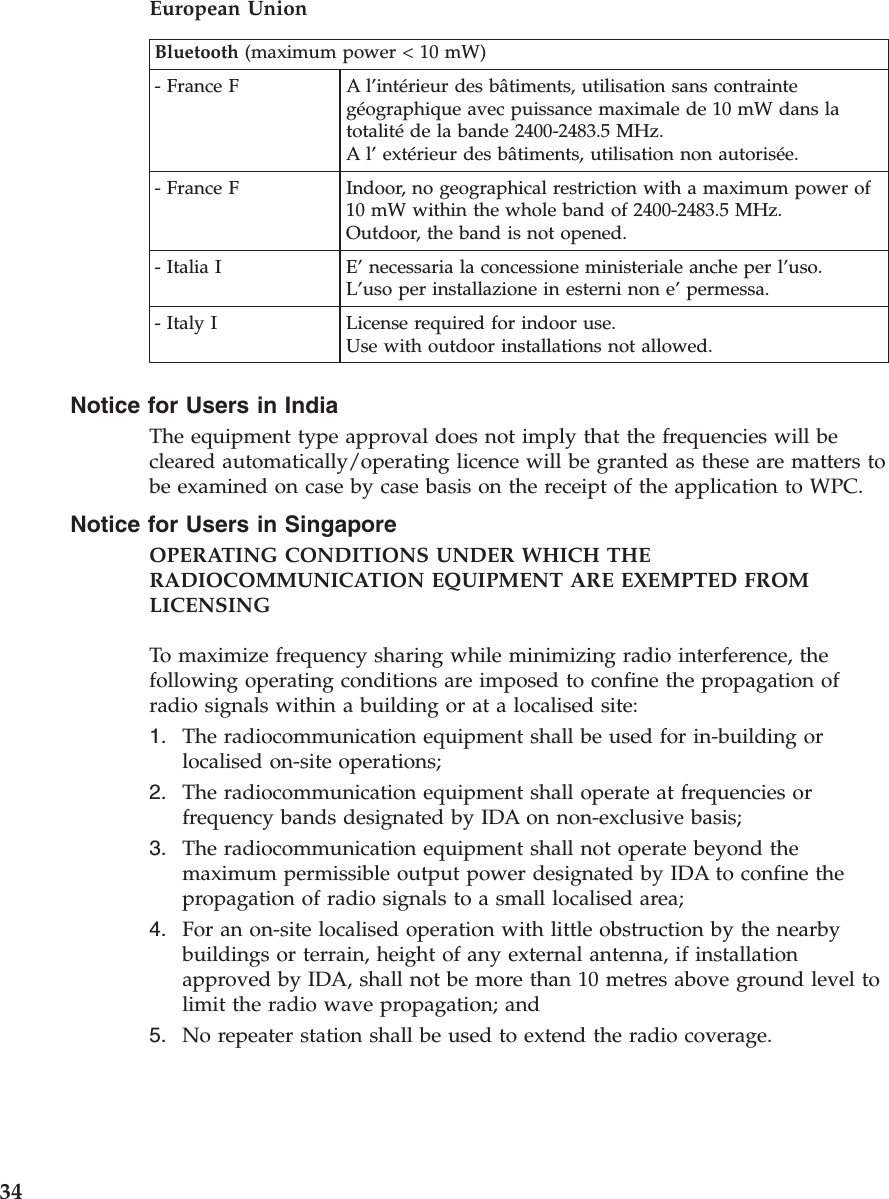

European UnionBluetooth (maximum power < 10 mW)- France F A l’intérieur des bâtiments, utilisation sans contraintegéographique avec puissance maximale de 10 mW dans latotalitéde la bande 2400-2483.5 MHz.Al’extérieur des bâtiments, utilisation non autorisée.- France F Indoor, no geographical restriction with a maximum power of10 mW within the whole band of 2400-2483.5 MHz.Outdoor, the band is not opened.- Italia I E’necessaria la concessione ministeriale anche per l’uso.L’uso per installazione in esterni non e’permessa.- Italy I License required for indoor use.Use with outdoor installations not allowed.Notice for Users in IndiaThe equipment type approval does not imply that the frequencies will becleared automatically/operating licence will be granted as these are matters tobe examined on case by case basis on the receipt of the application to WPC.Notice for Users in SingaporeOPERATING CONDITIONS UNDER WHICH THERADIOCOMMUNICATION EQUIPMENT ARE EXEMPTED FROMLICENSINGTo maximize frequency sharing while minimizing radio interference, thefollowing operating conditions are imposed to confine the propagation ofradio signals within a building or at a localised site:1. The radiocommunication equipment shall be used for in-building orlocalised on-site operations;2. The radiocommunication equipment shall operate at frequencies orfrequency bands designated by IDA on non-exclusive basis;3. The radiocommunication equipment shall not operate beyond themaximum permissible output power designated by IDA to confine thepropagation of radio signals to a small localised area;4. For an on-site localised operation with little obstruction by the nearbybuildings or terrain, height of any external antenna, if installationapproved by IDA, shall not be more than 10 metres above ground level tolimit the radio wave propagation; and5. No repeater station shall be used to extend the radio coverage.34

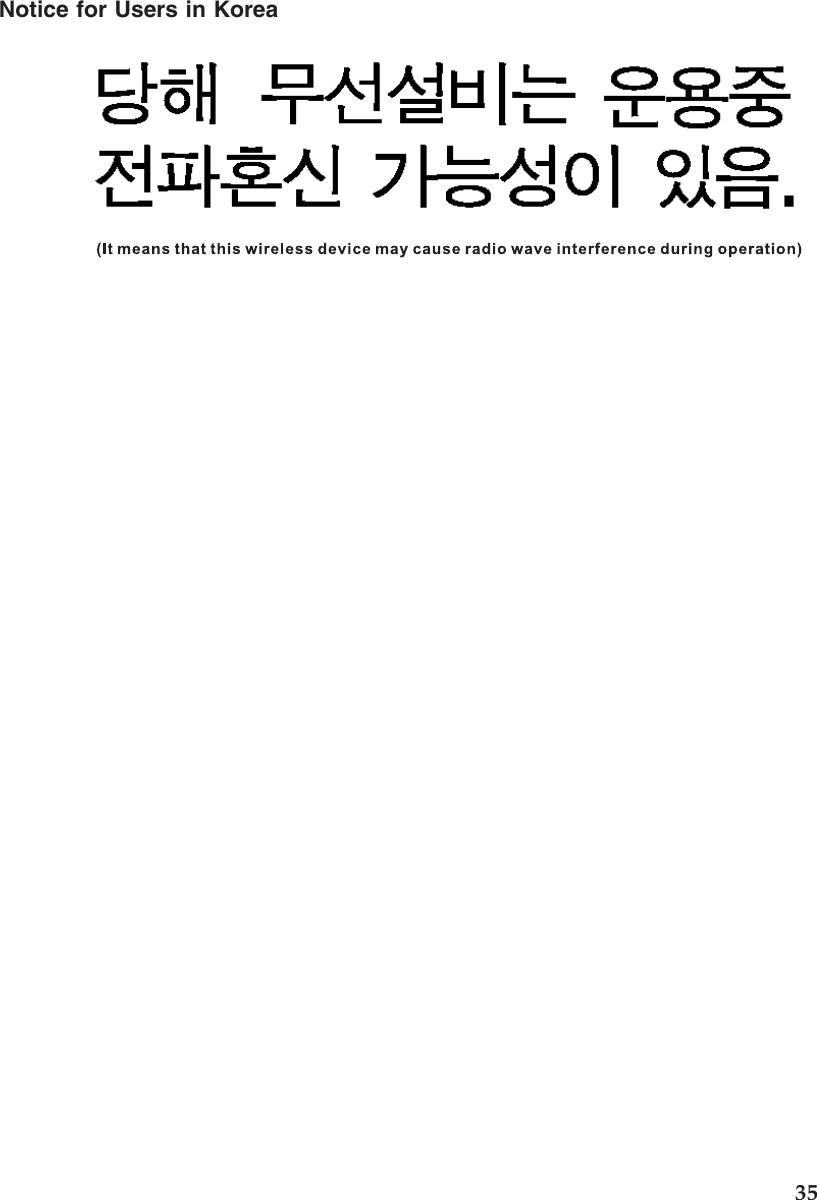

Notice for Users in Korea35
