User Manual II
Secure ◄► Simple ◄► State of the Art
Installation Instructions
Document Number: I-RF-FHW-HW Rev. A
July 2104

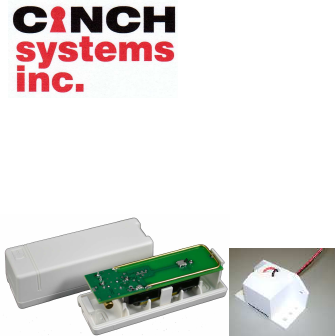

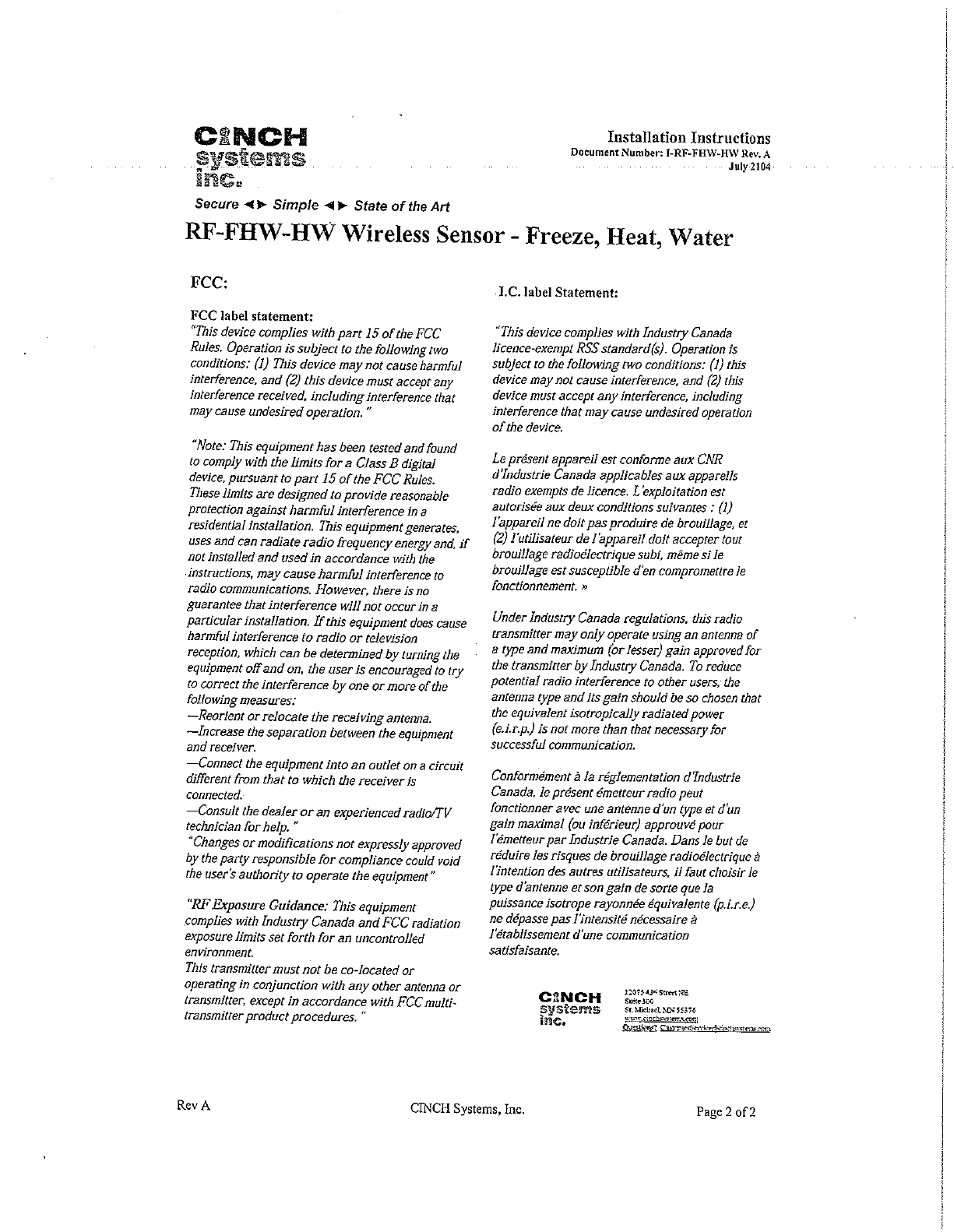

RF-FHW-HW Wireless Sensor - Freeze, Heat, Water
Rev A CINCH Systems, Inc. Page 1 of 2
Part #: RF-FHW-HW (Wireless Freeze, Heat or
Water Sensor)
Product Summary
The Wireless FHW Sensor is compatible with all
Honeywell wireless control panels. The device is
capable of monitoring three environmental items:
Freeze - detects low temperature
Heat - detects high temperature
Water - detects water
Installation:
The sensor is designed with a 6 foot cable
connecting the water detector to the sensor. If used
in a freeze or heat configuration the sensor should
be mount as to provide optimum notification for a
freeze or heat condition.
Wiring:
The water detector is pre-wired to the wireless
sensor, no other wiring is required
Programming:
The sensor had a tab in the battery bucket that must
be removed before programming
See control panel installation instructions for
programming references.
Specifications:
Battery: 3VDC, 1.55Ah,
CR123A Lithium Battery
Typical Battery Life: Up to 14+ Years
External Input Sampling
Current: 20 µA
Switch Type: Magnasphere
Open loop
Operating Gap: 0.63 in (1.60 cm)
Magnet Type: Neodymium
Iron Boron (Rare Earth)
Supervisory Interval:
64 minutes
Wire Run to External Input:
100 feet (30.5 m)
Operating Temperature:
14°F (-10°C) to 140°F (60°C)
Enclosure: ABS POLYLAC® PA-717C
(UL94 HB flame-rating)
Weight: 1.6 oz. (51g)
Switch Dimensions: 3.2 in
(81.3 mm) L x 1.04 in (26.4 mm)
W x .96 in (24.4 mm) H
Magnet Dimensions: 1.3 in
(33 mm) L x 0.5 in (1.27
mm) H x 0.43 in (10.9 mm) W
Color: White or Brown
