Secure ◄► Simple ◄► State of the Art
Installation Instructions
Document Number: I-RF-SDWS-MAG-HW Rev. A
July 2104
RF-SWDS-MAG-HW Wireless Door/Window Sensor
Rev A CINCH Systems, Inc. Page 1 of 3
Part #: RF-SDWS-MAG-HW (Wireless
Door/Window Sensor) - Honeywell compatible
Product Summary
The Wireless Door/Window Sensor is compatible
with all Honeywell wireless control panels. The
device is surface mounted and equipped with an
internal contact and the capability of using an
external contact. A cover tamper doubles as an
enrollment switch. A tamper-proof sensor reduces
the chance of defeating the magnet.

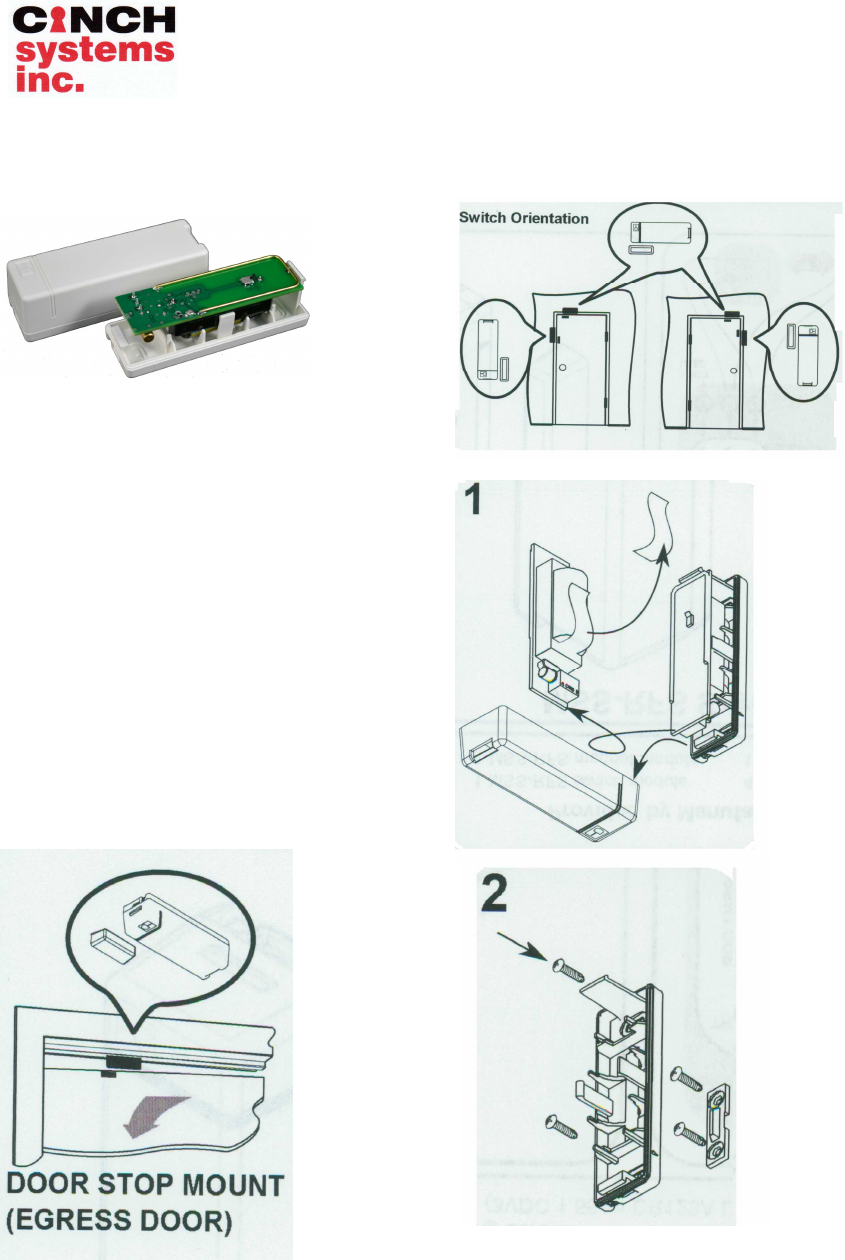

Installation:
The sensor is designed to mount on the door or
window frame and the magnet on the door or
window (moving part).
Secure ◄► Simple ◄► State of the Art
Installation Instructions
Document Number: I-RF-SDWS-MAG-HW Rev. A
July 2104
RF-SWDS-MAG-HW Wireless Door/Window Sensor
Rev A CINCH Systems, Inc. Page 2 of 3

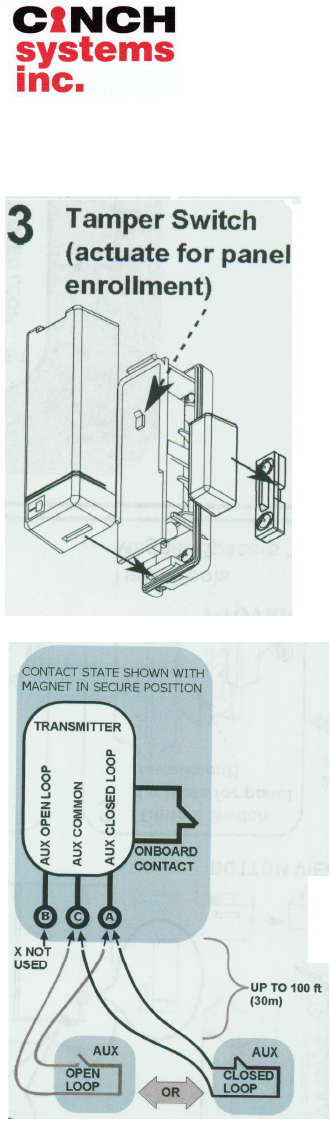

Wiring:
Programming:
See control panel installation instructions for
programming references.
Specifications:
Battery: 3VDC, 1.55Ah,
CR123A Lithium Battery
Typical Battery Life: Up to 14+ Years
External Input Sampling
Current: 20 µA
Switch Type: Magnasphere
Open loop
Operating Gap: 0.63 in (1.60 cm)
Magnet Type: Neodymium
Iron Boron (Rare Earth)
Supervisory Interval:
64 minutes
Wire Run to External Input:
100 feet (30.5 m)
Operating Temperature:
14°F (-10°C) to 140°F (60°C)
Enclosure: ABS POLYLAC® PA-717C
(UL94 HB flame-rating)
Weight: 1.6 oz. (51g)
Switch Dimensions: 3.2 in
(81.3 mm) L x 1.04 in (26.4 mm)
W x .96 in (24.4 mm) H
Magnet Dimensions: 1.3 in
(33 mm) L x 0.5 in (1.27
mm) H x 0.43 in (10.9 mm) W

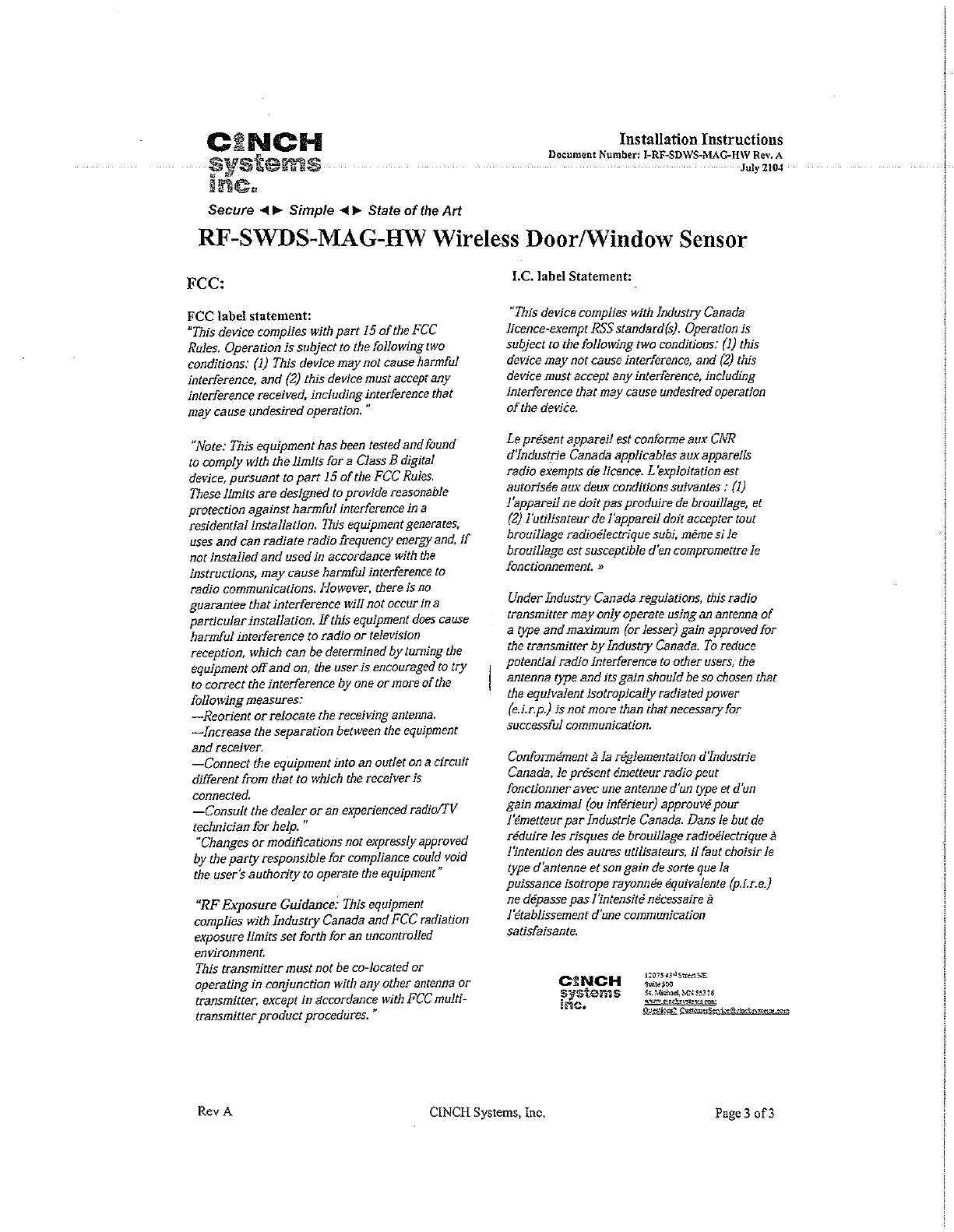

Color: White or Brown
