CAD Audio WX3000R HANDHELD TRANSMITTER User Manual
CAD Audio, LLC HANDHELD TRANSMITTER Users Manual
User Manual
13
Two-Year Limited Warranty
CAD Audio hereby warrants that this product will be free of defects in
material and workmanship for a period of two years from the date of
purchase. In the unlikely event that a defect occurs CAD Audio will, at
its option, either repair or replace with a new unit of equal or greater
value. Retain proof of purchase to validate the purchase date and return
it with any warranty claim.
This warranty excludes exterior nish or appearance, damage from
abuse, misuse of the product, use contrary to CAD Audio’s instructions
or unauthorized repair. All implied warranties, merchantability, or tness
for a particular purpose is hereby disclaimed and CAD Audio hereby
disclaims liability for incidental, special or consequential damages
resulting from the use or unavailability of this product.
This warranty gives you specic legal rights and you may have other
rights that vary from state to state. Some states do not allow the exclusion
or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts, so the above exclusions and
limitations may not apply to you.
Note: No other warranty, written or oral is authorized by CAD Audio.
Shipping Instructions
Please call our customer service department at 440-349-4900 for a
pre-approved return authorization number.
Carefully repack the unit and return the insured package to:
CAD Audio, 6573 Cochran Road, Building I, Solon, Ohio 44139.
RETURNS WITHOUT A PRE-APPROVED RETURN AUTHORIZATION
NUMBER WILL BE REFUSED.
If outside the United States, contact your local dealer or distributor for
warranty details.
112
CADLiveTM WX3000
Introduction
CADLiveTM is designed to outperform your expectations and deliver
exceptional performance. Engineered to compliment the new
generation of exceptional sound systems - The CADLive Series taps our
Equitek studio heritage along with our live sound know-how in creating
an impactful and easy-to-use line of mics.
The CADLive 3000 series feature True Diversity operation to minimize
multipath interference along with CADLock™ Automatic Tone Encoded
Squelch to eliminate unauthorized transmissions in the signal path.
Frequency agile design when partnered with ScanLink™ technology will
precisely scan, select and link to the optimum channel allowing for an
easy, exible frequency plan.
The CADLive handheld transmitter features metal construction and
the CADLive D90 Supercardioid dynamic capsule provides a powerful,
smooth and highly articulate prole. The handheld and body pack
transmitters also include SoftTouch™ multi-function On-Off/Mute
switches. CADLive bodypack transmitters are equipped with CADTone™
circuitry ensuring accurate reproduction of Hi-Z guitar and Lo-Z mic
inputs.
CADLive wireless features 10, 30, 50mW transmitter power adjustment
and dynamic range up to 110dB. Receivers and transmitters are
equipped with a high denition LCD display and full RF, AF, Battery Life,
Mic Sensitivity and RF power metering.
Receivers are housed in an all-metal chassis and supplied with single/
dual rack ears and a BNC relocation kit. Body pack systems include
Equitek E19 earworn and E29 lavalier mics. Both systems are supplied
with a heavy-duty carry case.
The CADLiveTM WX3000 includes the following features:
• True Diversity to minimize multipath interference
• CADLock™ Automatic Tone Encoded Squelch eliminates
unauthorized interference
• Frequency agile operation for maximum frequency plan exibility
• ScanLink™ technology for instantaneous and automatic
channel conguration
• CADTone™ Body Pack input – Optimized Impedance interface -
Hi-Z for Guitar and Lo-Z for mic
• Metal construction Handheld Transmitter equipped with
CADLive™ D90 capsule
• High Contrast LCD displays on TX and RX
• Transmitters feature 10, 30, 50mW power adjustment to aid
in multiple system applications
Individuals with cardiac pacemakers and other similar medical devices
should consult with their physician before using any RF devices.
Though the output level of this wireless system is below 50 milliwatts,
the proximity of the transmitter to the implant device could pose a threat.
As with any wireless product, environmental conditions can reduce or
in some cases prohibit a successful connection between the transmitter
and the receiver.
This device complies with Part 15 of the FCC Rules. Most users of
CAD Audio wireless products in the United States do not need a license
for operation. However, the rules for unlicensed operation state that
this device must not operate in excess of 50 milliwatts and it must not
cause harmful interference to other wireless devices, and must accept
interference received from other devices. Wireless products meeting
CAD factory standards adhere to these rules. The FCC reserves the right
to change these rules at any time. For more information contact the
FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless
microphone website at:
www.fcc.gov/cgb/wirelessmicrophones
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation
of the device.
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d’un type et d’un
gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l’intention des autres utilisateurs, il faut choisir le type d’antenne
et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une
communication satisfaisante.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autoris é e aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
211

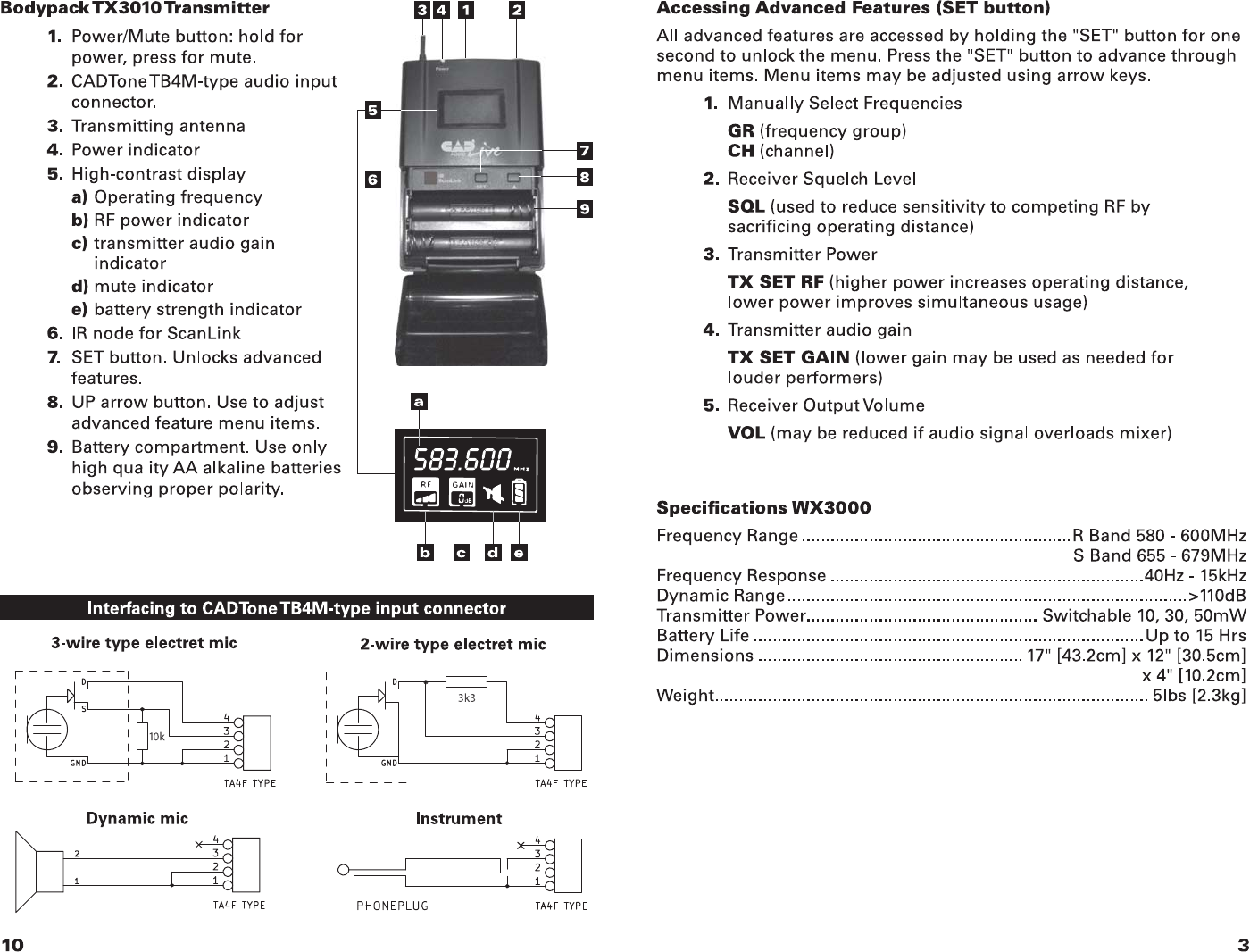

Startup Guide
1. Install new high quality alkaline batteries into transmitter,
observing proper polarity.
2. Power up receiver by holding power button for one second.
3. Hold the SET button for one second to unlock the
receiver menu.
4. Hold the SCAN button for one second to activate the ScanLinkTM
environmental frequency analysis, which automatically selects
a clear operating frequency.
5. Turn on the transmitter by holding the power button
for one second.
6. Open the battery compartment to reveal the IR node.
7. Press the LINK button (note the IR node will illuminate). Align
the two IR nodes (transmitter and receiver) at a distance of
4"-12" (ambient room light can affect distance) for a few
seconds while the receiver updates the transmitter.
Your system is now ScanLink'd.
• Simultaneous usage of up to 15 systems per frequency band
• Dynamic Range > 110dB
• AA Batteries with up to 15 Hrs of battery life
• Systems ship with rack ears single/dual BNC relocation kit and
durable carry case
• BodyPack systems include miniature E19 Earworn, E29 Lav,
WXGTR guitar cable
• XLR and ¼" outputs on receiver
DA4090 DISTRIBUTION AMPLIFIER
LINK
SET
SCAN
IR
ScanLink
LINK
SET
SCAN
IR
ScanLink
LINK
SET
SCAN
IR
ScanLink
LINK
SET
SCAN
IR
ScanLink

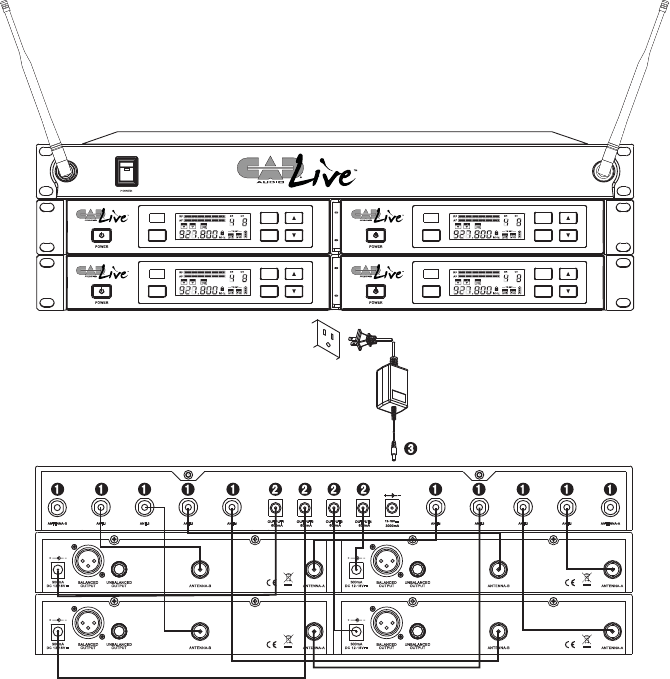

Using the DA4090 Distribution Amplier to Simplify
Multiple-System Installations
1. BNC 50 ohm cable.
2. Power cable.
3. Power adapter.

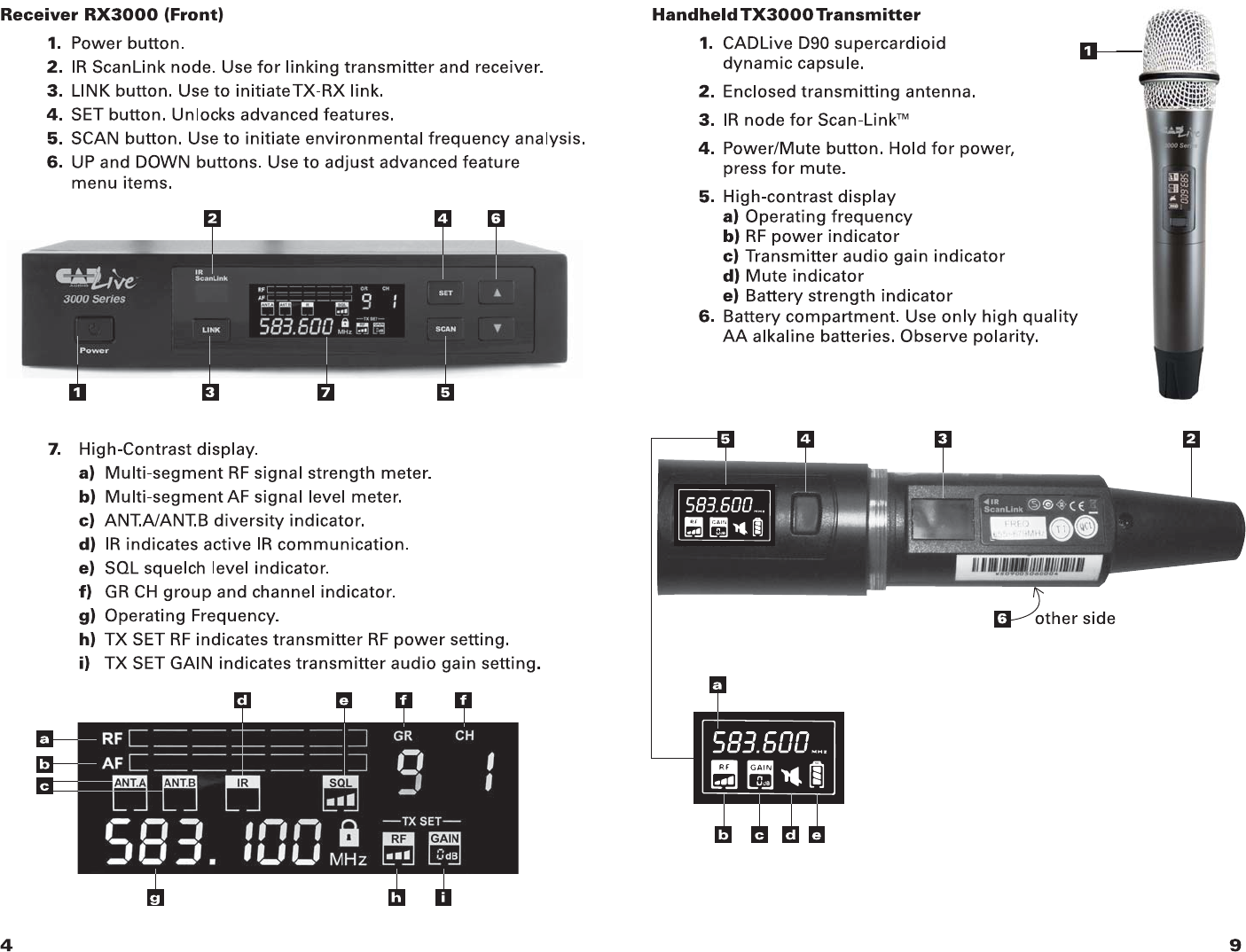

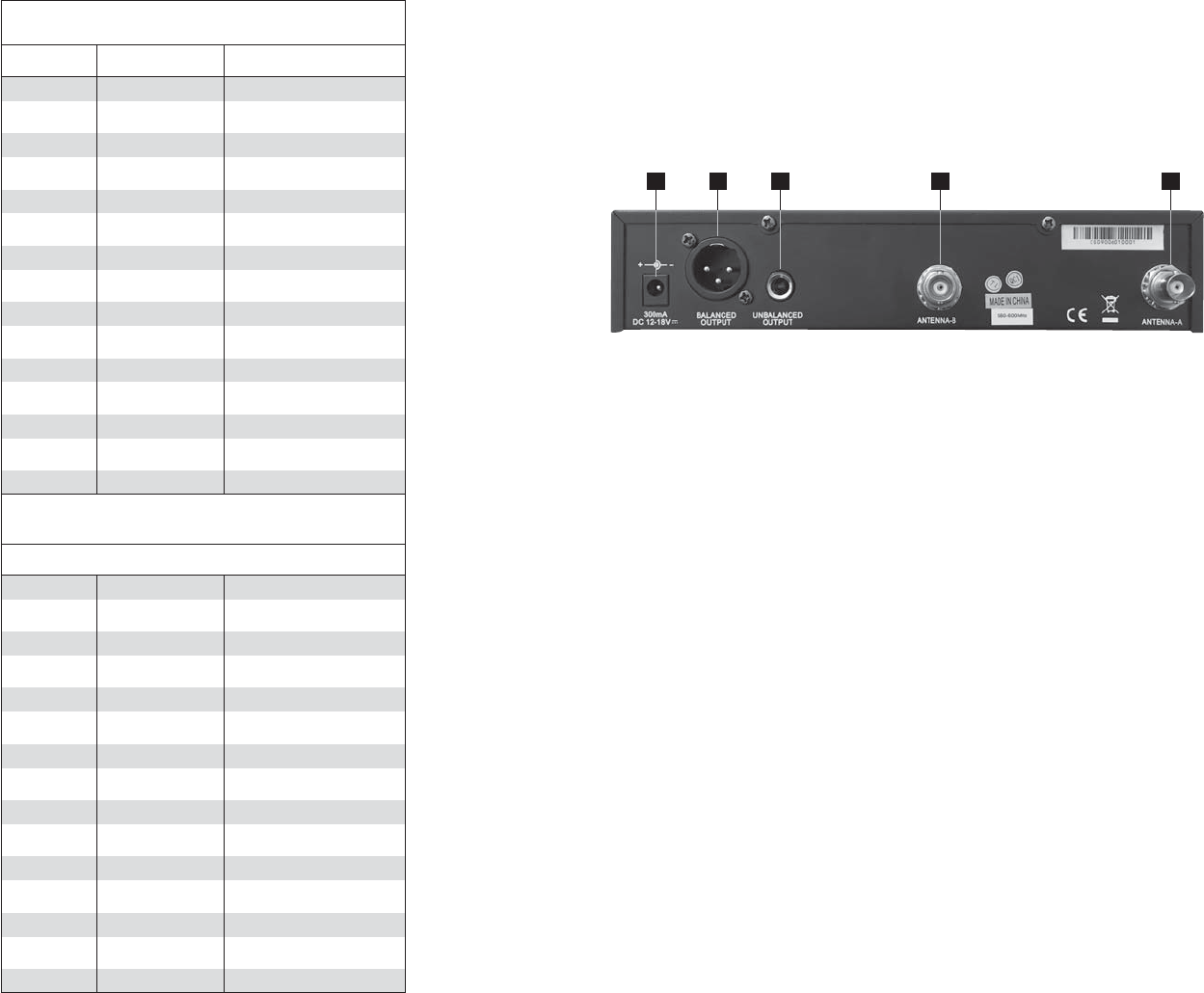

Receiver RX3000 (Rear)
1. DC power input jack. 12-18VDC, 300mA min, center positive.
2. XLRM-type low-impedance balanced audio output.
3. 1/4" [6.35mm] high-level unbalanced ouput
4. BNC 50 ohm antenna inputs.
8
1 2 3 4 4
Simultaneous Use
580 - 600MHz Band R
Group Channel Frequency
1 1 580.000
1 3 584.600
1 9 600.000
3 5 586.900
3 6 588.800
3 7 590.900
3 9 597.400
4 2 581.000
4 3 583.300
4 7 588.600
5 9 598.100
6 1 581.300
6 8 595.700
8 5 591.200
9 9 599.400
Simultaneous Use
655 - 679MHz Band S
Group Channel Frequency
1 1 655.400
1 9 672.275
1 12 677.750
2 1 656.250
2 4 661.725
2 5 663.350
2 10 673.425
2 12 678.600
3 1 655.200
3 5 660.750
5 12 677.225
6 6 668.675
8 2 657.800
8 12 678.900
10 3 661.500
5
6 7
CH Group 1 Group 2 Group 3 Group 4 Group 5
1 580.000 580.600 582.500 580.500 580.800
2 582.200 581.100 583.500 581.000 583.000
3 584.600 582.400 584.900 583.300 584.000
4 586.600 583.400 586.100 584.700 585.400
5 588.500 584.800 586.900 585.900 587.400
6 590.600 586.000 588.800 586.700 589.300
7 593.500 586.800 590.900 588.600 591.400
8 596.500 594.300 594.400 590.700 595.200
9 600.000 597.300 597.400 594.200 598.100
CH Group 6 Group 7 Group 8 Group 9
1 581.300 581.900 582.100 583.100
2 582.800 584.100 583.600 584.200
3 584.500 586.500 584.300 587.300
4 587.100 587.700 585.300 593.300
5 587.900 591.000 591.200 599.200
6 589.800 593.700 593.900 584.400
7 592.700 595.800 596.000 587.500
8 595.700 597.700 597.900 589.500
9 598.200 599.300 599.500 599.400
580 - 600MHz Band R
Channelization
These frequencies have been approved for use within the United States
and Canada as of the date of publication of this manual. It is the user’s
responsibility to comply with local regulations.
CH Group 1 Group 2 Group 3 Group 4 Group 5
1 655.400 656.250 655.200 656.775 656.100
2 658.500 657.500 656.675 659.500 657.225
3 660.575 659.225 657.800 661.200 659.550
4 662.050 661.725 659.450 662.600 661.575
5 664.425 663.350 660.750 663.700 663.900
6 666.200 664.550 663.200 665.250 667.500
7 669.450 667.800 665.325 666.500 668.750
8 670.650 669.575 669.225 670.100 670.300
9 672.275 671.950 671.525 672.425 671.400
10 674.775 673.425 673.575 674.450 672.800
11 676.500 675.500 676.600 675.775 674.500
12 677.750 678.600 678.575 677.900 677.225
CH Group 6 Group 7 Group 8 Group 9 Group 10
1 655.425 655.700 656.550 655.500 657.075
2 657.400 658.800 657.800 656.975 659.800
3 660.425 660.875 659.825 658.100 661.500
4 662.475 662.350 662.025 659.750 662.900
5 664.775 664.725 663.650 660.050 664.000
6 668.675 666.500 664.850 663.500 665.550
7 670.800 669.750 668.100 665.525 666.800
8 673.250 670.950 669.875 669.525 670.400
9 674.550 672.575 672.250 671.825 672.725
10 676.200 675.075 673.725 673.875 674.750
11 677.325 676.800 675.800 676.900 676.075
12 678.800 678.050 678.900 678.875 678.200
655 - 679MHz Band S
FCC WARNING
This device complies with Part 74 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user's authority
to operate the equipment.
NOTE 2: This device complied with FCC radiation exposure limits as set
forth for an uscontrolled environment. This device should be installed
and operated so that its antenna(s) are not co-located or operating in
conjunction with any other antenna or transmitter
