CALTTA TECHNOLOGIES Z9U Digital Portable Radio, UHF DMR User Manual

CALTTA TECHNOLOGIES CO., LTD. Digital Portable Radio, UHF DMR

User Manual

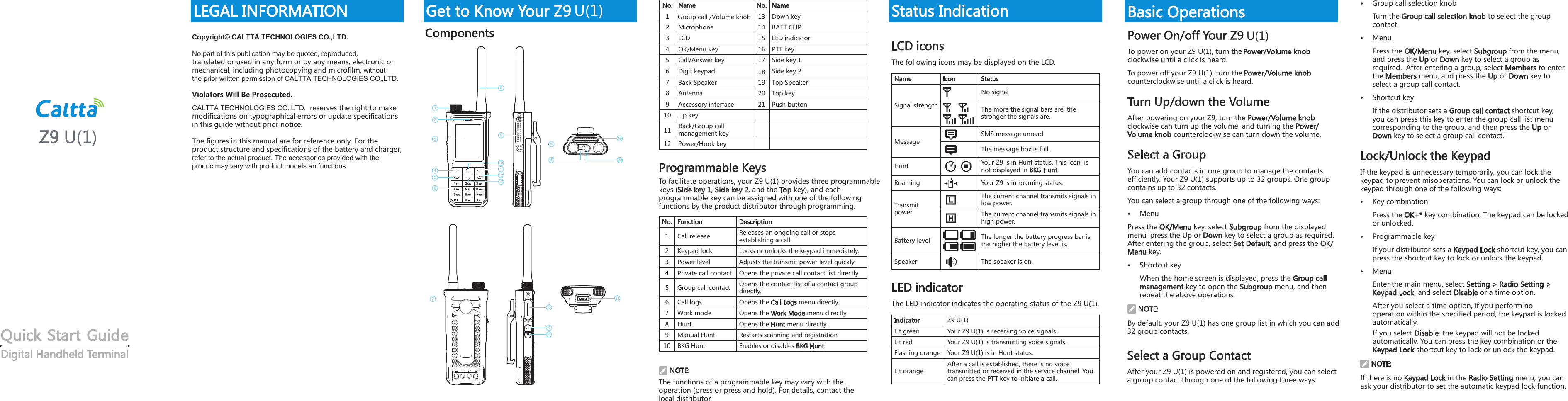

Quick Start GuideDigital Handheld TerminalLEGAL INFORMATIONCopyright© CALTTA TECHNOLOGIES CO.,LTD.1Get to Know Your Z9 No. Name No. Name1Group call /Volume knob 13 Down key2 Microphone 14 BATT CLIP3 LCD 15 LED indicator4 OK/Menu key 16 PTT key5 Call/Answer key 17 Side key 16 Digit keypad 18 Side key 27 Back Speaker 19 Top Speaker8 Antenna 20 Top key9 Accessory interface 21 Push button10 Up key11 Back/Group call management key12 Power/Hook keyProgrammable KeysTo facilitate operations, your Z9 U(1) provides three programmable keys (Side key 1, Side key 2, and the Top key), and each  programmable key can be assigned with one of the following functions by the product distributor through programming.No. Function Description1 Call release Releases an ongoing call or stops establishing a call. 2 Keypad lock Locks or unlocks the keypad immediately.3 Power level Adjusts the transmit power level quickly.4  Private call contact Opens the private call contact list directly.5 Group call contact Opens the contact list of a contact group directly.6 Call logs Opens the Call Logs menu directly.7 Work mode Opens the Work Mode menu directly.8 Hunt Opens the Hunt menu directly.9 Manual Hunt Restarts scanning and registration10 BKG Hunt Enables or disables BKG Hunt. NOTE:The functions of a programmable key may vary with the operation (press or press and hold). For details, contact the local distributor.Status IndicationLCD iconsThe following icons may be displayed on the LCD.Name Icon StatusSignal strengthNo signalThe more the signal bars are, the stronger the signals are.MessageSMS message unreadThe message box is full.Hunt Your Z9 is in Hunt status. This icon  isnot displayed in BKG Hunt. Roaming Your Z9 is in roaming status. Transmit powerThe current channel transmits signals in low power.The current channel transmits signals in high power.Battery level     The longer the battery progress bar is, the higher the battery level is. Speaker The speaker is on. LED indicator The LED indicator indicates the operating status of the Z9 U(1). Indicator Z9 U(1)Lit green Your Z9 U(1) is receiving voice signals.Lit red Your Z9 U(1) is transmitting voice signals. Flashing orange Your Z9 U(1) is in Hunt status.Lit orangeAfter a call is established, there is no voice transmitted or received in the service channel. You can press the PTT key to initiate a call. 2 3 4No part of this publication may be quoted, reproduced,translated or used in any form or by any means, electronic ormechanical, including photocopying and microfilm, withoutthe prior written permission of CALTTA TECHNOLOGIES CO.,LTD.Violators Will Be Prosecuted.Z9 U(1)CALTTA TECHNOLOGIES CO.,LTD.  reserves the right to makemodifications on typographical errors or update specificationsin this guide without prior notice.The figures in this manual are for reference only. For theproduct structure and specifications of the battery and charger, refer to the actual product. The accessories provided with theproduc may vary with product models an functions.714892019151011121321121631718456714892019151011121321121631718456Basic OperationsPower On/off Your Z9To power on your Z9 U(1), turn the Power/Volume knob clockwise until a click is heard. To power off your Z9 U(1), turn the  counterclockwise until a click is heard.Turn Up/down the VolumeAfter powering on your Z9, turn theclockwise can turn up the volume, and turning the Power/Volume knob counterclockwise can turn down the volume. Select a GroupYou can add contacts in one group to manage the contacts efficiently. Your Z9 U(1) supports up to 32 groups. One groupcontains up to 32 contacts. You can select a group through one of the following ways:•  MenuPress the OK/Menu key, select Subgroup from the displayed menu, press the Up or Down key to select a group as required. After entering the group, select Set Default, and press the OK/Menu key. •  Shortcut keyWhen the home screen is displayed, press the Group call management key to open the Subgroup menu, and then repeat the above operations. NOTE:By default, your Z9 U(1) has one group list in which you can add32 group contacts.Select a Group ContactAfter your Z9 U(1) is powered on and registered, you can select a group contact through one of the following three ways:•  Group call selection knobTurn the Group call selection knob to select the group contact.  •  MenuPress the OK/Menu key, select Subgroup from the menu, and press the Up or Down key to select a group as required.  After entering a group, select Members to enter the Members menu, and press the Up or Down key to select a group call contact. •  Shortcut keyIf the distributor sets a Group call contact shortcut key, you can press this key to enter the group call list menu corresponding to the group, and then press the Up or Down key to select a group call contact.Lock/Unlock the Keypad If the keypad is unnecessary temporarily, you can lock the keypad to prevent misoperations. You can lock or unlock the keypad through one of the following ways: •  Key combinationPress the OK+* key combination. The keypad can be locked or unlocked. •  Programmable keyIf your distributor sets a Keypad Lock shortcut key, you can press the shortcut key to lock or unlock the keypad. •  MenuEnter the main menu, select Setting > Radio Setting > Keypad Lock, and select Disable or a time option.After you select a time option, if you perform no operation within the specified period, the keypad is locked automatically. If you select Disable, the keypad will not be locked automatically. You can press the key combination or the Keypad Lock shortcut key to lock or unlock the keypad.  NOTE:If there is no Keypad Lock in the Radio Setting menu, you can ask your distributor to set the automatic keypad lock function. 5 6Power/Volume knob Power/Volume knob U(1)U(1)

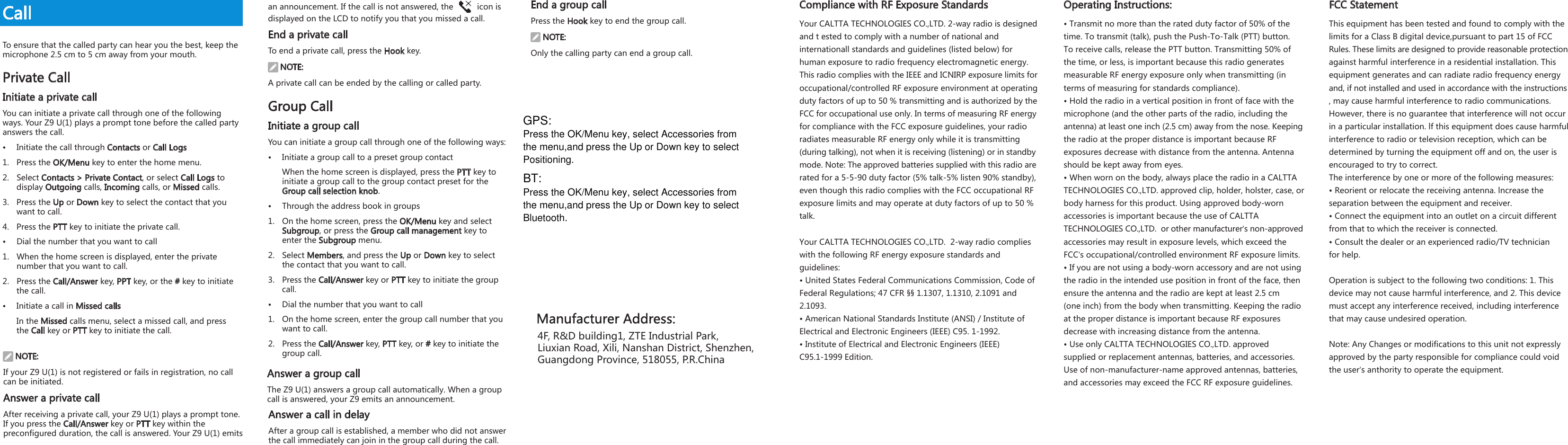

CallTo ensure that the called party can hear you the best, keep the microphone 2.5 cm to 5 cm away from your mouth.Private CallInitiate a private callYou can initiate a private call through one of the following ways. Your Z9 U(1) plays a prompt tone before the called partyanswers the call. •  Initiate the call through Contacts or Call Logs1.  Press the OK/Menu key to enter the home menu. 2.  Select Contacts > Private Contact, or select Call Logs to display Outgoing calls, Incoming calls, or Missed calls.3.  Press the Up or Down key to select the contact that you want to call. 4.  Press the PTT key to initiate the private call. •  Dial the number that you want to call1.  When the home screen is displayed, enter the private number that you want to call.2.  Press the Call/Answer key, PPT key, or the # key to initiate the call.•  Initiate a call in Missed callsIn the Missed calls menu, select a missed call, and press the Call key or PTT key to initiate the call. NOTE:If your Z9 U(1) is not registered or fails in registration, no call can be initiated. Answer a private callAfter receiving a private call, your Z9 U(1) plays a prompt tone. If you press the Call/Answer key or PTT key within the preconfigured duration, the call is answered. Your Z9 U(1) emits an announcement. If the call is not answered, the   icon is displayed on the LCD to notify you that you missed a call. End a private callTo end a private call, press the Hook key. NOTE:A private call can be ended by the calling or called party. Group CallInitiate a group callYou can initiate a group call through one of the following ways: •  Initiate a group call to a preset group contactWhen the home screen is displayed, press the PTT key to initiate a group call to the group contact preset for the Group call selection knob. •  Through the address book in groups1.  On the home screen, press the OK/Menu key and select Subgroup, or press the Group call management key to enter the Subgroup menu.2.  Select Members, and press the Up or Down key to select the contact that you want to call. 3.  Press the Call/Answer key or PTT key to initiate the group call.•  Dial the number that you want to call1.  On the home screen, enter the group call number that you want to call.2.  Press the Call/Answer key, PTT key, or # key to initiate the group call.Answer a group callThe Z9 U(1) answers a group call automatically. When a groupcall is answered, your Z9 emits an announcement. Answer a call in delay After a group call is established, a member who did not answer the call immediately can join in the group call during the call. End a group callPress the Hook key to end the group call. NOTE:Only the calling party can end a group call. 7894F, R&D building1, ZTE Industrial Park, Liuxian Road, Xili, Nanshan District, Shenzhen,Guangdong Province, 518055, P.R.China10 11 12Compliance with RF Exposure StandardsYour CALTTA TECHNOLOGIES CO.,LTD. 2-way radio is designedand t ested to comply with a number of national and internationall standards and guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits foroccupational/controlled RF exposure environment at operatingduty factors of up to 50 % transmitting and is authorized by theFCC for occupational use only. In terms of measuring RF energyfor compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standbymode. Note: The approved batteries supplied with this radio arerated for a 5-5-90 duty factor (5% talk-5% listen 90% standby), even though this radio complies with the FCC occupational RFexposure limits and may operate at duty factors of up to 50 % talk. Your CALTTA TECHNOLOGIES CO.,LTD.  2-way radio complies with the following RF energy exposure standards and guidelines:• United States Federal Communications Commission, Code of Federal Regulations; 47 CFR §§ 1.1307, 1.1310, 2.1091 and 2.1093.• American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992.• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition.Operating Instructions:• Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy exposure only when transmitting (in terms of measuring for standards compliance).• Hold the radio in a vertical position in front of face with the microphone (and the other parts of the radio, including the antenna) at least one inch (2.5 cm) away from the nose. Keepingthe radio at the proper distance is important because RF exposures decrease with distance from the antenna. Antenna should be kept away from eyes.• When worn on the body, always place the radio in a CALTTA TECHNOLOGIES CO.,LTD. approved clip, holder, holster, case, orbody harness for this product. Using approved body-worn accessories is important because the use of CALTTA TECHNOLOGIES CO.,LTD.  or other manufacturer’s non-approvedaccessories may result in exposure levels, which exceed the FCC’s occupational/controlled environment RF exposure limits.• If you are not using a body-worn accessory and are not usingthe radio in the intended use position in front of the face, then ensure the antenna and the radio are kept at least 2.5 cm (one inch) from the body when transmitting. Keeping the radio at the proper distance is important because RF exposures decrease with increasing distance from the antenna.• Use only CALTTA TECHNOLOGIES CO.,LTD. approved supplied or replacement antennas, batteries, and accessories. Use of non-manufacturer-name approved antennas, batteries, and accessories may exceed the FCC RF exposure guidelines.FCC StatementThis equipment has been tested and found to comply with thelimits for a Class B digital device,pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. Thisequipment generates and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occurin a particular installation. lf this equipment does cause harmfulinterference to radio or television reception, which can bedetermined by turning the equipment off and on, the user isencouraged to try to correct.The interference by one or more of the following measures:• Reorient or relocate the receiving antenna. lncrease theseparation between the equipment and receiver.• Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technicianfor help.Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This devicemust accept any interference received, including interferencethat may cause undesired operation.Note: Any Changes or modifications to this unit not expresslyapproved by the party responsible for compliance could voidthe user’s anthority to operate the equipment.GPS: Press the OK/Menu key, select Accessories from the menu,and press the Up or Down key to select  Positioning.BT: Press the OK/Menu key, select Accessories from the menu,and press the Up or Down key to select  Bluetooth.
