to the expe_
Installation Instructions
NOTE: Read the entire instruction manual before starting the
install.
TABLE OF CONTENTS
PAGE
INTRODUCTION ................................... 1
HOW IT WORKS ................................... 1
SAFETY CONSIDERATIONS ......................... 1
APPLICATION CONSIDERATIONS .................... 2
INSTALLATION .................................... 3
START-UP AND OPERATION ........................ 6
MAINTENANCE .................................... 6
TROUBLESHOOTING ............................... 8
SPECIFICATIONS AND DIMENSIONS ................. 9
WARRANTY ...................................... 11
INTRODUCTION
Congratulations for selecting the Infinity Air Purifier for your
home comfort system! The Infinity Air Purifier is proven to
remove and kill airborne germs and allergens, including viruses,
bacteria, and mold spores. The Infinity Air Purifier is a cornerstone
of Carrier's Healthy Home Solutions for providing healthier,
cleaner air in your home.
HOW IT WORKS
The Infinity Air Purifier provides extremely high filtration
performance while killing captured contaminants, including
viruses, bacteria, and mold spores. The Infinity Air Purifier treats
the entire air-stream through a state of the art, three-stage process,
exclusive to Carrier.
In stage one, the particles are electrically charged by a
precision-point ionization array as they enter the Infinity Air
Purifier.
In stage two, the charged particles are electrically attracted to the air
purification cartridge, which is located within an electric field.
In stage three, captured particles are killed by electrical current
flow and ion bombardment.
The Infinity Air Purifier is CSA certified for shock and electrical
fire hazard only.
La Infinity Air Purifier certification CSA vise uniquement les
risques de choc electrique et.
Fig. 1 - GAPAB Unit
A06377
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury or property
damage. Consult a qualified installer, service agency or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory-authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings and cautions
included in literature and attached to the unit. Consult local
building codes and the current edition of the National Electrical
Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical
Code CSA C22.1.
Recognize safety information. When you see this symbol /_ on
the unit and in instructions or manuals, be alert to the potential for
personal iniury. Understand the signal words DANGER,
WARNING, and CAUTION. These words are used with the
safety-alert symbol. DANGER identifies the most serious hazards,
which will result in severe personal iniury or death. WARNING
signifies hazards, which could result in personal iniury or death.
CAUTION is used to identify unsafe practices, which may result
in minor personal iniury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.
H
PERSONAL INJURY HAZARD
Failure to follow this caution may result in personal injury.
Ozone in concentrations above 0.05 PPM may be hazardous
to health.
Des concentrations d'ozone superieures a 0.05 PPM peuvent
etre nocives pour la sante.
APPLICATION CONSIDERATIONS
The Infinity Air Purifier is designed for use in the return air duct of
a forced air heating, cooling, and ventilation system. Models
GAPABXCCI620, GAPABXCC2020 and GAPABXCC2420 are
specifically designed for use in systems with a fan coil.
Air Conditioning
The Infinity Air Purifier should be installed in a system so that all
the return air is circulated through the air purifier. It should be
located upstream of the fan coil This will help keep the fan coil
clean and prevent condensation from forming within the Infinity
Air Purifier.
Humidifiers
An ev@orative humidifier can be mounted upstream of the Infinity
Air Purifier. It is best to install atomizing humidifiers downstream
of the air purifier because hard water salt deposits and water
droplets may damage the air purifier. If an atomizing humidifier
must be mounted upstream of the Infinity Air Purifier, it should be
mounted as far upstream as possible (at least 6 ft. recommended),
and a standard disposable furnace filter should be mounted
between the humidifier and the air purifier to trap hard water salt
deposits and water droplets.
Transitions
If the return air duct or fan coil openings do not fit the Infinity Air
Purifier cabinet openings, gradual transitions are recommended to
reduce air turbulence and maximize efficiency. No more than 20
degrees (about 4 in. per running ft.) of expansion should be used
on each side of the transition fitting.
Turning Vanes
If the Infinity Air Purifier is installed adjacent to a 90 degree duct
elbow, turning vanes should be added inside duct to improve air
distribution across the face of the air purifier.
Electrical Power /Air Flow Sensor
The Infinity Air Purifier should only be powered when airflow is
present. This model is designed for use with a fan coil and is
equipped with an air flow sensor which provides power only when
the fan coil blower is operating (See Fig. 2). Infinity Air Purifier
models GAPABXCC1620, GAPABXCC2020, and
GAPABXCC2420 are designed to be powered from a 208/230
VAC power source.
Fig. 2 - Air Flow Sensor
A06387
Door (xl) Cabinet (xl) Air Purification Cartridge (xl) Enhancement Module (xl) Safety Screen (xl)
Installation Manual Return Duct Adapters:
Long (x2) /Short (x2)
Air Flow Sensor (xl)
Fig. 3 - Infinity Air Purifier Components
(x21
(xl) (x2)
Installation Components
(in bag attached to power cord)
A07111

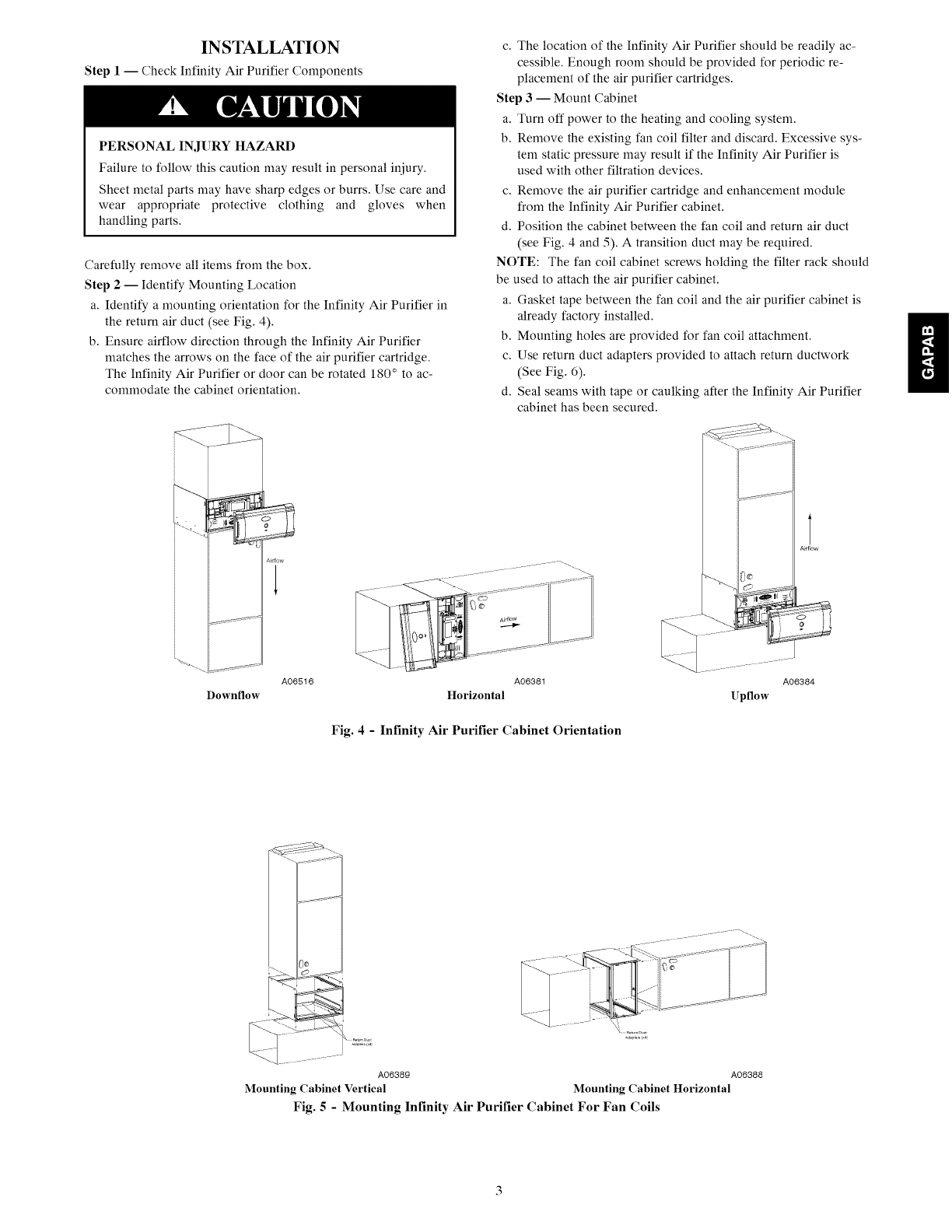

INSTALLATION
Step 1 -- Check Infinity Air Purifier Components
PERSONAL INJURY HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care and
wear appropriate protective clothing and gloves when
handling parts.
Carefully remove all items from the box.
Step 2 -- Identify Mounting Location
a. Identify a mounting orientation for the Infinity Air Purifier in
the return air duct (see Fig. 4).
b. Ensure airflow direction through the Infinity Air Purifier
matches the arrows on the face of the air purifier cartridge.
The Infinity Air Purifier or door can be rotated 180 ° to ac-
commodate the cabinet orientation.
A06516 A06381
Downflow Horizontal
c. The location of the Infinity Air Purifier should be readily ac-
cessible. Enough room should be provided for periodic re-
placement of the air purifier cartridges.
Step 3 -- Mount Cabinet
a. Turn off power to the heating and cooling system.
b. Remove the existing fan coil filter and discard. Excessive sys-
tem static pressure may result if the Infinity Air Purifier is
used with other filtration devices.
c. Remove the air purifier cartridge and enhancement module
from the Infinity Air Purifier cabinet.
d. Position the cabinet between the fan coil and return air duct
(see Fig. 4 and 5). A transition duct may be required.
NOTE: The fan coil cabinet screws holding the filter rack should
be used to attach the air purifier cabinet.
a. Gasket tape between the fan coil and the air purifier cabinet is
already factory installed.
b. Mounting holes are provided for fan coil attachment.
c. Use return duct adapters provided to attach return ductwork
(See Fig. 6).
d. Seal seams with tape or caulking after the Infinity Air Purifier
cabinet has been secured.
A06384
Upflow
Fig. 4-Infinity Air Purifier Cabinet Orientation
g
A06389 A06388
Mounting Cabinet Vertical Mounting Cabinet Horizontal
Fig. 5 - Mounting Infinity Air Purifier Cabinet For Fan Coils

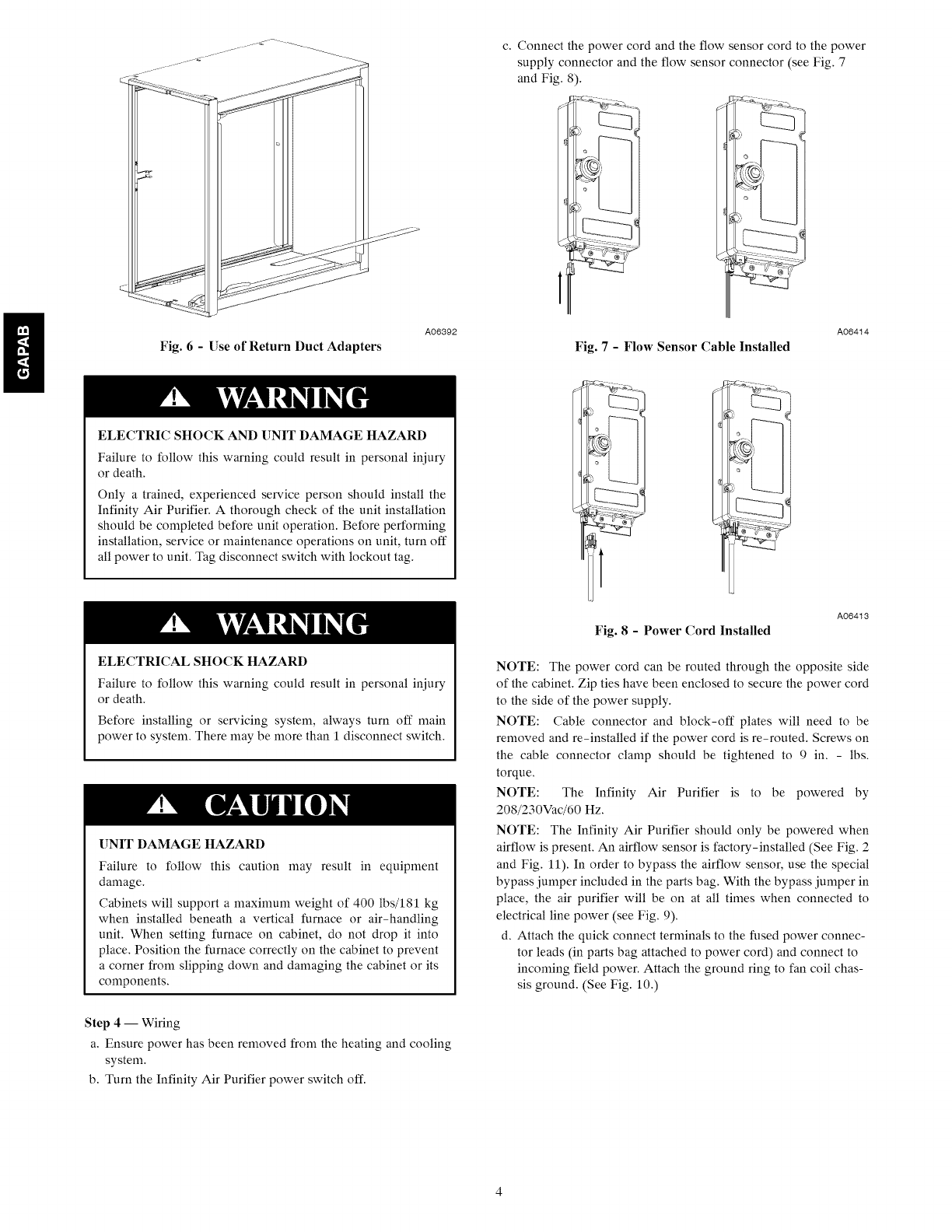

HFig. 6 - Use of Return Duct Adapters
A06392
c. Connect the power cord and the flow sensor cord to the power
supply connector and the flow sensor connector (see Fig. 7
and Fig. 8).
o
o
A06414
Fig. 7 -Flow Sensor Cable Installed
ELECTRIC SHOCK AND UNIT DAMAGE HAZARD
Failure to follow this warning could result in personal injury
or death.
Only a trained, experienced service person should install the
Infinity Air Purifier. A thorough check of the unit installation
should be completed before unit operation. Before performing
installation, service or maintenance operations on unit, turn off
all power to unit. Tag disconnect switch with lockout tag.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury
or death.
Before installing or servicing system, always turn off main
power to system. There may be more than 1 disconnect switch.
[]NIT DAMAGE HAZARD
Failure to follow this caution may result in equipment
damage.
Cabinets will support a maximum weight of 400 lbs/181 kg
when installed beneath a vertical furnace or air-handling
unit. When setting furnace on cabinet, do not drop it into
place. Position the furnace correctly on the cabinet to prevent
a corner from slipping down and damaging the cabinet or its
components.
Step 4 -- Wiring
a. Ensure power has been removed from the heating and cooling
system.
b. Turn the Infinity Air Purifier power switch off.
Fig. 8 - Power Cord Installed
A06413
NOTE: The power cord can be routed through the opposite side
of the cabinet. Zip ties have been enclosed to secure the power cord
to the side of the power supply.
NOTE: Cable connector and block-off plates will need to be
removed and re-installed if the power cord is re-routed. Screws on
the cable connector clamp should be tightened to 9 in. - lbs.
torque.
NOTE: The Infinity Air Purifier is to be powered by
208/230Vac/60 Hz.

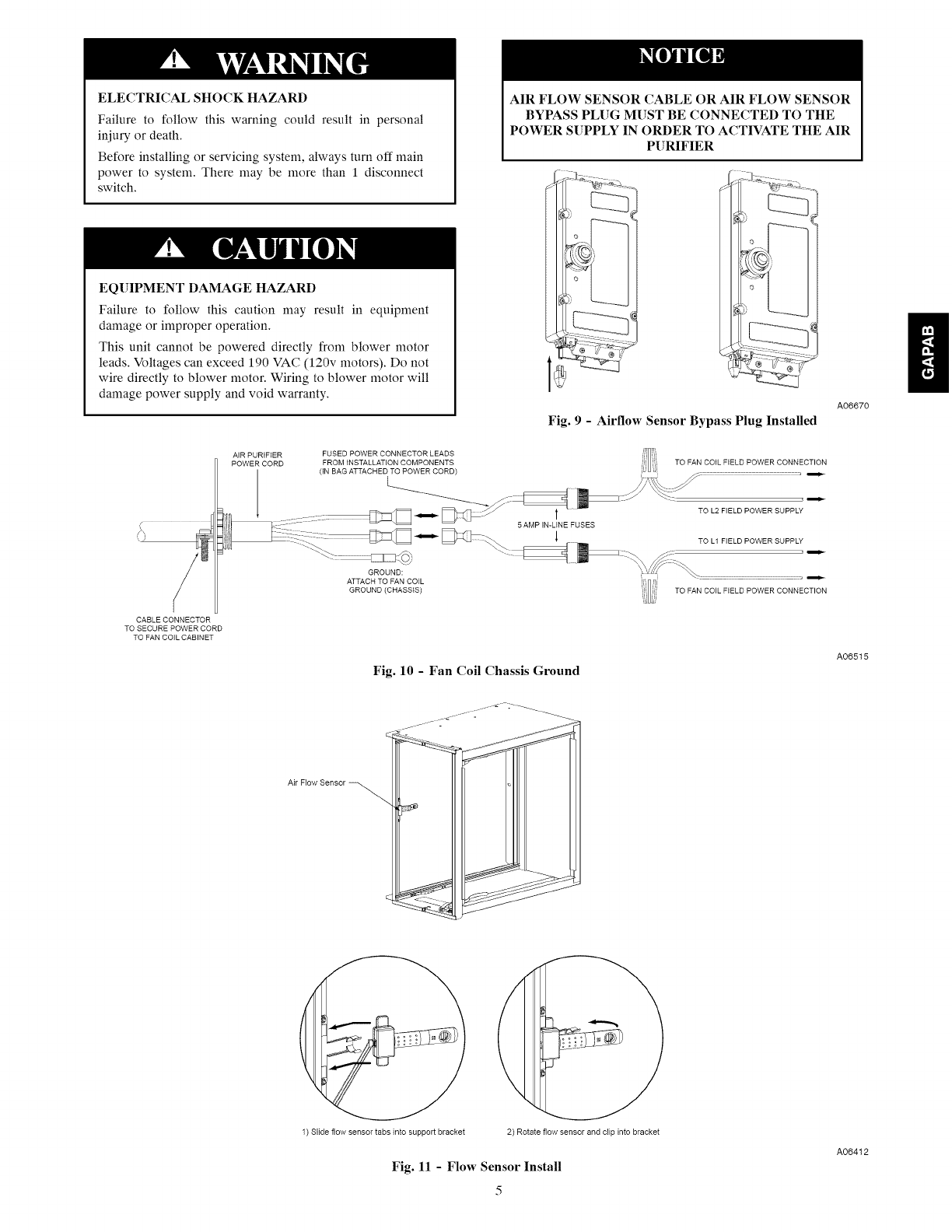

NOTE: The Infinity Air Purifier should only be powered when
airflow is present. An airflow sensor is factory-installed (See Fig. 2
and Fig. 11). In order to bypass the airflow sensor, use the special
bypass jumper included in the parts bag. With the bypass jumper in
place, the air purifier will be on at all times when connected to
electrical line power (see Fig. 9).
d. Attach the quick connect terminals to the fused power connec-
tor leads (in parts bag attached to power cord) and connect to
incoming field power. Attach the ground ring to fan coil chas-
sis ground. (See Fig. 10.)
ELECTRICALSHOCKHAZARD
Failure to follow this warning could result in personal
iniury or death.
Before installing or servicing system, always turn off main
power to system. There may be more than 1 disconnect
switch.
EQUIPMENT DAMAGE HAZARD
Failure to follow this caution may result in equipment
damage or improper operation.
This unit cannot be powered directly from blower motor
leads. Voltages can exceed 190 VAC (120v motors). Do not
wire directly to blower motor. Wiring to blower motor will
damage power supply and void warranty.
AIR PURIFIER
POWER CORD
AIR FLOW SENSOR CABLE OR AIR FLOW SENSOR
BYPASS PLUG MUST BE CONNECTED TO THE
POWER SUPPLY IN ORDER TO ACTIVATE THE AIR
PURIFIER
o
A06670
Fig. 9 -Airflow Sensor Bypass Plug Installed
g
CABLE CONNECTOR
TO SECURE POWER CORD
TO FAN COIL CABINET
. TOL1F,ELDPOWERSUPPL
GROUND: _ _ i_-
ATTACH TO FAN COIL
GROUND (CHASSIS) TO FAN COIL FIELD POWER CONNECTION
Fig. 10 -Fan Coil Chassis Ground
Air Flow Sensor
A06515
1) Slide flow sensor tabs into support bracket 2) Rotate flow sensor and clip into bracket
Fig. 11 -Flow Sensor Install
5
A06412

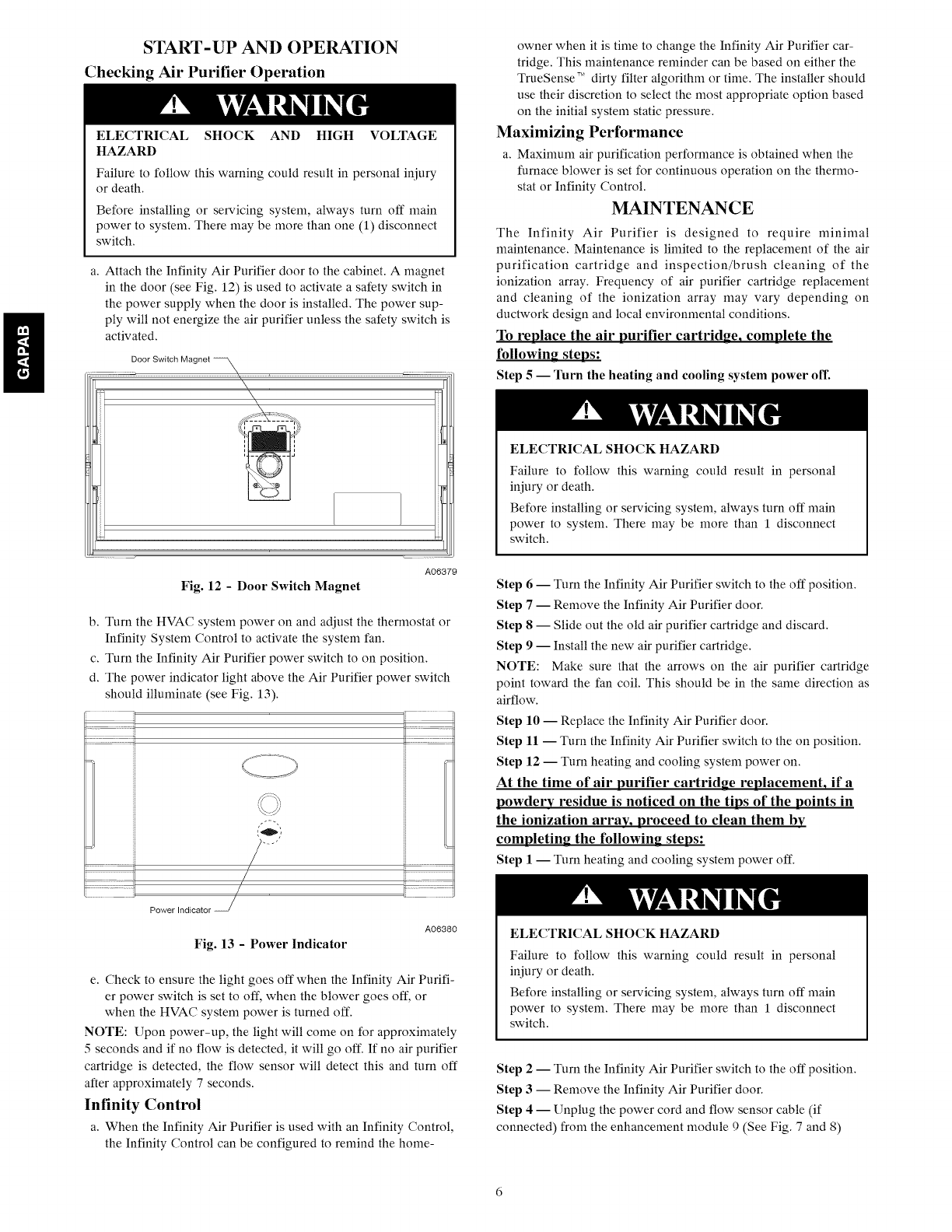

START-UP AND OPERATION
Checking Air Purifier Operation
ELECTRICAL SHOCK AND HIGH VOLTAGE
HAZARD
Failure to follow this warning could result in personal injury
or death.
Before installing or servicing system, always turn off main
power to system. There may be more than one (1) disconnect
switch.
a. Attach the Infinity Air Purifier door to the cabinet. A magnet
in the door (see Fig. 12) is used to activate a safety switch in
the power supply when the door is installed. The power sup-
ply will not energize the air purifier unless the safety switch is
activated.
A06379
Fig. 12 - Door Switch Magnet
b. Turn the HVAC system power on and adjust the thermostat or
Infinity System Control to activate the system fan.
c. Turn the Infinity Air Purifier power switch to on position.
d. The power indicator light above the Air Purifier power switch
should illuminate (see Fig. 13).
//'_'"
//
Power Indicator
Fig. 13 - Power Indicator
i[.........................................
A06380
e. Check to ensure the light goes off when the Infinity Air Purifi-
er power switch is set to off, when the blower goes off, or
when the HVAC system power is turned off.
NOTE: Upon power-up, the light will come on for approximately
5seconds and if no flow is detected, it will go off. If no air purifier
cartridge is detected, the flow sensor will detect this and turn off
after approximately 7 seconds.
Infinity Control
a. When the Infinity Air Purifier is used with an Infinity Control,
the Infinity Control can be configured to remind the home-
owner when it is time to change the Infinity Air Purifier car-
tridge. This maintenance renfinder can be based on either the
TrueSense TM dirty filter algorithm or time. The installer should
use their discretion to select the most appropriate option based
on the initial system static pressure.
Maximizing Performance
a. Maximum air purification performance is obtained when the
furnace blower is set for continuous operation on the thermo-
stat or Infinity Control.
MAINTENANCE
The Infinity Air Purifier is designed to require minimal
maintenance. Maintenance is linfited to the replacement of the air
purification cartridge and inspection/brush cleaning of the
ionization array. Frequency of air purifier cartridge replacement
and cleaning of the ionization array may vary depending on
ductwork design and local environmental conditions.
To replace the air purifier cartridge, complete the
following steps:
Step 5 -- Turn the heating and cooling system power off.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
iniury or death.
Before installing or servicing system, always turn off main
power to system. There may be more than 1 disconnect
switch.
Step 6-- Turn the Infinity Air Purifier switch to the off position,
Step 7 -- Remove the Infinity Air Purifier door.
Step 8 -- Slide out the old air purifier cartridge and discard,
Step 9 -- Install the new air purifier cartridge.
NOTE: Make sure that the arrows on the air purifier cartridge
point toward the fan coil. This should be in the same direction as
airflow.
Step 10 -- Replace the Infinity Air Purifier door.
Step 11 -- Turn the Infinity Air Purifier switch to the on position,
Step 12 -- Turn heating and cooling system power on.
At the time of air purifier cartridge replacement, if a
powdery residue is noticed on the tips of the points in
the ionization array, proceed to clean them by
completing the following steps:
Step 1 -- Turn heating and cooling system power off.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
iniury or death.
Before installing or servicing system, always turn off main
power to system. There may be more than 1 disconnect
switch.
Step 2 -- Turn the Infinity Air Purifier switch to the off position,
Step 3 -- Remove the Infinity Air Purifier door.
Step 4 -- Unplug the power cord and flow sensor cable (if
connected) from the enhancement module 9 (See Fig. 7 and 8)
Step 5 -- Slide out the enhancement module assembly and safety
screen.
PERSONAL INJURY HAZARD
Failure to follow this caution may result in personal injury.
Sheet metal parts may have sharp edges or burrs. Use care and
wear appropriate protective clothing and gloves when
handling parts.
Step 6 -- Slide out the Safety Screen and set aside.
NOTE: Best cleaning tools: 5 inch handle paint brush with 2 inch
width (or greater) brush point (synthetic or natural bristle) (See Fig.
14) or vacuum cleaner with brush attachment.
Step 7-- Gently stroke the ionization pins on the top plane of
each bar with enough brush depth to hit front and back tips of the
points in the ionization array. Use a gentle back and forth brushing
motion to clean any small accunmlations from the tips of the
points. If desired, use vacuum cleaner with brush attachment to
gently vacuum the frame and components of enhancement module.
Step 8 -- Reinstall the Safety Screen.
Step 9 -- Slide in enhancement module.
Step 10 -- Reconnect the power cord and flow sensor cable.
Step 11 -- Replace the Infinity Air Purifier Door
Step 12 -- Turn the Infinity Air Purifier switch to the on position,
Step 13 -- Turn heating and cooling system power on.
g
30 °
POINTS ARE SHARP! BE VERY CAREFUL DURING CLEANING.
Tip of point with residue Tip of point after cleaning

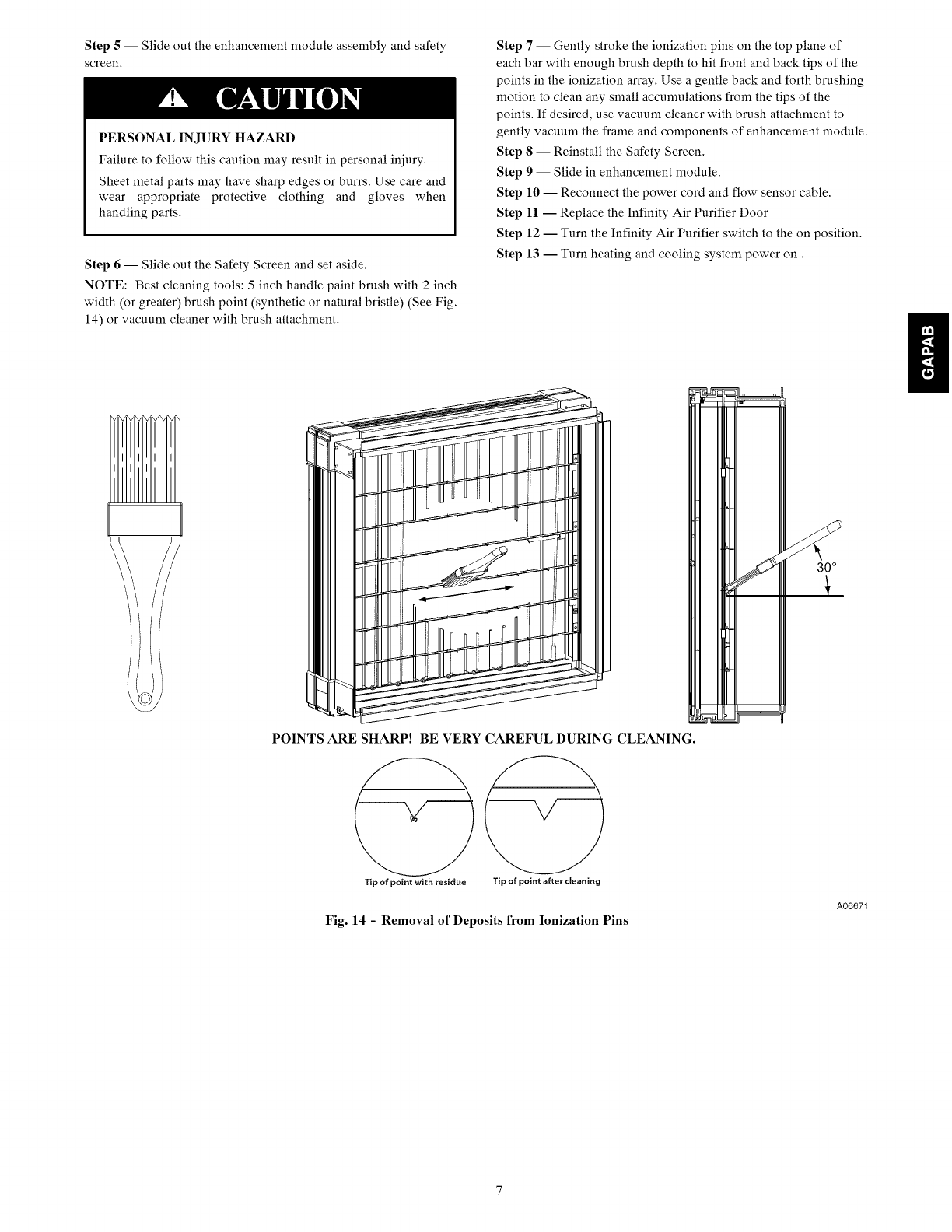

Fig. 14 -Removal of Deposits from Ionization Pins
A06671
H
TROUBLESHOOTING
SAFETY HAZARD
Failure to follow this caution may result in personal injury or
equipment damage.
The following instructions are for use by qualified personnel
only.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury
or death.
The following procedures will expose electrical components.
Disconnect power between checks and proceed carefully.
The Infinity Air Purifier is equipped with a power indicator light
located on the door (see Fig. 13). This power indicator light will
illuminate when the Infinity Air Purifier door is installed, the
power switch is in the on position, AND the fan coil blower is
running and airflow is sensed. If the power indicator light is not
illuminated, follow the troubleshooting steps below.
Step 1 -- Check that the Infinity Air Purifier door is installed.
NOTE: A magnet in the door (see Fig. 8) is used to activate a
safety switch in the power supply when the door is installed, The
power supply will not energize the air purifier unless the safety
switch is activated,
Step 2 -- Check that the Infinity Air Purifier power switch is in the
on (closed) position.
Step 3 -- Confirm that the fan coil blower is operating.
Step 4 -- Confirm that 208/230 VAC power is provided. Attach
power supply connector to the air purifier when the fan coil blower
is operating.
NOTE: Even though power is supplied to the Infinity Air Purifier,
it will not turn on unless the airflow sensor senses airflow or the
airflow sensor's bypass plug is inserted,
Step 5-- Confirm that the airflow sensor cable or airflow sensor
bypass plug is connected to the power supply (See Fig. 7).
Step 6 -- If still not functioning, disconnect the airflow sensor
cable and the power cord from the power supply.
Remove the enhancement module from the air purifier cabinet and
inspect the airflow sensor (See Fig. 11).
Confirm the airflow sensor is properly seated in its bracket and the
airflow sensor cable is connected to the back of the sensor.
Replace the enhancement module.
Step 7 -- Reconnect the power cord to the power supply and insert
the airflow sensor disable jumper (from parts bag).
If the power indicator light illuminates, then replace the airflow
sensor.
Install the door onto the air purifier and turn the power switch to
the "ON" position.
Step 8 -- If all of the above steps are completed and the power
indicator light is still not illuminating, replace the power supply on
the enhancement module. Note that there are no serviceable parts
within the power supply.

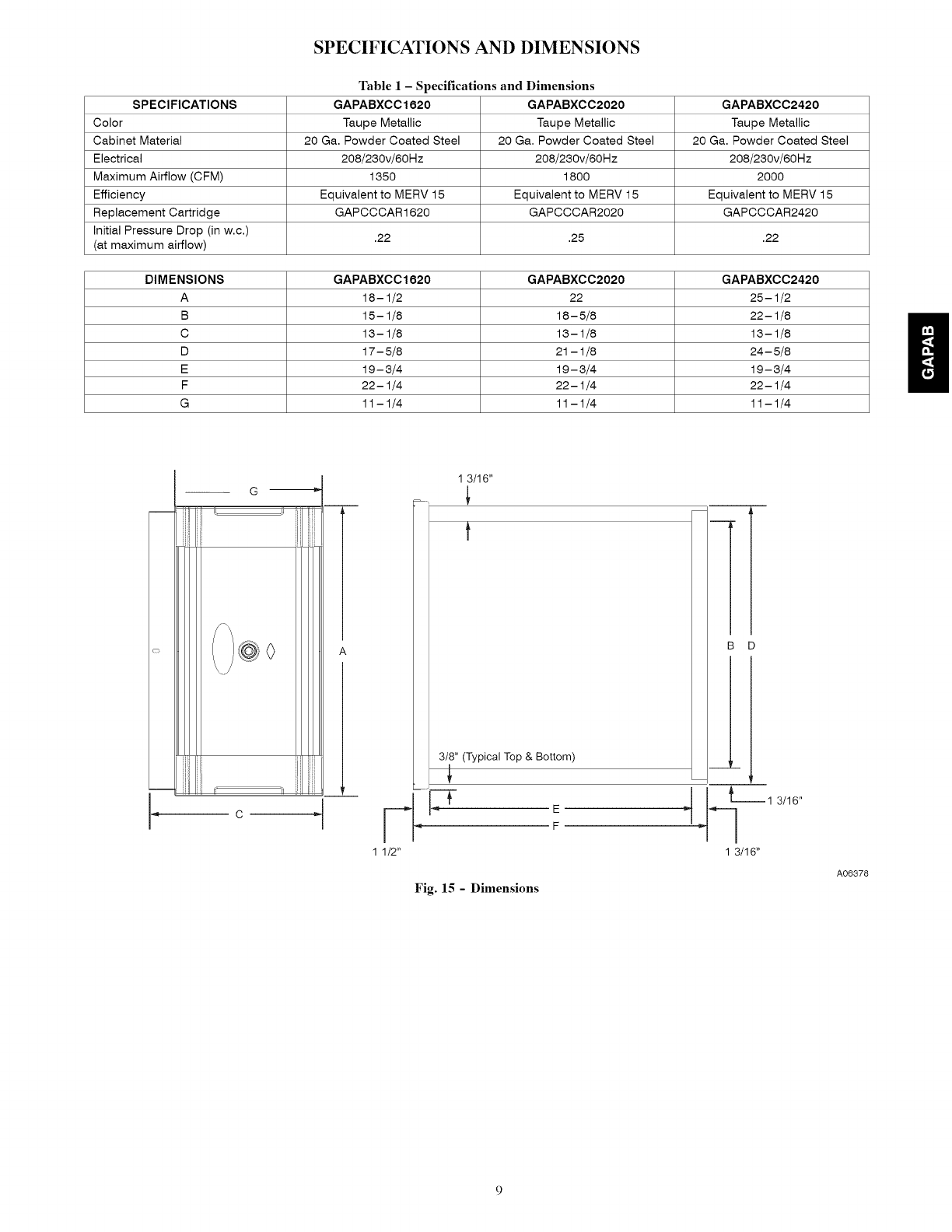

SPECIFICATIONS AND DIMENSIONS
Table 1 -Specifications and Dimensions
SPECIFICATIONS GAPABXCC1620 GAPABXCC2020 GAPABXCC2420
Color Taupe Metallic Taupe Metallic Taupe Metallic
Cabinet Material 20 Ga. Powder Coated Steel 20 Ga. Powder Coated Steel 20 Ga. Powder Coated Steel
Electrical 208/230v/60Hz 208/230v/60Hz 208/230v/60Hz
Maximum Airflow (CFM) 1350 1800 2000
Efficiency Equivalent to MERV 15 Equivalent to MERV 15 Equivalent to MERV 15
Replacement Cartridge GAPCCCAR1620 GAPCCCAR2020 GAPCCCAR2420
Initial Pressure Drop (in w.c.) .22 .25 .22
(at maximum airflow)
DIMENSIONS GAPABXCC1620 GAPABXCC2020 GAPABXCC2420
A 18-1/2 22 25-1/2
B 15-1/8 18- 5/8 22-1/8
C 13-1/8 13-1/8 13-1/8
D 17- 5/8 21 -1/8 24- 5/8
E 19- 3/4 19- 3/4 19- 3/4
F 22-1/4 22-1/4 22-1/4
G 11-1/4 11-1/4 11-1/4
1 3/16"
3/8" (Typical Top & Bottom)
1 1/2" 1 3/16"
Fig. 15 -Dimensions
3/16"
A06378
10

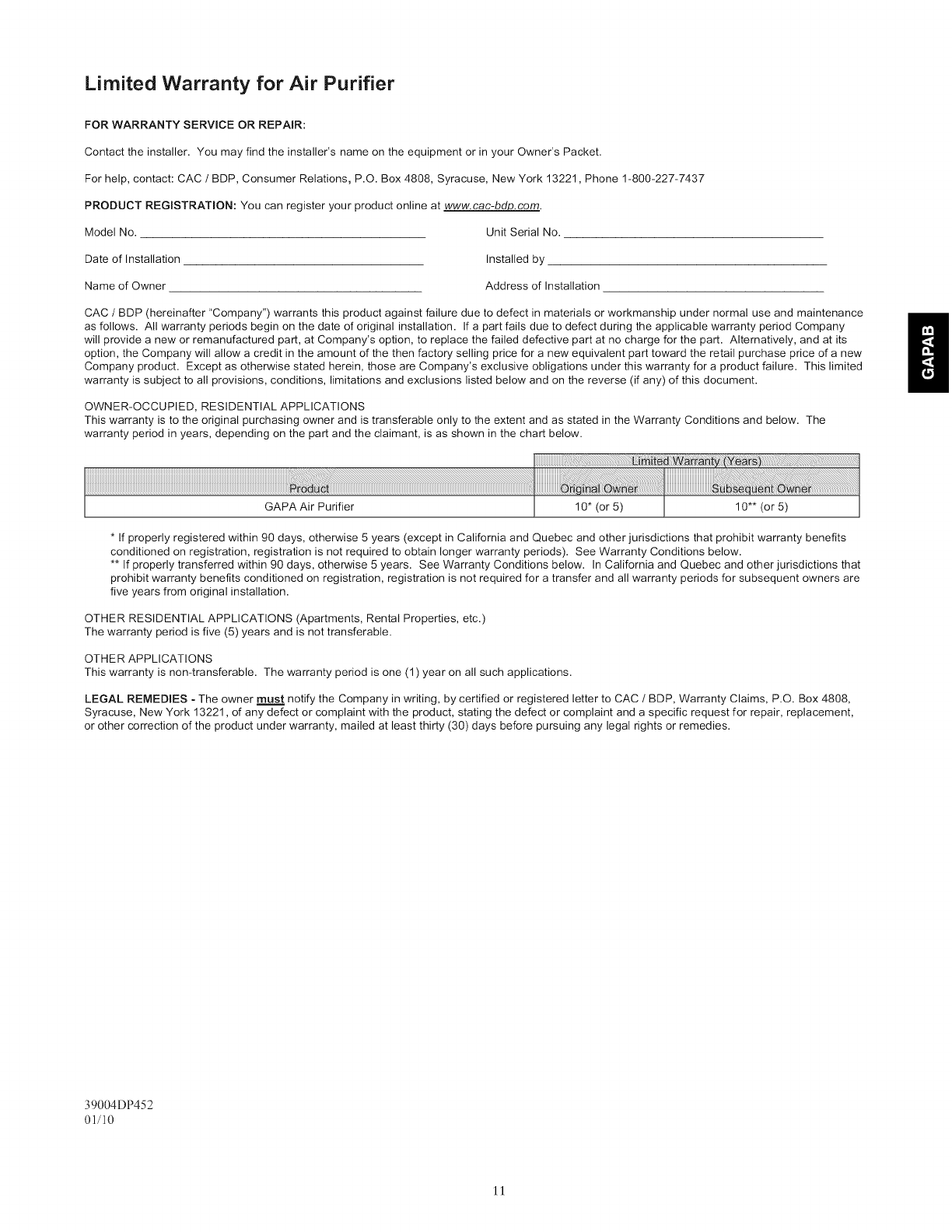

Limited Warranty for Air Purifier
FOR WARRANTY SERVICE OR REPAIR:
Contact the installer. You may find the installer's name on the equipment or in your Owner's Packet.
For help, contact: CAC /BDP, Consumer Relations, P.O. Box 4808, Syracuse, New York 13221, Phone 1-800-227-7437
PRODUCT REGISTRATION: You can register your product online at www.cac-bdp.com.
Model No. Unit Serial No.
Date of Installation Installed by
Name of Owner Address of Installation
CAC /BDP (hereinafter "Company") warrants this product against failure due to defect in materials or workmanship under normal use and maintenance
as follows. All warranty periods begin on the date of original installation. If a part fails due to defect during the applicable warranty period Company
will provide a new or remanufactured part, at Company's option, to replace the failed defective part at no charge for the part. Alternatively, and at its
option, the Company will allow a credit in the amount of the then factory selling price for a new equivalent part toward the retail purchase price of a new
Company product. Except as otherwise stated herein, those are Company's exclusive obligations under this warranty for a product failure. This limited
warranty is subject to all provisions, conditions, limitations and exclusions listed below and on the reverse (if any) of this document.
OWNER-OCCUPIED, RESIDENTIAL APPLICATIONS
This warranty is to the original purchasing owner and is transferable only to the extent and as stated in the Warranty Conditions and below. The
warranty period in years, depending on the part and the claimant, is as shown in the chart below.
GAPA Air Purifier 10* (or 5) 10"* (or 5)
* If properly registered within 90 days, otherwise 5 years (except in California and Quebec and other jurisdictions that prohibit warranty benefits
conditioned on registration, registration is not required to obtain longer warranty periods). See Warranty Conditions below.
** If properly transferred within 90 days, otherwise 5 years. See Warranty Conditions below. In California and Quebec and other jurisdictions that
prohibit warranty benefits conditioned on registration, registration is not required for a transfer and all warranty periods for subsequent owners are
five years from original installation.
OTHER RESIDENTIAL APPLICATIONS (Apartments, Rental Properties, etc.)
The warranty period is five (5) years and is not transferable.
OTHER APPLICATIONS
This warranty is non-transferable. The warranty period is one (1) year on all such applications.
LEGAL REMEDIES -The owner must notify the Company in writing, by certified or registered letter to CAC /BDP, Warranty Claims, P.O. Box 4808,
Syracuse, New York 13221, of any defect or complaint with the product, stating the defect or complaint and a specific request for repair, replacement,
or other correction of the product under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.
39004DP452
01/10
11

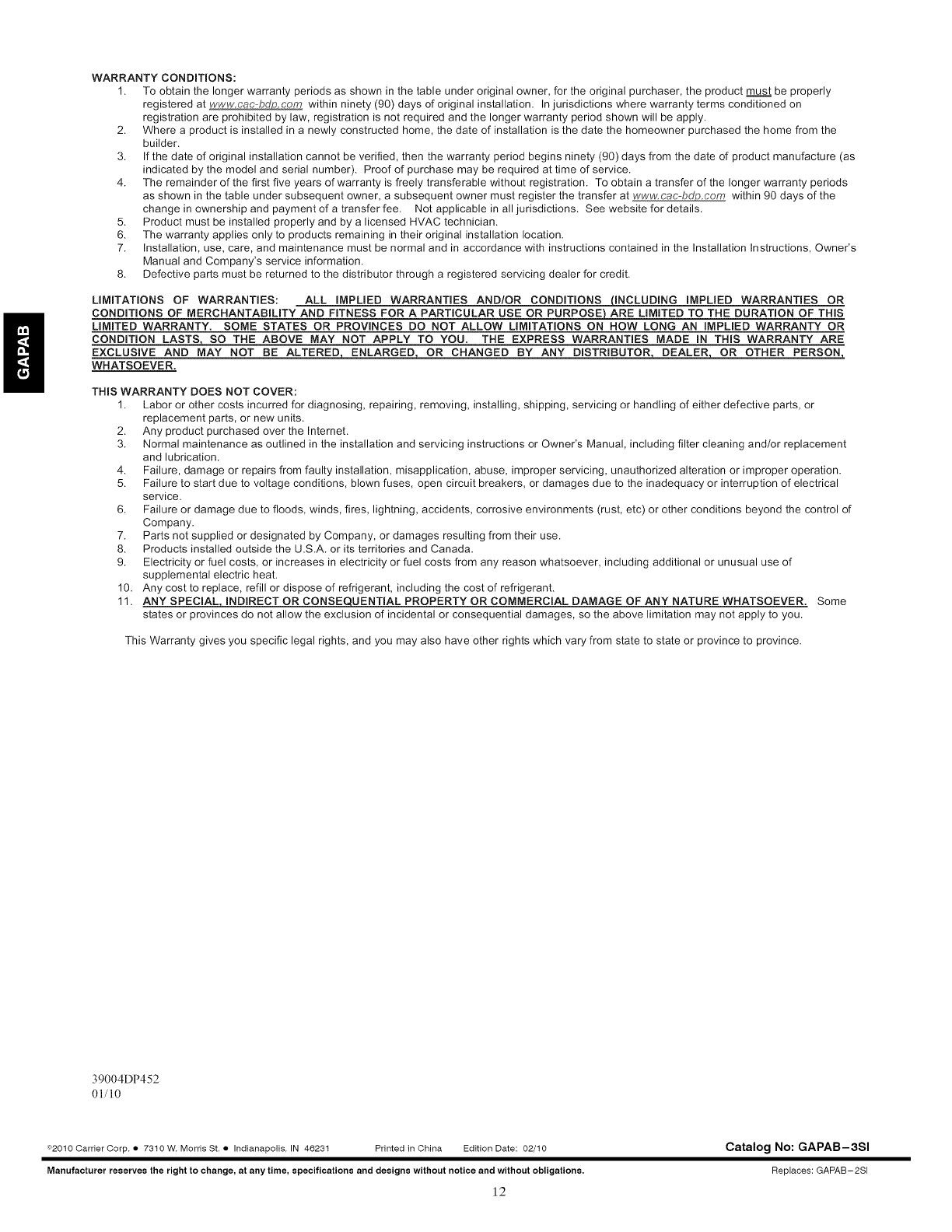

WARRANTY CONDITIONS:
1. To obtain the longer warranty periods as shown in the table under original owner, for the original purchaser, the product must be properly
registered at www.cac-bc_.Lcom within ninety (90) days doriginal installation. In jurisdictions where warranty terms conditioned on
registration are prohibited by law, registration is not required and the longer warranty period shown will be apply.
2. Where a product is installed in a newly constructed home, the date of installation is the date the homeowner purchased the home from the
builder.
3. If the date of original installation cannot be verified, then the warranty period begins ninety (90) days from the date dproduct manufacture (as
indicated by the model and serial number). Proof of purchase may be required at time of service.
4. The remainder of the first five years of warranty is freely transferable without registration. To obtain a transfer of the longer warranty periods
as shown in the table under subsequent owner, a subsequent owner must register the transfer at www.cac-b@.com within 90 days of the
change in ownership and payment of a transfer fee. Not applicable in all jurisdictions. See website for details.
5. Product must be installed properly and by a licensed HVAC technician.
6. The warranty applies only to products remaining in their original installation location.
7. Installation, use, care, and maintenance must be normal and in accordance with instructions contained in the Installation Instructions, Owner's
Manual and Company's service information.
8. Defective parts must be returned to the distributor through a registered servicing dealer for credit.
LIMITATIONS OF WARRANTIES: ALL IMPLIED WARRANTIES AND/OR CONDITIONS {INCLUDING IMPLIED WARRANTIES OR
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR
CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESS WARRANTIES MADE iN THIS WARRANTY ARE
EXCLUSIVE AND MAY NOT BE ALTERED ENLARGED OR CHANGED BY ANY DISTRIBUTOR DEALER OR OTHER PERSON
WHATSOEVER.
THIS WARRANTY DOES NOT COVER:
1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of either defective parts, or
replacement parts, or new units.
2. Any product purchased over the Internet.
3. Normal maintenance as outlined in the installation and servicing instructions or Owner's Manual, including filter cleaning and/or replacement
and lubrication.
4. Failure, damage or repairs from faulty installation, misapplication, abuse, improper servicing, unauthorized alteration or improper operation.
5. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the inadequacy or interruption of electrical
service.
6. Failure or damage due to floods, winds, fires, lightning, accidents, corrosive environments (rust, etc) or other conditions beyond the control d
Company.
7. Parts not supplied or designated by Company, or damages resulting from their use.
8. Products installed outside the U.S.A. or its territories and Canada.
9. Electricity or fuel costs, or increases in electricity or fuel costs from any reason whatsoever, including additional or unusual use of
supplemental electric heat.
10. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.
11. ANY SPECIAL iNDiRECT OR CONSE UENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some
states or provinces do not allow the exclusion of incidental or consequential damages, so the above limitation may not apply to you.
This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.
39004DP452
01/10
'c'2010Carrier Corp. • 7310 W. Morris St. • Indianapolis, IN 46231 Printed in China Edition Date: 02/10
Manufacturer reserves the rightto change, at anytime, specifications and designs without notice and without obligations.
12
Catalog No: GAPAB-3SI
Replaces: GAPAB- 2Sl
