1. Introduction

This document provides a guideline on operating and configuringCastles

VEGA3000UltraLite.

The scope of this document includes setting up the terminal, basic operation, application

life cycle, and some advance features.

2. Hardware Setup

2.1. Parts of the Surface

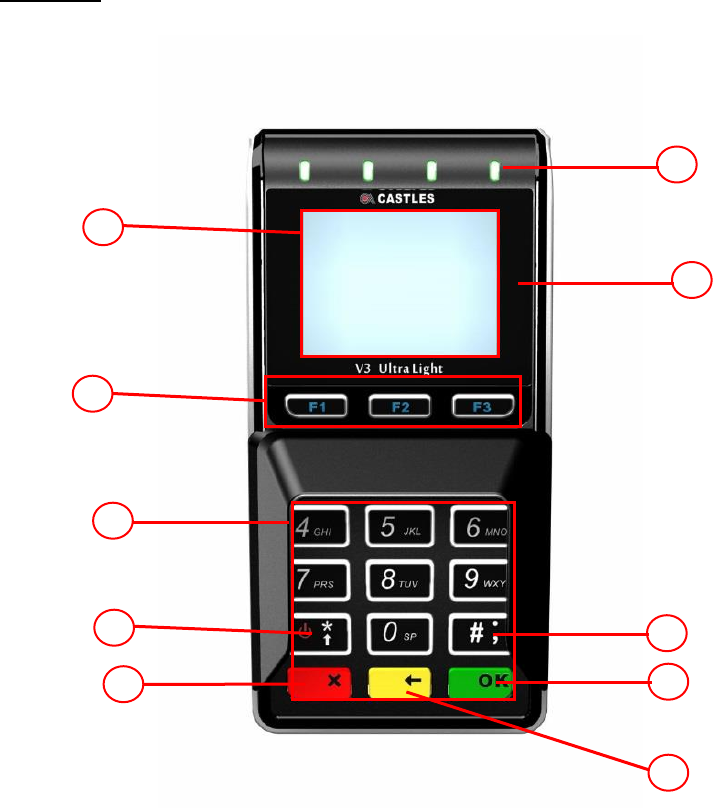

Front Side

1. LCD Display (MonoColor)

2. Keyboard

3. Cancel Key

4. 0 / Funtion Key

5. Contactless Card Landing

Zone

6. OK /Enter Key

7. Up Key

8. Down Key

9. Clear Key

10. Contactless LED

VEGA3000 UltraLite

Rear Side

11. Wiring Slot

12. COM Port

13. Anti-theft Lock

14. SAM Slot (SAM1, SAM2, SAM3, SAM4)

Side

2.2. Power Supply

 DC Input: 9V/1A

 USB: 5V/1A

2.3. Environment

 Operating: 0℃~40℃,5% to 90% non-condensing

 Storage: -20℃~70℃

3. Basic Operation

3.1. Program Manager

Upon power on, terminal will enter Program Manager if not default application

selected. All user applications are list in Program Manager. User may select an

application and run the application or view the application info, delete the

application or set to default run upon power on. User may enter System Menu to

configure terminal settings.

Program Manager

 Press[0] button to enter System Menu.

 Press [1] button to toggle default application selection.

 Press [2] button to delete application.

 Press [3] button to view application info.

 Press [OK] button to run application.

 Press [*] or [#] toup and down for applicationselection.

System Menu

Page 1

 Press [#] button to page 2.

Program Manager

-----------01/02

1.App1

2.App2

0:Download

System Menu

1.Download AP

2.System Info

3.Memory Status

4.Sys Settings

5.Test Utility

6.Factory Reset

7.Power Off

Page 2

 Press [*] button to page1.

 Press [#] button to page3.

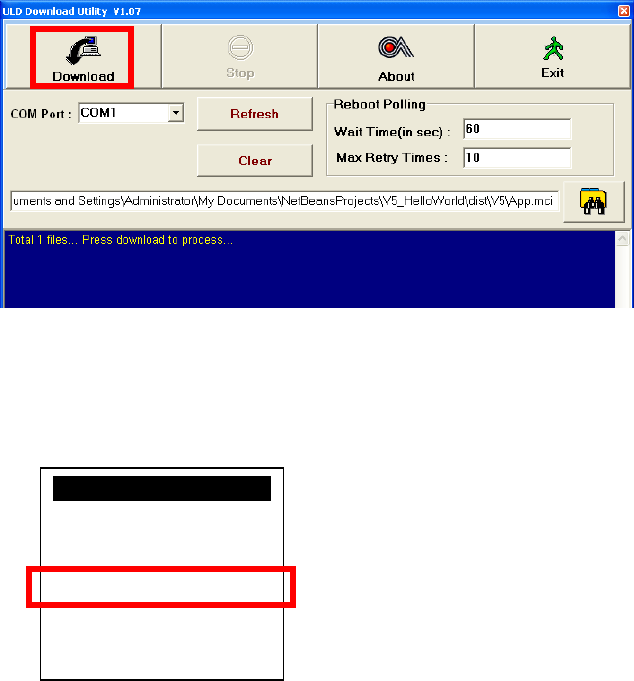

3.2. Download AP

Download user application or kernel modules firmware.

System Menu

 Press [1] button to enter Download AP menu.

Download AP Menu

Select download source:

 Press [1] button to select source as RS232 or USB connection and enter ULD

download mode.

 Press [2] button to select source as USB disk.

System Menu

1.Download AP

2.System Info

3.Memory Status

4.Sys Settings

5.Test Utility

6.Factory Reset

7.Power Off

Download EX

1.RS232 or USB

2.USB Disk

3.SD Card

Select DW Source

System Menu

1.PWD Change

2.ShareobjMng

3.FontMng4.ULD

KEY HASH

5.Plug-in Mng

6.Key Injection

7.HW Detect

 Press [3] button to select source as SD card.

3.3. System Info

View kernel module firmware information.

System Menu

 Press [2] button to enter System Info menu.

System Info Menu

Page 1 Page 2 Page 3

 Press [#] button to next page.

Page 4 Page 5 Page 6

Page 8 Page9 Page 10

System Menu

1.Download AP

2.System Info

3.Memory Status

4.Sys Settings

5.Test Utility

6.Factory Reset

7.Power Off

SYSTEM INFO

---Kernel Ver---

BIOS:VR0010

SULD :VRF810

LINUXKNL:VR0019

ROOTFS:VR9201

PEDST :VR0025

SYSTEM INFO

--- KOVer ---

SECURITY:VR0025

KMS :VR0024

DRV:VR0039

USB:N/A

CIF:VR9020

SAM :VR9131

SYSTEM INFO

--- SO Ver3 ---

GSM:VR0018

BARCODE :VR0013

TMS:VR0013

TLS :VR0011

CLVW :VR0018

CTOSAPI :VR9029

SYSTEM INFO

--- HWMVer ---

CRDL/ETHE:ONCHIP

CLM-MP : N/A

--- APVer ---

ULDPM :VR0026

SYSTEM INFO

HUSBID:0CA6A050

CUSBID:N/A

--Factory S/N---

FFFFFFFFFFFFFFFF

CAEMVL2 :VR91

CAEMVL2AP :VR00

SYSTEM INFO

--- KOVer2 ---

CL:VR0018

SC :VR0011

SYSTEM INFO

--- SOVer---

UART :VR0014

USBH :VR0011

MODEM :VR0014

ETHERNET:VR0029

FONT :VR0025

LCD :VR0034

SYSTEM INFO

--- SO Ver2 ---

PRT:VR0020

RTC :VR0013

ULDPM :VR0022

PPPMODEM:VR0026

KMS:VR0022

FS:VR0015

SYSTEM INFO

--EXT SO Ver P.1--

CACLMDL :VR0007

CACLENTRY :VR0007

CAMPP :VR0006

CAVPW :VR0018

CAAEP :VR0004

CAJCT :VR9407

Page 11

3.4. Memory Status

View terminal flash memory and RAM information.

System Menu

 Press [3] button to enter Memory Status menu.

Memory Status Menu

System Menu

1.Download AP

2.System Info

3.Memory Status

4.Sys Settings

5.Test Utility

6.Factory Reset

7.Power Off

MEMORY STATUS

--FLASH Memory--

Total: 130688KB

Used :52404KB

--SDRAM Memory--

Total: 65408KB

Used :38004KB

SYSTEM INFO

--EXT SO Ver P.1--

CAVAP:VR0002

CACQP:VR6601

CAIFH :VR0002

CAEMVL2 :VRA016

CAEMVL2AP :VR0009

3.5. System Settings

View or change terminal system settings.

Setting

Descriptions

Key Sound

Enable (Y) or disable (N) the beep sound when

pressing any key.

Exec DFLT AP

Enable (Y) or disable (N) execution of default

selected application.

USB CDC Mode

Enable (Y) or disable (N) USB CDC mode.

FunKey PWD

Enable (Y) or disable (N) password protection to

access function key (0, F1, F2, F3) in Program

Manager.

PMEnter PWD

Enable (Y) or disable (N) password protection to

enter Program Manager.

SET USB Host

Enable (Y) or disable (N) USB host mode.

Base USB CDC

Enable (Y) or disable (N) USB CDC mode in base

unit. [Portable model only]

List SHR Lib

Enable (Y) or disable (N) to list all shared libraries

in Program Manager.

Key MNG Mode

<TBC>

BATThreshld

Battery charging threshold value. [Portable model

only]

Null Cradle

Enable (Y) if base is Type Acradle. [Portable model

only]

Debug Mode

Enable (Y) or disable (N) console debug mode.

Debug Port

Serial port for console debug.

Mobil AutoON

Enable (Y) or disable (N) to auto turn on GSM

module after start up the terminal.

Bklit Auto Off

Enable (Y) or disable (N) Auto OffLCDBacklight

Bklit Off Time

Thresholdof Auto Off LCD Backlight

PWR KEY OFF

Powerkeyfunction, power off (Y) or reboot(N)

RTC Time Zone

Set Time Zone of Real Time Clock.

NTP Enable

Enable (Y) or disable (N) Network Time Protocol.

NTP Update Freq

Frequency of Network Time Protocol updating.

BT DIRECT ACCESS

Enable (Y) or disable (N) Bluetooth direct access

mode.

Halt Timeout

Set timeout for AP to back to Program Manager

whenever AP is in halt state.

PWM Auto

Enable (Y) or disable (N) power saving mode.

PWM Mode

Select (STB) standby mode or (SLP) sleep mode

for power saving mode.

PWM Time

Set time period by which to make terminal getting

into power saving mode from idle state.

Auto Reboot

Terminal will reboot in specific time every day.

Reboot Hour

The specific hour of day for Auto Reboot.

Reboot Min

The specific minuteof day for Auto Reboot.

System Menu

 Press [4] button to enter System Settings menu.

System Settings Menu

Page 1Page 2

Page 3 Page 4

System Menu

1.Download AP

2.System Info

3.Memory Status

4.Sys Settings

5.Test Utility

6.Factory Reset

7.Power Off

SYS SETTINGS

Key Sound : Y

Exec DFLT AP : Y

-Default AP Name

USB CDC Mode : Y

FunKeyPWD:N

PMEnterPWD:N

2: Next Page

SYS SETTINGS

SET USB Host: N

Base USB CDC: X

List SHR Lib: N

Key MNG Mode: 0

Bat Threshld: X

Null Cradle : X

1: Prev2: Next

SYS SETTINGS

Debug Mode: N

Debug Port : X

Mobil AutoON: N

Bklit Auto Off : N

BklitOff Time : X

PWR KEY OFF :N

1: Prev2: Next

SYS SETTINGS

RTC Time Zon:GMT

NTP Enable:N

NTP Update F:X

1: Prev2: Next

Page 5Page 6

 Press [*] or [#]button to select setting.

 Press [OK] button to change the setting value.

 Press [] button to toggle Y  N  Y.

 Press [1] button to previous page.

 Press [2] button to next page.

SYS SETTINGS

BT DIRECT ACCESS :X

Halt Timeout :999

PWM Auto :N

PWM Mode : X

PWM Time

1: Prev2: Next

SYS SETTINGS

Auto Reboot :Y

Reboot Hour:00

Reboot Min :00

1: Prev Page

3.6. Test Utility

Perform terminal hardware components diagnosis.

System Menu

 Press [5] button to enter Test Utility menu.

Test Utility Menu

Page 1

 Press [1] and [OK] to diagnose LCD.

 Press [2] and [OK] to diagnose keyboard.

 Press [3] and [OK] to diagnose flash memory.

 Press [4] and [OK] to diagnose smart card module.

 Press [5] and [OK] to diagnose backlight.

 Press [6] and [OK] to diagnose magnetic stripe card reader.

 Press [#] button to page 2.

Page 2

System Menu

1.Download AP

2.System Info

3.Memory Status

4.Sys Settings

5.Test Utility

6.Factory Reset

7.Power Off

Main Menu 0023

1.LCD

2.Keyboard

3.Flash

4.Smart Card

5.Backlight

6.MSR

-> 1/3

Main Menu 0023

7.LED

8.RTC

9.Printer

10.Font

11.CL Transparent

12.CL Card Test

-> 2/3

 Press[7] and [OK] to diagnose LED.

 Press [8] and [OK] to diagnose RTC.

 Press [9] and [OK] to check Printer.

 Press [10] and [OK] to check FONT file in VEGA3000 UltraLite.

 Press [11] and [OK] to check CL transparent.

 Press [12] and [OK] to test Cantactless Card.

 Press [*] button to page 1.

 Press [#] button to page 3.

Page 2

 Press [13] and [OK] to execute SD Card Test.

 Press [14] and [OK] to testfunctionalityofWiFi.

 Press [15] and [OK] to test functionality of power saving.

 Press [16] and [OK] to test functionality of multiple communication ways.\

 Press [17] and [OK] to testfunctionality of Bluetooth.

 Press [*] button to page2.

Main Menu 0023

13.SD Card Test

14.Wi-Fi Test

15.Power Saving

16.Comm Menu

17.BT Test

-> 3/3

3.7. Factory Reset

Perform factory reset, all user application, fonts and data will be deleted.

System Menu

 Press [6] button to enter Factory Reset menu.

 Enter password and press [OK].

 Enter factory reset password.(Default password: 12345678)

 Enter new password.

 Enter new password again to confirm.

System Menu

1.Download AP

2.System Info

3.Memory Status

4.Sys Settings

5.Test Utility

6.Factory Reset

7.Power Off

FacRestPassword

New Password:

********

Confirm Password

********

FacRest Password

Enter Password:

********

Factory Reset

OK to reset?

 Press [OK] to execute the Factory Reset.

3.8. Power Off

Power offterminal.

System Menu

 Press [7] button to power off terminal.

System Menu

1.Download AP

2.System Info

3.Memory Status

4.Sys Settings

5.Test Utility

6.Factory Reset

7.Power Off

3.9. Password Manager

Change thekeysin Password Manager.

System Menu (Page 2)

 Press [1] button to enterPasswordManagermenu.

 Press [1] button to changeFunction Key password.

 Press [2] button to change Program Manager Key password.

 Press [3] button to change Key Injection Key password.

 Press [4] button to change Factory Reset Key password.

Please refer to the procedure of change Function Key password as below.

 Enter current password. (Default password is "84188062")

FunKey Password

Enter Password:

********

System Menu

1.PWDManager

2.ShareobjMng

3.FontMng4.ULD

KEY HASH

5.Plug-in Mng

6.Key Injection

7.HW Detect

Password Manager

1.Function Key

2.PMEnter Key

3.KeyInject Key

4.Factory Key

 Enter new password.

 Enter new password again to confirm.

User must have to change the Default key to user own key at the first time.

The Default Key Value in Password Manager is as below:

Function Key

84188062

PMEnter Key

KeyInject Key

87654321

Factory Key

12345678

FunKey Password

New Password:

********

Confirm Password

********

3.10. Share Object Management

View share object in terminal.

System Menu (Page 2)

 Press [2] button to enter Share Object Management menu.

Share Object Management Menu

 Press [1] button to view shared library.

 Press [2] button to view shared file.

Share objMng

1.Share LIB

2.Share File

System Menu

1.PWD Change

2.ShareobjMng

3.FontMng4.ULD

KEY HASH

5.Plug-in Mng

6.Key Injection

7.HW Detect

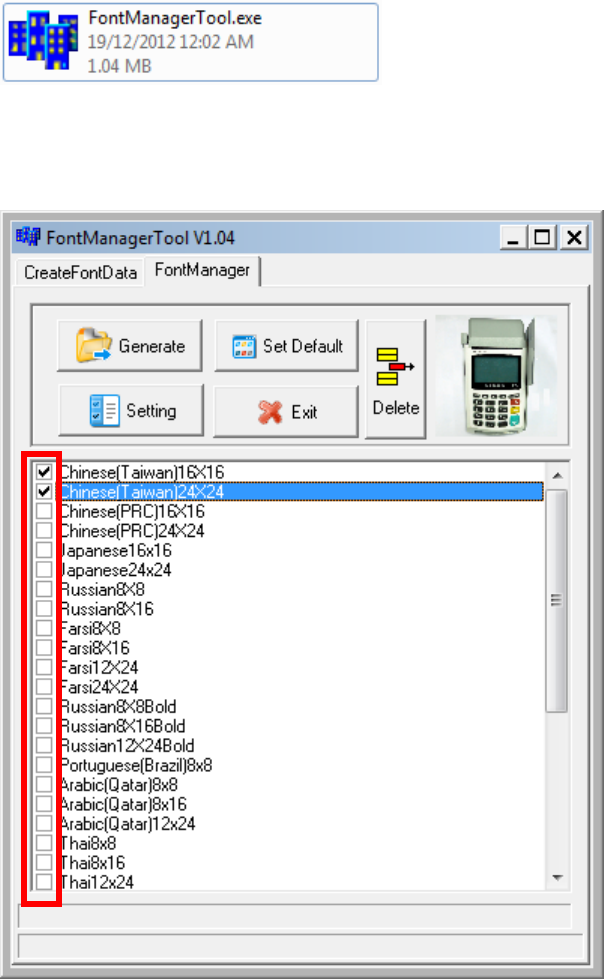

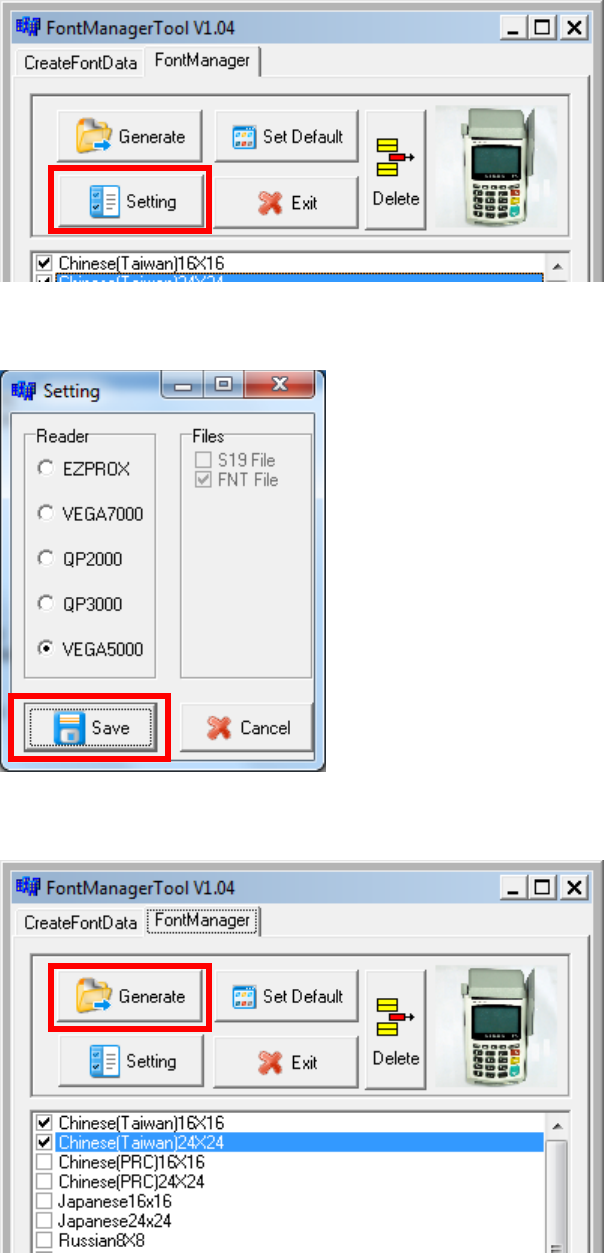

3.11. Font Mng

View Font Management.

System Menu (Page 2)

 Press [3] button to view Font Management.

FontManagment

 Press [1] button to view FNT Font list.

 Press [2] button to view TTF Font list.

Font Mng

1.FNT File

2.TTF File

System Menu

1.PWD Change

2.ShareobjMng

3.FontMng4.ULD

KEY HASH

5.Plug-in Mng

6.Key Injection

7.HW Detect

3.12. ULD Key Hash

View ULD user key hash value.

System Menu (Page 2)

 Press [4] button to view hash value.

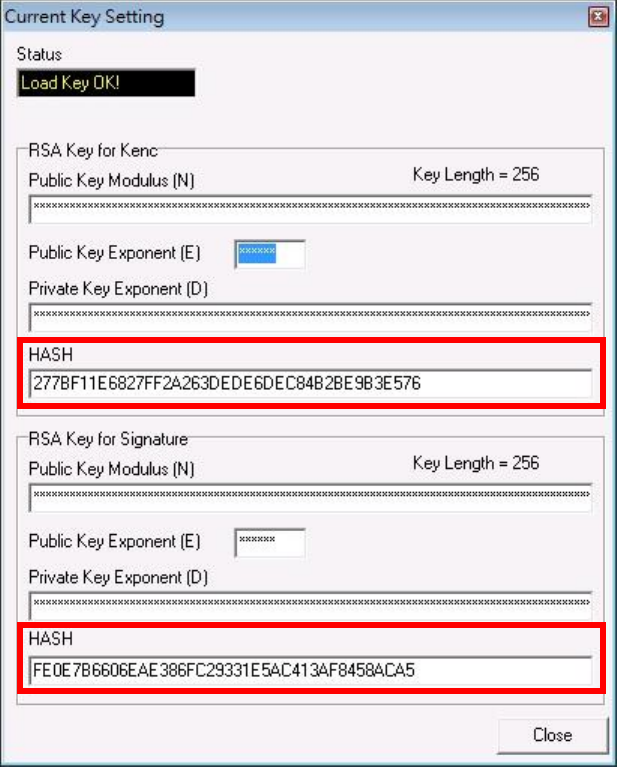

USER ENV KEY

DA9C91FE668DF4B6D637

CDBCCEC201444AA2C7FF

USER SIGN KEY

D52F36A1B569B5ABBA4F

EAEFB34BEC000101D58C

System Menu

1.PWD Change

2.ShareobjMng

3.FontMng4.ULD

KEY HASH

5.Plug-in Mng

6.Key Injection

7.HW Detect

3.13. Plug-in Mng

View Plug-in Management.

System Menu (Page 2)

 Press [5] button to view Plug-in Management.

 Press [*]or[#]button to select item.

 Press [1]button to get item information.

 Press [2]button to delete item.

Plug-in Mng

1.Info 2.Del

System Menu

1.PWD Change

2.ShareobjMng

3.FontMng4.ULD

KEY HASH

5.Plug-in Mng

6.Key Injection

7.HW Detect

3.14. Key Injection

View Key Injection.

System Menu (Page 2)

 Press [6] button to view Key Injection.

 Enter password and press [OK].

 Enter Key Injection password.(Default password: 87654321)

 Enter new password.

 Enter new password again to confirm.

System Menu

1.PWD Change

2.ShareobjMng

3.FontMng4.ULD

KEY HASH

5.Plug-in Mng

6.Key Injection

7.HW Detect

KeyInj Password

New Password:

********

Confirm Password

********

KeyInjPassword

Enter Password:

********

Key Injection

Waiting for

Command

 Please refer to document of Key Injection which is released by Castles

Technology.

3.15. HW Detect

View Key Injection.

 Press any key to go back to Program Manager.

HW TYPE

Original

HW-TYPE : C

New

HW-TYPE : C

Please Any Key.

4. Secure File Loading

Castles implemented an interface in terminal named User Loader(ULD) to provide secure file

loading to system memory. Loading of user application, kernel firmware, font and others

must use User Loader.

The loading process is secure by signing the files using ULD Key System.

4.1. ULD Key System

The ULD Key System uses two key sets for securely managing the kernel

updating and application downloading. Each key set contains two RSA key pairs.

One is used for key encryption and the other is used for signature. These two key

sets are specified as below:

ULD Manufacturer Key Set

 ULD Manufacturer Key Encryption Key (RSA)

 ULD Manufacturer Signature Key (RSA)

ULD User Key Set

 ULD User Key Encryption Key (RSA)

 ULD User Signature Key (RSA)

For VEGA3000 UltraLite, the RSA key length is 2048bits.

4.1.1. ULD Manufacturer Key

The system consists of several kernel modules. These kernel modules

are provided by the Manufacturer, and released in CAP format file with

encryption and signing via ULD Manufacturer Keys.

The ULD Manufacturer keys are managed and maintained by the

manufacturer. The manufacturer uses these keys to generate kernel

CAP files for updating the system. However, the system is not permitted

to be updated with these kernel CAP files directly generated by the

manufacturer. This is because only the user can have the privilege to

decide whether the system is to be updated. Therefore, before system

updating, the kernel CAP files must be “signed” via ULD User Key to get

the user permission. For simple expression, we call the kernel CAP files

generated by the manufacturer as “unsigned kernel CAP(s)” and call the

kernel CAP files “signed” by the user later as “signed kenel CAP(s)”.

Notes:

1. The kernel modules are encrypted by a random-generated 3DES

key, which is retrieved from the Key Encryption Block of the CAP by

ULD Manufacturer Key Encryption Key, not directly encrypted by ULD

RSA Key.

2. The “sign” action via ULD User Keys actually is done by” the second

encryption”. “The second encryption” is done by using the random-

generated 3DES key, which is encrypted by ULD User Key Encryption

Key, to perform Triple DES encryption again on the cipher data segment

of the kernel CAP files. This ensures that the system cannot retrieve the

correct data from the kernel CAPs without the user permission.

CAP Generator

Kernel Module

ULD Manufacturer

Keys

Unsigned Kernel

CAPs

Unsigned Kernel

CAPs CAP Signing Tool Signed Kernel CAPs

ULD User Keys

4.1.2. ULD User Key

ULD User Key are used to encrypt and sign the user/shared

applications. In addition, they are as goalkeepers to prevent the system

updating without user permission. This is done by the kernel CAPs

which are encrypted and signed by the manufacturer having to perform

the “signed’ action via ULD User Keys.

Notes: Applications are encrypted by a random-generated 3DES key,

which is retrieved from the Key Encryption Block of the CAP by ULD

User Key Encryption Key, not directly encrypted by ULD RSA Key.

Application Application CAPs

ULD User Keys

CAP Generator

4.1.3. Key Change

The ULD RSA Keys are able to be changed. The system uses a special

CAP file, KEY CAP, for the manufacturer and user to change their own

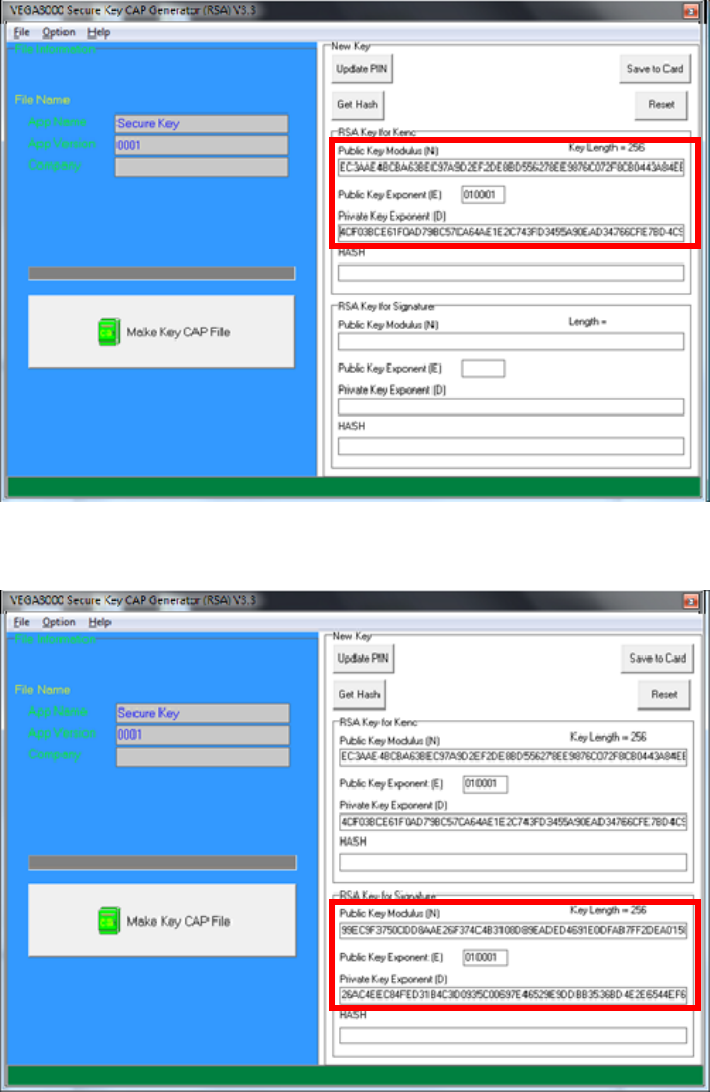

keys. The KEY CAP contains a new set of ULD keys (Key Encryption

Key and Signature Key). These new keys are encrypted and signed via

the original keys. In other words, if the user would like to change the

ULD User Keys, they have to use their original ULD User Keys with the

new ULD User Keys to generate a KEY CAP.

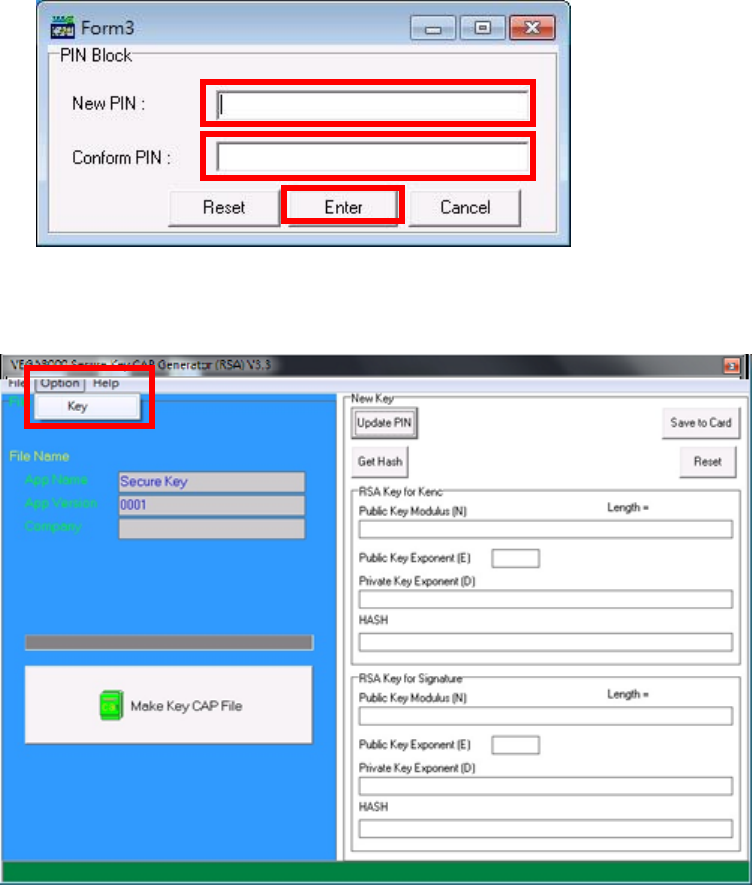

Key CAP Generator

Original ULD

Manufacturer/User

Keys

New ULD

Manufacturer/User

Keys

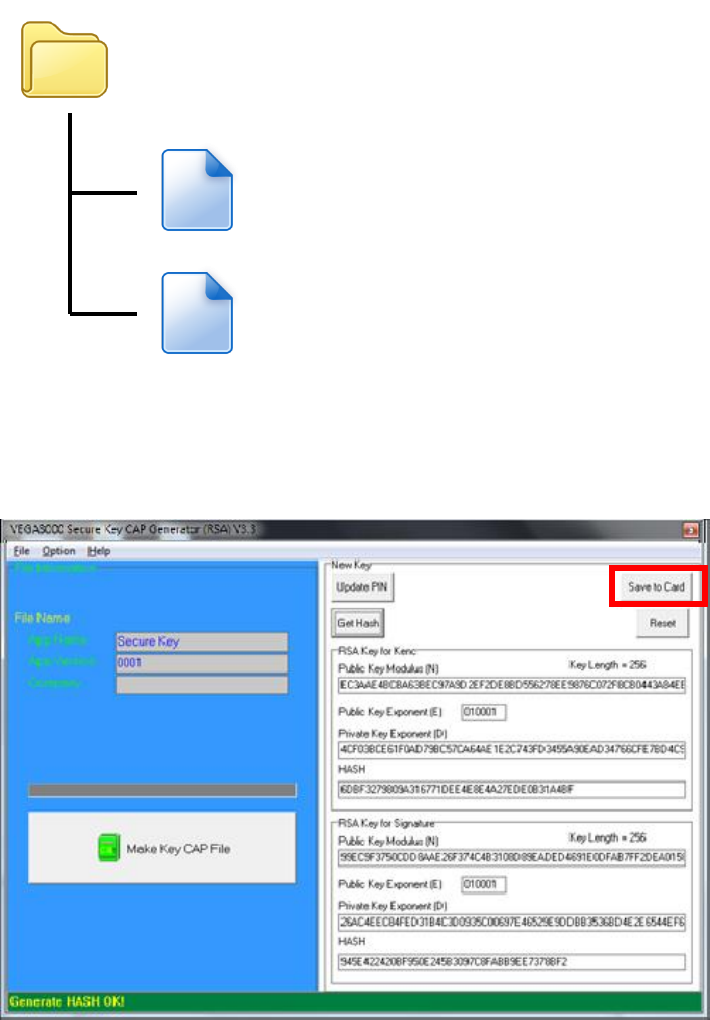

User KEY CAP

4.2. File Signing

4.2.1. Signing Kernel Module

Castles will release new version of kernel module in “unsigned” form.

This files required to sign with ULD User Key before it can load to

terminal.

Castles Technology provideds a tool named “CAP Signing Tool” to

perform this task.

The CAP Signing Tool is located at:

C:\Program Files\Castles\VEGA3000UL\tools\Signing Tool

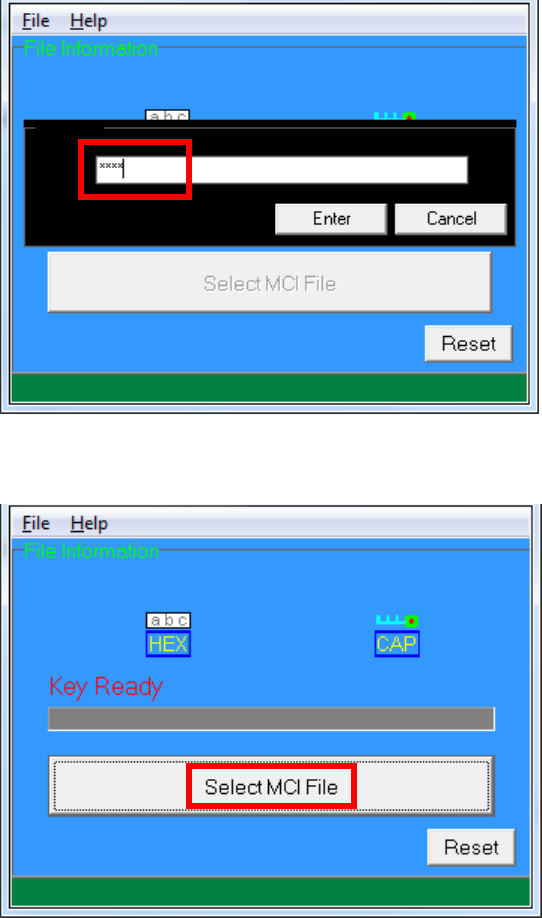

 Run CAP Signing Tool

(VEGA3000 UltraLite)

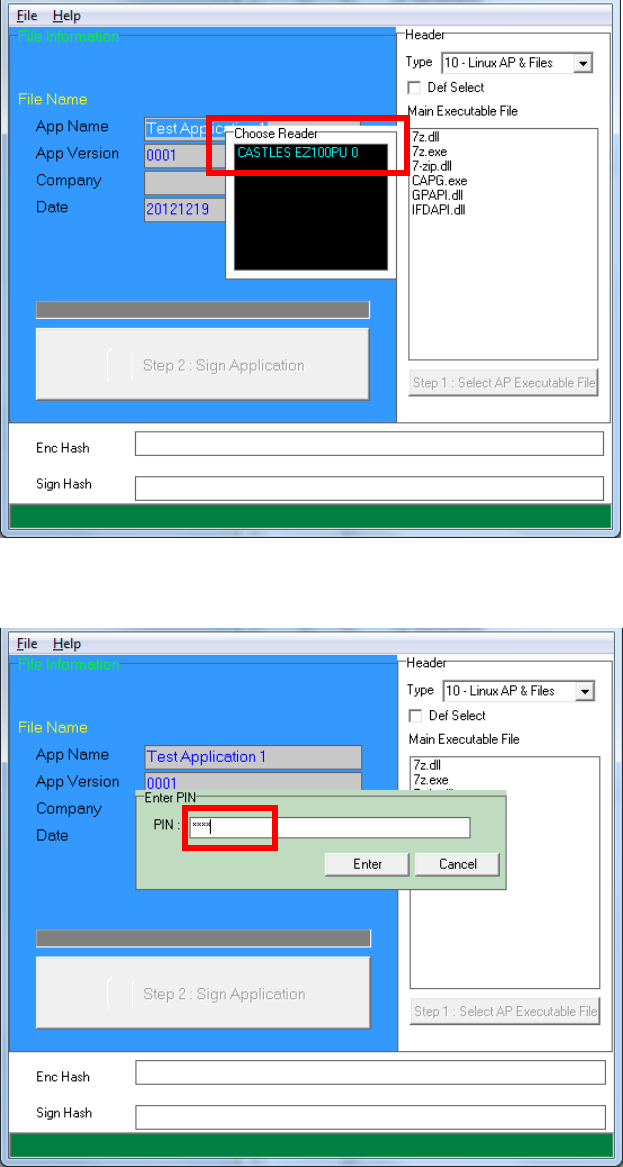

 Insert Key Card and select smart card reader

 Enter Key Card PIN

 CAP Signing Tool is ready, press “Select MCI File” button to browse

the file.

 Output file will be located in “signed” folder.

4.2.2. Signing User Files

Following files are required to sign before load to terminal. This is to

ensure the application data and codes confidential and integrity. The

output file will be “CAP” file which is file format defined by Castles.

 User application

 User application data files

 User application library

 Font file

 Share library

 Share files

 System setting

 Key CAP (Manufacturer ULD Key Set)

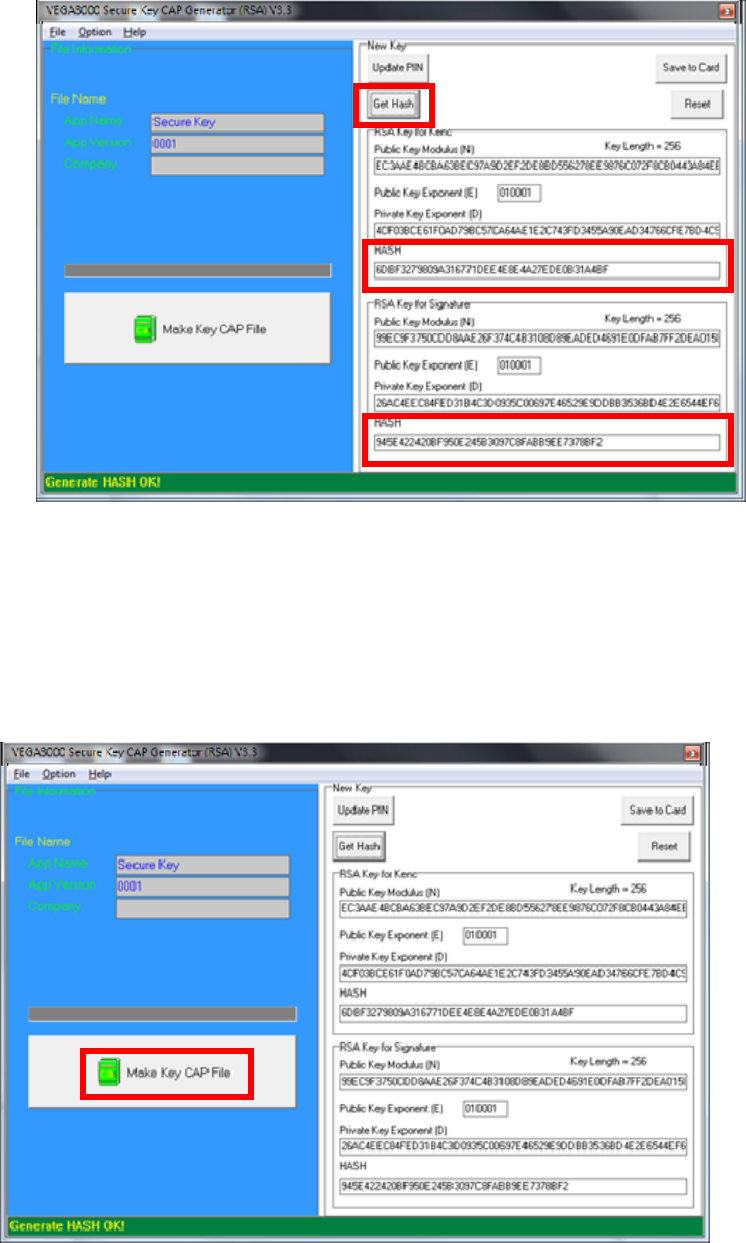

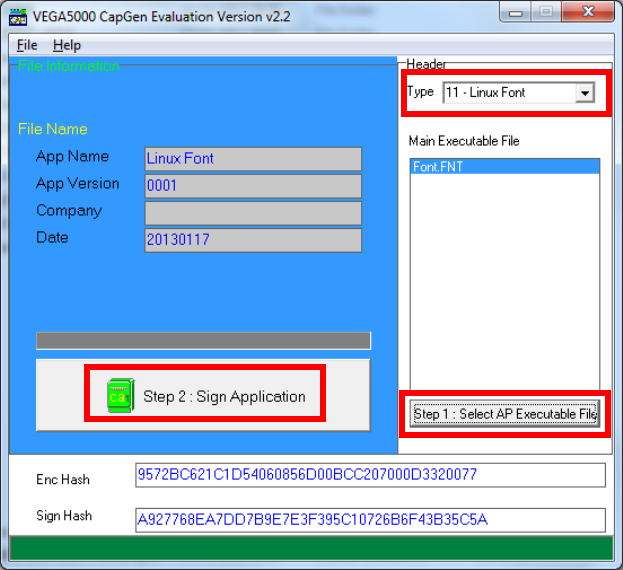

Castles Technology provided a tool named “CAP Generator” to perform

this task.

The CAP Generator is located at:

C:\Program Files\Castles\VEGA3000UL\tools\CAPG (KeyCard)

 Run CAP Generator

 Insert Key Card and select smart card reader

 Enter Key Card PIN

 CAP Generator is ready, select the correct Type from the list.

 Press “Step 1: Select AP Executable File” to select file to sign. This

is valid for all the files to sign.

 Enter file details and press “Step 2: Sign Application” to sign the file.

This is valid for all the files to sign.

 The output file will be in a set. A “mci” file with one or more “CAP”

files.CAP file contents the signed file binaries, where MCI file

contents the list of CAP files.

Note: If user would like to load multiple set of signed file, create a new

file with extension of “mmci”. Then put the mmci file contents with the list

of mci file.

App.CAP

App.mci

MultiApp.mmci

4.3. File Loading

There are several ways of loading file to VEGA3000 UltraLite.

 Download by User Loader

 Download by user application

 Download by Castles TMS

User Loader is a tool provided by Castles Technology. It’s the formal way to

download file to terminal.

User may implement their own ways of updating application or files using CTOS

API provided, CTOS_UpdateFromMMCI().

Castles TMS (CTMS or CASTLES Terminal Management System) is provided by

Castles Technology. It’s use to perform remote download via Ethernet,

GPRS/UMTS or modem.

4.3.1. Download by User Loader

The User Loader works for VEGA3000 UltraLite.

The Loader is located at:

C:\Program Files\Castles\VEGA3000UL\tools\Loader

 Run User Loader

 Select COM port

 Browse and select mci file or mmci file

 Setup terminal to enter download mode

 Press [0] button in Program Manager (PM)

 Press [1] button to select “1. Download AP“

 Press [1] button again to select download via RS232 or USB

 Press “Download” button to start.

Note: To download using USB cable, terminal must enable CDC mode.

Set USB CDC Mode to Y.

SYS SETTINGS

Key Sound : Y

Exec DFLT AP: Y

-AP Name

USB CDC Mode: Y

FunKeyPWD : N

PMEnterPWD : N

2: Next Page

4.4. Changing ULD User Key

User may change their ULD User Key Set stored in Key Card. Castles

Technology provided a tool named “Secure Key Generator” to perform this task.

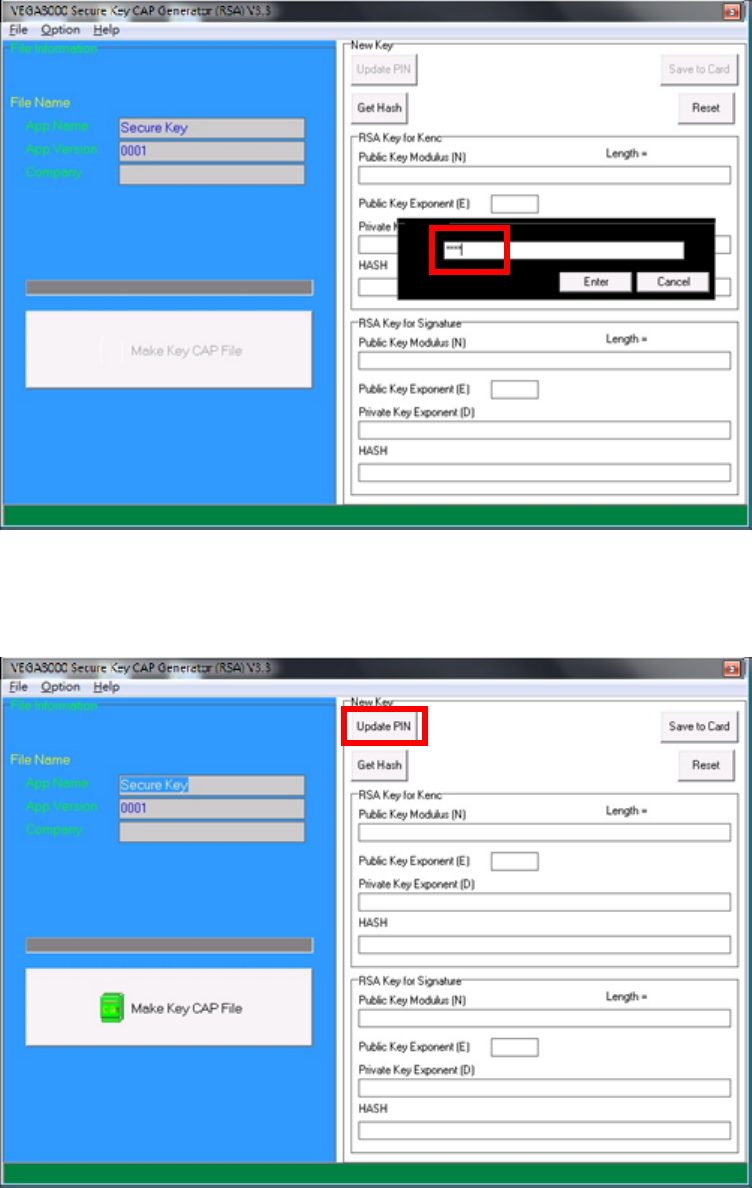

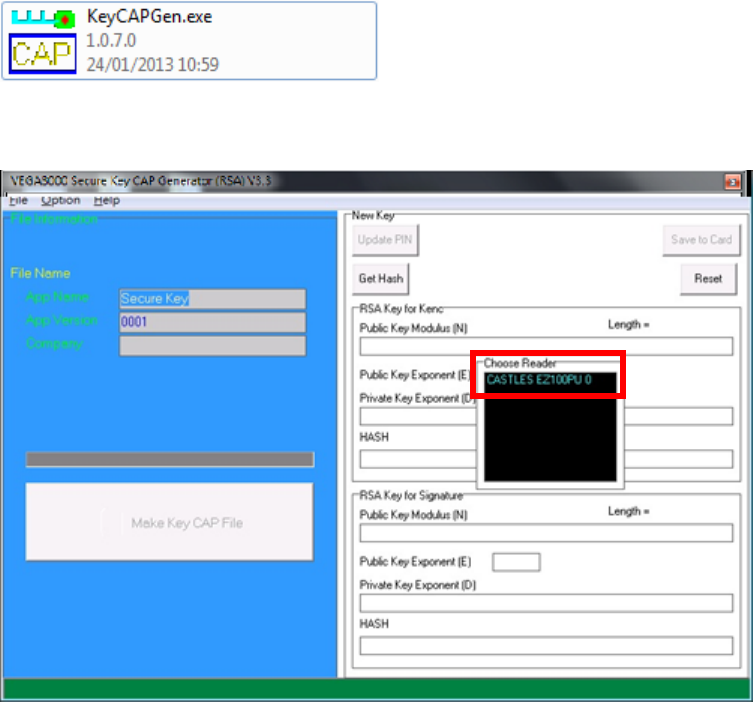

 Run Secure Key Generator

 Insert Key Card and select smart card reader

 Enter Key Card PIN, default PIN is “1234”.

 To change Key Card PIN, press “Update PIN” button. If not, please skip this

steps.

 Enter new PIN, enter new PIN again to confirm, then press [Enter] button

to change PIN in Key Card.

 To view current key set hash value, goto “Option” and select key.

 To generate new user key set

 Please generate the RSA key by yourself,thelengthof the RSA key set

should be 2048 (bits).

 Copy RSA key components to RSA Key for Kenc in Secure Key

Generator.

 Generate second RSA key set for Signature.

 Click [Get Hash] button to calculate the hash value for key sets.

 Please copy down all the values into a text file and keep in a safe place.

You will need this if you need to create duplicate Key Card.

 To generate the key CAP for the newly generated user key set, press [Make

Key CAP File] button.

 The output file will be located in the Secure Key Generator folder.

 To update the newly generated key set to Key Card, press [Save to Card]

button to write the key set to Key Card.

SecureKeyGenerator

key.mci

key.cap

5. Font Management

5.1. Loading New Font

 Run FontManager.exe

Located at C:\Program Files\Castles\Font Manager

 Select font to download

 Press [Setting] button to configure terminal type.

 Select VEGA5000, press [Save] button to save and return font manager.

 Press [Generate] to create the font file.

 Output file “Font.FNT” will be located at sub-directory named “Font” in “Font

Manager” folder.

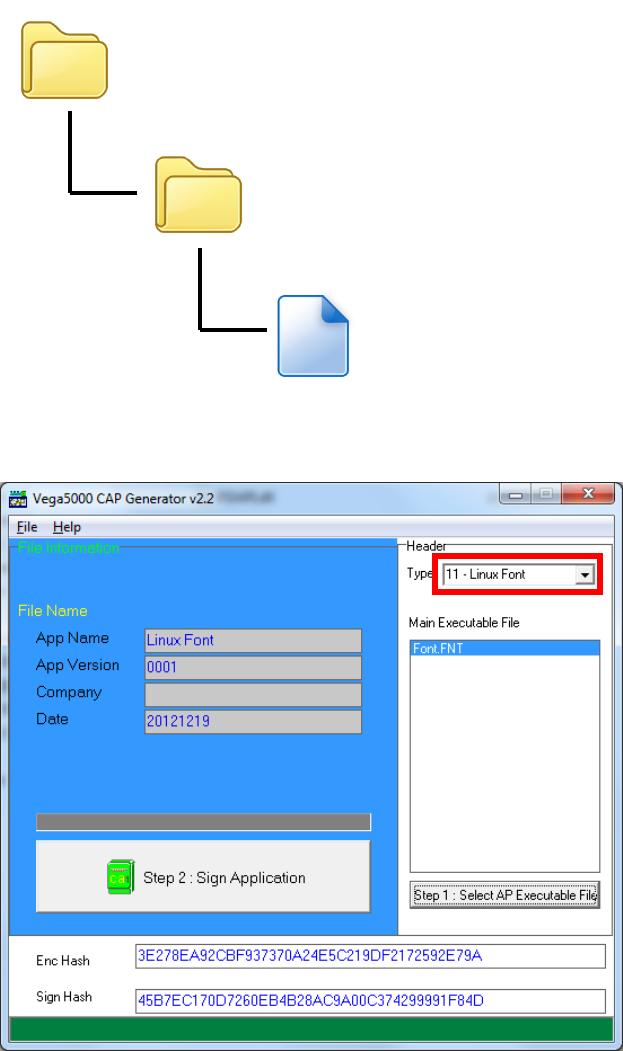

 Sign the file using CAP Generator, the type must set to “11 – Linux Font”.

 Lastly, download the signed file (CAP file) to terminal using Loader.

Font Manager

Font

Font.FNT

5.2. Custom Font

User may create font they preferred for displaying or printing on terminal.

There are two zone defined:

Zone 0x00 ~ 0x7F – ASCII characters, you may replace with the font type

preferred or your own language character set.

Zone 0x80 ~ 0xFF – Free to use, you may use for symbols.

Following steps demonstrate how to create a 12x24 font.

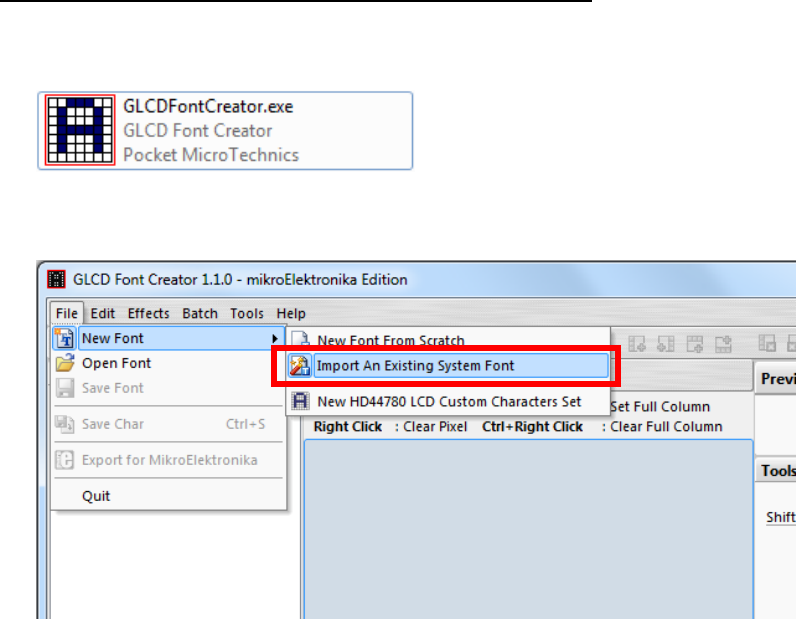

 Run GLCD Font Creator

 Select [File]  [New Font]  [Import An Existing System Font]

 Select the font needed, simply choose a font size. The final value of font size

should be determine by the minimum pixel width. You may need to repeat this

steps few times to find the best fit font size.

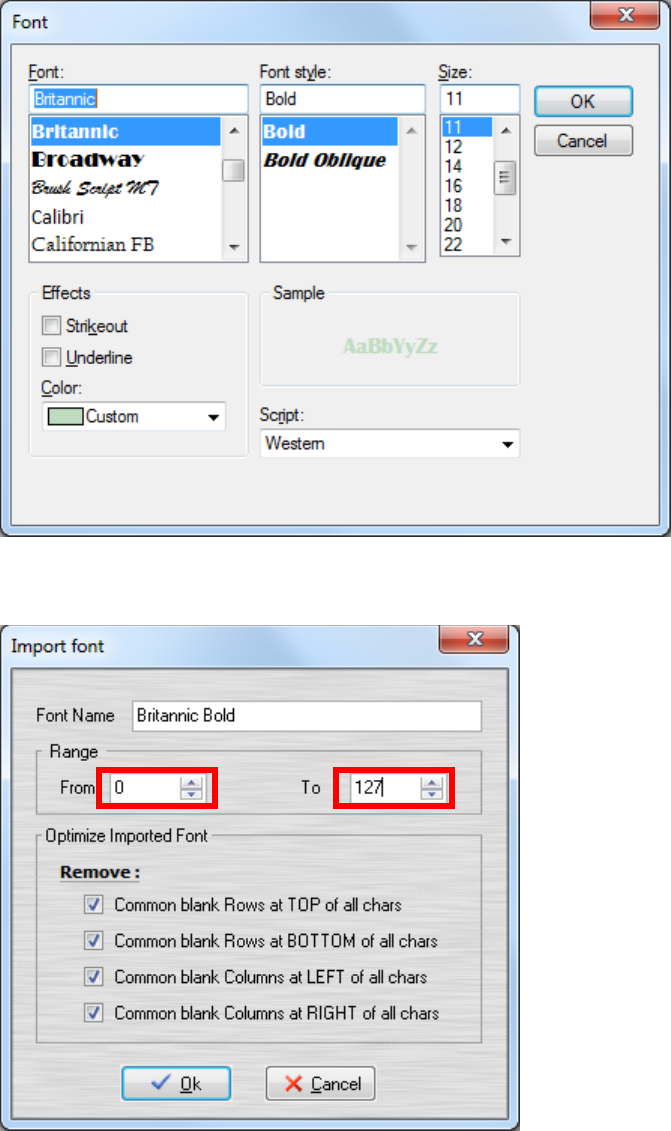

 Set the import range from 0 to 127.

 Check the minimum pixel width and height.

 If the pixel width of the font size is larger than expected, then you have to

repeat the previous steps to import font with smaller size.

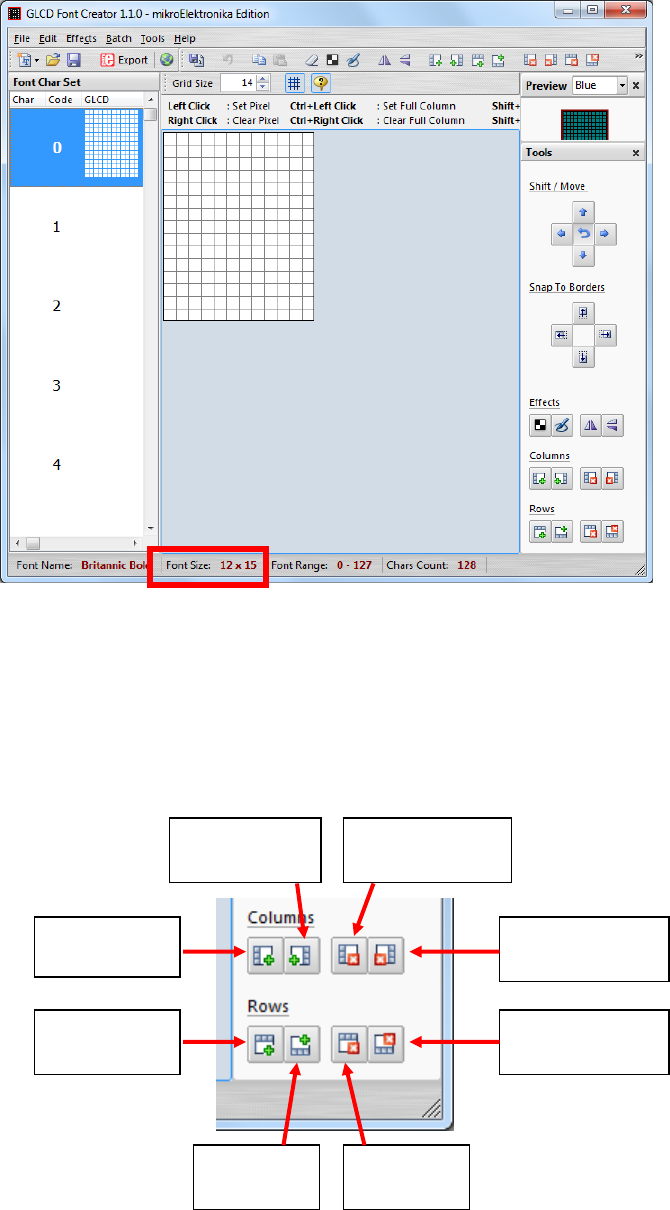

 Use the following buttons to adjust the font size to match with expected font

size.

Add row on

top

Add row

on bottom

Remove

row on top

Remove row

on bottom

Add column

on left

Add

columnonrigh

Removecolum

nonleft

Removecolumn

onright

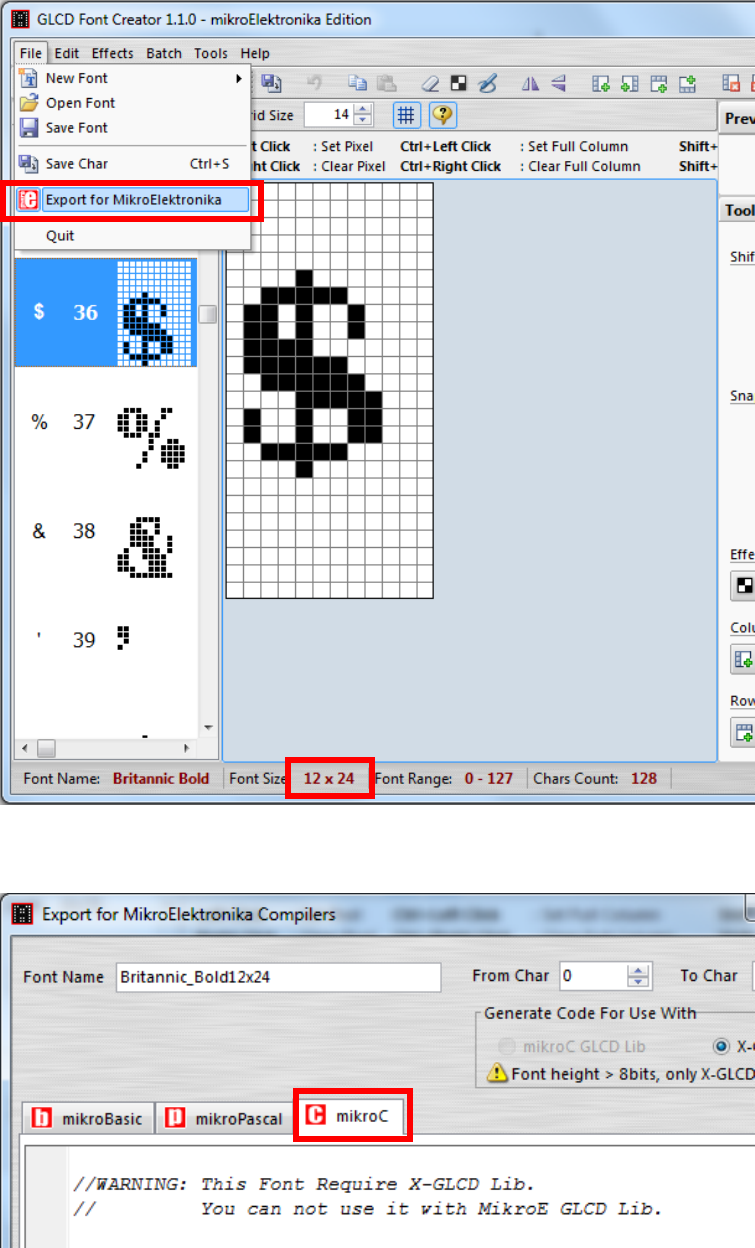

 After adjust font size, select [File]  [Export for MicroElektronika].

 Select output format as [mikroC].

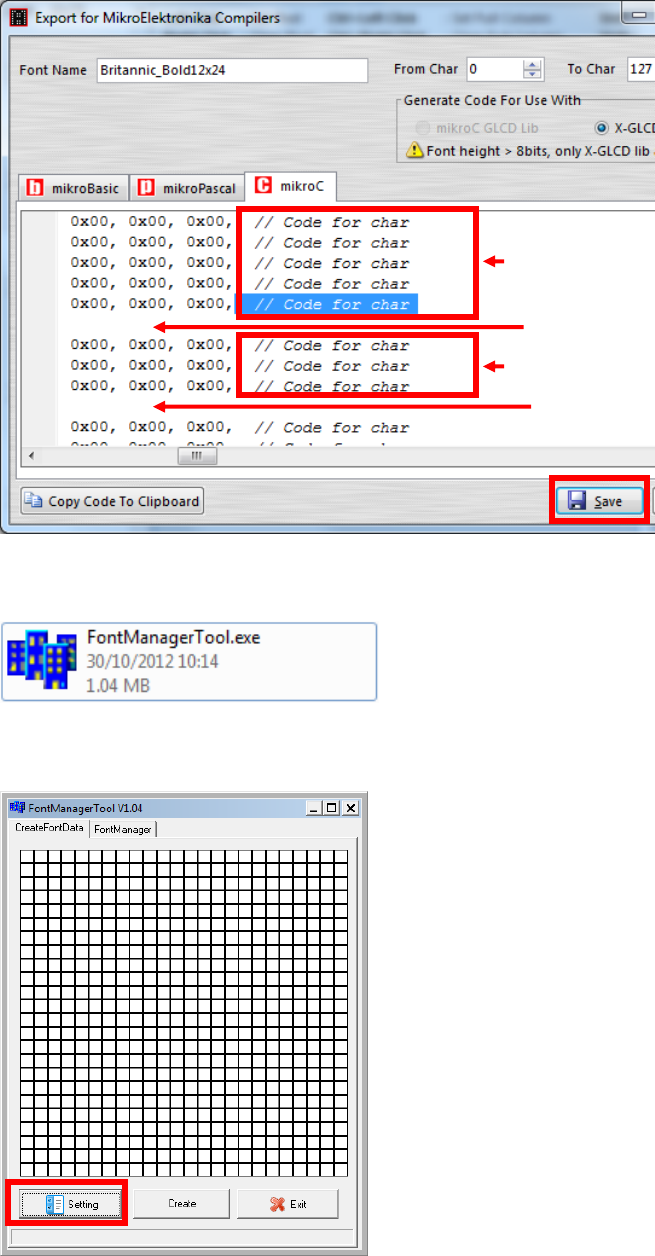

 Remove comment “// Code for char “ from offset 0x00 to 0x1F. Remove

empty line if found. Then click [Save] button to save to file.

 Run Font Manager Tool.

 Click [Setting] button

Remove

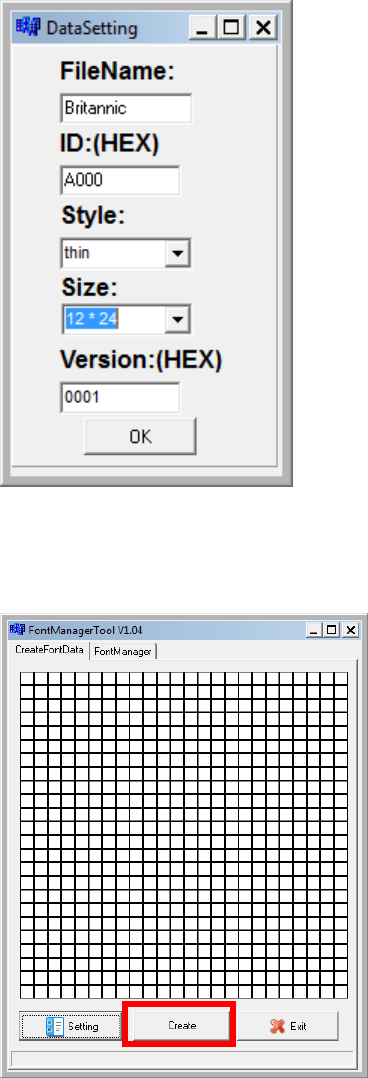

 Enter the file name, font id, and select the size.

 Click [Create] button, and select the C file previously created using GLCD

Font Generator.

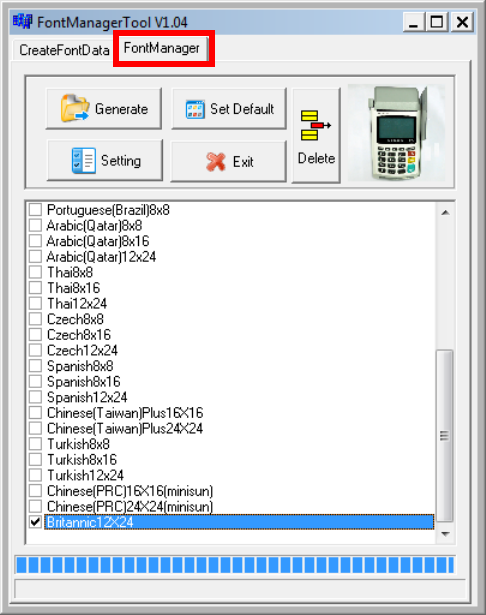

 Select [Font Manager] tab and tick the newly createdfont, and press

[Generate] button to export to FNT file.

 Use CAP Generator to conver the FNT file to CAP.

Set type to [11 – Linux Font], press [Step 1] button select the FNT file. Then

press [Step 2] to generate CAP file.

 Download the font CAP file to terminal.

 In terminal application, add following code to display message using the

newly created font.

CTOS_LanguageConfig(0xA000,d_FONT_12x24,0,d_FALSE);

CTOS_LanguageLCDSelectASCII(0xA000);

CTOS_LCDTPrintXY(1, 1, "ABCDEFGH");

Or print message using the newly created font.

CTOS_LanguagePrinterSelectASCII(0xA000);

CTOS_PrinterPutString("ABCDEFGH");

5.3. Using TrueType Font (TTF)

TrueType Font (TTF) is supported in VEGA3000 UltraLite.You may download the

TrueType font preferred to terminal for displaying or printing.

Following steps demonstrate how to use “Cooper Black” TrueType font.

 Copy the TTF file needed to a empty folder.

 Use CAP Generator to conver the TTF file to CAP.

Set type to [11 – Linux Font], press [Step 1] button select the TTF file.

Then press [Step 2] to generate CAP file.

 Download the font CAP file to terminal.

TTF

COOPBL.TTF

 In terminal application, add following code to display message using the

newly added font.

CTOS_LCDTTFSelect("COOPBL.TTF", 0);

CTOS_LCDFontSelectMode(d_FONT_TTF_MODE);

CTOS_LCDTSelectFontSize(0x203C); // 32x60

CTOS_LCDTClearDisplay();

CTOS_LCDTPrintXY(1, 1, "Hello World");

Or print message using the newly added font.

CTOS_PrinterTTFSelect("COOPBL.TTF", 0);

CTOS_PrinterFontSelectMode(d_FONT_TTF_MODE);

CTOS_LanguagePrinterFontSize(0x203C, 0, 0); // 32x60

CTOS_PrinterPutString("Hello World");

6. FCC Warning

Federal Communication Commission interference statement.This equipment has been

tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures: -Reorient or relocate the

receiving antenna. -Increase the separation between the equipment and receiver. -

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected. -Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference and

(2) this device must accept any interference received, including interference that may

cause undesired operation

RF Exposure Warning

The equipment complies with RF exposure limits set forth for an uncontrolled

environment. The antenna(s) used for this transmitter must not be co-located or

operating in conjunction with any other antenna or transmitter.

You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

7. NCCWarning

根據 NCC 低功率電波輻射性電機管理辦法規定:

第十二條

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得

擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現

象時，應立即停用，並改善至無干擾時方得繼續使用。

前項合法通信，指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備

之干擾。

CASTLES TECHNOLOGY VEGA3000-UL PIN Pad User Manual VEGA5000 Book 2

CASTLES TECHNOLOGY CO., LTD. PIN Pad VEGA5000 Book 2

Users Manual

Navigation menu

Namespaces

Views

Navigation
