CCA Electronic Factory QI-1208A Wireless Charger User Manual Product Specification

CCA Electronic Factory Wireless Charger Product Specification

USER MANUAL

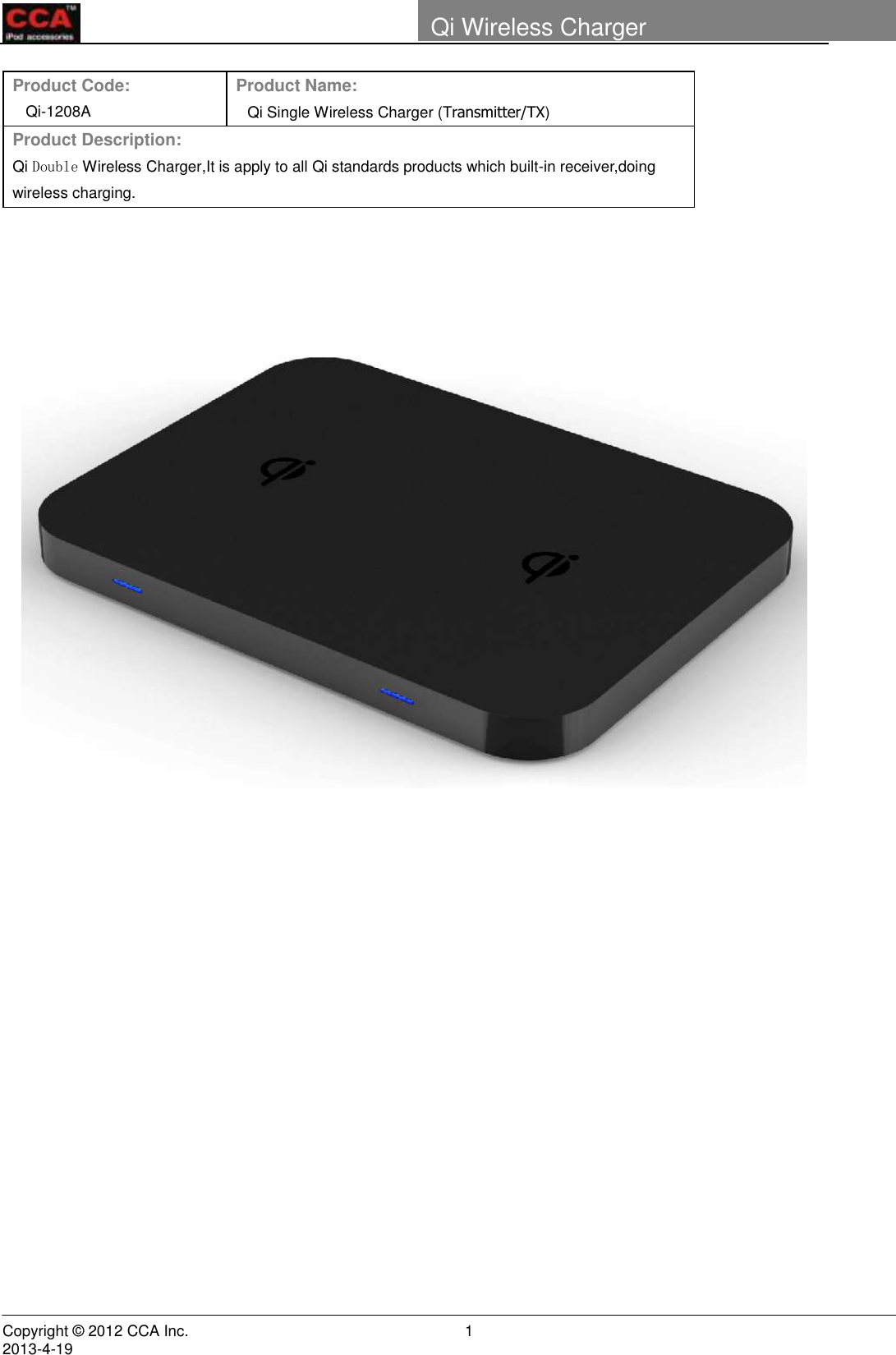

Copyright © 2012 CCA Inc. 2013-4-19 1 Qi Wireless Charger Product Code: Qi-1208A Product Name: Qi Single Wireless Charger (Transmitter/TX) Product Description: Qi Double Wireless Charger,It is apply to all Qi standards products which built-in receiver,doing wireless charging.
Copyright © 2012 CCA Inc. 2013-4-19 2 Qi Wireless Charger 1. Electrical specifications 1.1．Physical Properties Dimensions (L)175*(W)130*(H)12mm Products weight 350g 1.2．Electrical specifications 1.3．State remind LED | State Standby Deviating Charging Charging end Failure Red / / Light / Rapid Flash Green / / / Light / 2. User Interface Guide 2.1. When you plug AC adapter and single wireless charger into the socket on the wall, QI product in on standby. 2.2. When a USB device is plugged into the USB socket, up to 2.1A of power will be supplied immediately. 2.3. If a Qi wireless mobile phone placed to Qi logo center position, If a Qi sleeve or Qi battery pack placed to Qi logo center position, Red LED will be lighted mobile phones show charging.2.4. If the Qi device charging end, Green LED will light. 2.5. If the Qi device deviating from the coil center too much, LED will turn on slow flashing warning users position shift and stop charging. If you move back to the center position, charge will automatically start(ref. 2.3). 2.6. If Qi device malfunction, Red LED will Rapid Flash. Note: charging saturation tip is from phones emit signal instruction. Power Input AC Adapter: AC100-240V, DC 18V/ 1.65A, 3.5 DC. USB output 5V/2.1A, 10W, Charging for iPad and other smart phone. Wireless output DC 6V-9V / Sinusoidal voltage, 5W*2 Charging frequency 110K-205KHZ Standby power ＜0.3W Wireless distance 5~8mm Coil Alignment Guided Positioning with tactile feedback (Magnetic Attraction) Wireless efficiency 70% max Ripple & Noise ＜50mV Temperature protection 60°C Protection function OVP/OCP/OTP/SCP State remind LED Compatibility All wireless charging receiver terminal facilities that comply with Qi Standard. Regulatory & Compliance Design conforms to the Qi standard/Energy star/ERP/CE/FCC/C-Tick, Manufacturing conform to RoHS/REACH. Operating Temperature / Humidity 0°C (32 F) – 40°C (104 F), 10 – 85% Storage Temperature / Humidity -20°C (-4 F), 60°C (140 F), 95%

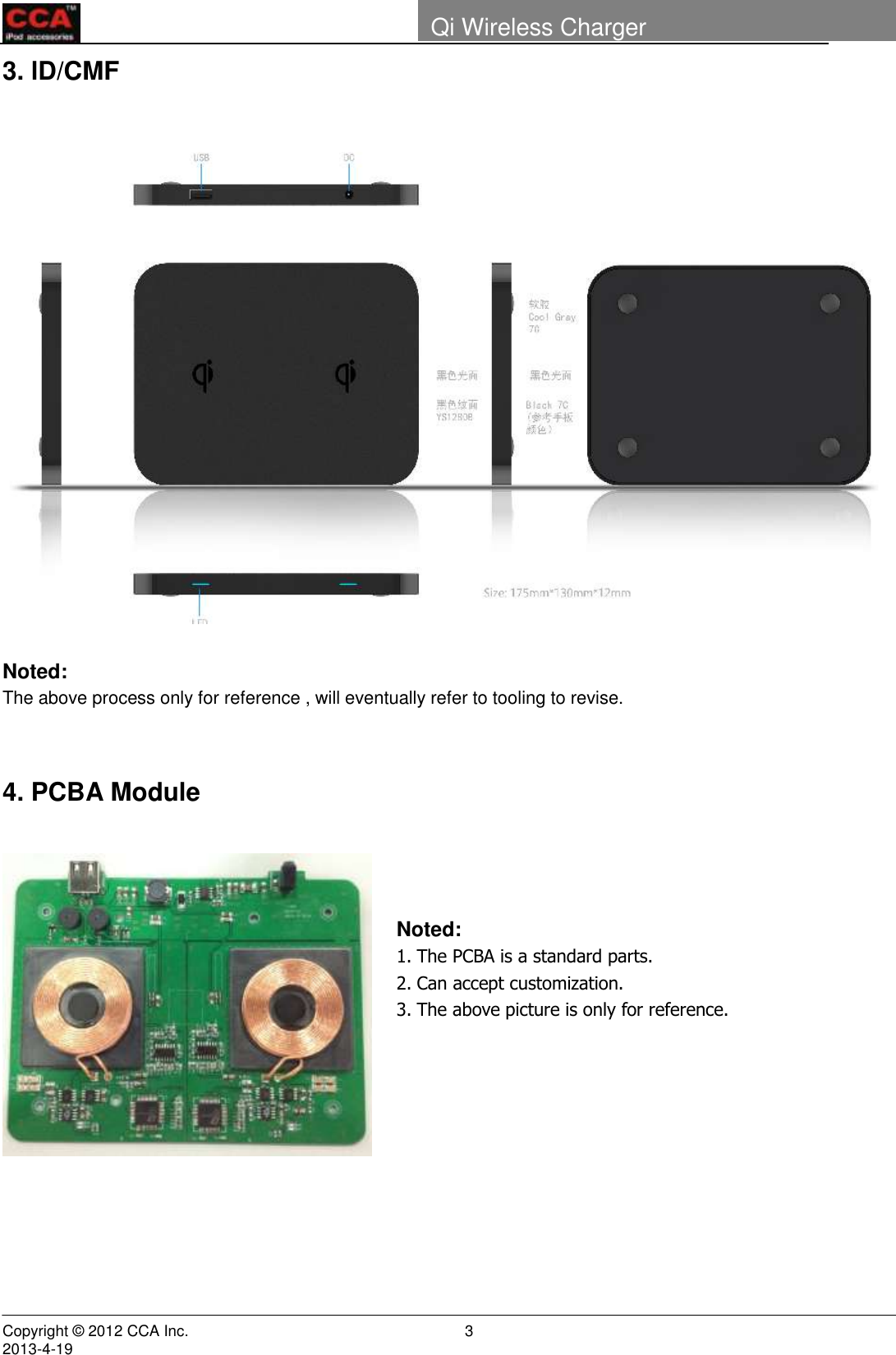

Copyright © 2012 CCA Inc. 2013-4-19 3 Qi Wireless Charger 3. lD/CMF Noted: The above process only for reference , will eventually refer to tooling to revise. 4. PCBA Module Noted: 1. The PCBA is a standard parts. 2. Can accept customization. 3. The above picture is only for reference.

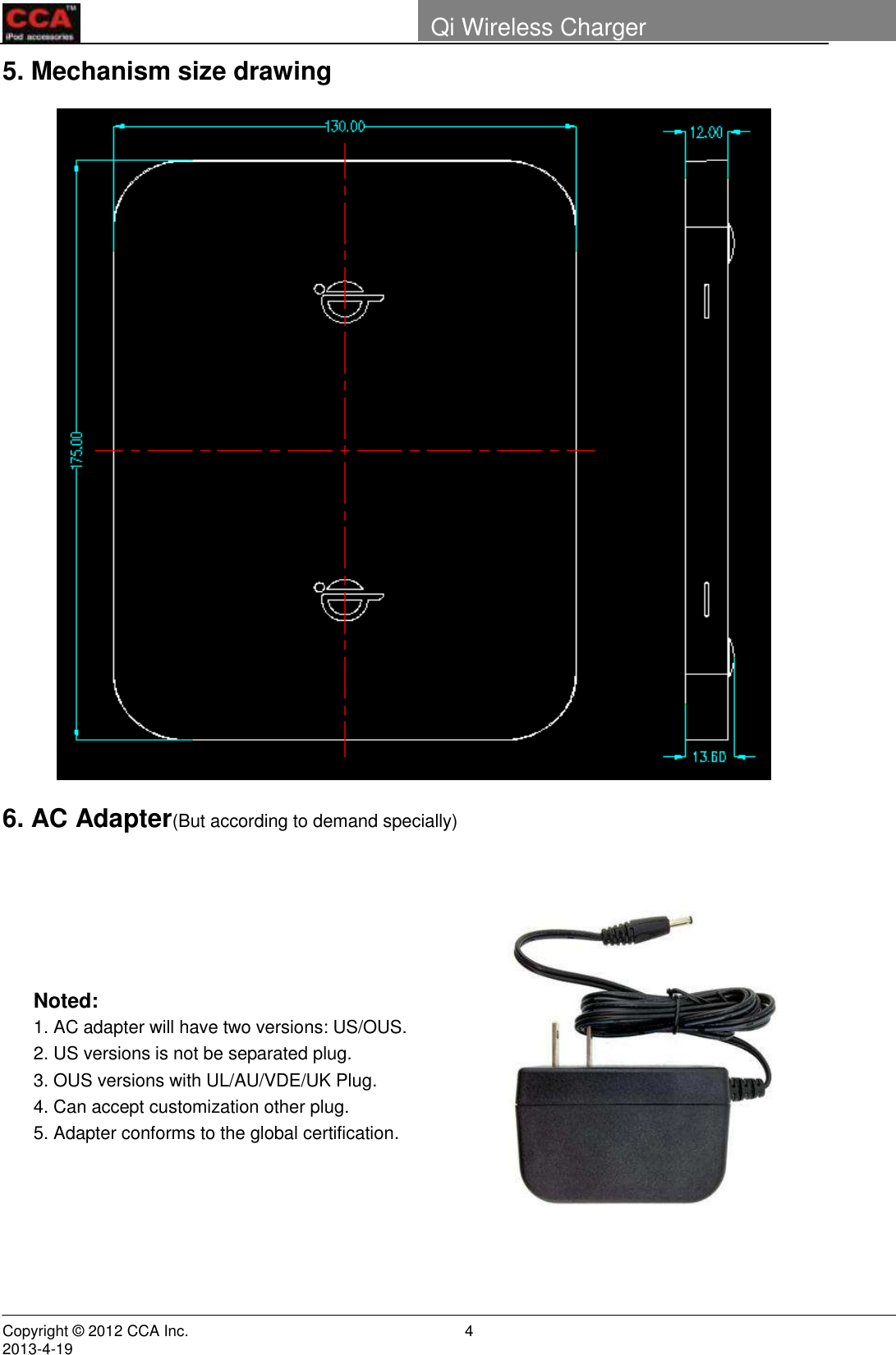

Copyright © 2012 CCA Inc. 2013-4-19 4 Qi Wireless Charger 5. Mechanism size drawing 6. AC Adapter(But according to demand specially) Noted: 1. AC adapter will have two versions: US/OUS. 2. US versions is not be separated plug. 3. OUS versions with UL/AU/VDE/UK Plug. 4. Can accept customization other plug. 5. Adapter conforms to the global certification.

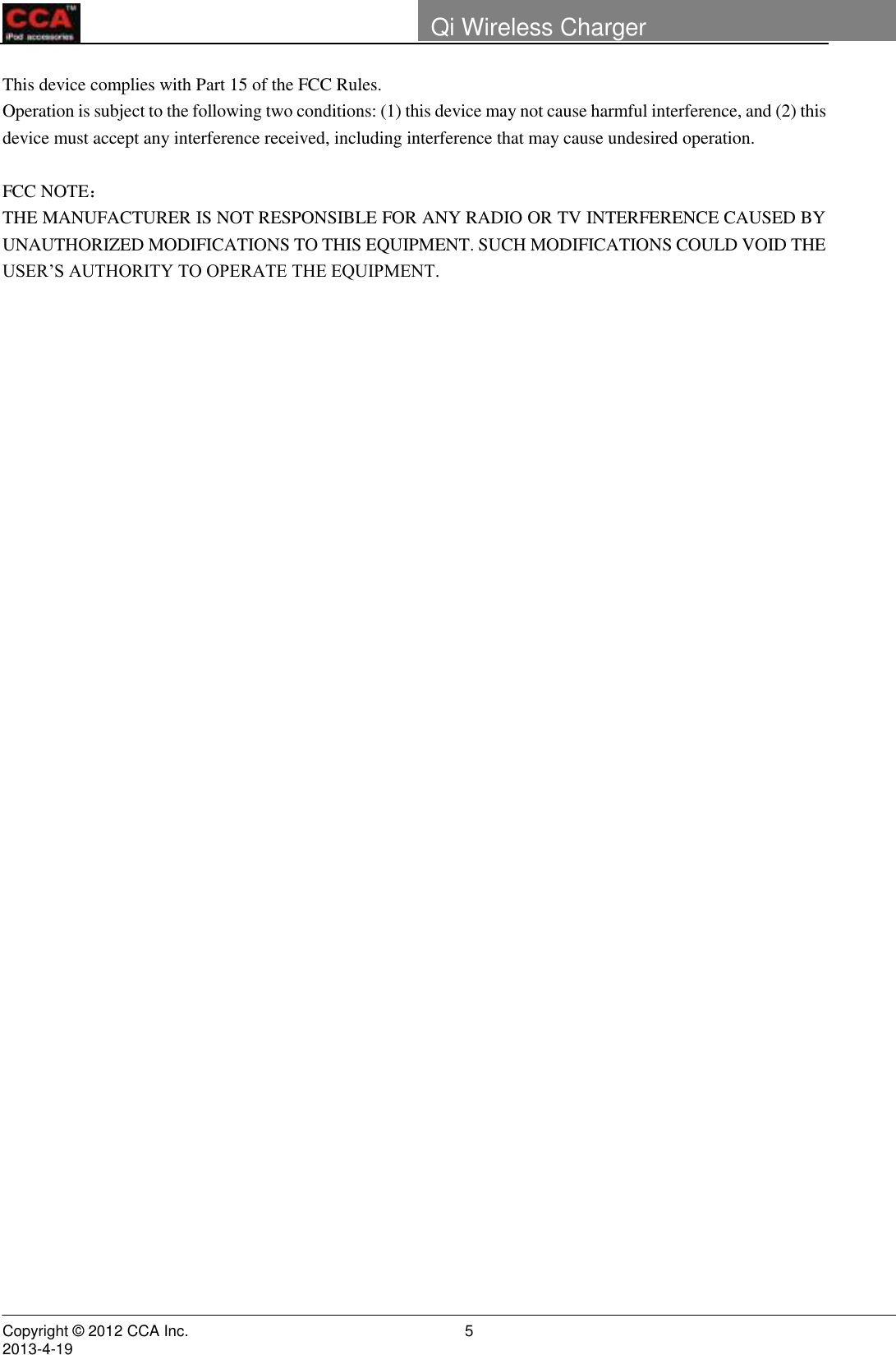

Copyright © 2012 CCA Inc. 2013-4-19 5 Qi Wireless Charger This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC NOTE： THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
