CCA Electronic Factory QI-1208A Wireless Charger User Manual Product Specification
CCA Electronic Factory Wireless Charger Product Specification
USER MANUAL
Copyright © 2012 CCA Inc.
2013-4-19
1

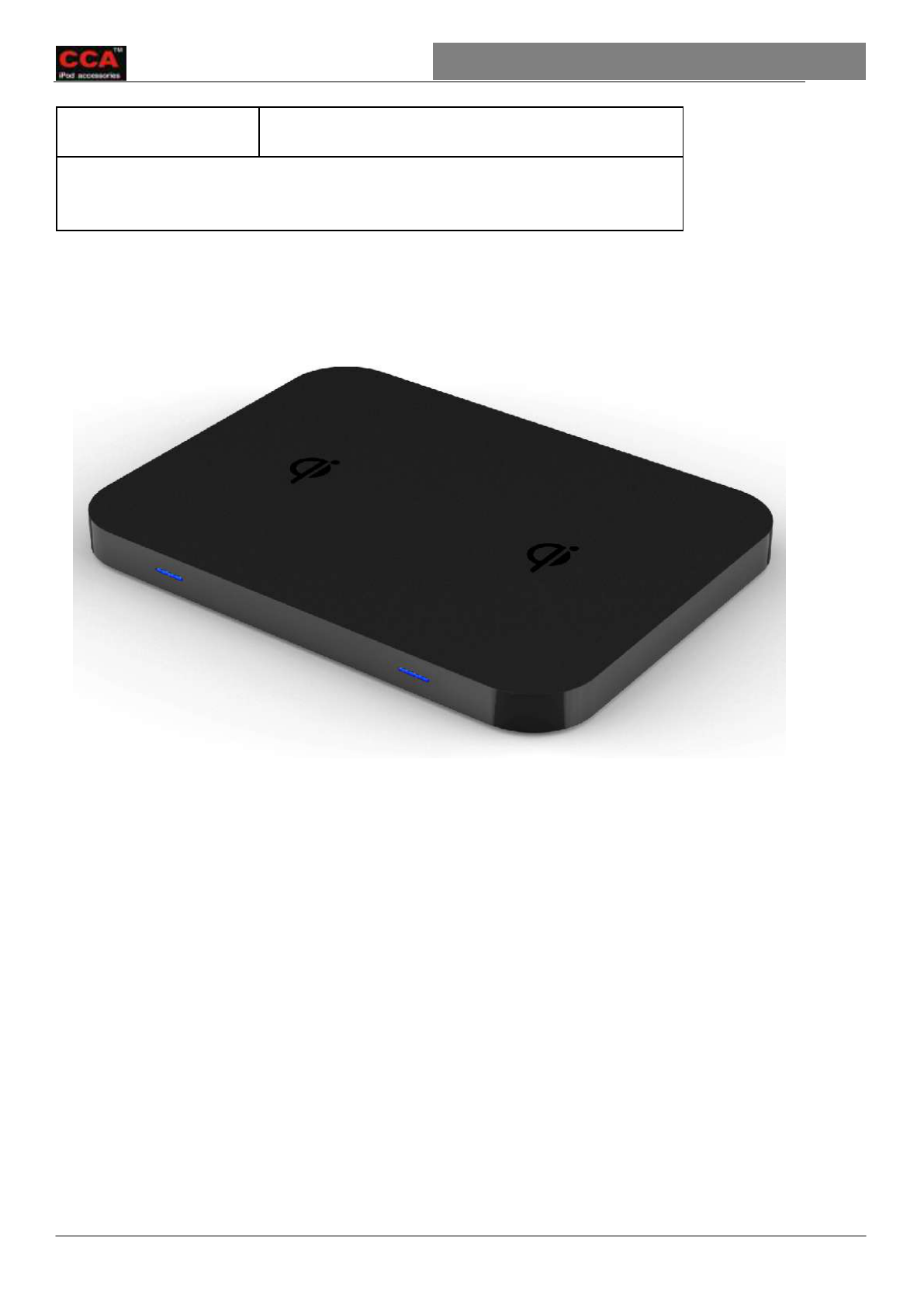

Qi Wireless Charger
Product Code:
Qi-1208A
Product Name:
Qi Single Wireless Charger (Transmitter/TX)
Product Description:
Qi Double Wireless Charger,It is apply to all Qi standards products which built-in receiver,doing
wireless charging.
Copyright © 2012 CCA Inc.
2013-4-19
2
Qi Wireless Charger
1. Electrical specifications
1.1．Physical Properties
Dimensions
(L)175*(W)130*(H)12mm
Products weight
350g
1.2．Electrical specifications
1.3．State remind
LED | State
Standby
Deviating
Charging
Charging end
Failure
Red
/
/
Light
/
Rapid Flash
Green
/
/
/
Light
/
2. User Interface Guide
2.1. When you plug AC adapter and single wireless charger into the socket on the wall, QI product in on standby.
2.2. When a USB device is plugged into the USB socket, up to 2.1A of power will be supplied immediately.
2.3. If a Qi wireless mobile phone placed to Qi logo center position, If a Qi sleeve or Qi battery pack placed to Qi logo
center position, Red LED will be lighted mobile phones show charging.2.4. If the Qi device charging end, Green LED
will light.
2.5. If the Qi device deviating from the coil center too much, LED will turn on slow flashing warning users position shift and
stop charging. If you move back to the center position, charge will automatically start(ref. 2.3).
2.6. If Qi device malfunction, Red LED will Rapid Flash.
Note:
charging saturation tip is from phones emit signal instruction.
Power Input
AC Adapter: AC100-240V, DC 18V/ 1.65A, 3.5 DC.
USB output
5V/2.1A, 10W, Charging for iPad and other smart phone.
Wireless output
DC 6V-9V / Sinusoidal voltage, 5W*2
Charging frequency
110K-205KHZ
Standby power
＜0.3W
Wireless distance
5~8mm
Coil Alignment
Guided Positioning with tactile feedback (Magnetic Attraction)
Wireless efficiency
70% max
Ripple & Noise
＜50mV
Temperature protection
60°C
Protection function
OVP/OCP/OTP/SCP
State remind
LED
Compatibility
All wireless charging receiver terminal facilities that comply with Qi Standard.
Regulatory & Compliance
Design conforms to the Qi standard/Energy star/ERP/CE/FCC/C-Tick, Manufacturing
conform to RoHS/REACH.
Operating Temperature / Humidity
0°C (32 F) – 40°C (104 F), 10 – 85%
Storage Temperature / Humidity
-20°C (-4 F), 60°C (140 F), 95%
Copyright © 2012 CCA Inc.
2013-4-19
3
Qi Wireless Charger

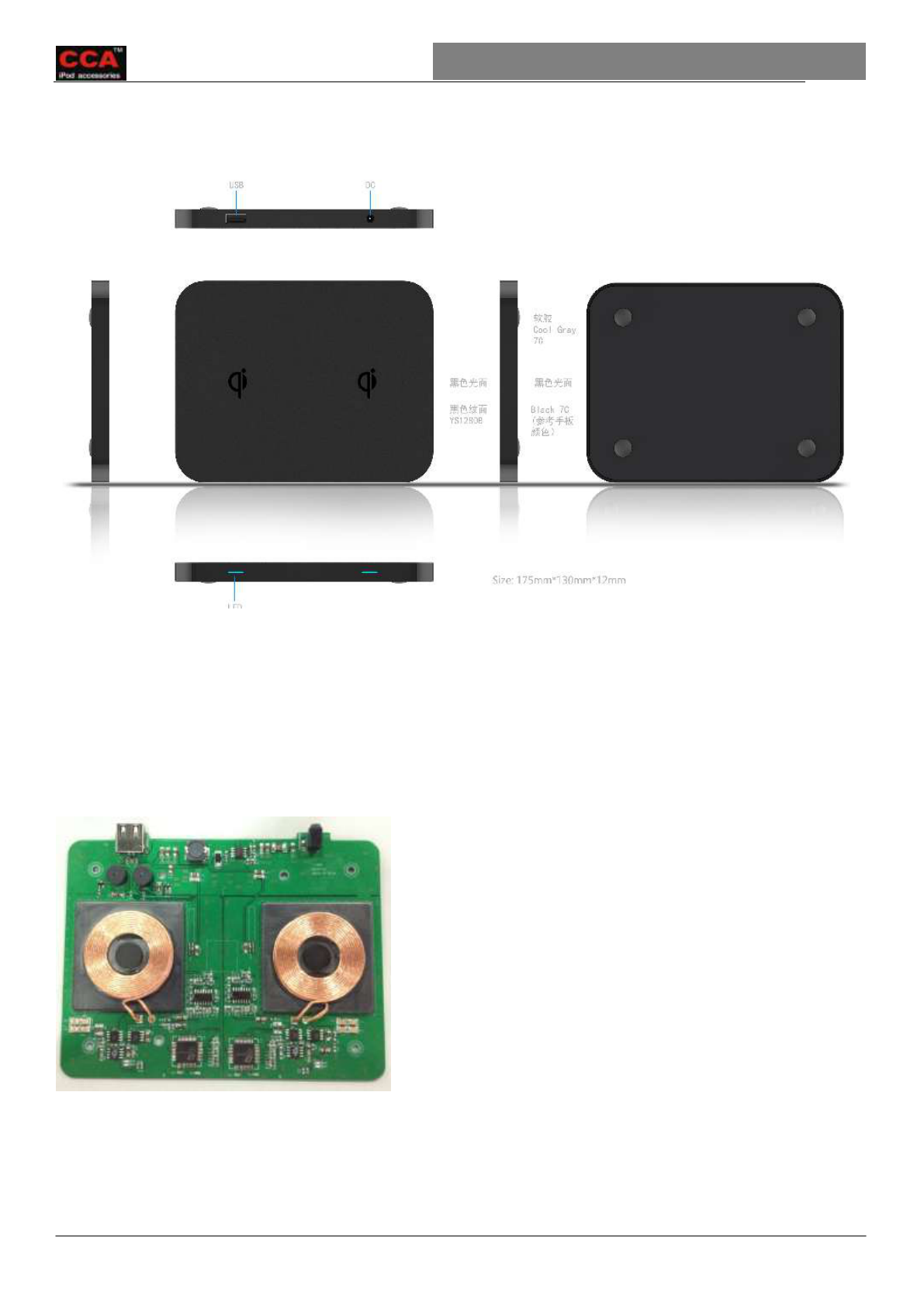

3. lD/CMF
Noted:
The above process only for reference , will eventually refer to tooling to revise.
4. PCBA Module
Noted:
1. The PCBA is a standard parts.
2. Can accept customization.
3. The above picture is only for reference.
Copyright © 2012 CCA Inc.
2013-4-19
4
Qi Wireless Charger

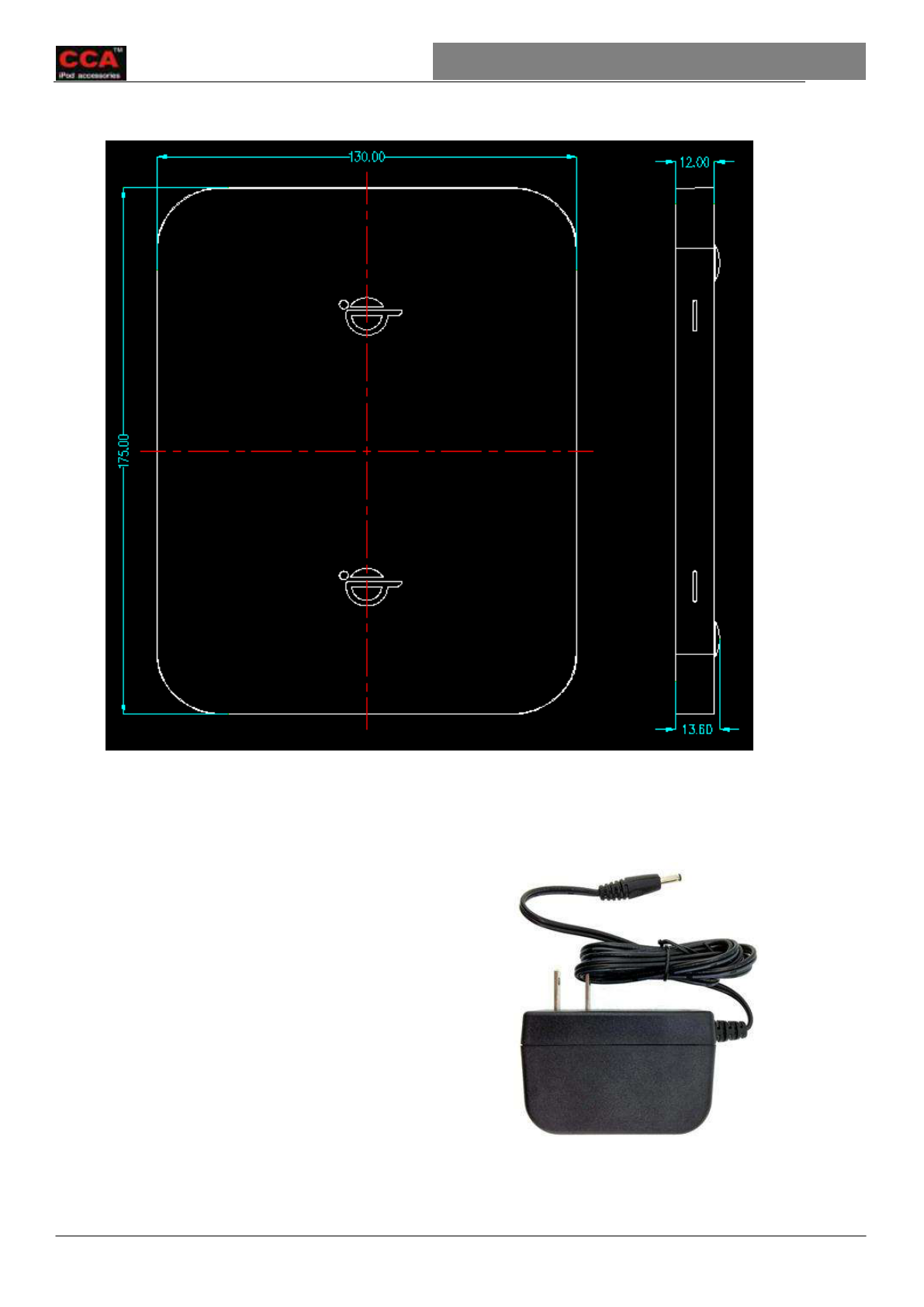

5. Mechanism size drawing
6. AC Adapter(But according to demand specially)
Noted:
1. AC adapter will have two versions: US/OUS.
2. US versions is not be separated plug.
3. OUS versions with UL/AU/VDE/UK Plug.
4. Can accept customization other plug.
5. Adapter conforms to the global certification.
Copyright © 2012 CCA Inc.
2013-4-19
5
Qi Wireless Charger
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
FCC NOTE：
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
