INTRODUCTION
Thank you for selecting Professional Weather Station with integrated 5-in-1
multi sensor.
The wireless 5-in-1 sensor contains a self-emptying rain collector for measuring rainfall, anemometer, wind
vane, temperature and humidity sensors. It is fully assembled and calibrated for your easy installation. It
sends data by a low power radio frequency to the Display Main Unit up to 150m away (line of sight).
The display Main Unit displays all the weather data received from the 5-in-1 sensor outside. It remembers the
data for a time range for you to monitor and analyze the weather status for past 24 hours. It has advance
feature such as the HI /LO Alert alarm which will alert the user when the set high or low weather criteria are
met. The barometric pressure records are computed to give users forthcoming weather forecast and stormy
warning. Day and date stamps are also provided to the corresponding maximum and minimum records for
each weather details.
The system also analyzes the records for your convenient viewing, such as the display of rainfall in terms of
rain rate, daily, weekly and monthly records, whereas wind-speed in different levels, and expressed in
Beaufort Scale. Different useful readings such as Wind-chill, Heat Index, Dew-point, Comfort level are also
provided.
With Radio-controlled / Atomic clock feature built-in, the system is truly a remarkable personal Professional
Weather Station for your own backyard.
Note: This instruction manual contains useful information on the proper use and care of this product. Please read this
manual through to fully understand and enjoy its features, and keep it handy for future use.
OVERVIEW

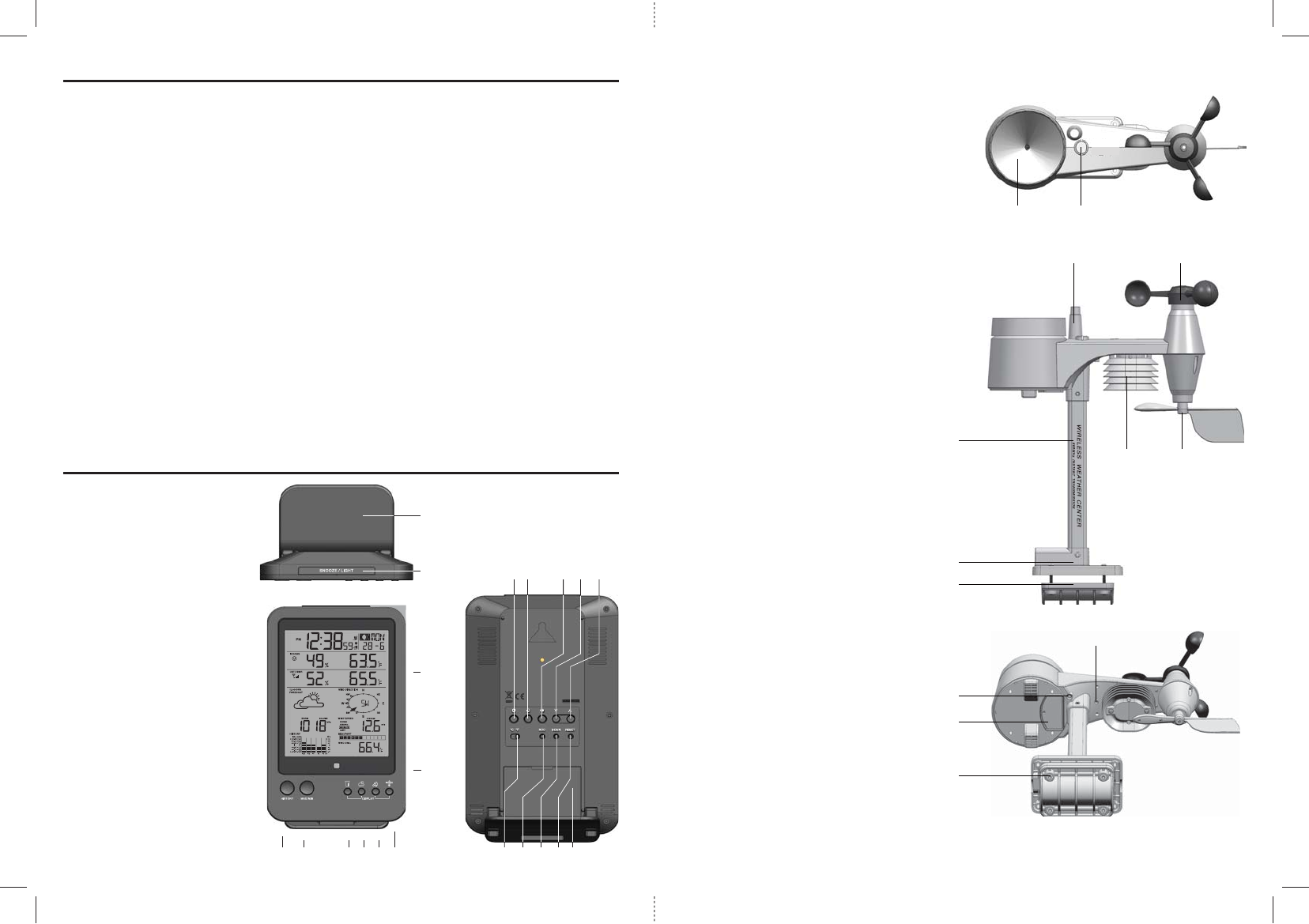

Display main unit
1. SNOOZE / LIGHT button
2. HISTORY button
3. MAX/MIN button
4. RAINFALL button
5. BARO button
6. WIND button
7. INDEX button
8. CLOCK button
9. ALARM button
10. ALERT button
11. DOWN button
12. UP button
13. °C/°F slide switch
14. RCC button
15. SCAN button
16. RESET button
17. Battery compartment
18. Alert LED indicator
19.
LCD display with backlight
20. Table stand
Wireless 5-in-1 Sensor
1. Rain collector
2. Balance indicator
3. Antenna
4. Wind cups
5. Mounting pole
6. Radiation shield
7. Wind vane
8. Mounting base
9. Mounting claim
10. Red LED indicator
11. RESET button
12. Battery door
13. Screws
12
1
2
12
12
1234
1
2
3
4
7
6
5
1
2
6
4
5
3
2
1
345678
910 11
2
1
3 4 5
2
1
6
3 4 5

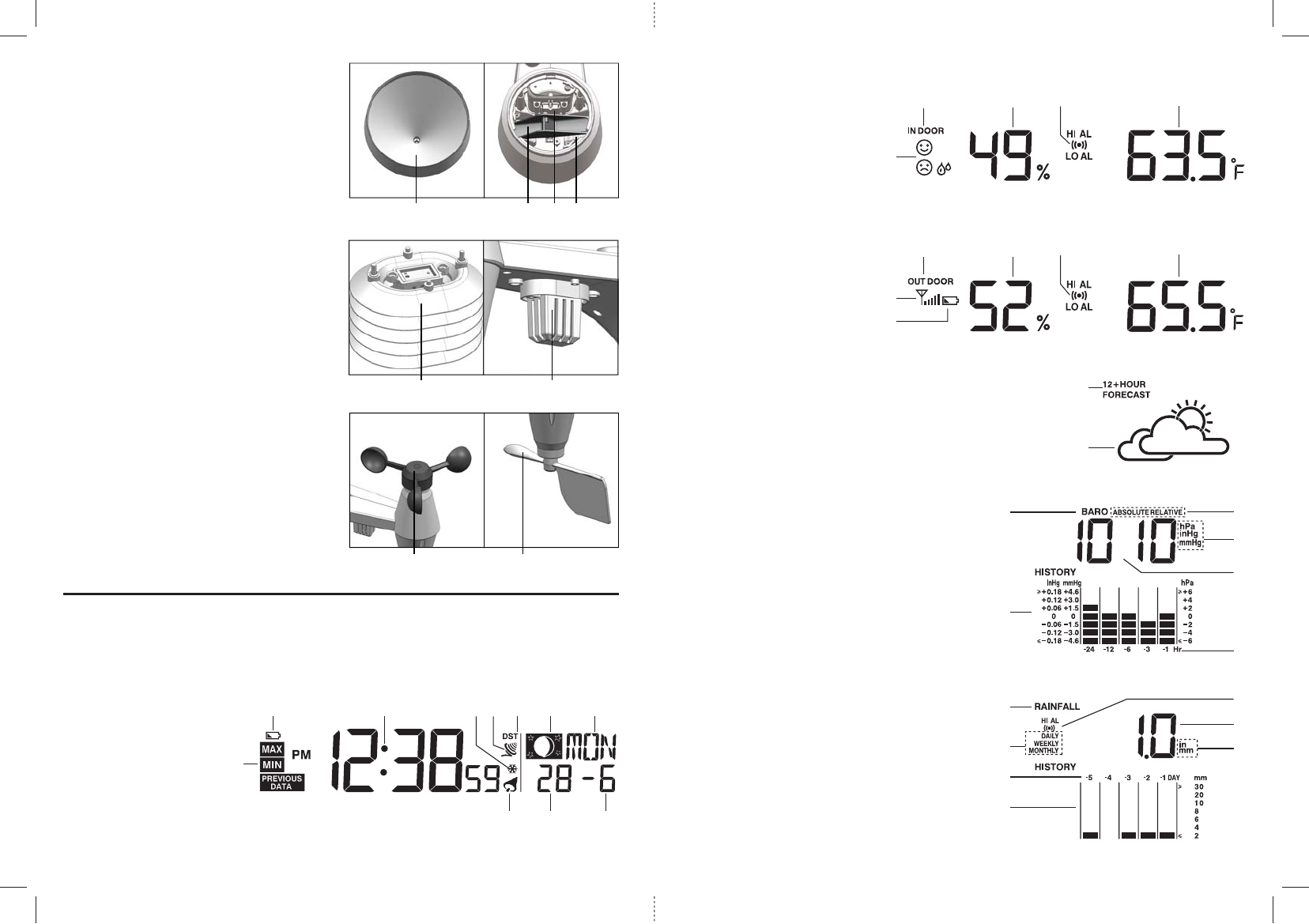

Indoor temperature and humidity window
1. Comfort/cold/hot icon
2. Indoor indicator
3. Indoor humidity
4. Hi / Lo Alert and Alarm
5. Indoor temperature
Outdoor temperature and humidity window
1. Outdoor signal strength indicator
2. Outdoor indicator
3. Outdoor humidity
4. Hi / Lo Alert and Alarm
5. Outdoor temperature
6. Low battery indicator for sensor
12+ Hour forecast
1. Weather forecast indicator
2. Weather forecast icon
Barometer
1. Barometer indicator
2. Histogram
3. Absolute/Relative indicator
4. Barometer measurement unit (hPa / inHg / mmHg)
5. Barometer reading
6. Hourly records indicator
Rainfall
1. Rainfall indicator
2. Time range record indicator
3. Day records indicator
4. Histogram
5.
Hi Alert and Alarm
6. Current rainfall rate
7. Rainfall unit (in / mm)
Rain gauge
1. Rain collector
2. Tipping bucket
3. Rain sensor
4. Drain holes
Temperature and humidity sensor
1. Radiation shield
2. Sensor casing (Temperature and humidity sensor)
Wind sensor
1. Wind cups (anemometer)
2. Wind vane
LCD DISPLAY
Normal time and calendar / Moon phase
1. Max/Min/Previous indicator
2. Low battery indicator for main unit
3. Time
4. Ice pre-alert on
5. RC Signal strength indicator
6. DST icon
7. Moon phase
8. Day of the week
9. Alarm icon
10. Date
11. Month
3 4
6
1
2
3
4
5
7
8
9
10

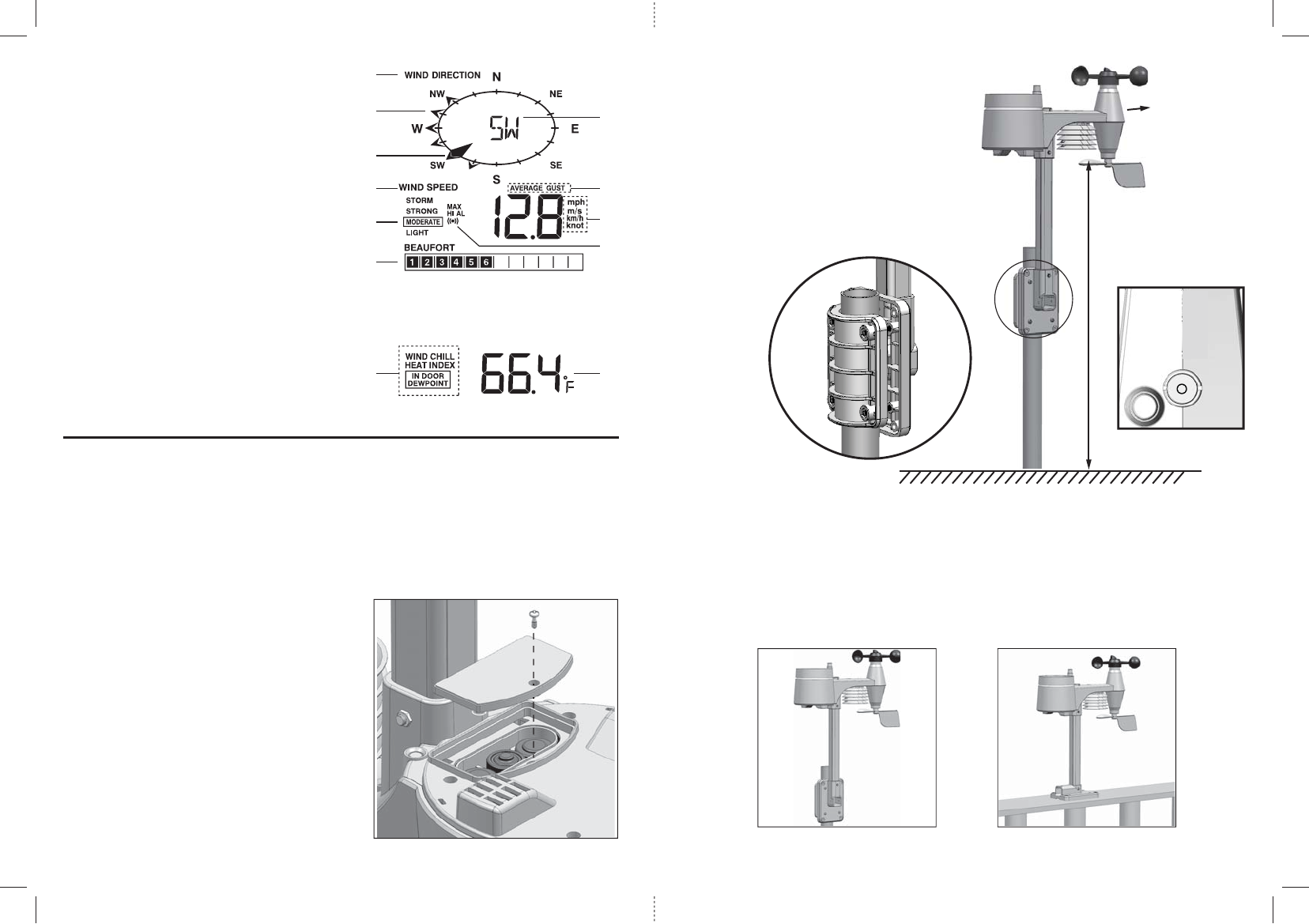

A. Mounting on pole (Pole Diameter 1”~1.3” (25~33mm) B. Mounting on the railing
1.5 meter off the ground
Points to
NORTH
12
Wind direction/Wind speed
1. Wind direction indicator
2. Wind direction indicator(s) during last hour
3. Current wind direction indicator
4. Wind speed indicator
5. Wind levels and indicator
6. Beaufort scale reading
7. Current wind direction reading
8. Average/Gust wind indicator
9. Wind speed unit (mph / m/s / km/h / knots)
10. Hi Alert and Alarm
Wind chill/ Heat index/ Indoor dewpoint
1. Wind chill/ Heat index/ Indoor dewpoint indicator
2. Wind chill/ Heat index/ Indoor dewpoint reading
INSTALLATION
Wireless 5-in-1 Sensor
Your wireless 5-in-1 sensor measures wind-speed, wind-direction, rainfall, temperature and humidity for you.
It’s fully assembled and calibrated for your easy installation.
Battery and installation
Unscrew the battery door at bottom of unit and insert the batteries according to the “+/-”polarity indicated.
Screw the battery door compartment on tightly.
Note:
The red LED will begin flashing every 12 seconds.
Install the wireless 5-in-1 sensor in an
open location with no obstructions
above and around the sensor for
accurate rain and wind measurement.
Install the sensor with the smaller end
facing the North to properly orient the
wind direction vane.
Secure the mounting stand and bracket
(included) to a post or pole, and allow
minimum 1.5m off the ground.
Mounting guidelines:
1. Install the wireless 5-in-1 sensor at least 1.5m off the ground for better and more accurate wind measurements.
2. Choose an open area within 150 meters from the LCD display Main Unit.
3. Install the wireless 5-in-1 sensor as level as possible to achieve accurate rain and wind measurements.
A bubble level device is provided to ensure a level installation.
4. Mount the wireless 5-in-1 sensor with the wind meter end pointing to the North to correctly orient direction of
the wind vane.
5 6
Alarm off Alarm on Alarm with ice-alert
RC on RC off
DISPLAY MAIN UNIT

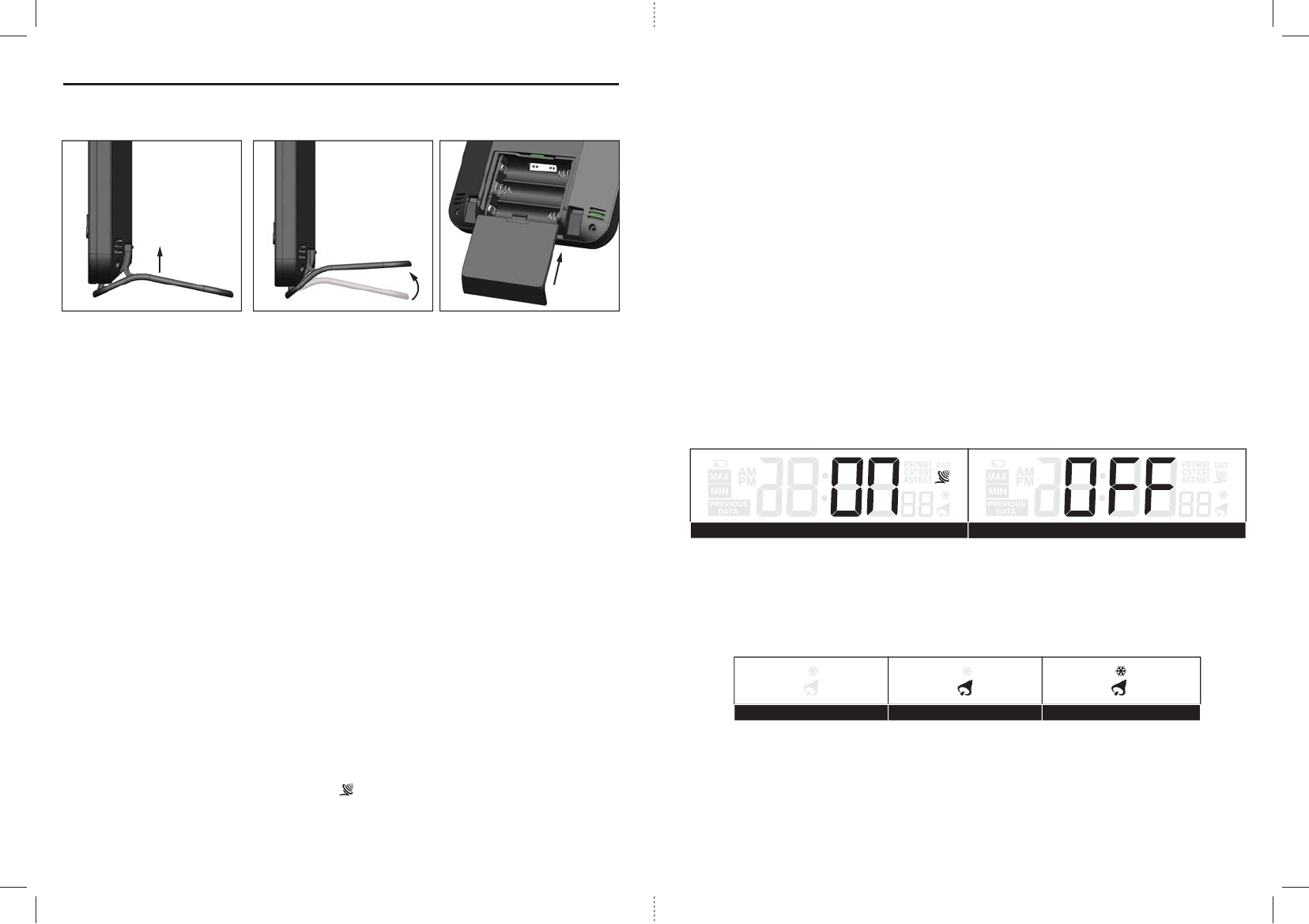

Stand and batteries installation
The unit is designed for desktop or wall mount for easy viewing.
1. Remove the battery door of the main unit.
2. Insert 3 new AA size batteries according to the “+/-” polarity mark on the battery compartment.
3. Replace the battery door.
4. Once the batteries are inserted, all the segments of the LCD will be shown briefly before entering the
radio-controlled time reception mode.
5. The RC clock will automatically start scanning for the radio-controlled time signal in 8 seconds.
Note:
1. If no display appears on the LCD after inserting the batteries, press the RESET button by using a pointed object.
2. In some cases, you may not receive the signal immediately due to the atmospheric disturbance.
Pairing of wireless 5-in-1 sensor with Display Main Unit
After insertion of batteries, the Display Main Unit will automatically search and connect the wireless 5-in-1
sensor (antenna blinking).
Once the connection is successful, antenna mark and readings for outdoor temperature, humidity, wind speed,
wind direction, and rainfall will appear on the display.
Changing batteries and manual pairing of sensor
Whenever you changed the batteries of the wireless 5-in-1 sensor, pairing must be done manually.
1. Change the batteries to new ones.
2. Press the [SCAN] button.
3. Press the [RESET] button on the sensor.
Note:
1. Pressing [RESET] button at bottom of wireless 5-in-1 sensor will generate a new code for pairing purpose.
2. Always dispose old batteries in an environmental safe manner.
Radio-controlled / atomic clock function
When the unit receives RC signal, a sync-time symbol “ ” will appear on the LCD, and synchronizes daily.
Note:
1. The strength of radio-controlled time signal from the transmitter tower may be affected by geographical location or building
around.
2. Always place the unit away from interfering sources such as TV set, computer, etc.
3. Avoid placing the unit on or next to metal plates.
4. Closed areas such as airport, basement, tower block, or factory are not recommended.
Time setting
The unit automatically set itself accordingly to the Radio Controlled Clock signal it received. To set the clock/
calendar manually, first disable the reception by holding the RCC button for 8 seconds.
To manually set the clock / Time Zone selection
1. Press and hold [CLOCK] button for 2 seconds until “12 or 24Hr” flashes.
2. Use [UP]/[DOWN] button to adjust, and press [CLOCK] button to proceed to the next setting.
3.
Repeat 2 above for setting of TIME ZONE, HOUR, MINUTE, SECOND, YEAR, MONTH, DATE, HOUR OFFSET,
LANGUAGE and DST.
Note:
1. The unit will automatically exit setting mode if no button was pressed in 60 seconds.
2.
Time zone setting is only for North American version where the unit is set to receive WWVB signal. User can select PST,
MST, CST, EST, AST or NST.
3. The language options are English (EN), French (FR), German (DE), Spanish (ES), and Italian (IT).
4.
DST (Daylight Saving Time) feature is set to Auto (factory set). The clock has been programmed to automatically switch
when the daylight saving time is in effect. User can set the DST to OFF to disable the feature.
Disable / Enable RCC signal reception
1. Press and hold [RCC] button 8 seconds to disable the reception.
2. Press and hold [RCC] button 8 seconds to enable automatic RCC reception.
To turn on/off alarm clock (with ice-alert function)
1. Press the [ALARM] button anytime to show the alarm time.
2. Press [ALARM] button to activate the alarm.
3. Press again to activate alarm with ice-alert function.
4. To disable the alarm, press until the alarm icon disappears.
To set the alarm time
1. Press and hold [ALARM] button for 2 seconds to enter alarm setting mode. HOUR will begin to flash.
2. Use [UP]/[DOWN] button to adjust HOUR, and press [ALARM] button to proceed to set MINUTE.
3. Repeat 2 above to set MINUTE, then press [ALARM] button to exit.
Note: Pressing the [ALARM] button twice when alarm time is being displayed will activate the temperature-adjusted pre-alarm.
The alarm will sound 30 minutes earlier if it detects outside temperature is below -3°C.
7 8

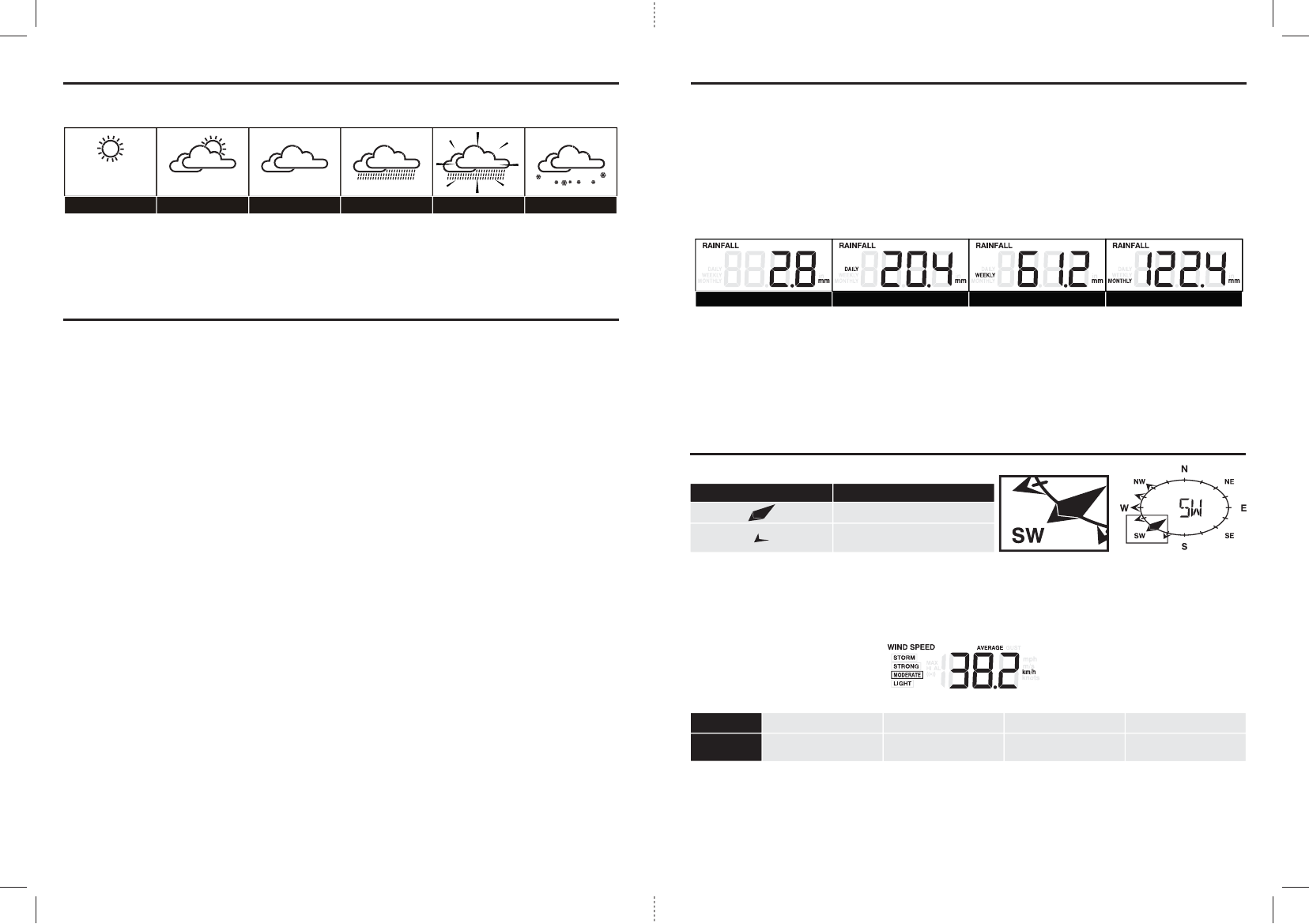

Wind Direction Indicator Meaning
Real-time wind direction
Wind directions appeared
in last 5 minutes (max 6)
Sunny / Clear Slightly cloudy Cloudy Rainy Rainy / Stormy Snowy
LIGHT MODERATE STRONG STORM
2-8 mph
3-13 km/h
9-25 mph
14-41 km/h
26-54 mph
42-87 km/h
≥ 55 mph
≥ 88 km/h
Level
Speed
Rainfall rate Daily rainfall Weekly rainfall Monthly rainfall
RAINFALL
To select the rainfall display mode:
The device displays how many mm / inches of rain are accumulated in a one hour time period, based on
current rainfall rate.
Press [RAINFALL] button to toggle between:
• RATE Current rainfall rate in past an hour
•
DAILY The DAILY display indicate the total rainfall from midnight
•
WEEKLY The WEEKLY display indicate the total rainfall from the current week
•
MONTHLY The MONTHLY display indicate the total rainfall from the current calendar month
Note: Rain rate is updated every 6 minutes, at every hour on the hour, and at 6, 12, 18, 24, 30, 36, 42, 48, 54
minute past the hour.
To select the measurement unit for the rainfall:
1. Press and hold [RAINFALL] button 2 seconds to enter unit setting mode.
2. Use [UP] / [DOWN] button to toggle between mm (millimeter) and in (inch).
3. Press [RAINFALL] button to confirm and exit.
WIND SPEED / DIRECTION
To read the wind direction:
To select the wind display mode:
Press [WIND] button to toggle between:
•
AVERAGE The AVERAGE wind speed will display the average of all wind speed numbers recorded in
the previous 30 seconds
•
GUST The GUST wind speed will display the highest wind speed recorded from last reading
The wind level provides a quick reference on the wind condition and is indicated by a series of text icons:
To select wind speed unit:
1. Press and hold [WIND] button for 2 seconds to enter unit setting mode.
2. Use the [UP] / [DOWN] button to change the unit between mph (miles per hour) / m/s (meter per
second) / km/h (kilometer per hour) / knots.
3. Press [WIND] button to confirm and exit.
WEATHER FORECAST
The device contains sensitive pressure sensor built-in with sophisticated and proven software that predicts
weather for the next 12 ~ 24 hours within a 30 to 50km (19-31 miles) radius.
Note:
1. The accuracy of a general pressure-based weather forecast is about 70% to 75%.
2. The weather forecast is meant for the next 12 hours, it may not necessarily reflect the current situation.
3. The “Snowy” weather forecast is not based on the atmospheric pressure, but based on the outdoor temperature. When
the outdoor temperature is below -3°C (26°F), the “Snowy” weather indicator will be displayed on the LCD.
BAROMETRIC / ATMOSPHERIC PRESSURE
Atmospheric Pressure is the pressure at any location of the Earth caused by the weight of the column of air above
it. One atmospheric pressure refers to the average pressure and gradually decreases as altitude increases.
Meteorologists use barometers to measure atmospheric pressure. Since variation in atmospheric pressure greatly
affected by weather, it is possible to forecast the weather by measuring the changes in pressure.
To select the display mode:
Press and hold [BARO] button for 2 seconds to toggle between:
• ABSOLUTE the absolute atmospheric pressure of your location
• RELATIVE the relative atmospheric pressure based on the sea level
To set relative atmospheric pressure value:
1. Get the atmospheric pressure data of the sea level (it is also the relative atmospheric pressure data of your
home area) through the local weather service, internet and other channels.
2. Press and hold [BARO] button for 2 seconds until “ABSOLUTE” or “RELATIVE” icon flashes.
3. Press [UP]/[DOWN] button to switch to “RELATIVE” mode.
4. Press [BARO] button once again until the “RELATIVE” atmospheric pressure digit flashes.
5. Press [UP]/[DOWN] button to change its value.
6. Press [BARO] button to save and exit the setting mode.
Note:
1.
The default relative atmospheric pressure value is 1013 hPa (29.91 inHg), which refers to the average atmospheric pressure.
2. When you change the relative atmospheric pressure value, the weather indicators will change along with it.
3. The built-in barometer can notice the environmental absolute atmospheric pressure changes. Based on the data collected, it
can predict the weather conditions in the forthcoming 12 hours. Therefore, the weather indicators will change according to the
detected absolute atmospheric pressure after you operate the clock for 1 hour.
4. The relative atmospheric pressure is based on the sea level, but it will change with the absolute atmospheric pressure changes
after operating the clock for 1 hour.
To select the measurement unit for the barometer:
1. Press the [BARO] button to enter unit setting mode.
2. Use the [BARO] button to change the unit between inHg (inches of mercury) / mmHg (millimeter of mercury)
(millibars per hectopascal) /hPa.
3. Press [BARO] button to confirm.
9 10
27°C to 32°C
(80°F to 90°F)
33°C to 40°C
(91°F to 105°F)
41°C to 54°C
(106°F to 129°F)
≥
55°C
(
≥130
°F)
Caution
Extreme Caution
Danger
Extreme Danger
Possibility of heat exhaustion
Possibility of heat dehydration
Heat exhaustion likely
Strong risk of dehydration / sun stroke
Heat Index range Warning Explanation
Beaufort number
< 1 km/h
< 1 mph
< 1 knots
< 0.3 m/s
1.1–5.5 km/h
1–3 mph
1–3 knots
0.3–1.5 m/s
5.6–11 km/h
4–7 mph
4–6 knots
1.6–3.4 m/s
12–19 km/h
8–12 mph
7–10 knots
3.5–5.4 m/s
20–28 km/h
13–17 mph
11–16 knots
5.5–7.9 m/s
29–38 km/h
18–24 mph
17–21 knots
8.0–10.7 m/s
39–49 km/h
25–30 mph
22–27 knots
10.8–13.8 m/s
50–61 km/h
31–38 mph
28–33 knots
13.9–17.1 m/s
62–74 km/h
39–46 mph
34–40 knots
17.2–20.7 m/s
75–88 km/h
47–54 mph
41–47 knots
20.8–24.4 m/s
89–102 km/h
55–63 mph
48–55 knots
24.5–28.4 m/s
103–117 km/h
64–73 mph
56–63 knots
28.5–32.6 m/s
≥ 118 km/h
≥ 74 mph
≥ 64 knots
≥ 32.7m/s
Wind speed
Calm
Light air
Smoke drift indicates wind direction.
Leaves and wind vanes are stationary.
Wind felt on exposed skin. Leaves
rustle. Wind vanes begin to move.
Leaves and small twigs constantly
moving, light flags extended.
Dust and loose paper raised. Small
branches begin to move.
Branches of a moderate size move.
Small trees in leaf begin to sway.
Large branches in motion. Whistling heard
in overhead wires. Umbrella use becomes
difficult. Empty plastic bins tip over.
Whole trees in motion. Effort needed
to walk against the wind.
Some twigs broken from trees. Cars
veer on road. Progress on foot is
seriously impeded.
Some branches break off trees, and
some small trees blow over. Construction
/temporary signs and barricades blow over.
Trees are broken off or uprooted, structural
damage likely.
Widespread vegetation and structural
damage likely.
Severe widespread damage to vegetation
and structures. Debris and unsecured
objects are hurled about.
Description
Calm. Smoke rises vertically.
Land conditions
Light breeze
Gentle breeze
Moderate breeze
Fresh breeze
Strong breeze
High wind
Gale
Strong gale
Storm
Violent storm
Hurricane force
9
WIND CHILL / HEAT INDEX / DEW-POINT
To view Wind Chill:
Press the [INDEX] button repeatedly until WINDCHILL displays.
Note: The wind chill factor is based on the combined effects of temperature and wind speed. The wind chill displayed is
calculated solely from temperature and humidity measured from the 5-in-1 sensor.
To view Heat Index:
Press the [INDEX] button repeatedly until HEAT INDEX displays.
Note: Heat index is only calculated when temperature is 27°C/80°F or above, and based solely from the temperature
and humidity measured from the 5-in-1 sensor.
To view Dew-Point (Indoor)
Press the [INDEX] button repeatedly until DEWPOINT displays.
Note: The dew point is the temperature below which the water vapor in air at constant barometric pressure condenses
into liquid water at the same rate at which it evaporates. The condensed water is called dew when it forms on a solid
surface.
The dewpoint temperature is calculated from the indoor temperature and humidity measured at the Main Unit.
HISTORY DATA (ALL RECORDS IN THE PAST 24 HOURS )
The Display main unit automatically record and display data of past 24 hours on the hour.
To check all the history data in the past 24 hours, press the [HISTORY] button.
E.g. Current time 7:25 am, Mach 28
Press [HISTORY] button repeatedly to view past readings at 7:00am, 6:00am, 5:00am, …, 5:00am (Mar 27),
6:00am (Mar 27), 7:00am (Mar 27)
The LCD will display the past indoor and outdoor temperature & humidity, value of air pressure, wind chill, wind
speed, rainfall and their time and date.
MAXIMUM / MINIMUM MEMORY FUNCTION
1.
Press [MAX/MIN] button to check the maximum/minimum records. The checking orders will be: Outdoor
max temperature Outdoor min temperature Outdoor max humidity Outdoor min humidity Indoor max
temperature Indoor min temperature Indoor max humidity Indoor min humidity Outdoor max wind chill
Outdoor min wind chill Outdoor max heat index Outdoor min heat index Indoor max dewpoint Indoor
min dewpoint Max pressure Min pressure Max average Max gust Max rainfall.
2. Press and hold [MAX/MIN] button for 2 seconds to reset the maximum and minimum records.
Note: When maximum or minimum reading is displayed, the corresponding timestamp will be shown.
BEAUFORT SCALE
Beaufort scale is an international scale of wind velocities from 0 (calm) to 12 (Hurricane force).
11 12
Indoor temperature HI and LO alert
Indoor humidity HI and LO alert
Outdoor temperature HI and LO alert
Rainfall
Wind speed HI alert
HI alert
Outdoor humidity HI and LO alert
Area Type of Alert available
Too hotComfortableToo cold
Northern hemisphere Southern hemisphere

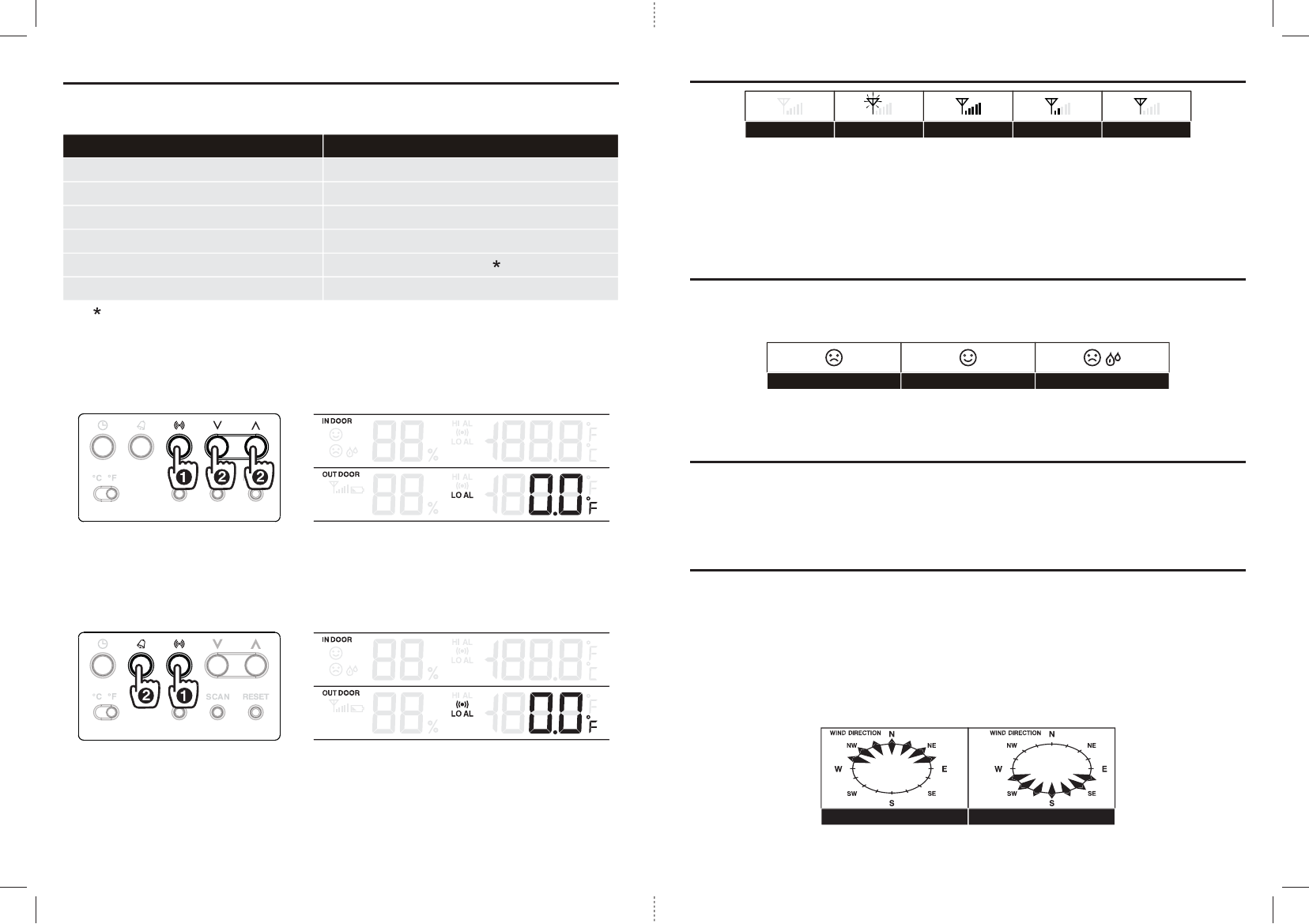

Weak signalStrong signalSignal searching Signal lost
No sensor
HI / LO ALERT
HI/LO alert are used to alert you of certain weather conditions. Once activated, the alarm will turn on and
amber LED starts flashing when a certain criterion is met. The following are areas and type of alert provided:
Note: Daily rainfall since midnight.
To set the HI / LO alert
1. Press the [ALERT] button until the desired area is selected.
2. Use [UP] / [DOWN] buttons to adjust the setting.
3. Press [ALERT] button to confirm and continue to next setting.
To enable/disable the HI / LO alert
1. Press [ALERT] button until the desired area is selected.
2. Press [ALARM] button to turn the alert on or off.
3. Press [ALERT] button to continue to next setting.
Note:
1. The unit will automatically exit setting mode in 5 seconds if no button is pressed.
2. When ALERT alarm is on, the area and type of alarm that triggered the alarm will be flashing and the alarm will
sound for 2 minutes.
3.
To silence the Alert alarm beeping, press the [SNOOZE / LIGHT] / [ALARM] button, or let the beeping alarm automatically
turn off after 2 minutes.
WIRELESS SIGNAL RECEPTION
The 5-in-1 sensor is capable of transmitting data wirelessly over an approximate operating of 150m
range (line of sight).
Occasionally, due to intermittent physical obstructions or other environmental interference, the signal
may be weaken or lost.
In the case that the sensor signal is lost completely, you will need to relocate the Display main unit or the
wireless 5-in-1 sensor.
TEMPERATURE & HUMIDITY
Comfort Indication
The comfort indication is a pictorial indication based on indoor air temperature and humidity in an attempt
to determine comfort level.
Note:
1. Comfort indication can vary under the same temperature, depending on the humidity.
2. There is no comfort Indication when temperature is below 0°C (32°F) or over 60°C (140°F).
DATA CLEARING
During installation of the wireless 5-in-1 sensor, the sensors were likely to be triggered, resulting in erroneous
rainfall and wind measurements. After the installation, user may clear out all the erroneous data from the Display
Main Unit, without needing to reset the clock and re-establish pairing.
Simply press and hold the [HISTORY] button for 10 seconds. This will clear out any data recorded before.
POINTING 5-IN-1 SENSOR TO THE SOUTH
The outdoor 5-in-1 sensor is calibrated to be pointing to North by default. However, in some cases, users
may wish to install the product with the arrow pointing towards the South, especially for people living in
the Southern hemisphere (e.g. Australia, New Zealand).
1. First install the outdoor 5-in-1 sensor with its arrow pointing to the South. (Please refer to Installation
session for mounting details)
2. On the Display main unit, press and hold [WIND] button for 8 seconds until the upper part (Northern
Hemisphere) of the compass lights up and blinking.
3. Use [UP] / [DOWN] to change to lower part (Southern Hemisphere).
4. Press [WIND] button to confirm and exit.
Note: Changing from hemisphere setting will automatically switch the direction of the moon phase on the display.
13 14

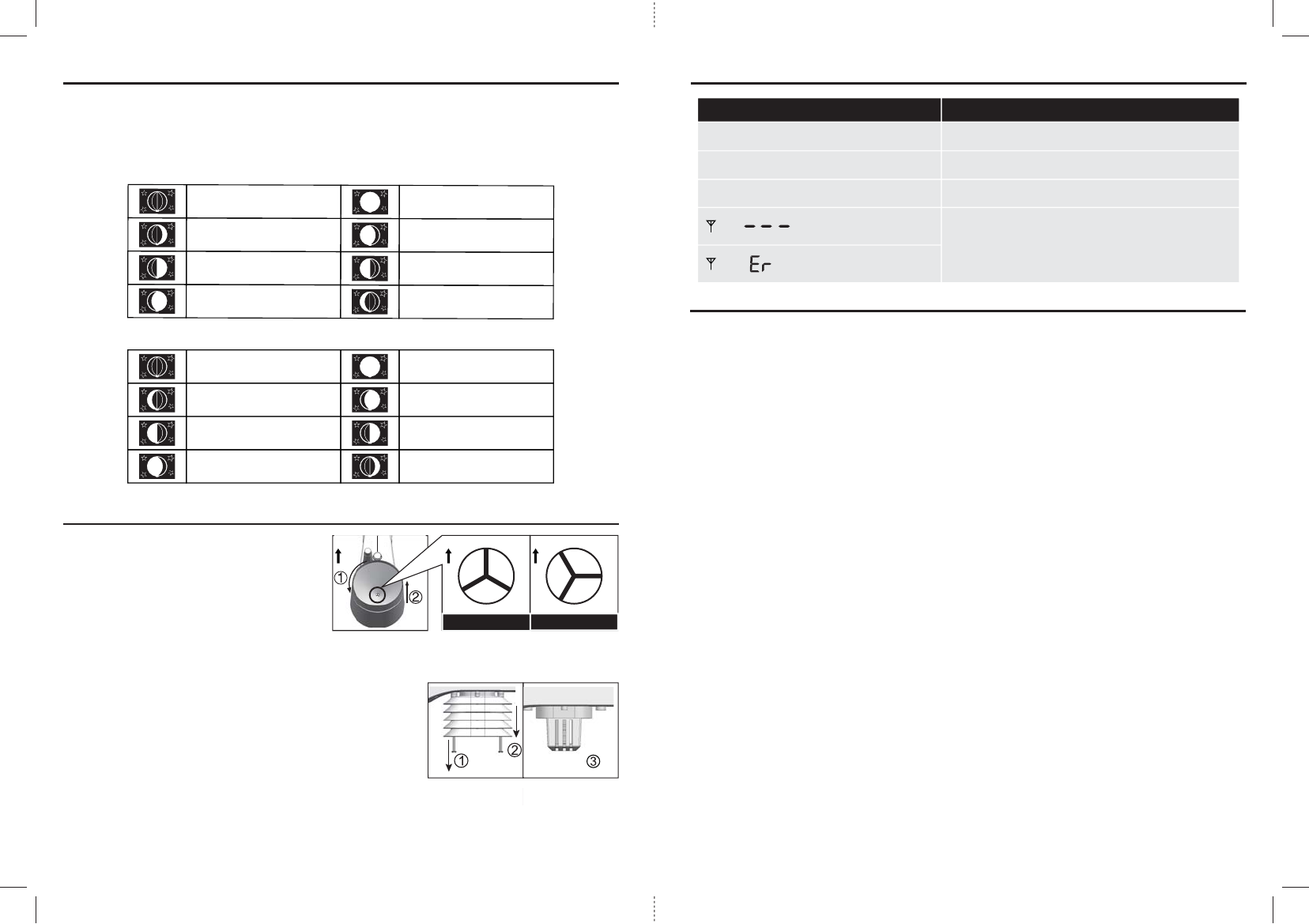

New Moon
Waxing Crescent
First quarter
Waxing Gibbous
Full Moon
Waning Gibbous
Third quarter
Waning Crescent
New Moon
Waxing Crescent
First quarter
Waxing Gibbous
Full Moon
Waning Gibbous
Third quarter
Waning Crescent
Strange or no measurement of Thermo /
Hygro Sensor
Strange or no measurement of Wind Speed
and Direction
(Signal lost for 15 minutes)
(Signal lost for 1 hour)
Strange or no measurement of Rain Sensor
Problem / Symptom Solution
1. Check the radiation shield.
2. Check the sensor casing.
1. Check the drain hole in the rain collector.
2. Check the balance indicator.
1. Check wind cups (Anemometer).
2. Check the wind vane.
1. Relocate the main unit and 5-in-1 sensor closer to each other.
2. Make sure the main unit is placed away from other
electronic
appliances that may interfere with the wireless communication
(TVs, computers, microwaves).
3.
If problem continues, reset both main unit and 5-in-1 sensor.
and
and
NN
“Unlock” Position
“Lock” Position
N
N
ABOUT THE MOON PHASE
In the Northern hemisphere, the moon waxes (the part of the moon we see that glows after the New Moon)
from the right. Hence the sun-lit area of the moon moves from right to left in the Northern Hemisphere,
while in the Southern Hemisphere, it moves from left to right.
Below are the 2 tables which illustrate how the moon will appear on the main unit.
Northern hemisphere:
Southern hemisphere:
MAINTENANCE
To clean the rain collector
1. Rotate the rain collector by 30° anticlockwise.
2. Gently remove the rain collector.
3. Clean and remove any debris or insects.
4.
Install all the parts when they are fully clean and dried.
To clean the Thermo / Hygro sensor
1. Unscrew the 2 screws at the bottom of the radiation shield.
2. Gently pull out the shield.
3. Remove carefully any dirt or insects inside the sensor casing
(Do not let the sensors inside get wet).
4. Clean the shield with water and remove any dirt or insects.
5. Install all the parts back when they are fully clean and dried.
TROUBLESHOOTING
PRECAUTIONS
• Read and keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not subject the unit to excessive force, shock, dust, temperature or humidity.
• Do not cover the ventilation holes with any items such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive materials.
• Do not tamper with the unit’s internal components. This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old batteries.
• Only use attachments / accessories specified by the manufacturer.
• Images shown in this manual may differ from the actual display.
• When disposing of this product, ensure it is collected separately for special treatment.
•
Placement of this product on certain types of wood may result in damage to its finishing for which manufacture
will not be responsible. Consult the furniture manufacturer’s care instructions for information.
• The contents of this manual may not be reproduced without the permission of the manufacturer.
• When replacement parts are required, be sure the service technician uses replacement parts specified by the
manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result
in fire, electric shock, or other hazards.
• Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special
treatment is necessary.
• Please note that some units are equipped with a battery safety strip. Remove the strip from the battery
compartment before first use.
• The technical specifications for this product and the contents of the user manual are subject to change
without notice.
15 16
Displayed range 20% to 90% RH (< 20%: LO; > 90%: HI) (Temperature between 0°C to 60°C)
Operating range 20% to 90%RH
Resolution 1%
Accuracy +/-5% typical @ 25°C (77°F)
Display modes
Current, Min and Max, Historical data for past 24 hours
Memory modes Max & Min from last memory reset (with time stamp)
Wind speed unit mph, m/s, km/h, knots
Wind speed range 0 to 112mph, 50m/s, 180km/h, 97knots
Wind speed resolution 0.1mph or 0.1knot or 0.1m/s
Speed accuracy < 5m/s: +/- 0.5m/s; > 5m/s: +/- 6%
Direction resolutions 16
Memory modes Max gust speed with direction (with time stamp)
Display modes Gust/average wind speed & direction,
Historical data for past 24 hours
Alarm Hi Wind speed Alert (Average / Gust)
Unit for rainfall mm and in
Range for rainfall 0 to 9999mm (0 to 393.7inches)
Resolution 0.4 mm (0.0157 in)
Accuracy for rainfall Greater of +/- 7% or 1 tip
Memory modes Total rainfall from last memory reset
Display modes
Rainfall (Rate / Daily / Weekly / Monthly)
, Historical data for past 24 hours
Alarm Hi Rainfall Alert
WIND SPEED
Displayed range 1% to 99% (< 1%: LO; > 99%: HI)
Operating range 1% to 99%
Resolution 1%
Accuracy +/- 3% typical @ 25°C (77°F)
Display modes
Display modes
Current, Min and Max
, Historical data for past 24 hours
Current, Min and Max
, Historical data for past 24 hours
Memory modes
Alarm Hi / Lo Humidity Alert
RAIN GAUGE
Dimensions (W x H x D)
Weight
Battery
Frequency
Transmission
3 x AA size 1.5V battery (Lithium battery recommended)
868 MHz (European) / 915 MHz (North American)
Every 12 seconds
Temp. unit
Displayed range
Operating range
Resolution
Accuracy
Memory modes
Alarm
343.5 x 393.5 x 136 mm
673g with batteries
°C or °F
-40°C to 80°C (-40°F to 176°F)
-40°C to 60°C (-40°F to 140°F)
0.1°C or 0.1°F
+/- 0.5°C or 1°F typical @ 25°C (77°F)
Max & Min from last memory reset (with time stamp)
Max & Min from last memory reset (with time stamp)
Hi / Lo Temperature Alert
OUTDOOR HUMIDITY
MAIN UNIT
Dimensions (W x H x D) 120 x 190 x 22 mm
Weight 370g with batteries
Battery 3 x AA size 1.5V batteries (Alkaline recommended)
Support channels Wireless 5-in-1 sensor (Wind speed, Wind direction, Rain gauge, thermo-hygro)
INDOOR BAROMETER
Barometer unit hPa, inHg and mmHg
Measuring range 540 to 1100 hPa / 405 to 825 mmHg / 15.95 to 32.48 inHg
Accuracy
@ 0 to50°C(32 to 122°F)
540 to 699hPa ± 8hPa / 700 to 1100hPa ± 4hPa
405 to 524 mmHg ± 6mmHg / 525 to 825 mmHg ± 3mmHg
15.95 to 20.66 inHg ± 0.24 inHg / 20.67 to 32.48 inHg ± 0.12 inHg
Resolution 1hPa, 0.01inHg, 0.1mmHg
Weather forecast Sunny / Clear, slightly Cloudy, Cloudy, Rainy, Rainy / Stormy and Snowy
Display modes Current, Max, Min, Historical data for last 24hrs
Memory modes
INDOOR TEMPERATURE
Temp. unit °C or °F
Displayed range -40°C to 70°C (-40°F to 158°F)
-10°C to 50°C (14°F to 122°F)Operating range
Accuracy +/- 1°C or 2°F typical @ 25°C (77°F)
Resolution 0.1°C or 0.1°F
Display modes Current, Min and Max, Historical data for past 24 hours
Memory modes Max & Min from last memory reset (with time stamp)
Max & Min from last memory reset (with time stamp)
Alarm
Alarm
Hi / Lo Temperature Alert
Hi / Lo Humidity Alert
INDOOR HUMIDITY
WIRELESS 5-IN-1 SENSOR
OUTDOOR TEMPERATURE
Synchronization Auto or disabled
Clock display HH:MM:SS / Weekday
Hour format 12hr AM/PM or 24hr
Calendar MM/DD
Weekday in 5 languages
Time signal
Time zone
DST
EN, FR, DE, ES, IT
WWVB
PST, MST, CST, EST, AST, NST
AUTO / OFF
RADIO-CONTROLLED / ATOMIC CLOCK
SPECIFICATIONS
17 18
UIBUUPXIJDIUIFSFDFJWFSJTDPOOFDUFE
Warning: Changes or modifications to this unit not expressly
approved by the partyresponsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a ClassB digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if notinstalled and used in accordance with the
instructions, may cause harmful interferenceto radio
communications.
However, there is no guarantee that interference will not occur
in a particularinstallation. If this equipment does cause harmful
interference to radio or televisionreception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
“This device complies with Industry Canada’s
licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.”
“This radio transmitter (identify the device by certification
number, or model number if Category II) has been approved
by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain indicated.
Antenna types not included in this list, having a gain greater
than the maximum gain indicated for that type, are strictly
prohibited for use with this device.”
“Caution: To maintain the compliance with the RF exposure
guideline, place the unit at least 20 cm from nearby persons.”
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence.
Le fonctionnement est autorisé aux deux conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le
fonctionnement.
Le présent émetteur (identifier l’appareil par son numéro
d’homologation ou par son numéro de modèle, s’il s’agit d’un
appareil de catégorie II) a été approuvé par Industrie Canada
pour fonctionner avec les types d’antennes énumérées
ci-dessous et ayant un gain admissible maximal. Il est
strictement interdit d’utiliser les types d’antennes non incluses
dans cette liste, et dont le gain est supérieur au gain maximal
indiqué, avec cet appareil.
Mise en garde : Pour assurer la conformité aux lignes
directrices concernant l’exposition aux RF, placer l’appareil
à au moins 20 cm des personnes.
