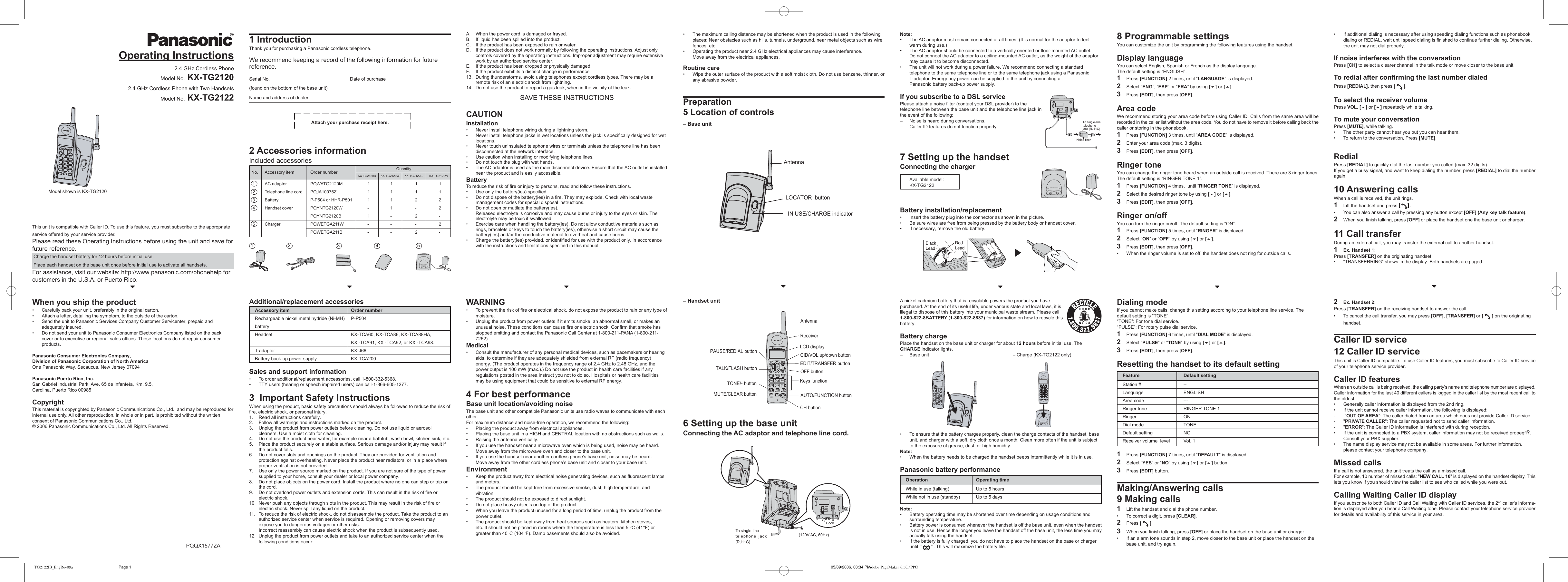

![1 IntroductionThank you for purchasing a Panasonic cordless telephone.We recommend keeping a record of the following information for futurereference.Serial No. Date of purchase(found on the bottom of the base unit)Name and address of dealerAttach your purchase receipt here.2 Accessories informationIncluded accessoriesAdditional/replacement accessoriesAccessory item Order numberRechargeable nickel metal hydride (Ni-MH) P-P504batteryHeadset KX-TCA60, KX-TCA86, KX-TCA88HA,KX -TCA91, KX -TCA92, or KX -TCA98.T-adaptor KX-J66Battery back-up power supply KX-TCA200Sales and support information•To order additional/replacement accessories, call 1-800-332-5368.•TTY users (hearing or speech impaired users) can call-1-866-605-1277.3 Important Safety InstructionsWhen using the product, basic safety precautions should always be followed to reduce the risk offire, electric shock, or personal injury.1. Read all instructions carefully.2. Follow all warnings and instructions marked on the product.3. Unplug the product from power outlets before cleaning. Do not use liquid or aerosolcleaners. Use a moist cloth for cleaning.4. Do not use the product near water, for example near a bathtub, wash bowl, kitchen sink, etc.5. Place the product securely on a stable surface. Serious damage and/or injury may result ifthe product falls.6. Do not cover slots and openings on the product. They are provided for ventilation andprotection against overheating. Never place the product near radiators, or in a place whereproper ventilation is not provided.7. Use only the power source marked on the product. If you are not sure of the type of powersupplied to your home, consult your dealer or local power company.8. Do not place objects on the power cord. Install the product where no one can step or trip onthe cord.9. Do not overload power outlets and extension cords. This can result in the risk of fire orelectric shock.10 Never push any objects through slots in the product. This may result in the risk of fire orelectric shock. Never spill any liquid on the product.11.To reduce the risk of electric shock, do not disassemble the product. Take the product to anauthorized service center when service is required. Opening or removing covers mayexpose you to dangerous voltages or other risks.Incorrect reassembly can cause electric shock when the product is subsequently used.12. Unplug the product from power outlets and take to an authorized service center when thefollowing conditions occur:1 5432No. Accessory item Order number 1 AC adaptor PQWATG2120M 1 1 1 1 2 Telephone line cord PQJA10075Z 1 1 1 1 3 Battery P-P504 or HHR-P501 1 1 2 2 4 Handset cover PQYNTG2120W - 1 - 2PQYNTG2120B 1 - 2 - 5 Charger PQWETGA211W - - - 2PQWETGA211B - - 2 -QuantityKX-TG2120B KX-TG2120W KX-TG2122B KX-TG2122WA. When the power cord is damaged or frayed.B. If liquid has been spilled into the product.C. If the product has been exposed to rain or water.D. If the product does not work normally by following the operating instructions. Adjust onlycontrols covered by the operating instructions. Improper adjustment may require extensivework by an authorized service center.E. If the product has been dropped or physically damaged.F. If the product exhibits a distinct change in performance.13. During thunderstorms, avoid using telephones except cordless types. There may be aremote risk of an electric shock from lightning.14. Do not use the product to report a gas leak, when in the vicinity of the leak.SAVE THESE INSTRUCTIONSCAUTIONInstallation•Never install telephone wiring during a lightning storm.• Never install telephone jacks in wet locations unless the jack is specifically designed for wetlocations.•Never touch uninsulated telephone wires or terminals unless the telephone line has beendisconnected at the network interface.•Use caution when installing or modifying telephone lines.•Do not touch the plug with wet hands.•The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installednear the product and is easily accessible.BatteryTo reduce the risk of fire or injury to persons, read and follow these instructions.•Use only the battery(ies) specified.•Do not dispose of the battery(ies) in a fire. They may explode. Check with local wastemanagement codes for special disposal instructions.•Do not open or mutilate the battery(ies).Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. Theelectrolyte may be toxic if swallowed.• Exercise care when handling the battery(ies). Do not allow conductive materials such asrings, bracelets or keys to touch the battery(ies), otherwise a short circuit may cause thebattery(ies) and/or the conductive material to overheat and cause burns.•Charge the battery(ies) provided, or identified for use with the product only, in accordancewith the instructions and limitations specified in this manual.WARNING•To prevent the risk of fire or electrical shock, do not expose the product to rain or any type ofmoisture.• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes anunusual noise. These conditions can cause fire or electric shock. Confirm that smoke hasstopped emitting and contact the Panasonic Call Center at 1-800-211-PANA (1-800-211-7262).Medical• Consult the manufacturer of any personal medical devices, such as pacemakers or hearingaids, to determine if they are adequately shielded from external RF (radio frequency)energy. (The product operates in the frequency range of 2.4 GHz to 2.48 GHz, and thepower output is 100 mW (max.).) Do not use the product in health care facilities if anyregulations posted in the area instruct you not to do so. Hospitals or health care facilitiesmay be using equipment that could be sensitive to external RF energy.4 For best performanceBase unit location/avoiding noiseThe base unit and other compatible Panasonic units use radio waves to communicate with eachother.For maximum distance and noise-free operation, we recommend the following:•Placing the product away from electrical appliances.•Placing the base unit in a HIGH and CENTRAL location with no obstructions such as walls.•Raising the antenna vertically.• If you use the handset near a microwave oven which is being used, noise may be heard.Move away from the microwave oven and closer to the base unit.• If you use the handset near another cordless phone’s base unit, noise may be heard.Move away from the other cordless phone’s base unit and closer to your base unit.Environment•Keep the product away from electrical noise generating devices, such as fluorescent lampsand motors.•The product should be kept free from excessive smoke, dust, high temperature, andvibration.• The product should not be exposed to direct sunlight.• Do not place heavy objects on top of the product.• When you leave the product unused for a long period of time, unplug the product from thepower outlet.• The product should be kept away from heat sources such as heaters, kitchen stoves,etc. It should not be placed in rooms where the temperature is less than 5 °C (41°F) orgreater than 40°C (104°F). Damp basements should also be avoided.• The maximum calling distance may be shortened when the product is used in the followingplaces: Near obstacles such as hills, tunnels, underground, near metal objects such as wirefences, etc.• Operating the product near 2.4 GHz electrical appliances may cause interference.Move away from the electrical appliances.Routine care• Wipe the outer surface of the product with a soft moist cloth. Do not use benzene, thinner, orany abrasive powder.Preparation5 Location of controls– Base unit– Handset unit6 Setting up the base unitConnecting the AC adaptor and telephone line cord.AntennaReceiverLCD displayCID/VOL up/down buttonEDIT/TRANSFER buttonOFF buttonKeys functionAUTO/FUNCTION buttonCH buttonMUTE/CLEAR buttonTONE/* buttonTALK/FLASH buttonPAUSE/REDIAL button(120V AC, 60Hz)To single-linetelephone jack(RJ11C)HookNote:•The AC adaptor must remain connected at all times. (It is normal for the adaptor to feelwarm during use.)•The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet.Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptormay cause it to become disconnected.•The unit will not work during a power failure. We recommend connecting a standardtelephone to the same telephone line or to the same telephone jack using a PanasonicT-adaptor. Emergency power can be supplied to the unit by connecting aPanasonic battery back-up power supply.If you subscribe to a DSL servicePlease attach a noise filter (contact your DSL provider) to thetelephone line between the base unit and the telephone line jack inthe event of the following:–Noise is heard during conversations.–Caller ID features do not function properly.7 Setting up the handsetConnecting the chargerAvailable model:KX-TG2122Battery installation/replacement• Insert the battery plug into the connector as shown in the picture.• Be sure wires are free from being pressed by the battery body or handset cover.•If necessary, remove the old battery.A nickel cadmium battery that is recyclable powers the product you havepurchased. At the end of its useful life, under various state and local laws, it isillegal to dispose of this battery into your municipal waste stream. Please call1-800-822-8BATTERY (1-800-822-8837) for information on how to recycle thisbattery.Battery chargePlace the handset on the base unit or charger for about 12 hours before initial use. TheCHARGE indicator lights.–Base unit – Charge (KX-TG2122 only)•To ensure that the battery charges properly, clean the charge contacts of the handset, baseunit, and charger with a soft, dry cloth once a month. Clean more often if the unit is subjectto the exposure of grease, dust, or high humidity.Note:• When the battery needs to be charged the handset beeps intermittently while it is in use.Panasonic battery performanceOperation Operating timeWhile in use (talking) Up to 5 hoursWhile not in use (standby) Up to 5 daysNote:•Battery operating time may be shortened over time depending on usage conditions andsurrounding temperature.•Battery power is consumed whenever the handset is off the base unit, even when the handsetis not in use. Hence the longer you leave the handset off the base unit, the less time you mayactually talk using the handset.•If the battery is fully charged, you do not have to place the handset on the base or chargeruntil “ ”. This will maximize the battery life.Noise filter To single-line telephone jack (RJ11C)8 Programmable settingsYou can customize the unit by programming the following features using the handset.Display languageYou can select English, Spanish or French as the display language.The default setting is “ENGLISH”.1Press [FUNCTION] 2 times, until “LANGUAGE” is displayed.2Select “ENG”, “ESP” or “FRA” by using [] or [].3Press [EDIT], then press [OFF].Area codeWe recommend storing your area code before using Caller ID. Calls from the same area will berecorded in the caller list without the area code. You do not have to remove it before calling back thecaller or storing in the phonebook.1Press [FUNCTION] 3 times, until “AREA CODE” is displayed.2Enter your area code (max. 3 digits).3Press [EDIT], then press [OFF].Ringer toneYou can change the ringer tone heard when an outside call is received. There are 3 ringer tones.The default setting is “RINGER TONE 1”.1Press [FUNCTION] 4 times, until “RINGER TONE” is displayed.2Select the desired ringer tone by using [] or [].3Press [EDIT], then press [OFF].Ringer on/offYou can turn the ringer on/off. The default setting is “ON”.1Press [FUNCTION] 5 times, until “RINGER” is displayed.2Select “ON” or “OFF” by using [] or [].3Press [EDIT], then press [OFF].• When the ringer volume is set to off, the handset does not ring for outside calls.Dialing modeIf you cannot make calls, change this setting according to your telephone line service. Thedefault setting is “TONE”.“TONE”: For tone dial service.“PULSE”: For rotary pulse dial service.1Press [FUNCTION] 6 times, until “DIAL MODE” is displayed.2Select “PULSE” or “TONE” by using [] or [].3Press [EDIT], then press [OFF].Resetting the handset to its default settingFeature Default settingStation # --Language ENGLISHArea code ---Ringer tone RINGER TONE 1Ringer ONDial mode TONEDefault setting NOReceiver volume level Vol. 11Press [FUNCTION] 7 times, until “DEFAULT” is displayed.2Select “YES” or “NO” by using [] or [] button.3Press [EDIT] button.Making/Answering calls9 Making calls1Lift the handset and dial the phone number.•To correct a digit, press [CLEAR].2Press [ ].3When you finish talking, press [OFF] or place the handset on the base unit or charger.• If an alarm tone sounds in step 2, move closer to the base unit or place the handset on thebase unit, and try again.•If additional dialing is necessary after using speeding dialing functions such as phonebookdialing or REDIAL, wait until speed dialing is finished to continue further dialing. Otherwise,the unit may not dial properly.If noise interferes with the conversationPress [CH] to select a clearer channel in the talk mode or move closer to the base unit.To redial after confirming the last number dialedPress [REDIAL], then press [ ].To select the receiver volumePress VOL. [] or [] repeatedly while talking.To mute your conversationPress [MUTE], while talking.•The other party cannot hear you but you can hear them.•To return to the conversation, Press [MUTE].RedialPress [REDIAL] to quickly dial the last number you called (max. 32 digits).If you get a busy signal, and want to keep dialing the number, press [REDIAL] to dial the numberagain.10 Answering callsWhen a call is received, the unit rings.1Lift the handset and press [[[[[]]]]].•You can also answer a call by pressing any button except [OFF] (Any key talk feature).2When you finish talking, press [OFF] or place the handset one the base unit or charger.11 Call transferDuring an external call, you may transfer the external call to another handset.1Ex. Handset 1:Press [TRANSFER] on the originating handset.•“TRANSFERRING” shows in the display. Both handsets are paged.2Ex. Handset 2:Press [TRANSFER] on the receiving handset to answer the call.•To cancel the call transfer, you may press [OFF], [TRANSFER] or [ ] on the originatinghandset.Caller ID service12 Caller ID serviceThis unit is Caller ID compatible. To use Caller ID features, you must subscribe to Caller ID serviceof your telephone service provider.Caller ID featuresWhen an outside call is being received, the calling party's name and telephone number are displayed.Caller information for the last 40 different callers is logged in the caller list by the most recent call tothe oldest.•Generally caller information is displayed from the 2nd ring.•If the unit cannot receive caller information, the following is displayed:- "OUT OF AREA": The caller dialed from an area which does not provide Caller ID service.-"PRIVATE CALLER": The caller requested not to send caller information.-"ERROR": The Caller ID information is interfered with during reception.• If the unit is connected to a PBX system, caller information may not be received propeqflŸ.Consult your PBX supplier.• The name display service may not be available in some areas. For further information,please contact your telephone company.Missed callsIf a call is not answered, the unit treats the call as a missed call.For example, 10 number of missed calls: "NEW CALL 10" is displayed on the handset display. Thislets you know if you should view the caller list to see who called while you were out.Calling Waiting Caller ID displayIf you subscribe to both Caller ID and Call Waiting with Caller ID services, the 2nd caller's informa-tion is displayed after you hear a Call Waiting tone. Please contact your telephone service providerfor details and availability of this service in your area.Operating Instructions2.4 GHz Cordless PhoneModel No. KX-TG21202.4 GHz Cordless Phone with Two HandsetsModel No. KX-TG2122Model shown is KX-TG2120This unit is compatible with Caller ID. To use this feature, you must subscribe to the appropriateservice offered by your service provider.Please read these Operating Instructions before using the unit and save forfuture reference. Charge the handset battery for 12 hours before initial use. Place each handset on the base unit once before initial use to activate all handsets.For assistance, visit our website: http://www.panasonic.com/phonehelp forcustomers in the U.S.A. or Puerto Rico.When you ship the product•Carefully pack your unit, preferably in the original carton.• Attach a letter, detailing the symptom, to the outside of the carton.• Send the unit to Panasonic Services Company Customer Servicenter, prepaid andadequately insured.• Do not send your unit to Panasonic Consumer Electronics Company listed on the backcover or to executive or regional sales offices. These locations do not repair consumerproducts.Panasonic Consumer Electronics Company,Division of Panasonic Corporation of North AmericaOne Panasonic Way, Secaucus, New Jersey 07094Panasonic Puerto Rico, Inc.San Gabriel Industrial Park, Ave. 65 de Infanteía, Km. 9.5,Carolina, Puerto Rico 00985CopyrightThis material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced forinternal use only. All other reproduction, in whole or in part, is prohibited without the writtenconsent of Panasonic Communications Co., Ltd.© 2006 Panasonic Communications Co., Ltd. All Rights Reserved.PQQX1577ZAAntennaLOCATOR buttonIN USE/CHARGE indicatorBlack LeadRed LeadTG2122IB_EngRev09a 05/09/2006, 03:34 PMPage 1 Adobe PageMaker 6.5C/PPC](https://usermanual.wiki/CCT-Tech-Advanced/KX-TG2120H/User-Guide-662104-Page-1.png)

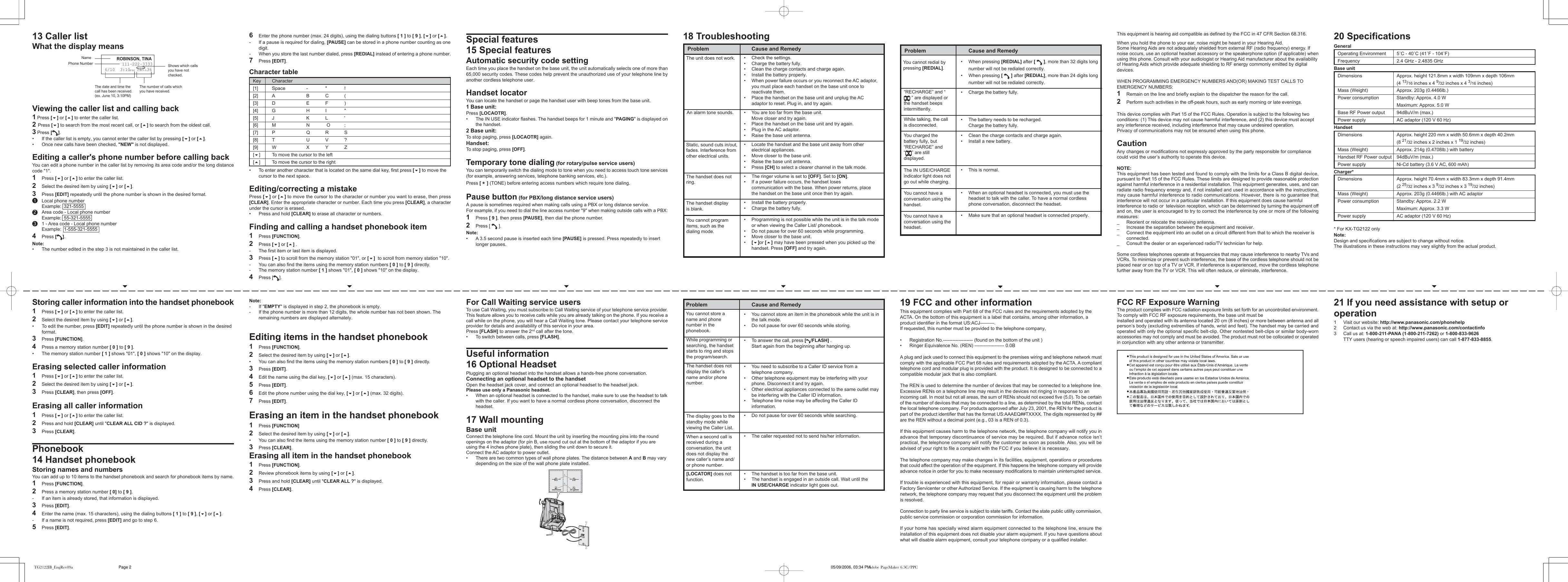

![6Enter the phone number (max. 24 digits), using the dialing buttons [ 1 ] to [ 9 ], [] or [].-If a pause is required for dialing, [PAUSE] can be stored in a phone number counting as onedigit.-When you store the last number dialed, press [REDIAL] instead of entering a phone number.7Press [EDIT].Character table•To enter another character that is located on the same dial key, first press [] to move thecursor to the next space.Editing/correcting a mistakePress [] or [] to move the cursor to the character or number you want to erase, then press[CLEAR]. Enter the appropriate character or number. Each time you press [CLEAR], a characterunder the cursor is erased.•Press and hold [CLEAR] to erase all character or numbers.Finding and calling a handset phonebook item1Press [FUNCTION].2Press [] or [] .- The first item or last item is displayed.3Press [] to scroll from the memory station "01", or [] to scroll from memory station "10".-You can also find the items using the memory station numbers [ 0 ] to [ 9 ] directly.-The memory station number [ 1 ] shows "01", [ 0 ] shows "10" on the display.4Press [ ].Note:-If "EMPTY" is displayed in step 2, the phonebook is empty.- If the phone number is more than 12 digits, the whole number has not been shown. Theremaining numbers are displayed alternately.Editing items in the handset phonebook1Press [FUNCTION].2Select the desired item by using [] or [].•You can also find the items using the memory station numbers [ 0 ] to [ 9 ] directly.3Press [EDIT].4Edit the name using the dial key, [] or [] (max. 15 characters).5Press [EDIT].6Edit the phone number using the dial key, [] or [] (max. 32 digits).7Press [EDIT].Erasing an item in the handset phonebook1Press [FUNCTION]2Select the desired item by using [] or [].•You can also find the items using the memory station number [ 0 ] to [ 9 ] directly.3Press [CLEAR].Erasing all item in the handset phonebook1Press [FUNCTION].2Review phonebook items by using [] or [].3Press and hold [CLEAR] until "CLEAR ALL ?" is displayed.4Press [CLEAR].Key Character[1] Space - " ![2] A B C ([3] D E F )[4] G H I "[5] J K L '[6] M N O ;[7] P Q R S[8] T U V ?[9] W X Y Z[]To move the cursor to the left[]To move the cursor to the rightSpecial features15 Special featuresAutomatic security code settingEach time you place the handset on the base unit, the unit automatically selects one of more than65,000 security codes. These codes help prevent the unauthorized use of your telephone line byanother cordless telephone user.Handset locatorYou can locate the handset or page the handset user with beep tones from the base unit.1 Base unit:Press [LOCAOTR].•The IN USE indicator flashes. The handset beeps for 1 minute and "PAGING" is displayed onthe handset.2 Base unit:To stop paging, press [LOCAOTR] again.Handset:To stop paging, press [OFF].Temporary tone dialing (for rotary/pulse service users)You can temporarily switch the dialing mode to tone when you need to access touch tone services(for example, answering services, telephone banking services, etc.).Press [ * ] (TONE) before entering access numbers which require tone dialing.Pause button (for PBX/long distance service users)A pause is sometimes required when making calls using a PBX or long distance service.For example, if you need to dial the line access number "9" when making outside calls with a PBX:1Press [ 9 ], then press [PAUSE], then dial the phone number.2Press [ ].Note:•A 3.5 second pause is inserted each time [PAUSE] is pressed. Press repeatedly to insertlonger pauses.For Call Waiting service usersTo use Call Waiting, you must subscribe to Call Waiting service of your telephone service provider.This feature allows you to receive calls while you are already talking on the phone. If you receive acall while on the phone, you will hear a Call Waiting tone. Please contact your telephone serviceprovider for details and availability of this service in your area.Press [FLASH] to answer the 2nd call after the tone.•To switch between calls, press [FLASH].Useful information16 Optional HeadsetPlugging an optional headset into the handset allows a hands-free phone conversation.Connecting an optional headset to the handsetOpen the headset jack cover, and connect an optional headset to the headset jack.Please use only a Panasonic headset.• When an optional headset is connected to the handset, make sure to use the headset to talkwith the caller. If you want to have a normal cordless phone conversation, disconnect theheadset.17 Wall mountingBase unitConnect the telephone line cord. Mount the unit by inserting the mounting pins into the roundopenings on the adaptor (for pin B, use round cut out at the bottom of the adaptor if you areusing the 4 inches phone plate), then sliding the unit down to secure it.Connect the AC adaptor to power outlet.•There are two common types of wall phone plates. The distance between A and B may varydepending on the size of the wall phone plate installed.19 FCC and other informationThis equipment complies with Part 68 of the FCC rules and the requirements adopted by theACTA. On the bottom of this equipment is a label that contains, among other information, aproduct identifier in the format US:ACJ———.If requested, this number must be provided to the telephone company,• Registration No.------------------- (found on the bottom of the unit )• Ringer Equivalence No. (REN) ------------------- 0.0BA plug and jack used to connect this equipment to the premises wiring and telephone network mustcomply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A complianttelephone cord and modular plug is provided with the product. It is designed to be connected to acompatible modular jack that is also compliant.The REN is used to determine the number of devices that may be connected to a telephone line.Excessive RENs on a telephone line may result in the devices not ringing in response to anincoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certainof the number of devices that may be connected to a line, as determined by the total RENs, contactthe local telephone company. For products approved after July 23, 2001, the REN for the product ispart of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ##are the REN without a decimal point (e.g., 03 is a REN of 0.3).If this equipment causes harm to the telephone network, the telephone company will notify you inadvance that temporary discontinuance of service may be required. But if advance notice isn’tpractical, the telephone company will notify the customer as soon as possible. Also, you will beadvised of your right to file a complaint with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations or proceduresthat could affect the operation of the equipment. If this happens the telephone company will provideadvance notice in order for you to make necessary modifications to maintain uninterrupted service.If trouble is experienced with this equipment, for repair or warranty information, please contact aFactory Servicenter or other Authorized Service. If the equipment is causing harm to the telephonenetwork, the telephone company may request that you disconnect the equipment until the problemis resolved.Connection to party line service is subject to state tariffs. Contact the state public utility commission,public service commission or corporation commission for information.If your home has specially wired alarm equipment connected to the telephone line, ensure theinstallation of this equipment does not disable your alarm equipment. If you have questions aboutwhat will disable alarm equipment, consult your telephone company or a qualified installer.This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section 68.316.When you hold the phone to your ear, noise might be heard in your Hearing Aid.Some Hearing Aids are not adequately shielded from external RF (radio frequency) energy. Ifnoise occurs, use an optional headset accessory or the speakerphone option (if applicable) whenusing this phone. Consult with your audiologist or Hearing Aid manufacturer about the availabilityof Hearing Aids which provide adequate shielding to RF energy commonly emitted by digitaldevices.WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST CALLS TOEMERGENCY NUMBERS:1Remain on the line and briefly explain to the dispatcher the reason for the call.2Perform such activities in the off-peak hours, such as early morning or late evenings.This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.Privacy of communications may not be ensured when using this phone.CautionAny changes or modifications not expressly approved by the party responsible for compliancecould void the user’s authority to operate this device.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses, and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:_ Reorient or relocate the receiving antenna._Increase the separation between the equipment and receiver._Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected._ Consult the dealer or an experienced radio/TV technician for help.Some cordless telephones operate at frequencies that may cause interference to nearby TVs andVCRs. To minimize or prevent such interference, the base of the cordless telephone should not beplaced near or on top of a TV or VCR. If interference is experienced, move the cordless telephonefurther away from the TV or VCR. This will often reduce, or eliminate, interference.FCC RF Exposure WarningThe product complies with FCC radiation exposure limits set forth for an uncontrolled environment.To comply with FCC RF exposure requirements, the base unit must beinstalled and operated with its antenna located 20 cm (8 inches) or more between antenna and allperson’s body (excluding extremities of hands, wrist and feet). The handset may be carried andoperated with only the optional specific belt-clip. Other nontested belt-clips or similar body-wornaccessories may not comply and must be avoided. The product must not be collocated or operatedin conjunction with any other antenna or transmitter.20 SpecificationsGeneralOperating Environment 5˚C - 40˚C (41˚F - 104˚F)Frequency 2.4 GHz - 2.4835 GHzBase unitDimensions Approx. height 121.8mm x width 109mm x depth 106mm(4 13/16 inches x 4 9/32 inches x 4 3/16 inches)Mass (Weight) Approx. 203g (0.4466lb.)Power consumption Standby: Approx. 4.0 WMaximum: Approx. 5.0 WBase RF Power output 94dBuV/m (max.)Power supply AC adaptor (120 V 60 Hz)HandsetDimensions Approx. height 220 mm x width 50.6mm x depth 40.2mm(8 21/32 inches x 2 inches x 1 19/32 inches)Mass (Weight) Approx. 214g (0.4708lb.) with batteryHandset RF Power output 94dBuV/m (max.)Power supply Ni-Cd battery (3.6 V AC, 600 mAh)Charger*Dimensions Approx. height 70.4mm x width 83.3mm x depth 91.4mm(2 25/32 inches x 3 9/32 inches x 3 19/32 inches)Mass (Weight) Approx. 203g (0.4466lb.) with AC adaptorPower consumption Standby: Approx. 2.2 WMaximum: Approx. 3.3 WPower supply AC adaptor (120 V 60 Hz)* For KX-TG2122 onlyNote:Design and specifications are subject to change without notice.The illustrations in these instructions may vary slightly from the actual product.21 If you need assistance with setup oroperation1Visit our website: http://www.panasonic.com/phonehelp2Contact us via the web at: http://www.panasonic.com/contactinfo3Call us at: 1-800-211-PANA (1-800-211-7262) or 1-800-833-9626TTY users (hearing or speech impaired users) can call 1-877-833-8855.Storing caller information into the handset phonebook1Press [] or [] to enter the caller list.2Select the desired item by using [] or [].•To edit the number, press [EDIT] repeatedly until the phone number is shown in the desiredformat.3Press [FUNCTION].4Press a memory station number [ 0 ] to [ 9 ].•The memory station number [ 1 ] shows "01", [ 0 ] shows "10" on the display.Erasing selected caller information1Press [] or [] to enter the caller list.2Select the desired item by using [] or [].3Press [CLEAR], then press [OFF].Erasing all caller information1Press [] or [] to enter the caller list.2Press and hold [CLEAR] until "CLEAR ALL CID ?" is displayed.3Press [CLEAR].Phonebook14 Handset phonebookStoring names and numbersYou can add up to 10 items to the handset phonebook and search for phonebook items by name.1Press [FUNCTION].2Press a memory station number [ 0] to [ 9 ].- If an item is already stored, that information is displayed.3Press [EDIT].4Enter the name (max. 15 characters), using the dialing buttons [ 1 ] to [ 9 ], [] or [].- If a name is not required, press [EDIT] and go to step 6.5Press [EDIT].13 Caller listWhat the display meansROBINSON, TINA111-222-33336/10 3:10PM CALL36NEWNamePhone Number Shows which callsyou have notchecked.The date and time thecall has been received.(ex. June 10, 3:10PM)The number of calls whichyou have received.Viewing the caller list and calling back1 Press [] or [] to enter the caller list.2 Press [] to search from the most recent call, or [] to search from the oldest call.3 Press [ ].•If the caller list is empty, you cannot enter the caller list by pressing [] or [].•Once new calls have been checked, "NEW" is not displayed.Editing a caller's phone number before calling backYou can edit a phone number in the caller list by removing its area code and/or the long distancecode "1".1Press [] or [] to enter the caller list.2Select the desired item by using [] or [].3Press [EDIT] repeatedly until the phone number is shown in the desired format. 1Local phone numberExample: 321-5555 2Area code - Local phone numberExample: 55-321-5555 31 - Area code - Local phone numberExample: 1-555-321-55554Press [ ].Note:• The number edited in the step 3 is not maintained in the caller list.ABABThe handset does notring.The unit does not work.Static, sound cuts in/out,fades. Interference fromother electrical units.The handset displayis blank.You cannot programitems, such as thedialing mode.18 Troubleshooting Problem Cause and Remedy•Check the settings.•Charge the battery fully.•Clean the charge contacts and charge again.•Install the battery properly.•When power failure occurs or you reconnect the AC adaptor,you must place each handset on the base unit once toreactivate them.• Place the handset on the base unit and unplug the ACadaptor to reset. Plug in, and try again. An alarm tone sounds. • You are too far from the base unit.Move closer and try again.•Place the handset on the base unit and try again.•Plug in the AC adaptor.•Raise the base unit antenna.•Locate the handset and the base unit away from otherelectrical appliances.•Move closer to the base unit.•Raise the base unit antenna.• Press [CH] to select a clearer channel in the talk mode.•The ringer volume is set to [OFF]. Set to [ON].•If a power failure occurs, the handset losescommunication with the base. When power returns, placethe handset on the base unit once then try again.•Install the battery properly.•Charge the battery fully.•Programming is not possible while the unit is in the talk modeor when viewing the Caller List/ phonebook.•Do not pause for over 60 seconds while programming.•Move closer to the base unit.•[]or [] may have been pressed when you picked up thehandset. Press [OFF] and try again. Problem Cause and Remedy•You cannot store an item in the phonebook while the unit is inthe talk mode.•Do not pause for over 60 seconds while storing.•To answer the call, press [/FLASH] .Start again from the beginning after hanging up.•You need to subscribe to a Caller ID service from atelephone company.•Other telephone equipment may be interfering with yourphone. Disconnect it and try again.• Other electrical appliances connected to the same outlet maybe interfering with the Caller ID information.•Telephone line noise may be affecting the Caller IDinformation.• Do not pause for over 60 seconds while searching.•The caller requested not to send his/her information.•The handset is too far from the base unit.• The handset is engaged in an outside call. Wait until theIN USE/CHARGE indicator light goes out.You cannot store aname and phonenumber in thephonebook.While programming orsearching, the handsetstarts to ring and stopsthe program/search.The handset does notdisplay the caller’sname and/or phonenumber.The display goes to thestandby mode whileviewing the Caller List.When a second call isreceived during aconversation, the unitdoes not display thenew caller’s name and/or phone number.[LOCATOR] does notfunction. Problem Cause and Remedy•When pressing [REDIAL] after [ ], more than 32 digits longnumber will not be redialed correctly.•When pressing [ ] after [REDIAL], more than 24 digits longnumber will not be redialed correctly.•Charge the battery fully.• The battery needs to be recharged.Charge the battery fully.•Clean the charge contacts and charge again.• Install a new battery.•This is normal. •When an optional headset is connected, you must use theheadset to talk with the caller. To have a normal cordlessphone conversation, disconnect the headset.•Make sure that an optional headset is connected properly.The IN USE/CHARGEindicator light does notgo out while charging.You cannot have aconversation using thehandset.You cannot have aconversation using theheadset.You cannot redial bypressing [REDIAL].“RECHARGE” and “ ” are displayed orthe handset beepsintermittently.While talking, the callis disconnected.You charged thebattery fully, but“RECHARGE” and“” are stilldisplayed.TG2122IB_EngRev09a 05/09/2006, 03:34 PMPage 2 Adobe PageMaker 6.5C/PPC](https://usermanual.wiki/CCT-Tech-Advanced/KX-TG2120H/User-Guide-662104-Page-2.png)
