CDVI WIRELESS S P A DTFT01 Part 15 Security/Remote Control Transmitter User Manual tx DTF
CDVI WIRELESS S.P.A. Part 15 Security/Remote Control Transmitter tx DTF
15_DIGITAG-F_UserMan
1.0 Product introduction
2.0 Product range
3.0 Technical specifications
The Digitag-F type DTFT01 is a radio active tag, operating at
433,92 MHz in GFSK modulation.
The tag transmits continously a radio pulse with a period of 1 sec.
A special algorithm adds to the rated time period a small slot,
realizing, in this way, an anticollision system, which avoids the
overlapping of the RF signals of many tags when standing
simultaneously in the same field.
Operating frequency: 433.92 MHz
Modulation: GFSK
Frequency deviation: 100 KHz
E.r.p. power: 4 ìW
Transmission period: 1 Sec + anticollision slot
Frame duration: 555 ìSec
Power supply: 3 Vdc
Battery: Lithium CR2032
Security code combinations: 16777215
Range in open space: 20 m
Operating temperature: -30°C / +70 °C
Dimensions: 61 x 36 x 16 mm
Weight: 20 gr.
Led colour
Description
GREEN
Regular status: battery life 1 year
ORANGE
Battery low: the functionality of the tag
is guaranted for 1 month
RED
Battery empty :Change battery : tag
functionality not guaranted.
DIGITAG-F
Tri-colour led
4.0 Led Messages

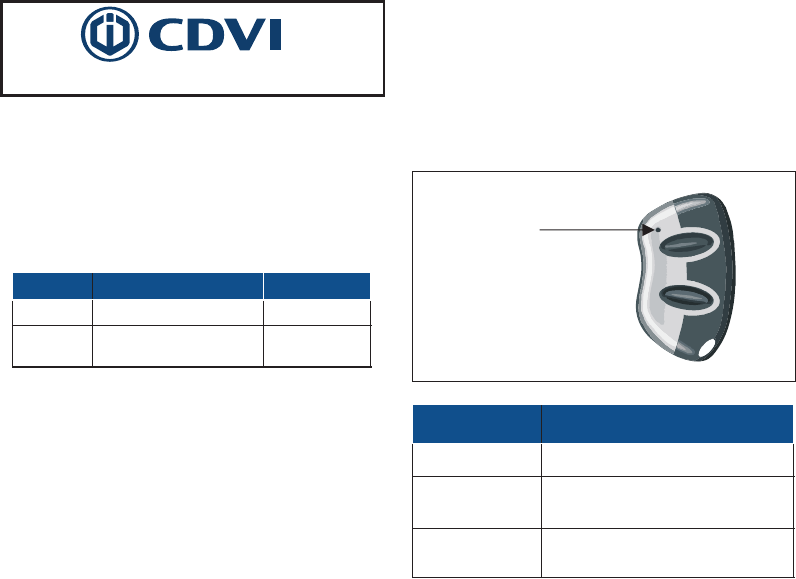

The tag is equipped with a tri-colour led which gives the following
information:
Tag activity: the led makes a flash every 5 radio transmissions,
for battery saving reasons.
Battery status: the colour of the flash gives the status of the
battery, according to the following table:
!
!
Fig. 1
P/N
Description
F-Code
DTFT01
Active tag
F0104000050
DTFT01HR
Active tag with build-in
125 KHz HID passive tag
F0104000049

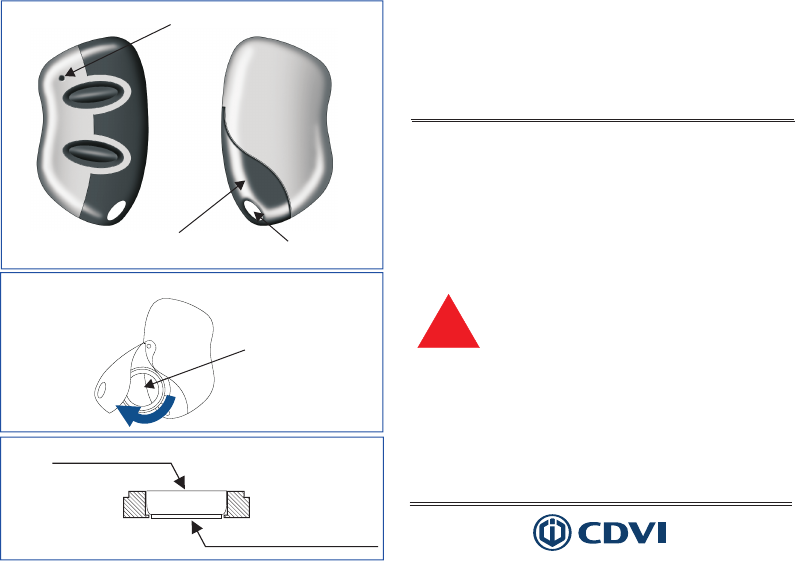

LED
Key-holder ring
Battery door
Fig. 2
Fig. 3
CR2032
Battery access
Fig. 4
Contact (+)
Contact (-)
Manufactured by
ELPRO INNOTEK S.p.A. - CDVI GROUP
Via Piave, 23
31020 S.Pietro di Feletto (TV) - ITALY
The guarantee period of this product is 24 months, beginning from
the manufacturing date. During this period, if the product does not
work correctly, due to a defective component, it will be repaired or
substituted at the discretion of the producer. The guarantee does not
cover the plastic container integrity.
After-sale service is supplied at the manufacturer factory.
Guarantee
IS-DTF01UK Rev. 1 on 13/05/2013
This device complies with FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
FCC ID : PWJDTFT01
ATTENTION: the tag is provided with a transparent strip
which prevents the automatic transmission.
Remove it before use.
This EUT is in compliance with MPE for general
population / uncontrolled exposure limits and it
had been tested in accordance with the
measurement methods and procedures specified in
!
RF EXPOSURE WARNING
FCC 47 CFR § 1.1310 and 2.1091
To satisfy FCC RF exposure requirements for mobile transmitting
devices, a separation distance of 20 cm or more should be
maintained between the antenna of this device and persons
during device operation. To ensure compliance, operations at
closer than this distance are not recommended. The antenna
used for this transmitter must not be co-located in conjunction
with any other antenna or transmitter.
