CDVI WIRELESS S P A GDR RECEIVER - GDR User Manual IS GDRUAUK
CDVI WIRELESS S.P.A. RECEIVER - GDR IS GDRUAUK
Users Manual
SENTRY GARAGE DOOR RECEIVER

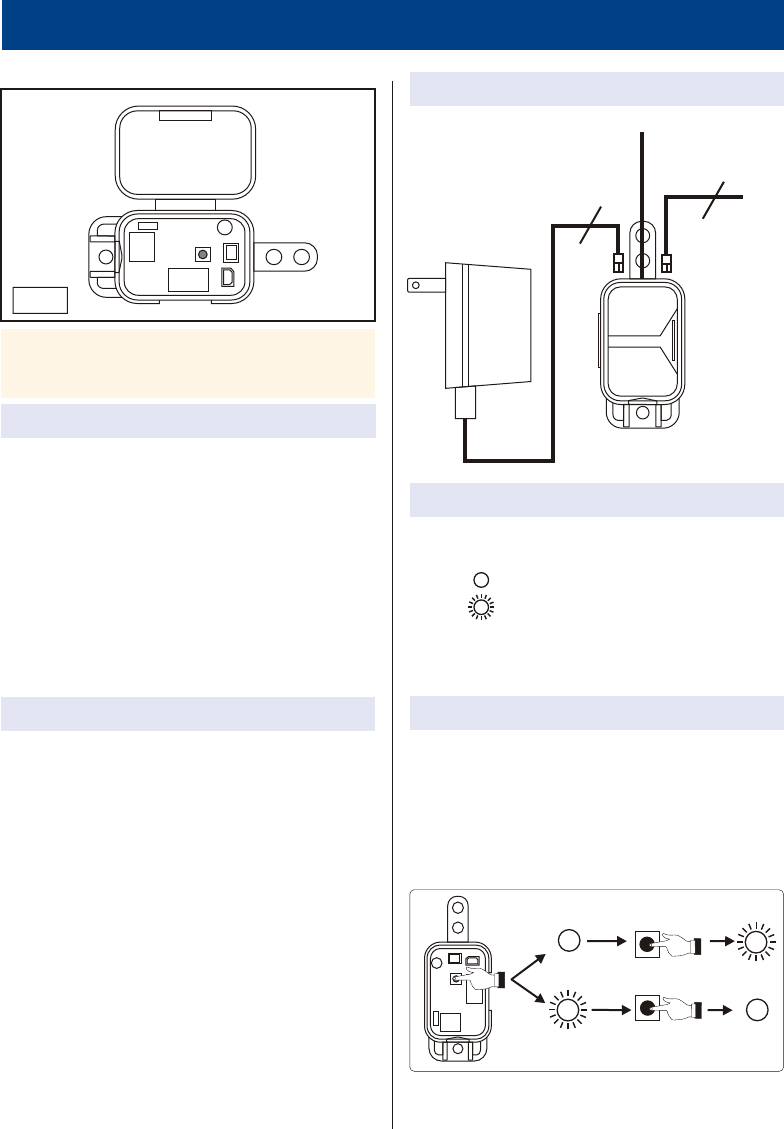

3 - WIRINGS
4 - OPERATING MODES
LD STEADY ON : PULSE Mode
LD BLINKING : LATCH Mode
The operating mode can be Pulse or Latch according the following
diagram.
LD gives the operating mode. To display the current operating
mode push P1 for 4 sec
5 - OPERATING MODE SETTING
P1
LD
4s
Procedure
1) Press and hold the push-button P1 for 4 sec. until the green
led LD comes ON ( Fig. 3); the led display the current
operating mode according to par. 4.
To modify push again P1 and release it within 1 sec.: once
released P1:
· from steady ON it will begin to blink ( Latch mode );
· from blinking it will come steady ON ( Pulse mode ).
LD
P1
1s
LD
LD
P1
1s
Fig. 3
P1
Antenna
Relay NO Output
Power
supply 2
2
Receiver type Superheterodyne
Carrier Frequency 433.92 MHz
Local oscillation frequency 6.6128 MHz
Demodulation AM/ASK
Local oscillator type VCO / PLL
Channel width > 25 KHz
Intermediate frequency 10.7 MHz
Input sensitivity -115 dBm
Spurious emissions < -57 dBm
Input load 50 Ohm
Operating voltage 9 Vdc
Max power on relay contacts 24 VA
Relay number 1
Operating modes Pulse / Latch
Max activation delay 300 mS
Memory 100 TX
Security protocol Fixed Code
9
Code combinations 3
Operating temperature -4°/+158°F
Enclosure IP grade IP2X
Dimensions ( main box) 1.57 x 0.9 x 2.2 in
2 - TECHNICAL SPECIFICATIONS
1 - INTRODUCTION
The Sentry Garage Door Receiver ( #030209) is single conversion
superheterodyne receiver oeperating at 433,92 MHz in AM/ASK
modulation.
It is designed for automatic closing systems and anti-burglar
systems.
The antenna is direct connected with 6,5” wire .
The relay K1 available output is only with NO type contact
The operating mode of K1 is Pulse and or Latch ( see below for its
configuration).
The power supply is 9 Vdc provided by its own 9 Vdc / 300 mA
external power supply.
The IP grade of 2X allows only indoor installations.
The product fully complies with the EMC European Regulations
(CE) and the FCC Part 15 Regulations.
Use and installation manual
Thank you for choosing this product .
You are recommended to read this manual carefully before
installing this product.
Made in
Italy #030209
4 - MEMORIZZAZIONE DEI TRASMETTITORI
If the memory is full when you try to memorize one more transmitter LD flashes 3 times and the procedure ends.
8 - ERASING TRANSMITTERS FROM THE MEMORY

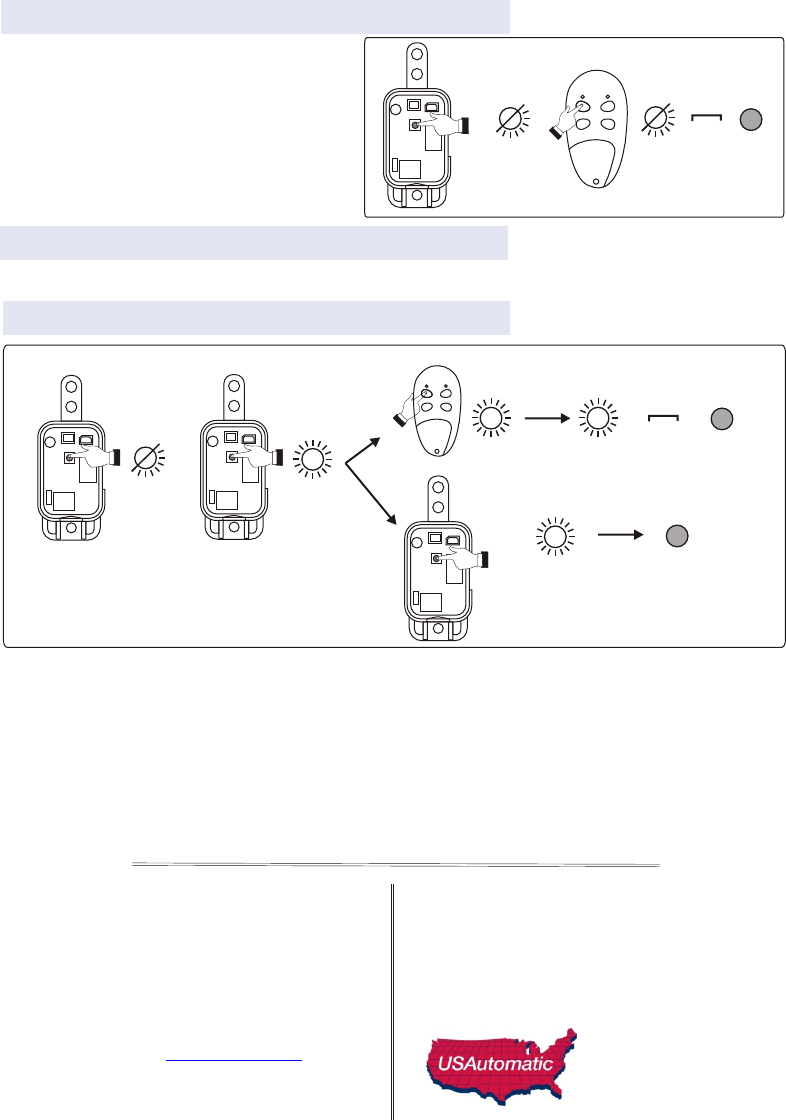

4 - MEMORIZZAZIONE DEI TRASMETTITORI6 - PROGRAMMING TRANSMITTER AND RECEIVER
P1
LD
4s
LD
7 - MEMORY FULL
Procedure
1) Press and hold the push-button P1 for 4 sec. until the
green led LD comes ON ( Fig. 4); the led display the current
operating mode according to par. 4.
2) Press the transmitter button down : LD switches OFF and
ON again, waiting for another tx to memorize;
3) If within 10 sec. no more transmitters are activated, LD
switches OFF and the procedure is over.
P1 4s
Fast
blinking
Blinks: Latch
Steady ON: Pulse
Procedure
1) Press and hold the push-button P1 for 4 sec. until the green led LD comes ON ( Fig. 5); the led display the current operating mode
according to par. 4.
2) Press and hold P1 for more 4 sec. : LD begins to blink fast.
At this point you can do 2 different operations:
A ) DELETE THE SINGLE TRANSMITTER
Press the button down of the transmitter to delete. LD flashes twice slow and then begins again to blink fast for more tx to delete.
If within 10 sec. no more transmitters are activated, LD switches OFF and the procedure is over.
B ) ERASE ALL THE MEMORY
Press and hold P1 for more 4 sec. : LD makes 3 slow flashes then switches off and the procedure ends.
P1
IS-GDRUAUK Rev. 3 del 10/06/2008
A
Fig. 4
P1
10 Sec.
LD
4s
TX
LD LD
A
TX
P1 4s
LD
10 Sec.
LD
LD LD
2 slow
flashes
LD
Fast
blinking End
3 slow
flashes End
Fig. 5
End
USAutomatic LTD
118 Hillside Drive
Lewisville, TX 75057
1-866-711-0001
www.sentrygateopener.com
WARRANTY
USAutomatic, LTD warrants this product to be free of defects in materials and
workmanship for 2 YEAR. For a period of 2 YEAR following purchase
USAutomatic, LTD. will repair or replace the product free of charge, including
parts, shop labor and return shipping and handling.
This 2 YEAR warranty does not cover the plastic case from normal wear or
damage due to misuse of the receiver or transformer. Modifications to the
supplied transformer will void the warranty.
To have the product sent for warranty consideration, it must be returned with
the proof of purchase and a return authorization number. To obtain a return
authorization number please visit or call 1-888-
711-0001 for assistance.
The return authorization number must be clearly marked on the outside of the
return package or it may not be accepted.
www.sentrygateopener.com
FCC ID : PWJGDR
This device complies with FCC Rules . Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including interference
that may cause undesired operation.
Part. 15 of the
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
