Users Manual
CL800BT MANUAL
2
Safety Precautions
Avoid long time expose to the direct light or heat.
Faults may occur if kept in extreme of temperatures.
May become damaged if dropped or knocked.
Problems may occur if exposed to humid and/or dusty conditions.
Do not use if power cable or plug are damaged.
Use only dedicated cable/adapter.
Do not disassemble.
Do not look directly at the light source, as this can cause
damage to the eye.
CL800BT MANUAL
3
Regulatory Information
FCC compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the
limits for a Class B digital device, Pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
CL800BT MANUAL
4
- Redirect or reposition the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment to a socket on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
FCC WARNING: This equipment may generate or use radio-
frequency energy. Changes or modifications to this equipment may
cause harmful interference, unless such modifications are
expressly approved in the instruction manual. The user’s license to
operate this equipment may be revoked if an unauthorized change
or modification is made.
RF Exposure Information: The antenna used for this transmitter
must be installed at a distance of at least 20 cm from all persons
and must not be co-located or operated in conjunction with any
other antenna or transmitter.
CE :
EN300328
EN301489
EN60950
CL800BT MANUAL
5

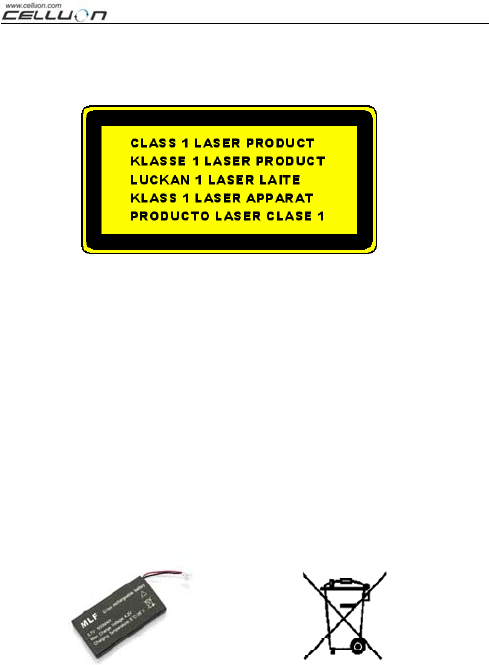

Laser Safety:
Product is certified by the manufacturer to comply with DHHS
Rules 21 CFR Subchapter J. Applicable at the date of
manufacture.
Environmental Notice
This product does not any materials specified harmful to the
human body. At the end of this product’s service life, please
separate with the life waste and discharge or go to the Celluon
service center for environmental protection.
CL800BT MANUAL
6
Battery Information
Battery service life: 220 minutes continuous use (max)
Capacity: 830mAh (max) @ 3.7V
Charging the Battery
Use the adapter supplied for connection to the power
supply. The battery will now start charging.
Charging time: 150 min
Caution
- Use of any other adapter may cause the battery to
explode.
- After purchasing the product, charge the battery before
use.
- Charging time is dependent on ambient temperature i.e.
it may be longer or shorter in extreme heat or cold.
- It is possible that the battery is not fully charged even
when the charging indicator is illuminated.
- Since battery belongs to expendable supplies, service
life gradually shortens after several uses.
CL800BT MANUAL
7
Table Contents
1. FEATURES...................................................................................9
2. COMPONENTS..........................................................................10
3. PARTS AND THEIR FUNCTIONS .............................................11
3.1 FRONT..................................................................................11
3.2 REAR....................................................................................12
3.3 TOP......................................................................................13
4. HOW TO OPERATE...................................................................14
4.1 INSTALLATION..........................................................................14
4.2 IN BLUETOOTH MODE............................................................15
5. HOW TO INSTALL, REMOVE AND USE SOFTWARE.............15
5.1 POCKET PC ............................................................................15
5.1.1 System Requirements .................................................15
5.1.2 Installation/Upgrading/Uninstalling the Driver..............15
5.1.3 Connection Method......................................................18
5.1.4 Disabling the Projection Keyboard Sound ...................22
5.1.5 PK Settings Application................................................23
5.1.6 Tutorial .........................................................................33
5.1.7 Shortcut Icon Keys.......................................................34
5.1.8 Function Key and Ctrl Key...........................................35
CL800BT MANUAL
8
5.2 PALM OS............................................................................36
5.2.1 System Requirements .................................................36
5.2.2 Installation/Upgrading/Uninstalling...............................36
5.2.4 PK Settings..................................................................44
5.2.5 PK Tutorial ...................................................................49
5.2.6 Shortcut Icon Keys.......................................................52
5.2.7 Shortcut Keys ..............................................................53
6. KEYBOARD LAYOUT................................................................55
7. TYPING LATIN LETTERS AND ADDITIONAL CHARACTERS.55
8. ADJUSTING KEY SENSITIVITY................................................58
9. SAFETY PRECAUTIONS ..........................................................60
10. TROUBLESHOOTING .............................................................62
11. SPECIFICATIONS AND DEMENSIONS ..................................64
CL800BT MANUAL
9
1. Features
Uses normal QWERTY keyboard layout.
Compact size (convenient to carry).
Includes function and shortcut icon keys.
Robust and durable, uses optical technologies
Bluetooth and serial port interface connections.
Rapid entry keys.
Economical, uses an integrated, rechargeable lithium
battery.
Compatible with Pocket PC, Palm OS and Windows.
CL800BT MANUAL
10

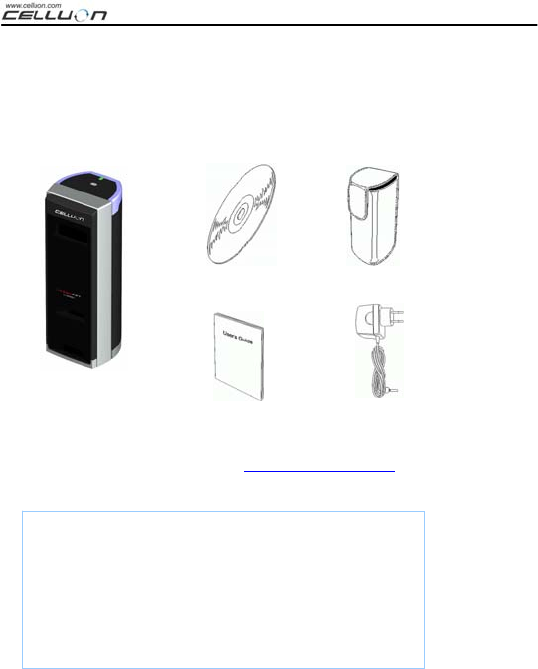

2. Components
Serial cable is optional. (refer to http://www.celluon.de.)
CDs:
- CL800BT Manual
- Palm Driver Installation File
- Pocket PC 2003 Driver (Widcomm Bluetooth Stack) Installation File)
- Pocket PC 2003 Driver (Microsoft Bluetooth Stack) Installation File)
Laserkey Quick Install Guide Adapter
Installation CD Case
CL800BT MANUAL
11
3. Parts and their Functions
3.1 Front

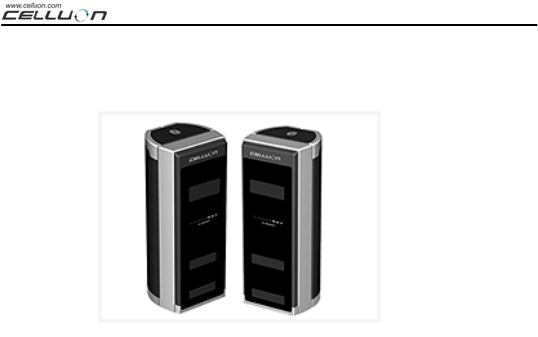

Projector: projects the keyboard image.
Infra Red Light Source: supplies the light source to
allow the Sensor Module to recognize key strokes.
Sensor Module: recognizes key strokes and transmits
them to the processing device.
Pattern Projector
Sensor Module
Infra Red Light
Source
CL800BT MANUAL
12

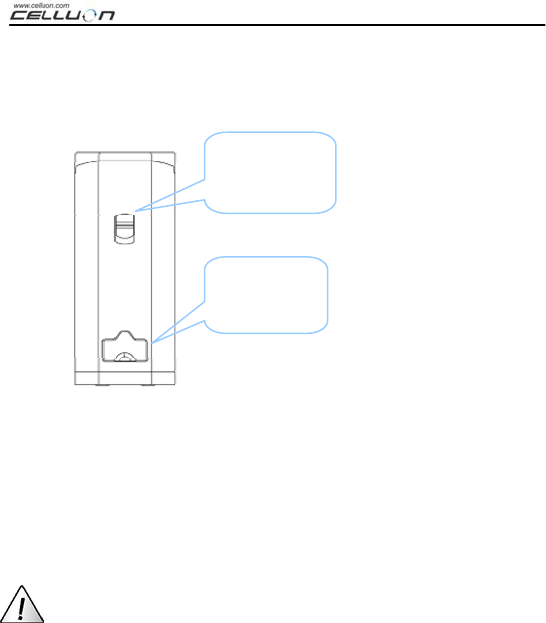

3.2 Rear
POWER
UP / DOWN Æ ON / OFF Switch
Communication & Power Ports
Serial Port RC232C Cable
Power Port 1A @ 5V adaptor
Only use the cable / adapter supplied.
Power
Switch
Comm. &
Power Ports
CL800BT MANUAL
13

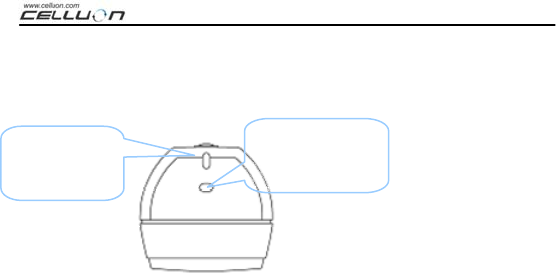

3.3 Top
Battery Status LED
o Charging Æ Red
o Fully Charged Æ Green
o Battery Power Low Æ Orange
o (Power off within 5 minutes.)
Communication & Power Status LED
o Bluetooth Mode
Pairing : Blue flashing
Link: Blue
o Serial Mode
LED Green
Communication &
Power Status LED
Battery
Status
CL800BT MANUAL
14
* What is Bluetooth?
Standard wireless communication between wireless
communication devices using low power and over short
distances.
Note:
When you want to exit from using Pocket PC and CL800BT
with Bluetooth communication setting, exit by using Pocket PC
own keyboard. (Due to operating error, it may reset Pocket
PC).
4. How to Operate
4.1 Installation
1. Install software as described in “Manual 5”.
2. Turn power on.
3. Connect device to computer via cable.
4. Run program as described in “Manual 5” for environment setup.
5. Use laser keyboard.
CL800BT MANUAL
15
4.2 In Bluetooth Mode
1. Install software as described in “Manual 5”.
2. Turn power on.
3. Set up Bluetooth environment as described in “Manual 5”.
4. Use laser keyboard.
5. How to install, remove and use software
5.1 Pocket PC
5.1.1 System Requirements
1. Microsoft Windows 2000/XP operating system.
2. Microsoft ActiveSync 3.6 or above.
3. Pocket PC based on Microsoft Windows Mobile 2003, with
Bluetooth (Widcomm or Microsoft).
5.1.2 Installation/ Upgrading/ Uninstalling the Driver
For serial port drivers please refer to http://www.celluon.de.
CL800BT MANUAL
16
1. Installation
1) Connect PC to Pocket PC via ActiveSync.
2) Insert installation CD into the CD-ROM drive of your PC to
start the installation program.
3) Follow installation program instructions.
2. Upgrading
Download and install a new driver from http://www.celluon.de.
3. Uninstalling

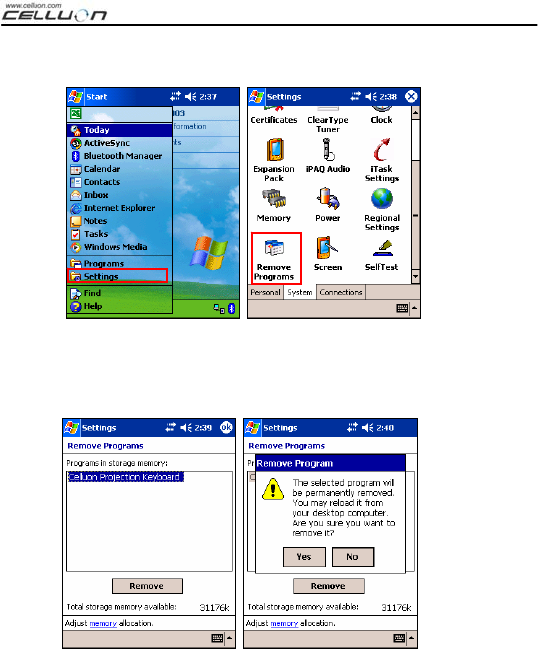

1) Select Today Æ Settings Æ System Æ Remove
Programs as shown in Figure 1.
CL800BT MANUAL
17
Figure 1. Uninstalling the Driver
2) Choose Projection Keyboard and click Remove, as shown
in Figure 2. Follow the on-screen instructions.
Figure 2. Uninstalling the Driver
CL800BT MANUAL
18
5.1.3 Connection Method
To connect a Pocket PC to the Projection Keyboard follow the
instructions below.
1. Turn on power to Pocket PC and Projection Keyboard.
Note: Verify that sufficient battery power is supplied to the
Projection Keyboard device

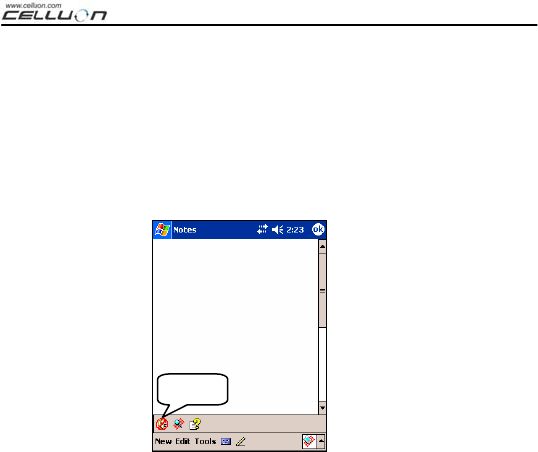

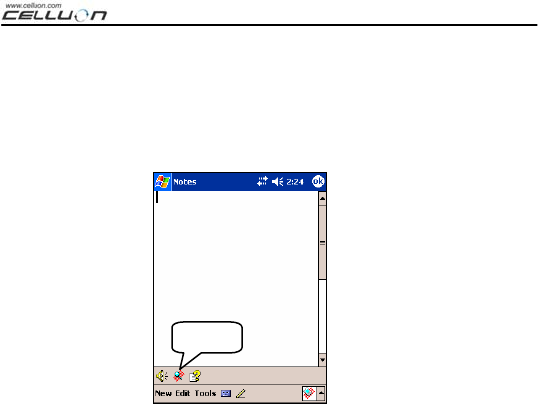

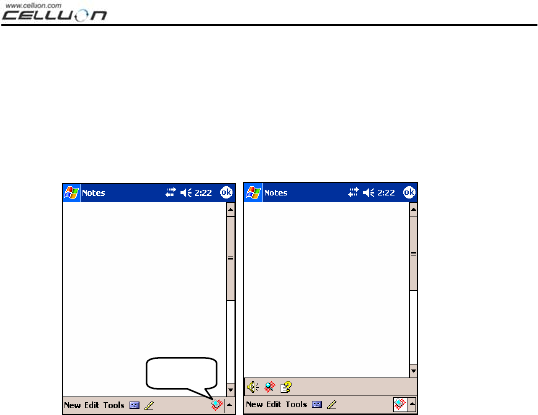

2. Run the program required to enter the keyboard as shown in
Figure 3 (e.g. Note).
Figure 3. Running the Program
CL800BT MANUAL
19

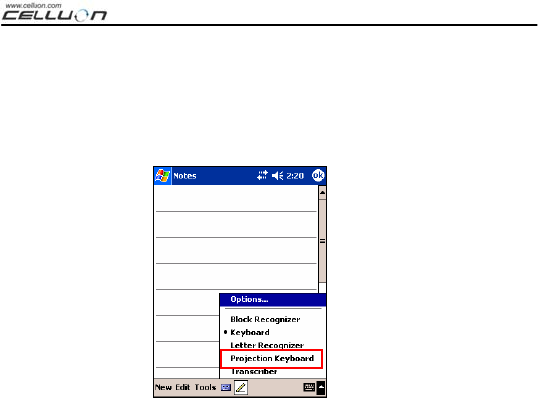

3. Select Projection Keyboard from the options, as shown in
Figure 4.
Figure 4. Selecting a Device
CL800BT MANUAL
20

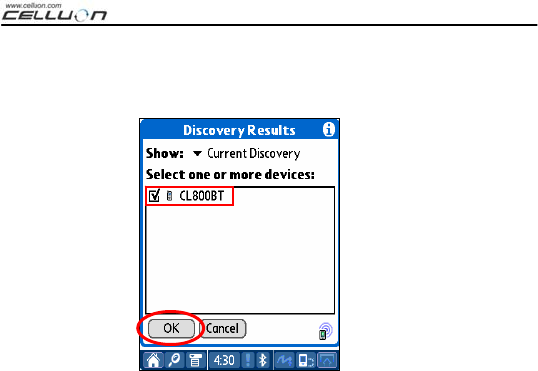

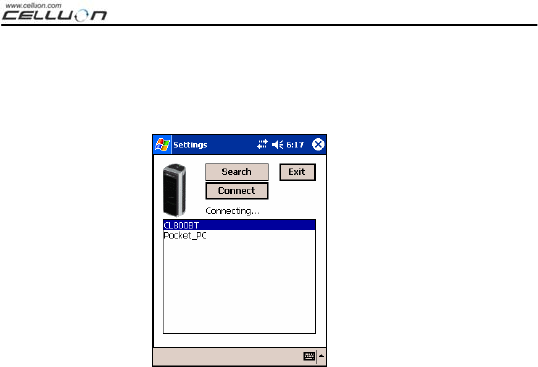

4. When the Bluetooth Browser is open, choose CL800BT, as
shown in Figure 5.
Figure 5. Selecting a Bluetooth Device
CL800BT MANUAL
21
5. You are now ready to use the Projection Keyboard. To
change the Projection Keyboard’s set values, click on the
Projection Keyboard icon to view the control panel, as shown
in Figure 6.
Figure 6. Projection Keyboard Control Panel
This icon
CL800BT MANUAL
22
5.1.4 Disabling the Projection Keyboard Sound
When the user clicks the keyboard sound icon, a clicking
sound is emitted from the Pocket PC. To turn off the sound,
click the keyboard sound button once; click again to turn it
back on, as shown in Figure 7.
Figure 7. Keyboard Sound Icon
This icon
CL800BT MANUAL
23
5.1.5 PK Settings Application
Click on the settings icon to change the different setting values
on the Projection Keyboard, as shown in Figure 8.
Figure 8. PK Settings Icon
Click the settings icon to view the Change Settings screen, as
shown in Figure 9. These settings enable the user to adjust
key repeat, key sound and key sensitivity.
This icon
CL800BT MANUAL
24

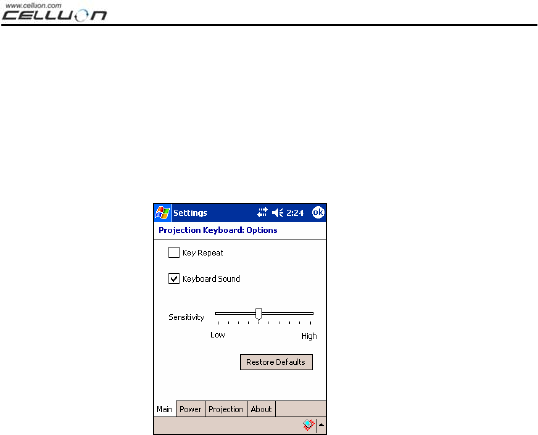

5.1.5.1 Main Change Settings Tab
Figure 9. Main Change Settings Tab
Key Repeat
By using Key Repeat, continuously pressing a key causes the
value to be entered repeatedly. Select the Key Repeat
checkbox to use the key repeat function or deselect to disable
the function.
CL800BT MANUAL
25
Keyboard Sound
Clicking the Keyboard Sound function causes a clicking sound
to be emitted from the Pocket PC. Select the Keyboard Sound
checkbox to turn on the key sound function or deselect it to
disable the function.
Sensitivity
If the Projection Keyboard has a problem with key sensitivity,
adjust the setting using the slider.
For details, see “8. Adjusting Key Sensitivity”.
Restoring Defaults
To restore all functions to their default values, click the Restore
Defaults button.
CL800BT MANUAL
26
5.1.5.2 Power Save Mode
Adjust the Power Save Mode from the Power tab on the
Change Settings screen.
Power Save Mode On
Click on the Power Save Mode On checkbox to use this

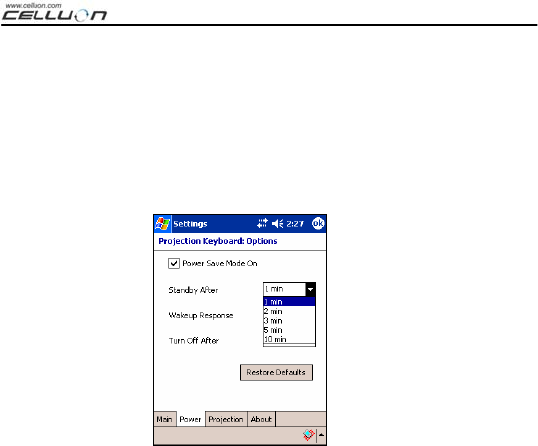

function, as shown in Figure 10.

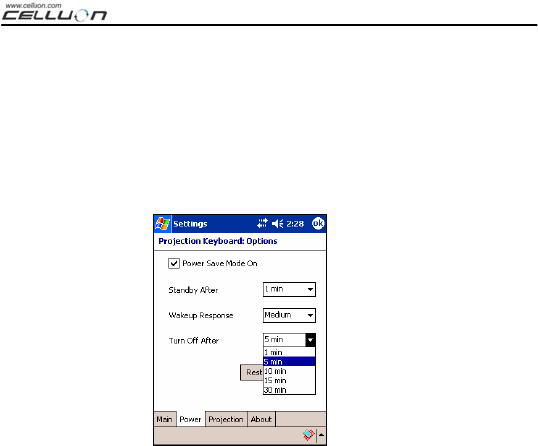

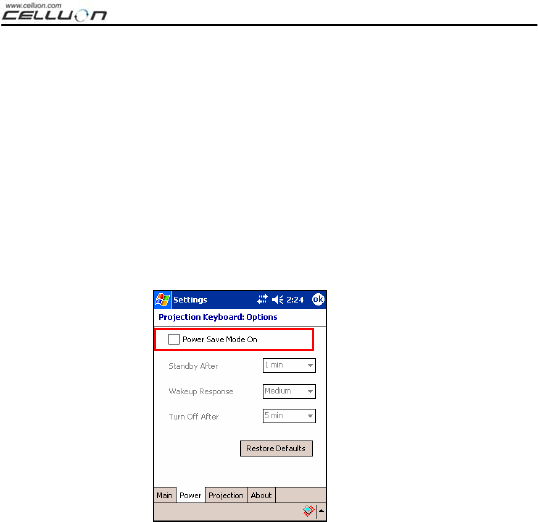

Figure 10. Power Save Mode
CL800BT MANUAL
27
Standby
Change the Standby setting value to alter the time elapsed
before the system enters Standby mode. In Standby mode, if
no keys are pressed within a given period of time the device
will enter a low power mode until a key is pressed again.
Figure 11. Standby Mode
CL800BT MANUAL
28
Wakeup Response
To use the keyboard again, press any key or area of the
keyboard. Change the Wakeup Response settings to adjust
the speed for switching between Standby and normal mode, as
shown in Figure 12.
Figure 12. Wakeup Response
CL800BT MANUAL
29
Turning Off the Projection Keyboard
Once in Standby mode, if no keys are pressed within the time
specified in the Turn Off After field, the device will enter Power
OFF mode, as shown in Figure 13. To use the keyboard from
Power OFF mode, turn the Projection Keyboard on again.
Figure 13. Power OFF Mode Time Setting
Restoring Defaults
To restore the settings in the Power tab to their default values,
click the Restore Defaults button.
CL800BT MANUAL
30
5.1.5.3 Projection Control

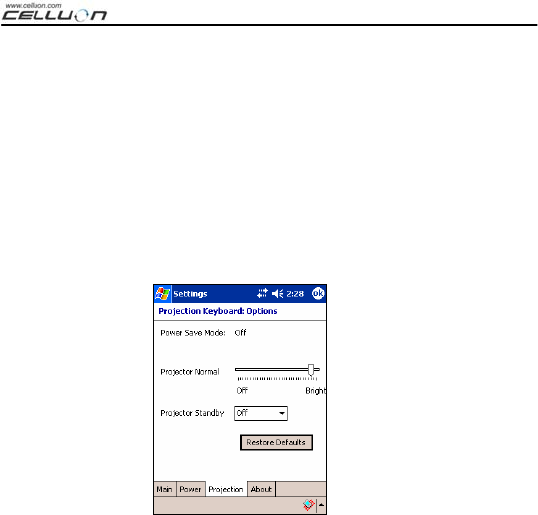

Adjust keyboard brightness using the settings in the
Projection tab.
Projector Normal
Adjust the keyboard brightness using the slider for the
Projector Normal setting, as shown in Figure 14
Figure 14. Projector Normal
CL800BT MANUAL
31
Projector Standby Mode
Change the settings in the Projector Standby box to set the
keyboard brightness in Standby mode, as shown in Figure 15.
Figure 15. Projector Standby
Restoring Defaults
To restore the settings in the Power tab to their default values,
click the Restore Defaults button.
CL800BT MANUAL
32
5.1.5.4 Driver Information

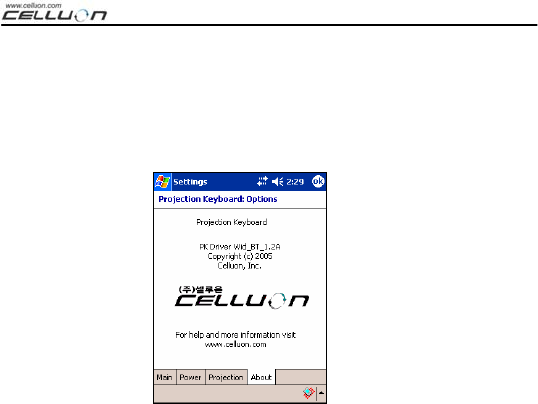

Driver information for the Projection Keyboard is located under
the About tab in the Settings screen, as shown in Figure 16.
Figure 16. Driver Information
CL800BT MANUAL
33
5.1.6 Tutorial
Click the Tutorial icon in the Projection Keyboard control panel

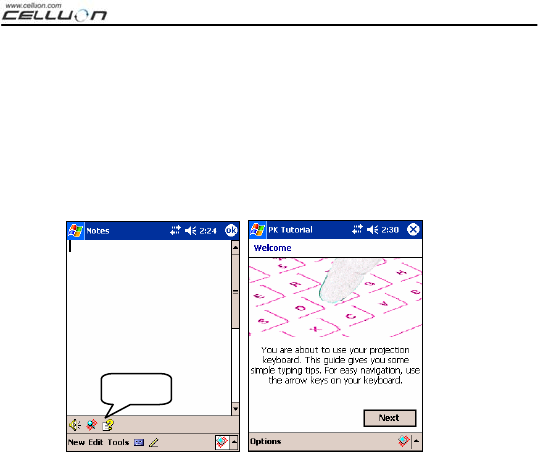

to launch the Projection Keyboard Tutorial, as shown in Figure
17. The Tutorial offers information on how to use the Projection
Keyboard.
Figure 17. Projection Keyboard Tutorial
This icon
CL800BT MANUAL
34
5.1.7 Shortcut Icon Keys

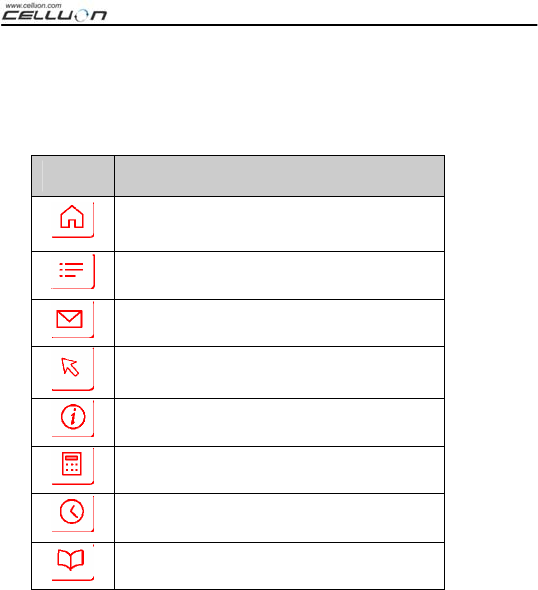

Table 1.1 below shows the description for each icon.
Table 1.1 Shortcut Icon Keys
Icon Functions
Switch to Today screen
Run To Do program
Run Mail program
Run Find program
Run Web Browser
Run Calculator program
Run Calendar program
Run Address program
CL800BT MANUAL
35
5.1.8 Function Key and Ctrl Key
Table 1.2 shows FN and CTRL key combinations.
Key Shortcut Key Functions
FN - 1 Run Note program
FN - ENTER Close the current program
FN - ← (Left Arrow) Home
FN - → (Right Arrow) End
FN - ↑(Up arrow) Page Up
FN
FN - ↓(Down Arrow) Page Down
CTRL - Z Undo
CTRL - X Cut
CTRL - V Paste
CTRL - C Copy
CTRL - A Select All
CTRL - U Underline
CTRL - N Application Specific
CTRL - S Application Specific
CTRL - F Application Specific
CTRL
CTRL - Q Application Specific
Table 1.2 Key Combinations
CL800BT MANUAL
36
5.2 Palm OS
5.2.1 System Requirements
1. Microsoft Windows 2000/XP operating system.
2. HotSync software.
3. Palm OS 5 or later.
5.2.2 Installation/ Upgrading/Uninstalling
For the serial port driver, please refer to http://www.celluon.de or
http://www.plawa.com.
Installation
1. Insert CD into the CD-ROM drive of the PC to run the
installation program.
2. Follow the on-screen instructions to install the program.
Upgrading
Find out above new drivers by referring to http://www.celluon.de
and downloading drivers for installation.
CL800BT MANUAL
37
Uninstalling
1. Select App Æ Delete, as shown in Figure 18.

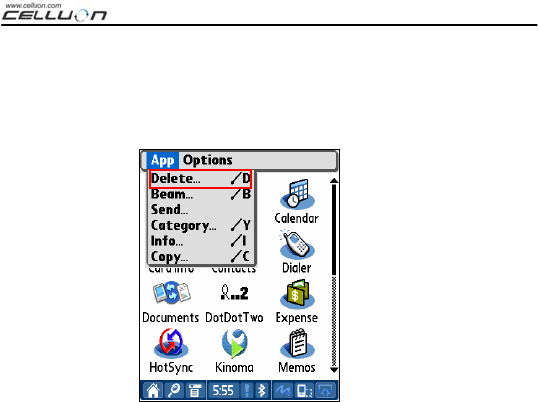

Figure 18. Uninstalling the Program
CL800BT MANUAL
38

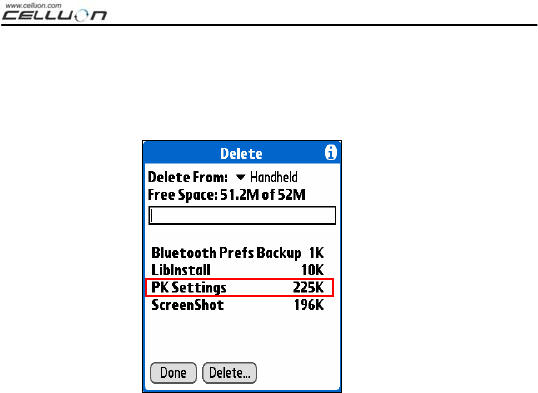

2. Select PK Settings and click Delete… , as shown in Figure
19. Delete the PK Tutorial using the same method.
.
Figure 19. Deleting PK Settings
CL800BT MANUAL
39
.
5.2.3 Establishing a Connection with the Projection Keyboard
To establish a connection between a Palm device and the
Projection Keyboard, please follow the instructions below.
1. Turn on the Palm device and the Projection Keyboard.
Note:
Check that sufficient battery power is supplied to the Projection
Keyboard device.
2. Click the PK Settings icon to run the program, as shown in
Figure 20.
Figure 20. PK Settings Program
CL800BT MANUAL
40
3. On the Palm Bluetooth device screen, select Current
Discovery in the Show items, as shown in Figure 21.

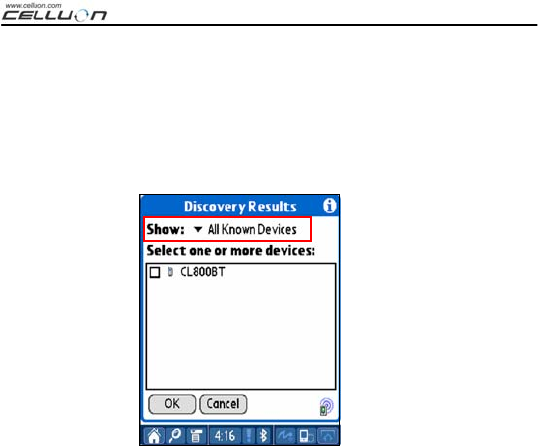

Figure 21. Showing Bluetooth Devices
CL800BT MANUAL
41
4. Select CL800BT, as shown in Figure 22.
Figure 22. Selecting CL800BT
CL800BT MANUAL
42
5. Click the OK button. The system will display a Connecting
screen, as shown in Figure 23.

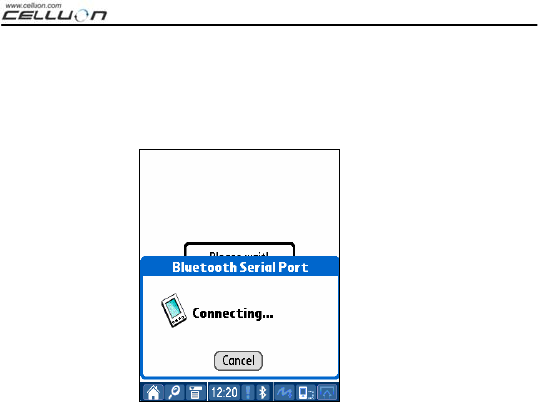

Figure 23. Connecting to Bluetooth
CL800BT MANUAL
43
6. Once the Palm device and Projection Keyboard are
connected, a tutorial screen is displayed, as shown in Figure
24.

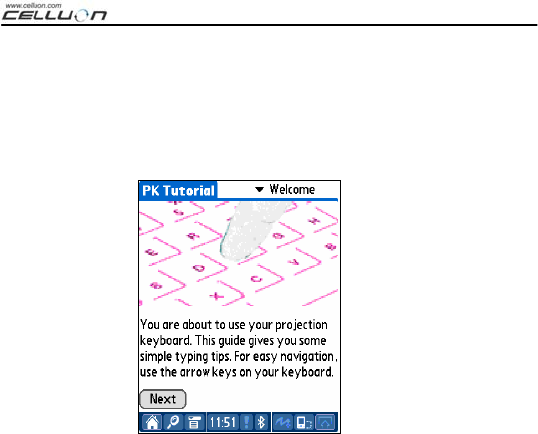

Figure 24. Tutorial
CL800BT MANUAL
44
5.2.4 PK Settings
Once the Palm device and Projection Keyboard are connected,
run the PK Settings program again to change the Projection
Keyboard settings.
5.2.4.1 Main Screen
Select the Main screen to view Settings, as shown in Figure 25.
You may set the following functions:

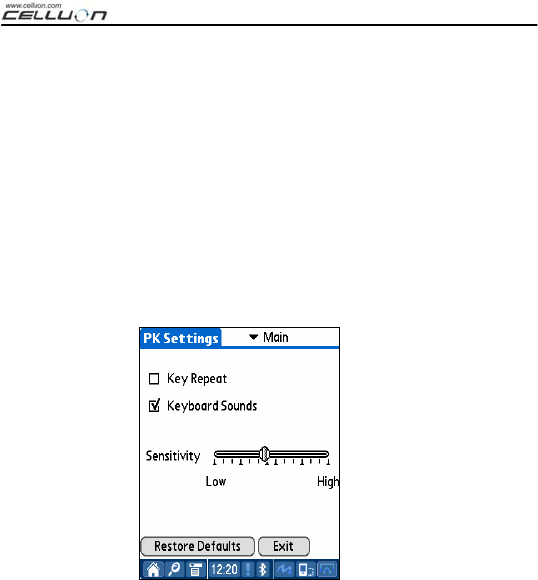

Figure 25. Main Screen
CL800BT MANUAL
45
Key Repeat
By using Key Repeat, continuously pressing a key causes the
value to be entered repeatedly. Select the Key Repeat
checkbox to use the key repeat function or deselect to disable
the function.
Keyboard Sound
Clicking the Keyboard Sound function causes a clicking sound
to be emitted from the Pocket PC. Select the Keyboard Sound
checkbox to turn on the key sound function or deselect it to
disable the function.
Sensitivity
If the Projection Keyboard has a problem with key sensitivity,
adjust the setting using the slider.
For details, see “8. Adjusting Key Sensitivity”.
Restoring Defaults
To restore all functions to their default values, click the Restore
Defaults button.
CL800BT MANUAL
46
Disconnecting
To disconnect the Palm device from the Projection Keyboard,
click on the Exit button.
5.2.4.2 Power Save Screen
In the Power Save menu, you can change settings related to
power consumption, as shown in Figure 26.

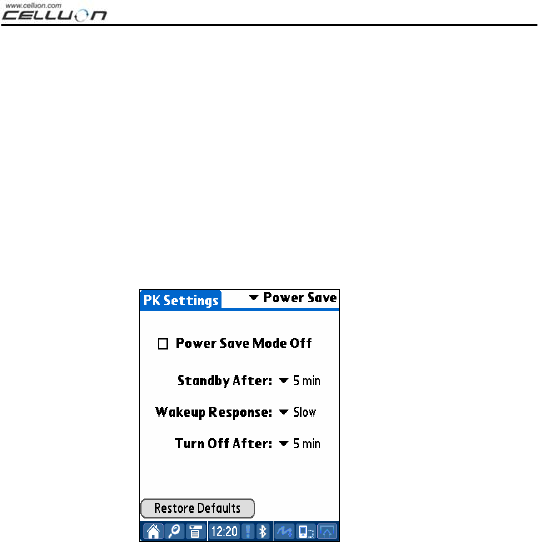

Figure 26. Power Save Mode
CL800BT MANUAL
47
Power Save Mode
Select the Power Save Mode Off checkbox to disable Power
Save Mode, or deselect the checkbox to run Power Save
Mode.
Standby Mode
Change the Standby setting value to alter the time elapsed
before the system enters Standby mode. In Standby mode, if
no keys are pressed within a given period of time the device
will enter a low power mode until a key is pressed again.
Wakeup Mode
To use the keyboard again, press any key or area of the
keyboard. Change the Wakeup Response settings to adjust
the speed for switching between Standby and normal mode.
Power OFF Mode
Once in Standby mode, if no keys are pressed within the time
specified in the Turn Off After field, the device will enter Power
OFF mode, as shown in Figure 13. To use the keyboard from
Power OFF mode, turn the Projection Keyboard on again.
CL800BT MANUAL
48
Restoring Defaults
To restore the settings in the Power tab to their default values,
click the Restore Defaults button.
5.2.4.3
Projector Screen
Adjust the brightness of the keyboard on the Projector menu,
as shown in Figure 27.

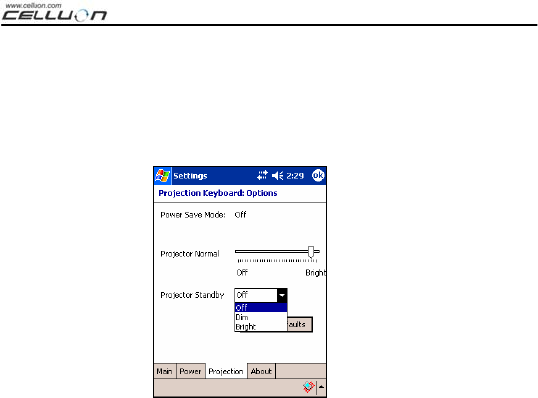

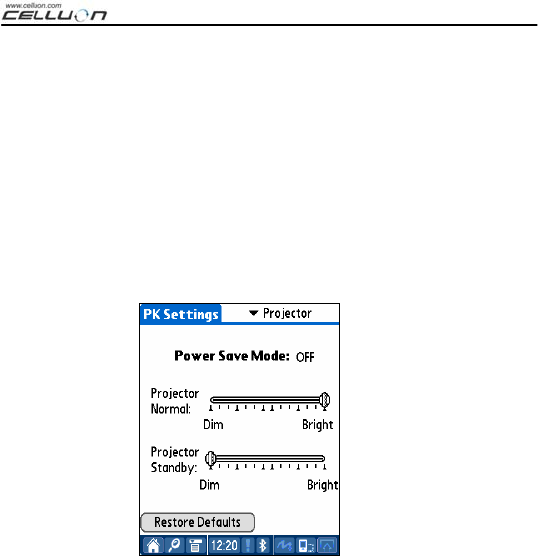

Figure 27. Projector Screen
CL800BT MANUAL
49
Power Save Mode
Shows whether the Power Save option is turned on or off.
Keyboard Brightness
Change the Projector Normal slider to adjust the keyboard
brightness.
Keyboard Brightness in Standby Mode
Change the Projector Standby slider to adjust the keyboard
brightness when in Standby mode.
Restoring Defaults
To restore the settings to their default values, click the Restore
Defaults button.
CL800BT MANUAL
50
5.2.5 PK Tutorial
Click the PK Tutorial icon to launch the tutorial. You can view
information on how to use the Projection Keyboard within the
tutorial, as shown in Figure 28.
CL800BT MANUAL
51

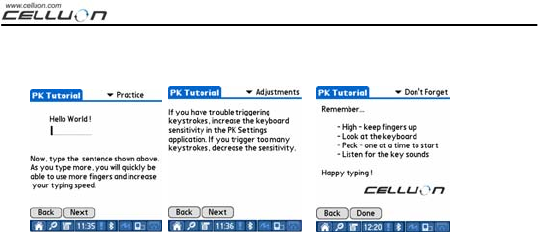

Figure 28. PK Tutorial
CL800BT MANUAL
52
5.2.6 Shortcut Icon Keys
Table 2.1 shows the description for each icon.
Table 2.1 Icon Keys
Icon Functions
Switch to Today screen
Run To Do program
Run Mail program
Run Find program
Run Web Browser
Run Calculator program
Run Calendar program
Run Address program
CL800BT MANUAL
53
5.2.7 Shortcut Keys
Table 2.2.lists the FN and CTRL key combinations.
Key Key Combination Functions
FN - 1 Run Memo Pad
Program
FN - 2 Run Voice Memo Program
FN - F Select Font
FN - K Launch PK Settings application
FN - R Cmd + R
FN - Y Cmd + Y
FN - I Cmd + I
FN - D Cmd + D
FN - B Cmd + B
FN - N Cmd + N
FN - ←(left Arrow) Home
FN - →(Right Arrow) End
FN
FN - ↑(Up Arrow) Page Up
CL800BT MANUAL
54
FN - ↓(Down Arrow) Page Down
CTRL - Z Undo
CTRL - X Cut
CTRL - V Paste
CTRL - C Copy
CTRL - A Select All
CTRL - U Undo
CTRL - S Select All
CTRL - F Find
CTRL
CTRL - P Paste
Table 2.2 Key Combinations
CL800BT MANUAL
55
6. Keyboard Layout

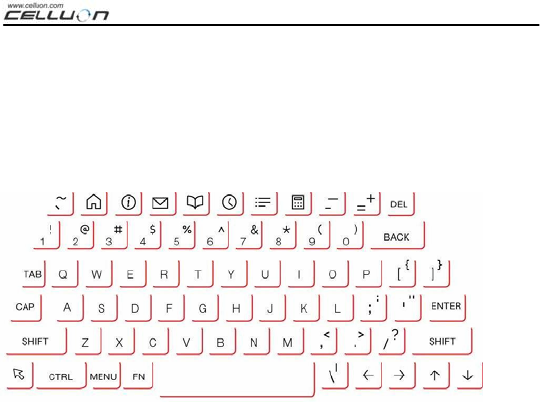

Key layout of Projection Keyboard is as follows.
CL800BT MANUAL
56
7. Typing Latin Letters and Additional Characters
FIRST SECOND Remark
A E I OUYNBC / PST D + R
Á É Í Ó Ú Ý
FN - '
SHIFT á é í ó ú ý
Â Ê Î Ô Û
FN - SHIFT - 6
SHIFT â ê î ô û
Ä Ë Ï Ö Ü Ÿ
FN - SHIFT - ;
SHIFT ä ë ï ö ü ÿ
À È Ì Ò Ù
FN - `
SHIFT à è ì ò ù
Ã Õ Ñ
FN - SHIFT - `
SHIFT ã õ ñ
Å
FN - O
SHIFT å
Ç
FN - ,
SHIFT ç
Ø
FN - /
SHIFT ø
Æ Œ
FN - E
SHIFT æ œ
¶ Symbol
FN - S
SHIFT µ ß©¿ §™ ˚ ± ®
FN - C
€ ¥ ¢ £ Currency
CL800BT MANUAL
57
Key input e.g. 1) to input "Á" character:
Press FN key and ' key simultaneously.
Release both keys.
Press SHIFT and A simultaneously.
Key input e.g. 2) to input " ñ " character:
Press the FN key, SHIFT key and ` key simultaneously.
Release keys.
Press N.
Key input e.g. 3) to input "€" character:
Press FN key and C key simultaneously.
Release both keys.
Press E.
CL800BT MANUAL
58
8. Adjusting Key Sensitivity
The Projection Keyboard determines key input based on the
amount of light reflected from the finger. Since the perceived
amount of light changes depending on the surrounding
environment, key sensitivity should be set according to user-
specific conditions.
How to Adjust Key Sensitivity
1. Click Sensitivity on the settings screen.
2. Adjust the Sensitivity slider. Check if a key stroke is
recognized by pressing the center of the space bar key.
Key Sensitivity Setting Factors
Skin color
Thickness of fingers
Typing habit (leaning on keys)
Finger accessories (manicure etc.)
Surrounding environment
CL800BT MANUAL
59
Caution
- Key sensitivity must be adjusted each time a new user
accesses the keyboard according to the new user’s
requirements.
- To ensure correct operation, avoid extreme light sources.
- Relevant environmental factors include:
- Direct sunlight, artificial light, Infra Red Data Association
(IrDA), remote control devices.
CL800BT MANUAL
60
9. Safety Precautions
Never look directly at the light source.
Avoid direct sunlight or high levels of infrared rays.
Do not use in extreme brightness.
Do not use under very bright incandescent light.
Do not insert conductive material into the device, or
damage the power or communication ports.
Do not strike or knock the device as this may cause
damage or operational failure.
Do not disassemble the device. (After Sales Service will
not be available)
Only use the cable/charging adapter supplied.
High pressure or heat may cause the lithium battery to
explode.
Remove all objects on the surface between the device
and the keyboard.
Use on a flat surface.
Avoid glass or transparent surfaces.
Fingers should not be positioned less than 5 mm from
the surface.
Do not operate or store in high temperature or humidity.
Do not submerge in water.
It is not possible to get After Service for battery failure
CL800BT MANUAL
61
caused by water. (Determined by color on the
attached sticker.)
CL800BT MANUAL
62
10. Troubleshooting
The device will not turn on.
Cause: Discharged battery.
Solution: Charge the battery fully.
Key strokes not recognized even though the keyboard is
connected.
Cause: Sensitivity set too low.
Solution: Reset to higher sensitivity and restart the device.
Keyboard image is not visible even though the keyboard
operates.
Cause:
1. When brightness is set low, standby or off
2. The device is not charged.
Solution:
1. Set brightness high, normal or on
2. Charge the device.
Cause: The device is overheated.
Solution: Move it to cooler surroundings and wait for a short
time before restarting.
Cause: The device was not positioned on a flat surface.
CL800BT MANUAL
63
Solution: Move to a flat surface.
Incorrect keys are recognized when typing.
Cause: Sensitivity is set too high.
Solution: Reset to lower sensitivity and restart the device.
Cause: The device was not positioned on a flat surface.
Solution: Move to a flat surface.
CL800BT MANUAL
64
11. Specifications and Dimensions
Keyboard Project
Items Specifications
Light source Red Laser diode
Keyboard layout 17mm QWERTY layout
Keyboard size Approx. 241mm*106mm
Keyboard position Approx. 100mm from keyboard device
Projection surface Non-reflective,
opaque flat surface
Visibility Visible in 1000-5000 lux ambient light
Keyboard Sensor
Items Specifications
Illumination Visible in incandescent light of 1800
lux or more
Detection rate Up to 400 characters per minute
Effective key stroke Approx. 2mm
Operating surface Any flat surface
CL800BT MANUAL
65
Electrical Condition
Items Specifications
Power source Integral lithium battery
Battery capacity 830mAH(Max)@3.7V
Adapter Rating 1A @ 5V
Interface RS232C serial
Bluetooth v1.1 class 2
Power consumption Max. 3W@5V
Environmental Condition
Items Specifications
Operating temperature Approx. 0~35°C
Storage temperature Approx. -20~50°C
CL800BT MANUAL
66
Compatible Operating Systems
Microsoft Windows Mobile 2003
Palm OS 5.x
Microsoft Windows XP
Size (mm): 93 * 39 * 37.5
Weight: 109g
For information on device and driver compatibility, please
refer to http://www.celluon.de or http://www.plawa.com.
Technical Support:
plawa-feinwerktechnik GmbH & Co. KG
Bleichereistr. 18
73066 Uhingen
Germany
support@plawa.com
Tel.: +49 7161 – 93 87 220
