CHINA DRAGON TECHNOLOGY CDT-H18188E-NX WIFI Module User Manual
CHINA DRAGON TECHNOLOGY LIMITED WIFI Module
User manual
␡
␡ൣᐲѝ嗉䙊⭥ᆀ、ᢰᴹ䲀ޜਨ
CHINA DRAGON TECHNOLOGY LIMITED
User Manual
Part Name: WIFI Module
Part No.: 8188 series
Date: 2014-6-25
Part 1˖
˖
Introduction
This product is a new generation module, It is based on USB interface,
accord with Wifi wireless network standard embedded module, the built-in
wireless network protocol IEEE802.11 protocol stack, and TCP/IP protocol stack,
save electricity intelligent control procedures , realize the user serial data to the
wireless network conversion between. The entire module needs a power supply
of 3.3 volt, and it has two Antenna(integral antenna and PCB antenna) to use for
a different product. But it isn’t a MIMO equipment. Both of the antenna was used
independent. When the customer need a PCB antenna, and the integral antenna
will be take out, vise versa.
Through the Wifi module, the traditional serial equipment also can easily access
wireless network.
gInterface˖PIN
gPower supply voltage: +3.3V
gWireless Features:
-- Compatible completely with IEEE 802.11 a/b/g/n standards
-- Compliant to IEEE 802.11 a/b/g/n Wireless LAN Standard
-- Channel frequency: 2412-2462MHz for 802.b/g/11n H20 mode ;
2422-2452MHz for 802.11n H40 mode
-- 802.11b/802.11g /802.11n(HT20): 11channels
802.11(HT40): 7channels
gExternal Antenna can choose miniature coaxial connector˄U.FL˅type
gOthers:
-- Supports many kinds of network protocols: TCPǃUDPǃDHCPǃICMPǃ
DNS etc
-- Supports USB transmission mode
-- Can provide a user interface to set configuration parameters
gApplication: Temperature controllerǃSmart meterǃHousehold applianceǃ
remote controlǃSecurity ProductsǃToy, and other IOT industry(sunch as retail
business and medical care etc).
Part 2
˖
Product Description
This part comprehensively introduces hardware interface and product
function of the WIFI module, in this way can help user to the familiar with using
the WIFI module quickly and efficiently, and can start using it sooner.
Module Interface : Standard 2.54 PIN
System Interface: can using socket or connection terminal mode

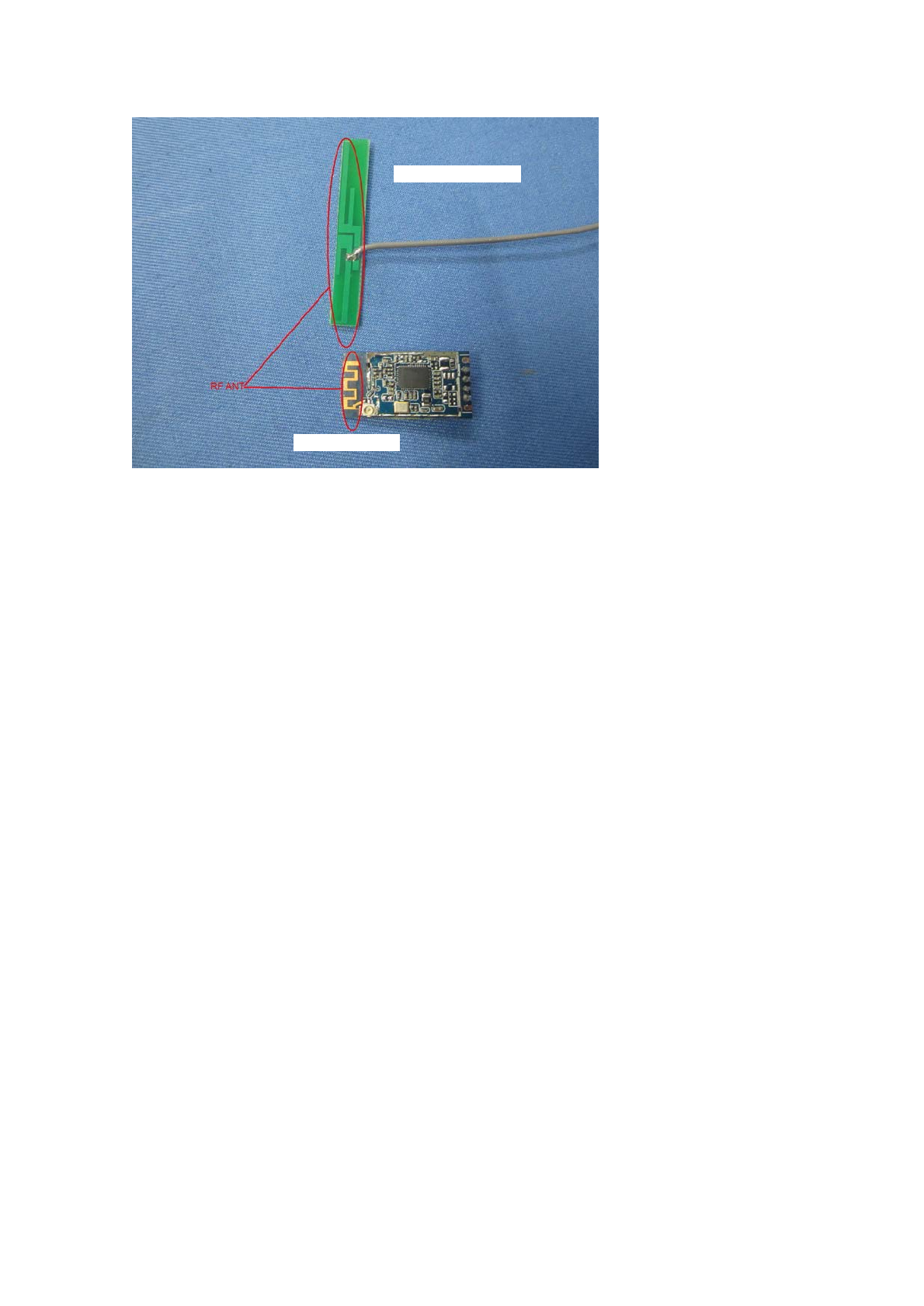

WIFI Module Top View
of 3.3 volt, and the product has integral antenna and alternative PCB antenna to use .
But it isn't a MIMO equipment. Both of the antenna was used independent. When
the customer need a PCB antenna, and the integral antenna will be take out, vise versa.
WIFI Module Bottom View

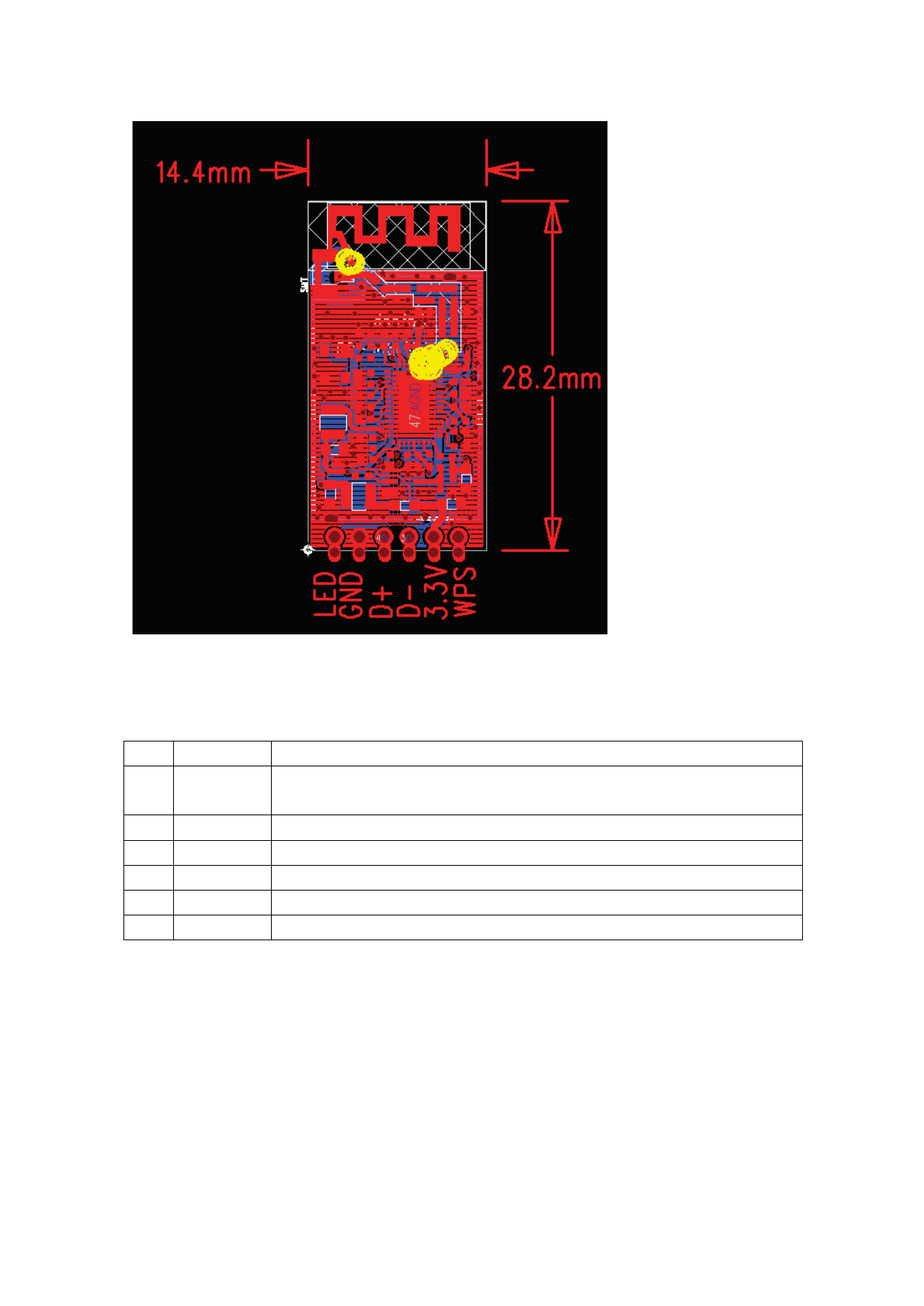

WIFI module Size and PIN Description
WIFI Module Bottom View (copper covered)
No Pin name Description
1 LED It is connected to an external LED to show the module operating
status
2 GND Ground
3 D+ USB Data +
4 D- USB Data ̢
5 VCC 3.3V
6 WPS It is connected to an external push button to activate WPS.
Antenna
Antenna Information˖
IPX antenna interfaceˈthrough miniature coaxial connector˄U.FL or
IPEX˅connection to WIFI module
2.4GHzWIFI antenna L=145mm
FCC statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Changes
or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
FCC Radiation Exposure Statement
The modular can be installed or integrated in mobile or fix devices only. This modular cannot be
installed in any portable device, for example, USB dongle like transmitters is forbidden.
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. This modular must be installed and operated with a minimum distance of
20 cm between the radiator and user body.
If the FCC identification number is not visible when the module is installed inside another device,
then the outside of the device into which the module is installed must also display a label
referring to the enclosed module. This exterior label can use wording such as the following:
“Contains Transmitter Module FCC ID: ROWCDT-H18188E-NX Or Contains FCC ID:
ROWCDT-H18188E-NX ”
when the module is installed inside another device, the user manual of this device must contain
below warning statements;
Integral antenna: 2.0dBi
PCB Antenna: 0dBi
Integral antenna
PCB Antenna
This product has integral antenna and
alternative PCB antenna to use . But it
isn't a MIMO equipment. Both of the
antenna was used independent. When
the customer need a PCB antenna,
and the integral antenna will be take
out, vise versa.
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The devices must be installed and used in strict accordance with the manufacturer's
instructions as described in the user documentation that comes with the product
