CHINA DRAGON TECHNOLOGY CDT-XX5370 WIFI Wireless Module User Manual
CHINA DRAGON TECHNOLOGY LIMITED WIFI Wireless Module
user manual
CHINA DRAGON TECHNOLOGY LIMITED
Version：V1.0
Date：2012.4.28
DESIGN： CHECK： APPROVAL：
The information contained herein is the exclusive property of CDT
and shall not be distributed, reproduced or disclosed in whole or
no in
part
without
prior
written
permiss
ion
of
CDT
User Manual
Productÿ CDT-XX5370-00~09
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE
:
2/15
Change
History
of
Revision
Reversion Date Contents of Revision Change Remark
1.0 2011.4.28 First release S.heng
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
3/15
Table of Contents
No Description Page
1 Introduction -----------------------------------------------------4
2. Namingrule-----------------------------------------------------4
3. Features---------------------------------------------------------5
4. Ordering Information------------------------------------------5
5. Label marking--------------------------------------------------5
6. Block Diagram-------------------------------------------------6
7. Absolute Maximum Ratings--------------------------------6
8. Operating Conditions-----------------------------------------7
9. Standard Test Conditions------------------------------------7
10. Electrical Specifications--------------------------------------8
11. Environment Tests-------------------------------------------13
12. Pin Description-----------------------------------------------14
14. Mechanical Drawing & Mechanical size---------------15
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE
:
4/15
1.Introduction
is a new generation of embedded CDT-Wifi products module.
CDT-Wifi is based on CDT interface, accord with Wifi wireless network standard embedded
module, the built-in wireless network protocol IEEE802.11 protocol stack, and TCP/IP protocol
stack, save electricity intelligent control procedures
Can realize, the user serial data to the wireless network conversion between.
Through the CDT-Wifi module, the traditional serial equipment also can easily access wireless
network.
is in the first two generations of products based on top, and carries on the
comprehensive hardware and software upgrades, function more powerful, use more simple, lower
power consumption In the original foundation above the intelligent current control program
upgrade, than the former two generationproduct province electricity above 40%.
In temperature compensation, the application of the latest software automatic control technology,
automatic temperature adjustment, and will not affect the data transmission, it solves the
traditional product, because the temperature too high, cause data loss, frequent fall nets, etc
2.Namingrules:
CDT - D 0 5370B
A. .. C D E
B
F H J
G
I
:
0:USB
1:MINIPCIE 2:SDIO
8188E: Realtek8188CE 5572: Ralink5572
8188T: Realtek8188CTV 8188E: Realtek8188CE
5370B:
R
alink
5370
B
5931
:
MTK5931
CDT-XX5370-00~09
CDT-XX5370-00~09
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
5/15
3. Features
is the small size and low power module for IEEE 802.11b/g/n
wireless LAN. is based on Ralink 5370B solution.
IEEE 802.11 Dual Band WLAN infrastructure
Size : 25mm x 12mm x 0.6mm
USB 2.0
Supports drivers for Windows Vista, 2000, XP, Linux
Security : WPA,WPA2,AES(TKIP)
• Application: DTV, DVR, HD DVD
Player,
Blue-ray
Disk
Player,
STB
4.
Ordering
Information
Model
Descriptio
n
CDT-D05370B-00 Wi-Fi Module, 1T1R

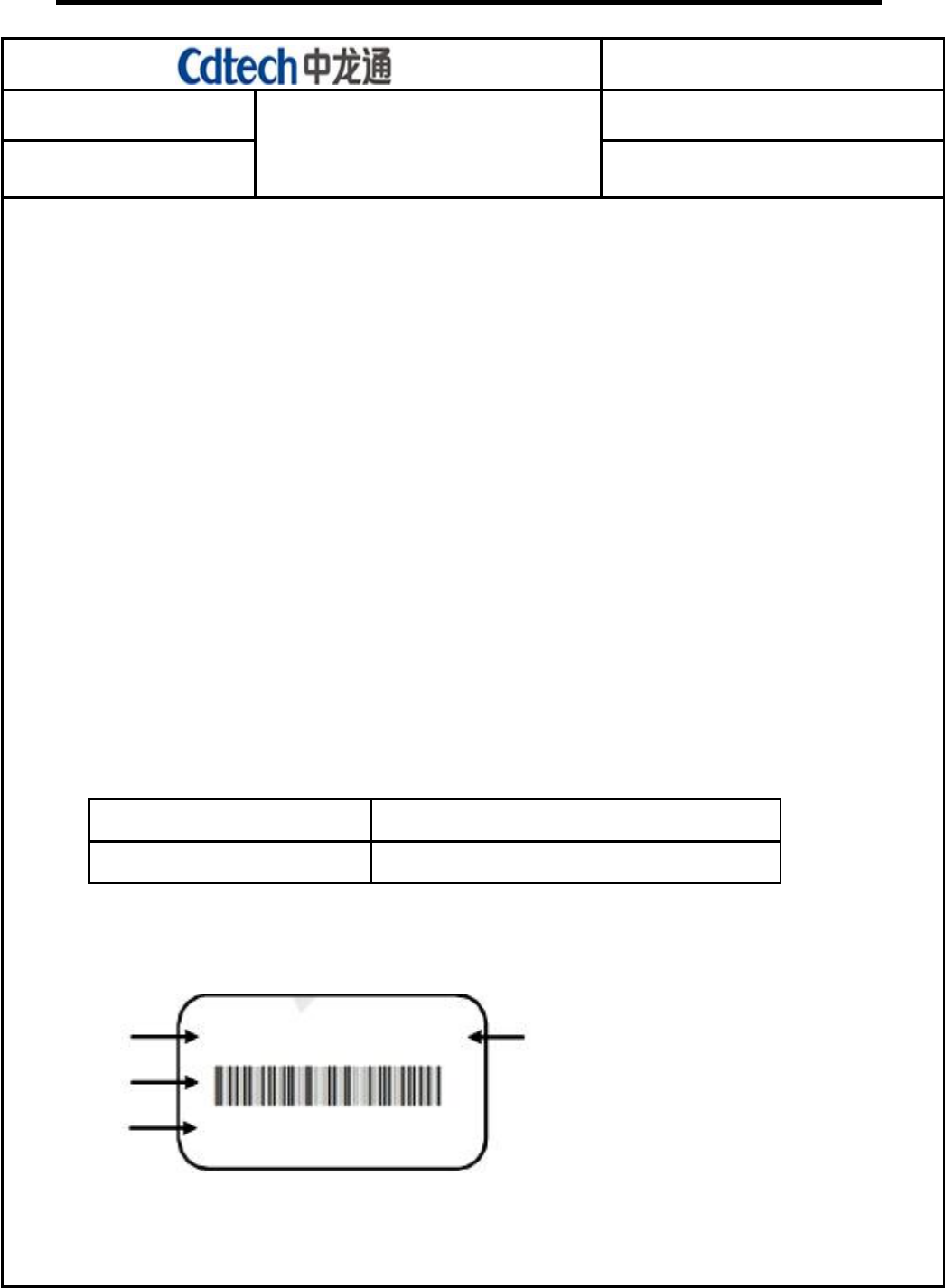

5. Label
marking
①CDT-D05370B-00 1111A0201
④
②:
③
004TB5B00331
①Model No ④Product Lot No. : 1110A0401
②MAC Address BAR Code -11 : Year - 02 : Date
③MAC Address No. - 11: Month - 01 : Manufactured
- Revision No. : A Process
CDT-XX5370-00~09
CDT-XX5370-00~09
B/G/N
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
6/15

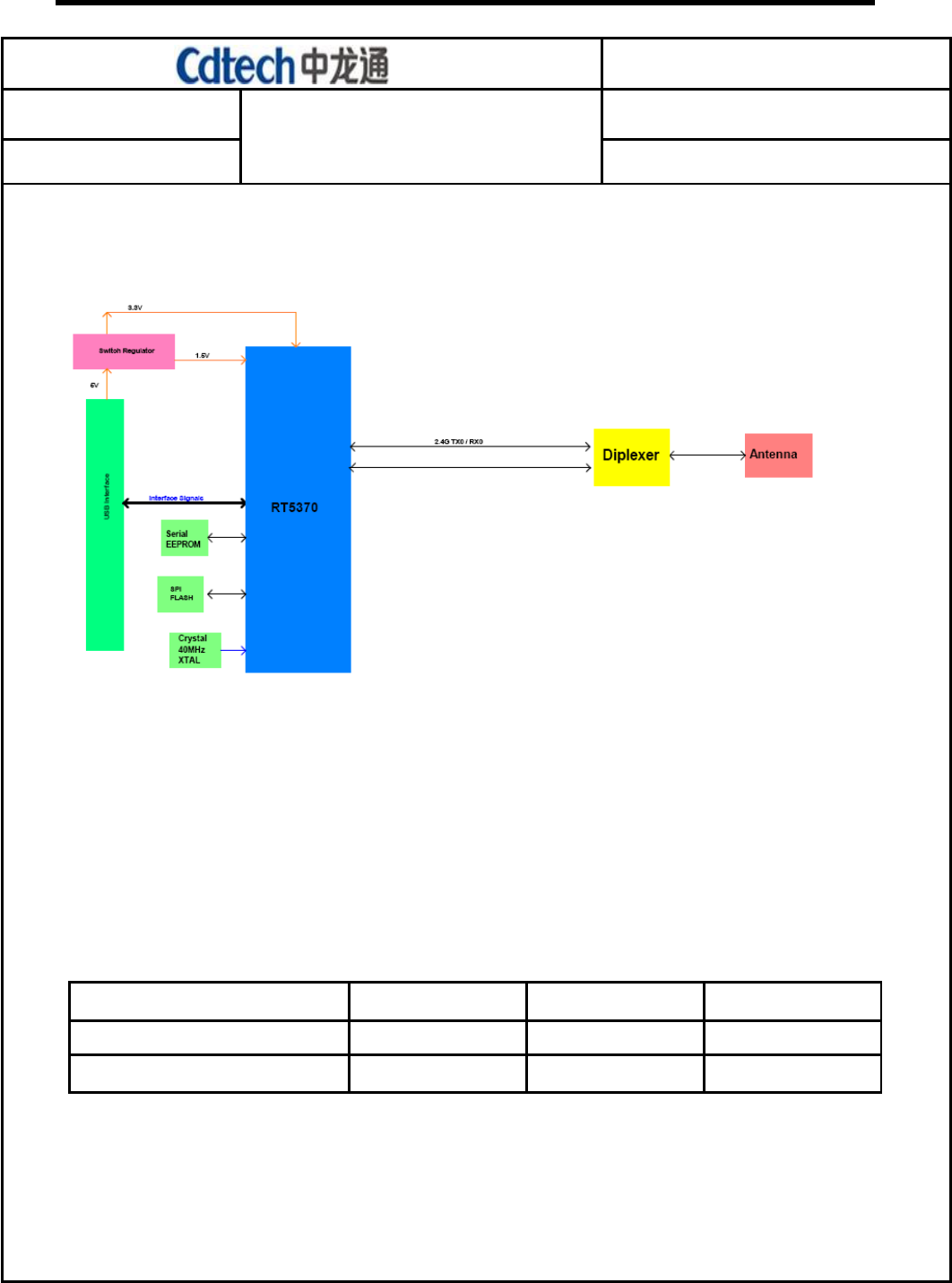

6. Block
Diagram
7. Absolute Maximum
Ratings
Caution : The specifications in Table 1 define levels at which permanent damage to
the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
Parameter Min Max Unit
Storage Temperature -10 +80℃℃
Storage Humidity (40℃) - 90% %
< Table 1 Absolute Maximum Ratings > . Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained. Also, avoid exposure to moisture.
2) Store the modules where the temperature and relative humidity do not exceed 5 to 40℃and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
7/15
8.
Operating
Conditions
Parameter
Min
Typ
Max
Unit
Operating
Temperature 0 - +60 ℃
Operating
Humidity
- - 85 %
Supply
Voltage2
VDD_3.3V
2.7 3.3 4.0 Vdc
9. Standard Test Conditions
The Test for electrical specification shall be performed under the following
condition unless otherwise specified.
1). Ambient condition
Temperature :25℃± 5℃
. Humidity:65% ±5% R.H.
2). Power supply voltages
3.3V (±5%) input power at the Module
3). Current consumption over recommended range of supply voltage and
operating
conditions is like below.
When it’s tested, it must be supplied more than 2 times of maximal current.
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
8/15
10. Electrical
Specifications
1) DC Characteristics
Current
Consumption Min.
Typ.
Max.
Unit
TX
Mode
(
MCS7)
- 105 - mA
Idle and Associated state - 50 -
Radio disabled state - 10 -
2) RF Characteristics for IEEE802.11b ( 11Mbps mode unless otherwise specified)
Items Contents
Specification
IEEE802.11b
Mode DSSS/CCK
Channel
frequency
2400 ~ 2483
MHz
Data rate 1,2,5.5,11Mbps
TX
Characteristics Min.
Typ.
Max.
Unit
Power
Level 12.5 13 14 dBm
Spectrum
Mask
1st side lobes
(
to fc ±
11MHz)
- -43 -30
dBr
2nd side lobes
(
to fc ±
22MHz)
- -58 -50
dBr
Modulation
Accuracy
(EVM)
- 30 30 %
Power
On/Off
ramp
- 0.5 2.0 Usec
Freq.
Tolerance -15 - 15
ppm
Chip
Clock
Freq.
Tolerance -15 - 15
ppm
RX
Characteristics Min.
Typ.
Max.
Unit
Minimum
Input
Level Sens
(FER
≤
8%)
- -88 -76 dBm
Maximum
Input
Level
(FER
≤
8%)
-10 - - dBm
* Normal Condition : 25℃, VDD=3.3/5V.
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
9/15
3) RF Characteristics
for
IEEE802.11g ( 54Mbps mode unless otherwise specified)
Items Contents
Specification IEEB802.11g
Mode OFDM
Channel
frequency
2400 ~ 2483
MHz
Data rate 6,9,12,18,24,36,48,54Mbps
TX
Characteristics Min. Typ. Max.
Unit
Power
Level 12.5 14 15 dBm
Spectrum Mask
at fc ±11MHz - -32 -20 dBr
at fc ±20MHz - -43 -28 dBr
at
fc ≥ ± 30MHz - -48 -40
dBr
Constellation
Error
(EVM)
- -34 -25 dB
Freq. Tolerance -15 - 15 ppm
Chip Clock Freq. Tolerance -15 - 15 ppm
RX
Characteristics Min. Typ. Max. Unit
Minimum
Input
Level Sens.
(PER
≤
10%)
- -75 ppm
Maximum Input Level (PER ≤ 10%) -20 - ppm
*Normal Condition : 25℃, VDD=3.3/5V
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
12/15
6)
RF Characteristics
for
IEEE802.11gn
( MCS7 mode unless otherwise specified)
Items Contents
Specification IEEE802.11n - 2.4GHz
Mode OFDM
Channel frequency 2400 ~ 2483
MHz
Data rate 6513195263952585,65Mbps.,,.,,
TX
Characteristics Min. Typ. Max.
Unit
Power Level 12.5 14 15 dBm
Spectrum Mask
at fc ±11MHz - -32 -20 dBr
at fc ±20MHz - -35 -28 dBr
at
fc ≥ ± 30MHz - -45 -40
dBr
Constellation Error (EVM) - -32 -28 dB
Freq. Tolerance -15 - 15 ppm
Chip Clock Freq. Tolerance -15 - 15 ppm
RX
Characteristics Min. Typ. Max. Unit
Minimum
Input
Level
Sens.(HT20,PER
≤
10%)
- -71 -64 ppm
Minimum Input Level Sens.(HT40,PER ≤ 10%) -70 -62 ppm
Maximum Input Level
(PER
≤
10%)
-20 ppm
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
13/15
11. Environment Tests
Item
Test
Conditions
Specifications
Heat Load Initial values are measured
at
standard test condition.
Leave samples in 60℃±2℃for 96 ±5 hours, and in
standard test condition
for
30 minutes, then take
measurements within 1 hour.
- Supply voltage : standard ±5%
- Supply voltage cycle : 1.5h on, 0.5h off
•
TX
Power
:±4dB Max
Min
Input
Level
:±4dB Max
Humidity
Load
Test
Initial values are measured at standard test
condition. Leave samples in 40℃±5℃, 90 ~ 95%
RH for 96 ±5
hours, and in standard test condition for 30
minutes, then take measurements within 1 hour.
- Supply voltage : standard + 5%
-
Supply
voltage
cycle
: 1.5h on, 0.5h
off
Cold
Test
Initial values are measured at standard test
condition. Leave samples in －10℃±2℃for 96
±5 hours, and in standard ambient for 1 hour with
standard power Supply then take measurements
within 1 hour.
Temperature Take measurements in standard test
condition. Temp. : -10℃~ +80℃
Duration : 30 min
Ramp-up
&
Ramp-down
for
5 min
Cycle
:
100cycle
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
14/15
12. Pin
Description
Terminal No Terminal name Terminal Voltage
1 LED_OUT WIFI_LED
2 GND
3 USB_D+ USB
4 USB_D- USB
5 3.3 3.3v
6 GND
7 WIFI_ANT WIFI_RF_OUT
8 GND
1 LED_OUT: WIFI_LED
2 GND: Ground
3 USB_D+: USB Data + as defined by USB 2.0
4.USB_D-: USB Data - as defined by USB 2.0
5 3.3V: 3.3V DC
6 GND: Ground
7 WIFI_ANT: WIFI_RF_OUT
8 GND: RF_Ground
CHINA DRAGON TECHNOLOGY LIMITED
DOCUMENT No :
REG.DATE :2012.4.28 S P E C I F I C
A
T I O N REV.NO : 1.5
REV.DATE :2012.4.28
PAGE :
15/15

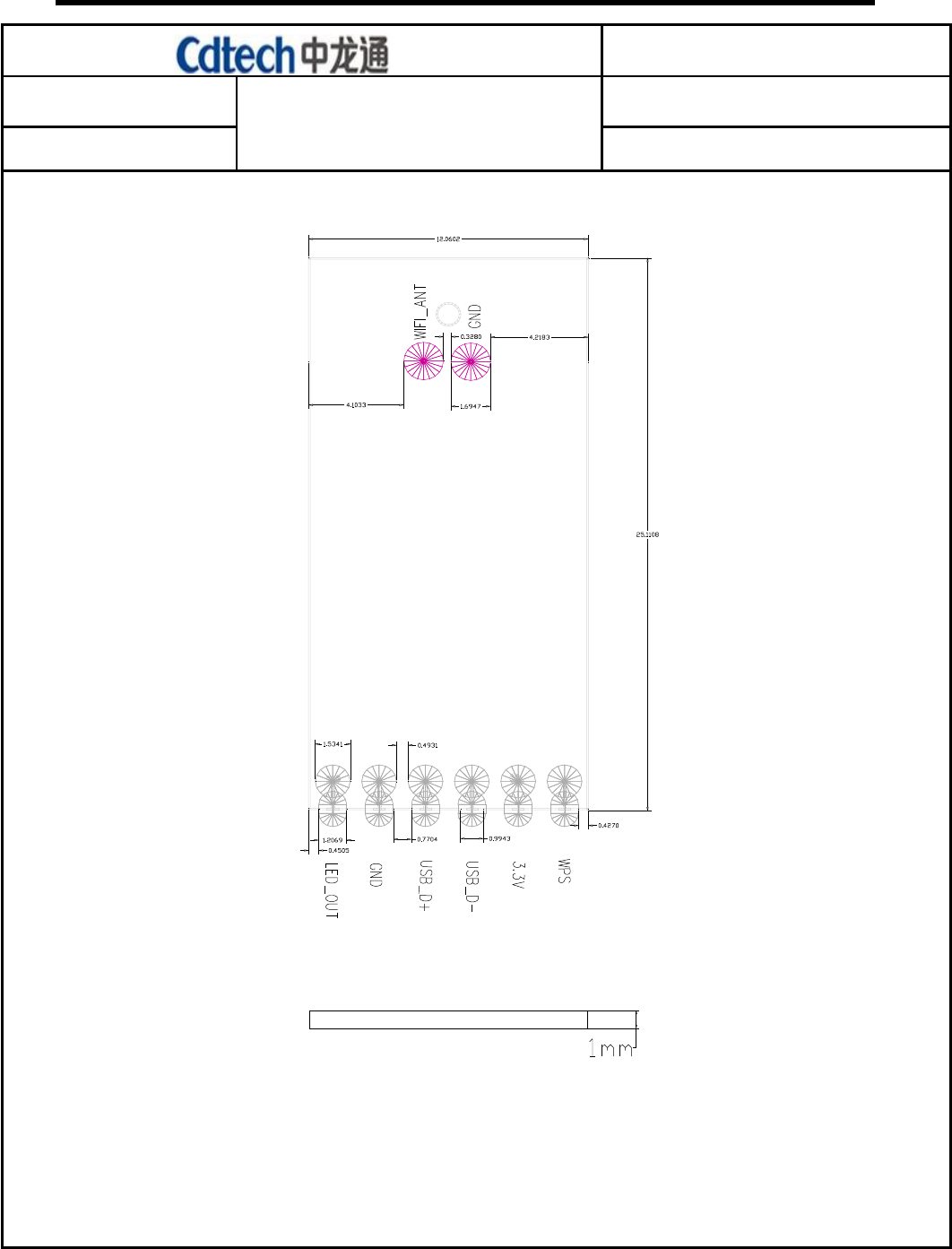

14.Mechanical Drawing & Mechanical size
Thickness:
.
Usage Guidelines for FCC Compliance
Antenna Selection
In order to maintain compliance with FCC regulations, an antenna with no more than 2dBi gain
must be used. This module has been tested with the following antennas:
nix Part Number Antenna Type Antenna Gain DTS
Part Number Antenna Type Antenna Gain
ANT-2400-01A External antenna 2.0 dBi
Mode LP Mode
The module when used in DTS mode, may be used with the above antennas and maintain the
requirements of the FCC grant.
Module Modification
The module must not be physically altered in any way. If any connections are made to the
module that bypass the module pins, socket, or antenna connector, the FCC modular
certification cannot be inherited.
End Product Labeling Requirements
Pursuant to FCC public notice DA 00-1407, the end product must be labeled on its exterior
with the following verbiage:
“Contains FCC ID: ROWCDT-XX5370”
Additional FCC Testing Requirements
While the module’s FCC certification can be inherited (presuming the guidelines are met),
additional testing will be required to achieve full FCC compliance for your end-product. The
integrator is required to perform unintentional radiator testing on the final product per FCC
sections 15.107 and 15.109.
Additional, product-specific testing might be required. Please contact the FCC regarding
regulatory requirements for your application.
RF exposure compliance
The Module should be install above separation distance 20 cm from human.
It should add SAR testing when it not satisfy.
FCC Statements of Compliance
Statement and Conditions of Modular Compliance
FCC NOTICE (FCC ID: ROWCDT-XX5370)
This device complies with the rules set forth in Part 15 by the Federal
Communications Commission. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference
2) This device must accept any interference received, including interference
that may cause undesired operation.
The B0-9(5370) module is provided with an Single FCC Modular
Certification. This certification may be install in an end-user product, negating
the need for FCC part 15 intentional radiator testing on this module, provided that
the following are met:
1. The module must not be modified in any way. Coupling of external circuitry
must not bypass the provided connectors.
2. End product must be externally labeled with “Contains FCC ID:
ROWCDT-XX5370”
3. The end product’s user’s manual must contain an FCC statement equivalent
to that listed in Customer FCC Warning Requirements of this manual.
6. The integrator must not provide any information to the end-user on how to
install or remove the module from the end-product.
The integrator is required to perform unintentional radiator testing on the final
product per FCC sections 15.107 and 15.109.
Customer FCC Warning Requirements
The end-product user’s manual must contain the following or equivalent verbiage.
Notices of Limitation
Product Testing
The integrator must still show that their product complies with FCC regulations applicable to
their product. The integrator is not required to perform transmitter testing on the
DTS module, provided the guidelines in this document are met.
FCC NOTICE (Containing FCC ID: ROWCDT-XX5370)
The RF module (FCC ID: ROWCDT-XX5370) contained within this device
complies with the rules set forth in Part 15 by the Federal Communications
Commission.
Operation is subject to the following conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including interference
that may cause undesired operation.
4. The module must not be modified in any way. Coupling of external circuitry
must not bypass the provided connectors.
Any changes or modifications could void the user’s authority to operate the
equipment.
-
ROWCDT-XX5370
