WF610 User Manual

SFK-WF610_User Manual_2015.08.26

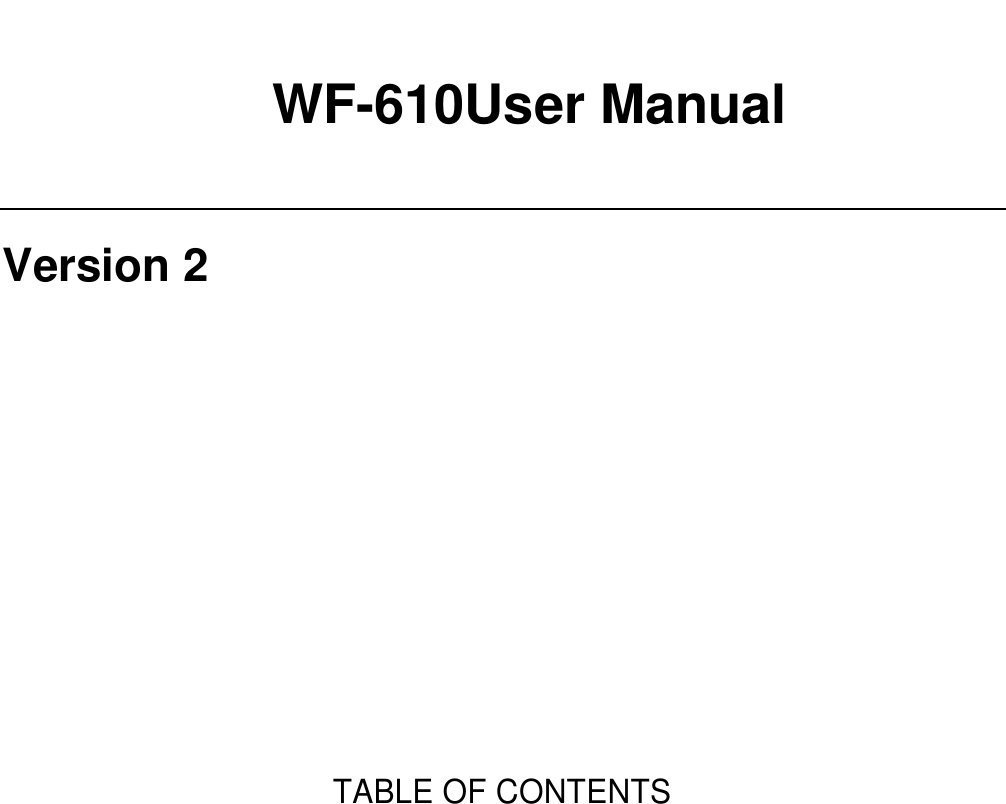

WF-610User Manual Version 2 TABLE OF CONTENTS

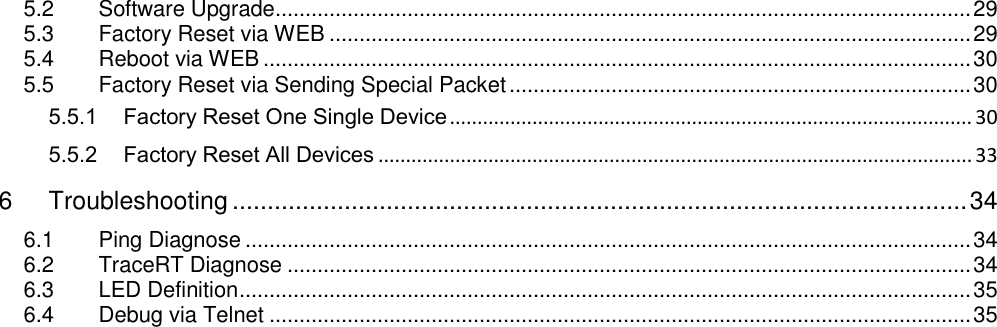

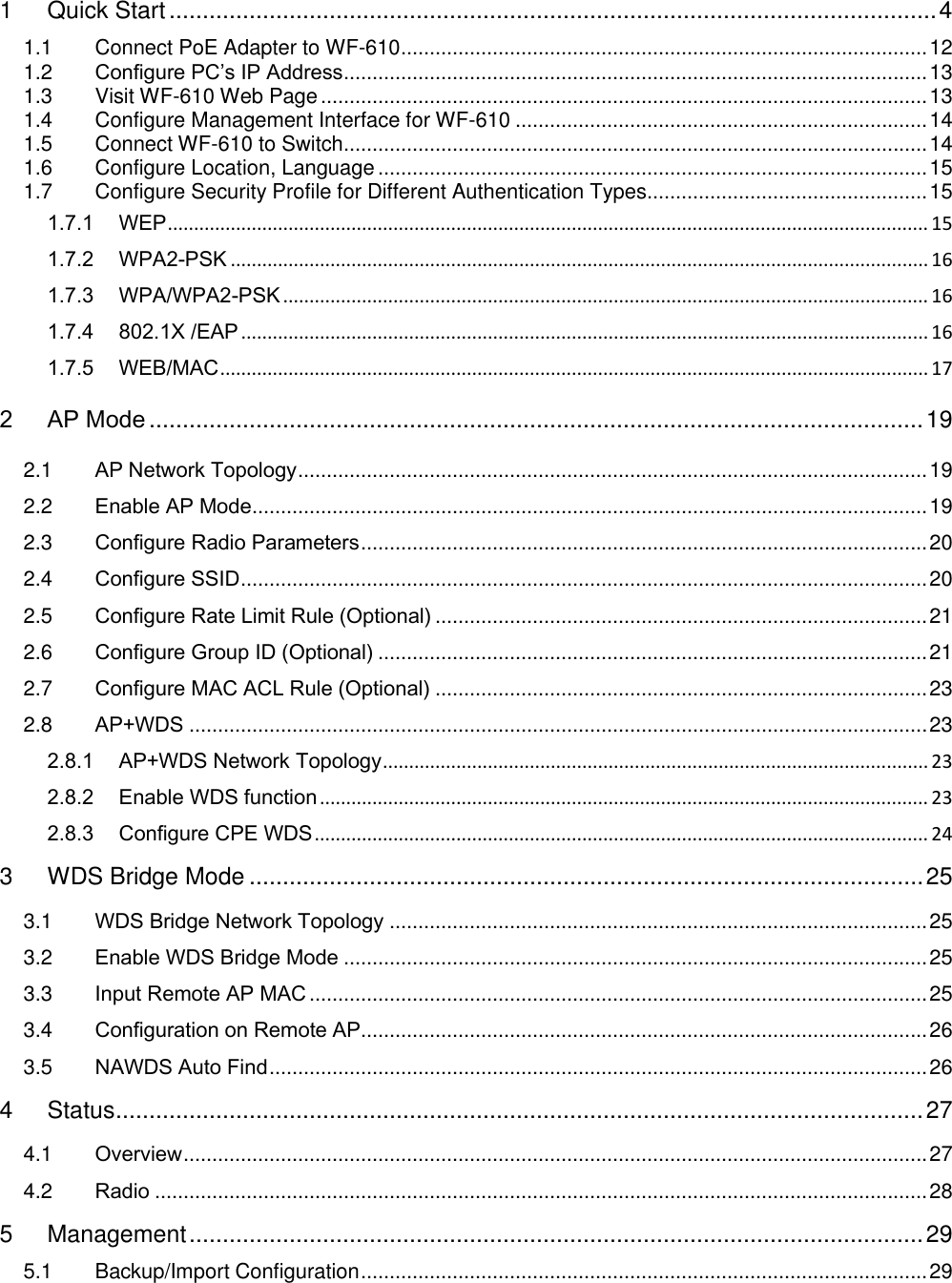

5.2 Software Upgrade .................................................................................................................... 29 5.3 Factory Reset via WEB ........................................................................................................... 29 5.4 Reboot via WEB ...................................................................................................................... 30 5.5 Factory Reset via Sending Special Packet ............................................................................. 30 5.5.1 Factory Reset One Single Device ............................................................................................... 30 5.5.2 Factory Reset All Devices ............................................................................................................ 33 6 Troubleshooting ......................................................................................................... 34 6.1 Ping Diagnose ......................................................................................................................... 34 6.2 TraceRT Diagnose .................................................................................................................. 34 6.3 LED Definition .......................................................................................................................... 35 6.4 Debug via Telnet ..................................................................................................................... 35

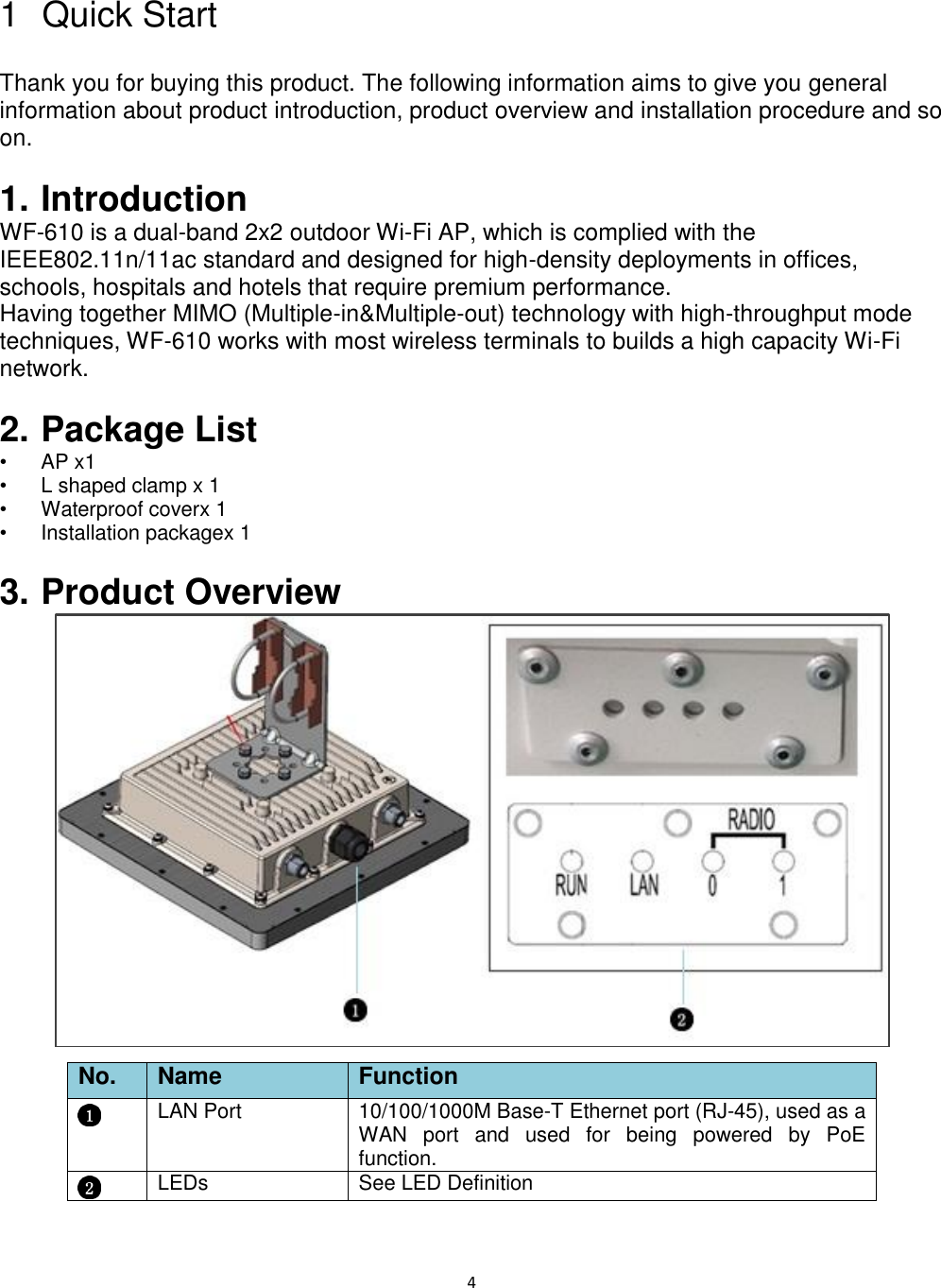

4 1 Quick Start Thank you for buying this product. The following information aims to give you general information about product introduction, product overview and installation procedure and so on. 1. Introduction WF-610 is a dual-band 2x2 outdoor Wi-Fi AP, which is complied with the IEEE802.11n/11ac standard and designed for high-density deployments in offices, schools, hospitals and hotels that require premium performance. Having together MIMO (Multiple-in&Multiple-out) technology with high-throughput mode techniques, WF-610 works with most wireless terminals to builds a high capacity Wi-Fi network. 2. Package List • AP x1 • L shaped clamp x 1 • Waterproof coverx 1 • Installation packagex 1 3. Product Overview No. Name Function LAN Port 10/100/1000M Base-T Ethernet port (RJ-45), used as a WAN port and used for being powered by PoE function. LEDs See LED Definition

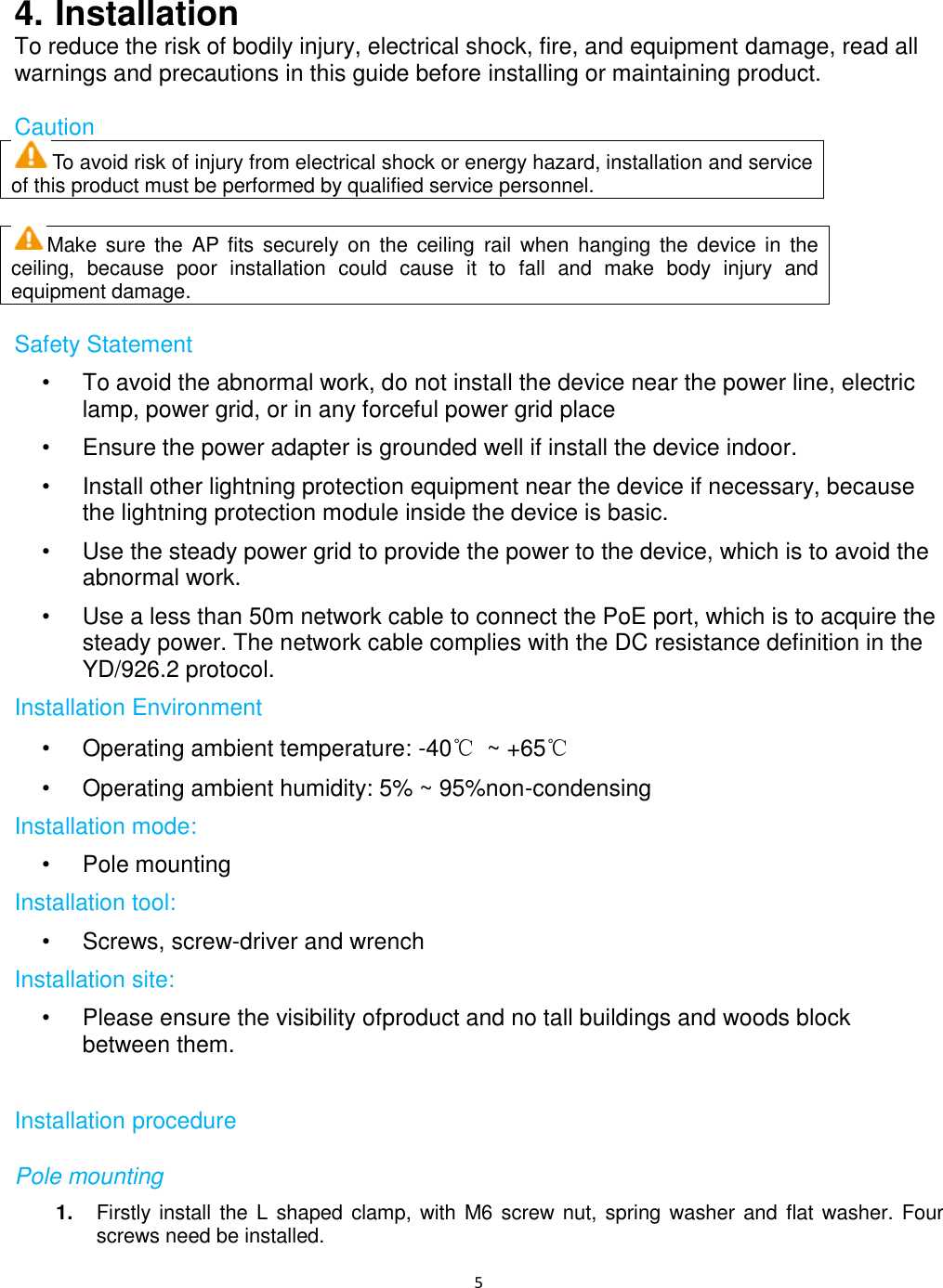

5 4. Installation To reduce the risk of bodily injury, electrical shock, fire, and equipment damage, read all warnings and precautions in this guide before installing or maintaining product. Caution To avoid risk of injury from electrical shock or energy hazard, installation and service of this product must be performed by qualified service personnel. Make sure the AP fits securely on the ceiling rail when hanging the device in the ceiling, because poor installation could cause it to fall and make body injury and equipment damage. Safety Statement • To avoid the abnormal work, do not install the device near the power line, electric lamp, power grid, or in any forceful power grid place • Ensure the power adapter is grounded well if install the device indoor. • Install other lightning protection equipment near the device if necessary, because the lightning protection module inside the device is basic. • Use the steady power grid to provide the power to the device, which is to avoid the abnormal work. • Use a less than 50m network cable to connect the PoE port, which is to acquire the steady power. The network cable complies with the DC resistance definition in the YD/926.2 protocol. Installation Environment • Operating ambient temperature: -40℃ ~ +65℃ • Operating ambient humidity: 5% ~ 95%non-condensing Installation mode: • Pole mounting Installation tool: • Screws, screw-driver and wrench Installation site: • Please ensure the visibility ofproduct and no tall buildings and woods block between them. Installation procedure Pole mounting 1. Firstly install the L shaped clamp, with M6 screw nut, spring washer and flat washer. Four screws need be installed.

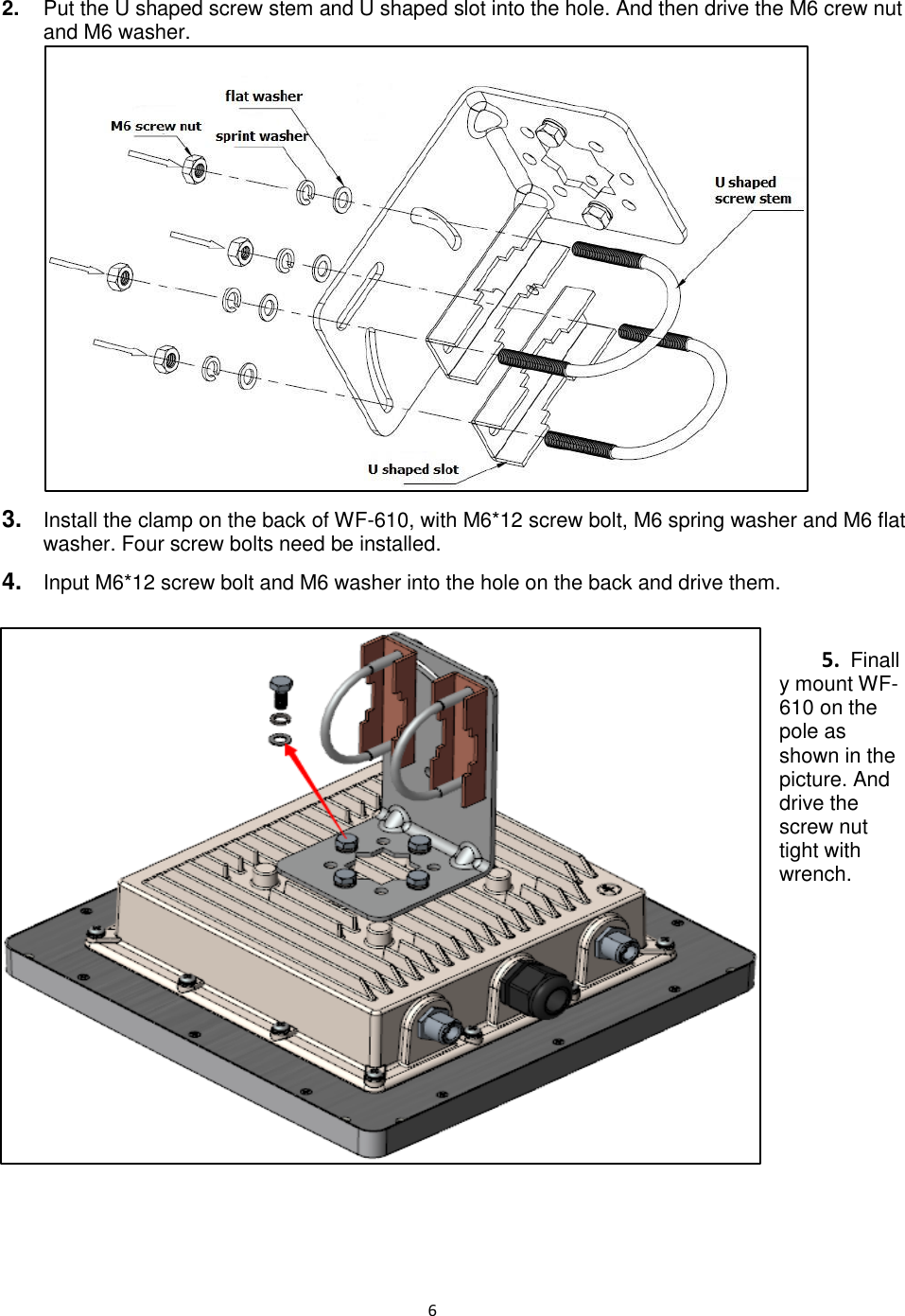

6 2. Put the U shaped screw stem and U shaped slot into the hole. And then drive the M6 crew nut and M6 washer. 3. Install the clamp on the back of WF-610, with M6*12 screw bolt, M6 spring washer and M6 flat washer. Four screw bolts need be installed. 4. Input M6*12 screw bolt and M6 washer into the hole on the back and drive them. 5. Finally mount WF-610 on the pole as shown in the picture. And drive the screw nut tight with wrench.

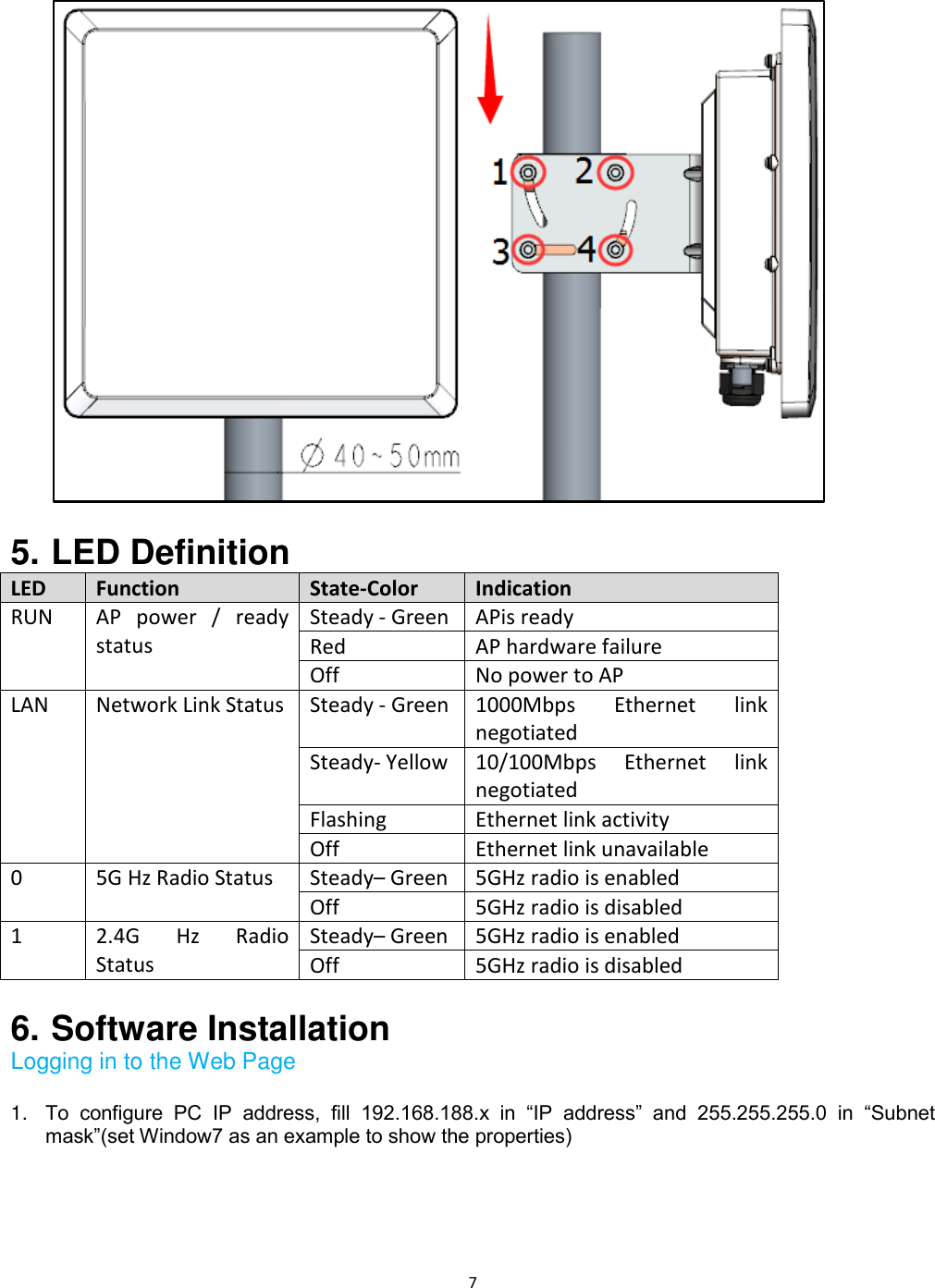

7 5. LED Definition LED Function State-Color Indication RUN AP power / ready status Steady - Green APis ready Red AP hardware failure Off No power to AP LAN Network Link Status Steady - Green 1000Mbps Ethernet link negotiated Steady- Yellow 10/100Mbps Ethernet link negotiated Flashing Ethernet link activity Off Ethernet link unavailable 0 5G Hz Radio Status Steady– Green 5GHz radio is enabled Off 5GHz radio is disabled 1 2.4G Hz Radio Status Steady– Green 5GHz radio is enabled Off 5GHz radio is disabled 6. Software Installation Logging in to the Web Page 1. To configure PC IP address, fill 192.168.188.x in “IP address” and 255.255.255.0 in “Subnet mask”(set Window7 as an example to show the properties)

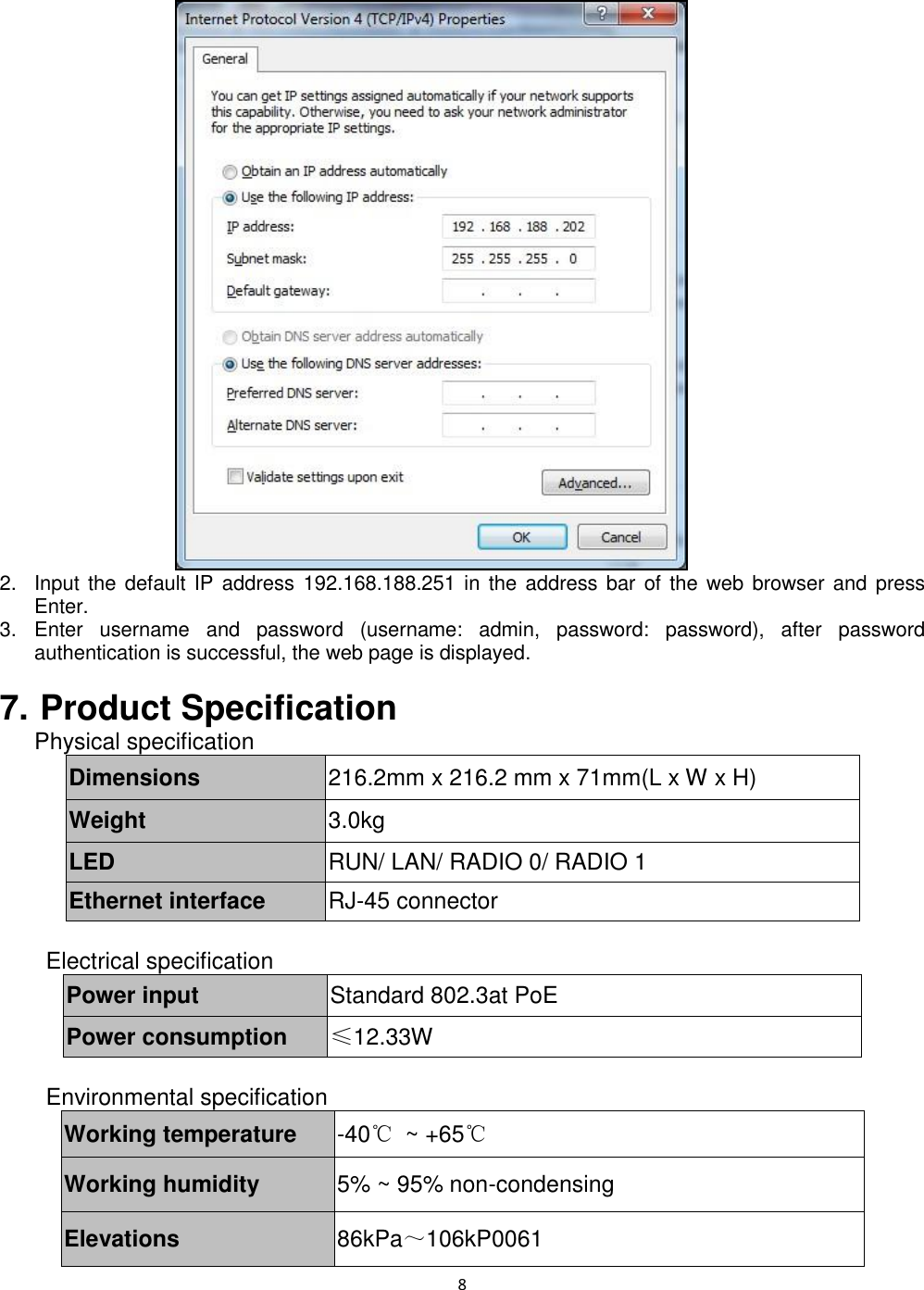

8 2. Input the default IP address 192.168.188.251 in the address bar of the web browser and press Enter. 3. Enter username and password (username: admin, password: password), after password authentication is successful, the web page is displayed. 7. Product Specification Physical specification Dimensions 216.2mm x 216.2 mm x 71mm(L x W x H) Weight 3.0kg LED RUN/ LAN/ RADIO 0/ RADIO 1 Ethernet interface RJ-45 connector Electrical specification Power input Standard 802.3at PoE Power consumption ≤12.33W Environmental specification Working temperature -40℃ ~ +65℃ Working humidity 5% ~ 95% non-condensing Elevations 86kPa～106kP0061

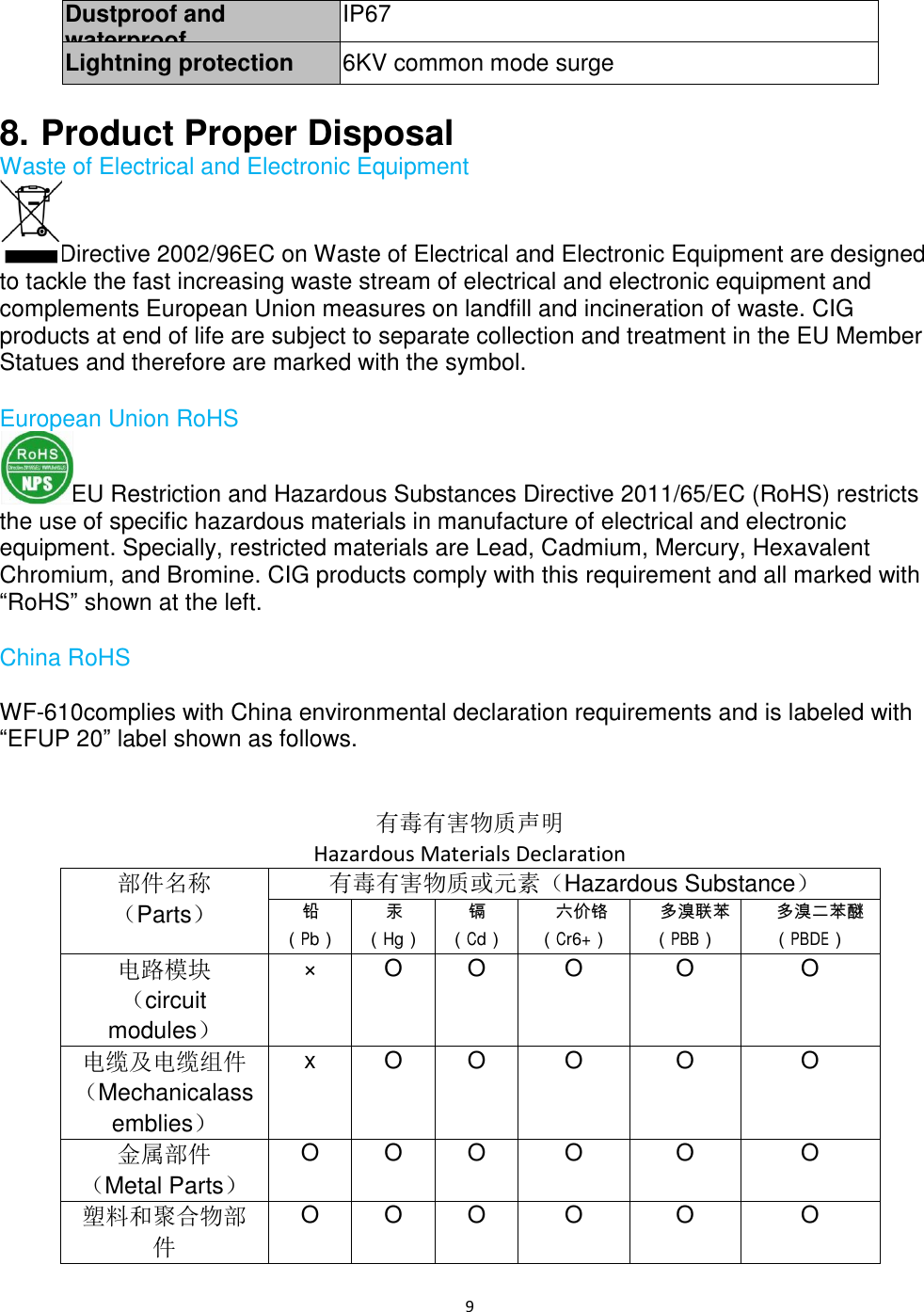

9 Dustproof and waterproof IP67 Lightning protection 6KV common mode surge 8. Product Proper Disposal Waste of Electrical and Electronic Equipment Directive 2002/96EC on Waste of Electrical and Electronic Equipment are designed to tackle the fast increasing waste stream of electrical and electronic equipment and complements European Union measures on landfill and incineration of waste. CIG products at end of life are subject to separate collection and treatment in the EU Member Statues and therefore are marked with the symbol. European Union RoHS EU Restriction and Hazardous Substances Directive 2011/65/EC (RoHS) restricts the use of specific hazardous materials in manufacture of electrical and electronic equipment. Specially, restricted materials are Lead, Cadmium, Mercury, Hexavalent Chromium, and Bromine. CIG products comply with this requirement and all marked with “RoHS” shown at the left. China RoHS WF-610complies with China environmental declaration requirements and is labeled with “EFUP 20” label shown as follows. 有毒有害物质声明 Hazardous Materials Declaration 部件名称（Parts）有毒有害物质或元素（Hazardous Substance）铅（Pb）汞（Hg）镉（Cd）六价铬（Cr6+）多溴联苯（PBB）多溴二苯醚（PBDE）电路模块（circuit modules） × O O O O O 电缆及电缆组件（Mechanicalassemblies） x O O O O O 金属部件（Metal Parts） O O O O O O 塑料和聚合物部件 O O O O O O

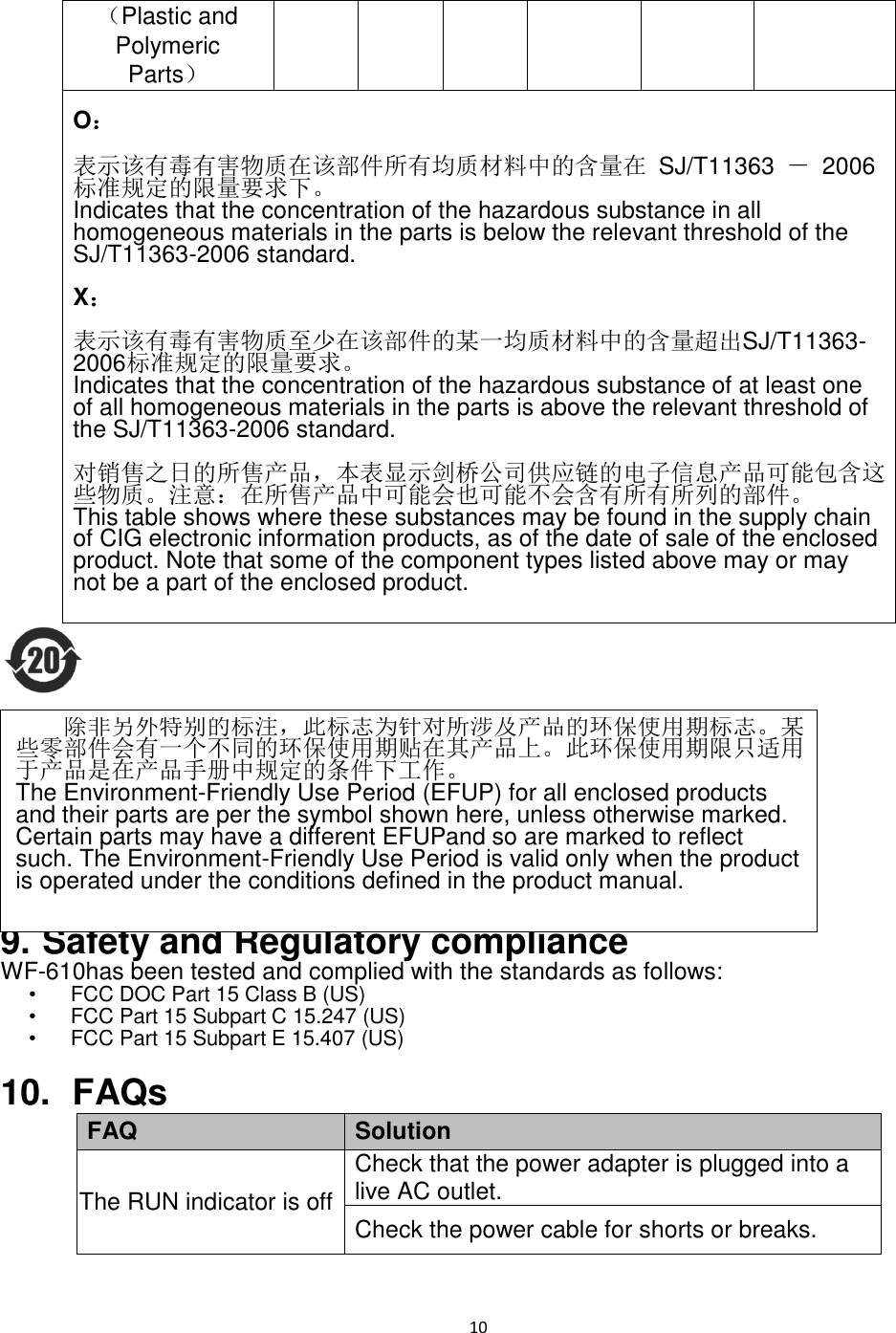

10 （Plastic and Polymeric Parts） O：表示该有毒有害物质在该部件所有均质材料中的含量在 SJ/T11363 － 2006标准规定的限量要求下。 Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard. X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006标准规定的限量要求。 Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard. 对销售之日的所售产品，本表显示剑桥公司供应链的电子信息产品可能包含这些物质。注意：在所售产品中可能会也可能不会含有所有所列的部件。 This table shows where these substances may be found in the supply chain of CIG electronic information products, as of the date of sale of the enclosed product. Note that some of the component types listed above may or may not be a part of the enclosed product. 9. Safety and Regulatory compliance WF-610has been tested and complied with the standards as follows: • FCC DOC Part 15 Class B (US) • FCC Part 15 Subpart C 15.247 (US) • FCC Part 15 Subpart E 15.407 (US) 10. FAQs FAQ Solution The RUN indicator is off Check that the power adapter is plugged into a live AC outlet. Check the power cable for shorts or breaks. 除非另外特别的标注，此标志为针对所涉及产品的环保使用期标志。某些零部件会有一个不同的环保使用期贴在其产品上。此环保使用期限只适用于产品是在产品手册中规定的条件下工作。 The Environment-Friendly Use Period (EFUP) for all enclosed products and their parts are per the symbol shown here, unless otherwise marked. Certain parts may have a different EFUPand so are marked to reflect such. The Environment-Friendly Use Period is valid only when the product is operated under the conditions defined in the product manual.

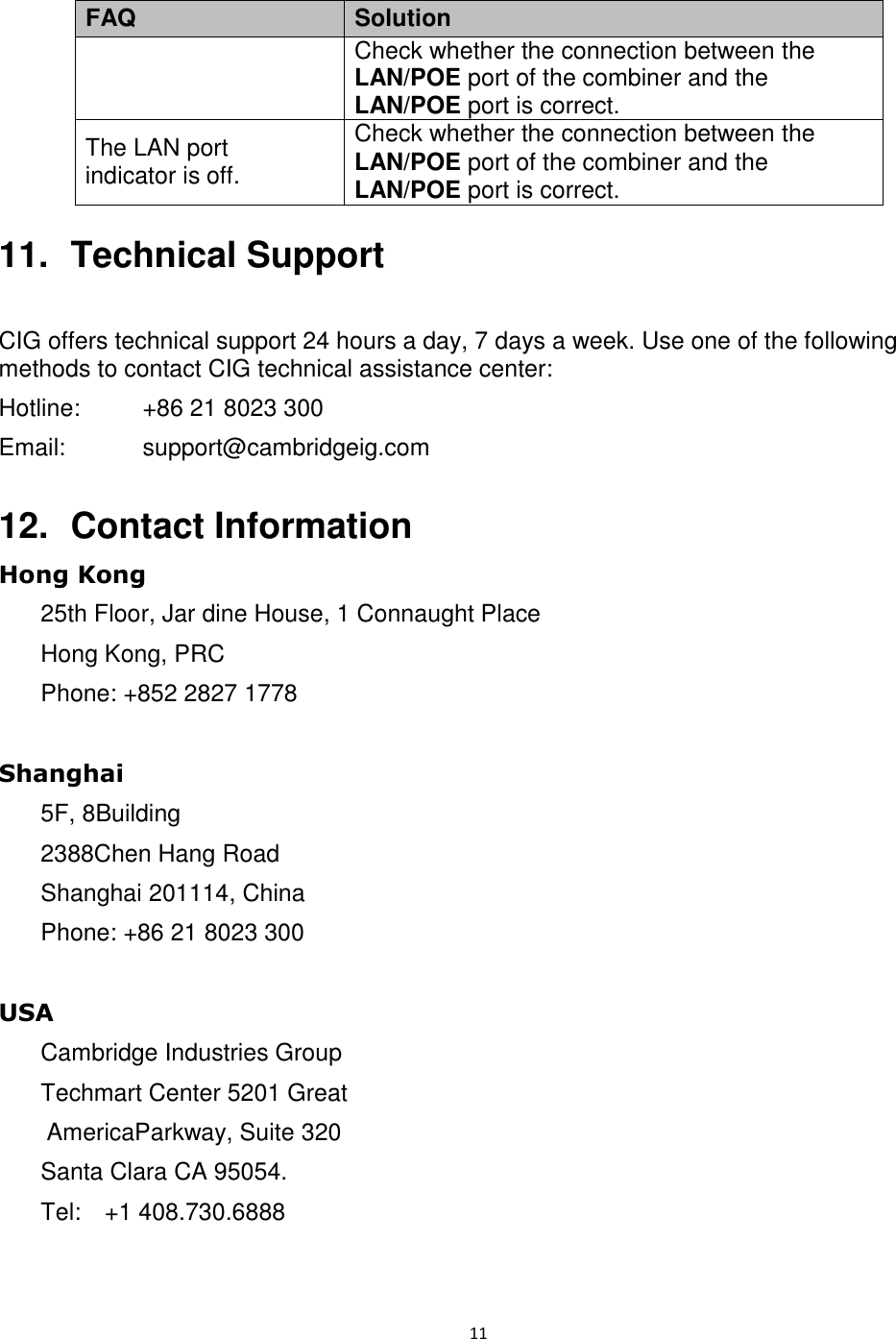

11 FAQ Solution Check whether the connection between the LAN/POE port of the combiner and the LAN/POE port is correct. The LAN port indicator is off. Check whether the connection between the LAN/POE port of the combiner and the LAN/POE port is correct. 11. Technical Support CIG offers technical support 24 hours a day, 7 days a week. Use one of the following methods to contact CIG technical assistance center: Hotline: +86 21 8023 300 Email: support@cambridgeig.com 12. Contact Information Hong Kong 25th Floor, Jar dine House, 1 Connaught Place Hong Kong, PRC Phone: +852 2827 1778 Shanghai 5F, 8Building 2388Chen Hang Road Shanghai 201114, China Phone: +86 21 8023 300 USA Cambridge Industries Group Techmart Center 5201 Great AmericaParkway, Suite 320 Santa Clara CA 95054. Tel: +1 408.730.6888

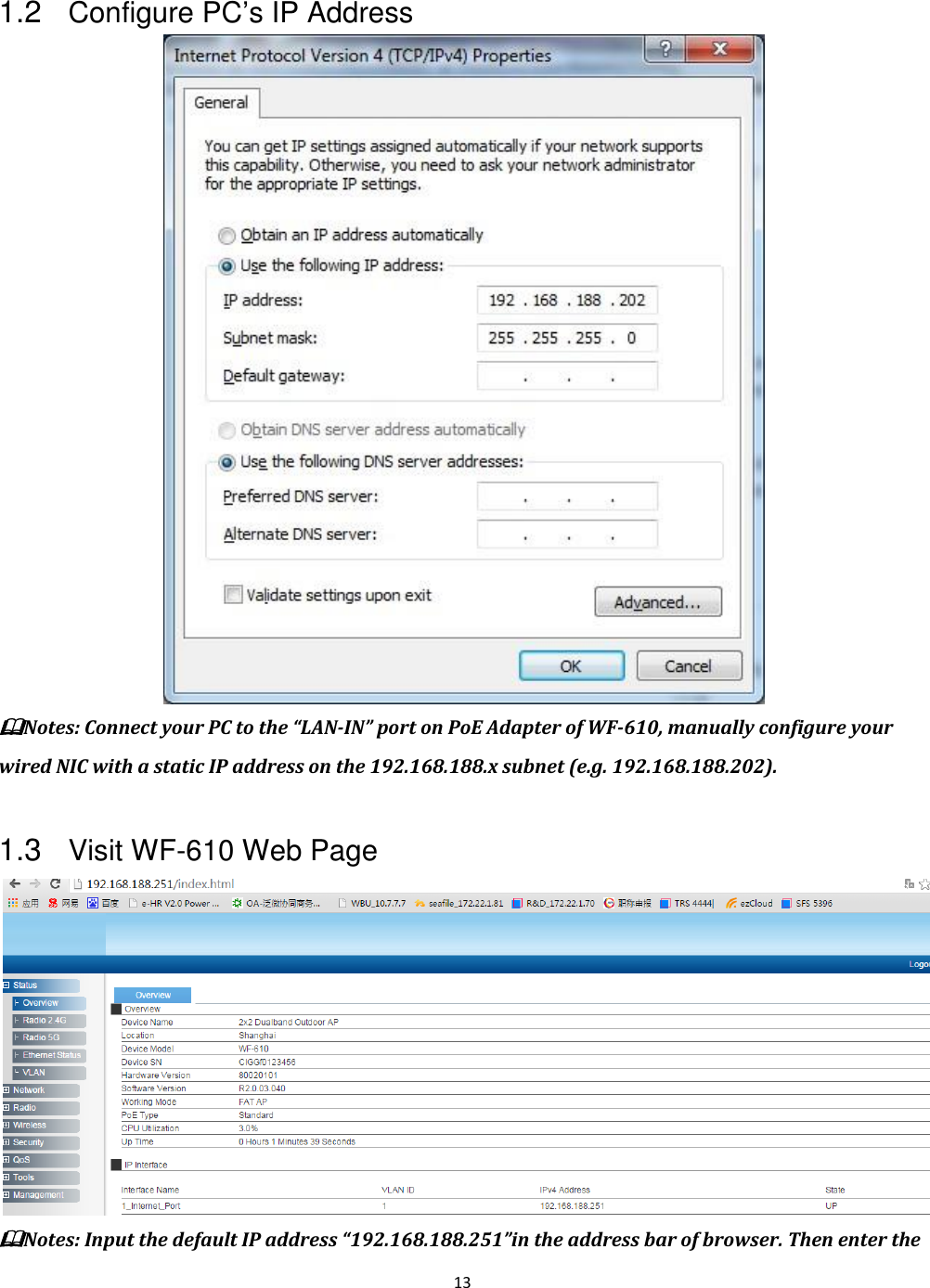

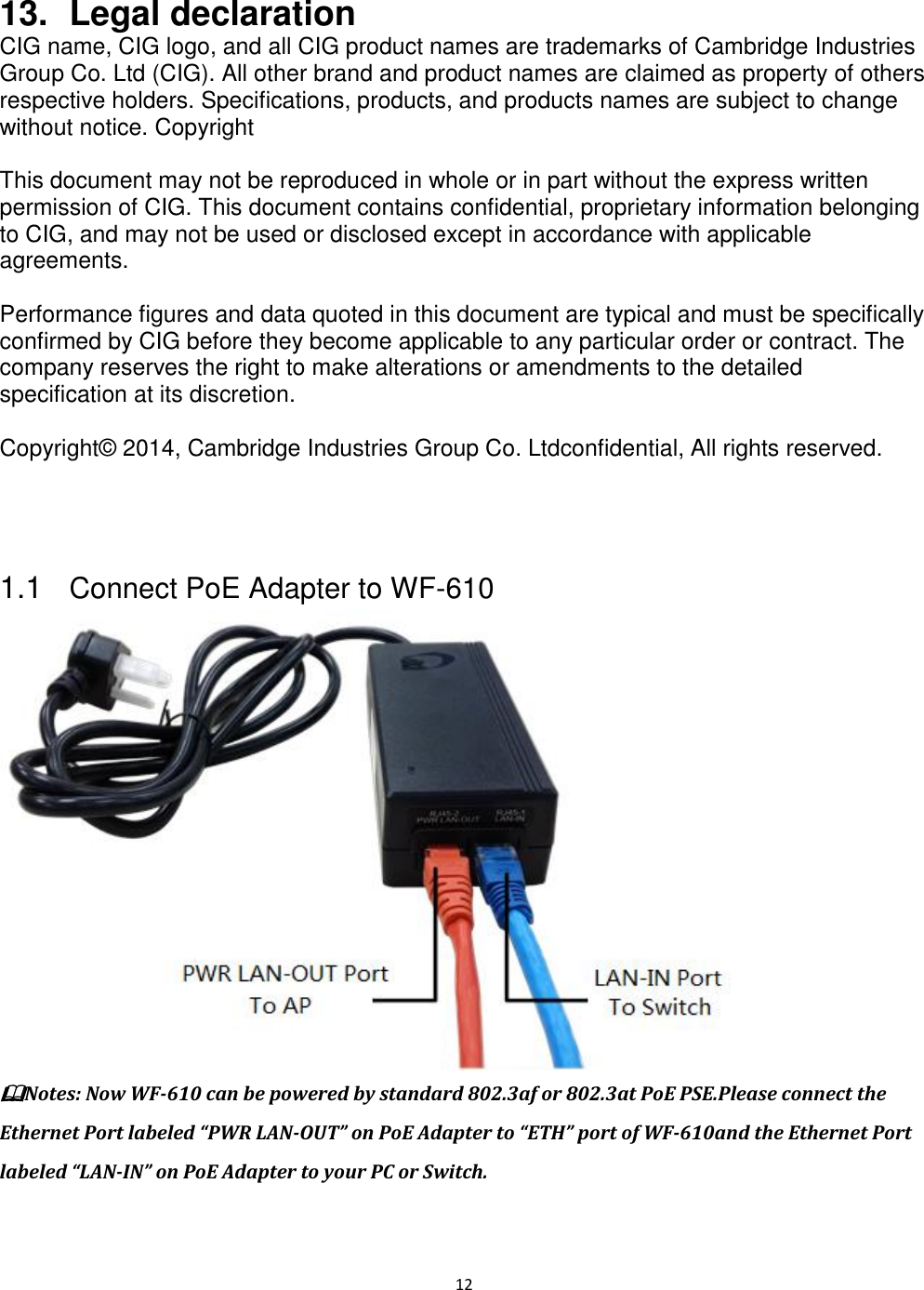

13 1.2 Configure PC’s IP Address Notes: Connect your PC to the “LAN-IN” port on PoE Adapter of WF-610, manually configure your wired NIC with a static IP address on the 192.168.188.x subnet (e.g. 192.168.188.202). 1.3 Visit WF-610 Web Page Notes: Input the default IP address “192.168.188.251”in the address bar of browser. Then enter the

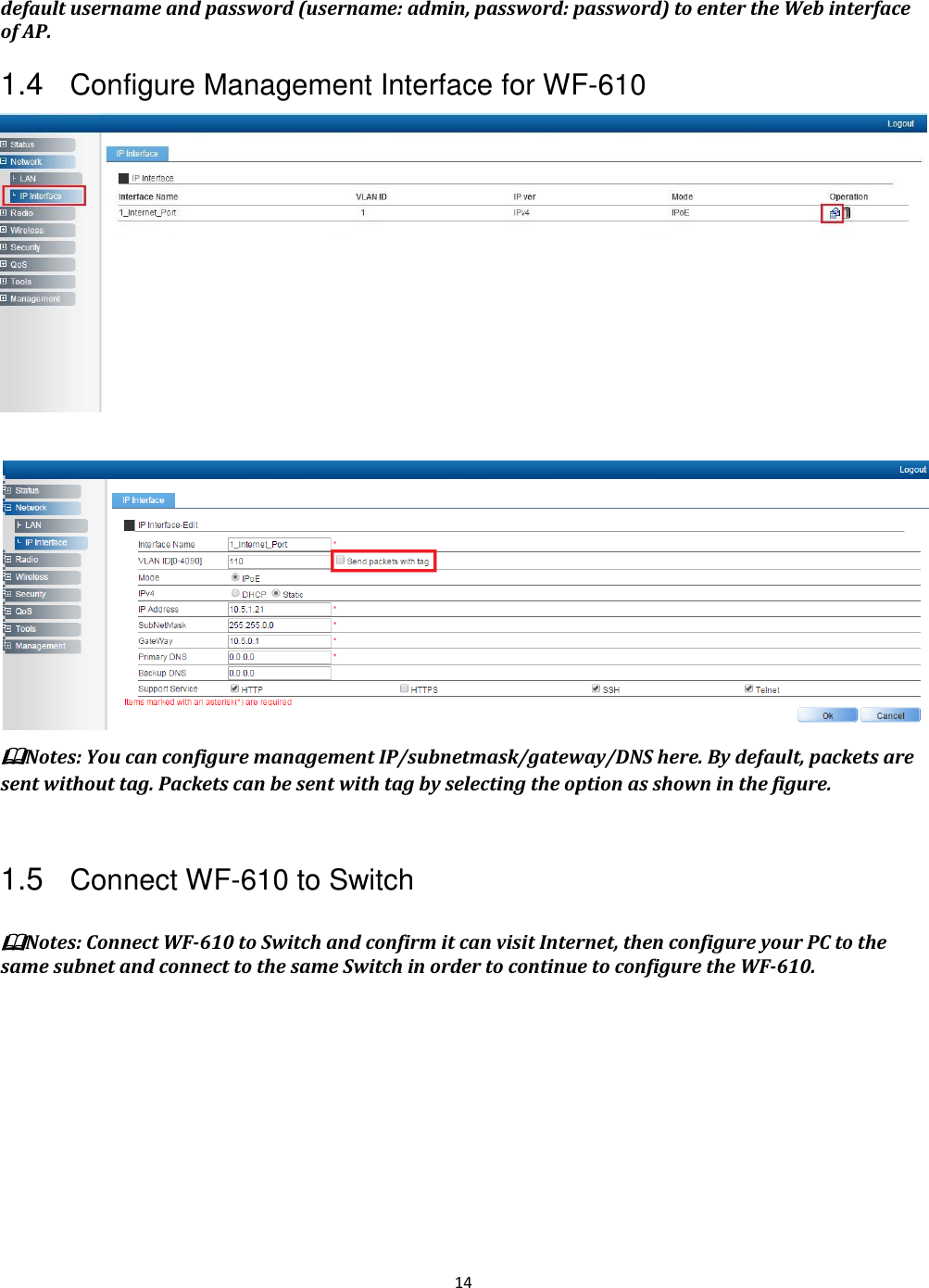

14 default username and password (username: admin, password: password) to enter the Web interface of AP. 1.4 Configure Management Interface for WF-610 Notes: You can configure management IP/subnetmask/gateway/DNS here. By default, packets are sent without tag. Packets can be sent with tag by selecting the option as shown in the figure. 1.5 Connect WF-610 to Switch Notes: Connect WF-610 to Switch and confirm it can visit Internet, then configure your PC to the same subnet and connect to the same Switch in order to continue to configure the WF-610.

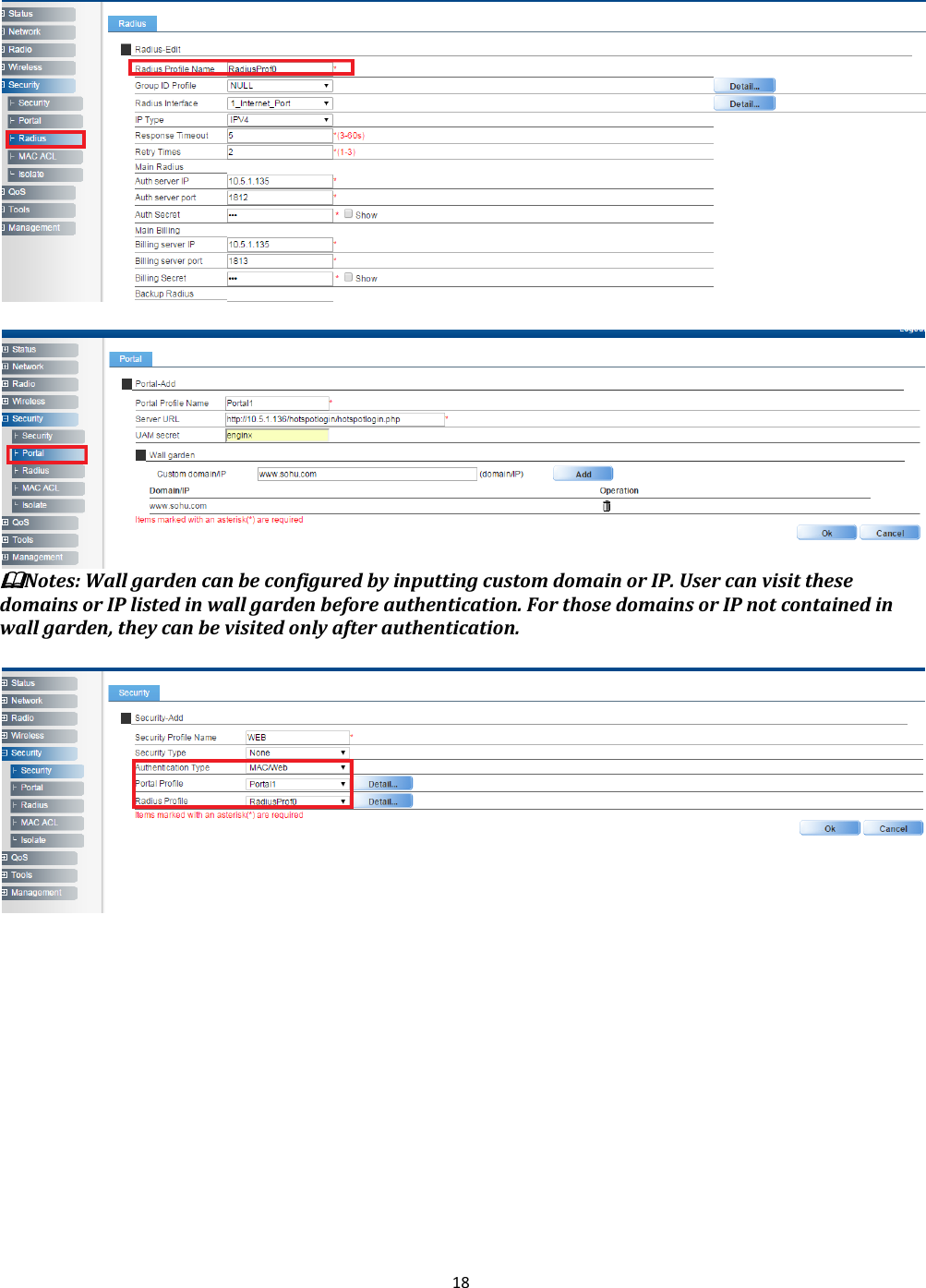

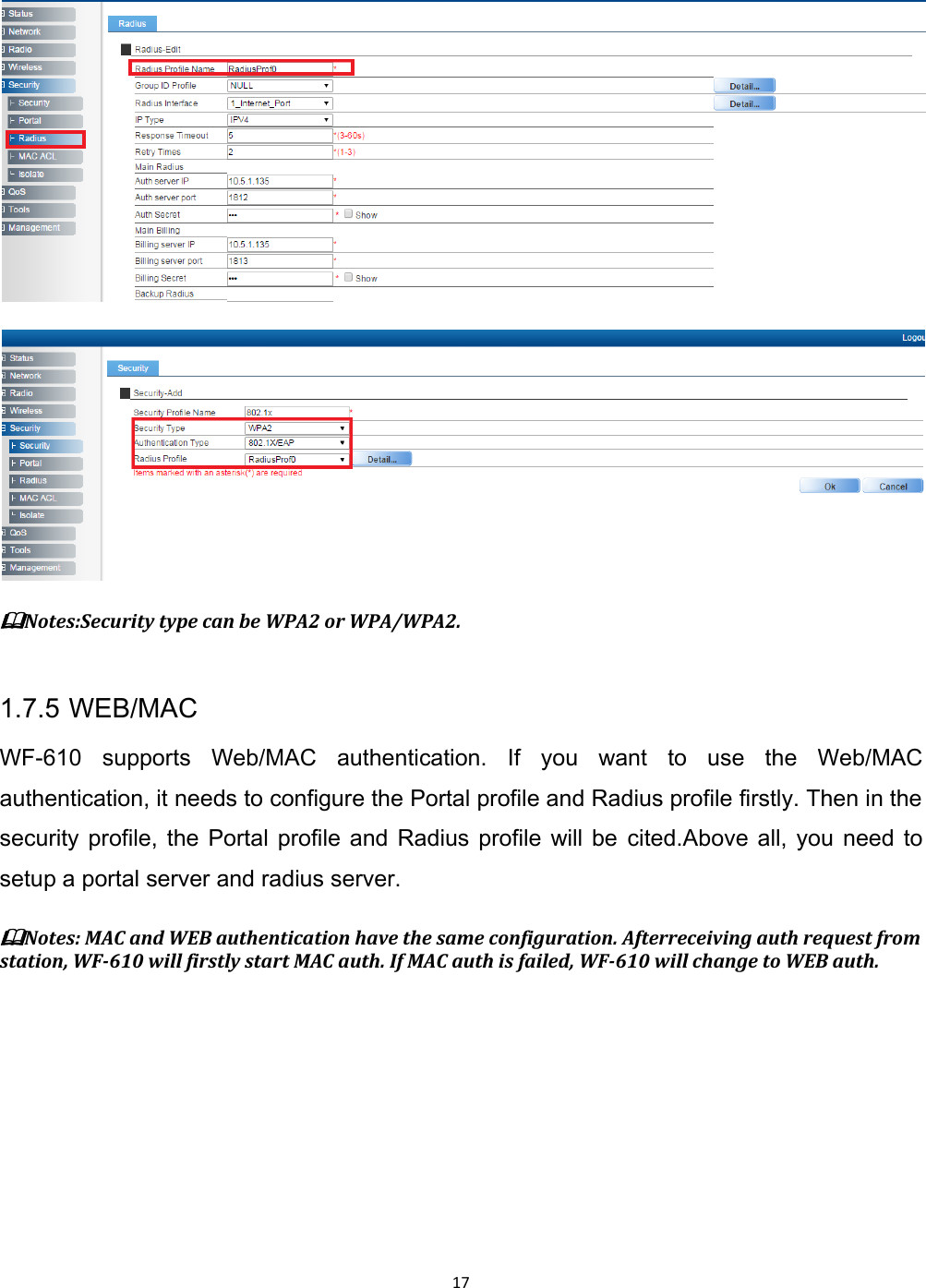

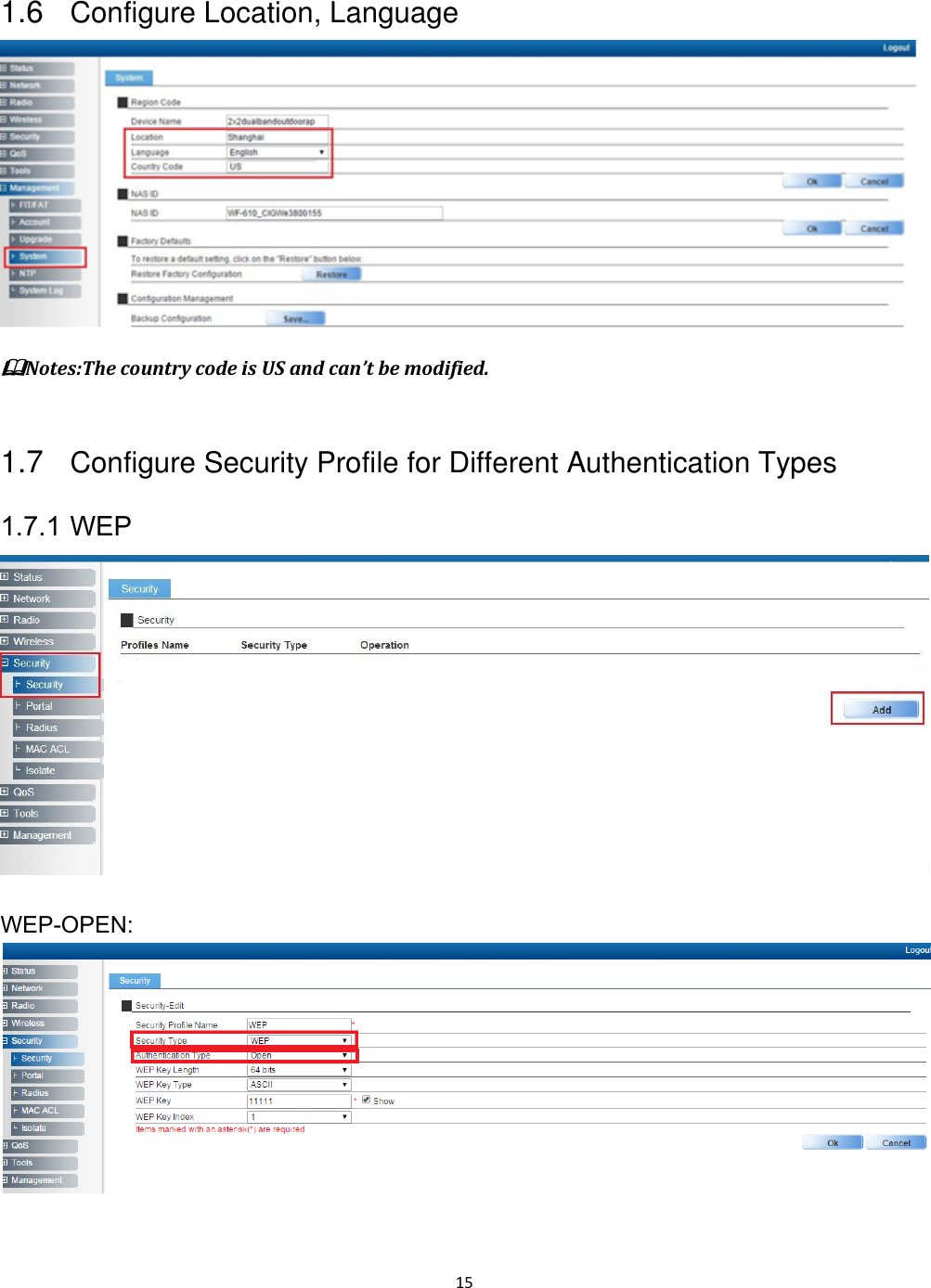

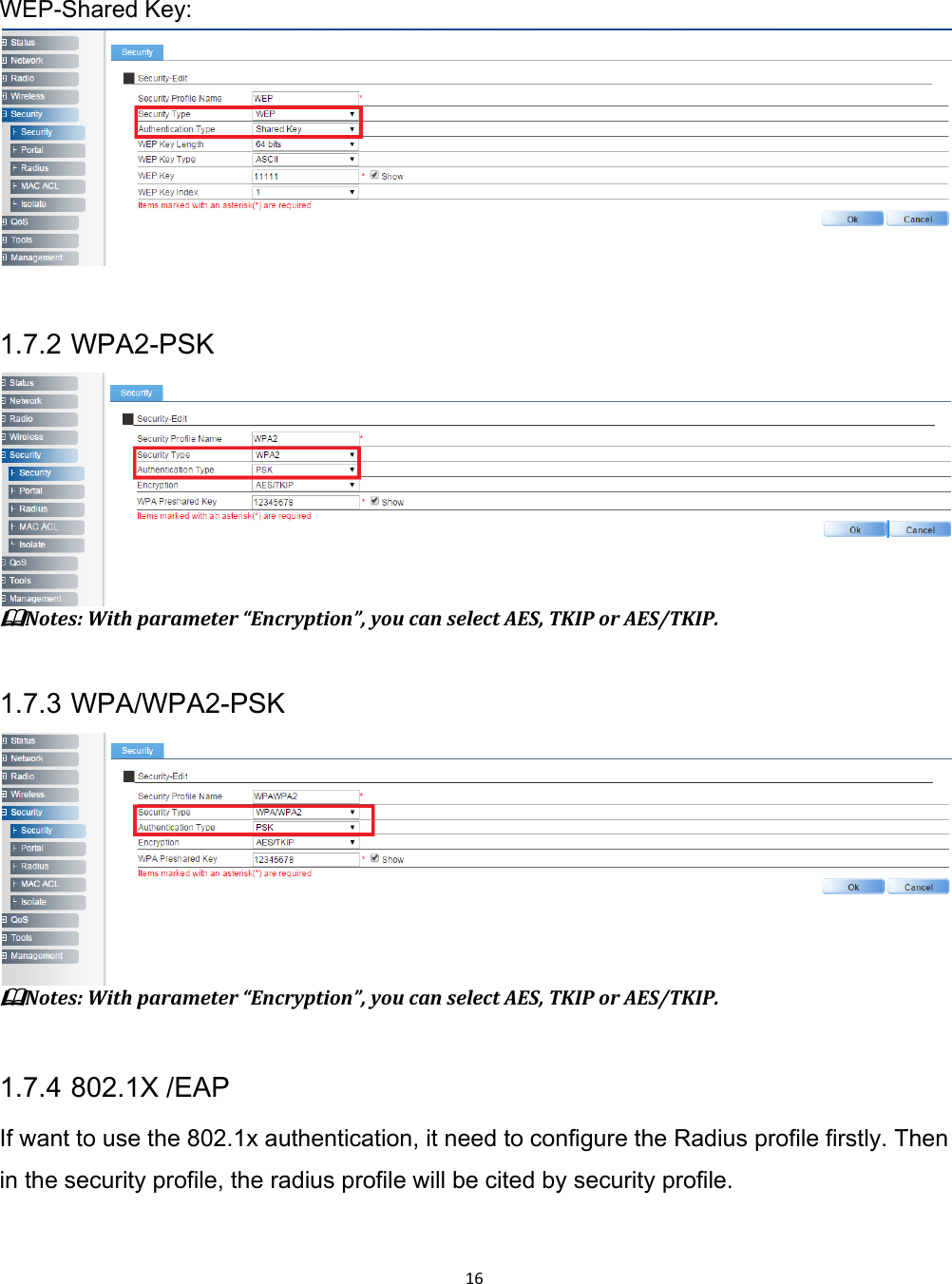

18 Notes: Wall garden can be configured by inputting custom domain or IP. User can visit these domains or IP listed in wall garden before authentication. For those domains or IP not contained in wall garden, they can be visited only after authentication.

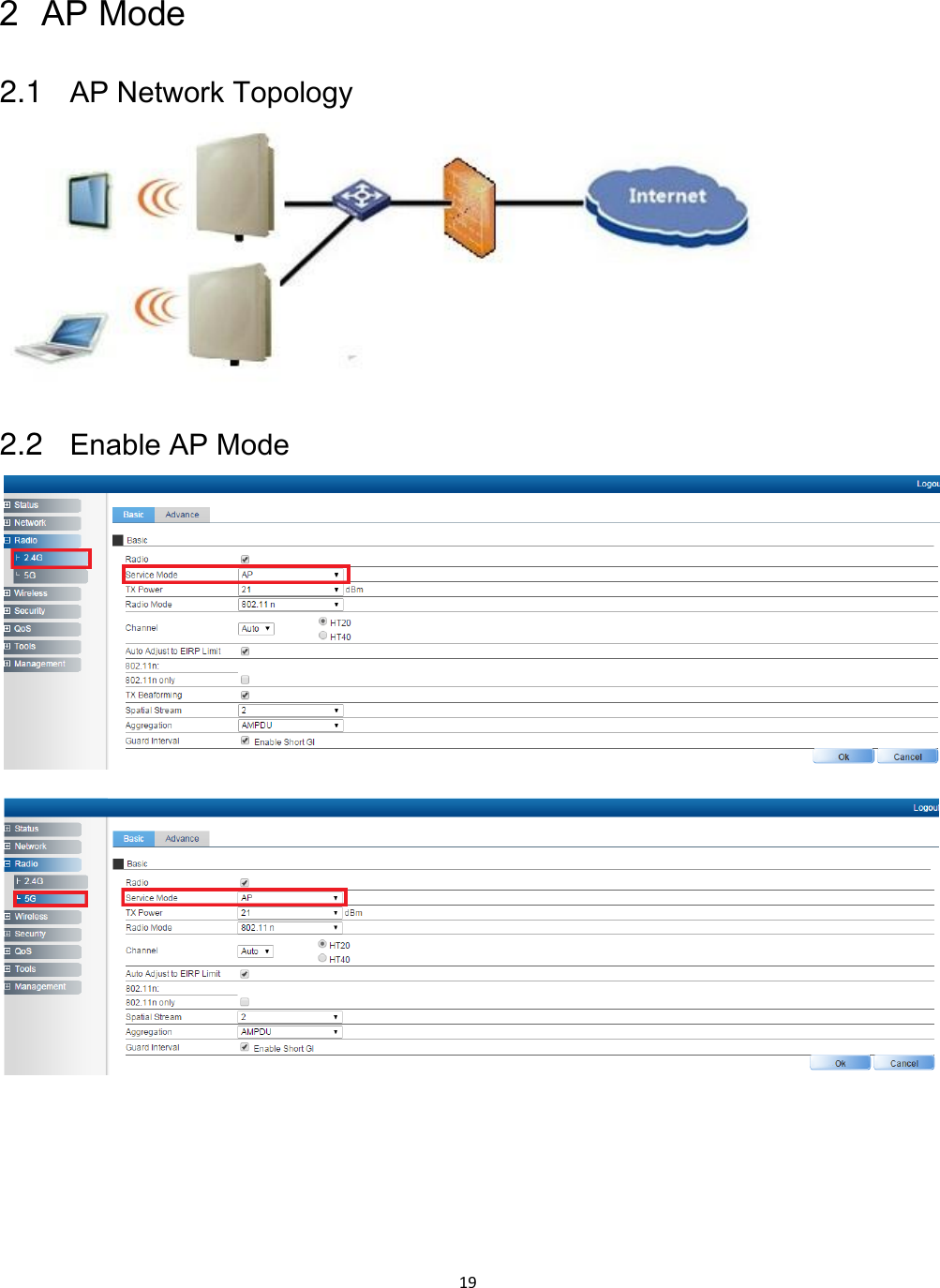

19 2 AP Mode 2.1 AP Network Topology 2.2 Enable AP Mode

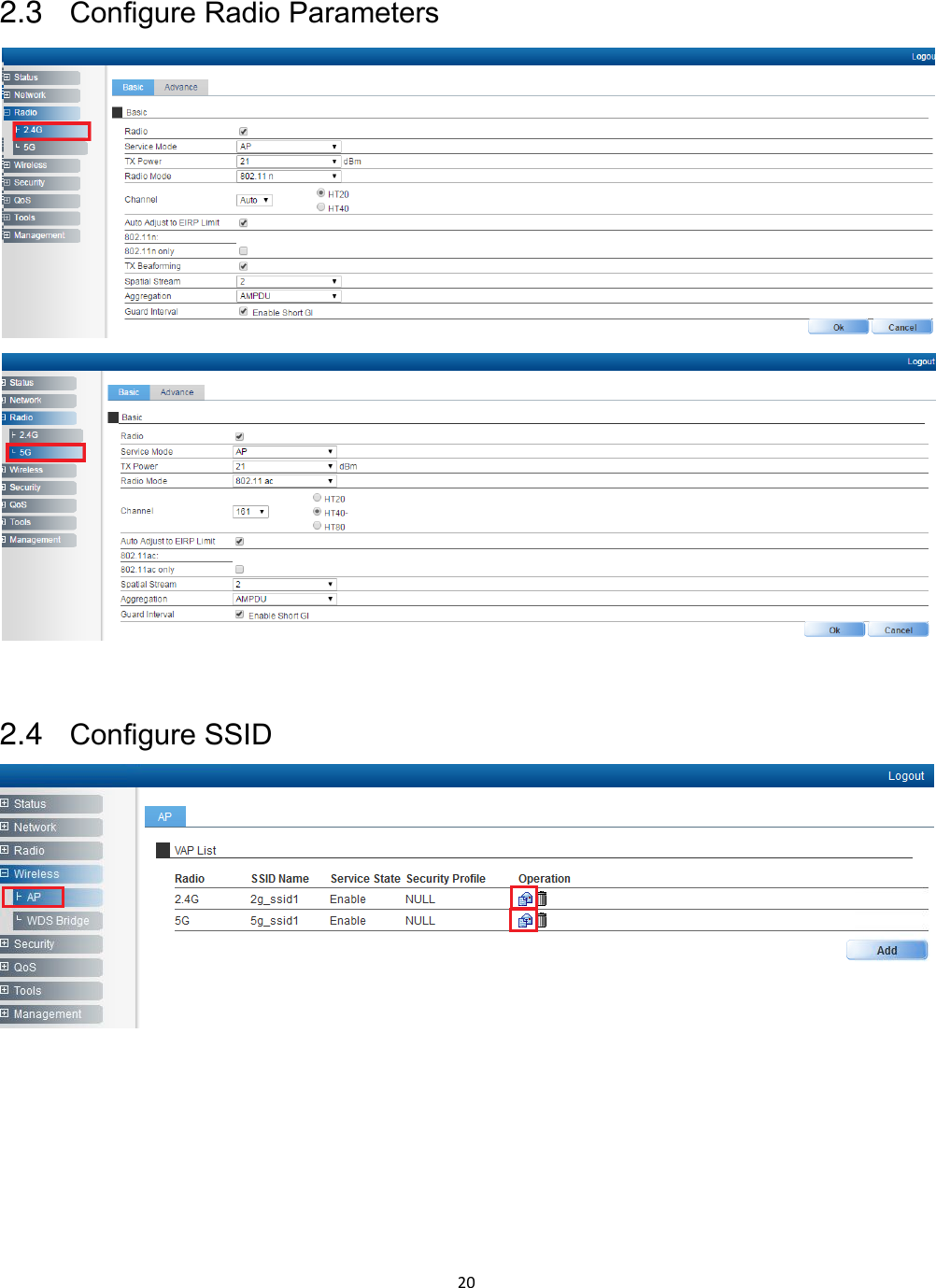

20 2.3 Configure Radio Parameters 2.4 Configure SSID

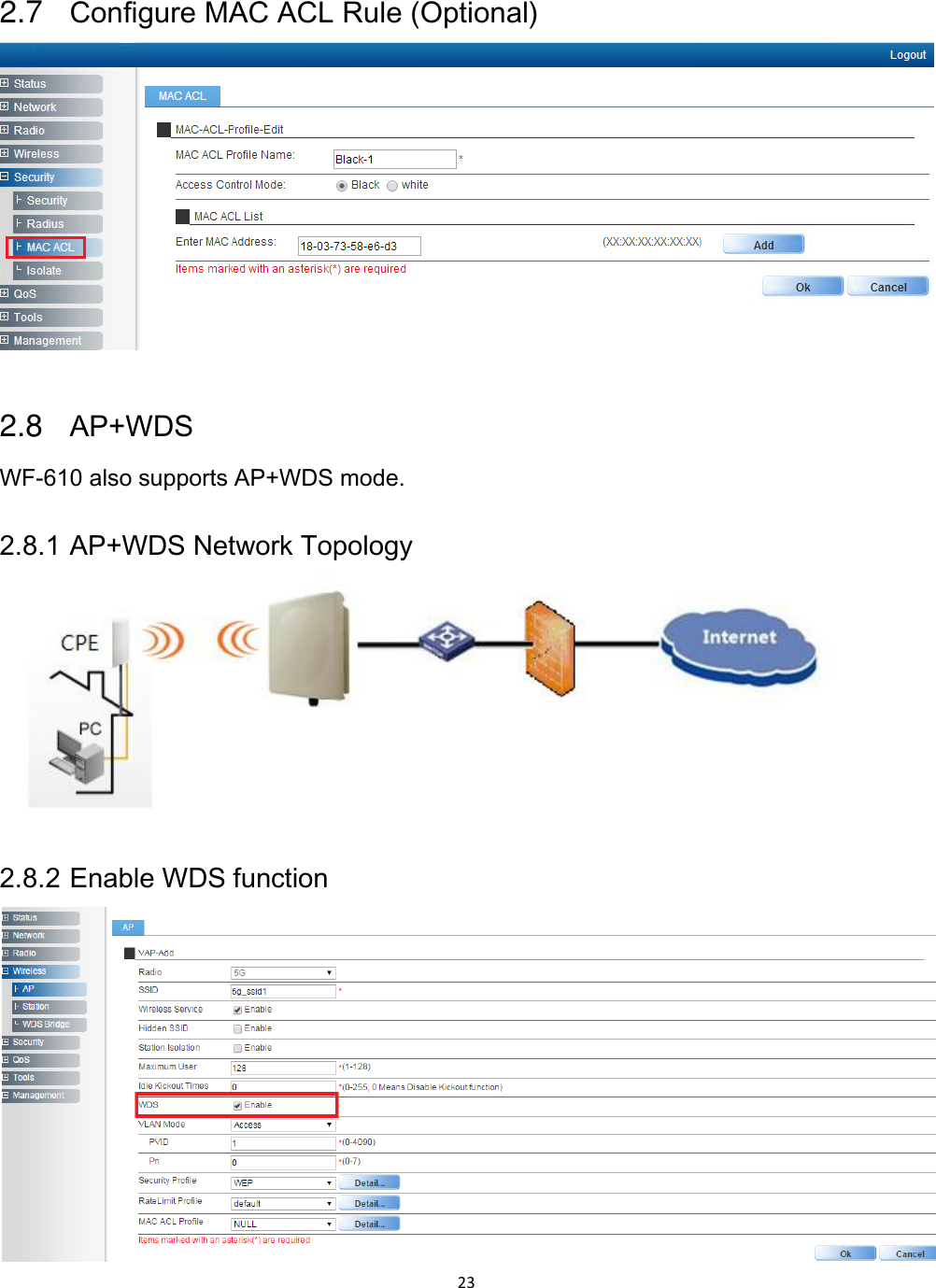

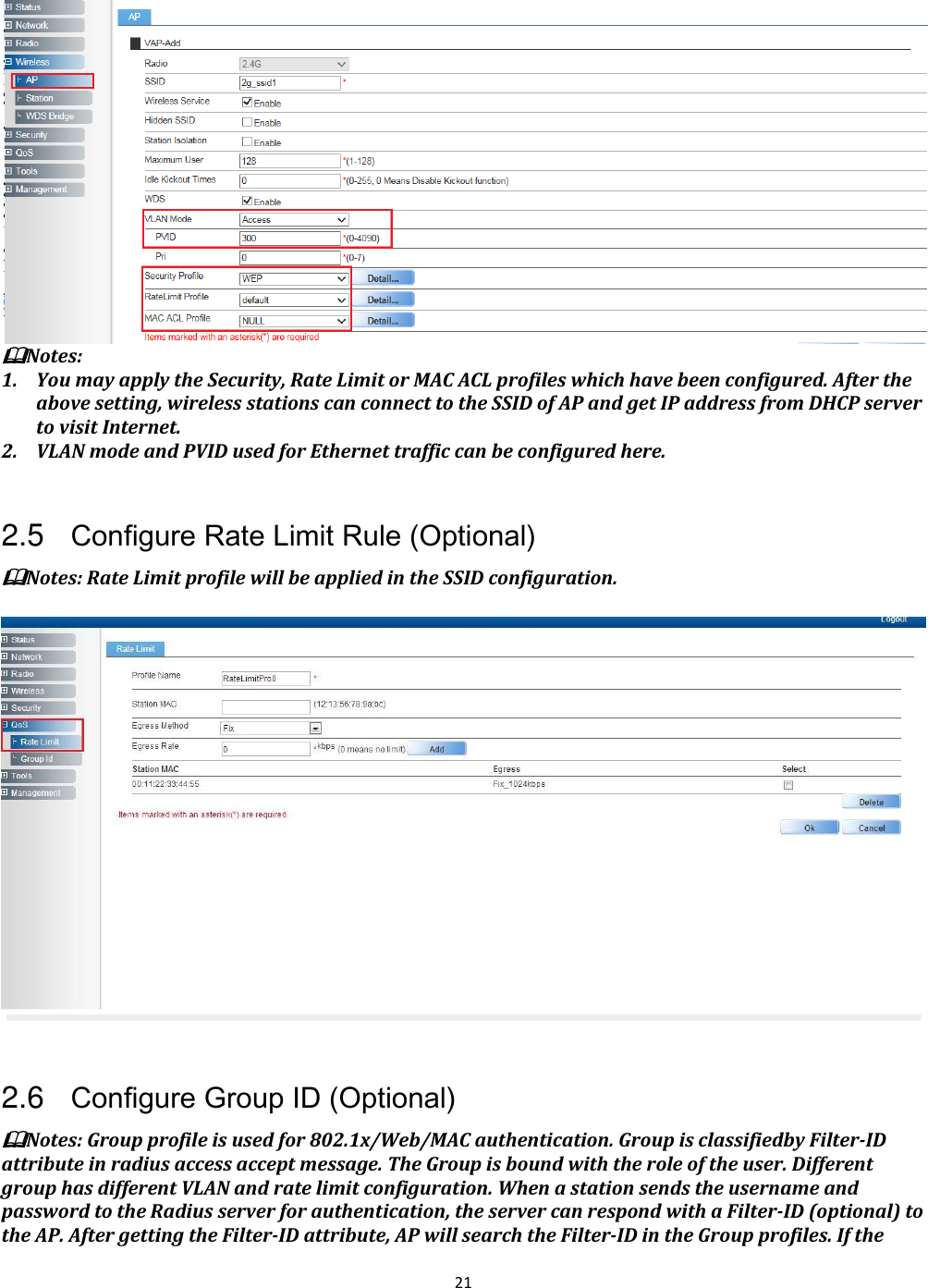

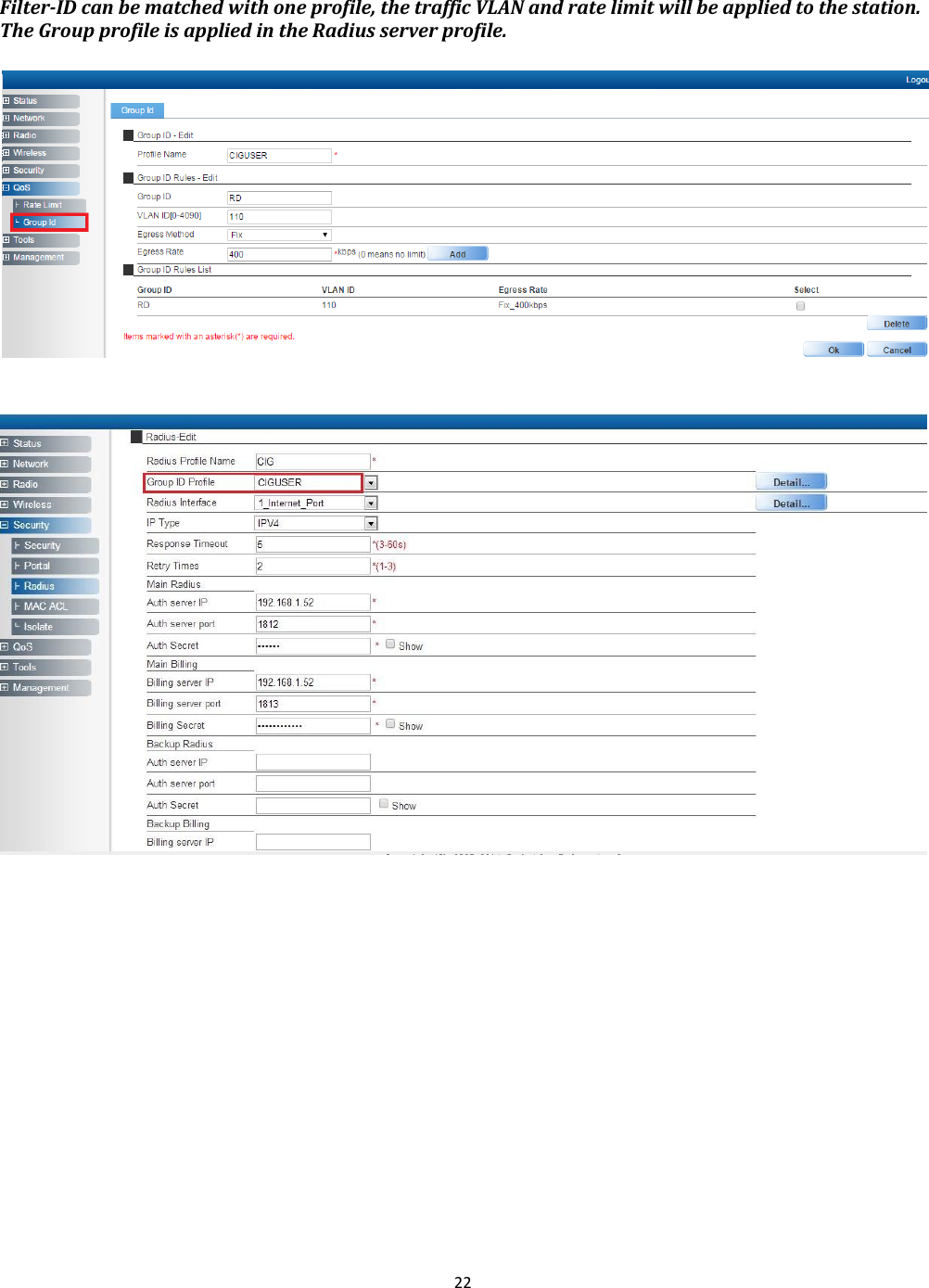

23 2.7 Configure MAC ACL Rule (Optional) 2.8 AP+WDS WF-610 also supports AP+WDS mode. 2.8.1 AP+WDS Network Topology 2.8.2 Enable WDS function

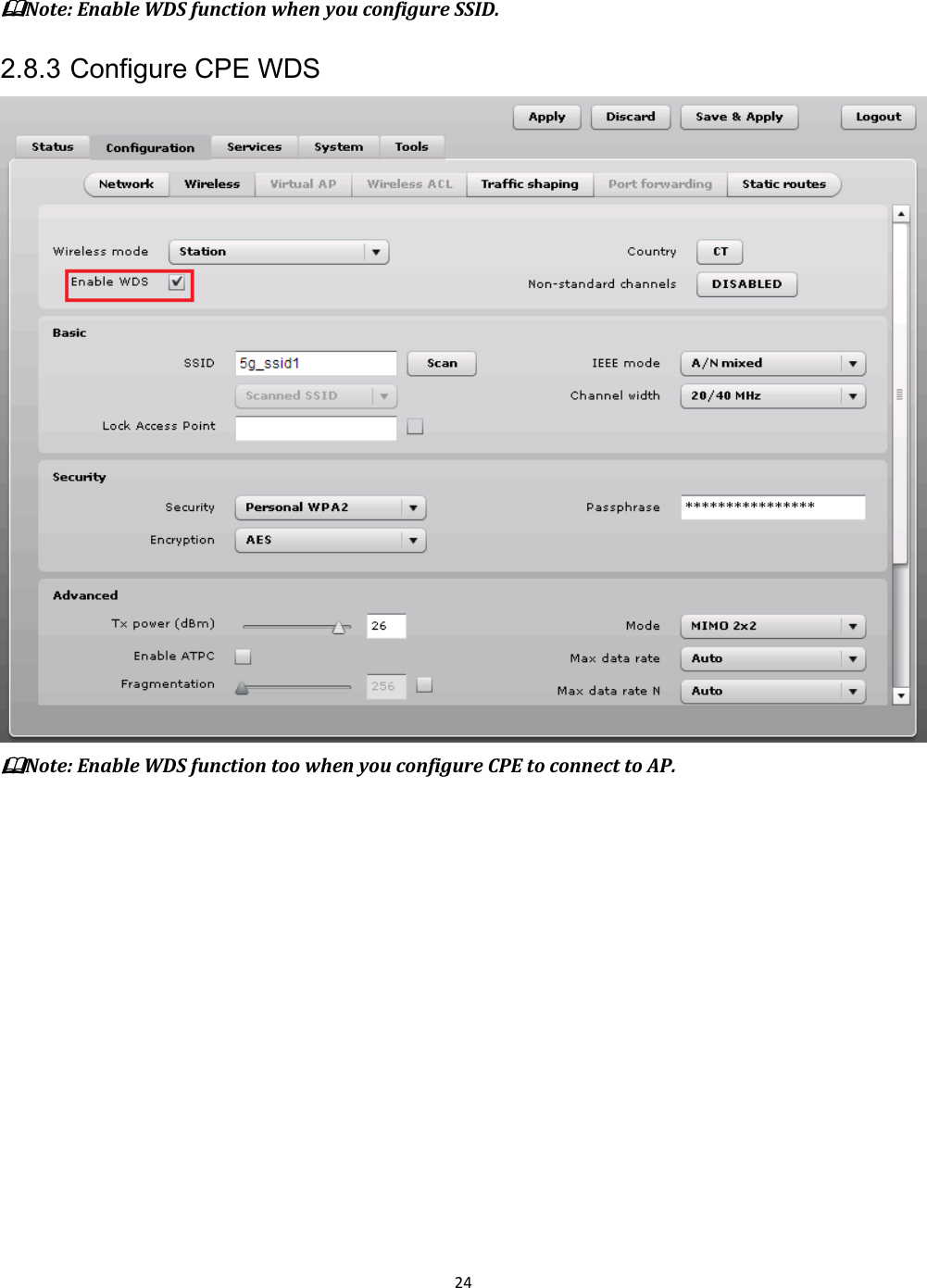

24 Note: Enable WDS function when you configure SSID. 2.8.3 Configure CPE WDS Note: Enable WDS function too when you configure CPE to connect to AP.

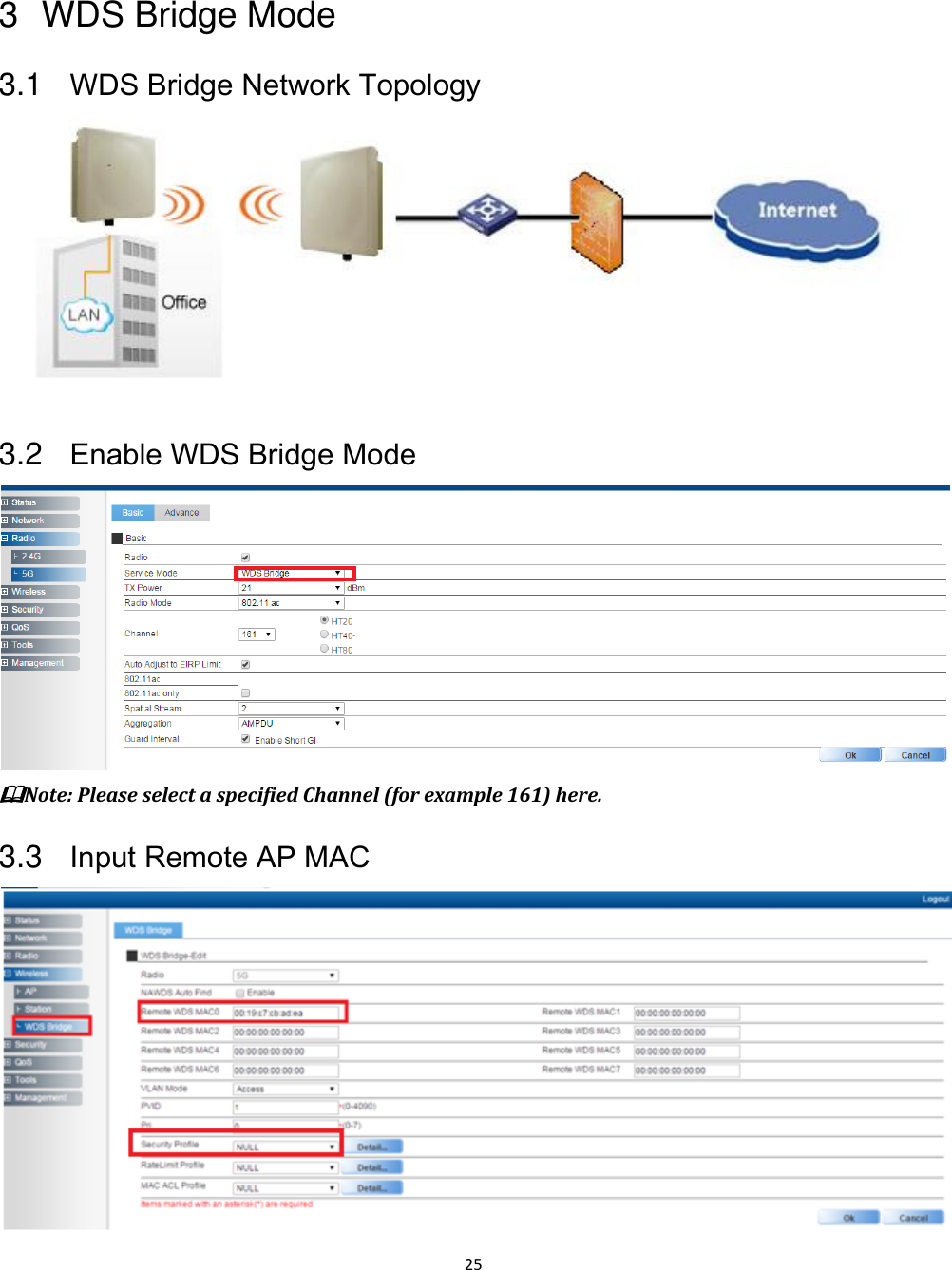

25 3 WDS Bridge Mode 3.1 WDS Bridge Network Topology 3.2 Enable WDS Bridge Mode Note: Please select a specified Channel (for example 161) here. 3.3 Input Remote AP MAC

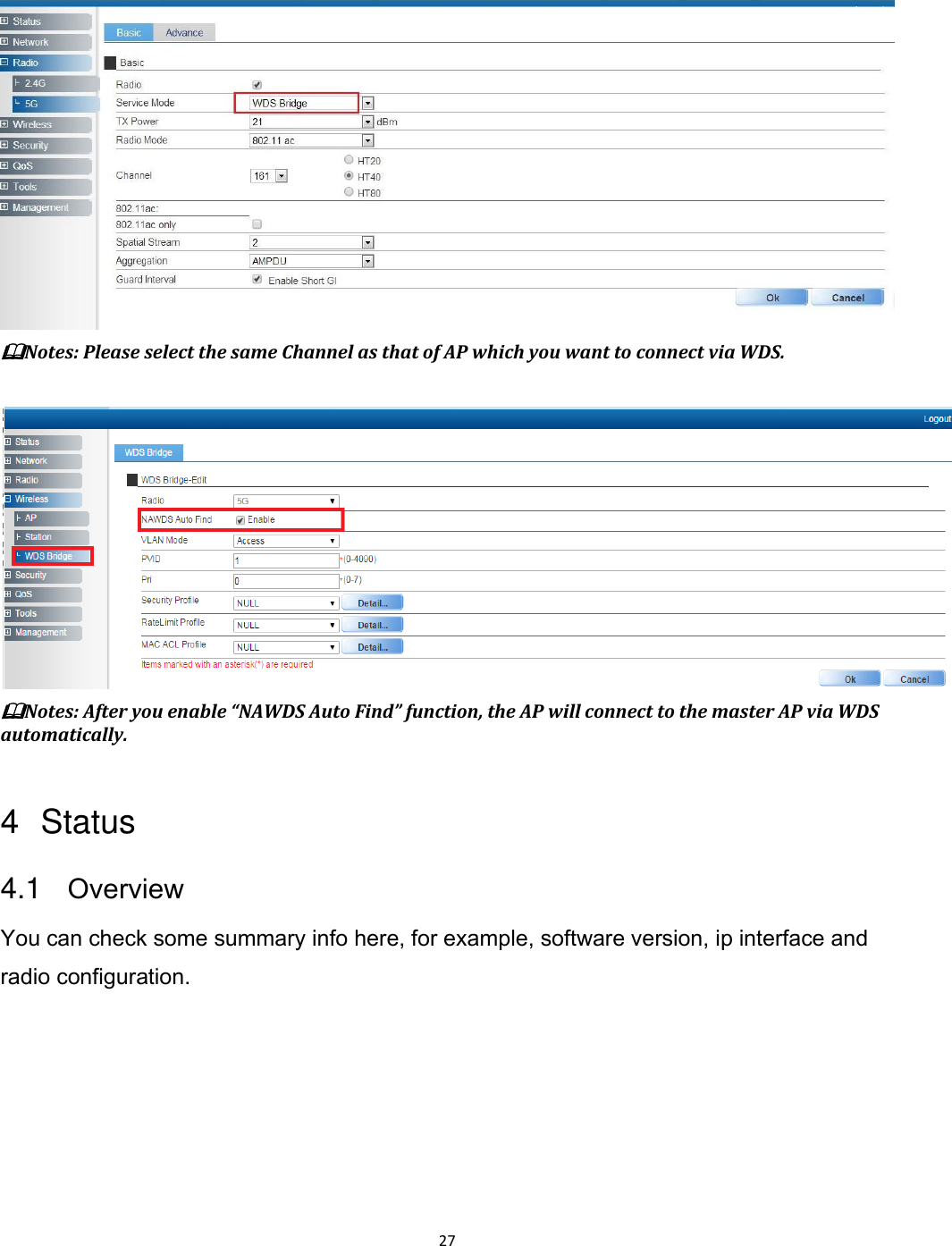

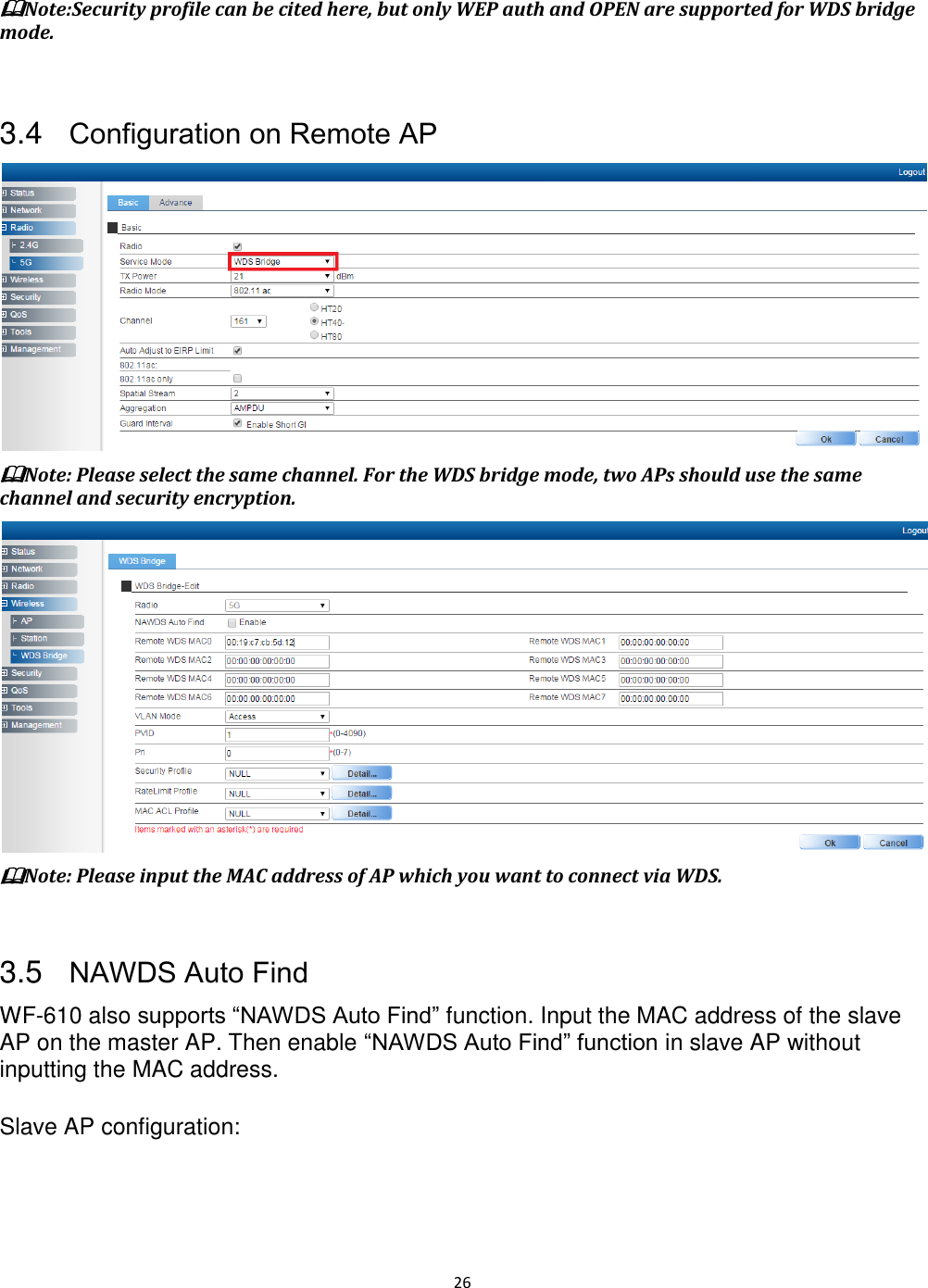

27 Notes: Please select the same Channel as that of AP which you want to connect via WDS. Notes: After you enable “NAWDS Auto Find” function, the AP will connect to the master AP via WDS automatically. 4 Status 4.1 Overview You can check some summary info here, for example, software version, ip interface and radio configuration.

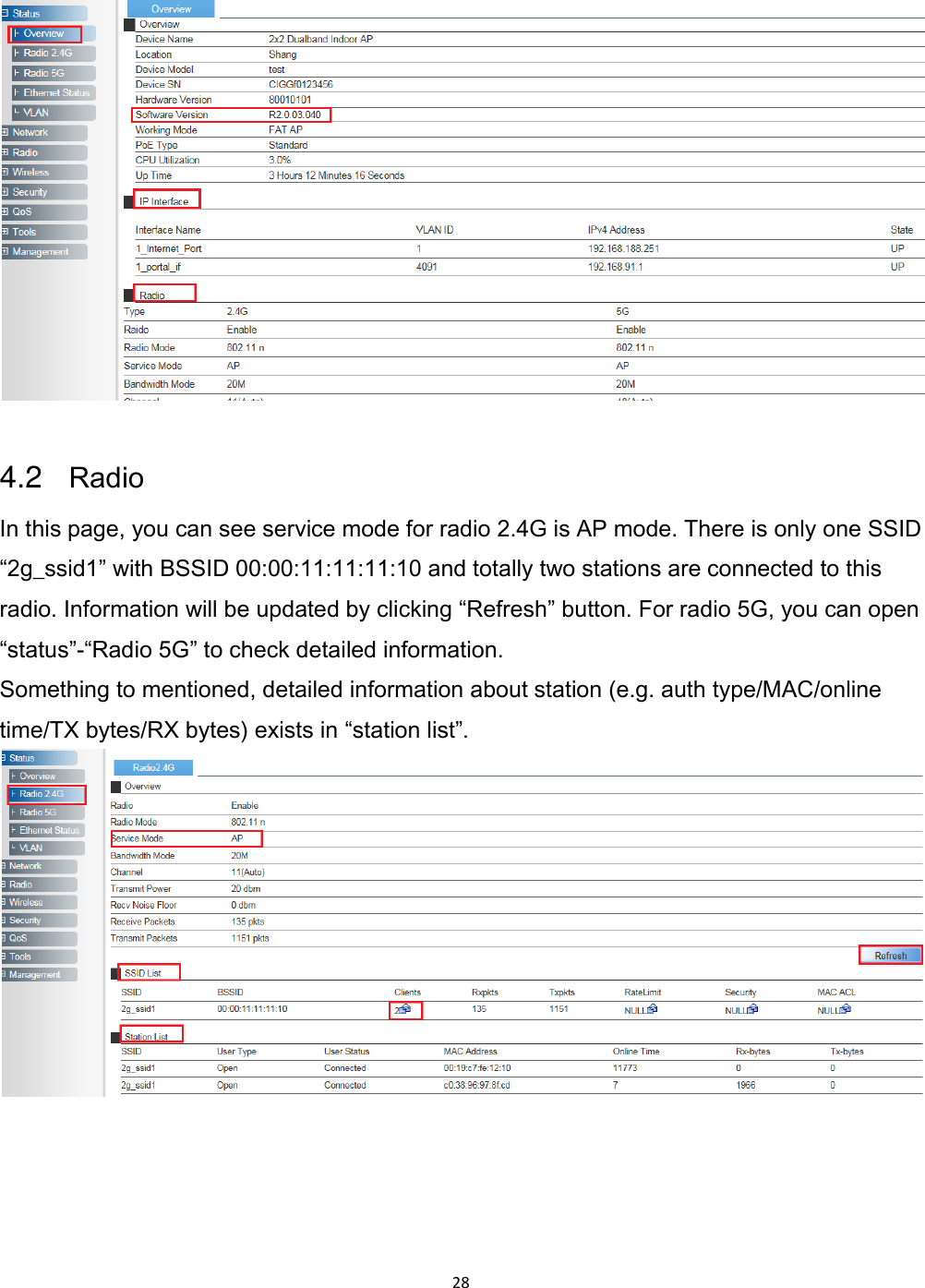

28 4.2 Radio In this page, you can see service mode for radio 2.4G is AP mode. There is only one SSID “2g_ssid1” with BSSID 00:00:11:11:11:10 and totally two stations are connected to this radio. Information will be updated by clicking “Refresh” button. For radio 5G, you can open “status”-“Radio 5G” to check detailed information. Something to mentioned, detailed information about station (e.g. auth type/MAC/online time/TX bytes/RX bytes) exists in “station list”.

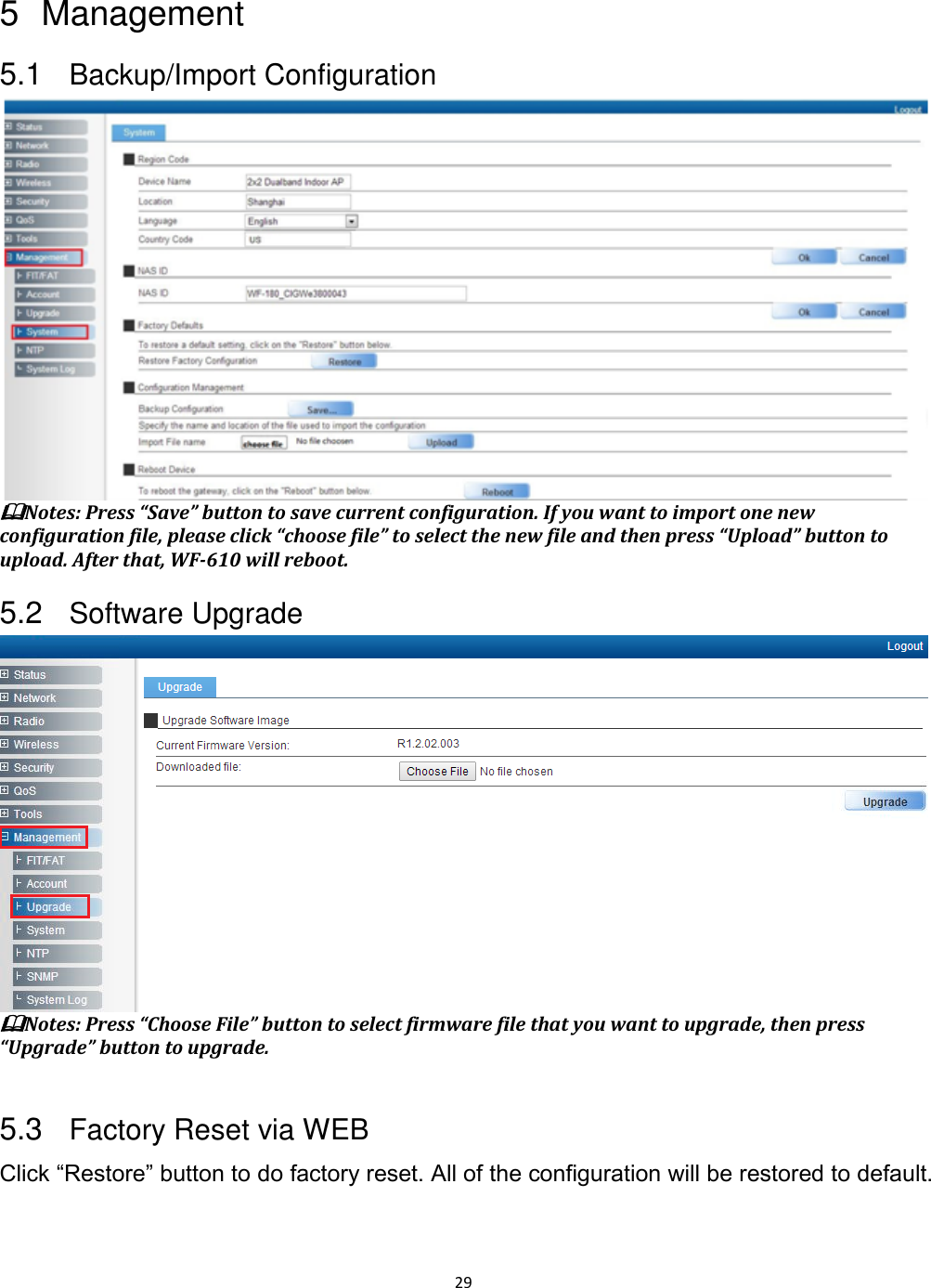

29 5 Management 5.1 Backup/Import Configuration Notes: Press “Save” button to save current configuration. If you want to import one new configuration file, please click “choose file” to select the new file and then press “Upload” button to upload. After that, WF-610 will reboot. 5.2 Software Upgrade Notes: Press “Choose File” button to select firmware file that you want to upgrade, then press “Upgrade” button to upgrade. 5.3 Factory Reset via WEB Click “Restore” button to do factory reset. All of the configuration will be restored to default.

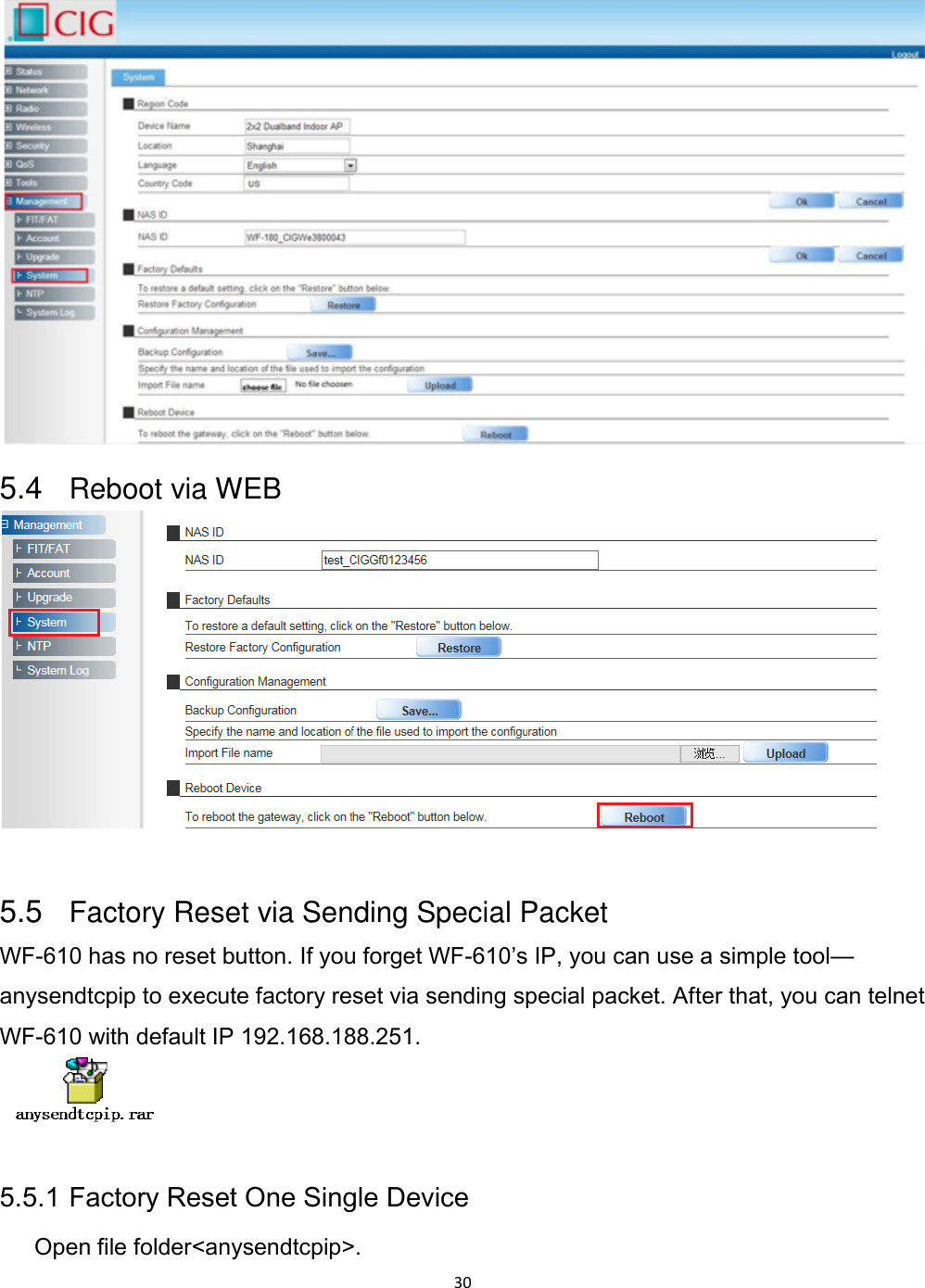

30 5.4 Reboot via WEB 5.5 Factory Reset via Sending Special Packet WF-610 has no reset button. If you forget WF-610’s IP, you can use a simple tool—anysendtcpip to execute factory reset via sending special packet. After that, you can telnet WF-610 with default IP 192.168.188.251. 5.5.1 Factory Reset One Single Device Open file folder<anysendtcpip>.

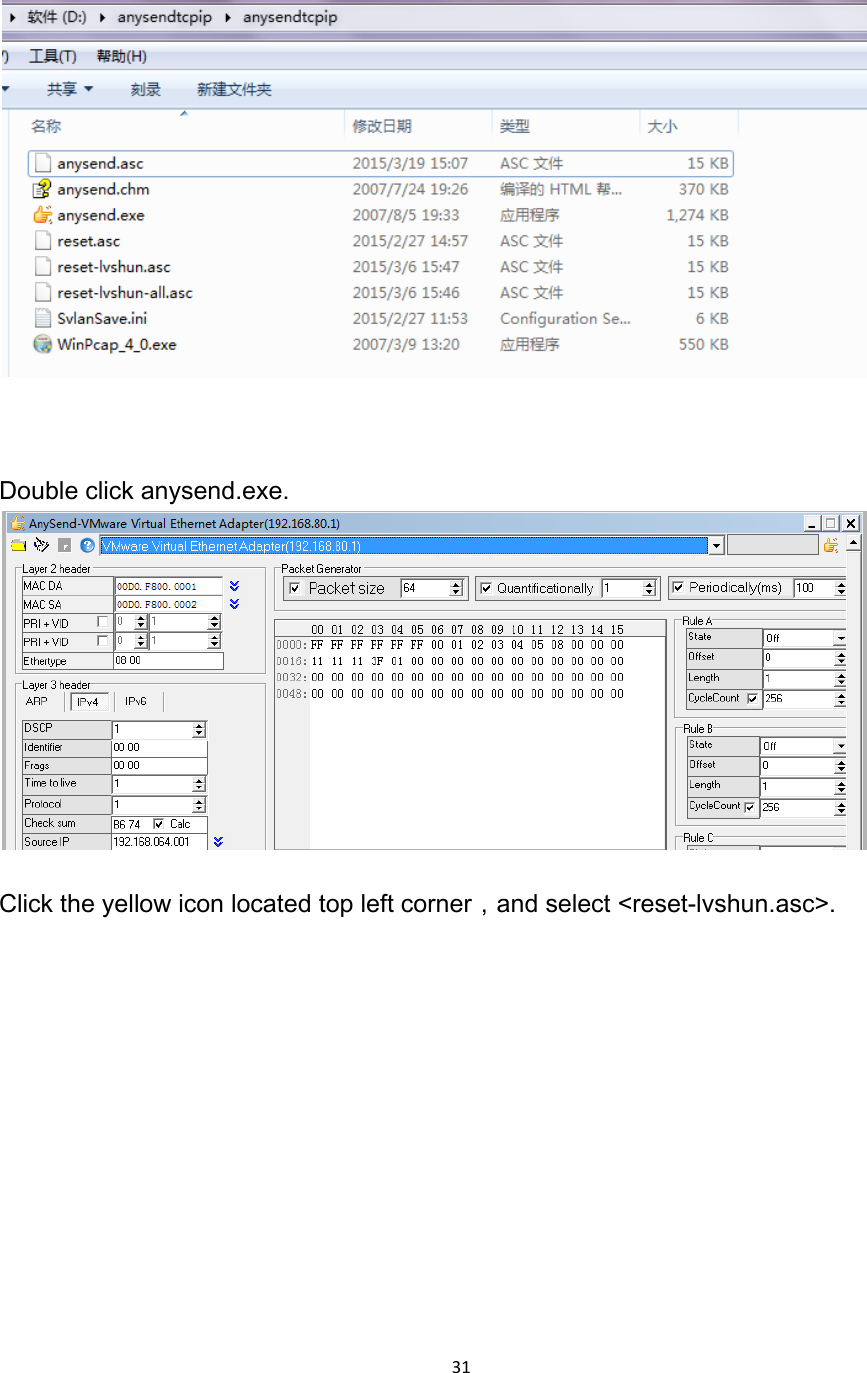

31 Double click anysend.exe. Click the yellow icon located top left corner，and select <reset-lvshun.asc>.

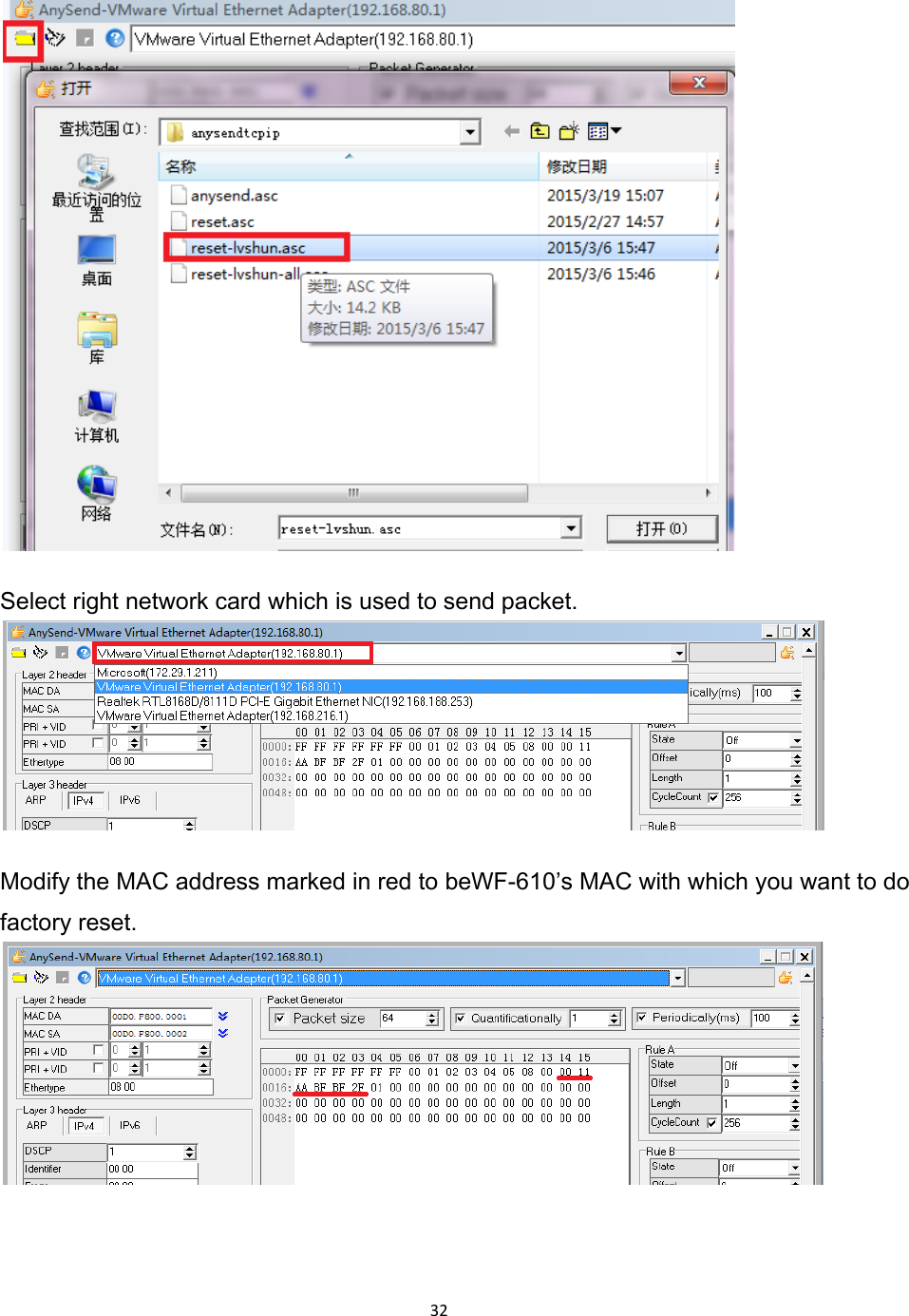

32 Select right network card which is used to send packet. Modify the MAC address marked in red to beWF-610’s MAC with which you want to do factory reset.

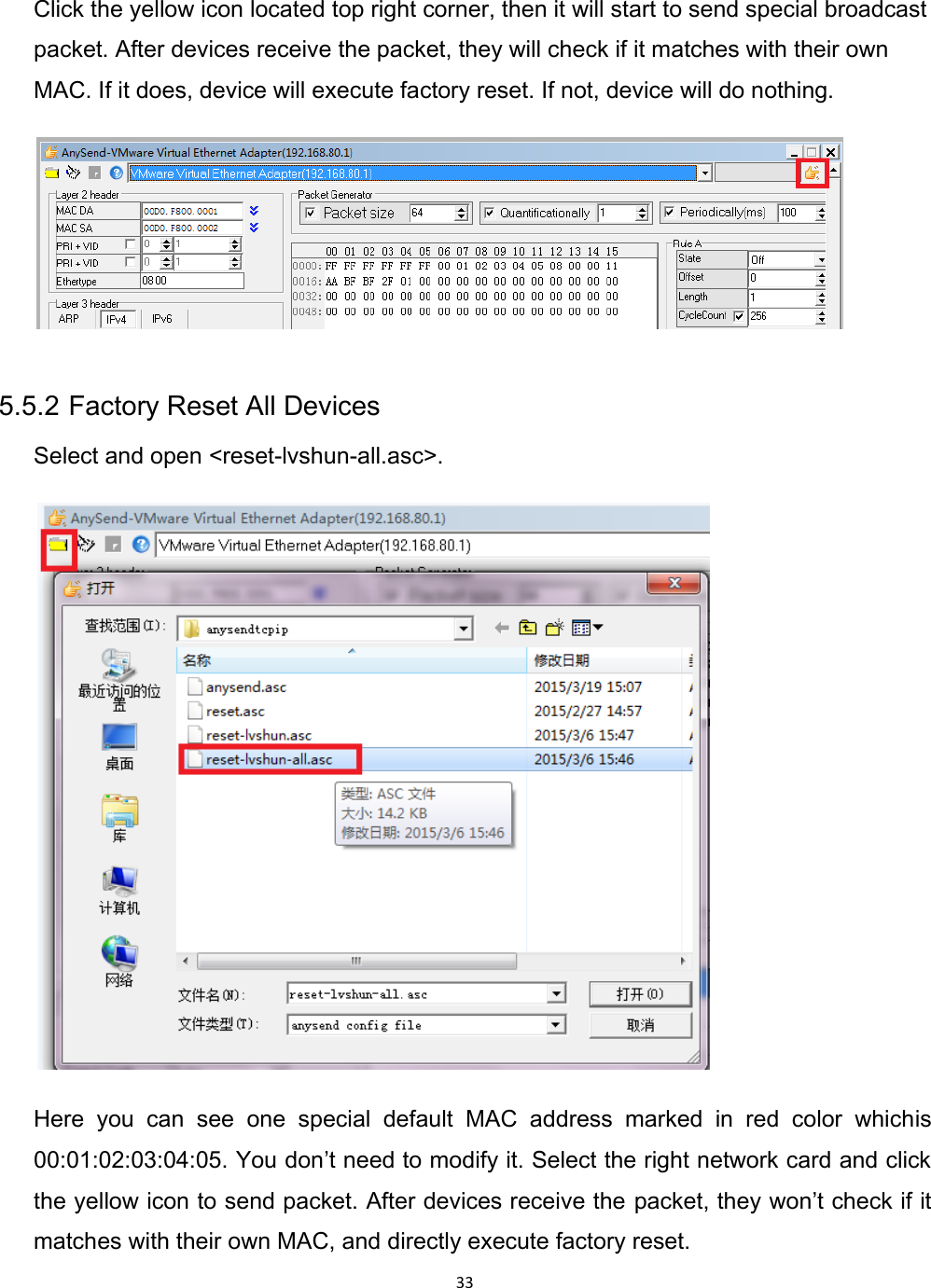

33 Click the yellow icon located top right corner, then it will start to send special broadcast packet. After devices receive the packet, they will check if it matches with their own MAC. If it does, device will execute factory reset. If not, device will do nothing. 5.5.2 Factory Reset All Devices Select and open <reset-lvshun-all.asc>. Here you can see one special default MAC address marked in red color whichis 00:01:02:03:04:05. You don’t need to modify it. Select the right network card and click the yellow icon to send packet. After devices receive the packet, they won’t check if it matches with their own MAC, and directly execute factory reset.

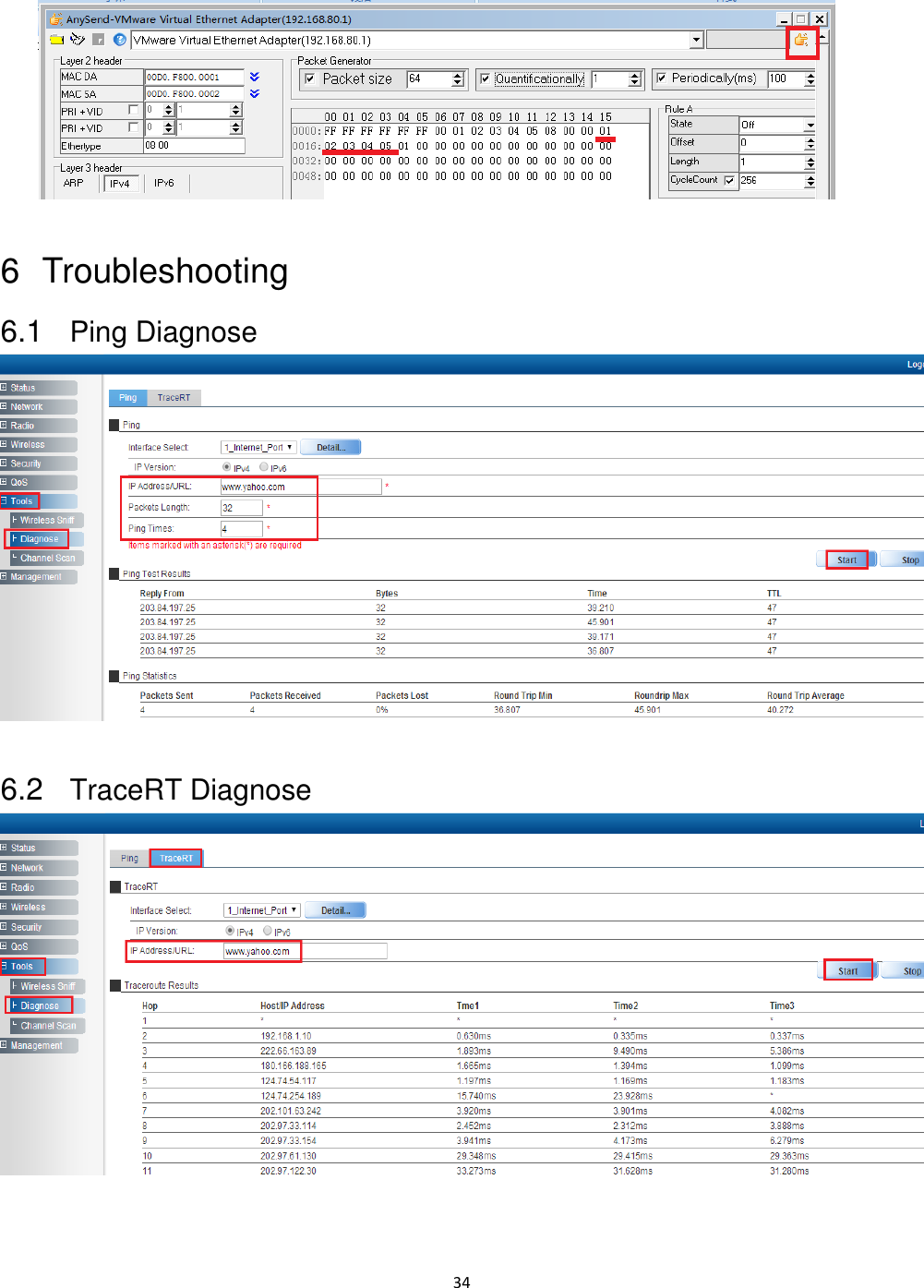

34 6 Troubleshooting 6.1 Ping Diagnose 6.2 TraceRT Diagnose

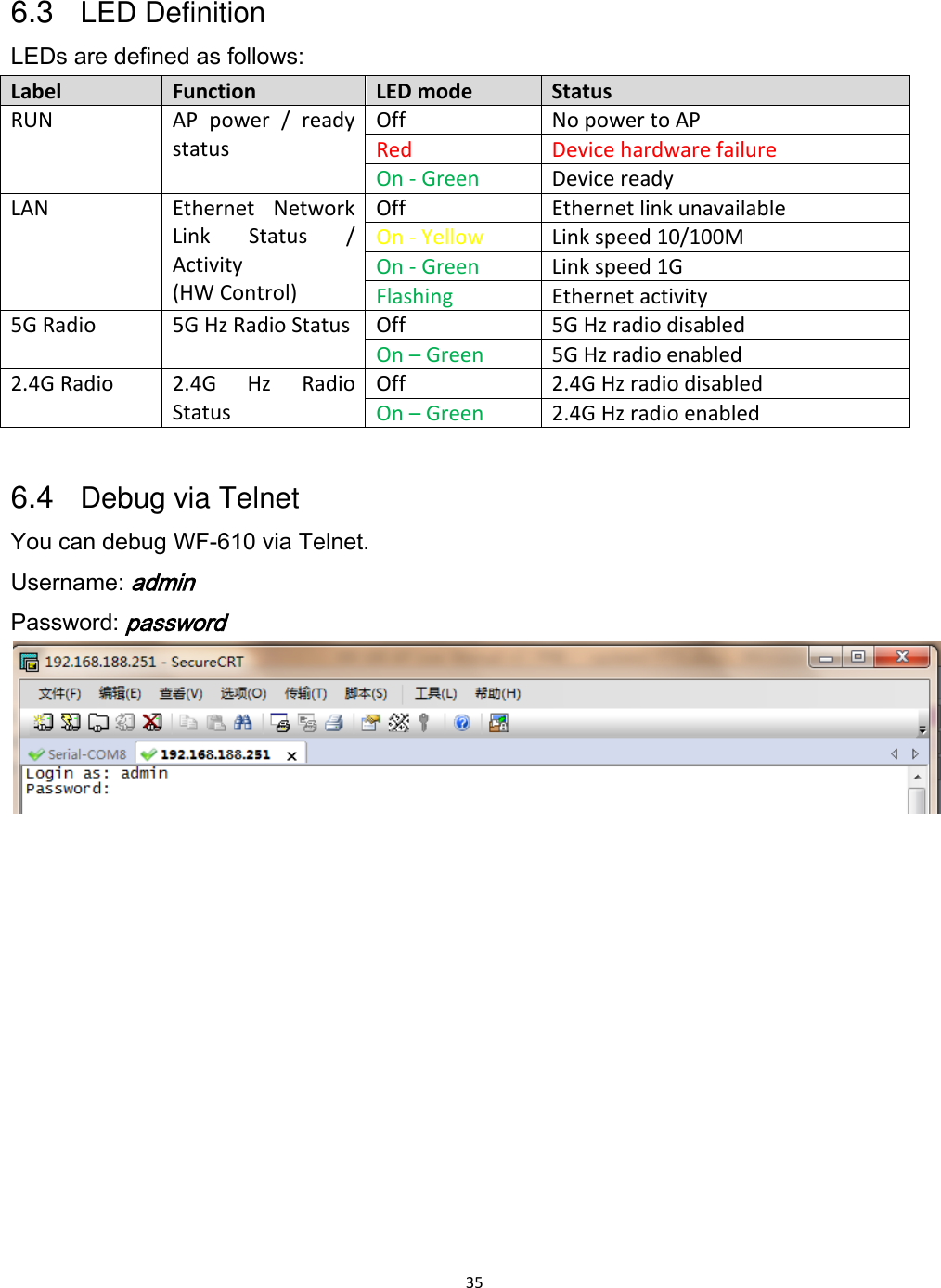

35 6.3 LED Definition LEDs are defined as follows: Label Function LED mode Status RUN AP power / ready status Off No power to AP Red Device hardware failure On - Green Device ready LAN Ethernet Network Link Status / Activity (HW Control) Off Ethernet link unavailable On - Yellow Link speed 10/100M On - Green Link speed 1G Flashing Ethernet activity 5G Radio 5G Hz Radio Status Off 5G Hz radio disabled On – Green 5G Hz radio enabled 2.4G Radio 2.4G Hz Radio Status Off 2.4G Hz radio disabled On – Green 2.4G Hz radio enabled 6.4 Debug via Telnet You can debug WF-610 via Telnet. Username: admin Password: password

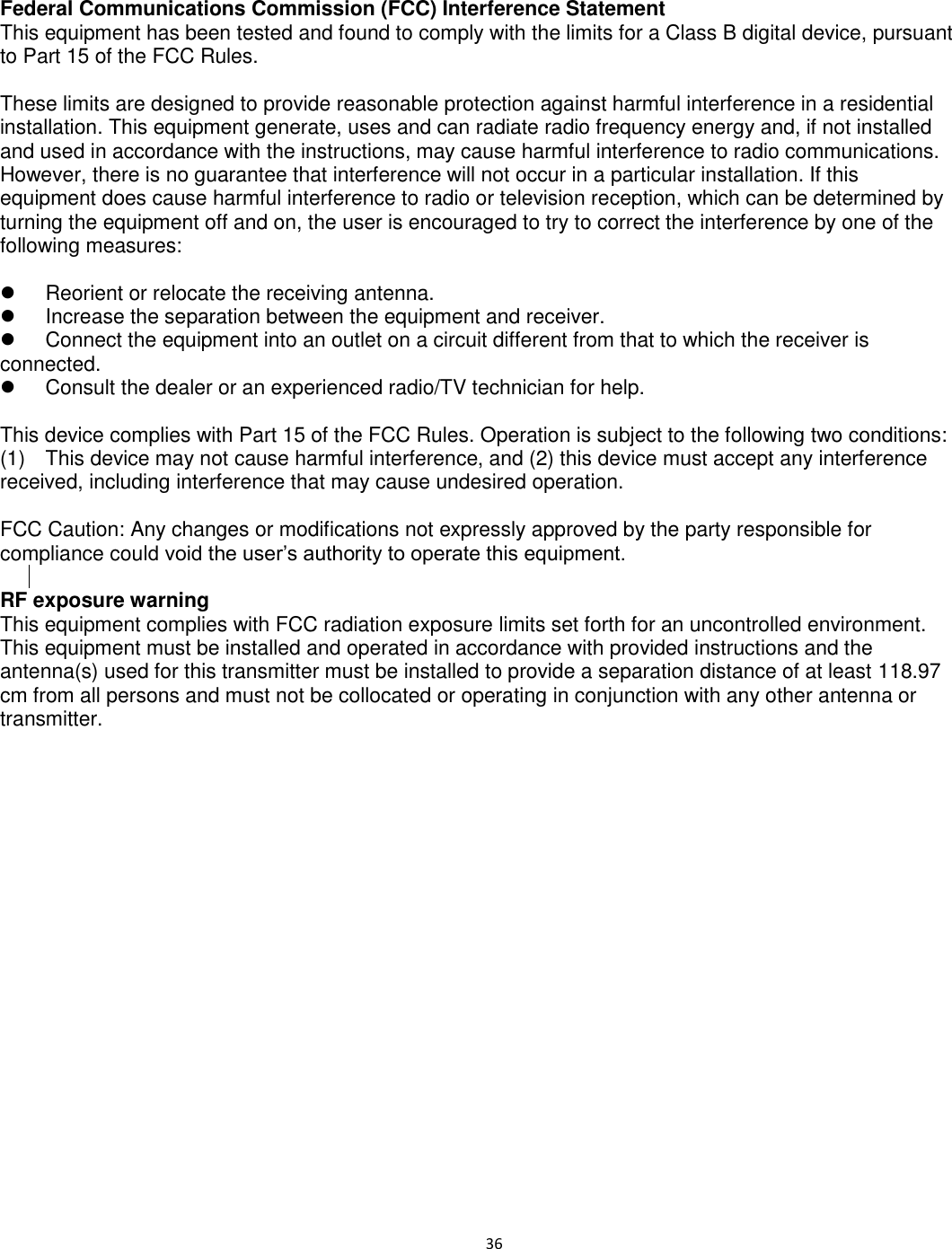

36 Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 118.97 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.
