Users Manual II

Modules & Options

7 - 8 PC Camera Module

Video View (for 2.0M pixel camera module)

Video View is a video viewer useful for general purpose video viewing and testing,

and can capture video files to .avi format.

1. Run the Video View program from the Start > Programs/All Programs > USB2.0

PC Camera menu (it is recommended that you set the capture file before the

capture process - see Set Capture File below).

2. Go to the Capture menu heading (if you wish to capture audio check “PC Camera

Audio Setup (all camera modules)” on page 7 - 4) and select Start Capture.

3. Click OK (the file location will be displayed in the pop-up box) to start capturing the

video, and press Esc to stop the capture.

Set Capture File

Prior to capturing video files you may Set Capture File... To avoid overwriting files

you can go to the Set Capture File.. option in the File menu, and set the file name

and location before capture. Set the name and location then click Open (you can

choose Cancel to ignore the file size if prompted).



Pre-Allocating File

Space

You may pre-allocate

the file size for the cap-

ture file in the Video

View program.

Pre-allocating space on

the hard disk can im-

prove the capture quali-

ty (particularly of large

capture files), by reduc-

ing the amount of work

the hard disk has to do

in finding space for the

video data as it is being

captured.

Modules & Options

PC Camera Module 7 - 9

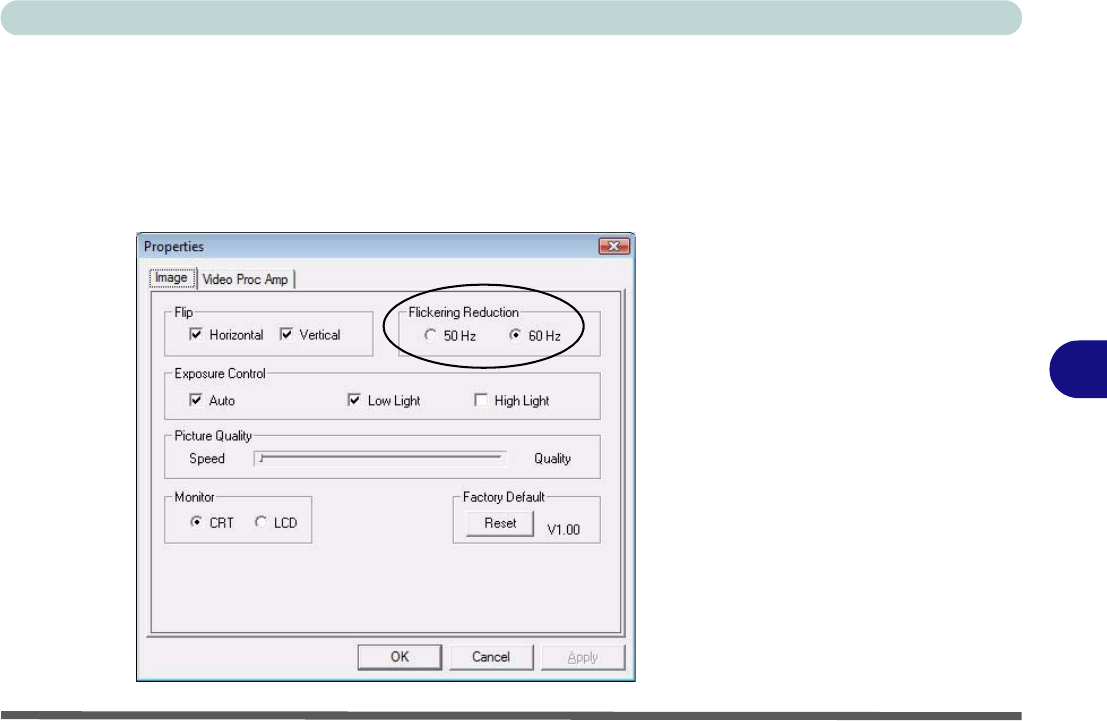

Eliminating Screen Flicker (Video View)

If you find that the video screen in the Video View program is flickering, you can

try to adjust the setting in the Video Capture Filter options.

1. Run the Video View program.

2. Go to Options and scroll down to select Video Capture Filter....

3. Click either 50Hz or 60Hz under Flickering Reduction in Image (tab).

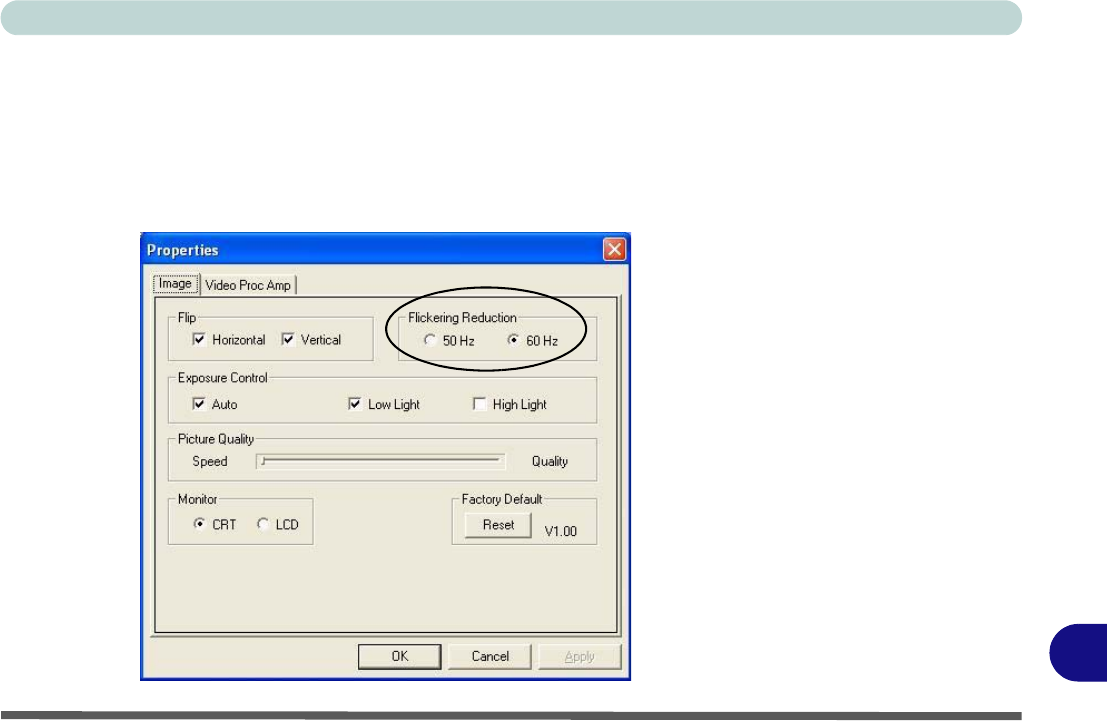

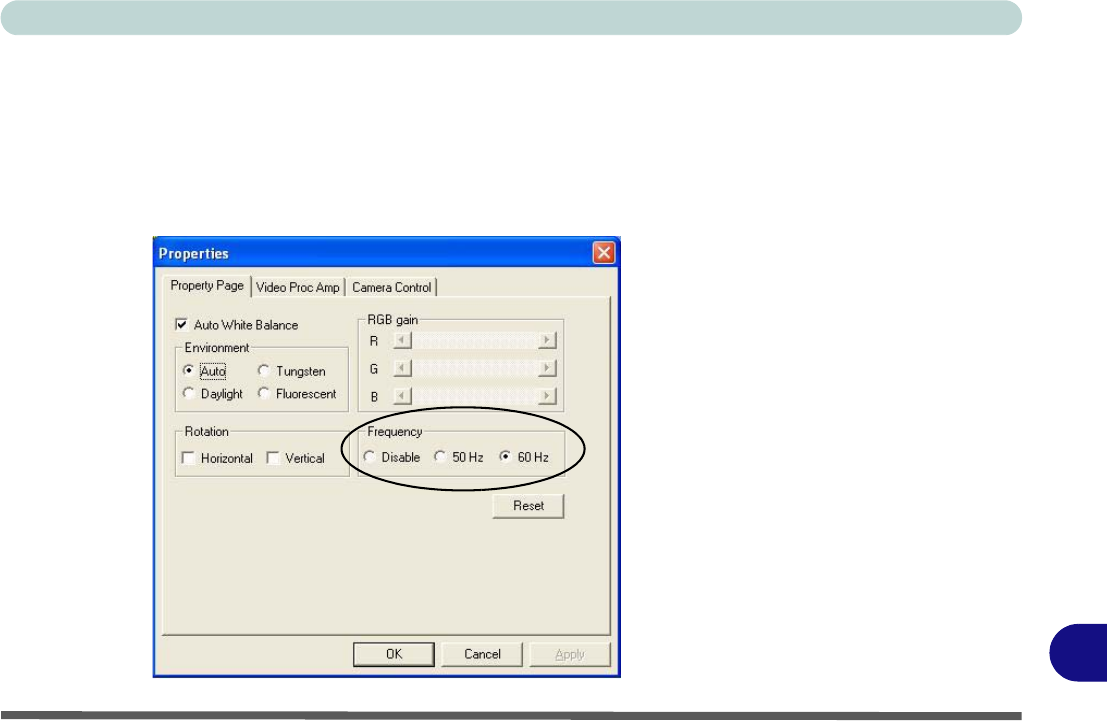

Figure 7 - 3

Video Capture Filter

Modules & Options

7 - 10 PC Camera Module

Zoom (Video View)

If you have enabled digital zoom when installing the 2.0M Pixel Camera driver you

may use the Options > Setting menu to zoom the camera in and out.

1. Run the Video View program.

2. Go to Options and scroll down to select Setting.

3. Use the slider to adjust the zoom level, and click OK to save the setting.

Still Image Capture (Video View)

You can capture still images by using the Snapshot command from the Capture

menu.

1. Run the Video View program.

2. Go to Capture and select Snapshot.

3. The picture (in JPEG format) will be placed in the Snapshot folder on the desktop.

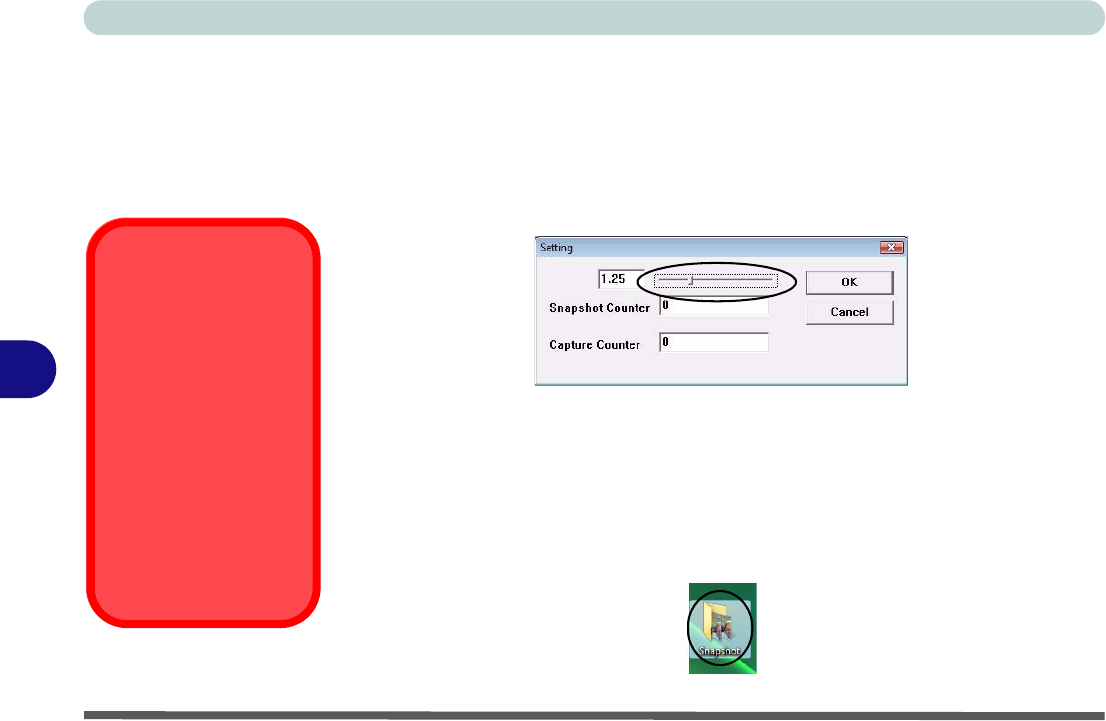

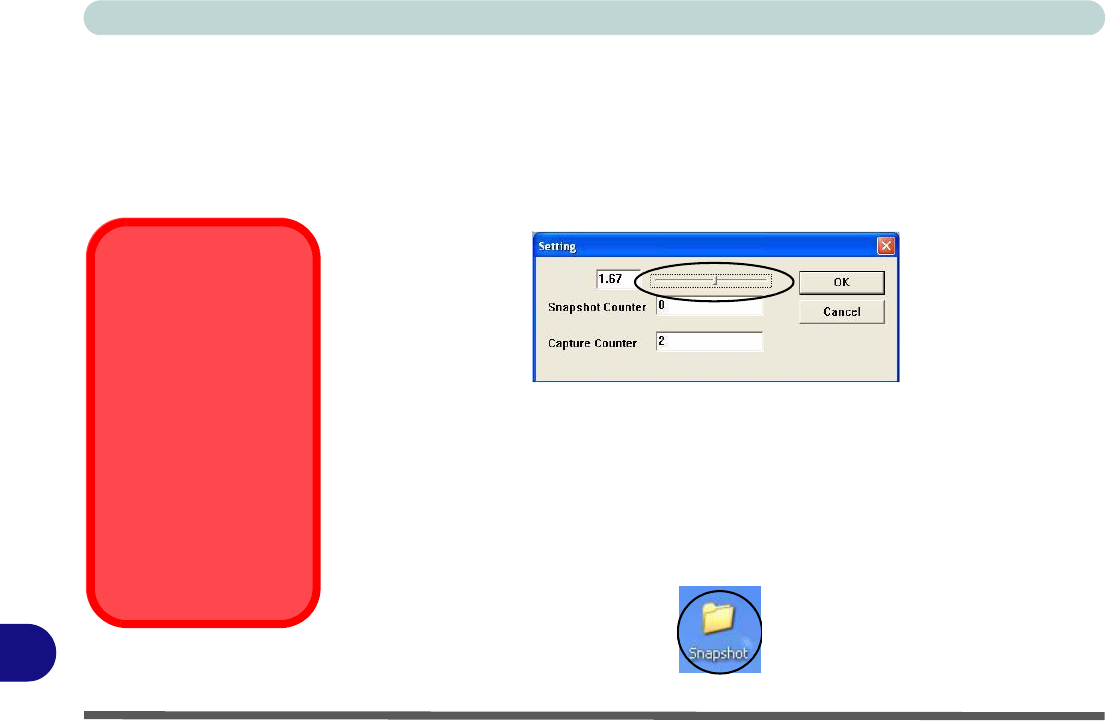

Figure 7 - 4

Setting



Snapshot Folder

The Snapshot folder’s

default location is on the

desktop. Do not move

this folder or an error

may appear when you

try to take a still picture.

If you accidentally de-

lete or move the folder,

you can create a new

Snapshot folder on the

desktop in order to cap-

ture the files.

Figure 7 - 5

Snapshot Folder

Modules & Options

802.11 b/g USB WLAN Module 7 - 11

802.11 b/g USB WLAN Module

If you have included an 802.11b/g USB Wireless LAN module in your purchase op-

tion, you will have the appropriate software provided for your module.

Before installing the 802.11b/g USB WLAN driver, make sure that the Wireless

LAN module is on. Use the Fn + F11 key combination (see “Function Keys” on

page 1 - 10) to toggle power to the Wireless LAN module. Make sure you install

the drivers in the order indicated in Table 4 - 1, on page 4 - 3.

802.11 b/g WLAN Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers &

Utilities + User’s Manual CD-ROM into the CD/DVD drive.

2. Click Optional (button).

3. Click 2.Wireless Lan > Yes.

4. Click Finish to complete the installation.

5. The operating system is the default setting for Wireless LAN control in

Windows Vista (see overleaf).



Wireless Device

Operation Aboard

Aircraft

The use of any portable

electronic transmission de-

vices aboard aircraft is usu-

ally prohibited. Make sure

the module(s) are OFF if

you are using the computer

aboard aircraft.

Use the Fn + F11 key com-

bination to toggle power to

the WLAN module, and

check the indicator to see if

the module is powered on

or not (see Table 1 - 5, on

page 1 - 10/Table 1 - 2, on

page 1 - 7).

Modules & Options

7 - 12 802.11 b/g USB WLAN Module

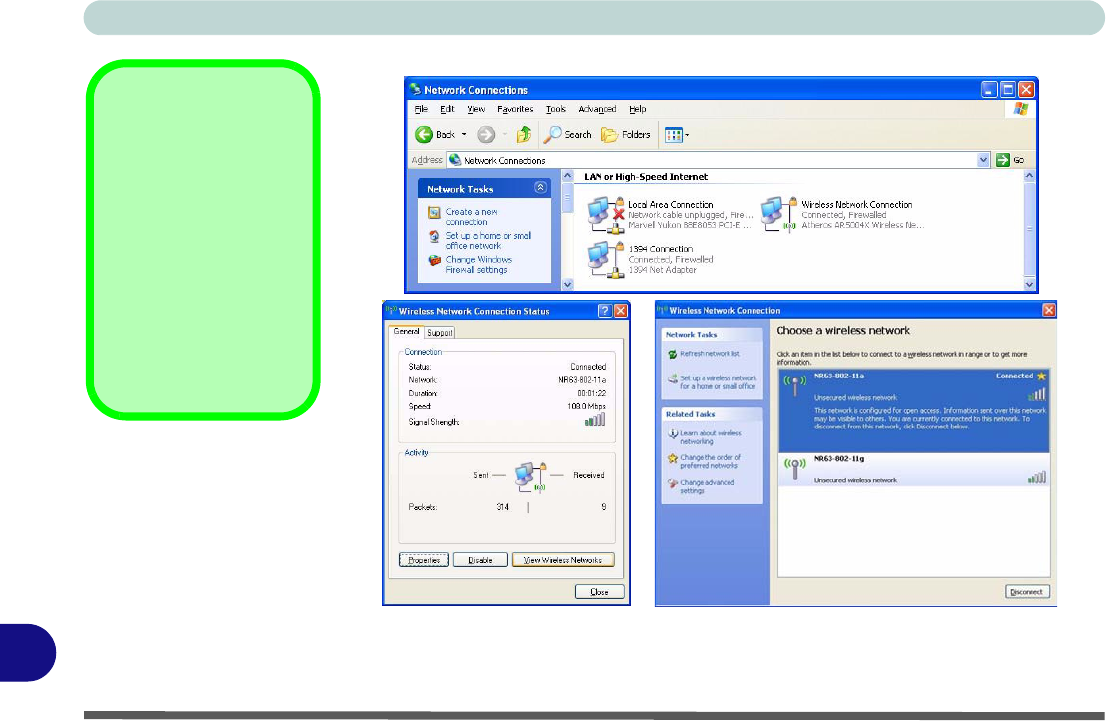

Connecting to a Wireless Network

Make sure the Wireless LAN module is turned on.

1. Click the taskbar wireless icon , and then click Connect to a network (or right-

click the icon , and then click Connect to a network).

2. In the Show list, click to choose Wireless from the drop-down menu.

3. A list of currently available networks will appear.

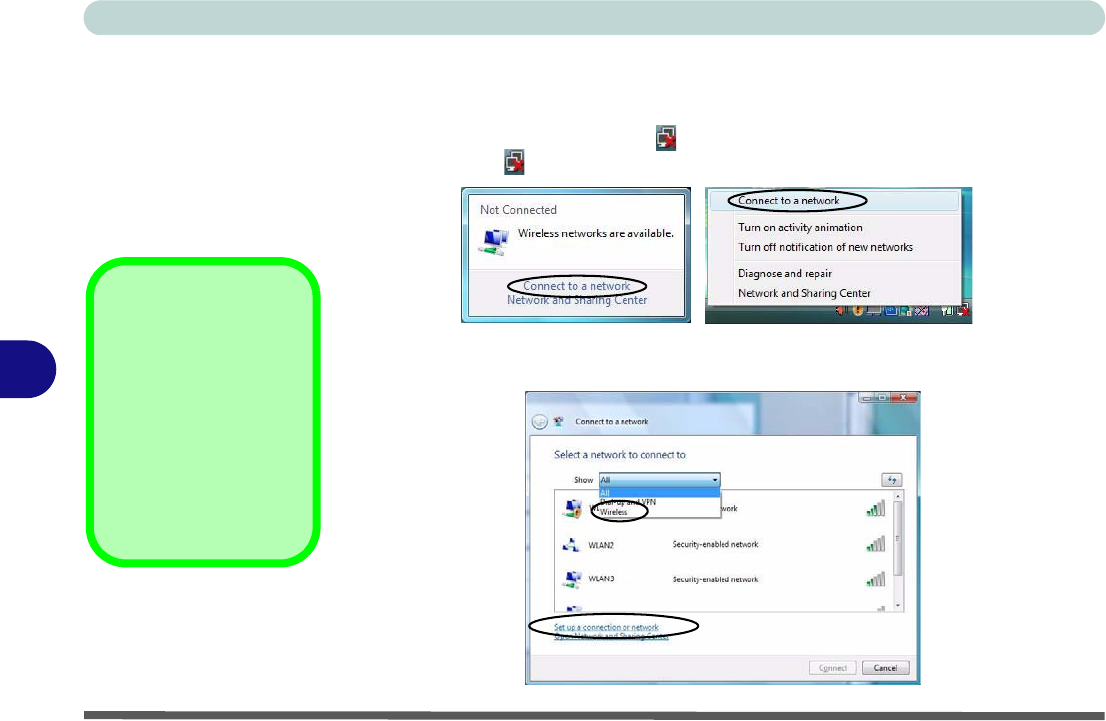

Figure 7 - 6

Taskbar Menus



Network and

Sharing Center

You can also use the

Network and Sharing

Center control panel in

Windows (Network and

Internet) to connect to

any available wireless

networks.

Figure 7 - 7

Connect to a

Network

Click icon Right-click icon

Modules & Options

802.11 b/g USB WLAN Module 7 - 13

4. Click a network, and then click Connect.

5. If you do not see a network you want to connect to, click Set up a connection or

network (a list of options will appear allowing manual searching, and creating a

new network).

6. Move the cursor over the taskbar icon to see the connection status (see below).

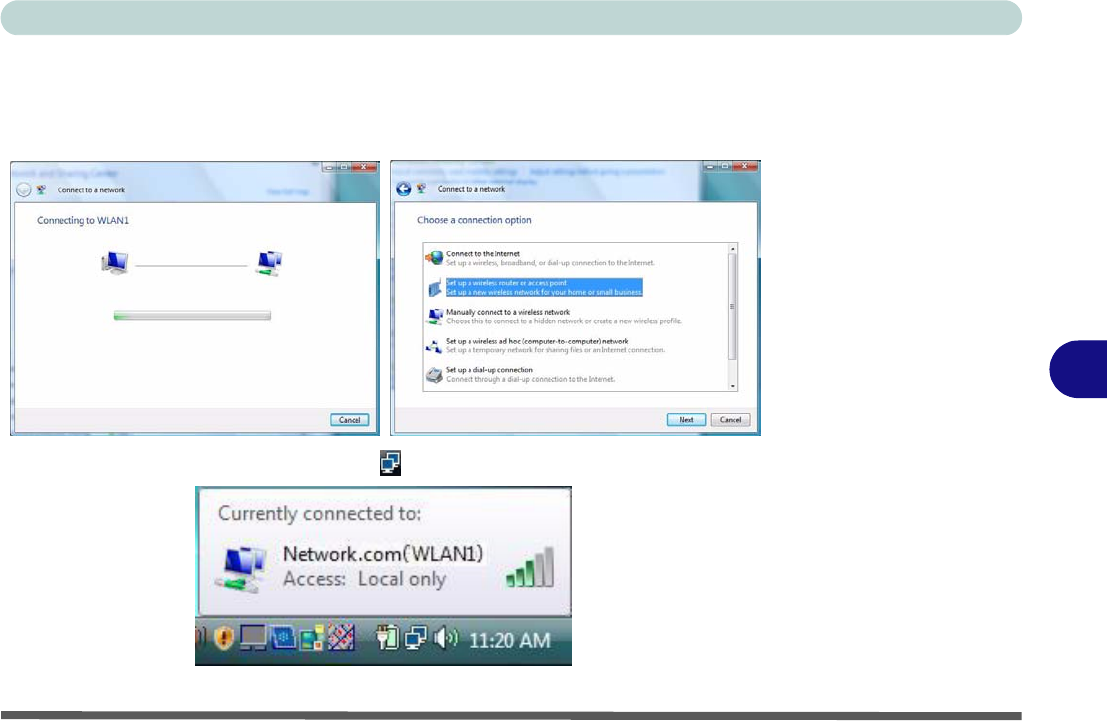

Figure 7 - 8

Connecting

Figure 7 - 9

Connection Status

Modules & Options

7 - 14 802.11 b/g USB WLAN Module

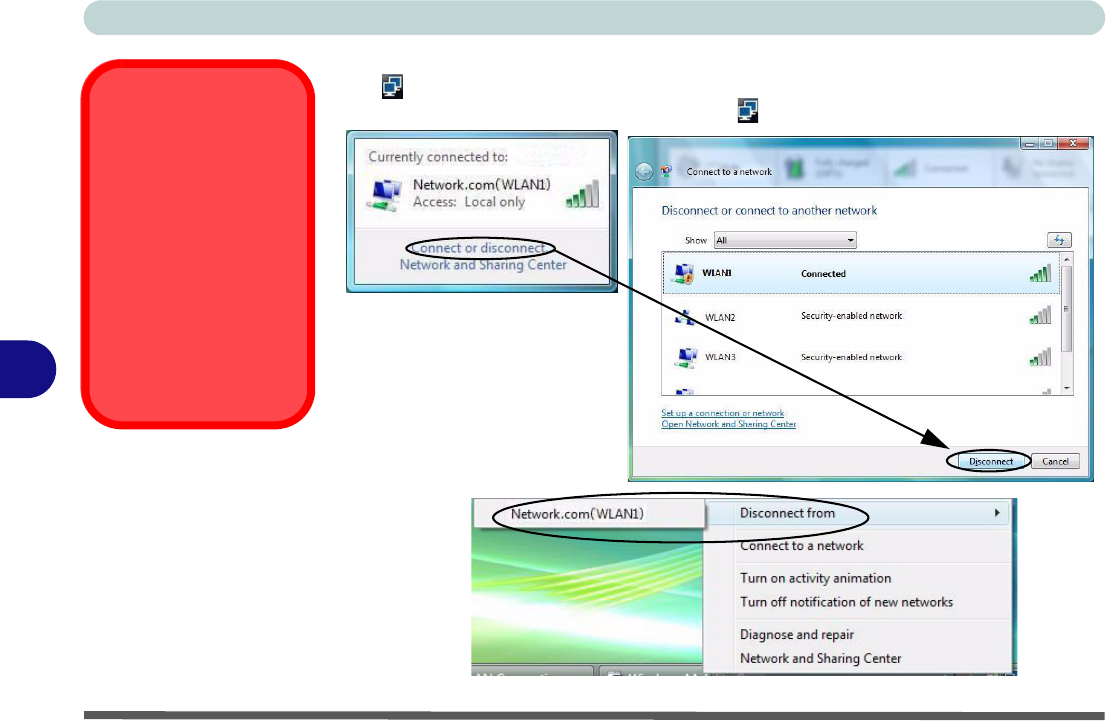

7. To disconnect from the wireless network you can click the taskbar wireless icon

, and then select Connect or disconnect to access the network menu, and

click Disconnect (or right-click the icon , and then click Disconnect from).



Security Enabled

Networks

You should try to make

sure that any network you

are connecting to is a se-

cure network.

Connecting to unsecure net-

works may allow unautho-

rized access to your

computer, documents, web-

sites and files etc.

Figure 7 - 10

Disconnecting

Click icon

Right-click icon

Modules & Options

802.11 b/g USB WLAN Module 7 - 15

Windows Mobility Center

The Windows Mobility Center control panel provides an easy point of access for

information on battery status, power plans used and wireless device status etc.

To access the Windows Mobility Center:

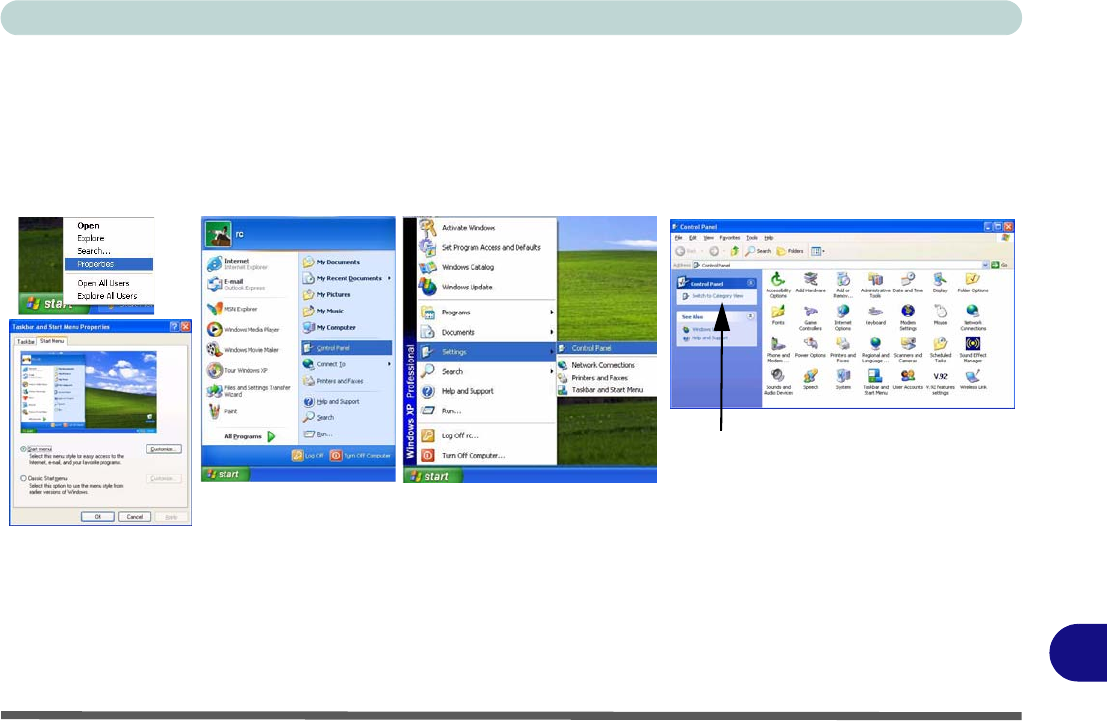

1. Click Start, and click Control Panel (or point to Settings and click Control

Panel).

2. Double-click Windows Mobility Center (Mobile PC).

3. Click the button to Turn wireless off/on, or click the icon to access the network

menu.

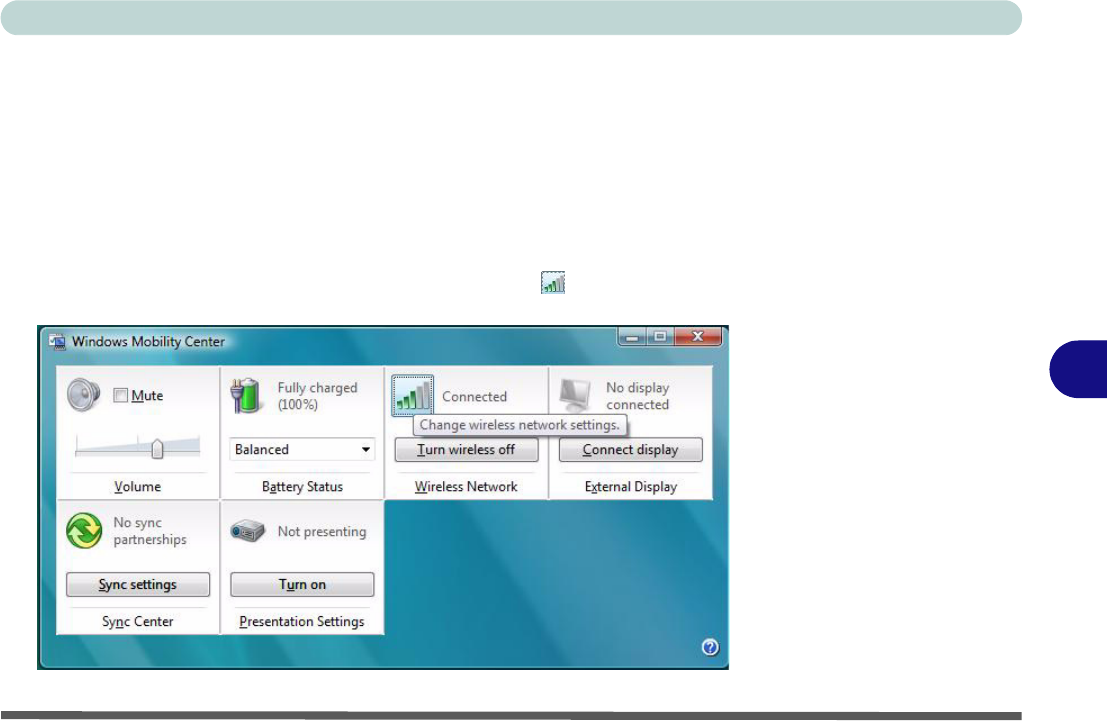

Figure 7 - 11

Windows Mobility

Center

Modules & Options

7 - 16 Bluetooth Module

Bluetooth Module

Before installing the Bluetooth driver, make sure that the optional Bluetooth mod-

ule is on. Use the Fn + F12 key combination (see “Function Keys” on page 1 - 10)

to toggle power to the Bluetooth module. Make sure you install the drivers in the

order indicated in Table 4 - 1, on page 4 - 3.

Bluetooth Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers &

Utilities + User’s Manual CD-ROM into the CD/DVD drive.

2. Click Optional (button).

3. Click 3.Bluetooth > Yes.

4. Choose the language you prefer, and click OK > Next.

5. Click the button to accept the license agreement, and then click Next.

6. Click Next > Install.

7. Click Finish, and the BlueSoleil icon will appear on the desktop.

8. You can configure the settings at any time by going to the IVT Corpora-

tion BlueSoleil - Main Window (Start > Programs/All Programs > IVT

BlueSoleil > BlueSoleil), or by clicking the desktop icon .



Wireless Device

Operation Aboard

Aircraft

The use of any portable

electronic transmission de-

vices aboard aircraft is usu-

ally prohibited. Make sure

the module(s) are OFF if

you are using the computer

aboard aircraft.

Use the Fn + F12 key com-

bination to toggle power to

the Bluetooth module, and

check the indicator to see if

the module is powered on

or not (see Table 1 - 5, on

page 1 - 10/ Table 1 - 3, on

page 1 - 7).

Modules & Options

Bluetooth Module 7 - 17



User Guides & Help

View the BlueSoleil

User Guides from the

Help Menu (or press the

F1 key) in the IVT Cor-

poration BlueSoleil -

Main Window control

panel.

Click the Help menu

and select Contents

and Index.

Look through Getting

Started or select the ap-

propriate User Guide

from the Contents

menu.

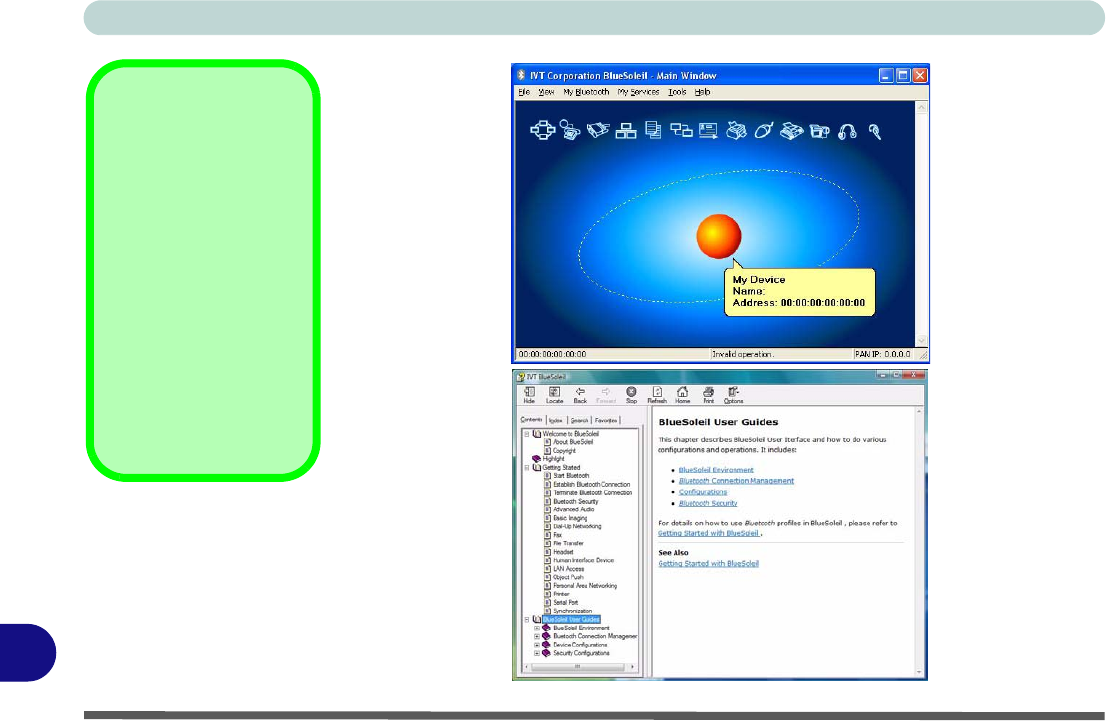

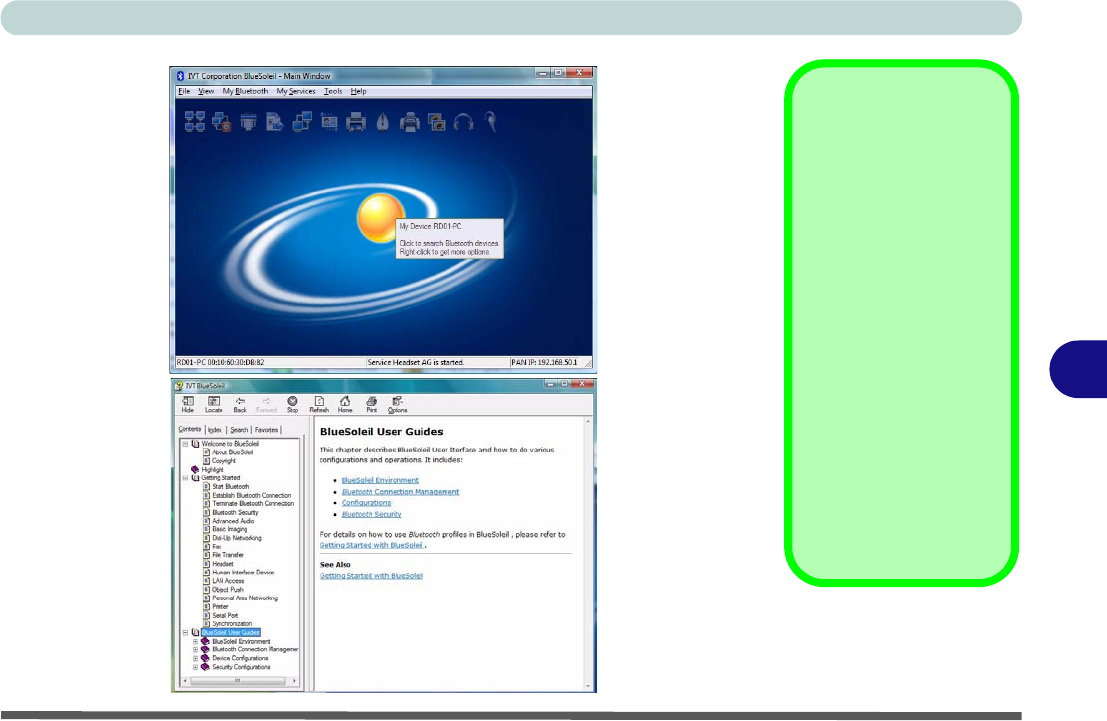

Figure 7 - 12

BlueSoleil Main

Window & Help

Modules & Options

7 - 18 Bluetooth Module

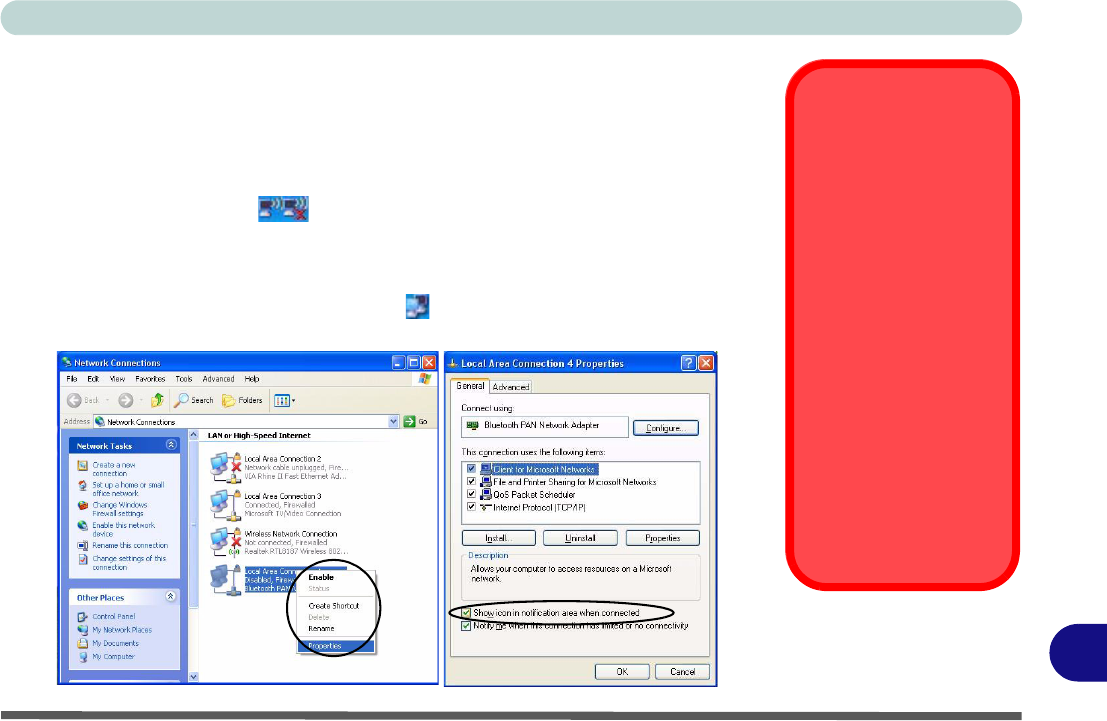

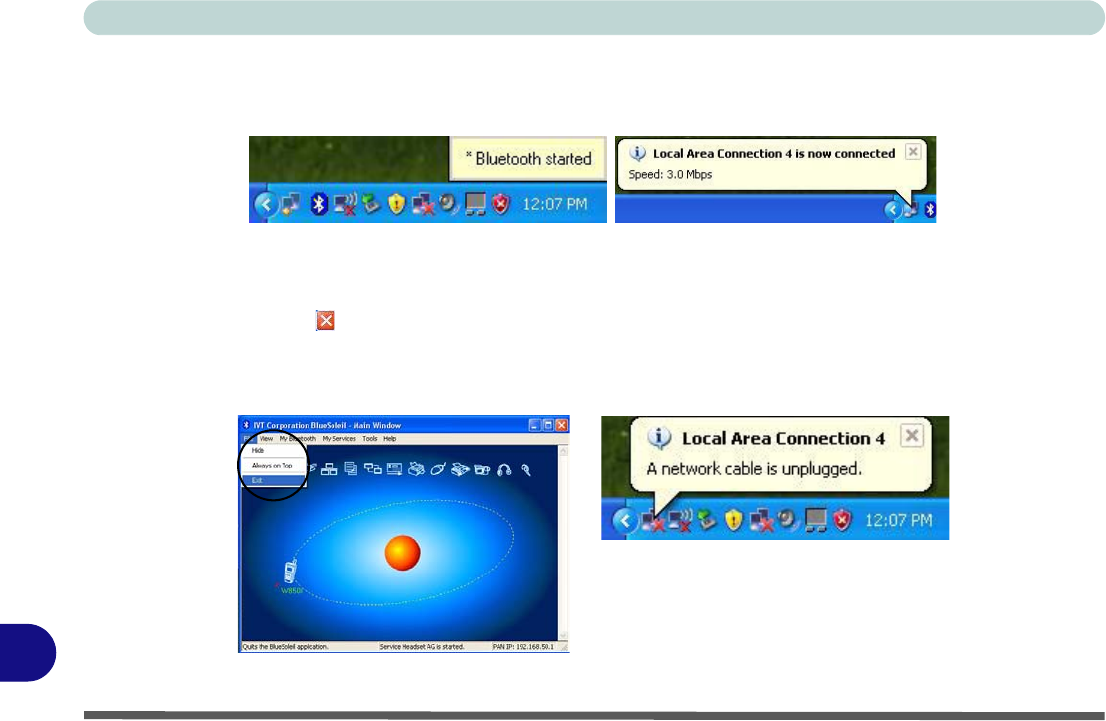

Bluetooth Local Area Connection

You can check the Bluetooth connection status from the Network and Sharing

Center:

1. Use the Fn + F12 key combination to turn on the Bluetooth module.

2. Run the

IVT Corporation BlueSoleil

program from the desktop icon or

Start

menu.

3. Click

Start

, and click

Control Panel

(or point to

Settings

and click

Control Panel

4. Double-click Network and Sharing Center (Network and Internet).

5. Click Manage network connections.

6. The Bluetooth connection status will then be displayed in the control panel.

7. To disconnect click File from the IVT Corporation BlueSoleil - Main Window,

and select Exit (the Local Area Connection will then display “Network cable

unplugged”).



Disconnecting

In order to have the Local

Area Connection icon dis-

play the correct connection

status, you will need to exit

the IVT Corporation Blue-

Soleil - Main Window by

clicking the File menu and

selecting Exit (see over).

After exiting the program

you can then use the Fn +

F12 key combination to

turn off the Bluetooth mod-

ule.

If you use the close button,

or turn off the Bluetooth

module (by using the Fn +

F12) the icon will not dis-

play the correct status

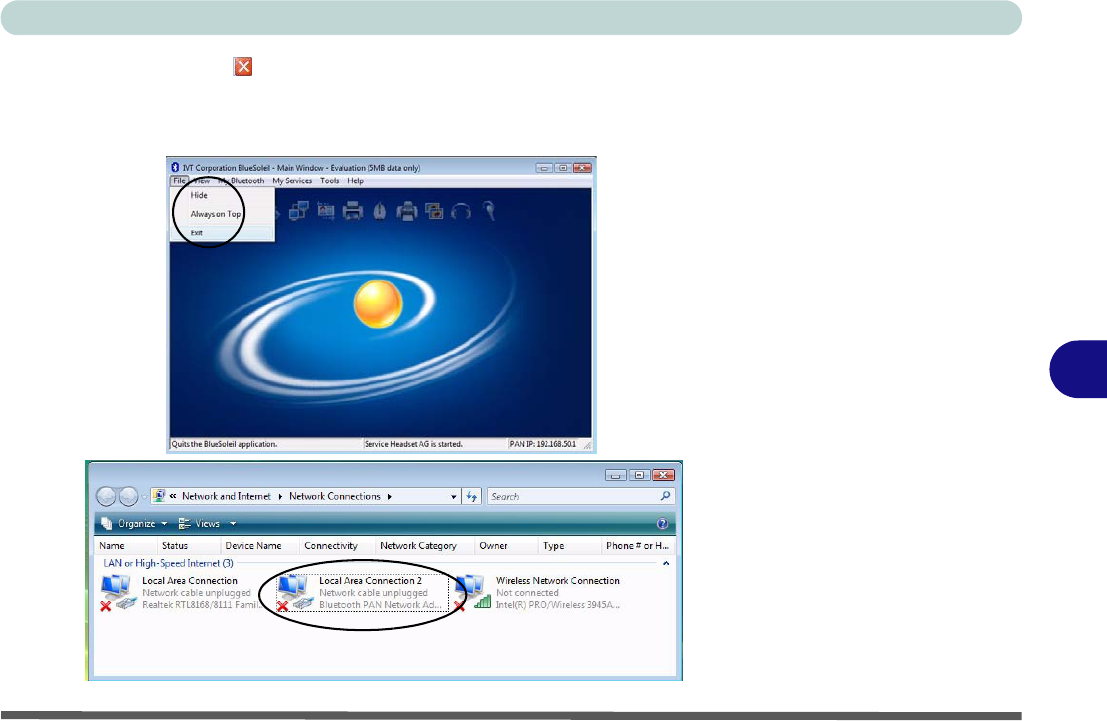

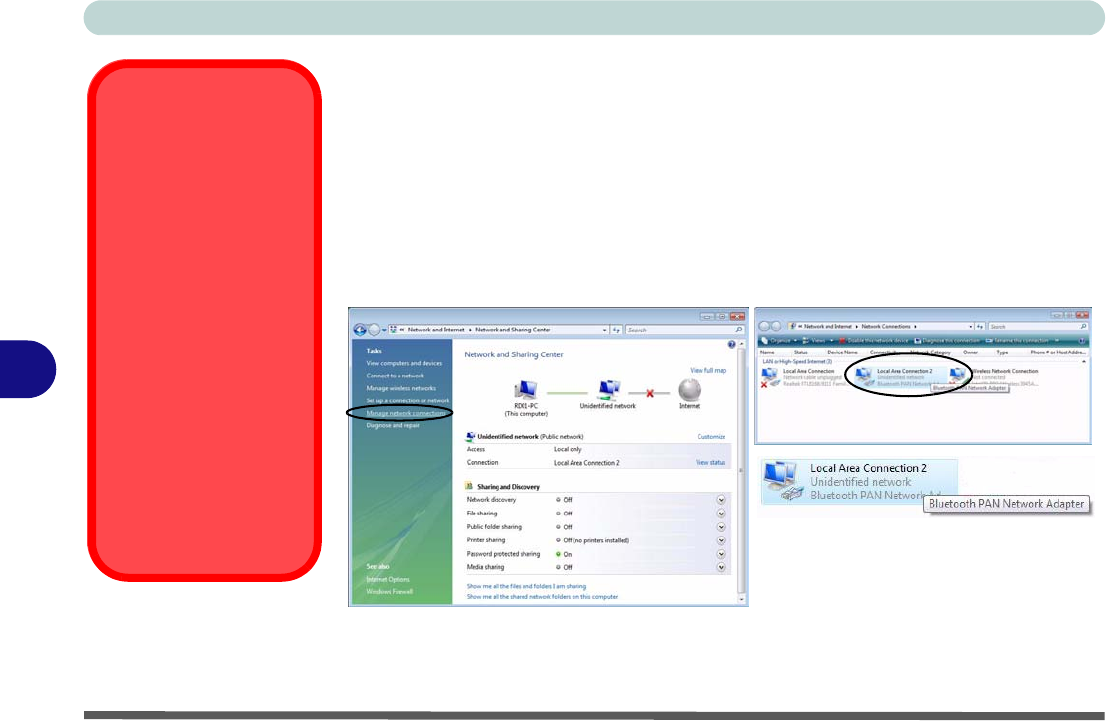

Figure 7 - 13

Local Area

Connection

Modules & Options

Bluetooth Module 7 - 19

8. Do not use the close button or Fn + F12 key combination before clicking File >

Exit or the correct status will not be displayed.

9. You can then use the Fn + F12 key combination to turn off the Bluetooth module

(check the LED icon for the Bluetooth module power status).

Figure 7 - 14

Bluetooth

Disconnected

Modules & Options

7 - 20 3.5G Module

3.5G Module

If you have included an optional 3.5G module (see “Communication” on page A -

3 for specification details) in your purchase option, you will have the appropriate

software provided for your module. Follow the instructions below to install the SIM

card (which will be provided by your service provider), and then install the applica-

tion.

Before installing the application, make sure that the 3.5G module is on. Use the Fn

+ _() key combination (see “Function Keys” on page 1 - 10) to toggle power

to the 3.5G module. Make sure you install the drivers in the order indicated in

Table 4 - 1, on page 4 - 3.

1. Turn off the computer, and turn it over and remove the battery.

2. Locate the hard disk bay cover and remove screws & .

3. Remove the hard disk bay cover .

4. Grip the tab and slide the hard disk in the direction of arrow to remove it.



Power Safety

Warning

Before you undertake

any installation proce-

dures, make sure that

you have turned off the

power, and disconnect-

ed all peripherals and

cables (including tele-

phone lines). It is advis-

able to also remove your

battery in order to pre-

vent accidentally turning

the machine on.

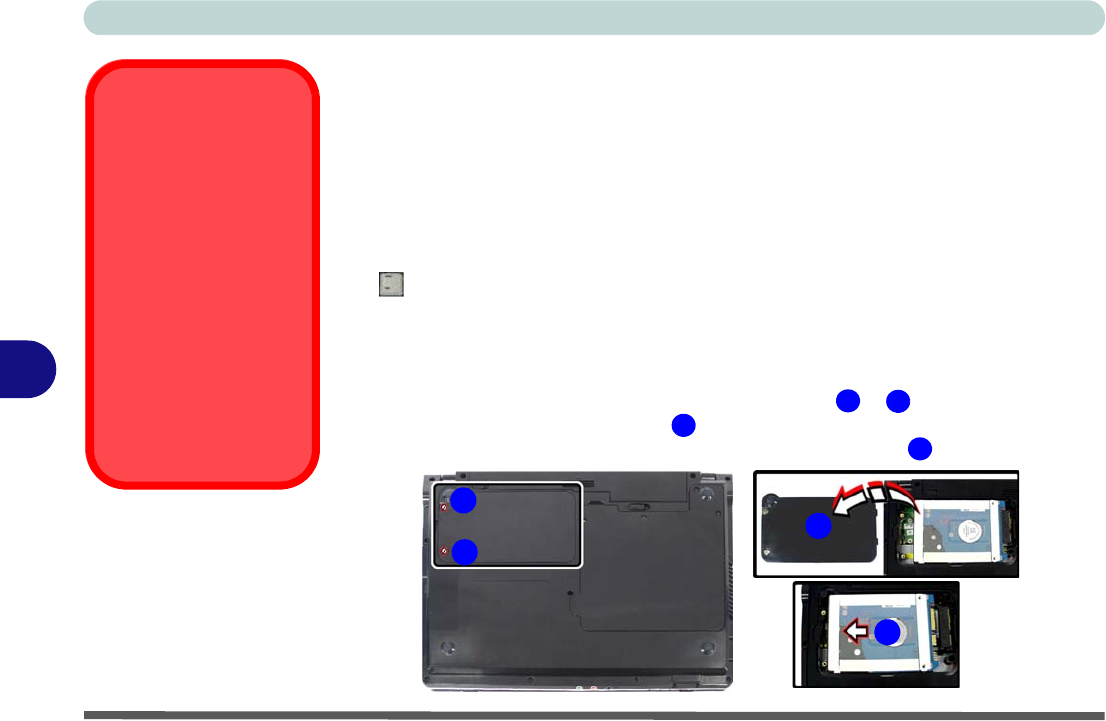

Figure 7 - 15

Hard Disk Removal

Modules & Options

3.5G Module 7 - 21

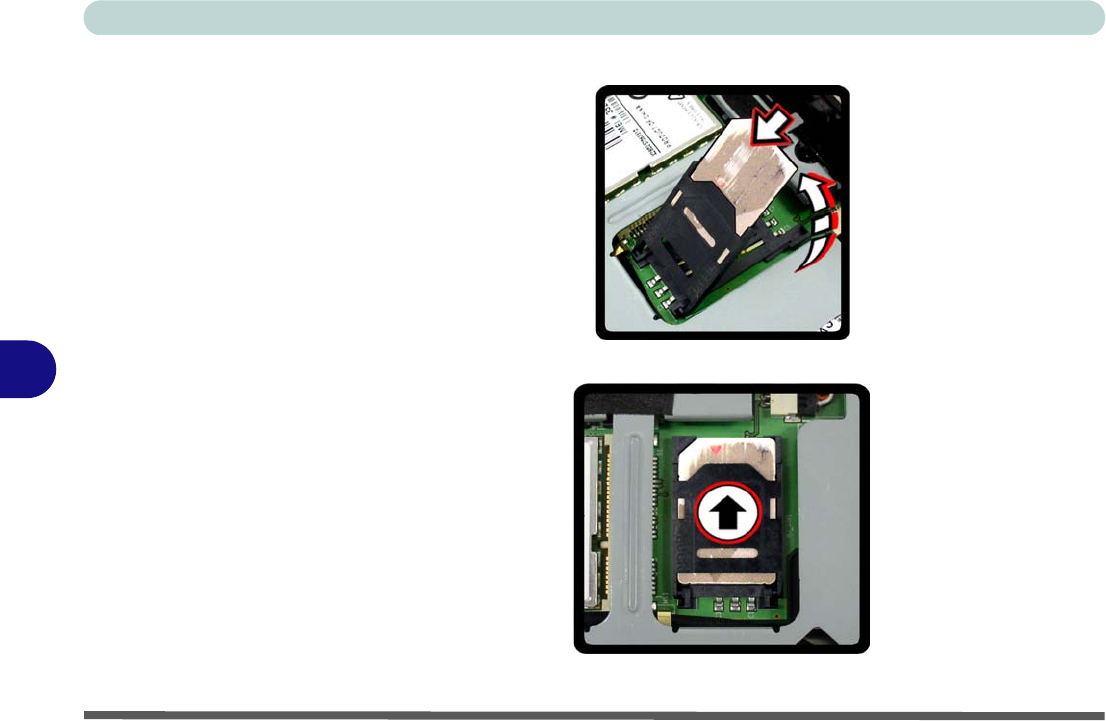

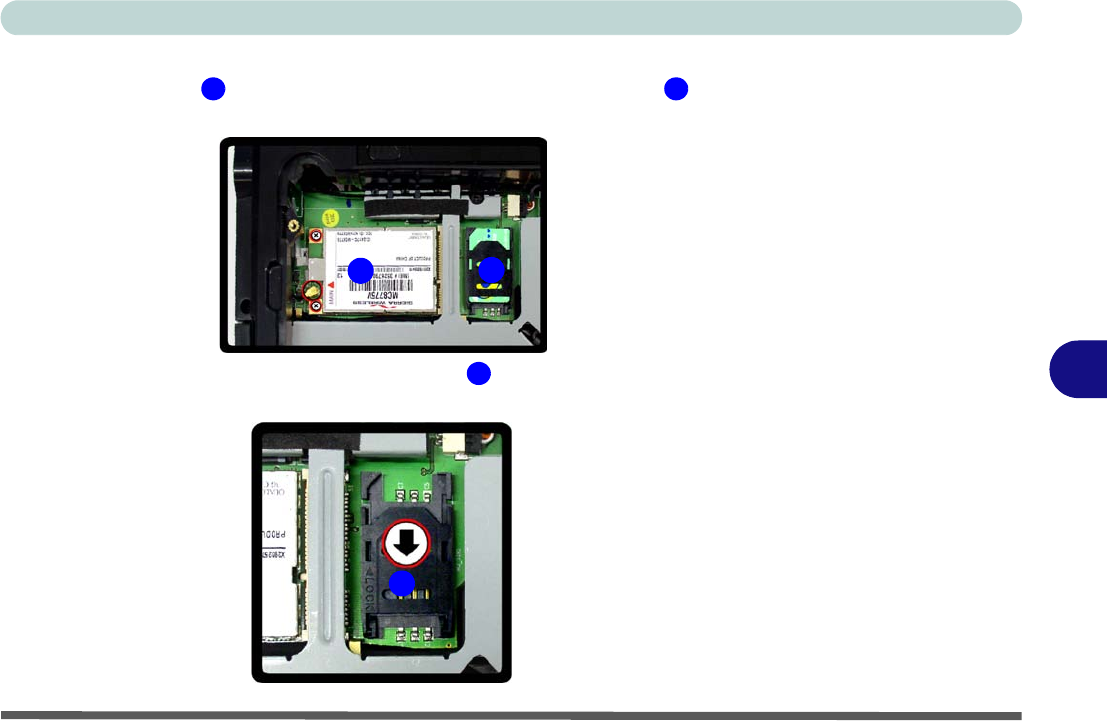

5. Insert the SIM card as you would into your mobile phone.

6. The 3.5G module is pictured on the left, and the installed SIM card on the

right in Figure 7 - 16.

7. Slide the SIMLOCK in the direction of the arrow (Figure 7 - 17) in order to

release the lock and lift it up.

Figure 7 - 16

Module and SIM

Card Location

Figure 7 - 17

SIMLOCK Unlock

5 6

Modules & Options

7 - 22 3.5G Module

8. Insert the SIM card as illustrated in (Figure 7 - 18) and close the SIMLOCK.

9. Close the SIMLOCK by pushing it in the direction of the arrow in Figure 7 - 19.

10. Replace the hard disk assembly, cover, screws and battery etc.

Figure 7 - 18

Insert the SIM Card

Figure 7 - 19

SIMLOCK Lock

Modules & Options

3.5G Module 7 - 23

3G Watcher Application

With the 3.5G module and SIM card (provided by your service provider) installed

you may then install the 3G Watcher application. The 3.5G Watcher application al-

lows you to directly access your 3.5G internet service from the computer.

3G Watcher Application Installation

1. Make sure the module is powered on, and then insert the Device Drivers &

Utilities + User’s Manual CD-ROM into the CD/DVD drive.

2. Click Optional (button).

3. Click 4.3GWatcher > Yes.

4. Click Next.

5. Choose your region, and click Next.

6. Click the button to accept the license agreement, and then click Next.

7. Click Next > Install.

8. Click Finish, and the 3G Watcher icon will appear on the desktop.

9. You can access the 3G Watcher application from the Start menu (Start >

Programs/All Programs > Sierra Wireless > 3G Watcher), or by clicking

the desktop icon .

10. Make sure you enable power to the module by pressing the Fn + _( ) key

combination (the icon will be green).



Wireless Device

Operation Aboard

Aircraft

The use of any portable

electronic transmission de-

vices aboard aircraft is usu-

ally prohibited. Make sure

the module(s) are OFF if

you are using the computer

aboard aircraft.

Use the Fn + _ () key

combination to toggle pow-

er to the 3.5G module, and

check the indicator to see if

the module is powered on

or not (see Table 1 - 3, on

page 1 - 7/Table 1 - 5, on

page 1 - 10).

Modules & Options

7 - 24 3.5G Module

Connecting to the Service Provider

1. Power on the 3.5G module using the Fn + _() key combination (the icon

will be green).

2. You can access the 3G Watcher application from the Start menu (Start >

Programs/All Programs > Sierra Wireless > 3G Watcher), or by clicking the

desktop icon .

3. The software will run and display the service provider name (connection

information is obtained from the SIM card).

4. Click Connect to begin the connection process.

5. The 3G Watcher application will then display the connection information in the

window.



3G Watcher Online

Help

For further details on the

3G Watcher application

you can access the On-

line Help from the Help

> Help Topics menu.

Click on any topic from

the Contents window to

display details.

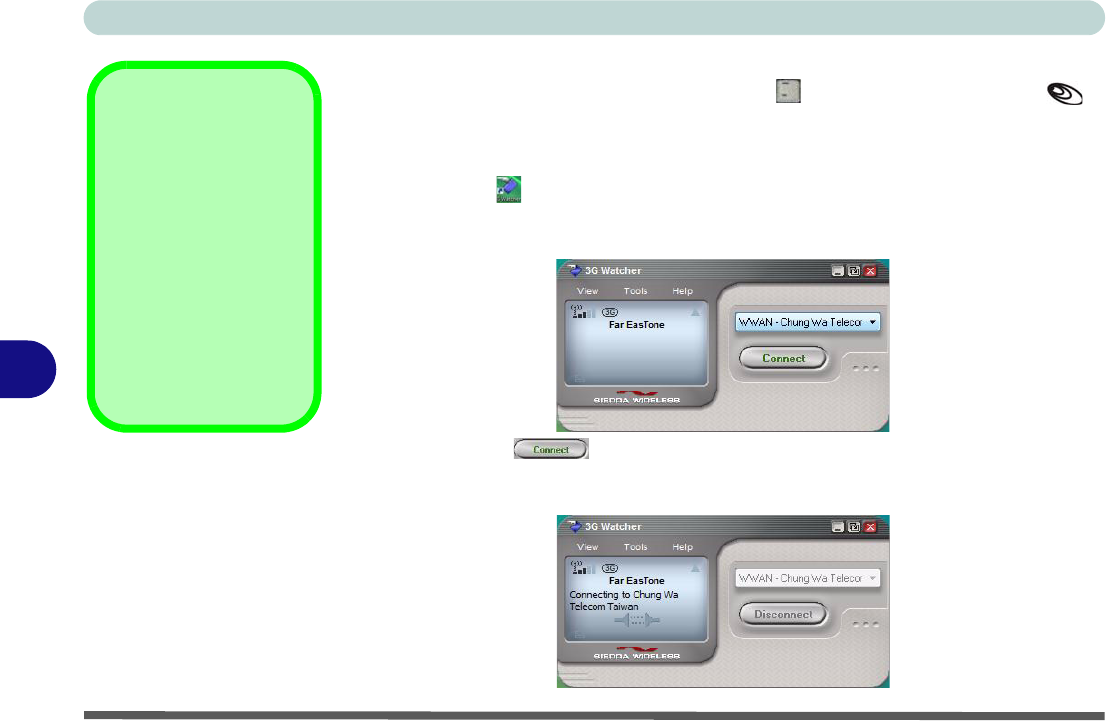

Figure 7 - 20

3G Watcher

Figure 7 - 21

Connecting

Modules & Options

3.5G Module 7 - 25

6. When the connection is successful a taskbar notification will appear (as below).

7. You can then access the internet, download e-mail etc. as per any internet

connection.

8. While you are connected the taskbar icon will be green (it will be red when

the program is running but not connected).

9. To disconnect click the Disconnect icon.

10. The program will disconnect from the service provider.

11. The module will still be on, and you will need to press the Fn + _() key

combination (the icon will be off when disconnected).

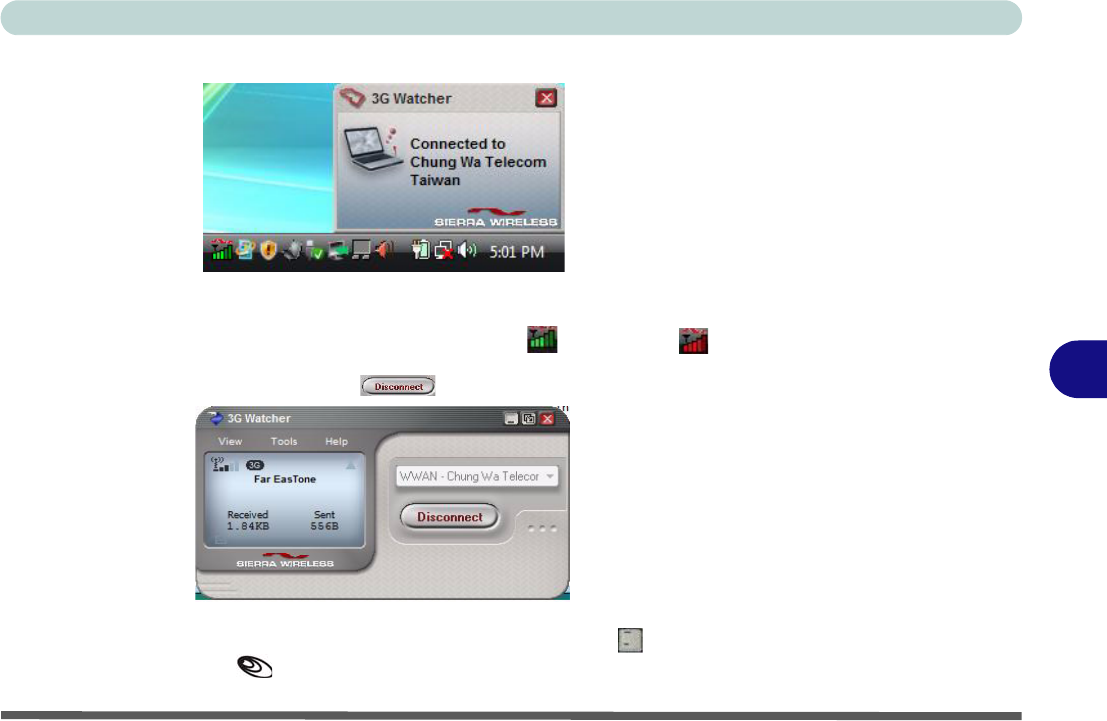

Figure 7 - 22

Connected

Taskbar

Notification

Figure 7 - 23

3GWatcher

Connected

Modules & Options

7 - 26 3.5G Module

12. If you click the 3G Watcher close icon a message will be displayed asking you

to click OK to confirm the program exit.

13. Exiting the program DOES NOT turn off the 3.5G module, and you will need to press

the

Fn + _

()

key combination to turn off the module (pay careful attention to this

aboard aircraft - see

“Wireless Device Operation Aboard Aircraft” on page 7 - 23

14. If the module is on and the computer enters a power-saving state, then the power

status of the module on resuming from the power-saving state will be as below:

• If the 3.5G module is on and the computer is Shut Down; the module will be off

when the computer starts up.

• If the 3.5G module is on and the computer enters Sleep; the module will be on

when the computer resumes from sleep.

• If the 3.5G module is on and the computer enters Hibernate; the module will be

off when the computer starts up.

• If the 3.5G module is on and you Restart the computer; the module will be on

when the computer starts up.

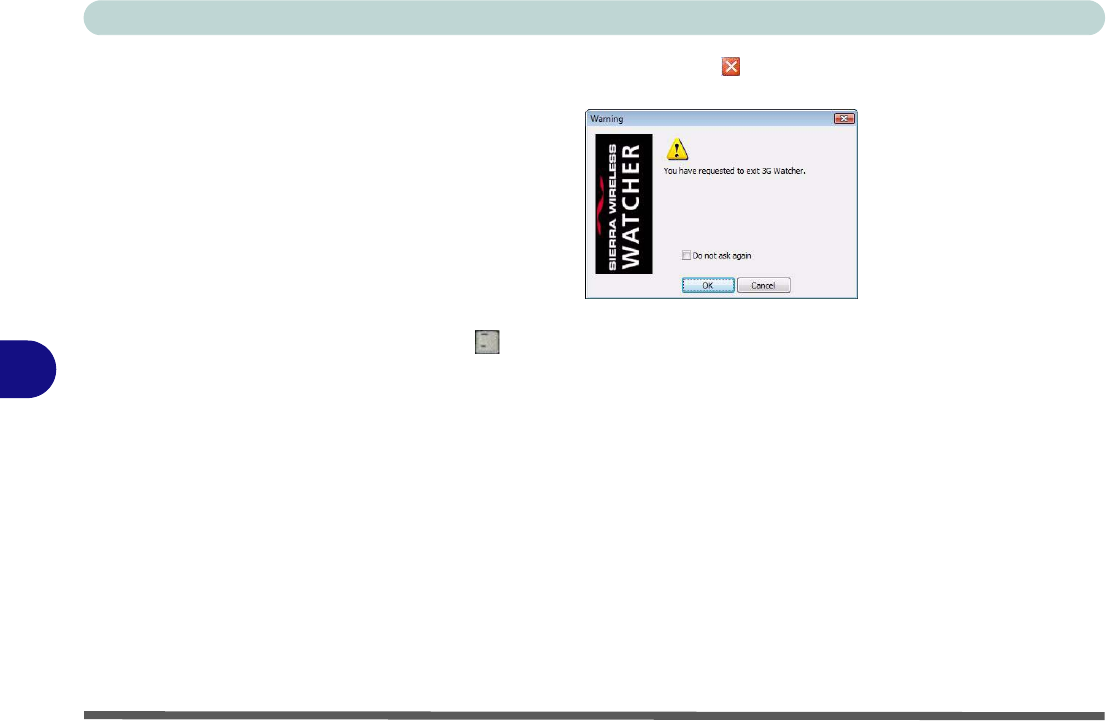

Figure 7 - 24

Exit Warning

Modules & Options

3.5G Module 7 - 27

Short Messaging Service

In addition to standard internet services you may also send and receive SMS text

messages using the 3G Watcher program.

Reading SMS Messages

1. The SMS message indicator in the main window will notify you of any new

messages received.

2. Double-click the icon or select Tools > SMS Express.

3. Select the inbox folder and select any message to read it.

4. You cannot receive any new messages if the SIM card becomes full so you will

need to delete some of the messages in order to fee up space on the SIM card.

Creating and Sending SMS Messages

1. Double-click the icon or select Tools > SMS Express.

2. Select File > New Message or click the New button.

3. Enter the recipient’s number in the To.. field or click the To.. button to select an

entry from the phone book, and click the Message button.

4. Type in the message details in the message body area.

5. Click the Send button (or save the message to send later).

For more details on SMS see 3GWatcher Online Help from the Help > Help Top-

ics menu.

Modules & Options

7 - 28 Fingerprint Reader Module

Fingerprint Reader Module

If you have included the fingerprint reader in your purchase option you will need to

install the driver as per the instructions below.

Make sure you have administrator’s rights to your computer, and have a Windows

password enabled for full security protection.

Before beginning the enrollment process it is recommended that you go through the

fingerprint tutorial. To run the tutorial click Start > Programs/All Programs >

Protector Suite QL > Fingerprint Tutorial after installing the driver.

Fingerprint Reader Driver Installation

1. Insert the Device Drivers & Utilities + User’s Manual CD-ROM into the

CD/DVD drive.

2. Click Optional (button).

3. Click 5.Fingerprint > Yes.

4. Click Software Installation.

5. Click Next > Next > Next.

6. Click Finish > Yes to restart the computer.



Help & Manual

Right-click the taskbar icon

to bring up the menu to

select

Help

Insert the Device Drivers &

Utilities + User’s Manual

CD-ROM and click Option-

al (button). Click Unlock

(button) and then click

5.Fingerprint > Yes.

Click

Documentation

open the folder containing

the manual in .pdf format.

To install the Adobe Acrobat

Reader software to read the

file, i

nsert the Device Driv-

ers & Utilities + User’s Man-

ual CD-ROM and click

User’s Manual (button),

and click Install Acrobat

Reader (button).

Modules & Options

Fingerprint Reader Module 7 - 29

User Enrollment

1. Click Start > Programs/All Programs > Protector Suite QL > User Enrollment,

or double click the taskbar icon .

2. On the first run of the program you will be asked to click the button to accept the

license, and then click OK.

3. Click Next and select “Enrollment to the hard disk”, and click Finish.

4. If you have not set a Windows password you will be prompted to do so (note: If

you have not set a password Protector Suite QL cannot secure access to your

computer).

5. Click Next.

6. You will then be prompted to enter your Windows password.

7. Click Next > Next (if you have the “Run interactive tutorial” tickbox selected you

will run through the Fingerprint Tutorial).

8. Click Next for each window of the tutorial (you can click the button to “skip

tutorial” at any time).

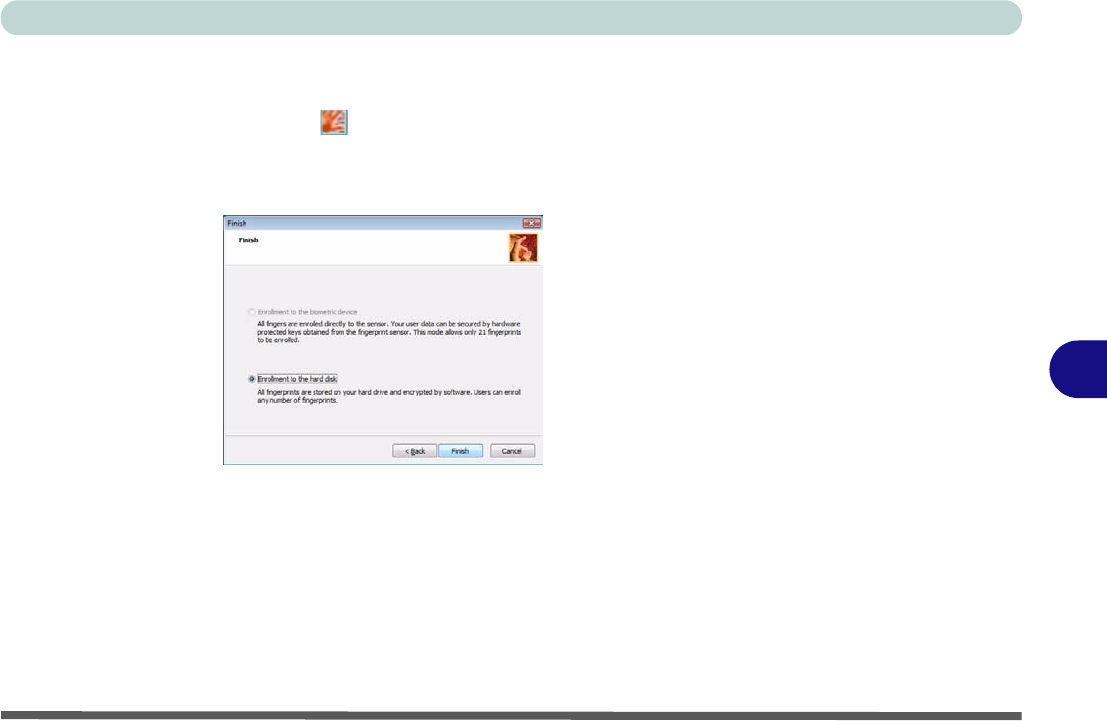

Figure 7 - 25

Enroll to Hard Disk

Modules & Options

7 - 30 Fingerprint Reader Module

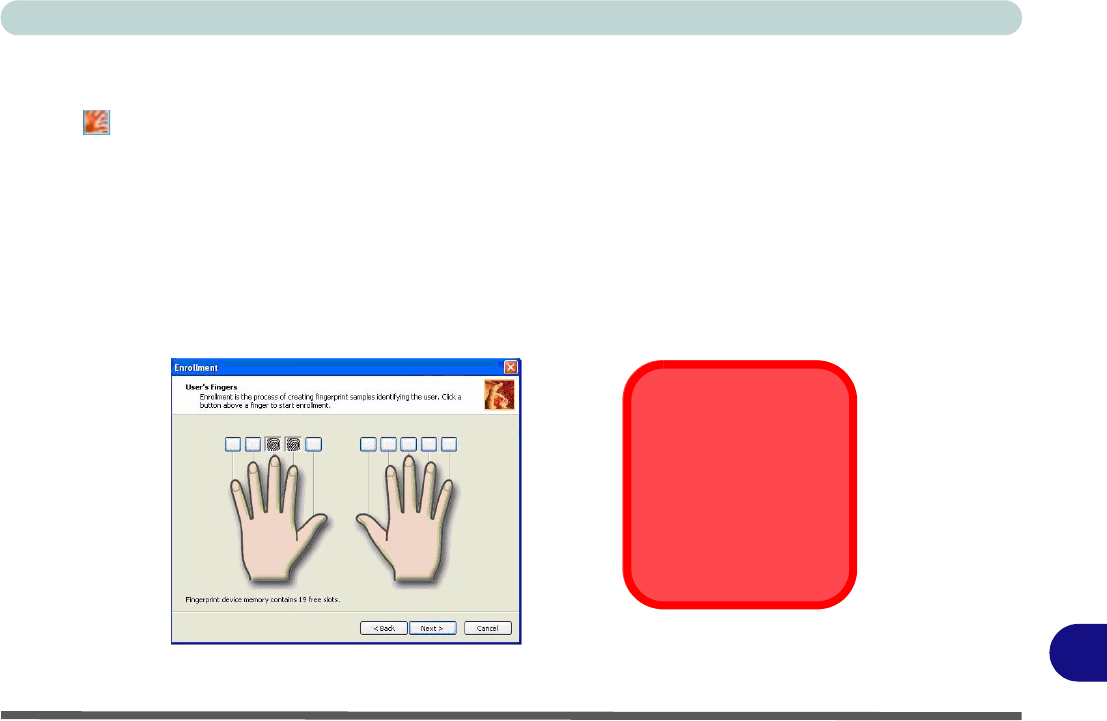

9. Click the button above any of the fingers to begin the enrollment process for that

finger.

10. Swipe the finger three times to enroll that finger.

11. Repeat the process for all the fingers you wish to enroll (see sidebar), and then

click Next.

12. Click Finish.

13. Click any of the headings under “Learn more about:” to get more information on

any topic.

14. Click Close.

15. Restart the computer.

16. Right-click the taskbar icon to bring up the menu that allows you to Edit

Fingerprints, Start Control Center, access the Help menu etc. You can also run



Fingerprint

Enrollment

Note that it is strongly rec-

ommended that you enroll

more than one finger in

case of injury etc.

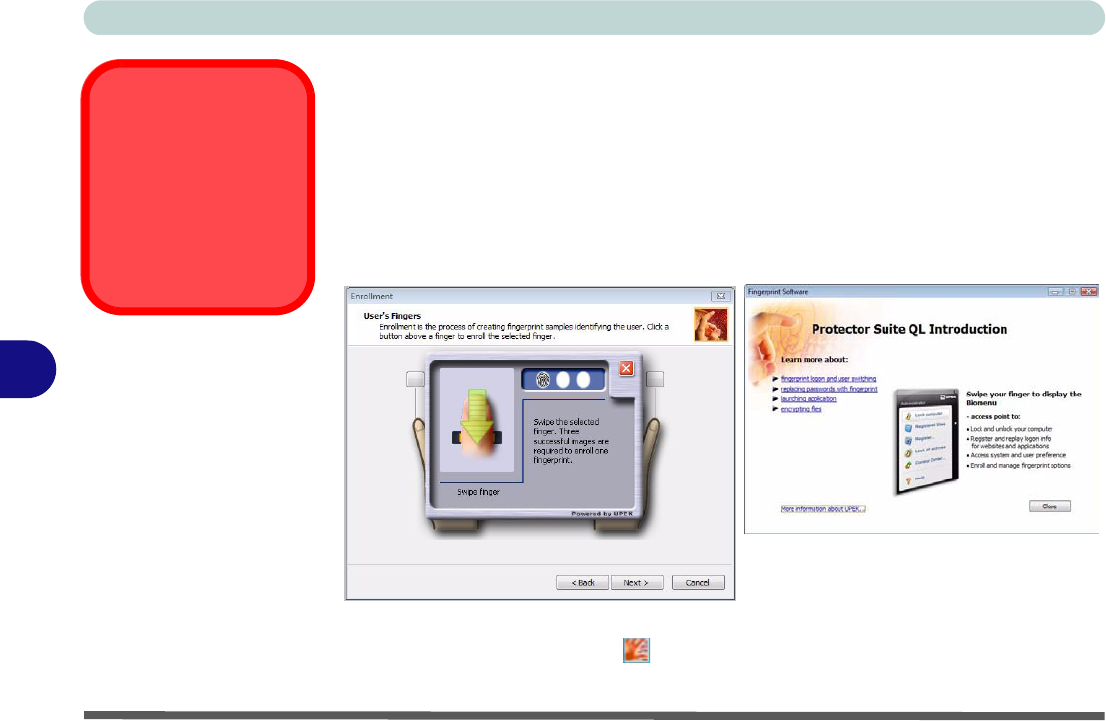

Figure 7 - 26

Fingerprint

Enrollment

Modules & Options

Fingerprint Reader Module 7 - 31

the Control Center etc. from the Protector Suite QL item in the Programs/All

Programs menu.

17. See “Help & Manual” on page 7 - 28 for further details.

18. If you swipe your finger over the reader at any time you can access the Biomenu

to lock the computer, register websites, open the Control Center and access

the Help menu.

19. The Control Center allows you to change the Settings, enroll Fingerprints and

get Help.

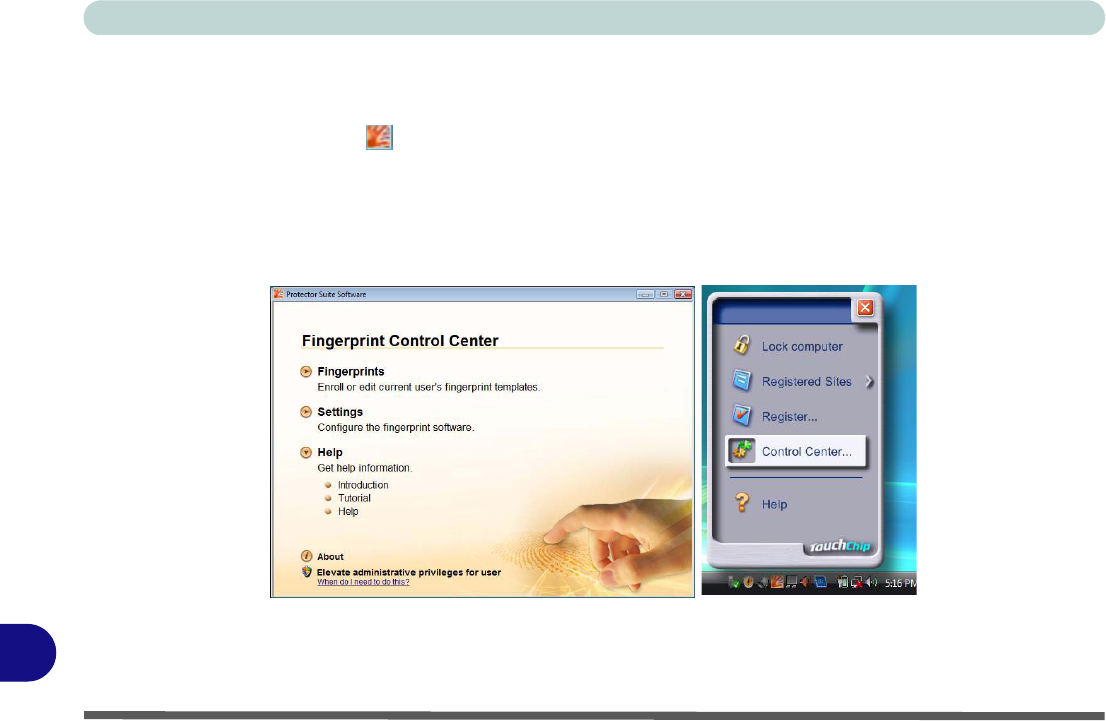

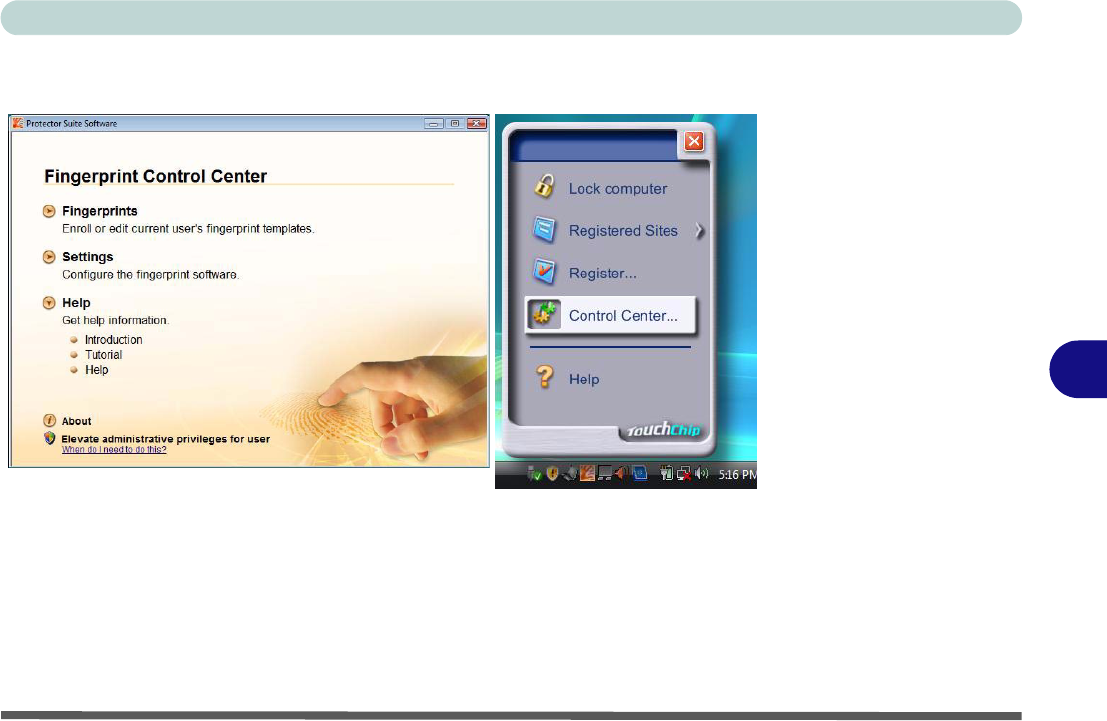

Figure 7 - 27

Control Center &

Biomenu

Troubleshooting

Overview 8 - 1

Chapter 8: Troubleshooting

Overview

Should you have any problems with your computer, before consulting your service representative, you may want

to try to solve the problem yourself. This chapter lists some common problems and their possible solutions. This

can’t anticipate every problem, but you should check here before you panic. If you don’t find the answer in these

pages, make sure you have followed the instructions carefully and observed the safety precautions in the preface.

If all else fails, talk to your service representative. You should also make a record of what happened and what

remedies you tried.

Of course, if something goes wrong, it will happen at the most inconvenient time possible, so you should preview

this section just in case. If, after you’ve tried everything, and the system still won’t cooperate, try turning it off

for a few minutes and then rebooting. You will lose any unsaved data, but it may start working again. Then call

your service representative.

Troubleshooting

8 - 2 Basic Hints and Tips

Basic Hints and Tips

Many of the following may seem obvious but they are often the solution to a problem when your computer ap-

pears not to be working.

•Power - Is the computer actually plugged into a working electrical outlet? If plugged into a power strip,

make sure it is actually working. Check the LED Power & Communication Indicators (see “LED Indica-

tors” on page 1 - 7) to see the computer’s power status.

•Connections - Check all the cables to make sure that there are no loose connections anywhere.

•Power Savings - Make sure that the system is not in Hibernate or Sleep mode by pressing the keys config-

ured in your Power Options (see “Power-Saving States” on page 3 - 6), the Fn + F4 key combination, or

power button to wake-up the system.

•Brightness - Check the brightness of the screen by pressing the Fn + F8 and F9 keys to adjust the bright-

ness.

•Display Choice - Press Fn + F7 to make sure the system is not set to “external only” display.

•Boot Drive - Make sure there are no optical media and/or USB storage devices in any connected drive

(this is a common cause of the message “Invalid system disk - Replace the disk, and then press any key” /

“Remove disks or other media. Press any key to restart”).

Troubleshooting

Backup and General Maintenance 8 - 3

Backup and General Maintenance

•Always backup your important data, and keep copies of your OS and programs safe, but close to hand.

Don’t forget to note the serial numbers if you are storing them out of their original cases, e.g. in a CD wal-

let.

• Run maintenance programs on your hard disk and OS as often as you can. You may schedule these pro-

grams to run at times when you are not using your computer. You can use those that are provided free with

your OS, or buy the more powerful dedicated programs to do so.

• Write down your passwords and keep them safe (away from your computer). This is especially important if

you choose to use a Supervisor password for the BIOS (see “The Power-On Self Test (POST)” on page 5 -

2).

• Keep copies of vital settings files such as network, dialup settings, mail settings etc.(even if just brief notes).



Warranty

The CPU is not a user serviceable part. Opening this compartment, or accessing the CPU in any way, may violate your war-

ranty.

Troubleshooting

8 - 4 Viruses

Viruses

• Install an Anti-Virus program and keep the definitions file (the file which tells your program which viruses

to look for) up to date. New computer viruses are discovered daily, and some of them may seriously harm

your computer and cause you to lose data. Anti-Virus programs are commercially available and the defini-

tions file updates are usually downloadable directly from the internet.

• Be careful when opening e-mail from sources you don’t know. Viruses are often triggered from within e-

mail attachments so take care when opening any attached file. You can configure most Anti-Virus pro-

grams to check all e-mail attachments. Note: You should also beware of files from people you know as the

virus may have infected an address book and been automatically forwarded without the person’s knowl-

edge.

• Keep a “Bootable CD-ROM/DVD-ROM/USB storage device” (this CD/DVD/USB device provides basic

information which allows you to startup your computer) handy. You may refer to your OS’s documentation

for instructions on how to make one, and many Anti-Virus programs will also provide such a disk (or at

least instructions on how to make one).

Troubleshooting

Upgrading and Adding New Hardware/Software 8 - 5

Upgrading and Adding New Hardware/Software

• Do not be tempted to make changes to your Windows Registry unless you are very sure of what you are

doing, otherwise you will risk severely damaging your system.

• Don’t open your computer or undertake any repair or upgrade work if you are not comfortable with what

you are doing.

• Read the documentation. We can assume, since you are reading this that you are looking at the computer’s

manual, but what about any new peripheral devices you have just purchased? Many problems are caused by

the installation of new hardware and/or software. Always refer to the documentation of any new hardware

and/or software, and pay particular attention to files entitled “READ ME” or “READ ME FIRST”.

• When installing a new device always make sure the device is powered on, and in many cases you will need

to restart the computer. Always check that all the cables are correctly connected.

• Make sure you have installed the drivers for any new hardware you have installed (latest driver files are

usually available to download from vendor’s websites).

Troubleshooting

8 - 6 Upgrading and Adding New Hardware/Software

• Thoroughly check any recent changes you made to your system as these changes may affect one or more

system components, or software programs. If possible, go back and undo the change you just made and see

if the problem still occurs.

• Don’t over complicate things. The less you have to deal with then the easier the source of the problem may

be found; Example - if your computer has many devices plugged into its ports, and a number of programs

running, then it will be difficult to determine the cause of a problem. Try disconnecting all of the devices and

restarting the computer with all the peripheral devices unplugged. A process of elimination (adding and

removing devices and restarting where necessary) will often find the source of a problem, although this may

be time consuming.

Troubleshooting

Problems and Possible Solutions 8 - 7

Problems and Possible Solutions

Problem Possible Cause - Solution

You turned on the power

but it doesn’t work.

Battery missing / incorrectly installed. Check the battery bay, make sure the battery is present

and seated properly (the design of the battery only allows it to go in one way). Make sure there’s

nothing interfering with the battery contacts.

The battery LED power

indicator , is blinking

orange.

Low Battery. Plug in the DC power source. If the computer doesn’t start up immediately, turn it off

then on again.

You are losing battery

power too quickly.

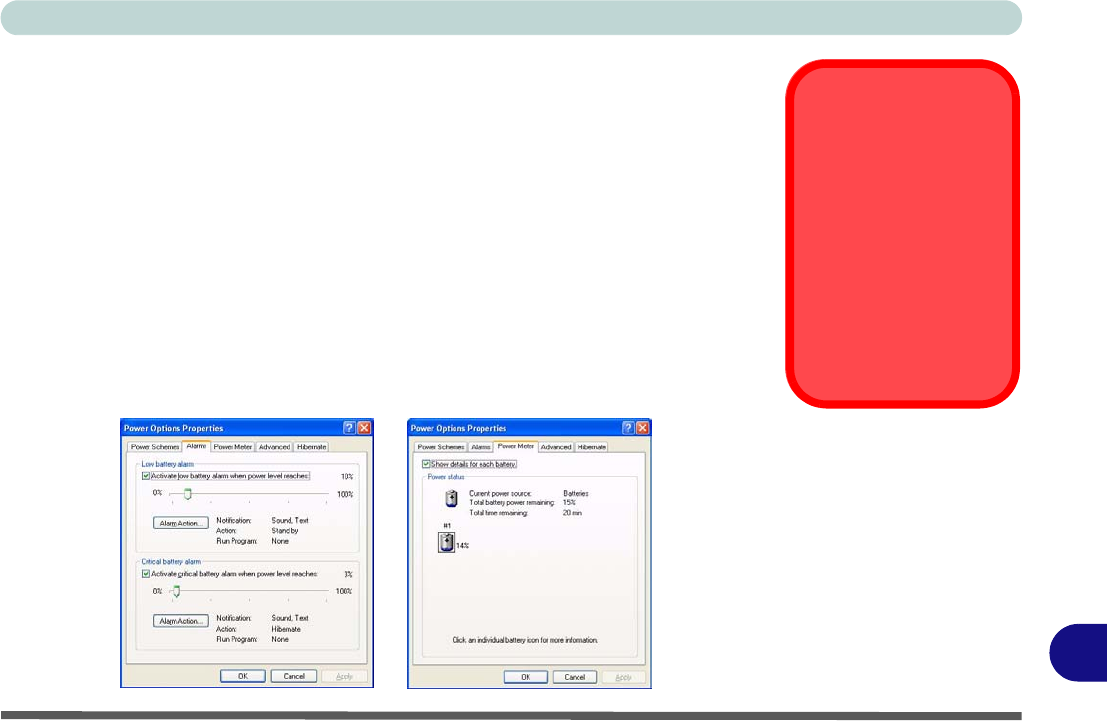

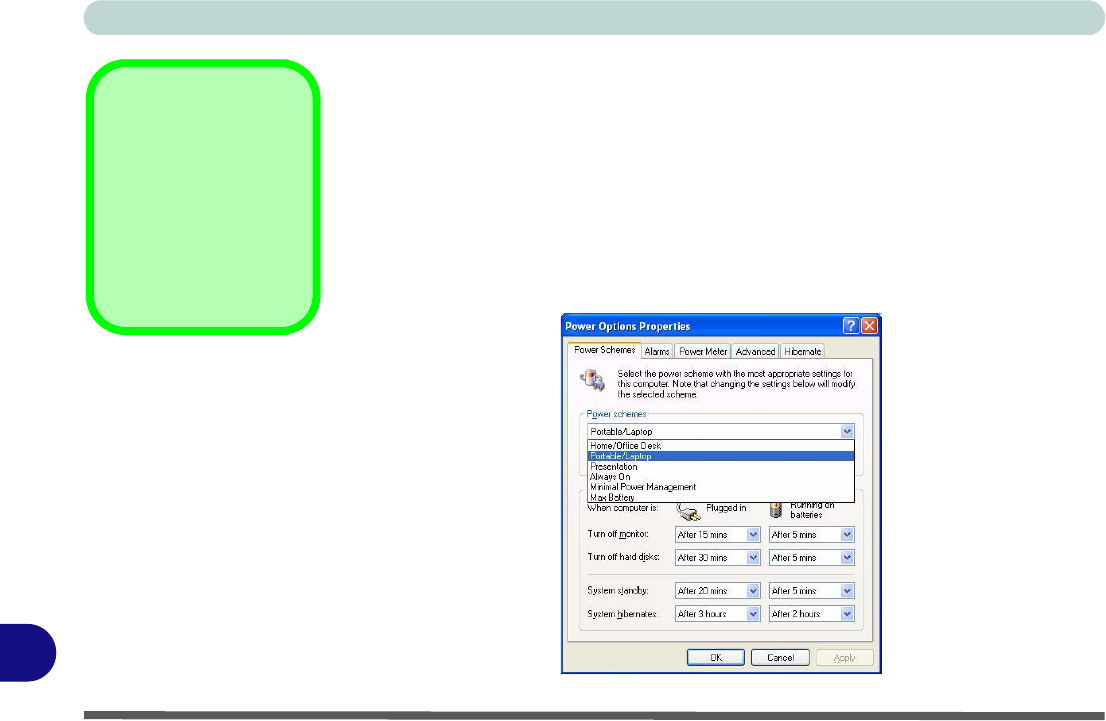

The system is using too much power. If your OS has a Power Options scheme (see “Power

Plans” on page 3 - 4/“Power Schemes” on page D - 16) check its settings. You may also be

using an ExpressCard/USB device/external device that is drawing a lot of power.

Actual battery operating

time is shorter than

expected.

The battery has not been fully discharged before being recharged. Make sure the battery is fully

discharged and recharge it completely before reusing (see “Battery Information” on page 3 -

10/“Battery Information” on page D - 21).

Power Options have been disabled. Go to the Control Panel in Windows and re-enable the

options.

A peripheral device/USB device/ExpressCard is consuming a lot of power. Turn off/remove the

unused device to save power.

Troubleshooting

8 - 8 Problems and Possible Solutions

The computer feels too

hot.

Make sure the computer is properly ventilated and the Vent/Fan intakes are not blocked. If this

doesn’t cool it down, put the system into Hibernate mode or turn it off for an hour. Make sure the

computer isn’t sitting on a thermal surface (see “Overheating” on page 1 - 14). Make sure

you’re using the correct adapter.

Make sure that your notebook is completely powered off before putting it into a travel bag (or any

such container). Putting a notebook which is powered on in a travel bag may cause the Vent/Fan

intakes to be blocked.

Nothing appears on

screen.

The system is in a power saving mode. Toggle the sleep/resume key combination, Fn + F4 (see

“Configuring the Power Buttons” on page 3 - 8/“Configuring the Power Button” on page D

- 20).

The screen controls need to be adjusted. Toggle the screen control key combinations Fn + F8/F9.

If you’re connected to an external monitor, make sure it’s plugged in and turned on. You should

also check the monitor’s own brightness and contrast controls.

The computer is set for a different display. Toggle the screen display key combination, Fn + F7. If

an external monitor is connected, turn it on.

The screen saver is activated. Press any key or touch the TouchPad.

No image appears on the

external monitor I have

plugged in and powered

on.

You haven’t installed the video driver and configured it appropriately from the Control Panel. See

Appendix B/“Video Features” on page D - 7 for instructions on installing and configuring the

video driver.

Problem Possible Cause - Solution

Troubleshooting

Problems and Possible Solutions 8 - 9

You forget the boot

password.

If you forget the password, you may have to discharge the battery of the CMOS. Contact your

service representative for help.

The sound cannot be

heard or the volume is

very low.

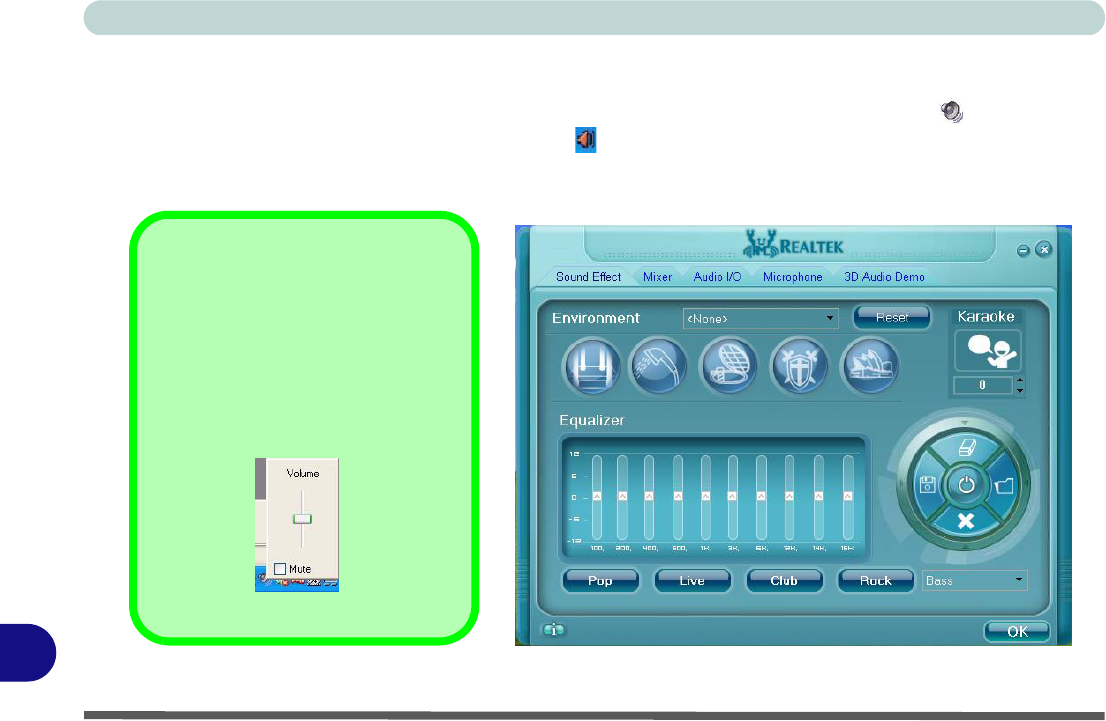

The volume might be set too low. Check the volume control in the Volume Control Panel in the

Windows taskbar, or use the key combination Fn + F5 and F6 (see “Function/Hot Key

Indicators” on page 2 - 9/“Function Keys” on page D - 5) to adjust.

The CD/DVD cannot be

read.

The CD/DVD is dirty. Clean it with a CD/DVD cleaner kit.

The CD/DVD tray will

not open when there is a

disc in the tray.

The CD/DVD is not correctly placed in the tray. Gently try to remove the disc using the eject hole

(see “Loading Discs” on page 2 - 3).

The DVD regional

codes can no longer be

changed.

The code has been changed the maximum 5 times. See “DVD Regional Codes” on page 2 - 5/

“DVD Regional Codes” on page D - 2.

Problem Possible Cause - Solution



Password Warning

If you choose to set a boot password, NEVER forget your password. The consequences of this could be serious. If you cannot

remember your boot password you must contact your vendor and you may lose all of the information on your hard disk.

Troubleshooting

8 - 10 Problems and Possible Solutions

Unwelcome numbers

appear when typing.

If the LED is lit, then Num Lock is turned ON. (see “LED Indicators” on page 1 - 7).

The system freezes or

the screen goes dark.

The system’s power saving features have timed-out. Use the AC/DC adapter, press the sleep (Fn

+ F4) key combination, or press the power button if no LEDs are lit.

The system never goes

into a power saving

mode.

Power Options features are not enabled. Go to the Windows Power Options menu and enable

the features you prefer (see “Power-Saving States” on page 3 - 6/“System Power Options”

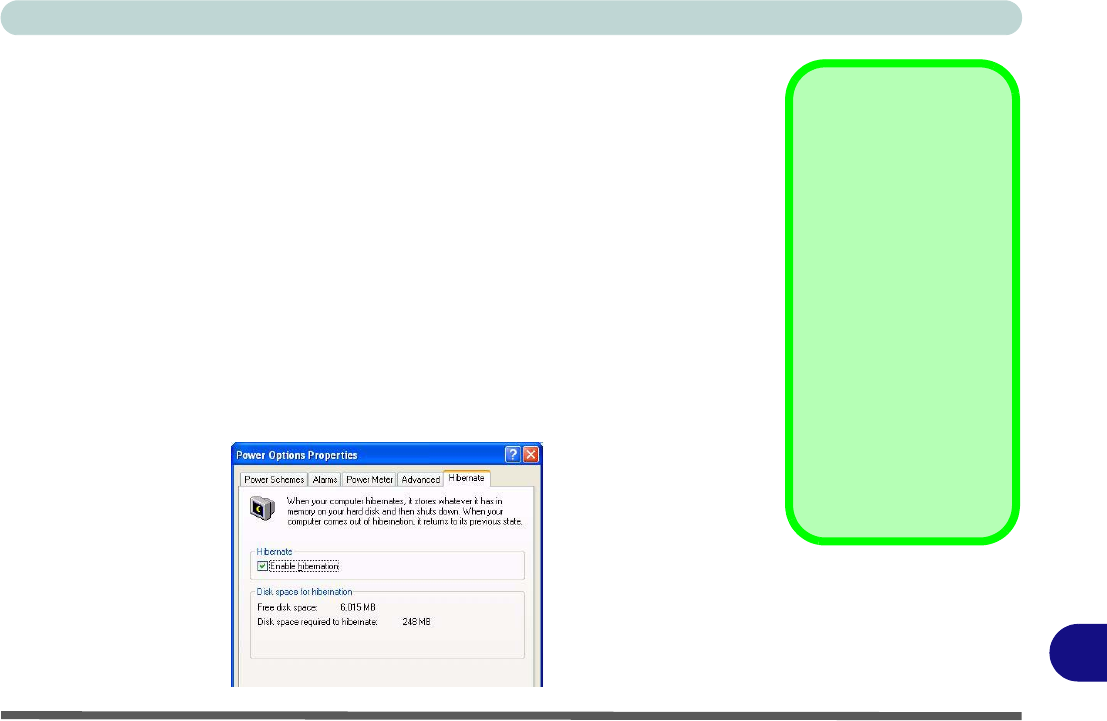

on page D - 18). Make sure you have enabled Hibernate mode from the control panel.

The Wireless LAN/

Bluetooth/3.5G modules

cannot be detected.

The modules are off. Check the LED indicator and/or function key indicator to see if the

WLAN/Bluetooth/3.5G module is on or off (see “LED Indicators” on page 1 - 7). If the LED

indicator is off, then press the Fn + F11 (WLAN), Fn + F12 (Bluetooth) or Fn + _ (3.5G) key

combination(s) in order to enable the modules (see “Function Keys” on page 1 - 10).

Problem Possible Cause - Solution



Other Keyboards

If your keyboard is damaged or you just want to make a change, you can use any standard USB keyboard. The system will

detect and enable it automatically. However special functions/hot keys unique to the system’s regular keyboard may not

work.

Troubleshooting

Problems and Possible Solutions 8 - 11

The PC Camera module

cannot be detected.

The module is off. Press the Fn + F10 key combination in order to enable the module (see

“Function Keys” on page 1 - 10). Run the BisonCap program (see “BisonCap (for 1.3M or

300K pixel camera modules)” on page 7 - 6/“BisonCap (for 300K & 1.2M pixel camera

modules)” on page D - 32) to view the camera picture.

The Wireless LAN/

Bluetooth/ PC Camera/

3.5G modules cannot be

configured.

The driver(s) for the module(s) have not been installed. Make sure you have installed the driver

for the appropriate module (see the instructions for the appropriate module in “Modules &

Options” on page 7 - 1/“Module Drivers” on page D - 29).

Problem Possible Cause - Solution

Troubleshooting

8-12

Interface (Ports & Jacks)

Interface (Ports & Jacks) A - 1

Appendix A: Interface (Ports & Jacks)

Overview

The following chapter will give a quick description of the interface (ports & jacks) which allow your computer

to communicate with external devices, connect to the internet etc.

Interface (Ports & Jacks)

A - 2 Interface (Ports & Jacks)

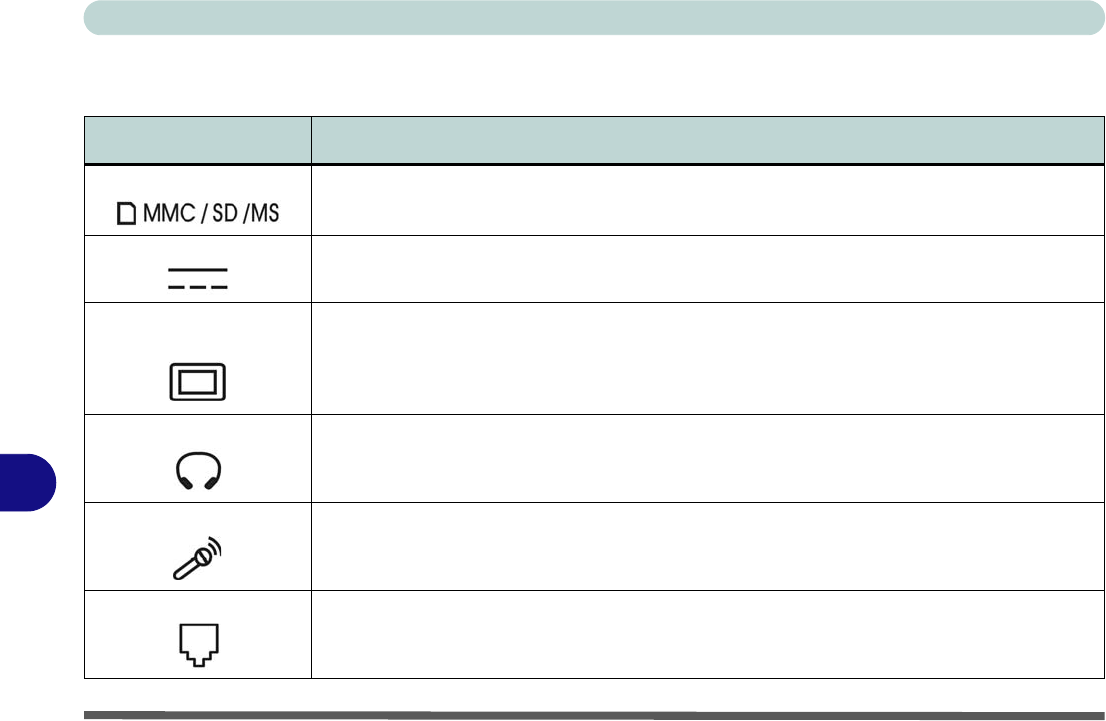

Notebook Ports and Jacks

Item Description

Card Reader Port The card reader allows you to use some of the latest digital storage cards. Push the card into the

slot and it will appear as a removable device.

DC-In Jack Plug the supplied AC/DC adapter into this jack to power your computer.

External Monitor (VGA)

Port

This port allows you to connect an external monitor, or Flat Panel Display, to get dual video or

simultaneous display on the LCD and external monitor/FPD.

Headphone-Out Jack Headphones or speakers may be connected through this jack. Note: Set your system’s volume to

a reduced level before connecting to this jack.

Microphone-In Jack Plug an external microphone in to this jack to record on your computer.

RJ-11 Modem Jack This port connects to the built-in modem. You may plug the telephone line directly into this RJ-11

telephone connection.

Note: Broadband (e.g. ADSL) modems usually connect to the LAN port.

Interface (Ports & Jacks)

Interface (Ports & Jacks) A - 3

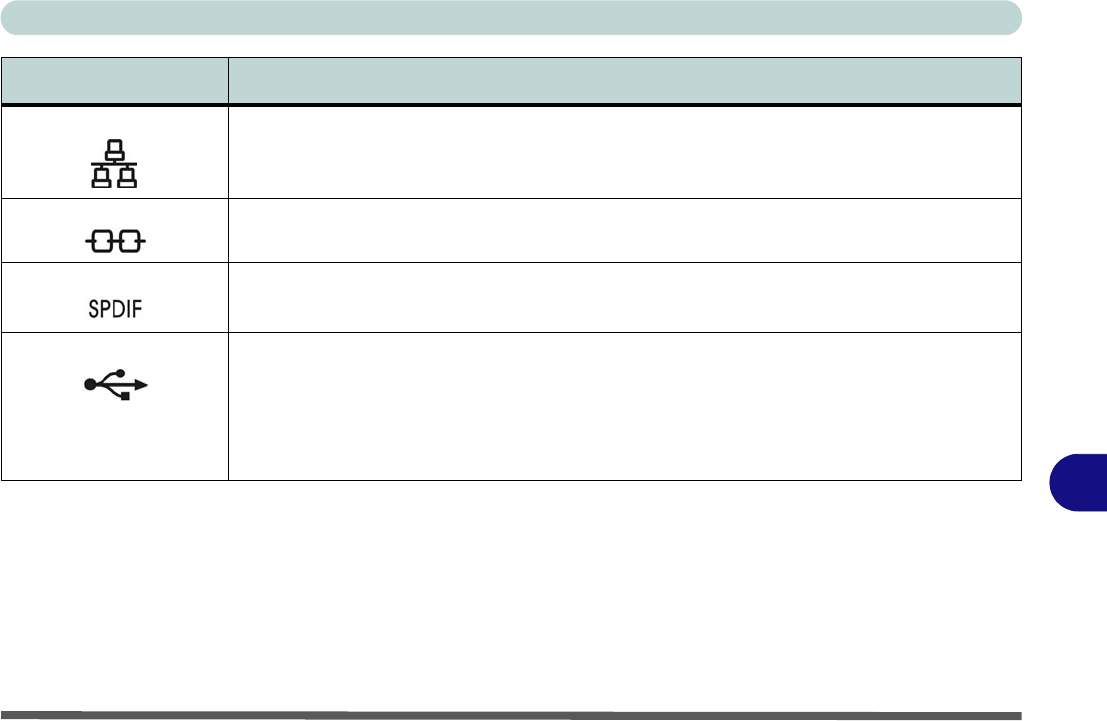

RJ-45 LAN Jack This port supports LAN (Network) functions.

Note: Broadband (e.g. ADSL) modems usually connect to the LAN port.

Security Lock Slot To prevent possible theft, a Kensington-type lock can be attached to this slot. Locks can be

purchased at any computer store.

S/PDIF-Out Jack This S/PDIF (Sony/Philips Digital Interface Format) Out Jack allows you to connect your DVD-

capable PC to a Dolby AC-3 compatible receiver for “5.1” or ‘dts’ surround sound.

USB 2.0/1.1 Ports These USB 2.0 compatible ports (USB 2.0 is fully USB 1.1 compliant) are for low-speed

peripherals such as keyboards, mice or scanners, and for high-speed peripherals such as

external HDDs, digital video cameras or high-speed scanners etc. Devices can be plugged into

the computer, and unplugged from the computer, without the need to turn the system off (if the

power rating of your USB device is 500mA or above, make sure you use the power supply which

comes with the device).

Item Description

Interface (Ports & Jacks)

A-4

SIS Video Driver Installation B - 1

Appendix B: SIS Video Driver Controls

The basic settings for configuring the LCD are outlined in “Video Features” on

page 1 - 16.

SIS Video Driver Installation

Make sure you install the drivers in the order indicated in Table 4 - 1, on page 4 - 6.

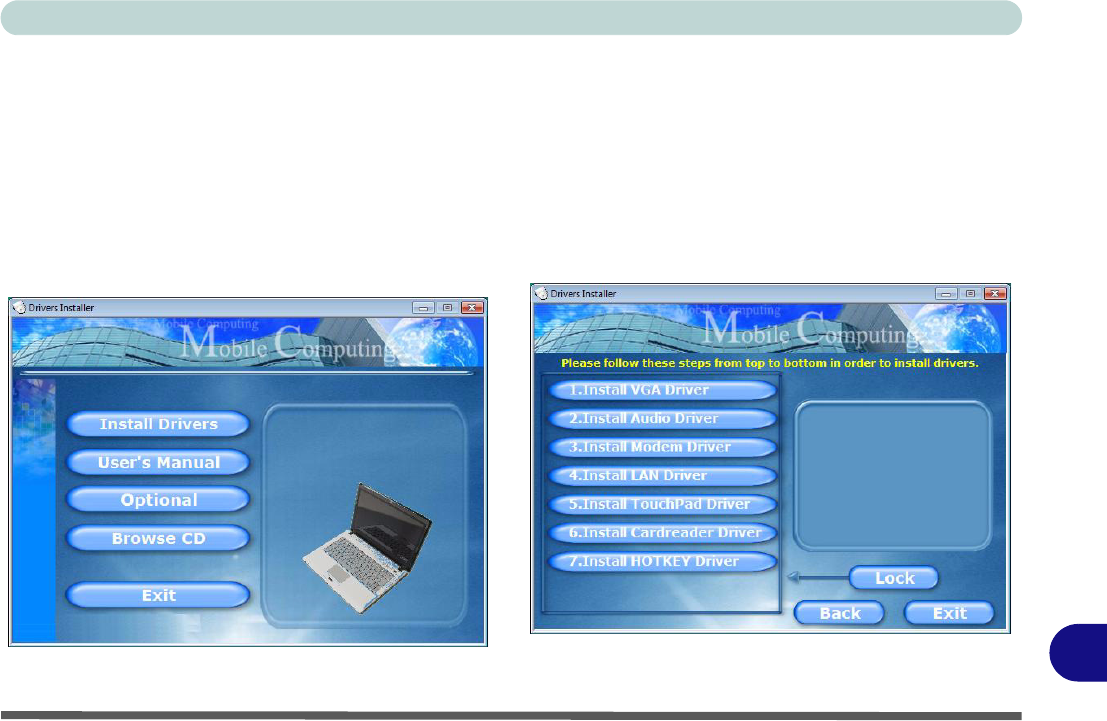

Insert the Device Drivers & Utilities + User’s Manual CD-ROM and click Install

Drivers (button).

Video

1. Click 1.Install VGA Driver > Yes.

2. Click Yes (click Yes if you want to view the ReadMe file).

3. Click Yes to restart the computer.

Video Memory

The system does not feature dedicated video memory, but automatically and dynam-

ically allocates as much (up to 256MB maximum) system memory (RAM) as need-

ed to the video system. The system returns whatever memory is no longer needed to

the operating system.



Function Key

Combination

You can use the Fn +

F7 key combination to

toggle through the dis-

play options:

• Notebook Only

• External Display

Only

• Notebook + External

Display

Make sure you give the

displays enough time

to refresh.

B - 2 SIS VGA Control Center

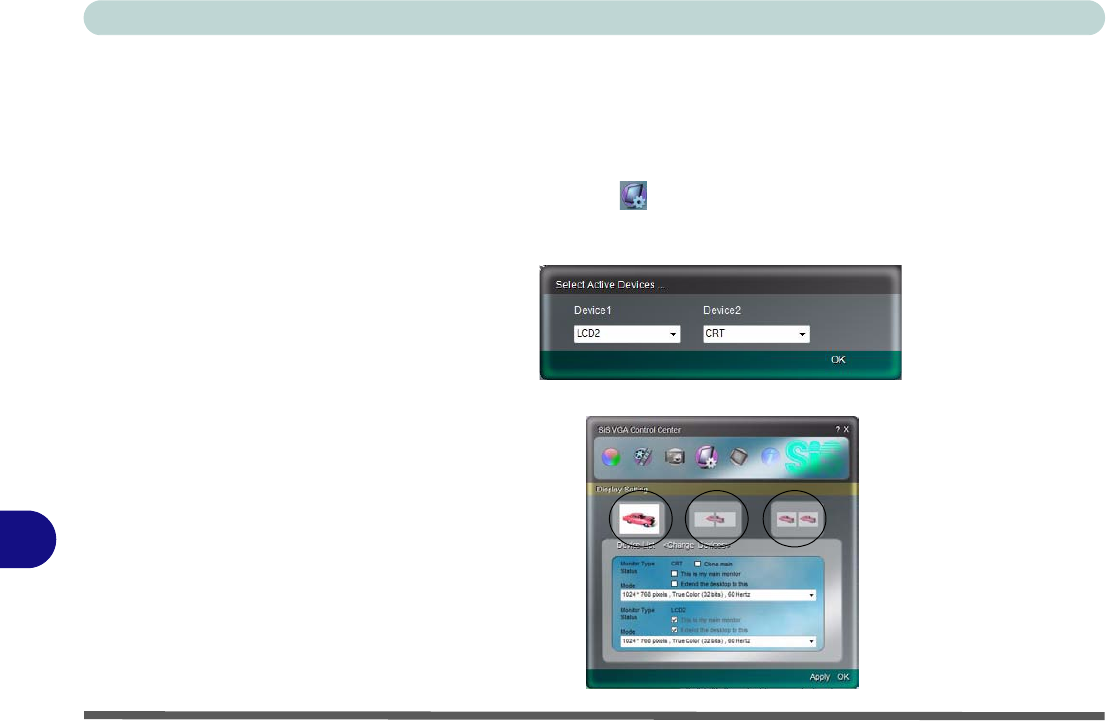

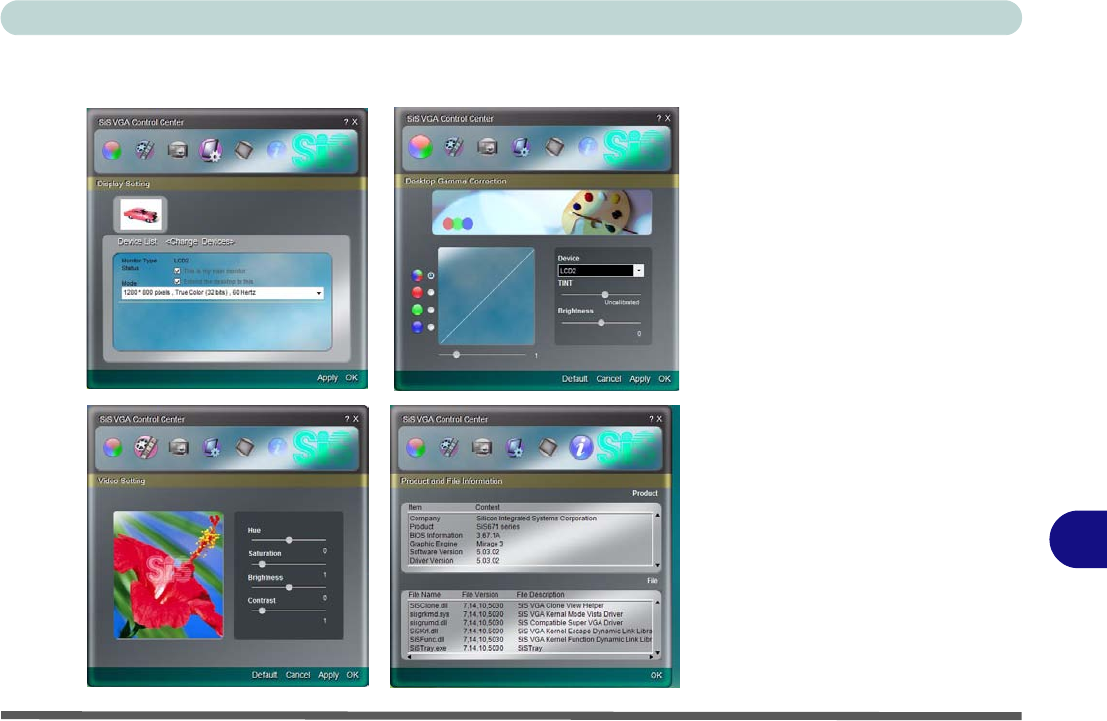

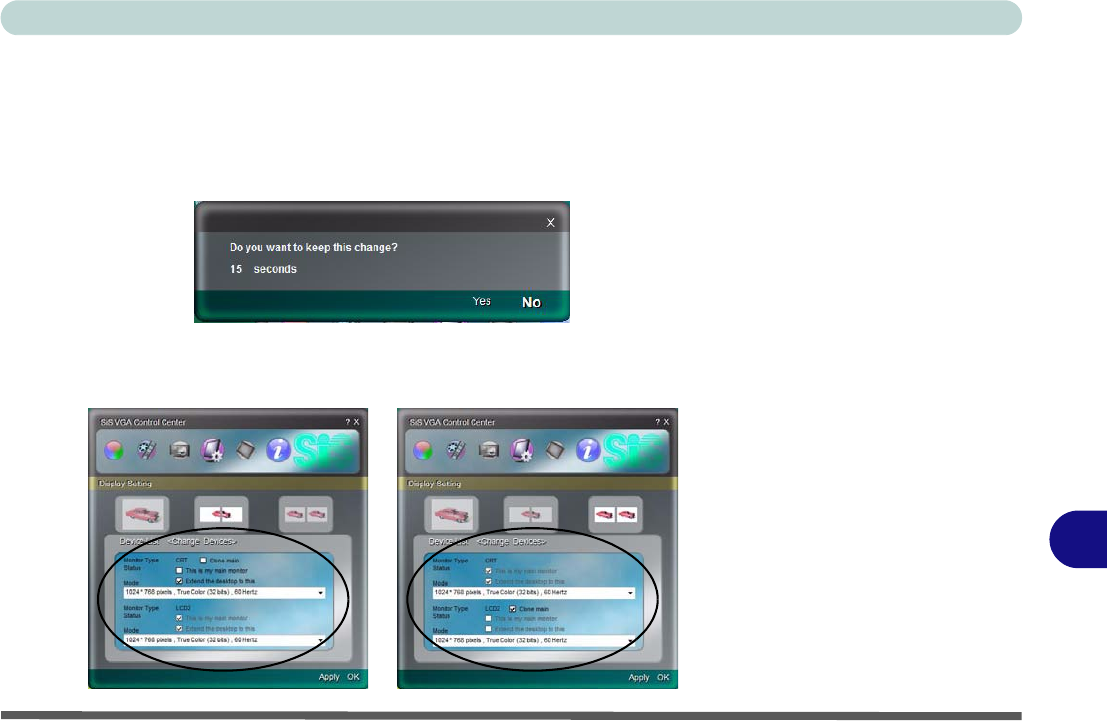

SIS VGA Control Center

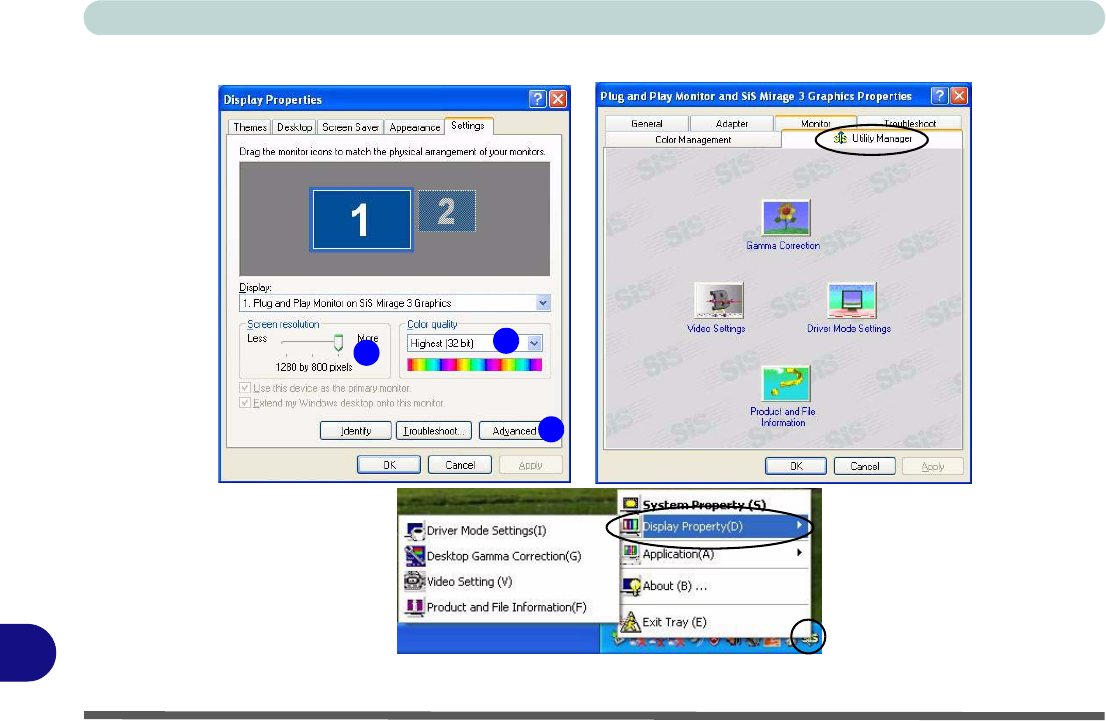

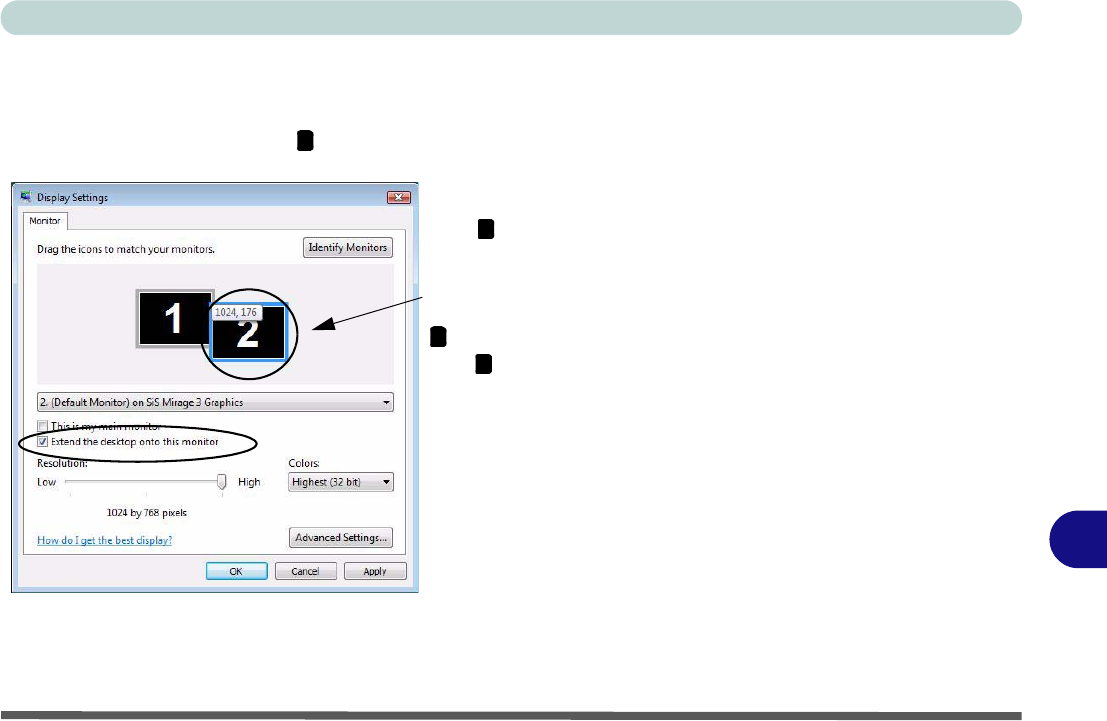

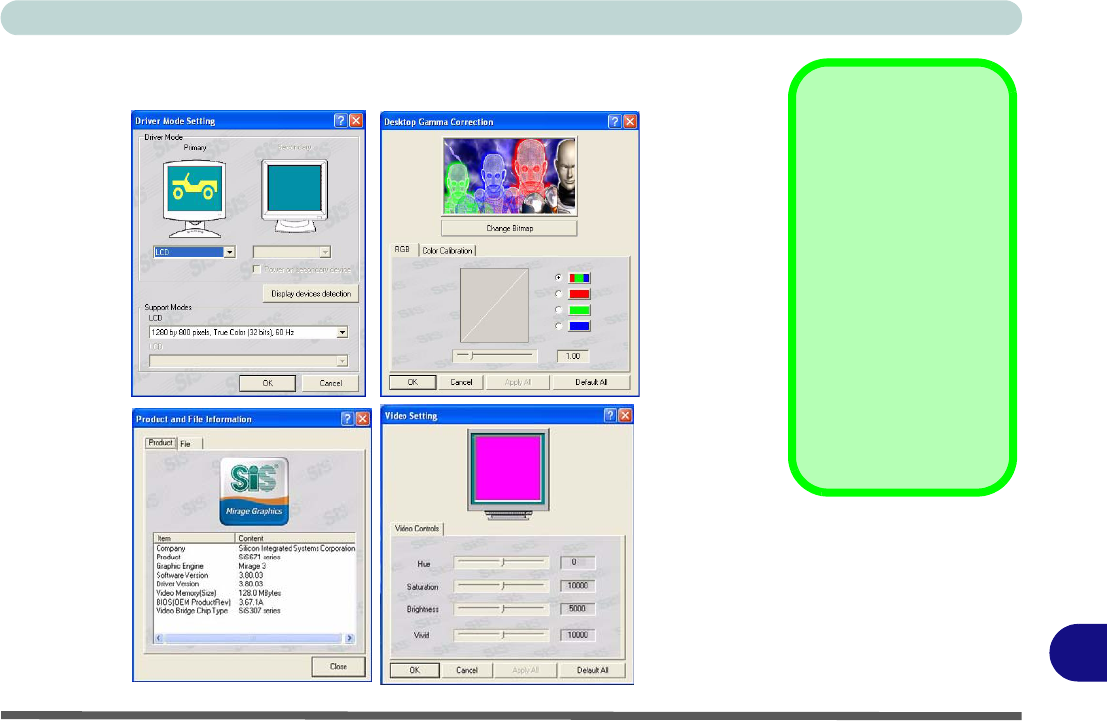

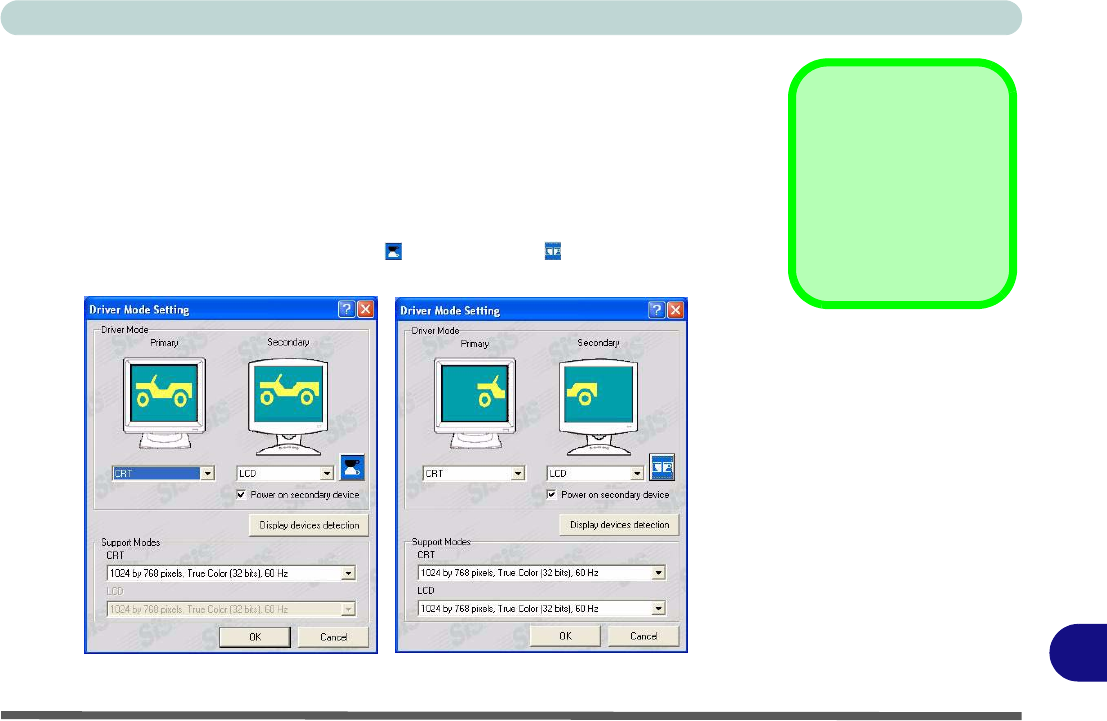

More advanced video configuration options are provided by the SIS VGA Control

Center.

1. Open the control panel (see “Windows Vista Start Menu & Control Panel” on

page 1 - 15) and click SIS VGA Control Center (button).



Taskbar Icon

The SIS VGA Control

Center can also be ac-

cessed by clicking the

icon in the taskbar

and selecting Control

Center from the menu.

Figure B - 1

SIS VGA Control

Center

SIS VGA Control Center B - 3

You may make changes to the video and display settings by clicking the appropriate

menu button.

Figure B - 2

SIS VGA Control

Center Control

Panels

B - 4 SIS VGA Control Center

Display Devices & Options

Besides the built-in LCD, you can also use an external VGA monitor (CRT) or ex-

ternal Flat Panel Display as your display device. A VGA monitor/Flat Panel Dis-

play connects to the external monitor port. The following display modes are

available.

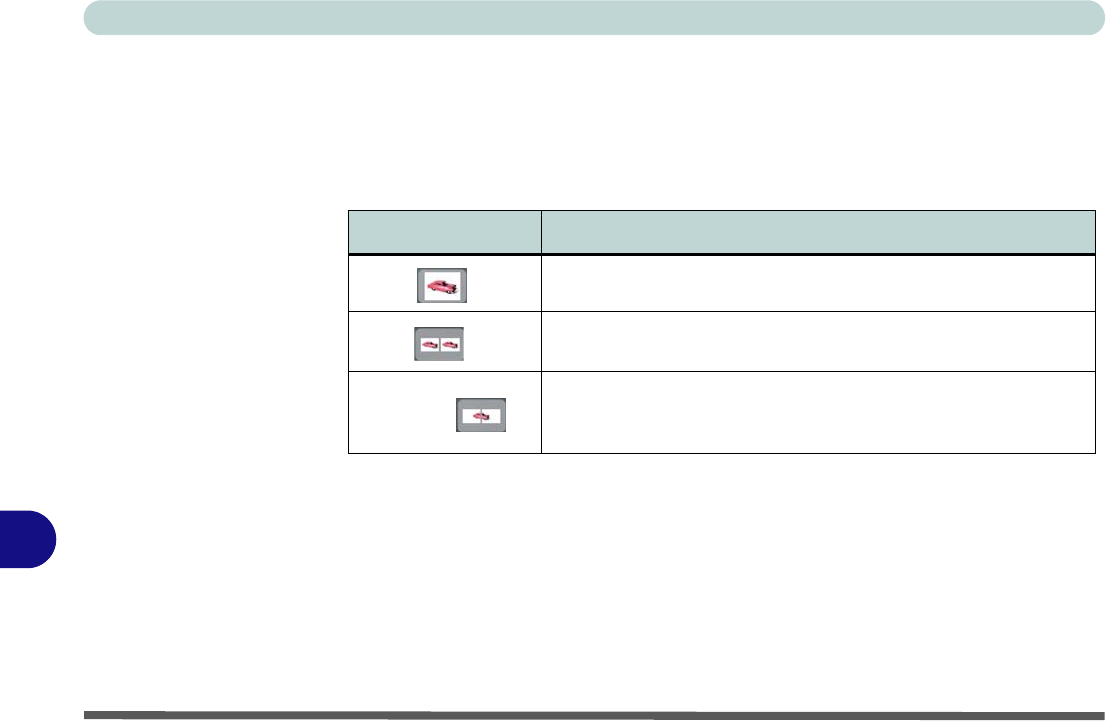

Display Setting Mode Description

Single One of the connected displays is used as the display device

Clone Both connected displays output the same view and may be

configured independently

Multi-Mode

Both connected displays are treated as separate devices, may be

configured independently and act as a virtual desktop (this is

similar to Extended Desktop in Windows)

Table B - 1

Display Modes

Attaching Other Displays B - 5

Attaching Other Displays

Besides the built-in LCD, you can also use an external monitor (CRT)/flat panel dis-

play as your display device. Connect it to the external monitor port on the left of the

computer, and follow the instructions below:

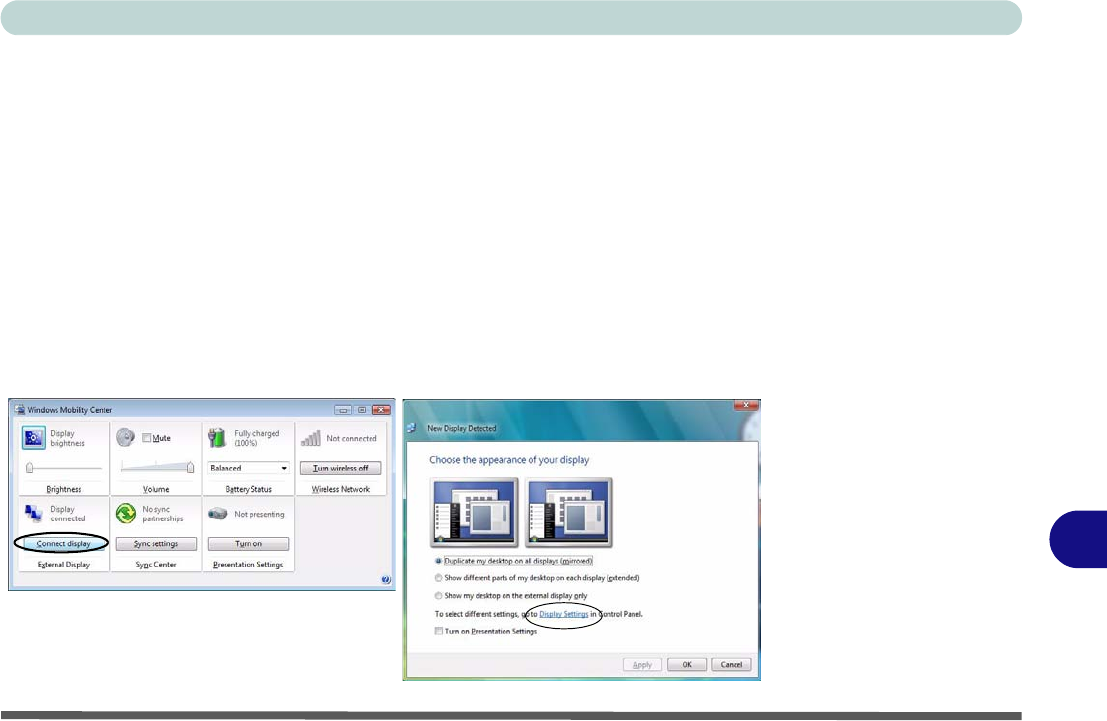

Windows Vista

1. Attach your external display to the external monitor port and turn it on.

2. If a New Display Detected window does not appear in Windows Vista, go to the

Windows Mobility Center control panel (Mobile PC > Adjust commonly used

mobility settings) and click Connect display.

3. Click on any of the buttons to configure the displays to your preferences, or click

Display Settings (in the New Display Detected window) to access the control

panel. Figure B - 3

New Display

Detected

B - 6 Attaching Other Displays

External displays may also be configured from SiS VGA Control Center:

1. Attach your external display to the external monitor port and turn it on.

2. Click

Start

, and click

Control Panel

(or point to

Settings

and click

Control Panel

3. Click SiS VGA Control Center (or click Appearance and Personalization > SiS

VGA Control Center).

4. Click Display Setting icon .

5. Click Device List <Change Devices>.

6. Select which active device is to be Device 1/Device 2 and click OK.

7. You can then choose the Display Setting mode from the menu buttons.

Figure B - 4

Select Active

Devices

Figure B - 5

Display Setting

Attaching Other Displays B - 7

To Enable a Display Setting Mode

1. Attach your external display to the external monitor port and turn it on.

2. Go to the SIS VGA Control Center.

3. Click the appropriate icon for the display setting mode you wish to use.

4. Click Yes with 15 seconds in order to save the setting change.

5. You can adjust the display mode, change the status and clone Device 1 from

the device list menu.

6. Click Apply > Yes to save any changes.

Figure B - 6

Confirm Changes

Figure B - 7

Display Setting

Device List Options

Multi-Mode Clone

B - 8 Attaching Other Displays

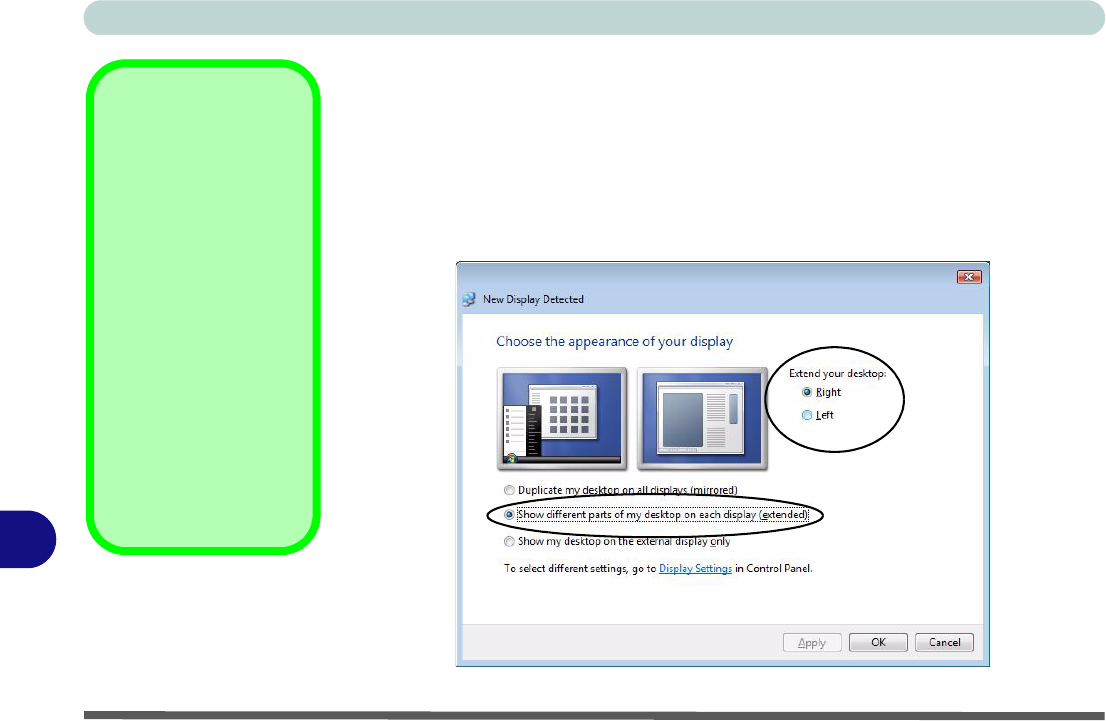

Using Windows Vista to Enable Extended Mode

1. Attach your external display to the external monitor port, and turn it on.

2. If a New Display Detected window does not appear in Windows Vista, go to the

Windows Mobility Center control panel (Mobile PC > Adjust commonly used

mobility settings) and click Connect display.

3. Click to select Show different parts of my desktop on each display (extended).

4. Click Right or Left under Extend your desktop.

5. Click Apply > OK.



Display Settings

Extended Desktop

Use the control panel to

drag the monitors to

match the physical ar-

rangement you wish to

use.

You can drag any icons

or windows across to ei-

ther display desktop,

which makes it possible

to have one program

visible in one of the dis-

plays, and a different

program visible in the

other display.

Figure B - 8

New Display

Detected

Attaching Other Displays B - 9

Using Display Settings to Enable Extended Mode

1. Attach your external display to the external monitor port, and turn it on.

2. Open the Display Settings control panel (see “Video Features” on page 1 - 16).

3. Click the monitor icon (e.g. ), and make sure you have checked “Extend my

Windows desktop onto this monitor.” and click Apply.

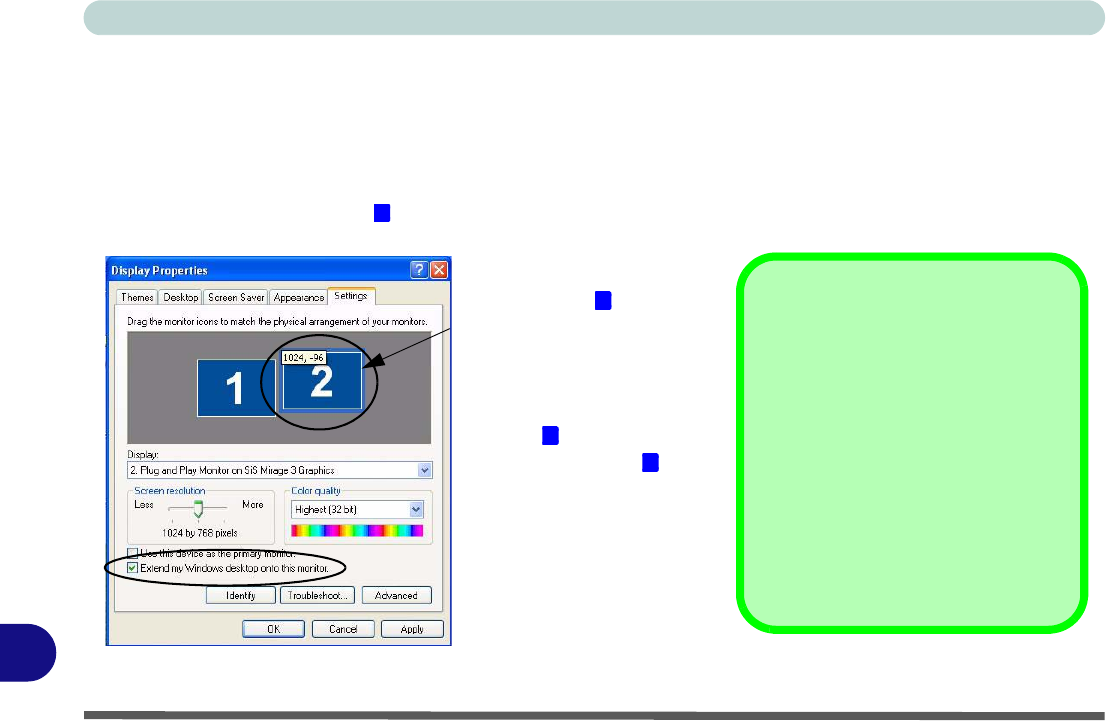

Figure B - 9

Display Properties

(Extended Desktop)

Click the appropriate monitor icon

(e.g. ) to be able to select the op-

tion to extend the desktop on to it.

In this example the Primary Display

is on the left, the Secondary Dis-

play is on the right.

B-10

Specifications

Specifications C - 1

Appendix C: Specifications

Feature Specification

Processor Intel® Core™2 Duo Processor

(478-pin) Micro-FC-PGA Package

T7200/ T7400/ T7600

65nm (65 Nanometer) Process Technology

4MB On-die L2 Cache & 667MHz FSB

2.0/ 2.16/ 2.33 GHz

Intel® Core™2 Duo Processor

(478-pin) Micro-FC-PGA Package

T5500/ T5600

65nm (65 Nanometer) Process Technology

2MB On-die L2 Cache & 667MHz FSB

1.66/ 1.83 GHz

Intel® Core™ Duo Processor

(478-pin) Micro-FC-PGA Package

T2300/ T2400/ T2500/ T2600/ T2700

65nm (65 Nanometer) Process Technology

2MB On-die L2 Cache & 667MHz FSB

1.66/ 1.83/ 2.0/ 2.16/ 2.33 GHz

Intel® Celeron® M Processor

(478-pin) Micro-FCPGA Package

410/ 420/ 430/ 440/ 450

65nm (65 Nanometer) Process Technology

1MB On-die L2 Cache & 533MHz FSB

1.46/ 1.60/ 1.73/ 1.86/ 2.0 GHz



Latest Specification Information

The specifications listed in this Appendix are correct at the time of going to press. Certain items (particularly processor types/

speeds and CD/DVD device types) may be changed, delayed or updated due to the manufacturer's release schedule. Check

with your service center for details.

Specifications

C - 2 Specifications

Core Logic SiS M671 + SiS968 Chipset

LCD 12.1" WXGA (1280 * 800) Glare / Non Glare TFT LCD

Memory Two 200 Pin SO-DIMM Sockets Supporting DDRII (DDR2) 533/667 MHz

64-bit Wide DDRII (DDR2) Data Per Channel

Memory Expandable up to 4GB (256/ 512/ 1024/ 2048 MB DDRII Modules)

Video Adapter SiS M671 Integrated Video

High Performance 2D/3D Graphics Accelerator

Shared Memory Architecture up to 256MB

Supports Microsoft DirectX 9.0

Supports Vertex Shader 2.0 and Pixel Shader 2.0

Security Security (Kensington® Type) Lock Slot

Fingerprint ID Reader Module (Factory Option)

BIOS Password

BIOS One 8Mb SPI Flash ROM Phoenix™ BIOS

Storage One Changeable 12.7mm(h) Optical Device (CD/DVD) Type Drive (see “Optional” on page C - 5)

Easy Changeable 2.5" 9.5 mm (h) SATA (Serial) HDD

Audio High Definition Audio (HDA)

Compliant with Microsoft UAA (Universal Audio

Architecture)

Direct Sound 3D™ Compatible

EAX™ 1.0 & 2.0 Compatible

A3D™ Compatible

S/PDIF Digital Output

2 * Built-In Speakers

Built-In Microphone

Feature Specification

Specifications

Specifications C - 3

Keyboard &

Pointing Device Winkey Keyboard Built-In TouchPad with Scrolling Function

Interface Three USB 2.0 Ports

One Headphone-Out Jack

One Microphone-In Jack

One S/PDIF Out Jack

One Internal Microphone

One RJ-11 Modem Jack

One RJ-45 LAN Jack

One DC-in Jack

One External Monitor Port

Card Reader Embedded 7-in-1 Card Reader (MS/ MS Pro/ SD/ Mini SD/ MMC/ RS MMC/ MS Duo) Note: MS Duo/

Mini SD/ RS MMC Cards require a PC adapter

ExpressCard Slot One ExpressCard/34(54) Slot

Communication

*Note: The Blue-

tooth and 3.5G Op-

tional Modules

cannot coexist. If one

of these factory op-

tions is included in

your purchase op-

tion, then the other is

unavailable.

10M/100Mb Base-T Ethernet LAN

56K MDC Modem V.90 & V.92 Compliant

802.11 b/g USB Wireless LAN Module (Option)

300K, 1.3M or 2.0M Pixel USB PC Camera Module (Factory Option)

Bluetooth OR 3.5G Module Options:

*Bluetooth 2.0 + EDR (Enhanced Data Rate) Module (Factory Option)

*UMTS/HSPDA-based 3.5G Module with Mini Card Interface (Factory Option)

Quad-band GSM/GPRS (850 MHz, 900 MHz, 1800 MHz, 1900 MHz)

UMTS WCDMA FDD (2100 MHz)

UMTS WCDMA FDD (850 MHz, 1900 MHz)

Feature Specification

Specifications

C - 4 Specifications

Power

Management Supports ACPI 3.0 Supports Wake on LAN

Supports Wake on USB

Supports Resume from Modem Ring

Power Full Range AC/DC Adapter AC input 100 - 240V, 50 - 60Hz, DC Output 19V, 3.42A (65 Watts)

Battery 4 Cell Smart Lithium-Ion Battery Pack, 14.8V/2.4AH

8 Cell Smart Lithium-Ion Battery Pack, 14.8V/4.4AH (Option)

Environmental

Spec Temperature

Operating: 5°C ~ 35°C

Non-Operating: -20°C ~ 60°C

Relative Humidity

Operating: 20% ~ 80%

Non-Operating: 10% ~ 90%

Dimensions

& Weight 299mm (w) * 219mm (d) * 26.5-35.7mm (h) 1.8 kg With 4 Cell Battery and ODD

Feature Specification

Specifications

Specifications C - 5

Optional

*Note: The Blue-

tooth and 3.5G Op-

tional Modules

cannot coexist. If one

of these factory op-

tions is included in

your purchase op-

tion, then the other is

unavailable.

Optical Drive Module Options:

DVD/CD-RW Combo Drive Module

Super Multi Drive Module

USB Floppy Disk Drive

802.11 b/g USB Wireless LAN Module

8 Cell Smart Lithium-Ion Battery Pack

300K, 1.3M or 2.0M Pixel USB PC Camera

Module (Factory Option)

Fingerprint ID Reader Module (Factory Option)

*Bluetooth 2.0 + EDR (Enhanced Data Rate)

Module (Factory Option)

*UMTS/HSPDA-based 3.5G Module with Mini

Card Interface (Factory Option)

Quad-band GSM/GPRS (850 MHz, 900 MHz,

1800 MHz, 1900 MHz)

UMTS WCDMA FDD (2100 MHz)

UMTS WCDMA FDD (850 MHz, 1900 MHz)

Feature Specification

Specifications

C - 6 Specifications

Windows XP Information

D-1

Appendix D: Windows XP Information

This Appendix contains information (including control panel information, driver installation etc.) for users of

the Windows XP OS.

Windows XP Information

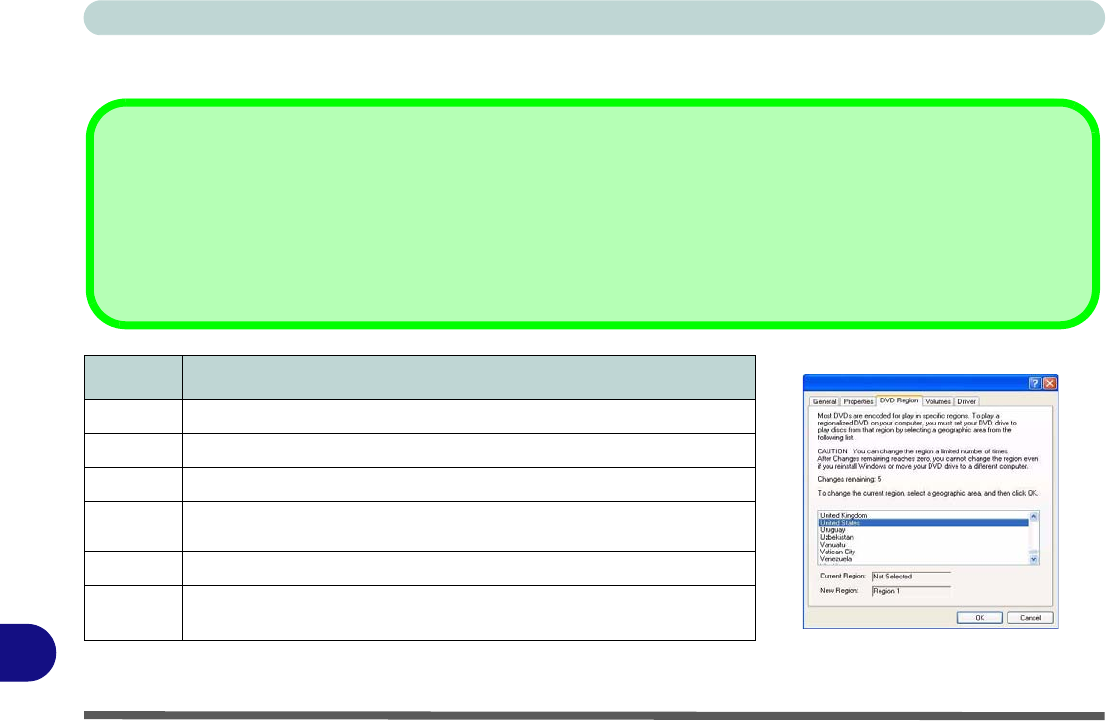

D - 2 DVD Regional Codes

DVD Regional Codes

Region Geographical Location

1 USA, Canada

2 Western Europe, Japan, South Africa, Middle East & Egypt

3 South-East Asia, Taiwan, South Korea, The Philippines, Indonesia, Hong Kong

4South & Central America, Mexico, Australia,

New Zealand

5 N Korea, Russia, Eastern Europe, India & Most of Africa

6 China

Table D - 1 - DVD Region Codes Figure D - 1 - DVD Regions



Changing DVD Regional Codes

Go to the Control Panel and double-click System > Hardware (tab), click Device Manager, then click the + next to DVD/CD-ROM drives.

Double-click on the DVD-ROM device to bring up the Properties dialogue box, and select the DVD Region (tab) to bring up the control

panel to allow you to adjust the regional code.

DVD region detection is device dependent, not OS-dependent. You can select your module’s region code 5 times. The fifth selection is

permanent. This cannot be altered even if you change your operating system or you use the module in another computer.

Windows XP Information

Windows XP Start Menu & Control Panel D - 3

Windows XP Start Menu & Control Panel

Most of the control panels, utilities and programs within Windows XP (and most other Windows versions) are

accessed from the Start menu. When you install programs and utilities they will be installed on your hard disk

drive, and a shortcut will usually be placed in the Start menu and/or the desktop. You can customize the look of

the Start menu by right-clicking the Start menu and selecting Properties from the menu.

In many instances throughout this manual you will see an instruction to open the Control Panel. The Control

Panel is accessed from the Start menu, and it allows you to configure the settings for most of the key features

in Windows (e.g. power, video, network, audio etc.). Windows XP provides basic controls for many of the fea-

tures, however many new controls are added (or existing ones are enhanced) when you install the drivers. To see

all controls it may be necessary to toggle off Category View.

Figure D - 2 - Start Menu & Control Panel

Click here to toggle Category View

Windows XP Information

D - 4 TouchPad and Buttons/Mouse

TouchPad and Buttons/Mouse

The TouchPad is an alternative to the mouse; however, you can also add a mouse to your computer through one

of the USB ports. The TouchPad buttons function in much the same way as a two-button mouse.

Once you have installed the TouchPad driver (see “TouchPad” on page D - 29) you can configure the functions

by double-clicking the TouchPad driver icon on the taskbar. You may then configure the TouchPad tapping,

buttons, scrolling, pointer motion and sensitivity options to your preferences. You will find further information

at www.synaptics.com.

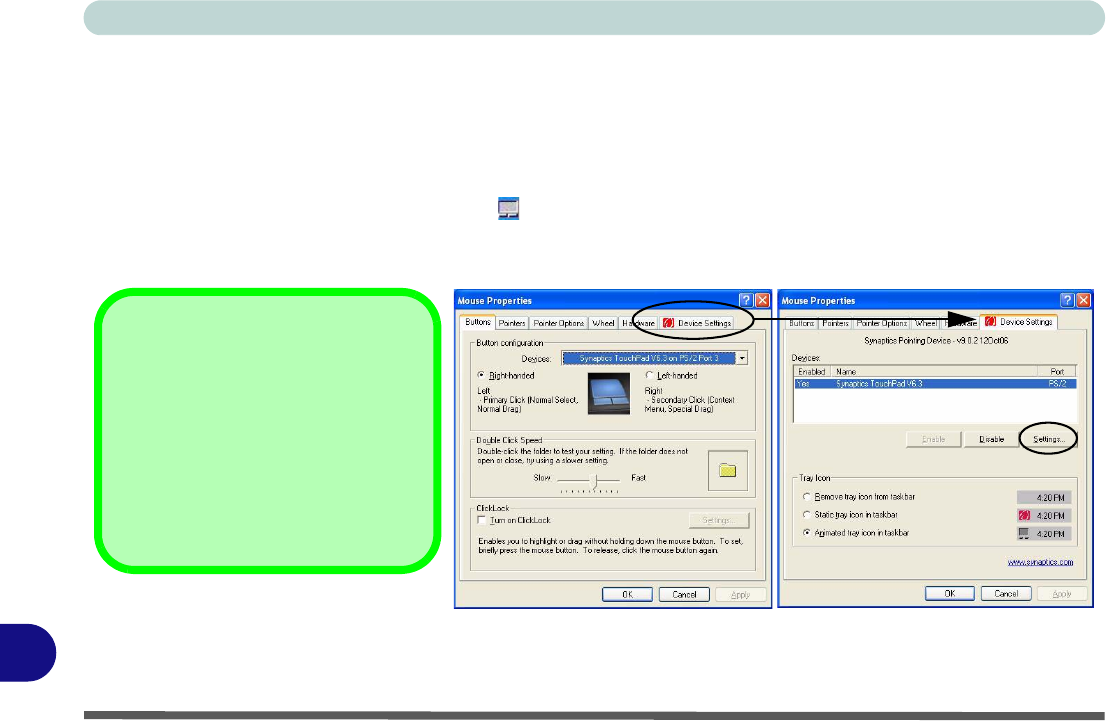

Figure D - 3 - Mouse Properties



Mouse Driver

If you are using an external mouse

your operating system may be able to

auto-configure your mouse during its

installation or only enable its basic

functions. Be sure to check the de-

vice’s user documentation for details.

Windows XP Information

Function Keys D - 5

Function Keys

The function keys (F1 - F12 etc.) will act as hot keys when pressed while the Fn key is held down. In addition

to the basic function key combinations; visual indicators (see the table below) are available when the hot key

utility is installed (see “Hot Key” on page D - 29). After installing the driver an icon will appear in the task-

bar.

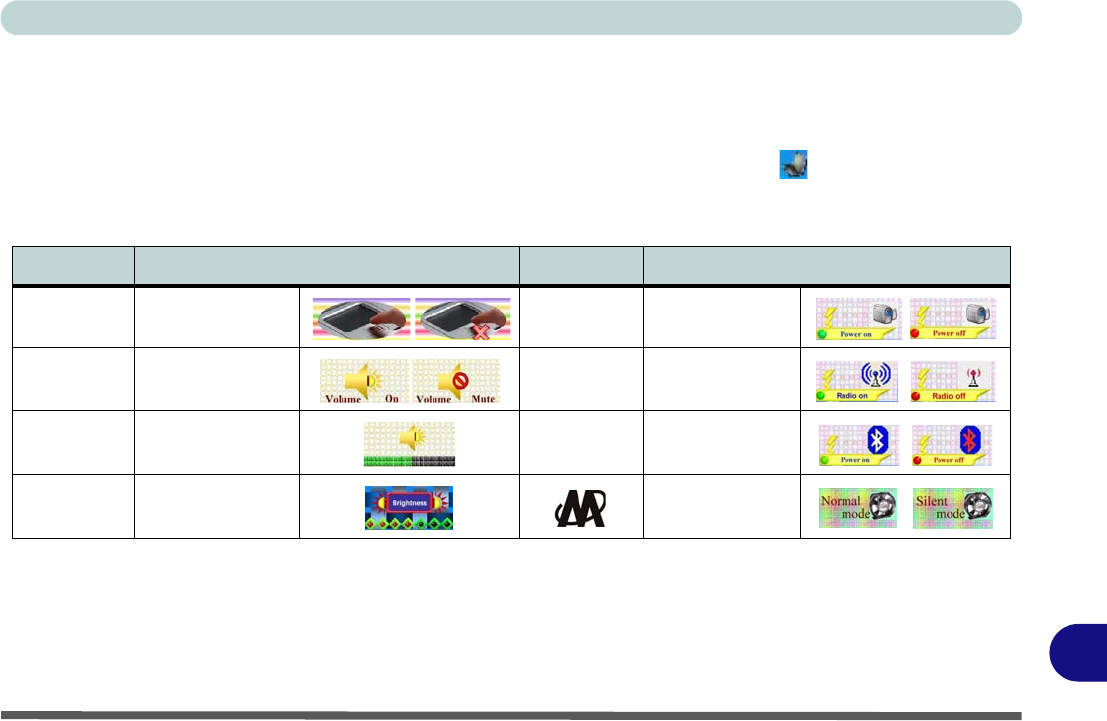

Table D - 2 - Hot Key Functions & Indicators

Fn Keys Function Fn Keys Function

Fn + F1 TouchPad Toggle Fn + F10 PC Camera Power

Toggle

Fn + F3 Mute Toggle Fn + F11 WLAN Module Power

Toggle

Fn + F5/F6 Volume Decrease/

Increase Fn + F12 Bluetooth Module

Power Toggle

Fn + F8/F9 Brightness Decrease/

Increase *Silent Mode Toggle

Windows XP Information

D - 6 Audio Features

Audio Features

You can configure the audio options on your computer from the Sounds and Audio Devices Windows con-

trol panel, or from the Realtek HD Audio Manager icon in the taskbar/control panel (this will bring up the

Realtek Audio Configuration menus). The volume may also be adjusted by means of the Fn + F5/F6 key com-

bination.

Figure D - 4 - Realtek Audio Configuration Menus



Sound Volume Adjustment

How high the sound volume can be

set depends on the setting of the vol-

ume control within Windows (and the

volume control function keys on the

computer). Click the Volume icon on

the taskbar to check the setting.

Windows XP Information

Video Features D - 7

Video Features

You can switch display devices, and configure display options, from the Display Properties control panel in

Windows as long as the appropriate video driver is installed.

To access Display Properties in Windows:

1. Click Start, point to Settings and click Control Panel (or just click Control Panel).

2. Double-click Display (icon) - In the Appearances and Themes category.

3. Click Settings (tab) in the Display Properties dialog box.

4. Move the slider to the preferred setting in Screen resolution (Figure D - 5 on page D - 8).

5. Click the arrow, and scroll to the preferred setting in Color quality (Figure D - 5 on page D - 8).

6. You can also access Display Properties by right-clicking the desktop and scrolling down and clicking

Properties. Click Settings (tab) and adjust as above.

7. Open the Display Properties control panel, and click Advanced (button) (Figure D - 5 on page D - 8) to

bring up the Advanced properties tabs.

8. Click SIS Utility Manager (tab) to access the SIS video controls.

9. You can also access SIS video controls by right-clicking the SIS Utility Tray taskbar icon , and selecting the

appropriate control from the Display Property(D) menu.

Windows XP Information

D - 8 Video Features

Display Properties & SIS Utility Manager

Figure D - 5 - Display & Graphics Properties

Windows XP Information

Video Features D - 9

You may make changes to the video and display settings by clicking the appropriate

menu button. 

Function Key

Combination

You can use the Fn +

F7 key combination to

toggle through the dis-

play options:

• Notebook Only

• External Display

Only

• Notebook + External

Display

Make sure you give the

displays enough time

to refresh.

Figure D - 6

SIS Utility Manager

Control Panels

Windows XP Information

D - 10 Video Features

Display Devices & Options

Besides the built-in LCD, you can also use an external VGA monitor (CRT) or external Flat Panel Display

as your display device. A VGA monitor/Flat Panel Display connects to the external monitor port. The following

display modes are available.

Table D - 3 - Display Options

Driver Mode Setting Description

Single One of the connected displays is used as the display device

Clone Both connected displays output the same view

Multi-Mode Both connected displays are treated as separate devices, may be configured independently and act

as a virtual desktop (this is similar to Extended Desktop in Windows)

Windows XP Information

Attaching Other Displays D - 11

Attaching Other Displays

If you prefer to use a monitor or flat panel display as your display device, then con-

nect it to the external monitor port on the left of the computer.

1. Attach your external display to the external monitor port, and turn it on.

2. Go to the SIS Utility Manager control panel and click Driver Mode Settings.

3. Click to choose the Primary or Secondary display option from the menu.

4. Click the button to toggle either Clone or Multi-Mode .

5. Click OK to confirm the settings change.

Figure D - 8 - Driver Mode



Secondary Device

Click to put a tick in the

Power on secondary

device box if the sec-

ondary display doesn’t

appear.

Figure D - 7

SIS Utility Manager

Control Panels

Windows XP Information

D - 12 Attaching Other Displays

To Enable Extended Desktop (Windows Display Properties)

1. Attach your external monitor to the external monitor port, and turn it on.

2. Click Start, point to Settings (or click Control Panel) and click Control Panel (if you are in Category View

choose Appearance and Themes).

3. Double-click Display (icon).

4. In the Display Properties dialog box, click Settings (tab).

5. Click the monitor icon (e.g. ), and make sure you have checked “Extend my Windows desktop onto this

monitor.” and click Apply.

Figure D - 9 - Display Properties (Extended Desktop)

Click the appropriate mon-

itor icon (e.g. ) to be able

to select the option to ex-

tend the desktop on to it.

In this example the Primary

monitor is on the left, the

secondary display is on

the right.



Display Settings Extended

Desktop

Use the control panel to drag the mon-

itors to match the physical arrange-

ment you wish to use.

You can drag any icons or windows

across to either display desktop,

which makes it possible to have one

program visible in one of the displays,

and a different program visible in the

other display.

Windows XP Information

Power Management Features D - 13

Power Management Features

To conserve power, especially when using the battery, your computer uses the ACPI

power management system. Power management conserves power by controlling in-

dividual components of the computer (the monitor and hard disk drive) or the whole

system.

The Power Options control panel icon in Windows (see page D - 3) allows you to

configure power management features for your computer. You may conserve power

through individual components such as the monitor or hard disk, or you may use ei-

ther Stand by or Hibernate mode to conserve power throughout the system.

Advanced Configuration and Power Interface

The ACPI interface provides the computer with enhanced power saving techniques

and gives the operating system (OS) direct control over the power and thermal states

of devices and processors. For example, it enables the OS to set devices into low-

power states based on user settings and information from applications. ACPI is fully

supported in Windows XP.



OS Note

Power management

functions will vary

slightly depending on

your operating system.

For more information it

is best to refer to the

user’s manual of your

operating system.

(Note: All pictures

used on the following

pages are from the

Windows XP OS.)

Windows XP Information

D - 14 The Power Sources

The Power Sources

The computer can be powered by either an AC/DC adapter or a battery pack.

AC/DC Adapter

Use only the AC/DC adapter that comes with your computer. The wrong type of AC/DC adapter will damage

the computer and its components.

1. Attach the AC/DC adapter to the DC-in jack at the rear of the computer.

2. Plug the AC power cord into an outlet, and then connect the AC power cord to the AC/DC adapter.

3. Raise the lid/LCD to a comfortable viewing angle.

4. Press the power button to turn “On”.

Battery

The battery allows you to use your computer while you are on the road or when an electrical outlet is unavailable.

Battery life varies depending on the applications and the configuration you're using. To increase battery life,

let the battery discharge completely before recharging (see “How do I completely discharge the battery?”

on page D - 24).

We recommend that you do not remove the battery. For more information on the battery, please refer to “Battery

Information” on page D - 21.

Windows XP Information

Turning on the Computer D - 15

Turning on the Computer

Now you are ready to begin using your computer. To turn it on simply press the pow-

er button on the front panel.

When the computer is on, you can use the power button as a Stand by/Hibernate/

Shutdown hot-key button when it is pressed for less than 4 seconds (pressing and

holding the power button for longer than this will shut the computer down). Use

Power Options in the Windows control panel to configure this feature.



Shutdown

Note that you should al-

ways shut your comput-

er down by choosing the

Turn Off Computer

command from the Start

menu in Windows. This

will help prevent hard

disk or system prob-

lems.



Forced Off

If the system “hangs”, and the Ctrl + Alt + Del key combination doesn’t work, press the pow-

er button for 4 seconds, or longer, to force the system to turn itself off.

Power Button as Stand by or Hibernate Button

If you are using a fully ACPI-compliant OS, (such as Windows XP) you can use the OS’s

“Power Options” control panel to set the power button to send the system into Stand by or

Hibernate mode (see your OS’s documentation, or “Configuring the Power Button” on

page D - 20 for details).

Windows XP Information

D - 16 Power Schemes

Power Schemes

You can set your computer to conserve power through individual components by

means of Power Schemes. You can also adjust the settings for each scheme to set

the monitor to turn off after a specified time, and the computer's hard disk motor to

turn off if the hard disk drive has not been accessed for a specified period of time (if

the system reads or writes data, the hard disk motor will be turned back on). The

schemes may also be set to set a specified time for the system to enter Stand by or

Hibernate modes (see “System Power Options” on page D - 18).



Resuming

Operation

Press a key on the key-

board, or move the

mouse/TouchPad to re-

sume from Monitor or

Hard Disk Stand by.

Figure D - 10

Power Schemes

Windows XP Information

Power Schemes D - 17

Each Windows Power Scheme will also adjust the processor performance of your machine in order to save pow-

er. This is worth bearing in mind if you are experiencing any reduced performance (especially under DC/battery

power).

Choose the Home/Office Desk scheme for maximum performance when the computer is powered from an AC

power source. Choose the Max Battery scheme (bear in mind that this scheme may slow down the overall per-

formance of the computer in order to save power) for maximum power saving when the computer is battery (DC

power) powered. Windows will use Portable/Laptop as the default scheme.

Windows XP Information

D - 18 System Power Options

System Power Options

You can use the system power options to stop the computer’s operation and restart

where you left off. This system features Stand by and Hibernate sleep mode levels

(Hibernate mode will need to be enabled by clicking the option in the Hibernate tab

in the Power Options control panel - see “Hibernate” on page D - 19).

Hibernate Mode vs. Shutdown

Hibernate mode and Shutdown are the same in that the system is off and you need to

press the power button to turn it on. Their main difference is:

When you come back from hibernation, you can return to where you last left off

(what was on your desktop) without reopening the application(s) and file(s) you last

used.

You can use either method depending on your needs.

Stand by Mode vs. Hibernate Mode

If you want to stay away from your work for just a while, you can put the system on

Stand by instead of in hibernation. It takes a longer time to wake up the system from

Hibernate mode than from Stand by mode.



Stand by/Hibernate

or Shutdown Error

The computer may stop

responding when you

put it into (or resume

from) Stand By or Hiber-

nate, or when you shut

down.

This error is caused by

power management

within Windows XP,

when applied to a PC

Camera attached to the

internal USB hub.

Microsoft has posted a

Hotfix for this error on its

website (search for Hot-

fix KB909667).

Download and install the

Hotfix to correct this er-

ror.

Windows XP Information

System Power Options D - 19

Stand by

Stand by saves the least amount of power, but takes the shortest time to return to full

operation. During Stand by the hard disk is turned off, and the CPU is made to idle

at its slowest speed. All open applications are retained in memory. When you are not

using your computer for a certain length of time, which you specify in the operating

system, it will enter Stand by mode to save power.

Hibernate

Hibernate uses no power and saves all of your information on a part of the HDD be-

fore it turns the system off. Although it saves the most power it takes the longest time

to return to full operation. You can set your computer to automatically enter Hiber-

nate mode when the battery power is almost depleted. You will need to enable Hi-

bernate mode from the Hibernate tab in the Power Options control panel. The

system will resume from Hibernate mode by pressing the power button.



System Resume

The system can resume

from Stand by mode by:

• Pressing the power

button

• Pressing the Sleep/

Resume key combi-

nation

• An incoming call

received on the

modem (if enabled)

• Network card (Wake

On LAN) activity (if

enabled)

Figure D - 11

Enable Hibernation

Windows XP Information

D - 20 Configuring the Power Button

Configuring the Power Button

The power button may be set to send the computer in to either Stand by or Hiber-

nate mode. In Stand by mode, the LED will blink green. In Hibernate mode

the LED will be off (battery) or orange (AC/DC adapter). If you are in a power saving

mode set to save power through individual components (e.g. hard disk, monitor), the

LED will remain green.



Sleep Button

You may also configure

the Sleep/Resume key

combination (Fn + F4)

from the menu illustrat-

ed. In Windows this is

referred to as the Sleep

button.

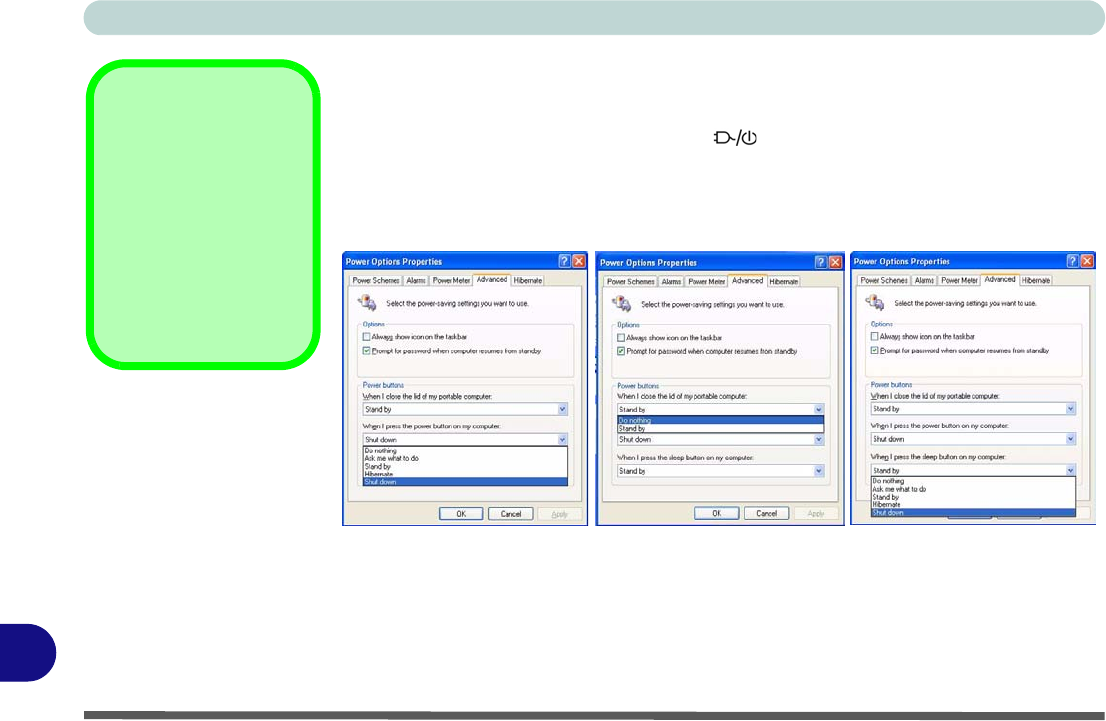

Figure D - 12

Power Options

(Advanced - Power

Buttons)

(Sleep) Button

Power Button Sleep/ResumeLid

Windows XP Information

Battery Information D - 21

Battery Information

Please follow these simple guidelines to get the best use out of your battery.

New Battery

Always completely discharge, then fully charge, a new battery (see “Battery FAQ”

on page D - 24 for instructions on how to do this).

Battery Life

Your computer’s battery life is dependent upon many factors, including the programs

you are running, and peripheral devices attached. Power Options (you may set low

battery Alarms and actions, and check the Power Meter from the Power Options

control panel), and settings in the OS will help prolong the battery life if configured

appropriately.



Low Battery

Warning

When the battery is criti-

cally low, immediately

connect the AC/DC

adapter to the computer

or save your work, oth-

erwise, the unsaved

data will be lost when

the power is depleted.

Figure D - 13

Power Options

(Alarm & Power

Meter)

Windows XP Information

D - 22 Battery Information

Battery life may be shortened through improper maintenance. To optimize the life and improve its perfor-

mance, fully discharge and recharge the battery at least once every 30 days.

We recommend that you do not remove the battery yourself. If you need to remove the battery for any reason,

see “Removing the Battery” on page 6 - 3.

Recharging the Battery with the AC/DC Adapter

The battery pack automatically recharges when the AC/DC adapter is attached and plugged into an electrical out-

let. If the computer is powered on, and in use, it will take several hours to fully recharge the battery. When the

computer is turned off but plugged into an electrical outlet, battery charge time is less. (Refer to “LED Indica-

tors” on page 1 - 7 for information on the battery charge status, and to “Battery Information” on page D - 21

for more information on how to maintain and properly recharge the battery pack.)



Conserving Battery Power

To conserve battery power:

Lower the brightness level of the LCD display. The system will decrease LCD brightness slightly to save power when it is not powered by

the AC/DC adapter.

Close modem or communication applications when they are not being used.

Remove any unused PC Cards from the computer (PC Cards quickly use up battery power even if the system enters sleep mode).

Disconnect any unnecessary external devices.

Windows XP Information

Battery Information D - 23

Proper handling of the Battery Pack

• DO NOT disassemble the battery pack under any circumstances

• DO NOT expose the battery to fire or high temperatures, it may explode

• DO NOT connect the metal terminals (+, -) to each other



Damaged Battery Warning

Should you notice any physical defects (e.g. the battery is bent out of shape after being

dropped), or any unusual smells emanating from the notebook battery, shut your computer

down immediately and contact your service center. If the battery has been dropped we do

not recommend using it any further, as even if the computer continues to work with a dam-

aged battery in place, it may cause circuit damage, which may possibly result in fire. It is

recommended that you replace your computer battery every two years.

Windows XP Information

D - 24 Battery Information

Battery FAQ

How do I completely discharge the battery?

Use the computer with battery power until it shuts down due to a low battery. Don’t

turn off the computer by yourself even when you see a message that indicates the bat-

tery is critically low, just let the computer use up all of the battery power and shut

down on its own. Disable the Power Options functions in the Control Panel, espe-

cially any Alarms (unclick the tickboxes - see page D - 21) and Schemes (change

all the settings to Never - see page D - 16). As the battery nears the end of its life save

and close any critical files.

How do I fully charge the battery?

When charging the battery, don’t stop until the LED charging indicator light changes

from orange to green.

How do I maintain the battery?

Completely discharge and charge the battery at least once every 30 days or after

about 20 partial discharges.



Caution

Danger of explosion if

battery is incorrectly re-

placed.

Replace only with the

same or equivalent type

recommended by the

manufacturer. Discard

used battery according

to the manufacturer’s in-

structions.

Windows XP Information

Driver Installation D - 25

Driver Installation

Insert the Device Drivers & Utilities + User’s Manual

CD-ROM, click Install Drivers/Optional (button) and

then click the appropriate driver name from the Drivers

Installer menu. Follow the instructions to install the

driver. Alternatively click Start, navigate (Browse..) to

the executable file and then follow the manual setup in-

structions.

Figure 5 - Drivers Installer Screen 1

1. Check the driver installation order from Table 5 (the

drivers must be installed in this order) which is the

same as that listed in the Drivers Installer menu

below.

2. Click to select the driver you wish to install, after

installing each driver it will become greyed out (if you

need to reinstall any driver, click the Unlock button).

3. Follow the instructions for each individual driver

installation procedure as listed on the following pages.

Figure 6 - Drivers Installer Screen 2

Windows XP Information

D - 26 Driver Installation

Installation Methods (Win XP)

If you wish to install the drivers manually, click the Exit button to quit the Drivers Installer application, and

then browse to the executable file in the location listed in the table below and follow the installation procedure

for each driver. Note that X is the drive letter assigned to the CD/DVD-ROM drive.

Table 5 - Driver Installation

WinXP SP2 Driver Page # Driver Location

Video Page D - 28 X:\XP\01Vga\setup.exe

Audio Page D - 28 X:\Drivers\02Audio\Setup.exe

Modem Page D - 28 X:\Drivers\03Modem\ssetup.exe

LAN Page D - 28 X:\Drivers\04Lan\setup.exe

TouchPad Page D - 29 X:\XP\05Touchpad\Setup.exe

CardReader Page D - 29 X:\Drivers\06Reader\Setup.exe

Hot Key Page D - 29 X:\XP\07Hotkey\Setup.EXE

PC Camera Module Page D - 30 X:\XP\02Camera\Setup.exe (for 300K or 1.3M pixel Camera)

X:\Others\02Camera\D-max2.0M\Setup.exe (for 2.0M pixel Camera)

Wireless LAN Module Page D - 37 X:\Others\01RTL8187\setup.exe

Bluetooth Module Page D - 39 X:\XP\03Bluetooth\Setup.exe

3.5G Module Page D - 43 X:\Others\04_3G\3G.msi

Fingerprint Reader Page D - 44 X:\Others\05Fingerprint\Application\x86\autorun.exe

Windows XP Information

Driver Installation D - 27

Updating/Reinstalling Individual Drivers

If you wish to update/reinstall individual drivers it may

be necessary to uninstall the original driver.To do this go

to the Control Panel in the Windows OS and double-

click the Add/Remove Programs item. If you see the

individual driver listed (if not see below), uninstall it,

following the on screen prompts (it may be necessary to

restart the computer). Go to the appropriate section of the

manual to complete the update/reinstall procedure for the

driver in question.

If the driver is not listed in the Add/Remove Programs

item:

1. Click Start (menu), point to Settings and click Control

Panel (or click Start > Control Panel).

2. Double-click System (icon); System (icon) is in

Performance and Maintenance (category).

3. Click Hardware (tab) > Device Manager (button).

4. Double-click the device you wish to update/reinstall the

driver for (you may need to click “+”).

5. Look for the Update Driver button (check the Driver

tab) and follow the on screen prompts.



Windows XP Service Pack 2

Make sure you install Windows XP Service Pack 2 (or a

Windows XP version which includes Service Pack 2) be-

fore installing any drivers. Service Pack 2 includes sup-

port for USB 2.0.

If you have upgraded the system by installing Service

Pack 2 (i.e. your Windows XP version does not include

Service Pack 2) then follow these instructions:

1.Click Start (menu), point to Settings and click Con-

trol Panel (or click Control Panel).

2.Double-click System (icon); System (icon) is in Per-

formance and Maintenance (category).

3.Click the Hardware (tab) > Device Manager (button).

4.Click “+” next to Other Devices (if its sub-items are

not shown).

5.Right-click Universal Serial Bus (USB) Controller

and select Uninstall > OK (if you don’t see the item

then there is no need to take any further action).

6.Restart the computer and it will find the USB 2.0 con-

troller.

Windows XP Information

D - 28 Driver Installation

Driver Installation Procedure

Video

1. Click 1.Install VGA Driver > Yes.

2. Click Next > Next > Next > Next.

3. Click Next (click Yes if you want to view the

ReadMe file).

4. Click Finish to restart the computer.

Audio

1. Click 2.Install Audio Driver > Yes.

2. Click Next.

3. Click Finish to restart the computer.

Modem

1. Click 3.Install Modem Driver > Yes.

2. Click OK.

3. The modem is ready for dial-up configuration.

LAN

1. Click 4.Install LAN Driver > Yes.

2. Click Next.

3. Click Finish > Finish to restart the computer.

4. The network settings can mow be configured.



Modem Country Selection

Be sure to check if the modem country selection is ap-

propriate for you (Control Panel > Phone and Modem

Options).

Windows XP Information

Driver Installation D - 29

TouchPad

1. Click 5.Install Touchpad Driver > Yes.

2. Click Next > Next > Next.

3. Click Finish to restart the computer.

4. You may then configure your TouchPad as out-

lined in “TouchPad and Buttons/Mouse” on

page 2 - 8.

CardReader

1. Click 6.Install Cardreader Driver > Yes.

2. Click Next > Next.

3. Click Finish to restart the computer.

Hot Key

1. Click 7.Install HOTKEY Driver > Yes.

2. Click Next > Install.

3. Click Finish > Finish to restart the computer.

Module Drivers

See the following pages for the driver installation pro-

cedures for any of the optional modules included in

your purchase configuration.

Wireless LAN, Bluetooth & 3.5G Modules



Wireless Device Operation Aboard Aircraft

The use of any portable electronic transmission devices

aboard aircraft is usually prohibited. Make sure the module(s)

are OFF if you are using the computer aboard aircraft.



Wireless LAN, Bluetooth & 3.5G Modules Power Toggle

Enable power to the modules as follows:

Fn + F11 = Wireless LAN Module Power Toggle

Fn + F12 = Bluetooth Module Power Toggle

Fn + _ = 3.5G Module Power Toggle

The LED indicator

will be

green

if the WLAN module is on,

and

orange

if the Bluetooth module is on. The LED indicator

will be

green

if the 3.5G module is on.

Windows XP Information

D - 30 PC Camera Module

PC Camera Module

Before installing the optional PC Camera module driver use the Fn + F10 key com-

bination to toggle power to the module. There are 3 camera options available for this

computer, depending on your purchase configuration. The 300K and 1.3M pixel

camera modules use the BisonCap application to capture video files, and the 2.0M

pixel camera module uses the Video View application to capture video files.

PC Camera Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers &

Utilities + User’s Manual CD-ROM into the CD/DVD drive.

2. Click Optional (button).

3. Click 1.PC Camera Driver, Web cam > Yes.

For the 1.3M or 300K Pixel Camera Module:

1. Choose the language you prefer and click Next.

2. Click Finish to restart the computer.

3. Run the BisonCap application program from the BisonCam shortcut on the

desktop, or from the BisonCam item in the Start > Programs/All Programs

menu (if the hardware is turned off use the Fn + F10 key combination to turn

it on again).



Taking Still Pictures

Double-click the

Computer

icon on the

desktop, or go the

Start

menu and point to

Computer

, then click it.

Double-click the

Bison-

Cam, NB Pro

icon.

Click

Take a new picture

in the

Camera Tasks

box.

Windows XP Information

PC Camera Module D - 31

For the 2.0M Pixel Camera Module:

1. Click Install.

2. Click to select Ye s or No in answer to the power system question.

3. Click to select Ye s or No to enable/disable the Digital Zoom function.

4. Click Finish > Finish to restart the computer.

5. Run the Video View application program from the Video View shortcut on the desktop, or from the

USB2.0 PC Camera item in the Start > Programs/All Programs menu (if the hardware is turned off

use the Fn + F10 key combination to turn it on again).

PC Camera Audio Setup (all camera modules)

If you wish to capture video & audio with your camera, it is necessary to setup the audio recording options in

Windows.

1. Go to the Start menu and point to Settings (or just click Control Panel) and click Control Panel, then double-

click the Sounds & Audio Devices icon (Sounds, Speech, and Audio Devices in Category View).

2. Click Advanced in the Volume > Device volume tab.

3. Click Options and scroll down and click Properties.

4. Select Realtek HD Audio input from the Mixer device menu.

5. Make sure the Mic Volume (check box) is checked, then click OK.

6. Boost the volume in the Recording section (in the Recording Control menu) as high as it will go.

7. Close the Recording Control window, and then click OK.

8. Run the BisonCap application program from the Start > Programs/All Programs > BisonCam menu.

9. Go to the Devices menu heading and select Realtek HD Audio input (it should have a tick alongside it).

10. Go to the Capture menu heading and select Capture Audio (it should have a tick alongside it).

Windows XP Information

D - 32 PC Camera Module

BisonCap (for 300K & 1.2M pixel camera modules)

BisonCap is a video viewer useful for general purpose video viewing and testing,

and can capture video files to .avi format.

1. Run the BisonCap application from the Start > Programs/All Programs > Bison-

Cam menu (it is recommended that you set the capture file before the capture

process - see Set Capture File below).

2. Go to the Capture menu heading (if you wish to capture audio check “PC Camera

Audio Setup (all camera modules)” on page D - 31) and select Start Capture.

3. On the first run of the program (if you have not set the captured file) you will be

asked to choose a file name and size (see the sidebar - Pre-Allocating File

Space) for the captured file. Click Start Capture again.

4. Click OK to start capturing the video, and press Esc to stop the capture.

5. If you wish to, you may go to the File menu and select Save Captured Video As...,

choose a file name and location, and then click Open (you can view the file using

the Windows Media Player).

Set Capture File

In the BisonCap program you will only be asked to set the capture file name on the

first run of the program. When you run the program the next time the file will auto-

matically be overwritten with the newly captured file. To avoid overwriting files you

can go to the Set Capture File.. option in the File menu, and set the file name and

location before capture. Set the name and location then click Open (you can choose

Cancel to ignore the file size if prompted).



Pre-Allocating File

Space

You may pre-allocate the

file size for the capture file

in the

BisonCap

pro-

gram. You can choose to

ignore this by clicking

Cancel

Pre-allocating space on

the hard disk can improve

the capture quality (par-

ticularly of large capture

files), by reducing the

amount of work the hard

disk has to do in finding

space for the video data

as it is being captured.

You may find it helpful to

defragment the HDD be-

fore capture.

Windows XP Information

PC Camera Module D - 33

Eliminating Screen Flicker (BisonCap)

If you find that the video screen in the BisonCap program is flickering, you can try

to adjust the setting in the Video Capture Filter options.

1. Run the BisonCap application.

2. Go to Options and scroll down to select “Video Capture Filter...”.

3. Click either 50Hz or 60Hz under Frequency in Property Page (tab).

Figure D - 1

Video Capture Filter

Windows XP Information

D - 34 PC Camera Module

Video View (for 2.0M pixel camera module)

Video View is a video viewer useful for general purpose video viewing and testing,

and can capture video files to .avi format.

1. Run the Video View program from the Start > Programs/All Programs > USB2.0

PC Camera menu (it is recommended that you set the capture file before the cap-

ture process - see Set Capture File below).

2. Go to the Capture menu heading (if you wish to capture audio check “PC Camera

Audio Setup (all camera modules)” on page D - 31) and select Start Capture.

3. Click OK (the file location will be displayed in the pop-up box) to start capturing the

video, and press Esc to stop the capture.

Set Capture File

Prior to capturing video files you may Set Capture File... To avoid overwriting files

you can go to the Set Capture File.. option in the File menu, and set the file name

and location before capture. Set the name and location then click Open (you can

choose Cancel to ignore the file size if prompted).



Pre-Allocating File

Space

You may pre-allocate

the file size for the cap-

ture file in the Video

View program.

Pre-allocating space on

the hard disk can im-

prove the capture quali-

ty (particularly of large

capture files), by reduc-

ing the amount of work

the hard disk has to do

in finding space for the

video data as it is being

captured.

Windows XP Information

PC Camera Module D - 35

Eliminating Screen Flicker (Video View)

If you find that the video screen in the Video View program is flickering, you can try

to adjust the setting in the Video Capture Filter options.

1. Run the Video View program.

2. Go to Options and scroll down to select Video Capture Filter....

3. Click either 50Hz or 60Hz under Flickering Reduction in Image (tab).

Figure D - 2

Video Capture Filter

Windows XP Information

D - 36 PC Camera Module

Zoom (Video View)

If you have enabled digital zoom when installing the 2.0M Pixel Camera driver you

may use the Options > Setting menu to zoom the camera in and out.

1. Run the Video View program.

2. Go to Options and scroll down to select Setting.

3. Use the slider to adjust the zoom level, and click OK to save the setting.

Still Image Capture (Video View)

You can capture still images by using the Snapshot command from the Capture

menu.

1. Run the Video View program.

2. Go to Capture and select Snapshot.

3. The picture (in JPEG format) will be placed in the Snapshot folder on the desktop.

Figure D - 3

Setting



Snapshot Folder

The Snapshot folder’s

default location is on the

desktop. Do not move

this folder or an error

may appear when you

try to take a still picture.

If you accidentally de-

lete or move the folder,

you can create a new

Snapshot folder on the

desktop in order to cap-

ture the files.

Figure D - 4

Snapshot Folder

Windows XP Information

802.11 b/g USB WLAN Module D - 37

802.11 b/g USB WLAN Module

Before installing the optional 802.11b/g USB WLAN module driver use the Fn +

F11 key combination to toggle power to the module.

802.11b/g USB WLAN Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers &

Utilities + User’s Manual CD-ROM into the CD/DVD drive.

2. Click Optional (button).

3. Click 2.Wireless Lan > Yes.

4. Choose the language you prefer and click OK.

5. Click Next.

6. Click Finish to complete the installation.

7. The operating system is the default setting for Wireless LAN control in Win-

dows XP.

8. Access any available wireless networks from Network Connections >

Wireless Network Connection menu in Windows, or click the icon in

the taskbar, and click View Wireless Connections.



Wireless Device

Operation Aboard

Aircraft

The use of any portable

electronic transmission de-

vices aboard aircraft is usu-

ally prohibited. Make sure

the module(s) are OFF if

you are using the computer

aboard aircraft.

Use the Fn + F11 key com-

bination to toggle power to

the WLAN module, and

check the indicator to see if

the module is powered on

or not (see Table 1 - 5, on

page 1 - 10/ Table 1 - 2, on

page 1 - 7).

Windows XP Information

D - 38 802.11 b/g USB WLAN Module



Network

Connection

Use the

Windows

Net-

work Connections

con-

trol panel to access

available wireless net-

works (

Start > Settings >

Network Connections

Start > Connect To >

Show all Connections

Figure D - 5

Wireless Network

Control Panels

Windows XP Information

Bluetooth Module D - 39

Bluetooth Module

Before installing the optional Bluetooth module driver use the Fn + F12 key com-

bination to toggle power to the module.

Bluetooth Driver Installation

1. Make sure the module is powered on, and then insert the Device Drivers &

Utilities + User’s Manual CD-ROM into the CD/DVD drive.

2. Click Optional (button).

3. Click Install Software Drivers v2.3.0.1.

4. Choose the language you prefer, and click OK.

5. Click Next.

6. Click the button to accept the license agreement, then click Next.

7. Click Next > Next > Install.

8. Click Finish.

9. The IVT Corporation BlueSoleil - Main Window screen appears on

restart.

10. You can configure the settings at any time by going to the IVT Corporation

BlueSoleil - Main Window control panel (Start > Programs/All Pro-

grams > IVT BlueSoleil), or by clicking the taskbar icon .

11. View the BlueSoleil User Guides from the Help Menu (press F1) in the IVT

Corporation BlueSoleil - Main Window control panel.



Wireless Device

Operation Aboard

Aircraft

The use of any portable

electronic transmission de-

vices aboard aircraft is usu-

ally prohibited. Make sure

the module(s) are OFF if

you are using the computer

aboard aircraft.

Use the Fn + F12 key com-

bination to toggle power to

the Bluetooth module, and

check the indicator to see if

the module is powered on

or not (see Table 1 - 5, on

page 1 - 10/ Table 1 - 2, on

page 1 - 7).

Windows XP Information

D - 40 Bluetooth Module



User Guide

View the BlueSoleil User

Guides (Contents and In-

dex) from the

Help

(or press the

key) in

the

IVT Corporation

BlueSoleil - Main Win-

dow

control panel. Click

BlueSoleil User Guides

in the

Contents

tab, and

click to select the appro-

priate User Guide from

the panel on the right.

Figure D - 6

Bluetooth Control

Panel & User Guides

Windows XP Information

Bluetooth Module D - 41

Bluetooth Local Area Connection Icon

If you want to display the Local Area Connection icon for the Bluetooth connection

in the taskbar, set it up as follows:

1. Access the Network Connections control panel in Windows (Start > Settings >

Network Connections OR Start > Connect To > Show all Connections) or by

clicking the taskbar icon .

2. Right-click the Bluetooth connection icon, and select Properties.

3. Click to put a tick in the “Show icon in the notification area when connected”

box.

4. Close the control panels and the icon for the Bluetooth connection will be

displayed in the taskbar when connected (see sidebar and overleaf).



Disconnecting

In order to have the taskbar

icon display the correct

connection status, you will

need to exit the IVT Corpo-

ration BlueSoleil - Main

Window by clicking the File

menu and selecting Exit

(see over).

After exiting the program

you can then use the Fn +

F12 key combination to turn

off the Bluetooth module.

If you use the close button,

or turn off the Bluetooth

module (by using the Fn +

F12) the taskbar icon will

not display the correct sta-

tus

Figure D - 7

Local Area

Connection

Windows XP Information

D - 42 Bluetooth Module

5. Use the Fn + F12 key combination to turn on the Bluetooth module.

6. Run the IVT Corporation BlueSoleil program from the desktop icon or Start menu.

7. The connection status will then be displayed.

Figure D - 8 - Bluetooth Connected

8. To disconnect click File from the IVT Corporation BlueSoleil - Main Window, and select Exit (the Local Area

Connection will then display “A network cable is unplugged”).

9. Do not use the close button or Fn + F12 key combination before clicking File > Exit or the correct status will

not be displayed.

10. You can then use the Fn + F12 key combination to turn off the Bluetooth module (check the LED icon for the

Bluetooth module power status).

Figure D - 9 - Bluetooth Disconnected

Windows XP Information

3.5G Module D - 43

3.5G Module

If you have included an optional 3.5G module in your purchase option follow the instructions on page 7 - 20 to

install the SIM card (which will be provided by your service provider), and then install the application.

Before installing the application, make sure that the 3.5G module is on. Use the Fn + _ key combination

(see “Function Keys” on page 1 - 10) to toggle power to the 3.5G module.

3G Watcher Application Installation

1. Make sure the module is powered on, and then insert the Device Drivers & Utilities + User’s Manual

CD-ROM into the CD/DVD drive.

2. Click Optional (button).

3. Click 4.3GWatcher > Yes.

4. Click Next.

5. Choose your region, and click Next.

6. Click the button to accept the license agreement, and then click Next.

7. Click Next > Install.

8. Click Finish, and the 3G Watcher icon will appear on the desktop.

9. You can access the 3G Watcher application from the Start menu (Start > Programs/All Programs >

Sierra Wireless > 3G Watcher), or by clicking the desktop icon .

10. Make sure you enable power to the module by pressing the Fn + _ key combination (the icon

will be green).

11. See “Connecting to the Service Provider” on page 7 - 24 for instructions on using the 3G Watcher

application.

Windows XP Information

D - 44 Fingerprint Reader

Fingerprint Reader

If you have included the fingerprint reader in your purchase option (for Model B

computers only) you will need to install the driver as per the instructions below.

Make sure you have administrator’s rights to your computer, and have a Windows

password enabled for full security protection.

Before beginning the enrollment process it is recommended that you go through the

fingerprint tutorial. To run the tutorial click Start > Programs/All Programs > Pro-

tector Suite QL > Fingerprint Tutorial after installing the driver.

Fingerprint Reader Driver Installation

1. Insert the Device Drivers & Utilities + User’s Manual CD-ROM into the

CD/DVD drive.

2. Click Optional (button).

3. Click 5.Fingerprint > Yes.

4. Click Software Installation.

5. Click Next > Next > Next.

6. Click Finish > Yes to restart the computer.



Help & Manual

Right-click the taskbar icon

to bring up the menu to

select

Help

Insert the Device Drivers &

Utilities + User’s Manual

CD-ROM and click Option-

al (button). Click Unlock

(button) and then click 5.In-

stall Fingerprint Driver >

Yes.

Click

Documentation

open the folder containing

the manual in .pdf format.

To install the Adobe Acrobat

Reader software to read the

file, i

nsert the Device Driv-

ers & Utilities + User’s Man-

ual CD-ROM and click

User’s Manual (button),

and click Install Acrobat

Reader (button).

Windows XP Information

Fingerprint Reader D - 45

User Enrollment

1. Click Start > Programs/All Programs > Protector Suite QL > User Enrollment, or double click the taskbar

icon .

2. On the first run of the program you will be asked to click the button to accept the license, and then click OK.

3. Click Next and select “Enrollment to the hard disk”, and click Finish.

4. Click Next and you will then be prompted to enter your Windows password (note: If you have not set a

password Protector Suite QL cannot secure access to your computer).

5. Click Next > Next (tick the “Run interactive tutorial” tickbox to run through the Fingerprint Tutorial).

6. Click Next for each window of the tutorial (you can click the button to “skip tutorial” at any time).

7. Click the button above any of the fingers to begin the enrollment process for that finger.

8. Swipe the finger three times to enroll that finger.

9. Repeat the process for all the fingers you wish to enroll (see below), and then click Next.

Figure D - 10 - Fingerprint Enrollment



Fingerprint

Enrollment

Note that it is strongly rec-

ommended that you enroll

more than one finger in

case of injury etc.

Windows XP Information

D - 46 Fingerprint Reader

10. If you put a tick in the “Enable Advanced Security for the current user” tickbox you will be asked to input a

PIN before continuing (choose TPM key with PIN and enable and create a backup password).

11. Click Next > Finish.

12. Right-click the taskbar icon to bring up the menu that allows you to Edit Fingerprints, start Control Center,

access the Help menu etc. You can also run the Control Center etc. from the Protector Suite QL item in the

Programs/All Programs menu.

13. See “Help & Manual” on page D - 44 for further details.

14. If you swipe your finger over the reader at any time you can access the Biomenu to lock the computer,

Figure D - 11 - Control Center & Biomenu

CLEVO M72S Notebook User Manual II

CLEVO Co. Notebook Users Manual II

Contents

Users Manual II

Navigation menu

Namespaces

Views

Navigation
