CNet Technology 0343UD 11Mbps WLAN USB Dongle User Manual
CNet Technology Inc 11Mbps WLAN USB Dongle
user manual
User Guide
11Mbps Wireless LAN USB Dongle
Version 2.0
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Europe - R&TTE Directive
This device complies with the specifications listed below:
¨ ETS 300-826 General EMC requirements for Radio equipment.
¨ ETS 300-328 Technical requirements for Radio equipment.
¨ EN60950 Safety requirements for Radio equipment.
EU Countries not intended for use
The ETSI version of this device is intended for home and office use in Austria,
Belgium, Denmark, Finland, France (with Frequency channel restrictions).
Germany, Greece, Ireland, Italy, Luxembourg, Netherlands, Portugal, Spain,
Sweden and United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states
Iceland, Liechtenstein, Norway and Switzerland.
4
TABLE OF CONTENTS
1 INTRODUCTION.......................................................................6
1.1 The 11Mbps Wireless LAN USB Dongle ......................................6
1.2 Feature.......................................................................................... 6
1.3 Hardware Description ................................................................... 6
1.4 Package Contents......................................................................... 6
1.5 System Requirements................................................................... 7
2 NETWORK CONFIGURATION AND PLANNING ....................8
2.1 Wireless LAN Basic ...................................................................... 8
2.2 Network Topology ......................................................................... 8
2.3 Roaming......................................................................................10
3 INSTALLING THE DRIVERS AND CONFIGURATION UTILITY
FOR WIN98SE, ME, 2000.............................................................. 11
3.1 Running the Auto Driver/Utility Installation.................................. 11
3.2 Inserting the Dongle.................................................................... 17
4 CONFIGURATION UTILITY....................................................21
4.1 Using the configuration Utility .....................................................21

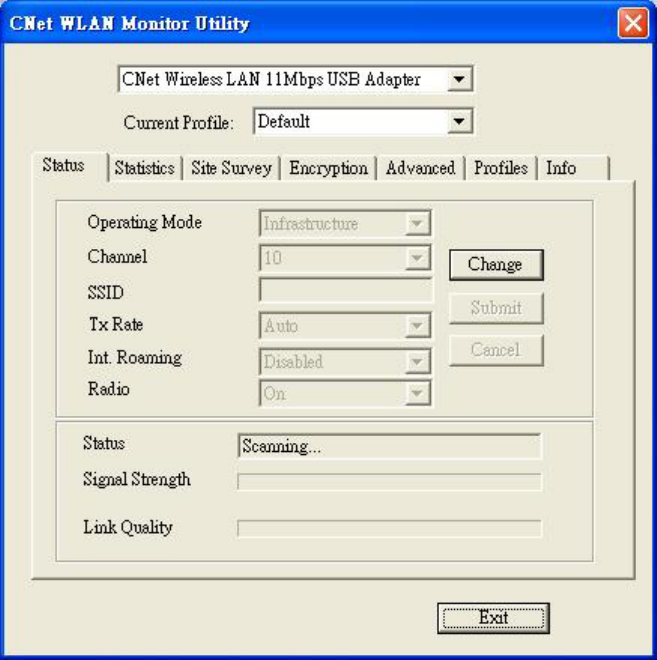

4.1.1 Status .................................................................................21

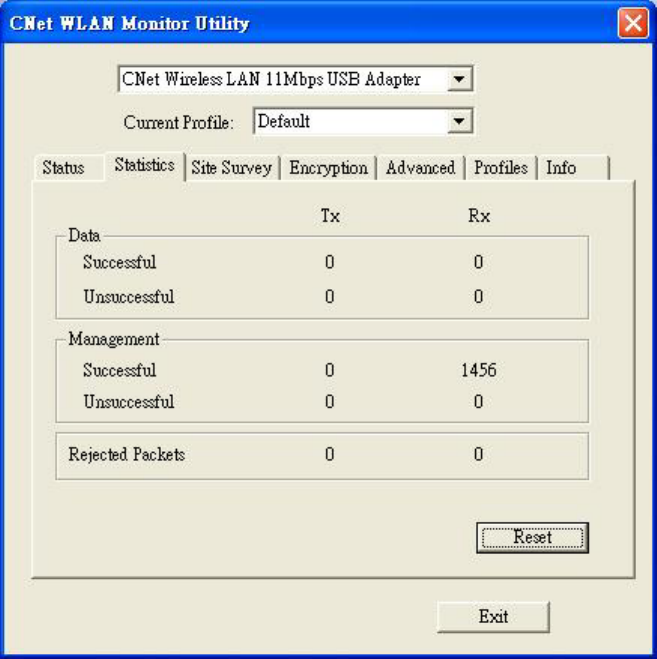

4.1.2 Statistics .............................................................................23
4.1.3 Site Survey......................................................................... 24

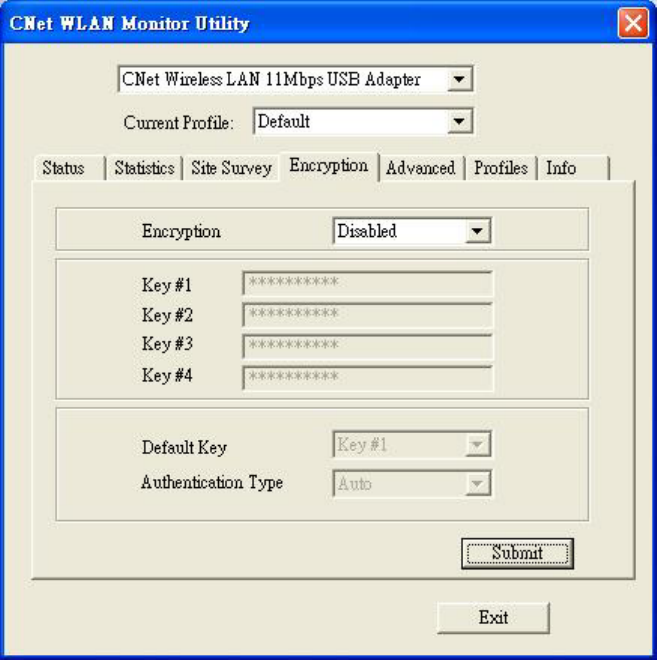

4.1.4 Encryption .......................................................................... 24

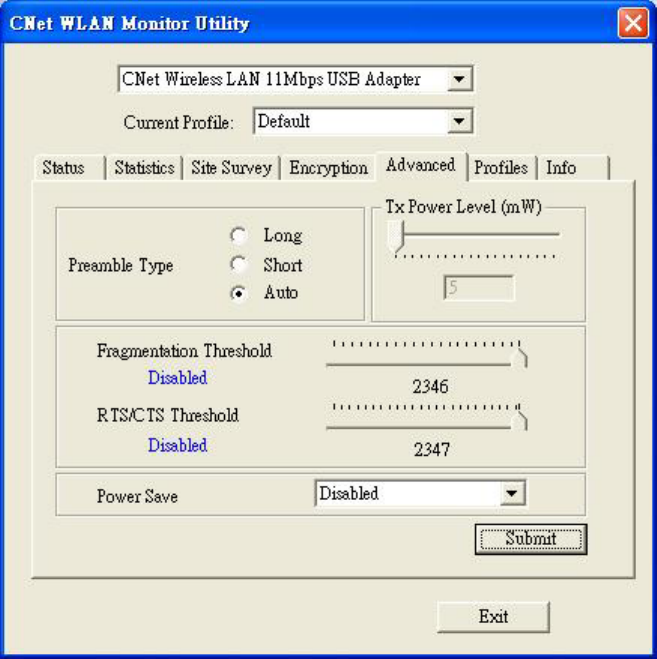

4.1.5 Advanced ........................................................................... 25

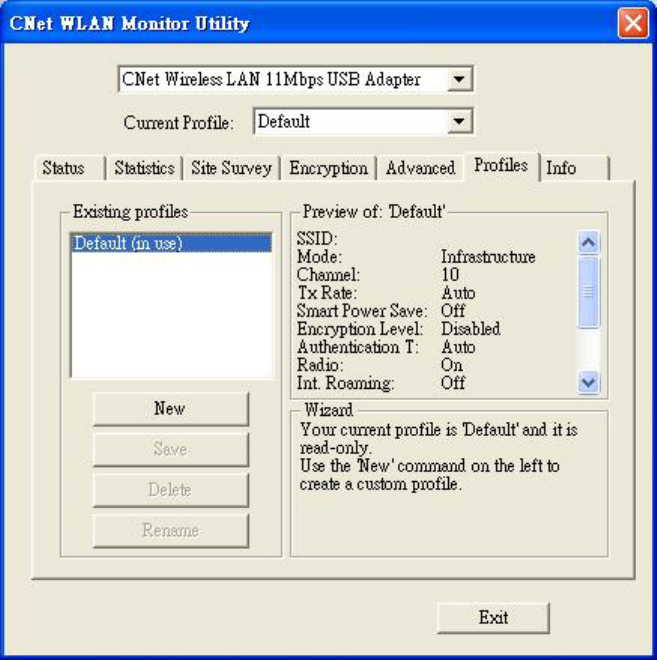

4.1.6 Profiles ...............................................................................27
4.1.7 About.................................................................................. 27

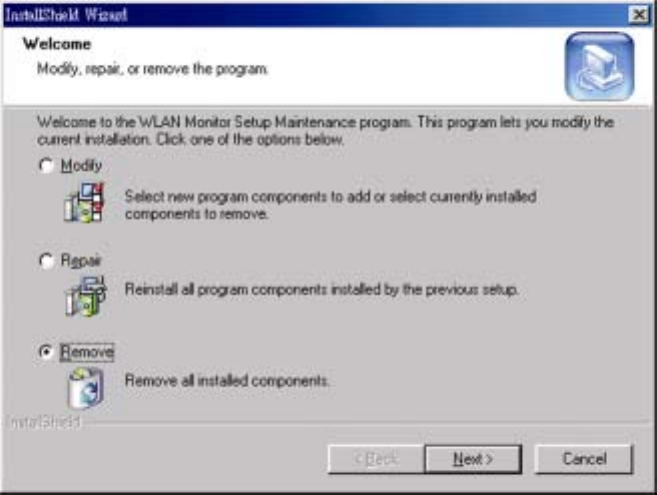

4.2 How to Uninstall the configuration & Monitor Utility....................28
5 INSTALLATION PROCEDURE UNDER WINDOWS XP........30
5
5.1 About Windows XP .....................................................................30
5.2 Installing the Driver .....................................................................30

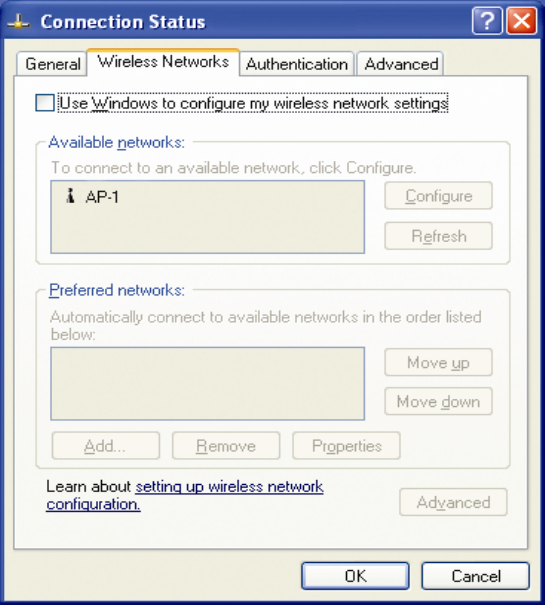

5.3 Configuration Under WinXP........................................................30
5.4 Uninstall Procedure Under WinXP..............................................33
6 TROUBLESHOOTING............................................................34
6.1 Adapter Installation Problems..................................................... 34
6.2 Network Connection Problems ...................................................34
7 GLOSSARY............................................................................35
8 SPECIFICATIONS ..................................................................37
6
1 Introduction
1.1 The 11Mbps Wireless LAN USB Dongle
The 11Mbps Wireless LAN USB Dongle now has a new, higher-powered antenna that provides a
greater range than ever. The increased sensitivity helps filter out interference and notice to keep
your signal clear. Improved error correction in the chipset keeps you operating at higher
transmission rates for longer distances. And since you only need USB ports, you’re free to use
your other ports for additional accessories.
Plug-and-Play device, Windows 98SE/ME/2000/XP will automatically recognize the USB
wireless LAN Dongle and initiate the installation process. Upon successful installation, the USB
wireless LAN Dongle will communicate seamlessly with other wireless home and office
networking products.
Using radio frequency (RF) technology, WLANs transmit and receive data over the air,
minimizing the need for wired connections. Thus, WLANs combine data connectivity with user
mobility, and through simplified configuration, enable movable LANs. This wireless networking
solution has been designed for both large and small businesses, and it is scalable so that you
can easily add more users and new network features as your business grows.
This manual will assist you in the installing WLAN USB Dongle.
1.2 Feature
IEEE 802.11b Direct Sequence high rate compatible.
High data rate 11/5.5/2/1 Mbps.
Auto Rate fallback for optimizing communication possibility in worse channel conditions and
over larger distances.
Wired Equivalent Privacy Algorithm (WEP) (64 bits/128 bits)
Support USB 1.1 interface
Compliant with Windows 98SE/2000/ME/XP
Power save in infrastructure mode.
Build-in chip antenna
Easy-to-Use Graphical Configuration utility saves detailed connectivity profiles for frequently
accessed networks
Plug-and-Play and easy setup
1.3 Hardware Description
The Wireless LAN USB Dongle supports an 11 Mbps half-duplex connection to Ethernet
networks. This Dongle is fully compliant with 2.4G DSSS wireless networking as defined in IEEE
802.11b. It can be installed in any notebook and desktop with a USB port, and is currently
provided for Windows 98SE/ME/2000/XP.
1.4 Package Contents
One 11Mbps Wireless LAN USB Dongle.
One setup Utility CD-ROM(User Guide on CD).
Quick Installation Guide.
7

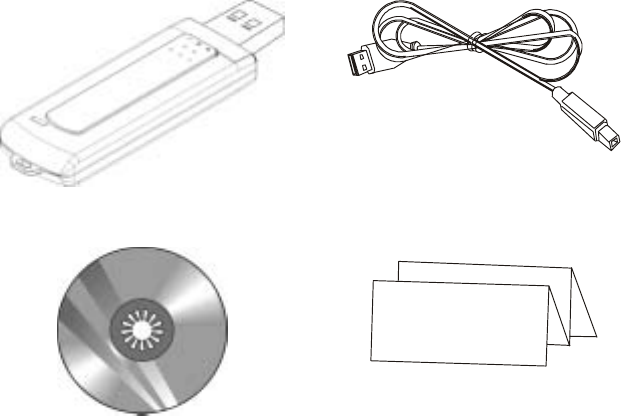

11Mbps Wireless LAN USB Dongle (USB Cable)
Quick Installation Guide
Setup Utility CD-ROM Quick Installation Guide
1.5 System Requirements
An available USB port.
USB 1.1(12 Mbps) or USB 2.0(480 Mbps) ports ready.
Operating System: Windows 98SE, ME, 2000, or XP.
2M bytes free disk space for utility and driver installation.
8
2 Network Configuration and Planning
2.1 Wireless LAN Basic
The adapter supports legacy Ethernet LAN network configuration options as defined by the IEEE
802.11b standards committee.
The adapter can be configured as:
Ad-Hoc for departmental or SOHO LANs.
Infrastructure for enterprise LANs.
LAN-Interconnection for point-to-point link as campus backbone.
2.2 Network Topology

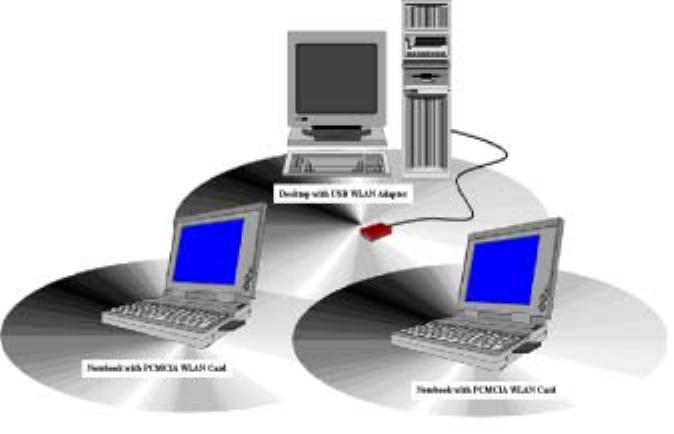

Fig 2-1 Ad-Hoc Wireless LAN
An Ad-Hoc wireless LAN is a group of computers, each equipped with one WLAN adapter,
connected as an independent wireless LAN. Computers in a specific Ad-Hoc wireless LAN must
be configured to share the same radio channel.
9
Fig 2-2 Infrastructure Wireless LAN
The adapter provides access to a wired LAN for wireless workstations. An integrated wireless
and wired LAN is called an infrastructure configuration. A group of adapter PC users and an
Access Point compose a Basic Service Set (BSS). Each adapter PC in a BSS can talk to any
computer in the wired LAN infrastructure via the Access Point.
An infrastructure configuration extends the accessibility of a adapter equipped PC to a wired
LAN, and doubles the effective wireless transmission range for 2 adapter PCs. Since the Access
Point is able to forward data within its BSS, the effective transmission range in an infrastructure
LAN is double.
Fig 2-3 The effective transmission range
The use of a unique ID in a BSS is essential. All adapter equipped PCs configured without
roaming options in independent BSS must be configured with a BSS ID corresponding to the
Access Point used in the BSS. Check your Access Point for its BSS ID or use the Access Point
Browser Utility program to determine the BSS ID
10
The infrastructure wireless LAN configuration is appropriate for enterprise-scale wireless access
to a central database, or as a wireless application for mobile users.
2.3 Roaming

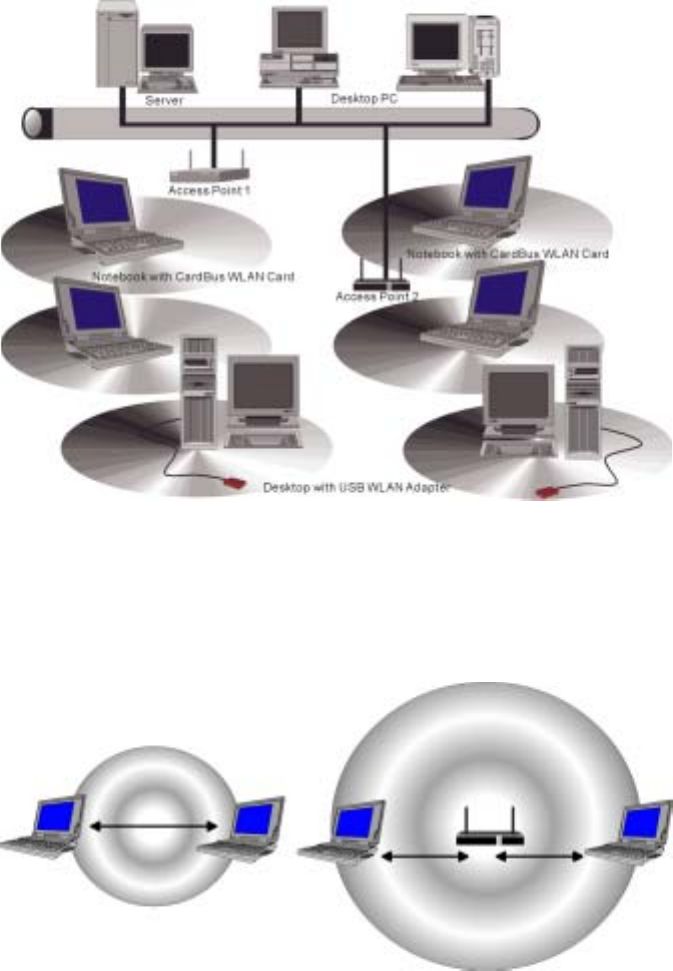

Fig 2-4 Roaming in an Extended Service Set (ESS)
Infrastructure mode also supports roaming capabilities for mobile users. More than one BSS can
be configured as an Extended Service Set (ESS). The continuous network allows users to roam
freely within an ESS. All adapter PCs and Access Point within one ESS must be configured with
the same ESS ID.
Before enabling an ESS with roaming capability, it is recommended to select a feasible radio
channel and optimum Access Point position. Proper Access Point positioning combined with a
clear radio signal will greatly enhance performance.
11
3 Installing the Drivers and Configuration Utility for Win98SE, ME, 2000
3.1 Running the Auto Driver/Utility Installation
Before installing your card, insert the Auto-Install CD into your CD-ROM driver. Unless you
have deactivated the auto-run feature of Windows, the screen shown in Fig 3-1 should appear
automatically.
If this screen doesn’t appear automatically, you can access the installation by clicking the Start
button and choosing Run. In the drop-down box provided type D:\Setup.exe (where D: is the
letterof your CD-ROM drive). Alternately, double-click My Computer and double-click the
Setup.exe iconin the folder that appears.

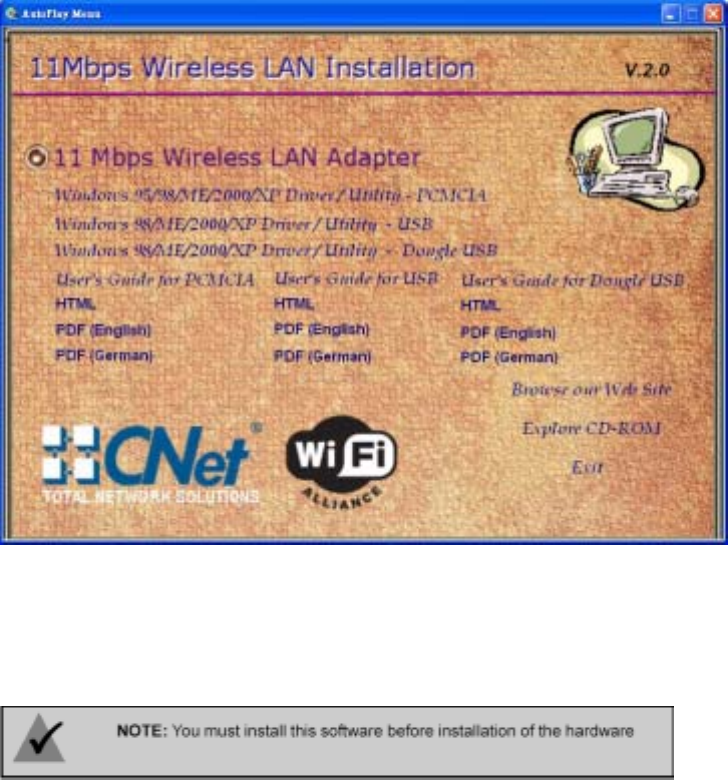

Fig 3-1 Auto-run feature of Windows

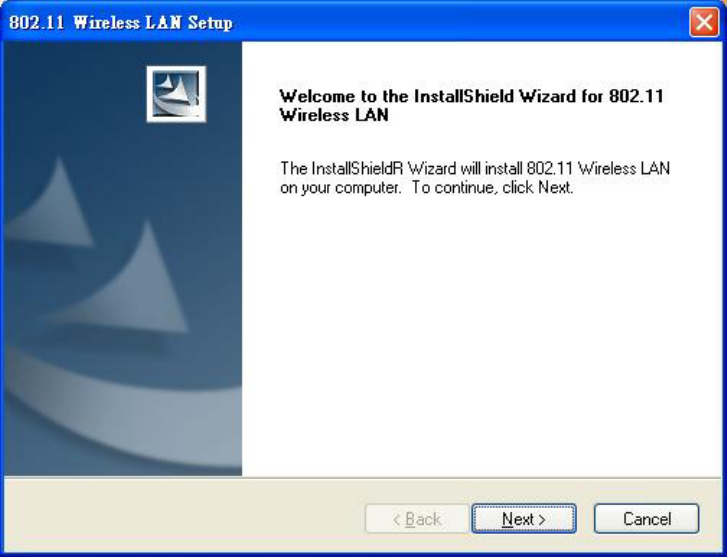

1. Click “Windows 98SE/ME/2000/XP Driver & Utility - USB” to install driver/utility for your USB
WLAN Dongle. You will see Welcome to the InstallShield Wizard for 802.11 Wireless LAN.
Click“Next >” (Fig 3-2).
2. After clicking “Next >”, components’ version of package will be shown on this screen. (Fig
3-3).
12
Fig 3-2 Install WLAN Driver / Utility
13

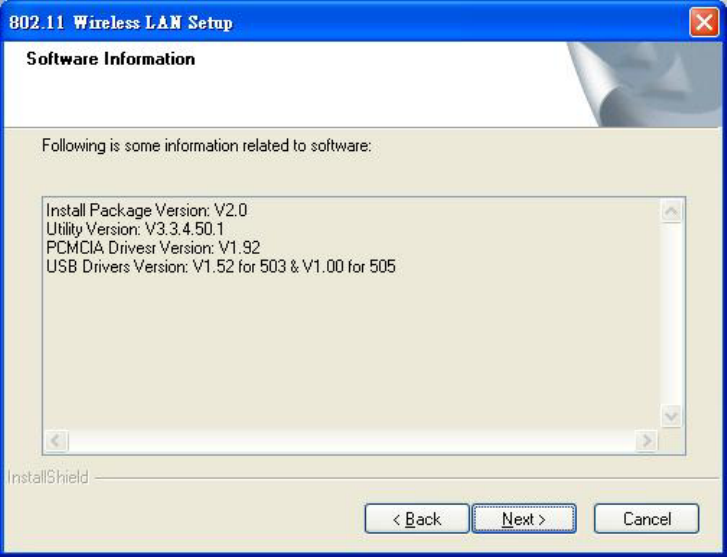

Fig 3-3 Components Version
3. The installation provides you to install package Custom or Typical. (Fig 3-4)
4. If “Custom” be chosen, you can select package individually. If you choose “Typical”, The
4 packages will be installed in your system. (Fig 3-5)
14
Fig 3-4 Setup Type
15
Fig 3-5 Typical Setup
5. You can specify a folder name of this program(Fig 3-6)
6. After copying files, you can finish the installation(Fig 3-7)
16
Fig 3-6 Select Program Folder
17

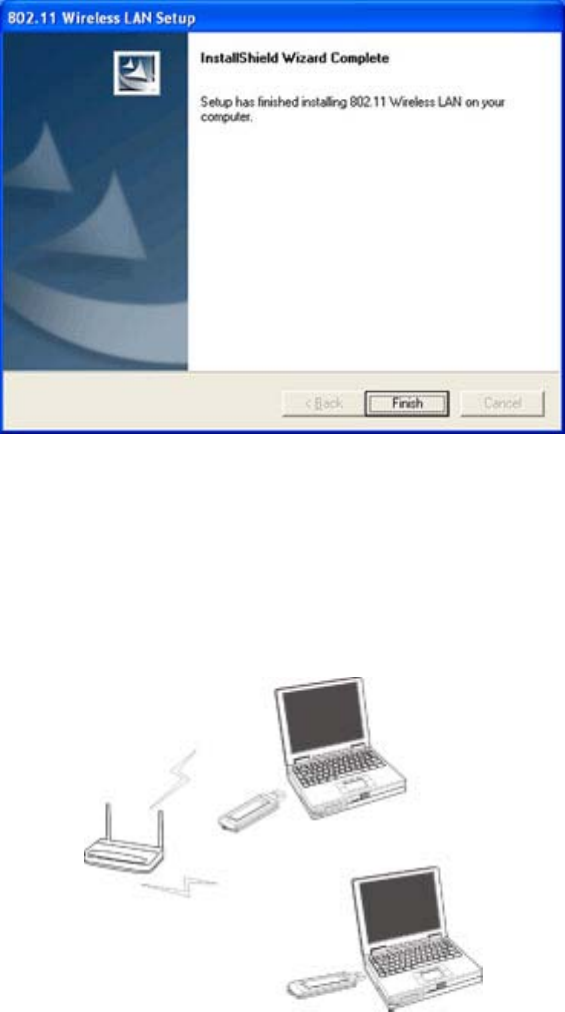

Fig 3-7 Finish
3.2 Inserting the Dongle
To insert the wireless LAN USB Dongle adapter into a notebook or desktop computer, do the
following:
1. Select an available USB port on the notebook or desktop PC.
2. Insert the USB Dongle adapter into the USB port.
Fig 3-9 Hardware insert
18

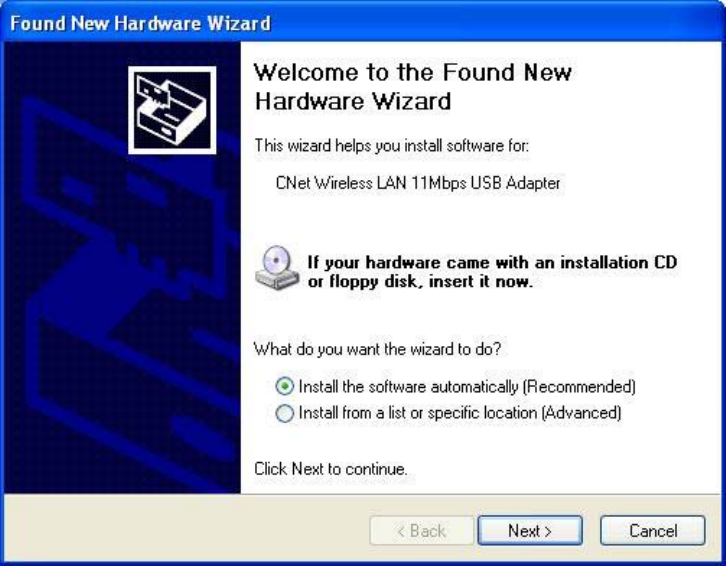

After installing USB WLAN Adapter driver and utility. Please insert the WLAN USB Dongle. You
will see Found New Hardware. Please select “Install the software automatically” then click

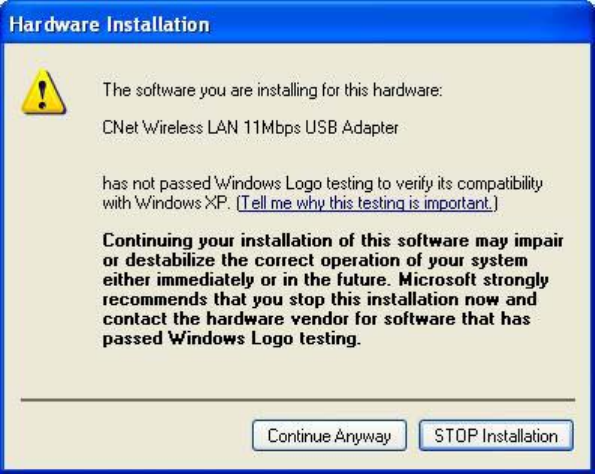

“Next>” (Fig 3-10). The screen in Windows XP (Fig 3-11) will appear click “Continue Anyway”.

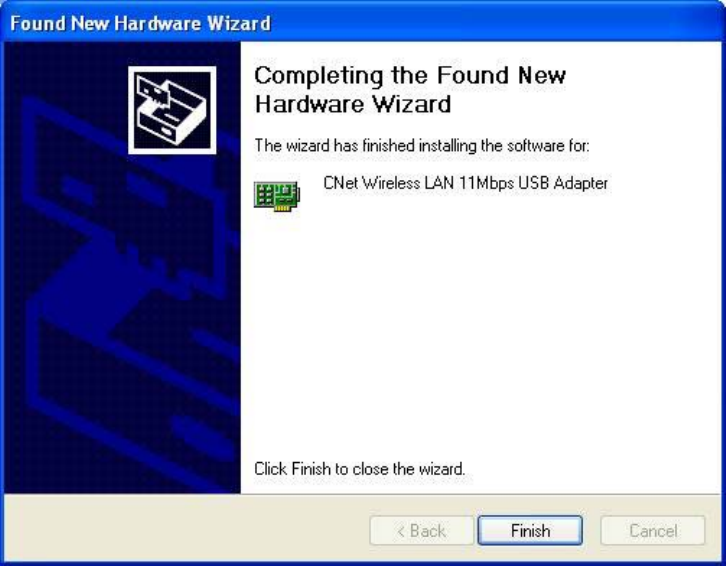

The Windows has finished installing software for the device. Click “Finish” to finish the
installation.(Fig 3-12). Configuration Utility please see Chapter 4
Fig 3-10 Found New Hardware
19
Fig 3-11 Windows XP Screen
20
Fig 3-12 Finish the installation
21
4 Configuration Utility
The Configuration Utility is provided to allow you further customization of the WLAN USB
Dongle and your wireless network.
4.1 Using the configuration Utility
After the Configuration Utility has been installed, an icon will placed in the system tray (next to
click button of your screen) when the WLAN PC Card is inserted, as shown in Fig 4-1.
Fig 4-1
The utility is divided into six parts: Status, Statistics, Site Survey, Encryption, Advanced, and
Info. You should change all your configuration settings for your WLAN PC Card using this utility
and not with the Network Properties section in your Control Panel.
4.1.1 Status
The Status screen (Shown in Fig 4-2) provides information about the current link between the
Network PC Card and Wireless Access Point.
When in Infrastructure Mode, Status will display the connection statistics for the network
segment that you are on.
The Channel field shows to what channel the WLAN PC Card is set.
The SSID field shows the current SSID set for the wireless network. This SSID can be modified
at you click Change buttom.
The Tx Rate field shows the transfer rate in megabits per second.
The Int. Roaming field shows to use this feature to allow your Dongle to retrieve country
information from the access point and behave according to that country’s regulations.
The Radio field shows on / off radio signal
22
Fig 4-2
NOTE: When in Ad-Hoc mode, Signal Strength and Link Quality indicators will not be available.
The Signal Strength field will display a bar indicating the percentage, between 0 and 100
percent, of the strength of the signal. The higher the percentage, the stronger the signal.
The Link Quality field will display a bar indicating the percentage, between 0 and 100 percent,
of the quality of the link. The higher the percentage, the better the link.
The Change buttom, allows you to customize the settings for the WLAN PC Card and your
wireless network.
The Operating Mode setting determines the architecture of your wireless network select
Ad-Hoc or Infrastructure Mode depending on your network type. The Ad-Hoc mode is used for
simple peer-to-peer network and allows the sharing of local resources only between Network
Wireless Adapter without needing a Wireless Access Point. The Infrastructure mode allows a
wireless network to be integrated into an existed, wired network through an Access Point.
Infrastructure networks permit roaming between Access Points while maintaining a connection
to all network resources.
An acronym for Service Set Identifier, SSID is the unique name shared among all points in a
wireless network. The SSID must be identical for all points in the network. It is case sensitive
23
and must not exceed 32 characters.
The Tx Rate field shows the current transfer rate for the Wireless Network USB Dongle. To
optimize performance and range, the Tx Rate should be set to Auto, which will automatically
adjust the transfer speed for best performance and longest range.
The Channel setting specifies the channel used in wireless communication and should be set to
the same channel as the other points in the wireless network. The setting can only be adjusted in
Ad-Hoc mode.
4.1.2 Statistics
The Statistics screen (Shown in Fig 4-3) provides information about the Tx / Rx Data,
Management, rejected Packets.
Fig 4-3
24
Fig 4-4
4.1.3 Site Survey

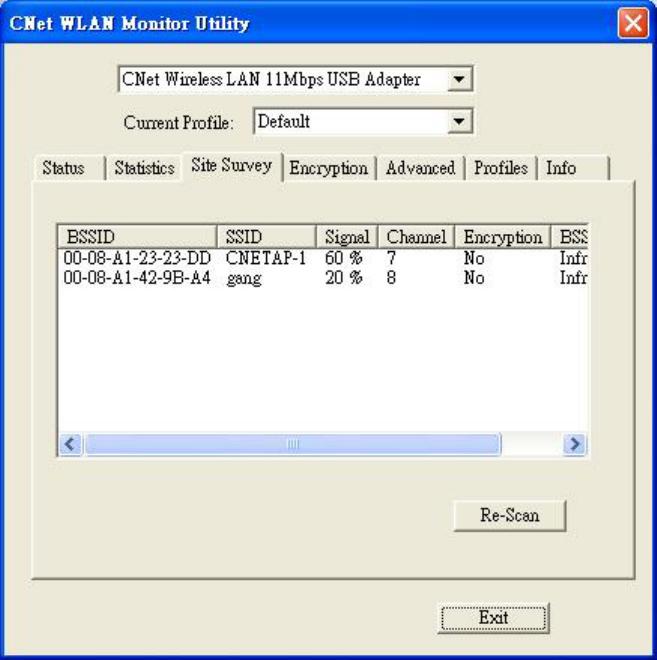

The Site Survey screen shows the available access point and their features. Click on the desired
access point. Then double click BSSID to connect or Re-Scan to search for more access points.
(Shown in Fig 4-4)
4.1.4 Encryption
On the Encryption screen, show in Fig 4-5, you can set the level of security with which you will
be using the WLAN PC Card.
Under the drop-down box, you can choose to have WEP encryption Disabled, 64-Bit, or 128-Bit
Wired Equivalent Privacy (WEP) is an encryption scheme use to protect wireless data
communication. If you decide to use encryption, you can choose any of the available WEP keys
(1 to 4). The Disabled setting prevents the sharing of data with other computers on the WEP
network. When Enable encryption for the WEP Key entry, enter the hexadecimal number (the
letters “A” through “F” and the numbers “0” through “9”) set by the other wireless WEP
settings; these settings must be identical to the WEP encryption on all points in your wireless
network in order to network to your WLAN USB Dongle. The security keys are four 10 digit key
for the 64-Bit WEP setting and four 26 digit key for the 128-Bit WEP setting.
25
Fig 4-5
NOTE: The WEP Key Entry must match the Key on all other devices on the wireless network or
this device will be unable to transmit or receive data.
For Authentication Type, you may choose among Auto, Open System or Shared Key.
Shared Key is when both the sender and recipient share a secret key. Both units this key for an
extended length of time, sometimes indefinitely. Any eavesdropper that discovers the key may
decipher all packets unit the key is changed.
Open System the default setting, is when the sender and the recipient do not share a secret key.
Each party generates its own key-pair and asks the receiver to accept the (usually randomly)
generated key. Once accepted, this key is use for short time only: then a new key is generated
and agrees upon.
4.1.5 Advanced
The Advanced screen (Fig 4-6) allows you to set Fragmentation Threshold, the RTS/CTS
Threshold, and the Preamble Type. The Fragmentation Threshold Value indicates how
much of the network resources is devoted to recovering packet errors. The value should remain
at its default setting of 2,346. If you experience high packet error rates, you can decrease this
26
value but it will likely decrease overall network performance. Only minor modifications of this
value are recommended.
Fig 4-6
The RTS Threshold Value should remain at its default setting of 2,347. A preamble is a signal
used to synchronize the transmission timing between two or more systems. A series of
transmission pulses is sent before the data to indicate that “someone is about transmit data.” this
ensures that systems receive the information correctly when the data transmission starts.
The Preamble Type should be set to Short (if the network environment is “noisy”) or Long (if
the environment is “clear”) Click Submit to complete the configuration.
Power Save, you can select enabled then submit to allow your adapter to go to sleep mode
while theadapter doesn’t precede the data transmission. Or select disabled to make the adapter
nevergo to sleep mode. Click submit to save the settings.
27
4.1.6 Profiles
The Profiles screen (Fig 4-7) allows you can manage the profiles that you have created for the
wireless network at home, office and in public places. You can create New file for Save a profile
orDelete and Rename the profiles.
Fig 4-7
4.1.7 About
The About screen (Fig 4-8) shown the release information for the Driver Version, Firmware
Version, Application Version, and MAC Address. Use the “Exit” button in order to exit the
application.
28
Fig 4-8
4.2 How to Uninstall the configuration & Monitor Utility
In order to uninstall the Configuration & Monitor Utility from Windows 98SE/ME/2000/XP, you
can RUN Setup utility again then you will see Fig 4-7 then step by step remove all installed
components.
It is recommended to stop the WLAN USB Dongle and “Exit” the application prior to staring the
uninstallation procedure.
29
Fig 4-8
30
5 Installation Procedure Under Windows XP
Use the procedures described in this section to install and configure the WLAN Dongle under
MS Windows XP
5.1 About Windows XP
Throughout this section it is assumed that you have a basic working knowledge of WinXP.
However, in this paragraph, some specific feature of WinXP are briefly explained.
WinXP operating system supports the “Plug & Play” feature. That means that once you insert the
WLAN Dongle into your PC for the very first time, the operating system will detect the card and
automatically install the driver.
Furthermore WinXP supports “Hot Swapping”. with this feature, you can remove and reinsert the
card whenever you want.
5.2 Installing the Driver
The following selection please check Chapter 3 to setup your WLAN adapter
5.3 Configuration Under WinXP
There are two ways to configure WLAN Adapter. One is WLAN Monitor Utility; the other one is
Windows Wireless Network Configuration.

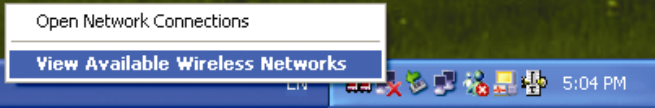

Use Windows Wireless Network Configuration: Please follow the steps to Enable Select an

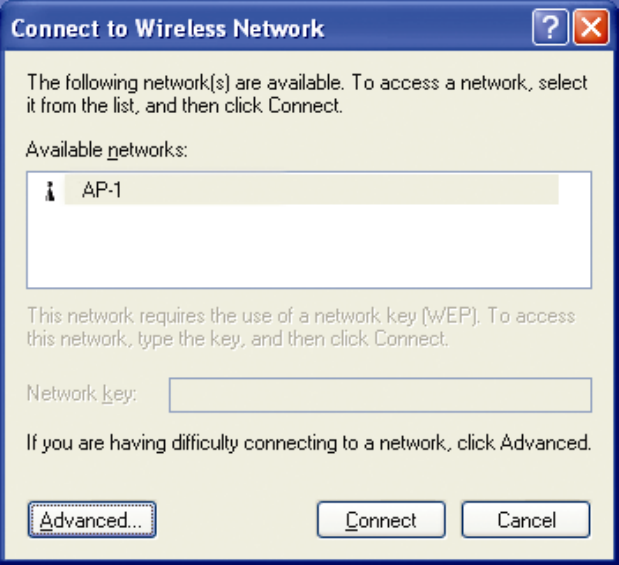

available networks (Fig 5-1) and click Advanced button (Fig 5-2).

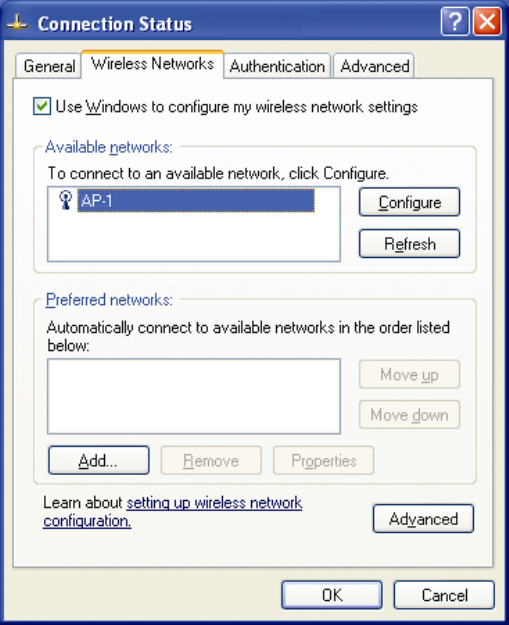

Make sure “Use Windows to configure my wireless network settings” is checked and click OK
(Fig 5-3). Otherwise unckeck for using WLAN Monitor Utility to setup WLAN (Fig 5-4).
Fig 5-1
31
Fig 5-2
32
Fig 5-3
33
Fig 5-4
In order to configure the card, please use the WinXP build-in Application.
5.4 Uninstall Procedure Under WinXP
In order to uninstall the WLAN adapter from WinXP, you must right click on the “Properties”
option under “My computer” icon. Then, under the “Hardware” tab, select the “Device Manager”
and expand the “Network Adapters”. After you right click on the “WLAN 11 Mbps USB
Dongle ”option, press “Uninstall”. Finally, on the “Confirm Device Removal” window, select “OK”.
34
6 Troubleshooting
6.1 Adapter Installation Problems
If your computer can not find the WLAN USB Adapter or the network driver doesn’t install
correctly, check the following:
Make sure the Dongle is securely seated in the USB port. When you insert the wireless Dongle
into the notebook’s slot, a beep should be heard if the Dongle is properly inserted. Check for
any hardware problems, such as physical damage to the card’s connector.
Try the card in another USB port. If this also fails, test your computer with another WLAN PC
Card that is known to operate correctly.
When operating under Windows NT, WLAN adapter does not support in this OS.
Make sure your computer is using the latest BIOS.
If there are other network adapters in the computer, they may be causing conflict. Remove all
other adapters from the computer and test the wireless adapter separately.
Check for a defective computer or USB port by trying the USB Dongle in another computer
that is known to operate correctly.
6.2 Network Connection Problems
If the LED on the USB Dongle does not light, or if you can not access any network resources
from the computer. Check the following:
Make sure the correct software driver is installed for your operating system. If necessary, try
reinstalling the driver.
Make sure the computer and other network devices are receiving power.
The Access Point you want to attach to may be defective. Try using another Access Point.
If you can not access a Windows or NetWare service on the network, check that you have
enabled and configured the service correctly. If you can not connect to particular server, be
sure that you have access rights and a valid ID and password.
If you can not access the Internet, be sure you have configured your system for TCP/IP.
If your wireless station can not communicate with a computer in the Ethernet LAN when
configured for Infrastructure mode, Check the following:
⌧Make sure the Access Point that the station linked is power on.
⌧If you still can not connect, change the Access Point to another radio channel.
⌧Make sure the BSS ID is the same as the Access Point for a station with roaming disabled,
or the SSID is the same as the Access Point for station with roaming enabled.
⌧Ensure that the station is configured with the same security options as the Access Point.
35
7 Glossary
Access Point - An internetworking device that seamlessly connects wired and wireless
networks together.
Ad-Hoc - An Ad-Hoc wireless LAN is a group of computers each with wireless adapters,
connected as an independent wireless LAN.
Backbone - The part of a network that connects most of the systems and networks together and
handles the most data.
Bit - A binary digit. The value - 0 or 1 used in the binary numbering system. Also, the smallest
form of data.
BSS - Stands for Basic Service Set. An Access Point associated with several stations.
Domain - A subnetwork comprised of a group of clients and servers under the control of one
security database. Dividing LANs into domains improves performance and security.
DSSS - Direct Sequence Spread Spectrum is very widely known and the most used of the
spread spectrum types, owing most of its popularity to its ease of implementation and high data
rates.
Encryption - A security method that applies a specific algorithm to data in order to alter the
data’s appearance and prevent other devices from reading the information
ESS - Stands for Extended Service Set. More than one BSS can be configured as an Extended
Service Set. An ESS basically a roaming domain.
Ethernet - A popular local area data communications network, originally developed by Xerox
Corp., which accepts transmission from computers and terminals.
Ethernet operates on 10 Mbps baseband transmission over shielded coaxial cable or over
shielded twisted pair telephone wire.
Firmware - Code that is written onto read-only memory (ROM) or programmable read-only
memory (PROM). Once firmware has been written onto the ROM or PROM, it is retained even
when the device is turned off.
Fragmentation- Breaking a packet into smaller units when transmitting over a network medium
that cannot support the original size of the packet.
Infrastructure - An integrated wireless and wired LAN is called an infrastructure configuration.
IRQ - Interrupt ReQuest, A hardware interrupt on a PC. There are 16 IRQ lines used to signal
the CPU that peripheral event has started or terminated. In most cases, two devices cannot use
the same line.
PCMCIA - Personal Computer Memory Card International Association, which develops
standards for PC cards, formerly known as PCMCIA cards, are available in three types which
are about the same length and width as credit cards, but range in thickness from 3.3mm(Type I),
5.0mm(Type II), to 10.5mm(Type III).
These cards can be used for many functions, including memory storage, as landline modems
and as wireless LAN.
36
Roaming - A function that allow one to travel with a mobile end system (wireless LAN mobile
station, for example) through the territory of domain(an ESS, for example) while continuously
connecting to the infrastructure.
RTS - Request to Send, An RS-232 signal sent from the transmitting station to the receiving
station requesting permission to transmit.
Throughput - The amount of data moved successfully from one place to another in a given time
period.
Tx Rate - Transmission Rate.
WEP - Wired Equivalent Privacy, A data privacy mechanism based on a 64-bit or 128-bit shared
key algorithm, as described in IEEE 802.11 standard.
37
8 Specifications
Model CNUSB-611
Radio Complies with IEEE 802.11b
Frequency Band 2400 ~ 2483.5MHz ( for US, Canada, and ETSI)
2400 ~ 2497MHz (for Japan)
Modulation Type CCK, BPSK, QPSK
Operating Channels IEEE 802.11b compliant
11 channels (US, Canada)
13 channels (ETSI)
14 channels (Japan)
Radio Technology Direct Sequence Spread Spectrum
Data Rate 1 / 2 / 5.5 / 11 Mbps
Output Power +11.5dBm, 10mW/MHz for Japan
Receive sensitivity Min. -80dBm for 11Mbps (@BER 10E-5)
Min. -84dBm for 5.5/2/1 Mbps (@BER 10E-5)
Antenna Type Chip Antenna (+1dBm)
Current Consumption DC 5 V/ 220 mA
Interface USB1.1
Certification Radio: EU: ETS 300 328; USA: FCC Part 15C
Taiwan: DGT
EMC: EU ETS 300 826; USA: FCC Part 15B
Safety: EN60950
Driver Windows 98SE/ME/2000/XP
The equipment version marketed in US is restricted to usage of the channels 1-11 only
38
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class A computing device pursuant to
Part 15 of FCC Rules, which are designed to provide reasonable protection against electromagnetic interference
in a commercial environment.
Changes or modifications to the equipment not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
CE MARK WARNING
This is a Class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
