DGAT PROGRAM KIT 37323712001INS TALLA TION INSTRUCTIONS035-20530-001 Rev. B (0804)Heating _Air ConditioningFOR MODELS:DGAM075BDD DGAT075BDDDGAM075BDE DGAT075BDEDGAM075BDF DGAT075BDFDGAT070BDD DLAS075BDDDGAT070BDE DLAS075BDEDGAT070BDF DLAS075BDFUse of this instruction is intended for qualified individuals experienced in the proper installation and service of manu-factured housing heating appliances.Fire or explosion hazard.Failure to properly inspect and restore appliance to proper operation may cause property damage, personal injury orloss of life.General InformationA. Before You StartOnce you have read this instruction view the video tape.1. Thoroughly review this instruction. Contact DGATProgram at: 1-888-665-4640 or on line at dgatpro-gram@york.com, if you have any questions.2. Inspect kit contentsa. Three (3) piece heat exchanger liner assemblyi. Part A has two (2) curved hooks and four (4)stainless steel bolts.ii. Parts B and C have slotted holes.b. Auxiliary limit switch assembly.c. Customer Packet with instructions and labelsd. Card board "shoehorn" for auxiliary limit switchassembly installation.e. Natural gas orifice bag assembly, LP/Propanegas orifice bag assembly, and hardware bagassembly.f. Wire clamps3. Gather test equipment.a. Digital Thermometerb. 5/16" Hex head driverc. Flashlight or droplightd. Inspection mirrore. Phillipshead screwdriverf. Two (2) crescent wrenches4. Tools needed to install DGAT Program Kita. 1/2" Wrenchb. 11/32" Nut driverc. High temperature RTV Silicone - Source 1 PartNumber MA-HTSS-RB. To Turn Off Gas to ApplianceThese instructions will direct you To Turn Off Gas to Appli-ance during the inspection. A label with these instructions islocated inside the lower door. The instructions are as follows:1. Set the thermostat to lowest setting.2. Turn off all power to the appliance.3. Remove control access panel.4. Move gas control switch to "OFF" position.C. Operating InstructionsThese instructions will direct you to follow the OperatingInstructions to place the appliance in operation. A label withthe Operating Instructions is located inside the lower door.The Operating Instructions are as follows:1. Set the thermostat to lowest setting.2. Turn off all electric power to the appliance.3. This appliance is equipped with an ignition devicewhich automatically lights the burner. Do NOT try tolight the burner by hand.4. Remove control access panel.5. Move gas control switch to "OFF" position. Do notforce.6. Wait five (5) minutes to clear out any gas. If you smellgas, determine source and repair as necessary.7. Move gas control to "ON" position. Do not force.Unitary Products Group

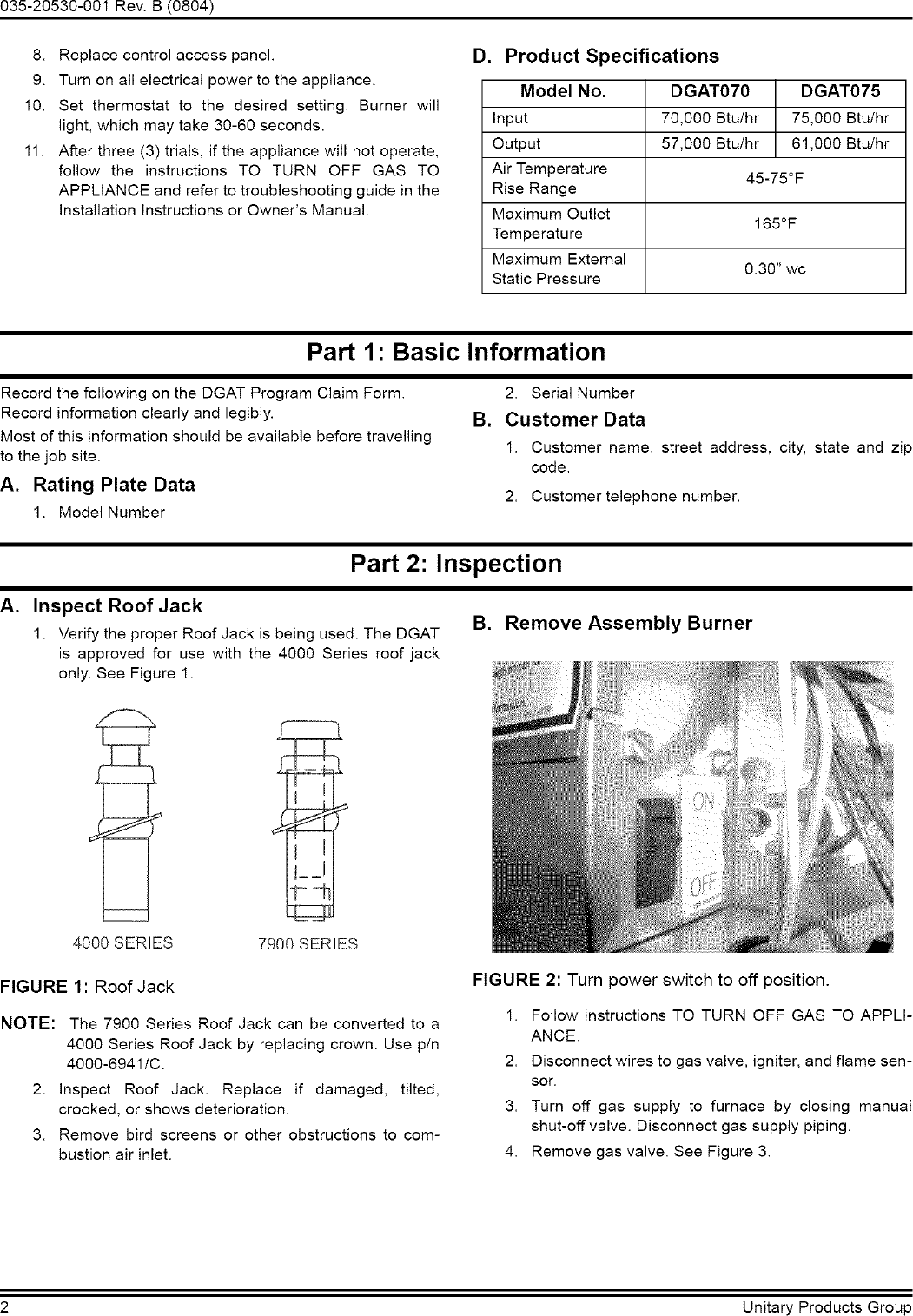

035-20530-001Rev.B(0804)8. Replacecontrolaccesspanel.9. Turnonallelectricalpowertotheappliance.10.Setthermostatto thedesiredsetting.Burnerwilllight,whichmaytake30-60seconds.11.Afterthree(3)trials,iftheappliancewillnotoperate,followthe instructionsTO TURNOFFGASTOAPPLIANCEandrefertotroubleshootingguideintheInstallationInstructionsorOwner'sManual.D. Product SpecificationsModel No. DGAT070 DGAT075Input 70,000 Btu/hr 75,000 Btu/hrOutput 57,000 Btu/hr 61,000 Btu/hrAir Temperature 45_75OFRise RangeMaximum Outlet 165°FTem peratu reMaximum External 0.30" wcStatic PressurePart 1: Basic InformationRecord the following on the DGAT Program Claim Form.Record information clearly and legibly.Most of this information should be available before travellingto the job site.A. Rating Plate Data1. Model Numberg.2. Serial NumberCustomer Data1. Customer name, street address, city, state and zipcode.2. Customer telephone number.Part 2: InspectionA. Inspect Roof Jack1. Verify the proper Roof Jack is being used. The DGATis approved for use with the 4000 Series roof jackonly. See Figure 1.B. Remove Assembly Burner4000 SERIES 7900 SERIESFIGURE 1: Roof JackNOTE:2.3.The 7900 Series Roof Jack can be converted to a4000 Series Roof Jack by replacing crown. Use pin4000-6941tC.inspect Roof Jack. Replace if damaged, tilted,crooked, or shows deterioration.Remove bird screens or other obstructions to com-bustion air inlet.FIGURE 2: Turn power switch to off position.1. Follow instructions TO TURN OFF GAS TO APPLI-ANCE.2. Disconnect wires to gas valve, igniter, and flame sen-sor.3. Turn off gas supply to furnace by closing manualshut-off valve. Disconnect gas supply piping.4. Remove gas valve. See Figure 3.2 Unitary Products Group
