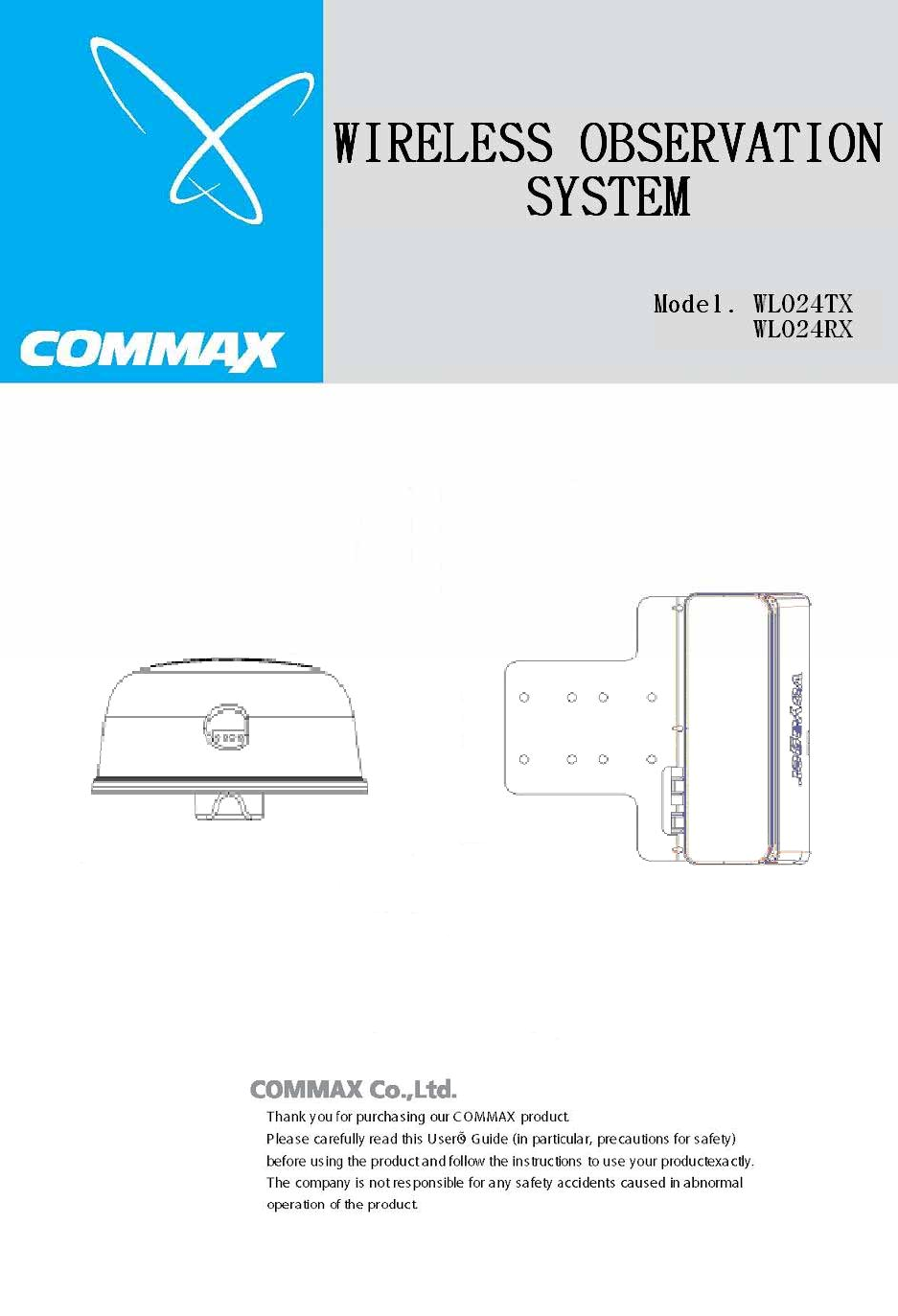

COMMAX WLO24TX Wireless Observation System User Manual
COMMAX Co., Ltd. Wireless Observation System
COMMAX >
User Manual
Class B device
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the se paration between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
[ CAUTION ]
Changes or modifications not expressly approved by the manufacturer responsible for compliance could
void the user's authority to operate the equipment.
[FCC compliance Information]
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received.
Including interference that may cause undesired operation.
[FCC WARNING]
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in
the instruction manual. The user could lose the authority to operate this equipment if an unauthorized
change or modification is made.

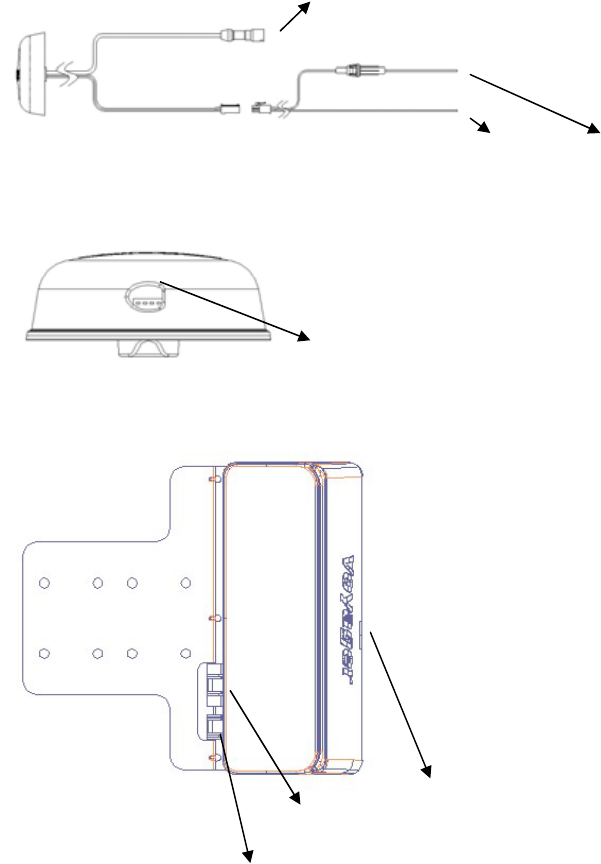

■ FEATURES
Camera connection
Power connection(+)
Ground
Channel switch
Channel switch
Monitor terminal
Power terminal(INPUT)

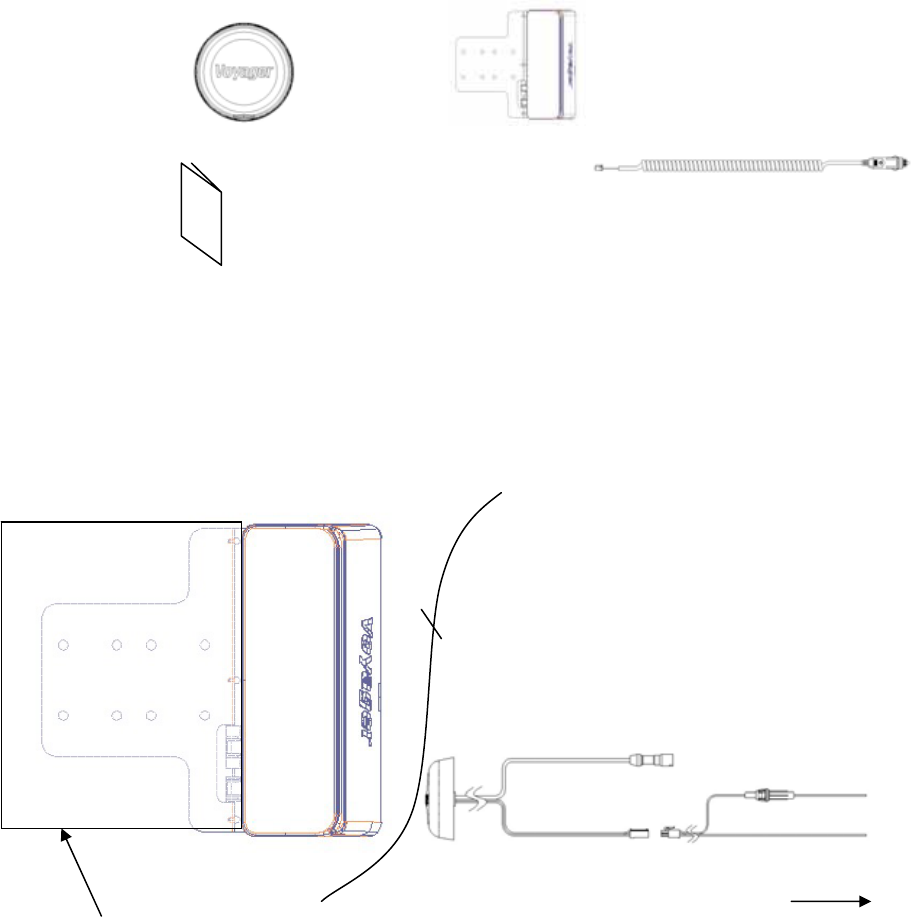

■ Accessories
Please check if following contents are included in a package
1) Transmitter 2) Receiver
3) Manual 4) Power cable for Receiver
■ Operation
You should install the transmitter and receiver in putting opposite as shown below and
connect power and other cables.
.
Monitor Camera
WLO24RX (Receiver) WLO24TX (Transmitter)
1) The distance between the receiver and transmitter should be within 1~5 meters, when
you install.
2) The device can be used by altering transmitter-receiver channels through optional
channel selection switch.
NOTE : 1) The device may be affected by outside signals depending on the surrounding
conditions.
2) The device is set to CH1 default.
■ Specification
Item Condition Specification
Operating Voltage DC 11-28V
Consumption Power On operating WLO24RX : MAX 12W (Including Monitor)
WLO24TX : MAX 4.5W(Including Camera)
Frequency bandwidth 2414MHz ~2468MHz
Distance (No obstacle) 5M
Ambient Temperature -10°C ~ +50°C
Dimension TX : 96.7Pi X 42mm
RX : 147(W) X135(H) X49.5(D)mm
Video
Channel/Frequency Assigned Frequency (MHz)
CH1 2414 ± 0.1
CH2 2432 ± 0.1
CH3 2450 ± 0.1
CH4 2468 ± 0.1
Audio
Channel/Frequency Assigned Frequency (MHz)
CH1 2414 ± 6
CH2 2432 ± 6
CH3 2450 ± 6
CH4 2468 ± 6
