COP Security System AUXXTR 433.92MHz Wireless Transmitter/Receiver User Manual users manual new

COP Security System Corp. 433.92MHz Wireless Transmitter/Receiver users manual new

Manual revised

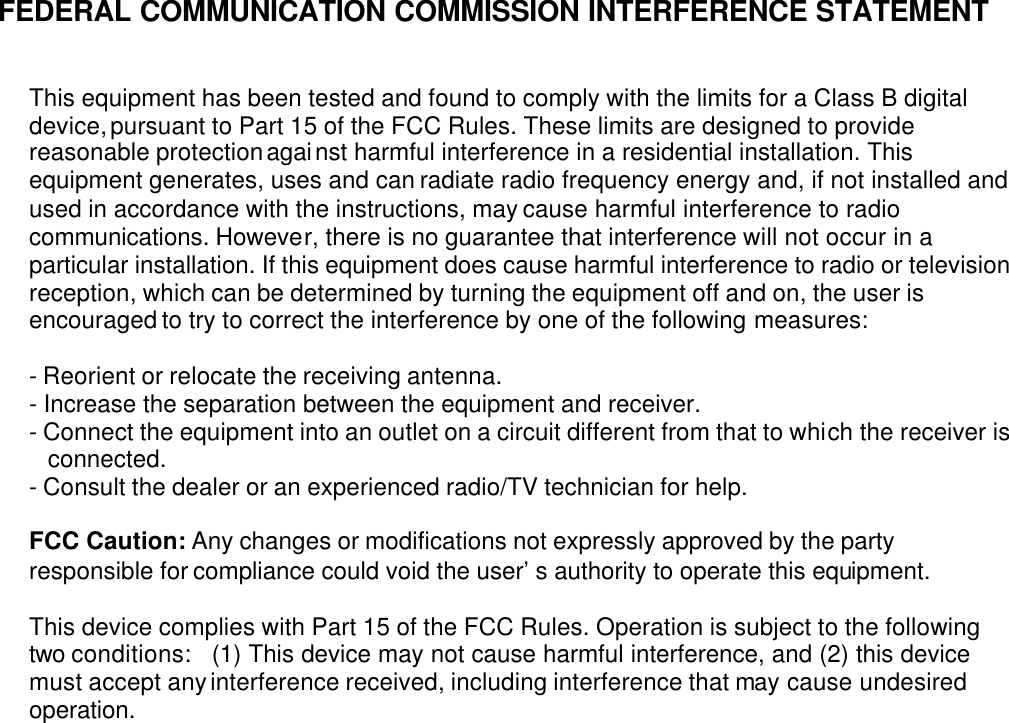

FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

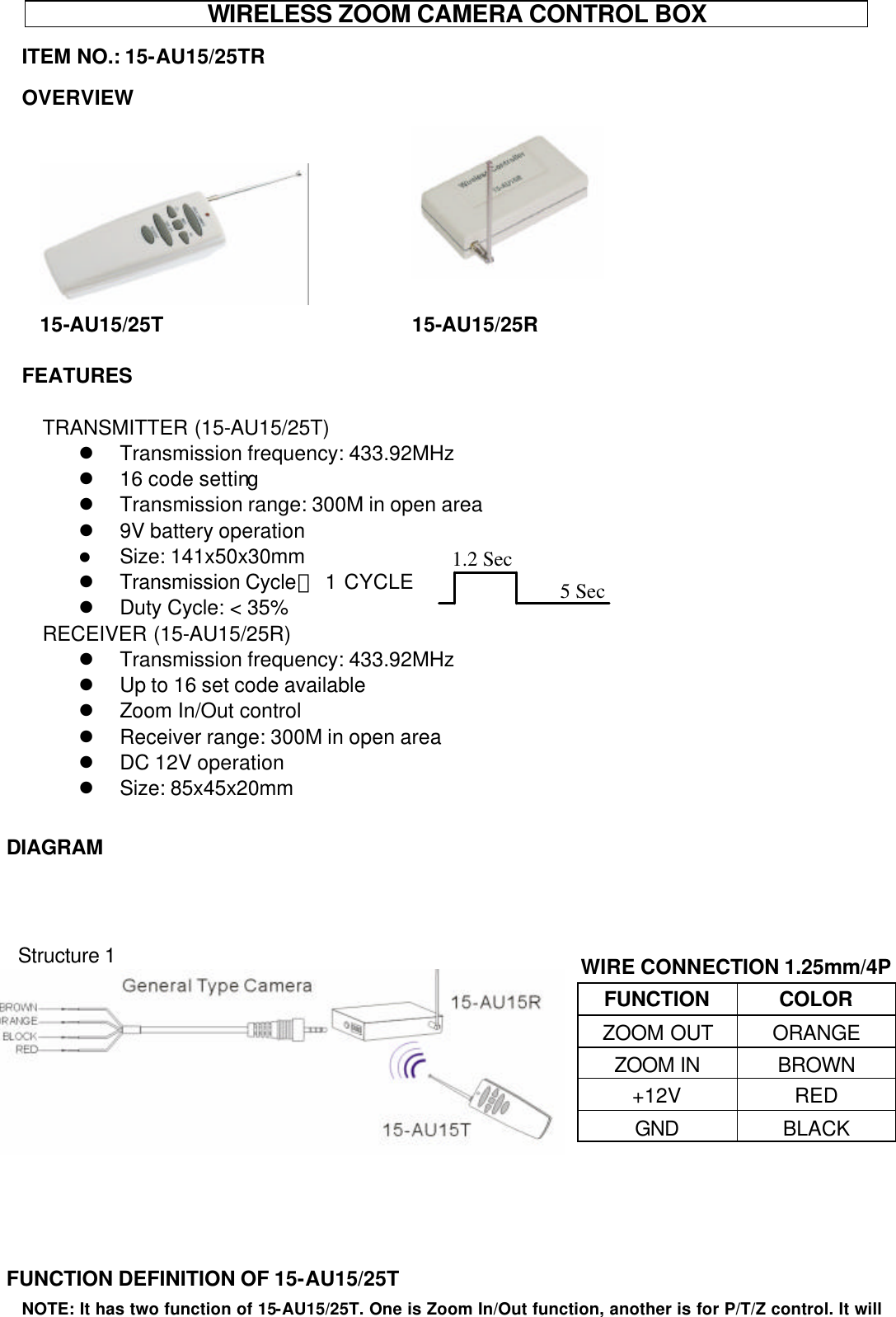

WIRELESS ZOOM CAMERA CONTROL BOX ITEM NO.: 15-AU15/25TR OVERVIEW 15-AU15/25T 15-AU15/25R FEATURES TRANSMITTER (15-AU15/25T) l Transmission frequency: 433.92MHz l 16 code setting l Transmission range: 300M in open area l 9V battery operation l Size: 141x50x30mm l Transmission Cycle： 1 CYCLE l Duty Cycle: < 35% RECEIVER (15-AU15/25R) l Transmission frequency: 433.92MHz l Up to 16 set code available l Zoom In/Out control l Receiver range: 300M in open area l DC 12V operation l Size: 85x45x20mm DIAGRAM FUNCTION DEFINITION OF 15-AU15/25T NOTE: It has two function of 15-AU15/25T. One is Zoom In/Out function, another is for P/T/Z control. It will Structure 1 WIRE CONNECTION 1.25mm/4P FUNCTION COLOR ZOOM OUT ORANGE ZOOM IN BROWN +12V RED GND BLACK 1.2 Sec 5 Sec

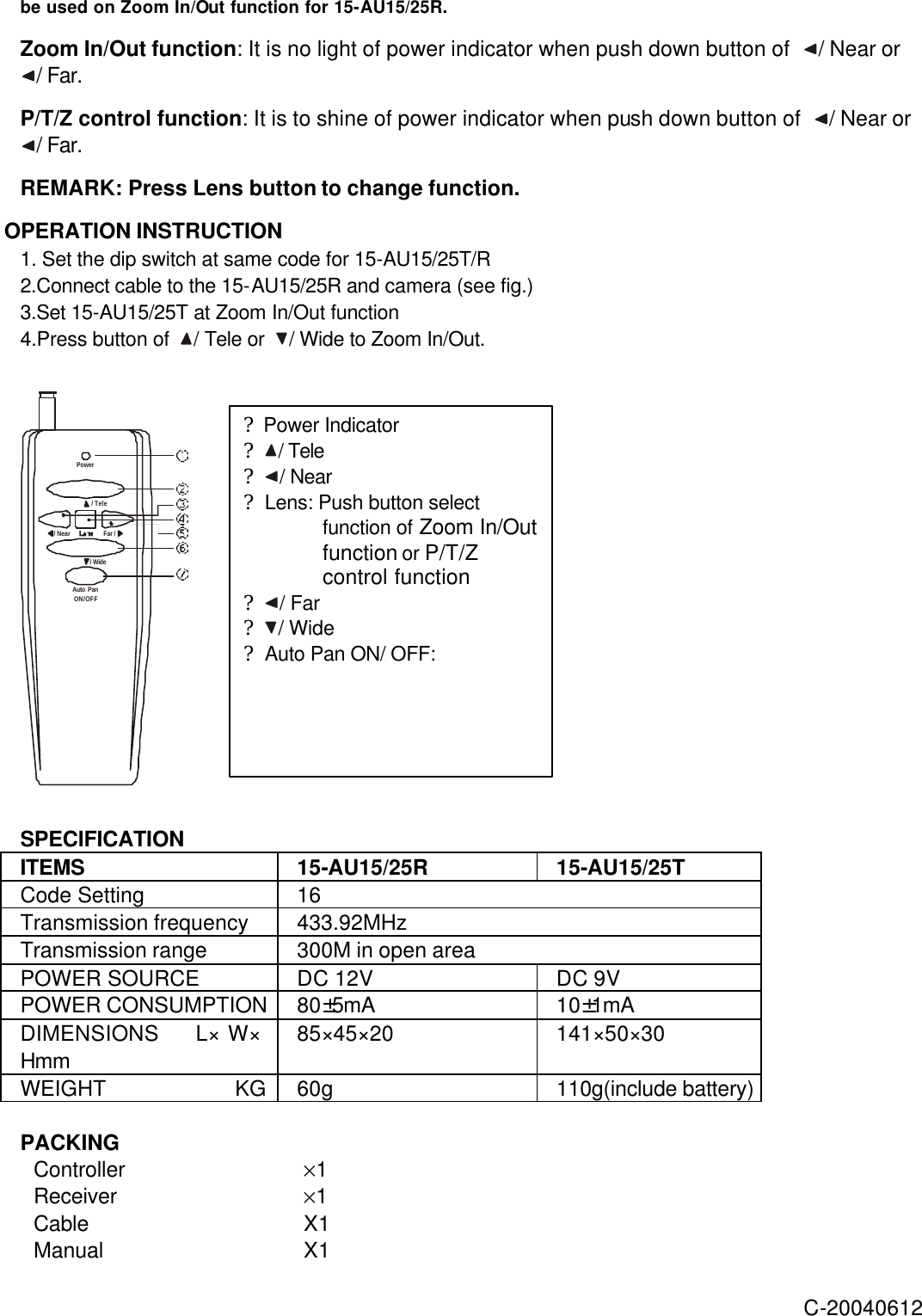

be used on Zoom In/Out function for 15-AU15/25R. Zoom In/Out function: It is no light of power indicator when push down button of / Near or / Far. P/T/Z control function: It is to shine of power indicator when push down button of / Near or / Far. REMARK: Press Lens button to change function. OPERATION INSTRUCTION 1. Set the dip switch at same code for 15-AU15/25T/R 2.Connect cable to the 15-AU15/25R and camera (see fig.) 3.Set 15-AU15/25T at Zoom In/Out function 4.Press button of / Tele or / Wide to Zoom In/Out. / Near Far /Power/ Tele/ WideAuto PanON/OFF SPECIFICATION ITEMS 15-AU15/25R 15-AU15/25T Code Setting 16 Transmission frequency 433.92MHz Transmission range 300M in open area POWER SOURCE DC 12V DC 9V POWER CONSUMPTION 80±5mA 10±1mA DIMENSIONS L× W× Hmm 85×45×20 141×50×30 WEIGHT KG 60g 110g(include battery) PACKING Controller Receiver ×1 ×1 Cable Manual X1 X1 C-20040612 ?Power Indicator ?/ Tele ?/ Near ?Lens: Push button select function of Zoom In/Out function or P/T/Z control function ?/ Far ?/ Wide ?Auto Pan ON/ OFF:
