COP Security System AUXXTR 433.92MHz Wireless Transmitter/Receiver User Manual users manual new
COP Security System Corp. 433.92MHz Wireless Transmitter/Receiver users manual new
Manual revised
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
WIRELESS ZOOM CAMERA CONTROL BOX
ITEM NO.: 15-AU15/25TR

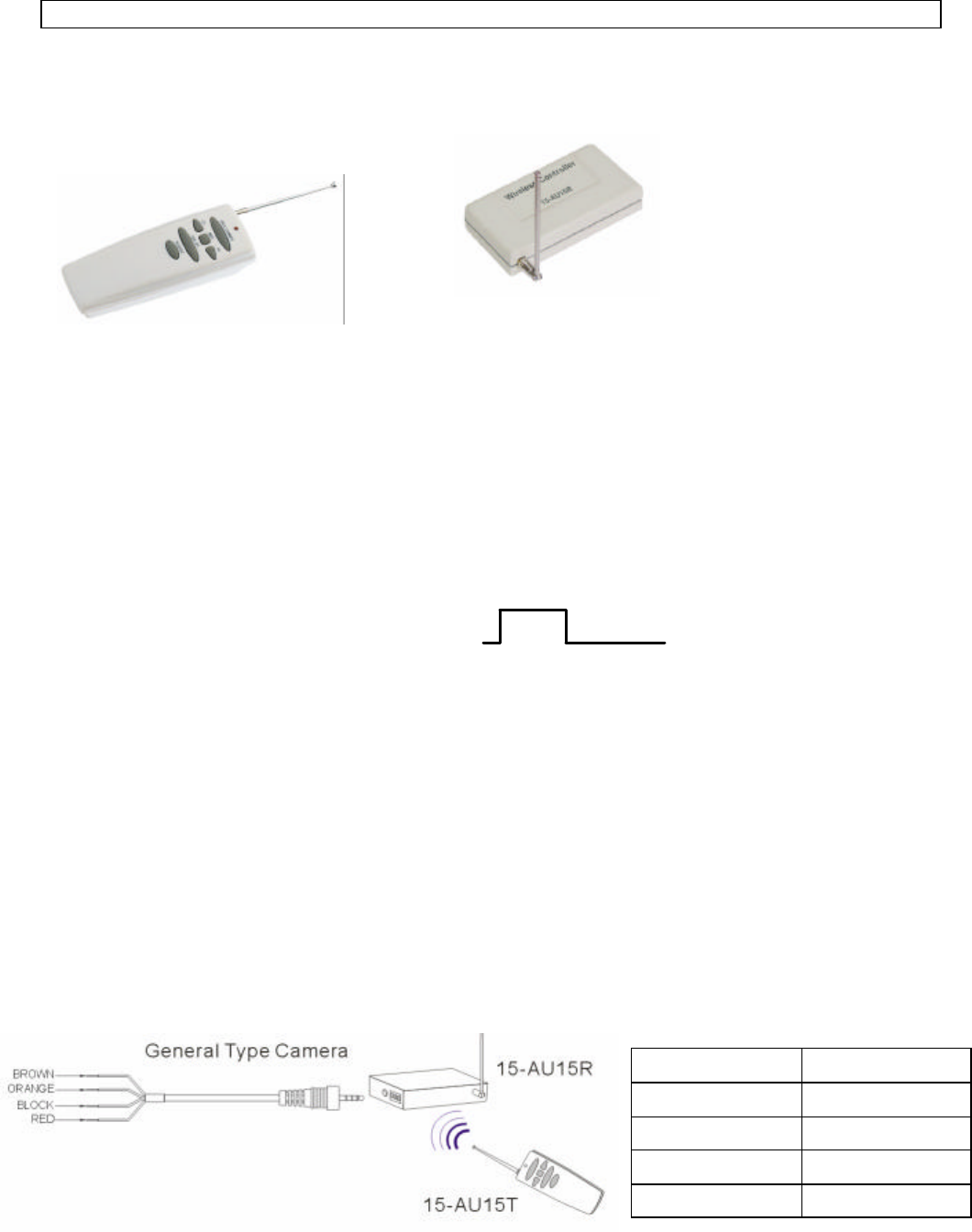

OVERVIEW
15-AU15/25T 15-AU15/25R
FEATURES
TRANSMITTER (15-AU15/25T)
l Transmission frequency: 433.92MHz
l 16 code setting
l Transmission range: 300M in open area
l 9V battery operation
l Size: 141x50x30mm
l Transmission Cycle： 1 CYCLE
l Duty Cycle: < 35%
RECEIVER (15-AU15/25R)
l Transmission frequency: 433.92MHz
l Up to 16 set code available
l Zoom In/Out control
l Receiver range: 300M in open area
l DC 12V operation
l Size: 85x45x20mm
DIAGRAM

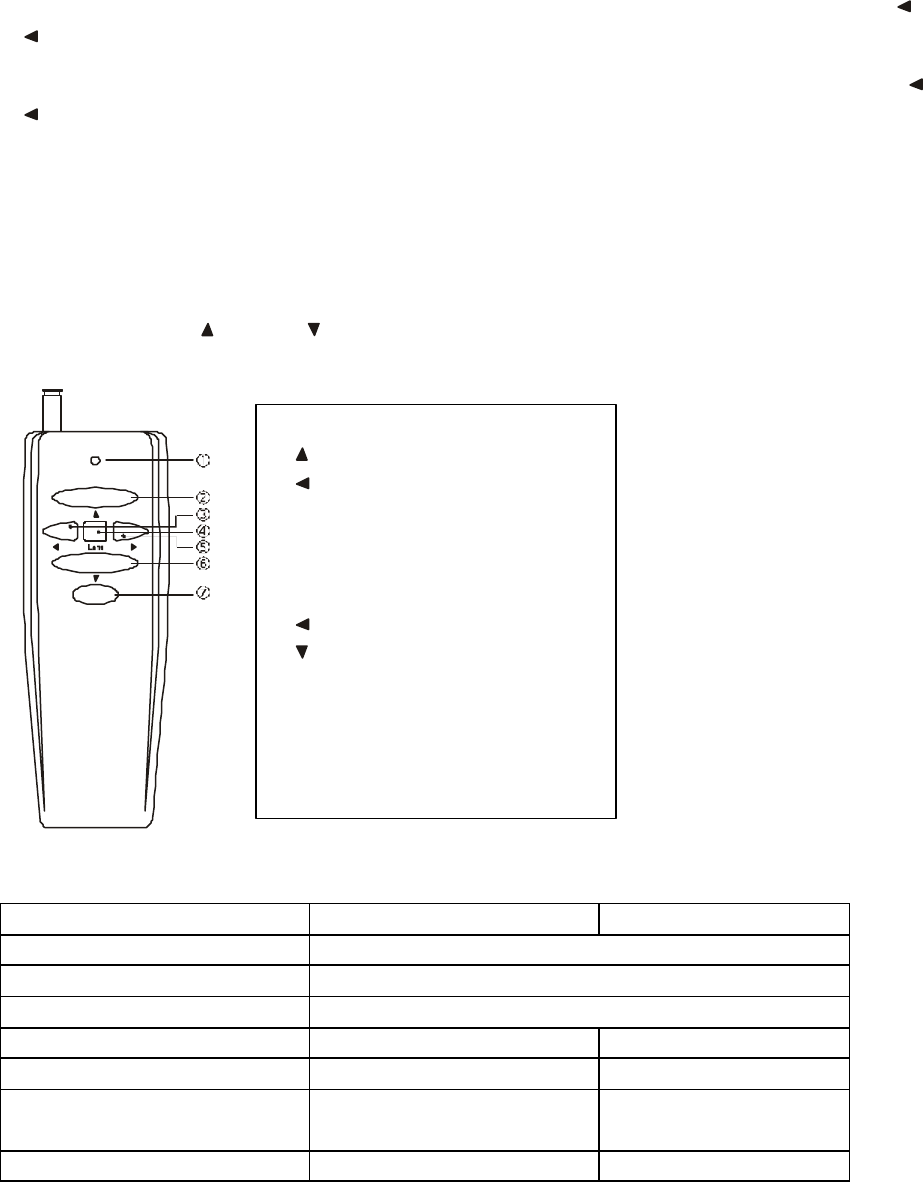

FUNCTION DEFINITION OF 15-AU15/25T
NOTE: It has two function of 15-AU15/25T. One is Zoom In/Out function, another is for P/T/Z control. It will
Structure 1
WIRE CONNECTION 1.25mm/4P
FUNCTION COLOR
ZOOM OUT ORANGE
ZOOM IN BROWN
+12V RED
GND BLACK
1.2 Sec
5 Sec
be used on Zoom In/Out function for 15-AU15/25R.
Zoom In/Out function: It is no light of power indicator when push down button of / Near or
/ Far.
P/T/Z control function: It is to shine of power indicator when push down button of / Near or
/ Far.
REMARK: Press Lens button to change function.
OPERATION INSTRUCTION
1. Set the dip switch at same code for 15-AU15/25T/R
2.Connect cable to the 15-AU15/25R and camera (see fig.)
3.Set 15-AU15/25T at Zoom In/Out function
4.Press button of / Tele or / Wide to Zoom In/Out.
/ Near Far /
Power
/ Tele
/ Wide
Auto Pan
ON/OFF
SPECIFICATION
ITEMS 15-AU15/25R 15-AU15/25T
Code Setting 16
Transmission frequency 433.92MHz
Transmission range 300M in open area
POWER SOURCE DC 12V DC 9V
POWER CONSUMPTION
80±5mA 10±1mA
DIMENSIONS L× W×
Hmm
85×45×20 141×50×30
WEIGHT KG
60g 110g(include battery)
PACKING
Controller
Receiver
×1
×1
Cable
Manual
X1
X1
C-20040612
?Power Indicator
?/ Tele
?/ Near
?Lens: Push button select
function of Zoom In/Out
function or P/T/Z
control function
?/ Far
?/ Wide
?Auto Pan ON/ OFF:
