COWON SYSTEMS COWON-CR1 Cradle for PMP User Manual manual

COWON SYSTEMS, Inc. Cradle for PMP manual

users manual

GPS-Cradle for PMP
Model no : COWON CR1
COWON
CONTENTS
1. Summary
2. Composition
3. Appearances
4. How to use
5. Troubleshooting
1. Summary
As this equipment, GPS-Cradle for PMP is low power and one way transmission
device, it can be used without license. The equipment emits a radio frequency out
of 3 channels 88.1MHz, 88.5MHz and 88.9MHz to hear audio sound through FM
radio. Built-in GPS receiver provides GPS data to PMP or other display equipment
to enjoy navigation system.
2. Composition
Full package of the equipment consists of Cradle, Window suction holder, Cigar
plug, Spare fuse and Instruction manual.

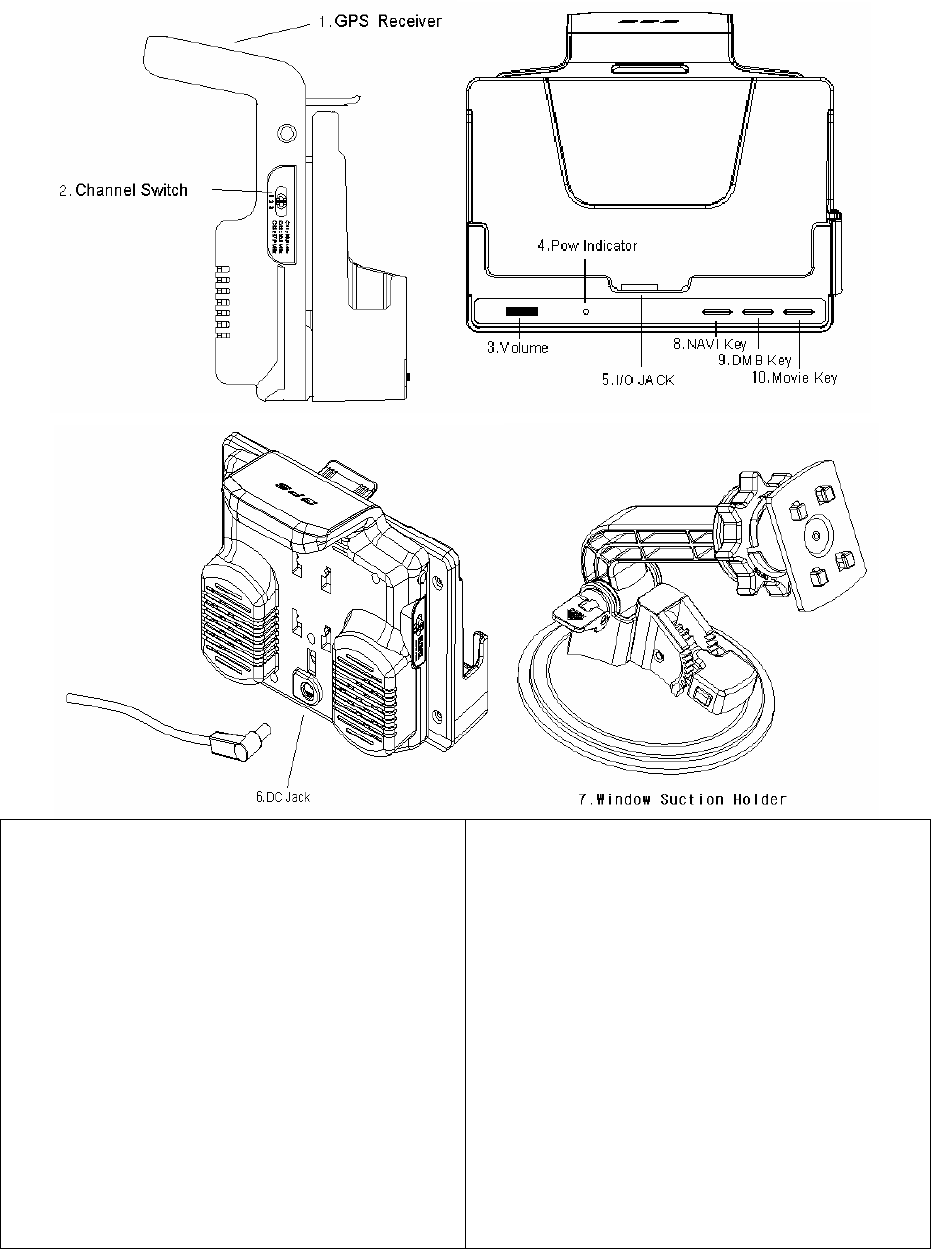

3. Appearances
1. GPS receiver
GPS receiver is inside cradle.
2. Channel switch
You can select a RF channel out of 3 channels.
3. Volume
Round volume to control audio level of
speakers built in the Cradle.
4. Power indicator
Its lit on when DC power is supplied.
5. I/O Jack(24pin)
It connects between Cradle and PMP.
6. DC Jack
In-put power jack for DC12V-24V.
7. Window suction holder
You can mount the holder at surface of
window to install the cradle.
8. NAVI KEY
To be used for Navigation mode.
9. DMB KEY
To be used for DMB mode.
10. MOVIE KEY
To be used for Movie mode.
4. How to use
This cradle provides GPS data to PMP for navigation system, and stereo sound
through 2 built-in speakers and you can control sound level by using volume built in.
FMT function allows you to enjoy more dynamic sound through car-speakers.
Once you put PMP in the cradle, the battery of PMP is charged.
You can adjust position of cradle by using universal window suction holder.
Installation and Operating
1. Mount of window suction holder
Fit window suction holder to four holes of back side the cradle.
Put DC plug to DC jack back side of cardle.
Mount window suction holder to surface of window after removing vinyl wrap.
2. Installation of PMP
Put PMP into the cradle.
3. Fixing Radio Frequency
Match cradle and radio channel as follows,
Cradle : Radio Frequency
CH 1 : 88.100MHz / CH 2 : 88.500MHz / CH 3 : 88.900MHz
4. Power On / Off
Power on when cigar plug is plugged in.
Power off when cigar plug is withdrawn or car-key is turned off.
5. Volume control
Audio sound of built in speakers can be controlled by volume.
5. Troubleshooting
1) Cradle doesnt work.
. Check power source (connections and polarity).
. Check fuse.
. Check power indicator.
2) FMT doesnt work.
. Check channel settings on both cradle and car radio.
. Check position of volume.
. Check power plugs.
. Check power indicator.
3) Precaution
. It can be effected by circumstance and weather.
. Do not dispose at wet place.
. Do not disassemble or make modifications.
. Use correct accessories.
* Do not try to disassemble and fix by yourself but contact regional service
center.
Note.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Note.
Modifications not expressly approved by this company could void the users authority to
operate the equipment.
Note.
This equipment has been tested and found no comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures;
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
- Consult the dealer or an experienced radio/TV technician for help.
INFORMATION TO USER
The users manual or instruction manual for an intentional or unintentional radiator shall
caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the users authority to operate the equipment.
