CPI GLOBAL CPI176367 Tablet User Manual
CPI GLOBAL Tablet
user manual
Products Features

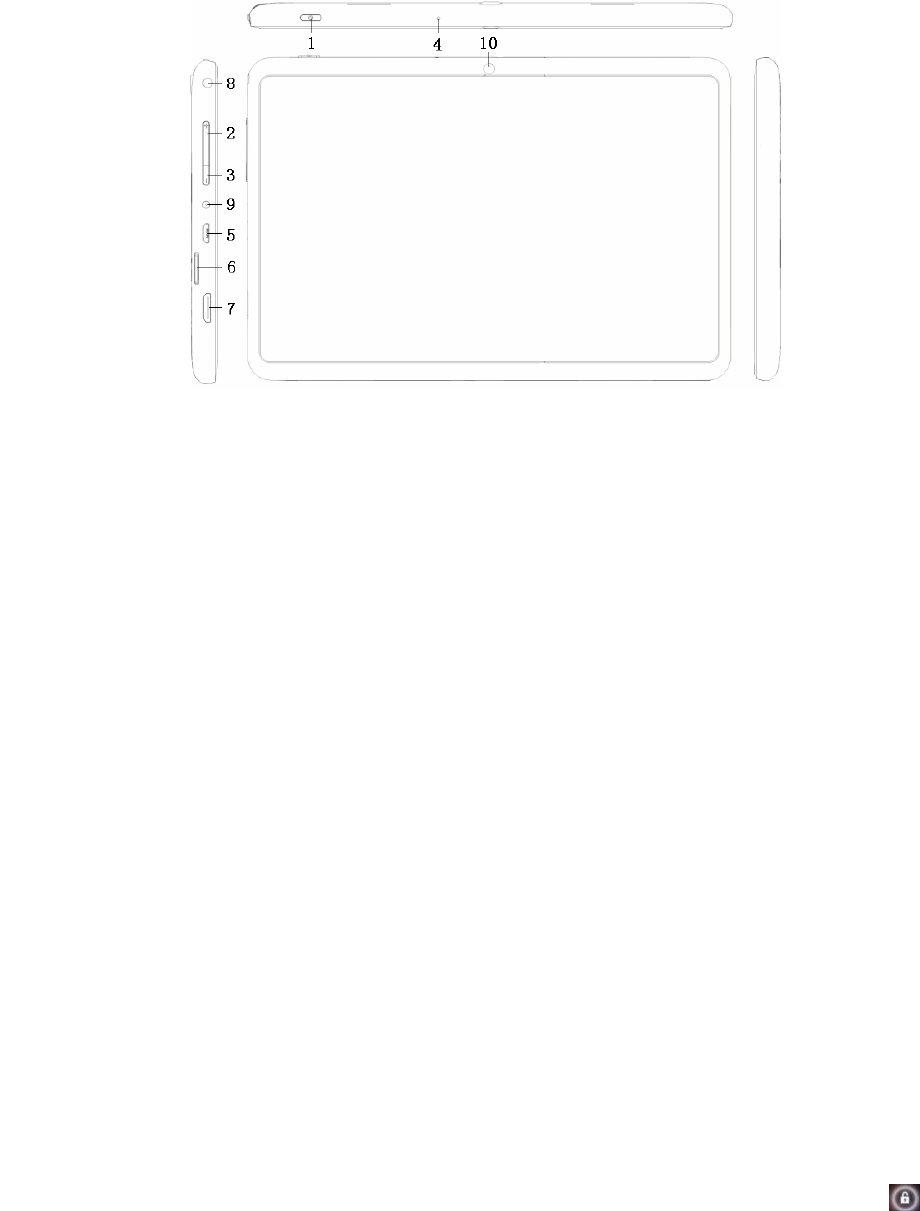

Button Introduce
z Button Introduce
1. Power button:long press for 3 second is for turn on/off，short press for wake up screen;long
press 10 Second is for Reset function.
2. Vol +: short/long press is volume up
3. Vol -: short/long press is volume down
4. Mic: Record built-in port
5. USB/OTG/Charger port: for U disk/mouse/keyboard and charging.
6. TF card:TF expand card port
7. HDMI out put
8. Earphone: 3.5mm earphone port
9. DC in:2.5MM DC12V 2A charging port
10. Camera hole
一．Use preparation
z Connecting to your PC
Startup your PC, and connect the product to your PC with the provided USB Cable for USB charge
or file transfer. The product will show connected and you can copy/delete files within the player
through PC.
Notice: Do not play music or video while connected with PC. Please be aware that we claim
no responsibility for damage caused by this improper operation.
z Turn on

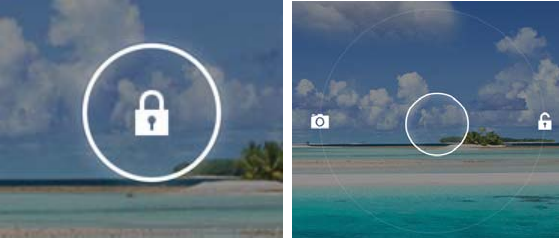

Under power on mode, long press "Power button" for 3 seconds，the system will enter android
power-on status bar,and about 100s later enter the system menu,the screen is locked,hold lock
tap to drag up to the green point position,the device will unlock automatically,just as the
following picture shows:
Connect the device with PC,the system will turn on the device automatically(it only supply
power and don't charge).
Power saving & screen-lock：turn on the device and short press“POWER” button to enter SLEEP
power saving mode,at this time,the screen become black screen, and also enter screen lock
mode.Press “POWER” button again ,the system resume bright screen within 1s.
Note:
Under power saving mode, the original operations such as music,video etc will not pause and
will continuously work ,it only clock the screen to be at the status of black screen.
Note：
When the system hangs up,press "power switch" button for 10s so that the device resume to
turn off, and press "power switch" again,it will turn on.
z Power off
Under the power-on status ,long press "power button" for 3s, power-off menu will show,select "OK"
to turn off the player.
【Notice】When power is not enough,the device will continuously give an alarm ,it will automatically
power off if no charging;if don't turn it on,please check the power status,try to turn it on within
5 minutes to 10 minutes after it is charging if power is out of use.
z Using TF expansion card
1、Connect the player with your PC, it will appear 2 Removable Disk, the first one is build-in
flash memory, the other one is TF card. The second Removable Disk will not be opened if you did
not plug a TF expansion card to the player.
2、
Notice:the player only supports TF kind of expansion card (maximum memory:32GB).
2、Plug expansion card
To Plug: Insert the expansion card as the indication near the card slot. Once the player identifies
the expansion card, Files stored in the card memory can be played.
To Unplug: Press the expansion card slightly and remove it.
z Charging the battery
1、For best results, let it charge for about 7 to 8 hours during the first use, to confirm
the full power and then use it.
2、Insert MINI 5IN USB port of the adaptor into the device USB port，the other end of the
adaptor is inserted into DC port,then the device turn on automatically,the battery capacity
will read as the green scrolling icon shows when charging, the charger should not be plugged
out until power is fully charged. The indicator light becomes blue,the battery icon's green
bar will stop.
When the power exhausts out,wait for a minute and turn the device on.
Notice:1.if you want the special charger with 5V--2A,contact the distributor in the local.
2.Don't use 5V charger, or we are not responsible if the device is damaged to lead
by the usage of 5V charger.
z Main user interface （menu icons definition）
Icon Function introduction Icon Function introduction
Return button
Any interface and click it
will return to main menu
Menu of Recent operation
The system has identify
new device
To show the time of current
system
Battery icon showing the
remaining power
Function module menu
二．Operation introduction

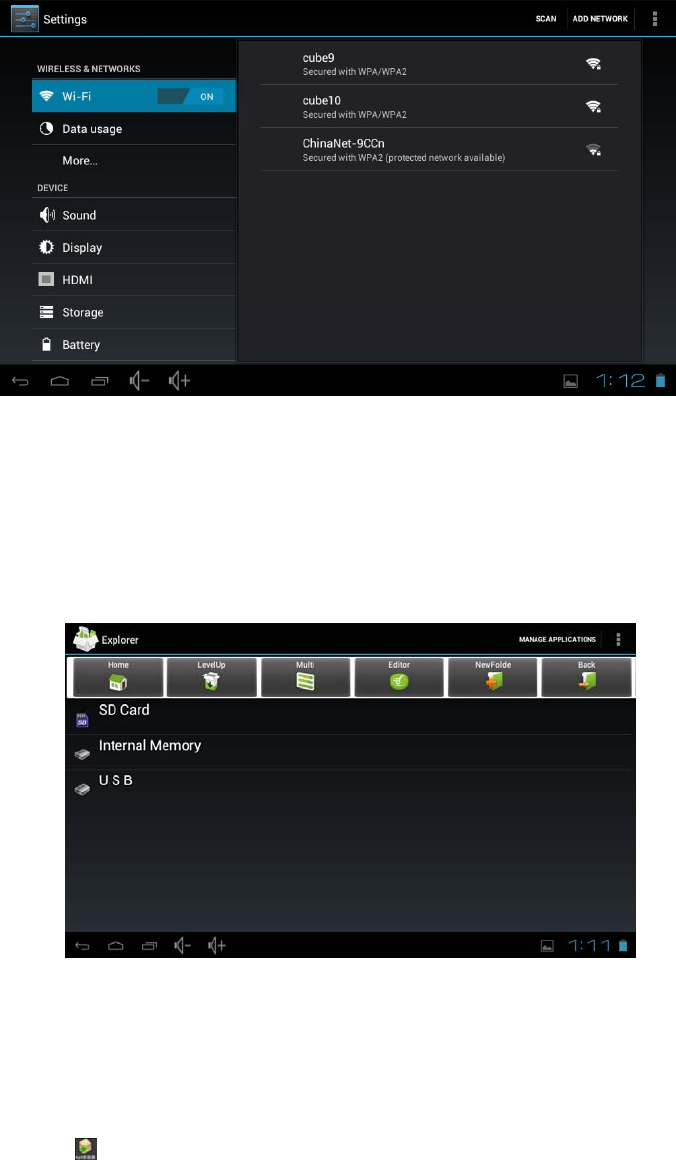

1.Wifi Setting
a. WIFI on setting：click module menu icon ，enter module menu list,click "setting" to enter
the setting menu,click "wireless & networks" to enter,select "Wi-Fi" ：
b.WIFI setting and network connecting: Click "Wi-Fi setting”to enter and the system
will automatically find WIFI network name,there are two wifi networks found as show
bellow:
2.USB-HOST function
a. Reading U Disk function :
Insert U disk into HOST/OTG port,click "explorer" ,click "USB" ,enter the file
list of U disk as follows:
3.

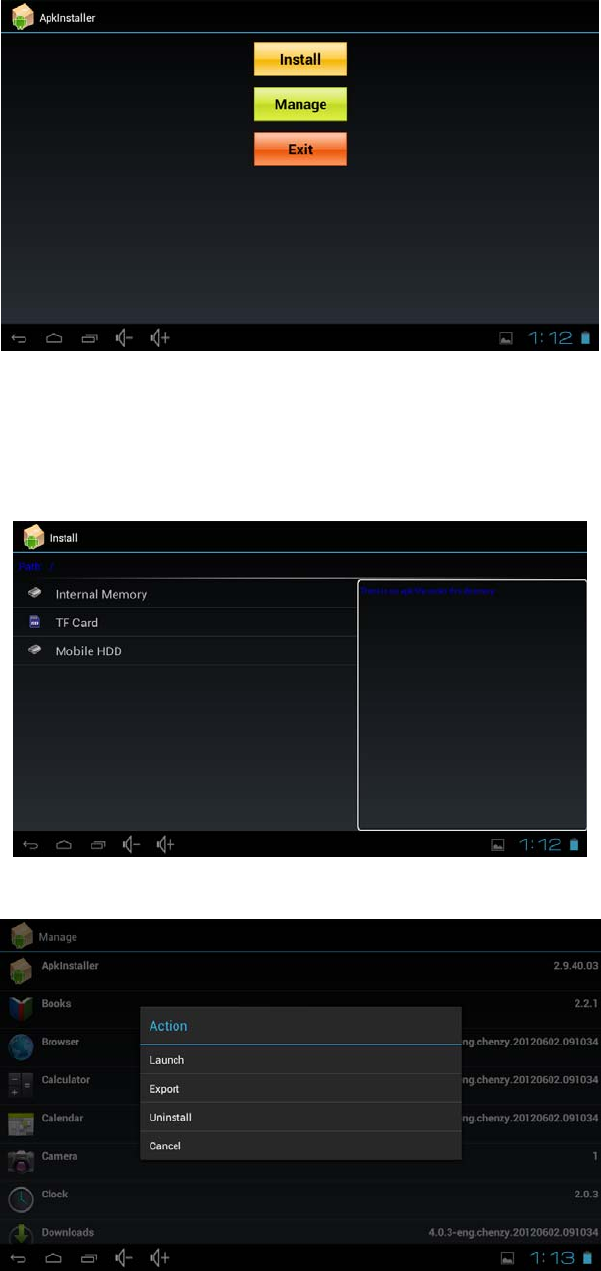

APK Installer
U19GT support the applications from android platform,most apps can be downloaded from the
Internet,then copy Into Interal Memory or T-Flash to install.
• Click APK Installer“ ”，Pop-up APK installer menu：Installer、Manager、Exit.
• Installer ：click installer,enter Apk installer menu.
Internal Memory and SD Card is separately flash memory and T-Flash card memory;
Enter and choose the app you want in the right column and click "install".
• Manage ：click "mange",enter the menu.
- Launch：launch the software
- Export：export the software to T-Flash card
- Uninstall：uninstall the software
- Cancel：cancel the operation
- Exit：exit and return the main menu

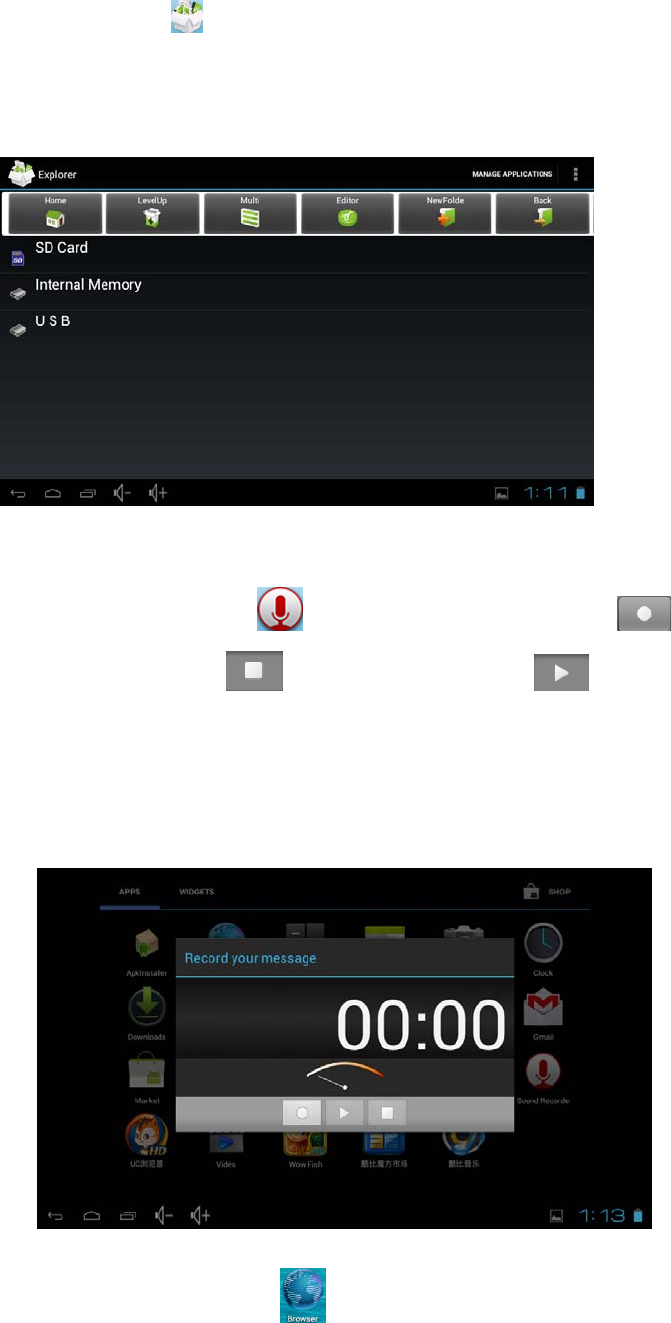

4．Explorer
In main menu ,click the explore icon to enter the manager interface,click "SD Card"、"Internal
Memory" and "U Disk",enter the sub file list,you can add,copy,paste,delete .long press the file
or file folder,choose "last","next",or "last level" to find the related position and click "edit"
and choose "paste" to the related position in the coming box.
5.Record
In main menu,click the record icon to enter，click record button to start
recording.click the stop button to stop recording.click to play the
record.The system automatically notice whether this record will be used or given up,you
can choose it manually.
Play the record：select audio play button to play the record,first choose the record file
in the explore,then click "play"

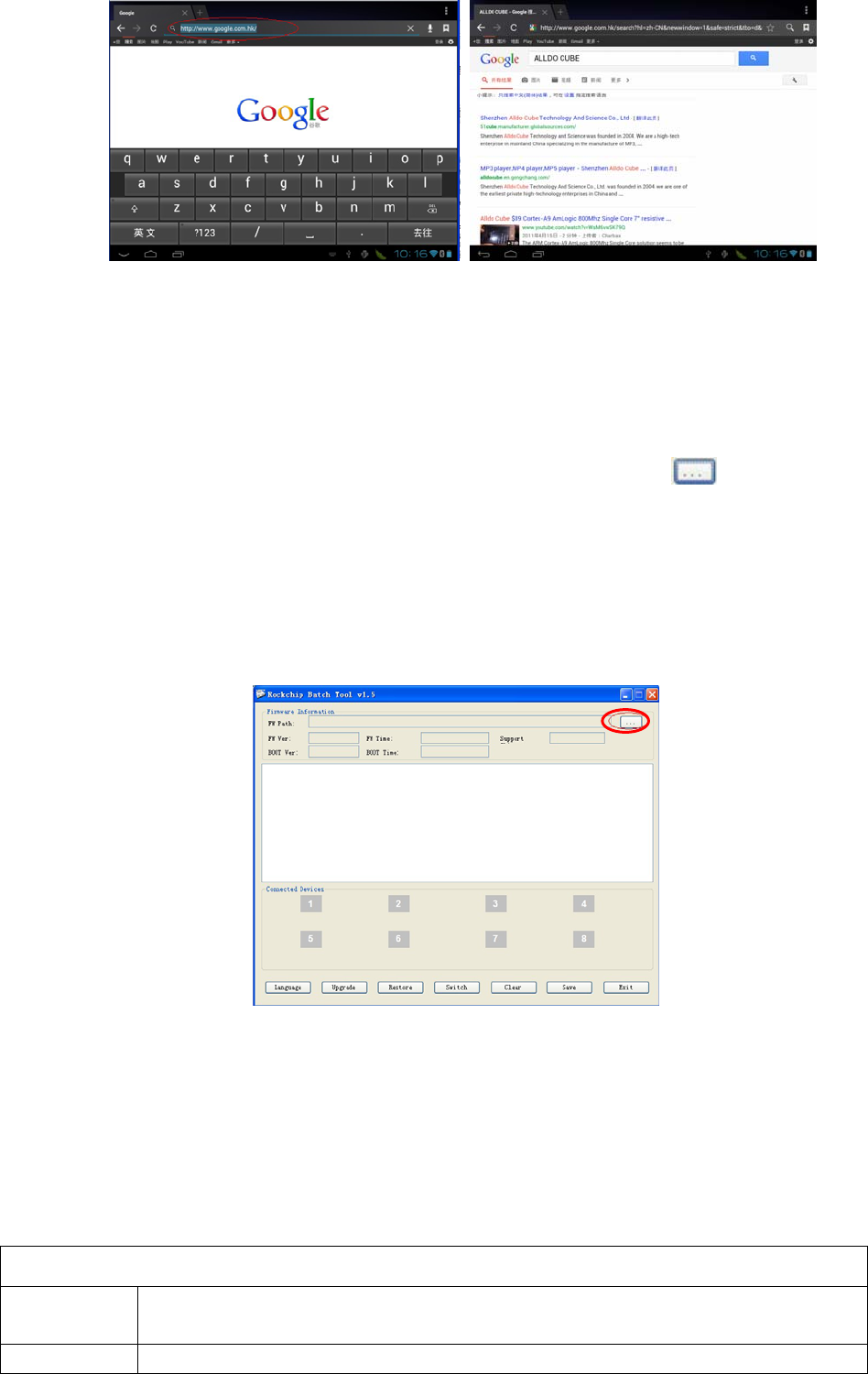

6.IE explore
When wifi is connecting,click IE explore in the main menu and enter to IE menu,click
the website address column and input the website address to view ：
【Notice】the IE explore is currently popular,pls operate it according to IE
explore standard operation.
7.固件升级
Update fireware
Turn U19GT off before update the Fireware,open the updating tool file“RK Device
Manage.exe”on your computer，In the Pop-up window and click “ ” and open the
Imag file.and the same time press "Volume - button " ,don't lose it and short press
"power button" for 3 minutes. until a RK Android Loader Rock USB device is found in
tool column,lose your hand,click 'Restore" to update，Information bar will display the
upgrade of the current information,the right information column will show the updating
information, "carrying out is successful" means updating successfully.
【Notice】:
upgrade system will removed all local data, before the upgrade ,please backup important
information . After the upgrade for the first time when boot disk partition, the software
pre-installed on such action, will be slow, please kindly wait a moment, the second time into
the system speed is normal.
三．Technology specification
Hardware configuration
Main
Frequency 1.2GHz
CPU Cortex-A9
Inner memory 1GB DDRIII
7.0inch IPS 1024×600
Screen
Multi-touch Capacitive screen （5PIN touch)
Memory 8GB、16GB
WiFi Wi-Fi 802.11b/g/n
Volume D class Single Loudspeaker
Expansion card Micro SD card，support maximum 32GB Micro SD（TF）
Battery 3000mAh/3.8V
Data port High speed Micro USB 2.0 ，support OTG function
Operation system
Operation
system Google Android 4.04
Camera
Front 0.3 Mega Pixels
Rear 2.0 Mega Pixels
Function feature
Mobile
memory It can be used as movable hardware Disk
Audio MP3、WMA、OGG、APE、FLAC、AAC、WAV
Video
Support H.264,VP8,RV,WMV,AVS,MPEG4 etc 1080P video output、
YouTubeYouTube、720P、HTML5 、Flash10.1
Picture Support JPG、BMP、PNG etc.
2D/3D graphic process unit ，support OpenGL ES 2.0/1.1 and Open VG1.1
View internet,Chat online ,E-mail,E-Book,Explore
Others
Clock,Alarm clock,Calculator,Record
Audio mode Normal,Popular,Rock,Classical,Bass,Jazz,User-defined
Language Multi-language(optional)
Repeated
mode Single song once、single repeated、all once、demo
Record Support microphone,support3GPP record format
Technology specification
Audio playing time：about 10 hours；video play time:about 2 hours
Battery
usage time Website view time:about 2 hours
信噪比 ≥95db
【Note】：
The picture on the manual is only for reference.There is no notice if the
specification,button operation and appearance are exchanged. Hope you can understand.
Declaration
Pls backup the own data when you operate it.The company is not responsible for the loss and
damage of data caused by wrongly operating hardware,software,product repair,battery
replacement or other unforeseen circumstances. Meanwhile,we can not control the user ’ s
misunderstand of using the manual, so the company is not responsible for the accidental damage,and
not responsible for the third part claims caused by using the products.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZR
FRQGLWLRQV
WKLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG
WKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVH
XQGHVLUHGRSHUDWLRQ
