Cabco Group 2008-KART SHOPPING KART TRANSMITTER User Manual 2008 Controllers kart managers guide

Cabco Group SHOPPING KART TRANSMITTER 2008 Controllers kart managers guide

USERS MANUAL

Kart Managers Guide
2008 Generation III Controllers
Contents
Section 1-Controller hardware descriptions
Section 2-Service mode functions and screen shots
Introduction
This document describes the new controller hardware items and shows the new
functionality of the service mode.
All other general kart functions remain the same.
• No unauthorised modifications to the equipment are allowed.
• Such modifications may cause radio and television
interference which could void the user’s authority to operate
this equipment.
Section 1
Generation III Controller- Hardware Items
Each controller is housed in a die cast aluminum box. There are between 2 & 4 circuit
boards contained in each controller box depending on the required use and specification.

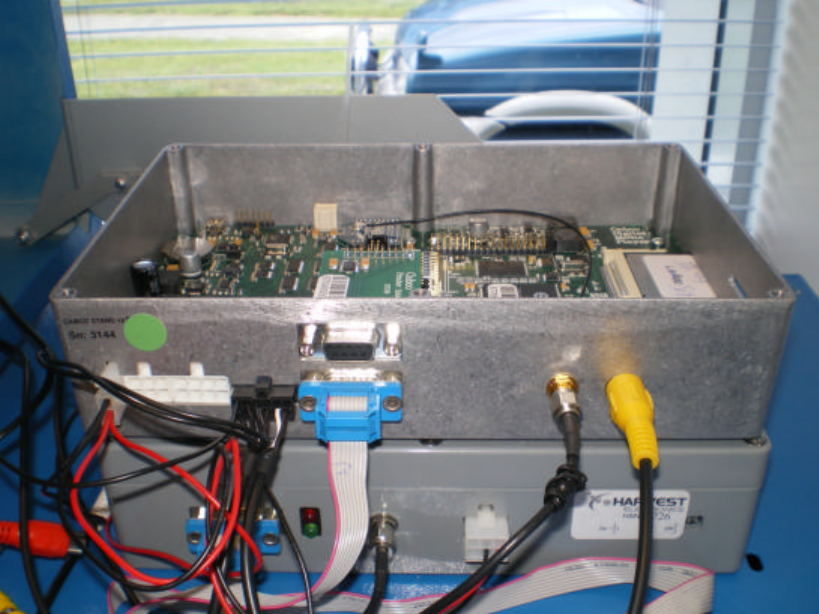

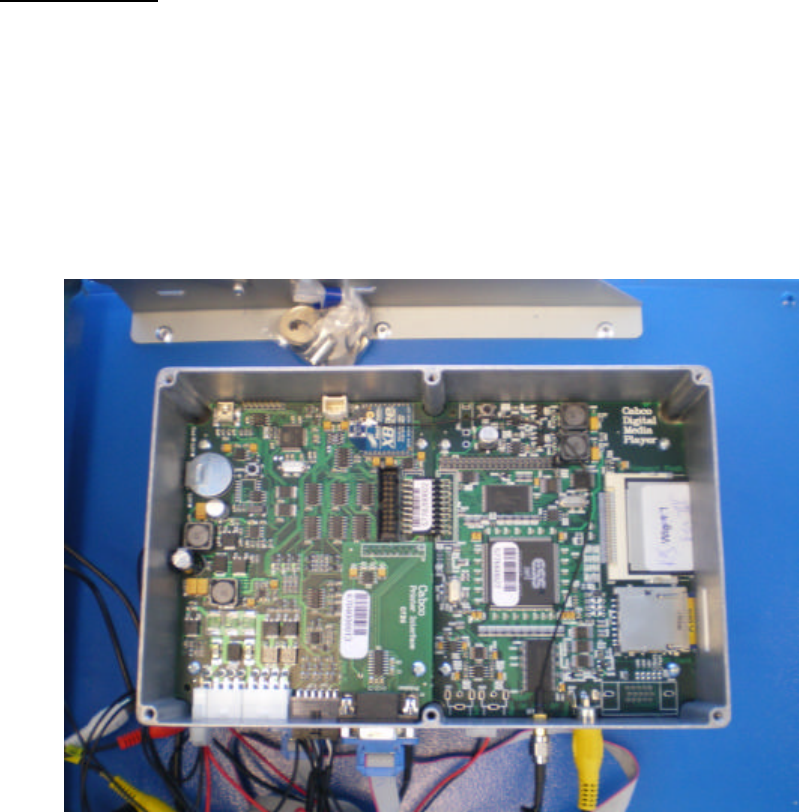

Stand Controller
The stand controller has 3 circuit boards.
The controller is powered by a 24v supply.
On the left is the main controller with built in 2.4Ghz RF module.
On the right is the digital media player which supports both SD & CFC.
The small middle PCB supports a printer interface.
The connectors on the stand controller from left to right are:
1. 2-way power supply
2. 6-way for future hardware
3. 8-way for future hardware
4. 12-way connector for service mode button, 7” LCD power + audio and stand soft
key buttons.
5. Lower connector is Data cable to Harvest
6. Upper connector is printer.
7. RF antenna port
8. RCA video output

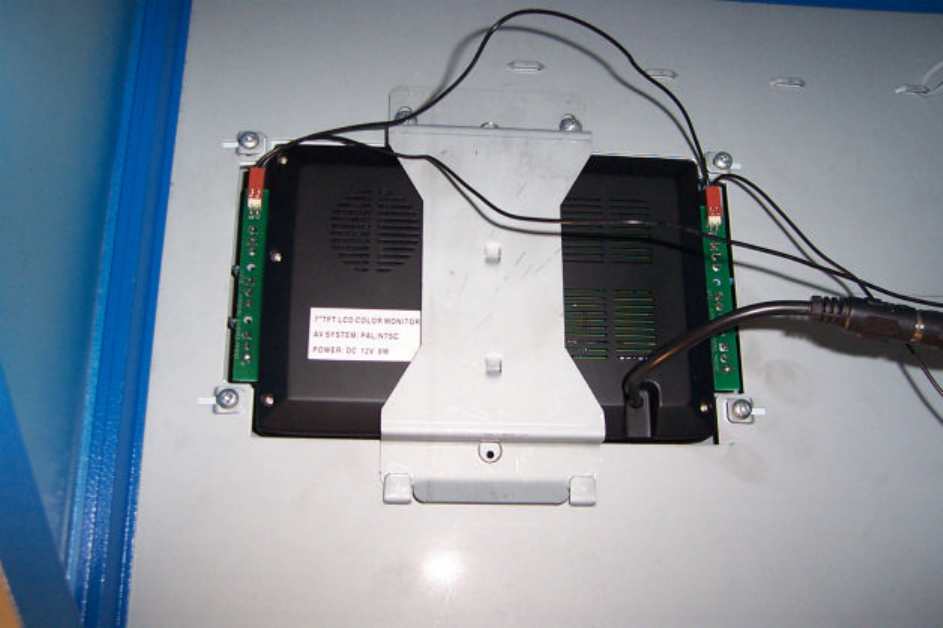

The stand houses a 7” LCD monitor similar to the children’s and the media monitors.
Mounted either side of the monitor are 6 switches called “soft keys”.
These switches are mounted on small circuit boards with connectors to the stand
controller.
These connectors can be used on either left or right circuit board.
The monitor is connected to an 8-way DIN cable which has RCA connectors to the stand
controller.
The red video 3 connector is not used & the white audio RCA may/not be used depending
on the end application.

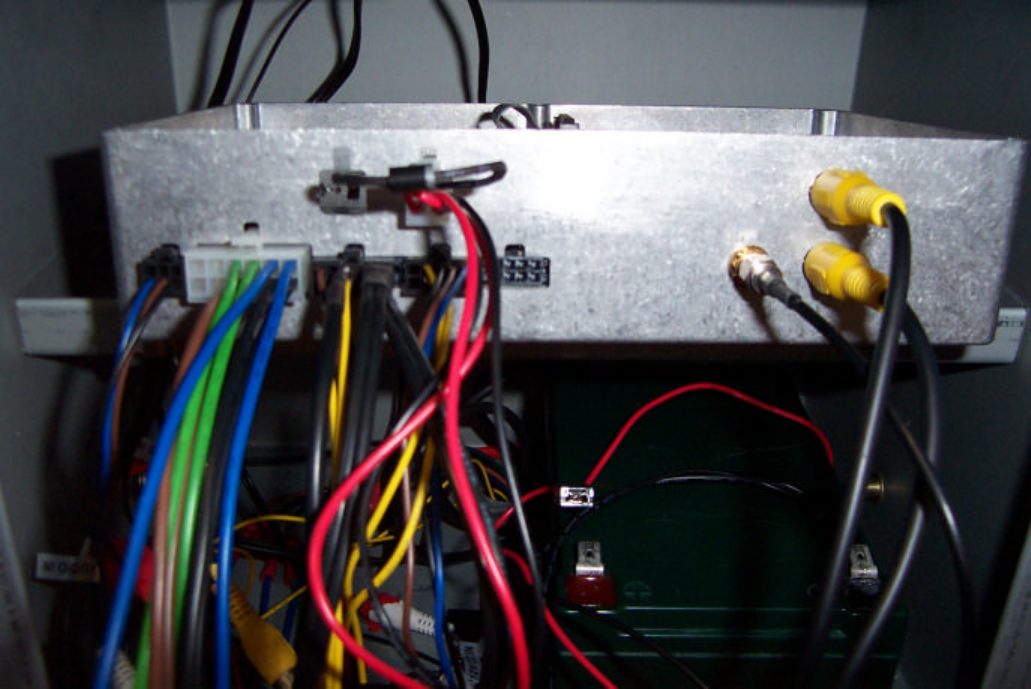

Kart Controller
A kart controller incorporating a media monitor will contain 4 separate circuit boards.
1. Main kart board incorporating a 2.4Ghz RF module
2. Children’s digital media player
3. Media monitor DMP.
4. Battery charging board.
A controller may be made with just the children’s DMP.
The battery charging board will differ for IPT & contact charging.
The connectors on a kart controller from left to right are:
1. Top 4 –way is the power connector
2. Left side 6-way is the trunk LED & future “gas gauge”
3. 12-way mini fit is for the brakes
4. 12-way micro fit is for 2x monitor DIN connectors, 2x monitor audio (RCA or
spade) and 2 pin connector to the media monitor switches.
5. 8-way connector to brake release & sensor
6. 10-way for future hardware
7. 2.4Ghz RF antenna
8. top yellow RCA is for media monitor
9. lower yellow RCA is for children’s monitor

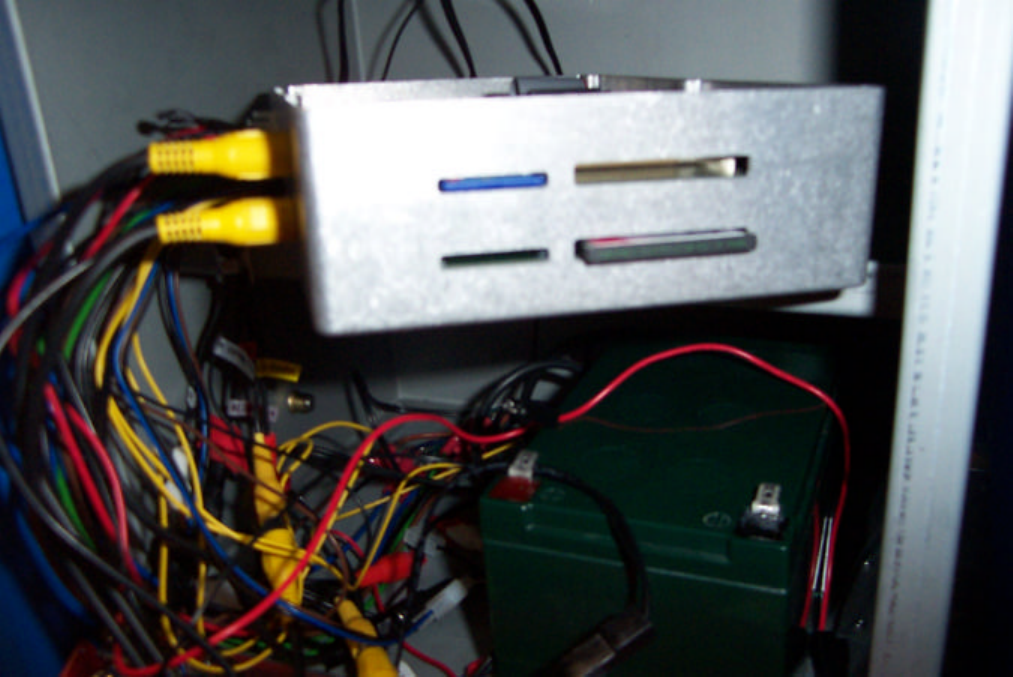

On the right side of the controller , with the connectors facing you, there are slots for the
media cards.
The children’s DMP is the lower slots, we use a CFC for this.
The media monitor is the top slot, we use an SD card on this.
Section 2-Cabco Stand Service Mode Screens
Generation III controllers
Service mode is entered by pressing the service mode button which is found on
the inside roof of the lower section of the Kart Pay Station.(same as tvkart V1)
Service mode allows access to any cash totals, kart set up, store settings and
media settings.
The following screen shots show the detail of all functions.
Main Menu Page 1
Welcome to Service mode.
Select an option…
? Free Hire Exit
?
? Unhire Cash Settings
?
? Stand Summary
More
?
Free Hire-starts a kart on “hire mode”-used to start a hire & to test a kart
Unhire-stops a kart already in “hire mode”
Stand Summary-shows cash and software running in stand
Exit- exits to “public menu”
Cash settings-shows cash and onto clear cash screens
More- moves to the next Service main page 2
Unhire a Kart
Select an option…
? Next Exit
?
? Kart 1
?
? Kart 2
?
Stand Summary
Total :
$0.00/0
Recent :
$0.00/0
In cash Box :
$0.00
Exit
?
Total Hires :
1
Free Hires :
1
Softwar
e
Ver
3.09
185D
Ver
3.02
Cash Settings
Cash Box : $0.00/0
Exit
?
? Free Hires
Clear Cash
Box
?
? Down Hire Cost
$1.00 Up
?
Main Menu Page 2
Main Menu 2.
Select an option…
? General Settings Exit
?
? Kart Control
Log
History
?
? Store Kart
Summary More
?
General Settings-displays all store “general settings”
Kart control-allows control of a single kart
Store Kart summary-shows the “status” of all karts in a store
Exit-exits back to first page
Log History-shows a simple log file of recent actions performed by the stand
More-goes to next page
Main menu 2
General Settings
General Settings
? Find Karts
enabled Exit
?
? Updates enabled
Kart
Delays
?
? Parent Screen
enabled Volume
?
Find karts enabled-will “look” for any karts in range.
Updates disable/enabled-will disable or enable stand to kart code updates
Parent screen enable-turns off controller media screen
Exit- exits to previous page
Kart delays-enables changes all “time settings”
Volume-allows changes to all volume settings
Kart delays 1…
? Next Exit
?
? Down
First Ad Time 60
s Up
?
? Down
Time Between
Ads 600 s Up
?
First ad time-is the time after hire start time that the first ad plays
Time between ads-is the time gap between ads playing
Next-to kart delay page 2
Exit-back to first General Setting page
Kart delays 2…
? Next Exit
?
? Down
Mat Turn Off
Time 400 s Up
?
? Down
Minimum Hire
Ads 600 s Up
?
Mat turn off-is the time that the kart will stop a hire if it sees its still on the mat
after hire
Minimum hire-is the time after hire hat the sensor will turn on.
Exit-goes back to General Settings main page
Next-goes to Kart delays page 3
Kart delays 3…
? Next Exit
?
? Down
Park Time 120 s Up
?
? Down
Up
?
Park time- is the time from sensor trip to brakes on
Next-goes to kart delays page 1
Exit- goes back to General settings main page
Volume Control
Exit
?
? Down
Parent Volume 4 Up
?
? Down
Child Volume 18 Up
?
Parent volume-sets the media monitor volume across all karts in the store
Child volume-sets the children’s monitor volume across all karts in the store
Exit-goes to General settings main page
Main Menu 2
Kart Control
Select a Kart
? Next Exit
?
? Kart 1 Kart 3
?
? Kart 2
?
Next-goes to next page if you have more than 4 karts
Kart 1, 2, 3-selects the chosen kart
Exit-goes back to Main menu page 2
Kart 1 Setup
? Kart Config Exit
?
? State:
Charging Statistics
?
? Manual
Control Kart Errors
?
Kart config-displays kart “in store” trunk number
State-shows the current “state” of kart
Manual control-allows hire/unhire of kart & code upgrades
Exit-goes back to Main menu page 2
Statistics-shows kart code & full status detail
Kart errors-shows recent errors in kart function
Kart 1 Config
? Cancel Commit
?
? Type-NICK Parent: ON
?
? Down Number: 5
Up
?
Kart 1 Status
State : Charging
Last Ride Time :
Charge Time :
0:00:00
1:35:02 Exi
t
Battery Volts :
13.6 V
?
Battery Current :
0.0 A
Charge State :
100 %
Last Report Time :
Mon Jan 15 21:32:46
Kart 1 Manual Control
State : Charging
? In Service Exit
?
? Unhire Kart
? Maintenance
Enable
Upgrades
?
Kart 1 Statistics
Total cash :
Curren
t State Time
0.00/0
0:00:00
Exi
t
?
:
Total Idle Time :
1:19:52
Total Out Of
Service Time :
Total Hire Time :
1.6
17:3
Charge Time :
0:40:38
Average Hire :
0:30:03
Hire Counter :
4/0
Utilization :
9.00 %
Versio
ns
Unavailable :
0.08%
?
Kart 1 Software Versions
Kart Software
Version :
Parent DMP Version
:
Child DMP Version
:
3.09
3E95
3.02
3.02
Exi
t
?
Kart 1 Error Status
Solenoids OK Exit
?
Main Menu page 2
Store kart summary
Store Kart Summary
Exit
?
Kart 1 Idle-
OOR
Kart 2 Hired
Kart 3
Charging
Kart 4 Idle
71% V3.08
98% V3.08
100% V3.08
100% V3.06
More
?
Shows “status” of all karts known by the stand
Exit-goes back to Main Menu page 2
More-shows additional karts
Main Menu page 2
Log History
Log History
Exit
?
Up
?
Wed Jan 17 12:09:18 Kart 1
Hire
Wed Jan 17 09:47:20 Kart 2
Unhire
Wed Jan 17 09:06:18 Kart 2
Hire
Wed Jan 17 08:36:24 Kart 2
Found
Wed Jan 17 08:36:16 Kart 1
Found
Wed Jan 17 08:36:26 HSN
Found
Wed Jan 17 08:36:16 Log
Init
Wed Jan 17 08:35:66 Zigbee
Reset
Down
?
Shows recent logs of all store karts
Exit-goes back to Main menu page 2
Main Menu page 2
More
Welcome to Service mode.
Select an option…
? Remove Kart Exit
?
?
Back
?
Remove kart-allows you to remove a kart from the store
Remove a Kart
? Next Exit
?
? Kart 1 Kart 3*
?
? Kart 2
?
