6H122-16
SmartSwitch 6000
Interface Module
User’s Guide
6H122-16
FAST ENET
1X
2X
3X
4X
5X
6X
7X
8X
9X
10X
11X
12X
13X
14X
15X
16X
COM
CPU
100 Mbs
RESET
2
3
4
5
6
1
8
9
10
11
12
7
13
14
15
16
9032361-03
6H122-16 User’s Guide i
NOTICE
Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL,
INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT
NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR
THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN
ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH
DAMAGES.
1998 by Cabletron Systems, Inc., P.O. Box 5005, Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America
Order Number: 9032361-03 October 1998
Cabletron Systems
,
LANVIEW
,
SecureFast
,
QuickSET
, and
SPECTRUM
are registered
trademarks and
SmartSwitch
is a trademark of Cabletron Systems, Inc.
All other product names mentioned in this manual may be trademarks or registered trademarks of
their respective companies.
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.
WARNING:
Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
Only qualified personnel should install the 6H122-16.
Notice
ii 6H122-16 User’s Guide
INDUSTRY CANADA NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

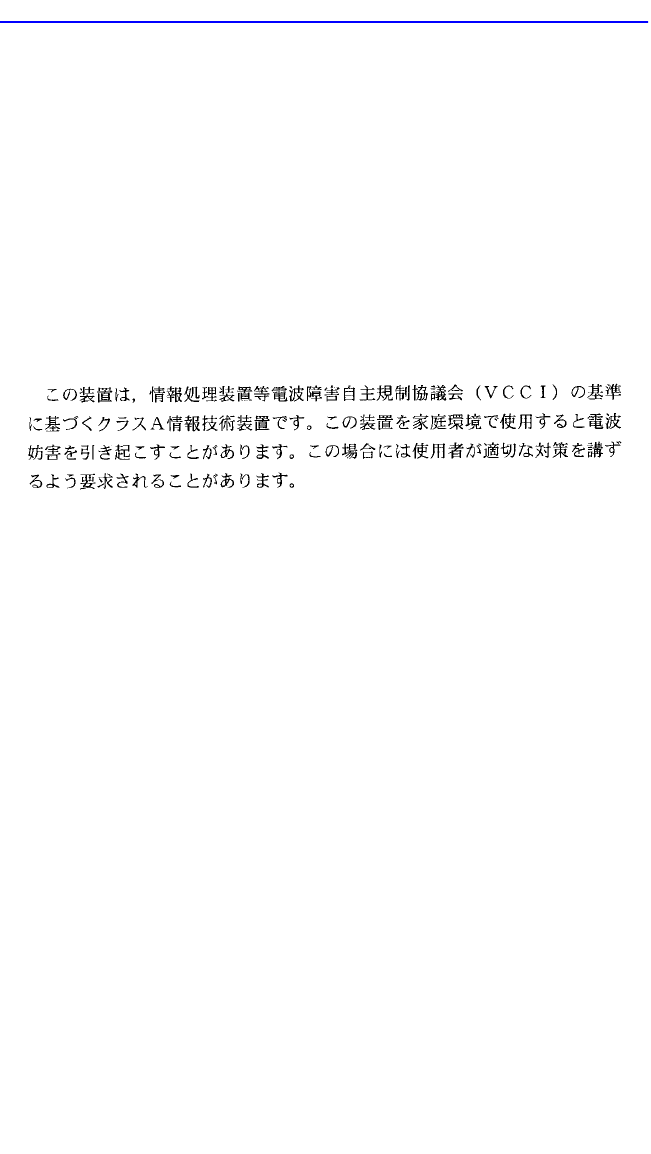

VCCI NOTICE
This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.
CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT
IMPORTANT:
Before utilizing this product, carefully read this License Agreement.
This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”)
that sets forth your rights and obligations with respect to the Cabletron software program (the
“Program”) contained in this package. The Program may be contained in firmware, chips or other
media. BY UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME
BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND
THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO NOT
AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN THE UNUSED
PRODUCT TO THE PLACE OF PURCHASE FOR A FULL REFUND.
Notice
6H122-16 User’s Guide iii
CABLETRON SOFTWARE PROGRAM LICENSE
1. LICENSE. You have the right to use only the one (1) copy of the Program provided in this
package subject to the terms and conditions of this License Agreement.
You may not copy, reproduce or transmit any part of the Program except as permitted by the
Copyright Act of the United States or as authorized in writing by Cabletron.
2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the
Program.
3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws
and in the state and federal courts of New Hampshire. You accept the personal jurisdiction and
venue of the New Hampshire courts.
EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY
1. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in
writing, Cabletron makes no warranty, expressed or implied, concerning the Program (including
its documentation and media).
CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO
YOU BY CABLETRON IN WRITING, EITHER EXPRESSED OR IMPLIED, INCLUDING
BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE
ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.
2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL
CABLETRON OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS,
PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL,
INCIDENTAL, CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS)
ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON PRODUCT,
EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR
ON THE DURATION OR LIMITATION OF IMPLIED WARRANTIES, IN SOME
INSTANCES THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO
YOU.
UNITED STATES GOVERNMENT RESTRICTED RIGHTS
The enclosed product (a) was developed solely at private expense; (b) contains “restricted computer
software” submitted with restricted rights in accordance with Section 52227-19 (a) through (d) of the
Commercial Computer Software - Restricted Rights Clause and its successors, and (c) in all respects
is proprietary data belonging to Cabletron and/or its suppliers.
For Department of Defense units, the product is licensed with “Restricted Rights” as defined in the
DoD Supplement to the Federal Acquisition Regulations, Section 52.227-7013 (c) (1) (ii) and its
successors, and use, duplication, disclosure by the Government is subject to restrictions as set forth in
subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at
252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.
Notice
iv 6H122-16 User’s Guide
SAFETY INFORMATION
CLASS 1 LASER TRANSCEIVERS
THE FE-100F3 FAST ETHERNET INTERFACE MODULE, FPIM-05 AND
FPIM-07 FDDI PORT INTERFACE MODULES, AND APIM-29 ATM
PORT INTERFACE MODULE USE CLASS 1 LASER TRANSCEIVERS.
READ THE FOLLOWING SAFETY INFORMATION BEFORE
INSTALLING OR OPERATING THESE MODULES.
The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This
control loop eliminates the need for maintenance checks or adjustments. The output is factory set, and
does not allow any user adjustment. Class 1 laser transceivers comply with the following safety
standards:
• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and Human Services (FDA).
• IEC Publication 825 (International Electrotechnical Commission).
• CENELEC EN 60825 (European Committee for Electrotechnical Standardization).
When operating within their performance limitations, laser transceiver output meets the Class 1
accessible emission limit of all three standards. Class 1 levels of laser radiation are not considered
hazardous.
SAFETY INFORMATION
CLASS 1 LASER TRANSCEIVERS
LASER RADIATION AND CONNECTORS
When the connector is in place, all laser radiation remains within the fiber. The maximum amount of
radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10
-6
watts.
Removing the optical connector from the transceiver allows laser radiation to emit directly from the
optical port. The maximum radiance from the optical port (under worst case conditions) is
0.8 W cm
-2
or 8 x 10
3
W m
2
sr-1.
Do not use optical instruments to view the laser output. The use of optical instruments to view
laser output increases eye hazard. When viewing the output optical port, power must be
removed from the network adapter.
Notice
6H122-16 User’s Guide v
DECLARATION OF CONFORMITY
Application of Council Directive(s):
89/336/EEC
73/23/EEC
Manufacturer’s Name:
Cabletron Systems, Inc.
Manufacturer’s Address:
35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Name:
Mr. J. Solari
European Representative Address:
Cabletron Systems Limited
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England
Conformance to Directive(s)/Product Standards:
EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950
Equipment Type/Environment:
Networking Equipment, for use in a
Commercial or Light
Industrial
Environment.
We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged
with this notice conforms to the above directives.
Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari
___________________________________ ___________________________________
Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.
___________________________________ ___________________________________
Title Title
Rochester, NH, USA Newbury, Berkshire, England
___________________________________ ___________________________________
Location Location
Notice
vi 6H122-16 User’s Guide
6H122-16 User’s Guide vii
CONTENTS
CHAPTER 1 INTRODUCTION
1.1 Using This Guide......................................................................... 1-1
1.2 Structure of This Guide................................................................ 1-1
1.3 Overview...................................................................................... 1-2
1.3.1 Connectivity .................................................................... 1-2
1.3.2 Management................................................................... 1-2
1.3.3 Distributed Chassis Management................................... 1-4
1.3.4 Switching Options ........................................................... 1-4
1.3.5 Full Duplex Switched Ethernet........................................ 1-4
1.3.6 Remote Monitoring ......................................................... 1-4
1.3.7 SmartTrunk ..................................................................... 1-5
1.3.8 Runtime IP Address Discovery ....................................... 1-5
1.3.9 Port Redirect Function .................................................... 1-6
1.3.10 Auto-Negotiation ............................................................. 1-6
1.3.11 Broadcast Suppression................................................... 1-6
1.3.12 Standards Compatibility.................................................. 1-7
1.3.13 LANVIEW Diagnostic LEDs ............................................ 1-7
1.3.14 Year 2000 Compliant ...................................................... 1-7
1.4 Document Conventions ............................................................... 1-8
1.5 Getting Help................................................................................. 1-9
1.6 Related Manuals........................................................................ 1-10
CHAPTER 2 NETWORK REQUIREMENTS
2.1 SmartTrunk.................................................................................. 2-1
2.2 10BASE-T Network ..................................................................... 2-2
2.3 100BASE-TX Network................................................................. 2-2
CHAPTER 3 INSTALLATION
3.1 Unpacking the 6H122-16.............................................................3-1
3.2 Installing the 6H122-16 into the 6C105 Chassis ......................... 3-2
3.3 Connecting to the Network .......................................................... 3-5
3.4 Completing the Installation .......................................................... 3-8
CHAPTER 4 TROUBLESHOOTING
4.1 Using LANVIEW .......................................................................... 4-1
4.2 Troubleshooting Checklist ........................................................... 4-5
4.3 Using the RESET Button............................................................. 4-7
Contents
viii 6H122-16 User’s Guide
CHAPTER 5 LOCAL MANAGEMENT
5.1 Overview ......................................................................................5-1
5.2 Local Management Keyboard Conventions .................................5-2
5.3 Management Terminal Setup.......................................................5-3

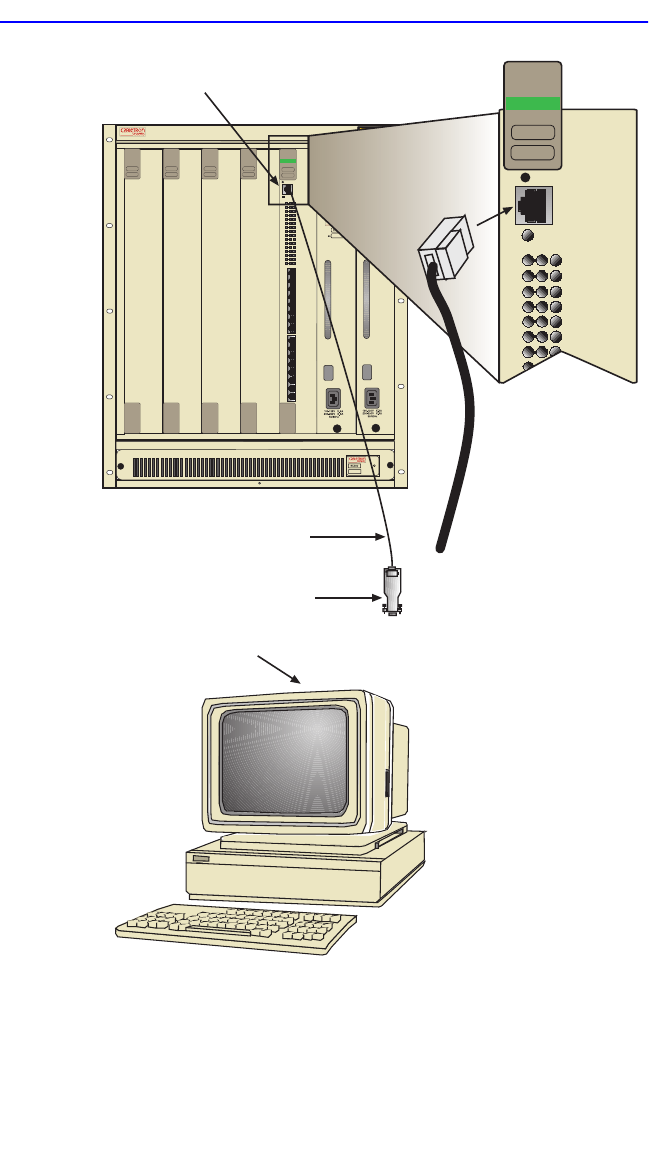

5.3.1 Console Cable Connection..............................................5-3
5.3.2 Management Terminal Setup Parameters ......................5-5
5.3.3 Telnet Connections .........................................................5-6
5.3.4 Connecting an Uninterruptible Power Supply..................5-6
5.4 Accessing Local Management .....................................................5-8
5.4.1 Navigating Local Management Screens..........................5-9
5.4.2 Selecting Local Management Menu Screen Items........5-11
5.4.3 Exiting Local Management Screens..............................5-11
5.5 The Main Menu Screen..............................................................5-13
5.6 Chassis Menu Screen................................................................5-14
5.7 Chassis Configuration Screen ...................................................5-16
5.7.1 Setting the IP Address...................................................5-18
5.7.2 Setting the Subnet Mask ...............................................5-19
5.7.3 Setting the Chassis Date...............................................5-19
5.7.4 Setting the Chassis Time ..............................................5-20
5.7.5 Entering a New Screen Refresh Time...........................5-21
5.7.6 Setting the Screen Lockout Time ..................................5-21
5.7.7 Setting the Operational Mode........................................5-22
5.8 SNMP Community Names Screen.............................................5-24
5.8.1 Establishing Community Names ...................................5-25
5.9 SNMP Traps Screen ..................................................................5-26
5.9.1 Configuring the Trap Table............................................5-28
5.10 Chassis Environmental Screen..................................................5-29
5.11 Port Redirect Function Screen...................................................5-30
5.11.1 Changing Source and Destination Ports .......................5-32
5.12 Module Selection Screen ...........................................................5-34
5.12.1 Selecting a Module........................................................5-35
5.13 Module Menu Screen.................................................................5-36
5.14 Module Configuration Menu Screen ..........................................5-37
Contents
6H122-16 User’s Guide ix
5.15 General Configuration Screen................................................... 5-40
5.15.1 Setting the IP Address .................................................. 5-44
5.15.2 Setting the Subnet Mask............................................... 5-45
5.15.3 Setting the Default Gateway ......................................... 5-46
5.15.4 Setting the TFTP Gateway IP Address......................... 5-47
5.15.5 Setting the Module Date ............................................... 5-47
5.15.6 Setting the Module Time............................................... 5-48
5.15.7 Entering a New Screen Refresh Time .......................... 5-49
5.15.8 Setting the Screen Lockout Time.................................. 5-49
5.15.9 Setting the Operational Mode ....................................... 5-50
5.15.10 Setting the Management Mode..................................... 5-52
5.15.11 Configuring the COM Port ............................................ 5-53
5.15.12 Changing the Com Port Application.............................. 5-55
5.15.13 Clearing NVRAM .......................................................... 5-56
5.15.14 Enabling/Disabling IP Fragmentation ........................... 5-57
5.16 SNMP Community Names Screen ............................................5-57
5.16.1 Establishing Community Names................................... 5-59
5.17 SNMP Traps Screen.................................................................. 5-60
5.17.1 Configuring the Trap Table ........................................... 5-61
5.18 Switch Configuration Screen ..................................................... 5-62
5.18.1 Setting the STA............................................................. 5-64
5.18.2 Setting the Age Time .................................................... 5-65
5.18.3 Setting (Enabling or Disabling) the Port Status ............ 5-65
5.19 Ethernet Interface Configuration................................................ 5-66
5.19.1 Configuring the Ports .................................................... 5-68
5.19.2 Setting the Operational Mode ....................................... 5-68
5.19.3 Setting the Advertised Ability ........................................ 5-69
5.19.4 Setting the Flow Control Admin Status ......................... 5-69
5.20 Module Specific Configuration Menu Screen ............................ 5-70
5.21 System Resources Screen........................................................ 5-72
5.21.1 Setting the Reset Peak Utilization ................................ 5-74
5.22 Flash Download Screen ............................................................ 5-74
5.22.1 Image File Download Using TFTP................................ 5-76
5.22.2 Image File Download Using RUNTIME ........................ 5-77
5.22.3 Image File Download Using BootP ............................... 5-78
5.23 Port Redirect Function Screen .................................................. 5-79
5.23.1 Changing Source and Destination Ports....................... 5-81
5.24 Broadcast Suppression Screen................................................. 5-82
5.24.1 Setting the Threshold.................................................... 5-84
5.24.2 Setting the Reset Peak Switch ..................................... 5-84
5.25 Module Statistics Menu Screen................................................. 5-85
Contents
x 6H122-16 User’s Guide
5.26 Switch Statistics Screen.............................................................5-87
5.26.1 Using the Clear Counters Command ............................5-88
5.27 Interface Statistics Screen .........................................................5-89
5.27.1 Displaying Interface Statistics .......................................5-92
5.27.2 Using the Clear Counters Command ............................5-92
5.28 RMON Statistics Screen ............................................................5-93
5.28.1 Displaying RMON Statistics ..........................................5-97
5.28.2 Using the Clear Counters Command ............................5-97
5.29 Network Tools ............................................................................5-98
5.29.1 Built-in Commands......................................................5-100
5.29.2 Special Commands .....................................................5-107
APPENDIX A SPECIFICATIONS
A.1 Device Specifications.................................................................. A-1
A.2 Physical Properties ..................................................................... A-1
A.3 Environmental Requirements...................................................... A-1
A.4 Input/Output Ports....................................................................... A-2
A.5 COM Port Pinout Assignments ................................................... A-2
A.6 Regulatory Compliance............................................................... A-2
APPENDIX B MODE SWITCH BANK SETTINGS
B.1 Required Tools............................................................................ B-1
B.2 Setting the Mode Switch ............................................................. B-1
INDEX
6H122-16 User’s Guide 1-1
CHAPTER 1
INTRODUCTION
Welcome to the Cabletron Systems
6H122-16 SmartSwitch 6000
Interface Module User’s Guide
. This guide describes the 6H122-16
interface module and provides information concerning network
requirements, installation, troubleshooting, and the use of Local
Management.
1.1 USING THIS GUIDE
Read through this guide completely to understand the 6H122-16 module
features, capabilities, and Local Management functions. A general
working knowledge of Fast Ethernet and IEEE 802.3 type data
communications networks and their physical layer components is helpful
when using this device.
1.2 STRUCTURE OF THIS GUIDE
This guide is organized as follows:
Chapter 1,
Introduction
, outlines the contents of this manual, describes
the features of the 6H122-16, and provides instructions for getting
additional help. This chapter also includes a list of technology and user
guides that may be helpful to set up and manage the 6H122-16.
Chapter 2,
Network Requirements
, outlines the network requirements
that must be met before installing the 6H122-16 into the 6C105
SmartSwitch 6000 chassis.
Chapter 3,
Installation
, provides instructions on how to install the
module in the chassis and connect segments to the device.
Chapter 4,
Troubleshooting
, details the 6H122-16 LANVIEW LEDs that
enable quick diagnosis of network or operational problems.
NOTE
In this document, the 6H122-16 interface module is referred to
as either the “6H122-16” or the “module”.
Chapter 1:
Introduction
1-2 6H122-16 User’s Guide
Chapter 5,
Local Management
, describes how to access Local
Management and use the Local Management screens to manage the
6H122-16 module and 6C105 chassis.
Appendix A,
Specifications
, contains information on functionality and
operating specifications, connector pinouts, environmental requirements,
and physical properties.
Appendix B,
Mode Switch Bank Settings
, describes how to set the
Mode Switches.
1.3 OVERVIEW
The 6H122-16 (Figure 1-1) is a Fast Ethernet interface module for the
Cabletron Systems 6C105 chassis. The module provides sixteen RJ45
switched ports for unshielded twisted pair (UTP) cabling connectivity.
The 6H122-16 is used to connect individual high-bandwidth user devices,
such as workstations, and provide a central switching point for multiple
10/100 Mbps Fast Ethernet segments.
1.3.1 Connectivity
The 6H122-16 connects to Ethernet/Fast Ethernet networks or
workstations through sixteen RJ45 ports on the front panel. These ports
are IEEE 802.3u 100BASE-TX compliant, and use Category 5 unshielded
twisted pair cables of lengths up to 100 meters with impedances between
85 and 111 ohms.
1.3.2 Management
Management of the 6H122-16 module and 6C105 chassis and any
optional equipment is accomplished using Local Management tools or
remote SNMP management stations. Local Management is accessible
through the front panel RS232 COM port using a local VT100 terminal,
or a remote VT100 terminal via a modem connection. Local Management
is also accessible in-band via a Telnet connection. In-band remote
management is possible through any SNMP compliant Network
Management Software.
Overview
6H122-16 User’s Guide 1-3
Figure 1-1 The 6H122-16
6H122-16
FAST ENET
Reset Button
System LED
Port Status LEDs
Network Ports 1-16
COM Port
1X
2X
3X
4X
5X
6X
7X
8X
9X
10X
11X
12X
13X
14X
15X
16X
COM
CPU
100 Mbs
RESET
2
3
4
5
6
1
8
9
10
11
12
7
13
14
15
16
2361_01
Chapter 1:
Introduction
1-4 6H122-16 User’s Guide
1.3.3 Distributed Chassis Management
From a management perspective, the 6C105 SmartSwitch 6000 chassis
can be viewed as a single entity with a single IP address. Its management
functions are distributed to all modules. This means a single module in
the chassis, such as the 6H122-16, can be used to manage the entire
chassis, and any other attached module through Local Management,
SNMP, or Telnet applications.
1.3.4 Switching Options
The 6H122-16 provides 802.1D switching, 802.1Q switching, or
SecureFast Switching Virtual Network Services between all of the front
panel interfaces.
SecureFast switching and 802.1Q switching allow for future migration to
Virtual Network technologies without requiring the replacement of
existing equipment.
1.3.5 Full Duplex Switched Ethernet
Ports 1 through 14 support Full Duplex Switched Ethernet (FDSE)
operation if the port is operating in Standard Ethernet mode (10 Mbps).
This provides up to 20 Mbps of bandwidth. Ports 15 and 16 also support
Full Duplex operation in Fast Ethernet mode (100 Mbps). This provides
up to 200 Mbps of bandwidth.
1.3.6 Remote Monitoring
The 6H122-16 supports all Ethernet Remote Monitoring (RMON)
groups, which include Statistics, Alarms, Events and History. These four
groups are enabled on all ports by default.
Cabletron Systems RMON Actions is a vendor-specific extension of
RMON and provides the ability to set an “Action” on any SNMP MIB
variable. The Action can be triggered by any RMON Event and/or Alarm.
An example of an Action would be to turn off a MIB-2 interface if a
broadcast threshold is crossed.
Overview
6H122-16 User’s Guide 1-5
1.3.7 SmartTrunk
SmartTrunk, also referred to as SmartTrunking, is Cabletron Systems’
terminology for load balancing or load sharing. SmartTrunk technology
provides an easy-to-implement mechanism to group, or aggregate,
multiple physical links together to scale the backbone bandwidth beyond
the limitations of a single link. All links are user-configurable so
administrators can scale the backbone bandwidth by adding SmartTrunk
links. The SmartTrunk benefits are as follows:
•
All purchased bandwidth is used.
•
Distributed, resilient links increase reliability and performance.
•
Multiple technologies are supported within a single trunk for
maximum flexibility.
For more information about SmartTrunk, refer to the Cabletron Systems
SmartTrunk User’s Guide
.
1.3.8 Runtime IP Address Discovery
This feature enables the modules to automatically accept an IP address
from a BootP server on the network into NVRAM without requiring a
user to enter an IP address through Local Management.
When the modules are connected to the network and powered up,
Runtime IP Address Discovery (RAD) checks the modules for an IP
address. If one has not yet been assigned (module and 6C105 chassis IP
address set to 0.0.0.0), RAD checks to see if any of the module interfaces
have a link. If so, RAD sends out Reverse Address Resolution Protocol
(RARP) and BootP requests to obtain an IP address from a RARP or
BootP server on the network.
The RAD requests start out at an interval of one second. The interval then
doubles after every transmission until an interval of 300 seconds is
reached. At this point, the interval remains at 300 seconds. The RAD
requests continue until an IP address is received from a RARP or BootP
server, or an IP address is entered using Local Management.
Chapter 1:
Introduction
1-6 6H122-16 User’s Guide
1.3.9 Port Redirect Function
The port redirect function, also referred to as “Port Mirroring,” is a
troubleshooting tool used to map traffic from a single source port or
multiple source ports to a destination port(s) within the chassis. This
feature functions at the bit level, which allows all packets, including those
with errors, to be copied and sent to an analyzer or RMON probe. The
analyzer or RMON probe will see the data as if it is directly connected to
the LAN segment of the source port(s).
1.3.10 Auto-Negotiation
Twisted pair ports on the 6H122-16 module have the ability to
auto-negotiate the type of connection required to provide a link to another
device. During Auto-Negotiation, two devices automatically exchange
information “telling” each other what their operating capabilities are. The
Auto-Negotiation feature targets the maximum capabilities that can be
reached between the two devices. For example, the 6H122-16 adjusts to
100 Mbps when the device on the other end of the connection can also
adjust between 10 Mbps or 100 Mbps. If the device on the other end of
the connection can only operate at 10 Mbps, then the 6H122-16 adjusts to
10 Mbps operation.
When Auto-Negotiation is supported at both ends of a link, the two
devices dynamically adjust to full or half duplex operation based on the
maximum capability that can be reached between the two devices. If the
device connected to the 6H122-16 cannot auto-negotiate, the 6H122-16
interface operates according to the capabilities of the other device.
1.3.11 Broadcast Suppression
Broadcast Suppression allows a limit to be set on the number of receive
broadcast frames per port/per second to be forwarded out the other ports
on the module. Any broadcast frames above the specified limit are
dropped. In the event that broadcast frames are being suppressed,
multicast and unicast frames continue to be switched.
NOTE
All ports support standard Ethernet, standard full duplex
operation, and Fast Ethernet. Ports 1 through 14 do not
support Fast Ethernet in full duplex operation. However, ports
15 and 16 do support full duplex Fast Ethernet.
Overview
6H122-16 User’s Guide 1-7
1.3.12 Standards Compatibility
The 6H122-16 is fully compliant with the IEEE 802.3u standard. The
6H122-16 provides IEEE 802.1D Spanning Tree Algorithm (STA)
support to enhance the overall reliability of the network and protect
against “loop” conditions. The 6H122-16 supports a wide variety of
industry standard MIBs including RFC 1213 (MIB II), RFC 1757
(RMON), RFC 1493 (Bridge MIB) and RFC 1354 (FIB MIB). A full suite
of Cabletron Systems Enterprise MIBs provide a wide array of statistical
information to enhance troubleshooting.
1.3.13 LANVIEW Diagnostic LEDs
LANVIEW diagnostic LEDs serve as an important troubleshooting aid by
providing an easy way to observe the status of individual ports and overall
network operations. Chapter 4 provides details about the 6H122-16
LANVIEW LEDs.
1.3.14 Year 2000 Compliant
The 6H122-16 module and 6C105 chassis have an internal clock that can
maintain the time and date beyond the year 1999.
Chapter 1:
Introduction
1-8 6H122-16 User’s Guide
1.4 DOCUMENT CONVENTIONS
The following conventions are used throughout this document:
NOTE
Note
symbol. Calls the reader’s attention to any item of
information that may be of special importance.
TIP
Tip
symbol. Conveys helpful hints concerning procedures or
actions.
!
CAUTION
Caution
symbol. Contains information essential to avoid
damage to the equipment.
Electrical Hazard Warning
symbol. Warns against an action
that could result in personal injury or death due to an electrical
hazard.
Getting Help
6H122-16 User’s Guide 1-9
1.5 GETTING HELP
For additional support related to this device or document, contact the
Cabletron Systems Global Call Center:
Before calling the Cabletron Systems Global Call Center, have the
following information ready:
•
Your Cabletron Systems service contract number
•
A description of the failure
•
A description of any action(s) already taken to resolve the problem
(e.g., changing mode switches, rebooting the unit, etc.)
•
The serial and revision numbers of all involved Cabletron Systems
products in the network
•
A description of your network environment (layout, cable type, etc.)
•
Network load and frame size at the time of trouble (if known)
•
The device history (i.e., have you returned the device before, is this a
recurring problem, etc.)
•Any previous Return Material Authorization (RMA) numbers
World Wide Web http://www.cabletron.com/
Phone (603) 332-9400
Internet mail support@cabletron.com
FTP ftp://ftp.cabletron.com/
Login
anonymous
Password
your email address
To send comments or suggestions concerning this document, contact the
Cabletron Systems Technical Writing Department via the following
email address: TechWriting@cabletron.com
Make sure to include the document Part Number in the email message.
Chapter 1: Introduction
1-10 6H122-16 User’s Guide
1.6 RELATED MANUALS
The following manuals may help to set up, control, and manage the
6H122-16:
Cabletron Systems HSIM-A6DP User’s Guide
Cabletron Systems HSIM-F6 User’s Guide
Cabletron Systems HSIM-FE6 User’s Guide
Cabletron Systems HSIM-W6 Installation Guide
Cabletron Systems HSIM-W84 Installation Guide
Cabletron Systems HSIM-W87 User’s Guide
Cabletron Systems HSIM-G01/G09 User’s Guide
Cabletron Systems Ethernet Technology Guide
Cabletron Systems Cabling Guide
Cabletron Systems Port Based VLAN User’s Guide
Cabletron Systems SmartTrunk User’s Guide
These manuals can be obtained from the World Wide Web in Adobe
Acrobat Portable Document Format (PDF) at the following site:
http://www.cabletron.com/
NOTE All documentation for the Cabletron Systems SecureFast VLAN
Manager software is contained on the VLAN Manager
CD-ROM.
The documentation for the HSIM-W6 and HSIM-W84 is on the
QuickSET CD-ROM.
6H122-16 User’s Guide 2-1
CHAPTER 2
NETWORK REQUIREMENTS
Before installing the 6H122-16, review the requirements and
specifications referred to in this chapter concerning the following:
•SmartTrunk (Section 2.1)
•10BASE-T Twisted Pair Network (Section 2.2)
•100BASE-TX Twisted Pair Network (Section 2.3)
The network installation must meet the guidelines to ensure satisfactory
performance of this equipment. Failure to follow the guidelines may
produce poor network performance.
2.1 SmartTrunk
To connect the 6H122-16 to a network so it can take advantage of the
SmartTrunk feature, there are certain rules concerning port connections
and configurations that must be followed for proper operation. Refer to
the Cabletron Systems SmartTrunk User’s Guide for additional
information.
NOTE To ensure proper operation, use Category 5 unshielded twisted
pair (UTP) cabling that has an impedance between 85 and
111 ohms.
NOTE The Cabletron Systems
Cabling Guide and SmartTrunk User’s
Guide
, can be found on the Cabletron Systems World Wide
Web site: http://www.cabletron.com/
Chapter 2: Network Requirements
2-2 6H122-16 User’s Guide
2.2 10BASE-T NETWORK
When connecting a 10BASE-T segment to any of the 6H122-16 ports,
ensure that the network meets the Ethernet network requirements of the
IEEE 802.3 standard for 10BASE-T. Refer to the Cabletron Systems
Cabling Guide for details.
2.3 100BASE-TX NETWORK
The sixteen fixed ports of the 6H122-16 provide an RJ45 connection that
supports Category 5 unshielded twisted pair cabling with an impedance
between 85 and 111 ohms. The device at the other end of the twisted pair
segment must meet IEEE 802.3u 100BASE-TX Fast Ethernet network
requirements for the devices to operate at 100 Mbps. Refer to the
Cabletron Systems Cabling Guide for details.
NOTE The 6H122-16 is capable of operating at either 10 or 100 Mbps.
The module automatically detects the speed of the other device
and adjusts its speed accordingly.
6H122-16 User’s Guide 3-1
CHAPTER 3
INSTALLATION
This chapter covers the following items:
•Unpacking the 6H122-16 (Section 3.1)
•Installing the 6H122-16 into the 6C105 chassis (Section 3.2)
•Connecting to the network (Section 3.3)
•Completing the installation (Section 3.4)
3.1 UNPACKING THE 6H122-16
1. Open the box and remove the packing material protecting the module.
2. Verify the contents of the carton as listed in Table 3-1.
Only qualified personnel should install the 6H122-16.
Table 3-1 Contents of 6H122-16 Carton
Item Quantity
6H122-16 1
Manual Accessory Kit 1
NOTE Before proceeding with the installation, visually inspect the
module for damage. If the module appears to be damaged,
contact the Cabletron Systems Global Call Center. Refer to
Section 1.5 for details.
Chapter 3: Installation
3-2 6H122-16 User’s Guide
3.2 INSTALLING THE 6H122-16 INTO THE 6C105
CHASSIS
The 6H122-16 can be installed in any of the 5 slots that are available. To
install a module, proceed as follows:
1. Remove the blank panel covering the slot in which the module will be
installed. All other slots must remain covered to ensure proper airflow
and cooling. (Save the blank plate in the event you need to remove the
module.)
2. Carefully remove the module from the shipping box. (Save the box
and packing materials in the event the module must be reshipped.)
3. Locate the antistatic wrist strap shipped with the 6C105 chassis.
Attach the strap to your wrist and plug the cable from the antistatic
wrist strap into the ESD grounding receptacle at the upper right corner
of the 6C105.
4. Remove the module from the plastic bag. (Save the bag in the event
the module must be reshipped.) Observe all precautions to prevent
damage from Electrostatic Discharge (ESD).
5. Examine the module for damage. If any damage exists, DO NOT
install the module. Immediately contact the Cabletron Systems Global
Call Center.
!
CAUTION
Failure to observe static safety precautions could cause
damage to the 6H122-16. Follow static safety handling rules
and properly wear the antistatic wrist strap provided with the
6C105 chassis.
!
CAUTION
Do not cut the non-conductive bag to remove the module.
Damage could result from sharp objects contacting the board
or components.
Installing the 6H122-16 into the 6C105 Chassis
6H122-16 User’s Guide 3-3
6. Locate the card guides that line up with the number of the slot in which
the module will be installed. Install the module in the chassis by
aligning the module circuit card between the upper and lower metal
card guides of the desired slot, sliding it into the chassis, and locking
down the top and bottom plastic locking tabs, as shown in Figure 3-1.
Take care that the module slides in straight and properly engages the
backplane connectors.
!
CAUTION
To prevent damaging the backplane connectors in the following
step, take care that the module slides in straight and properly
engages the backplane connectors.
NOTE When installing a module, ensure that the top plastic locking
tab lines up with the desired slot number located on the front
panel of the chassis. Refer to Figure 3-1.
Chapter 3: Installation
3-4 6H122-16 User’s Guide
Figure 3-1 Installing an Interface Module
12345 PS1 PS2
Plastic
Locking Tab
Slot Number
2361-02
2159-01
COM
CPU
6E122-16
FAST ENET
100 Mbs
2
3
4
5
6
1
RESET
Circuit Card
Card Guides
Metal Back-Panel
Plastic Locking Tab
1X
2X
3X
4X
5X
6X
7X
8X
9X
10X
11X
12X
13X
14X
15X
16X
100 Mbs
2
3
4
5
6
1
8
9
10
11
12
7
13
14
15
16
Backplane
Connector
Connecting to the Network
6H122-16 User’s Guide 3-5
3.3 CONNECTING TO THE NETWORK
This section provides the procedures for connecting twisted pair segments
from the network or other devices to the 6H122-16.
Ports 1 through 16 of the 6H122-16 are 10/100 ports with internal
crossovers. The ports have RJ45 connectors for twisted pair connections.
When connecting a workstation, use a straight-through cable. When
connecting networking devices, such as another bridge, repeater, or
router, use a crossover cable. To ensure proper operation, use Category 5
unshielded twisted pair (UTP) cabling that has an impedance between 85
and 111 ohms.
To connect a twisted pair segment to the 6H122-16, proceed as follows:
1. Ensure that the device connected to the other end of the segment is
powered ON.
2. Connect the twisted pair segment to the 6H122-16 by inserting the
RJ45 connector on the twisted pair segment into the desired RJ45 port
(Ports 1 through 16) shown in Figure 3-2.
NOTE If the device is being installed in a network using
SmartTrunking, there are rules concerning the cable
connections and port connections that must be followed for
SmartTrunking to operate properly. Before connecting the
cables, refer to the Cabletron Systems
SmartTrunk User’s
Guide
for the configuration information.
Chapter 3: Installation
3-6 6H122-16 User’s Guide
.

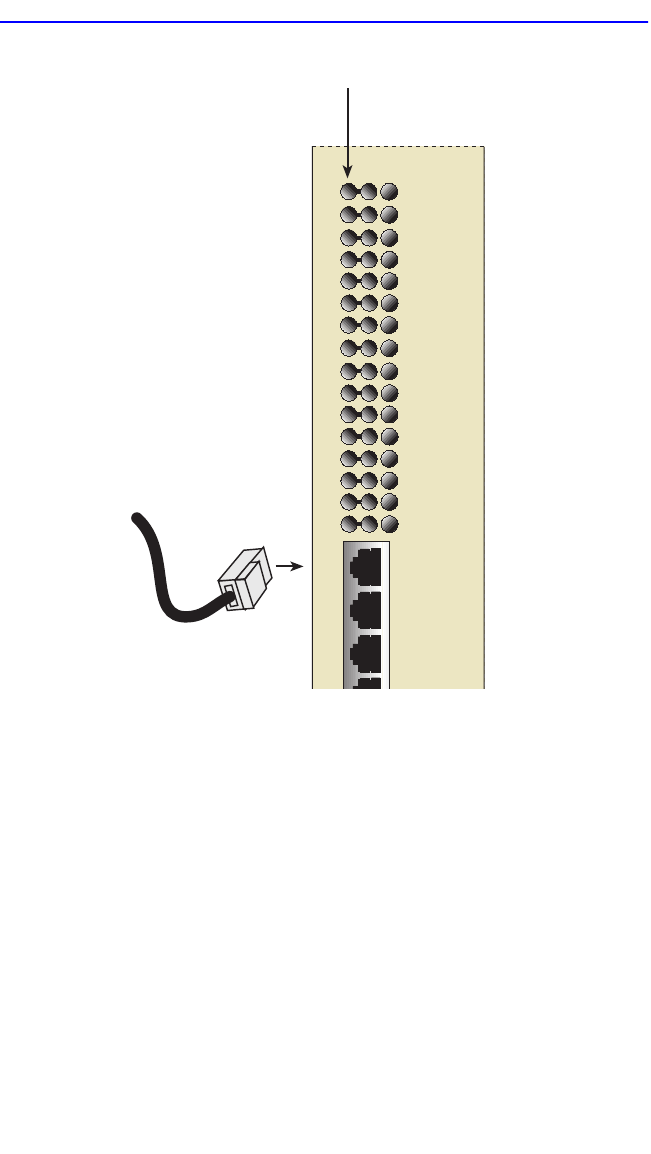

Figure 3-2 6H122-16 Twisted Pair Connection
3. Verify that a link exists by checking that the port RX LED is ON
(flashing amber, blinking green, or solid green). If the RX LED is OFF
and the TX LED is not blinking amber, perform the following steps
until it is on:
a. Verify that the device at the other end of the twisted pair segment
is ON and connected to the segment.
b. Verify that the RJ45 connectors on the twisted pair segment have
the proper pinouts (Figure 3-3) and check the cable for continuity.
100 Mbs
RX (Receive) LED Column
1X
2X
3X
2
3
4
5
6
1
8
9
10
11
12
7
13
14
15
16
Connecting to the Network
6H122-16 User’s Guide 3-7

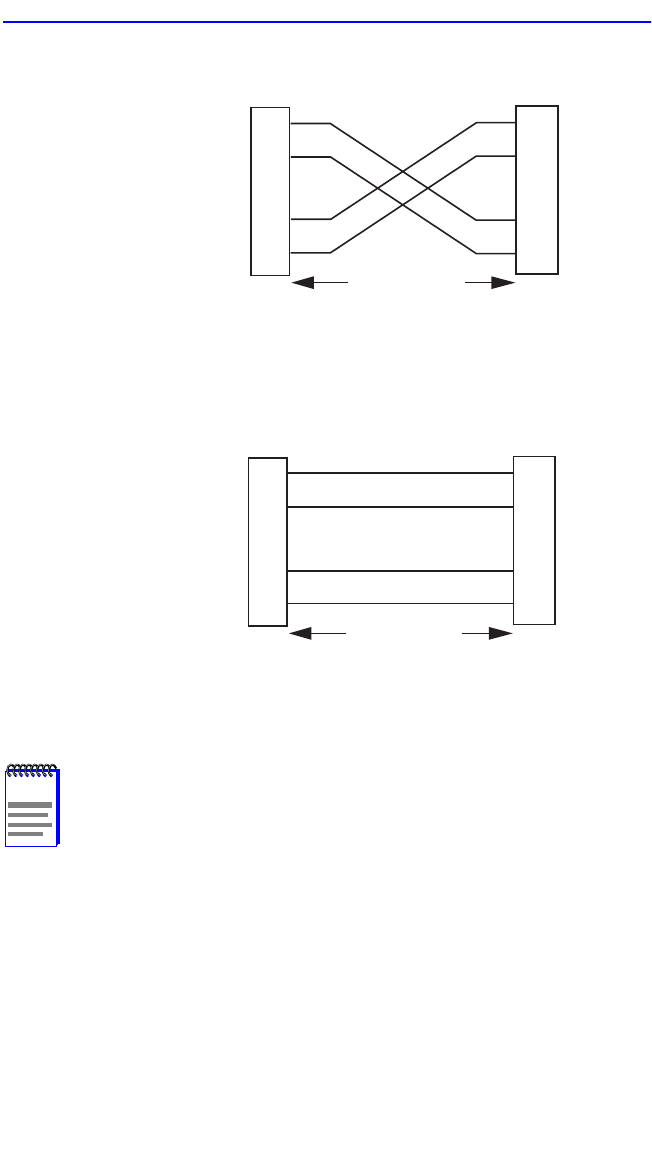

Figure 3-3 Cable Pinouts - (RJ45) Crossover Cable
Figure 3-4 Cable Pinouts - (RJ45) Straight-Through Cable
c. Ensure that the twisted pair connection meets the dB loss and
cable specifications outlined in the Cabletron Systems Cabling
Guide. Refer to Section 1.5 for information on obtaining this
document.
If a link is not established, contact the Cabletron Systems Global Call
Center. Refer to Section 1.5 for details.
4. Repeat steps 1 through 3 above, until all connections have been made.
NOTE RX+/RX- and TX+/TX- must share a common color pair. For
example, the receive pair may use the white/blue, blue/white
pair, while the transmit pair may use the white/orange,
orange/white pair.
TX+
TX–
RX+
RX– 2
1
3
6
TO
10BASE-T Device Port
TX+
TX–
2
1
3
6
NOTE:
RX+/RX– and TX+/TX–
must share a common
color pair.
TO
SmartSwitch RJ45 Port
2159_04
RJ45 to RJ45
RX+
RX–
TX+
TX–
RX+
RX– 2
1
3
6
TO
10BASE-T Device Port
TX+
TX–
2
1
3
6
NOTE:
RX+/RX– and TX+/TX–
must share a common
color pair.
TO
SmartSwitch RJ45 Port
2159_04a
RJ45 to RJ45
RX+
RX–
Chapter 3: Installation
3-8 6H122-16 User’s Guide
3.4 COMPLETING THE INSTALLATION
After installing the 6H122-16, the module is now ready to be set up
through Local Management. Refer to Chapter 5 to configure the module
and 6C105 chassis.
6H122-16 User’s Guide 4-1
CHAPTER 4
TROUBLESHOOTING
This chapter provides information concerning the following:
•Using the LANVIEW diagnostic and status monitoring system
•Troubleshooting network and module operational problems
•Using the RESET button
4.1 USING LANVIEW
The 6H122-16 uses Cabletron Systems built-in visual diagnostic and
status monitoring system called LANVIEW. The LANVIEW LEDs
(Figure 4-1) allow quick observation of the network status to aid in the
diagnosing of network problems. Refer to Table 4-1 for a description of
the LEDs.
NOTE The terms flashing, blinking, and solid used in the LED
definition tables of this chapter indicate the following:
Flashing indicates an irregular LED pulse.
Blinking indicates a steady LED pulse, (50% on/off).
Solid indicates a steady LED light. No pulsing.
Chapter 4: Troubleshooting
4-2 6H122-16 User’s Guide
Figure 4-1 LANVIEW LEDs
6H122-16
FAST ENET
10/100 Mbps Operation
1X
2X
3X
4X
5X
6X
7X
8X
9X
10X
11X
12X
13X
14X
15X
16X
CPU LED
COM
CPU
100 Mbs
RESET
2
3
4
5
6
1
8
9
10
11
12
7
13
14
15
16
2361_07
Receive (RX)
Transmit (TX)
Using LANVIEW
6H122-16 User’s Guide 4-3
Table 4-1 LANVIEW LEDs
LED Color State Recommended Action
CPU Off Power off. Power up chassis.
Red Blinking. Hardware
failure has occurred. Contact the Cabletron
Systems Global Call Center.
Solid. Resetting,
normal power up reset. None.
Amber Blinking. Crippled. Contact the Cabletron
Systems Global Call Center.
Solid. Testing. None.
Green Solid. Functional. None.
Amber
and
Green
Booting. Blinks amber
and green while
booting.
None.
RX Off No link. No activity or
port in Standby. Port
enabled or disabled.
None.
Green Solid. Port enabled,
link, no activity. None.
Blinking. Port
disabled, link. None.
Amber Flashing. Port
enabled, link, activity. None.
Red Solid. Diagnostic
failure. Contact the Cabletron
Systems Global Call Center.
Chapter 4: Troubleshooting
4-4 6H122-16 User’s Guide
Table 4-2 Port 1-16 10/100 LED Indications
TX Off Port enabled, and no
activity. None.
Green Flashing. Indicates
activity. Rate indicates
data rate.
None.
Amber Blinking. Port in
standby, link. Port may
be disabled due to
Spanning Tree.
1. Ensure that the port is not
disabled (unless desired).
2. Check network design;
eliminate any unnecessary
loops.
3. If still not working, contact
the Cabletron Systems
Global Call Center.
Red Flashing. Indicates
collision rate. None, unless a high amount of
activity. Check for network
configuration problems or bad
device.
Solid. Diagnostic
Failure. Contact Cabletron Systems
Global Call Center.
LED Color Description
10/100 Off No link or no cable attached. There is a
link and the port is operating at 10 Mbps
operation.
Green Link. Port is operating at 100 Mbps.
NOTE A link exists if the associated port Receive (RX) LED is on. No
link exists if the associated port Receive (RX) LED is off.
Table 4-1 LANVIEW LEDs (Continued)
LED Color State Recommended Action
Troubleshooting Checklist
6H122-16 User’s Guide 4-5
4.2 TROUBLESHOOTING CHECKLIST
If the 6H122-16 is not working properly, refer to Table 4-3 for a checklist
of possible problems, causes, and recommended actions to resolve the
problem.
Table 4-3 Troubleshooting Checklist
Problem Possible Cause Recommended Action
All LEDs are OFF. Loss of Power to the 6C105
chassis. Check the proper
connection of the power
cable and its access to a
live outlet.
The 6H122-16 not properly
installed. Check the installation. Refer
to Chapter 3.
No Local
Management
Password screen.
Autobaud enabled, but baud
rate has not been detected. Press ENTER (RETURN)
(may take up to four times).
Terminal setup is not
correct. Refer to Chapter 5 for
proper setup procedures.
Improper console cable
pinouts. Refer to Appendix A for
proper console port pinouts.
Cannot contact the
6H122-16 from
in-band
management.
Improper Community
Names Table. Refer to Section 5.8
for Community Names
Table setup.
The 6H122-16 does not
have an IP address. Refer to Section 5.15.1 for
IP address assignment
procedure.
Port is disabled. Enable port.
No link to device. Check link to device.
Chapter 4: Troubleshooting
4-6 6H122-16 User’s Guide
Port(s) goes into
standby for no
apparent reason.
The 6H122-16 detects a
looped condition. 1. Review network design
and delete unnecessary
loops.
2. Call the Cabletron
Systems Global Call
Center if problem
continues.
User parameters
(IP address,
Device and
Module name,
etc.) are lost when
the 6H122-16 is
powered down or
the front panel
RESET button is
pressed.
Mode switch (7), NVRAM
Reset, was changed
sometime before either
cycling power or pressing
the RESET button, causing
the user-entered
parameters to reset to
factory default settings.
Clear NVRAM was set
through Local Management.
1. Reenter the lost
parameters as necessary.
2. Call the Cabletron
Systems Global Call
Center if problem
continues.
Table 4-3 Troubleshooting Checklist (Continued)
Problem Possible Cause Recommended Action
Using the RESET Button
6H122-16 User’s Guide 4-7
4.3 USING THE RESET BUTTON
The RESET button, located near the upper plastic locking tab of the
module (see Figure 4-2), resets the 6H122-16 processor without affecting
the NVRAM.
Figure 4-2 RESET Button
To reset the 6H122-16 processor, press and release the RESET button.
The module processor goes through a reset process of approximately 20
seconds. Additional downtime may be added as the module reenters the
network.
!
CAUTION
Pressing the RESET button resets the device, and all current
switching being performed by the module is halted. A module
downtime of up to two minutes will result from this action.
Reset Button RESET
6H122-16
FAST ENET
Chapter 4: Troubleshooting
4-8 6H122-16 User’s Guide
6H122-16 User’s Guide 5-1
CHAPTER 5
LOCAL MANAGEMENT
This chapter explains how to set up a management terminal to access
6H122-16 Local Management. It also explains how to use the Local
Management screens and commands.
5.1 OVERVIEW
Local Management for the 6H122-16 consists of a series of management
screens that allows management of the module, the attached segments,
and the 6C105 chassis. The management screens allow the following
tasks to be performed:
•Manage any interface module in the chassis via a connection to a
single interface module.
•Assign IP addresses and subnet masks to the 6H122-16 module, and
the 6C105 chassis.
•Control access to the 6H122-16 module and the 6C105 chassis by
establishing community names.
•Download a new image of operating software.
•Designate which Network Management workstations receive SNMP
traps from the 6H122-16 module and the 6C105 chassis.
•Monitor the environmental status of the 6C105 chassis.
•View switch, interface, and RMON statistics.
•Assign ports to operate in standard or full duplex mode.
•Enable trunking of ports to perform load sharing.
There are three ways to access Local Management:
•Locally using a VT type terminal connected to the COM port of the
6H122-16.
•Remotely using a VT type terminal connected through a modem.
•In-band through a Telnet connection.
Chapter 5: Local Management
5-2 6H122-16 User’s Guide
5.2 LOCAL MANAGEMENT KEYBOARD
CONVENTIONS
All key names appear as capital letters in this manual. Table 5-1 explains
the keyboard conventions and the key functions that are used.
Table 5-1 Keyboard Conventions
Key Function
ENTER Key
RETURN Key
These are selection keys that perform the same
Local Management function. For example, “Press
ENTER” means that you can press either ENTER
or RETURN, unless this manual specifically
instructs you otherwise.
ESCAPE (ESC) Key
This key allows an escape from a Local
Management screen without saving changes. For
example, “Press ESC twice” means the ESC key
must be pressed quickly two times.
SPACE bar
BACKSPACE Key
These keys cycle through selections in some Local
Management fields. Use the SPACE bar to cycle
forward through selections and use BACKSPACE
to cycle backward through selections.
Arrow Keys
These are navigation keys. Use the UP-ARROW,
DOWN-ARROW, LEFT-ARROW, and
RIGHT-ARROW keys to move the screen cursor.
For example, “Use the arrow keys” means to press
whichever arrow key moves the cursor to the
desired field on the Local Management screen.
[–] Key This key decreases values from a Local
Management increment field. For example, “Press
[–]” means to press the minus sign key.
DEL Key The DEL (Delete) key removes characters from a
Local Management field. For example, “Press DEL”
means to press the Delete key.
Management Terminal Setup
6H122-16 User’s Guide 5-3
5.3 MANAGEMENT TERMINAL SETUP
Use one of the following systems to access Local Management:
•An IBM or compatible PC running a VT series emulation software
package
•A Digital Equipment Corporation VT100 type terminal
•A VT type terminal running emulation programs for the Digital
Equipment Corporation VT100 series
•A remote VT100 type terminal via a modem connection
•In-band via a Telnet connection
5.3.1 Console Cable Connection
Use the Console Cable Kit provided with the 6C105 chassis to attach the
management terminal to the COM port as shown in Figure 5-1.
Connect an IBM PC or compatible device, running the VT terminal
emulation, to the 6H122-16 as follows:
1. Connect the RJ45 connector at one end of the cable (supplied in the
kit) to the COM port on the 6H122-16.
2. Plug the RJ45 connector at the other end of the cable into the
RJ45-to-DB9 adapter (supplied in the kit).
3. Connect the RJ45-to-DB9 adapter to the PC communications port.
NOTE If using a VT100 style terminal, use the RJ45 to DB25 adapter
included in the Console Cable Kit, instead of the PC adapter.
Chapter 5: Local Management
5-4 6H122-16 User’s Guide
Figure 5-1 Management Terminal Connection
12345
PS1 PS2
6H122-16
FAST ENET
6E122-16
ETHERNET
COM
CPU
RESET
1X
2X
3X
4X
5X
6X
7X
8X
9X
10X
11X
12X
13X
14X
15X
16X
100 Mbs
2
3
4
5
6
1
8
9
10
11
12
7
13
14
15
16
PC
2361_10
COM
CPU
100 Mbs
RESET
2
3
4
5
6
1
8
7
RJ45 COM Port
RJ45-to-DB9
PC Adapter to PC
UTP Cable with
RJ45 Connectors
Management Terminal Setup
6H122-16 User’s Guide 5-5
5.3.2 Management Terminal Setup Parameters
Table 5-2 lists the setup parameters for the local management terminal.
Table 5-2 VT Terminal Setup
Display Setup Menu
Columns ->
Controls ->
Auto Wrap ->
Scroll ->
Text Cursor ->
Cursor Style ->
80 Columns
Interpret Controls
No Auto Wrap
Jump Scroll
Cursor
Underline Cursor Style
General Setup Menu
Mode ->
ID number ->
Cursor Keys ->
Power Supply ->
VT100, 7 Bit Controls
VT100ID
Normal Cursor Keys
UPSS DEC Supplemental
Communications Setup Menu
Transmit ->
Receive ->
XOFF ->
Bits ->
Parity ->
Stop Bit ->
Local Echo ->
Port ->
Transmit ->
Auto Answerback ->
2400, 4800, 9600, 19200
Receive=Transmit
XOFF at 64
8 bits
No Parity
1 Stop Bit
No Local Echo
DEC-423, Data Leads Only
Limited Transmit
No Auto Answerback
Keyboard Setup Menu
Keys ->
Auto Repeat ->
Keyclick ->
Margin Bell ->
Warning Bell ->
Typewriter Keys
any option
any option
Margin Bell
Warning Bell
Chapter 5: Local Management
5-6 6H122-16 User’s Guide
5.3.3 Telnet Connections
Once the module or chassis has a valid IP address, the user can establish a
Telnet session with Local Management from any TCP/IP based node on
the network. Telnet connections to the 6H122-16 require the community
name passwords assigned at the SNMP Community Names screen of
either the 6C105 chassis, or the module. For additional information about
community names, refer to Section 5.8. Refer to the instructions included
with the Telnet application for information about establishing a Telnet
session.
5.3.4 Connecting an Uninterruptible Power Supply
If the 6C105 chassis is connected to an American Power Conversion
(APC) Uninterruptible Power Supply (UPS) for protection from a loss of
power, a connection from the COM port of a module to the UPS can be
made to monitor the status of the UPS. To use the COM port for this
purpose, it must be reconfigured to support the UPS application. This
procedure is performed from the General Configuration screen of the
interface module. Section 5.15.11, Configuring the COM Port, provides
detailed instructions on configuring the COM port for UPS applications.
Refer to the UPS documentation for details on how to access the status
information.
Use the Console Cable Kit provided with the 6C105 chassis to attach the
UPS to the module COM port as shown in Figure 5-2.
Connect the UPS device to the COM port of the 6H122-16 as follows:
1. Connect the RJ45 connector at one end of the cable to the COM port
on the 6H122-16.
2. Plug the RJ45 connector at the other end of the cable into the
RJ45-to-DB9 male (UPS) adapter, Cabletron Systems Part No.
9372066.
3. Connect the RJ45-to-DB9 male (UPS) adapter to the female DB9 port
on the rear of the UPS device (refer to the particular UPS device’s user
instructions for more specific information about the monitoring
connection).
Management Terminal Setup
6H122-16 User’s Guide 5-7

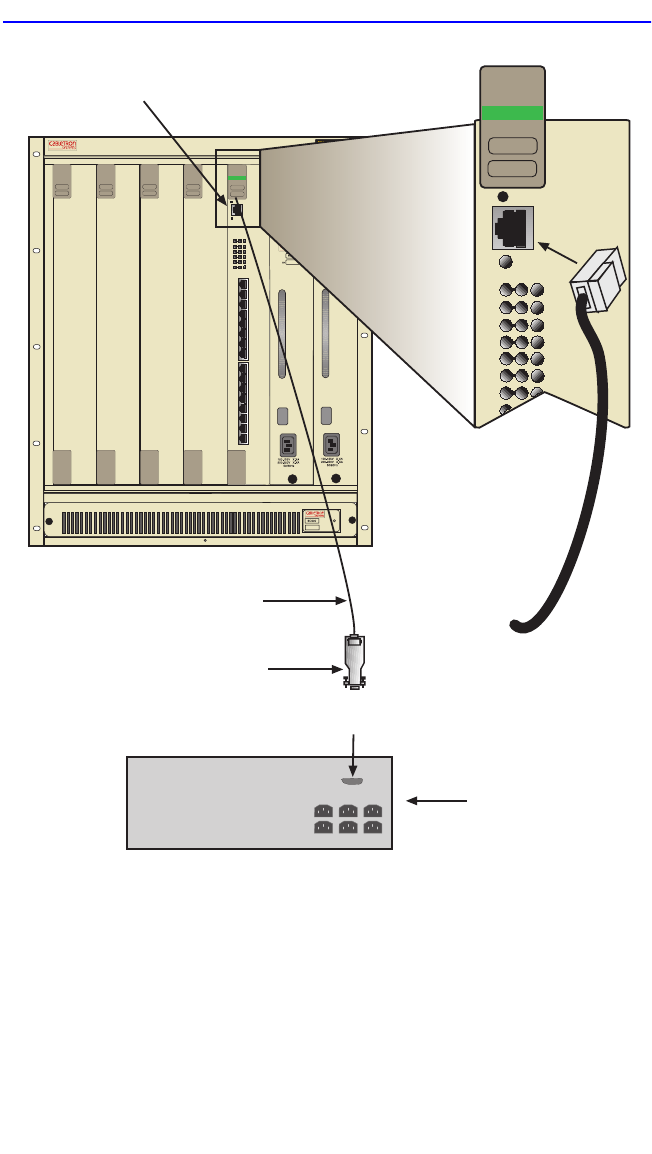

Figure 5-2 Uninterruptible Power Supply (UPS) Connection
12345
PS1 PS2
6H122-16
FAST ENET
6E122-16
ETHERNET
COM
CPU
100 Mbs
2
3
4
5
6
1
RESET
1X
2X
3X
4X
5X
6X
7X
8X
9X
10X
11X
12X
13X
14X
15X
16X
COM
CPU
100 Mbs
RESET
2
3
4
5
6
1
8
7
UPS Device
DB9 Port
RJ45 COM Port
RJ45-to-DB9
PC Adapter
UTP Cable with
RJ45 Connectors
2361_11
Chapter 5: Local Management
5-8 6H122-16 User’s Guide
5.4 ACCESSING LOCAL MANAGEMENT
Access to Local Management is controlled through the Password screen,
Figure 5-3. Whenever a connection is made to the 6H122-16 the
Password screen displays. Before continuing, the user must enter a
password which is compared to the previously stored passwords. The
level of access allowed the user depends on the password. To set or
change passwords refer to Section 5.8. The following steps describe the
procedure to access Local Management.
1. Turn on the terminal. Press ENTER (this may take up to four times,
because the COM port of the 6H122-16 auto-senses the baud rate of
the terminal) until the 6C105 Local Management Password screen,
Figure 5-3, displays.
Figure 5-3 The Local Management Password Screen
2. Enter the Password and press ENTER. The default Super-User access
password is “public” or press ENTER.
6C105 LOCAL MANAGEMENT
CABLETRON Systems, Incorporated
P.O.Box 5005
Rochester, NH 03866-5005 USA
(603) 332-9400
(c) Copyright CABLETRON Systems, Inc. 1998
Enter Password:
2361_12
Event Message Line
Accessing Local Management
6H122-16 User’s Guide 5-9
5.4.1 Navigating Local Management Screens
The 6H122-16 Local Management application consists of a series of
menu screens. Navigate through Local Management by selecting items
from the menu screens.
The 6H122-16 supports three modes of switch operation. The switching
modes are as follows:
•802.1D SWITCHING (IEEE 802.1D switching)
•802.1Q SWITCHING (802.1Q port based VLANs)
•SECURE FAST VLAN (Cabletron Systems SecureFast Switching)
The switch operational mode may be set in either the Chassis
Configuration screen (Section 5.7), or the General Configuration screen
of the module (Section 5.15). Depending on the Operational Mode set for
the module, the hierarchy of Local Management screens differs as shown
in Figure 5-4, Figure 5-5, and Figure 5-6.
NOTE The User’s password is one of the community names specified
in the SNMP Community Names screen. Access to certain
Local Management capabilities depends on the degree of
access given to the specific community name. Refer to
Section 5.8.
If an invalid password is entered, the terminal beeps and the
cursor returns to the beginning of the password entry field.
Entering a valid password causes the associated access level
to display at the bottom of the screen and the Main Menu
screen to display.
If no activity occurs for several minutes, the Password screen
displays and the session ends.
NOTE Refer to the Release Notes shipped with the product to verify
which screens are supported in each of the three available
switching modes.
Chapter 5: Local Management
5-10 6H122-16 User’s Guide
Figure 5-4 802.1D Switching Mode, LM Screen Hierarchy
Figure 5-5 802.1Q Switching Mode, LM Screen Hierarchy
Module
Menu
Password
Main
Menu
SNMP Community Names
Chassis
Menu
Chassis Configuration
SNMP Traps
Chassis Environmental
Port Redirect
Module
Configuration
Menu
Module Specific
Configuration
General Configuration
SNMP Community Names
SNMP Traps
Switch Configuration
SmartTrunk Configuration
Port Redirect
Function
System
Resources
Flash Download
Broadcast
Suppression
Module
Statistics
Menu
Switch Statistics
RMON Statistics
Interface Statistics
Network Tools
Ethernet Interface Configuration
2361_100
Module
Menu
Password
Main
Menu
SNMP Community Names
Chassis
Menu
Chassis Configuration
SNMP Traps
Chassis Environmental
Module
Configuration
Menu
Module Specific
Configuration
General Configuration
SNMP Community Names
SNMP Traps
Switch Configuration
SmartTrunk Configuration System
Resources
Flash Download
Broadcast
Suppression
Module
Statistics
Menu
Switch Statistics
RMON Statistics
Interface Statistics
Network Tools
802.1Q VLAN
Configuration
Ethernet Interface Configuration
2361_101
Accessing Local Management
6H122-16 User’s Guide 5-11
Figure 5-6 SecureFast VLAN Mode, LM Screen Hierarchy
5.4.2 Selecting Local Management Menu Screen Items
Select items on a menu screen by performing the following steps:
1. Use the arrow keys to highlight a menu item.
2. Press ENTER. The selected menu item displays on the screen.
5.4.3 Exiting Local Management Screens
There are two ways to exit Local Management (LM), as described below.
Using the Exit Command
1. Use the arrow keys to highlight the EXIT command at the bottom of
the Local Management screen.
2. Press ENTER. The Chassis Main Menu screen displays and the
session ends.
Module
Menu
Password
Main
Menu
SNMP Community Names
Chassis
Menu
Chassis Configuration
SNMP Traps
Chassis Environmental
Module
Configuration
Menu
Module Specific
Configuration
General Configuration
SNMP Community Names
SNMP Traps
System
Resources
Flash Download
Module
Statistics
Menu RMON Statistics
Interface Statistics
Network Tools
Ethernet Interface Configuration
2361_102
Port Redirect
Port Redirect
Note: Chassis Management is
not allowed in SecureFast Mode.
Chapter 5: Local Management
5-12 6H122-16 User’s Guide
Using the Return Command
1. Use the arrow keys to highlight the RETURN command at the bottom
of the Local Management screen.
2. Press ENTER. The previous screen in the Local Management
hierarchy displays.
3. Exit from 6H122-16 Local Management by repeating steps 1 and 2
until the chassis Main Menu screen displays.
4. Use the arrow keys to highlight the RETURN command at the bottom
of the chassis Main Menu screen.
5. Press ENTER. The Password screen displays and the session ends.
NOTE The user can also exit Local Management screens by pressing
ESC twice. This exit method does not warn about unsaved
changes and all unsaved changes will be lost.
NOTE If a Local Management session running on the terminal is left
idle for 15 minutes, the session ends and the Local
Management password screen displays. This is a normal
security function, and the default lockout time can be changed
by the user. See Section 5.7.6 for details.
The Main Menu Screen
6H122-16 User’s Guide 5-13
5.5 THE MAIN MENU SCREEN
The Main Menu screen is the access point for all Local Management
screens for the module and the 6C105 chassis. Figure 5-7 shows the Main
Menu screen.
Figure 5-7 Main Menu Screen
The following explains each Main Menu screen selection as shown in
Figure 5-7:
CHASSIS
The Chassis menu item provides access to the Chassis Menu screen,
shown in Figure 5-8, that is used to configure the 6C105 chassis, access
current chassis power supply and environmental status, and to configure
IEEE 802.1Q VLANs. For details about the Chassis Menu screen, refer to
Section 5.6.
MODULES
The Modules menu item provides access to the Module Selection screen
that is used to select individual modules in the chassis for management
purposes. For details about the Module Selection screen, refer to
Section 5.12.
Main Menu
6C105 LOCAL MANAGEMENT
EXIT
MODULES
CHASSIS
RETURN
Chapter 5: Local Management
5-14 6H122-16 User’s Guide
5.6 CHASSIS MENU SCREEN
The Chassis Menu screen, Figure 5-8, provides access to Local
Management screens that allow you to configure and monitor operating
parameters, modify SNMP community names, set SNMP traps, monitor
the 6C105 environmental status, and perform port redirect functions.
To access the Chassis Configuration screen, use the arrow keys to
highlight the CHASSIS menu item and press ENTER. The Chassis
Configuration screen displays.
Figure 5-8 Chassis Menu Screen
The following briefly explains each screen accessible from the Chassis
Menu screen.
CHASSIS CONFIGURATION
The Chassis Configuration screen enables the user to configure operating
parameters for the 6C105 chassis. For details, refer to Section 5.7.
Chassis Menu
CHASSIS CONFIGURATION
2361_99a
6C105 LOCAL MANAGEMENT
RETURN
SNMP COMMUNITY NAMES
SNMP TRAPS
CHASSIS ENVIRONMENTAL
PORT REDIRECT FUNCTION
EXIT
Chassis Menu Screen
6H122-16 User’s Guide 5-15
SNMP COMMUNITY NAMES
The SNMP Community Names screen allows the user to enter new,
change, or review the community names used as access passwords for
device management operation. Access is limited based on the password
level of the user. For details, refer to Section 5.8.
SNMP TRAPS
The SNMP Traps screen provides display and configuration access to the
table of IP addresses used for trap destinations and associated community
names. For details, refer to Section 5.9.
CHASSIS ENVIRONMENTAL
The Chassis Environmental screen provides access to chassis power
supply status, power supply redundancy status and chassis fan tray status.
For details, refer to Section 5.10.
PORT REDIRECT FUNCTION
The Port Redirect Function screen allows the user to redirect traffic from
one or multiple modules and ports in the chassis to a specific destination
module or port. For details, refer to Section 5.11.
Chapter 5: Local Management
5-16 6H122-16 User’s Guide
5.7 CHASSIS CONFIGURATION SCREEN
The Chassis Configuration screen, Figure 5-9, allows the user to set the
chassis date and time, IP address and Subnet Mask, the operational mode
of all modules installed in the chassis, and to view the chassis uptime.
To access the Chassis Configuration screen from the Chassis Menu
screen, use the arrow keys to highlight the CHASSIS
CONFIGURATION menu item and press ENTER. The Chassis
Configuration screen, Figure 5-9, displays.
Figure 5-9 Chassis Configuration Screen
The following briefly explains each Chassis Configuration screen field:
MAC Address (Read-Only)
Displays the base physical address of the chassis.
IP Address (Modifiable)
This field allows the IP address to be set for the 6C105 chassis. If an IP
address is assigned to the 6C105 chassis all the interface modules
installed in the chassis can be managed via this IP address, eliminating the
need to assign an IP address to each interface module. To set the IP
address, refer to Section 5.7.1.
Chassis Configuration
2361_41
MAC Address:
IP Address:
Subnet Mask:
Chassis Date:
Chassis Time:
Screen Refresh Time:
Screen Lockout Time:
Chassis Uptime XX D XX H XX M
Operational Mode: [802.1D SWITCHING]
00-00-ID-00-00-00
0.0.0.0
0.0.0.0
6C105 LOCAL MANAGEMENT
Event Message Line
RETURNSAVE
01/11/1998
14:23:00
30 sec.
15 min.
EXIT
Chassis Configuration Screen
6H122-16 User’s Guide 5-17
Subnet Mask (Modifiable)
Displays the subnet mask for the chassis. A subnet mask “masks out” the
network bits of the IP address by setting the bits in the mask to 1 when the
network treats the corresponding bits in the IP address as part of the
network or subnetwork address, or to 0 if the corresponding bit identifies
the host. The 6C105 chassis automatically uses the default subnet mask
that corresponds to the IP class that was entered in the IP address field.
Section 5.7.2 describes how to change the subnet mask from the default
value.
Chassis Date (Modifiable)
Contains a value that the chassis recognizes as the current date. When the
chassis date is modified, all interface modules installed in the chassis are
set to this date. To set a new chassis date, refer to Section 5.7.3.
Chassis Time (Modifiable)
Contains a value that the chassis recognizes as the current time. When the
chassis time is modified and saved, all interface modules installed in the
chassis are set to this time. To enter a new time, refer to Section 5.7.4.
Screen Refresh Time (Modifiable)
Contains the rate at which the screens are updated. This setting
determines how frequently (in seconds) information is updated on the
screen. To enter a new update time, refer to Section 5.7.5.
Screen Lockout Time (Modifiable)
Contains the maximum number of minutes that the Local Management
application displays a module’s screen while awaiting input or action
from a user. For example, if the number 5 is entered in this field, the user
has up to five minutes to respond to each of the specified module’s Local
Management screens. In this example, after five minutes of “idleness” (no
input or action), the terminal “beeps” five times, the Local Management
application terminates the session, and the display returns to the Password
screen. To enter a new lockout time, refer to Section 5.7.6.
NOTE When a valid IP address is assigned, the Subnet Mask field
automatically enters the default mask that corresponds with
class of IP entered in the IP Address field. Some firmware
revisions do support changing the chassis subnet mask from
the default value. Refer to your Release Notes to ensure that
the Subnet Mask is a modifiable field.
Chapter 5: Local Management
5-18 6H122-16 User’s Guide
Chassis Uptime (Read-Only)
Displays the total time the chassis has been operating. The chassis uptime
is based on which interface module installed in the chassis has been
operating for the longest period of time.
Operational Mode (Toggle)
This field allows the user to set all the modules in the chassis to operate as
traditional switches (802.1D SWITCHING option), or as IEEE 802.1Q
switches (802.1Q SWITCHING option).
In 802.1D SWITCHING mode, the 16 ports located on the front panel are
bridged to each other.
When the operational mode is set to 802.1Q SWITCHING, the 6H122-16
acts as an IEEE 802.1Q switch. The module can be configured to increase
its switching functionality by creating and maintaining port based Virtual
LANs (VLANs).
For details on how to select the Operational Mode, refer to Section 5.7.7.
5.7.1 Setting the IP Address
To set the IP address, perform the following steps:
1. Use the arrow keys to highlight the IP Address field.
2. Enter the IP address into this field using Decimal Dotted Notation
(DDN) format.
For example: 134.141.79.120
3. Press ENTER. If the IP address is a valid format, the cursor returns to
the beginning of the IP address field. If the entry is not valid, the Event
Message Line displays “INVALID IP ADDRESS OR FORMAT
ENTERED”. Local Management does not alter the current value and
refreshes the IP address field with the previous value.
4. Use the arrow keys to highlight the SAVE command, then press
ENTER. The “SAVED OK” message displays indicating that the
changes have been saved to memory.
Chassis Configuration Screen
6H122-16 User’s Guide 5-19
5.7.2 Setting the Subnet Mask
If the management workstation that is to receive SNMP traps from the
6C105 is located on a separate subnet, the subnet mask for the 6C105
must be changed from its default.
To change the subnet mask from its default, perform the following steps:
1. Use the arrow keys to highlight the Subnet Mask field.
2. Enter the subnet mask into this field using Decimal Dotted Notation
(DDN) format.
For example: 255.255.255.0
3. Press ENTER. If the subnet mask is valid, the cursor returns to the
beginning of the Subnet Mask field. If the entry is not valid, the Event
Message Line displays “INVALID SUBNET MASK OR FORMAT
ENTERED”. Local Management does not alter the current value, but
it does refresh the Subnet Mask field with the previous value.
4. Use the arrow keys to highlight the SAVE command, then press
ENTER. The changes are saved to memory.
5.7.3 Setting the Chassis Date
The 6C105 is year 2000 compliant, so the Chassis Date may be set
beyond the year 1999. To set the chassis date, perform the following
steps:
1. Use the arrow keys to highlight the Chassis Date field.
2. Enter the date in this format: MM/DD/YYYY
NOTE When a valid IP address is assigned, the Subnet Mask field
automatically enters the default mask that corresponds with
class of IP entered in the IP Address field. Some firmware
revisions do support changing the chassis subnet mask from
the default value. Refer to your Release Notes to ensure that
the Subnet Mask is a modifiable field.
NOTE It is not necessary to add separators between month, day, and
year numbers. For example, to set the date to 01/17/1998, type
“01171998” in the Chassis Date field.
Chapter 5: Local Management
5-20 6H122-16 User’s Guide
3. Press ENTER to set the system calendar to the date in the input field.
4. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER.
If the date entered is a valid format, the Event Message Line at the top of
the screen displays “SAVED OK”. If the entry is not valid, Local
Management does not alter the current value, but it does refresh the
Chassis Date field with the previous value.
5.7.4 Setting the Chassis Time
To set the chassis clock, perform the following steps:
1. Use the arrow keys to highlight the Chassis Time field.
2. Enter the time in a 24-hour format: HH:MM:SS
3. Press ENTER to set the system clock to the time in the input field.
4. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER.
If the time entered is a valid format, the Event Message Line at the top of
the screen displays “SAVED OK”. If the entry is not valid, Local
Management does not alter the current value and refreshes the Chassis
Time field with the previous value.
NOTE Upon saving the new chassis date, all interface modules
installed in the chassis recognize the new value as the current
date.
NOTE When entering the time in the Chassis Time field, separators
between hours, minutes, and seconds do not need to be added
as long as each entry uses two numeric characters. For
example, to set the time to 6:45 A.M., type “064500” in the
Chassis Time field.
NOTE Upon saving the new chassis time, all interface modules
installed in the chassis recognize the new value as the current
time.
Chassis Configuration Screen
6H122-16 User’s Guide 5-21
5.7.5 Entering a New Screen Refresh Time
The screen refresh time is set from 3 to 99 seconds with a default of 3
seconds. To set a new screen refresh time, perform the following steps:
1. Use the arrow keys to highlight the Screen Refresh Time field.
2. Enter a number from 3 to 99.
3. Press ENTER to set the refresh time to the time entered in the input
field.
4. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER.
If the time entered is within the 3 to 99 seconds range, the Event Message
Line at the top of the screen displays “SAVED OK”. If the entry is not
valid, the Event Message Line displays “PERMISSIBLE RANGE: 3...99”
momentarily. Local Management does not alter the current setting, but it
does refresh the Screen Refresh Time field with the previous value.
5.7.6 Setting the Screen Lockout Time
The screen lockout time can be set from 1 to 30 minutes with a default of
15 minutes. To set a new lockout time, perform the following steps:
1. Use the arrow keys to highlight the Screen Lockout Time field.
2. Enter a number from 1 to 30.
3. Press ENTER to set the lockout time in the input field.
4. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER.
If the time entered is within the 1 to 30 minutes range, the Event Message
Line at the top of the screen displays “SAVED OK”. If the entry is not
valid, the Event Message Line displays “PERMISSIBLE RANGE: 1...30”
momentarily. Local Management does not alter the current setting, but it
does refresh the Screen Lockout Time field with the previous value.
Chapter 5: Local Management
5-22 6H122-16 User’s Guide
5.7.7 Setting the Operational Mode
To set the Operational Mode, proceed as follows:
1. Use arrow keys to highlight the Operational Mode field.
2. Press the SPACE bar to step to the appropriate operation mode
(802.1D SWITCHING or 802.1Q SWITCHING).
3. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER. The following warning screen displays:
Figure 5-10 Operational Mode Warning Screen
4. Use the arrow keys to highlight the YES command and press ENTER.
The changes are saved, and all the modules installed in the chassis
reboot.
WARNING!
1666_1
YOU HAVE ELECTED TO SAVE THE OPERATIONAL MODE FOR
THE WHOLE CHASSIS. THIS WILL CAUSE ALL OF THE
BOARDS IN THE CHASSIS TO REBOOT.
ARE YOU SURE YOU WANT TO SAVE THE NEW OPERATIONAL MODE?
Event Message Line
YES NO
Chassis Configuration Screen
6H122-16 User’s Guide 5-23
NOTE If the 6H122-16 has been set to 802.1Q SWITCHING, refer to
your
Port Based VLAN User’s Guide
to configure the devices
for this type of operation.
The Operational Mode field in the Chassis Configuration
screen does not support the SECURE FAST VLAN operational
mode. For the modules to function as SecureFast switches,
they must have unique IP addresses, and be configured to act
as Standalone devices in terms of Local Management via the
6C105 chassis. Section 5.15.9 provides additional instructions
and rules that must be met before configuring the modules as
SecureFast switches.
Chapter 5: Local Management
5-24 6H122-16 User’s Guide
5.8 SNMP COMMUNITY NAMES SCREEN
The SNMP Community Names menu item allows the user to set Local
Management community names. Community names act as passwords to
Local/Remote Management and provide security access to the 6C105.
Access to the 6C105 is controlled by enacting any of three different levels
of security authorization (read-only, read-write, and super-user).
To access the SNMP Community Names screen from the Chassis Menu
screen, use the arrow keys to highlight the SNMP COMMUNITY
NAMES menu item and press ENTER. The SNMP Community Names
screen, Figure 5-11, displays.
Figure 5-11 SNMP Community Names Screen
NOTE Super-User access gives the user full management privileges,
allows existing passwords to be changed, and all modifiable
MIB objects for the Cabletron Container MIB and Internet
MIB-II to be edited.
SNMP Community Names
Access Policy
read-only
read-write
super-user
6C105 LOCAL MANAGEMENT
Event Message Line
RETURNSAVE
Community Name
public
public
public
2361_35
EXIT
SNMP Community Names Screen
6H122-16 User’s Guide 5-25
The following explains each SNMP Community Names screen field:
Community Name (Modifiable)
Displays the user-defined name through which a user accesses 6C105
management. Any community name assigned here acts as a password to
Local/Remote Management.
Access Policy (Read-Only)
Indicates the access accorded each community name. Possible selections
are as follows:
read-only This community name allows read-only access
to the 6C105 MIB objects, and excludes access
to security-protected fields of read-write or
super-user authorization.
read-write This community name allows read and write
access to the 6C105 MIB objects, excluding
security protected fields for super-user access
only.
super-user This community name permits read-write
access to the 6C105 MIB objects and allows the
user to change all modifiable parameters
including community names, IP addresses,
traps, and SNMP objects.
5.8.1 Establishing Community Names
The password used to access Local Management at the Password screen
must have Super-User access in order to view and edit the SNMP
Community Names screen. Using a password with read-only or
read-write access does not allow the user to view or edit the SNMP
Community Names screen.
NOTE Any community name assigned in the SNMP Community
Names screen is a password to its corresponding level of
access to Local Management. The community name assigned
Super-User access is the only one that gives the user complete
access to Local Management.
Chapter 5: Local Management
5-26 6H122-16 User’s Guide
To establish community names, proceed as follows:
1. Use the arrow keys to highlight the Community Name field adjacent
to the selected access level.
2. Enter the password in the field (maximum 31 characters).
3. Press ENTER.
4. Repeat steps 1 through 3 to modify the other community names.
5. Use the arrow keys to highlight SAVE at the bottom of the screen and
press ENTER. The message “SAVED OK” displays. The community
names are saved to memory and their access modes implemented.
5.9 SNMP TRAPS SCREEN
Since the 6C105 is an SNMP compliant device, it can send messages to
multiple Network Management Stations to alert users of status changes.
The SNMP Traps screen is shown in Figure 5-12.
To access the SNMP Traps screen from the Chassis Menu screen, use the
arrow keys to highlight the SNMP TRAPS menu item and press ENTER.
The Chassis SNMP Traps screen displays.
NOTE All passwords assigned in the 6C105 SNMP Community
Names screen allow access to both the 6C105 Local
Management screens, and the Local Management screens of
the interface modules that are installed in the chassis. To
configure the interface module to disallow access to the 6C105
Local Management screens, refer to Section 5.16.
SNMP Traps Screen
6H122-16 User’s Guide 5-27
Figure 5-12 Chassis SNMP Traps Screen
The following explains each field of the SNMP Traps screen.
Trap Destination (Modifiable)
Indicates the IP address of the workstation to receive trap alarms. Up to
eight different destinations can be defined.
Trap Community Name (Modifiable)
Displays the Community Name included in the trap message sent to the
Network Management Station with the associated IP address.
Enable Traps (Toggle)
Enables transmission of the traps to the network management station with
the associated IP address. This field toggles between YES and NO.
Chassis SNMP Traps
Trap Community Name
public
public
public
public
public
public
public
public
EXIT
6C105 LOCAL MANAGEMENT
Event Message Line
RETURNSAVE
Trap Destination
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
Enable Traps
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
Chapter 5: Local Management
5-28 6H122-16 User’s Guide
5.9.1 Configuring the Trap Table
To configure the Trap table, proceed as follows:
1. Using the arrow keys, highlight the appropriate Trap Destination
field.
2. Enter the IP Address of the workstation that is to receive traps. IP
address entries must follow the DDN format.
For example: 134.141.79.121
3. Press ENTER. If an invalid entry is entered “INVALID IP
ENTERED” is displayed in the Event Message Line.
4. Using the arrow keys, highlight the Trap Community Name field.
Enter the community name.
5. Press ENTER.
6. Using the arrow keys, highlight the Enable Traps field. Press the
SPACE bar to choose either YES (send alarms from the chassis to the
workstation), or NO (prevent alarms from being sent).
7. Using the arrow keys, highlight the SAVE command and press
ENTER. The message “SAVED OK” displays on the screen.
The designated workstations now receive traps from the 6C105.
NOTE Exiting without saving causes a “NOT SAVED?” message to
appear. Edits will be lost if they are not saved before exiting.
Chassis Environmental Screen
6H122-16 User’s Guide 5-29
5.10 CHASSIS ENVIRONMENTAL SCREEN
The Chassis Environmental menu item allows the user to view chassis
environmental information.
To access the Chassis Environmental Information screen from the Chassis
Menu screen, use the arrow keys to highlight the CHASSIS
ENVIRONMENTAL menu item and press ENTER. The Chassis
Environmental Information screen, Figure 5-13, displays.
Figure 5-13 Chassis Environmental Information Screen
The following describes each of the Chassis Environmental Information
screen fields.
Chassis Power Redundancy (Read-Only)
Displays the current redundancy status of the 6C105 power supplies. This
field will read either “Available” (there is power redundancy), or “Not
Available” (there is no redundant power supply, or the one installed is
defective).
Power Supply #
X
Status (Read-Only)
Displays the current status of power supplies 1 and 2 for the 6C105. This
field will read either “Normal” (power redundancy is operating properly),
“Fault” (power supply is defective), or “Not Installed” (no power supply
in that slot).
Chassis Environmental Information
6C105 LOCAL MANAGEMENT
Chassis Power Redundancy
Power Supply #1 Status
Power Supply #2 Status
Chassis Fan Status
Not Available
Normal
Not Installed
Normal
EXIT RETURN
Chapter 5: Local Management
5-30 6H122-16 User’s Guide
Chassis Fan Status (Read-Only)
Displays the current status of the 6C105 fan tray. This field will read
either “Normal” (fan tray is operating properly), “Fault” (fan tray is
defective), or “Not Installed” (no fan tray installed-not a valid operating
mode, see caution).
5.11 PORT REDIRECT FUNCTION SCREEN
The Port Redirect Function screen, Figure 5-14, allows the user to set
each one of the modules in the chassis (1 through 5), and the ports of the
corresponding module installed, as a source or destination port. A port
can be set to have one or more destination ports and chassis module slot
numbers. For example, port 1 in module (slot) 1 can be set as a source
port with three destinations, ports 2, 3, and 4 in module (slot) 3. Traffic
from port 1 in module 1 is then automatically redirected to ports 2, 3, and
4 in module 3. Port 1 in module 1 can also serve as a destination port for
other ports and modules. The port redirect function is extremely useful for
troubleshooting purposes, as it allows traffic to be sent to a particular
port(s) where, with the use of an analyzer or RMON probe, all current
traffic from the source port(s) can be examined.
!
CAUTION
Operating a chassis without a fan tray installed may cause the
chassis or installed modules to overheat and become a fire
hazard. Cabletron Systems does not recommend operation of
a chassis without a fully functioning fan tray unit.
NOTE The Port Redirect Function screen may not be available
depending on the operational mode that has been set for the
chassis. Refer to your Release Notes to see what operational
modes support the Port Redirect Function. Refer to
Section 5.7.7, Setting the Operational Mode, for instructions
on configuring the operational mode of all the modules installed
in the chassis.
NOTES The module number corresponds to the slot number in which
the module resides in the 6C105 chassis (1 through 5).
Although traffic from the source port (including, if desired,
errored frames) is sent to the destination port, normal switching
is still performed for all frames on the source port.
Port Redirect Function Screen
6H122-16 User’s Guide 5-31
To access the Port Redirect Function screen from the Chassis Menu
screen, use the arrow keys to highlight the PORT REDIRECT
FUNCTION menu item and press ENTER. The Port Redirect Function
screen, Figure 5-14, displays.
Figure 5-14 Port Redirect Function Screen
The following definitions briefly explain each field of the Port Redirect
Function screen.
Source Module (Read-Only)
Displays which modules are currently set as source modules.
Source Port (Read-Only)
Displays which ports are currently set as source ports.
Destination Module (Read-Only)
Displays which modules are currently set as destination modules.
Destination Port (Read-Only)
Displays which ports are currently set as destination ports.
Port Redirect Function
Port
1
1
1
2
2
3
3
3
Module
3
3
3
1
3
4
5
5
Module
1
1
1
2
2
3
3
3
Port
2
3
4
1
3
4
5
8
Source Destination Remap Errors
ON
ON
ON
OFF
ON
ON
ON
OFF
--------------------------------- -------------------------------- --------------------
6C105 LOCAL MANAGEMENT
Event Message Line
SAVE PREVIOUS
RETURN
NEXT
Source Port [1]
Destination Module [1]
Status [ADD]
Source Module [1]
Destination Port [1]
RETURN
EXIT
Errors [ON]
Chapter 5: Local Management
5-32 6H122-16 User’s Guide
Remap Errors (Read-only)
Displays whether the corresponding source modules and ports are
configured to send errored frames to the destination modules and ports, or
to drop all errored frames before forwarding traffic.
Source Module [
n
] (Selectable)
Allows a selected module [n] to be configured as a source module.
Source Port [
n
] (Selectable)
Allows a selected port [n] to be configured as a source port.
Destination Module [
n
] (Selectable)
Allows a selected module [n] to be configured as a destination module.
Destination Port [
n
] (Selectable)
Allows a selected port [n] to be configured as a destination port.
Errors (Toggle)
Allows the user to configure the source modules and ports to either send
errored frames to selected destination modules and ports (ON option), or
to drop errored frames, and send only valid traffic to the destination
modules and ports (OFF option). The default setting of this field is ON.
Status (Toggle)
Allows the user to add or delete the source/destination modules and ports
selected in the Source/Destination Modules and ports fields.
NEXT/PREVIOUS (Navigation Field)
There can be more than one Port Redirect Function screen depending on
the number of port redirect entries. To get to the second or subsequent
screens, use the arrow keys to highlight the NEXT field and press
ENTER. The next screen of redirect entries displays. In the new screen,
the navigation field PREVIOUS will display to allow the user to go back
to the first or previous screens.
5.11.1 Changing Source and Destination Ports
Add or delete source/destination module and port entries as follows:
1. Use the arrow keys to highlight the Source Module field.
2. Press the SPACE bar or BACKSPACE one or more times to increment
or decrement the module number displayed in the brackets [n] until the
appropriate module number is displayed.
Port Redirect Function Screen
6H122-16 User’s Guide 5-33
3. Use the arrow keys to highlight the Source Port field.
4. Press the SPACE bar or BACKSPACE one or more times to increment
or decrement the port number displayed in the brackets [n] until the
appropriate port number is displayed.
5. Use the arrow keys to highlight the Destination Module field.
6. Use the SPACE bar or BACKSPACE to step to the appropriate
module number for the destination module.
7. Use the arrow keys to highlight the Destination Port field.
8. Use the SPACE bar or BACKSPACE to step to the appropriate port
number for the destination port.
9. Use the arrow keys to highlight the Errors field.
10. Use the SPACE bar to select either the ON or OFF option and press
ENTER. ON forces the source module and port to forward errored
frames to the destination module(s) and port(s). OFF forces the
errored frames to be dropped before forwarding traffic.
11. Use the arrow keys to highlight the Status field.
12. Use the SPACE bar to select either the ADD or DEL (delete) option.
Press ENTER. This adds or deletes the selections made in steps 2 and
4 and also updates the screen Source Module, Source Port, Destination
Module and Destination Port lists.
13. Use the arrow keys to highlight SAVE at the bottom of the screen.
Press ENTER. The message “SAVED OK” is displayed.
NOTE If more than one module and port is to be redirected, repeat
steps 1 through 12 for each additional setting, then go to step
13 to save all the new settings at once.
Chapter 5: Local Management
5-34 6H122-16 User’s Guide
5.12 MODULE SELECTION SCREEN
The Module Selection screen is the access point to Local Management for
all modules installed in the SmartSwitch 6000 chassis. By selecting a
module, the Module Menu for the selected device displays. Figure 5-15
shows the Module Selection screen.
To access the Module Selection screen, use the arrow keys to highlight the
MODULES menu item from the Main Menu screen and press ENTER.
The Module Selection screen displays.
Figure 5-15 Module Selection Screen
The following explains each Module Selection screen field as shown in
Figure 5-15.
SLOT # (Selectable)
The Module # field displays the slot in which the module is installed. The
module number enclosed in < > characters indicates the module to which
the management terminal or Telnet session is connected.
Module Selection
2361_39
EXIT
SLOT #
2
3
4
5 - - -
MODULE Name
6H122-16
6E132-25
6E123-26
6E122-26
Serial #
123456789
123456789
123456789
123456789
Hardware Revision
XXX
XXX
XXX
XXX
<1>
6C105 LOCAL MANAGEMENT
RETURN
Module Selection Screen
6H122-16 User’s Guide 5-35
MODULE Name (Read-only)
The Module Type field displays the type of interface module that is
installed in each slot.
Serial # (Read-only)
Indicates the serial number of the module. The serial number is necessary
when calling the Cabletron Systems Global Call Center concerning an
issue with the device.
Hardware Revision (Read-only)
Reflects the hardware version of the module.
5.12.1 Selecting a Module
To select an individual module to perform Local Management functions,
proceed as follows:
1. Use the arrow keys to highlight the desired module number in the
SLOT # field.
2. Press ENTER, the applicable Module Menu screen displays. Proceed
to Section 5.13.
NOTE When entering Local Management to a module by using a
Telnet application, the display line at the top of the screen
indicates how the module has been accessed. If the chassis IP
address was used, the screen will display 6C105 LOCAL
MANAGEMENT. If an IP address was assigned specifically for
the module, and is used to Telnet to the module directly, then
the display will read 6H122-16 LOCAL MANAGEMENT.
Chapter 5: Local Management
5-36 6H122-16 User’s Guide
5.13 MODULE MENU SCREEN
The Module Menu screen is the access point for all Local Management
screens for the 6H122-16. Figure 5-16 shows the 6H122-16 Module
Menu screen.
Figure 5-16 Module Menu Screen
The following explains each Module Menu screen field as shown in
Figure 5-16:
MODULE CONFIGURATION
The Module Configuration screen provides access to the Local
Management screens that are used to configure the 6H122-16 and also
provides access to the Module Specific Configuration menu screen. This
screen provides access to the screens that allow the user to check the
6H122-16 resources and set operating parameters specific to each port.
For details about the Module Configuration Menu screen, refer to
Section 5.14. For details about the Module Specific Configuration menu
screen, refer to Section 5.20.
Firmware Revision: XX.XX.XX
Module Menu
MODULE CONFIGURATION
Module Type: 6H122-16
Slot Number:
X
BOOTPROM Revision: XX.XX.XX
6C105 LOCAL MANAGEMENT
RETURN
MODULE STATISTICS
NETWORK TOOLS
EXIT
2361_14
Module Configuration Menu Screen
6H122-16 User’s Guide 5-37
MODULE STATISTICS
The Module Statistics screen provides statistics and performance
information for the 6H122-16. For details about this screen, refer to
Section 5.25.
NETWORK TOOLS
The Network Tools function resides on the 6H122-16 and consists of a
series of commands that allow the user to access and manage network
devices. Section 5.29 explains how to use the Network Tools utility.
5.14 MODULE CONFIGURATION MENU SCREEN
The Module Configuration Menu screen, Figure 5-17, provides access to
Local Management screens that allow you to configure and monitor
operating parameters, modify SNMP community names, set SNMP traps,
configure switch parameters and configure 6H122-16 ports.
To access the Module Configuration Menu screen from the Module Menu
screen, use the arrow keys to highlight the MODULE
CONFIGURATION menu item and press ENTER. The Module
Configuration screen displays.
NOTE The following menu items on the Module Configuration Menu
screen may not display if the operational mode of the module
has been set to SECURE FAST VLAN:
SWITCH CONFIGURATION
SMARTTRUNK CONFIGURATION
Refer to your Release Notes to see if the functionality provided
by the above screens is supported in SECURE FAST VLAN
mode.
Section 5.15.9 provides instructions on setting the operational
mode.
Chapter 5: Local Management
5-38 6H122-16 User’s Guide
Figure 5-17 Module Configuration Menu Screen
The following briefly explains each screen accessible from the Module
Configuration Menu screen:
GENERAL CONFIGURATION
The General Configuration screen allows the user to monitor and
configure operating parameters for the 6H122-16. For details, refer to
Section 5.15.
SNMP COMMUNITY NAMES
The SNMP Community Names screen allows the user to enter new,
change, or review the community names used as access passwords for
Local/Remote management operation. Access is limited based on the
password level of the user. For details, refer to Section 5.16.
SNMP TRAPS
The SNMP Traps screen provides display and configuration access to the
table of IP addresses used for trap destinations and associated community
names. For details, refer to Section 5.17.
Firmware Revision: XX.XX.XX
Module Configuration Menu
GENERAL CONFIGURATION
SNMP COMMUNITY NAMES
SNMP TRAPS
SWITCH CONFIGURATION
ETHERNET INTERFACE CONFIGURATION
SMARTTRUNK CONFIGURATION
MODULE SPECIFIC CONFIGURATION
BOOTPROM Revision: XX.XX.XX
Module Type: 6H122-16
Slot Number:
X
6C105 LOCAL MANAGEMENT
RETURN
EXIT
2361_15
Module Configuration Menu Screen
6H122-16 User’s Guide 5-39
SMARTTRUNK CONFIGURATION
The SmartTrunk Configuration screen allows the user to logically group
interfaces together to create a greater bandwidth uplink. Refer to the
Cabletron Systems SmartTrunk User’s Guide for additional information.
ETHERNET INTERFACE CONFIGURATION
The Ethernet Interface Configuration screen indicates the link status,
current and desired operational mode, and advertised ability for ports 1
through 16 on the 6H122-16. For details, refer to Section 5.19.
SMARTTRUNK CONFIGURATION
The SmartTrunk Configuration screen allows the user to logically group
interfaces together to create wider bandwidth up links. Refer to the
Cabletron Systems SmartTrunk User’s Guide for additional information.
MODULE SPECIFIC CONFIGURATION
The Module Specific Configuration Menu screen allows the user to
configure ports or check system resources specific to the 6H122-16. For
details, refer to Section 5.20.
Chapter 5: Local Management
5-40 6H122-16 User’s Guide
5.15 GENERAL CONFIGURATION SCREEN
The General Configuration screen, Figure 5-18, allows the user to set the
system date and time, IP address and subnet mask, the default gateway,
the TFTP Gateway IP address, the Operational Mode, the Management
Mode, and the COM port configuration. The General Configuration
screen also allows the user to Clear NVRAM, and enable or disable IP
Fragmentation.
To access the General Configuration screen from the Module
Configuration Menu screen, use the arrow keys to highlight the
GENERAL CONFIGURATION menu item and press ENTER. The
General Configuration screen displays.
Figure 5-18 General Configuration Screen
The following briefly explains each General Configuration screen field:
MAC Address (Read-Only)
Displays the base physical address of the module.
Firmware Revision: XX.XX.XX
General Configuration
BOOTPROM Revision: XX.XX.XX
MAC Address:
IP Address:
Subnet Mask:
Default Gateway:
TFTP Gateway IP Addr:
Module Date:
Module Time:
Screen Refresh Time:
Screen Lockout Time:
Com: [ENABLED] Application: [LM]
Clear NVRAM [NO]
Module Uptime XX D XX H XX M
Module Type: 6H122-16
Slot Number:
X
IP Fragmentation [ENABLED]
Operational Mode: [802.1D SWITCHING] Management Mode: [DISTRIBUTED]
2361_16
00-00-ID-00-00-00
0.0.0.0
255.255.0.0
NONE DEFINED
0.0.0.0
6C105 LOCAL MANAGEMENT
Event Message Line
RETURNSAVE
02/03/1998
14:23:00
30 sec.
15 min.
EXIT
General Configuration Screen
6H122-16 User’s Guide 5-41
IP Address (Modifiable)
This field allows the IP address to be set for the 6H122-16. To set the IP
address, refer to Section 5.15.1.
Subnet Mask (Modifiable)
Displays the subnet mask for the module. A subnet mask “masks out” the
network bits of the IP address by setting the bits in the mask to 1 when the
network treats the corresponding bits in the IP address as part of the
network or subnetwork address, or to 0 if the corresponding bit identifies
the host. When an IP address is entered in the IP Address field, the Subnet
Mask field automatically enters the default subnet mask for the IP
address. For details about how to change the subnet mask from its default
value, refer to Section 5.15.2.
Default Gateway (Modifiable)
Displays the default gateway for the 6H122-16. This field is not defined
until an appropriate value is entered. For details about why and how to set
the Default Gateway, refer to Section 5.15.3.
TFTP Gateway IP Addr (Modifiable)
Displays and allows the user to set the TFTP Gateway IP address for the
6H122-16. To set the TFTP Gateway IP address, refer to Section 5.15.4.
Module Date (Modifiable)
Contains a value that the module recognizes as the current date. To set a
new module date, refer to Section 5.15.5.
Module Time (Modifiable)
Contains a value that the module recognizes as the current time. To enter a
new time, refer to Section 5.15.6.
Screen Refresh Time (Modifiable)
Contains the rate at which the screens are updated. This setting
determines how frequently (in seconds) information is updated on the
screen. To enter a new update time, refer to Section 5.15.7.
NOTE The IP Address can also be set through Runtime IP Address
Discovery as previously described in Section 1.3.8.
Chapter 5: Local Management
5-42 6H122-16 User’s Guide
Screen Lockout Time (Modifiable)
Contains the maximum number of minutes that the Local Management
application displays a module’s screen while awaiting input or action
from a user. For example, if the number 5 is entered in this field, the user
has up to five minutes to respond to each of the specified module’s Local
Management screens. In this example, after five minutes of “idleness” (no
input or action), the terminal “beeps” five times, the Local Management
application terminates the session, and the display returns to the Password
screen. To enter a new lockout time, refer to Section 5.15.8.
Module Uptime (Read-Only)
Displays the total time that the module has been operating.
Operational Mode (Selectable)
This field sets the 6H122-16 to operate as an IEEE 802.1D switch
(802.1D SWITCHING option), an IEEE 802.1Q switch (802.1Q
SWITCHING option), or as a Cabletron Systems SecureFast switch
(SECURE FAST VLAN option).
In 802.1D SWITCHING mode, the 16 ports located on the front panel are
bridged to each other.
In 802.1Q SWITCHING mode, the 6H122-16 is able to increase its
switching functionality by creating and maintaining IEEE port based
VLANs.
When the operational mode is set to SECURE FAST VLAN, the
6H122-16 acts as a SecureFast switch. With the Cabletron Systems
VLAN Manager software, the module is able to increase its switching
functionality by creating and maintaining Virtual LANs (VLANs).
For details on how to select the Operational Mode, refer to Section 5.15.9.
Management Mode (Toggle)
This field toggles between DISTRIBUTED and STAND ALONE.
In DISTRIBUTED mode, Local Management is entered via the 6C105
password screen, and all chassis configuration screens are available to the
user. All other modules installed in the chassis that are set for distributed
management may also be accessed via a connection to a single COM port
on one of the modules.
General Configuration Screen
6H122-16 User’s Guide 5-43
In STAND ALONE mode, the module is isolated from the chassis
configuration screens, and the module may not be accessed from a
module that is in DISTRIBUTED mode. This provides additional security
for any module to which the user may wish to restrict access.
Section 5.15.10 describes how to set the Management Mode.
Com (Toggle)
This field allows the user to enable or disable the COM port. The
selection toggles between ENABLED and DISABLED. The default is
ENABLED. For details about setting up the COM port, refer to
Section 5.15.11.
Application (Toggle)
Displays the application set for the COM port. This field allows you to set
the application that the COM port will support, which includes the
following:
•Local Management (LM) via a terminal or modem connection
•Uninterruptible Power Supply (UPS)
The UPS setting allows you to use the COM port to monitor an American
Power Conversion Uninterruptible Power Supply (UPS). For the UPS, the
baud rate is automatically set to 2400.
The baud rate setting for LM is automatically sensed.
For details about how to configure the COM port for the various
applications, refer to Section 5.15.11.
Clear NVRAM (Toggle)
This allows the user to reset NVRAM to the factory default settings. All
user-entered parameters, such as IP address and Community Names are
then replaced with 6H122-16 default configuration settings. For details,
refer to Section 5.15.13.
NOTE When using the IP address of the module to establish a remote
connection (such as a Telnet or SNMP connection), the chassis
LM screens will not be available. To access the chassis LM
screens, the IP address of the chassis must be used to
establish the connection.
Chapter 5: Local Management
5-44 6H122-16 User’s Guide
IP Fragmentation (Toggle)
This field allows the user to enable or disable IP fragmentation. The
default setting for this field is ENABLED. If the 6H122-16 will be
bridged to an FDDI ring, IP Fragmentation should be enabled. If IP
Fragmentation is disabled, all FDDI frames that exceed the maximum
Ethernet frame size will be discarded. For details on enabling or disabling
IP Fragmentation refer to Section 5.15.14.
5.15.1 Setting the IP Address
To set the IP address, perform the following steps:
1. Use the arrow keys to highlight the IP Address field.
2. Enter the IP address into this field using Decimal Dotted Notation
(DDN) format.
For example: 134.141.79.120
3. Press ENTER. If the IP address is a valid format, the cursor returns to
the beginning of the IP Address field. If the entry is not valid, the
Event Message Line displays “INVALID IP ADDRESS OR
FORMAT ENTERED”. Local Management does not alter the current
value and refreshes the IP Address field with the previous value.
4. Use the arrow keys to highlight the SAVE command, then press
ENTER. The warning screen shown in Figure 5-19 displays.
NOTE If the 6C105 chassis has been assigned an IP address, it is not
necessary to assign an IP address to the 6H122-16. All
installed modules have the same IP address as the chassis. If
a separate IP address for the module is desired, proceed as
follows.
General Configuration Screen
6H122-16 User’s Guide 5-45
Figure 5-19 Configuration Warning Screen
5. Use the arrow keys to highlight the YES command. Press ENTER.
The changes are saved and the module reboots.
5.15.2 Setting the Subnet Mask
If the management workstation that is to receive SNMP traps from the
6H122-16 is located on a separate subnet, the subnet mask for the
6H122-16 must be changed from its default.
To change the subnet mask from its default, perform the following steps:
1. Use the arrow keys to highlight the Subnet Mask field.
2. Enter the subnet mask into this field using Decimal Dotted Notation
(DDN) format.
For example: 255.255.255.0
3. Press ENTER. If the subnet mask is valid, the cursor returns to the
beginning of the Subnet Mask field. If the entry is not valid, the Event
Message Line displays “INVALID SUBNET MASK OR FORMAT
ENTERED”. Local Management does not alter the current value, but
it does refresh the Subnet Mask field with the previous value.
4. Use the arrow keys to highlight the SAVE command, then press
ENTER. The warning screen shown in Figure 5-20 displays.
WARNING!
174252
YOU HAVE ELECTED TO SAVE ONE OR MORE CONFIGURATION
ITEMS THAT REQUIRE RESETTING THIS MODULE.
ARE YOU SURE YOU WANT TO CONTINUE?
YES NO
Chapter 5: Local Management
5-46 6H122-16 User’s Guide
Figure 5-20 Configuration Warning Screen
5. Use the arrow keys to highlight the YES command and press ENTER.
The changes are saved and the module reboots.
5.15.3 Setting the Default Gateway
If the SNMP management station is located on a different IP subnet than
the 6H122-16, a default gateway must be specified. When an SNMP Trap
is generated, the 6H122-16 sends the Trap to the default gateway. To set
the default gateway, perform the following steps:
1. Use the arrow keys to highlight the Default Gateway field.
2. Enter the IP address of the default gateway using the DDN format.
For example: 134.141.79.121
3. Press ENTER. If the default gateway entered is a valid format, the
cursor returns to the beginning of the Default Gateway field. If the
entry is not valid, the Event Message Line displays “INVALID
DEFAULT GATEWAY OR FORMAT ENTERED”. Local
Management does not alter the current value, but it does refresh the
Default Gateway field with the previous value.
4. Use the arrow keys to highlight the SAVE command.
5. Press ENTER. The Event Message Line at the top of the screen
displays “SAVED OK”.
WARNING!
174252
YOU HAVE ELECTED TO SAVE ONE OR MORE CONFIGURATION
ITEMS THAT REQUIRE RESETTING THIS MODULE.
ARE YOU SURE YOU WANT TO CONTINUE?
YES NO
General Configuration Screen
6H122-16 User’s Guide 5-47
5.15.4 Setting the TFTP Gateway IP Address
If the network TFTP server is located on a different IP subnet than the
6H122-16, a Gateway IP address should be specified. To set the TFTP
Gateway IP address, perform the following steps:
1. Use the arrow keys to highlight the TFTP Gateway IP Address field.
2. Enter the IP address of the TFTP gateway using the DDN format.
For example: 134.141.80.122
3. Press ENTER. If the TFTP gateway IP address entered is a valid
format, the cursor returns to the beginning of the TFTP Gateway IP
Address field. If the entry is not valid, the Event Message Line
displays “INVALID TFTP GATEWAY IP ADDRESS OR FORMAT
ENTERED”. Local Management does not alter the current value, but
it does refresh the TFTP Gateway IP Address field with the previous
value.
4. Use the arrow keys to highlight the SAVE command.
5. Press ENTER. The Event Message Line at the top of the screen
displays “SAVED OK”.
5.15.5 Setting the Module Date
The modules are year 2000 compliant, so the module date may be set
beyond the year 1999. To set the module date, perform the following
steps:
1. Use the arrow keys to highlight the Module Date field.
2. Enter the date in this format: MM/DD/YYYY
NOTE If the 6C105 chassis has been assigned a chassis date, it is not
necessary to assign a module date to the 6H122-16. All
installed modules recognize the chassis date of the 6C105.
NOTE It is not necessary to add separators between month, day, and
year numbers as long as each entry has the correct number of
characters. For example, to set the date to 01/17/1998, type
“01171998” in the Module Date field.
Chapter 5: Local Management
5-48 6H122-16 User’s Guide
3. Press ENTER to set the system calendar to the date in the input field.
4. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER.
If the date entered is a valid format, the Event Message Line at the top of
the screen displays “SAVED OK”. If the entry is not valid, Local
Management does not alter the current value, but it does refresh the
Module Date field with the previous value.
5.15.6 Setting the Module Time
To set the module clock, perform the following steps:
1. Use the arrow keys to highlight the Module Time field.
2. Enter the time in 24-hour format: HH:MM:SS
3. Press ENTER to set the system clock to the time in the input field.
4. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER.
If the time entered is a valid format, the Event Message Line at the top of
the screen displays “SAVED OK”. If the entry is not valid, Local
Management does not alter the current value and refreshes the Module
Time field with the previous value.
NOTE If the 6C105 chassis has been assigned a chassis time, it is not
necessary to assign a module time to the 6H122-16. All
installed modules recognize the chassis time of the 6C105.
NOTE When entering the time in the system time field, separators
between hours, minutes, and seconds do not need to be added
as long as each entry uses two numeric characters. For
example, to set the time to 6:45 A.M., type “064500” in the
Module Time field.
General Configuration Screen
6H122-16 User’s Guide 5-49
5.15.7 Entering a New Screen Refresh Time
The screen refresh time is set from 3 to 99 seconds with a default of 3
seconds. To set a new screen refresh time, perform the following steps:
1. Use the arrow keys to highlight the Screen Refresh Time field.
2. Enter a number from 3 to 99.
3. Press ENTER to set the refresh time to the time entered in the input
field.
4. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER.
If the time entered is within the 3 to 99 seconds range, the Event Message
Line at the top of the screen displays “SAVED OK”. If the entry is not
valid, the Event Message Line displays “PERMISSIBLE RANGE: 3...99”
momentarily. Local Management does not alter the current setting, but it
does refresh the Screen Refresh Time field with the previous value.
5.15.8 Setting the Screen Lockout Time
The screen lockout time can be set from 1 to 30 minutes with a default of
15 minutes. To set a new lockout time, perform the following steps:
1. Use the arrow keys to highlight the Screen Lockout Time field.
2. Enter a number from 1 to 30.
3. Press ENTER to set the lockout time in the input field.
4. Use the arrow keys to highlight the SAVE command at the bottom of
the screen and press ENTER.
If the time entered is within the 1 to 30 minutes range, the Event Message
Line at the top of the screen displays “SAVED OK”. If the entry is not
valid, the Event Message Line displays “PERMISSIBLE RANGE: 1...30”
momentarily. Local Management does not alter the current setting, but it
does refresh the Screen Lockout Time field with the previous value.
Chapter 5: Local Management
5-50 6H122-16 User’s Guide
5.15.9 Setting the Operational Mode
To set the Operational Mode, proceed as follows:
1. Use arrow keys to highlight the Operational Mode field.
2. Press the SPACE bar to step to the appropriate operation mode
(802.1D SWITCHING, 802.1Q SWITCHING, or SECURE FAST
VLAN).
3. Use the arrow keys to highlight the SAVE command, then press
ENTER. The warning screen shown in Figure 5-21 displays.
!
CAUTION
Before setting the operational mode, ensure that the items
contained in this caution are fully understood.
If the module will be configured to operate as a SecureFast
switch the following procedures should be performed before
setting the operational mode:
The module must be assigned a unique IP address.
If the module will be a SecureFast switch, distributed
management is not allowed. The Management Mode of the
module will automatically be set to STANDALONE. The
Management Mode field will no longer display on the General
Configuration screen, and the module will no longer support
Chassis configuration and Module selection screens.
The module has been assigned SNMP community names from
the module SNMP Community Names screen (Section 5.16).
In Standalone management mode, the module does not use
the community names of the 6C105 chassis.
General Configuration Screen
6H122-16 User’s Guide 5-51
Figure 5-21 Configuration Warning Screen
4. Use the arrow keys to highlight the YES command and press ENTER.
The changes are saved and the module reboots.
NOTE Upon saving the new operational mode, the module will reboot.
If the 6H122-16 has been set to 802.1Q SWITCHING, refer to
your
Port Based VLAN User’s Guide
to configure the module
for this type of operation.
If the 6H122-16 has been set to SECURE FAST VLAN, refer to
your SecureFast documentation set to configure the module for
this type of operation.
WARNING!
174252
YOU HAVE ELECTED TO SAVE ONE OR MORE CONFIGURATION
ITEMS THAT REQUIRE RESETTING THIS MODULE.
ARE YOU SURE YOU WANT TO CONTINUE?
YES NO
Chapter 5: Local Management
5-52 6H122-16 User’s Guide
5.15.10 Setting the Management Mode
To set the management mode, perform the following steps:
1. Use the arrow keys to highlight the Management Mode field:
2. Use the SPACE bar to toggle the options (DISTRIBUTED or
STAND ALONE) until the desired mode displays.
3. Use the arrow keys to highlight the SAVE command, then press
ENTER. The warning screen shown in Figure 5-22 displays.
Figure 5-22 Configuration Warning Screen
4. Use the arrow keys to highlight the YES command and press ENTER.
The changes are saved and the module reboots.
NOTE Upon saving the new Management Mode, the module will
reboot.
If the module will be set to STANDALONE, ensure the following
procedures have been completed:
The module has been assigned a unique IP address.
The module has been assigned SNMP community names from
the module SNMP Community Names screen (Section 5.16).
In STAND ALONE management mode, the module does not
use the community names of the 6C105 chassis.
WARNING!
174252
YOU HAVE ELECTED TO SAVE ONE OR MORE CONFIGURATION
ITEMS THAT REQUIRE RESETTING THIS MODULE.
ARE YOU SURE YOU WANT TO CONTINUE?
YES NO
General Configuration Screen
6H122-16 User’s Guide 5-53
5.15.11 Configuring the COM Port
The 6H122-16 COM port supports the following applications:
•Local Management connections
•American Power Conversion Uninterruptible Power Supply (UPS)
connections
To configure the COM port, proceed as follows:
1. Use the arrow keys to highlight the Com field.
2. Press the SPACE bar to choose either ENABLED or DISABLED.
The COM port must be ENABLED if it will be used for Local
Management or UPS applications. Select DISABLED if you wish to
disable the COM port for additional module security.
!
CAUTION
Before altering the COM port settings, ensure that a valid IP
address is set for the module or chassis. (Refer to
Section 5.15.1, Setting the IP Address). Read this entire
COM port configuration section before changing the settings of
the COM port.
NOTE Refer to the Release Notes included with the 6H122-16 to
verify which COM Port applications are currently supported.
!
CAUTION
Do NOT disable or alter the settings of the COM port while
operating the current Local Management connection through a
terminal. Altering the COM port settings disconnects the Local
Management terminal from the port, and ends the Local
Management session. If the module was previously assigned a
valid IP address, reenter Local Management by establishing a
Telnet connection to the module. If the module does not have a
valid IP address and the COM port has been disabled or the
settings changed, reset NVRAM on the module (refer to
Section B.2) to reestablish COM port communications.
!
CAUTION
If the COM port is reconfigured without a valid IP address set
on the module or chassis, the message shown in Figure 5-23
displays. Do not continue unless the outcome of the action is
fully understood.
Chapter 5: Local Management
5-54 6H122-16 User’s Guide
Figure 5-23 COM Port Warning Screen
3. Use the arrow keys to highlight YES. Press ENTER.
4. If you ENABLED the port, proceed to Section 5.15.12. If you
DISABLED the port, use the arrow keys to highlight SAVE at the
bottom of the screen, then press ENTER. When the message “SAVED
OK” displays, the edits are saved.
NOTE If the 6C105 chassis has been configured with a valid IP
address this screen will not appear. When the chassis is
assigned a valid IP address all the interface modules installed
share this same address.
!
CAUTION
Exiting without saving causes the message “NOT SAVED --
PRESS SAVE TO KEEP CHANGES” to appear. Exiting without
saving causes all edits to be lost.
WARNING!
174252
THE COM PORT HAS BEEN RECONFIGURED AND THERE IS NO IP
ADDRESS SET FOR THIS DEVICE. YOU WILL NO LONGER BE ABLE
TO MANAGE THIS BOARD. DO YOU STILL WISH TO RECONFIGURE
THIS COM PORT?
YES NO
General Configuration Screen
6H122-16 User’s Guide 5-55
5.15.12 Changing the Com Port Application
After enabling the COM port as described in Section 5.15.11, you can
select one of the applications supported by the COM port: LM, and UPS.
The default application is LM.
To change the COM port application:
1. Use the arrows keys to highlight the Application field.
2. Use the SPACE bar or BACKSPACE to step through the available
settings until the operation you require appears. Table 5-3 lists the
available settings and their corresponding applications.
3. Press ENTER to accept the application.
4. Use the arrow keys to highlight SAVE at the bottom of the screen, then
press the ENTER key.
5. When the message “SAVED OK” appears, the edits you made are
saved.
Table 5-3. COM Port Application Settings
Setting Application
LM Local Management Session
UPS APC Power Supply SNMP Proxy
!
CAUTION
When the COM port is configured to perform the UPS
application, all future Local Management connections must be
made by establishing a Telnet connection to the module.
Ensure that the module has a valid IP address before saving
changes to the COM port application. If the module does not
have a valid IP address and the changes are saved, refer to
Appendix B for instructions on clearing NVRAM in order to
reestablish COM port communications.
Chapter 5: Local Management
5-56 6H122-16 User’s Guide
5.15.13 Clearing NVRAM
Clearing NVRAM allows the user to clear all user-entered parameters,
such as IP address and Community Names from NVRAM.
Clear NVRAM as follows:
1. Use the arrow keys to highlight the Clear NVRAM field.
2. Use the SPACE bar to toggle the field to YES.
3. Use the arrow keys to highlight SAVE at the bottom of the screen.
4. Press ENTER. The warning shown in Figure 5-24 displays.
Figure 5-24 Clear NVRAM Warning Screen
5. To clear NVRAM, use the arrow keys to highlight YES and press
ENTER. The message “CLEARING NVRAM. REBOOT IN
PROGRESS...” displays.
The 6H122-16 clears NVRAM and reboots. All user-entered parameters
default to factory settings.
!
CAUTION
Clearing NVRAM will result in the loss of all user-entered
parameters. Do not proceed unless this procedure is
completely understood.
WARNING!
174251
YOU HAVE ELECTED TO CLEAR NVRAM. THIS WILL CLEAR
ALL SYSTEM DEFAULTS INCLUDING BUT NOT LIMITED TO
IP ADDRESS, INTERFACE CONFIGURATIONS, AND COM PORT
CONFIGURATION, THEN RESET THIS MODULE.
ARE YOU SURE YOU WANT TO CLEAR NVRAM?
YES NO
SNMP Community Names Screen
6H122-16 User’s Guide 5-57
5.15.14 Enabling/Disabling IP Fragmentation
To enable or disable IP fragmentation, proceed as follows:
1. Use the arrow keys to highlight the IP Fragmentation field.
2. Press the SPACE bar to choose either ENABLED or DISABLED.
3. Use the arrow keys to highlight the SAVE command.
4. Press ENTER. The Event Message Line at the top of the screen
displays “SAVED OK”.
5.16 SNMP COMMUNITY NAMES SCREEN
The SNMP Community Names menu item allows the user to set
Local/Remote Management community names. Community names act as
passwords to Local/Remote Management and are agents of security
access to the 6H122-16. Access to the 6H122-16 is controlled by invoking
any of three different levels of security authorization (read-only,
read-write, and super-user).
To access the SNMP Community Names screen from the Module
Configuration Menu screen, use the arrow keys to highlight the SNMP
COMMUNITY NAMES menu item and press ENTER. The SNMP
Community Names screen, Figure 5-25, displays.
!
CAUTION
If the 6H122-16 is being bridged to an FDDI ring IP
Fragmentation should be enabled. If IP Fragmentation is
disabled, all FDDI frames that exceed the maximum Ethernet
frame size will be discarded.
NOTE If the 6C105 has been assigned community names, it is not
necessary to assign community names to the individual
modules installed in the chassis unless the user wishes to limit
access to 6C105 chassis screens by assigning different
community names to the module. When this is done access is
limited to the screens specific to the module the terminal is
attached to and the CHASSIS menu item of the Main Menu
screen will not appear.
Super-User access gives the user full management privileges,
allows existing passwords to be changed, as well as all
modifiable MIB objects.
Chapter 5: Local Management
5-58 6H122-16 User’s Guide
Figure 5-25 SNMP Community Names Screen
The following explains each SNMP Community Names screen field:
Community Name (Modifiable)
Displays the user-defined name through which a user accesses 6H122-16
management. Any community name assigned here acts as a password to
Local/Remote Management.
Access Policy (Read-Only)
Indicates the access accorded each community name. Possible selections
are as follows:
read-only This community name allows read-only access
to the 6H122-16 MIB objects, and excludes
access to security-protected fields of read-write
or super-user authorization.
read-write This community name allows read and write
access to the 6H122-16 MIB objects, excluding
security protected fields for super-user access
only.
Firmware Revision: XX.XX.XX
SNMP Community Names
2361_17
BOOTPROM Revision: XX.XX.XX
Access Policy
read-only
read-write
super-user
Module Type: 6H122-16
Slot Number:
X
6C105 LOCAL MANAGEMENT
Event Message Line
RETURNSAVE
Community Name
public
public
public
EXIT
SNMP Community Names Screen
6H122-16 User’s Guide 5-59
super-user This community name permits read-write
access to the 6H122-16 MIB objects and allows
the user to change all modifiable parameters
including community names, IP addresses,
traps, and SNMP objects.
5.16.1 Establishing Community Names
The password used to access Local Management at the Password Screen
must have Super-User access in order to view and edit the SNMP
Community Names screen. Using a password with read-only or
read-write access does not allow the user to view or edit the SNMP
Community Names screen.
To establish community names, proceed as follows:
1. Use the arrow keys to highlight the Community Name field adjacent
to the selected access level.
2. Enter the password in the field (maximum 31 characters).
3. Press ENTER.
4. Repeat steps 1 through 3 to modify the other community names.
5. Use the arrow keys to highlight SAVE at the bottom of the screen and
press ENTER. The message “SAVED OK” displays. The community
names are saved to memory and their access modes implemented.
NOTE Any community name assigned in the SNMP Community
Names screen is a password to its corresponding level of
access to Local/Remote Management. The community name
assigned Super-User access is the only one that gives the user
complete access to Local/Remote Management.
NOTE Exiting without saving causes a “NOT SAVED?” message to
display at the top left of the screen. Edits will be lost if they are
not saved before exiting.
Chapter 5: Local Management
5-60 6H122-16 User’s Guide
5.17 SNMP TRAPS SCREEN
Since the 6H122-16 is an SNMP compliant device, it can send messages
to multiple Network Management Stations to alert users of status
changes. The SNMP Traps screen is shown in Figure 5-26.
To access the SNMP Traps screen from the Module Configuration Menu
screen, using the arrow keys to highlight the SNMP TRAPS menu item
and press ENTER. The SNMP Traps screen displays.
Figure 5-26 SNMP Traps Screen
The following explains each field of the SNMP Traps screen.
Trap Destination (Modifiable)
Indicates the IP address of the workstation to receive trap alarms. Up to
eight different destinations can be defined.
NOTE It is only necessary to assign SNMP traps if the user desires
the traps to be sent to different addresses than those assigned
in Section 5.8 which details how to set SNMP Traps for the
6C105 chassis.
Firmware Revision: XX.XX.XX
SNMP Traps
2361_17a
BOOTPROM Revision: XX.XX.XX
Trap Community Name
public
public
public
public
public
public
public
public
Module Type: 6H122-16
Slot Number:
X
EXIT
6C105 LOCAL MANAGEMENT
Event Message Line
RETURNSAVE
Trap Destination
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
0.0.0.0
Enable Traps
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
SNMP Traps Screen
6H122-16 User’s Guide 5-61
Trap Community Name (Modifiable)
Displays the Community Name included in the trap message sent to the
Network Management Station with the associated IP address.
Enable Traps (Toggle)
Enables transmission of the traps to the network management station with
the associated IP address. This field toggles between YES and NO.
5.17.1 Configuring the Trap Table
To configure the Trap Table, proceed as follows:
1. Using the arrow keys, highlight the appropriate Trap Destination
field.
2. Enter the IP Address of the workstation that is to receive traps. IP
address entries must follow the DDN format.
For example: 134.141.79.121
3. Press ENTER. If an invalid entry is entered “INVALID IP
ENTERED” is displayed in the Event Message Line.
4. Using the arrow keys, highlight the Trap Community Name field.
Enter the community name.
5. Press ENTER.
6. Using the arrow keys, highlight the Enable Traps field. Press the
SPACE bar to choose either YES (send alarms from the module to the
workstation), or NO (prevent alarms from being sent).
7. Using the arrow keys, highlight the SAVE command and press
ENTER. The message “SAVED OK” displays on the screen.
The designated workstations now receive traps from the 6H122-16.
Chapter 5: Local Management
5-62 6H122-16 User’s Guide
5.18 SWITCH CONFIGURATION SCREEN
The Switch Configuration screen, Figure 5-27, provides the basic setup
options to modify switch operations in your network.
To access the Switch Configuration screen from the Module
Configuration Menu screen, use the arrow keys to highlight the SWITCH
CONFIGURATION menu item and press ENTER. The Switch
Configuration screen, Figure 5-27, displays ports 1 through 8. To view or
edit the fields for ports 9 to 16, highlight the navigation field [9-16] at the
bottom of the screen and press the ENTER key. Once in the screen
viewing ports 9 to 16, the navigation fields [1-8] and [17-21] can be seen.
These fields can be used to go to the first screen and last screen,
respectively.
Figure 5-27 Switch Configuration Screen
NOTE The Switch Configuration screen will not be available if the
operational mode of the module has been set to SECURE
FAST VLAN. This screen may only be used by modules
configured to operate as 802.1D or 802.1Q switches.
Firmware Revision: XX.XX.XX
Switch Configuration
BOOTPROM Revision: XX.XX.XX
Port #
1
2
3
4
5
6
7
8
State
learning
disabled
standby
disabled
listening
disabled
forwarding
forwarding
Module Type: 6H122-16
Slot Number:
X
6C105 LOCAL MANAGEMENT
Event Message Line
RETURNSAVE
MAC Address
00-00-1D-00-00-00
00-00-1D-00-00-01
00-00-1D-00-00-02
00-00-1D-00-00-03
00-00-1D-00-00-04
00-00-1D-00-00-05
00-00-1D-00-00-06
00-00-1D-00-00-07
Status
[ENABLED]
[DISABLED]
[ENABLED]
[DISABLED]
[ENABLED]
[DISABLED]
[ENABLED]
[ENABLED]
Switch Address: 00-00-1D-00-00-00
Number of Ports: 21 Type of STA: [IEEE]
EXIT
Age Time (sec): 300
[9-16]
2361_18
Switch Configuration Screen
6H122-16 User’s Guide 5-63
The following describe each field of the Switch Configuration screen:
Switch Address (Read-Only)
Displays the base MAC address of the switch.
Number of Ports (Read-Only)
Displays the total number of switched ports on the module.
Type of STA (Selectable)
Allows the user to set the method that switches use to decide which
switch is the controlling (Root) switch when two or more switches exist in
parallel (Spanning Tree Algorithm [STA]). Valid entries include IEEE,
DEC, and NONE. To set the STA, refer to Section 5.18.1.
Age Time (Modifiable)
Allows the user to set the amount of time (in seconds) the 6H122-16 will
keep an address in its switch table before discarding it. The module will
discard an address from its switch table if it does not receive a valid frame
from the applicable address in the amount of time specified in the Age
Time field. To change the Age Time field from the default value of 300
seconds, refer to Section 5.18.2.
Port # (Read-Only)
Lists each switch port on the module. If the number of ports is greater
than eight, then the additional ports are listed on subsequent screens.
MAC Address (Read-Only)
Displays the hardware address assigned to each listed port.
State (Read-Only)
Disabled: Management disabled this interface. No traffic is received or
forwarded while the interface is disabled.
Listening: The switch is not adding information to the Transparent
Database. The switch is monitoring BPDU traffic while preparing to
move from the learning to the forwarding state.
NOTE Ports 17 through 20 represent the backplane connections that
the 6H122-16 has with the 6C105 chassis. The module has a
direct connection to every other slot in the chassis.
Chapter 5: Local Management
5-64 6H122-16 User’s Guide
Learning: The switch is learning the network address of this interface.
The switch enters the learning state when the Transparent Database is
created (during start-up or after being deleted), or when the Spanning
Tree Algorithm detects a network topology change.
Forwarding: The switch is on line and this interface is forwarding traffic.
Blocking: This interface will not forward any traffic through the switch
because a loop condition has been detected by the STA.
Status (Toggle)
Allows the user to disable or enable a port by setting the status of the
listed interface to either ENABLED or DISABLED. To set the port status,
refer to Section 5.18.3.
[1-8], [9-16], [17-21] (Navigation Field)
The Switch Configuration screen can only show the configuration for
eight ports at a time. When the specific Navigation field is available, it
allows the user to view the Switch Configuration for ports 1 through 8,
ports 9 through 16, or ports 17 through 21. Once this field is highlighted,
press the ENTER key to go to the desired screen.
5.18.1 Setting the STA
The Spanning Tree Algorithm (STA) setting allows the user to set the
method that the switches use to decide which is the controller (Root)
switch when two or more switches are in parallel. The available selections
are IEEE, DEC, and NONE.
To set the STA, proceed as follows:
1. Use the arrow keys to highlight the Type of STA field.
2. Use the SPACE bar to step to the appropriate setting (IEEE, DEC, or
NONE).
3. Use the arrow keys to highlight the SAVE command at the bottom of
the screen.
4. Press ENTER. The message “SAVED OK” is displayed.
Switch Configuration Screen
6H122-16 User’s Guide 5-65
5.18.2 Setting the Age Time
To set the Age Time, proceed as follows:
1. Use the arrow keys to highlight the Age Time field.
2. Enter the desired Age Time in increments of 10. The available Age
Time range is 10 to 1,000,000 seconds with the default value being
300 seconds.
3. Use the arrow keys to highlight the SAVE command at the bottom of
the screen.
4. Press ENTER. The message “SAVED OK” is displayed.
5.18.3 Setting (Enabling or Disabling) the Port Status
To set the status of an interface (port), proceed as follows:
1. Use the arrow keys to highlight the Status field of the port.
2. Use the SPACE bar to toggle to either ENABLED or DISABLED.
3. Use the arrow keys to highlight the SAVE command at the bottom of
the screen.
4. Press ENTER. The message “SAVED OK” is displayed.
NOTE Disabling the port status of a backplane connection will block
the module from passing user traffic to the applicable module
slot in the 6C105 chassis. SNMP and other management traffic
(e.g., ping and Telnet traffic), however, will still pass via the
backplane to the applicable module slot.
Chapter 5: Local Management
5-66 6H122-16 User’s Guide
5.19 ETHERNET INTERFACE CONFIGURATION
To access the Ethernet Interface Configuration screen from the Module
Configuration Menu screen, use the arrow keys to highlight the
ETHERNET INTERFACE CONFIGURATION menu item and press
ENTER. The Ethernet Interface Configuration screen displays.
Figure 5-28 Ethernet Interface Configuration Screen for the 6H122-16
NOTE All ports are capable of 10 or 100 Mbps operation, however
only ports 15 and 16 support Full Duplex Switched Ethernet
(FDSE) for 100 Mbps.
Ports 15 and 16 auto-negotiate to 100BASE-TXFD by default
and can also be manually set to 100BASE-TXFD, but ports 1
through 14 cannot be set to nor auto-negotiate to
100BASE-TXFD.
All ports can be set and auto-negotiate to 10BASE-TXFD.
Ethernet Interface Configuration
Firmware Revision: XX.XX.XX
BOOTPROM Revision: XX.XX.XX
Module Type: 6H122-16
Slot Number:
X
6C105 LOCAL MANAGEMENT
Event Message Line
RETURN
SAVE
Port
Num
1
2
3
4
5
6
7
8
FE-100TX
FE-100TX
FE-100TX
FE-100TX
FE-100TX
FE-100TX
FE-100TX
FE-100TX
Port
Type
Link
Status
Link
Link
No Link
Link
Link
No Link
Link
No Link
Current
Oper. Mode
10Base-TFD
100Base-TX
100Base-TX
100Base-TX
10Base-T
100Base-TX
Unknown
Desired
Oper. Mode
[Auto-Neg]
[100Base-TX]
[100Base-TX]
[100Base-TX]
[100Base-TX]
[100Base-TX]
[100Base-TX]
[Auto-Neg]
Advertised Ability
100Base-TX [100Base-TX]
[100Base-TX]
[100Base-TX]
[100Base-TX]
[100Base-TX]
[100Base-TX]
N/A
[10Base-TFD]
[Disabled]
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[Enabled]
EXIT
[Enabled]
2361_23
Flow Control Admin Status: [Disabled]
[ 9-16 ]
Ethernet Interface Configuration
6H122-16 User’s Guide 5-67
The following section briefly explains each field of the Ethernet Interface
Configuration screen:
Port Num (Read-Only)
Displays the number of the front panel interface.
Port Type (Read-Only)
Displays the name of the interface installed in ports 1 through 16. All
ports are identified as FE-100TX.
Link Status (Read-Only)
Indicates whether or not there is a physical connection from a particular
port to another 10BASE-T, 100BASE-TX, or 100BASE-TXFD device.
One of the following values is displayed:
•Link – There is a link signal present and a valid physical connection to
another 10BASE-T, 100BASE-TX, or 100BASE-TXFD device.
•No Link – There is no link signal present and there is no valid physical
connection to another device.
Current Oper. Mode (Read-only)
This field displays the current operating mode of a port. Depending on the
connection negotiated, this field displays the following:
100Base-TX interface – Auto-Neg, Unknown (if there is no Link),
10Base-T, 10Base-TFD (full duplex), 100Base-TX, or
100Base-TXFD (full duplex, ports 15 and 16 only).
Desired Oper. Mode (Selectable)
This field allows the user to select the desired operational mode for an
interface.
FE-100TX Interface – The field steps between Auto-Neg, 10Base-T,
10Base-TFD (full duplex), 100Base-TX, and 100Base-TXFD (full
duplex, ports 15 and 16 only). In normal operation, the port with an
FE-100TX interface is capable of auto-negotiating the operational mode
and no further user setup is required. For details on how to set the
Operational Mode, refer to Section 5.19.2.
NOTE In normal operation, ports 1 through 16 automatically establish
a link with the device at the other end of the segment without
requiring user setup. However, Local Management provides the
user with the option of manually configuring that port.
Chapter 5: Local Management
5-68 6H122-16 User’s Guide
Advertised Ability (Selectable)
During auto-negotiation, the port “tells” the device at the other end of the
segment what its capabilities are. The capabilities of a port are
10BASE-T, 10BASE-TFD (full duplex mode), 100BASE-TX and
100BASE-TXFD (full duplex mode, ports 15 and 16 only). In normal
operation, with all capabilities enabled, the port “advertises” that it has
the ability to operate in any mode. The Network Manager may choose to
set up the port so that only a portion of the available capabilities are
advertised and the others are disabled. For example, only 100BASE-TX
and 100BASE-TXFD (ports 15 and 16 only) might be enabled so that
only devices that operate at 100 Mbps can communicate with that port.
Section 5.19.3 describes how to enable or disable advertised modes.
Flow Control Admin Status (Selectable)
Enabling this setting controls whether or not the switch will block traffic
on all ports when there is excessive traffic for the switch to process. This
will clear the ports and allow the switch to process the current frame
information. Section 5.19.4 explains how to enable or disable this option.
5.19.1 Configuring the Ports
In normal operation, a 6H122-16 interface automatically establishes a
link with the device at the other end of the segment and no user setup is
required. Section 5.19.2 and Section 5.19.3 provide instructions for
manually configuring the interface.
5.19.2 Setting the Operational Mode
Use this field to set the active technology. This field steps between
Auto-Negotiation, 10BASE-T, 10BASE-TFD (full duplex),
100BASE-TX, and 100BASE-TXFD (full duplex, ports 15 and 16 only).
If Auto-Negotiation is selected, the port automatically sets the active
technology. To manually set the active technology through Local
Management, proceed as follows:
1. Use the arrow keys to highlight the Desired Oper. Mode field.
2. Use the SPACE bar to select the desired mode. Press ENTER. If any
mode other than auto-negotiation is selected, the port only operates in
the chosen mode and auto-negotiation is disabled.
Ethernet Interface Configuration
6H122-16 User’s Guide 5-69
3. Use the arrow keys to highlight the SAVE command. Press ENTER.
The message “SAVED OK” displays and Local Management saves
the changes to memory. The selected mode is displayed in both the
Desired Operational Mode field and the Current Operational Mode
field.
5.19.3 Setting the Advertised Ability
During normal operation, ports 1 through 16 auto-negotiate to the highest
speed possible. Under some circumstances, the Network Administrator
may want the port to advertise only some of the available modes and not
operate in other modes. This field steps between 10BASE-T,
10BASE-TFD (full duplex), 100BASE-TX, and 100BASE-TXFD (ports
15 and 16 only).
To set the advertised ability, proceed as follows:
1. Use the arrow keys to highlight the Advertised Ability field.
2. Use the SPACE bar to select the desired mode.
3. Use the RIGHT-ARROW key to move across to the
Enabled/Disabled field to the right of the selection.
4. Use the SPACE bar to select Enabled or Disabled. Press ENTER.
Continue this process until you have completed enabling or disabling
the advertised modes.
5. Use the arrow keys to highlight the SAVE command. Press ENTER.
The message “SAVED OK” displays and Local Management saves
the changes to memory.
5.19.4 Setting the Flow Control Admin Status
This field toggles between ENABLED and DISABLED. To enable or
disable Flow Control, do the following:
1. Use the arrow keys to highlight the Flow Control Admin Status field.
2. Use the SPACE bar to toggle the field to the desired setting. Press
ENTER.
3. Use the arrow keys to highlight the SAVE command. Press ENTER.
The message “SAVED OK” displays and Local Management saves
the changes to memory. The selected mode is displayed in the field.
Chapter 5: Local Management
5-70 6H122-16 User’s Guide
5.20 MODULE SPECIFIC CONFIGURATION MENU
SCREEN
The Module Specific Configuration menu screen, Figure 5-29, allows the
user to select one of up to five screens to configure ports or check system
resources specific to the 6H122-16.
To access the Module Specific Configuration menu screen from the
Module Configuration Menu screen, use the arrow keys to highlight the
MODULE SPECIFIC CONFIGURATION menu item and press
ENTER. The Module Specific Configuration menu screen displays.
NOTE The BROADCAST SUPPRESSION menu item on the Module
Specific Configuration menu screen may not display if the
operational mode of the module has been set to SECURE
FAST VLAN. The PORT REDIRECT menu item may not
display if the operational mode of the module has been set to
802.1Q.
Refer to your Release Notes to see if the functionality provided
by the above screens is supported.
Section 5.15.9 provides instructions on setting the operational
mode.
Module Specific Configuration Menu Screen
6H122-16 User’s Guide 5-71
Figure 5-29 Module Specific Configuration Screen
The following explains each field of the Module Specific Configuration
menu screen:
SYSTEM RESOURCES
The System Resources screen displays the amount of FLASH memory,
DRAM, and NVRAM installed, details how much memory is available
and provides information on 6H122-16 operation. For details, refer to
Section 5.21.
Firmware Revision: XX.XX.XX
Module Specific Configuration
SYSTEM RESOURCES
FLASH DOWNLOAD
PORT REDIRECT FUNCTION
BROADCAST SUPPRESSION
BOOTPROM Revision: XX.XX.XX
Module Type: 6H122-16
Slot Number:
X
EXIT RETURN
2361_21
6C105 LOCAL MANAGEMENT
Chapter 5: Local Management
5-72 6H122-16 User’s Guide
FLASH DOWNLOAD
The FLASH Download screen allows the user to force the 6H122-16 to
download a new image file to FLASH memory from a TFTP server. For
details, refer to Section 5.22.
PORT REDIRECT FUNCTION
The Port Redirect Function screen allows the user to redirect traffic from
one or more ports on the module to a specific destination port on the
module. For details, refer to Section 5.23.
BROADCAST SUPPRESSION
The Broadcast Suppression screen allows the user to set a desired limit of
receive broadcast frames per port per second. For details, refer to
Section 5.24.
802.1Q VLAN CONFIGURATION
This menu item will only display if the module has been configured to
operate as an IEEE 802.1Q switch. When selected, this menu item opens
the VLAN Main Menu screen. For details, refer to the Cabletron Systems
Port Based VLAN User’s Guide. In this manual, Section 5.15.9 describes
how to configure the modules to function as 802.1Q switches.
5.21 SYSTEM RESOURCES SCREEN
The System Resources screen, Figure 5-30, provides information
concerning the processor used in the 6H122-16 and the amount of
FLASH memory, DRAM, and NVRAM that is installed and how much of
this memory is available.
To access the System Resources screen from the Module Specific
Configuration menu screen, use the arrow keys to highlight the SYSTEM
RESOURCES menu item and press ENTER. The System Resources
screen displays.
System Resources Screen
6H122-16 User’s Guide 5-73
Figure 5-30 System Resources Screen
The following briefly explains each field of the System Resources screen.
CPU Type (Read-only)
Indicates the microprocessor used in the 6H122-16.
Flash Memory Installed (Read-only)
Indicates the amount of FLASH memory installed in the 6H122-16 and
how much is currently available.
DRAM Installed (Read-only)
Indicates the amount of DRAM installed in the 6H122-16 and how much
of it is currently available.
NVRAM Installed (Read-only)
Indicates the amount of NVRAM installed in the 6H122-16 and how
much of it is currently available.
Firmware Revision: XX.XX.XX
System Resources
BOOTPROM Revision: XX.XX.XX
Flash Memory Installed :
X
MB
DRAM Installed:
XX
MB
NVRAM Installed:
XX
KB
Available: XXXXX Bytes
Available: XXXXX Bytes
Available: XXXXX Bytes
CPU Type: i960 HT 25Mhz
Current Switch Utilization: 66%
Peak Switch Utilization: 75%
Reset Peak Switch Utilization: [NO]
Module Type: 6H122-16
Slot Number:
X
EXIT
2361_40
6C105 LOCAL MANAGEMENT
Event Message Line
SAVE
RETURN
RETURN
Chapter 5: Local Management
5-74 6H122-16 User’s Guide
Current Switch Utilization (Read-only)
Shows how much (percentage of capacity) the 6H122-16 is currently
being used.
Peak Switch Utilization (Read-only)
Shows the peak percentage of maximum switching capacity, since last
reset.
Reset Peak Switch Utilization (Toggle)
Allows the user to reset the Peak Switch Utilization field. The switch may
be set to either YES or NO as described in Section 5.21.1. YES resets the
Peak Switch Utilization field to the current system traffic.
5.21.1 Setting the Reset Peak Utilization
To reset the Reset Peak Utilization field counter, proceed as follows:
1. Use the arrow keys to highlight the Peak Switch Utilization field.
2. Press the SPACE bar to select YES.
3. Use the arrows keys to highlight the SAVE command at the bottom of
the screen.
4. Press ENTER. The message “SAVED OK” is displayed, and the Reset
Peak Utilization counter is reset to zero.
5.22 FLASH DOWNLOAD SCREEN
The Flash Download screen, shown in Figure 5-31, allows the user to
clear the information stored in the 6H122-16 FLASH memory and
download a new image file from a TFTP server.
Before downloading a new image to the module, load the image onto the
network TFTP server.
NOTE The user may also force a download by changing the position
of Switch 6 located inside the module. Refer to Section B.2 for
details.
NOTE For information on how to set up a workstation as a TFTP
server, refer to the specific workstation documentation.
Flash Download Screen
6H122-16 User’s Guide 5-75
To access the Flash Download screen from the Module Specific
Configuration screen, use the arrow keys to highlight the FLASH
DOWNLOAD menu item and press ENTER. The Flash Download screen
displays.
Figure 5-31 Flash Download Screen
The following briefly explains each field of the Flash Download screen:
Download Method (Selectable)
This field steps through TFTP, RUNTIME and BOOTP. If set for BOOTP,
the module sends out a BootP request to determine the IP address of the
TFTP server and the filename of the image to be downloaded. If set for
TFTP or RUNTIME, the 6H122-16 attempts a TFTP download based on
the IP address and filename entered in the fields at the bottom of the Flash
Download screen. Section 5.22.1 describes how to download using TFTP.
NOTE Download Server IP and Download Server Filename are
displayed only when TFTP or RUNTIME are selected in
Download Method.
Firmware Revision: XX.XX.XX
Flash Download
Download Method:
Reboot After Download:
TFTP Gateway IP Addr:
Last Image Server IP:
Last Image File Name:
Download Server IP:
Download File Name:
BOOTPROM Revision: XX.XX.XX
[TFTP]
[YES]
XXX.XXX.XXX.XXX
XXX.XXX.XXX.XXX
/tftpboot/6H122.hex
XXX.XXX.XXX.XXX
/tftpboot/6H122.hex
Module Type: 6H122-16
Slot Number:
X
EXIT
2361_24
6C105 LOCAL MANAGEMENT
TFTP DOWNLOAD. WILL COMMIT TO FLASH. REBOOT IN PROGRESS...
RETURN
EXECUTE
Chapter 5: Local Management
5-76 6H122-16 User’s Guide
Section 5.22.2 describes how to download using RUNTIME.
Section 5.22.3 describes how to download using BootP.
Reboot After Download (Modifiable when RUNTIME is chosen only)
This field notifies the user that the 6H122-16 will reboot after the
download is complete. If a RUNTIME Download is performed, this field
toggles between YES and NO. If YES is selected, the module reboots
after the download is completed. If NO is selected the module continues
using the existing the firmware image. The module stores the new
firmware image in FLASH memory. When the module or 6C105 chassis
is reset, the module will boot from FLASH memory using the new image.
TFTP Gateway IP Addr (modifiable)
This field shows the IP address of the TFTP gateway server defined in the
General Configuration screen in Section 5.15.4.
Last Image Server IP (Read-only)
This field shows the IP address of the server used for the previous FLASH
Download.
Last Image File Name (Read-only)
This field shows the complete path and file name of the last image
downloaded to FLASH.
Download Server IP (Selectable)
The IP address of the TFTP server to be used for the FLASH download is
entered in this field.
Download File Name (Selectable)
The complete TFTP Server path and file name of the new image is entered
in this field.
5.22.1 Image File Download Using TFTP
Set the 6H122-16 to download to FLASH using TFTP as follows:
1. Use the arrow keys to highlight the Download Method field.
NOTE If TFTP or RUNTIME is selected as the download method
(Figure 5-31), the following two additional fields appear.
Flash Download Screen
6H122-16 User’s Guide 5-77
2. Use the SPACE bar to select TFTP.
3. Use the arrow keys to highlight the TFTP Gateway IP Addr field.
4. Set the IP address of the TFTP gateway server (this defaults to the
same IP address as that set in the TFTP Gateway IP Addr field on the
General Configuration screen).
5. Use the arrow keys to highlight the Download Server IP field.
6. Enter the IP address of the TFTP server using the DDN format.
For example: 134.141.79.121
7. Use the arrow keys to highlight the Download File Name field.
8. Enter the complete pathway and file name of the image stored on the
download server.
For example: /tftpboot/6H122.hex
9. Use the arrow keys to highlight EXECUTE at the bottom of the screen
and press ENTER. The message “TFTP DOWNLOAD. WILL
COMMIT TO FLASH. REBOOT IN PROGRESS...” displays in the
event message line at the top of the screen and the new image is
downloaded into FLASH memory.
5.22.2 Image File Download Using RUNTIME
Set the 6H122-16 to download to FLASH using RUNTIME as follows:
1. Use the arrow keys to highlight the Download Method field.
2. Use the SPACE bar to select RUNTIME.
3. Use the arrow keys to highlight the Reboot After Download field.
4. Use the SPACE bar to select either YES or NO. Select YES if you
want the module to reboot after the download is completed. Select NO
if you want the module to store the new image in FLASH memory
until the module is manually reset.
5. Use the arrow keys to highlight the TFTP Gateway IP Addr field.
6. Set the IP address of the TFTP gateway server (this defaults to the
same IP address as that set in the TFTP Gateway IP Addr field on the
General Configuration screen).
Chapter 5: Local Management
5-78 6H122-16 User’s Guide
7. Use the arrow keys to highlight the Download Server IP field.
8. Enter the IP address of the TFTP server using the DDN format.
For example: 134.141.79.121
9. Use the arrow keys to highlight the Download File Name field.
10. Enter the complete pathway and file name of the image stored on the
download server.
For example: /tftpboot/6H122.fls
11. Use the arrow keys to highlight EXECUTE at the bottom of the screen
and press ENTER. The message “RUNTIME DOWNLOAD. WILL
COMMIT TO FLASH.” displays in the event message line at the top
of the screen and the new image is downloaded into FLASH memory.
5.22.3 Image File Download Using BootP
Set the 6H122-16 to download to FLASH using BootP as follows:
1. Use the arrow keys to highlight the Download Method field.
2. Use the SPACE bar to select BOOTP.
3. Use the arrow keys to highlight the TFTP Gateway IP Addr field. Set
the IP address of the TFTP gateway server (this defaults to the same
IP address set in the TFTP Gateway IP Addr field in the General
Configuration screen).
4. Use the arrow keys to highlight EXECUTE at the bottom of the screen
and press ENTER. The message “BOOTP DOWNLOAD. WILL
COMMIT TO FLASH. REBOOT IN PROGRESS...” displays in the
event message line at the top of the screen and the new image is
downloaded into FLASH memory.
Port Redirect Function Screen
6H122-16 User’s Guide 5-79
5.23 PORT REDIRECT FUNCTION SCREEN
The Port Redirect Function screen, Figure 5-32, allows the user to set
each one of the ports on the 6H122-16 as a source or destination port. A
port can be set to have one or more destination ports. For example, port 1
can be set as a source port with three destinations, ports 2, 3, and 4.
Traffic from port 1 is then automatically redirected to ports 2, 3, and 4.
Port 1 can also serve as a destination port for other ports. The port redirect
function is extremely useful for troubleshooting purposes, as it allows
traffic to be sent to a particular port(s) where, with the use of an analyzer
or RMON probe, all current traffic from the source port(s) can be
examined.
To access the Port Redirect Function screen from the Module Specific
Configuration screen, use the arrow keys to highlight the PORT
REDIRECT FUNCTION menu item and press ENTER. The Port
Redirect Function screen displays.
NOTE The Port Redirect Function screen may not be available
depending on the operational mode that has been set for the
module. Refer to your Release Notes to see what operational
modes support the Port Redirect Function. Refer to
Section 5.15.9 for instructions on configuring the operational
mode of the module.
NOTE Although all traffic from the source port (including, if desired,
errored frames) is sent to the destination port, normal switching
is still performed for all frames on the source port.
Chapter 5: Local Management
5-80 6H122-16 User’s Guide
Figure 5-32 Port Redirect Function Screen
The following definitions briefly explain each field of the Port Redirect
Function screen:
Source Port (Read-only)
Shows which ports are currently set as source ports.
Destination Port (Read-only)
Shows which ports are currently set as destination ports.
Remap Errors (Read-only)
Displays whether the corresponding source ports are configured to send
errored frames to the destination ports (ON), or to drop all errored frames
before forwarding traffic (OFF).
Source Port [
n
] (Selectable)
Allows a selected port [n] to be changed to a source port.
Destination Port [
n
] (Selectable)
Allows a selected port [n] to be changed to a destination port.
Firmware Revision: XX.XX.XX
Port Redirect Function
BOOTPROM Revision: XX.XX.XX
Source Port
1
2
1
--
--
--
--
--
Destination Port
5
6
6
--
--
--
--
--
Module Type: 6H122-16
Slot Number:
X
Remap Errors
ON
ON
OFF
--
--
--
--
--
------------------ ---------------------- ---------------------
2361_26
6C105 LOCAL MANAGEMENT
Event Message Line
SAVE
RETURN
RETURN
Source Port [1] Destination Port [1] Status [ADD]
EXIT
Errors [ON]
Port Redirect Function Screen
6H122-16 User’s Guide 5-81
Errors (Toggle)
Allows the user to configure the source ports to either send errored frames
to selected destination ports (ON option), or to drop errored frames, and
send only valid traffic to the destination ports (OFF option). The default
setting of this field is ON.
Status (Toggle)
Allows you to add or delete the source and destination ports selected in
the Source Port [n] and Destination Port [n] fields.
NEXT/PREVIOUS (Navigation Field)
There can be more than one Port Redirect Function screen depending on
the number of port redirect entries. To get to the second or subsequent
screens, there is a NEXT field at the bottom of the screen that the user can
arrow key over to and highlight. Pressing the ENTER key displays the
next screen. In the new screen, the navigation field PREVIOUS will
display to allow the user to go back to the first or previous screens.
5.23.1 Changing Source and Destination Ports
Add or delete source port and destination port entries as follows:
1. Use the arrow keys to highlight the Source Port field.
2. Press the SPACE bar or BACKSPACE one or more times to increment
or decrement the port number displayed in the brackets [n] until the
appropriate port number is displayed.
3. Use the arrow keys to highlight the Destination Port field.
4. Use the SPACE bar or BACKSPACE to step to the appropriate port
number for the destination port.
5. Use the arrow keys to highlight the Errors field.
6. Use the SPACE bar to select either the ON or OFF option and press
ENTER. ON forces the source module and port to forward errored
frames to the destination module(s) and port(s). OFF forces the
errored frames to be dropped before forwarding traffic.
Chapter 5: Local Management
5-82 6H122-16 User’s Guide
7. Use the arrow keys to highlight the Status field.
8. Use the SPACE bar to select either the ADD or DEL (delete) option.
Press ENTER. This adds or deletes the port selections made in steps 2
and 4 and also updates the screen Source Port and Destination Port list.
9. Use the arrow keys to highlight SAVE at the bottom of the screen.
Press ENTER. The message “SAVED OK” is displayed.
5.24 BROADCAST SUPPRESSION SCREEN
The Broadcast Suppression screen, Figure 5-33, allows the user to set a
desired limit of receive broadcast frames that are switched out to the other
ports.
To access the Broadcast Suppression screen from the Module Specific
Configuration screen, use the arrow keys to highlight the BROADCAST
SUPPRESSION menu item and press ENTER. The Broadcast
Suppression screen displays.
NOTE If more than one port is to be redirected, repeat steps 1 through
8 for each additional setting, then go to step 9 to save all the
new settings at once.
NOTE The Broadcast Suppression screen may not be available if the
operational mode of the module has been set to SECURE
FAST VLAN. Refer to your Release Notes to see what
operational modes support Broadcast Suppression. Refer to
Section 5.15.9 for instructions on configuring the operational
mode of the module.
Any broadcast frames received above the desired threshold will
be dropped.
Broadcast Suppression Screen
6H122-16 User’s Guide 5-83
Figure 5-33 Broadcast Suppression Screen
The following explains each field of the Broadcast Statistics screen:
PORT # (Read-only)
Identifies the number of the port.
Total RX (Read-Only)
Displays the total number of broadcast frames received.
Peak Rate (Read-Only)
Displays the number of broadcast frames received per second.
Firmware Revision: XX.XX.XX
Broadcast Suppression
BOOTPROM Revision: XX.XX.XX
PORT #
1
2
3
4
5
6
7
8
9
10
11
12
Time Since Peak
999:23:59
999:23:59
999:23:59
999:23:59
999:23:59
999:23:59
999:23:59
999:23:59
999:23:59
999:23:59
999:23:59
999:23:59
Peak Rate
150000
150000
150000
150000
150000
150000
150000
150000
150000
150000
150000
150000
Threshold
150000
150000
150000
150000
150000
150000
150000
150000
150000
150000
150000
150000
Module Type: 6H122-16
Slot Number:
X
6C105 LOCAL MANAGEMENT
Event Message Line
Total RX
12345678910
12345678910
12345678910
12345678910
12345678910
12345678910
12345678910
12345678910
12345678910
12345678910
12345678910
12345678910
Reset Peak
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
[NO]
RETURN
SAVE EXIT
[13-16]
2361_25
Chapter 5: Local Management
5-84 6H122-16 User’s Guide
Time Since Peak (Read-Only)
Displays the time since peak broadcast frames received.
Threshold (Modifiable)
Allows the user to set the desired limit of receive broadcast frames that
will be forwarded per port per second.
Reset Peak (Toggle)
Allows the user to reset the peak rate. Resetting the Peak Rate also resets
the Time Since Peak field. The Reset Peak field toggles between YES and
NO.
[1-12], or [13-16] (Navigation Field)
When the Broadcast Statistics screen displays, the current statistics are
displayed for the first 12 ports. This field allows the user to step to a
second screen for the same type of information for ports 13 through 16.
While on the second screen, the user can navigate back to the first screen
by selecting the [1-12] field. This is accomplished by using the arrow keys
to highlight the field, and then pressing ENTER. The user can change the
Threshold or Reset Peak Rate fields while in the first or second screens.
5.24.1 Setting the Threshold
To set the Threshold, proceed as follows:
1. Use the arrow keys to highlight the Threshold field for the selected
port.
2. Type in the numbers for the desired limit in increments of 10.
3. Use the arrow keys to highlight the SAVE command at the bottom of
the screen.
4. Press ENTER. The message “SAVED OK” is displayed.
5.24.2 Setting the Reset Peak Switch
To reset the Reset Peak Switch counter to zero, proceed as follows:
1. Use the arrow keys to highlight the Reset Peak field for the selected
port.
2. Press the SPACE bar to select YES.
Module Statistics Menu Screen
6H122-16 User’s Guide 5-85
3. Use the arrows keys to highlight the SAVE command at the bottom of
the screen.
4. Press ENTER. The message “SAVED OK” is displayed, and the Reset
Peak Switch counter is reset to zero.
5.25 MODULE STATISTICS MENU SCREEN
The Module Statistics Menu screen, Figure 5-34, provides access to
screens that allow the user to obtain switch statistics about frame traffic
through each interface, to view MIB-II statistics from each interface, and
to view RMON Statistics gathered by the RMON agent embedded in the
6H122-16.
To access the Module Statistics Menu from the Module Menu screen, use
the arrow keys to highlight the MODULE STATISTICS menu item and
press ENTER. The Module Statistics Menu screen displays.
NOTE The SWITCH STATISTICS menu item on the Module Statistics
Menu screen will not display if the operational mode of the
module has been set to SECURE FAST VLAN.
Section 5.15.9 provides instructions on setting the operational
mode.
Chapter 5: Local Management
5-86 6H122-16 User’s Guide
Figure 5-34 Module Statistics Menu Screen
The Module Statistics Menu screen displays the following menu items:
SWITCH STATISTICS
The Switch Statistics screen lists the number of frames received,
transmitted, filtered, and forwarded by each interface.
INTERFACE STATISTICS
The Interface Statistics screen provides the MIB-II statistics for each
switched interface, on an interface-by-interface basis.
RMON STATISTICS
The RMON Statistics screen displays all the statistics gathered by the
embedded RMON agent built-in to the 6H122-16.
Firmware Revision: XX.XX.XX
Module Statistics Menu
SWITCH STATISTICS
INTERFACE STATISTICS
RMON STATISTICS
BOOTPROM Revision: XX.XX.XX
6C105 LOCAL MANAGEMENT
Module Type: 6H122-16
Slot Number:
X
RETURN
EXIT
2361_27
Switch Statistics Screen
6H122-16 User’s Guide 5-87
5.26 SWITCH STATISTICS SCREEN
The Switch Statistics screen, Figure 5-35, lists the number of frames
received, transmitted, filtered, and forwarded by each interface, including
backplane interfaces.
To access the Switch Statistics screen from the Module Statistics Menu
screen, use the arrow keys to highlight the SWITCH STATISTICS menu
item and press ENTER. The Switch Statistics screen displays.
Figure 5-35 Switch Statistics Screen
NOTES The Switch Statistics screen will not be available if the
operational mode of the module has been set to SECURE
FAST VLAN. This screen may only be used by modules
configured to operate as 802.1D or 802.1Q switches.
Ports 17 through 20 represent the backplane connections that
the 6H122-16 has with the 6C105 chassis. The module has a
direct connection to every other slot in the chassis.
Firmware Revision: XX.XX.XX
Switch Statistics
BOOTPROM Revision: XX.XX.XX
RETURN
Module Type: 6H122-16
Slot Number:
X
6C105 LOCAL MANAGEMENT
Event Message Line
Port #
1
2
3
4
5
6
7
8
9
10
11
12
13
Frames Rcvd
100
100
100
100
100
100
100
100
100
100
100
100
100
Frames Txmtd
100
100
100
100
100
100
100
100
100
100
100
100
100
Frames Fltrd
0
0
0
0
0
0
0
0
0
0
0
0
0
Frames Frwded
100
100
100
100
100
100
100
100
100
100
100
100
100
EXITCLEAR COUNTERS NEXT
2361_28
Chapter 5: Local Management
5-88 6H122-16 User’s Guide
The Switch Statistics screen displays the following items:
Port # (Read-Only)
Identifies the interface or port number.
Frames Rcvd (Read-Only)
Displays the number of frames received by the interface.
Frames Txmtd (Read-Only)
Displays the number of frames transmitted by the interface.
Frames Fltrd (Read-Only)
Displays the number of frames filtered by the interface.
Frames Frwded (Read-Only)
Displays the number of frames forwarded by the interface.
CLEAR COUNTERS (Command)
This command is used to reset all statistic counters to zero. For details on
how to use this field, refer to Section 5.26.1.
NEXT/PREVIOUS (Navigation Field)
The first time the Switch Statistics screen comes up, there is a NEXT field
that the user can arrow key over and highlight. Pressing the ENTER key
displays the next screen. In the new screen, the navigation field
PREVIOUS will display to allow the user to go back to the first screen.
5.26.1 Using the Clear Counters Command
To reset all the statistics counters to zero, perform the following steps:
1. Use the arrow keys to highlight the CLEAR COUNTERS field.
2. Press ENTER, the counters for the selected port are reset to zero.
Interface Statistics Screen
6H122-16 User’s Guide 5-89
5.27 INTERFACE STATISTICS SCREEN
The Interface Statistics screen is used to gather MIB-II statistics for all of
the 6H122-16 interfaces (ports 1 through 16 and all backplane interfaces).
To access the Interface Statistics screen, use the arrow keys to highlight
the INTERFACE STATISTICS menu item on the Module Statistics
Menu screen and press ENTER. The Interface Statistics screen,
Figure 5-36, displays.
Figure 5-36 Interface Statistics Screen
The following definitions explain each field of the Interface Statistics
screen:
Interface (Read-only)
This field displays the Interface number for which statistics are currently
being displayed. Figure 5-36 shows the Interface field displaying 1. This
represents interface 1 of the module. To view other interface statistics,
refer to Section 5.27.1.
Firmware Revision: XX.XX.XX
Interface Statistics
BOOTPROM Revision: XX.XX.XX
RETURN
Module Type: 6H122-16
Slot Number:
X
2361_29
6C105 LOCAL MANAGEMENT
Event Message Line
Interface: [ nn]
InOctets:
InUnicast:
InNonUnicast:
InDiscards:
InErrors:
InUnknownProtos:
OutOctets:
OutUnicast:
OutNonUnicast:
OutDiscards:
OutErrors:
OutQLen:
Name: Fast Ethernet Frontpanel
7500456
6789
0
0
0
0
0
0
0
0
0
0
CLEAR COUNTERS EXIT
Interface:
nn
Address:
Last Change:
Admin Status:
Oper Status:
MTU:
Speed:
Link Status:
Duplex Mode:
00-00-00-00-00-00
xx days 00:00:00
UP
UP
1514
100000000
LINK
FULL DUPLEX
Chapter 5: Local Management
5-90 6H122-16 User’s Guide
Name (Read-only)
The Name field displays the type of interface for which statistics are
being displayed.
InOctets (Read-only)
This field displays the total number of octets (bytes) that have been
received on the interface. This includes all octets from bad frames, and
framing characters.
InUnicast (Read-only)
The InUnicast field displays the total number of frames that have been
received that were sent to a single address.
InNonUnicast (Read-only)
This field displays the total number of frames that have been received that
were delivered to a broadcast or multicast address.
InDiscards (Read-only)
The InDiscards field displays the total number of inbound frames that
were discarded, even though the frames contained no errors. This field
may increment because the switch needed to free up buffer space, or the
switch was being overutilized.
InErrors (Read-only)
This field displays the total number of inbound frames that have been
discarded because they contained errors. This field represents the total
number of errored frames, regardless of the cause of the error.
InUnknownProtos (Read-only)
The InUnknownProtos field displays the total number of frames that were
discarded because the frames were in an unknown, or unsupported,
format.
OutOctets (Read-only)
This field displays the total number of octets (bytes) that have been
transmitted from the interface.
OutUnicast (Read-only)
The OutUnicast field displays the total number of frames transmitted that
were sent to a single address.
Interface Statistics Screen
6H122-16 User’s Guide 5-91
OutNonUnicast (Read-only)
This field displays the total number of frames transmitted to a broadcast
or multicast address.
OutDiscards (Read-only)
The OutDiscards field displays the total number of outbound frames that
were discarded, even though the frames contained no errors. This field
may increment because the switch needed to free up buffer space, or
because the switch was being overutilized.
OutErrors (Read-only)
This field displays the total number of outbound frames discarded
because they contained errors. This field represents the total number of
errored frames, regardless of the cause of the error.
OutQLen (Read-only)
The OutQLen field displays the length of the frame queue. The field
represents the total number of frames that can be contained in the queue.
Address (Read-only)
This field displays the MAC Address of the interface that is currently
being displayed.
Last Change (Read-only)
This field displays the last time that the interface was reset.
Admin Status (Read-only)
This field displays the current status of the interface. If this field displays
“Testing”, no frames may be passed on this interface.
Oper Status (Read-only)
This field displays the current status of the interface. If this field displays
“Testing”, no frames may be passed on this interface.
MTU (Read-only)
The MTU field displays the maximum frame size (in octets) that a frame
may contain to be received or transmitted from this interface.
Speed (Read-only)
The Speed field displays the theoretical maximum amount of bandwidth
that the interface can support in bits per second.
Chapter 5: Local Management
5-92 6H122-16 User’s Guide
Link Status (Read-only)
This field displays the current link status of the interface. This field will
read either “LINK” or “NO LINK”.
Duplex Mode (Read-only)
This field indicates whether the interface is operating in normal or full
duplex mode. This field will read either “STANDARD” or “FULL
DUPLEX”.
Interface [nn] (Command)
This command is used to enter an interface number for viewing statistics.
For instructions on how to use this command, refer to Section 5.27.1.
CLEAR COUNTERS (Command)
This command is used to reset all statistic counters to zero. For details on
how to use this field, refer to Section 5.27.2.
5.27.1 Displaying Interface Statistics
To display the statistics for any interface, proceed as follows:
1. Use the arrow keys to highlight the Interface [nn] field at the bottom
of the screen.
2. Press the SPACE bar to increment (or press the DEL [delete] key to
decrement) the interface number.
3. Press ENTER (neither the Interface # fields nor the statistics will
change until ENTER is pressed).
5.27.2 Using the Clear Counters Command
To reset all the statistics counters of the selected interface to zero, perform
the following steps:
1. Use the arrow keys to highlight the CLEAR COUNTERS command.
2. Press ENTER, the counters for the selected interface are reset to zero.
RMON Statistics Screen
6H122-16 User’s Guide 5-93
5.28 RMON STATISTICS SCREEN
RMON statistics for each interface, on a interface-by-interface basis, are
viewed through the RMON Statistics screen shown in Figure 5-37.
To access the RMON Statistics screen, use the arrow keys to highlight the
RMON STATISTICS menu item on the Module Statistics Menu screen
and press ENTER. The RMON Statistics screen displays.
Figure 5-37 RMON Statistics Screen
The following definitions explain each field of the RMON Statistics
screen:
RMON Index (Read-only)
This field displays the current Ethernet interface for which statistics are
being shown. The 6H122-16 has an embedded RMON agent that gathers
statistics for each interface on the module.
Firmware Revision: XX.XX.XX
RMON Statistics
BOOTPROM Revision: XX.XX.XX
RETURN
Module Type: 6H122-16
Slot Number: X
RMON Index: XX
Data Source: IfIndex.XX
Drop Events:
Collisions:
Broadcast Pkts:
Multicasts:
CRC Align Errors:
Undersized Pkts:
Oversized Pkts:
Fragments:
Jabbers:
0
0
0
0
0
0
0
0
0
2361_65
6C105 LOCAL MANAGEMENT
Event Message Line
Index: [ XX] CLEAR COUNTERS EXIT
Owner: monitor
Status: valid
Total Packets:
Total Octets:
64 Octets:
65 - 127 Octets:
128 - 255 Octets:
256 - 511 Octets:
512 - 1023 Octets:
1024 - 1518 Octets:
0
0
0
0
0
0
0
0
Chapter 5: Local Management
5-94 6H122-16 User’s Guide
Data Source (Read-only)
This field displays the source of the statistics data that is currently being
displayed on the screen. Figure 5-37 shows that the data source for this
RMON index is Interface XX by displaying the name IfIndex.XX. If the
screen was displaying RMON statistics for Interface 1 (port 1), the name
displayed would be IfIndex.1.
Owner (Read-only)
This field displays the name of the entity that configured this entry.
Status (Read-only)
The Status field displays the current operating status of the displayed
interface. This field will display “valid” or “invalid”.
Drop Events (Read-only)
This field displays the total number of times that the RMON agent was
forced to discard frames due to the lack of available switch resources.
Collisions (Read-only)
This field displays the total number of collisions that have occurred on
this interface.
Broadcast Pkts (Read-only)
The Broadcast Pkts field displays the total number of good frames that
were directed to the broadcast address. The value of this field does not
include multicast frames.
Multicasts (Read-only)
The Multicasts field displays the total number of good frames received
that were directed to a multicast address. The value of this field does not
include frames directed to the broadcast address.
CRC Align Errors (Read-only)
This field displays the number of frames with bad Cyclic Redundancy
Checks (CRC) or misaligned frames received from the network. The CRC
is a 4-byte field in the data frames that ensures that the data received is the
same as the data that was originally sent.
NOTE The Drop Events field does not display the actual number of
frames dropped, it only displays the number of times that the
RMON agent was forced to discard frames.
RMON Statistics Screen
6H122-16 User’s Guide 5-95
Undersized Pkts (Read-only)
The Undersized Pkts field displays the number of frames received whose
size was less than the minimum Ethernet frame size of 64 bytes, not
including preamble, but have a valid CRC.
Oversized Pkts (Read-only)
The Oversized Pkts field displays the number of frames received whose
size exceeded 1518 data bytes, not including preamble, but have a valid
CRC.
Fragments (Read-only)
The total number of undersized frames with a bad CRC.
Jabbers (Read-only)
This field displays the total number of frames that were greater than 1518
bytes and had a bad CRC.
Total Packets (Read-only)
This field displays the total number of frames (including bad frames,
broadcast frames, and multicast frames) received on this interface.
Total Octets (Read-only)
This field displays the total number of octets (bytes) of data, including
those in bad frames, received on this interface.
64 Octets (Read-only)
Displays the total number of frames including bad frames, received that
were 64 bytes in length (excluding framing bits, but including CRC
bytes).
65 - 127 Octets (Read-only)
Displays the total number of frames, including bad frames, received that
were between 65 and 127 bytes in length (excluding framing bits, but
including CRC bytes).
NOTE It is normal for the Fragments field to increment. This is
because the RMON agent increments the field when
undersized frames (frames less than 64 bytes) are detected,
which are normal occurrences due to collisions, and when
noise hits occur.
Chapter 5: Local Management
5-96 6H122-16 User’s Guide
128 - 255 Octets (Read-only)
Displays the total number of frames, including bad frames, received that
were between 128 and 255 bytes in length (excluding framing bits, but
including CRC bytes).
256 - 511 Octets (Read-only)
Displays the total number of frames, including bad frames, received that
were between 256 and 511 bytes in length (excluding framing bits, but
including CRC bytes).
512 - 1023 Octets (Read-only)
Displays the total number of frames, including bad frames, received that
were between 512 and 1023 bytes in length (excluding framing bits, but
including CRC bytes).
1024 - 1518 Octets (Read-only)
Displays the total number of frames, including bad frames, received that
were between 1024 and 1518 bytes in length (excluding framing bits, but
including CRC bytes).
Index [nn] (Command)
This command is used to enter an index number for viewing statistics. For
instructions on how to use this command, refer to Section 5.28.1.
CLEAR COUNTERS (Command)
This command is used to reset all statistic counters to zero. For details on
how to use this field, refer to Section 5.28.2.
RMON Statistics Screen
6H122-16 User’s Guide 5-97
5.28.1 Displaying RMON Statistics
To display the statistics for any index, proceed as follows:
1. Use the arrow keys to highlight the Index [nn] field at the bottom of
the screen.
2. Press the SPACE bar to increment (or press the DEL [delete] key to
decrement) the index number.
3. Press ENTER (neither the RMON Index field nor the statistics will
change until ENTER is pressed).
5.28.2 Using the Clear Counters Command
To reset all the statistics counters of the selected interface to zero, perform
the following steps:
1. Use the arrow keys to highlight the CLEAR COUNTERS field.
2. Press ENTER, the counters for the selected index are reset to zero.
Chapter 5: Local Management
5-98 6H122-16 User’s Guide
5.29 NETWORK TOOLS
The Network Tools function resides on the 6H122-16 and allows the user
to access and manage network devices.
To access the Network Tools screen, use the arrow keys to highlight the
NETWORK TOOLS menu item in the Module Menu screen and press
ENTER. The Network Tools screen displays.
Figure 5-38 Network Tools Help Screen
TIP
Type help at the prompt to list all the commands that are
available for the module in the current operational mode. See
Figure 5-38. A command used incorrectly (wrong syntax), will
prompt a display of the correct usage.
Use lower case when entering commands in Network Tools.
-> help
arp
netstat
show traceroute
defroute
ping reset
bridge
SPECIAL:
done, quit, or exit - Exit from the Network Tools.
For help with a specific command, type 'help <command>'.
->
Commands Available to the User:
Built in Commands:
Welcome to Network Tools
soft_reset telnet link_trap
Network Tools
6H122-16 User’s Guide 5-99
The Network Tools functions are performed using a series of commands.
Entering commands in Network Tools involves typing the command to be
executed at the Network Tools prompt, adding any desired or required
extensions, and pressing ENTER.
There are two categories of commands in the command set.
•Built-in Commands – Allow the user to access and manage network
devices. The commands are arp, bridge, defroute, netstat, ping,
reset, show, traceroute, soft_reset, telnet, and link_trap.
•Special Commands – Allow the user to exit from Network Tools. The
commands are done, exit, and quit.
The commands are presented in the following format:
command:
Syntax: Shows the required command format. It
indicates where arguments, if any, must be
specified.
Description: Briefly describes the command and its uses.
Options: Lists any additional fields in the appropriate
format that may be added to the command.
Example: Shows an example of the command.
NOTE The conventions used in describing the commands in Network
Tools are as follows:
Arguments enclosed by [ ] are required.
Arguments enclosed by < > are optional.
In the following command examples, the information entered by
the user is shown in bold Helvetica font.
To abort the output or interrupt a process, press the CONTROL
key and c key simultaneously, designated as ^C here.
Chapter 5: Local Management
5-100 6H122-16 User’s Guide
5.29.1 Built-in Commands
The built-in commands listed in this section activate functions on the
managed device or devices being accessed through Network Tools.
arp:
Syntax: arp [options]
Description: The arp command provides access to the ARP
(Address Resolution Protocol) cache, enabling
you to view cache data, delete entries, or add a
static route. Super-User access is required to
delete an entry or add a static route.
Each ARP cache entry lists the network
interface that the device is connected to, the
device’s network address or IP address, the
device’s physical address or MAC address, and
the media type of connection to the device.
Media types are displayed as numbers, which
stand for the following states:
1 - Other
2 - Invalid entry (cannot ping device, timed out,
etc.)
3 - Dynamic route entry
4 - Static route entry (not subject to change)
You can specify the arp command without options, or with one of the
following options:
Options: -a Views cache data
-d Deletes an IP address entry. Requires
additional arguments: [Interface Number] [IP
address]
-s Adds a static entry. Requires additional
arguments: [Interface Number] [IP address]
[MAC address]
-f Flushes the ARP cache
Network Tools
6H122-16 User’s Guide 5-101
Example:
bridge:
Syntax: bridge [ENABLE/DISABLE] [IFNUM/ALL]
Description: The bridge command allows each bridge port to
be enabled or disabled at the user’s request,
either one at a time or all at once. Specifying a
single interface number will affect the bridging
status of that interface, while specifying ALL
will affect every interface.
Options: Not Applicable
Example:
-> arp -a
# Interface
# (SonicInt)
# (SonicInt)
# (SonicInt)
# (SonicInt)
Network Address
122.144.40.111
122.144.48.109
122.144.52.68
122.144.21.43
Physical Address
00.00.0e.12.3c.04
00.00.0e.f3.3d.14
00.00.0e.12.3c.04
00.00.0e.03.1d.3c
Media Type
3(dynamic)
3(dynamic)
3(dynamic)
3(dynamic)
-> arp -d 1 122.144.52.68
-> arp -s 1 22.44.2.3 00:00:0e:03:1d:3c
051467
-> arp -f
-> bridge disable all
-> bridge enable 1
051468
-> bridge disable 1
Chapter 5: Local Management
5-102 6H122-16 User’s Guide
defroute:
Syntax: defroute [interface number] [IP address]
defroute <delete>
Description: The defroute command allows the user to view,
set or delete the default IP route to a managed
device through the specified interface.
Options: Not Applicable
Example:
netstat:
Syntax: netstat [option]
Description: The netstat command provides a display of
general network statistics for the managed
device. The netstat command must be used with
one of the two display options.
Options: -i Displays status and capability information for
each interface
-r Displays routing information for each
interface
-> defroute 2 147.152.42.32
# Default route is 147.152.42.32 on interface 2
-> defroute
# Default route is 147.152.42.32 on interface 2
-> defroute delete
# Default route is not currently set.
->
05141-69
Network Tools
6H122-16 User’s Guide 5-103
Example:
ping:
Syntax: ping [IP address]
Description: The ping command generates an outbound ping
request to check the status (alive/not alive) of a
device at a specified IP address.
Options: Not Applicable
Example:
-> netstat -i
Interface + Description
# 1 (ethernet -csmacd)
# 2 (ethernet - csmacd)
# 3 (ethernet - csmacd)
# 4 (ethernet - csmacd)
MTU
1514
1514
1514
1514
MAC Addr
0x00 0x00 0x1d 0x07 0x50 0x0e
0x00 0x00 0x1d 0x07 0x50 0x0f
0x00 0x00 0x1d 0x07 0x50 0x10
0x00 0x00 0x1d 0x07 0x50 0x11
Admin
up
up
up
up
-> netstat -r
051470
Speed
10000000
10000000
10000000
10000000
Oper
up
up
up
up
Destination
# Default Route
# 134.141.0.0
# 134.141.0.0
Next-hop
DirectConnection
DirectConnection
DirectConnection
Interface
1
2
3
-> ping 122.144.40.10
122.144.40.10 is alive
051471
Chapter 5: Local Management
5-104 6H122-16 User’s Guide
reset:
Syntax: reset
Description: The reset command allows a soft reset of the
device. The user will be queried to confirm the
reset command to insure against unwanted
resets.
Options: Not Applicable
Example:
show:
Syntax: show [PROTOCOL] <TABLE>
Description: The show command displays information
concerning various components of the device.
Protocols currently supported are IP, IPX,
DECnet, and AppleTalk. Components of those
protocols that are currently supported are ARP
caches, route tables, FIB tables, server tables,
and interface tables. The number of valid
entries in the table will be displayed at the end
of the table display.
Options: Not Applicable
!
CAUTION
The Network Tools connection to the module will be terminated
upon execution of this command.
-> reset
RESET:Are you *SURE*? ->Y
174245
Network Tools
6H122-16 User’s Guide 5-105
Example:
traceroute:
Syntax: traceroute [IP address]
Description: The traceroute command generates a
TRACEROUTE request to a specified IP
address and provides a display of all next-hop
routers in the path to the device. If the device is
not reached, the command displays all next-hop
routers to the point of failure.
Options: Not Applicable
Example:
-> show Appletalk interfaces
-> show IP ARP
174246
# Interface
# 1
# 2
AdminStatus
enabled
disabled
Framing
ethernet
ethernet
MTU
1500
1500
OperStatus
enabled
disabled
Forwarding
enabled
disabled
# Interface
# 3
# 4
MediaType
3 (dynamic)
3 (dynamic)
PhysicalAddress
00:00:1d:04:40:5d
08:00:20:0e:d8:31
NetworkAddress
123.456.40.1
123.456.40.30
-> traceroute 122.144.11.52
# next-hop[0] : 122.144.60.45
# next-hop[1] : 122.144.8.113
051477
# next-hop[2] : 122.144.61.45
# 122.144.11.52 is alive : 3 hops away.
Chapter 5: Local Management
5-106 6H122-16 User’s Guide
soft_reset:
Syntax: soft_reset
Description: This command restarts the software image,
which restores the user configuration settings
from NVRAM. The user will be queried to
confirm the reset command to ensure against
unwanted resets.
Options: Not Applicable
Example:
telnet:
Syntax: telnet [IP address] <Port #>
Description: The telnet command allows the user to
communicate with another host (that supports
Telnet connections) using the Telnet protocol.
The user must specify the remote host using its
IP address. The [IP address] field is mandatory.
If no Port number is specified, telnet will
attempt to contact the host at the default port.
Options: Not Applicable
Example:
!
CAUTION
The Network Tools connection to the module will be terminated
upon execution of this command.
-> soft_reset
RESET: Are you *SURE*? -> Y
174266
-> telnet 134.141.12.345
Trying 134.141.12.345
Connected to 134.141.12.345
SunOS UNIX (server1)
login:
Network Tools
6H122-16 User’s Guide 5-107
link_trap:
Syntax: link_trap [enable/disable/status] <PORT/all>
Description: The link_trap command allows link traps to be
enabled or disabled when specifying a single
port, or simultaneously when specifying “all”
or no ports. When one or all ports are specified
to enable, disable, or find their status, their
current condition is displayed.
Options: Not Applicable
Example:
5.29.2 Special Commands
done, quit, exit:
Syntax: done
Description: The done command enables the user to exit
from Network Tools and return to the Main
Menu screen.
Options: Not Applicable
Example:
-> link_trap status
Port 1 is ENABLED
Port 3 is ENABLED Port 2 is DISABLED
Port 4 is ENABLED
-> link_trap disable 2
-> link_trap disable all
-> link_trap status 3
LINK TRAP STATUS:
Link traps have been DISABLED on port 2
Link traps have been DISABLED on all ports (1-16)
Link traps are ENABLED on port 3
-> done
Chapter 5: Local Management
5-108 6H122-16 User’s Guide
6H122-16 User’s Guide A-1
APPENDIX A
SPECIFICATIONS
This appendix provides operating specifications for the Cabletron
Systems 6H122-16 Interface Modules. Cabletron Systems reserves the
right to change these specifications at any time without notice.
A.1 DEVICE SPECIFICATIONS
A.2 PHYSICAL PROPERTIES
A.3 ENVIRONMENTAL REQUIREMENTS
Processor: Intel i960 RISC processor control
Dynamic Random Access
Memory (DRAM): 16 MB
FLASH Memory: 4 MB
Dimensions: 43.87 H x 5.71 W x 27.88 D (cm)
18.28 H x 2.38 W x 11.62 D (in)
Weight (Unit): 2.72 kg (6 lb)
MTBF (Predicted): 200,000 hours
Operating Temperature: 5°C to 40°C (41°F to 104°F)
Storage Temperature: -30°C to 73°C (-22°F to 164°F)
Operating Relative Humidity: 5% to 90% (non-condensing)
Appendix A: Specifications
A-2 6H122-16 User’s Guide
A.4 INPUT/OUTPUT PORTS
6H122-16 Specifications
A.5 COM PORT PINOUT ASSIGNMENTS
The COM port is a serial communications port that supports Local
Management or connection to a UPS.
The COM port has the following pin assignments:
A.6 REGULATORY COMPLIANCE
Safety
The 6H122-16 meets the safety requirements of UL 1950, CSA C22.2
No. 950 and EN 60950, IEC 950, and 73/23/EEC.
Electromagnetic Compatibility (EMC)
The 6H122-16 meets the requirements of FCC Part 15, EN 50082-1,
EN 55022, VCCI V-3, CSA C108.8, AS/NZS 3548 and 89/336/EEC.
Ports 1 through 16 Fast Ethernet 10/100 Mbps
(100BASE-TX compliant) with RJ45
type connectors.
Table A-1 COM Port Pin Assignments
Pin Signal Name Input/Output
1 Transmit Data (XMT) Output
2 Data Carrier Detect (DCD) Output
3 Data Set Ready (DSR) Input
4 Receive Data (RCV) Input
5 Signal Ground (GND) NA
6 Data Terminal Ready (DTR) Output
7 Request to Send (RTS) Input
8 Clear to Send (CTS) NA
6H122-16 User’s Guide B-1
APPENDIX B
MODE SWITCH BANK SETTINGS
This appendix covers the following items:
•Required tools (Section B.1)
•Locations, functions, and settings for the mode switches (Section B.2)
B.1 REQUIRED TOOLS
You need the following tools to perform the procedures provided in this
appendix:
•Antistatic wrist strap (provided with 6C105 chassis)
B.2 SETTING THE MODE SWITCH
These switches are set at the factory and do not need to be changed unless
you intend to perform the following:
•Force download a new image file from a BootP server.
•Clear NVRAM and restore all user-entered parameters such as the IP
address and Subnet Masks to the 6H122-16 “Default” configuration
settings.
•Clear user-entered passwords stored in NVRAM and restore the
default passwords.
!
CAUTION
The 6H122-16 is sensitive to static discharges. Use an
antistatic wrist strap and observe all static precautions during
this procedure. Failure to do so could damage the 6H122-16.
Appendix B: Mode Switch Bank Settings
B-2 6H122-16 User’s Guide
Figure B-1 shows the location of the mode switches and the switch
settings for normal operation.
Figure B-1 6H122-16 Mode Switch Location/Component Layout
Switch definitions and positions are as follows:
•Switches 1 through 4 – For Cabletron Systems use only.
•Switch 5 – COM Port Autobaud. The default (OFF) position enables
Autobaud sensing on the COM port for Local Management sessions.
Changing the switch to the ON position disables Autobaud sensing and
sets the COM port to 9600 baud for Local Management sessions.
•Switch 6 – Forced BootP. Changing the position of this switch (i.e.,
moving the switch from one position to the other) clears download
information from NVRAM and forces the 6H122-16 to download a
new image file from a BootP server after power to the chassis is
restored.
NOTE After changing the position of switch 6, DO NOT reapply power
to the chassis until there is a station acting as a BootP server,
which contains the image file.
Flash
DRAM
MODE SWITCH
1
2
3
4
5
6
7
8
OFF ON
2361_34
Setting the Mode Switch
6H122-16 User’s Guide B-3
•After changing the position of switch 6 and restarting the module, the
6H122-16 requests a new image download until they either receive a
new image or the RESET button on the front panel is pressed. When
the RESET button is pressed, the 6H122-16 continues trying to contact
a BootP server, but will time out in approximately one minute. If the
module times out, the image is downloaded from its FLASH memory.
•Switch 7 – Clear NVRAM. Changing the position of this switch resets
NVRAM on the next power up. ALL user entered parameters, such as
IP addresses, subnet masks, SNMP traps, and switching functions are
restored to their factory default settings.
•Switch 8 – Reset Password/Community Strings. Changing the position
of this switch clears only the user-entered passwords stored in
NVRAM, and restores the default passwords. Once the 6H122-16
resets, the passwords can either be reentered or the default passwords
(Public and ENTER) may be used.
NOTE Do not change the position of switch 8 unless it is necessary to
reset the module super-user configured passwords to their
factory default settings.
Appendix B: Mode Switch Bank Settings
B-4 6H122-16 User’s Guide
6H122-16 User’s Guide Index-1
INDEX
Numerics
10BASE-T
requirements 2-2
802.1Q VLAN Configuration 5-16,
5-72
A
Access policy 5-25, 5-58
B
Broadcast Suppression screen 5-82,
5-84
C
Cable specifications
100BASE-T network 2-2
100BASE-TX network 2-2
Chassis Configuration screen
802.1Q VLAN Configuration 5-16,
5-72
chassis date 5-17
Chassis Environmental screen 5-15
chassis time 5-17
Chassis Uptime 5-18
IP address 5-16
Operational Mode 5-18
Port Redirect Function 5-15, 5-72
screen lock-out time 5-17, 5-21
screen refresh time 5-17, 5-21
subnet mask 5-17
Chassis date 5-17
Chassis Environmental screen 5-15,
5-29
Chassis Menu screen 5-14
Chassis time 5-17
Chassis Uptime 5-18
Clear NVRAM 5-43
Clearing NVRAM 5-56
COM port 5-55
pin assignments A-2
Connecting to the network 3-5
Current switch utilization 5-74
D
Default gateway 5-41, 5-46
Device Menu screen 5-36
Displaying statistics 5-92, 5-97
Download File Name 5-76
Download Method 5-75
Download Server IP 5-76
E
Environmental requirements A-1
Ethernet Interface screen
advertised ability 5-68
current operational mode 5-67
desired operational mode 5-67
link status 5-67
port type 5-67
setting the Operational Mode 5-68
F
Flash Download screen 5-74, 5-75,
5-76
G
General Configuration screen 5-40
Clear NVRAM 5-43
COM port application 5-43
COM port configuration 5-53
default gateway 5-41, 5-46
IP address 5-41, 5-44
IP Fragmentation 5-44, 5-57
MAC address 5-40
Management Mode 5-42, 5-52
module date 5-41
module time 5-41, 5-47, 5-48
Module Uptime 5-42
Operational Mode 5-42, 5-50
screen lock-out time 5-42, 5-49
Index
Index-2 6H122-16 User’s Guide
screen refresh time 5-41, 5-49
subnet mask 5-19, 5-41, 5-45
TFTP Gateway IP Addr 5-41, 5-47
H
Help 1-9
related manuals 1-10
I
Interface Statistics screen 5-92
IP address 5-16, 5-41, 5-44
IP Fragmentation 5-44, 5-57
K
Keyboard conventions 5-2
L
LANVIEW LEDs 4-1
Last Image File Name 5-76
Last Image Server IP 5-76
M
Management Mode 5-42, 5-52
Module Configuration screen 5-37
Module date 5-41
Module Menu screen 5-37
Module Configuration 5-36
Module Operational Mode 5-42, 5-50
Module Selection screen 5-34
Module Specific Configuration Menu
screen
Broadcast Suppression 5-72
Flash Download 5-72
System Resources 5-71
Module Specific Configuration menu
screen 5-70
Module Statistics 5-37
Module Statistics Menu screen 5-85
Interface statistics 5-86
RMON statistics 5-86
Switch statistics 5-86
Module time 5-41
Module Uptime 5-42
N
Navigating Local Management 5-9
Network 5-98
Network Tools 5-37, 5-98
Network Tools Commands
arp 5-100
bridge 5-101
defroute 5-101, 5-102
done 5-107
link_trap 5-107
netstat 5-102
ping 5-103
reset 5-104
show 5-104
soft_reset 5-105
telnet 5-106
traceroute 5-105, 5-106
O
Operational Mode 5-18
P
Password screen 5-8
Peak switch utilization 5-74
Physical properties A-1
Port 5-53
Port Redirect Function 5-15, 5-30,
5-72
R
Reboot after Download 5-76
RESET button 4-7
RMON Statistics screen 5-93, 5-97
S
Safety A-2
Safety information
laser iv
Screen lock-out time 5-17, 5-21,
5-42, 5-49
Screen refresh time 5-21, 5-49
Screens
Broadcast Suppression screen 5-82
Index
6H122-16 User’s Guide Index-3
Chassis Environmental screen 5-29
Chassis Menu screen 5-14
Device Menu screen 5-36
Flash Download screen 5-74
General Configuration screen 5-40
Interface Statistics screen 5-89
Module Configuration screen 5-37
Module Selection screen 5-34
Module Specific Configuration
menu screen 5-70
Module Statistics Menu
screen 5-85
Password screen 5-8
Port Redirect Function 5-30
Port Redirect Function screen 5-79
RMON Statistics screen 5-93
Setting community names 5-25
SNMP Community Names
screen 5-24, 5-57
SNMP Traps screen 5-26, 5-60
Switch Configuration screen 5-62
Switch Statistics screen 5-87
System Resources screen 5-72
Setting community names 5-25
Setting the reset peak switch 5-84
Setting the threshold 5-84
SmartTrunk
introduction to 1-5
SmartTrunk, introduction to 1-5
SNMP Community Names
screen 5-24, 5-57
access policy 5-25, 5-58
community name 5-25, 5-58
SNMP Traps screen 5-26, 5-60
enable traps 5-27
trap community name 5-27
trap destination 5-27
trap table configuration 5-28, 5-61
Spanning Tree Algorithm 5-63
Specifications A-1
Standards compatibility 1-7
Subnet mask 5-17, 5-19, 5-41, 5-45
Switch address 5-63
Switch Configuration screen 5-62
Age Time 5-63
MAC address 5-63
Setting the Age Time 5-65
Setting the port status 5-65
Setting the STA 5-64
State 5-63
Status 5-64
Switch address 5-63
type of STA 5-63
Switch Statistics screen 5-87
System Resources screen
current switch utilization 5-74
DRAM installed 5-73
Flash memory installed 5-73
NVRAM installed 5-73
peak switch utilization 5-74
reset peak switch utilization 5-74
T
TFTP Gateway IP Addr 5-41, 5-47,
5-76
Trap table configuration 5-28, 5-61
Traps
enable 5-27
Troubleshooting 4-1
checklist 4-5
U
Uninterruptible Power Supply 5-6
Unpacking 3-1
Index
Index-4 6H122-16 User’s Guide
