Cadi Scientific SMN900 SmartNode User Manual
Cadi Scientific Pte. Ltd. SmartNode Users Manual
Users Manual

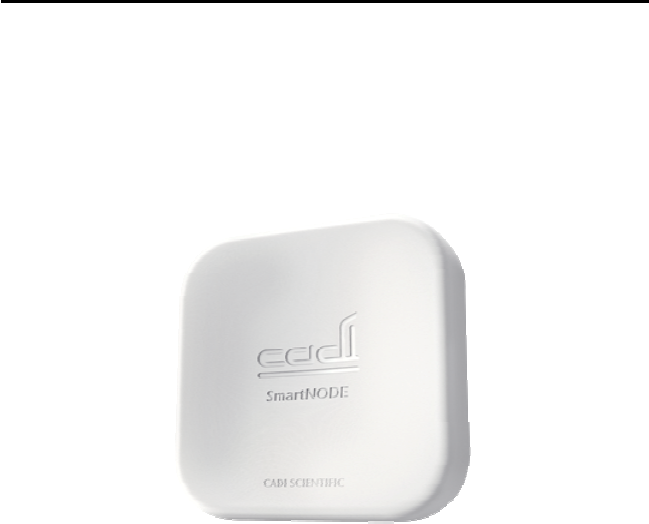

SMN-800/900 SmartNODETM
RFID Receiver
User Guide
Cadi Scientific Pte Ltd
2
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired
operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
COPYRIGHT
Specifications are subject to change without notice. Copyright © 2003 Cadi Scientific Pte Ltd.
All rights reserved.
Cadi Scientific Pte Ltd
1003 Bukit Merah Central
#04-40
Singapore 159836
Singapore
http://www.cadi.com.sg
Cadi Scientific Pte Ltd
3
Introduction

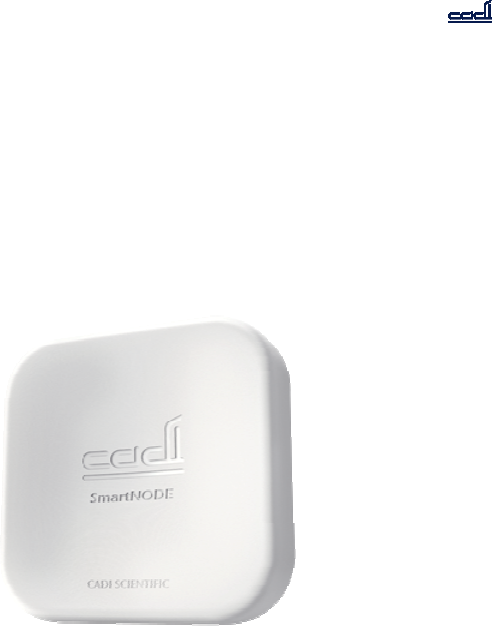

The SMN-800/900 SmartNODETM RFID Receiver is an integral component of the
SmartSense Wireless Vital Signs and Location Tracking System. The system is
designed for wireless and automated measurement and recording of patient vital
signs and for location tracking of patients and high-value assets.
The SMN-800/900 SmartNODETM RFID Receiver is a LAN-enabled receiver for
receiving data transmitted by the SmartSenseTM series of wireless sensors and
monitors. The receiver uploads data received from the sensors to the
SmartSenseTM database via its built in Ethernet LAN interface.
In a typical installation, the receivers are to be installed at strategic locations in the
hospital in a manner to meet the specific coverage requirement of the application.
The receivers being Ethernet LAN capable lend themselves well to deployment
using standard Ethernet LAN equipment and infrastructure.
Cadi Scientific Pte Ltd
4

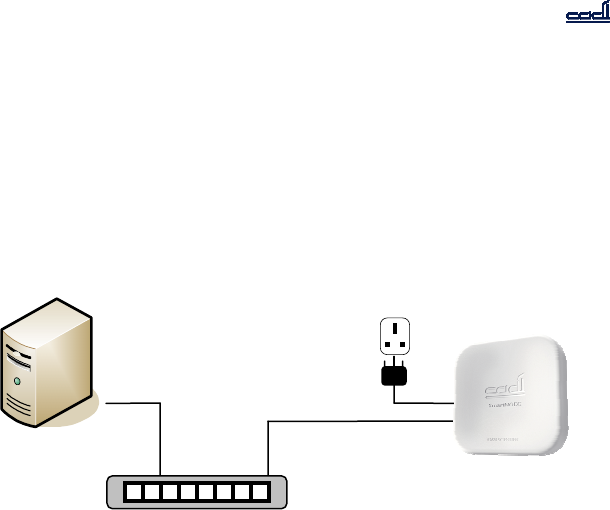

Typical System Setup
The following diagram shows how SMN-800/900 is deployed in a typical
SmartSense System configuration.
Network Switch
AC Outlet
Server
Power
Ethernet
Ethernet
Cadi Scientific Pte Ltd
5
Specifications
TECHNICAL DATA
Interfaces
Ethernet LAN 10 Base-T
RF
RF Frequency US (SMN-9xx): 919.8MHz or 925MHz
Europe (SMN-8xx): 868.4MHz
Input connector US (SMN-9xx): RP-SMA
Europe (SMN-8xx): SMA
Input impedance 50ohm
Power
Power source 5-6VDC
Current consumption 250mA (typical)
Environment
Operating temperature range 10 – 50oC
Physical
Dimension 140 x 140 x 35mm
Weight 300g
Compliance
Certification CE, FCC
RF Compliance ETSI EN 300 220
EMC Compliance ETSI EN 301 489
